2. Presentation Outline
Understanding Software Interface and tools
Components of Arc GIS (Arc Desktop) Version 10.0:
Arc Map
Arc Catalog
Arc Info
Explore data IN GIS Environment:
Raster and Vector data and their attributes

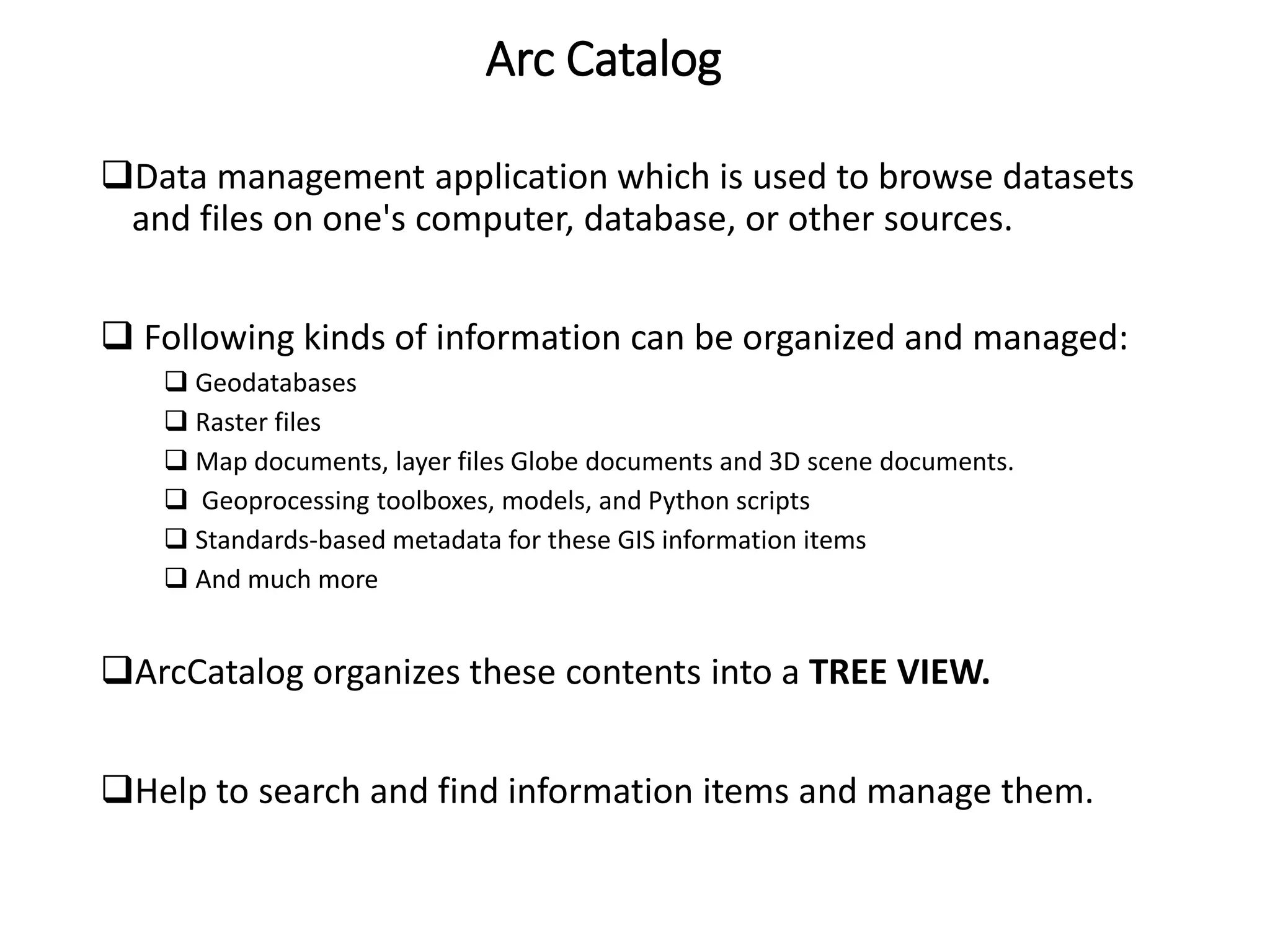

3. Arc Catalog
Data management application which is used to browse datasets
and files on one's computer, database, or other sources.
Following kinds of information can be organized and managed:
Geodatabases
Raster files
Map documents, layer files Globe documents and 3D scene documents.
Geoprocessing toolboxes, models, and Python scripts
Standards-based metadata for these GIS information items
And much more
ArcCatalog organizes these contents into a TREE VIEW.
Help to search and find information items and manage them.

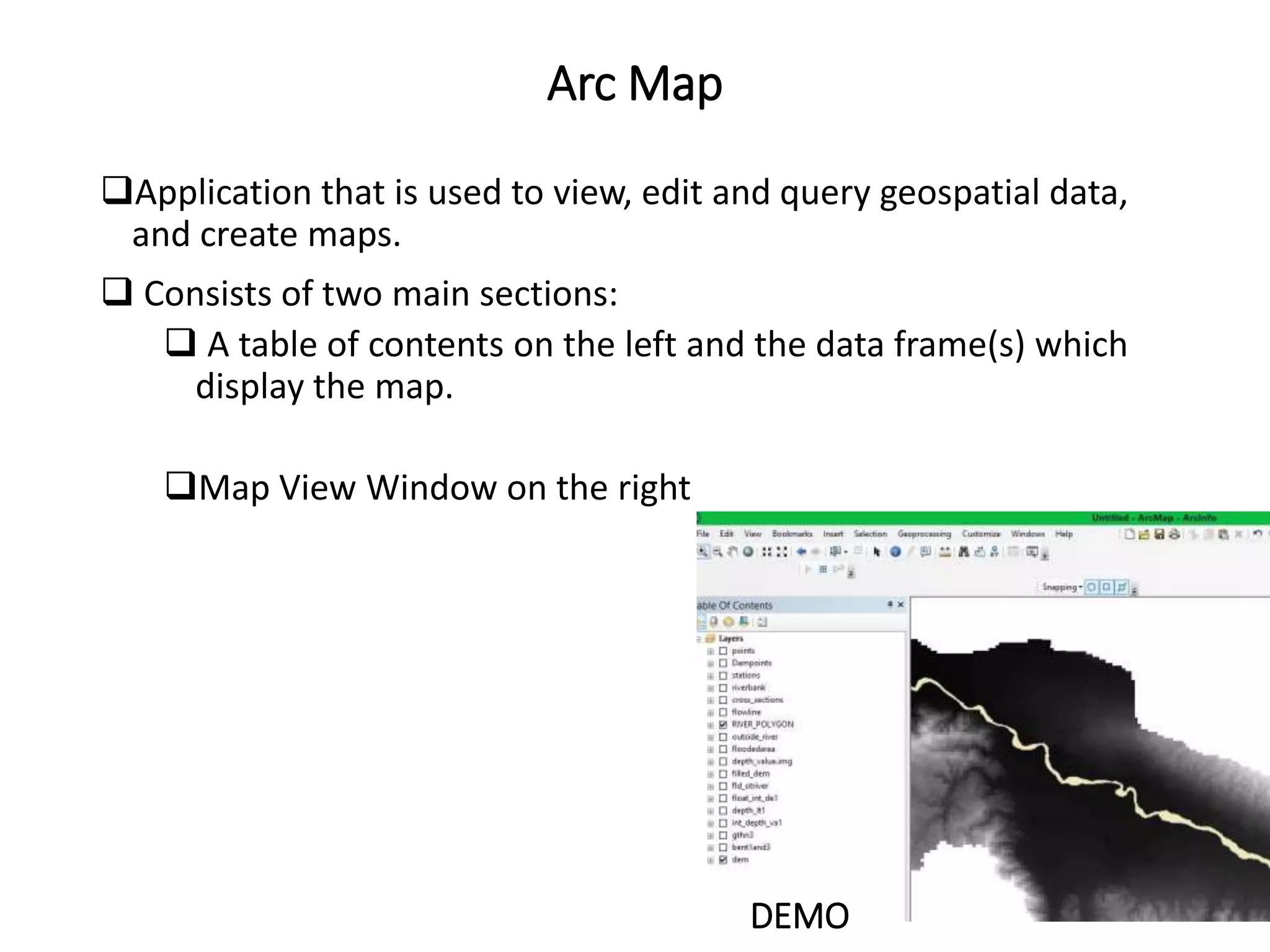

5. Arc Map
Application that is used to view, edit and query geospatial data,
and create maps.
Consists of two main sections:
A table of contents on the left and the data frame(s) which
display the map.
Map View Window on the right

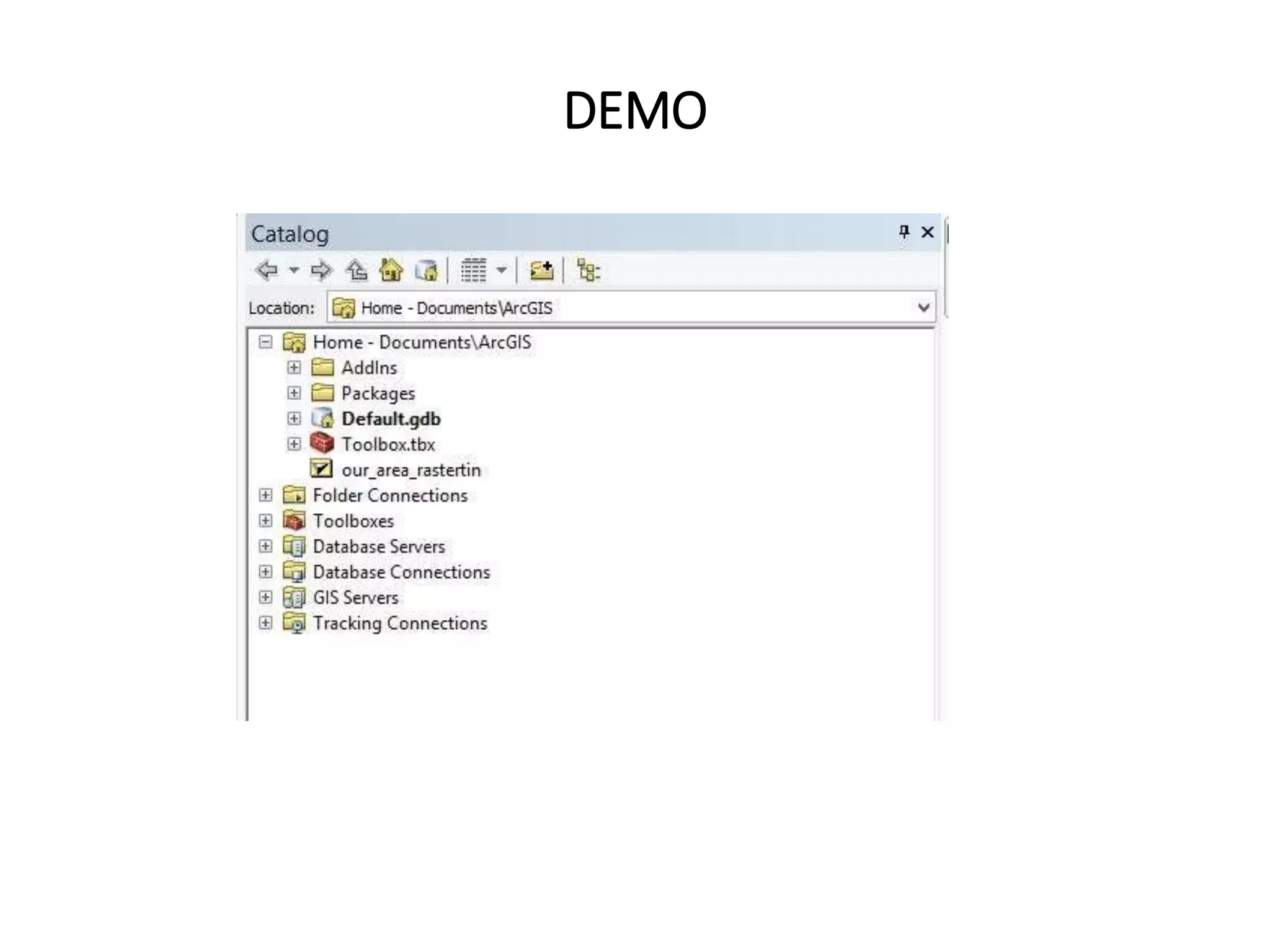

DEMO

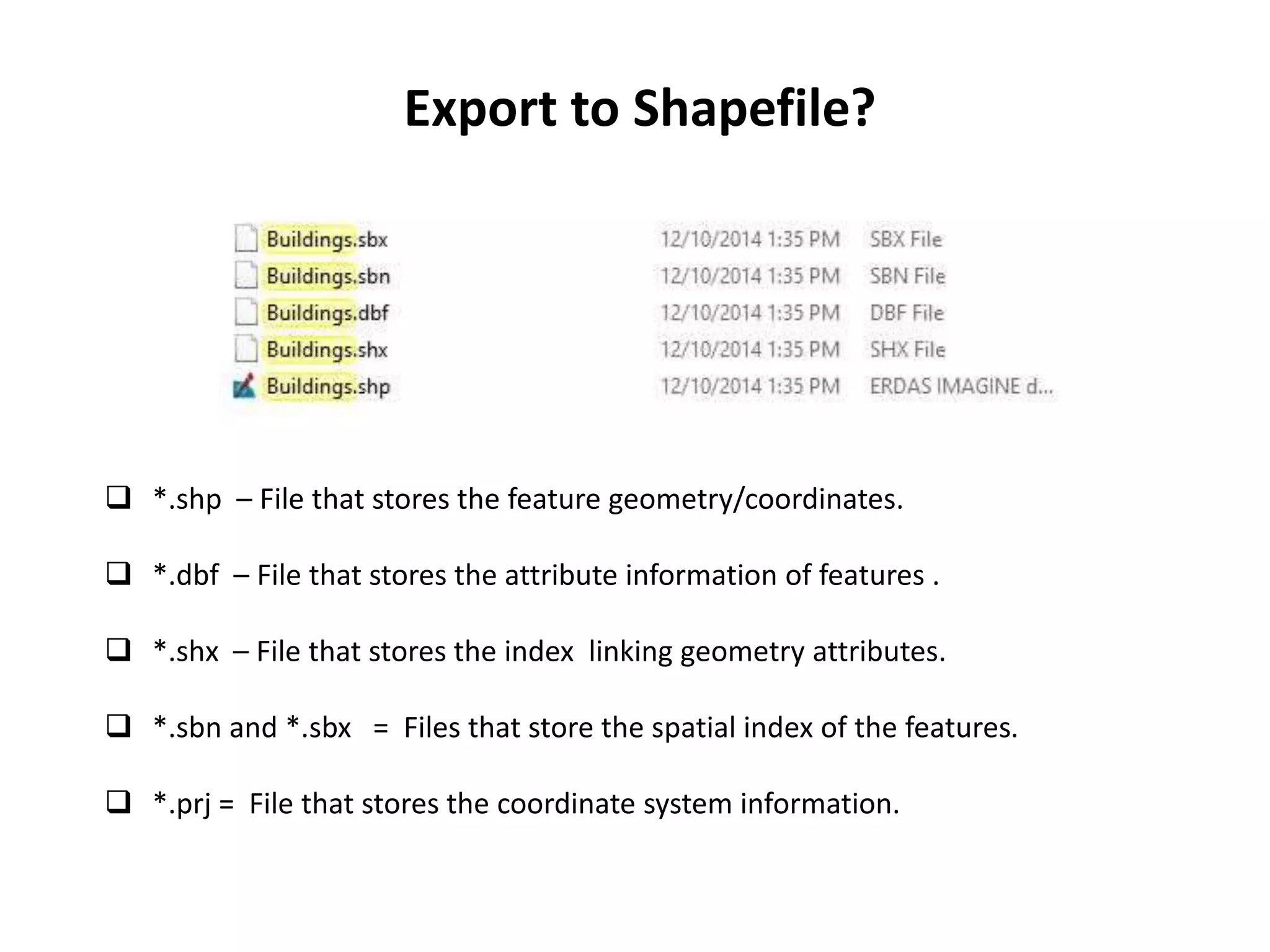

7. Export to Shapefile?
*.shp – File that stores the feature geometry/coordinates.
*.dbf – File that stores the attribute information of features .
*.shx – File that stores the index linking geometry attributes.
*.sbn and *.sbx = Files that store the spatial index of the features.
*.prj = File that stores the coordinate system information.
8. Arc Toolbox
Contains Data conversion, geoprocessing and analysis tools, along
with many other tools.
Batch processing (for frequently repeated tasks) is also possible
with ArcToolbox.
9. Arc Globe
ArcGlobe literally presents a globe of the earth over which users
can navigate easily in three dimensions.

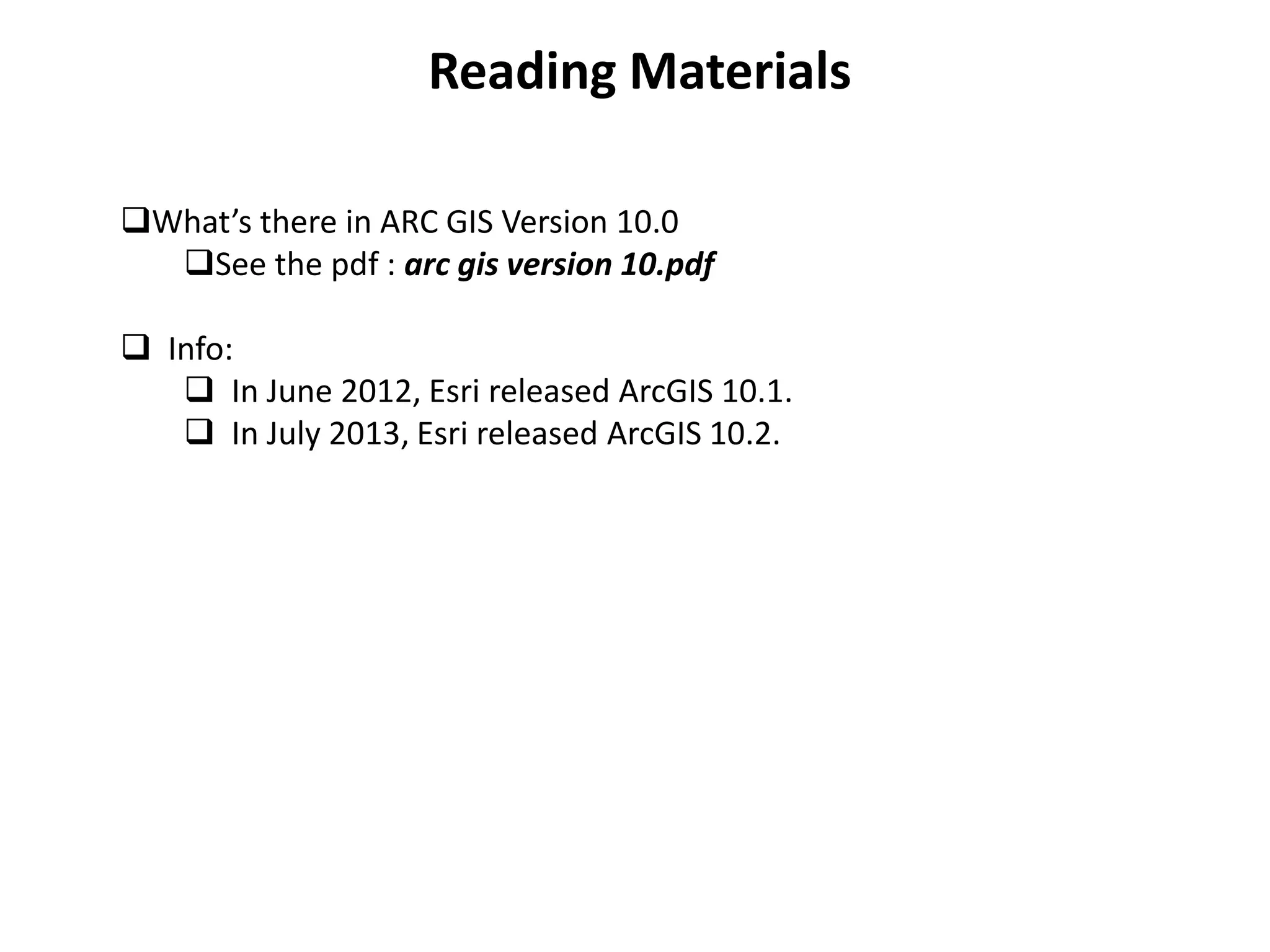

10. Reading Materials
What’s there in ARC GIS Version 10.0
See the pdf : arc gis version 10.pdf
Info:
In June 2012, Esri released ArcGIS 10.1.
In July 2013, Esri released ArcGIS 10.2.

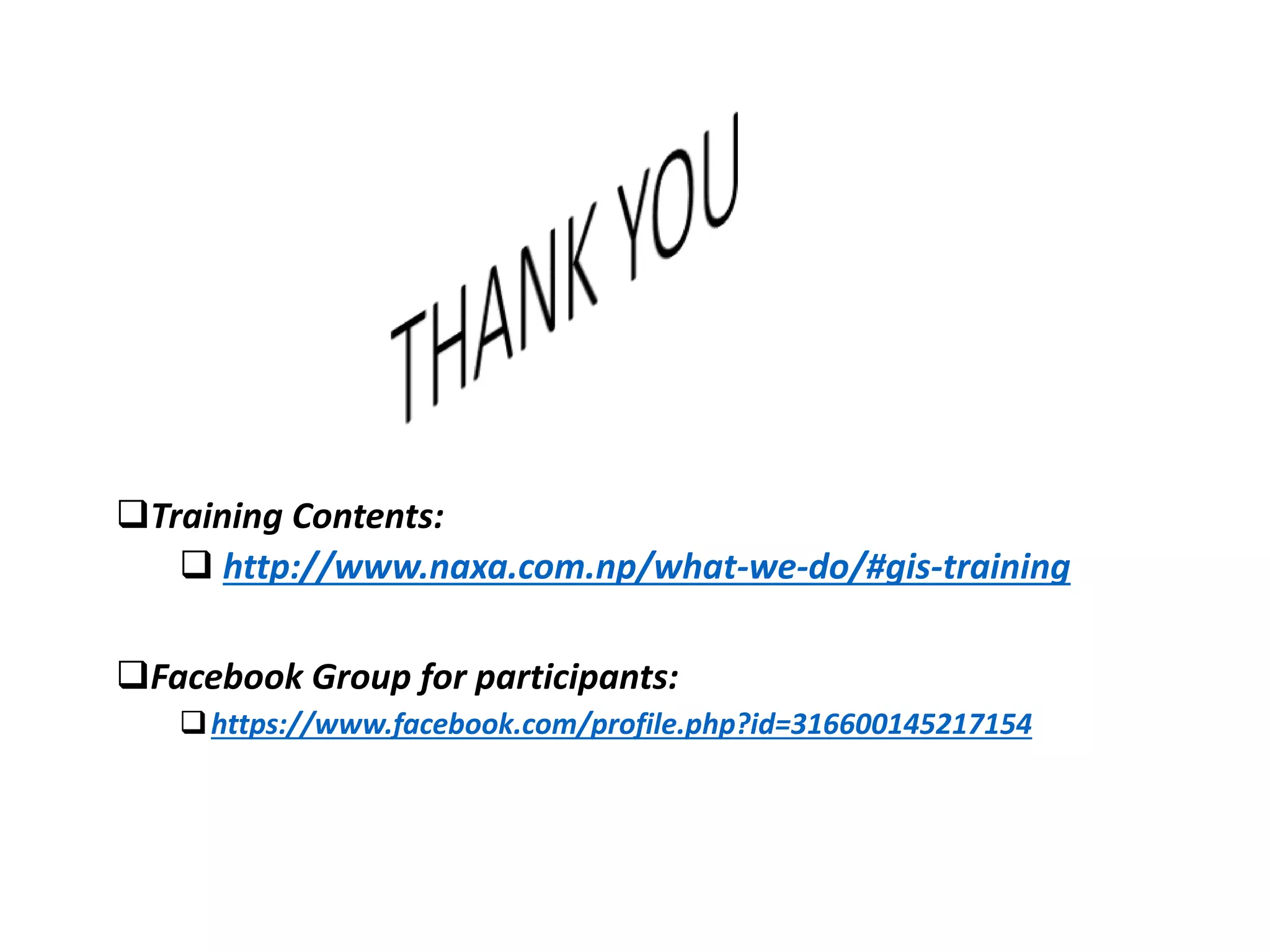

11. Training Contents:
