Seminar on
COMPONENTS OF GIS
(Geographic Information System)

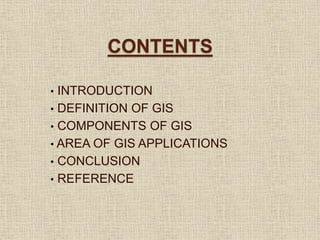

CONTENTS
• INTRODUCTION
• DEFINITION OF GIS
• COMPONENTS OF GIS
• AREA OF GIS APPLICATIONS
• CONCLUSION
• REFERENCE
INTRODUCTION

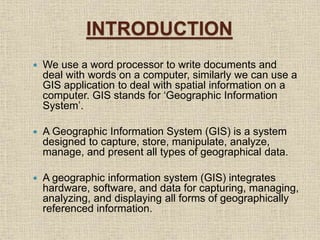

 We use a word processor to write documents and
deal with words on a computer, similarly we can use a
GIS application to deal with spatial information on a
computer. GIS stands for ‘Geographic Information
System’.
 A Geographic Information System (GIS) is a system
designed to capture, store, manipulate, analyze,
manage, and present all types of geographical data.
 A geographic information system (GIS) integrates
hardware, software, and data for capturing, managing,
analyzing, and displaying all forms of geographically
referenced information.

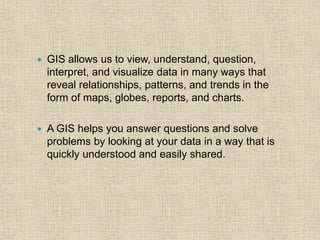

 GIS allows us to view, understand, question,
interpret, and visualize data in many ways that
reveal relationships, patterns, and trends in the
form of maps, globes, reports, and charts.
 A GIS helps you answer questions and solve
problems by looking at your data in a way that is
quickly understood and easily shared.
Components of GIS

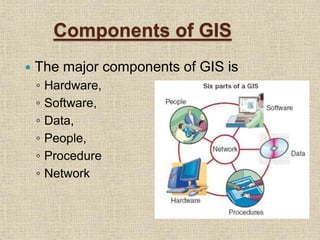

 The major components of GIS is
◦ Hardware,
◦ Software,
◦ Data,
◦ People,
◦ Procedure
◦ Network
Hardware
 The computer or Central Processing Unit is the
general hardware component of the GIS. It is
attached to a disk drive storage unit, used for
storing data and program.
 Devices like digitizer, scanner are used for
converting the data, which is available in the
form of maps and documents, into digital form
and send them to computer.
 Display device or a plotter is used which
presents the result of the data processing.

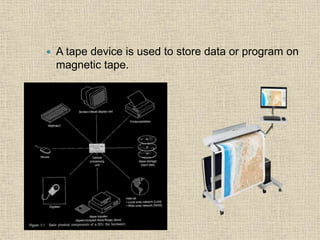

 A tape device is used to store data or program on
magnetic tape.
Software

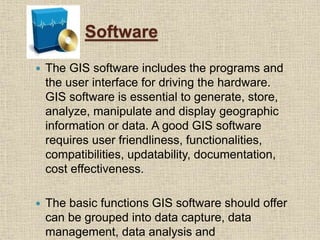

 The GIS software includes the programs and
the user interface for driving the hardware.
GIS software is essential to generate, store,
analyze, manipulate and display geographic
information or data. A good GIS software
requires user friendliness, functionalities,
compatibilities, updatability, documentation,
cost effectiveness.
 The basic functions GIS software should offer
can be grouped into data capture, data
management, data analysis and

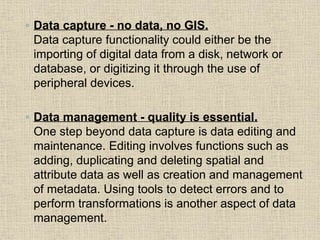

◦ Data capture - no data, no GIS.
Data capture functionality could either be the
importing of digital data from a disk, network or
database, or digitizing it through the use of
peripheral devices.
◦ Data management - quality is essential.
One step beyond data capture is data editing and
maintenance. Editing involves functions such as
adding, duplicating and deleting spatial and
attribute data as well as creation and management
of metadata. Using tools to detect errors and to
perform transformations is another aspect of data
management.

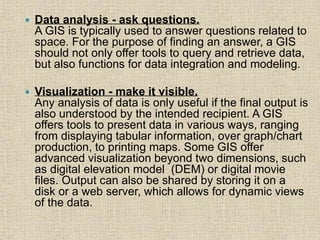

 Data analysis - ask questions.
A GIS is typically used to answer questions related to
space. For the purpose of finding an answer, a GIS
should not only offer tools to query and retrieve data,
but also functions for data integration and modeling.
 Visualization - make it visible.
Any analysis of data is only useful if the final output is
also understood by the intended recipient. A GIS
offers tools to present data in various ways, ranging
from displaying tabular information, over graph/chart
production, to printing maps. Some GIS offer
advanced visualization beyond two dimensions, such
as digital elevation model (DEM) or digital movie
files. Output can also be shared by storing it on a
disk or a web server, which allows for dynamic views
of the data.
 Aside from these basic functions, a GIS should also offer
ways for customizing and creating new tools and
applications according to your needs. Depending on the
software, this can either be done through well known
programming or scripting languages such as Visual Basic
or Python, or through a programming language
specifically provided by the application.
 The following is a list of GIS software producers and
their main products.
◦ Environmental Systems Research Institute ( ESRI ): Arc
Info, Arc View. Arc GIS.
◦ Autodesk: AutoCAD Map
 International Institute for Aerospace Survey and Earth
Sciences: ILWIS
 MapInfo Corporation: MapInfo.
 PCI Geomatics: PA MAP
 Telogis : Geobase

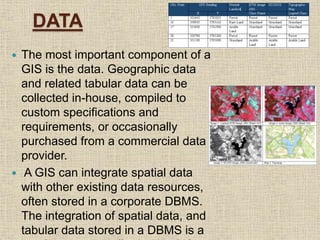

DATA
 The most important component of a
GIS is the data. Geographic data
and related tabular data can be
collected in-house, compiled to
custom specifications and
requirements, or occasionally
purchased from a commercial data
provider.
 A GIS can integrate spatial data
with other existing data resources,
often stored in a corporate DBMS.
The integration of spatial data, and
tabular data stored in a DBMS is a

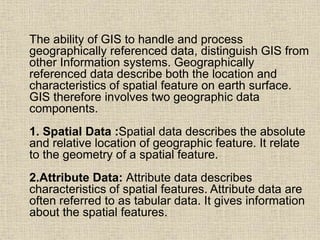

The ability of GIS to handle and process
geographically referenced data, distinguish GIS from
other Information systems. Geographically
referenced data describe both the location and
characteristics of spatial feature on earth surface.
GIS therefore involves two geographic data
components.
1. Spatial Data :Spatial data describes the absolute
and relative location of geographic feature. It relate
to the geometry of a spatial feature.
2.Attribute Data: Attribute data describes
characteristics of spatial features. Attribute data are
often referred to as tabular data. It gives information
about the spatial features.
Spatial Data
 RASTER data type consists of
rows and columns of cells, with
each cell storing a single
value.
The vector data model uses points and their x-, y- coordinates
to construct spatial features of points, lines and areas. Vector
based features are treated as discrete objects over the space.
 Points Entities: - Points defines discrete location of
geographic feature too small to be depicted as lines or areas,
such as well location, telephone pole etc. Point can also
represent location that have no area such mountain peak.
 Line Entities: - Line entities can be defined as all features built
up of straight-line segments made up of two or more
coordinates. The simplest line required the storage of a begin
point and an end point (two XY coordinate points) plus a
possible records indicating the display symbol to be used.
 Area Entities: - Areas of polygons can be represented in
various ways in a vector database. The simplest way to
represents a polygon is an extensions of the simple chain, i.e.
to represents each polygon as a set of XY coordinates on the
boundary. Areas are closed figures that represent shape and
location of homogeneous feature such as states, soil types,
ATTRIBUTE DATA
 Georelational data model links spatial data
and attribute data by id.
 Attribute data stored in feature attribute table
which contains the id.
 Row is called a record, column is called a
field or an item.

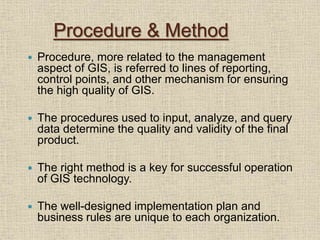

Procedure & Method
 Procedure, more related to the management
aspect of GIS, is referred to lines of reporting,
control points, and other mechanism for ensuring
the high quality of GIS.
 The procedures used to input, analyze, and query
data determine the quality and validity of the final
product.
 The right method is a key for successful operation
of GIS technology.
 The well-designed implementation plan and
business rules are unique to each organization.
Topological Relationships between Spatial Objects

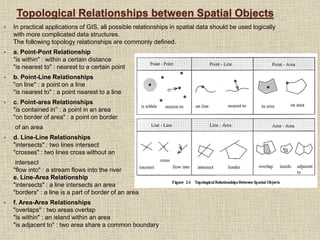

 In practical applications of GIS, all possible relationships in spatial data should be used logically
with more complicated data structures.
The following topology relationships are commonly defined.
 a. Point-Pont Relationship
"is within" : within a certain distance
"is nearest to" : nearest to a certain point
 b. Point-Line Relationships
"on line" : a point on a line
"is nearest to" : a point nearest to a line
 c. Point-area Relationships
"is contained in’’ : a point in an area
"on border of area" : a point on border
of an area
 d. Line-Line Relationships
"intersects" : two lines intersect
"crosses" : two lines cross without an
intersect
"flow into" : a stream flows into the river
e. Line-Area Relationship
"intersects" : a line intersects an area
"borders" : a line is a part of border of an area
 f. Area-Area Relationships
"overlaps" : two areas overlap
"is within" : an island within an area
"is adjacent to" : two area share a common boundary
Database Models

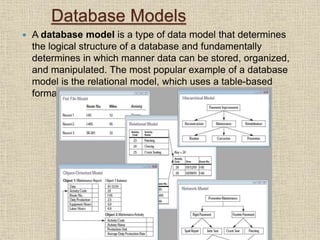

 A database model is a type of data model that determines
the logical structure of a database and fundamentally
determines in which manner data can be stored, organized,
and manipulated. The most popular example of a database
model is the relational model, which uses a table-based
format.

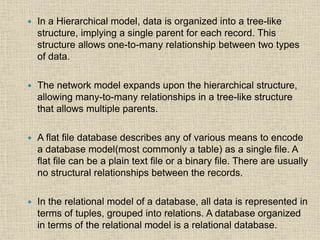

 In a Hierarchical model, data is organized into a tree-like
structure, implying a single parent for each record. This
structure allows one-to-many relationship between two types
of data.
 The network model expands upon the hierarchical structure,
allowing many-to-many relationships in a tree-like structure
that allows multiple parents.
 A flat file database describes any of various means to encode
a database model(most commonly a table) as a single file. A
flat file can be a plain text file or a binary file. There are usually
no structural relationships between the records.
 In the relational model of a database, all data is represented in
terms of tuples, grouped into relations. A database organized
in terms of the relational model is a relational database.

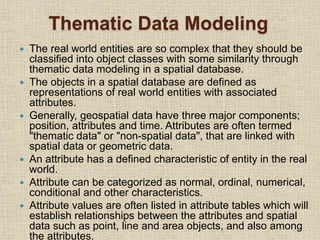

Thematic Data Modeling
 The real world entities are so complex that they should be
classified into object classes with some similarity through
thematic data modeling in a spatial database.
 The objects in a spatial database are defined as
representations of real world entities with associated
attributes.
 Generally, geospatial data have three major components;
position, attributes and time. Attributes are often termed
"thematic data" or "non-spatial data", that are linked with
spatial data or geometric data.
 An attribute has a defined characteristic of entity in the real
world.
 Attribute can be categorized as normal, ordinal, numerical,
conditional and other characteristics.
 Attribute values are often listed in attribute tables which will
establish relationships between the attributes and spatial
data such as point, line and area objects, and also among
the attributes.
Spatial objects grouped in layers
Data Structure for Continuous Surface Model
 In GIS, continuous surface such as terrain surface, meteorological
observation (rain fall, temperature, pressure etc.) population density
and so on should be modeled. As sampling points are observed at
discrete interval, a surface model to present the three dimensional
shape ; z = f (x, y) should be built to allow the interpolation of value at
arbitrary points of interest.
Usually the following four types of sampling point structure are modeled
into DEM.
 Grid at regular intervals :
Bi-linear surface with four points or bi-cubic
surface with sixteen points is commonly used
 Random points :
Triangulated irregular network (TIN) is commonly
used. Interpolation by weighted polynomials is
also used.
Data Structure for Continuous Surface Model

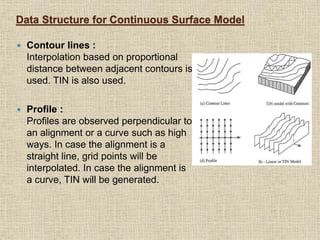

 Contour lines :
Interpolation based on proportional
distance between adjacent contours is
used. TIN is also used.
 Profile :
Profiles are observed perpendicular to
an alignment or a curve such as high
ways. In case the alignment is a
straight line, grid points will be
interpolated. In case the alignment is
a curve, TIN will be generated.
People
 GIS technology is of limited value without the
people who manage the system and develop
plans for applying it to real world problems. GIS
users range from technical specialists who design
and maintain the system to those who use it to
help them perform their everyday work. The
identification of GIS specialists versus end users is
often critical to the proper implementation of GIS
technology.
NETWORK
 Network allows rapid
communication and
sharing digital information.
The internet has proven
very popular as a vehicle
for delivering GIS
applications.
Area of GIS Applications
Major areas of GIS application can be grouped into five categories as
follows.
 Facilities Management
Large scale and precise maps and network analysis are used mainly
for utility management.
 Environment and Natural Resources Management
Medium or small scale maps and overlay techniques in combination
with aerial photographs and satellite images are used for management
of natural resources and environmental impact analysis.
 Street Network
Large or medium scale maps and spatial analysis are used for vehicle
routing, locating house and streets etc.
 Planning and Engineering
Large or medium scale maps and engineering models are used mainly
in civil engineering.
 Land Information System
Large scale cadastre maps or land parcel maps and spatial analysis
are used for cadastre administration, taxation etc.

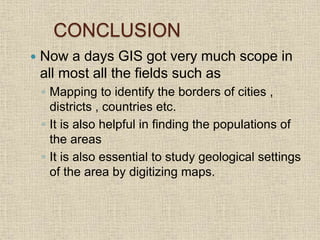

CONCLUSION
 Now a days GIS got very much scope in
all most all the fields such as
◦ Mapping to identify the borders of cities ,
districts , countries etc.
◦ It is also helpful in finding the populations of
the areas
◦ It is also essential to study geological settings
of the area by digitizing maps.

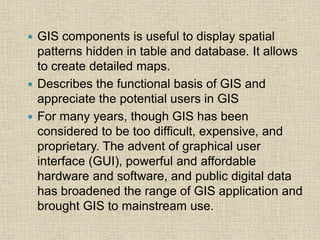

 GIS components is useful to display spatial
patterns hidden in table and database. It allows
to create detailed maps.
 Describes the functional basis of GIS and
appreciate the potential users in GIS
 For many years, though GIS has been
considered to be too difficult, expensive, and
proprietary. The advent of graphical user
interface (GUI), powerful and affordable
hardware and software, and public digital data
has broadened the range of GIS application and
brought GIS to mainstream use.

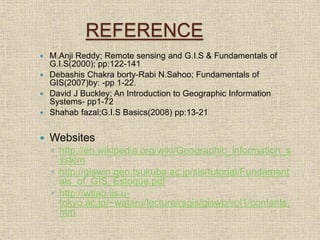

REFERENCE
 M.Anji Reddy; Remote sensing and G.I.S & Fundamentals of
G.I.S(2000); pp:122-141
 Debashis Chakra borty-Rabi N.Sahoo; Fundamentals of
GIS(2007)by: -pp 1-22.
 David J Buckley; An Introduction to Geographic Information
Systems- pp1-72
 Shahab fazal;G.I.S Basics(2008) pp:13-21
 Websites
◦ http://en.wikipedia.org/wiki/Geographic_information_s
ystem
◦ http://giswin.geo.tsukuba.ac.jp/sis/tutorial/Fundament
als_of_GIS_Estoque.pdf
◦ http://wtlab.iis.u-
tokyo.ac.jp/~wataru/lecture/rsgis/giswb/vol1/contents.
htm
Components of gis

More Related Content

What's hot

Spatial vs non spatial
Spatial vs non spatialSpatial vs non spatial
Spatial vs non spatialSumant Diwakar

Land use and land cover classification
Land use and land cover classification Land use and land cover classification
Land use and land cover classification Calcutta University

Remote Sensing and GIS in Land Use / Land Cover Mapping
Remote Sensing and GIS in Land Use / Land Cover MappingRemote Sensing and GIS in Land Use / Land Cover Mapping
Remote Sensing and GIS in Land Use / Land Cover MappingVenkatKamal1

Chapter 5: Remote sensing
Chapter 5: Remote sensingChapter 5: Remote sensing
Chapter 5: Remote sensingShankar Gangaju

Introduction and Application of GIS
Introduction and Application of GISIntroduction and Application of GIS
Introduction and Application of GISSatish Taji

Multispectral remote sensing
Multispectral remote sensingMultispectral remote sensing
Multispectral remote sensingDharmendera Meena

Remote sensing
 Remote sensing Remote sensing
Remote sensingFidy Zegge

Geo referencing by Mashhood Arif
Geo referencing by Mashhood ArifGeo referencing by Mashhood Arif
Geo referencing by Mashhood ArifKU Leuven

Data models in geographical information system(GIS)
Data models in geographical information system(GIS)Data models in geographical information system(GIS)
Data models in geographical information system(GIS)Pramoda Raj

Remote sensing, GPS and GIS ppt
Remote sensing, GPS and GIS pptRemote sensing, GPS and GIS ppt
Remote sensing, GPS and GIS pptNaufil Sayyad

Spatial analysis and modeling
Spatial analysis and modelingSpatial analysis and modeling
Spatial analysis and modelingTolasa_F

Remote Sensing and its Application
Remote Sensing and its ApplicationRemote Sensing and its Application
Remote Sensing and its ApplicationRashmi Yadav


What's hot (20)

Spatial vs non spatial
Spatial vs non spatialSpatial vs non spatial
Spatial vs non spatial

Land use and land cover classification
Land use and land cover classification Land use and land cover classification
Land use and land cover classification

Remote Sensing and GIS in Land Use / Land Cover Mapping
Remote Sensing and GIS in Land Use / Land Cover MappingRemote Sensing and GIS in Land Use / Land Cover Mapping
Remote Sensing and GIS in Land Use / Land Cover Mapping

Chapter 5: Remote sensing
Chapter 5: Remote sensingChapter 5: Remote sensing
Chapter 5: Remote sensing

Remote sensing & gis
Remote sensing & gisRemote sensing & gis
Remote sensing & gis

Remote sensing
Remote sensingRemote sensing
Remote sensing

Digital elevation model in GIS
Digital elevation model in GISDigital elevation model in GIS
Digital elevation model in GIS

Spatial data for GIS
Spatial data for GISSpatial data for GIS
Spatial data for GIS

Introduction and Application of GIS
Introduction and Application of GISIntroduction and Application of GIS
Introduction and Application of GIS

Data sources and input in GIS
Data  sources and input in GISData  sources and input in GIS
Data sources and input in GIS

Multispectral remote sensing
Multispectral remote sensingMultispectral remote sensing
Multispectral remote sensing

Remote sensing
 Remote sensing Remote sensing
Remote sensing

Geo referencing by Mashhood Arif
Geo referencing by Mashhood ArifGeo referencing by Mashhood Arif
Geo referencing by Mashhood Arif

Data models in geographical information system(GIS)
Data models in geographical information system(GIS)Data models in geographical information system(GIS)
Data models in geographical information system(GIS)

Visual Interpretation
Visual InterpretationVisual Interpretation
Visual Interpretation

GIS Modeling
GIS ModelingGIS Modeling
GIS Modeling

Raster data and Vector data
Raster data and Vector dataRaster data and Vector data
Raster data and Vector data

Remote sensing, GPS and GIS ppt
Remote sensing, GPS and GIS pptRemote sensing, GPS and GIS ppt
Remote sensing, GPS and GIS ppt

Spatial analysis and modeling
Spatial analysis and modelingSpatial analysis and modeling
Spatial analysis and modeling

Remote Sensing and its Application
Remote Sensing and its ApplicationRemote Sensing and its Application
Remote Sensing and its Application


Similar to Components of gis

TYBSC IT PGIS Unit II Chapter I Data Management and Processing Systems
TYBSC IT PGIS Unit II Chapter I Data Management and Processing SystemsTYBSC IT PGIS Unit II Chapter I Data Management and Processing Systems
TYBSC IT PGIS Unit II Chapter I Data Management and Processing SystemsArti Parab Academics

Principles of GIS unit 2
Principles of GIS unit 2Principles of GIS unit 2
Principles of GIS unit 2SanjanaKhemka1

Lecture-8-The-GIS-Database-Part-1.ppt
Lecture-8-The-GIS-Database-Part-1.pptLecture-8-The-GIS-Database-Part-1.ppt
Lecture-8-The-GIS-Database-Part-1.pptPrabin Pandit

Introduction To Geographical Information System (GIS)
Introduction To Geographical Information System (GIS) Introduction To Geographical Information System (GIS)
Introduction To Geographical Information System (GIS) Ajay Singh Lodhi

INTRODUCTION TO GIS.pdf
INTRODUCTION TO GIS.pdfINTRODUCTION TO GIS.pdf
INTRODUCTION TO GIS.pdfKingFrimp

What is GIS (PDF).pdf
What is GIS (PDF).pdfWhat is GIS (PDF).pdf
What is GIS (PDF).pdfKartikBhatt43

TYBSC IT PGIS Unit I Chapter I- Introduction to Geographic Information Systems
TYBSC IT PGIS Unit I  Chapter I- Introduction to Geographic Information SystemsTYBSC IT PGIS Unit I  Chapter I- Introduction to Geographic Information Systems
TYBSC IT PGIS Unit I Chapter I- Introduction to Geographic Information SystemsArti Parab Academics

GIS and BIG DATA Meta Data Course for every one
GIS and BIG DATA Meta Data Course for every oneGIS and BIG DATA Meta Data Course for every one
GIS and BIG DATA Meta Data Course for every oneBilalMehmood44

ADVANCE DATABASE MANAGEMENT SYSTEM CONCEPTS & ARCHITECTURE by vikas jagtap
ADVANCE DATABASE MANAGEMENT SYSTEM CONCEPTS & ARCHITECTURE by vikas jagtapADVANCE DATABASE MANAGEMENT SYSTEM CONCEPTS & ARCHITECTURE by vikas jagtap
ADVANCE DATABASE MANAGEMENT SYSTEM CONCEPTS & ARCHITECTURE by vikas jagtapVikas Jagtap

Introduction to gis and arc gis
Introduction to gis and arc gis Introduction to gis and arc gis
Introduction to gis and arc gis Saad Raja

1_GEOGRAPHIC INFORMATION SYSTEMSTEM.pptx
1_GEOGRAPHIC INFORMATION SYSTEMSTEM.pptx1_GEOGRAPHIC INFORMATION SYSTEMSTEM.pptx
1_GEOGRAPHIC INFORMATION SYSTEMSTEM.pptxLaleanePale

Principles of GIS unit 1
Principles of GIS unit 1Principles of GIS unit 1
Principles of GIS unit 1SanjanaKhemka1

Unit 4 Data Input and Analysis.pptx
Unit 4 Data Input and Analysis.pptxUnit 4 Data Input and Analysis.pptx
Unit 4 Data Input and Analysis.pptxe20ag004

Intro GIS.pptx
Intro GIS.pptxIntro GIS.pptx
Intro GIS.pptxSamiDan2


Similar to Components of gis (20)

TYBSC IT PGIS Unit II Chapter I Data Management and Processing Systems
TYBSC IT PGIS Unit II Chapter I Data Management and Processing SystemsTYBSC IT PGIS Unit II Chapter I Data Management and Processing Systems
TYBSC IT PGIS Unit II Chapter I Data Management and Processing Systems

Principles of GIS unit 2
Principles of GIS unit 2Principles of GIS unit 2
Principles of GIS unit 2

Lecture-8-The-GIS-Database-Part-1.ppt
Lecture-8-The-GIS-Database-Part-1.pptLecture-8-The-GIS-Database-Part-1.ppt
Lecture-8-The-GIS-Database-Part-1.ppt

Introduction To Geographical Information System (GIS)
Introduction To Geographical Information System (GIS) Introduction To Geographical Information System (GIS)
Introduction To Geographical Information System (GIS)

Geographic information system
Geographic information systemGeographic information system
Geographic information system

INTRODUCTION TO GIS.pdf
INTRODUCTION TO GIS.pdfINTRODUCTION TO GIS.pdf
INTRODUCTION TO GIS.pdf

GIS and Its Components.pptx
GIS and Its Components.pptxGIS and Its Components.pptx
GIS and Its Components.pptx

introduction to GIS
introduction to GIS introduction to GIS
introduction to GIS

What is GIS (PDF).pdf
What is GIS (PDF).pdfWhat is GIS (PDF).pdf
What is GIS (PDF).pdf

Gis
GisGis
Gis

Mrp Intrim
Mrp IntrimMrp Intrim
Mrp Intrim

TYBSC IT PGIS Unit I Chapter I- Introduction to Geographic Information Systems
TYBSC IT PGIS Unit I  Chapter I- Introduction to Geographic Information SystemsTYBSC IT PGIS Unit I  Chapter I- Introduction to Geographic Information Systems
TYBSC IT PGIS Unit I Chapter I- Introduction to Geographic Information Systems

GIS and BIG DATA Meta Data Course for every one
GIS and BIG DATA Meta Data Course for every oneGIS and BIG DATA Meta Data Course for every one
GIS and BIG DATA Meta Data Course for every one

ADVANCE DATABASE MANAGEMENT SYSTEM CONCEPTS & ARCHITECTURE by vikas jagtap
ADVANCE DATABASE MANAGEMENT SYSTEM CONCEPTS & ARCHITECTURE by vikas jagtapADVANCE DATABASE MANAGEMENT SYSTEM CONCEPTS & ARCHITECTURE by vikas jagtap
ADVANCE DATABASE MANAGEMENT SYSTEM CONCEPTS & ARCHITECTURE by vikas jagtap

Introduction to gis and arc gis
Introduction to gis and arc gis Introduction to gis and arc gis
Introduction to gis and arc gis

1_GEOGRAPHIC INFORMATION SYSTEMSTEM.pptx
1_GEOGRAPHIC INFORMATION SYSTEMSTEM.pptx1_GEOGRAPHIC INFORMATION SYSTEMSTEM.pptx
1_GEOGRAPHIC INFORMATION SYSTEMSTEM.pptx

29
2929
29

Principles of GIS unit 1
Principles of GIS unit 1Principles of GIS unit 1
Principles of GIS unit 1

Unit 4 Data Input and Analysis.pptx
Unit 4 Data Input and Analysis.pptxUnit 4 Data Input and Analysis.pptx
Unit 4 Data Input and Analysis.pptx

Intro GIS.pptx
Intro GIS.pptxIntro GIS.pptx
Intro GIS.pptx


More from Pramoda Raj

Aerial photography.pptx
Aerial photography.pptxAerial photography.pptx
Aerial photography.pptxPramoda Raj

Siwalik- Stratigraphy
Siwalik- StratigraphySiwalik- Stratigraphy
Siwalik- StratigraphyPramoda Raj

Waves and their significance
Waves and their significanceWaves and their significance
Waves and their significancePramoda Raj

Karst topography
Karst topographyKarst topography
Karst topographyPramoda Raj

Glacial processes and their land forms.
Glacial processes and their land forms.Glacial processes and their land forms.
Glacial processes and their land forms.Pramoda Raj

Upsc geologist syllabus exam pattern
Upsc geologist syllabus exam patternUpsc geologist syllabus exam pattern
Upsc geologist syllabus exam patternPramoda Raj

Role of non government organizations in disaster management
Role of non government organizations in disaster managementRole of non government organizations in disaster management
Role of non government organizations in disaster managementPramoda Raj

Disaster Management System in India - Notes
Disaster Management System in India - Notes Disaster Management System in India - Notes
Disaster Management System in India - Notes Pramoda Raj

Role of non government organizations in disaster management
Role of non government organizations in disaster managementRole of non government organizations in disaster management
Role of non government organizations in disaster managementPramoda Raj

Disaster management system in India
Disaster management system in IndiaDisaster management system in India
Disaster management system in IndiaPramoda Raj

International organizations in disaster management
International organizations in disaster managementInternational organizations in disaster management
International organizations in disaster managementPramoda Raj

Geological factor for canal alignment
Geological factor for canal alignmentGeological factor for canal alignment
Geological factor for canal alignmentPramoda Raj

Major extinction events
Major extinction eventsMajor extinction events
Major extinction eventsPramoda Raj

Coastal erosion and engineering aspect
Coastal erosion and engineering aspectCoastal erosion and engineering aspect
Coastal erosion and engineering aspectPramoda Raj

Sampling techniques
Sampling techniquesSampling techniques
Sampling techniquesPramoda Raj


More from Pramoda Raj (20)

Aerial photography.pptx
Aerial photography.pptxAerial photography.pptx
Aerial photography.pptx

Siwalik- Stratigraphy
Siwalik- StratigraphySiwalik- Stratigraphy
Siwalik- Stratigraphy

Hydrogeology
HydrogeologyHydrogeology
Hydrogeology

Waves and their significance
Waves and their significanceWaves and their significance
Waves and their significance

coastal erosion
coastal erosioncoastal erosion
coastal erosion

Karst topography
Karst topographyKarst topography
Karst topography

Glacial processes and their land forms.
Glacial processes and their land forms.Glacial processes and their land forms.
Glacial processes and their land forms.

Dams
Dams Dams
Dams

Upsc geologist syllabus exam pattern
Upsc geologist syllabus exam patternUpsc geologist syllabus exam pattern
Upsc geologist syllabus exam pattern

Role of non government organizations in disaster management
Role of non government organizations in disaster managementRole of non government organizations in disaster management
Role of non government organizations in disaster management

Disaster Management System in India - Notes
Disaster Management System in India - Notes Disaster Management System in India - Notes
Disaster Management System in India - Notes

Role of non government organizations in disaster management
Role of non government organizations in disaster managementRole of non government organizations in disaster management
Role of non government organizations in disaster management

Disaster management system in India
Disaster management system in IndiaDisaster management system in India
Disaster management system in India

International organizations in disaster management
International organizations in disaster managementInternational organizations in disaster management
International organizations in disaster management

Geological factor for canal alignment
Geological factor for canal alignmentGeological factor for canal alignment
Geological factor for canal alignment

Major extinction events
Major extinction eventsMajor extinction events
Major extinction events

Coastal erosion and engineering aspect
Coastal erosion and engineering aspectCoastal erosion and engineering aspect
Coastal erosion and engineering aspect

Geotextiles
GeotextilesGeotextiles
Geotextiles

Hazard mapping
Hazard mappingHazard mapping
Hazard mapping

Sampling techniques
Sampling techniquesSampling techniques
Sampling techniques


Recently uploaded

diagnosting testing bsc 2nd sem.pptx....
diagnosting testing bsc 2nd sem.pptx....diagnosting testing bsc 2nd sem.pptx....
diagnosting testing bsc 2nd sem.pptx....Ritu480198

The basics of sentences session 4pptx.pptx
The basics of sentences session 4pptx.pptxThe basics of sentences session 4pptx.pptx
The basics of sentences session 4pptx.pptxheathfieldcps1

UChicago CMSC 23320 - The Best Commit Messages of 2024
UChicago CMSC 23320 - The Best Commit Messages of 2024UChicago CMSC 23320 - The Best Commit Messages of 2024
UChicago CMSC 23320 - The Best Commit Messages of 2024Borja Sotomayor

Dementia (Alzheimer & vasular dementia).
Dementia (Alzheimer & vasular dementia).Dementia (Alzheimer & vasular dementia).
Dementia (Alzheimer & vasular dementia).Mohamed Rizk Khodair

Features of Video Calls in the Discuss Module in Odoo 17
Features of Video Calls in the Discuss Module in Odoo 17Features of Video Calls in the Discuss Module in Odoo 17
Features of Video Calls in the Discuss Module in Odoo 17Celine George

Andreas Schleicher presents at the launch of What does child empowerment mean...
Andreas Schleicher presents at the launch of What does child empowerment mean...Andreas Schleicher presents at the launch of What does child empowerment mean...
Andreas Schleicher presents at the launch of What does child empowerment mean...EduSkills OECD

Envelope of Discrepancy in Orthodontics: Enhancing Precision in Treatment
 Envelope of Discrepancy in Orthodontics: Enhancing Precision in Treatment Envelope of Discrepancy in Orthodontics: Enhancing Precision in Treatment
Envelope of Discrepancy in Orthodontics: Enhancing Precision in Treatmentsaipooja36

Spring gala 2024 photo slideshow - Celebrating School-Community Partnerships
Spring gala 2024 photo slideshow - Celebrating School-Community PartnershipsSpring gala 2024 photo slideshow - Celebrating School-Community Partnerships
Spring gala 2024 photo slideshow - Celebrating School-Community Partnershipsexpandedwebsite

Benefits and Challenges of OER by Shweta Babel.pptx
Benefits and Challenges of OER by Shweta Babel.pptxBenefits and Challenges of OER by Shweta Babel.pptx
Benefits and Challenges of OER by Shweta Babel.pptxsbabel

Exploring Gemini AI and Integration with MuleSoft | MuleSoft Mysore Meetup #45
Exploring Gemini AI and Integration with MuleSoft | MuleSoft Mysore Meetup #45Exploring Gemini AI and Integration with MuleSoft | MuleSoft Mysore Meetup #45
Exploring Gemini AI and Integration with MuleSoft | MuleSoft Mysore Meetup #45MysoreMuleSoftMeetup

ANTI PARKISON DRUGS.pptx
ANTI         PARKISON          DRUGS.pptxANTI         PARKISON          DRUGS.pptx
ANTI PARKISON DRUGS.pptxPoojaSen20

24 ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH SỞ GIÁO DỤC HẢI DƯ...
24 ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH SỞ GIÁO DỤC HẢI DƯ...24 ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH SỞ GIÁO DỤC HẢI DƯ...
24 ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH SỞ GIÁO DỤC HẢI DƯ...Nguyen Thanh Tu Collection

An Overview of the Odoo 17 Knowledge App
An Overview of the Odoo 17 Knowledge AppAn Overview of the Odoo 17 Knowledge App
An Overview of the Odoo 17 Knowledge AppCeline George

MOOD STABLIZERS DRUGS.pptx
MOOD     STABLIZERS           DRUGS.pptxMOOD     STABLIZERS           DRUGS.pptx
MOOD STABLIZERS DRUGS.pptxPoojaSen20

Đề tieng anh thpt 2024 danh cho cac ban hoc sinh
Đề tieng anh thpt 2024 danh cho cac ban hoc sinhĐề tieng anh thpt 2024 danh cho cac ban hoc sinh
Đề tieng anh thpt 2024 danh cho cac ban hoc sinhleson0603

Graduate Outcomes Presentation Slides - English (v3).pptx
Graduate Outcomes Presentation Slides - English (v3).pptxGraduate Outcomes Presentation Slides - English (v3).pptx
Graduate Outcomes Presentation Slides - English (v3).pptxneillewis46

II BIOSENSOR PRINCIPLE APPLICATIONS AND WORKING II
II BIOSENSOR PRINCIPLE APPLICATIONS AND WORKING IIII BIOSENSOR PRINCIPLE APPLICATIONS AND WORKING II
II BIOSENSOR PRINCIPLE APPLICATIONS AND WORKING IIagpharmacy11

Championnat de France de Tennis de table/
Championnat de France de Tennis de table/Championnat de France de Tennis de table/
Championnat de France de Tennis de table/siemaillard


Recently uploaded (20)

diagnosting testing bsc 2nd sem.pptx....
diagnosting testing bsc 2nd sem.pptx....diagnosting testing bsc 2nd sem.pptx....
diagnosting testing bsc 2nd sem.pptx....

The basics of sentences session 4pptx.pptx
The basics of sentences session 4pptx.pptxThe basics of sentences session 4pptx.pptx
The basics of sentences session 4pptx.pptx

UChicago CMSC 23320 - The Best Commit Messages of 2024
UChicago CMSC 23320 - The Best Commit Messages of 2024UChicago CMSC 23320 - The Best Commit Messages of 2024
UChicago CMSC 23320 - The Best Commit Messages of 2024

Dementia (Alzheimer & vasular dementia).
Dementia (Alzheimer & vasular dementia).Dementia (Alzheimer & vasular dementia).
Dementia (Alzheimer & vasular dementia).

Features of Video Calls in the Discuss Module in Odoo 17
Features of Video Calls in the Discuss Module in Odoo 17Features of Video Calls in the Discuss Module in Odoo 17
Features of Video Calls in the Discuss Module in Odoo 17

Andreas Schleicher presents at the launch of What does child empowerment mean...
Andreas Schleicher presents at the launch of What does child empowerment mean...Andreas Schleicher presents at the launch of What does child empowerment mean...
Andreas Schleicher presents at the launch of What does child empowerment mean...

Envelope of Discrepancy in Orthodontics: Enhancing Precision in Treatment
 Envelope of Discrepancy in Orthodontics: Enhancing Precision in Treatment Envelope of Discrepancy in Orthodontics: Enhancing Precision in Treatment
Envelope of Discrepancy in Orthodontics: Enhancing Precision in Treatment

Spring gala 2024 photo slideshow - Celebrating School-Community Partnerships
Spring gala 2024 photo slideshow - Celebrating School-Community PartnershipsSpring gala 2024 photo slideshow - Celebrating School-Community Partnerships
Spring gala 2024 photo slideshow - Celebrating School-Community Partnerships

“O BEIJO” EM ARTE .
“O BEIJO” EM ARTE                       .“O BEIJO” EM ARTE                       .
“O BEIJO” EM ARTE .

Benefits and Challenges of OER by Shweta Babel.pptx
Benefits and Challenges of OER by Shweta Babel.pptxBenefits and Challenges of OER by Shweta Babel.pptx
Benefits and Challenges of OER by Shweta Babel.pptx

Exploring Gemini AI and Integration with MuleSoft | MuleSoft Mysore Meetup #45
Exploring Gemini AI and Integration with MuleSoft | MuleSoft Mysore Meetup #45Exploring Gemini AI and Integration with MuleSoft | MuleSoft Mysore Meetup #45
Exploring Gemini AI and Integration with MuleSoft | MuleSoft Mysore Meetup #45

ANTI PARKISON DRUGS.pptx
ANTI         PARKISON          DRUGS.pptxANTI         PARKISON          DRUGS.pptx
ANTI PARKISON DRUGS.pptx

24 ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH SỞ GIÁO DỤC HẢI DƯ...
24 ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH SỞ GIÁO DỤC HẢI DƯ...24 ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH SỞ GIÁO DỤC HẢI DƯ...
24 ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH SỞ GIÁO DỤC HẢI DƯ...

An Overview of the Odoo 17 Knowledge App
An Overview of the Odoo 17 Knowledge AppAn Overview of the Odoo 17 Knowledge App
An Overview of the Odoo 17 Knowledge App

MOOD STABLIZERS DRUGS.pptx
MOOD     STABLIZERS           DRUGS.pptxMOOD     STABLIZERS           DRUGS.pptx
MOOD STABLIZERS DRUGS.pptx

Đề tieng anh thpt 2024 danh cho cac ban hoc sinh
Đề tieng anh thpt 2024 danh cho cac ban hoc sinhĐề tieng anh thpt 2024 danh cho cac ban hoc sinh
Đề tieng anh thpt 2024 danh cho cac ban hoc sinh

Graduate Outcomes Presentation Slides - English (v3).pptx
Graduate Outcomes Presentation Slides - English (v3).pptxGraduate Outcomes Presentation Slides - English (v3).pptx
Graduate Outcomes Presentation Slides - English (v3).pptx

Mattingly "AI and Prompt Design: LLMs with Text Classification and Open Source"
Mattingly "AI and Prompt Design: LLMs with Text Classification and Open Source"Mattingly "AI and Prompt Design: LLMs with Text Classification and Open Source"
Mattingly "AI and Prompt Design: LLMs with Text Classification and Open Source"

II BIOSENSOR PRINCIPLE APPLICATIONS AND WORKING II
II BIOSENSOR PRINCIPLE APPLICATIONS AND WORKING IIII BIOSENSOR PRINCIPLE APPLICATIONS AND WORKING II
II BIOSENSOR PRINCIPLE APPLICATIONS AND WORKING II

Championnat de France de Tennis de table/
Championnat de France de Tennis de table/Championnat de France de Tennis de table/
Championnat de France de Tennis de table/


Components of gis

  • 1. Seminar on COMPONENTS OF GIS (Geographic Information System)
  • 2. CONTENTS • INTRODUCTION • DEFINITION OF GIS • COMPONENTS OF GIS • AREA OF GIS APPLICATIONS • CONCLUSION • REFERENCE
  • 3. INTRODUCTION  We use a word processor to write documents and deal with words on a computer, similarly we can use a GIS application to deal with spatial information on a computer. GIS stands for ‘Geographic Information System’.  A Geographic Information System (GIS) is a system designed to capture, store, manipulate, analyze, manage, and present all types of geographical data.  A geographic information system (GIS) integrates hardware, software, and data for capturing, managing, analyzing, and displaying all forms of geographically referenced information.
  • 4.  GIS allows us to view, understand, question, interpret, and visualize data in many ways that reveal relationships, patterns, and trends in the form of maps, globes, reports, and charts.  A GIS helps you answer questions and solve problems by looking at your data in a way that is quickly understood and easily shared.
  • 5. Components of GIS  The major components of GIS is ◦ Hardware, ◦ Software, ◦ Data, ◦ People, ◦ Procedure ◦ Network
  • 6. Hardware  The computer or Central Processing Unit is the general hardware component of the GIS. It is attached to a disk drive storage unit, used for storing data and program.  Devices like digitizer, scanner are used for converting the data, which is available in the form of maps and documents, into digital form and send them to computer.  Display device or a plotter is used which presents the result of the data processing.
  • 7.  A tape device is used to store data or program on magnetic tape.
  • 8. Software  The GIS software includes the programs and the user interface for driving the hardware. GIS software is essential to generate, store, analyze, manipulate and display geographic information or data. A good GIS software requires user friendliness, functionalities, compatibilities, updatability, documentation, cost effectiveness.  The basic functions GIS software should offer can be grouped into data capture, data management, data analysis and
  • 9. ◦ Data capture - no data, no GIS. Data capture functionality could either be the importing of digital data from a disk, network or database, or digitizing it through the use of peripheral devices. ◦ Data management - quality is essential. One step beyond data capture is data editing and maintenance. Editing involves functions such as adding, duplicating and deleting spatial and attribute data as well as creation and management of metadata. Using tools to detect errors and to perform transformations is another aspect of data management.
  • 10.  Data analysis - ask questions. A GIS is typically used to answer questions related to space. For the purpose of finding an answer, a GIS should not only offer tools to query and retrieve data, but also functions for data integration and modeling.  Visualization - make it visible. Any analysis of data is only useful if the final output is also understood by the intended recipient. A GIS offers tools to present data in various ways, ranging from displaying tabular information, over graph/chart production, to printing maps. Some GIS offer advanced visualization beyond two dimensions, such as digital elevation model (DEM) or digital movie files. Output can also be shared by storing it on a disk or a web server, which allows for dynamic views of the data.
  • 11.  Aside from these basic functions, a GIS should also offer ways for customizing and creating new tools and applications according to your needs. Depending on the software, this can either be done through well known programming or scripting languages such as Visual Basic or Python, or through a programming language specifically provided by the application.  The following is a list of GIS software producers and their main products. ◦ Environmental Systems Research Institute ( ESRI ): Arc Info, Arc View. Arc GIS. ◦ Autodesk: AutoCAD Map
  • 12.  International Institute for Aerospace Survey and Earth Sciences: ILWIS  MapInfo Corporation: MapInfo.  PCI Geomatics: PA MAP  Telogis : Geobase
  • 13. DATA  The most important component of a GIS is the data. Geographic data and related tabular data can be collected in-house, compiled to custom specifications and requirements, or occasionally purchased from a commercial data provider.  A GIS can integrate spatial data with other existing data resources, often stored in a corporate DBMS. The integration of spatial data, and tabular data stored in a DBMS is a
  • 14. The ability of GIS to handle and process geographically referenced data, distinguish GIS from other Information systems. Geographically referenced data describe both the location and characteristics of spatial feature on earth surface. GIS therefore involves two geographic data components. 1. Spatial Data :Spatial data describes the absolute and relative location of geographic feature. It relate to the geometry of a spatial feature. 2.Attribute Data: Attribute data describes characteristics of spatial features. Attribute data are often referred to as tabular data. It gives information about the spatial features.
  • 15. Spatial Data  RASTER data type consists of rows and columns of cells, with each cell storing a single value.
  • 16. The vector data model uses points and their x-, y- coordinates to construct spatial features of points, lines and areas. Vector based features are treated as discrete objects over the space.  Points Entities: - Points defines discrete location of geographic feature too small to be depicted as lines or areas, such as well location, telephone pole etc. Point can also represent location that have no area such mountain peak.  Line Entities: - Line entities can be defined as all features built up of straight-line segments made up of two or more coordinates. The simplest line required the storage of a begin point and an end point (two XY coordinate points) plus a possible records indicating the display symbol to be used.  Area Entities: - Areas of polygons can be represented in various ways in a vector database. The simplest way to represents a polygon is an extensions of the simple chain, i.e. to represents each polygon as a set of XY coordinates on the boundary. Areas are closed figures that represent shape and location of homogeneous feature such as states, soil types,
  • 17. ATTRIBUTE DATA  Georelational data model links spatial data and attribute data by id.  Attribute data stored in feature attribute table which contains the id.  Row is called a record, column is called a field or an item.
  • 18. Procedure & Method  Procedure, more related to the management aspect of GIS, is referred to lines of reporting, control points, and other mechanism for ensuring the high quality of GIS.  The procedures used to input, analyze, and query data determine the quality and validity of the final product.  The right method is a key for successful operation of GIS technology.  The well-designed implementation plan and business rules are unique to each organization.
  • 19. Topological Relationships between Spatial Objects  In practical applications of GIS, all possible relationships in spatial data should be used logically with more complicated data structures. The following topology relationships are commonly defined.  a. Point-Pont Relationship "is within" : within a certain distance "is nearest to" : nearest to a certain point  b. Point-Line Relationships "on line" : a point on a line "is nearest to" : a point nearest to a line  c. Point-area Relationships "is contained in’’ : a point in an area "on border of area" : a point on border of an area  d. Line-Line Relationships "intersects" : two lines intersect "crosses" : two lines cross without an intersect "flow into" : a stream flows into the river e. Line-Area Relationship "intersects" : a line intersects an area "borders" : a line is a part of border of an area  f. Area-Area Relationships "overlaps" : two areas overlap "is within" : an island within an area "is adjacent to" : two area share a common boundary
  • 20. Database Models  A database model is a type of data model that determines the logical structure of a database and fundamentally determines in which manner data can be stored, organized, and manipulated. The most popular example of a database model is the relational model, which uses a table-based format.
  • 21.  In a Hierarchical model, data is organized into a tree-like structure, implying a single parent for each record. This structure allows one-to-many relationship between two types of data.  The network model expands upon the hierarchical structure, allowing many-to-many relationships in a tree-like structure that allows multiple parents.  A flat file database describes any of various means to encode a database model(most commonly a table) as a single file. A flat file can be a plain text file or a binary file. There are usually no structural relationships between the records.  In the relational model of a database, all data is represented in terms of tuples, grouped into relations. A database organized in terms of the relational model is a relational database.
  • 22. Thematic Data Modeling  The real world entities are so complex that they should be classified into object classes with some similarity through thematic data modeling in a spatial database.  The objects in a spatial database are defined as representations of real world entities with associated attributes.  Generally, geospatial data have three major components; position, attributes and time. Attributes are often termed "thematic data" or "non-spatial data", that are linked with spatial data or geometric data.  An attribute has a defined characteristic of entity in the real world.  Attribute can be categorized as normal, ordinal, numerical, conditional and other characteristics.  Attribute values are often listed in attribute tables which will establish relationships between the attributes and spatial data such as point, line and area objects, and also among the attributes.
  • 24. Data Structure for Continuous Surface Model  In GIS, continuous surface such as terrain surface, meteorological observation (rain fall, temperature, pressure etc.) population density and so on should be modeled. As sampling points are observed at discrete interval, a surface model to present the three dimensional shape ; z = f (x, y) should be built to allow the interpolation of value at arbitrary points of interest. Usually the following four types of sampling point structure are modeled into DEM.  Grid at regular intervals : Bi-linear surface with four points or bi-cubic surface with sixteen points is commonly used  Random points : Triangulated irregular network (TIN) is commonly used. Interpolation by weighted polynomials is also used.
  • 25. Data Structure for Continuous Surface Model  Contour lines : Interpolation based on proportional distance between adjacent contours is used. TIN is also used.  Profile : Profiles are observed perpendicular to an alignment or a curve such as high ways. In case the alignment is a straight line, grid points will be interpolated. In case the alignment is a curve, TIN will be generated.
  • 26. People  GIS technology is of limited value without the people who manage the system and develop plans for applying it to real world problems. GIS users range from technical specialists who design and maintain the system to those who use it to help them perform their everyday work. The identification of GIS specialists versus end users is often critical to the proper implementation of GIS technology.
  • 27. NETWORK  Network allows rapid communication and sharing digital information. The internet has proven very popular as a vehicle for delivering GIS applications.
  • 28. Area of GIS Applications Major areas of GIS application can be grouped into five categories as follows.  Facilities Management Large scale and precise maps and network analysis are used mainly for utility management.  Environment and Natural Resources Management Medium or small scale maps and overlay techniques in combination with aerial photographs and satellite images are used for management of natural resources and environmental impact analysis.  Street Network Large or medium scale maps and spatial analysis are used for vehicle routing, locating house and streets etc.  Planning and Engineering Large or medium scale maps and engineering models are used mainly in civil engineering.  Land Information System Large scale cadastre maps or land parcel maps and spatial analysis are used for cadastre administration, taxation etc.
  • 29.
  • 30. CONCLUSION  Now a days GIS got very much scope in all most all the fields such as ◦ Mapping to identify the borders of cities , districts , countries etc. ◦ It is also helpful in finding the populations of the areas ◦ It is also essential to study geological settings of the area by digitizing maps.
  • 31.  GIS components is useful to display spatial patterns hidden in table and database. It allows to create detailed maps.  Describes the functional basis of GIS and appreciate the potential users in GIS  For many years, though GIS has been considered to be too difficult, expensive, and proprietary. The advent of graphical user interface (GUI), powerful and affordable hardware and software, and public digital data has broadened the range of GIS application and brought GIS to mainstream use.
  • 32. REFERENCE  M.Anji Reddy; Remote sensing and G.I.S & Fundamentals of G.I.S(2000); pp:122-141  Debashis Chakra borty-Rabi N.Sahoo; Fundamentals of GIS(2007)by: -pp 1-22.  David J Buckley; An Introduction to Geographic Information Systems- pp1-72  Shahab fazal;G.I.S Basics(2008) pp:13-21  Websites ◦ http://en.wikipedia.org/wiki/Geographic_information_s ystem ◦ http://giswin.geo.tsukuba.ac.jp/sis/tutorial/Fundament als_of_GIS_Estoque.pdf ◦ http://wtlab.iis.u- tokyo.ac.jp/~wataru/lecture/rsgis/giswb/vol1/contents. htm
