The document discusses the structure and layers of the Earth. It is composed of four main layers from outermost to innermost: 1) The crust, which is the thin solid outer layer people live on made of rocks and minerals. It is divided into thicker continental crust and thinner oceanic crust. 2) The hot, dense mantle that behaves like a solid but can flow very slowly over geologic timescales. Its convection currents influence plate tectonics at the surface. 3) The liquid outer core that is composed of melted nickel and iron due to extreme heat and pressure. 4) The inner solid core formed from compressed metals vibrating in place like a solid.

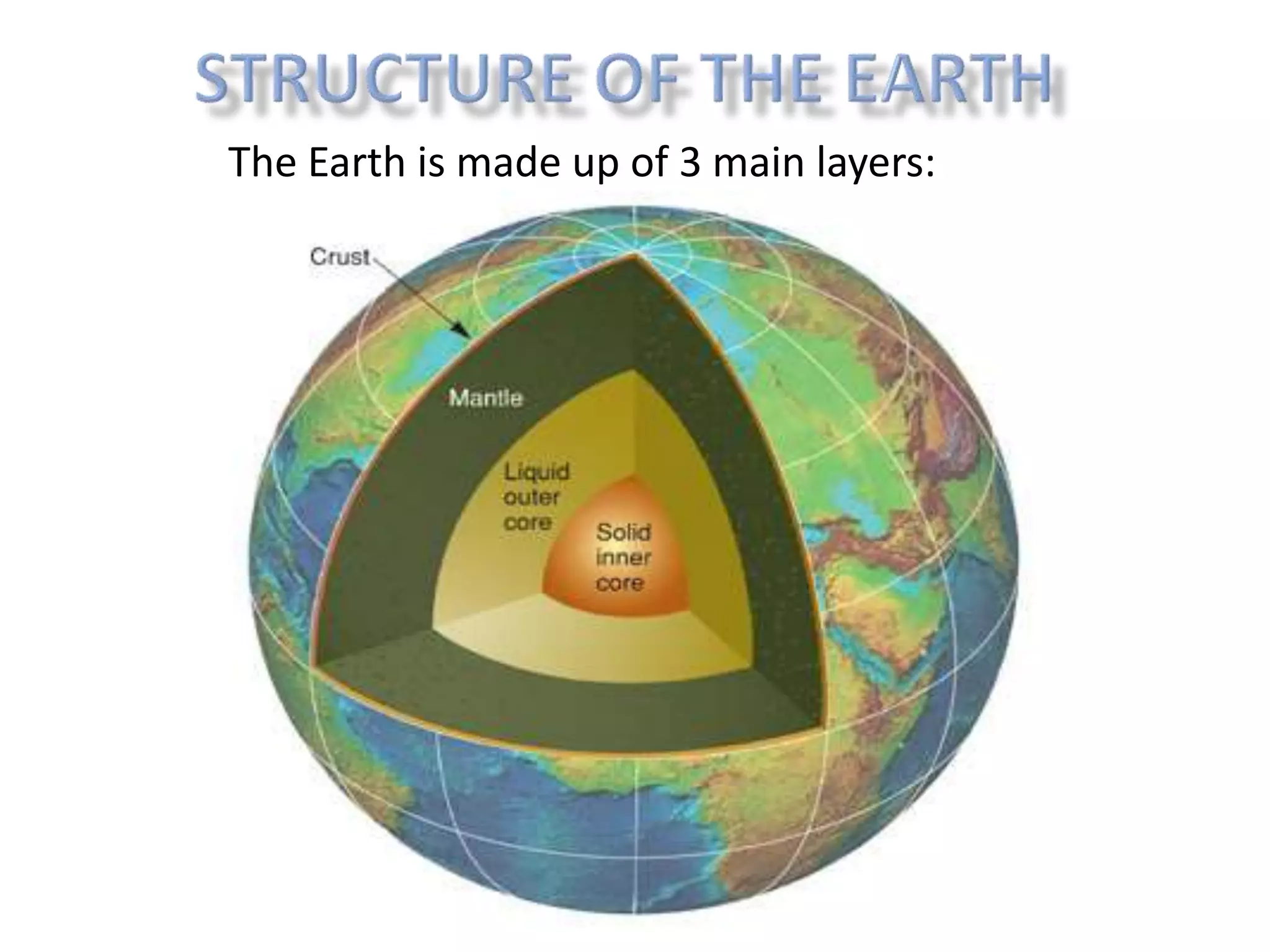

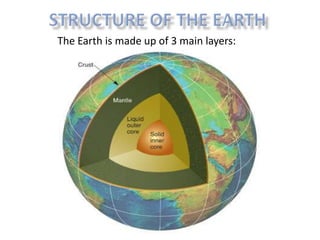

1. The Structure of the Earth

2. The Earth is made up of 3 main layers:

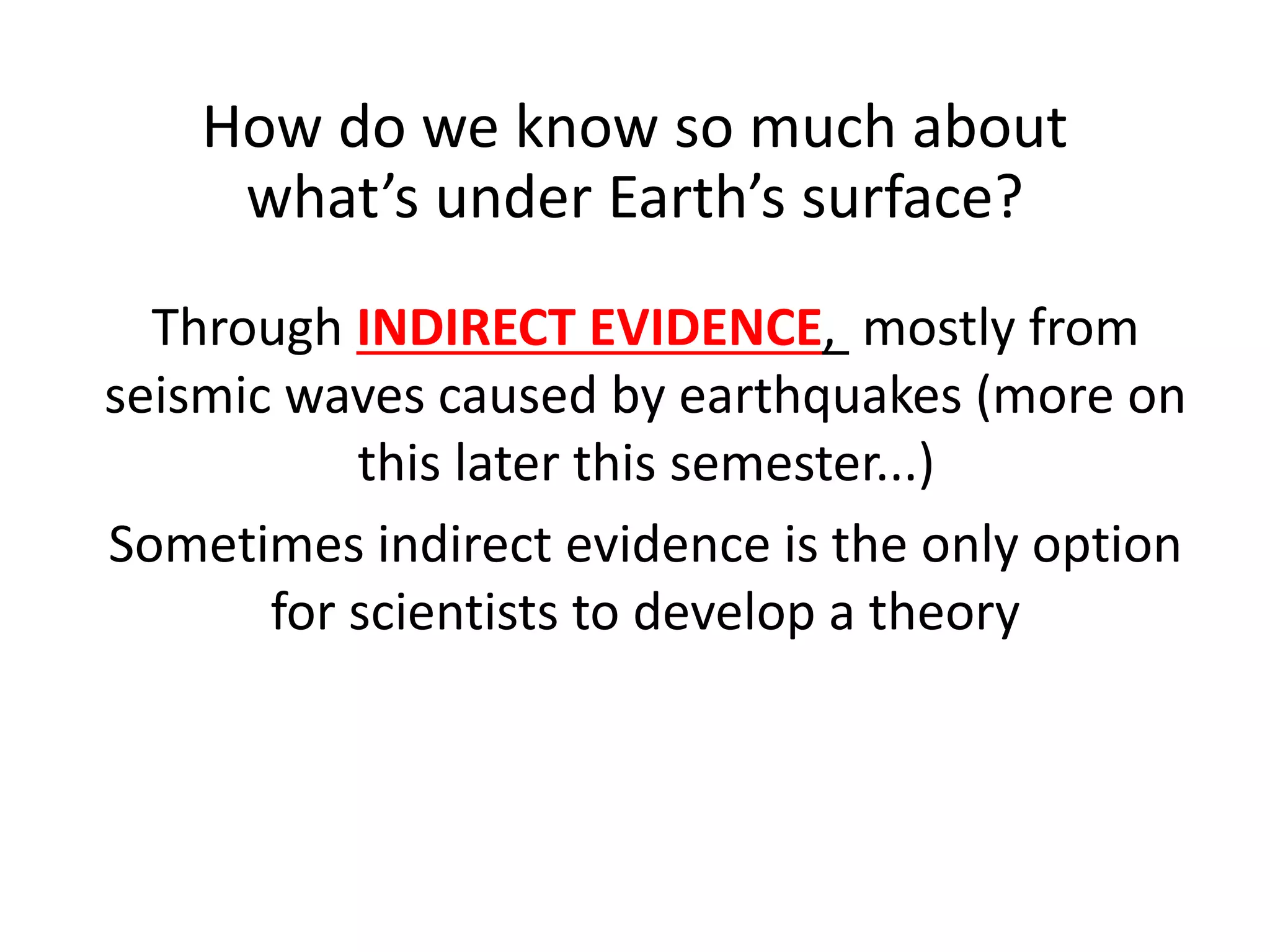

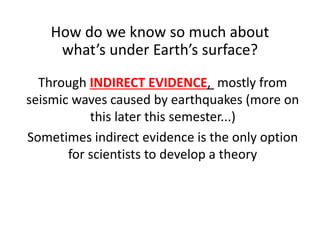

3. How do we know so much about
what’s under Earth’s surface?
Through INDIRECT EVIDENCE, mostly from
seismic waves caused by earthquakes (more on
this later this semester...)
Sometimes indirect evidence is the only option
for scientists to develop a theory

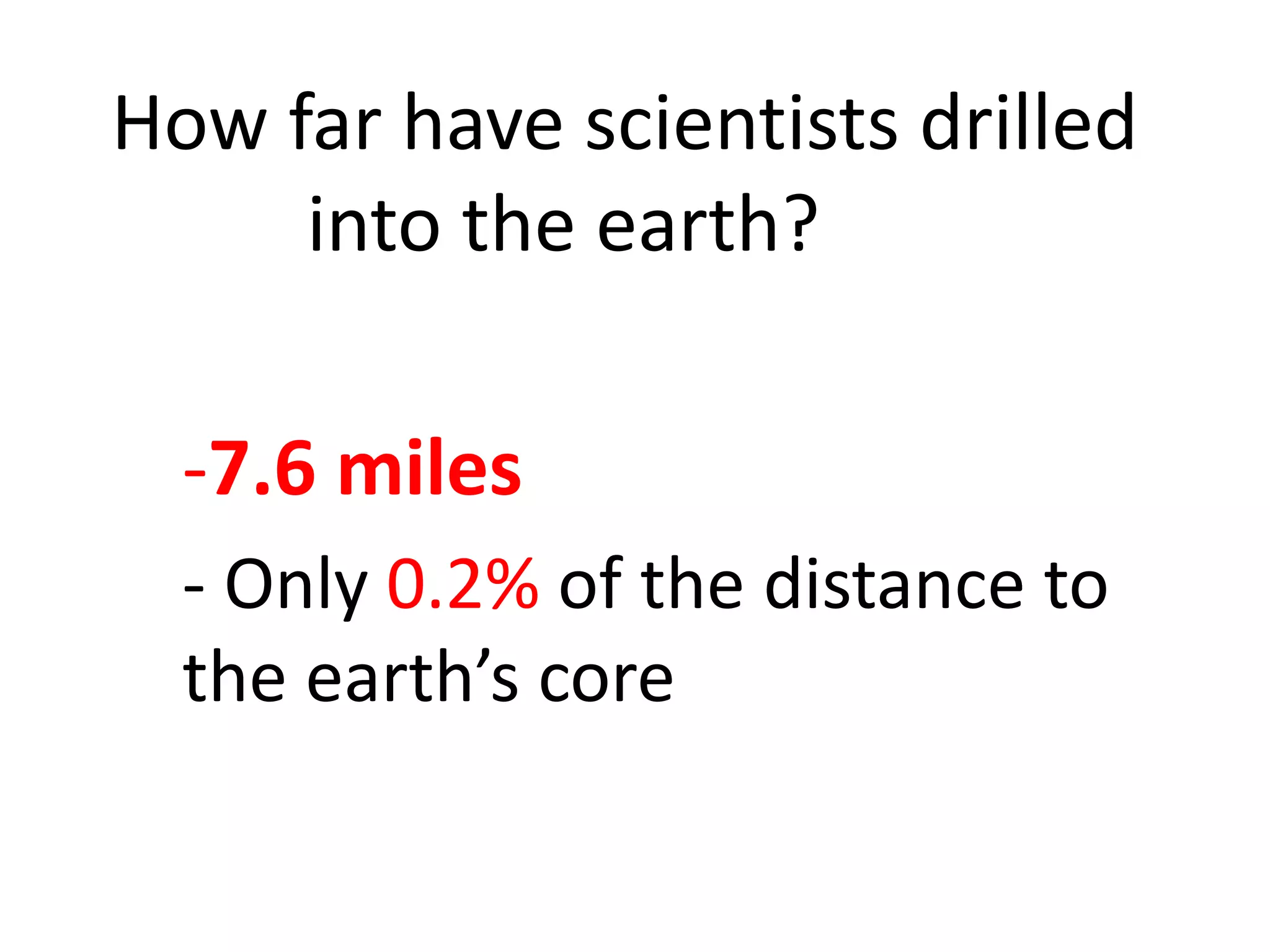

4. How far have scientists drilled
into the earth?
-7.6 miles
- Only 0.2% of the distance to
the earth’s core

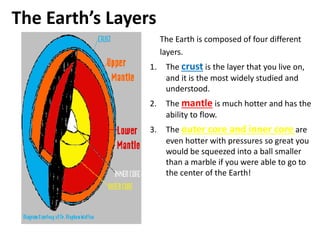

5. The Earth’s Layers
The Earth is composed of four different
layers.
1. The crust is the layer that you live on,
and it is the most widely studied and
understood.
2. The mantle is much hotter and has the
ability to flow.
3. The outer core and inner core are
even hotter with pressures so great you
would be squeezed into a ball smaller
than a marble if you were able to go to
the center of the Earth!

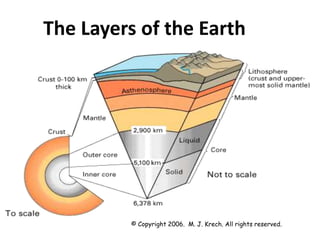

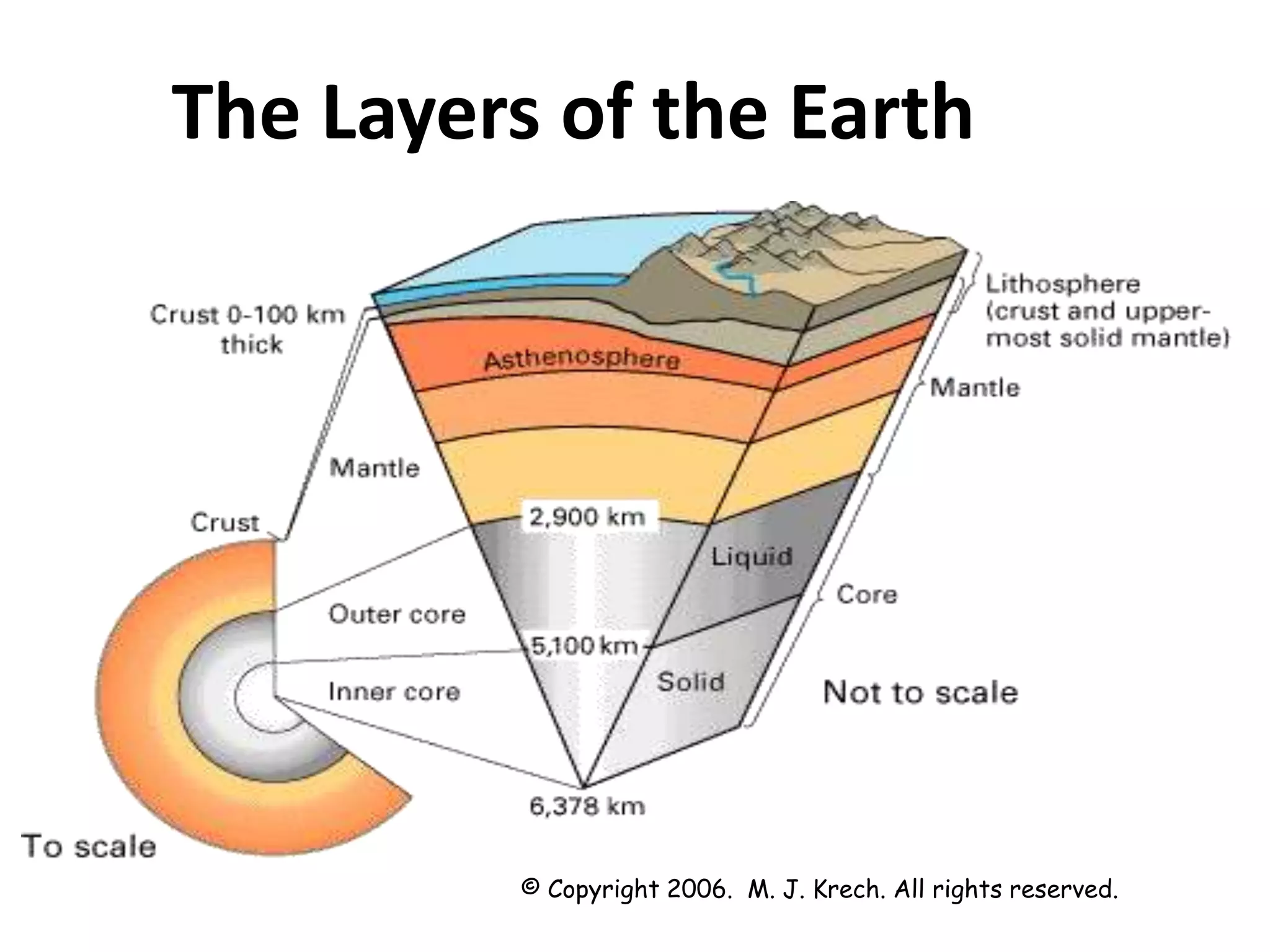

6. The Layers of the Earth
© Copyright 2006. M. J. Krech. All rights reserved.

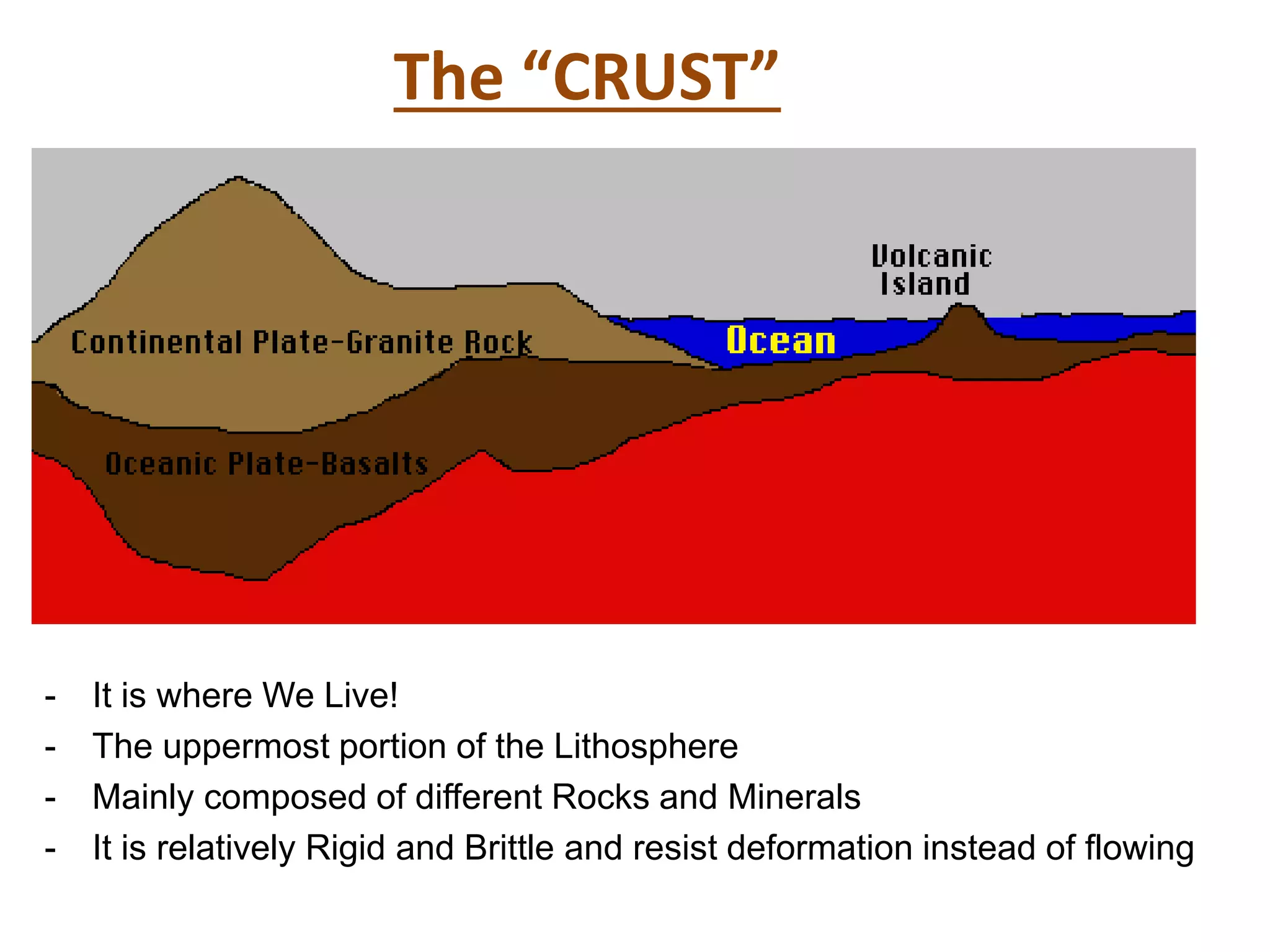

7. The “CRUST”
- It is where We Live!
- The uppermost portion of the Lithosphere
- Mainly composed of different Rocks and Minerals
- It is relatively Rigid and Brittle and resist deformation instead of flowing

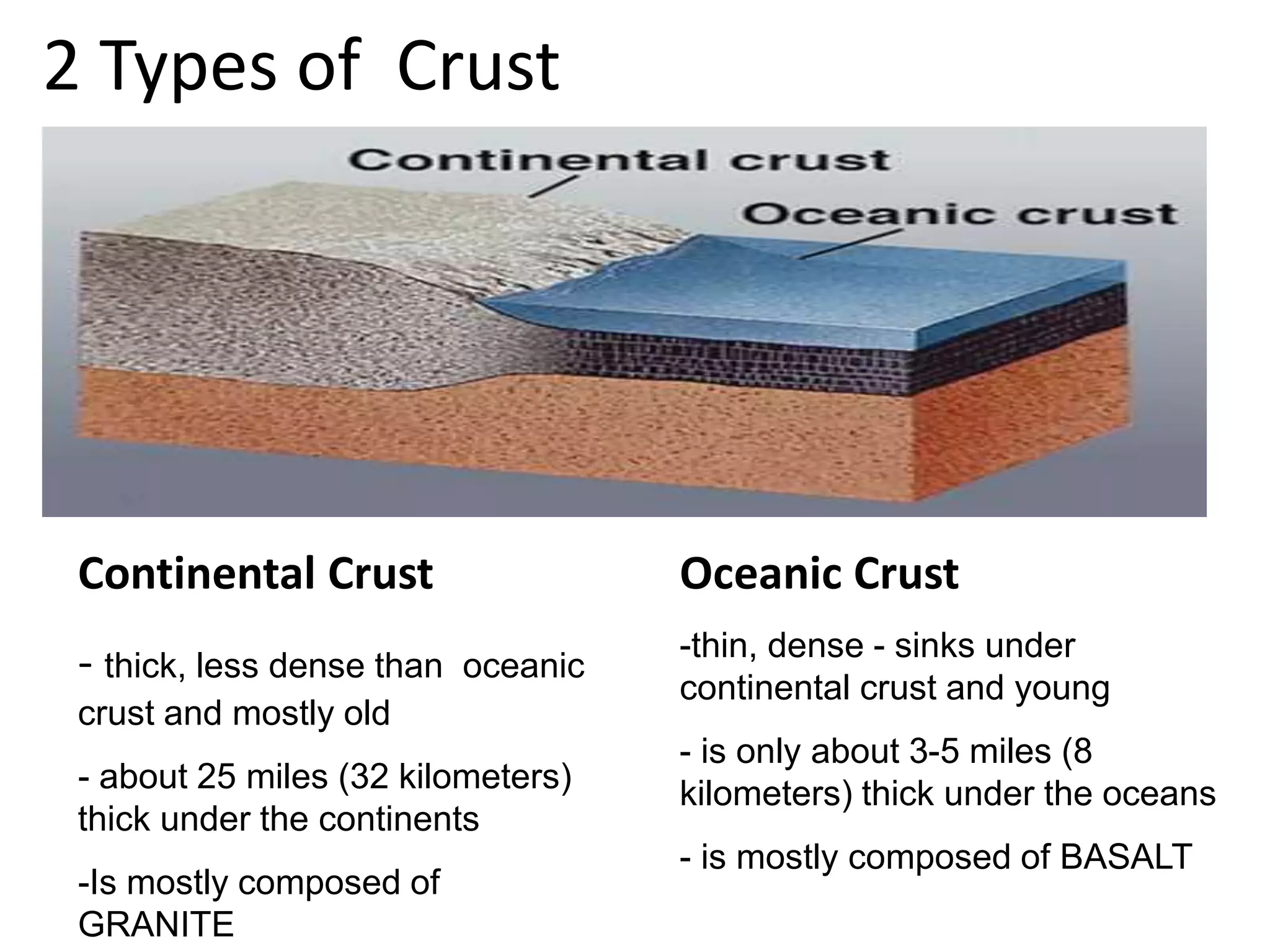

8. 2 Types of Crust
Continental Crust
- thick, less dense than oceanic
crust and mostly old
- about 25 miles (32 kilometers)
thick under the continents
-Is mostly composed of
GRANITE
Oceanic Crust
-thin, dense - sinks under
continental crust and young
- is only about 3-5 miles (8
kilometers) thick under the oceans
- is mostly composed of BASALT

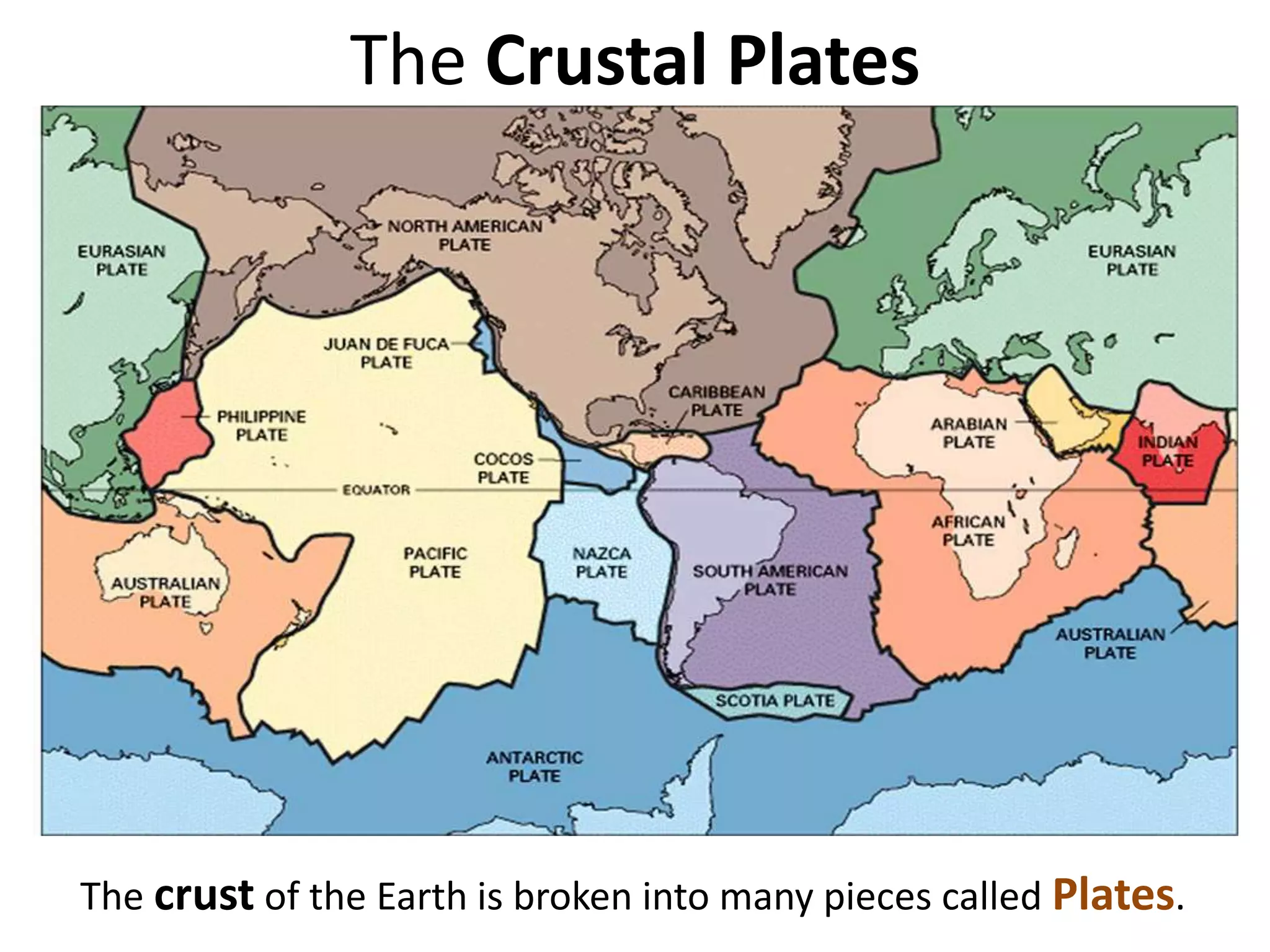

9. The Crustal Plates
The crust of the Earth is broken into many pieces called Plates.

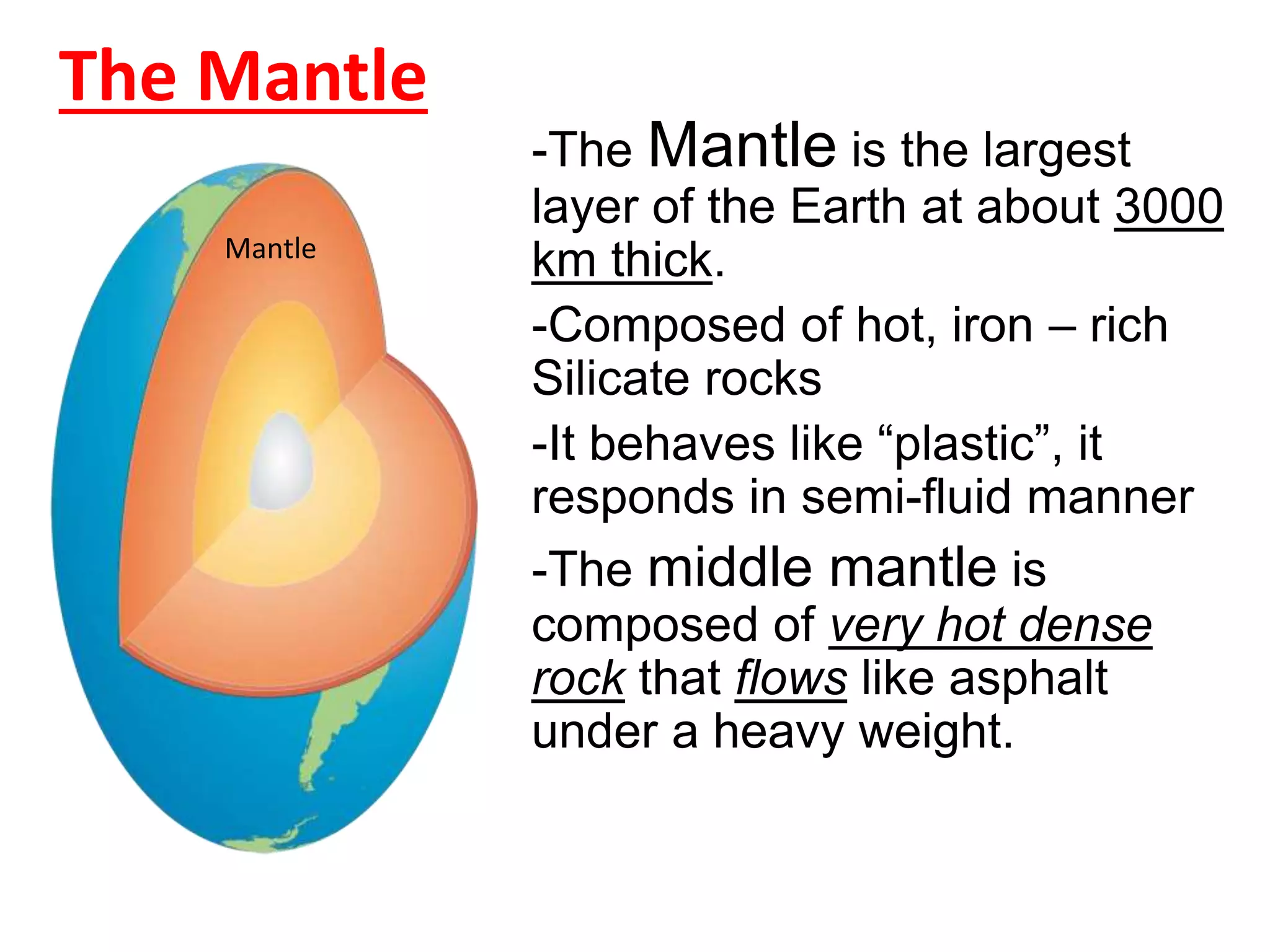

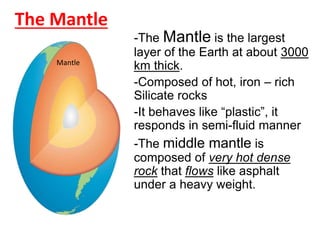

10. The Mantle
-The Mantle is the largest
layer of the Earth at about 3000
km thick.
-Composed of hot, iron – rich
Silicate rocks
-It behaves like “plastic”, it
responds in semi-fluid manner
-The middle mantle is
composed of very hot dense
rock that flows like asphalt
under a heavy weight.
Mantle

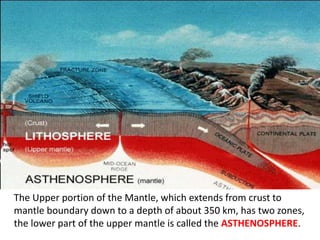

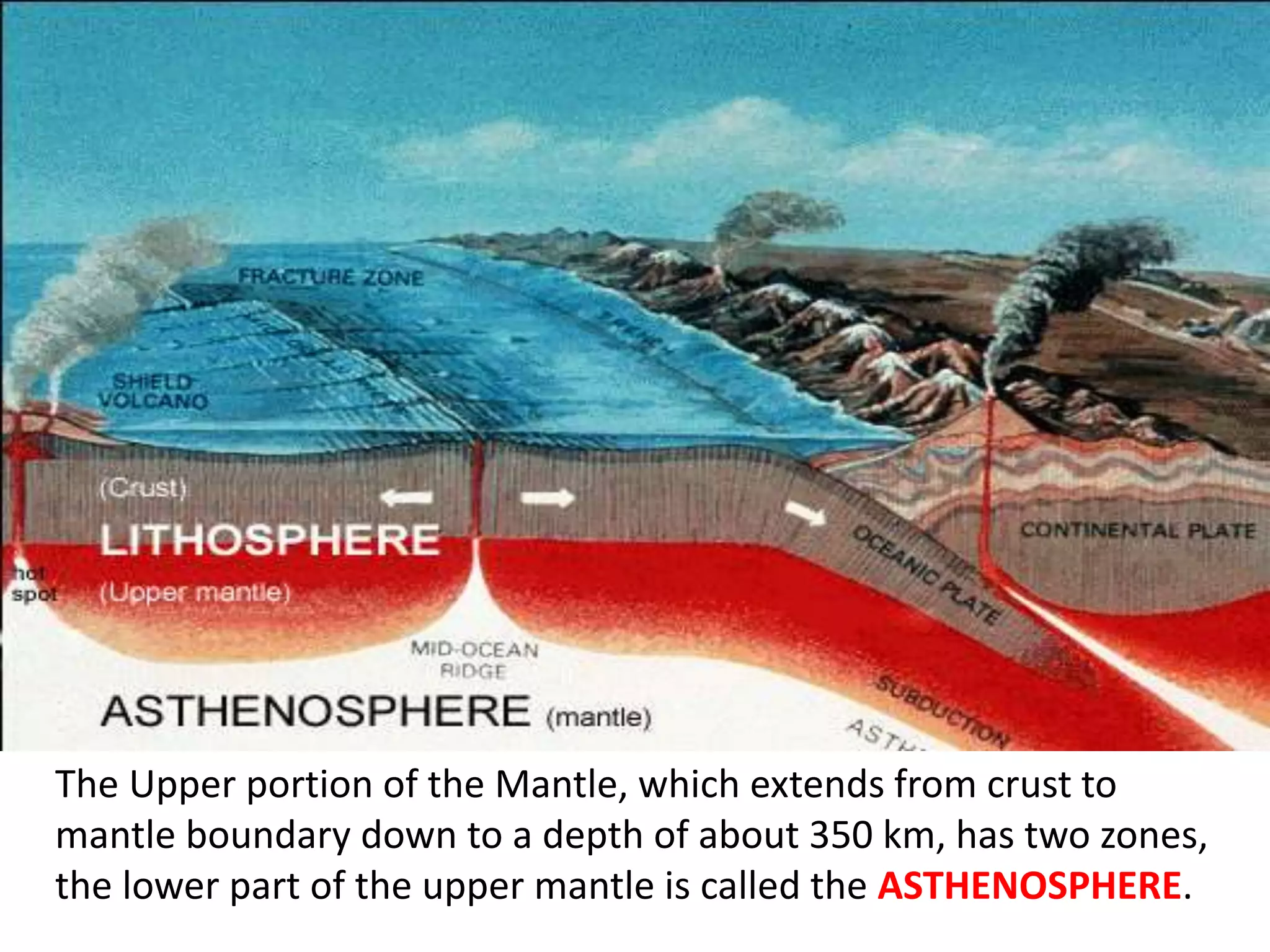

11. The Upper portion of the Mantle, which extends from crust to
mantle boundary down to a depth of about 350 km, has two zones,
the lower part of the upper mantle is called the ASTHENOSPHERE.

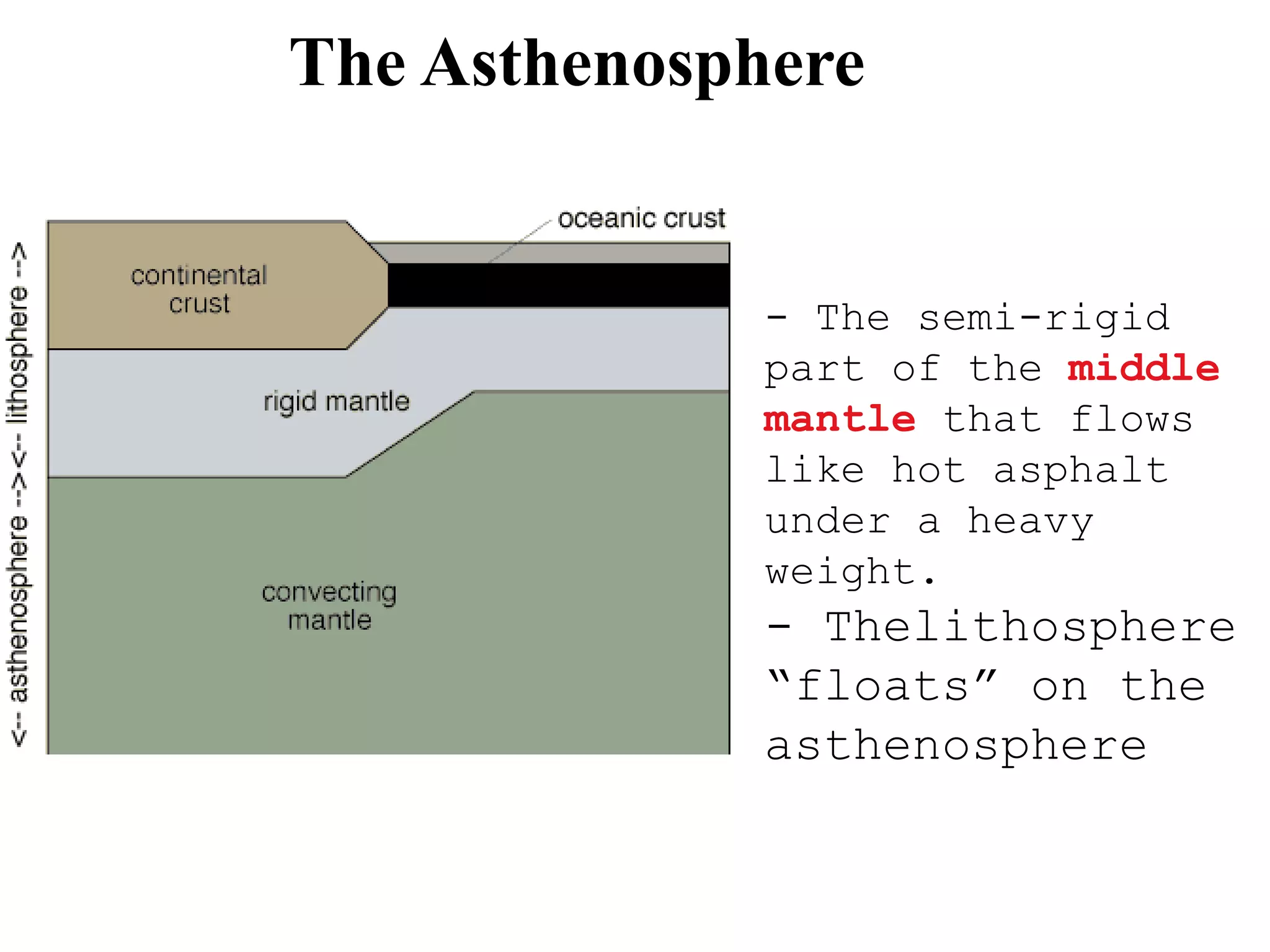

12. The Asthenosphere
- The semi-rigid
part of the middle
mantle that flows
like hot asphalt
under a heavy
weight.
- Thelithosphere
“floats” on the
asthenosphere

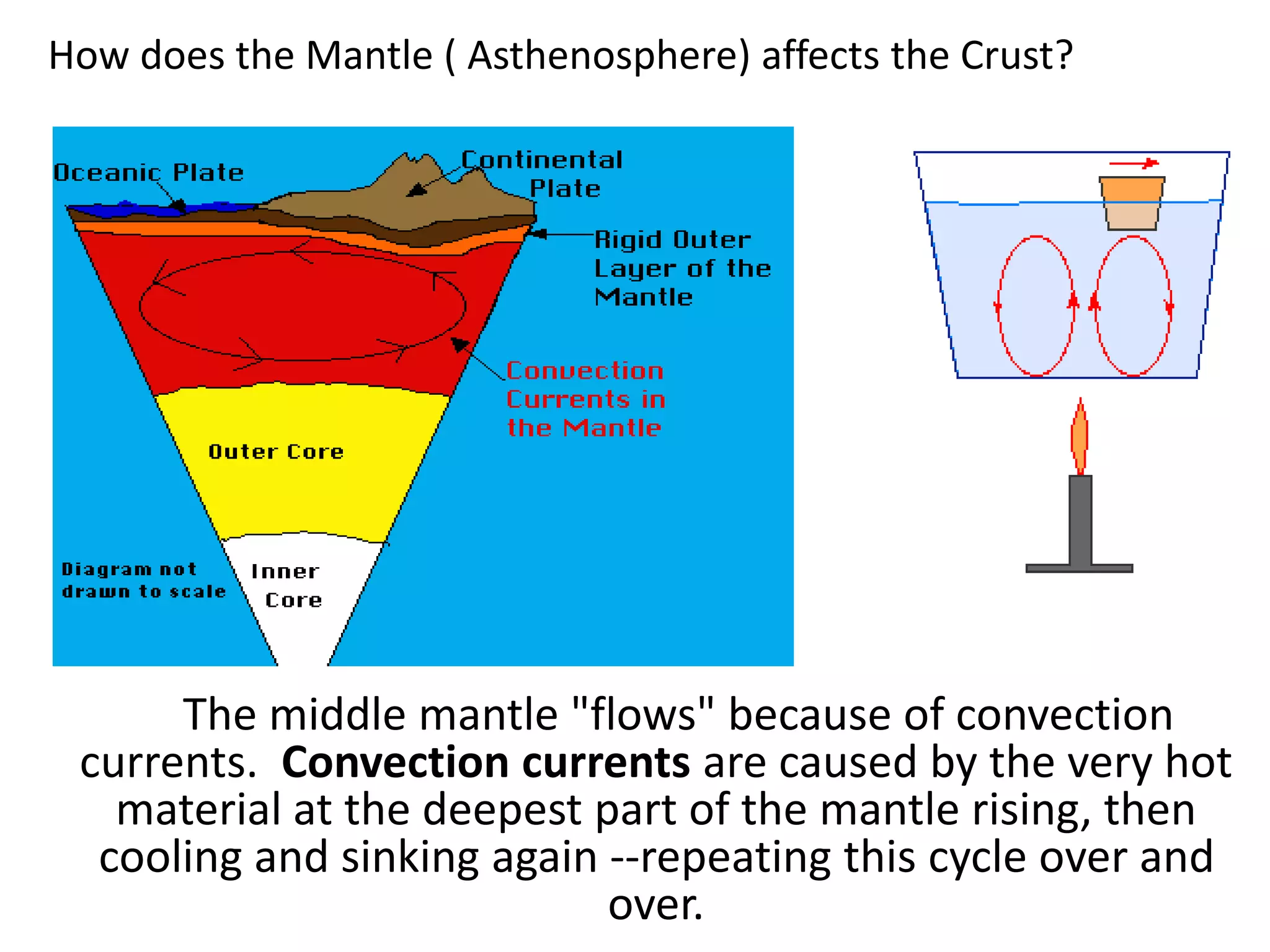

13. How does the Mantle ( Asthenosphere) affects the Crust?
The middle mantle "flows" because of convection
currents. Convection currents are caused by the very hot
material at the deepest part of the mantle rising, then
cooling and sinking again --repeating this cycle over and
over.

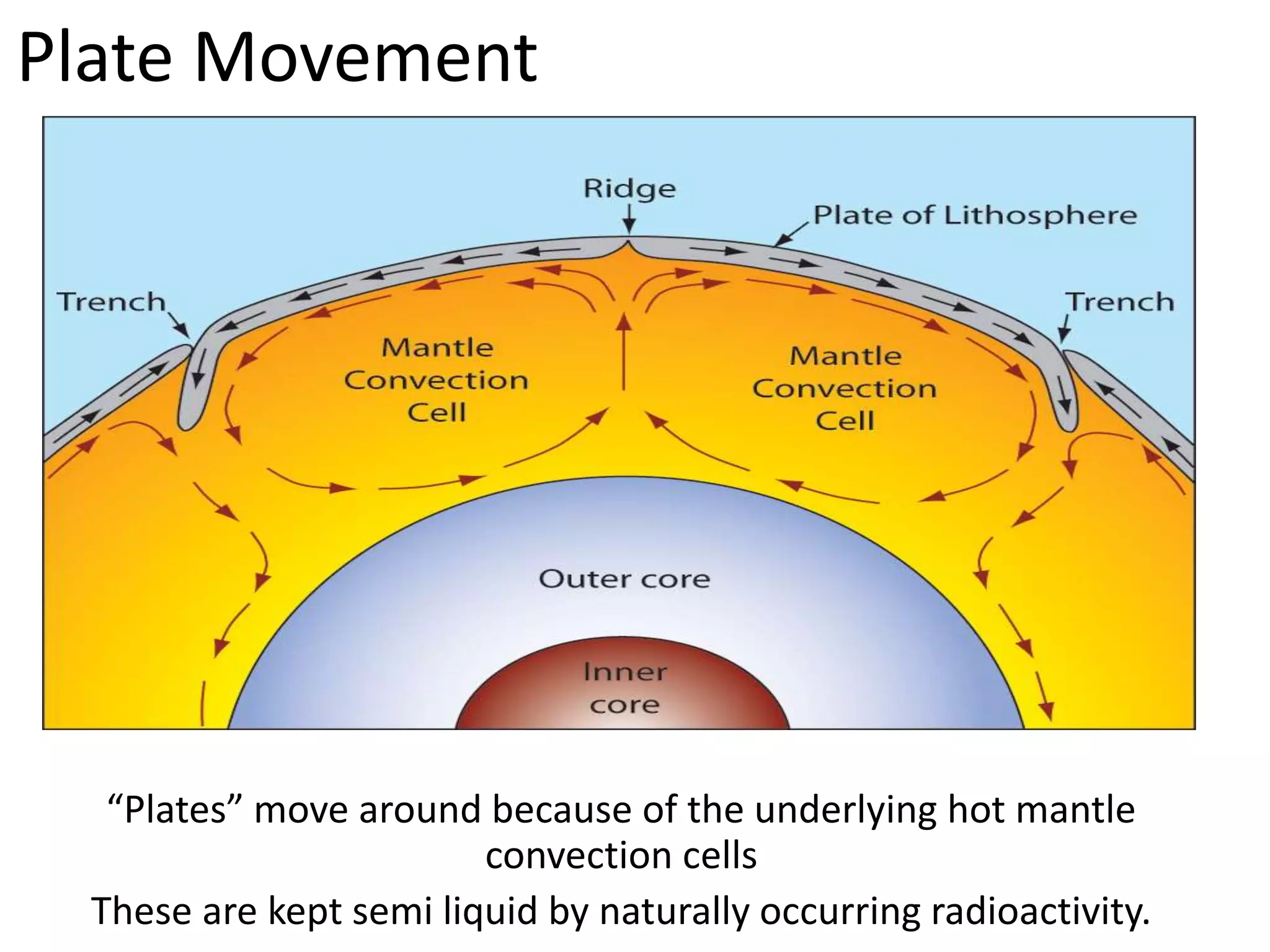

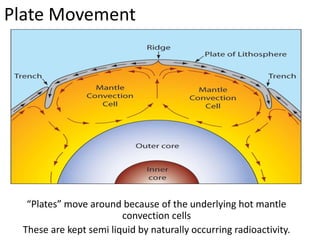

14. Plate Movement
“Plates” move around because of the underlying hot mantle
convection cells
These are kept semi liquid by naturally occurring radioactivity.

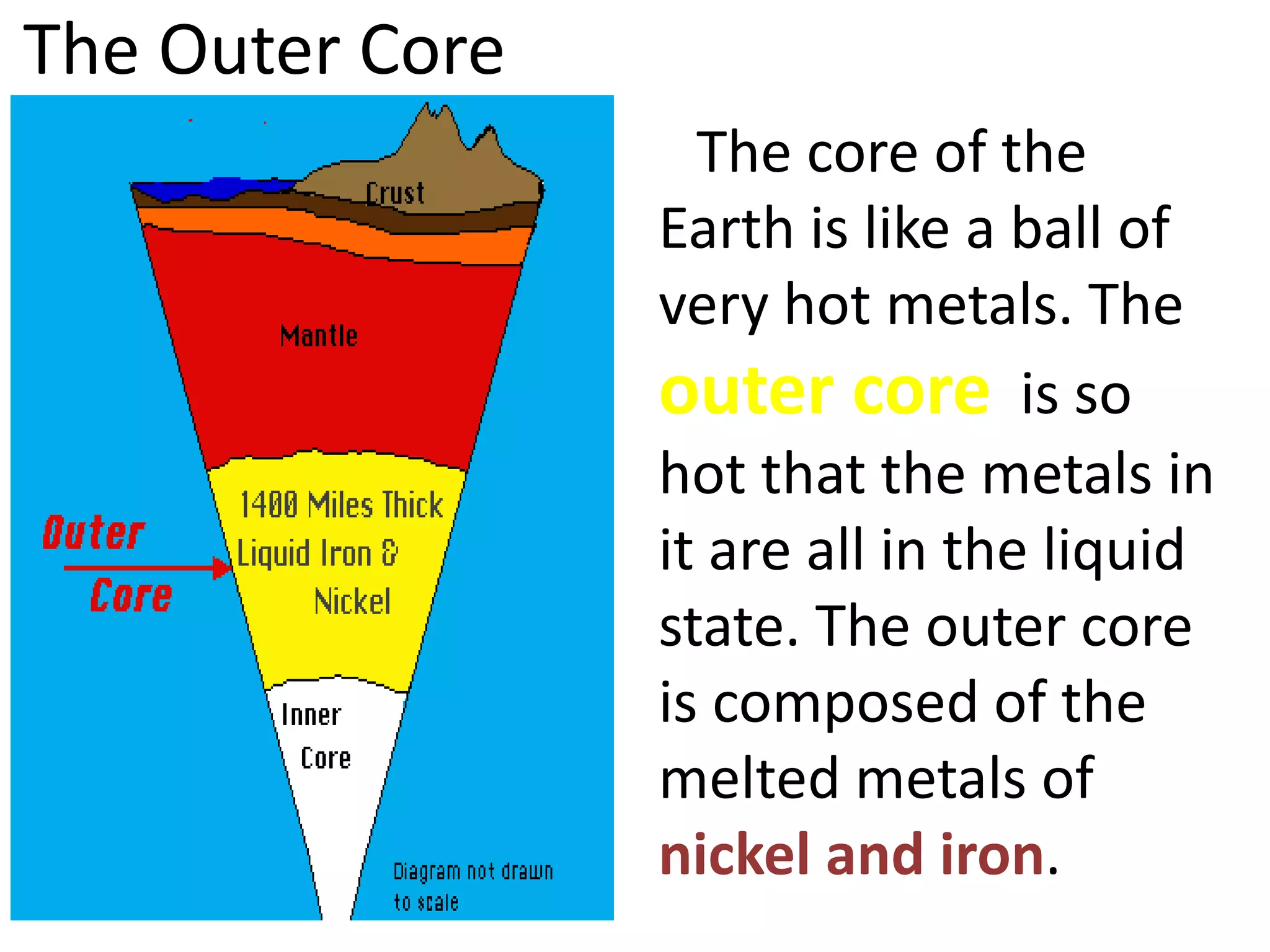

15. The Outer Core
The core of the
Earth is like a ball of
very hot metals. The
outer core is so
hot that the metals in
it are all in the liquid
state. The outer core
is composed of the
melted metals of
nickel and iron.

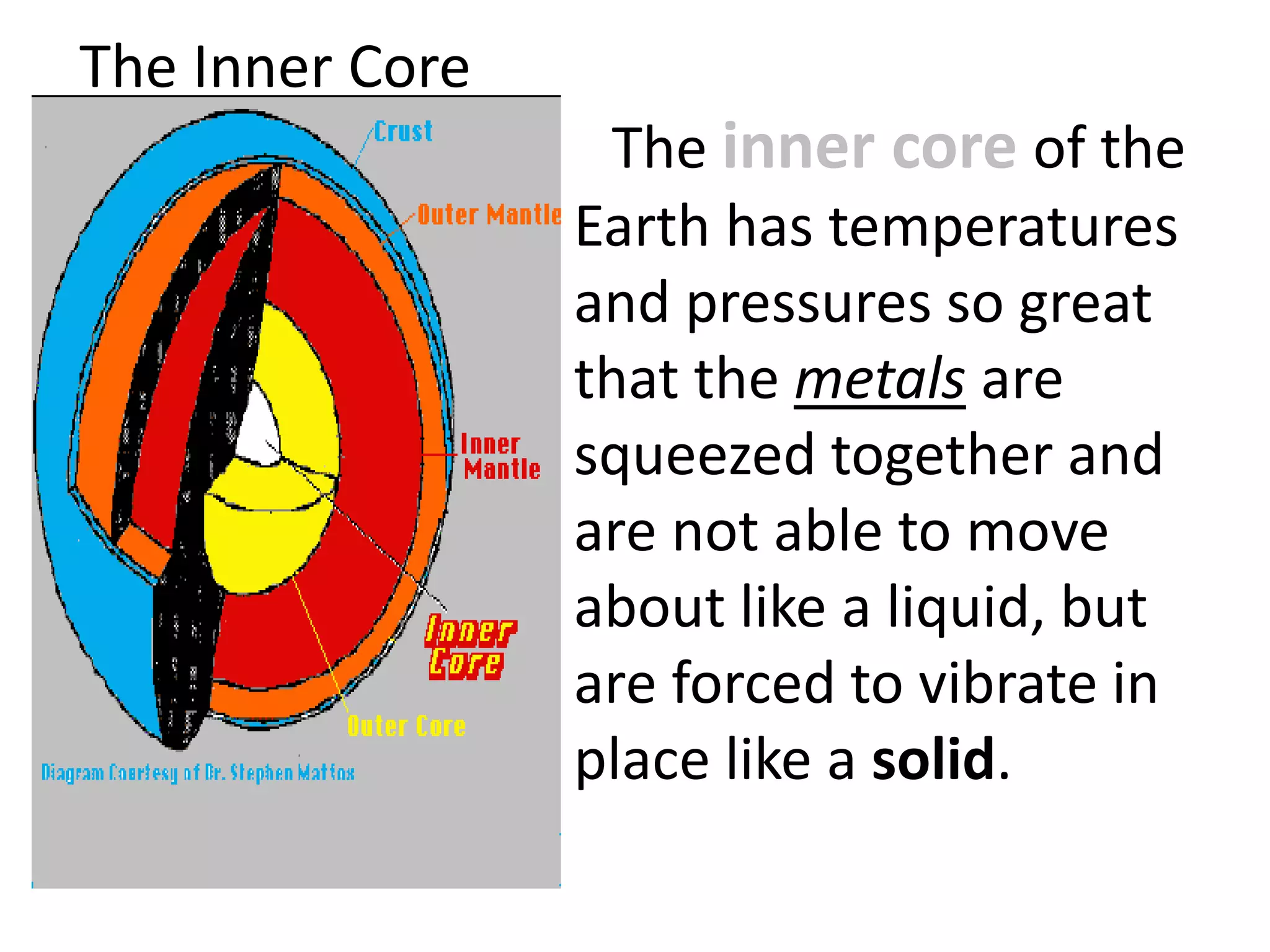

16. The Inner Core
The inner core of the
Earth has temperatures
and pressures so great
that the metals are
squeezed together and
are not able to move
about like a liquid, but
are forced to vibrate in
place like a solid.

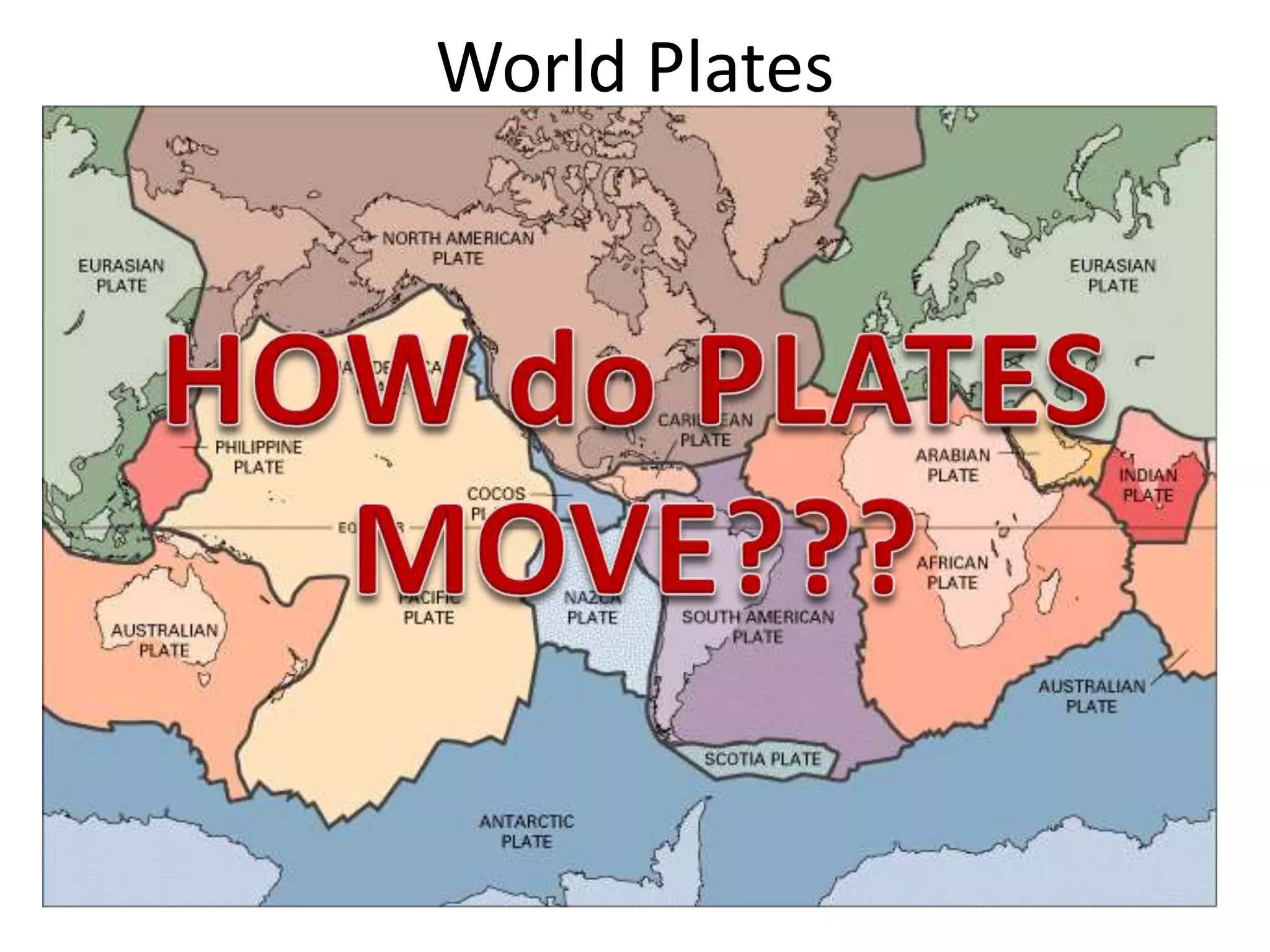

17. World Plates

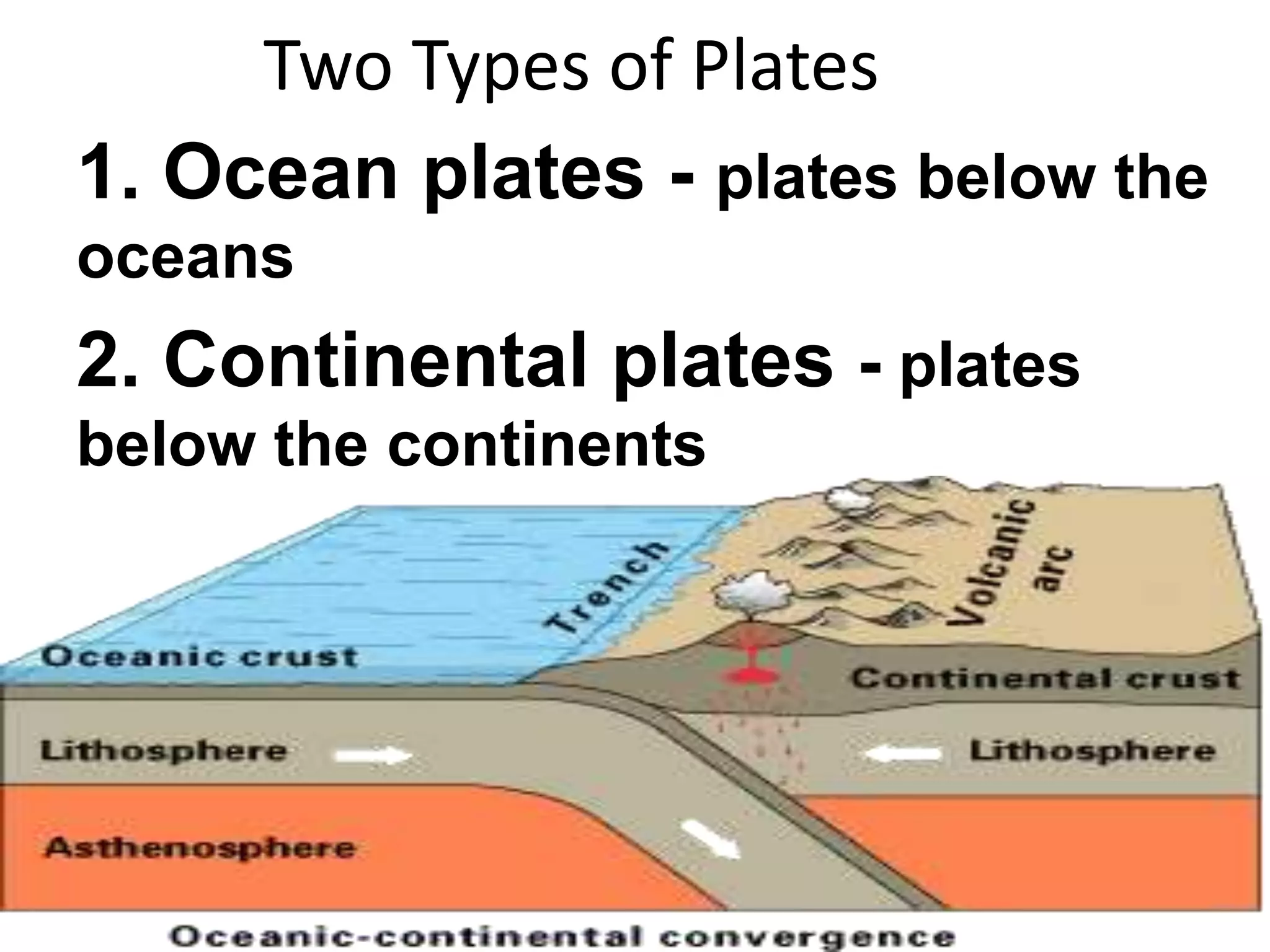

18. Two Types of Plates
1. Ocean plates - plates below the
oceans
2. Continental plates - plates
below the continents

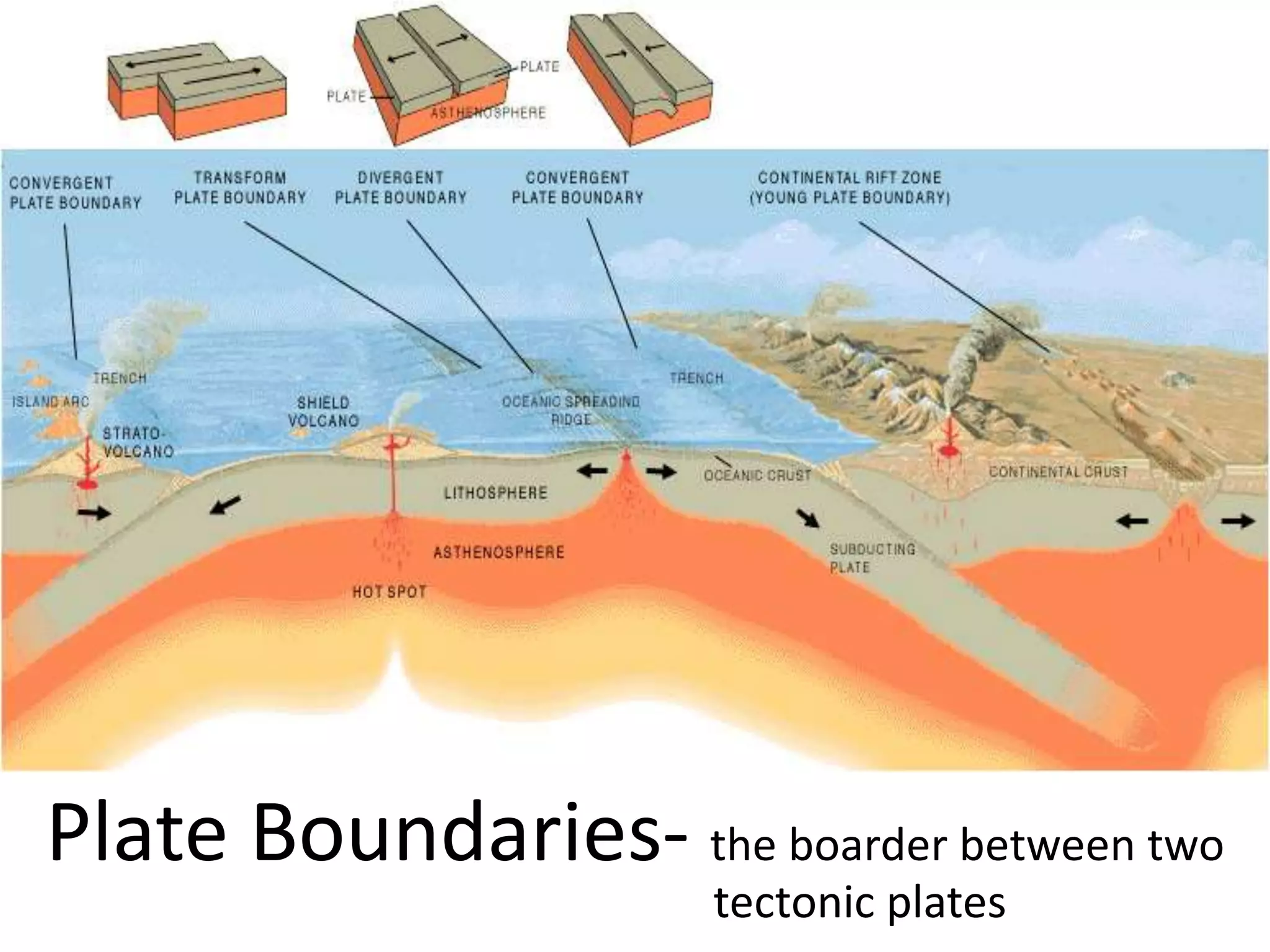

19. Plate Boundaries- the boarder between two
tectonic plates

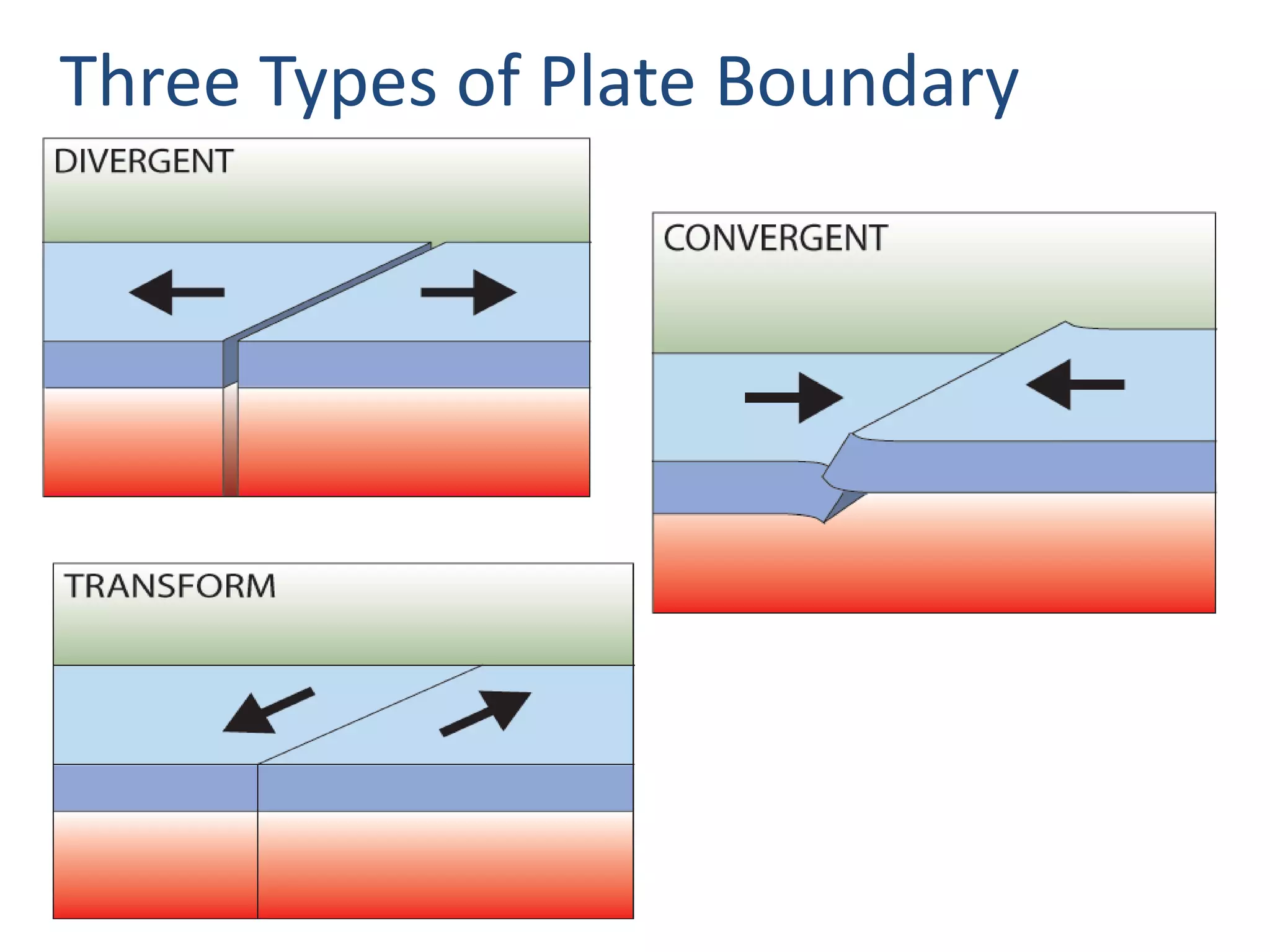

20. Three Types of Plate Boundary

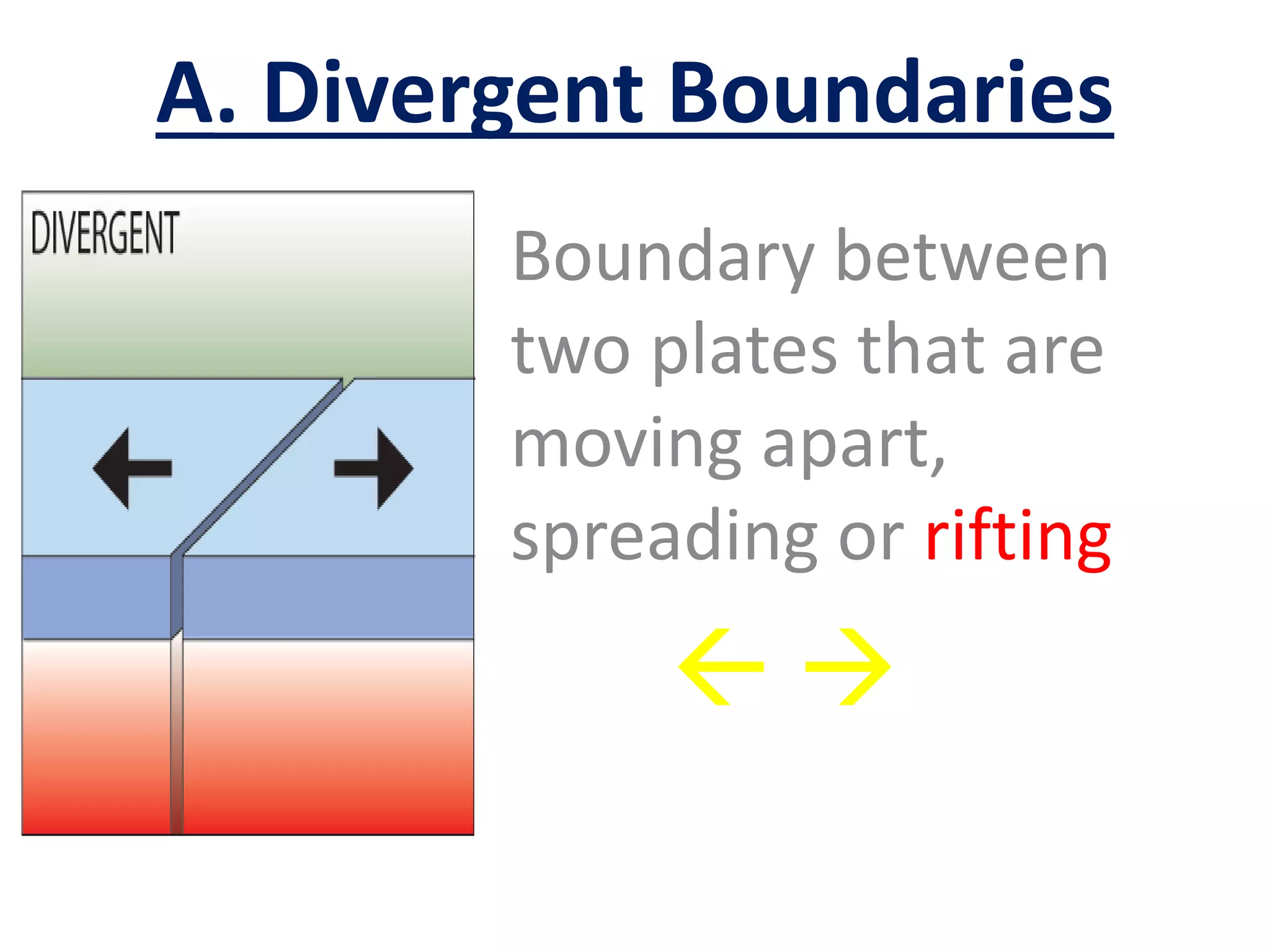

21. A. Divergent Boundaries
Boundary between
two plates that are
moving apart,
spreading or rifting
 

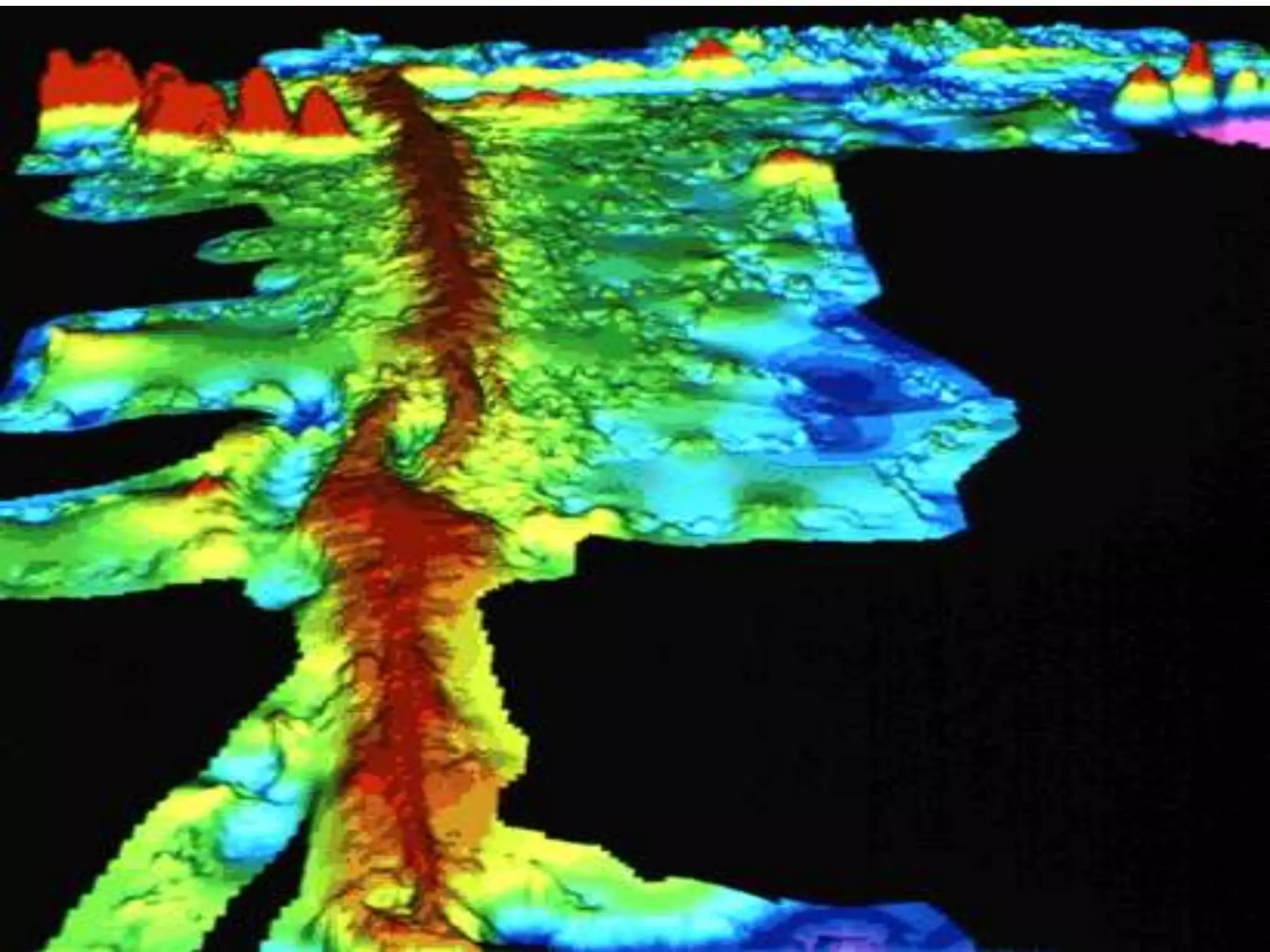

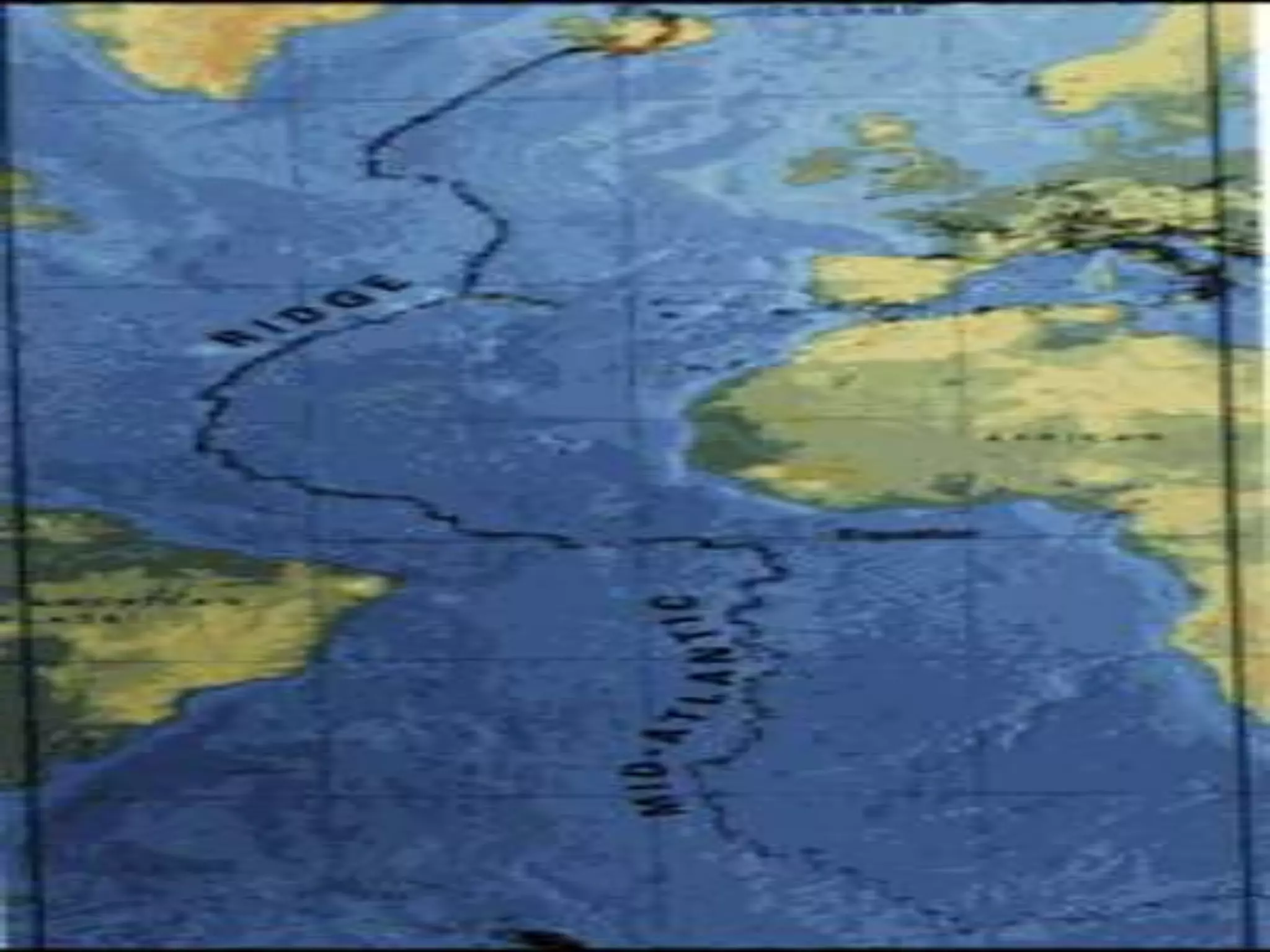

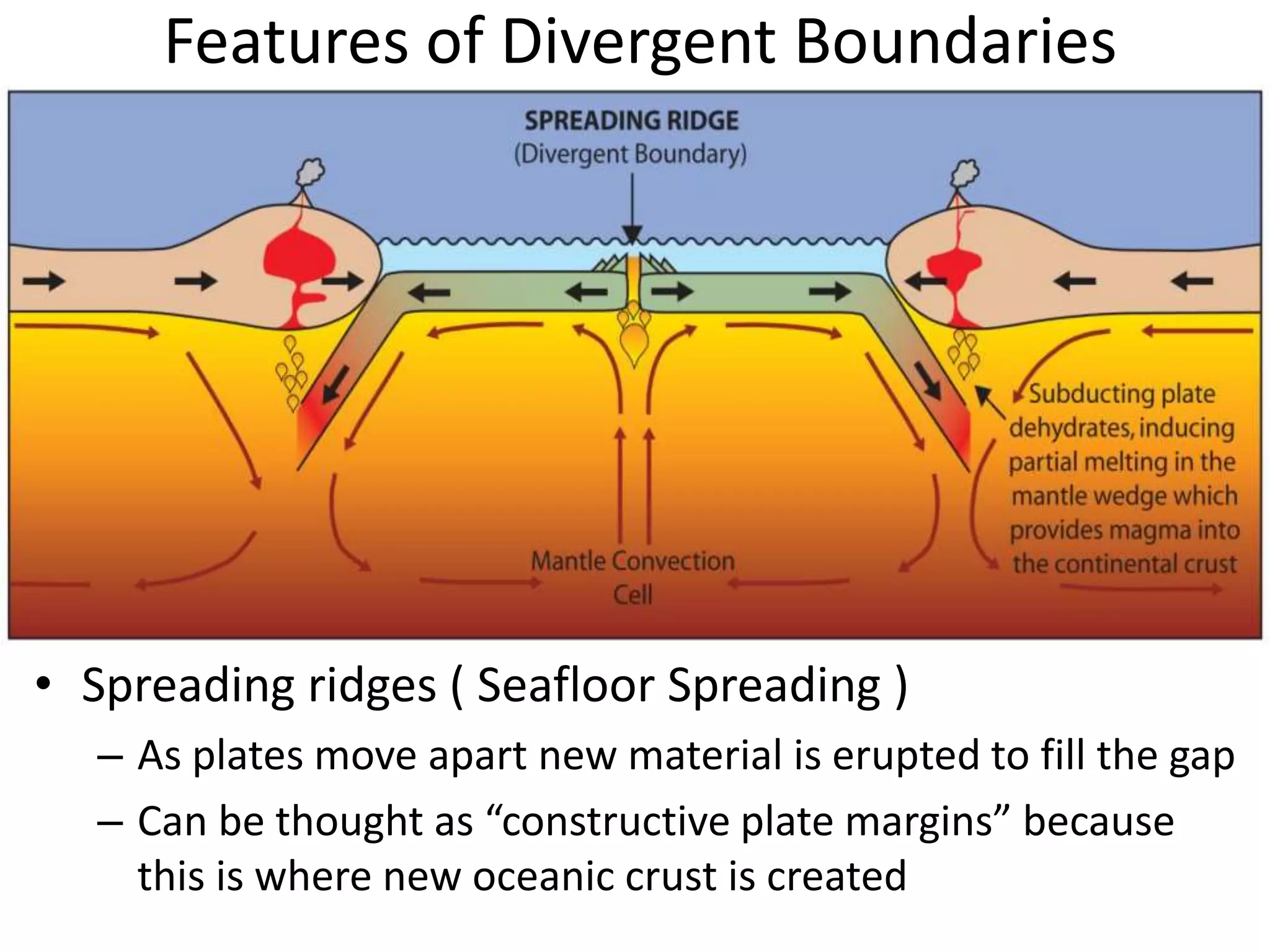

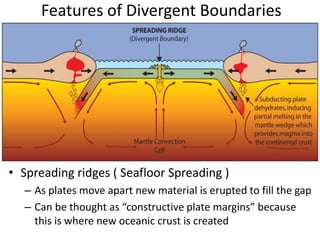

22. Features of Divergent Boundaries
• Spreading ridges ( Seafloor Spreading )
– As plates move apart new material is erupted to fill the gap
– Can be thought as “constructive plate margins” because
this is where new oceanic crust is created

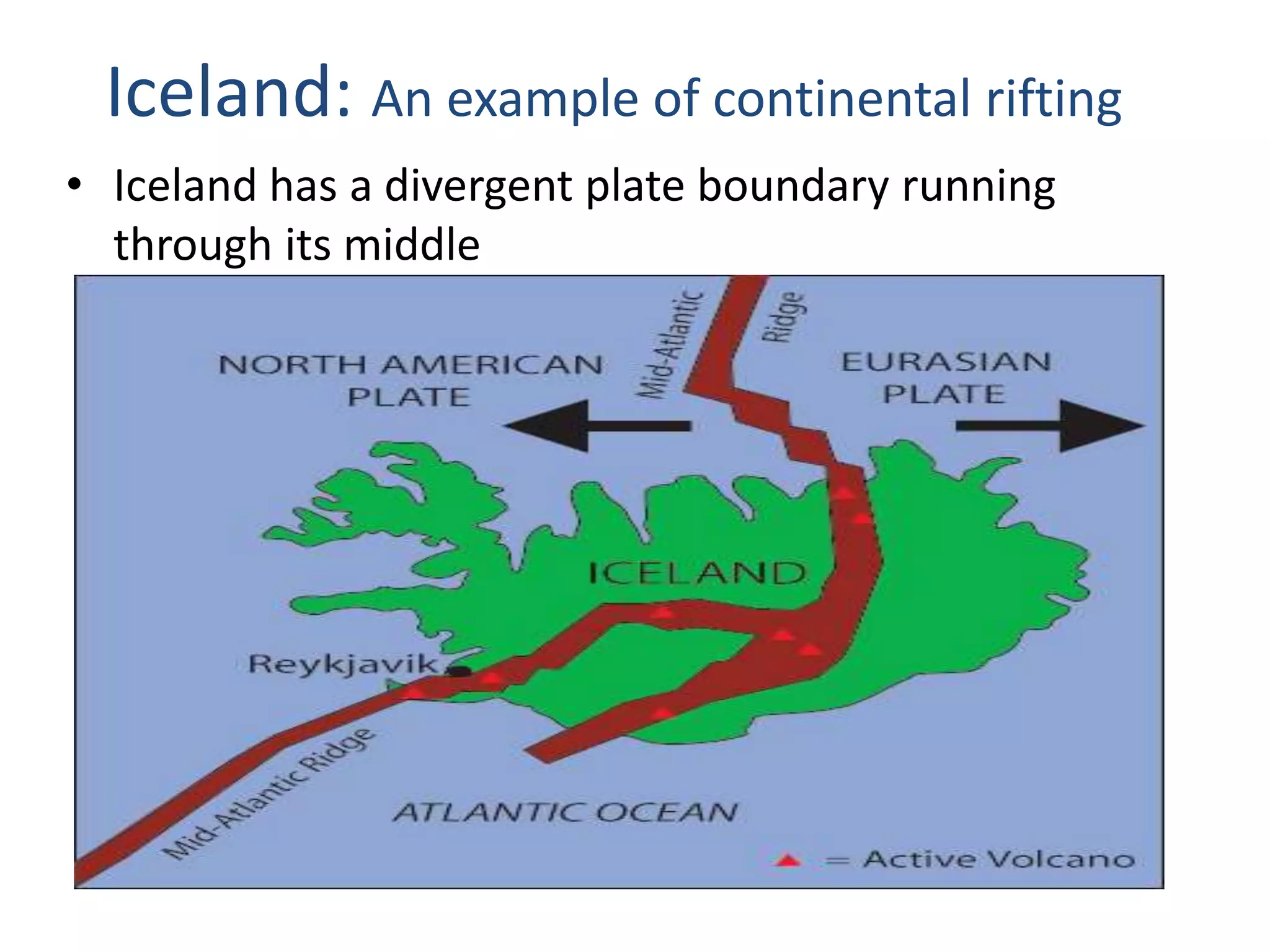

24. • Iceland has a divergent plate boundary running
through its middle
Iceland: An example of continental rifting

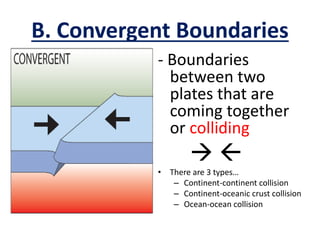

26. B. Convergent Boundaries
- Boundaries
between two
plates that are
coming together
or colliding
 
• There are 3 types…
– Continent-continent collision
– Continent-oceanic crust collision
– Ocean-ocean collision

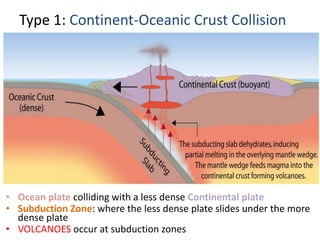

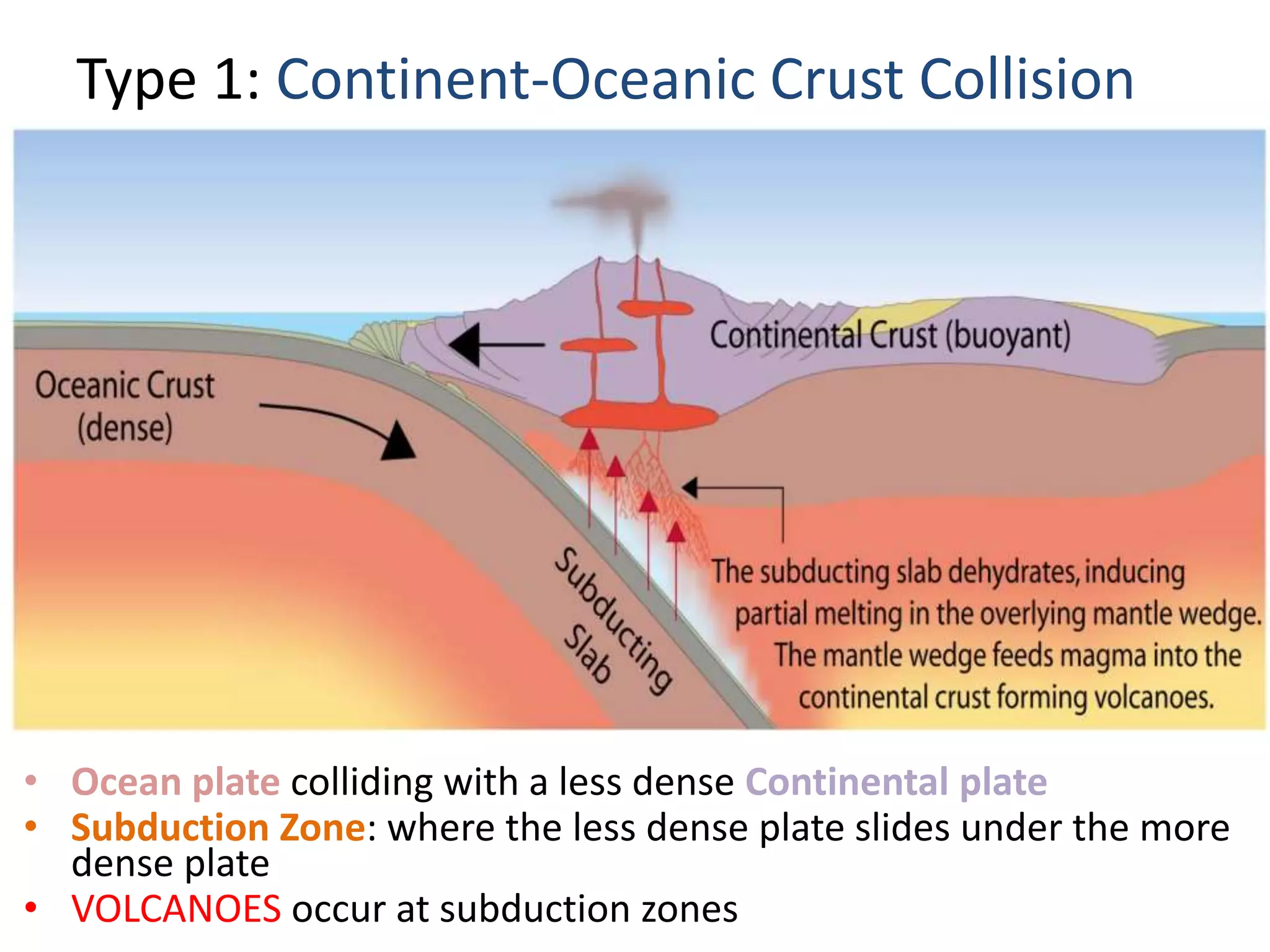

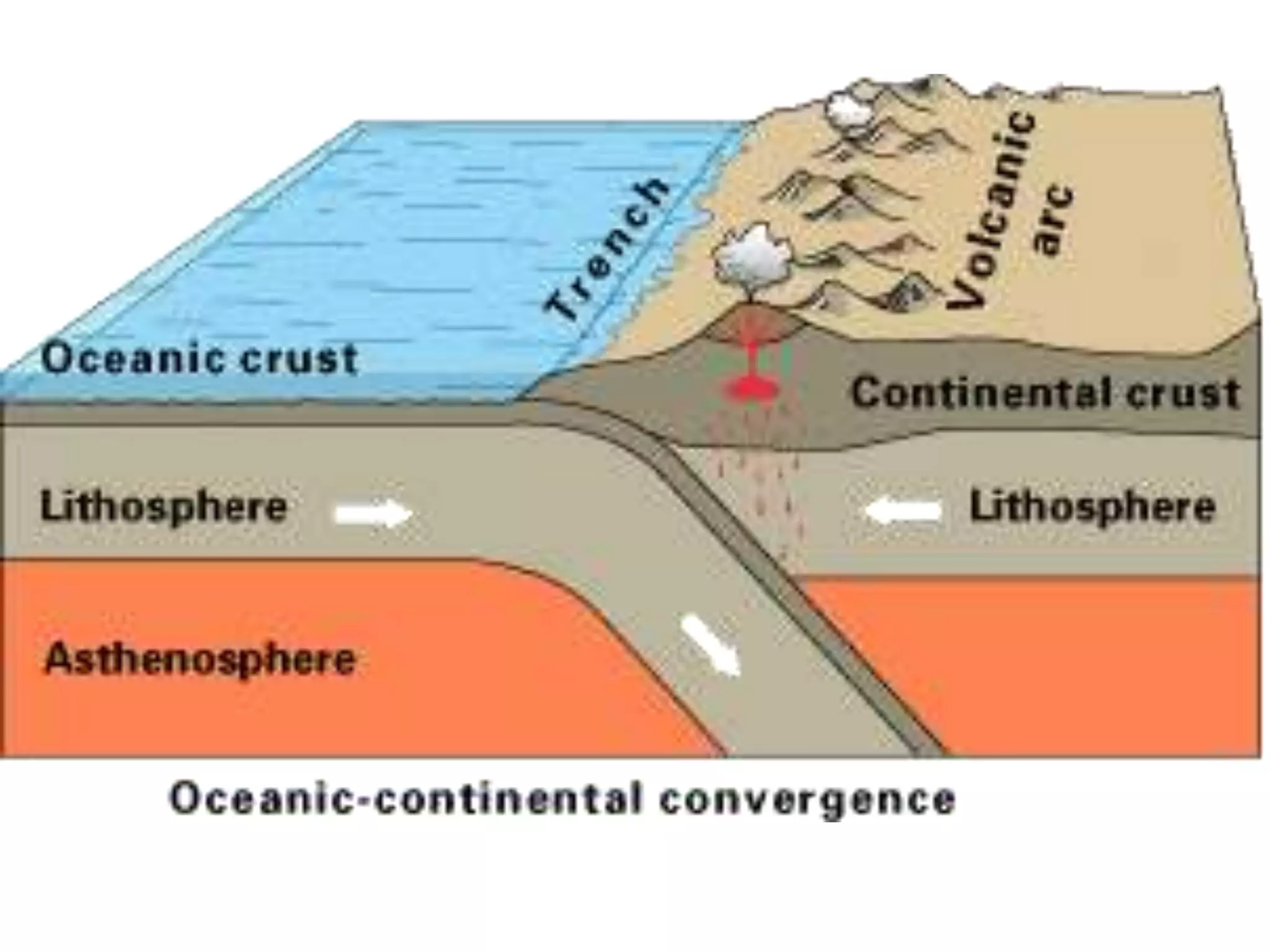

27. Type 1: Continent-Oceanic Crust Collision
• Ocean plate colliding with a less dense Continental plate
• Subduction Zone: where the less dense plate slides under the more
dense plate
• VOLCANOES occur at subduction zones

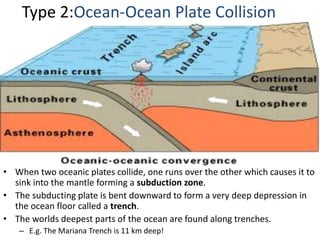

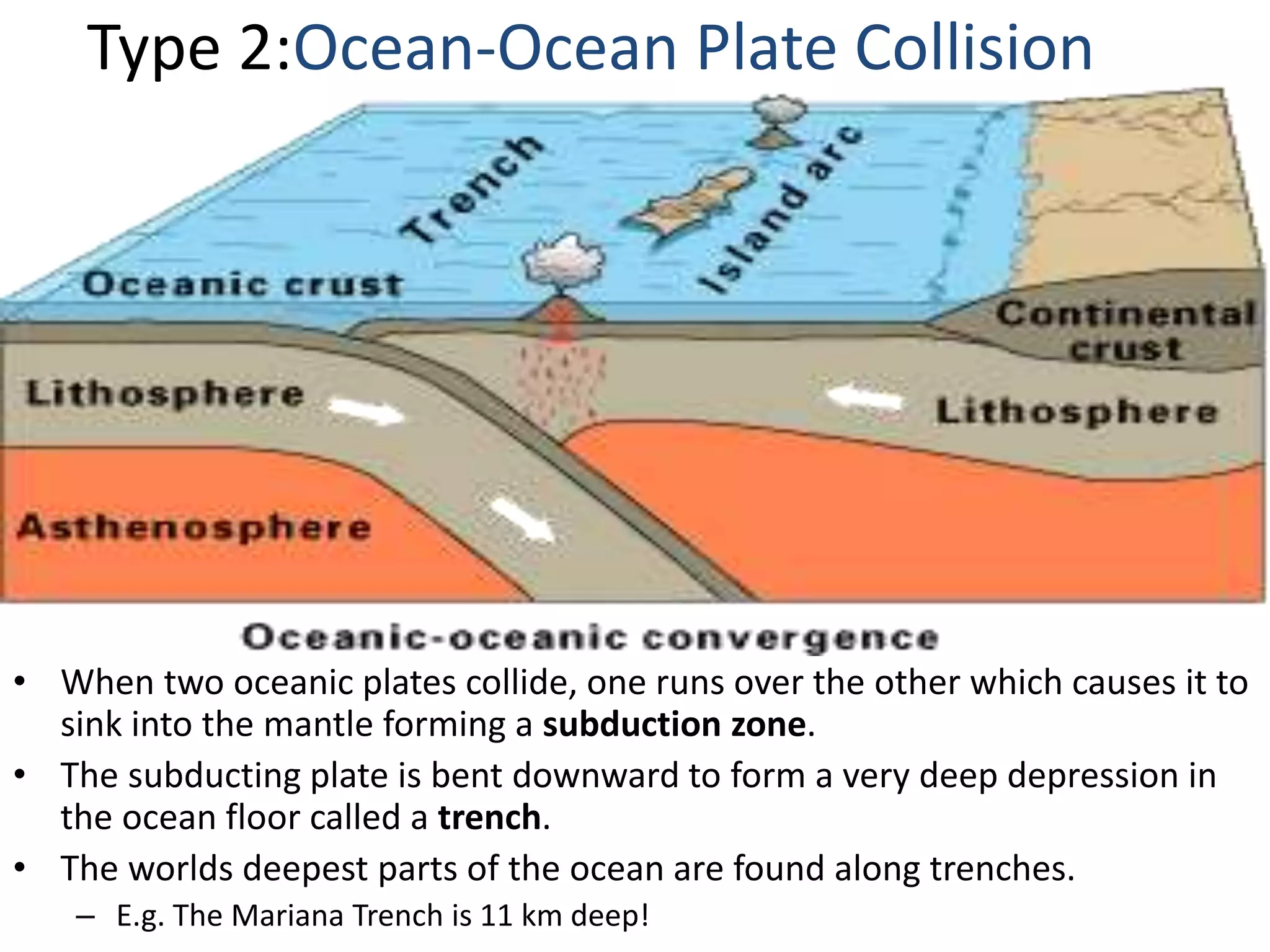

29. Type 2:Ocean-Ocean Plate Collision
• When two oceanic plates collide, one runs over the other which causes it to
sink into the mantle forming a subduction zone.
• The subducting plate is bent downward to form a very deep depression in
the ocean floor called a trench.
• The worlds deepest parts of the ocean are found along trenches.
– E.g. The Mariana Trench is 11 km deep!

30. Manned or unmanned submersible vehicles (top right photo) have explored small
parts of trenches discovering new species (like the fish photographed here) and
amazing ecosystems.

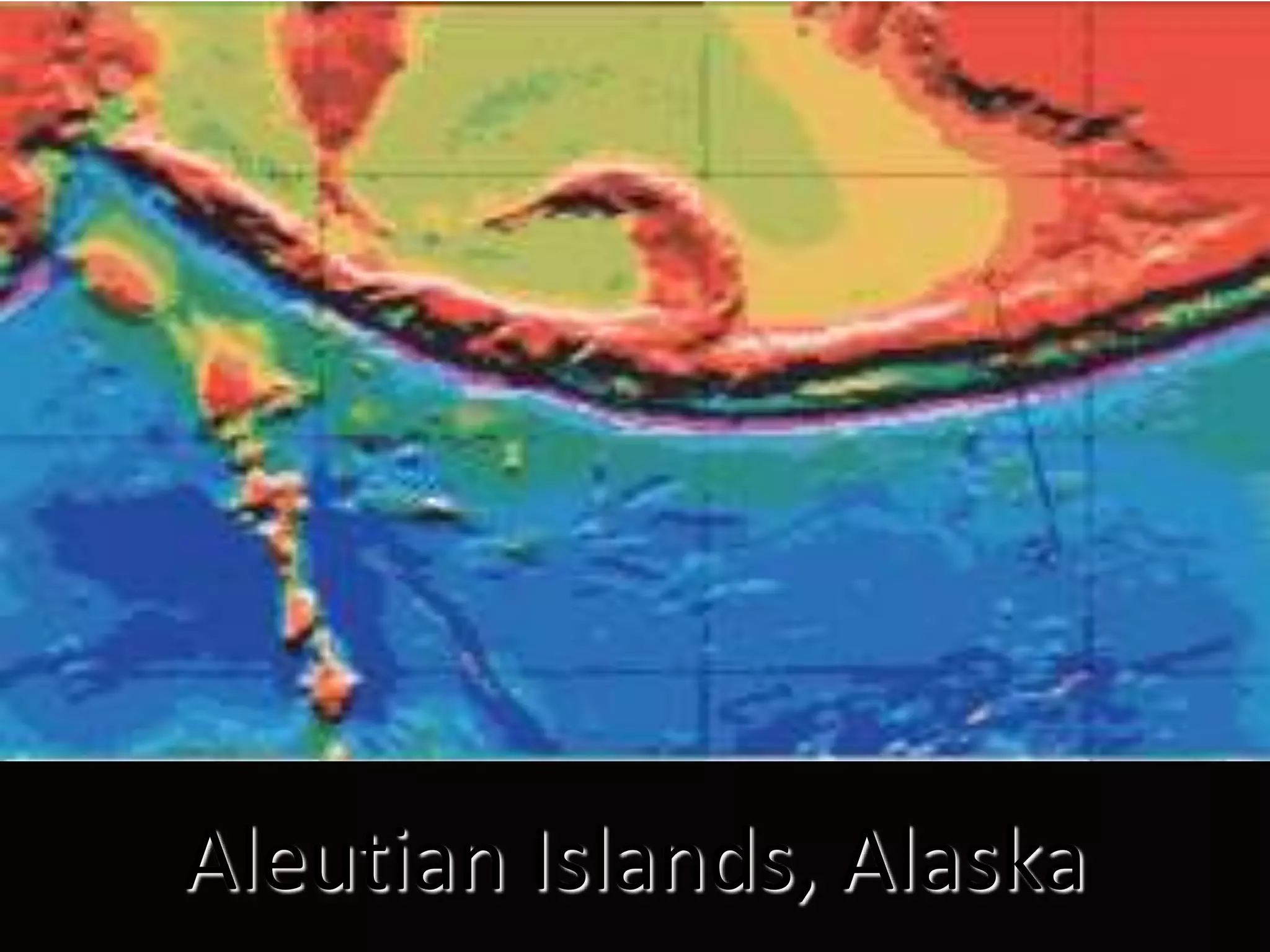

31. Aleutian Islands, Alaska

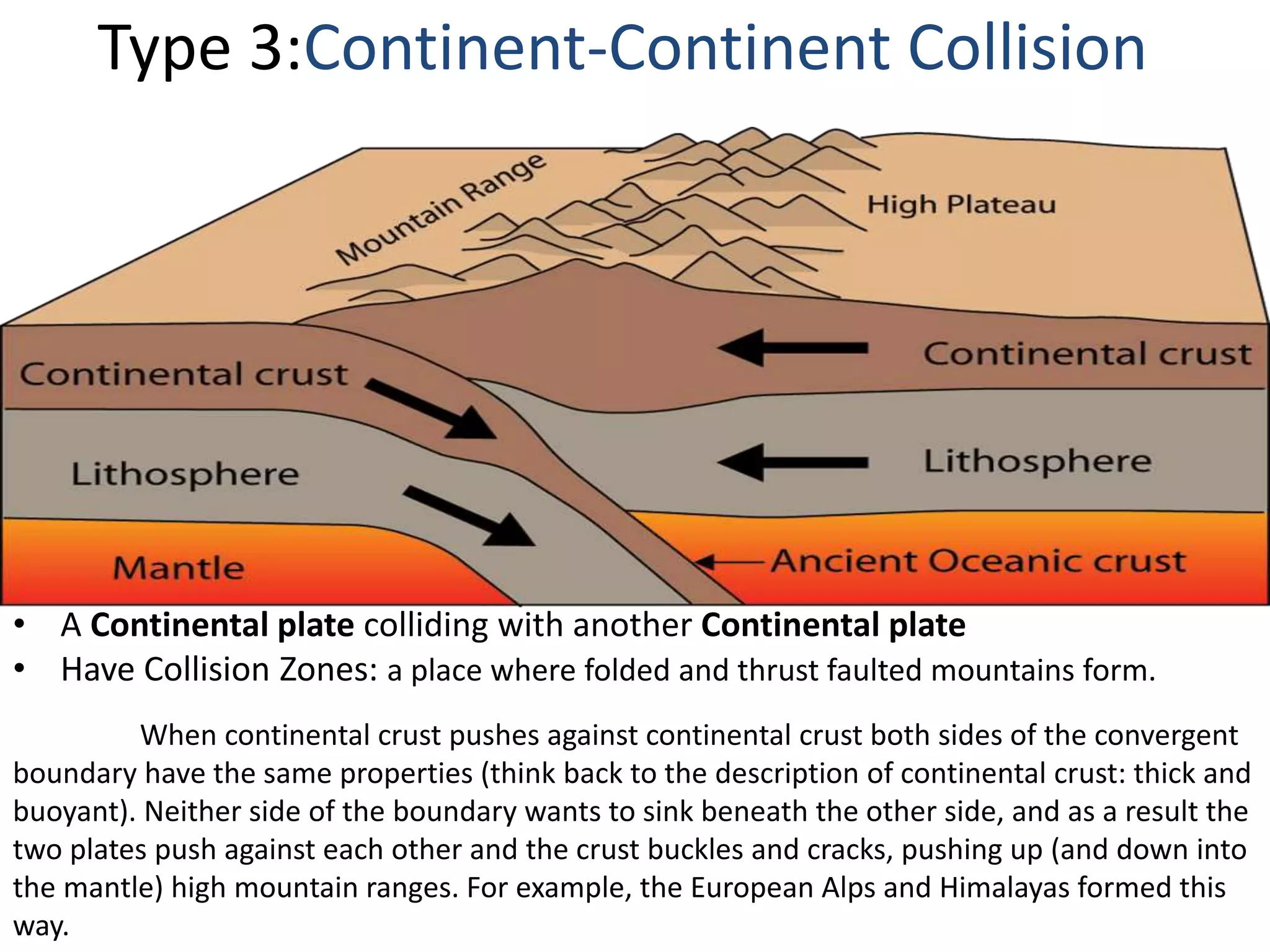

32. Type 3:Continent-Continent Collision
• A Continental plate colliding with another Continental plate
• Have Collision Zones: a place where folded and thrust faulted mountains form.
When continental crust pushes against continental crust both sides of the convergent
boundary have the same properties (think back to the description of continental crust: thick and
buoyant). Neither side of the boundary wants to sink beneath the other side, and as a result the
two plates push against each other and the crust buckles and cracks, pushing up (and down into
the mantle) high mountain ranges. For example, the European Alps and Himalayas formed this
way.

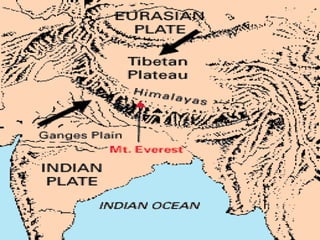

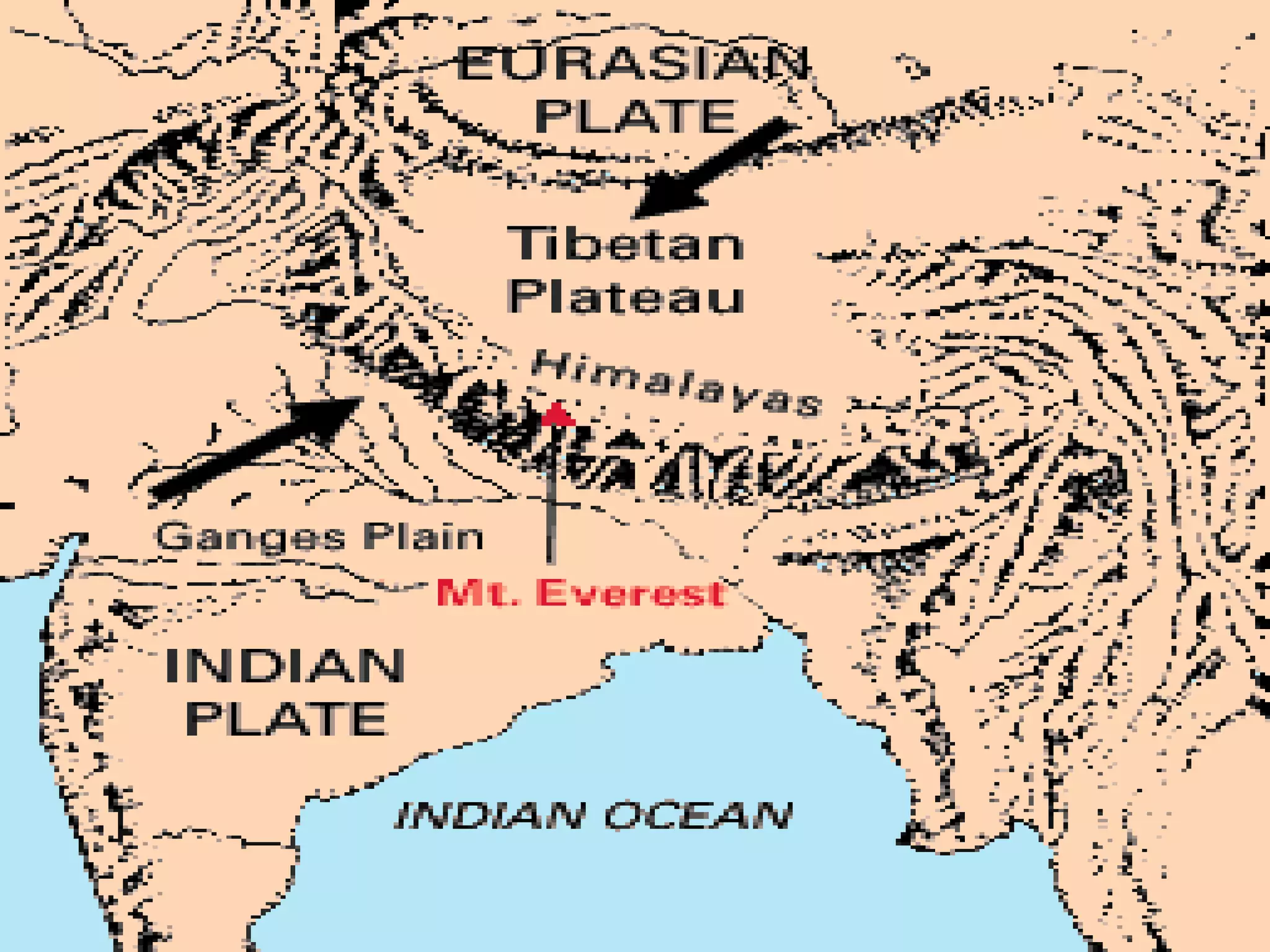

33. Himalayas

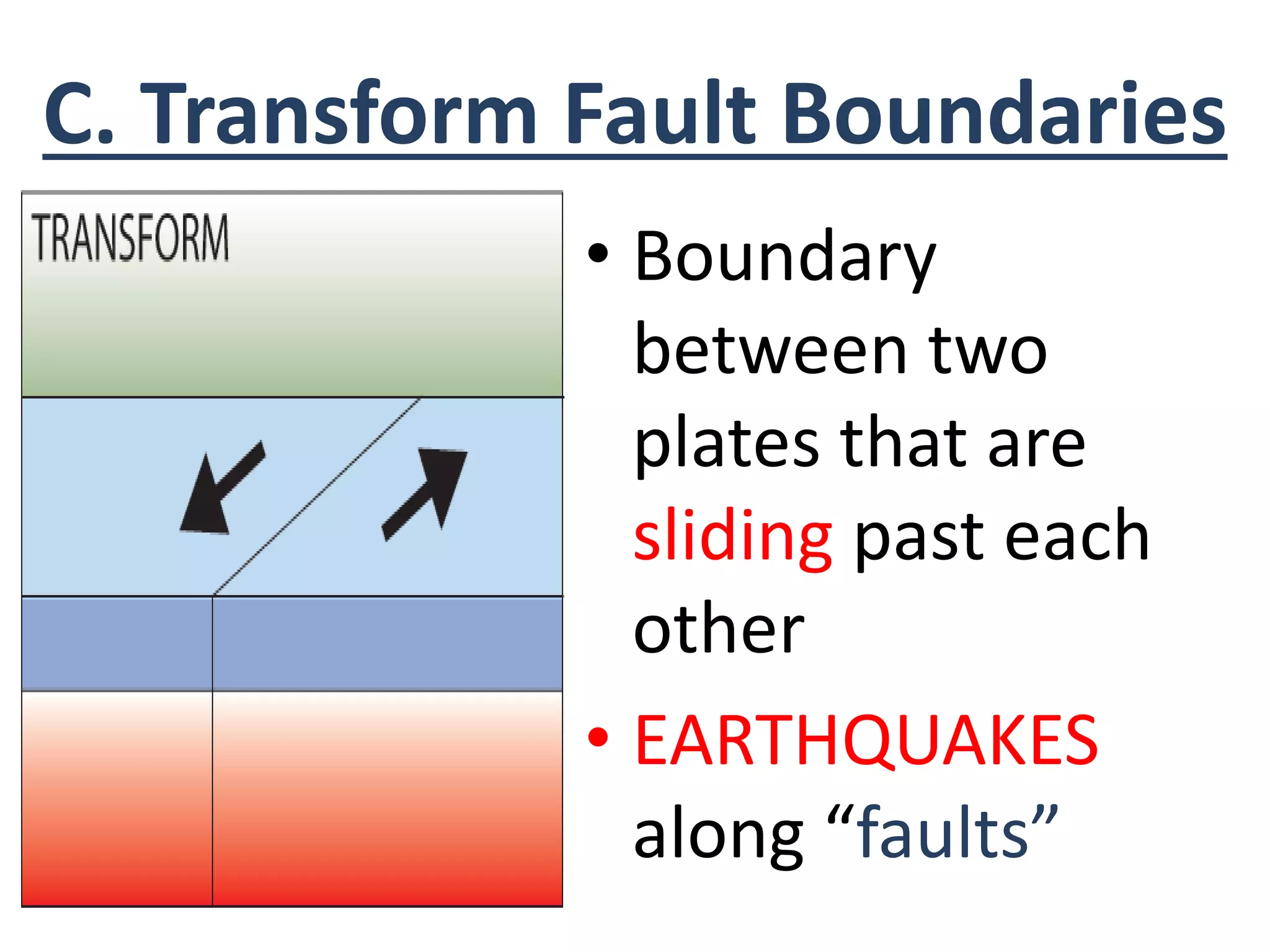

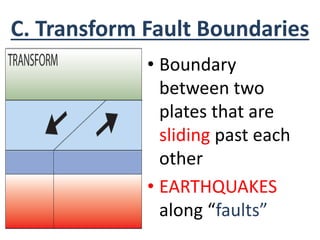

35. C. Transform Fault Boundaries
• Boundary
between two
plates that are
sliding past each
other
• EARTHQUAKES
along “faults”

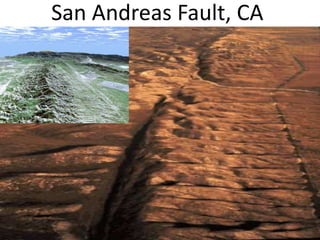

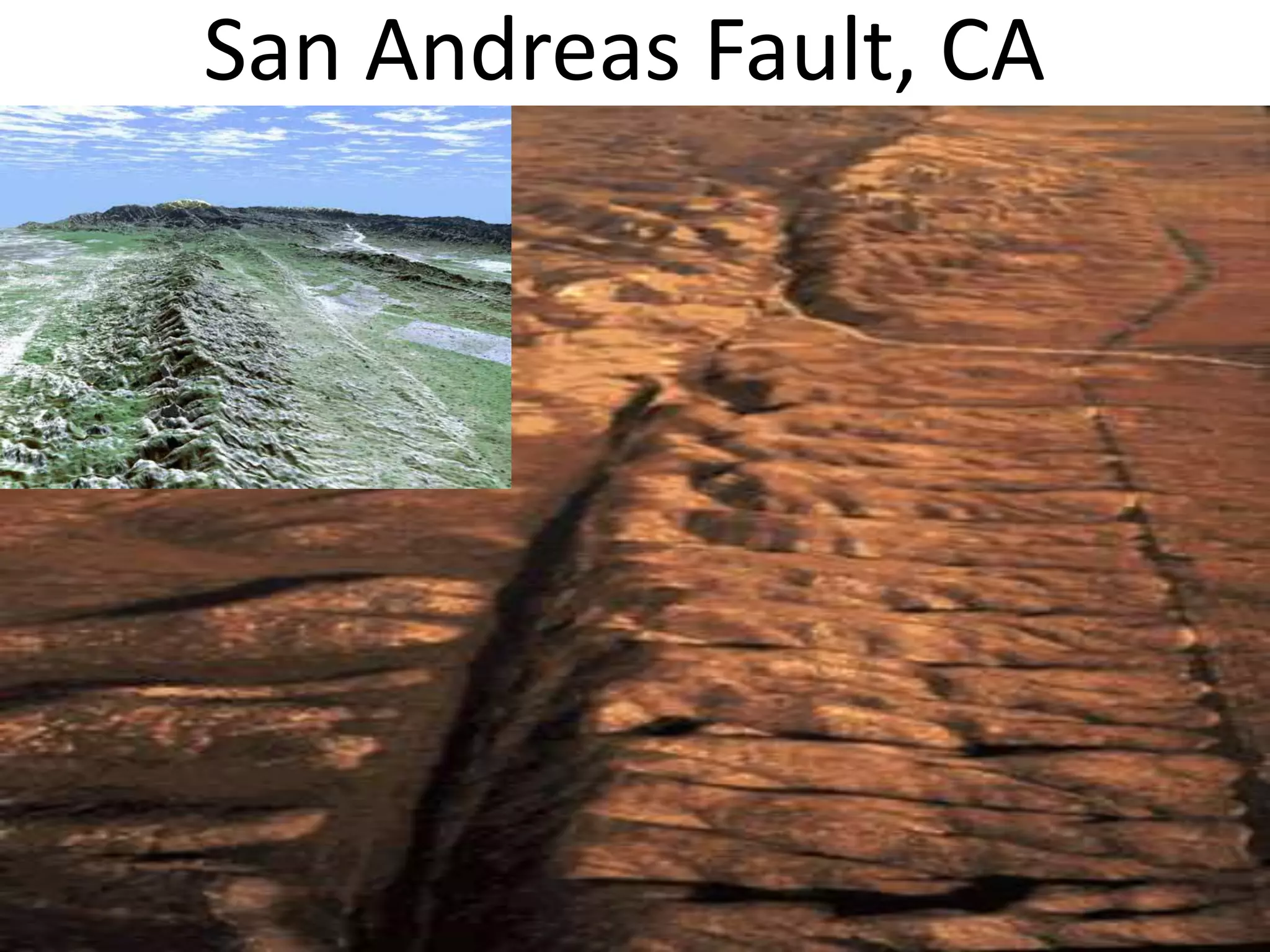

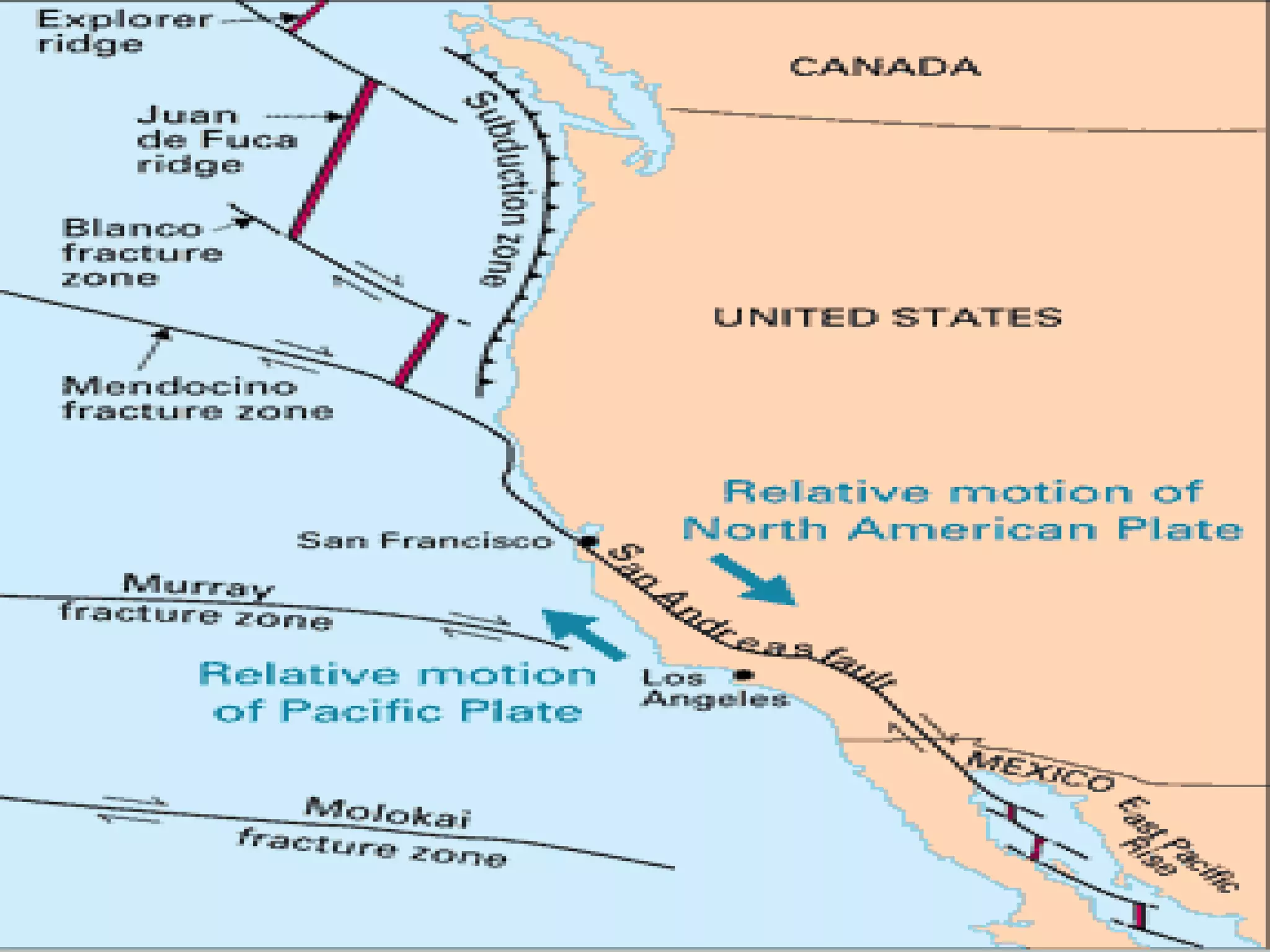

36. San Andreas Fault, CA

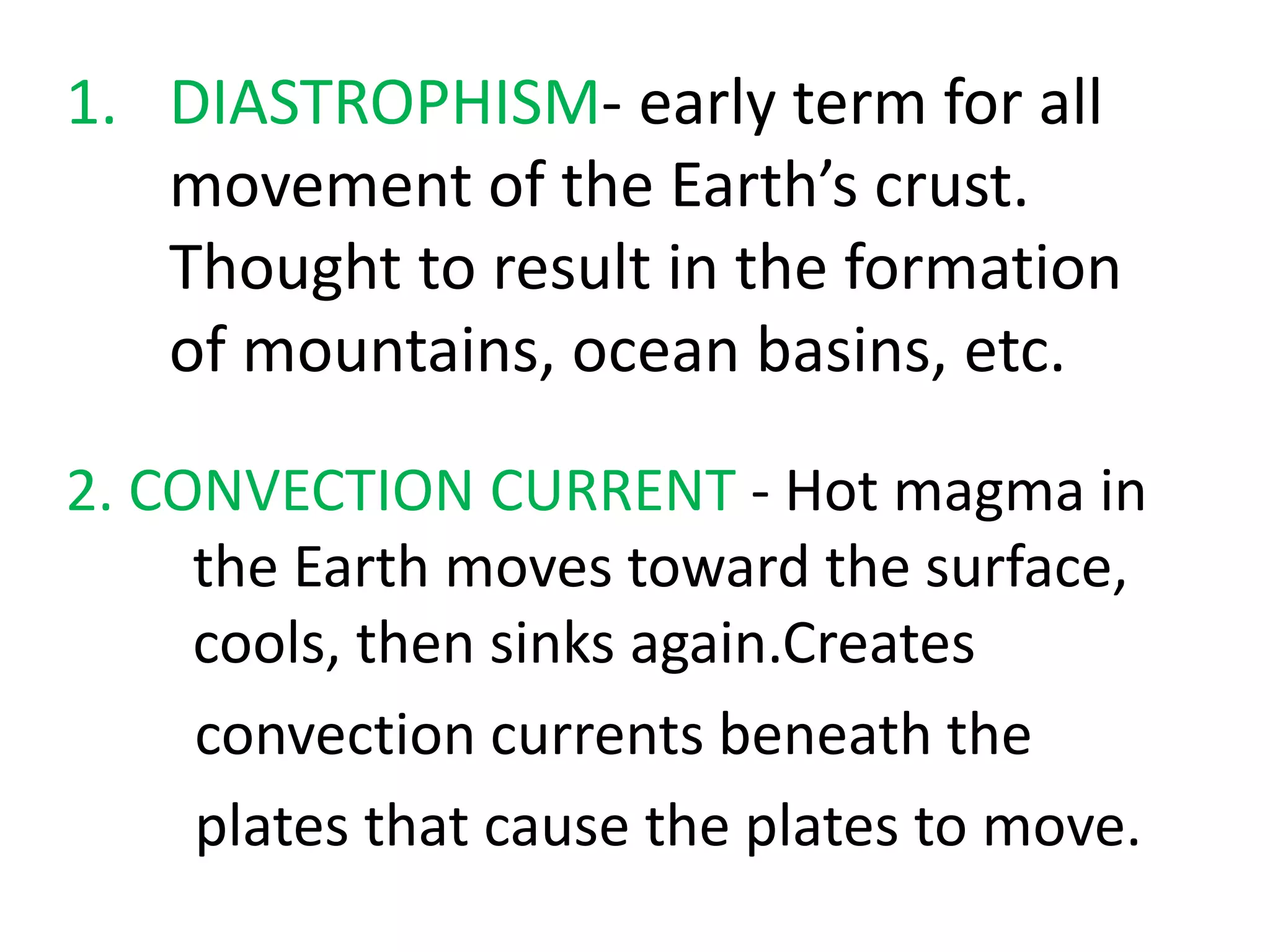

39. 2. CONVECTION CURRENT - Hot magma in
the Earth moves toward the surface,
cools, then sinks again.Creates
convection currents beneath the
plates that cause the plates to move.
1. DIASTROPHISM- early term for all
movement of the Earth’s crust.
Thought to result in the formation
of mountains, ocean basins, etc.

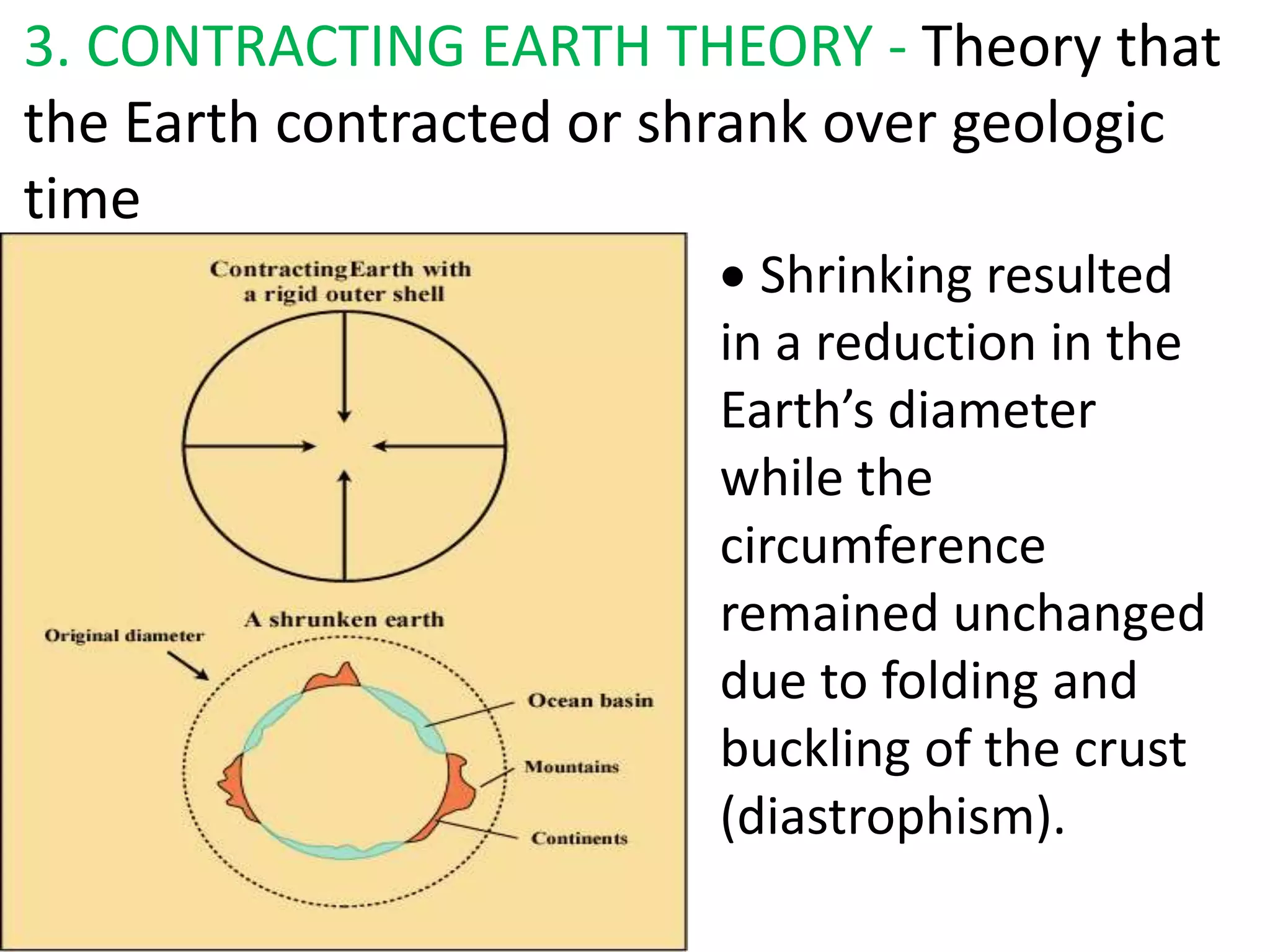

40. 3. CONTRACTING EARTH THEORY - Theory that
the Earth contracted or shrank over geologic
time
Shrinking resulted
in a reduction in the
Earth’s diameter
while the
circumference
remained unchanged
due to folding and
buckling of the crust
(diastrophism).

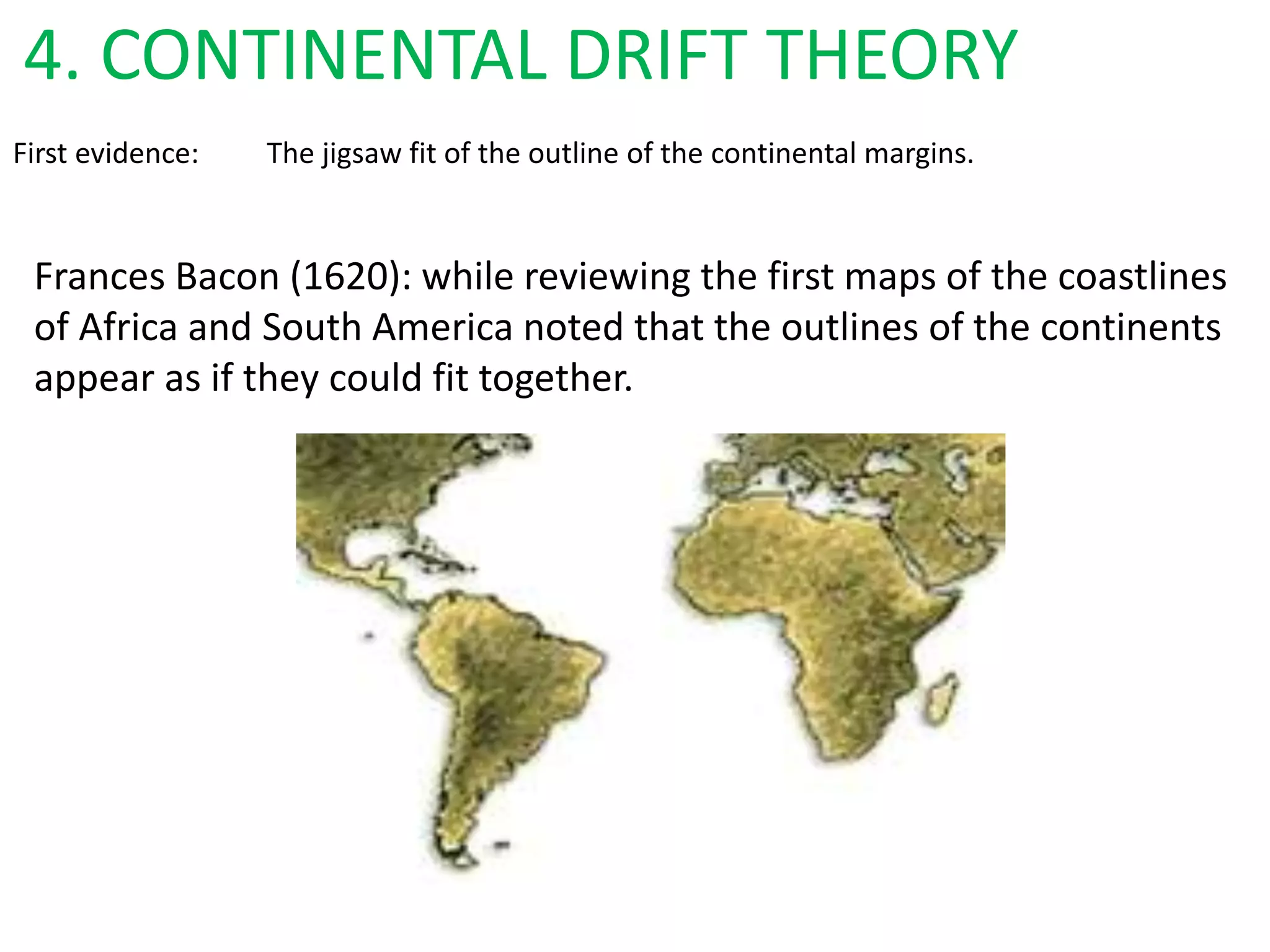

41. First evidence: The jigsaw fit of the outline of the continental margins.
Frances Bacon (1620): while reviewing the first maps of the coastlines
of Africa and South America noted that the outlines of the continents
appear as if they could fit together.
4. CONTINENTAL DRIFT THEORY

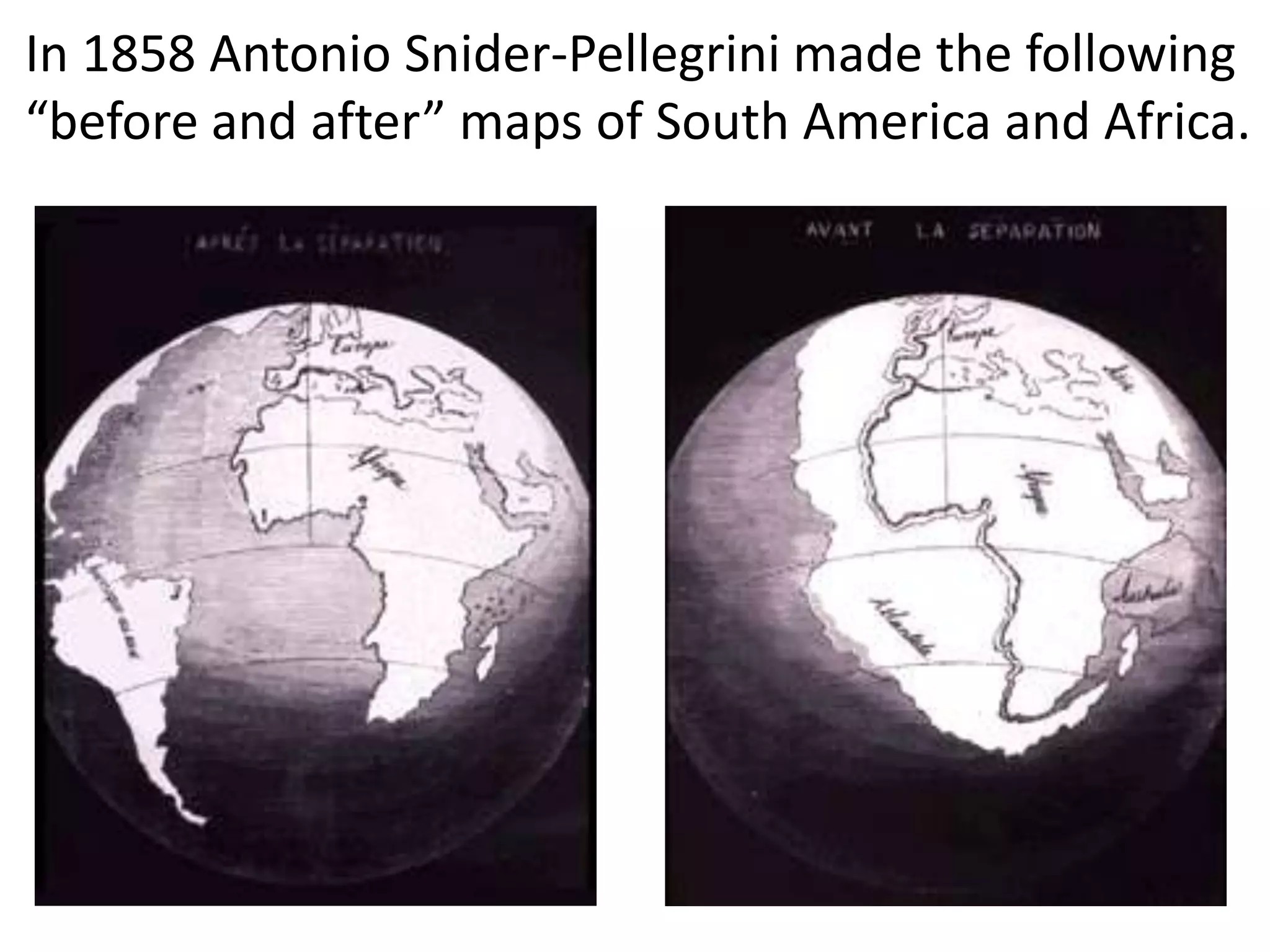

42. In 1858 Antonio Snider-Pellegrini made the following
“before and after” maps of South America and Africa.

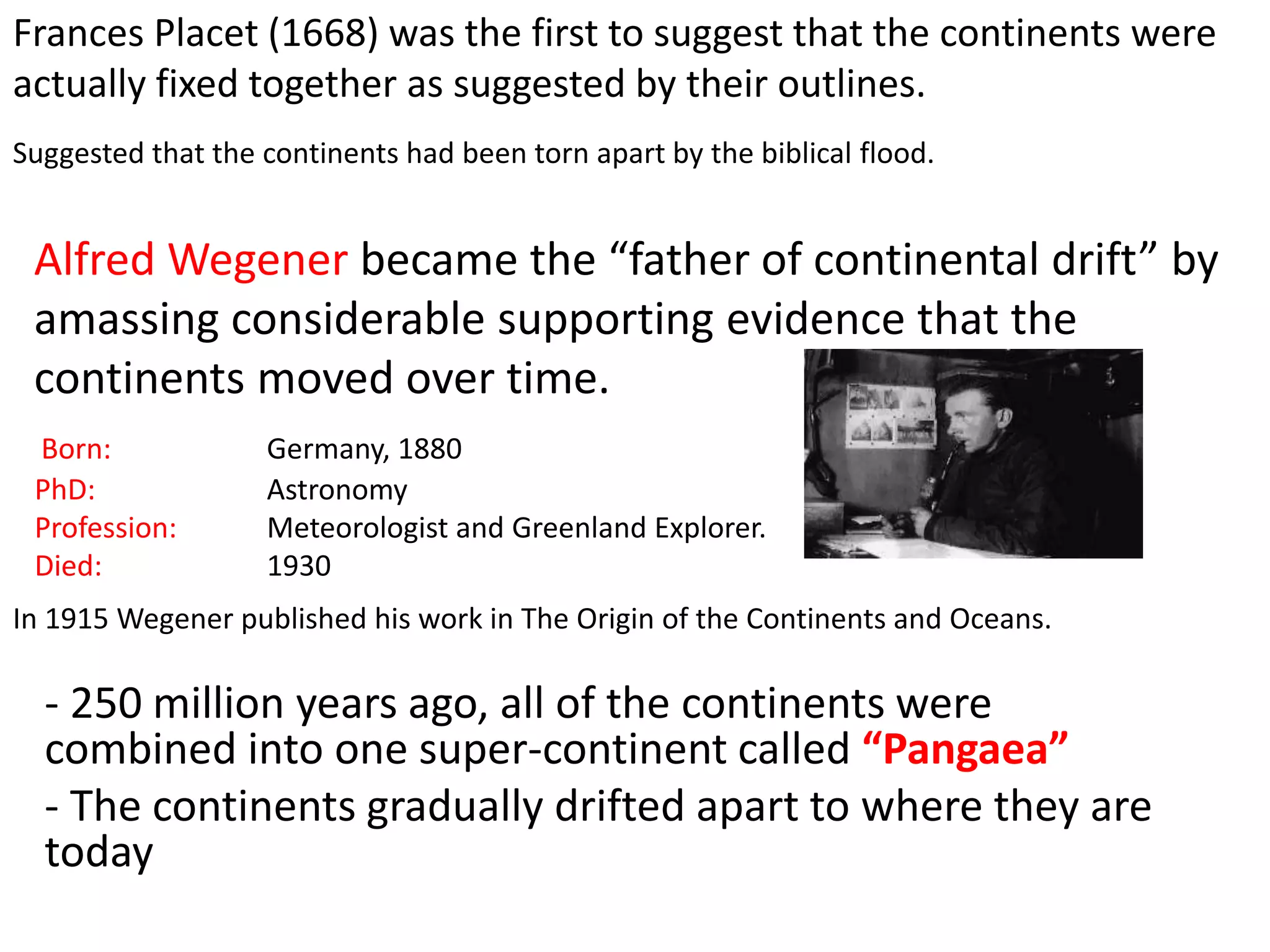

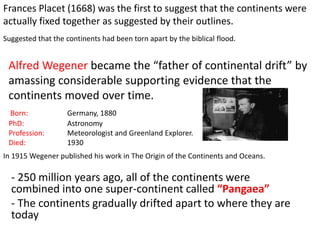

43. Frances Placet (1668) was the first to suggest that the continents were
actually fixed together as suggested by their outlines.
Suggested that the continents had been torn apart by the biblical flood.
Born: Germany, 1880
PhD: Astronomy
Profession: Meteorologist and Greenland Explorer.
Died: 1930
Alfred Wegener became the “father of continental drift” by
amassing considerable supporting evidence that the
continents moved over time.
In 1915 Wegener published his work in The Origin of the Continents and Oceans.
- 250 million years ago, all of the continents were
combined into one super-continent called “Pangaea”
- The continents gradually drifted apart to where they are
today

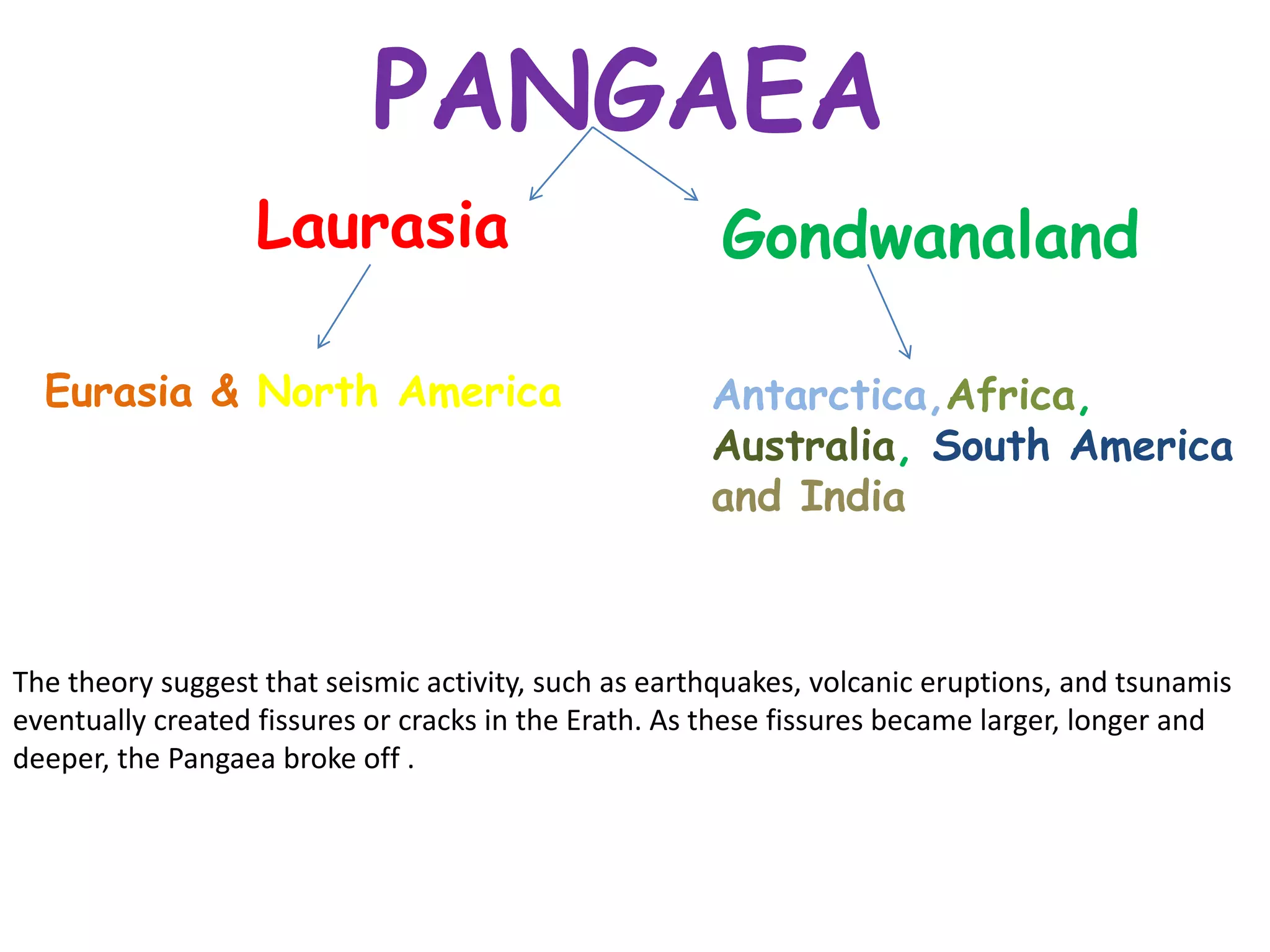

44. PANGAEA
Laurasia Gondwanaland
Antarctica,Africa,
Australia, South America
and India
Eurasia & North America
The theory suggest that seismic activity, such as earthquakes, volcanic eruptions, and tsunamis
eventually created fissures or cracks in the Erath. As these fissures became larger, longer and
deeper, the Pangaea broke off .

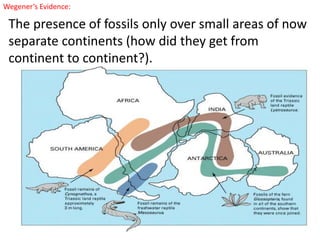

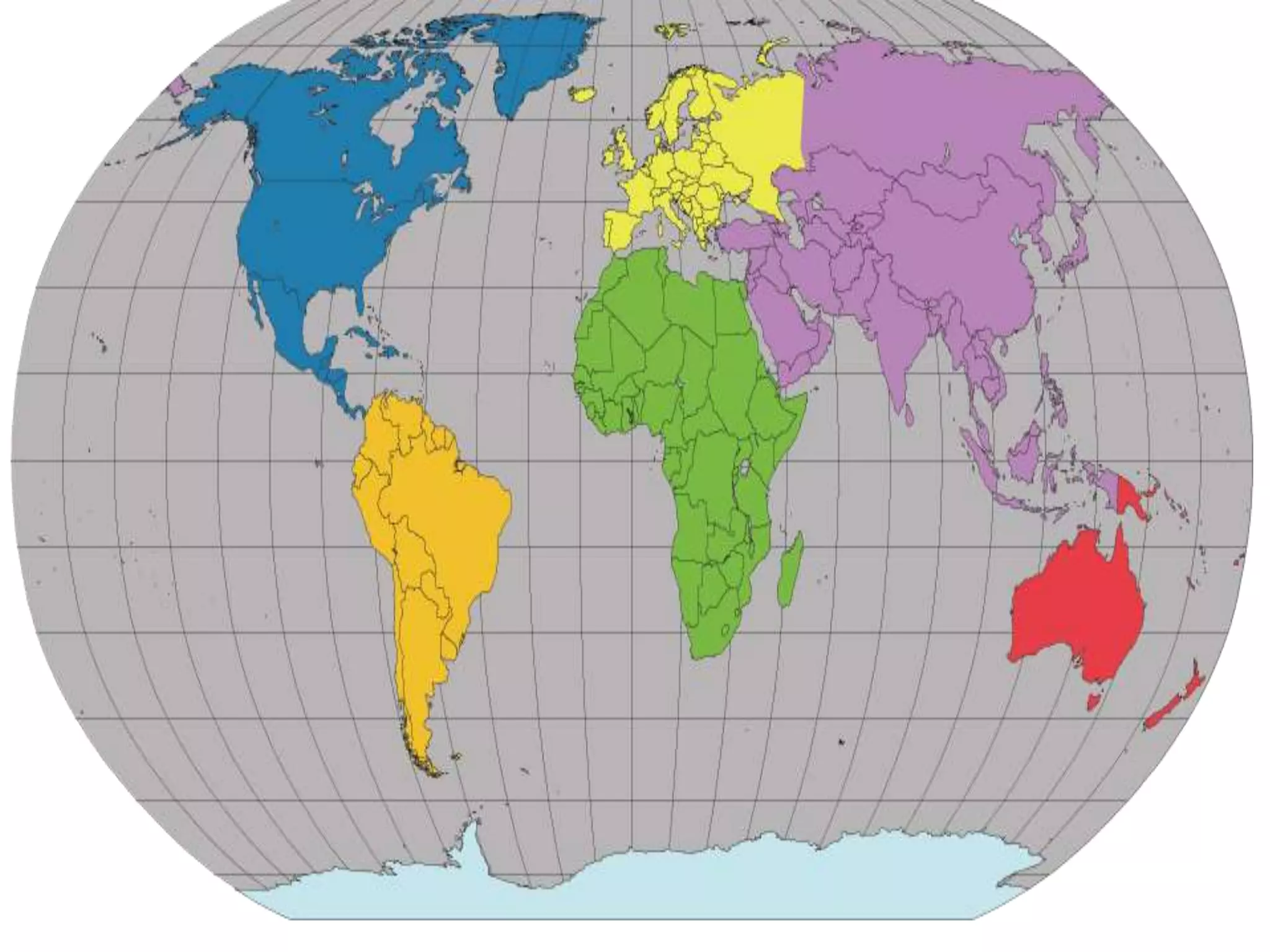

46. Wegener’s Evidence:
The presence of fossils only over small areas of now
separate continents (how did they get from
continent to continent?).

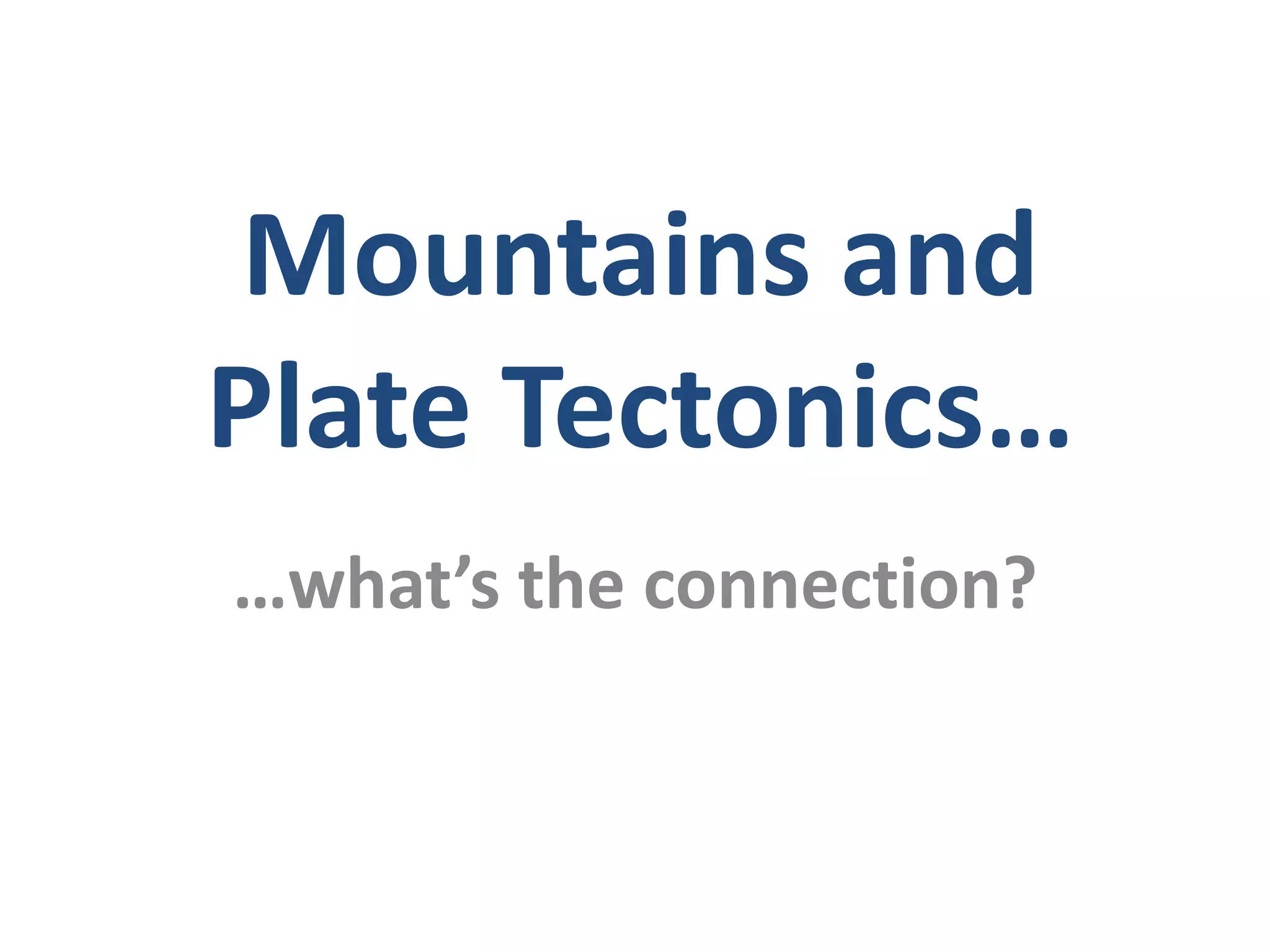

47. …what’s the connection?
Mountains and
Plate Tectonics…

48. MOUNTAIN
- Any part of the Earth’s surface
that stands much higher than
its surroundings
- May be form from “FOLDING”
or “FAULTING”

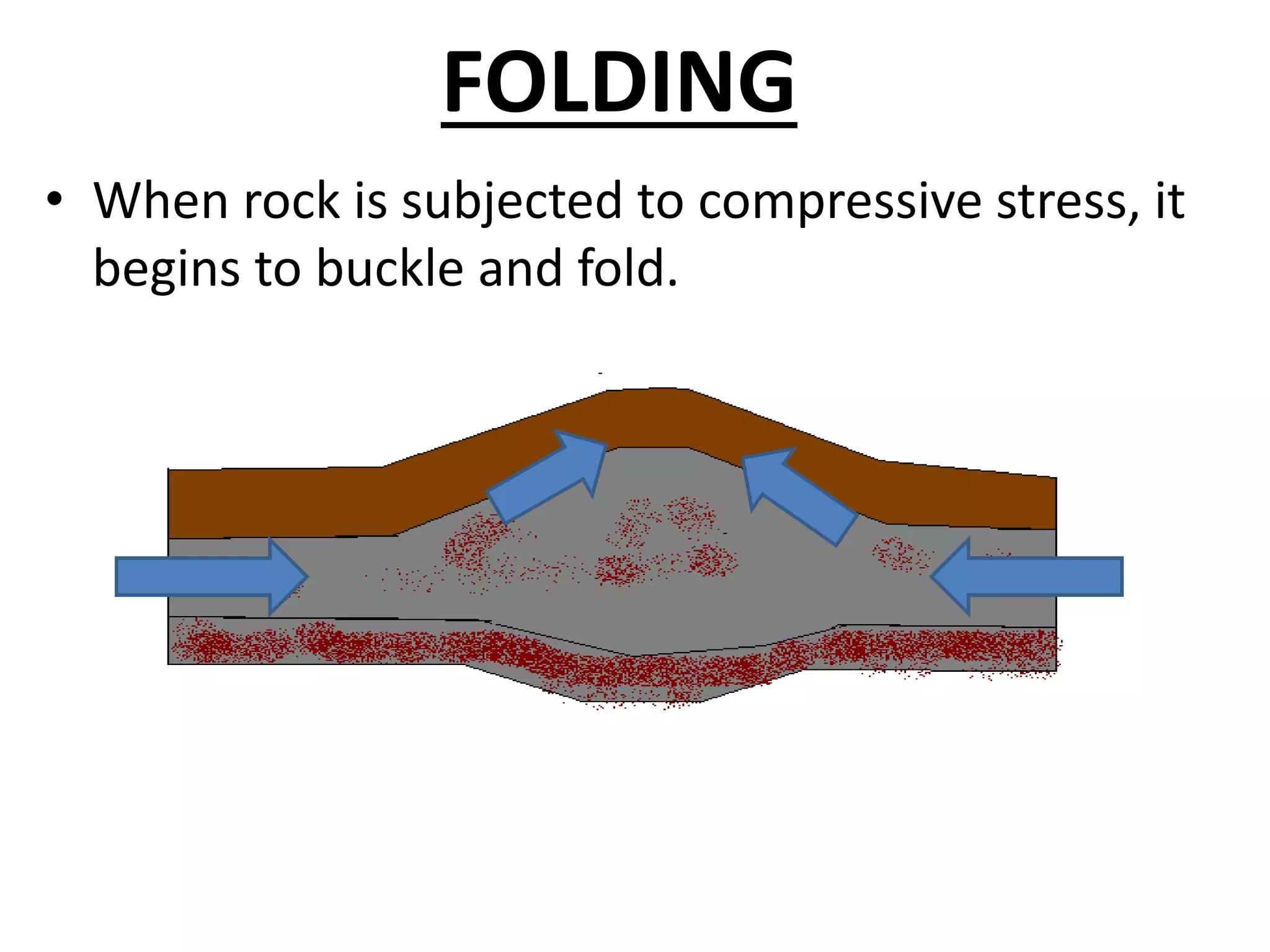

49. FOLDING
• When rock is subjected to compressive stress, it
begins to buckle and fold.

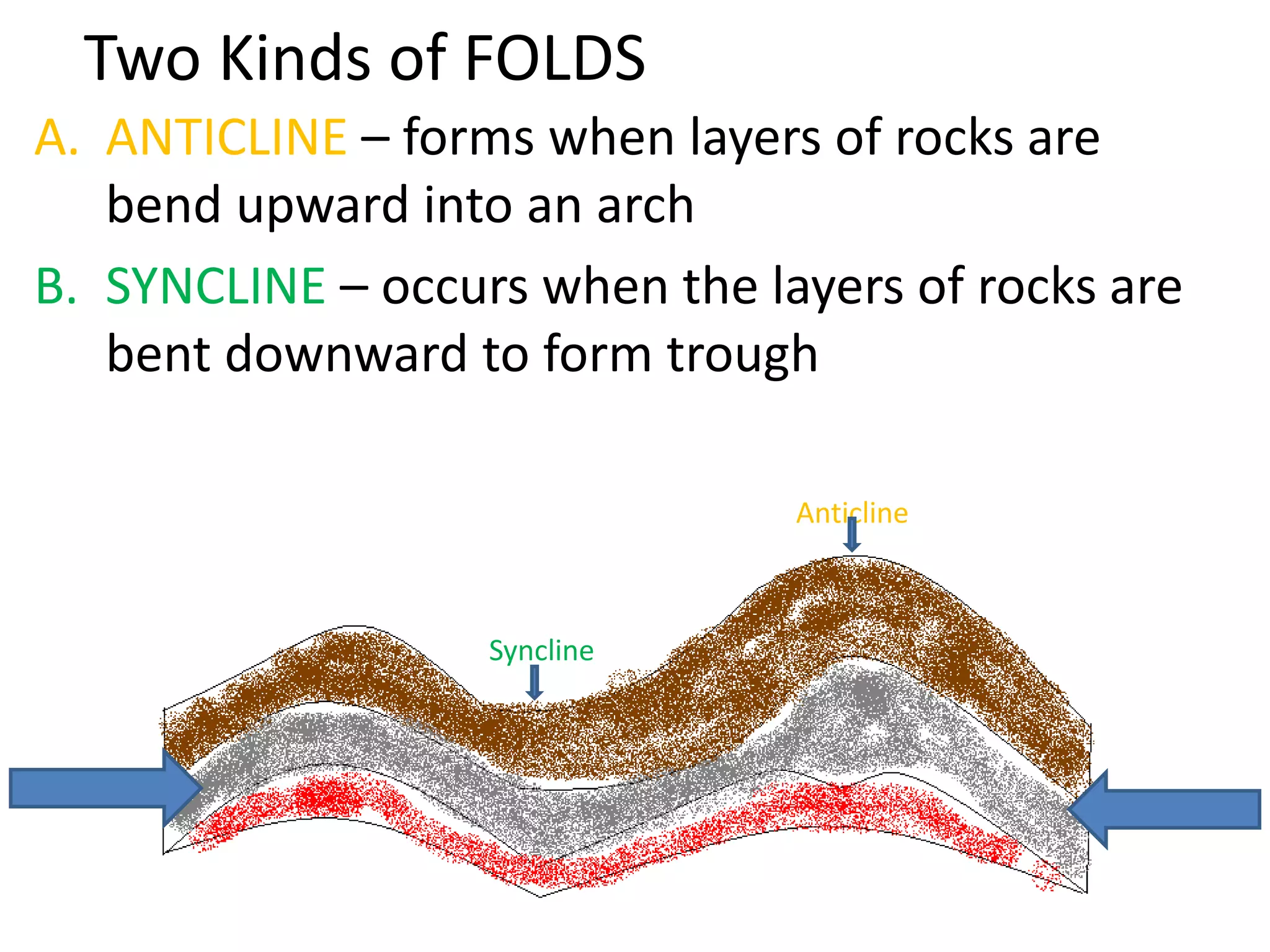

50. Two Kinds of FOLDS
A. ANTICLINE – forms when layers of rocks are
bend upward into an arch
B. SYNCLINE – occurs when the layers of rocks are
bent downward to form trough
Syncline
Anticline

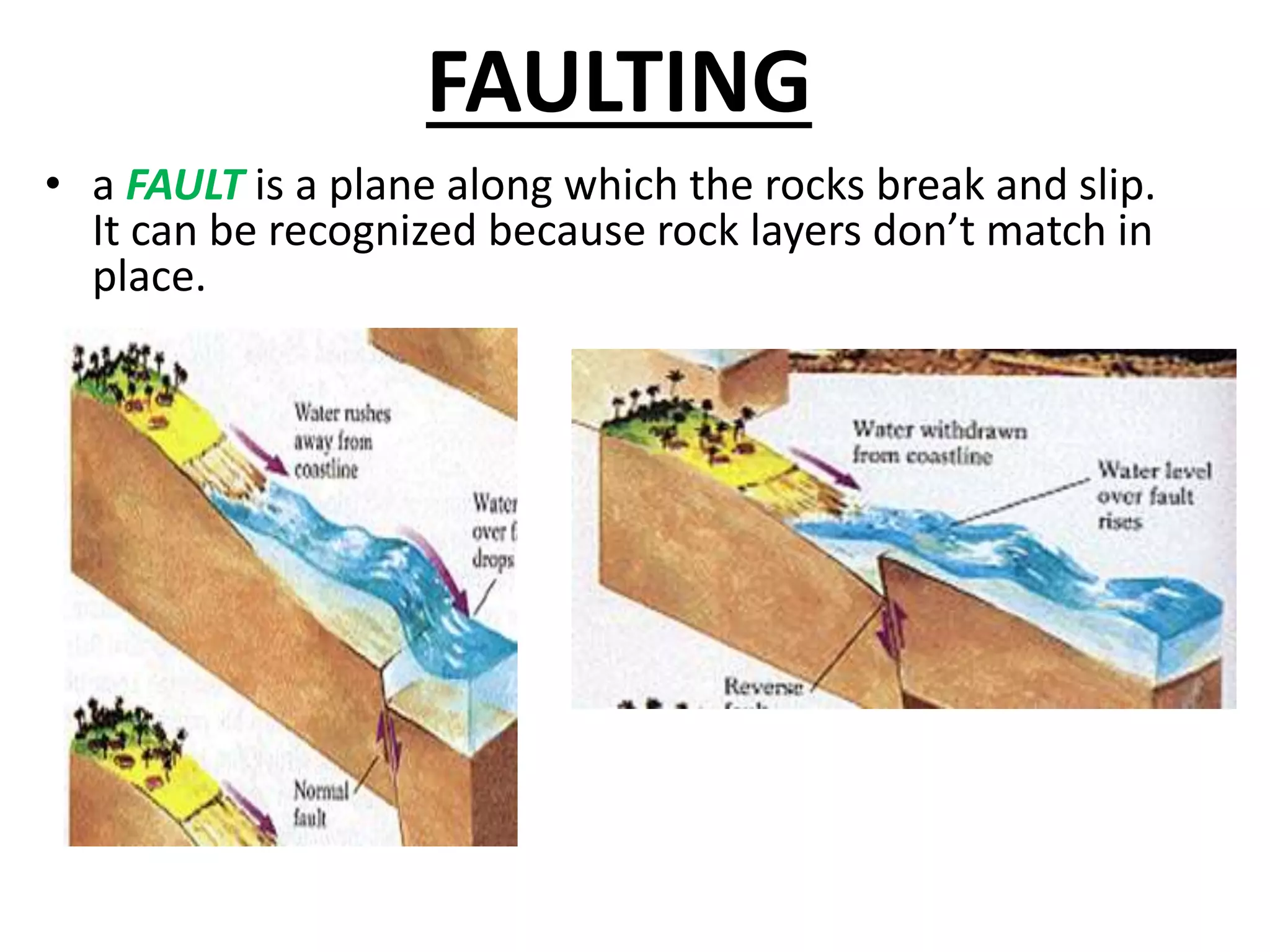

51. FAULTING
• a FAULT is a plane along which the rocks break and slip.
It can be recognized because rock layers don’t match in
place.

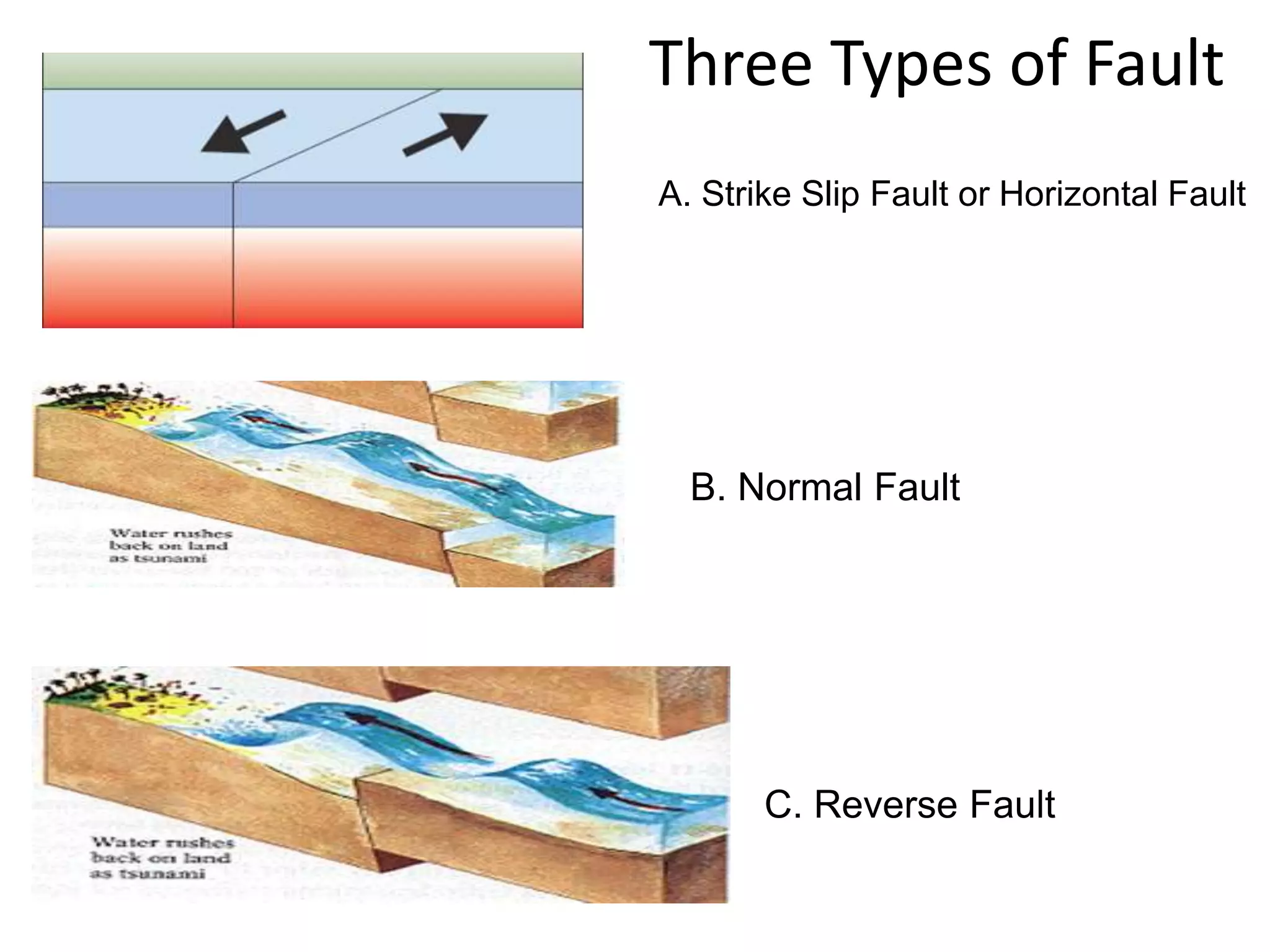

52. Three Types of Fault
A. Strike Slip Fault or Horizontal Fault
B. Normal Fault
C. Reverse Fault

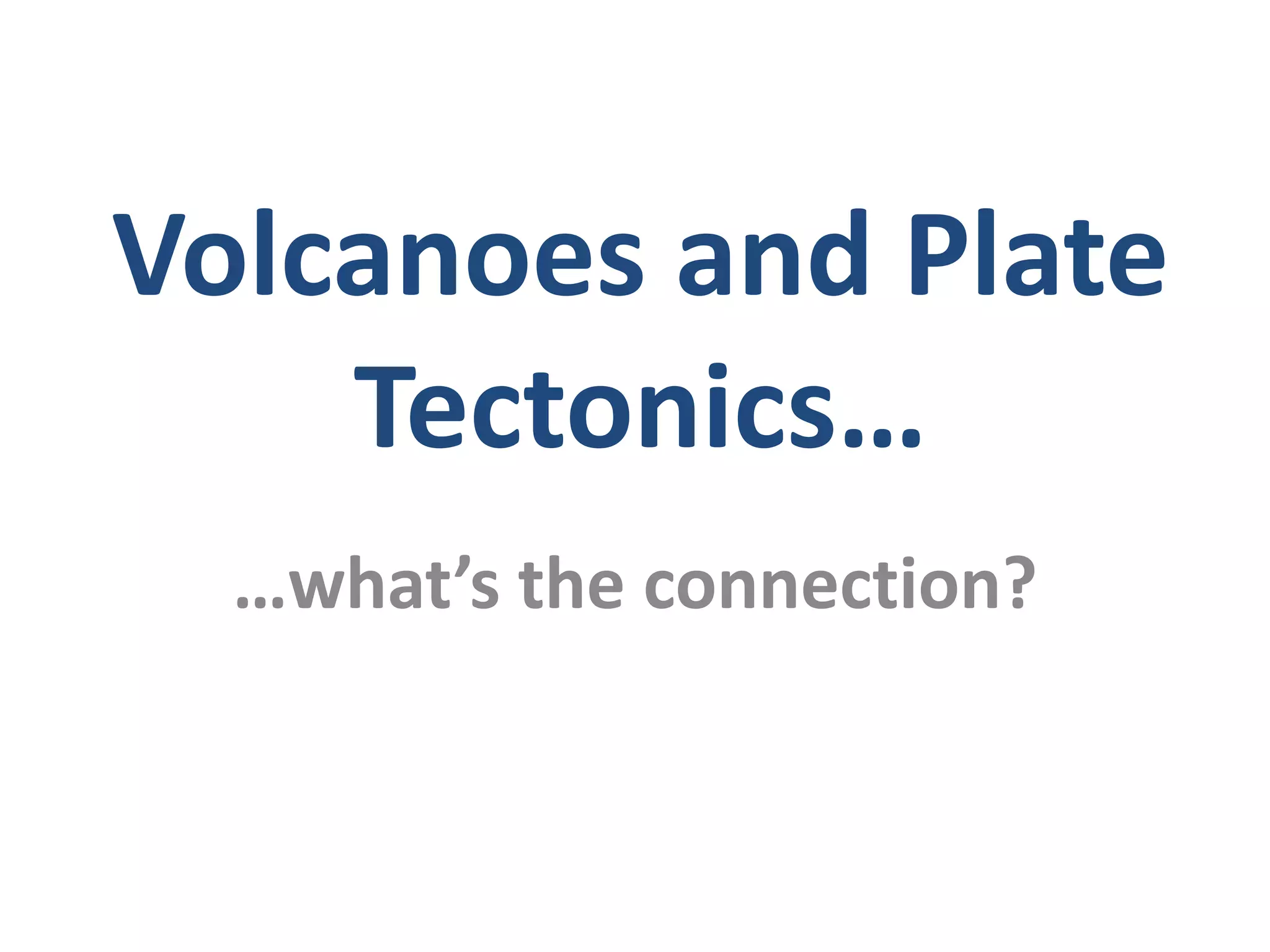

53. …what’s the connection?
Volcanoes and Plate
Tectonics…

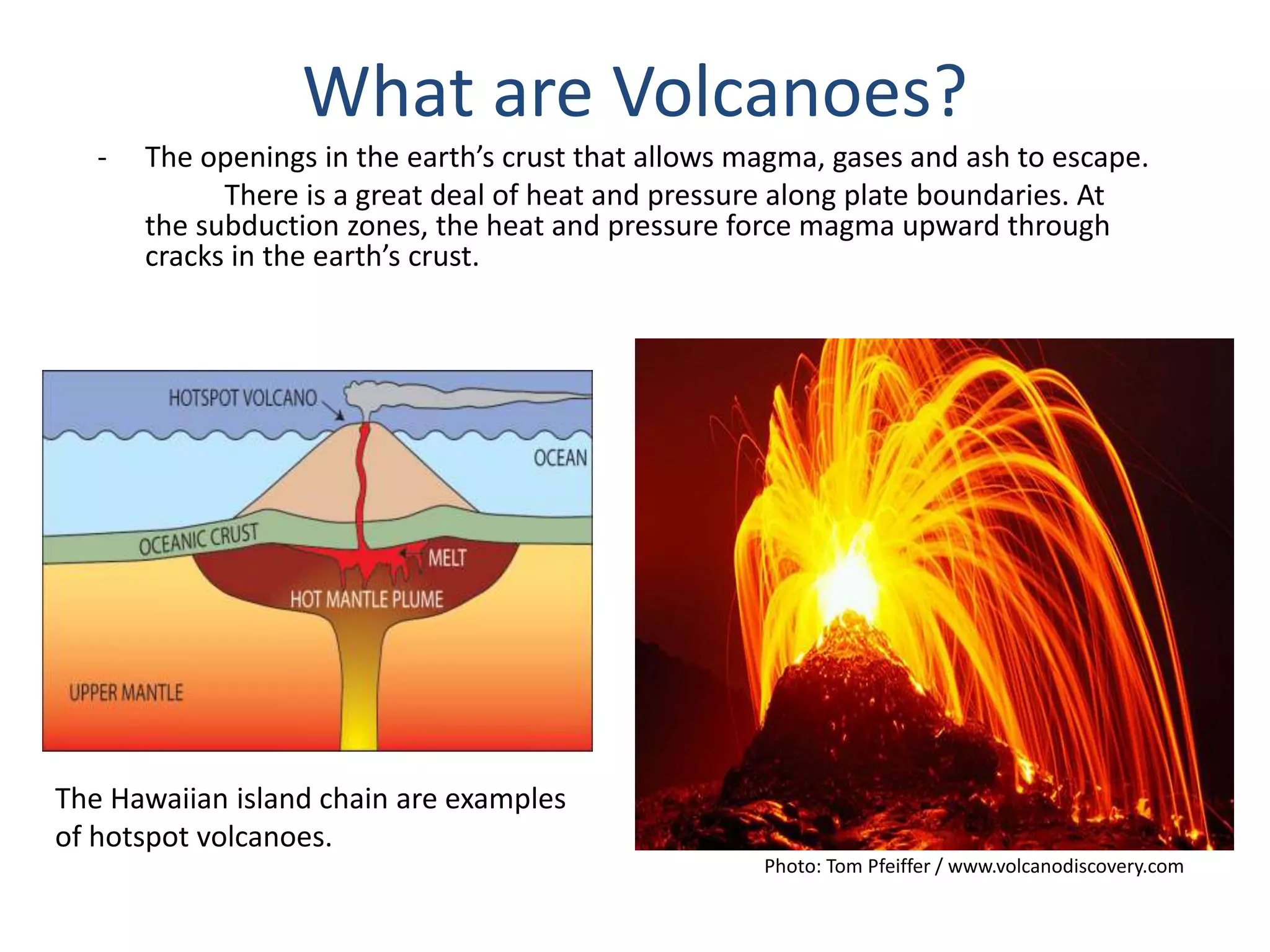

54. - The openings in the earth’s crust that allows magma, gases and ash to escape.
There is a great deal of heat and pressure along plate boundaries. At
the subduction zones, the heat and pressure force magma upward through
cracks in the earth’s crust.
What are Volcanoes?
Photo: Tom Pfeiffer / www.volcanodiscovery.com
The Hawaiian island chain are examples
of hotspot volcanoes.

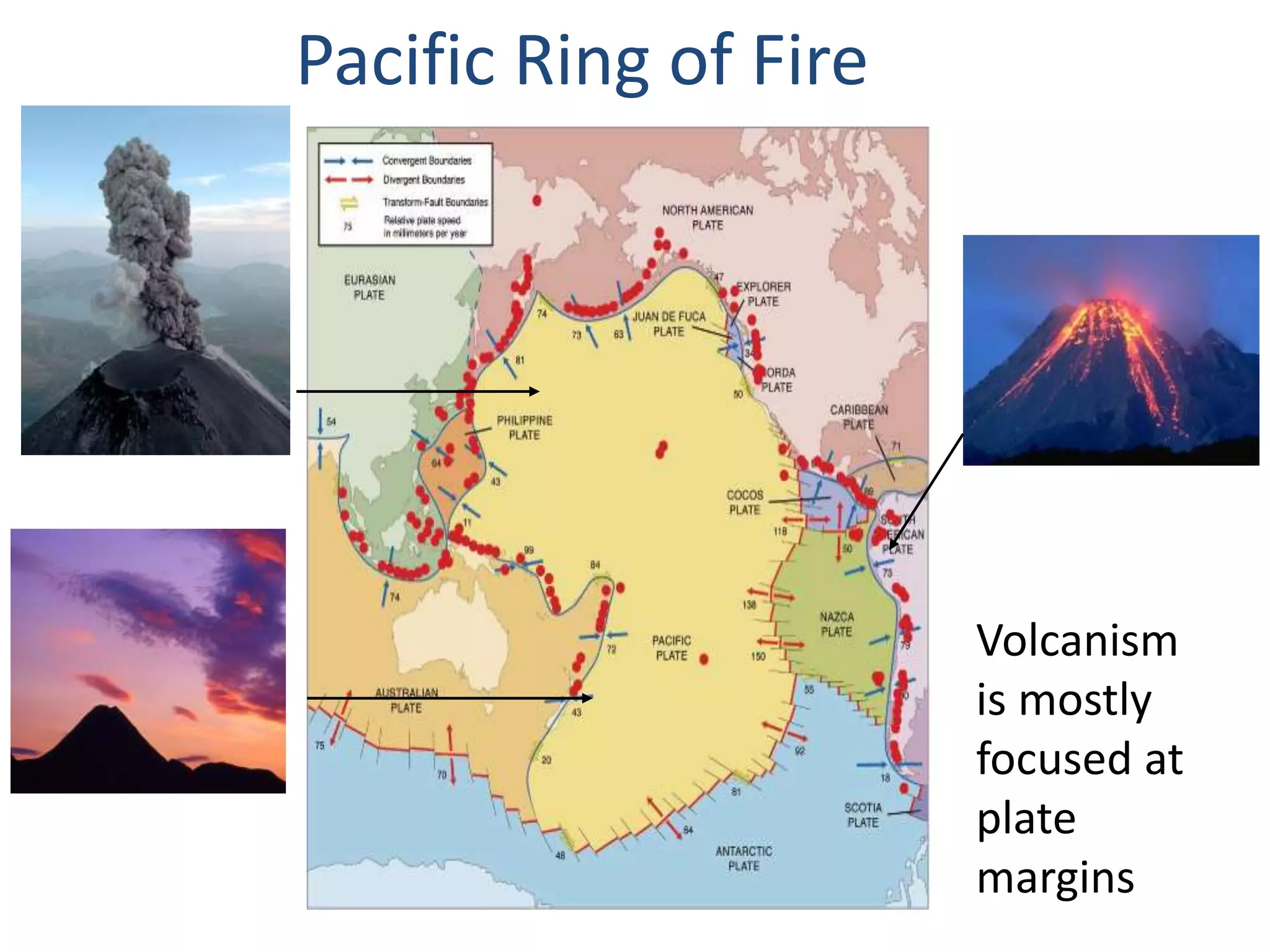

55. Volcanism
is mostly
focused at
plate
margins
Pacific Ring of Fire

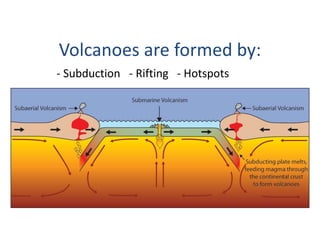

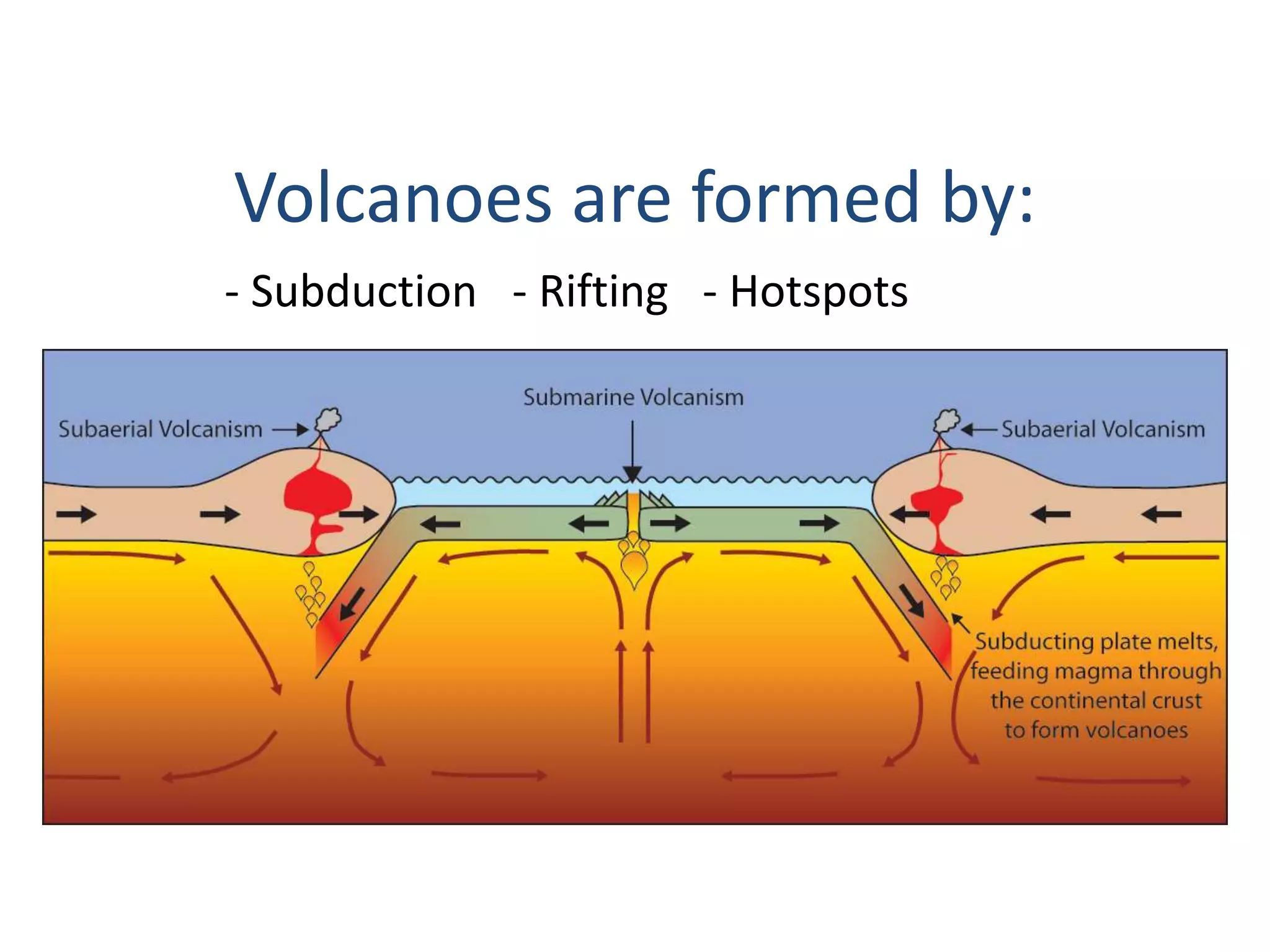

56. - Subduction - Rifting - Hotspots
Volcanoes are formed by:

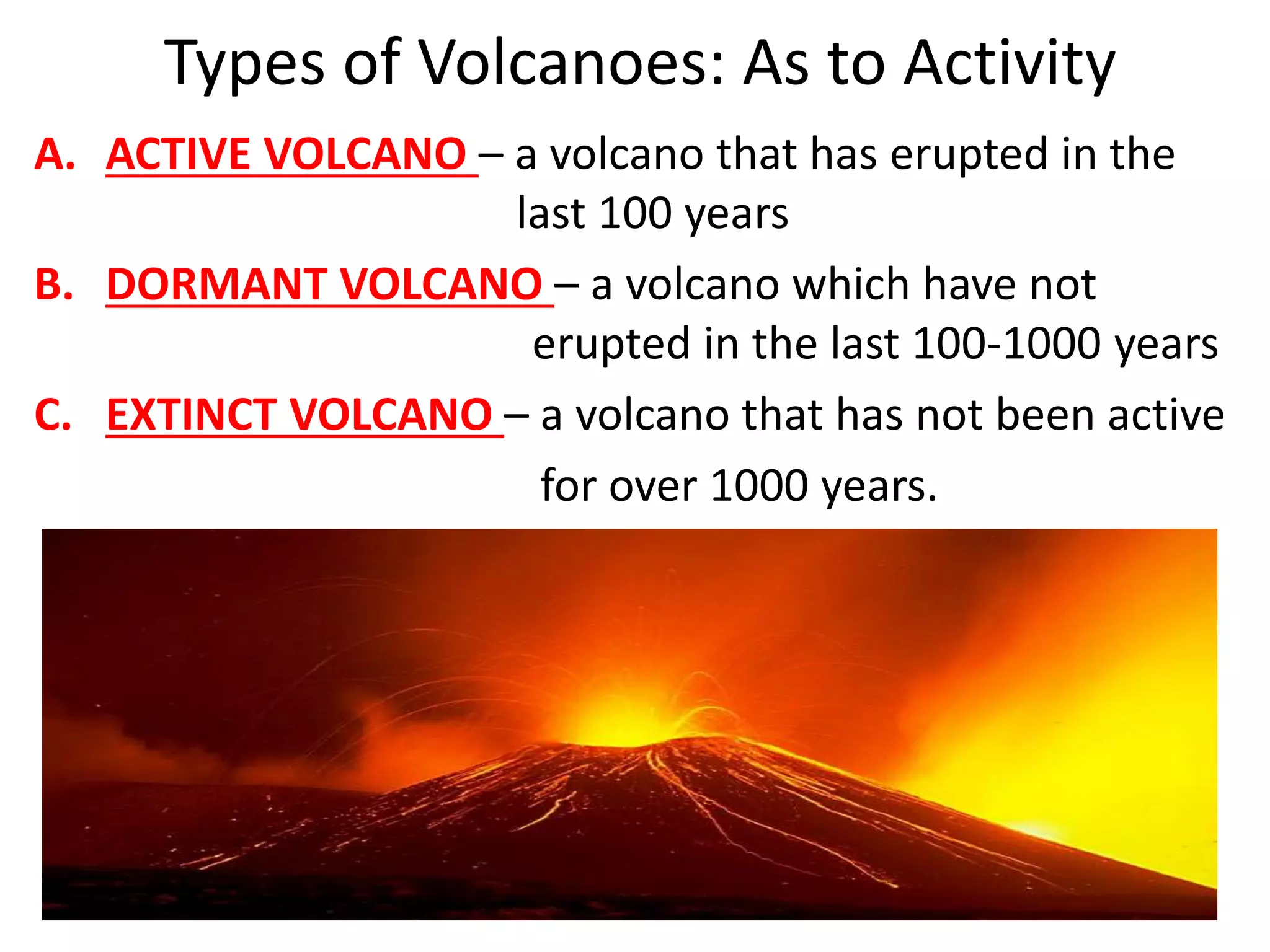

57. Types of Volcanoes: As to Activity
A. ACTIVE VOLCANO – a volcano that has erupted in the
last 100 years
B. DORMANT VOLCANO – a volcano which have not
erupted in the last 100-1000 years
C. EXTINCT VOLCANO – a volcano that has not been active
for over 1000 years.

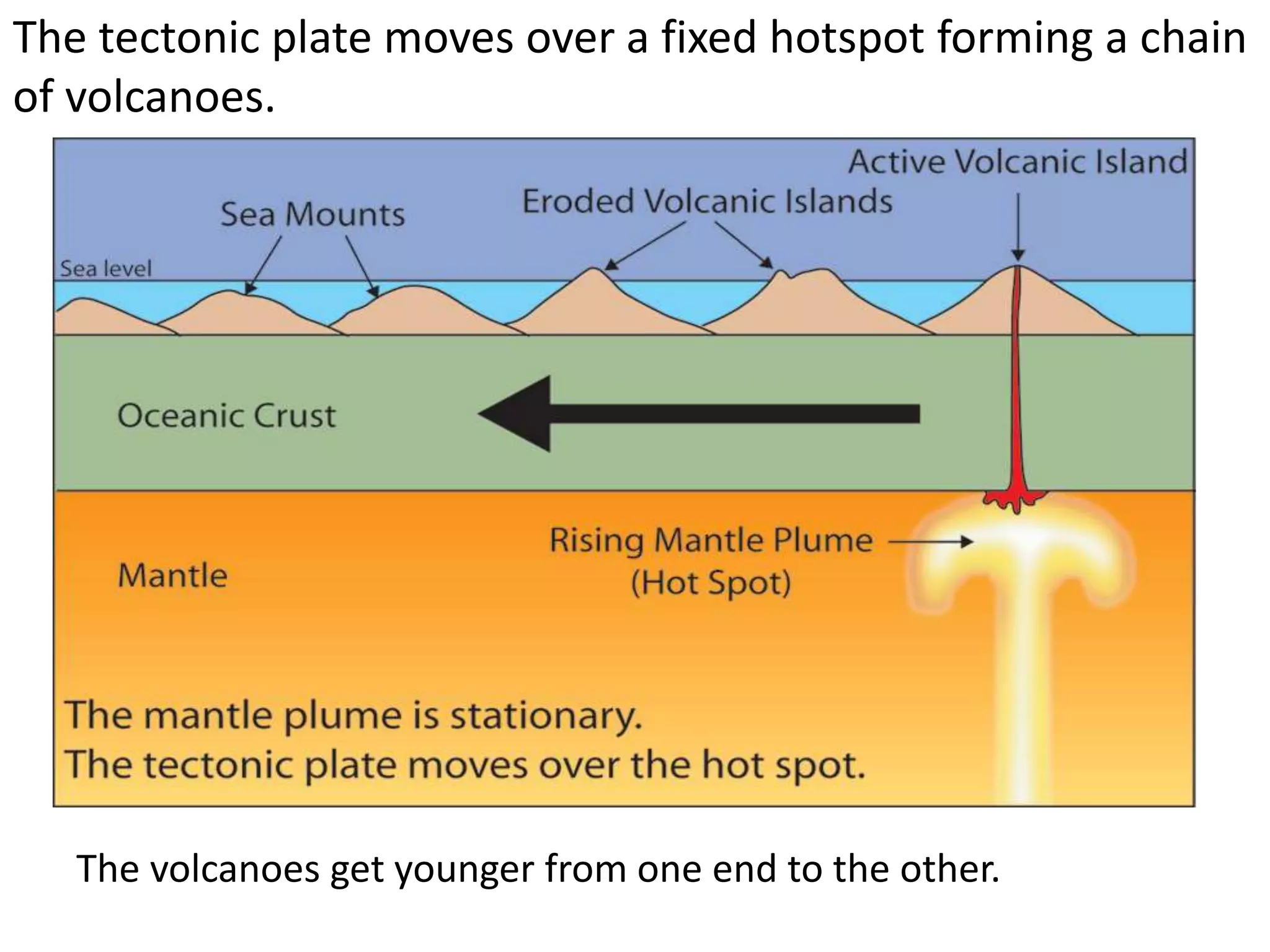

58. The tectonic plate moves over a fixed hotspot forming a chain
of volcanoes.
The volcanoes get younger from one end to the other.

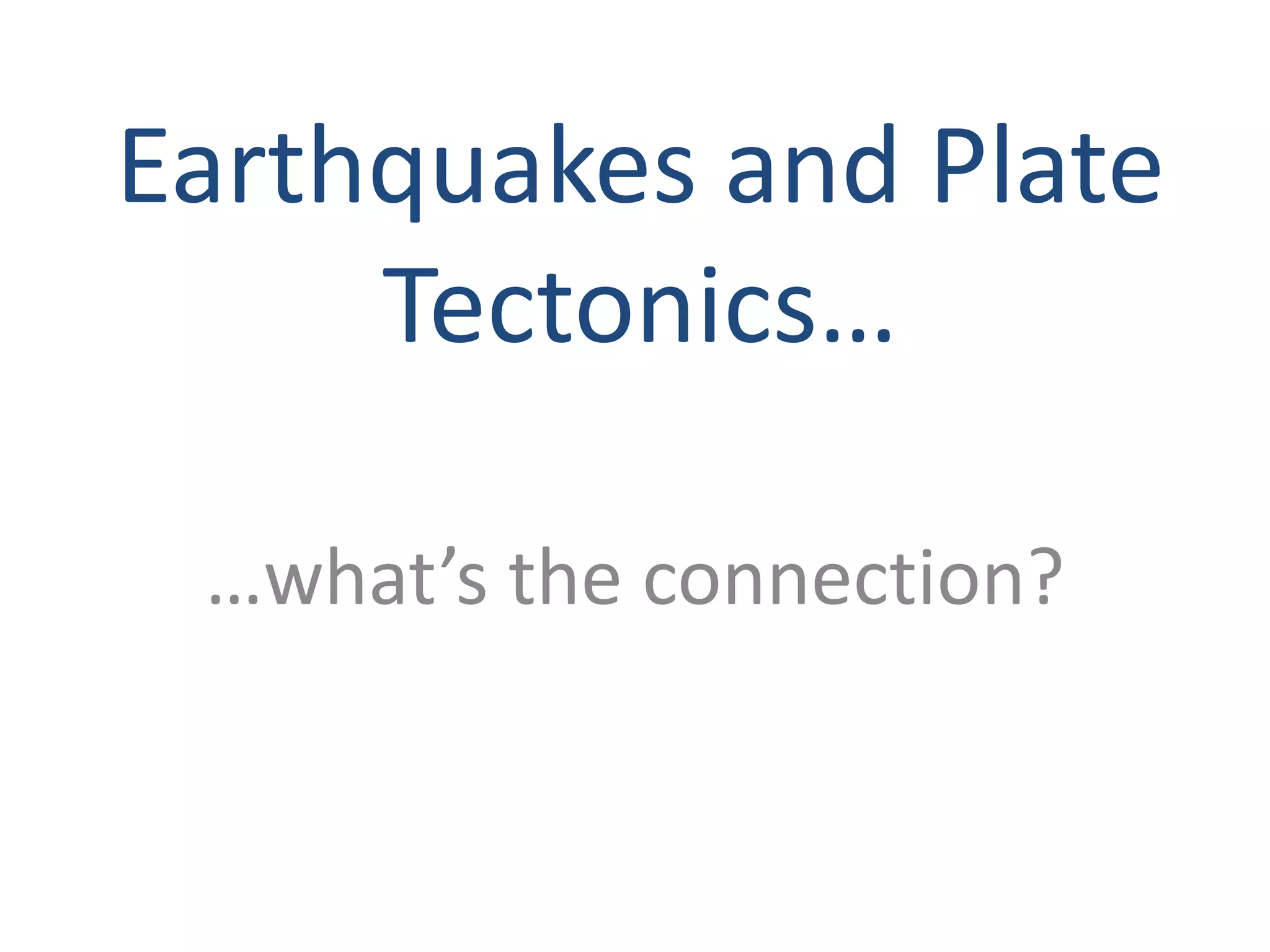

59. …what’s the connection?
Earthquakes and Plate
Tectonics…

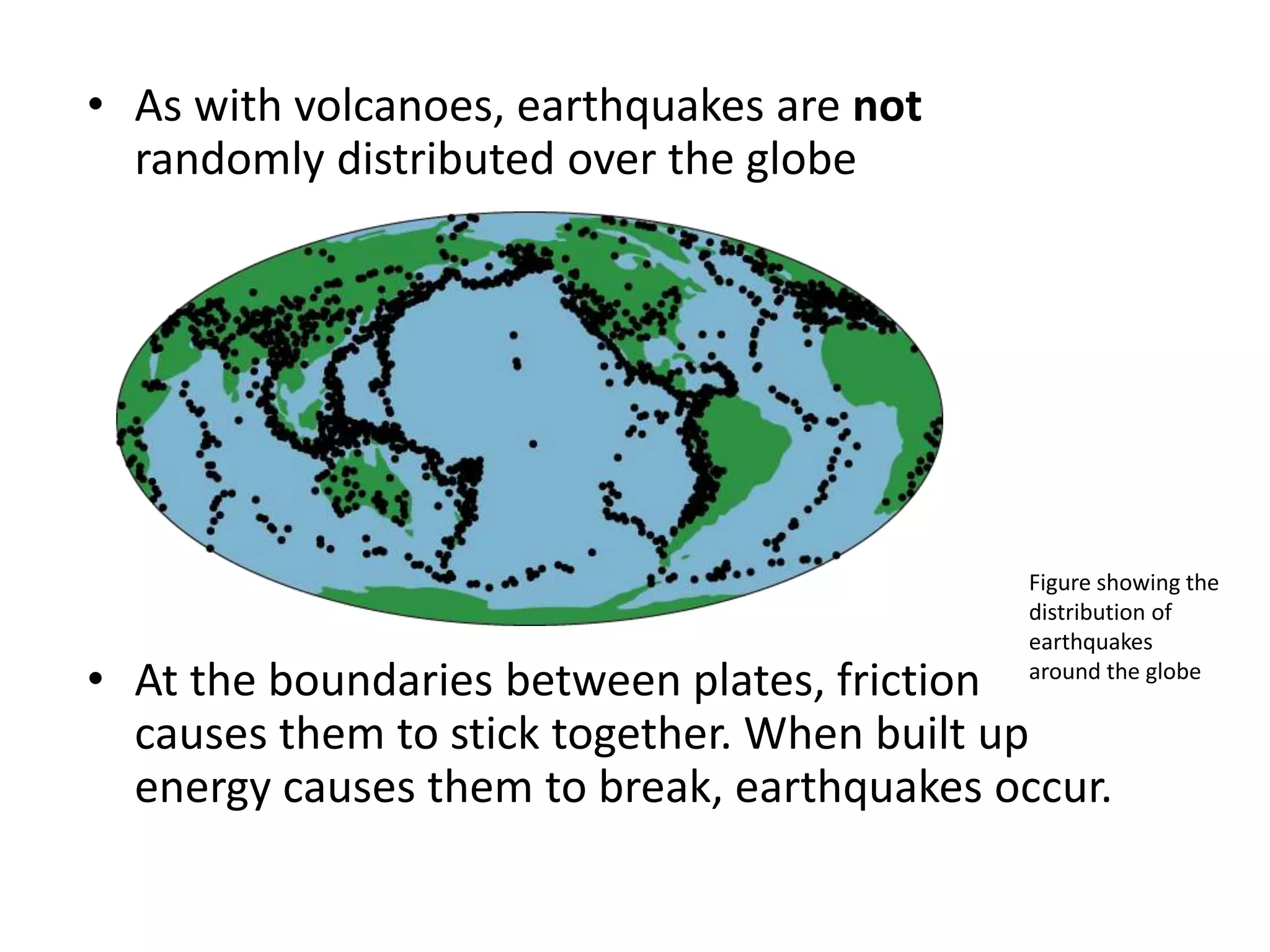

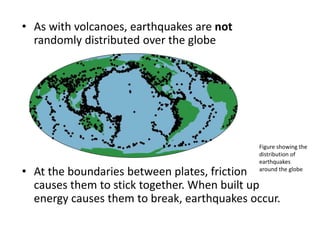

60. • As with volcanoes, earthquakes are not
randomly distributed over the globe
• At the boundaries between plates, friction
causes them to stick together. When built up
energy causes them to break, earthquakes occur.
Figure showing the
distribution of
earthquakes
around the globe

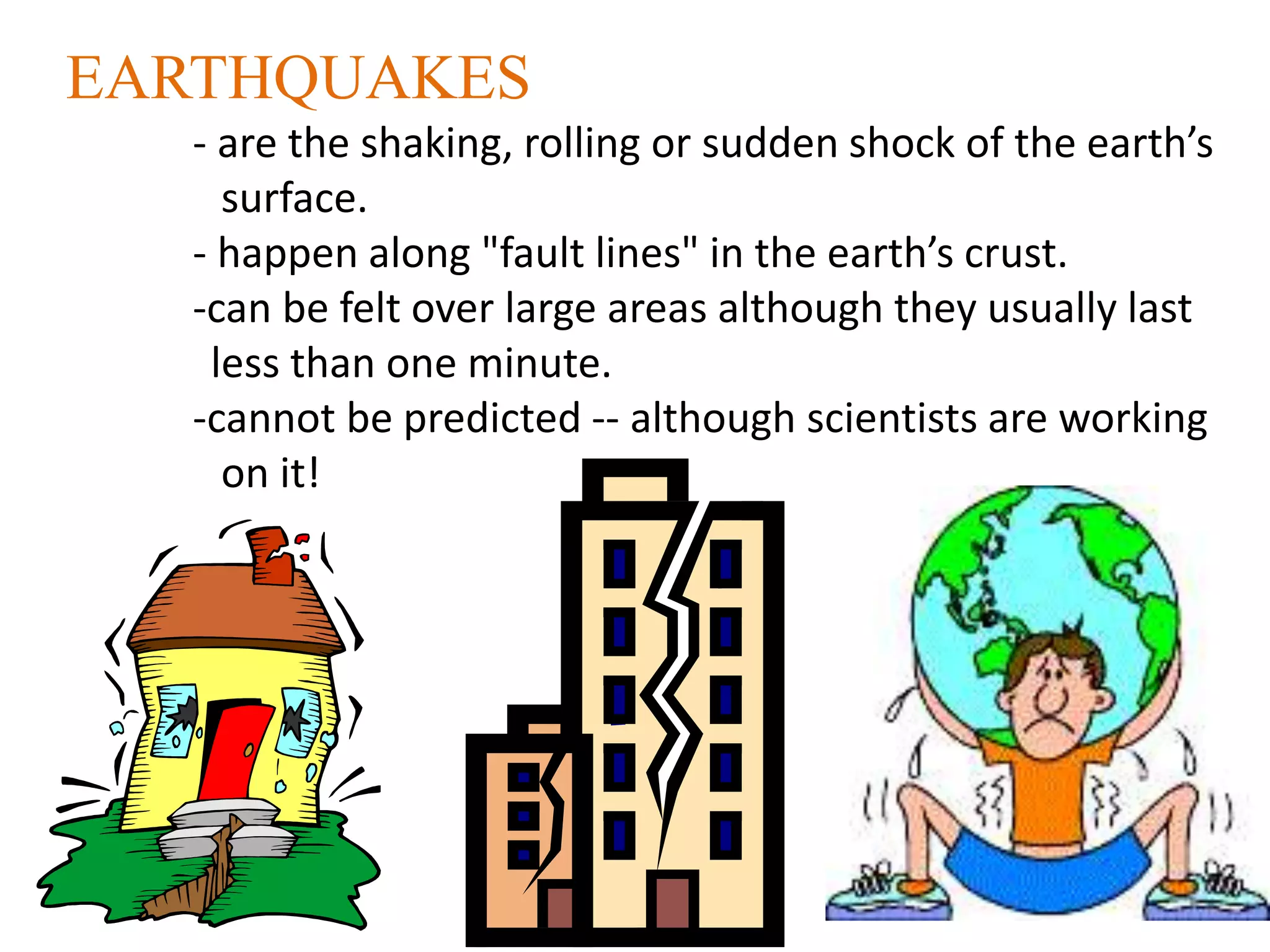

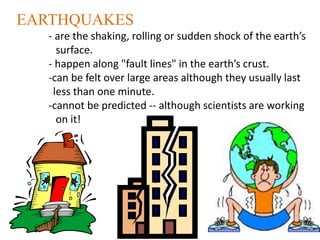

61. EARTHQUAKES
- are the shaking, rolling or sudden shock of the earth’s
surface.
- happen along "fault lines" in the earth’s crust.
-can be felt over large areas although they usually last
less than one minute.
-cannot be predicted -- although scientists are working
on it!

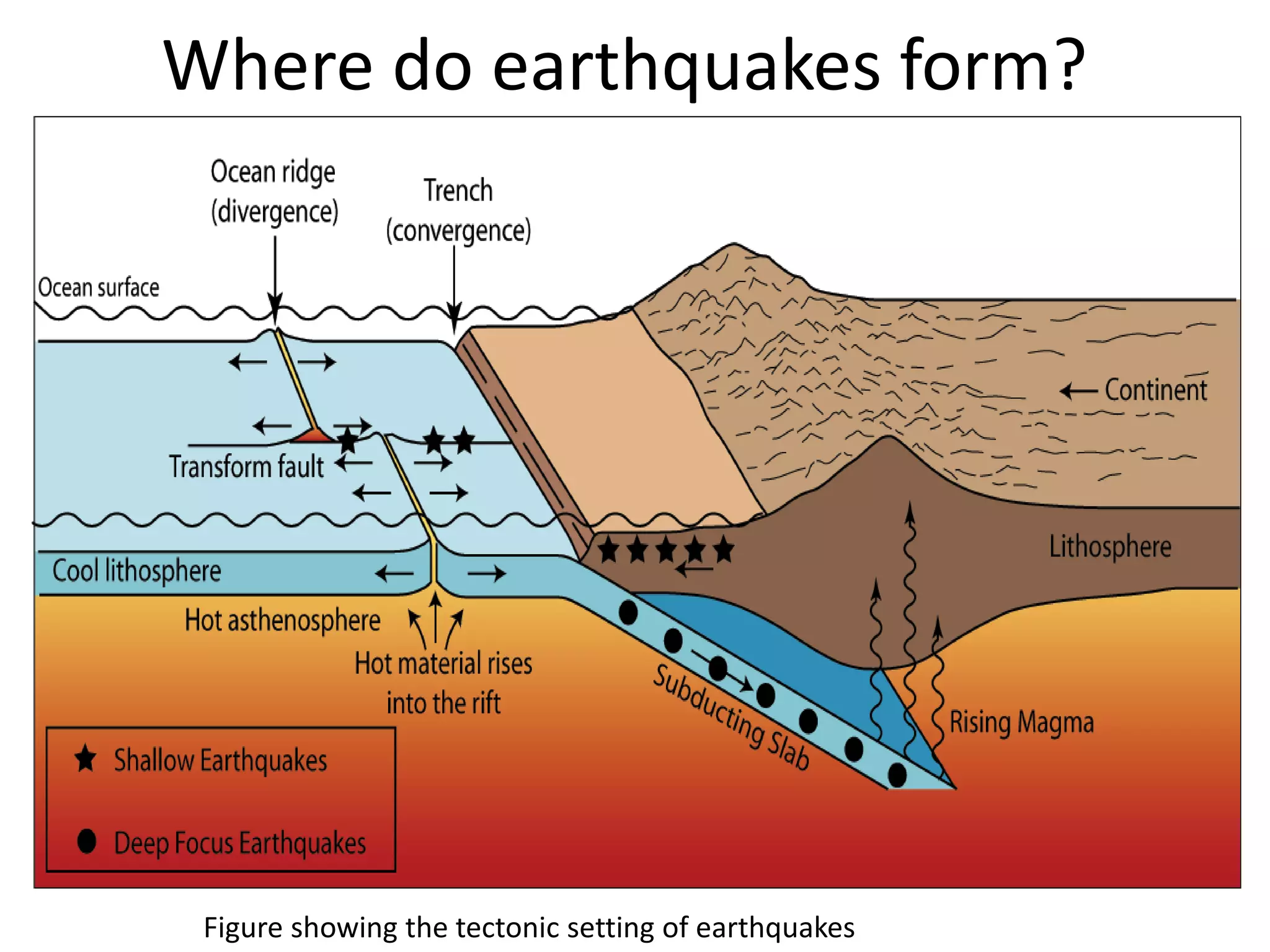

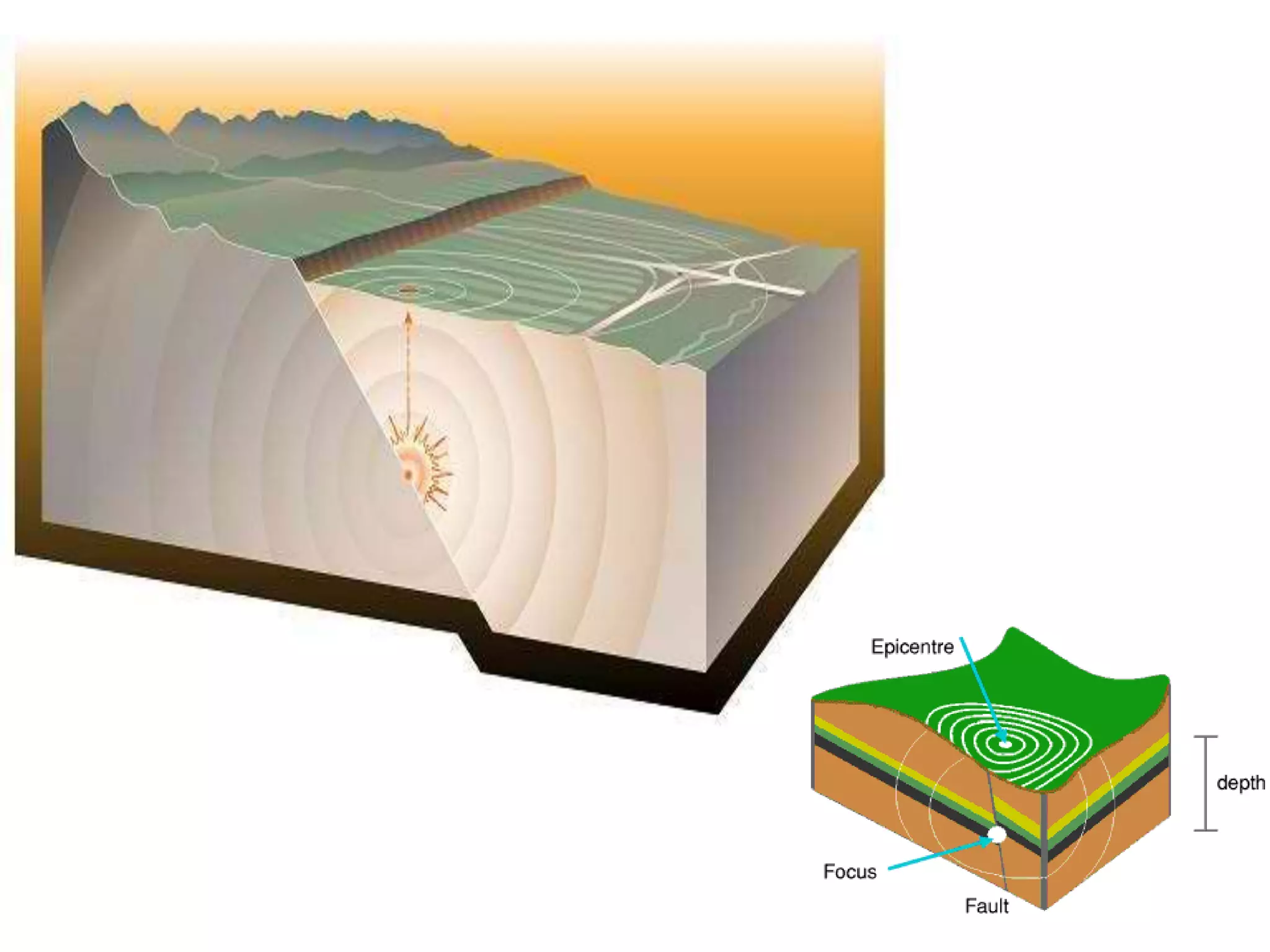

62. Where do earthquakes form?
Figure showing the tectonic setting of earthquakes

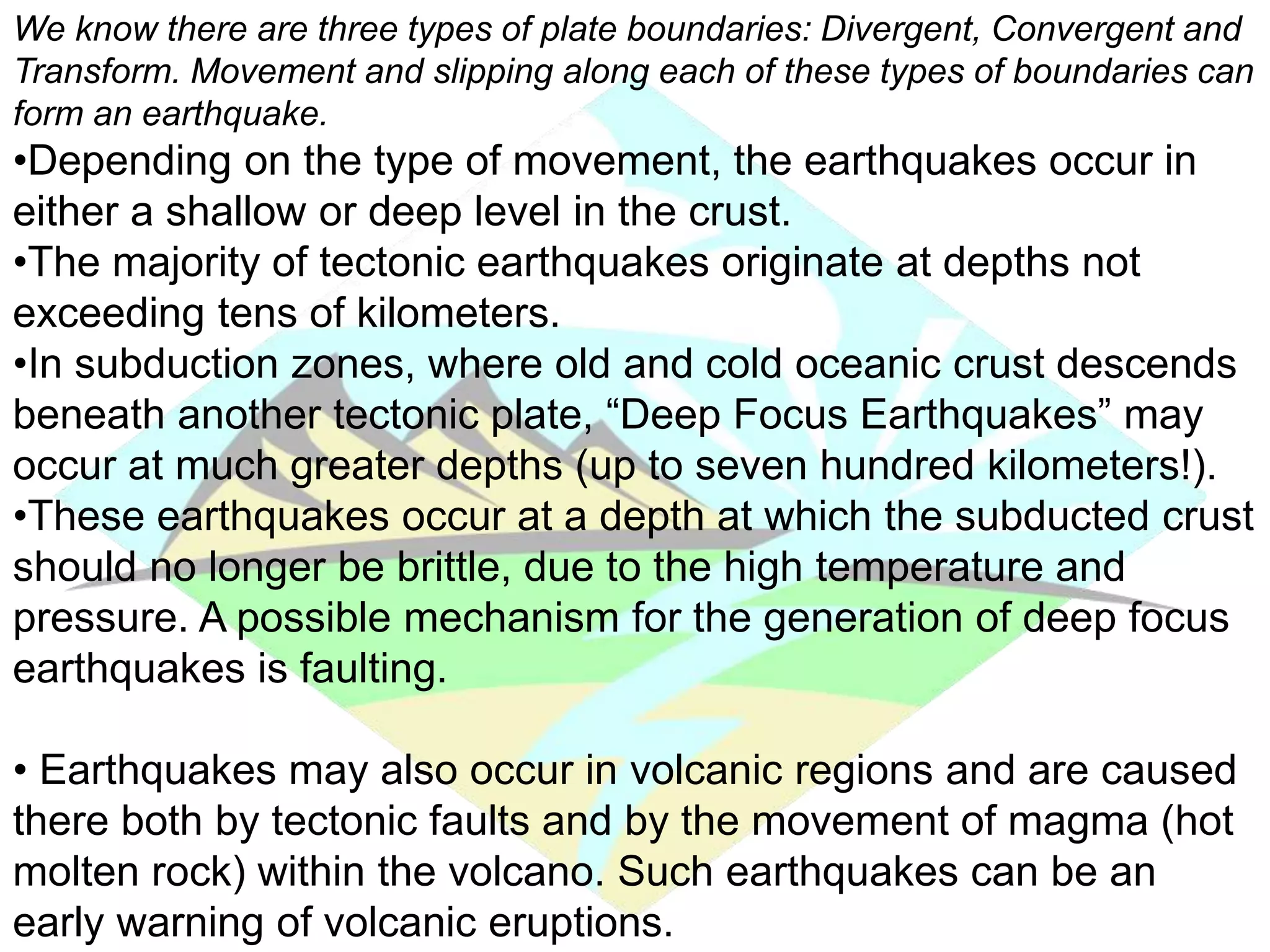

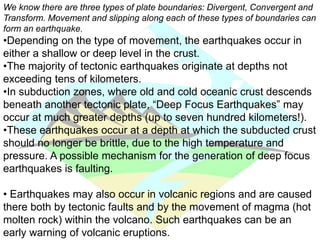

63. We know there are three types of plate boundaries: Divergent, Convergent and
Transform. Movement and slipping along each of these types of boundaries can
form an earthquake.
•Depending on the type of movement, the earthquakes occur in
either a shallow or deep level in the crust.
•The majority of tectonic earthquakes originate at depths not
exceeding tens of kilometers.
•In subduction zones, where old and cold oceanic crust descends
beneath another tectonic plate, “Deep Focus Earthquakes” may
occur at much greater depths (up to seven hundred kilometers!).
•These earthquakes occur at a depth at which the subducted crust
should no longer be brittle, due to the high temperature and
pressure. A possible mechanism for the generation of deep focus
earthquakes is faulting.
• Earthquakes may also occur in volcanic regions and are caused
there both by tectonic faults and by the movement of magma (hot
molten rock) within the volcano. Such earthquakes can be an
early warning of volcanic eruptions.

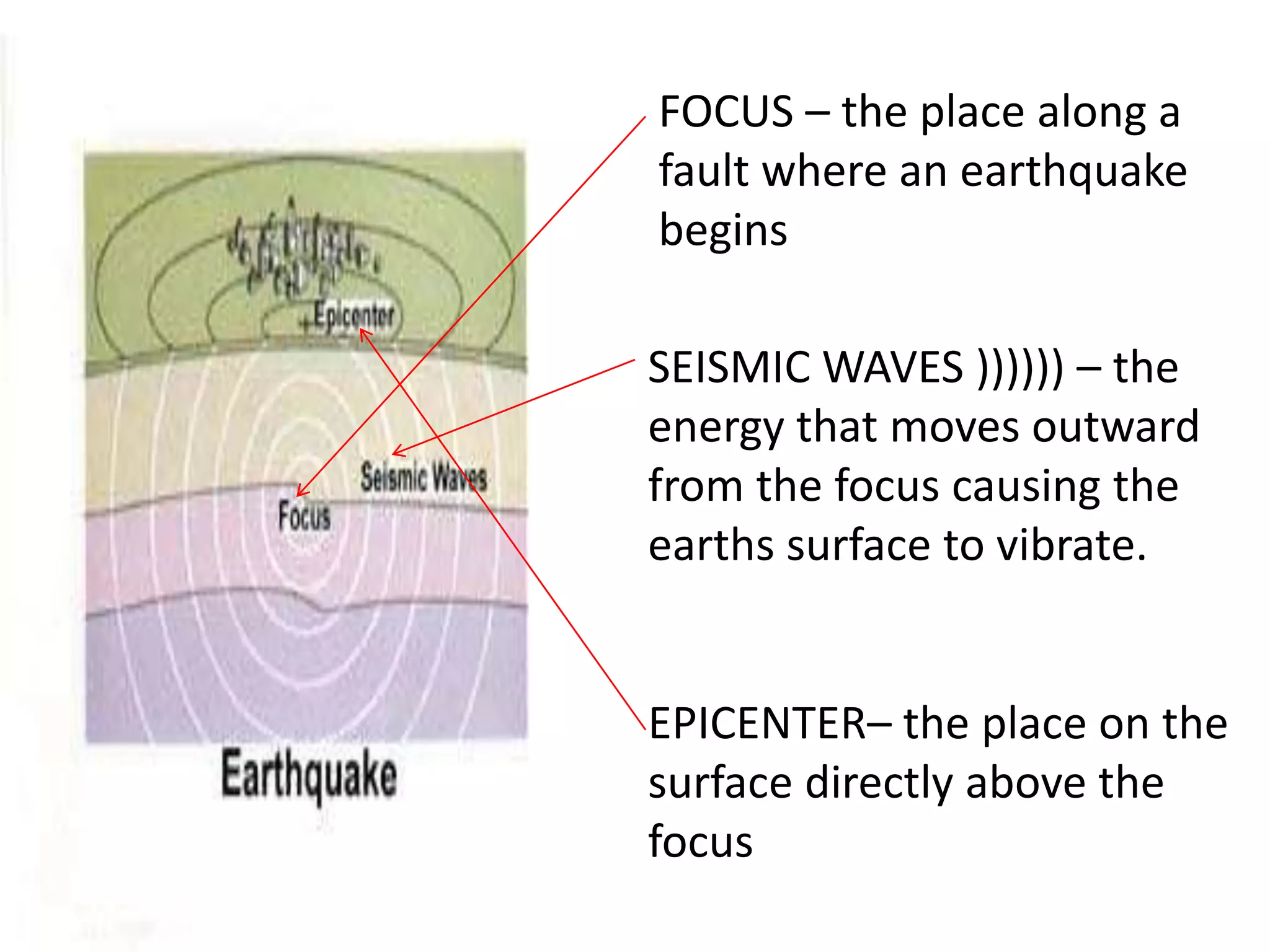

65. FOCUS – the place along a
fault where an earthquake
begins
SEISMIC WAVES )))))) – the
energy that moves outward
from the focus causing the
earths surface to vibrate.
EPICENTER– the place on the
surface directly above the
focus

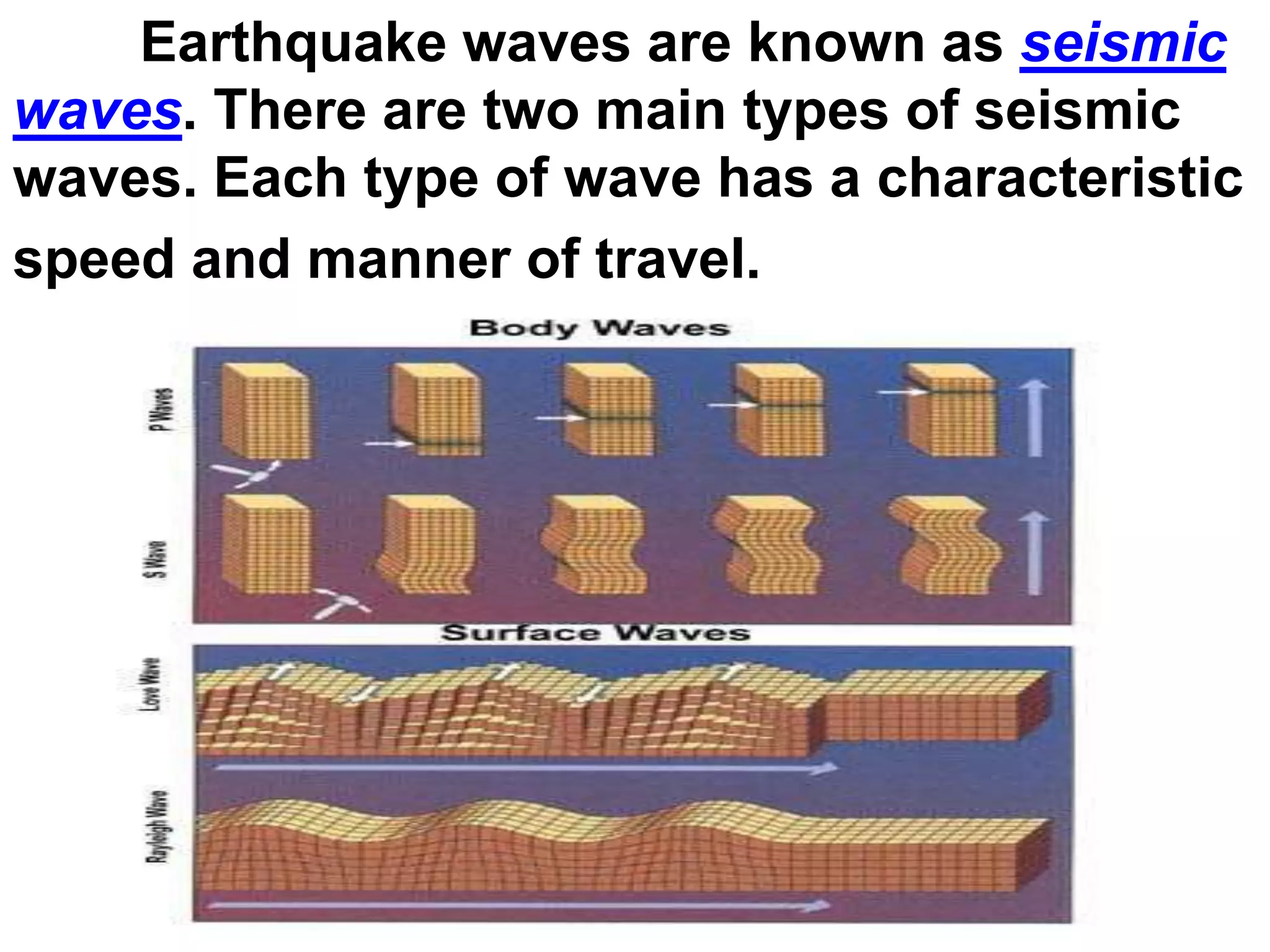

66. Earthquake waves are known as seismic
waves. There are two main types of seismic
waves. Each type of wave has a characteristic
speed and manner of travel.

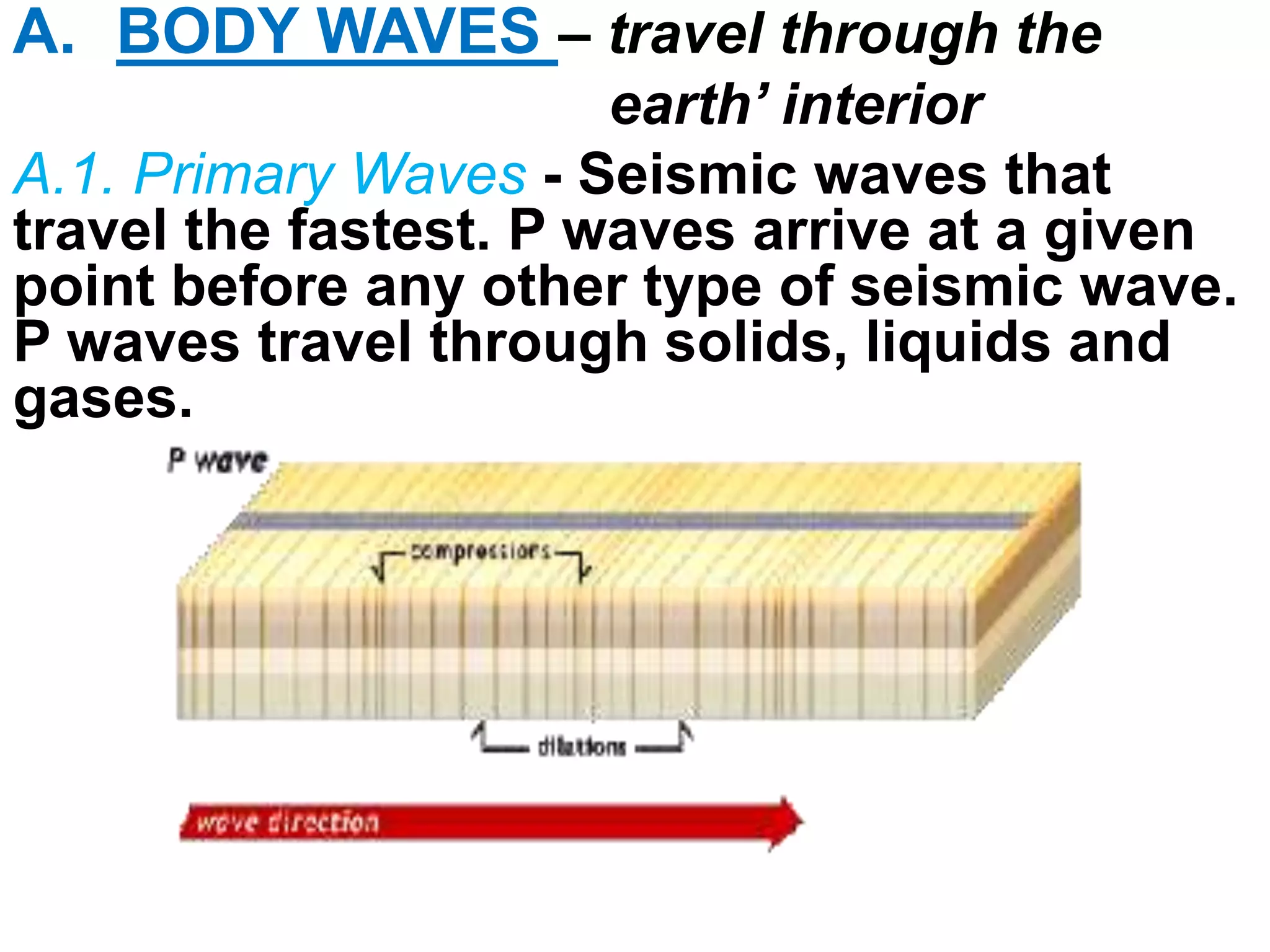

67. A. BODY WAVES – travel through the
earth’ interior
A.1. Primary Waves - Seismic waves that
travel the fastest. P waves arrive at a given
point before any other type of seismic wave.
P waves travel through solids, liquids and
gases.

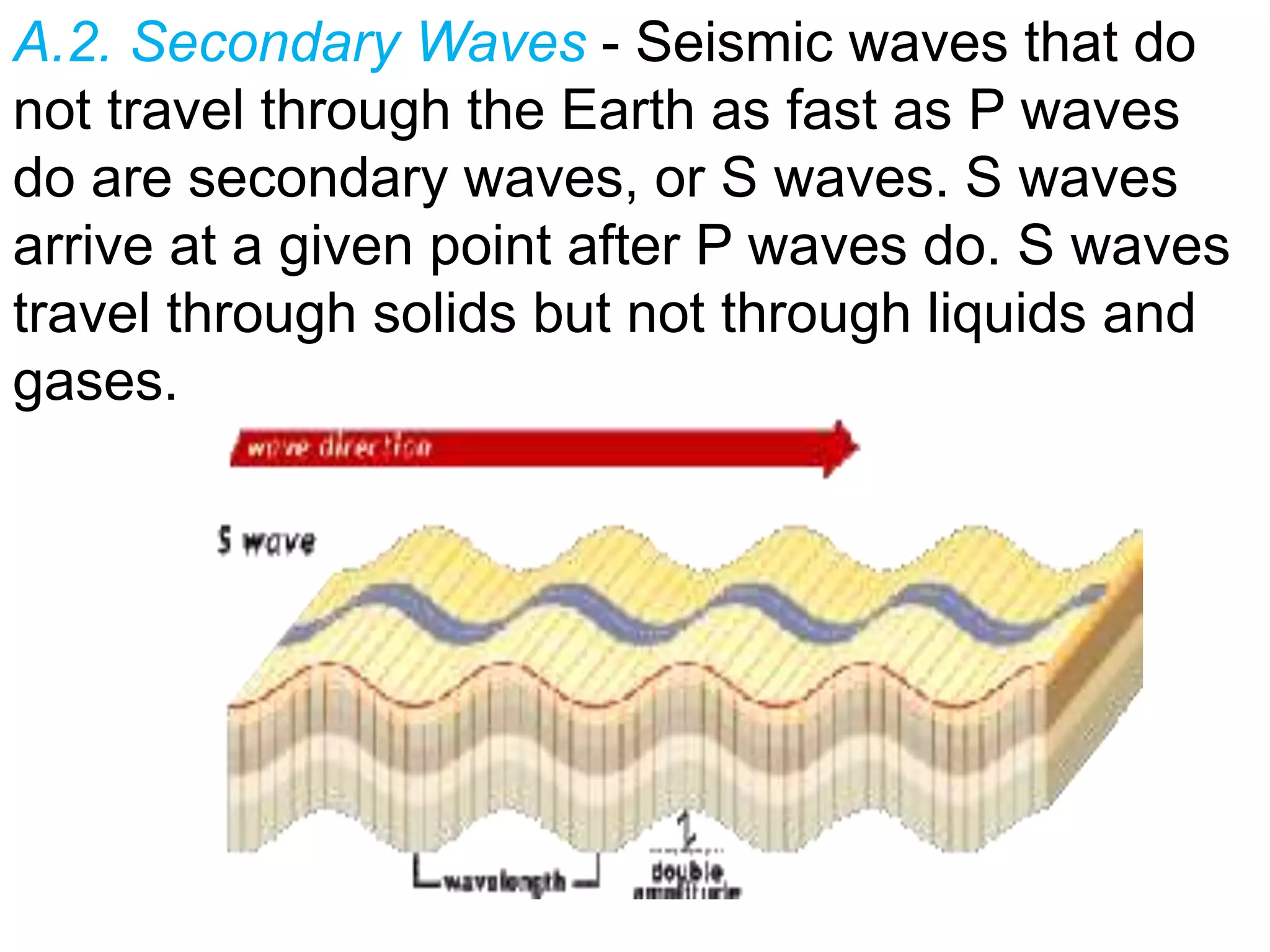

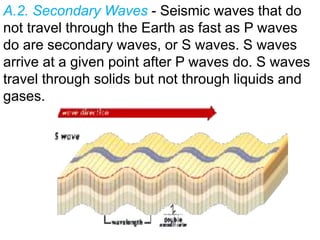

68. A.2. Secondary Waves - Seismic waves that do
not travel through the Earth as fast as P waves
do are secondary waves, or S waves. S waves
arrive at a given point after P waves do. S waves
travel through solids but not through liquids and
gases.

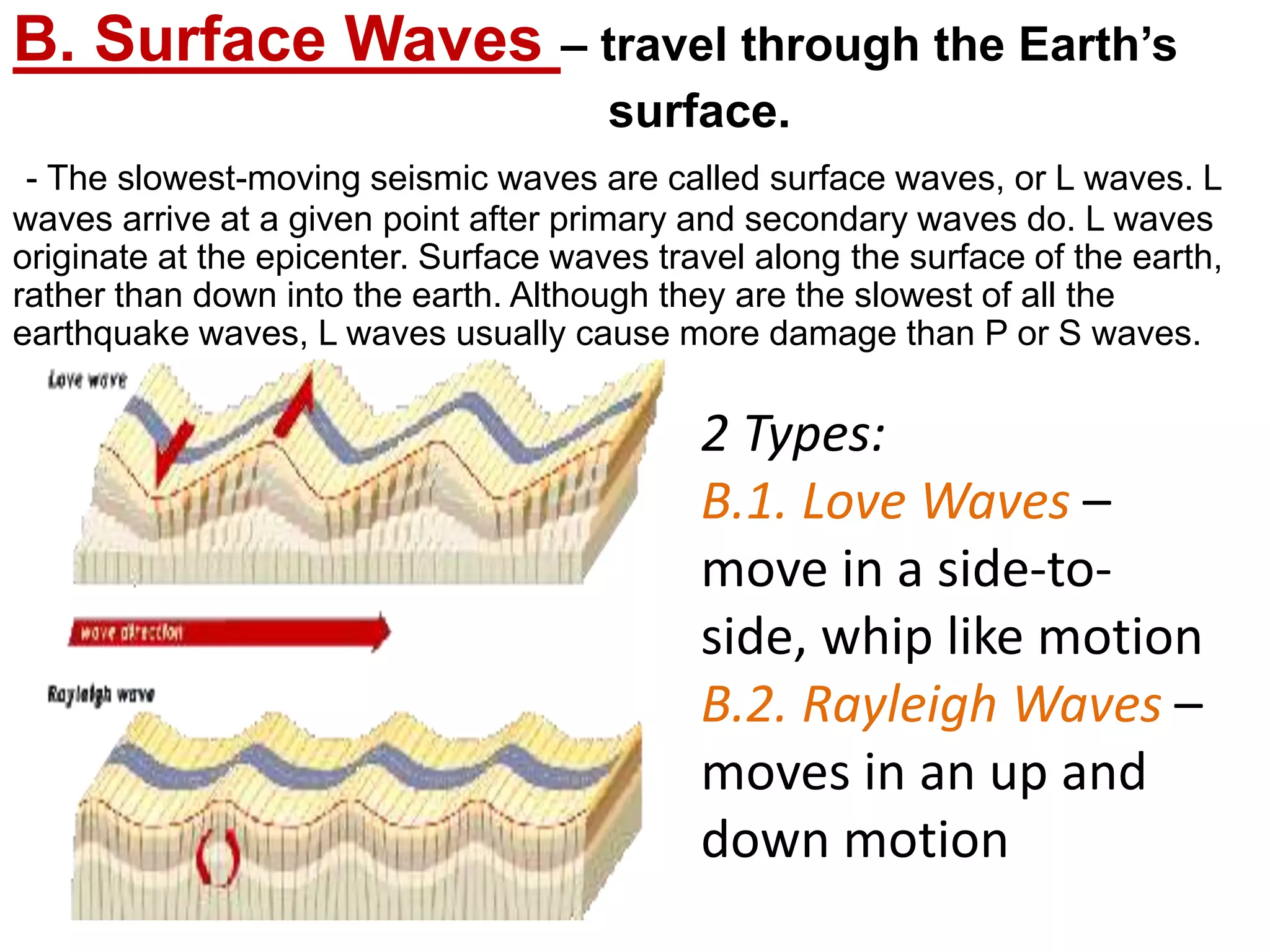

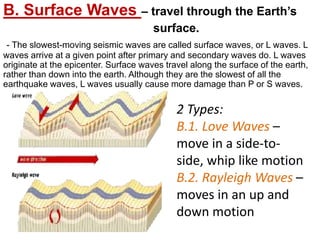

69. B. Surface Waves – travel through the Earth’s
surface.
- The slowest-moving seismic waves are called surface waves, or L waves. L
waves arrive at a given point after primary and secondary waves do. L waves
originate at the epicenter. Surface waves travel along the surface of the earth,
rather than down into the earth. Although they are the slowest of all the
earthquake waves, L waves usually cause more damage than P or S waves.
2 Types:
B.1. Love Waves –
move in a side-to-
side, whip like motion
B.2. Rayleigh Waves –
moves in an up and
down motion

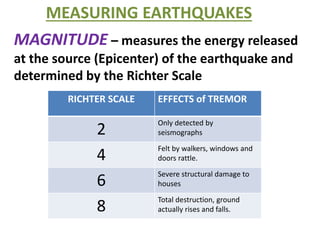

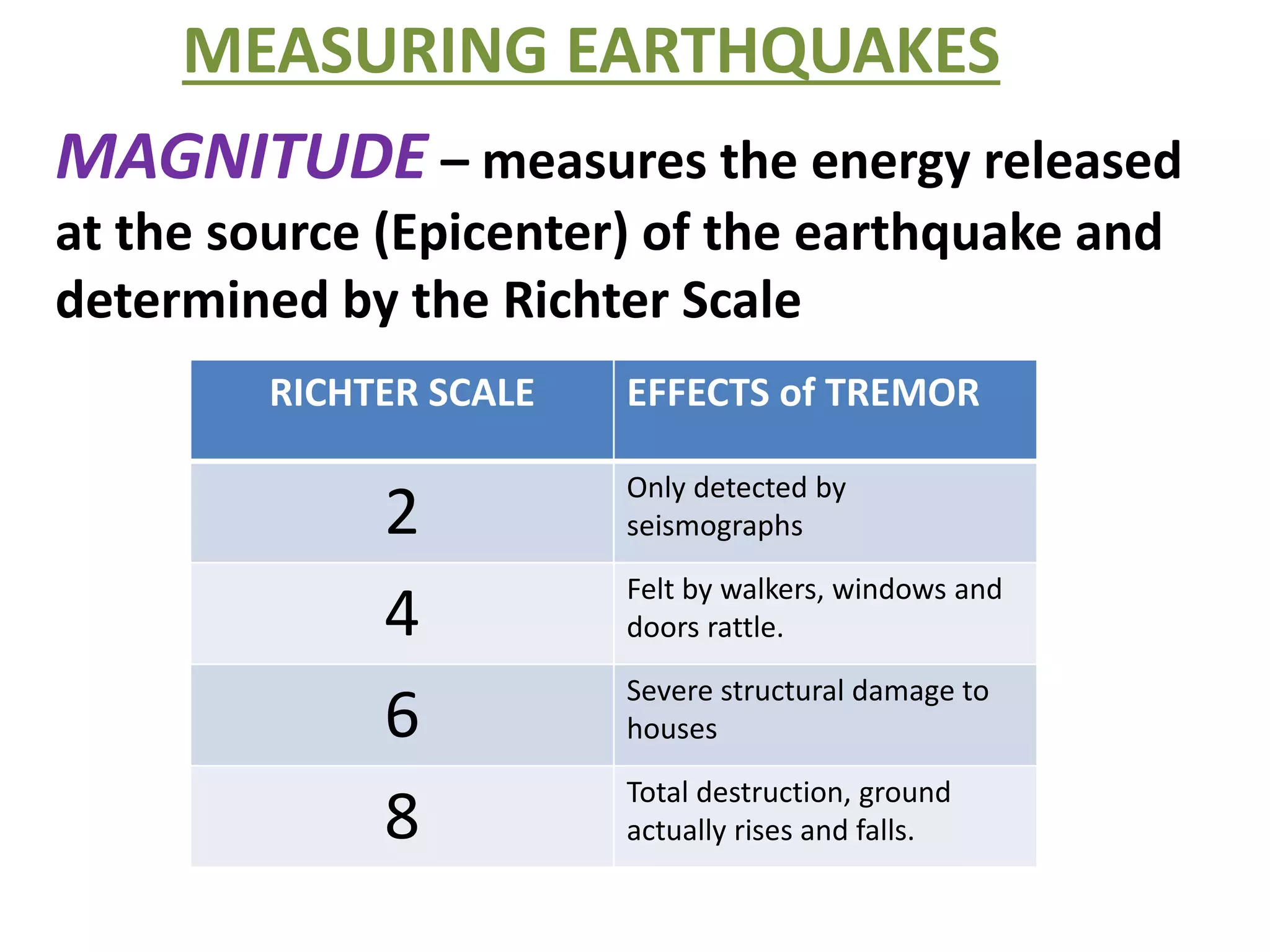

70. MEASURING EARTHQUAKES
MAGNITUDE – measures the energy released
at the source (Epicenter) of the earthquake and
determined by the Richter Scale
RICHTER SCALE EFFECTS of TREMOR
2
Only detected by
seismographs
4
Felt by walkers, windows and
doors rattle.
6
Severe structural damage to
houses
8
Total destruction, ground
actually rises and falls.

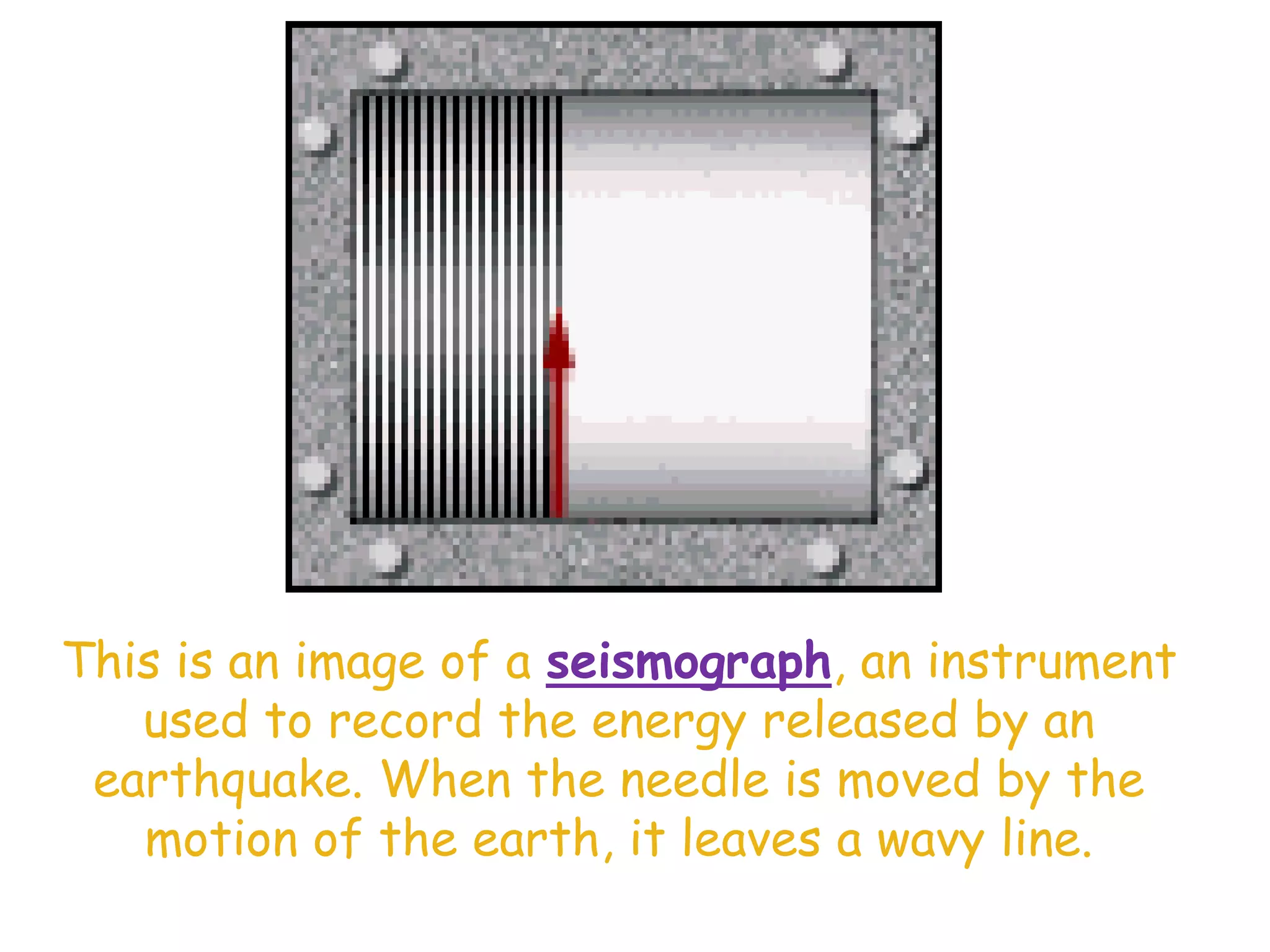

71. This is an image of a seismograph, an instrument
used to record the energy released by an
earthquake. When the needle is moved by the
motion of the earth, it leaves a wavy line.

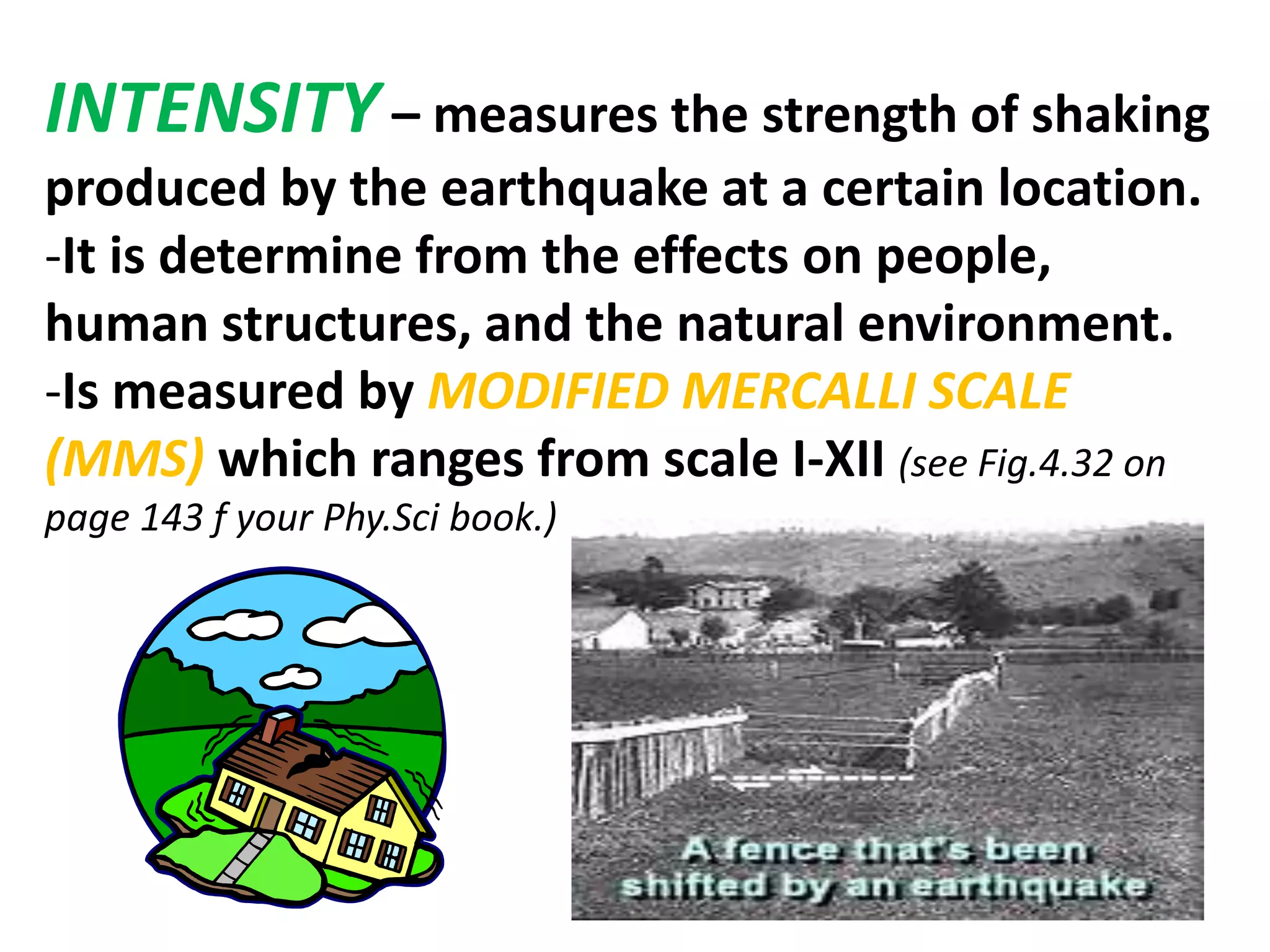

72. INTENSITY – measures the strength of shaking
produced by the earthquake at a certain location.
-It is determine from the effects on people,
human structures, and the natural environment.
-Is measured by MODIFIED MERCALLI SCALE
(MMS) which ranges from scale I-XII (see Fig.4.32 on
page 143 f your Phy.Sci book.)

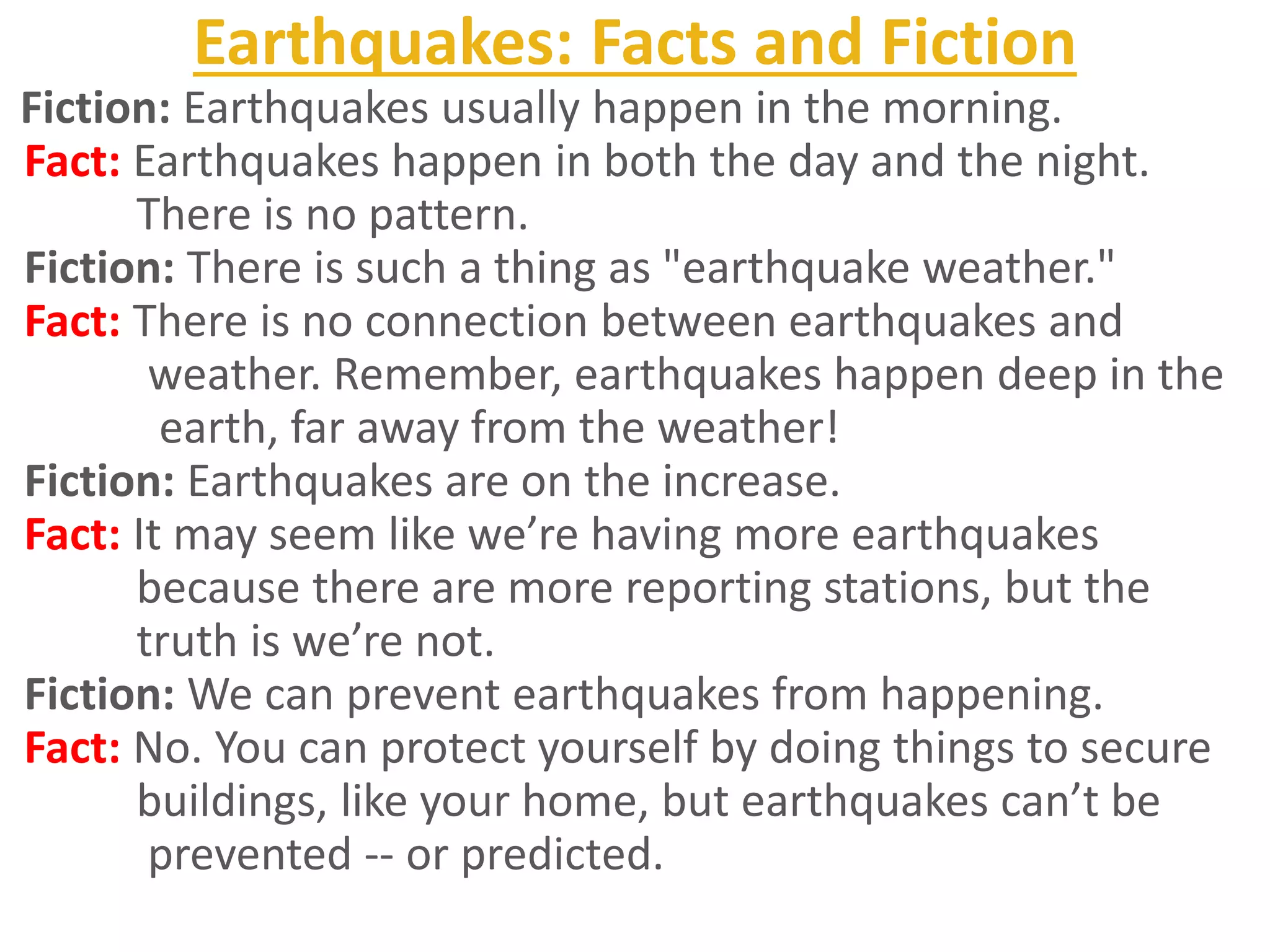

73. Earthquakes: Facts and Fiction
Fiction: Earthquakes usually happen in the morning.
Fact: Earthquakes happen in both the day and the night.
There is no pattern.
Fiction: There is such a thing as "earthquake weather."
Fact: There is no connection between earthquakes and
weather. Remember, earthquakes happen deep in the
earth, far away from the weather!
Fiction: Earthquakes are on the increase.
Fact: It may seem like we’re having more earthquakes
because there are more reporting stations, but the
truth is we’re not.
Fiction: We can prevent earthquakes from happening.
Fact: No. You can protect yourself by doing things to secure
buildings, like your home, but earthquakes can’t be
prevented -- or predicted.
