The document discusses methods for detecting Dual-Tone Multi-Frequency (DTMF) signals. It compares the Direct Fourier Transform (DFT) method, Fast Fourier Transform (FFT) method, and Goertzel algorithm for calculating the DFT. The Goertzel algorithm reduces arithmetic operations compared to the DFT and FFT for certain applications. The document also proposes improving DTMF detection by varying the number of samples analyzed between 80-85 instead of a fixed number, to further reduce computations.

1. Detection of DTMF signals Tomasz Marciniak E-mail: Tomasz.Marciniak @put.poznan.pl

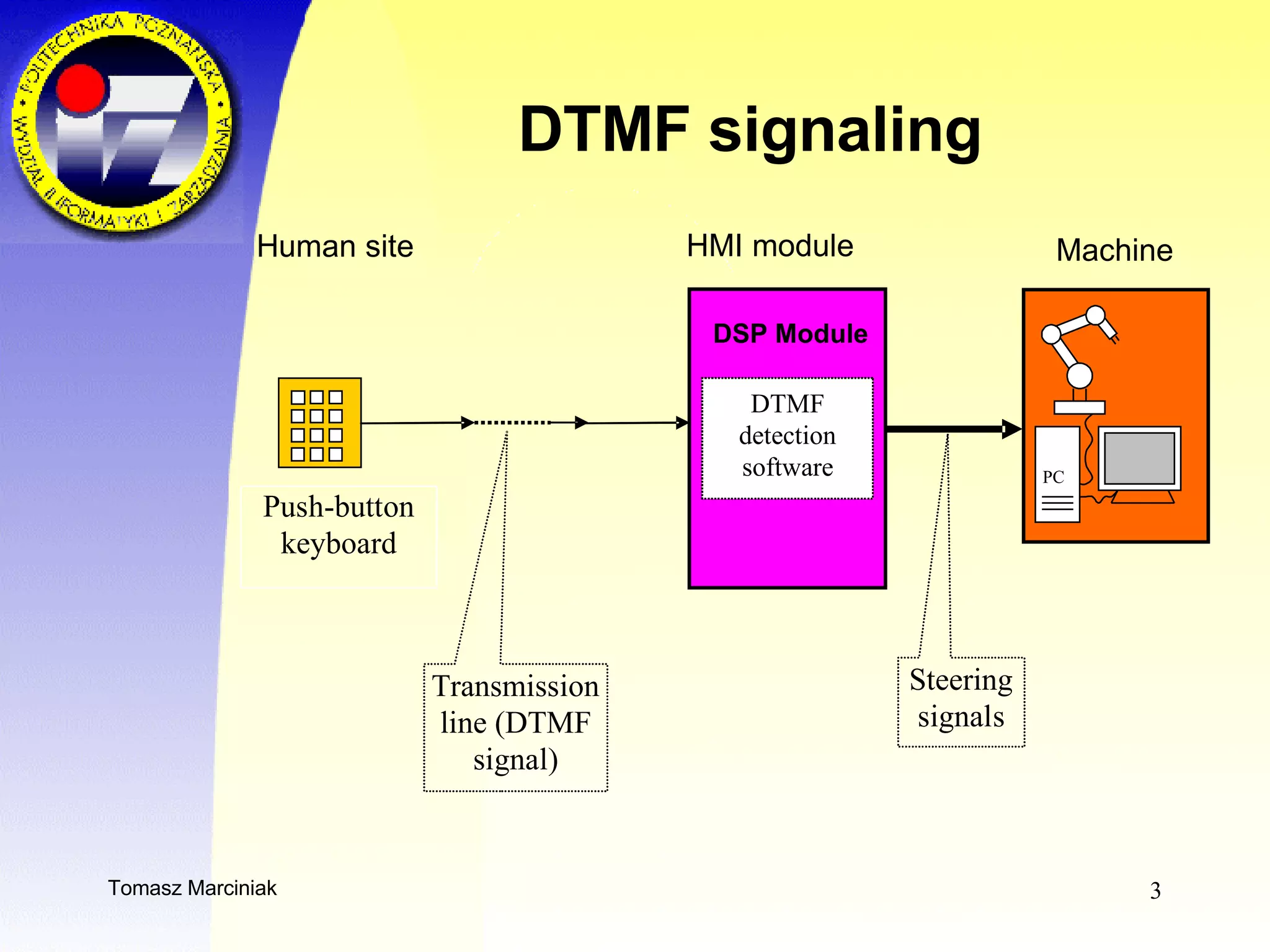

3. DTMF signaling

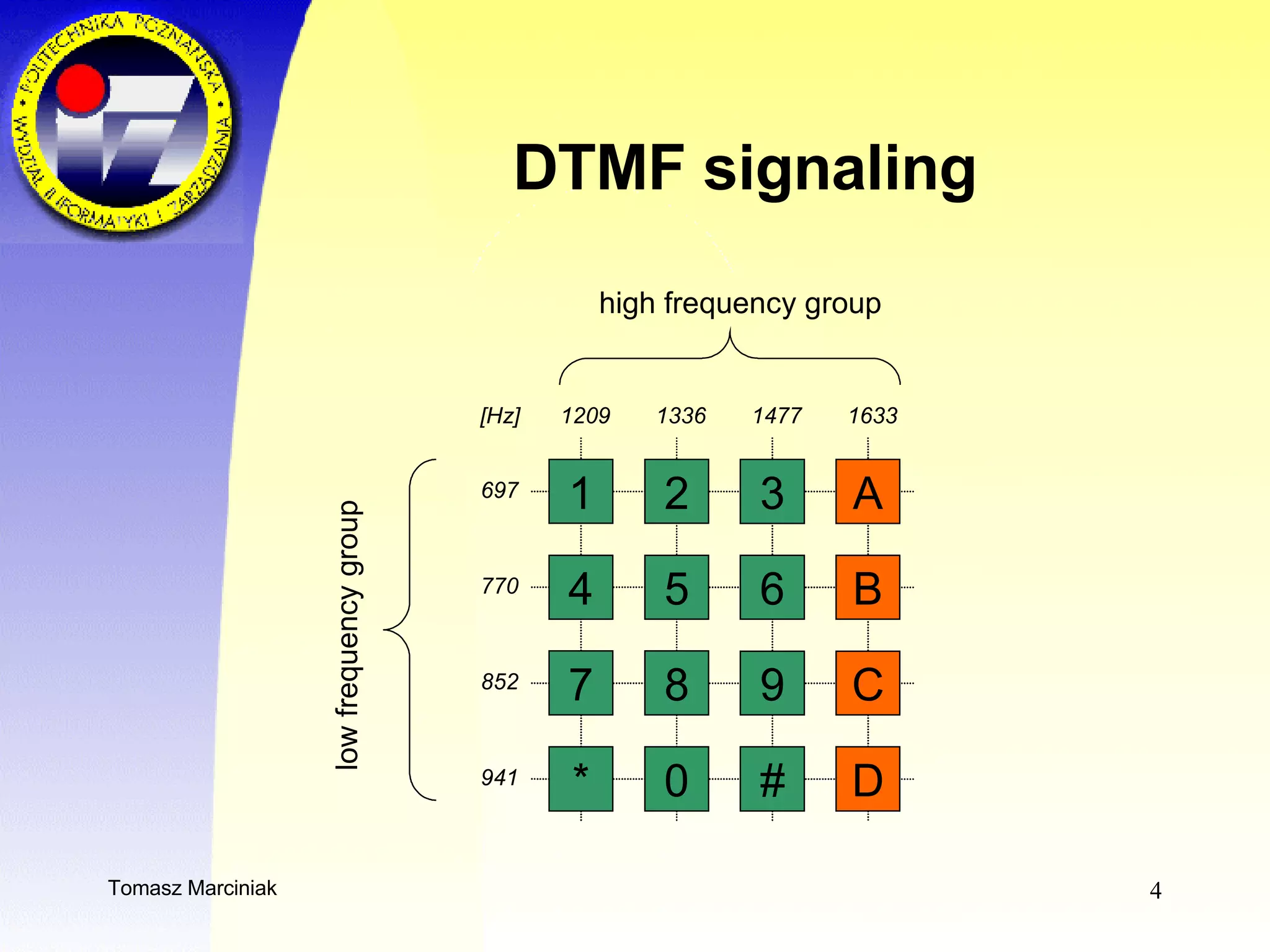

4. DTMF signaling

5. DTMF signaling Example of DTMF application

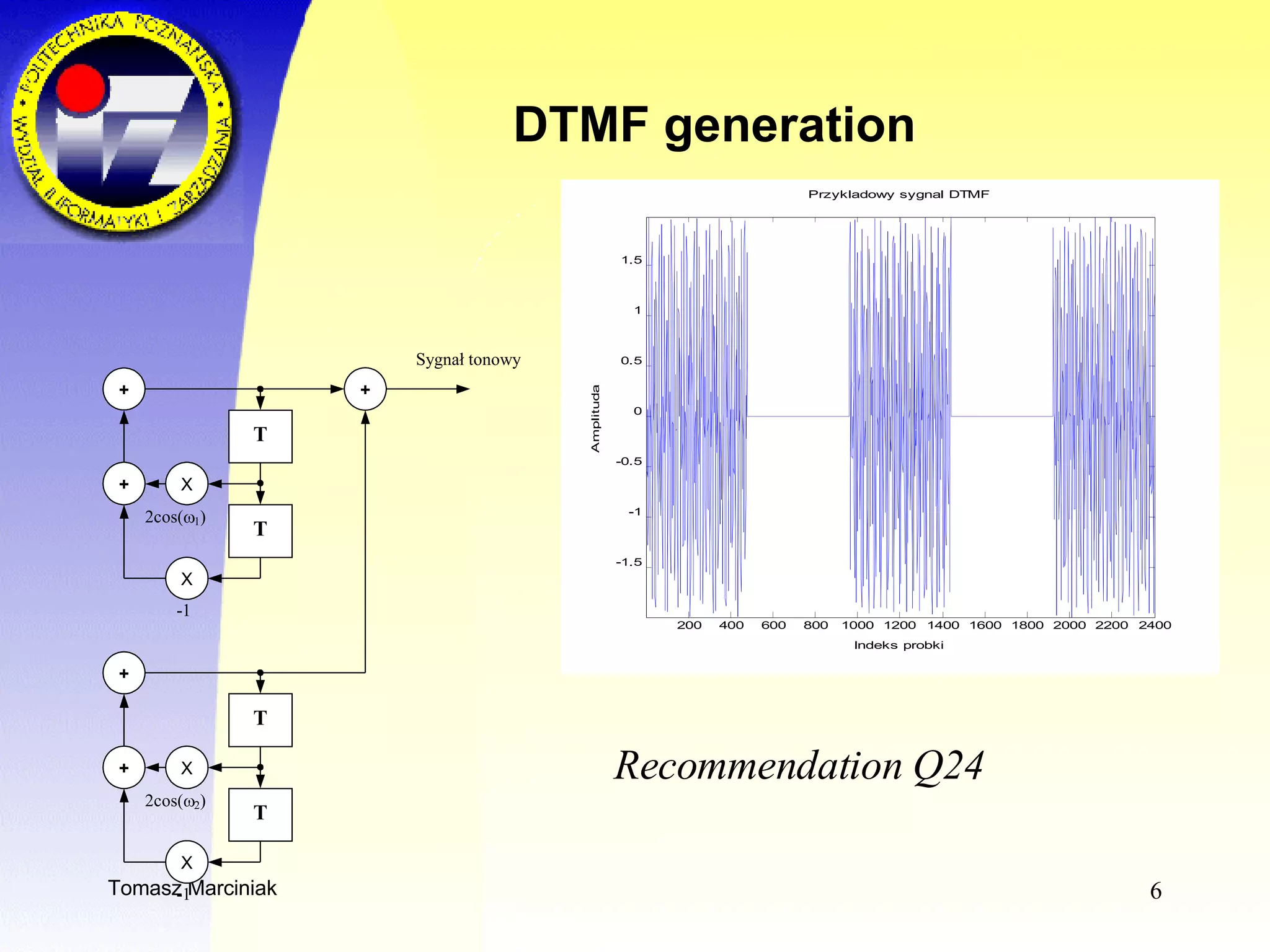

6. DTMF generation Recommendation Q24

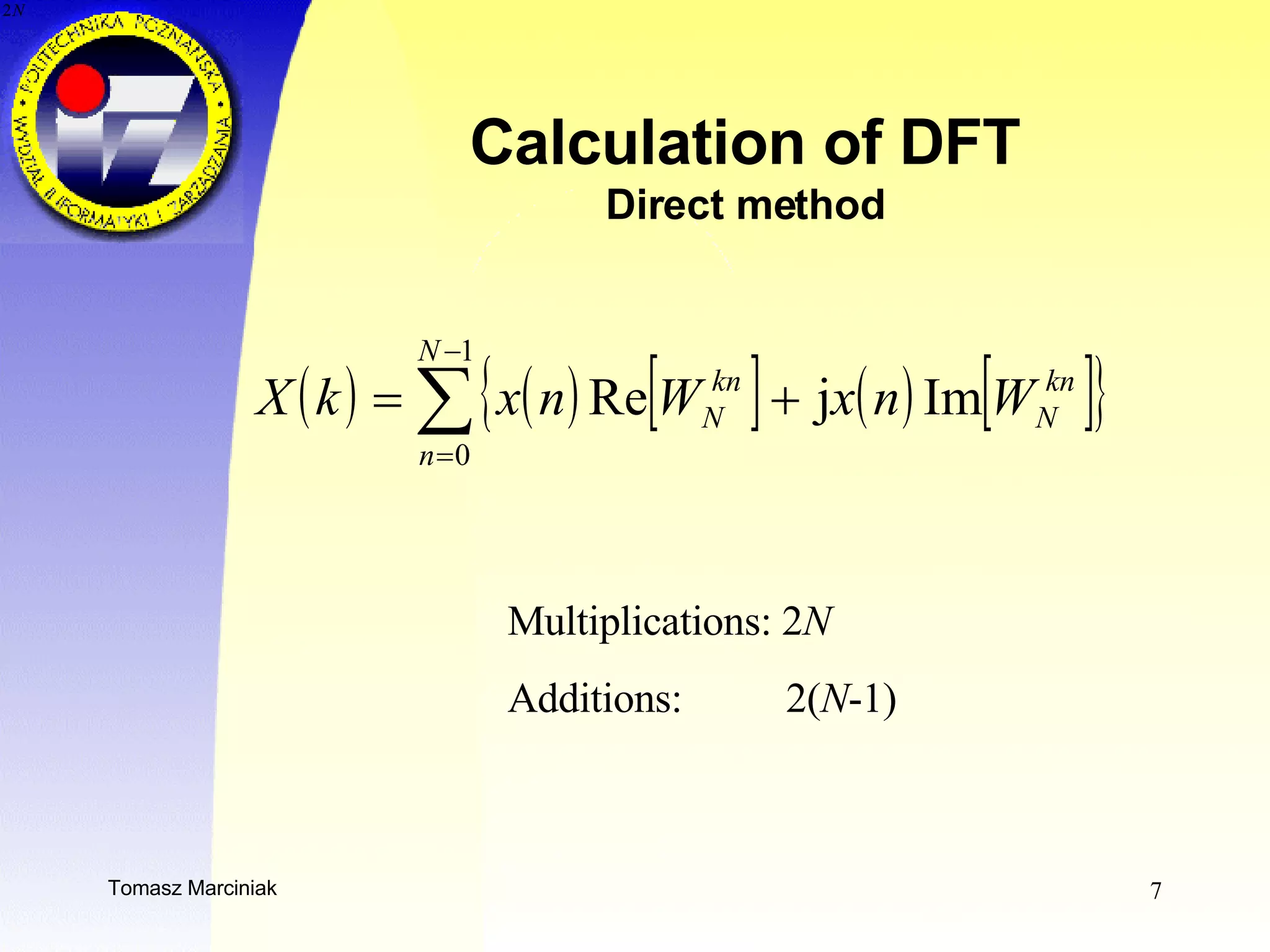

7. Calculation of DFT Direct method Multiplications: 2 N Additions: 2( N -1)

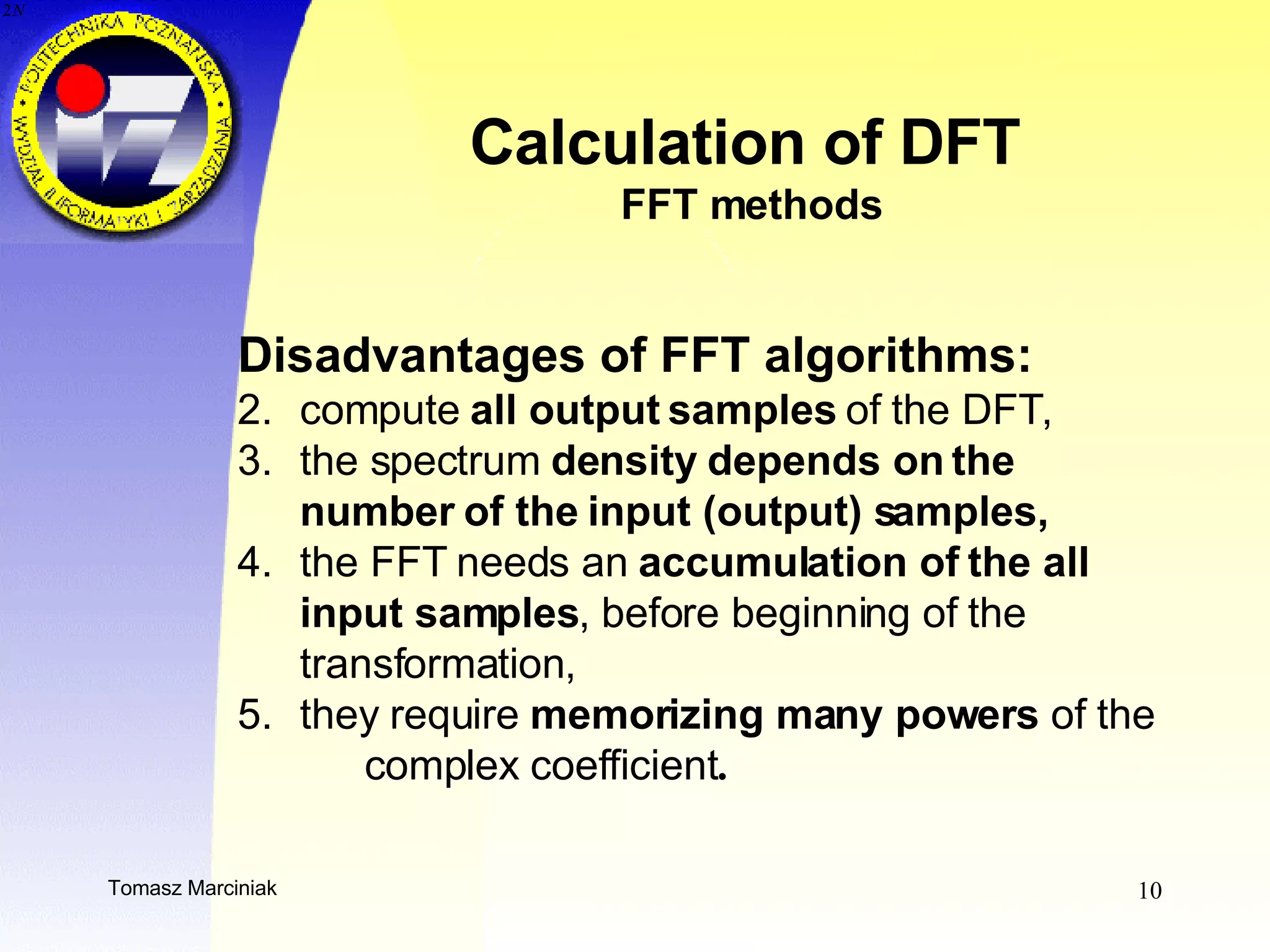

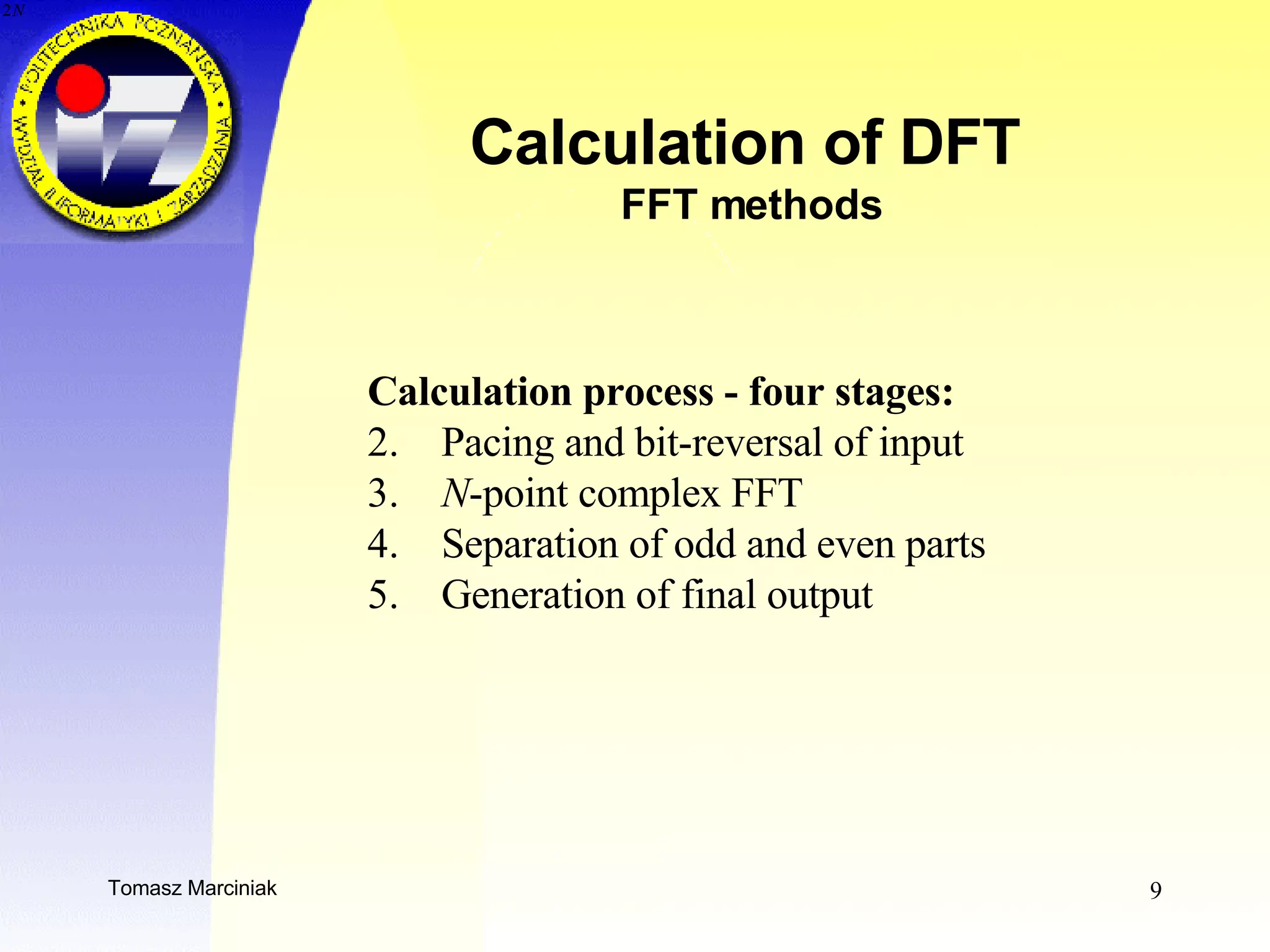

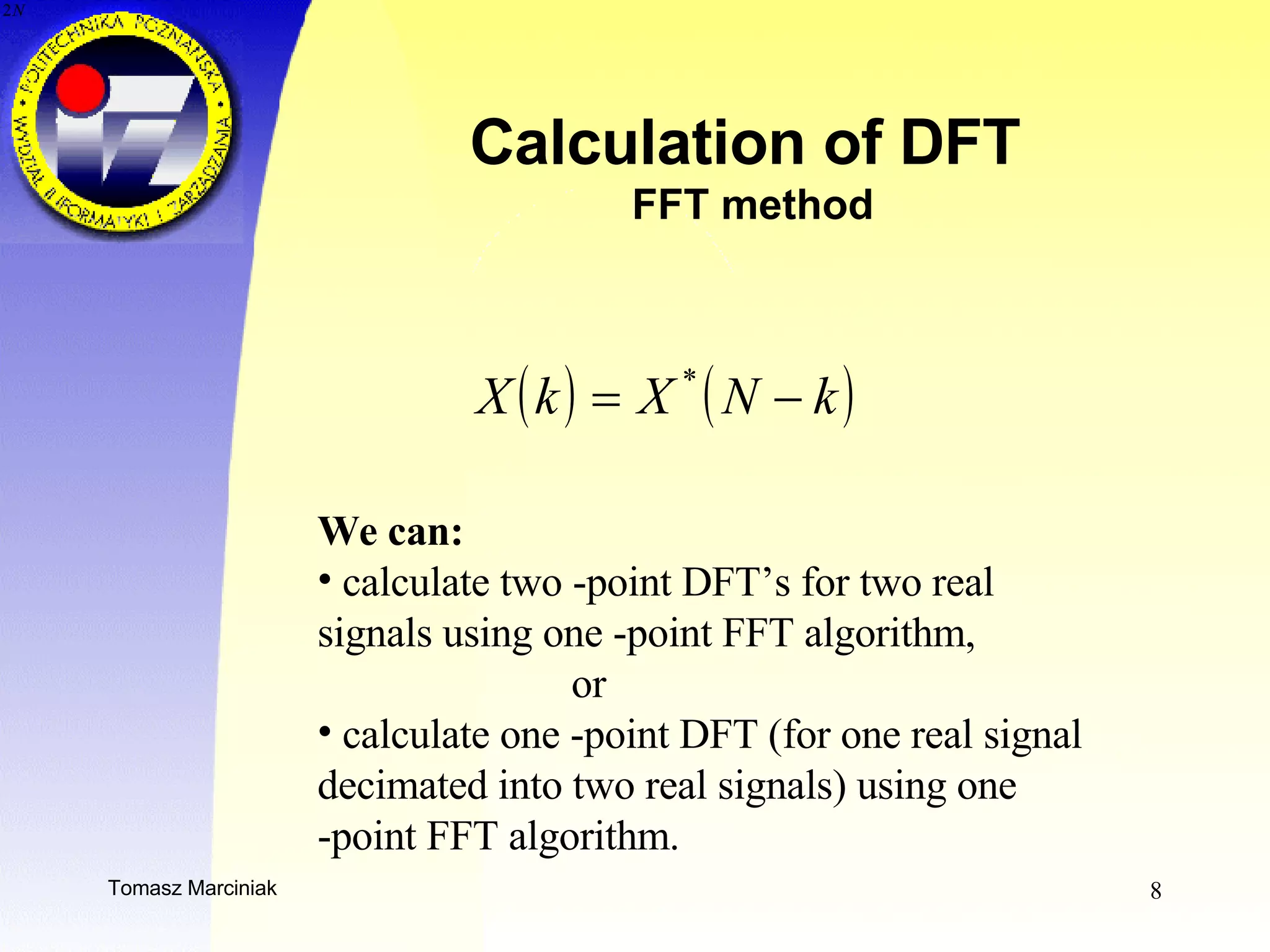

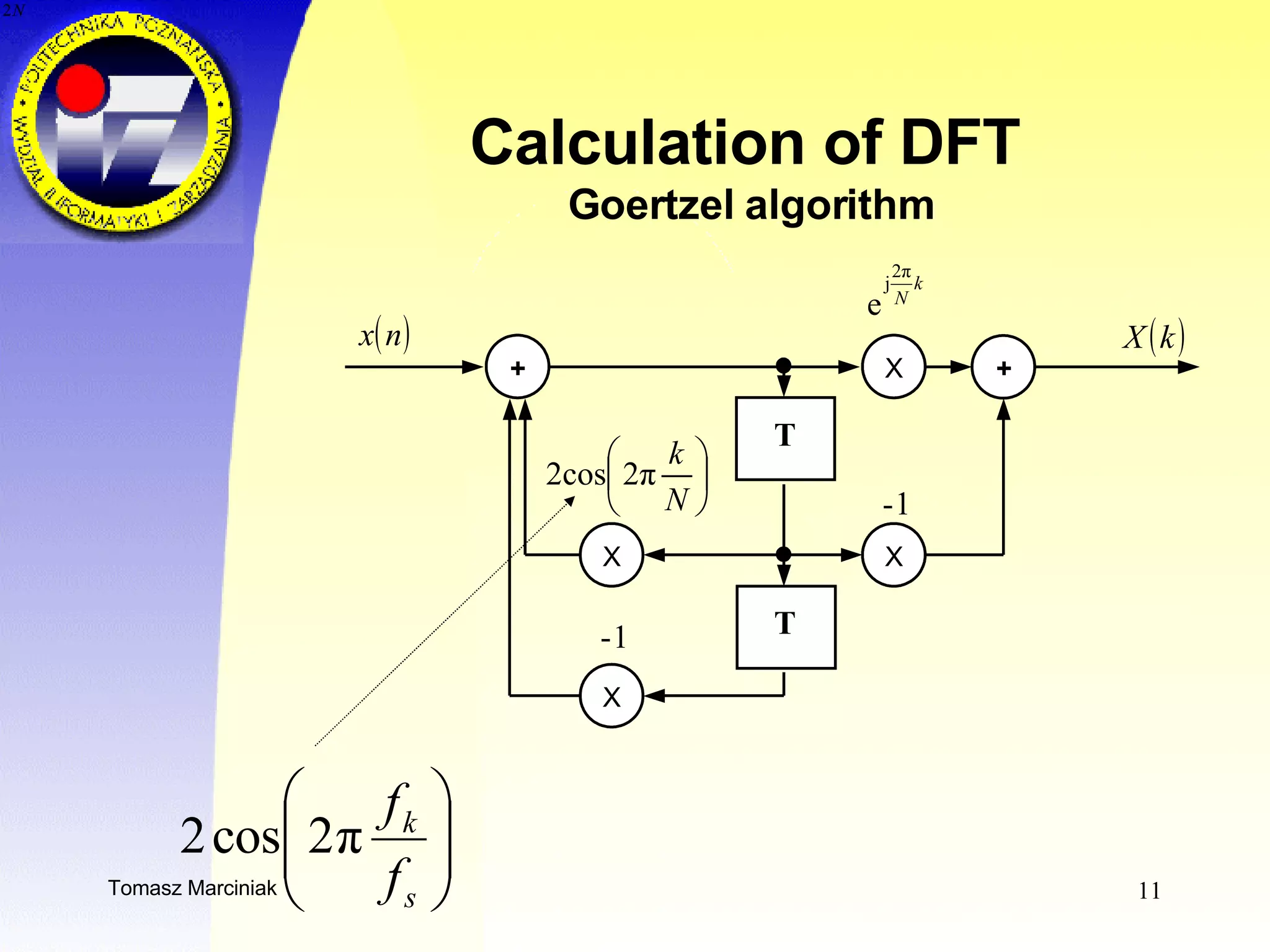

11. Calculation of DFT Goertzel algorithm

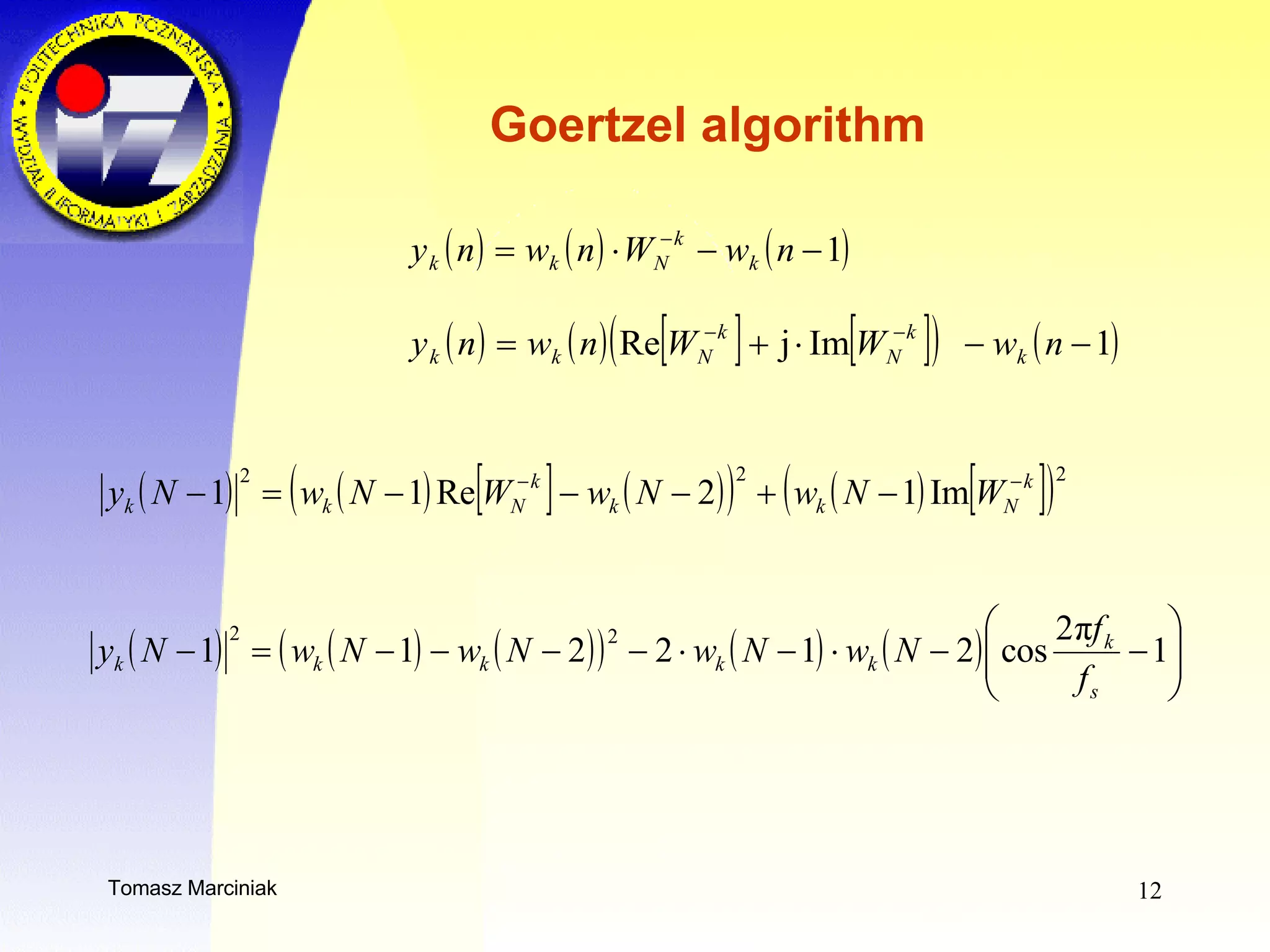

12. Goertzel algorithm

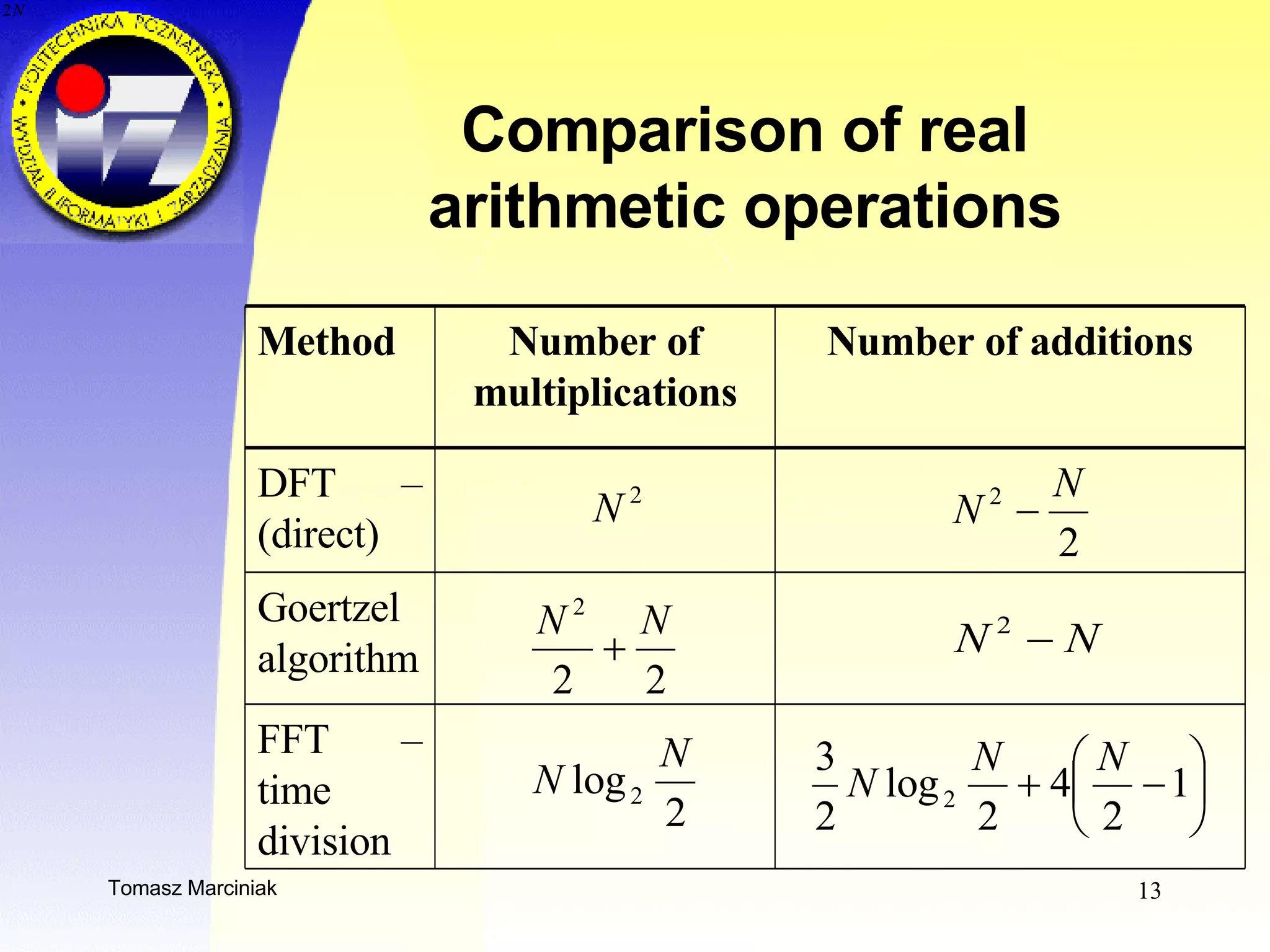

13. Comparison of real arithmetic operations FFT – time division Goertzel algorithm DFT – (direct) Number of additions Number of multiplications Method

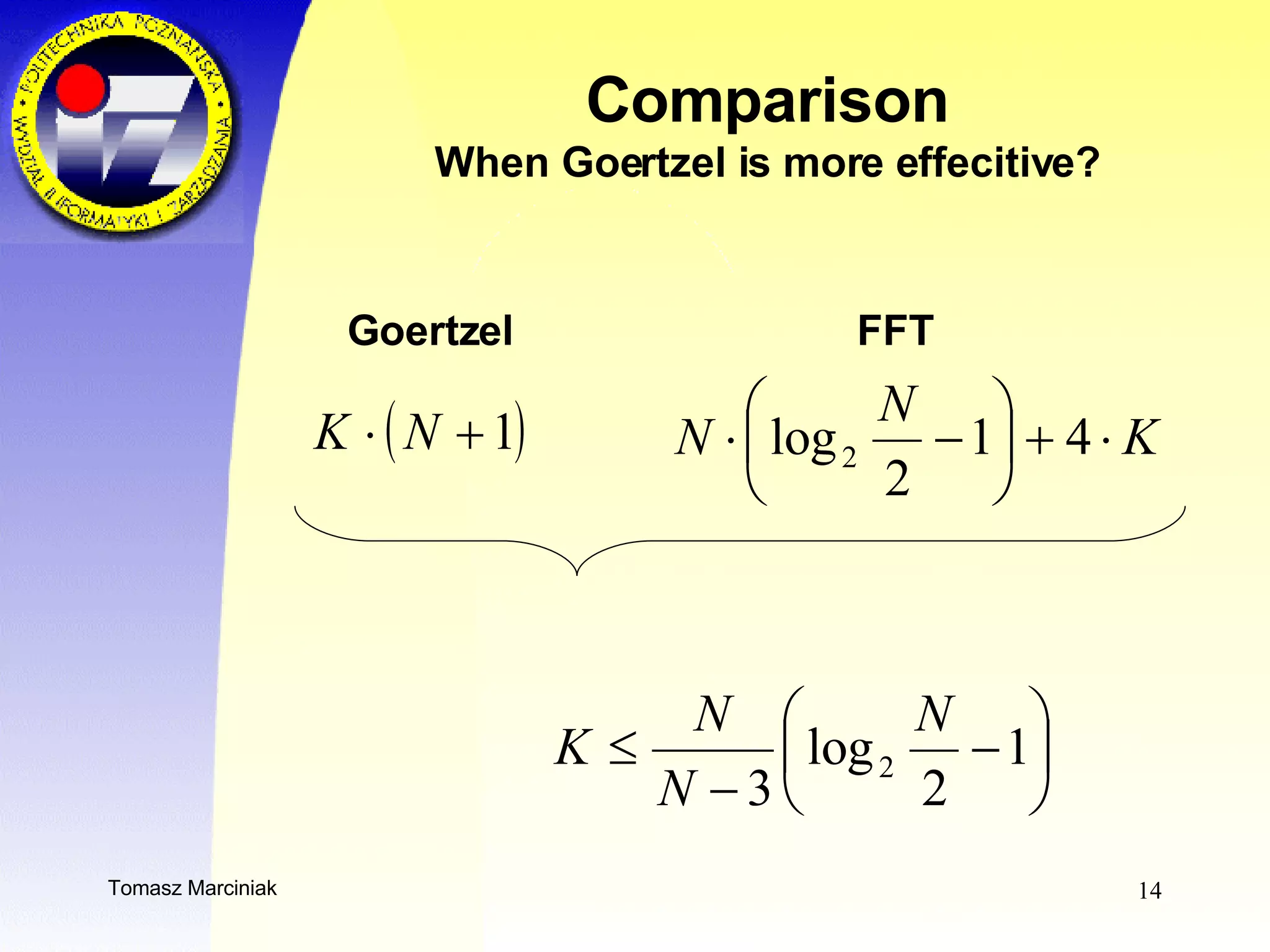

14. Comparison When Goertzel is more effecitive? Goertzel FFT

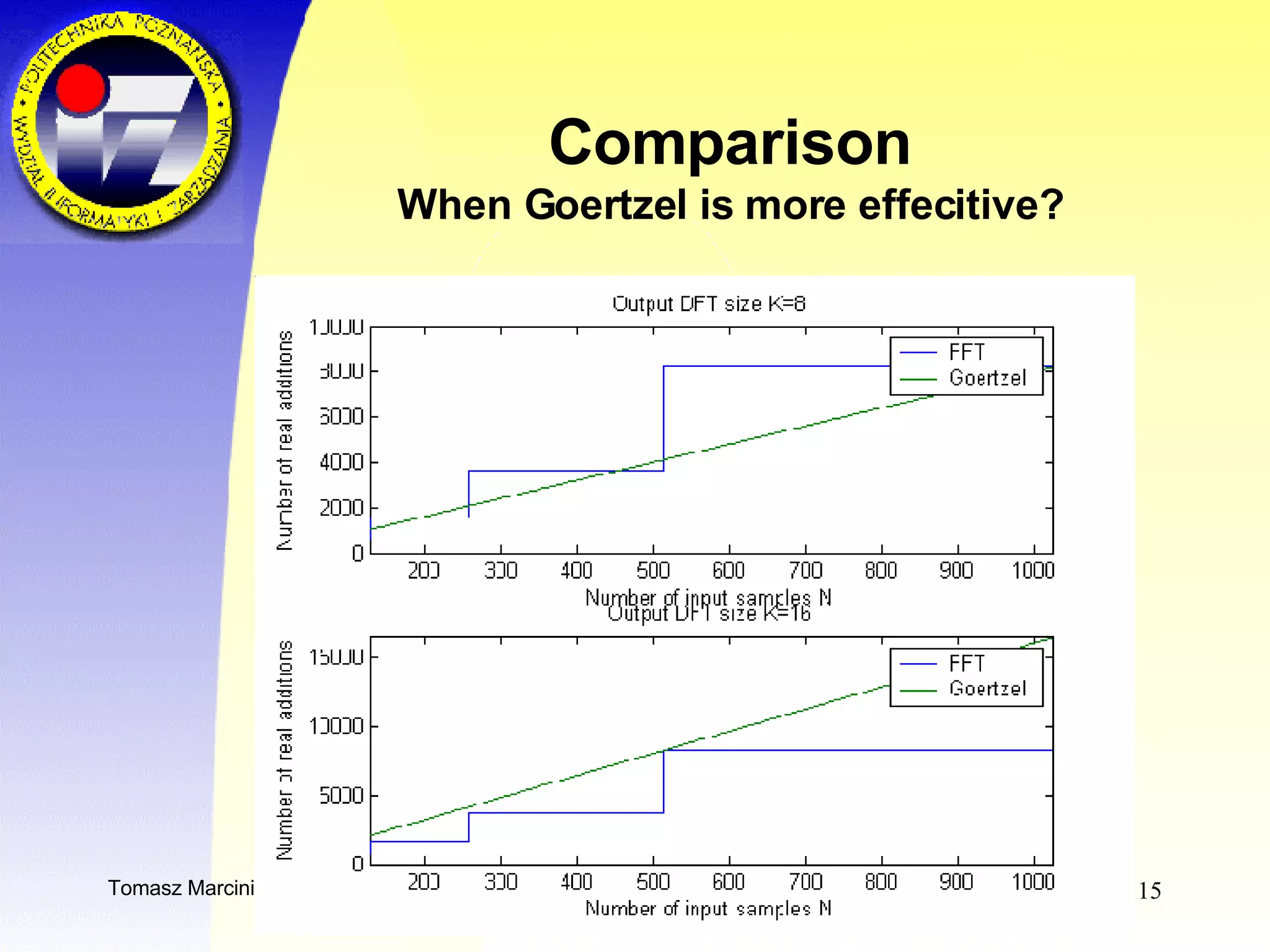

15. Comparison When Goertzel is more effecitive?

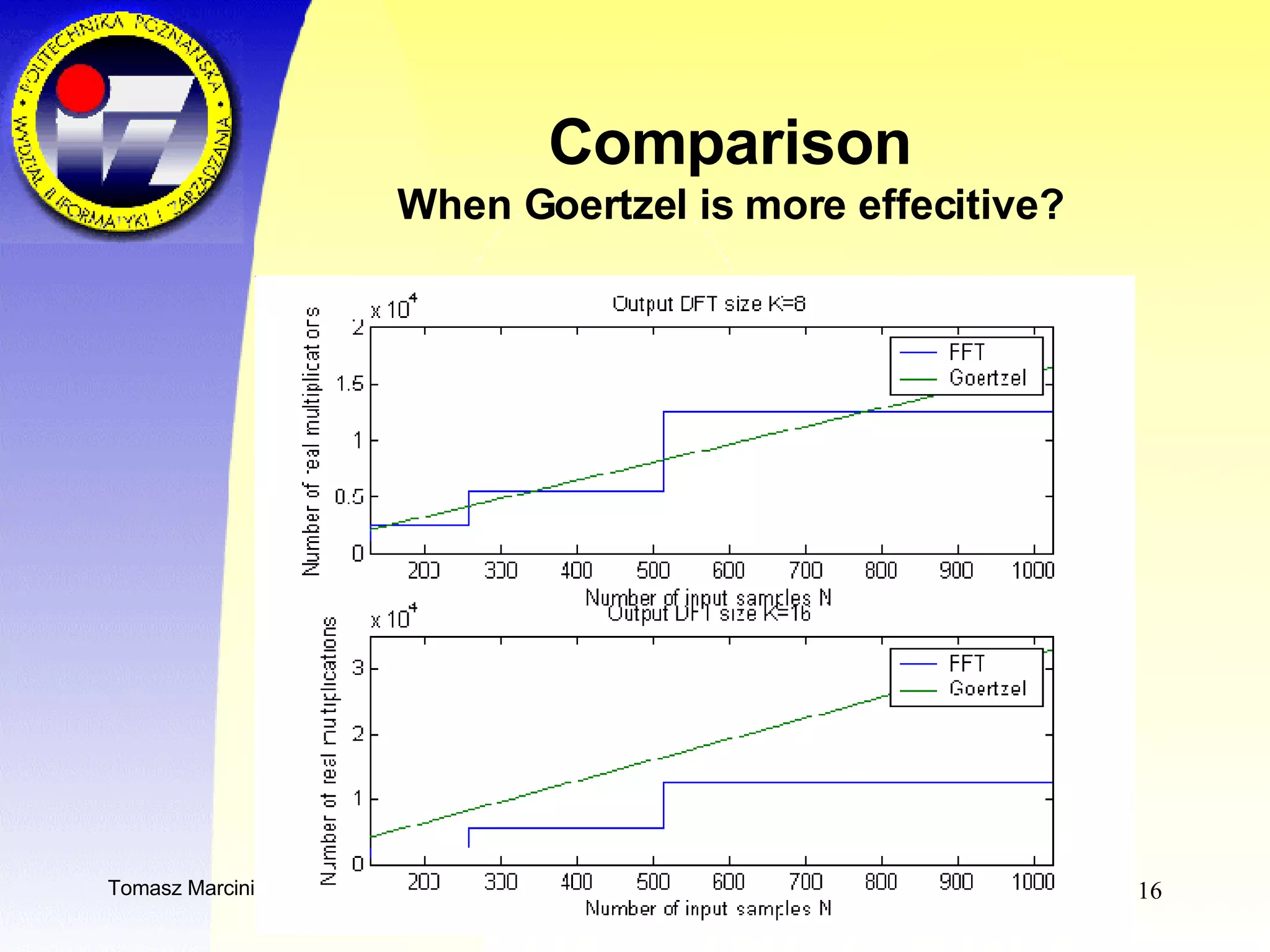

16. Comparison When Goertzel is more effecitive?

17. Improving of DTMF detection Q: How we can reduce the number of DFT computations? A: By reduction of the number N of the analyzed samples .

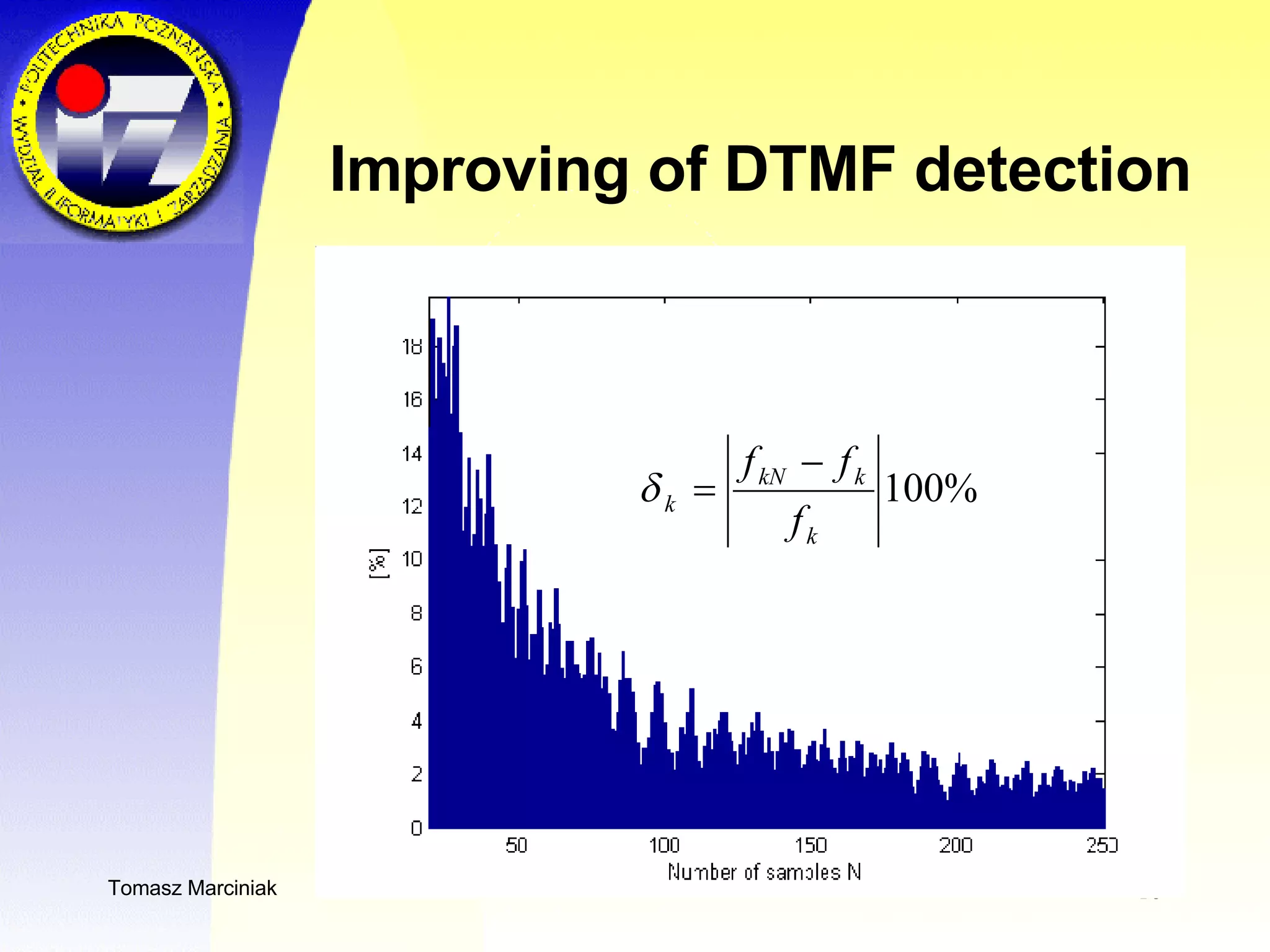

18. Improving of DTMF detection

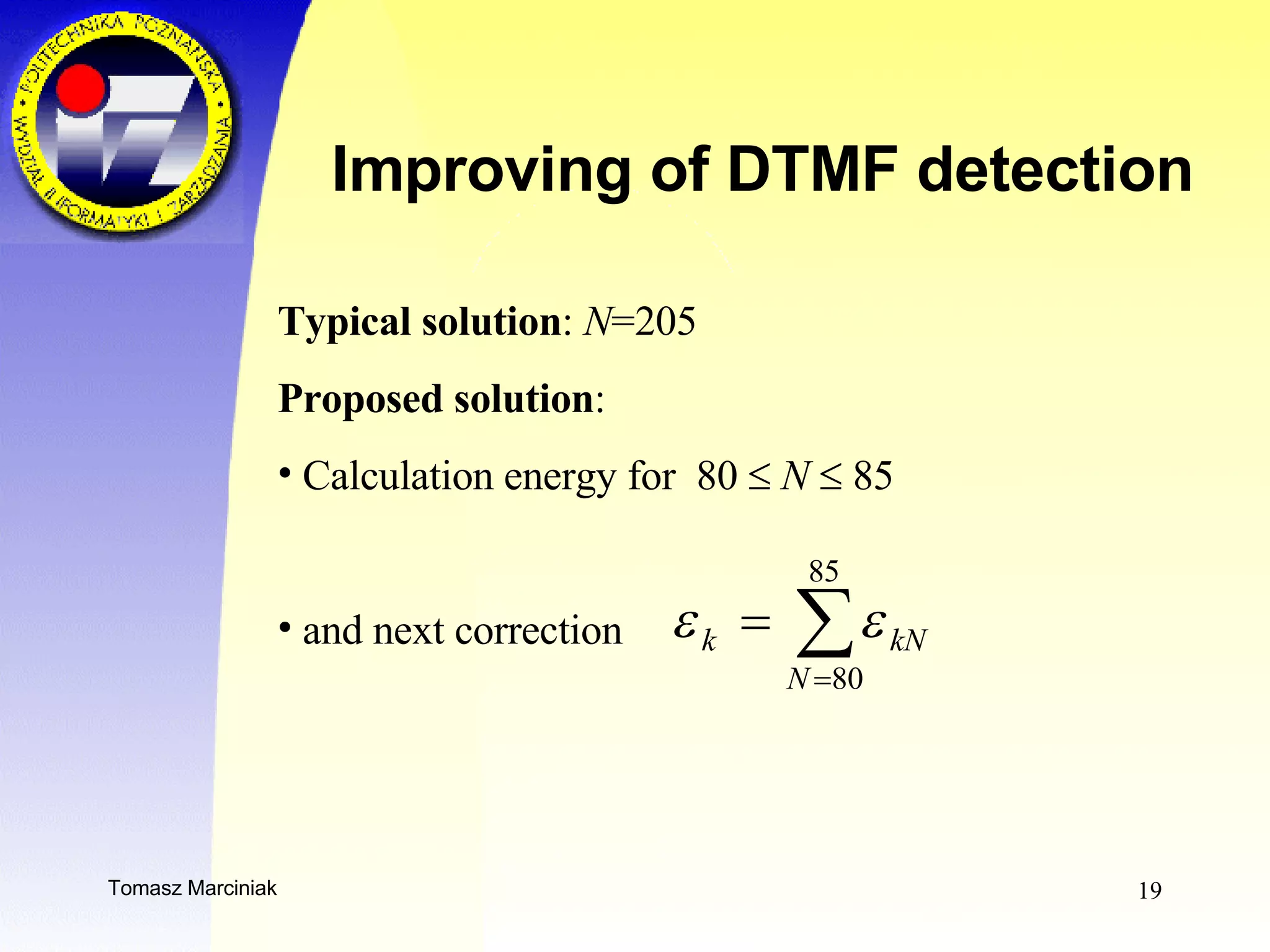

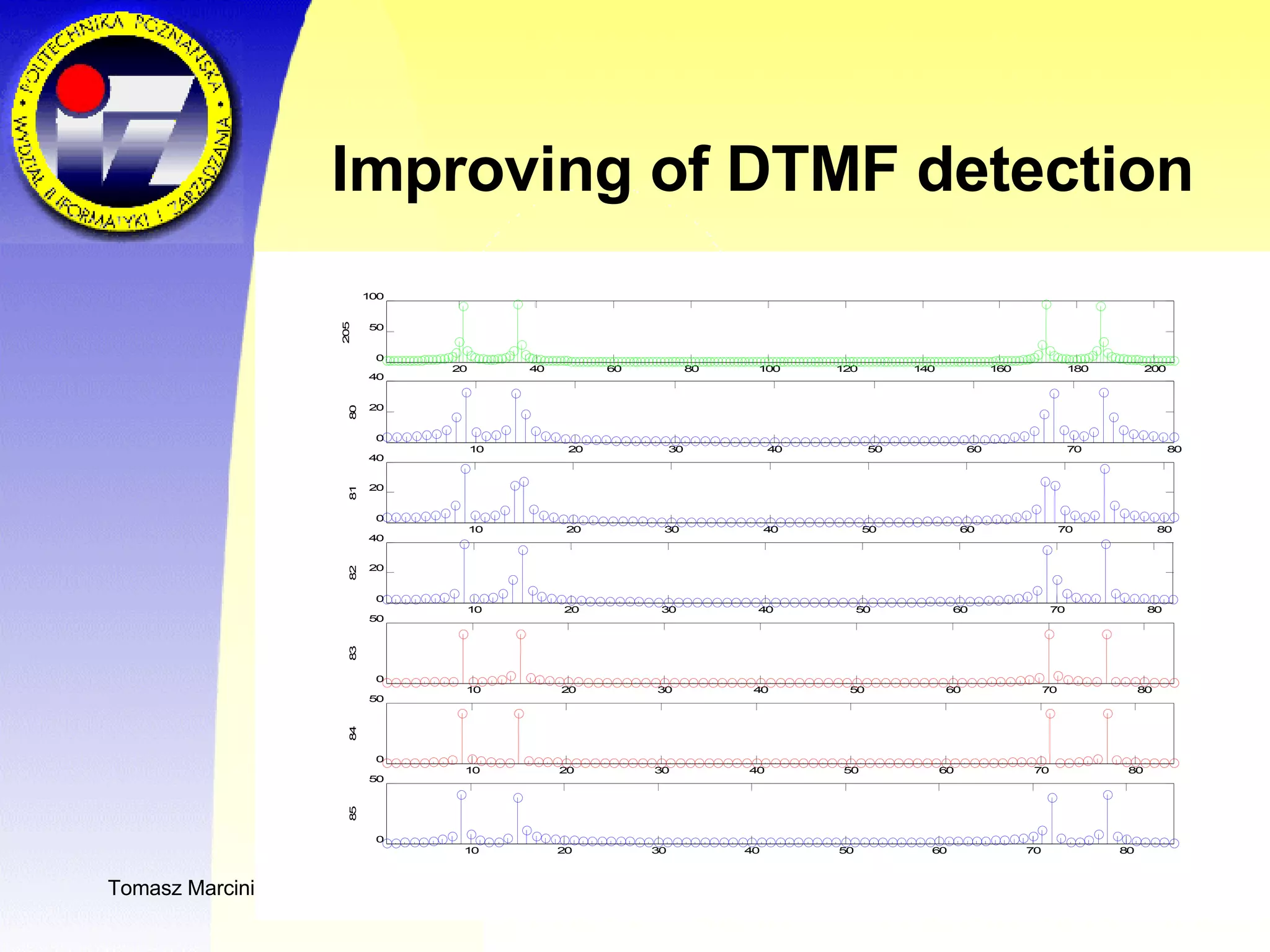

20. Improving of DTMF detection

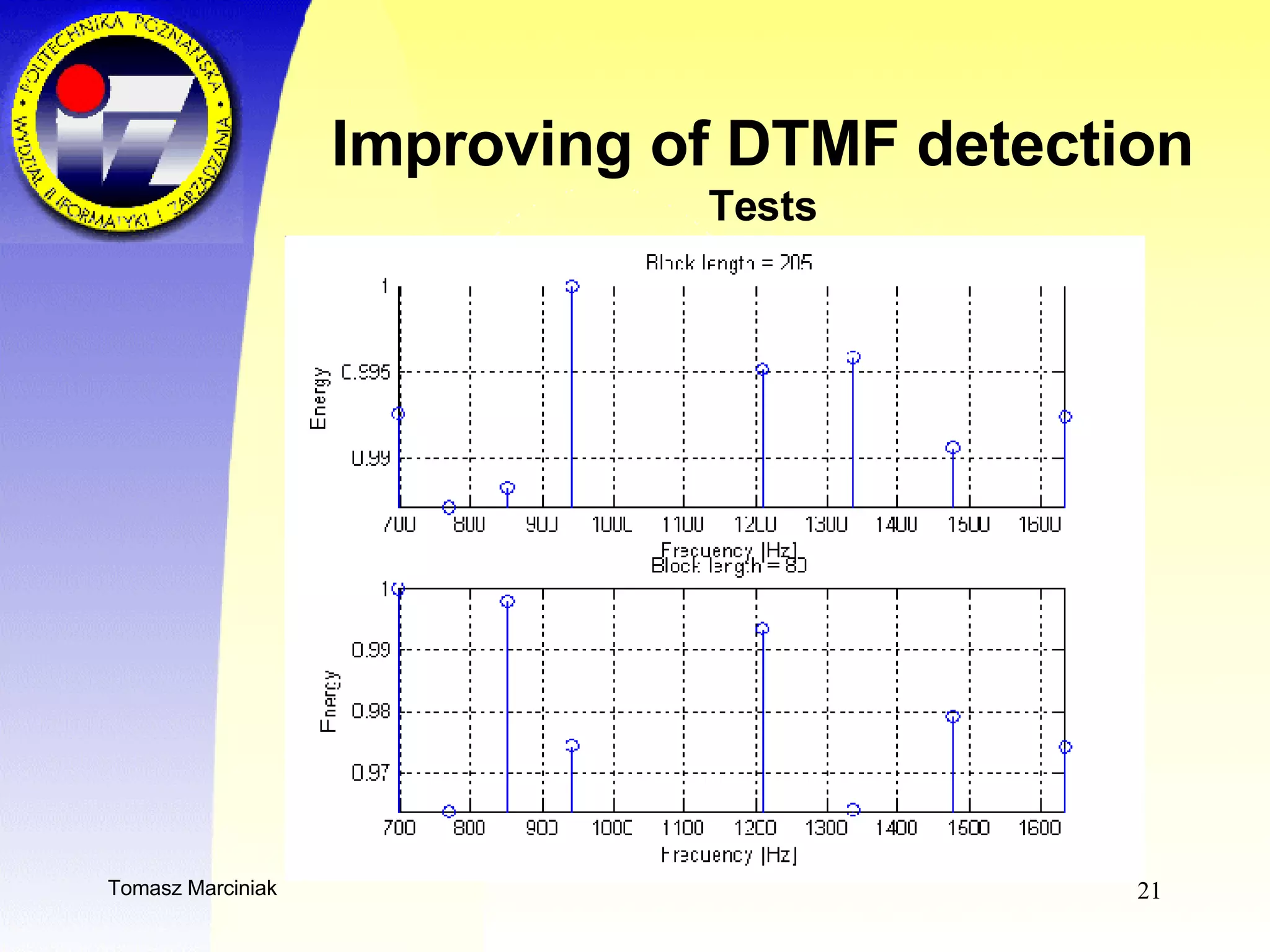

21. Improving of DTMF detection Tests

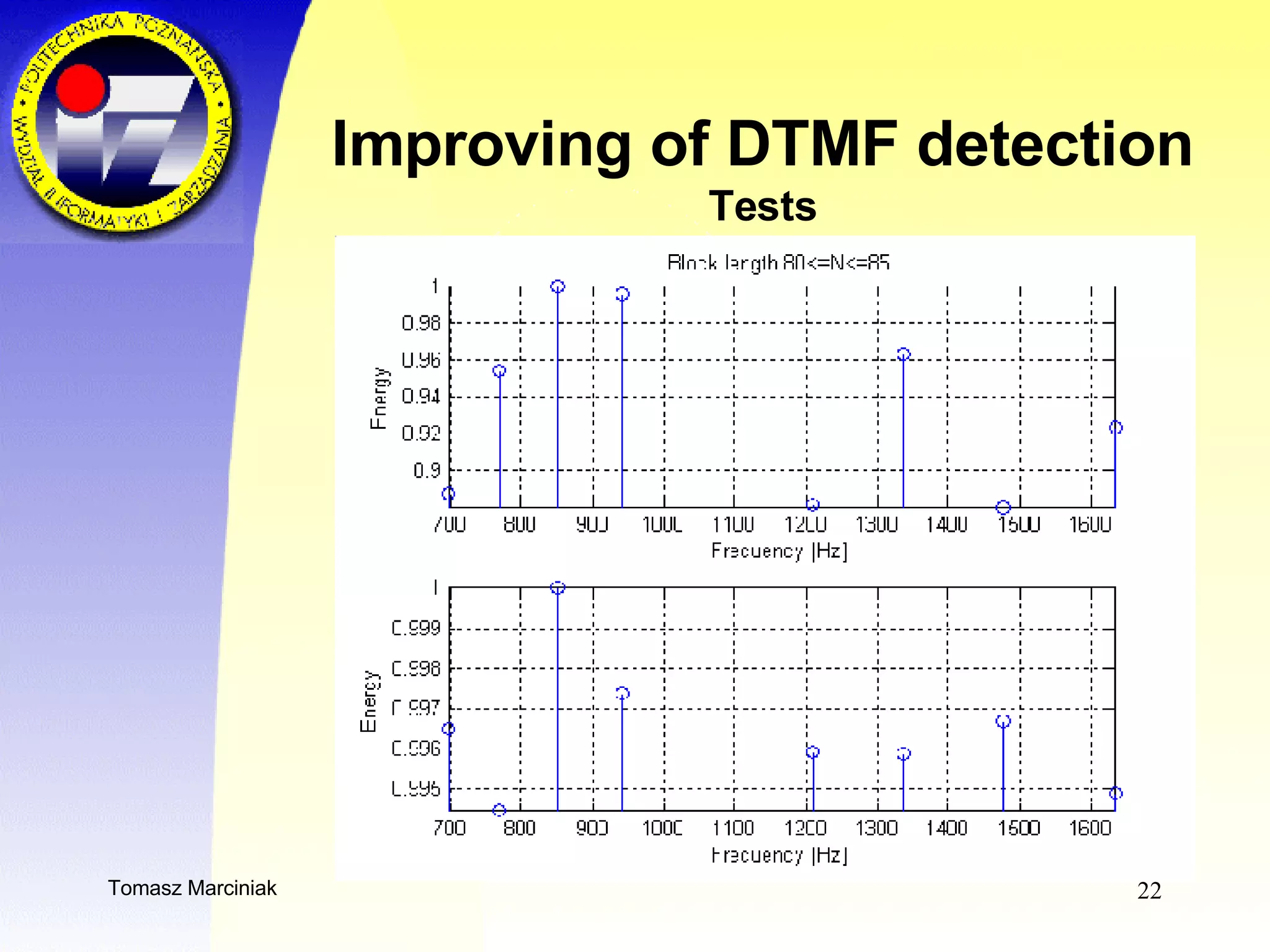

22. Improving of DTMF detection Tests

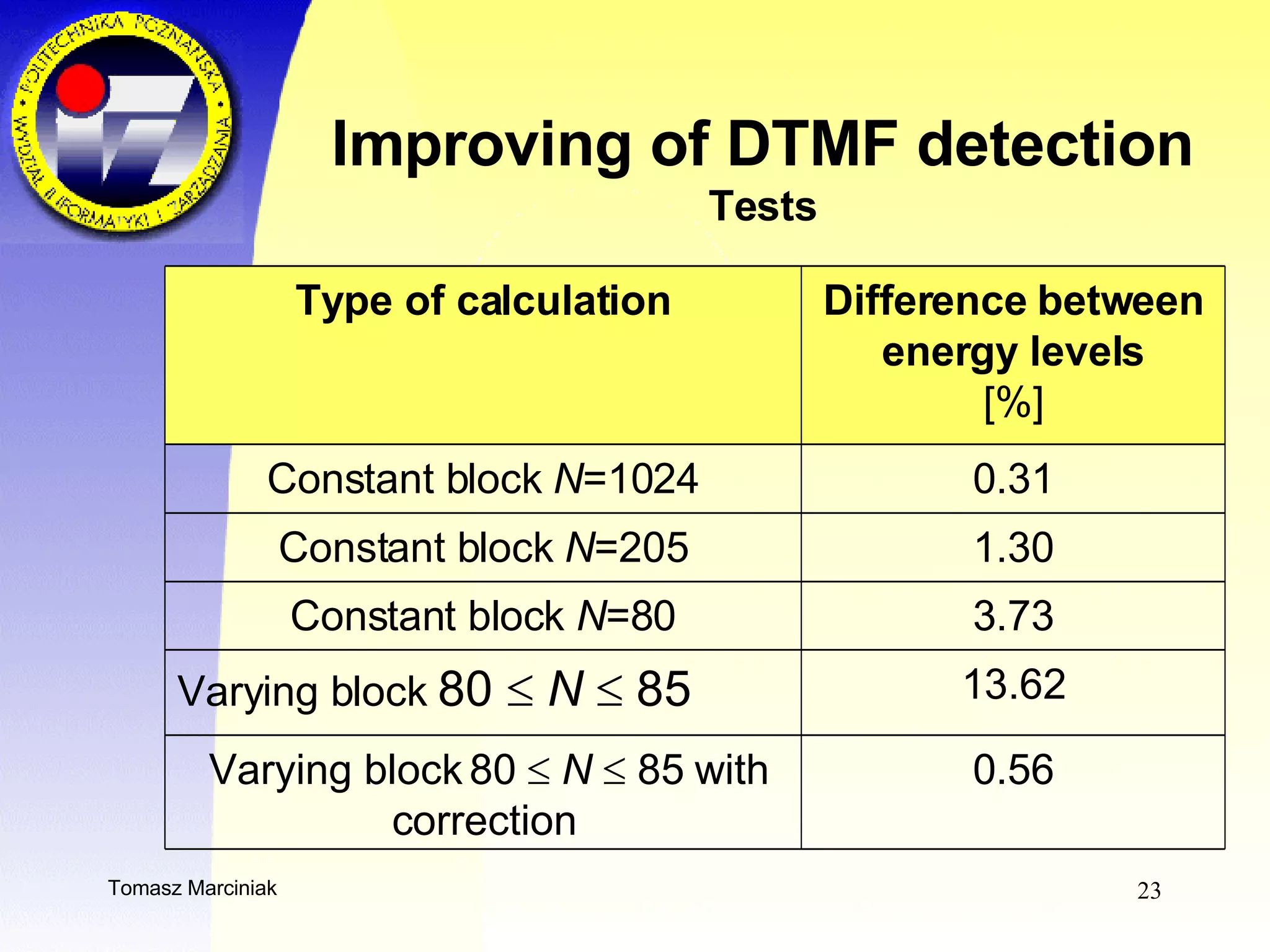

23. Improving of DTMF detection Tests 0.56 Varying block 80  N  85 with correction 13.62 Varying block 80  N  85 3.73 Constant block N =80 1.30 Constant block N =205 0.31 Constant block N =1024 Difference between energy levels [%] Type of calculation
