Digital electronics multiplexers demultiplexers
•Download as PPT, PDF•
1 like•1,107 views
Multiplexers and demultiplexers allow digital information from multiple sources to be routed through a single line. A multiplexer has multiple data inputs, select lines to choose an input, and a single output. A demultiplexer does the reverse, taking a single input and distributing it to multiple outputs based on select lines. Multiplexers and demultiplexers can be combined in trees to increase the number of inputs and outputs. They are used to implement logic functions where a select line acts as the value of a variable in a Boolean expression.
Report
Share
Report
Share
Recommended
10 multiplexers-de mux
1. The lecture discusses multiplexers, demultiplexers, and programmable logic devices. Multiplexers route one of several inputs to a single output, while demultiplexers route a single input to one of several outputs.
2. Multiplexers and demultiplexers can implement any Boolean function and be used as general purpose logic blocks. They can be cascaded to form larger multiplexers and demultiplexers.
3. Programmable logic arrays and programmable array logic are arrays of uncommitted AND and OR gates that can implement any two-level logic function by programming the wire connections. Product terms can be shared across multiple outputs.
Multiplexers & Demultiplexers
Multiplexers and demultiplexers allow digital information from multiple sources to be routed through a single line. A multiplexer has multiple data inputs, select lines to choose an input, and a single output. A demultiplexer has a single input, select lines to choose an output, and multiple outputs. Bigger multiplexers and demultiplexers can be built by cascading smaller ones. Multiplexers can implement logic functions by using the select lines as variables and routing the input lines to the output.
Multiplexers
A multiplexer is a device that selects one of several analog or digital input signals and forwards the selected input into a single line. It has multiple data inputs, a single output, and select lines that determine which input is directed to the output. A demultiplexer performs the opposite function, taking a single input and distributing it to one of multiple outputs based on the select lines. Multiplexers and demultiplexers come in various configurations depending on the number of inputs and outputs, such as 2:1, 4:1, 16:1 or 32:1. They are basic building blocks used in digital systems and communication networks to efficiently route signals.
Encoder, decoder, multiplexers and demultiplexers
This document discusses multiplexers, demultiplexers, encoders, and decoders. It provides examples and exercises for designing logic circuits using these components. Specifically, it describes how to use multiplexers and decoders to realize logic functions by mapping the minterms of the function to the inputs/outputs of the components. Exercises are included for designing an 8-to-1 multiplexer from 4-to-1 and 2-to-1 multiplexers, and designing a 4-to-16 decoder from 2-to-4 decoders. Priority encoders and decoders with enables are also covered.
multiplexers and demultiplexers
This document discusses multiplexers and demultiplexers. It defines them as devices that allow digital information from several sources to be routed onto a single line (multiplexers) or distributed to multiple output lines (demultiplexers). The key properties of multiplexers and demultiplexers are described, including the relationship between the number of inputs, outputs, and selection lines. Examples of implementing multiplexers and demultiplexers using logic gates are provided.
Multiplexers and demultiplexers 2
A multiplexer and demultiplexer allow multiple signals to share a single transmission line. A 2/1 multiplexer is described with a block diagram, truth table, and K-map implementation showing it selects one of two inputs based on a select line. A 4/1 multiplexer circuit is also shown. Multiplexers are used in data communications, radio channels, computer routing, and function generation by selecting an output from multiple inputs. An 8/1 multiplexer generates a function from a truth table. A 1 to 2 demultiplexer circuit separates a single input into two outputs based on a select line.
Multiplexer demul
1) A multiplexer is a combinational circuit with m inputs, n control inputs, and 1 output that can select one of the m inputs to pass to the output based on the values of the n control inputs.
2) A 4-to-1 multiplexer has 4 inputs, 2 control inputs, and 1 output. The output will be one of the 4 inputs depending on the binary values of the 2 control inputs.
3) A demultiplexer is the opposite of a multiplexer, taking a single input and distributing it to one of multiple outputs based on the control inputs. It can also be used as a decoder to output a binary word based on the control input code.
MULTIPLEXER
A multiplexer is a digital circuit that has multiple inputs and a single output. It selects one of the multiple input lines to pass to its output based on a digital select line. A multiplexer uses select lines to determine which input is passed to the output. Multiplexers come in different sizes depending on the number of inputs and select lines, such as 2-to-1, 4-to-1, and 8-to-1 multiplexers. Multiplexers are used in applications such as data communications, audio/video routing, and implementing digital logic functions.
Recommended
10 multiplexers-de mux
1. The lecture discusses multiplexers, demultiplexers, and programmable logic devices. Multiplexers route one of several inputs to a single output, while demultiplexers route a single input to one of several outputs.
2. Multiplexers and demultiplexers can implement any Boolean function and be used as general purpose logic blocks. They can be cascaded to form larger multiplexers and demultiplexers.
3. Programmable logic arrays and programmable array logic are arrays of uncommitted AND and OR gates that can implement any two-level logic function by programming the wire connections. Product terms can be shared across multiple outputs.
Multiplexers & Demultiplexers
Multiplexers and demultiplexers allow digital information from multiple sources to be routed through a single line. A multiplexer has multiple data inputs, select lines to choose an input, and a single output. A demultiplexer has a single input, select lines to choose an output, and multiple outputs. Bigger multiplexers and demultiplexers can be built by cascading smaller ones. Multiplexers can implement logic functions by using the select lines as variables and routing the input lines to the output.
Multiplexers
A multiplexer is a device that selects one of several analog or digital input signals and forwards the selected input into a single line. It has multiple data inputs, a single output, and select lines that determine which input is directed to the output. A demultiplexer performs the opposite function, taking a single input and distributing it to one of multiple outputs based on the select lines. Multiplexers and demultiplexers come in various configurations depending on the number of inputs and outputs, such as 2:1, 4:1, 16:1 or 32:1. They are basic building blocks used in digital systems and communication networks to efficiently route signals.
Encoder, decoder, multiplexers and demultiplexers
This document discusses multiplexers, demultiplexers, encoders, and decoders. It provides examples and exercises for designing logic circuits using these components. Specifically, it describes how to use multiplexers and decoders to realize logic functions by mapping the minterms of the function to the inputs/outputs of the components. Exercises are included for designing an 8-to-1 multiplexer from 4-to-1 and 2-to-1 multiplexers, and designing a 4-to-16 decoder from 2-to-4 decoders. Priority encoders and decoders with enables are also covered.
multiplexers and demultiplexers
This document discusses multiplexers and demultiplexers. It defines them as devices that allow digital information from several sources to be routed onto a single line (multiplexers) or distributed to multiple output lines (demultiplexers). The key properties of multiplexers and demultiplexers are described, including the relationship between the number of inputs, outputs, and selection lines. Examples of implementing multiplexers and demultiplexers using logic gates are provided.
Multiplexers and demultiplexers 2
A multiplexer and demultiplexer allow multiple signals to share a single transmission line. A 2/1 multiplexer is described with a block diagram, truth table, and K-map implementation showing it selects one of two inputs based on a select line. A 4/1 multiplexer circuit is also shown. Multiplexers are used in data communications, radio channels, computer routing, and function generation by selecting an output from multiple inputs. An 8/1 multiplexer generates a function from a truth table. A 1 to 2 demultiplexer circuit separates a single input into two outputs based on a select line.
Multiplexer demul
1) A multiplexer is a combinational circuit with m inputs, n control inputs, and 1 output that can select one of the m inputs to pass to the output based on the values of the n control inputs.
2) A 4-to-1 multiplexer has 4 inputs, 2 control inputs, and 1 output. The output will be one of the 4 inputs depending on the binary values of the 2 control inputs.
3) A demultiplexer is the opposite of a multiplexer, taking a single input and distributing it to one of multiple outputs based on the control inputs. It can also be used as a decoder to output a binary word based on the control input code.
MULTIPLEXER
A multiplexer is a digital circuit that has multiple inputs and a single output. It selects one of the multiple input lines to pass to its output based on a digital select line. A multiplexer uses select lines to determine which input is passed to the output. Multiplexers come in different sizes depending on the number of inputs and select lines, such as 2-to-1, 4-to-1, and 8-to-1 multiplexers. Multiplexers are used in applications such as data communications, audio/video routing, and implementing digital logic functions.
multiplexer 4 input
A multiplexer is a digital circuit that has multiple inputs and a single output. It selects one of the multiple input lines and outputs it depending on the value of the select lines. A 4-to-1 multiplexer has 4 data inputs, 2 select lines, and 1 output. The value of the select lines determines which of the 4 inputs is output. Multiplexers are used when multiple data sources need to be transmitted over a single line or routed, such as in telecommunications, computers, and audio/video systems to select different input channels.
Multiplexers
A multiplexer (MUX) is a digital switch that selects one of several input lines and outputs the selected input to a single output line. It uses select lines to determine which input is connected to the output. A typical application is connecting multiple audio/video sources like an MP3 player, laptop, satellite receiver, or cable TV to a single output destination like a home theater system. The document demonstrates a 4-to-1 MUX that uses two select lines A and B to choose one of four data inputs D0, D1, D2, or D3 and output it to line Y.
1 Multiplexer
This document discusses multiplexers and demultiplexers. It begins by defining a multiplexer as a digital switch that has multiple inputs and a single output, with select lines determining which input is connected to the output. It then defines a demultiplexer as having a single input and multiple outputs, with select lines determining the output. The document provides examples of 4-to-1 and 1-to-4 multiplexers and demultiplexers, and discusses their applications. It also describes how multiplexed displays can be used to display a message more efficiently than illuminating all segments at once.
Demultiplexer presentation
This document discusses demultiplexers and is authored by group members Md. Shamsuzzaman, Shaikat Saha, Shibli Sadik, and Atif Rizwan. It defines a demultiplexer as a digital switch that takes a single input and routes it to multiple outputs based on select lines. The document describes 1-to-2, 1-to-4, and 1-to-8 line demultiplexers and includes their truth table. Diagrams of demultiplexer functions are also provided.
multiplexer and d-multiplexer
The truth table is not complete because it is missing the encoding for when no inputs are active. A complete truth table would include a row for all zero inputs to specify the output in that case.
The output equations are:
A0 = D7
A1 = D6 + D5 + D4 + D3
A2 = D2 + D1 + D0
This encodes the highest priority input on the lowest two bits, with the next two highest priorities on the middle bit, and any active input setting the highest bit.
Combinational circuits
topics covered in these slides are
Boolean Algebra
Decoder
Encoder
Multiplexer
For Video Lectures pr concepts
http://sh.st/QsyAp
COMPUTER ORGANIZATION -Multiplexer,Demultiplexer, Encoder
This document discusses multiplexers, demultiplexers, and digital encoders. It provides the following information:
- Multiplexers are digital circuits that select one of several input signals and output the selected signal. Demultiplexers perform the reverse operation.
- Multiplexers and demultiplexers come in variations depending on the number of input/output channels such as 2:1, 4:1, 16:1, etc. Their operation is illustrated using logic gates.
- Digital encoders convert binary input lines into an equivalent binary code output. Priority encoders were developed to solve issues with standard encoders generating incorrect outputs when multiple inputs are high.
Combinational circuit
An integrated circuit is a small chip of silicon that contains multiple transistors. Decoders and encoders are types of combinational logic circuits. A decoder accepts an input and uses it to activate one of its outputs, while an encoder performs the inverse by activating its outputs based on active inputs. Decoders and multiplexers are similar in that they select an output from multiple inputs, but decoders have multiple outputs while multiplexers have a single output. Multiplexers can be cascaded to increase the number of inputs selected from.
Saur lecture 16
This document summarizes a lecture on multiplexers, decoders, and encoders. It begins with definitions and examples of basic 2-to-1 multiplexers and 2-to-4 decoders. It then discusses hierarchical implementations using smaller multiplexers and decoders as building blocks. Finally, it describes techniques for designing logic circuits using multiplexers and decoders to realize Boolean functions.
Ceng232 Decoder Multiplexer Adder
The document discusses decoders, multiplexers, and programmable logic. It begins by explaining what decoders and multiplexers are, providing examples of 2-to-4 and 3-to-8 decoders. It then discusses how decoders and multiplexers can be used to implement arbitrary logic functions. The document also covers variations of decoders, building decoders from smaller components, and using multiplexers to efficiently implement functions in a sum of minterms form.
عرض تقديمي1
A demultiplexer (DEMUX) is a digital switch that takes a single input signal and routes it to one of multiple outputs based on select lines. It has one input and 2^N outputs where N is the number of select lines. Common types include 1-to-2, 1-to-4, and 1-to-8 DEMUX. The document discusses DEMUX applications, provides block diagrams and truth tables to explain how a single input is routed to the correct output based on the state of the select lines.
3. multiplexer
This document discusses multiplexers, which take multiple input signals and steer one of the inputs to the output based on control signals. It provides examples of 4-to-1, 16-to-1, and 8-to-1 multiplexers and describes how their outputs are determined by the states of the control signals. It also describes the IC 74150 16-to-1 multiplexer chip and the nibble multiplexer, which selects between two 4-bit nibbles as its output.
Mux decod pld2_vs2
This document discusses complex integrated circuits used in logic design including multiplexers, decoders, and programmable logic devices. It provides details on 4 categories of integrated circuits based on the number of gates - SSI, MSI, LSI, and VLSI. Multiplexers are described as circuits that select one of several data inputs to connect to the output based on the control inputs. Decoders are the inverse, detecting a particular input and activating the corresponding output. Programmable logic devices can be programmed to provide different logic functions, allowing for changes without rewiring the system.
encoder and decoder in digital electronics
In digital electronics, a decoder can take the form of a multiple-input, multiple-output logic circuit that converts coded inputs into coded outputs, where the input and output codes are different e.g. n-to-2n , binary-coded decimal decoders. Decoding is necessary in applications such as data multiplexing, 7 segment display and memory address decoding.
An encoder is a device, circuit, transducer, software program, algorithm or person that converts information from one format or code to another. The purpose of encoder is standardization, speed, secrecy, security, or saving space by shrinking size. Encoders are combinational logic circuits and they are exactly opposite of decoders. They accept one or more inputs and generate a multibit output code.
New microsoft office power point presentation
1) The Center First Routing Theorem algorithm is developed for pathfinding in mazes for micromouse competitions. It determines multiple short paths towards the center, compares their lengths, and selects the shortest.
2) It works by recording the coordinates and maze information of each cell visited in a matrix. Multiple potential paths are explored and the shortest one is chosen for the fastest route to the center.
3) Experimental results show this algorithm reduces errors and improves efficiency over other common routing algorithms for micromouse competitions.
Stld
This document is the preface of a textbook on switching theory and logic design. It provides an overview of the textbook's contents and objectives. The textbook aims to develop the reader's ability to analyze and design digital circuits. It contains 11 chapters covering topics such as number systems, Boolean algebra, logic gates, combinational logic, sequential circuits, finite state machines, and algorithmic state machines. The preface encourages readers to work through examples and figures to fully understand the advanced concepts presented. It also welcomes feedback to improve future editions.
Combinational circuit
This document discusses combinational circuits. It defines a combinational circuit as a circuit whose output depends only on the current input levels and not previous states. Combinational circuits do not use memory. The document lists three categories of combinational circuits: arithmetic and logical functions, data transmission, and code conversion. It provides adder circuits as examples, defining a half adder and full adder, and including their truth tables.
Combinational circuit
This document discusses various combinational logic circuits including encoders, decoders, and multiplexers. It provides objectives for constructing and verifying binary to gray code converters, gray to binary converters, two to four line decoders, seven segment decoders, priority encoders, and two to one and four to one line multiplexers. It also defines combinational circuits, discusses code conversion procedures for gray codes, different types of decoders including one to two line and two to four line decoders, and applications of multiplexers and demultiplexers. Finally, it contrasts the key differences between combinational and sequential logic circuits.
Basic electronics
The document summarizes basic digital logic gates and components including NOT, AND, OR, NAND, NOR, XOR, XNOR gates. It also discusses multiplexers, demultiplexers, half/full adders, half/full subtractors, encoders, decoders, and conversions between binary and gray codes.
unit-6_combinational_jbiunkjnjbkjbjjcircuit-2.ppt
This document discusses combinational logic circuits such as multiplexers, demultiplexers, decoders, and encoders. It provides examples of truth tables and circuit implementations for 1-to-4 demultiplexers and decoders. Larger decoders can be constructed by combining smaller decoders. Decoders can be used to implement logic functions such as a full adder. Encoders are the opposite of decoders, with multiple inputs and fewer outputs, such as an octal-to-binary encoder that converts 8 input lines to 3 output lines.
minimization technique.ppt
A multiplexer is a combinational logic circuit that selects one of several input lines and outputs the data on that line. It has 2n input lines and n selection lines, where the values on the selection lines determine which input line is output. For example, a 2-to-1 multiplexer has two inputs and one selection line, outputting either the first or second input depending on the selection line value. Multiplexers can be cascaded to build larger multiplexers. Boolean functions can also be implemented using multiplexers. A demultiplexer is similar but has one input and multiple outputs, using the selection lines to determine which output is activated. Decoders are similar to demultiplexers but are used to
Logic Design - Chapter 5: Part1 Combinattional Logic
The document discusses common digital logic circuits including decoders, encoders, demultiplexers and multiplexers. It provides an overview of how these circuits work at a block level and then goes into more detail on decoders, describing their functionality, truth tables, and implementations including how to build larger decoders from smaller ones. Standard MSI decoder chips are also presented.
More Related Content
What's hot
multiplexer 4 input
A multiplexer is a digital circuit that has multiple inputs and a single output. It selects one of the multiple input lines and outputs it depending on the value of the select lines. A 4-to-1 multiplexer has 4 data inputs, 2 select lines, and 1 output. The value of the select lines determines which of the 4 inputs is output. Multiplexers are used when multiple data sources need to be transmitted over a single line or routed, such as in telecommunications, computers, and audio/video systems to select different input channels.
Multiplexers
A multiplexer (MUX) is a digital switch that selects one of several input lines and outputs the selected input to a single output line. It uses select lines to determine which input is connected to the output. A typical application is connecting multiple audio/video sources like an MP3 player, laptop, satellite receiver, or cable TV to a single output destination like a home theater system. The document demonstrates a 4-to-1 MUX that uses two select lines A and B to choose one of four data inputs D0, D1, D2, or D3 and output it to line Y.
1 Multiplexer
This document discusses multiplexers and demultiplexers. It begins by defining a multiplexer as a digital switch that has multiple inputs and a single output, with select lines determining which input is connected to the output. It then defines a demultiplexer as having a single input and multiple outputs, with select lines determining the output. The document provides examples of 4-to-1 and 1-to-4 multiplexers and demultiplexers, and discusses their applications. It also describes how multiplexed displays can be used to display a message more efficiently than illuminating all segments at once.
Demultiplexer presentation
This document discusses demultiplexers and is authored by group members Md. Shamsuzzaman, Shaikat Saha, Shibli Sadik, and Atif Rizwan. It defines a demultiplexer as a digital switch that takes a single input and routes it to multiple outputs based on select lines. The document describes 1-to-2, 1-to-4, and 1-to-8 line demultiplexers and includes their truth table. Diagrams of demultiplexer functions are also provided.
multiplexer and d-multiplexer
The truth table is not complete because it is missing the encoding for when no inputs are active. A complete truth table would include a row for all zero inputs to specify the output in that case.
The output equations are:
A0 = D7
A1 = D6 + D5 + D4 + D3
A2 = D2 + D1 + D0
This encodes the highest priority input on the lowest two bits, with the next two highest priorities on the middle bit, and any active input setting the highest bit.
Combinational circuits
topics covered in these slides are
Boolean Algebra
Decoder
Encoder
Multiplexer
For Video Lectures pr concepts
http://sh.st/QsyAp
COMPUTER ORGANIZATION -Multiplexer,Demultiplexer, Encoder
This document discusses multiplexers, demultiplexers, and digital encoders. It provides the following information:
- Multiplexers are digital circuits that select one of several input signals and output the selected signal. Demultiplexers perform the reverse operation.
- Multiplexers and demultiplexers come in variations depending on the number of input/output channels such as 2:1, 4:1, 16:1, etc. Their operation is illustrated using logic gates.
- Digital encoders convert binary input lines into an equivalent binary code output. Priority encoders were developed to solve issues with standard encoders generating incorrect outputs when multiple inputs are high.
Combinational circuit
An integrated circuit is a small chip of silicon that contains multiple transistors. Decoders and encoders are types of combinational logic circuits. A decoder accepts an input and uses it to activate one of its outputs, while an encoder performs the inverse by activating its outputs based on active inputs. Decoders and multiplexers are similar in that they select an output from multiple inputs, but decoders have multiple outputs while multiplexers have a single output. Multiplexers can be cascaded to increase the number of inputs selected from.
Saur lecture 16
This document summarizes a lecture on multiplexers, decoders, and encoders. It begins with definitions and examples of basic 2-to-1 multiplexers and 2-to-4 decoders. It then discusses hierarchical implementations using smaller multiplexers and decoders as building blocks. Finally, it describes techniques for designing logic circuits using multiplexers and decoders to realize Boolean functions.
Ceng232 Decoder Multiplexer Adder
The document discusses decoders, multiplexers, and programmable logic. It begins by explaining what decoders and multiplexers are, providing examples of 2-to-4 and 3-to-8 decoders. It then discusses how decoders and multiplexers can be used to implement arbitrary logic functions. The document also covers variations of decoders, building decoders from smaller components, and using multiplexers to efficiently implement functions in a sum of minterms form.
عرض تقديمي1
A demultiplexer (DEMUX) is a digital switch that takes a single input signal and routes it to one of multiple outputs based on select lines. It has one input and 2^N outputs where N is the number of select lines. Common types include 1-to-2, 1-to-4, and 1-to-8 DEMUX. The document discusses DEMUX applications, provides block diagrams and truth tables to explain how a single input is routed to the correct output based on the state of the select lines.
3. multiplexer
This document discusses multiplexers, which take multiple input signals and steer one of the inputs to the output based on control signals. It provides examples of 4-to-1, 16-to-1, and 8-to-1 multiplexers and describes how their outputs are determined by the states of the control signals. It also describes the IC 74150 16-to-1 multiplexer chip and the nibble multiplexer, which selects between two 4-bit nibbles as its output.
Mux decod pld2_vs2
This document discusses complex integrated circuits used in logic design including multiplexers, decoders, and programmable logic devices. It provides details on 4 categories of integrated circuits based on the number of gates - SSI, MSI, LSI, and VLSI. Multiplexers are described as circuits that select one of several data inputs to connect to the output based on the control inputs. Decoders are the inverse, detecting a particular input and activating the corresponding output. Programmable logic devices can be programmed to provide different logic functions, allowing for changes without rewiring the system.
encoder and decoder in digital electronics
In digital electronics, a decoder can take the form of a multiple-input, multiple-output logic circuit that converts coded inputs into coded outputs, where the input and output codes are different e.g. n-to-2n , binary-coded decimal decoders. Decoding is necessary in applications such as data multiplexing, 7 segment display and memory address decoding.
An encoder is a device, circuit, transducer, software program, algorithm or person that converts information from one format or code to another. The purpose of encoder is standardization, speed, secrecy, security, or saving space by shrinking size. Encoders are combinational logic circuits and they are exactly opposite of decoders. They accept one or more inputs and generate a multibit output code.
New microsoft office power point presentation
1) The Center First Routing Theorem algorithm is developed for pathfinding in mazes for micromouse competitions. It determines multiple short paths towards the center, compares their lengths, and selects the shortest.
2) It works by recording the coordinates and maze information of each cell visited in a matrix. Multiple potential paths are explored and the shortest one is chosen for the fastest route to the center.
3) Experimental results show this algorithm reduces errors and improves efficiency over other common routing algorithms for micromouse competitions.
Stld
This document is the preface of a textbook on switching theory and logic design. It provides an overview of the textbook's contents and objectives. The textbook aims to develop the reader's ability to analyze and design digital circuits. It contains 11 chapters covering topics such as number systems, Boolean algebra, logic gates, combinational logic, sequential circuits, finite state machines, and algorithmic state machines. The preface encourages readers to work through examples and figures to fully understand the advanced concepts presented. It also welcomes feedback to improve future editions.
Combinational circuit
This document discusses combinational circuits. It defines a combinational circuit as a circuit whose output depends only on the current input levels and not previous states. Combinational circuits do not use memory. The document lists three categories of combinational circuits: arithmetic and logical functions, data transmission, and code conversion. It provides adder circuits as examples, defining a half adder and full adder, and including their truth tables.
Combinational circuit
This document discusses various combinational logic circuits including encoders, decoders, and multiplexers. It provides objectives for constructing and verifying binary to gray code converters, gray to binary converters, two to four line decoders, seven segment decoders, priority encoders, and two to one and four to one line multiplexers. It also defines combinational circuits, discusses code conversion procedures for gray codes, different types of decoders including one to two line and two to four line decoders, and applications of multiplexers and demultiplexers. Finally, it contrasts the key differences between combinational and sequential logic circuits.
Basic electronics
The document summarizes basic digital logic gates and components including NOT, AND, OR, NAND, NOR, XOR, XNOR gates. It also discusses multiplexers, demultiplexers, half/full adders, half/full subtractors, encoders, decoders, and conversions between binary and gray codes.
What's hot (19)
COMPUTER ORGANIZATION -Multiplexer,Demultiplexer, Encoder
COMPUTER ORGANIZATION -Multiplexer,Demultiplexer, Encoder
Similar to Digital electronics multiplexers demultiplexers
unit-6_combinational_jbiunkjnjbkjbjjcircuit-2.ppt
This document discusses combinational logic circuits such as multiplexers, demultiplexers, decoders, and encoders. It provides examples of truth tables and circuit implementations for 1-to-4 demultiplexers and decoders. Larger decoders can be constructed by combining smaller decoders. Decoders can be used to implement logic functions such as a full adder. Encoders are the opposite of decoders, with multiple inputs and fewer outputs, such as an octal-to-binary encoder that converts 8 input lines to 3 output lines.
minimization technique.ppt
A multiplexer is a combinational logic circuit that selects one of several input lines and outputs the data on that line. It has 2n input lines and n selection lines, where the values on the selection lines determine which input line is output. For example, a 2-to-1 multiplexer has two inputs and one selection line, outputting either the first or second input depending on the selection line value. Multiplexers can be cascaded to build larger multiplexers. Boolean functions can also be implemented using multiplexers. A demultiplexer is similar but has one input and multiple outputs, using the selection lines to determine which output is activated. Decoders are similar to demultiplexers but are used to
Logic Design - Chapter 5: Part1 Combinattional Logic
The document discusses common digital logic circuits including decoders, encoders, demultiplexers and multiplexers. It provides an overview of how these circuits work at a block level and then goes into more detail on decoders, describing their functionality, truth tables, and implementations including how to build larger decoders from smaller ones. Standard MSI decoder chips are also presented.
Digital electronics Multiplexers & Demultiplexers
1.Combinational Circuit
2. Sequential Circuit
3. Multiplexer (Data Selectors)
4. Functional Diagram Of a Multiplexer

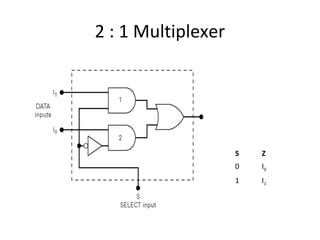

5. 2 : 1 Multiplexer

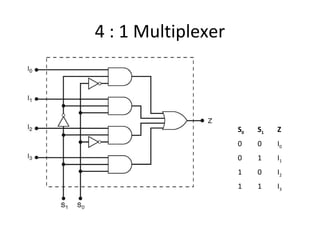

6. 4 : 1 Multiplexer

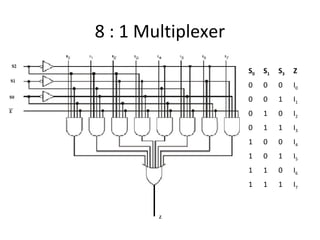

7. 8 : 1 Multiplexer
8. Multiplexer Tree
9. Demultiplexer (Data Distributor)
10. Functional Diagram Of a Demultiplexer
11. 1:2 DeMultiplexer

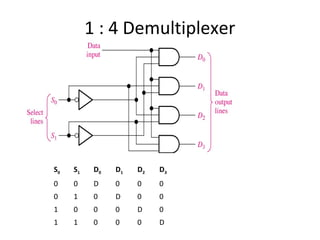

12. 1:4 DeMultiplexer

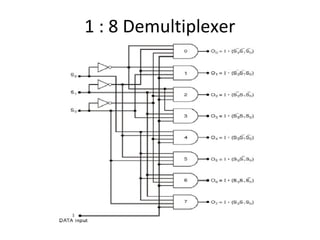

13. 1:8 DeMultiplexer

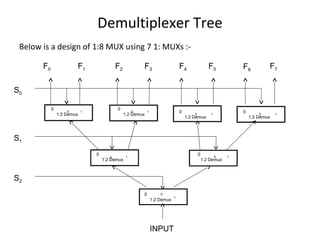

14. Demultiplexer Tree

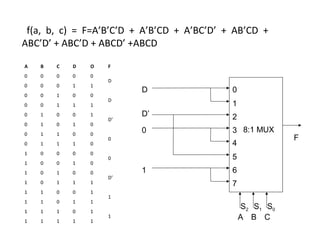

15. Implementation Of Logical Function using Multiplexer
