In which i describe all the features of decoder. All the functionalities describe with the circuits and truth tables. So download and learn more about decoder. Decoder Full Presentation.
In digital electronics, a decoder can take the form of a multiple-input, multiple-output logic circuit that converts coded inputs into coded outputs, where the input and output codes are different e.g. n-to-2n , binary-coded decimal decoders. Decoding is necessary in applications such as data multiplexing, 7 segment display and memory address decoding.

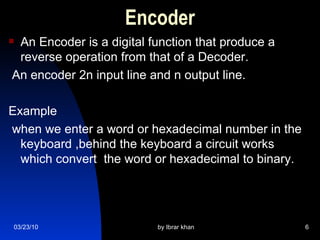

An encoder is a device, circuit, transducer, software program, algorithm or person that converts information from one format or code to another. The purpose of encoder is standardization, speed, secrecy, security, or saving space by shrinking size. Encoders are combinational logic circuits and they are exactly opposite of decoders. They accept one or more inputs and generate a multibit output code.
In which i describe all the features of decoder. All the functionalities describe with the circuits and truth tables. So download and learn more about decoder. Decoder Full Presentation.
In digital electronics, a decoder can take the form of a multiple-input, multiple-output logic circuit that converts coded inputs into coded outputs, where the input and output codes are different e.g. n-to-2n , binary-coded decimal decoders. Decoding is necessary in applications such as data multiplexing, 7 segment display and memory address decoding.
An encoder is a device, circuit, transducer, software program, algorithm or person that converts information from one format or code to another. The purpose of encoder is standardization, speed, secrecy, security, or saving space by shrinking size. Encoders are combinational logic circuits and they are exactly opposite of decoders. They accept one or more inputs and generate a multibit output code.

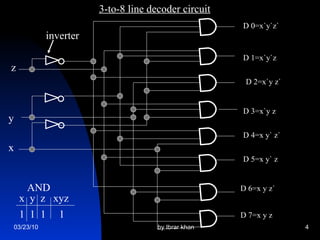

4. D 0=x`y`z` D 1=x`y`z D 2=x`y z` D 3=x`y z D 4=x y` z` D 7=x y z D 6=x y z` D 5=x y` z z y D 0 x inverter x y z xyz 1 1 1 1 AND 3-to-8 line decoder circuit
5.
6.

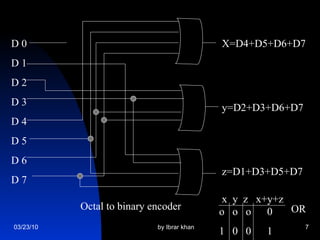

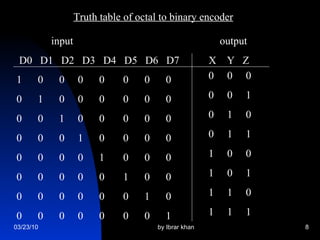

7. D 0 D 1 D 2 D 3 D 4 D 5 D 6 D 7 X=D4+D5+D6+D7 y=D2+D3+D6+D7 z=D1+D3+D5+D7 Octal to binary encoder x y z x+y+z o o o 0 1 0 0 1 OR
