Design for Testability DfT Seminar
The document provides an outline for a two-day course on test engineering. Day one covers topics like stress and failure of materials/electronics, variation and reliability, and design analysis. Day two covers testing of materials, electronics, software, and manufacturing, as well as data collection and standards. The document also discusses why testing is important, common causes of failure, how to test, and management aspects of testing.
More Related Content
Similar to Design for Testability DfT Seminar
![[A. hobbacher] fatigue_design_of_welded_joints_and](https://cdn.slidesharecdn.com/ss_thumbnails/a-160512092007-thumbnail.jpg?width=640&height=640&fit=bounds)
![Coded Agents – with UiPath SDK + LangGraph [Virtual Hands-on Workshop]](https://cdn.slidesharecdn.com/ss_thumbnails/codedagentsdeck-251215155422-5497c599-thumbnail.jpg?width=640&height=640&fit=bounds)
Design for Testability DfT Seminar
- 1. Test Engineering Courtesy of Patrick D.T. O’Connor 62 Whitney Drive Stevenage Herts. SG1 4BJ UK www.pat-oconnor.co.uk www.pat-oconnor.co.uk/testengineering/htm pat@pat-oconnor.co.uk pdtoconnor@ieee.org 1

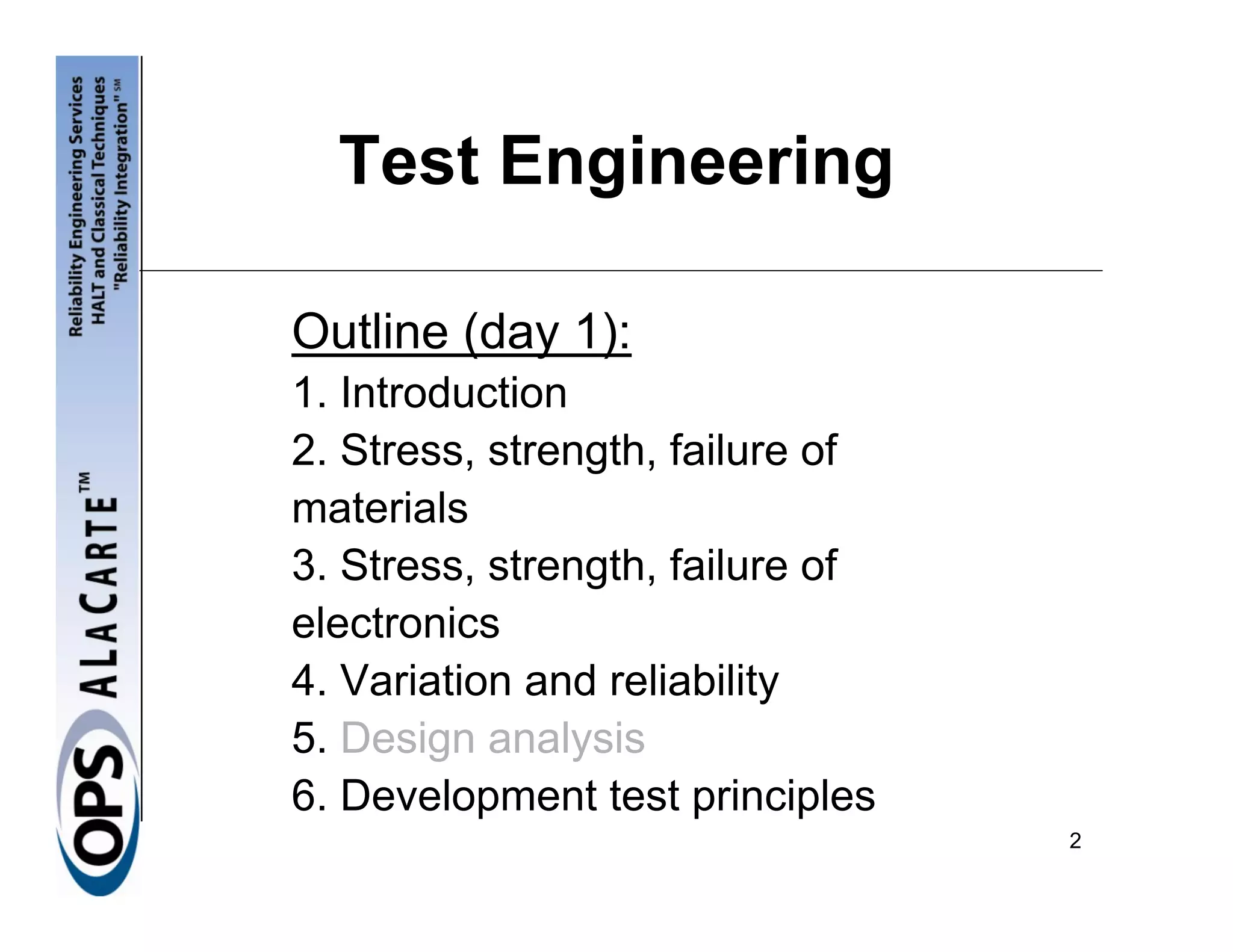

- 2. Test Engineering Outline (day1): 1. Introduction 2. Stress, strength, failure of materials 3. Stress, strength, failure of electronics 4. Variation and reliability 5. Design analysis 6. Development test principles 2

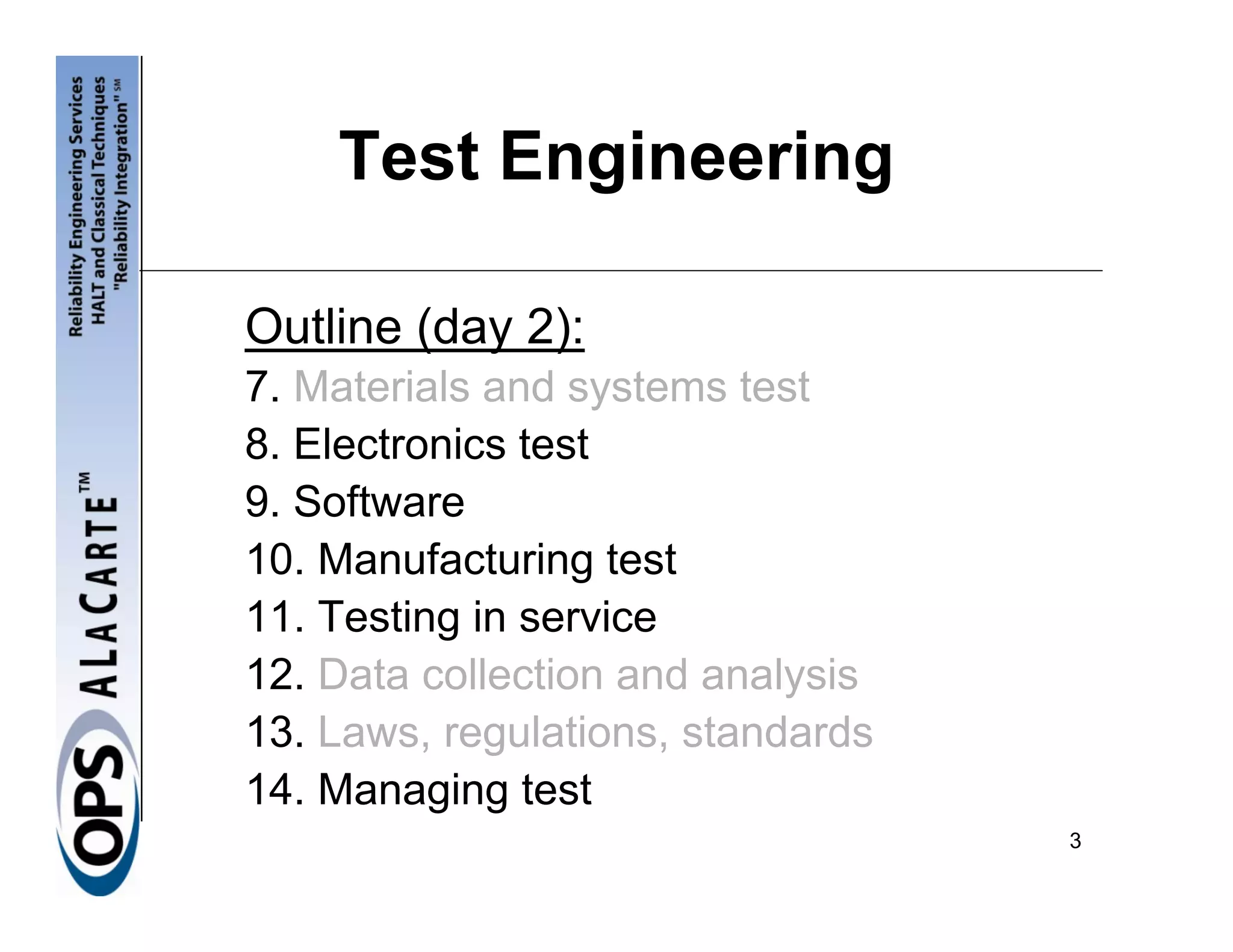

- 3. Test Engineering Outline (day2): 7. Materials and systems test 8. Electronics test 9. Software 10. Manufacturing test 11. Testing in service 12. Data collection and analysis 13. Laws, regulations, standards 14. Managing test 3

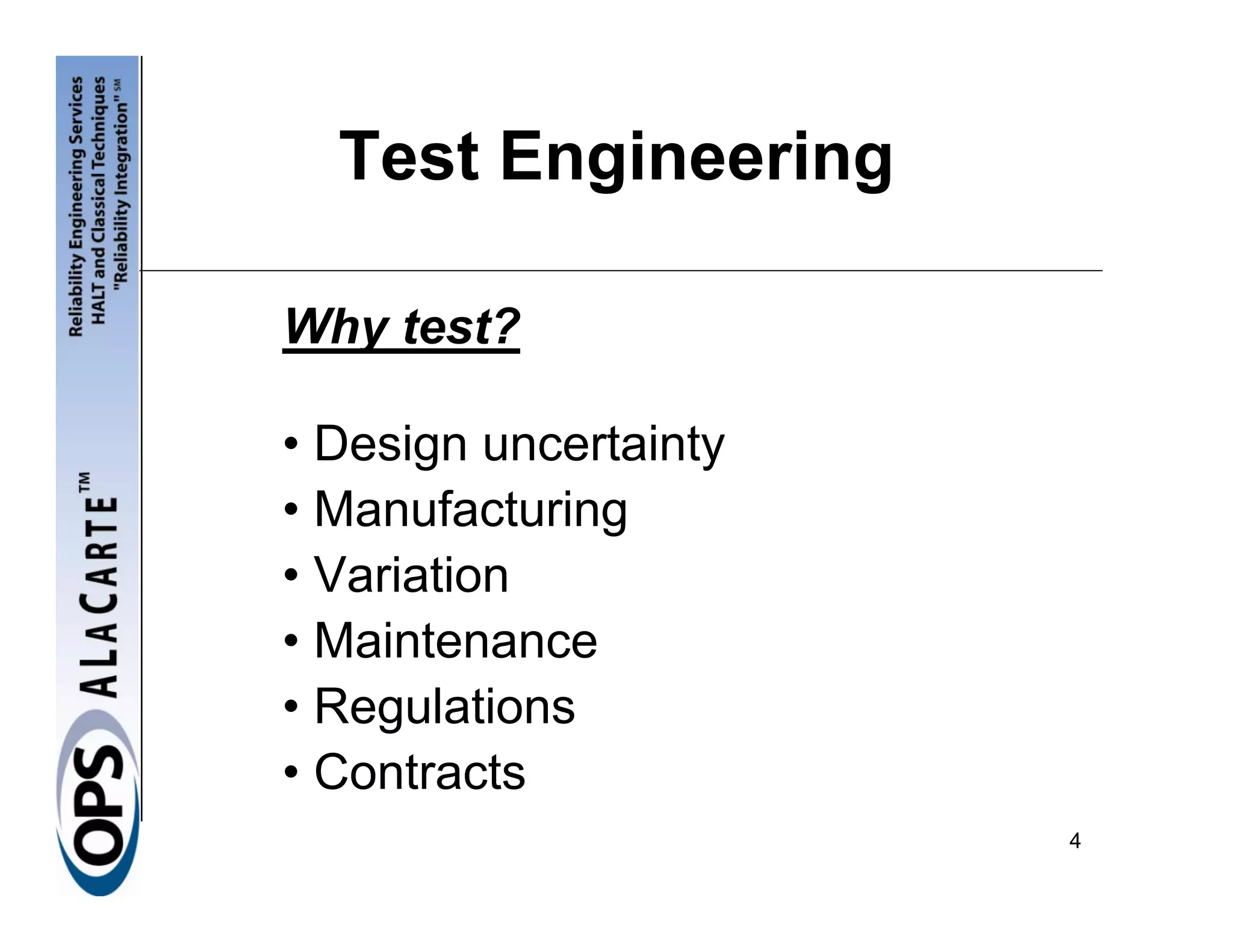

- 4. Test Engineering Why test? •Design uncertainty • Manufacturing • Variation • Maintenance • Regulations • Contracts 4

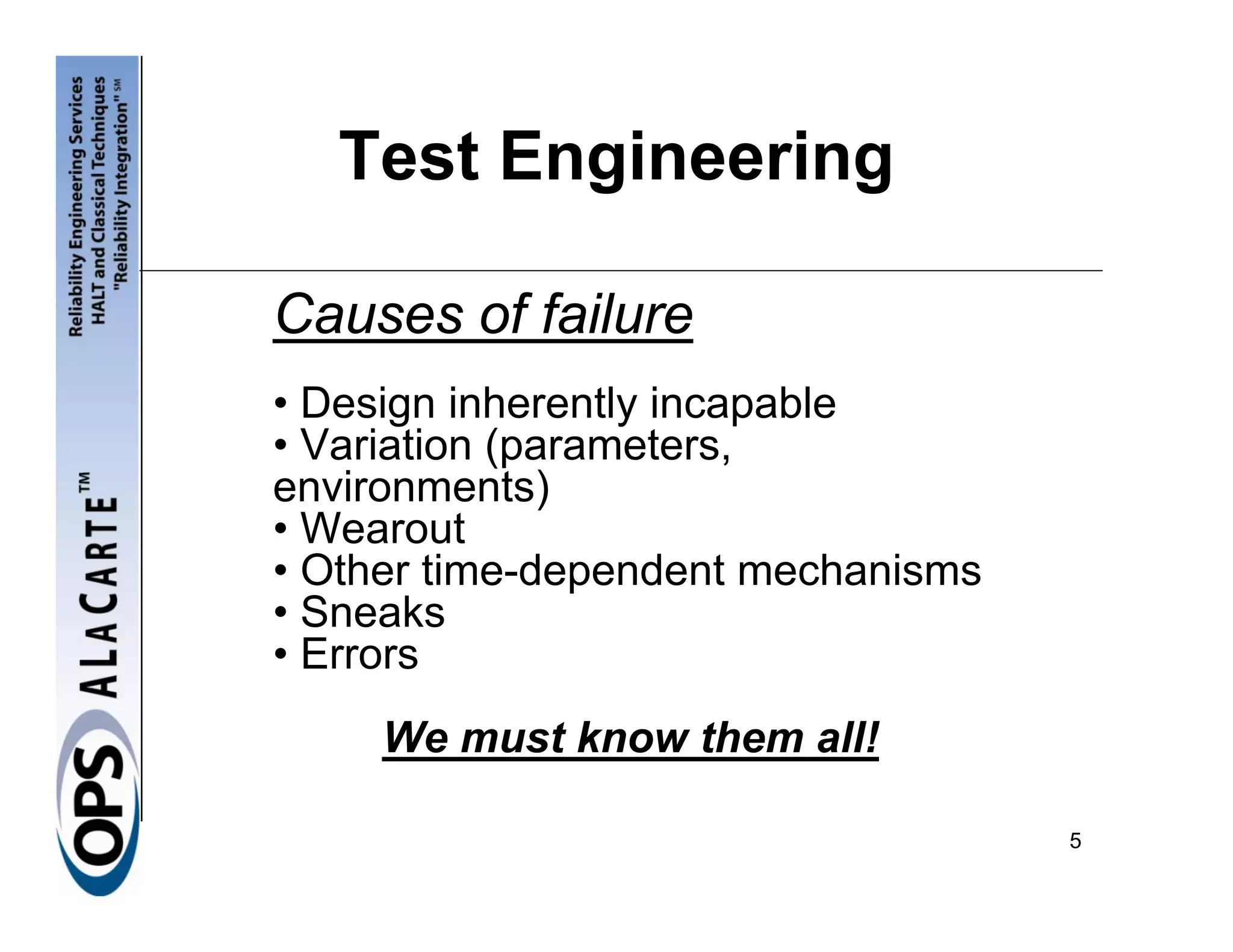

- 5. Test Engineering Causes offailure • Design inherently incapable • Variation (parameters, environments) • Wearout • Other time-dependent mechanisms • Sneaks • Errors We must know them all! 5

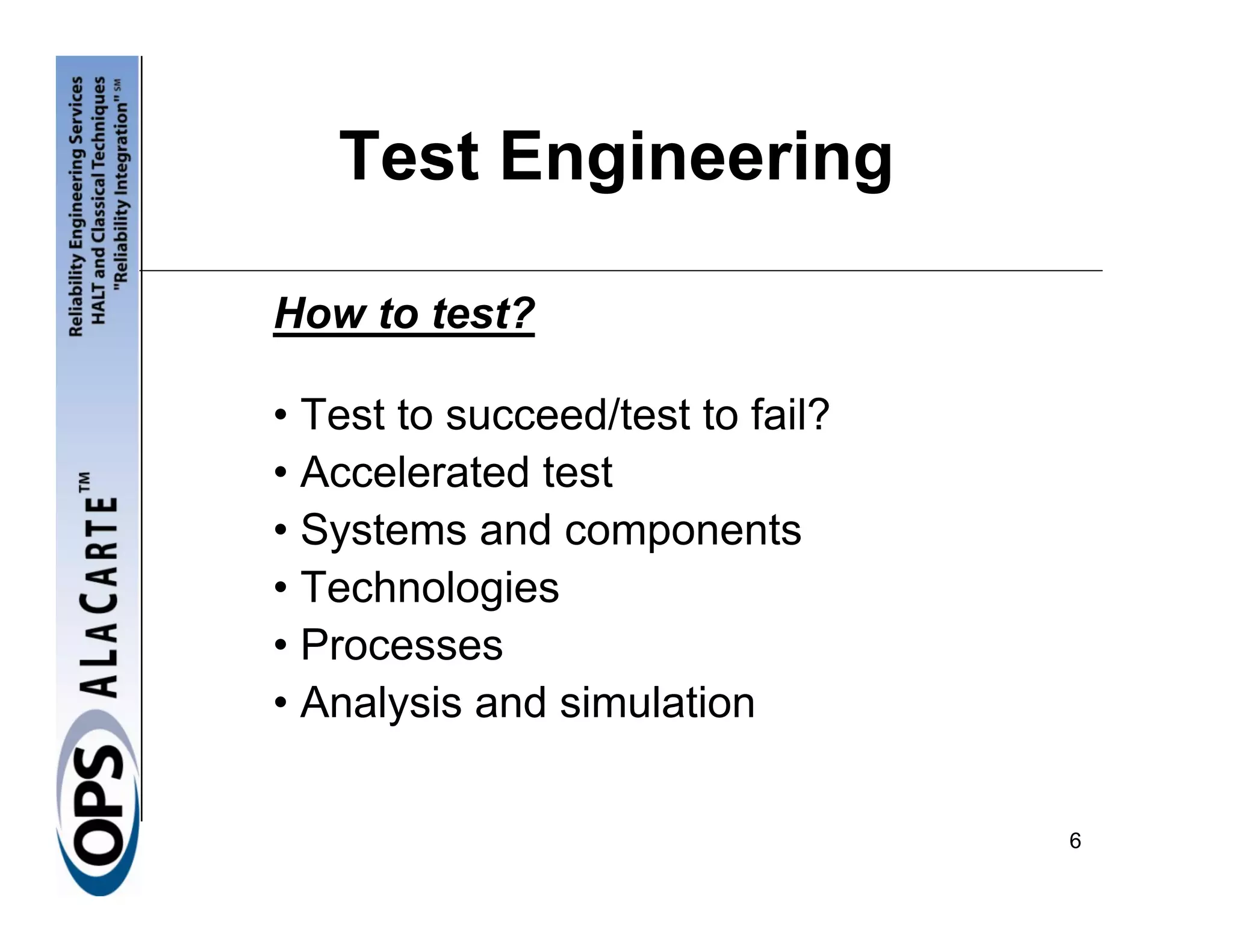

- 6. Test Engineering How totest? • Test to succeed/test to fail? • Accelerated test • Systems and components • Technologies • Processes • Analysis and simulation 6

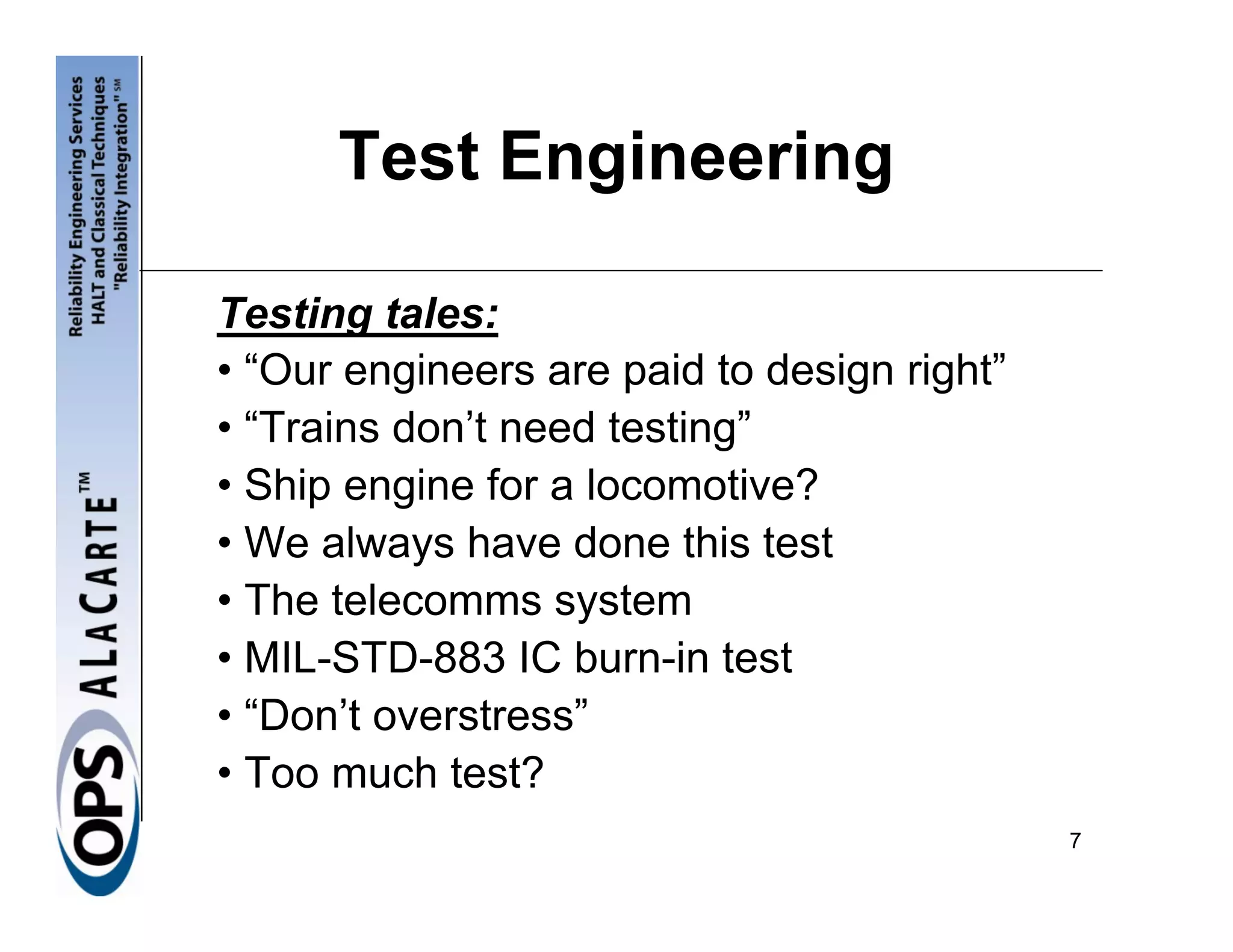

- 7. Test Engineering Testing tales: •“Our engineers are paid to design right” • “Trains don’t need testing” • Ship engine for a locomotive? • We always have done this test • The telecomms system • MIL-STD-883 IC burn-in test • “Don’t overstress” • Too much test? 7

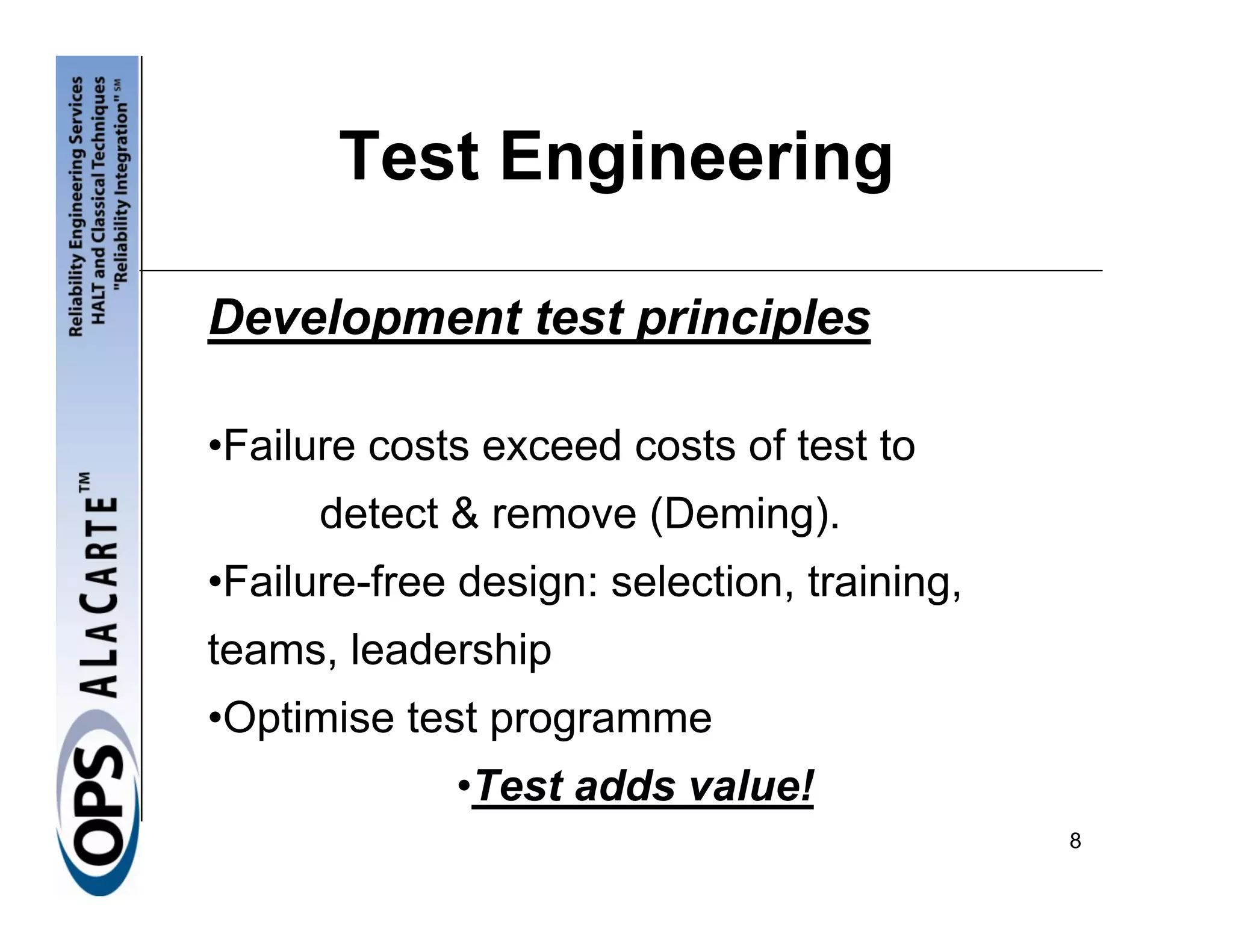

- 8. Test Engineering Development testprinciples •Failure costs exceed costs of test to detect & remove (Deming). •Failure-free design: selection, training, teams, leadership •Optimise test programme •Test adds value! 8

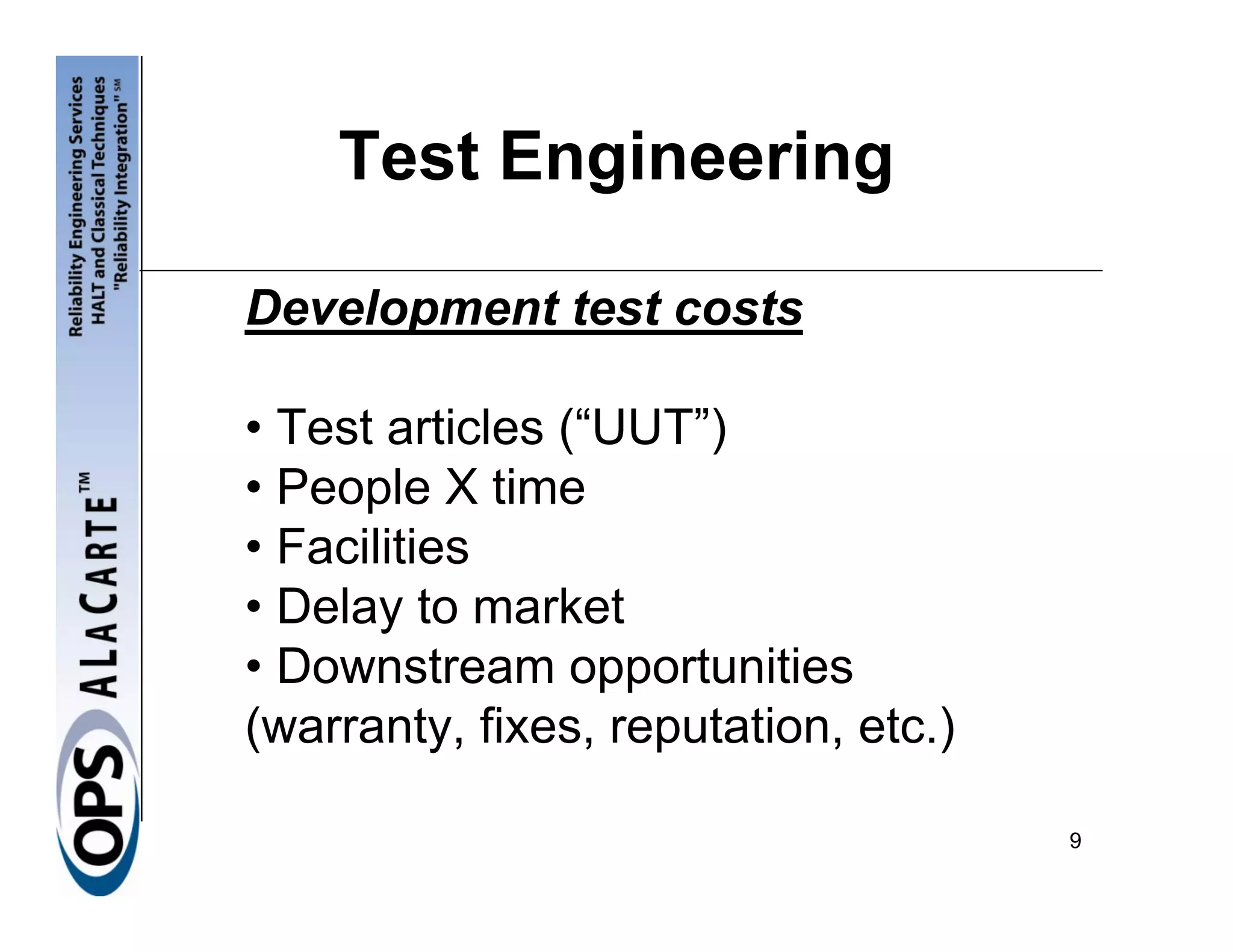

- 9. Test Engineering Development testcosts • Test articles (“UUT”) • People X time • Facilities • Delay to market • Downstream opportunities (warranty, fixes, reputation, etc.) 9

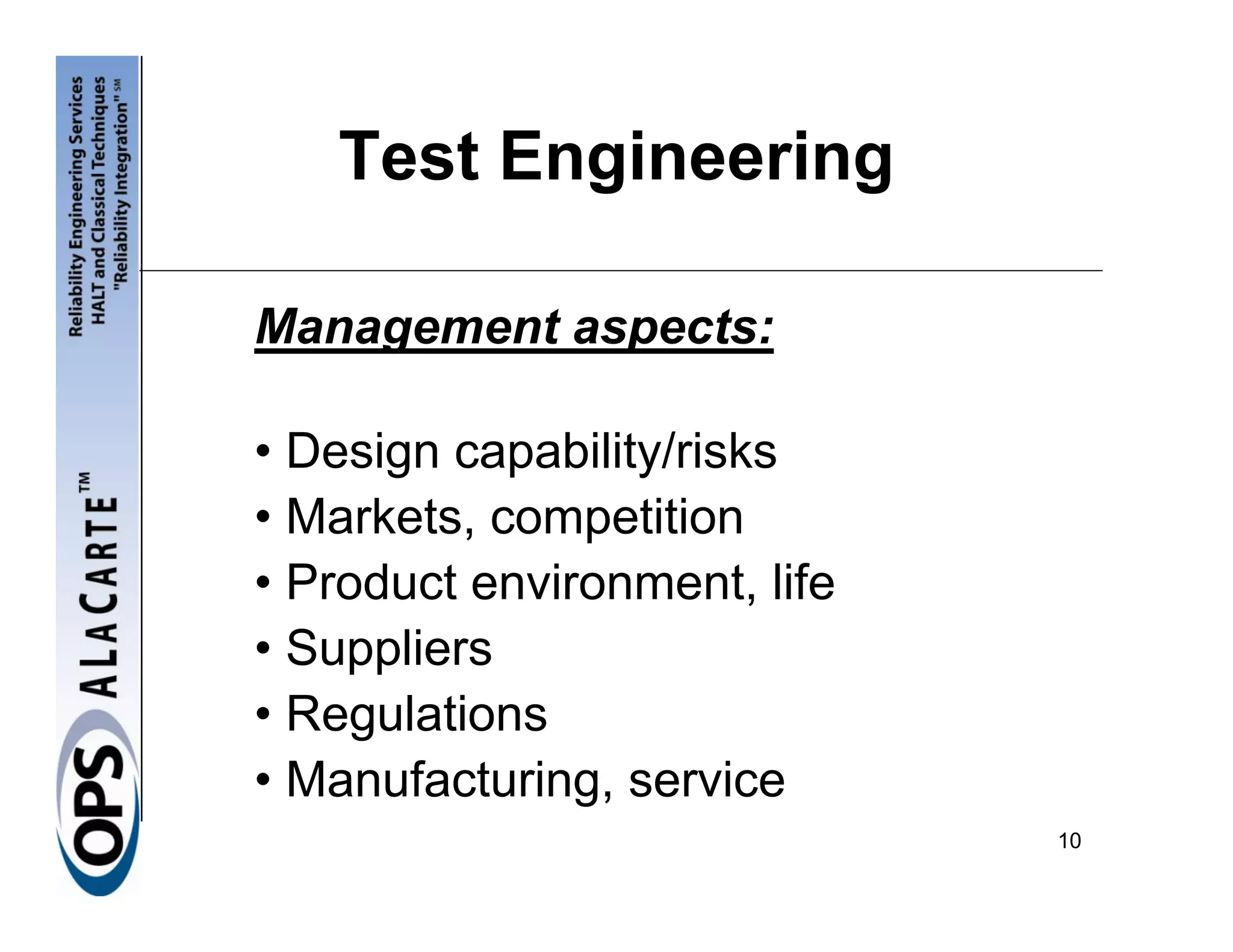

- 10. Test Engineering Management aspects: •Design capability/risks • Markets, competition • Product environment, life • Suppliers • Regulations • Manufacturing, service 10

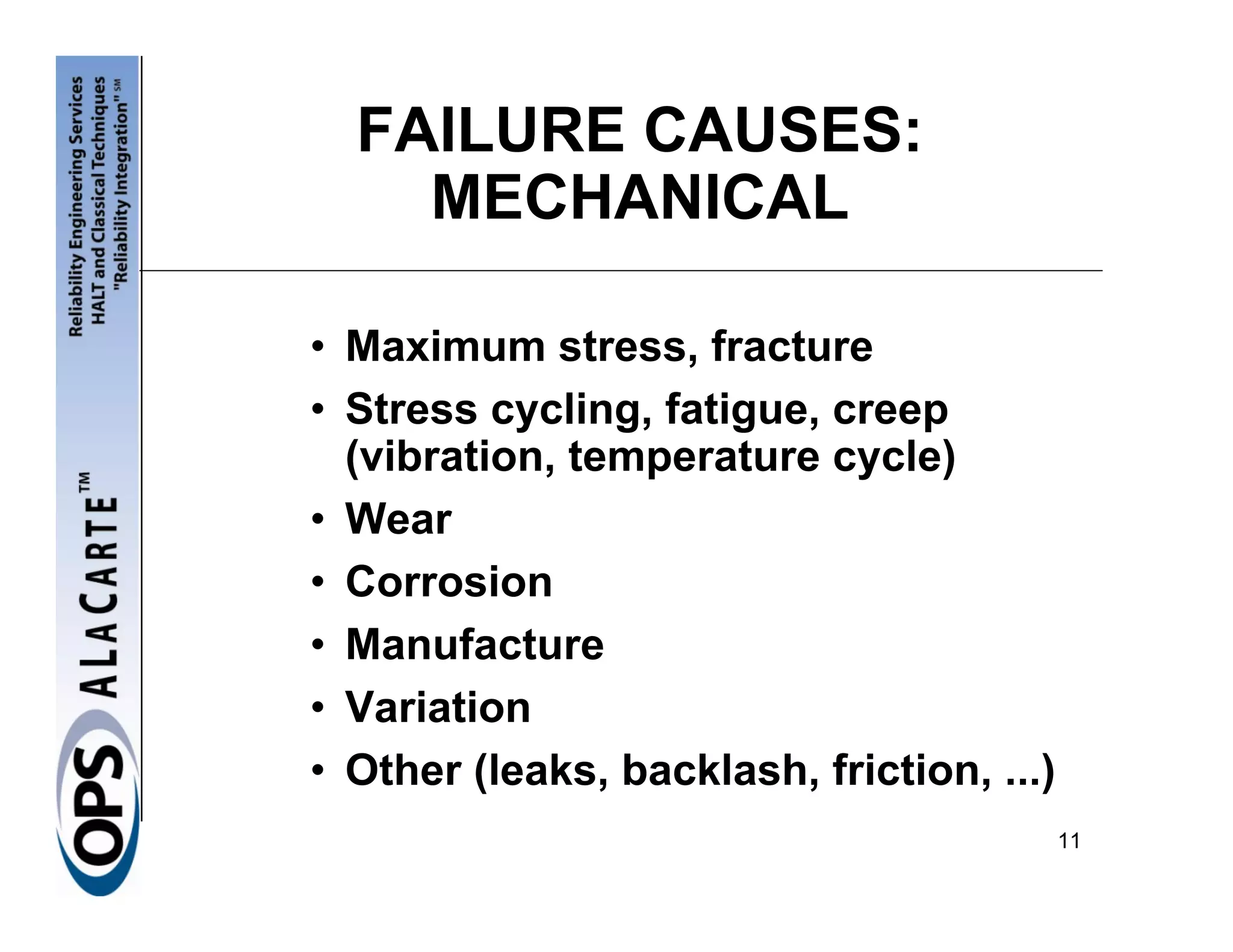

- 11. FAILURE CAUSES: MECHANICAL • Maximum stress, fracture • Stress cycling, fatigue, creep (vibration, temperature cycle) • Wear • Corrosion • Manufacture • Variation • Other (leaks, backlash, friction, ...) 11

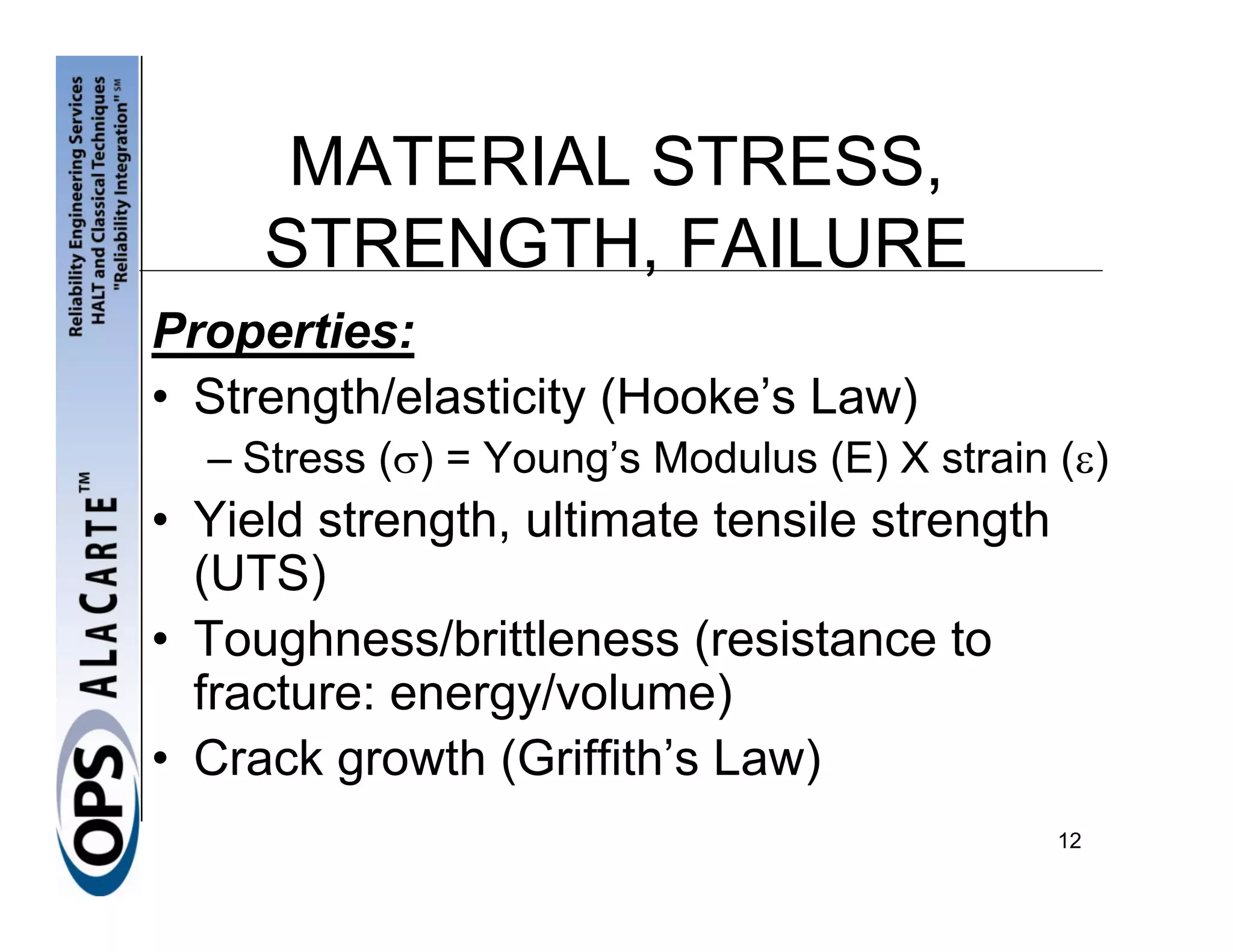

- 12. MATERIAL STRESS, STRENGTH, FAILURE Properties: • Strength/elasticity (Hooke’s Law) – Stress (σ) = Young’s Modulus (E) X strain (ε) • Yield strength, ultimate tensile strength (UTS) • Toughness/brittleness (resistance to fracture: energy/volume) • Crack growth (Griffith’s Law) 12

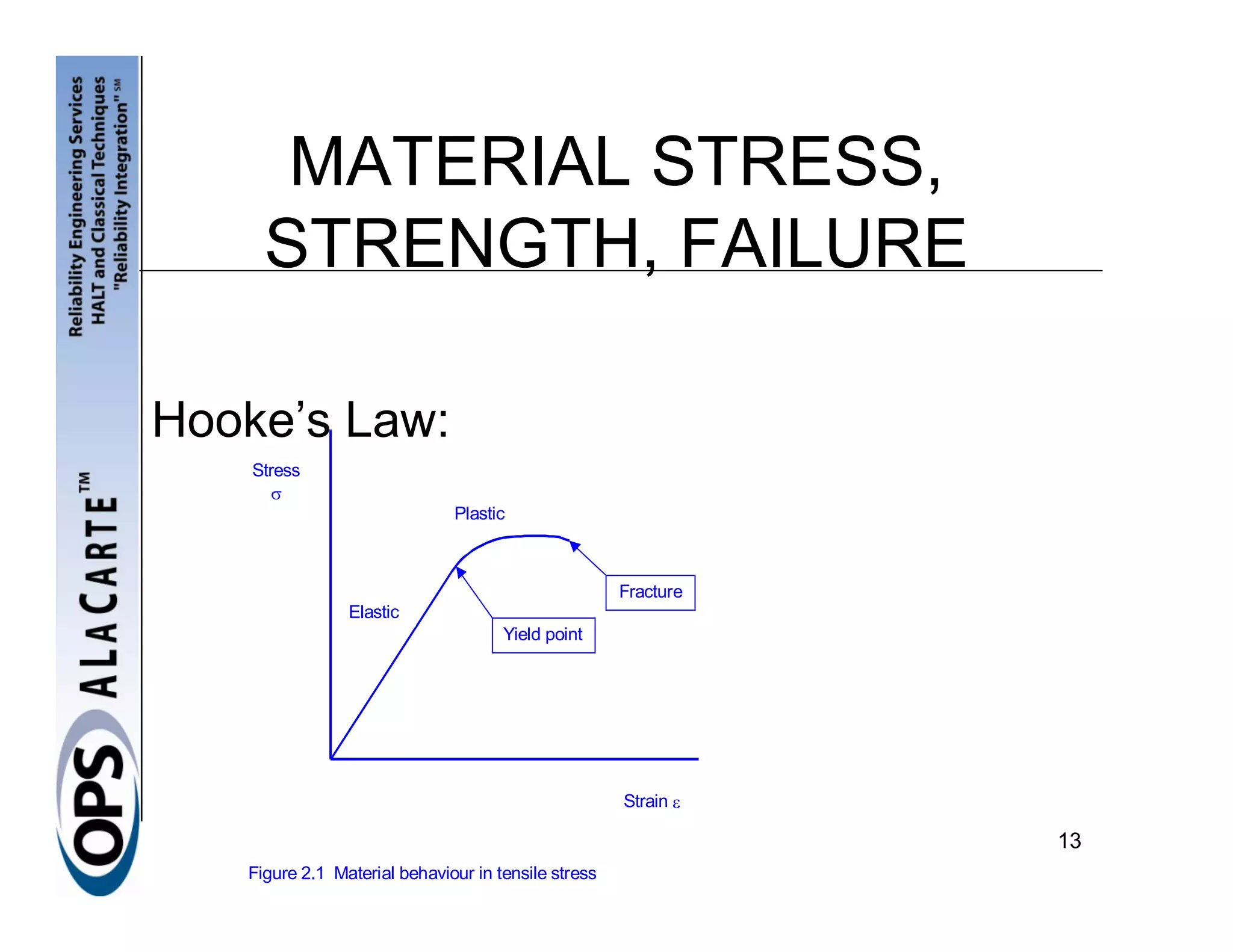

- 13. MATERIAL STRESS, STRENGTH, FAILURE Hooke’s Law: Stress σ Plastic Fracture Elastic Yield point Strain ε 13 Figure 2.1 Material behaviour in tensile stress

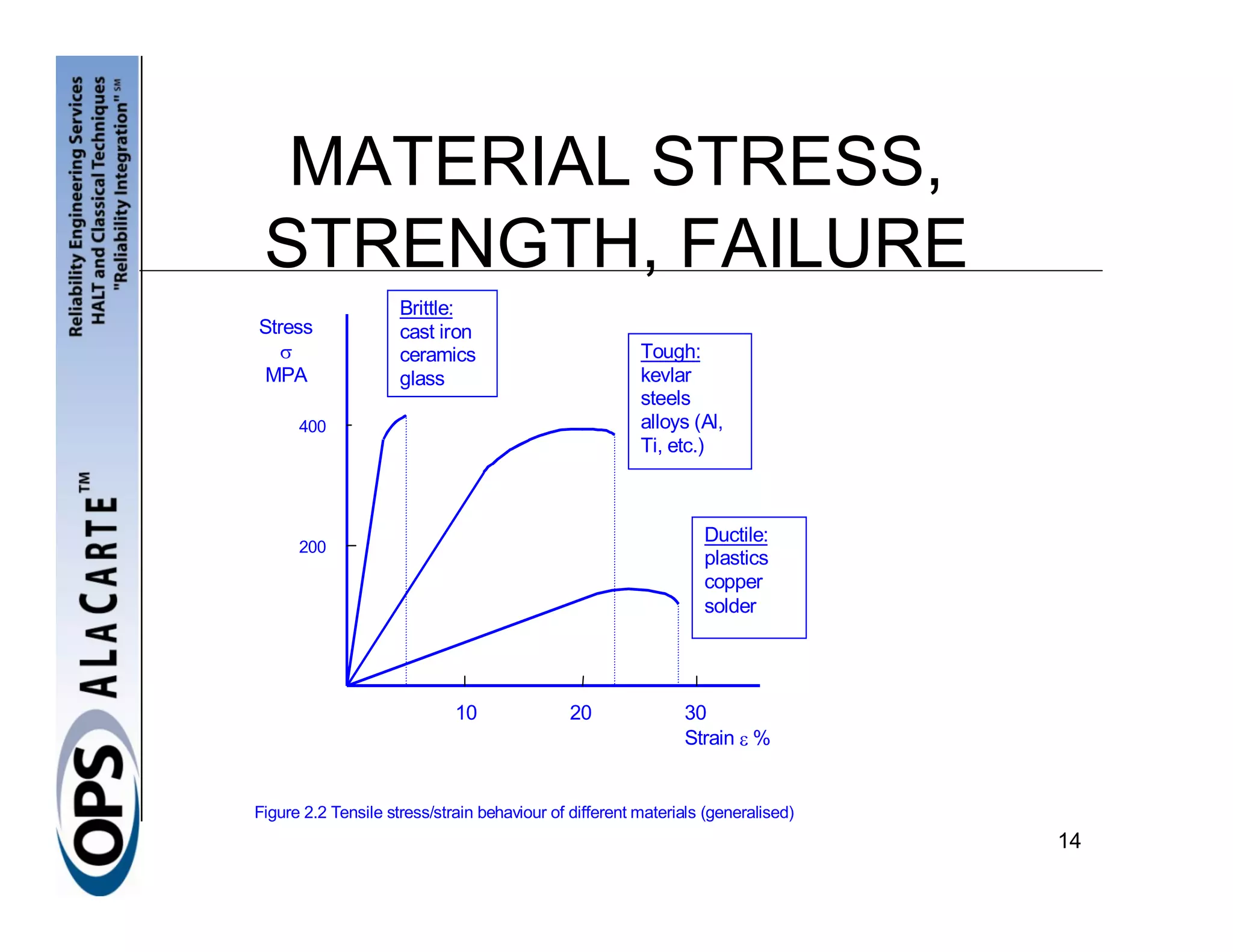

- 14. MATERIAL STRESS, STRENGTH,FAILURE Brittle: Stress cast iron σ ceramics Tough: MPA glass kevlar steels 400 alloys (Al, Ti, etc.) Ductile: 200 plastics copper solder 10 20 30 Strain ε % Figure 2.2 Tensile stress/strain behaviour of different materials (generalised) 14

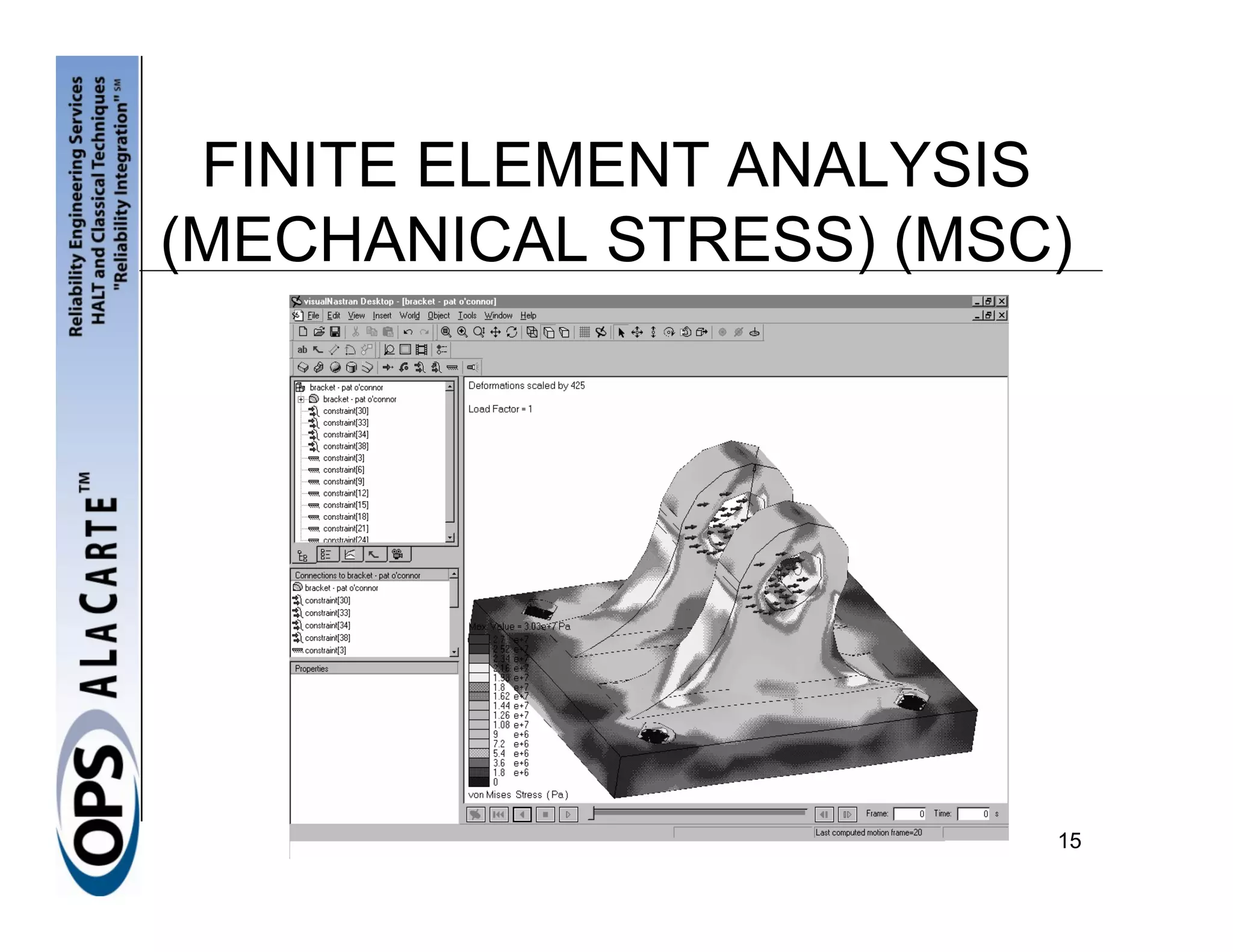

- 15. FINITE ELEMENT ANALYSIS (MECHANICALSTRESS) (MSC) 15

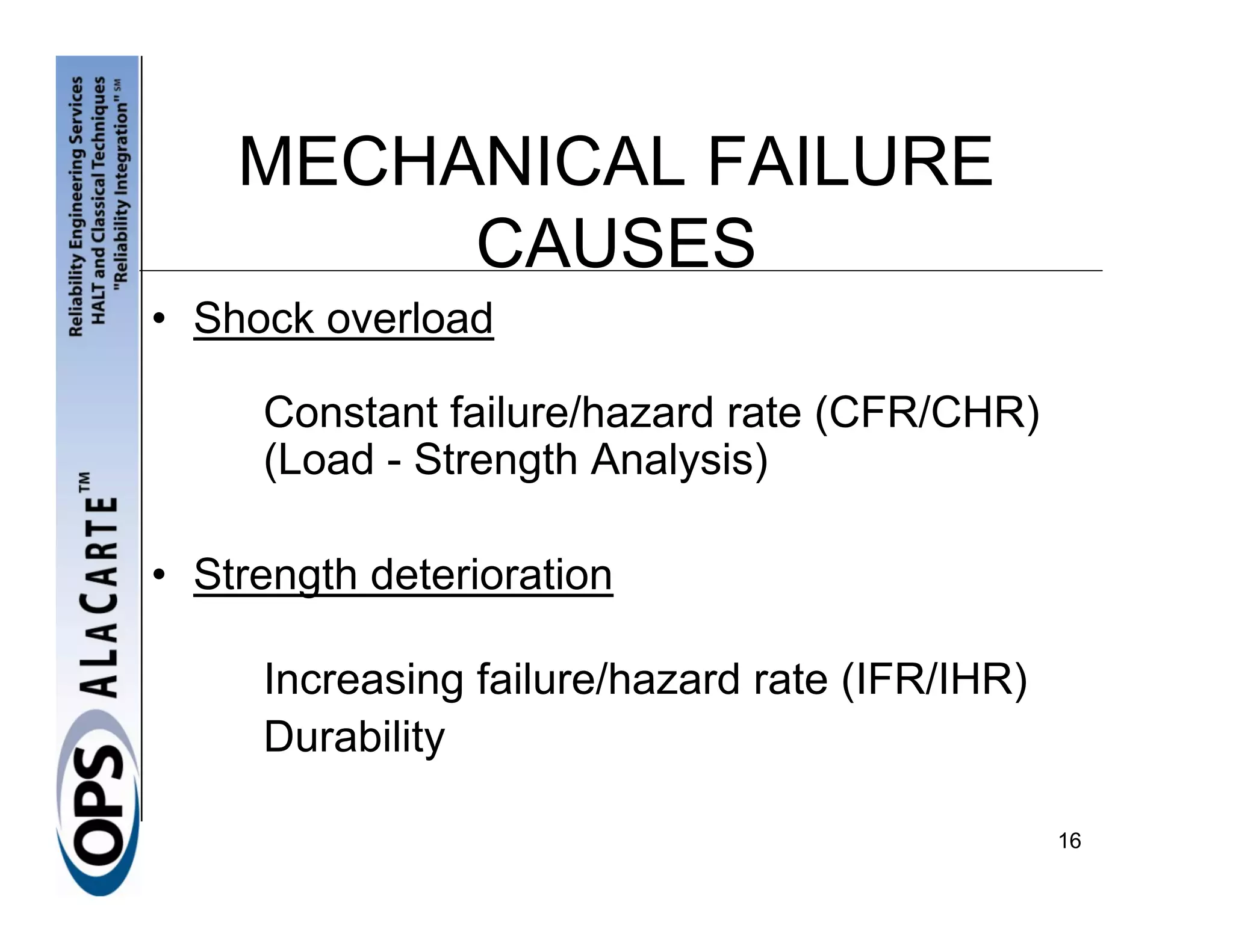

- 16. MECHANICAL FAILURE CAUSES • Shock overload Constant failure/hazard rate (CFR/CHR) (Load - Strength Analysis) • Strength deterioration Increasing failure/hazard rate (IFR/IHR) Durability 16

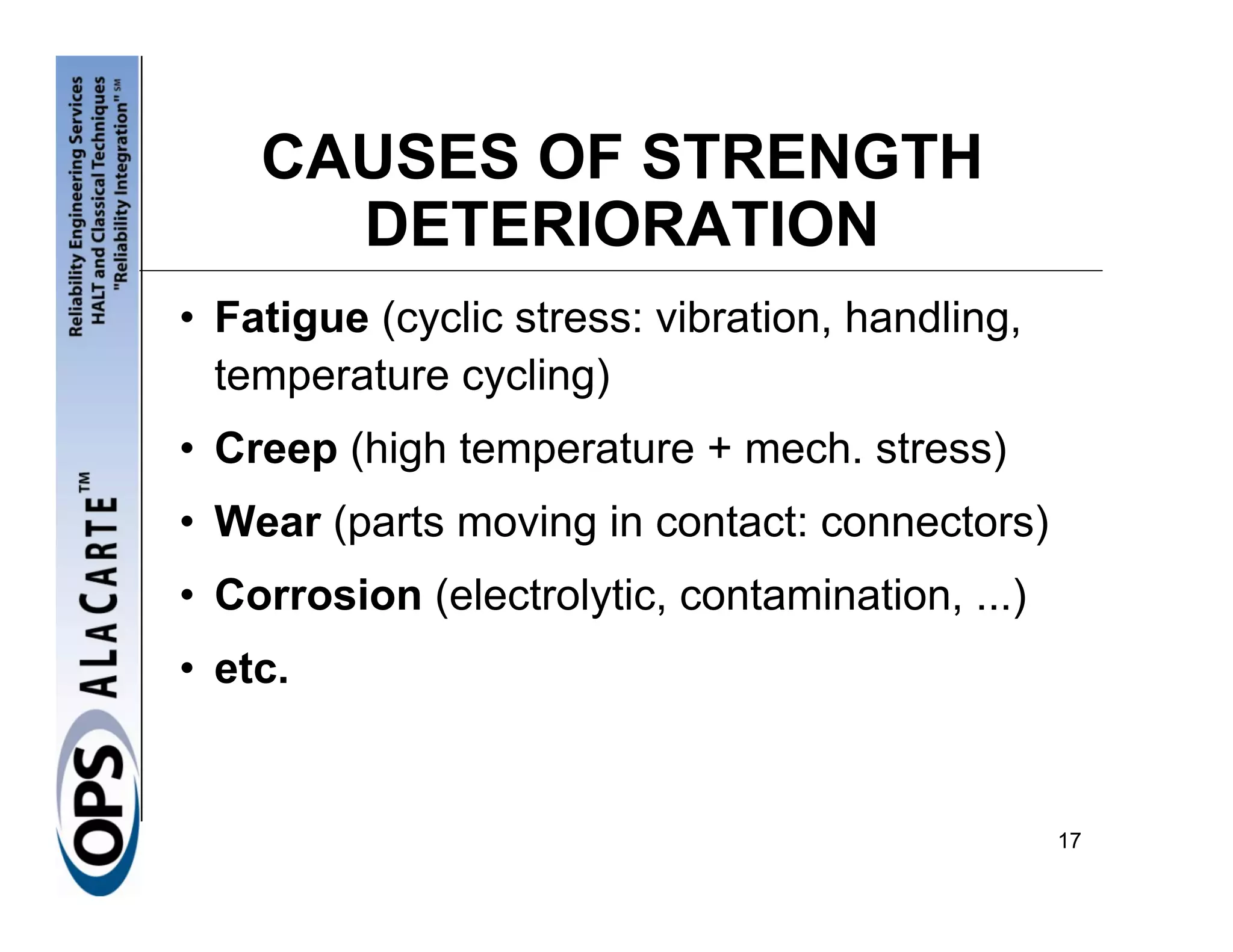

- 17. CAUSES OF STRENGTH DETERIORATION • Fatigue (cyclic stress: vibration, handling, temperature cycling) • Creep (high temperature + mech. stress) • Wear (parts moving in contact: connectors) • Corrosion (electrolytic, contamination, ...) • etc. 17

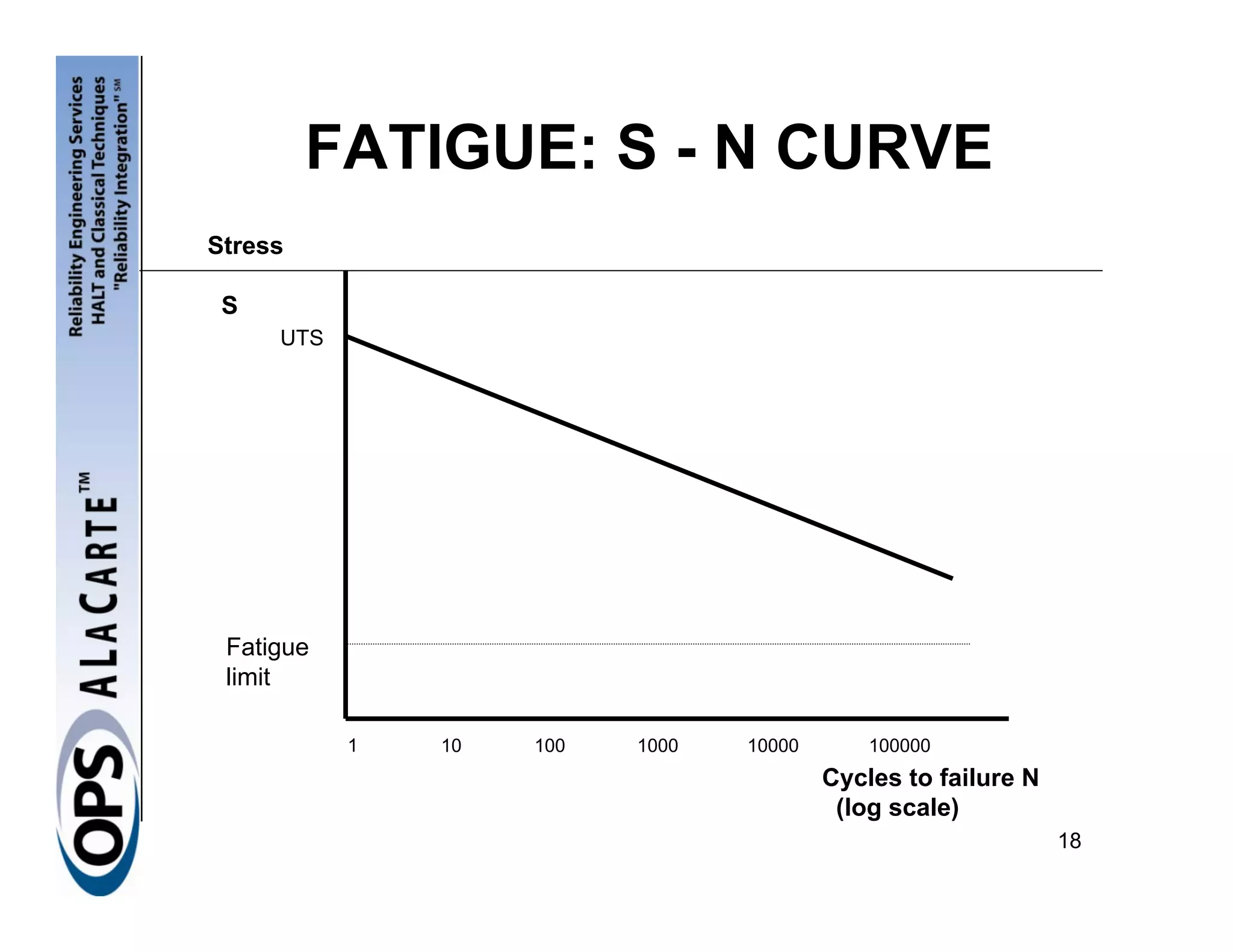

- 18. FATIGUE: S -N CURVE Stress S UTS Fatigue limit 1 10 100 1000 10000 100000 Cycles to failure N (log scale) 18

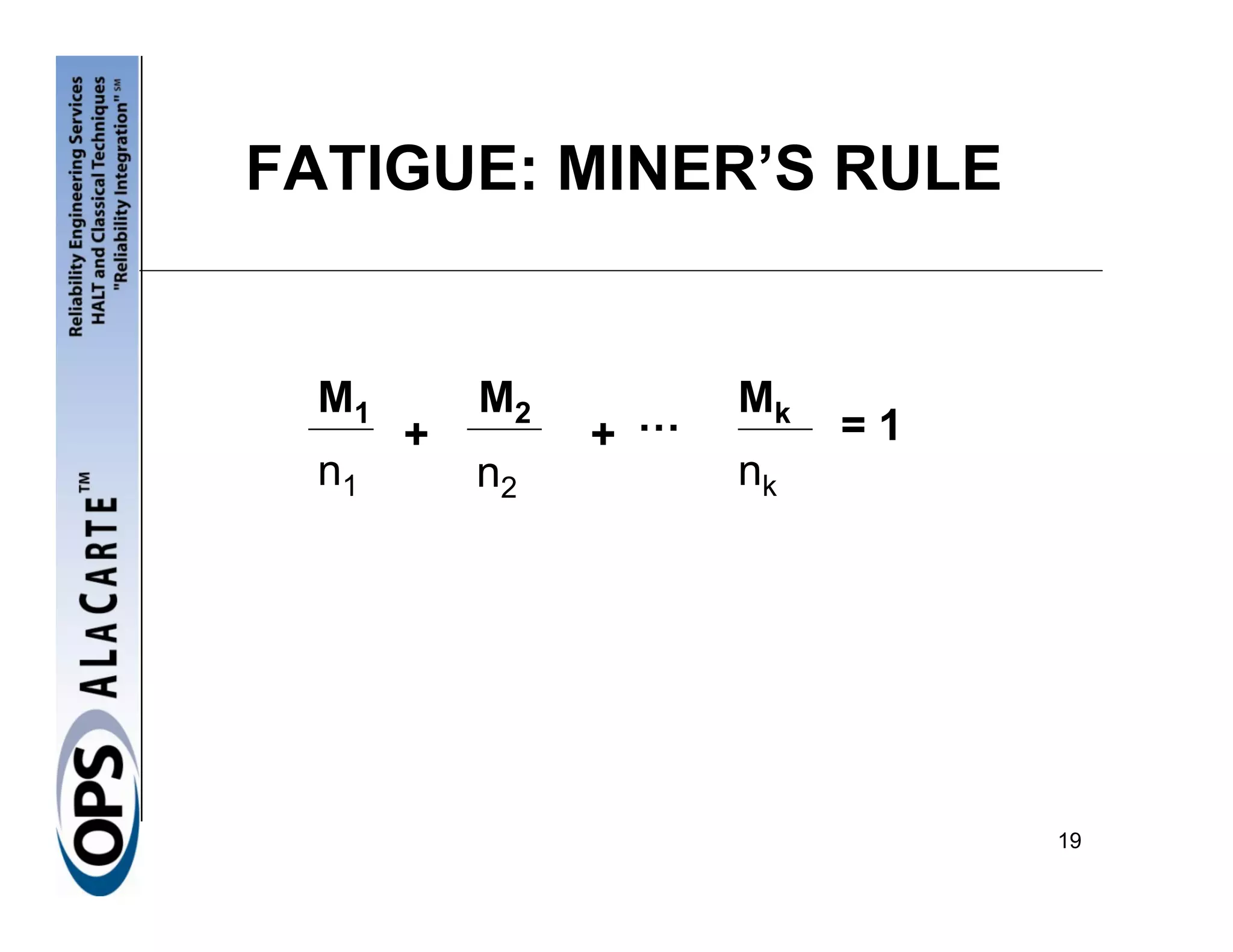

- 19. FATIGUE: MINER’S RULE M1 M2 Mk + + … =1 n1 n2 nk 19

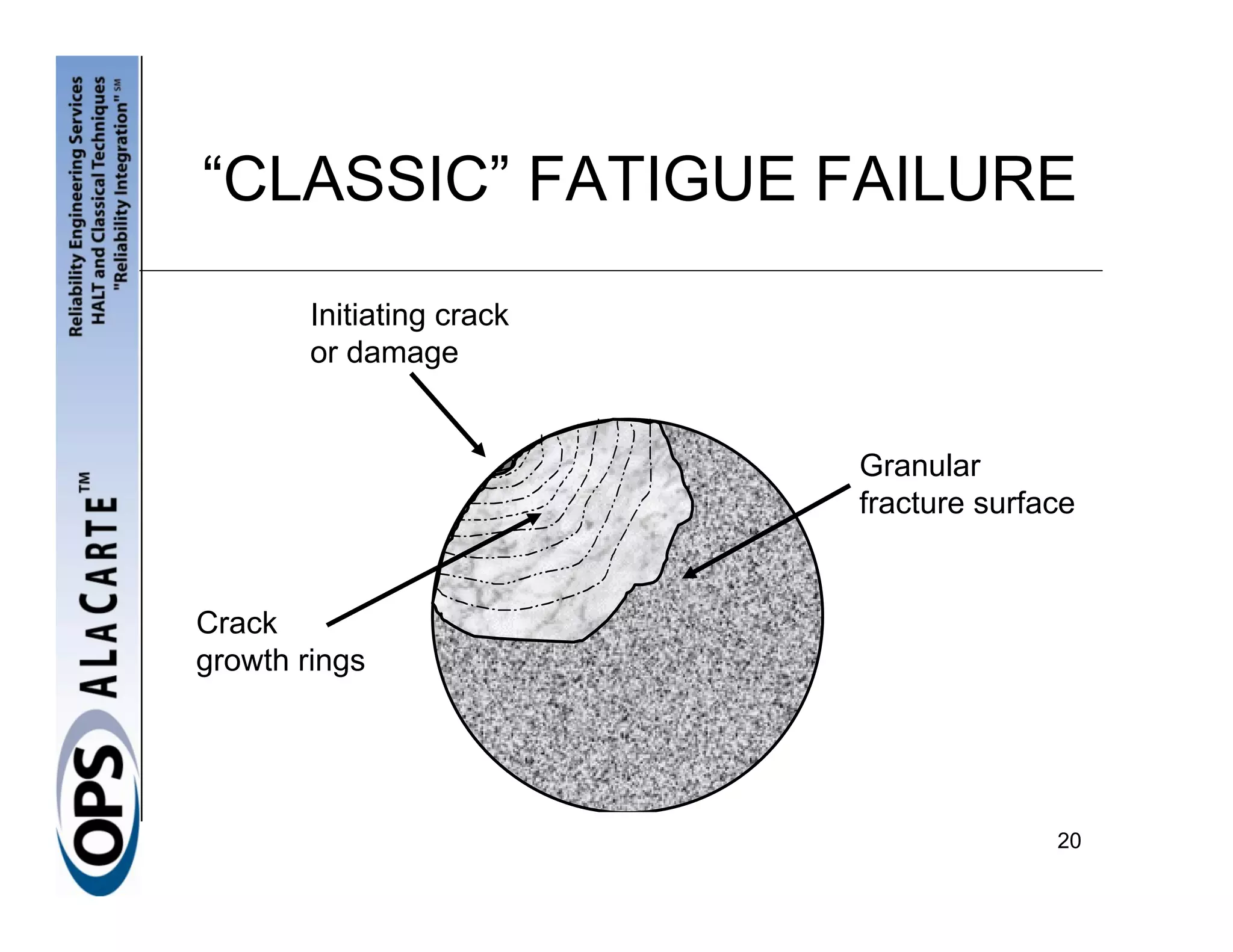

- 20. “CLASSIC” FATIGUE FAILURE Initiating crack or damage Granular fracture surface Crack growth rings 20

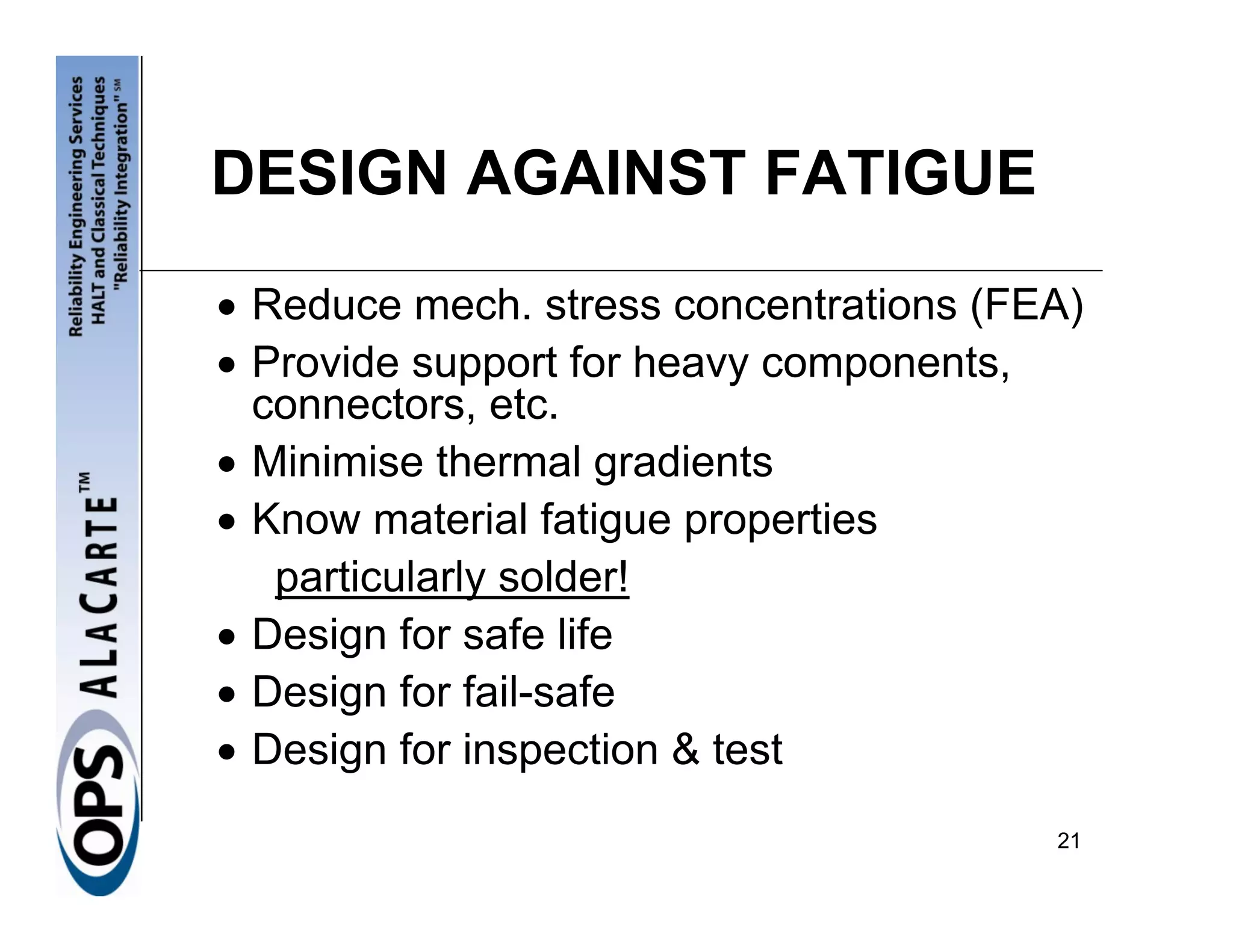

- 21. DESIGN AGAINST FATIGUE •Reduce mech. stress concentrations (FEA) • Provide support for heavy components, connectors, etc. • Minimise thermal gradients • Know material fatigue properties particularly solder! • Design for safe life • Design for fail-safe • Design for inspection & test 21

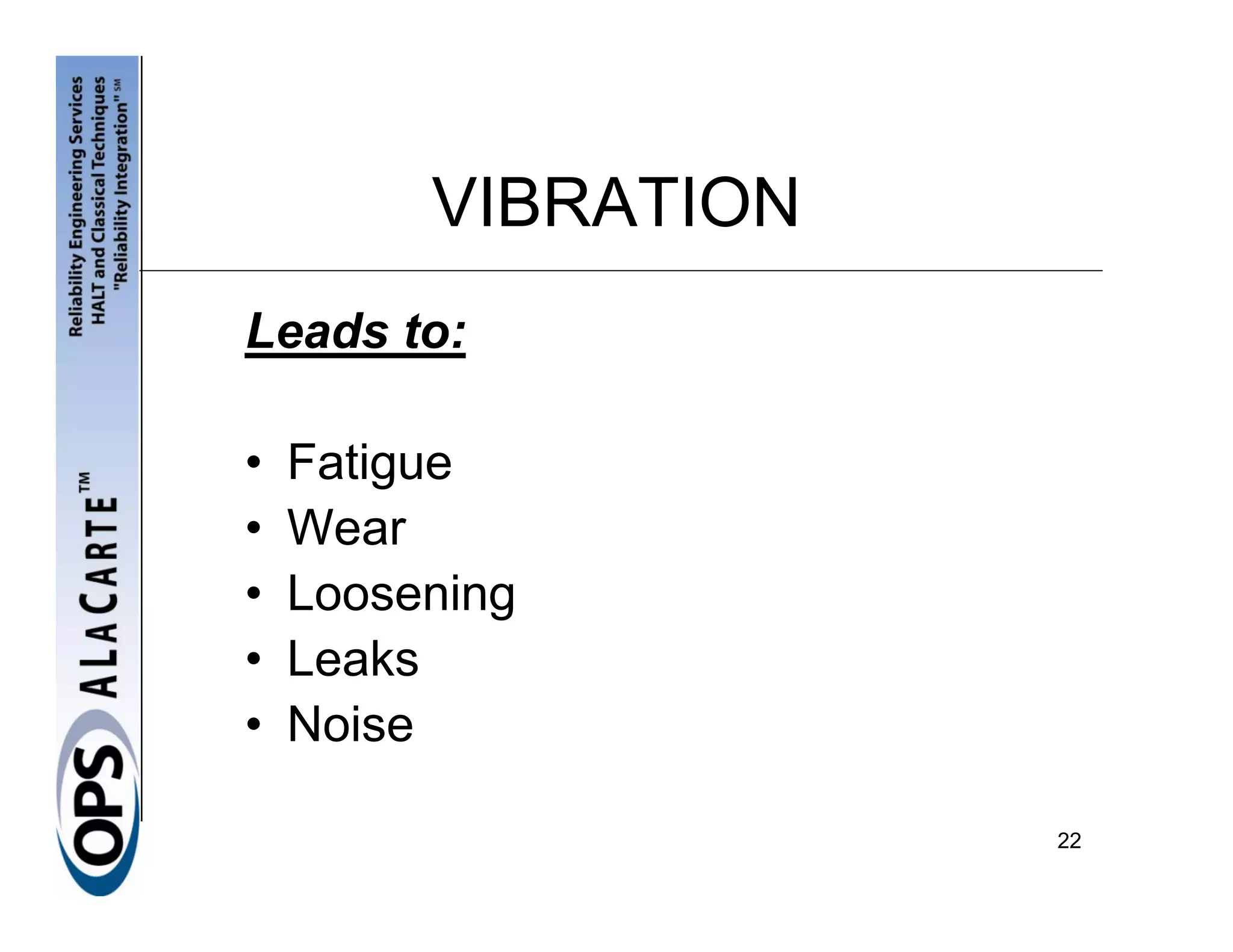

- 22. VIBRATION Leads to: • Fatigue • Wear • Loosening • Leaks • Noise 22

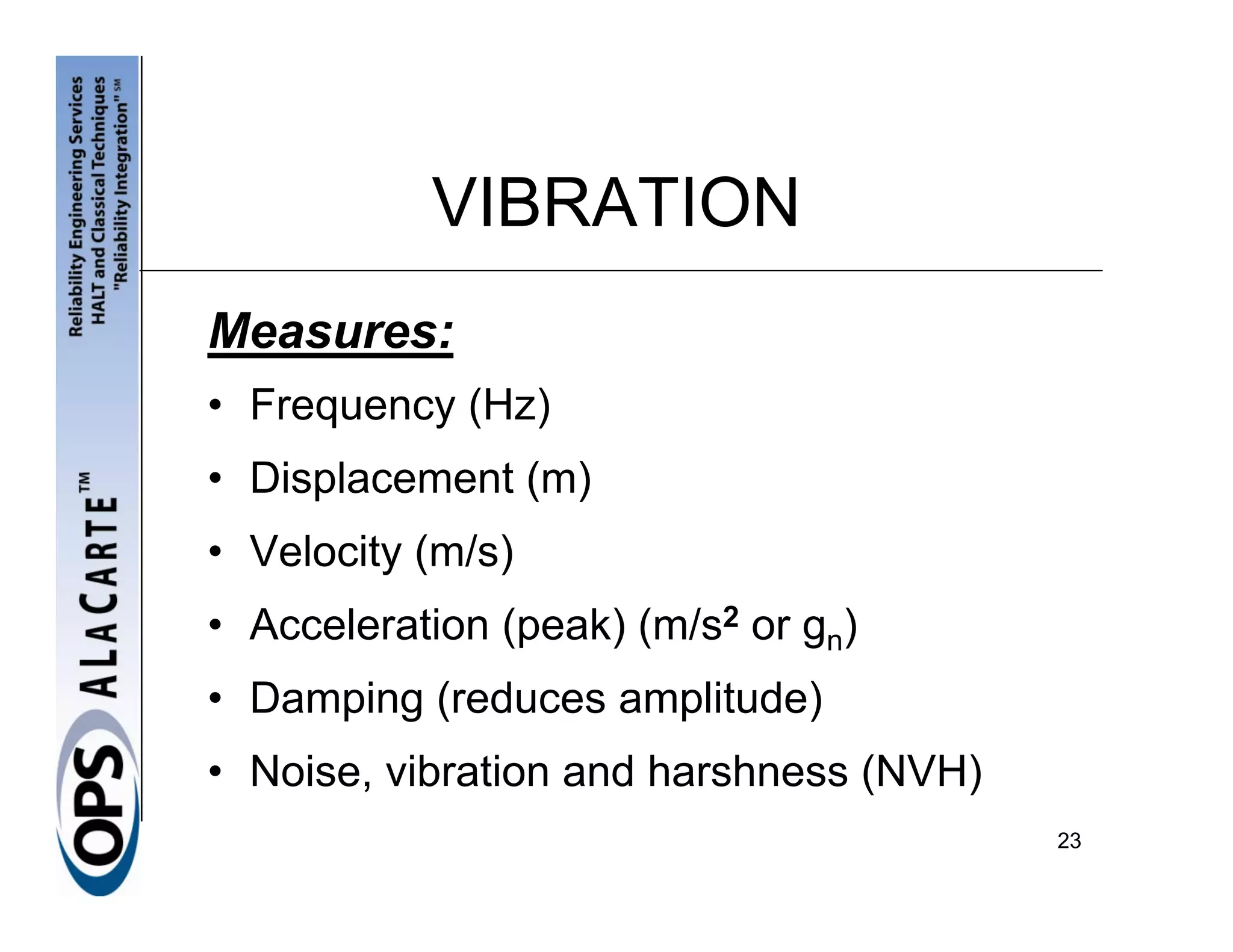

- 23. VIBRATION Measures: • Frequency (Hz) •Displacement (m) • Velocity (m/s) • Acceleration (peak) (m/s2 or gn) • Damping (reduces amplitude) • Noise, vibration and harshness (NVH) 23

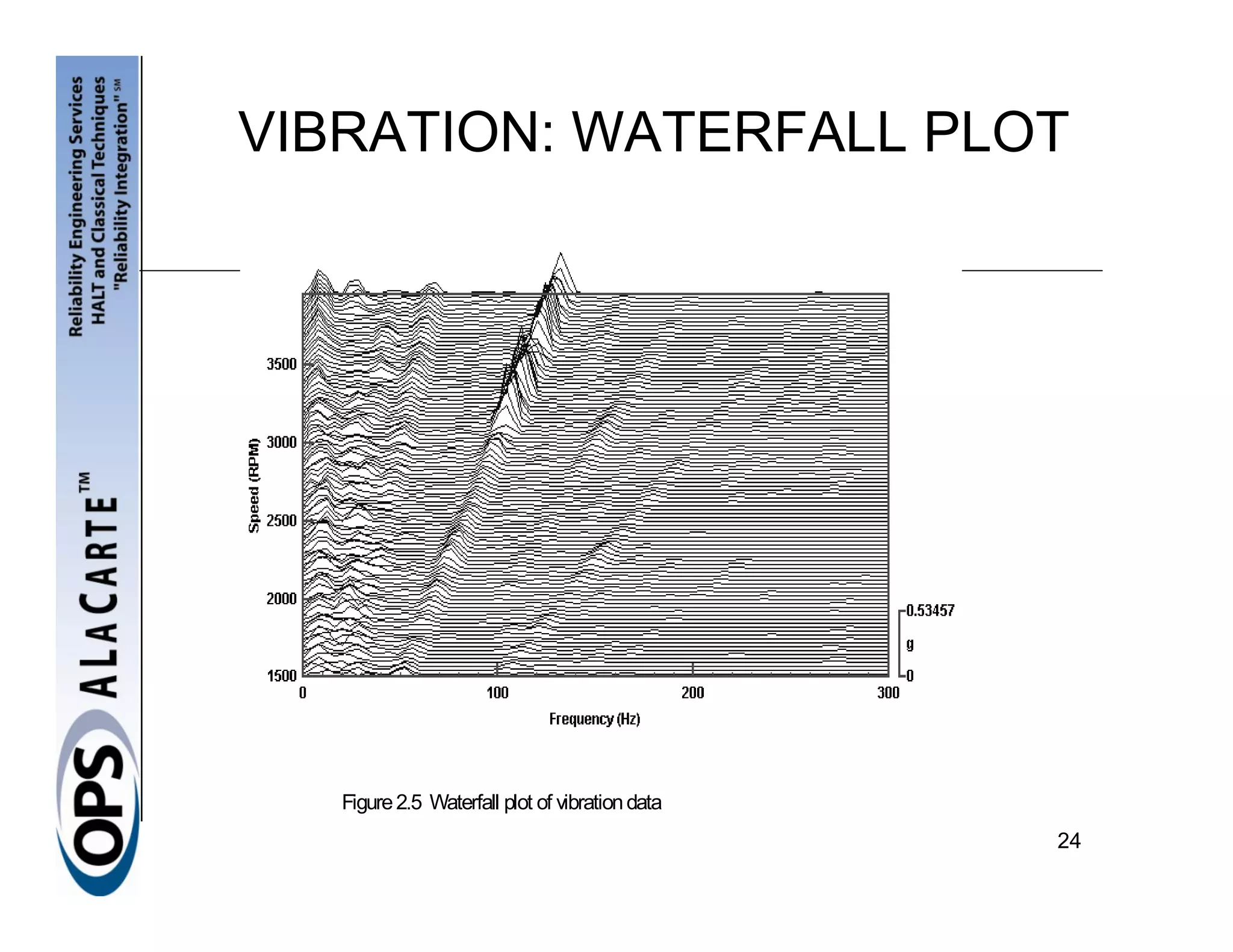

- 24. VIBRATION: WATERFALL PLOT Figure 2.5 Waterfall plot of vibration data 24

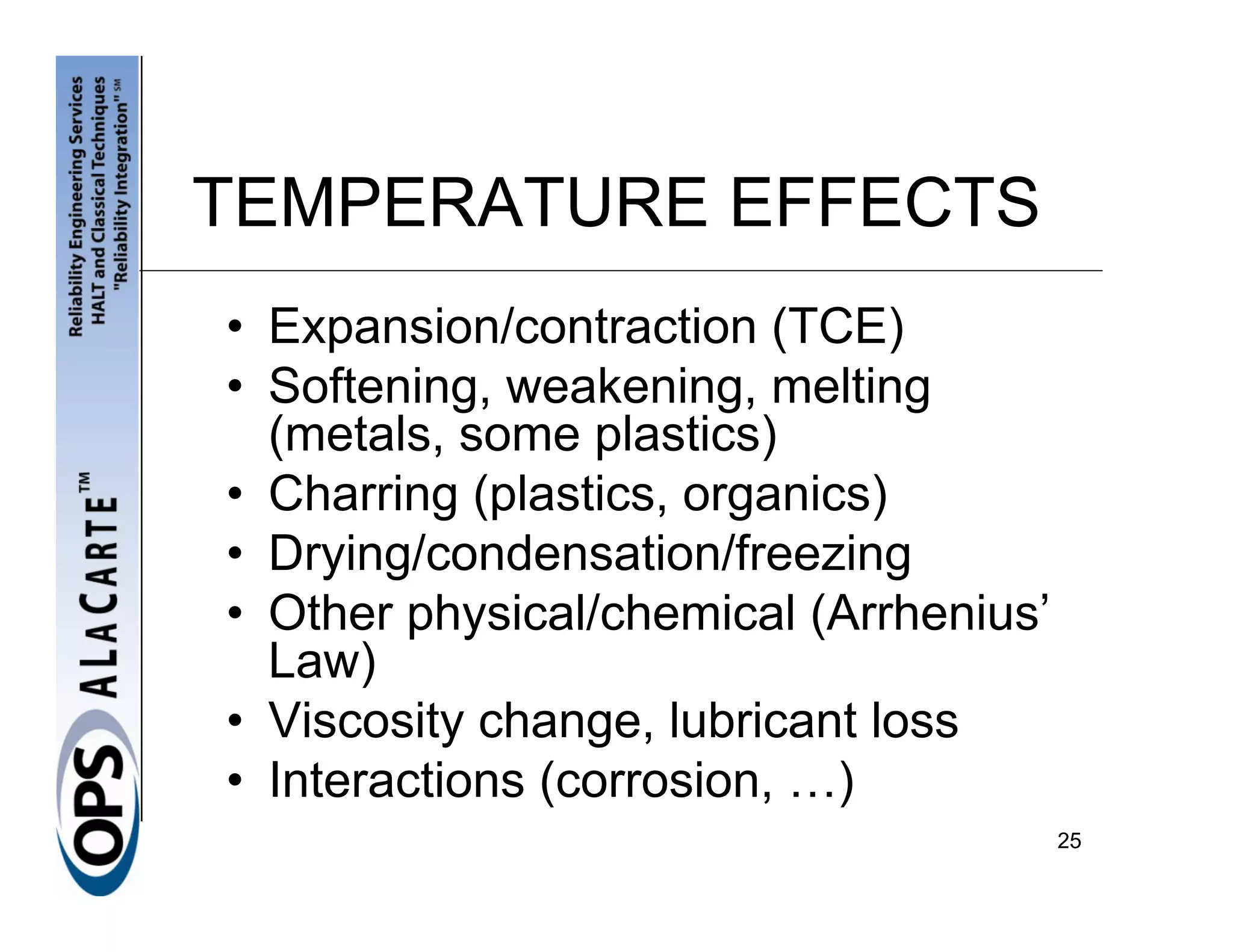

- 25. TEMPERATURE EFFECTS • Expansion/contraction(TCE) • Softening, weakening, melting (metals, some plastics) • Charring (plastics, organics) • Drying/condensation/freezing • Other physical/chemical (Arrhenius’ Law) • Viscosity change, lubricant loss • Interactions (corrosion, …) 25

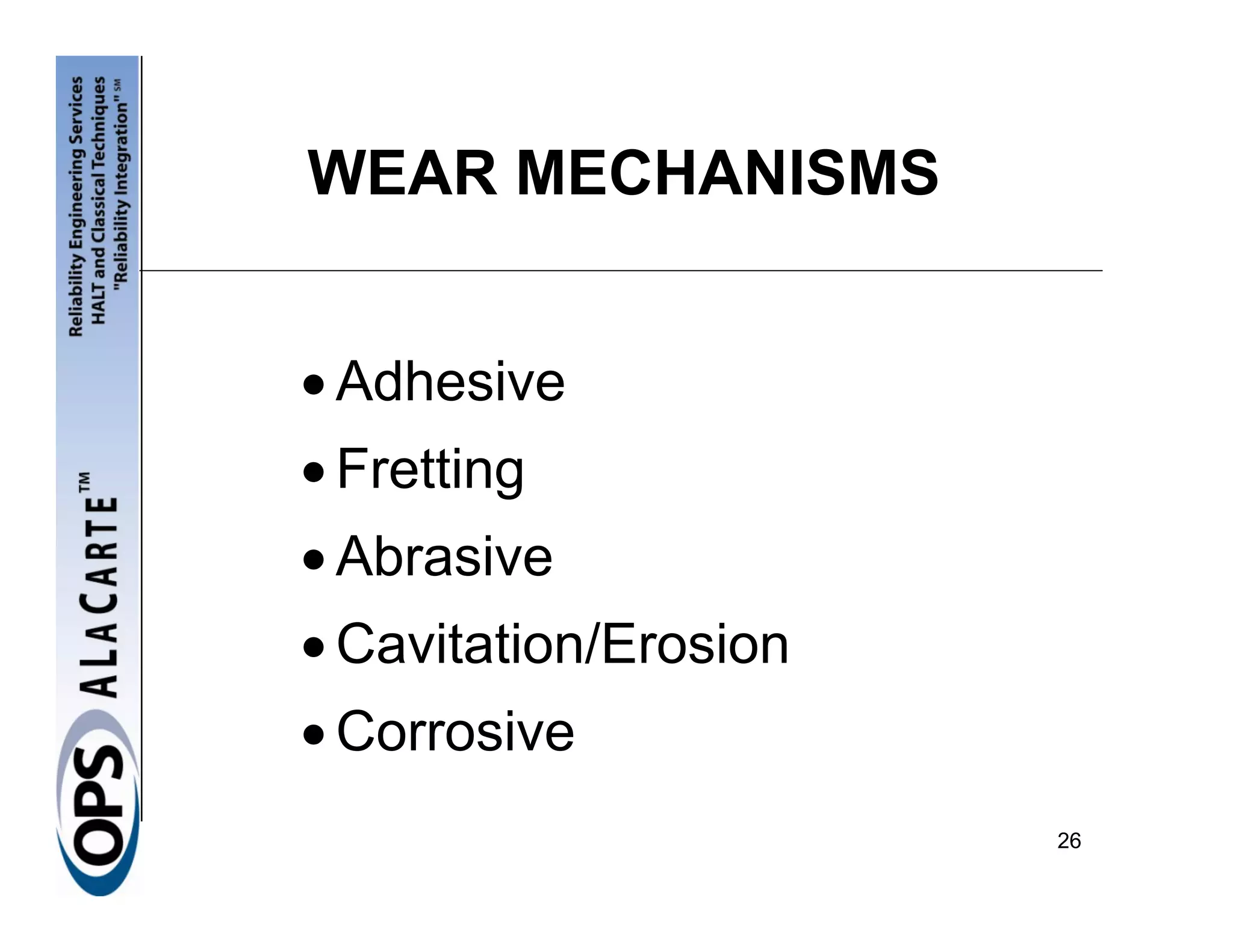

- 26. WEAR MECHANISMS • Adhesive •Fretting • Abrasive • Cavitation/Erosion • Corrosive 26

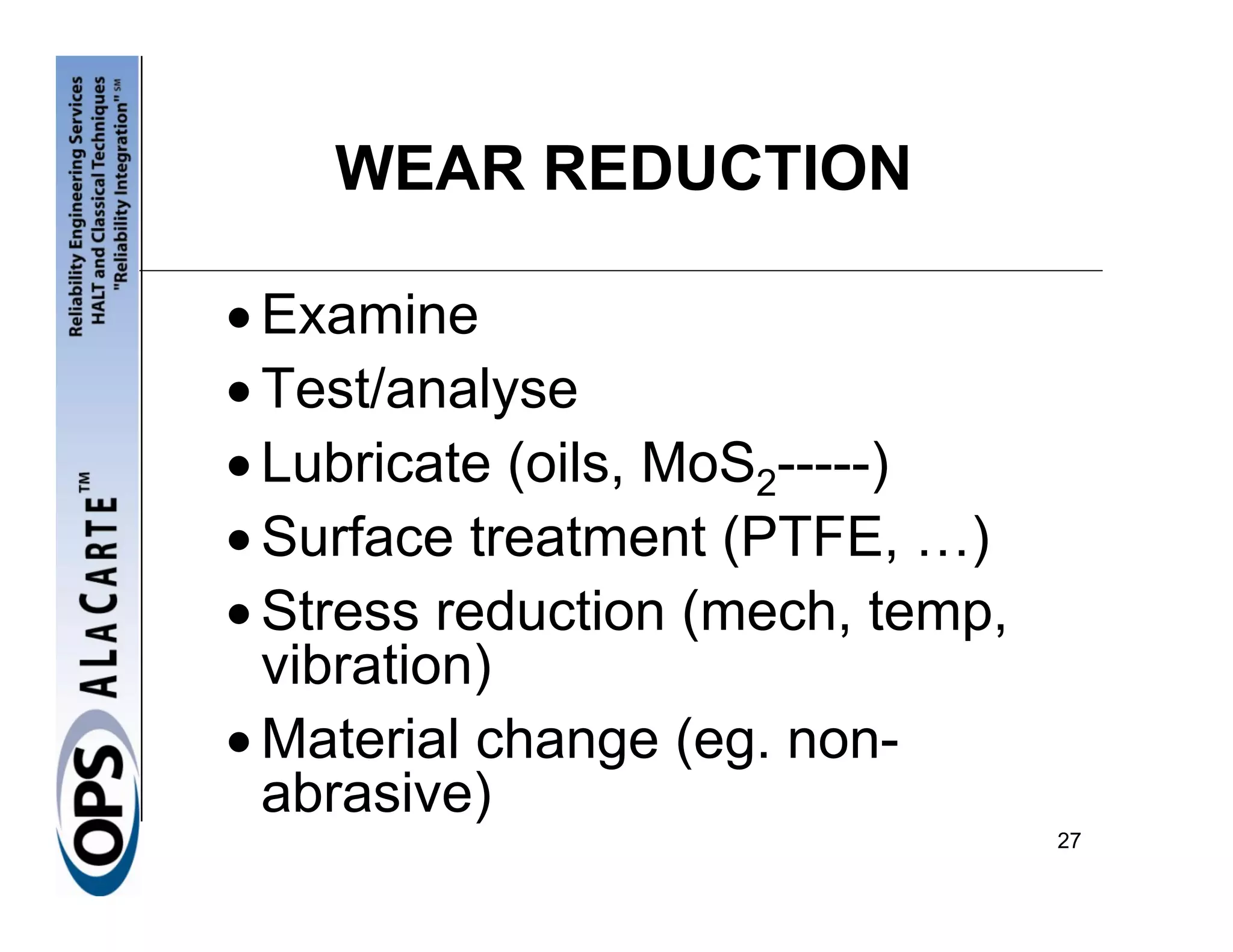

- 27. WEAR REDUCTION • Examine •Test/analyse • Lubricate (oils, MoS2-----) • Surface treatment (PTFE, …) • Stress reduction (mech, temp, vibration) • Material change (eg. non- abrasive) 27

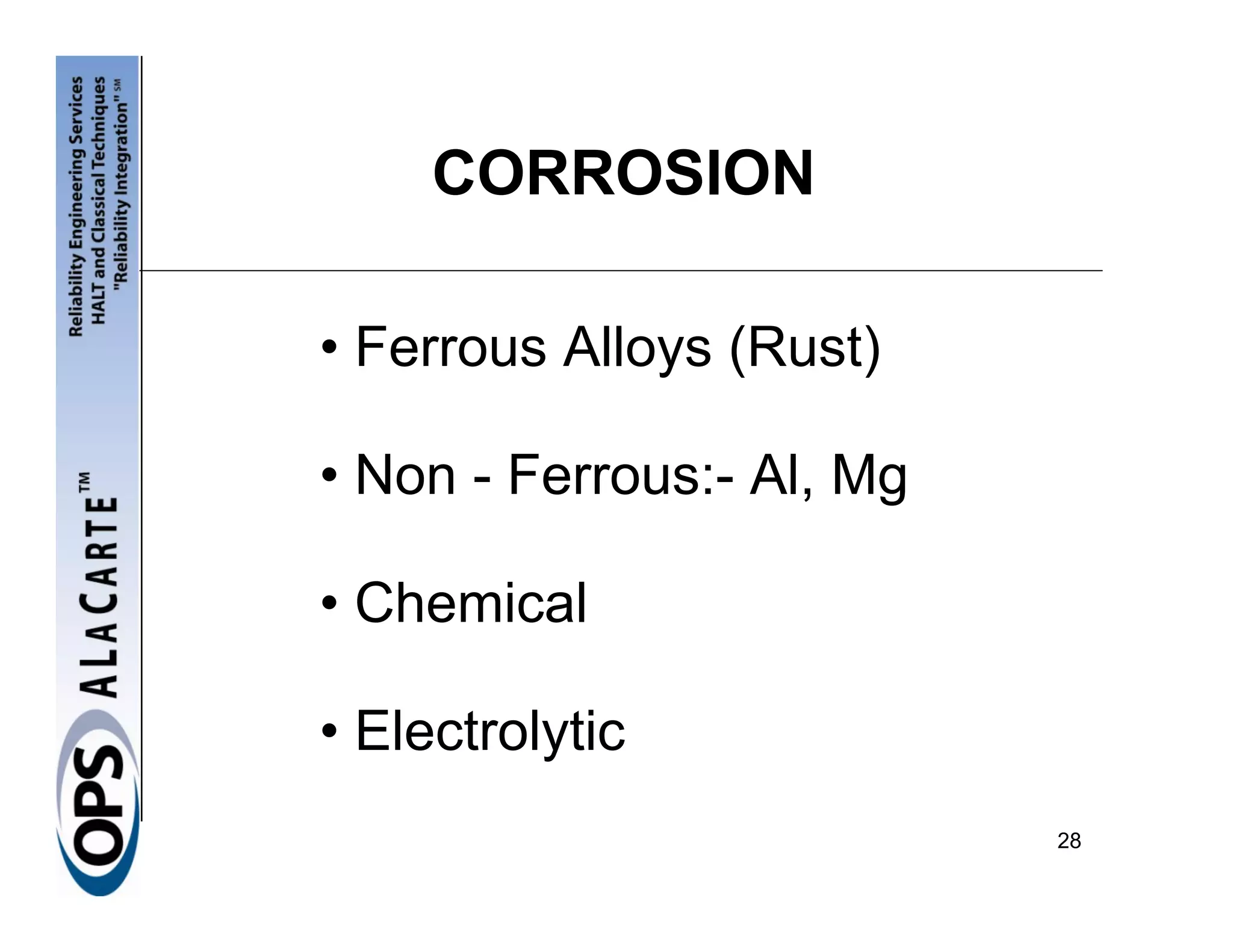

- 28. CORROSION • Ferrous Alloys(Rust) • Non - Ferrous:- Al, Mg • Chemical • Electrolytic 28

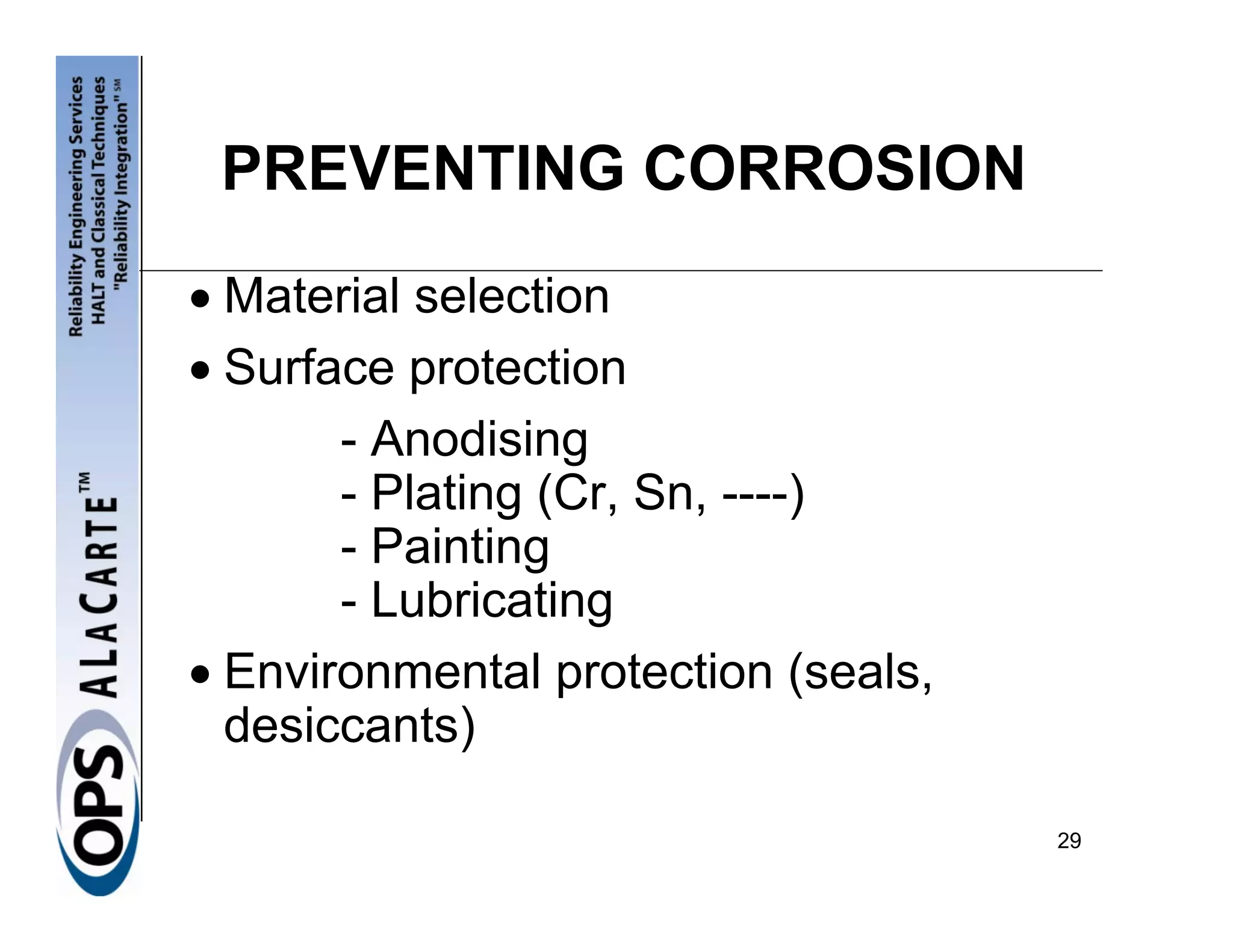

- 29. PREVENTING CORROSION • Materialselection • Surface protection - Anodising - Plating (Cr, Sn, ----) - Painting - Lubricating • Environmental protection (seals, desiccants) 29

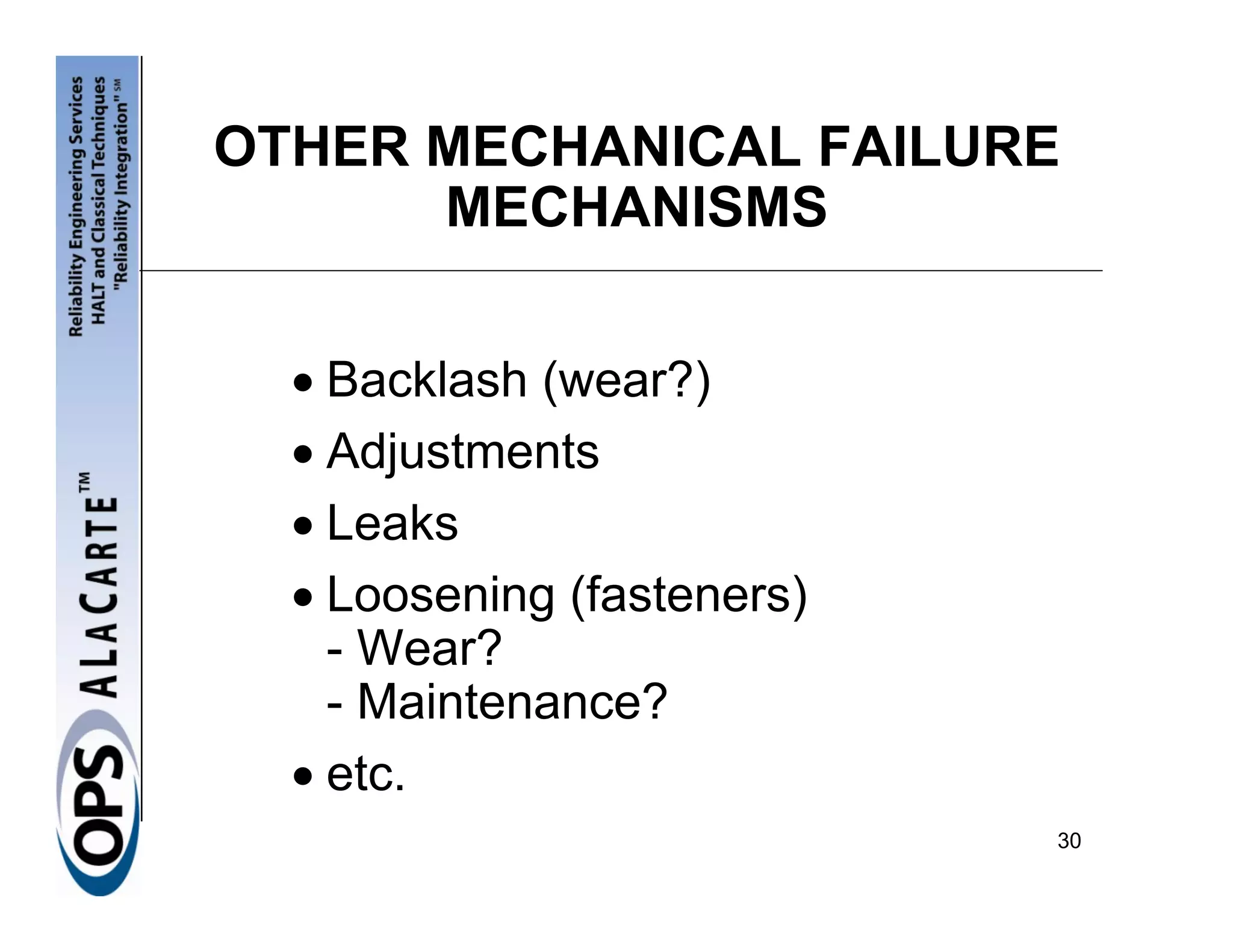

- 30. OTHER MECHANICAL FAILURE MECHANISMS • Backlash (wear?) • Adjustments • Leaks • Loosening (fasteners) - Wear? - Maintenance? • etc. 30

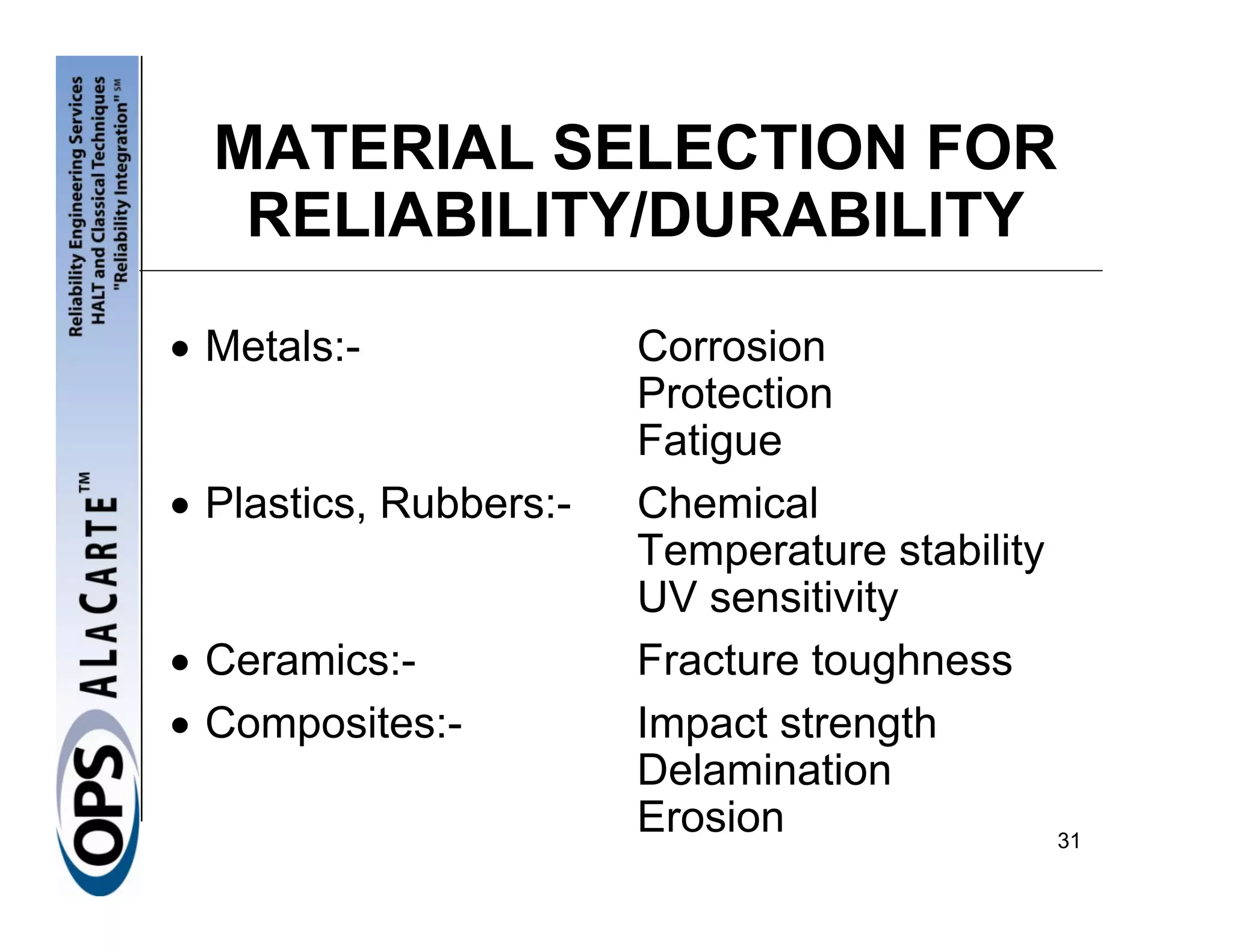

- 31. MATERIAL SELECTION FOR RELIABILITY/DURABILITY • Metals:- Corrosion Protection Fatigue • Plastics, Rubbers:- Chemical Temperature stability UV sensitivity • Ceramics:- Fracture toughness • Composites:- Impact strength Delamination Erosion 31

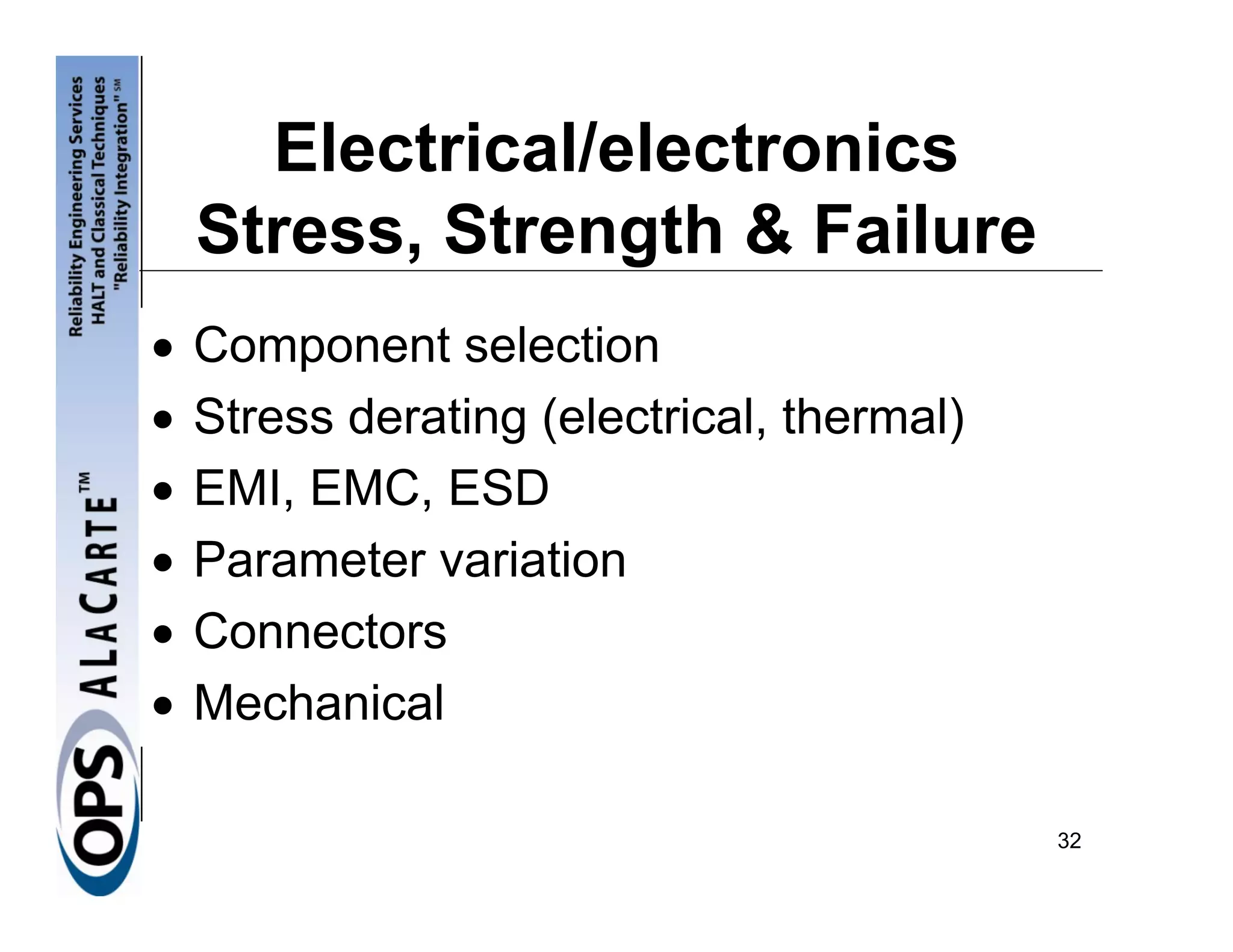

- 32. Electrical/electronics Stress, Strength & Failure • Component selection • Stress derating (electrical, thermal) • EMI, EMC, ESD • Parameter variation • Connectors • Mechanical 32

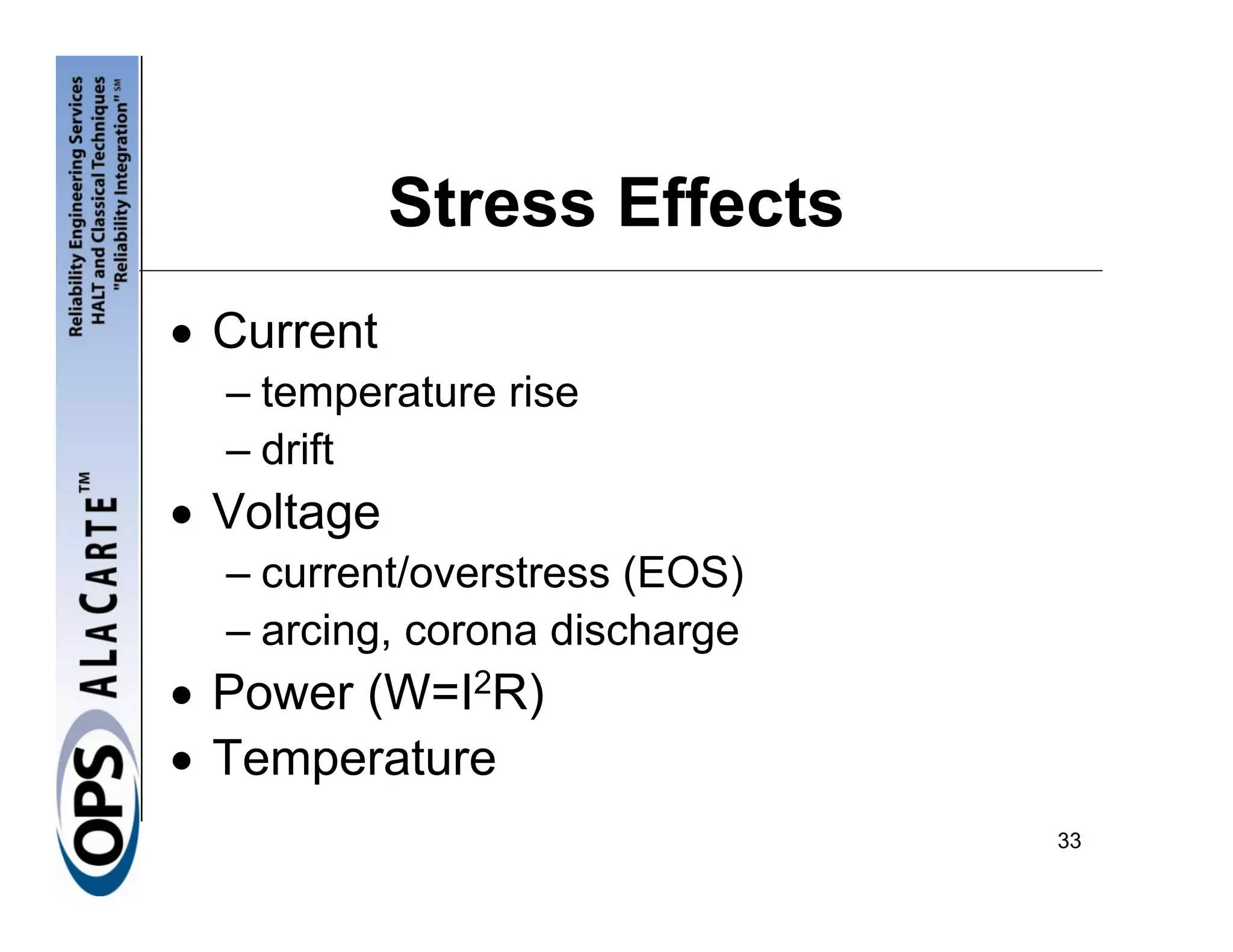

- 33. Stress Effects • Current – temperature rise – drift • Voltage – current/overstress (EOS) – arcing, corona discharge • Power (W=I2R) • Temperature 33

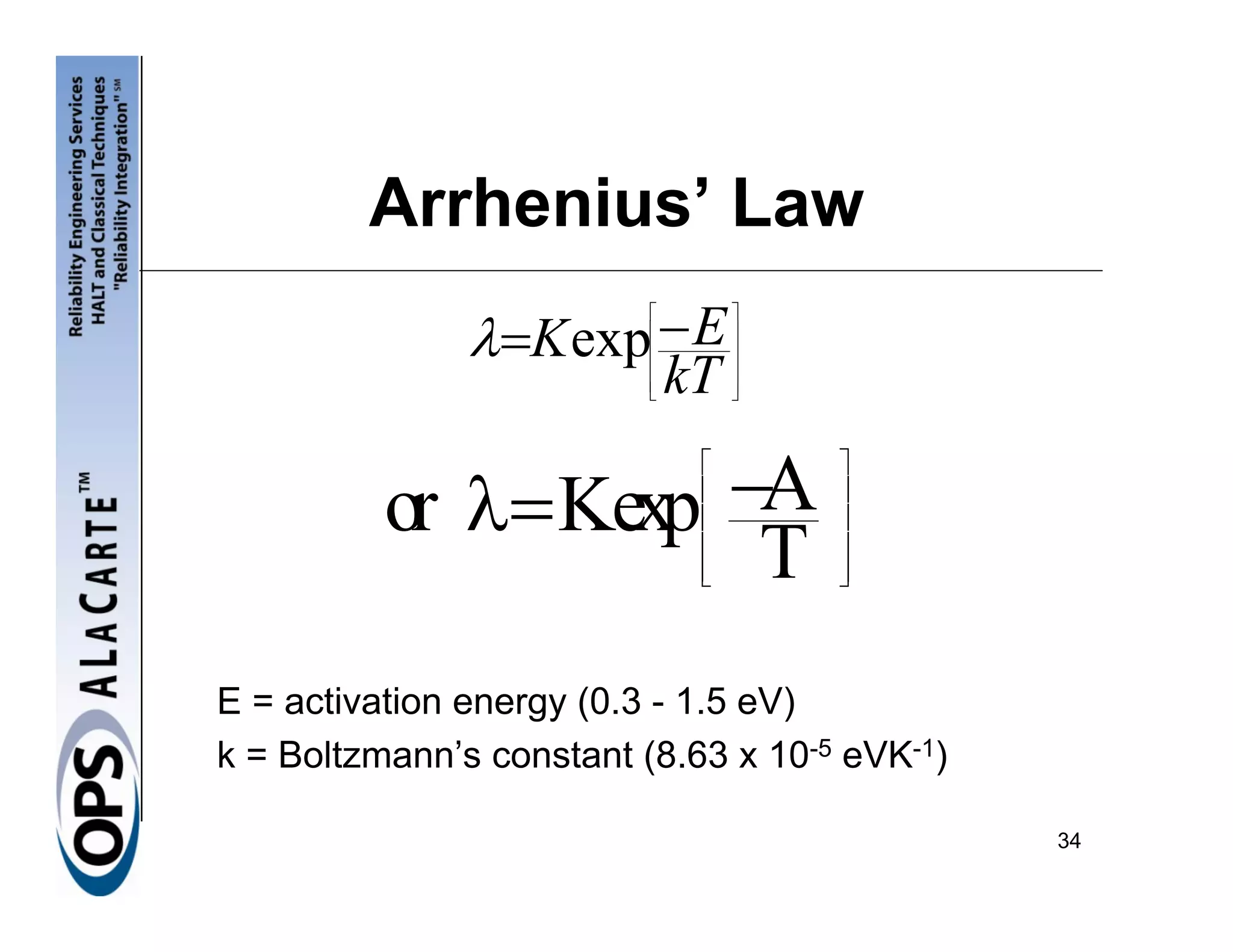

- 34. Arrhenius’ Law λ=Kexp − E ⎡ ⎤ ⎢ ⎥ ⎢ ⎥ ⎢ ⎥ ⎢ ⎣ kT ⎥ ⎦ or λ= Kexp −A ⎡ ⎢ ⎢ ⎤ ⎥ ⎥ T ⎢ ⎢ ⎣ ⎥ ⎥ ⎦ E = activation energy (0.3 - 1.5 eV) k = Boltzmann’s constant (8.63 x 10-5 eVK-1) 34

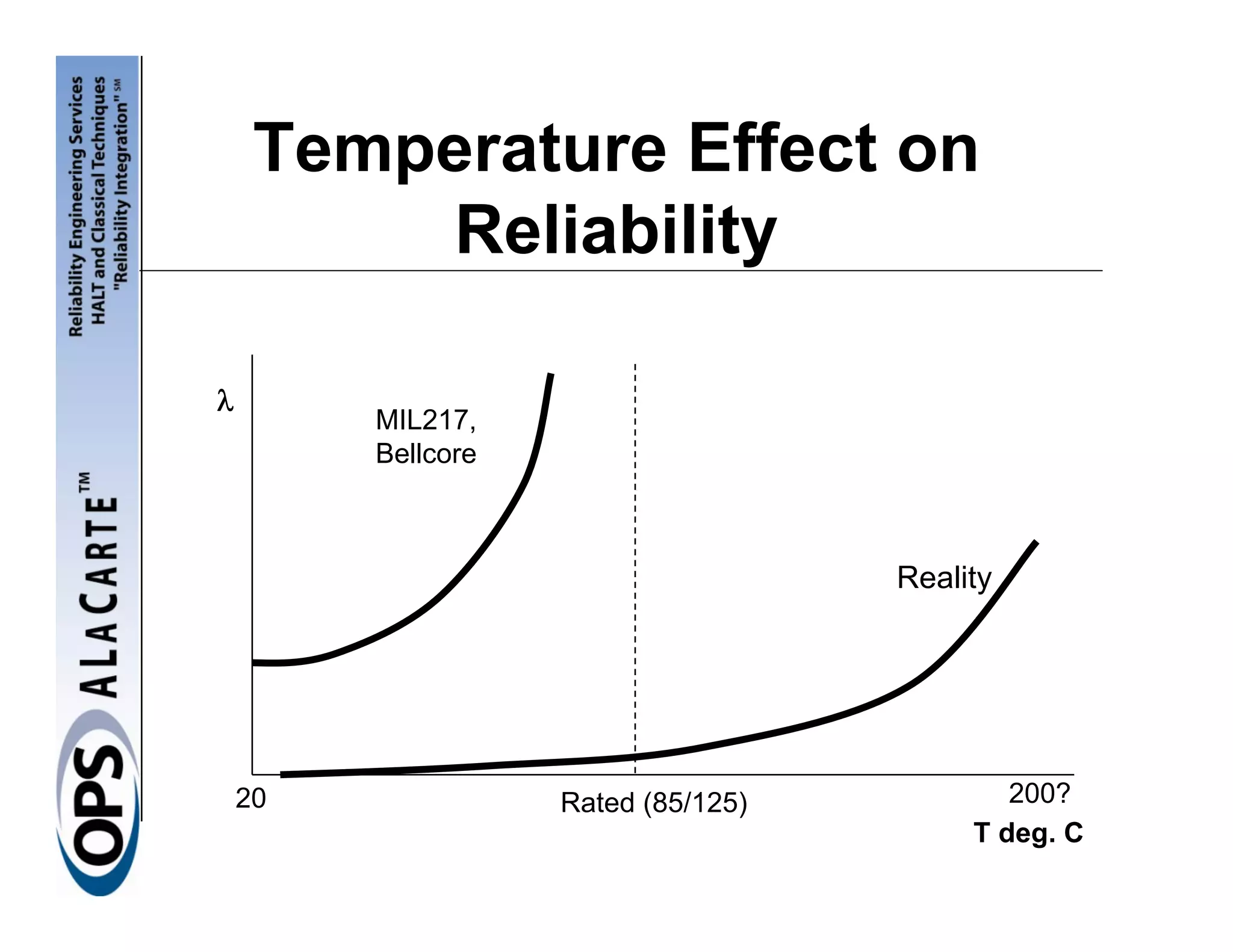

- 35. Temperature Effect on Reliability λ MIL217, Bellcore Reality 20 Rated (85/125) 200? T deg. 35 C

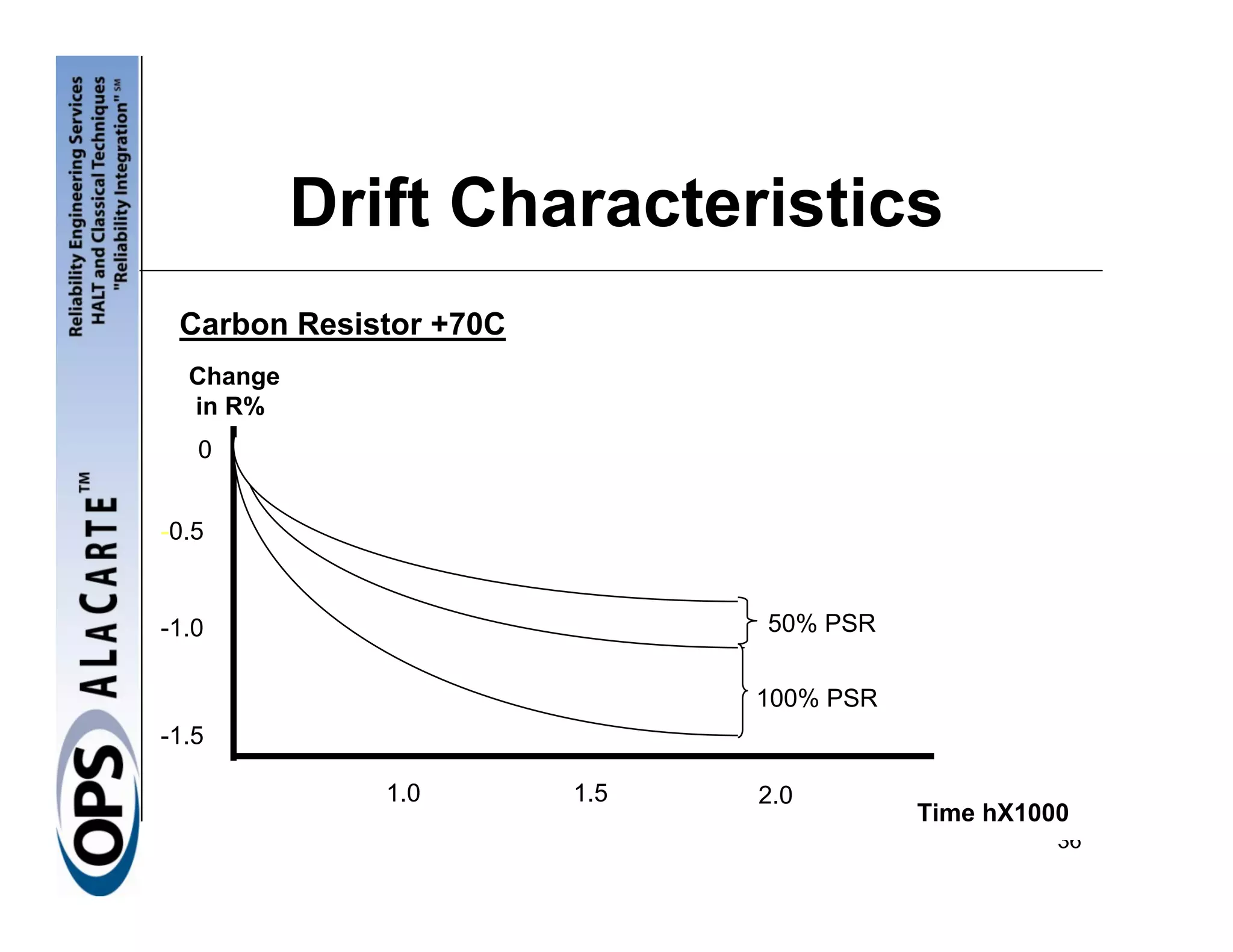

- 36. Drift Characteristics CarbonResistor +70C Change in R% 0 -0.5 -1.0 50% PSR 100% PSR -1.5 1.0 1.5 2.0 Time hX1000 36

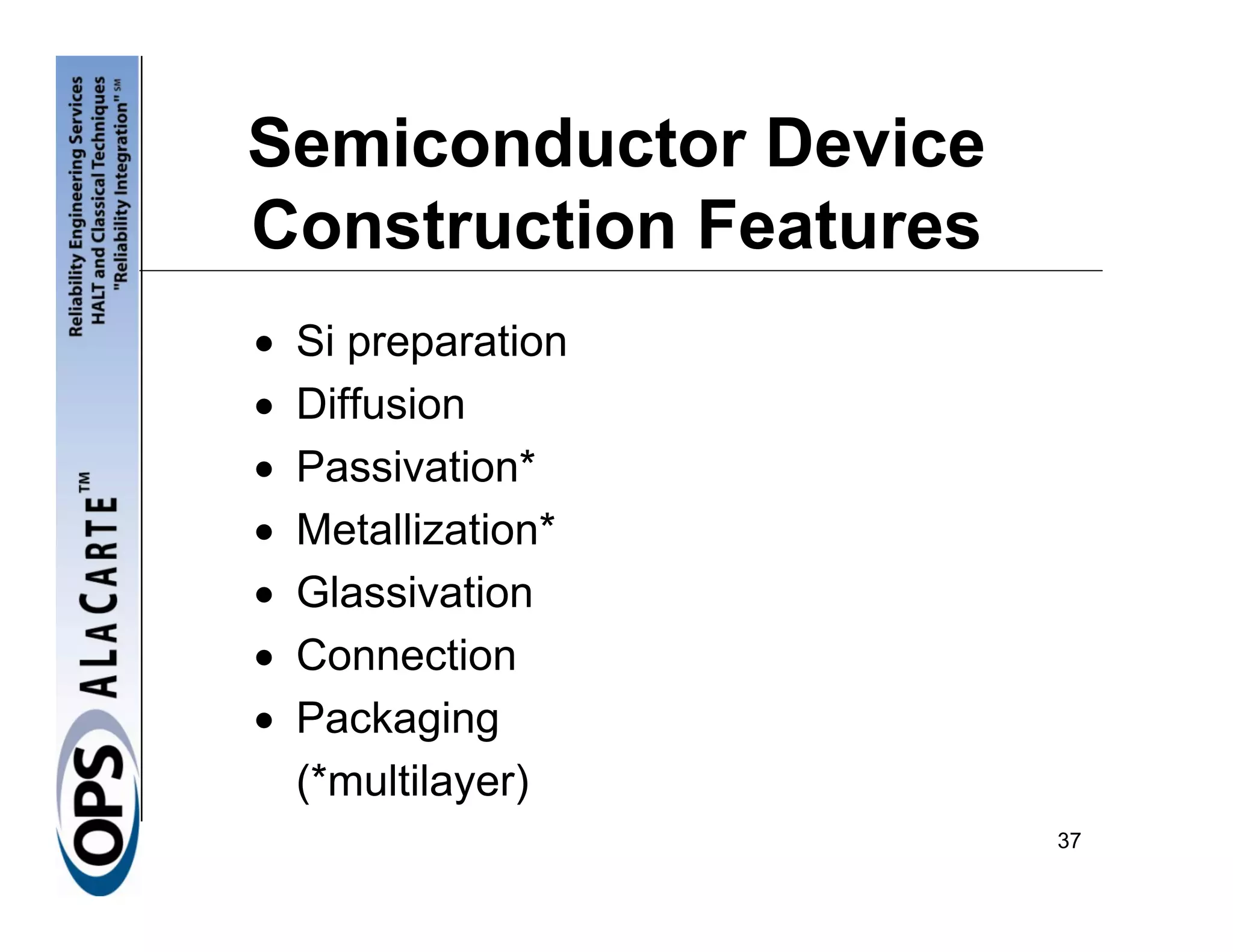

- 37. Semiconductor Device Construction Features • Si preparation • Diffusion • Passivation* • Metallization* • Glassivation • Connection • Packaging (*multilayer) 37

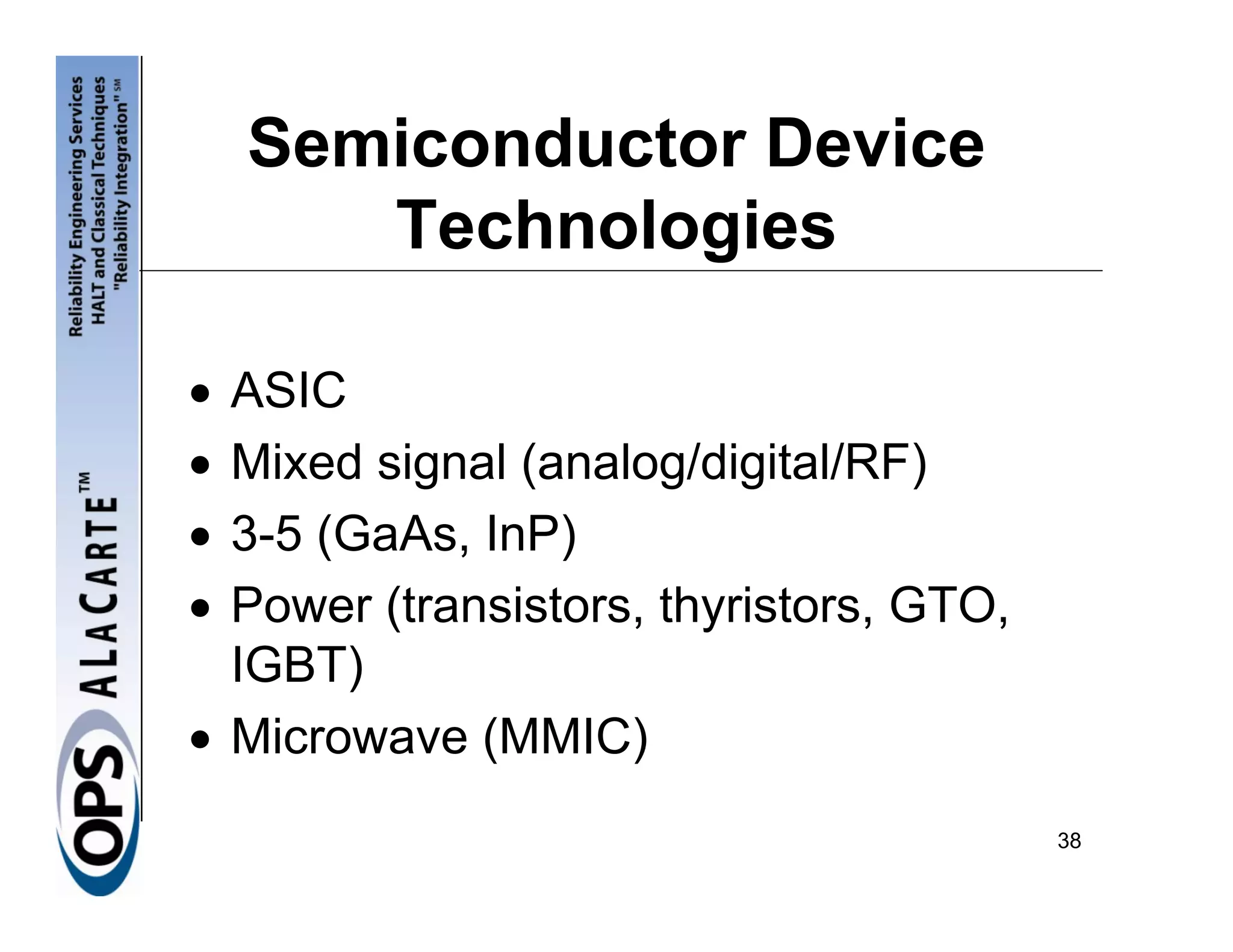

- 38. Semiconductor Device Technologies • ASIC • Mixed signal (analog/digital/RF) • 3-5 (GaAs, InP) • Power (transistors, thyristors, GTO, IGBT) • Microwave (MMIC) 38

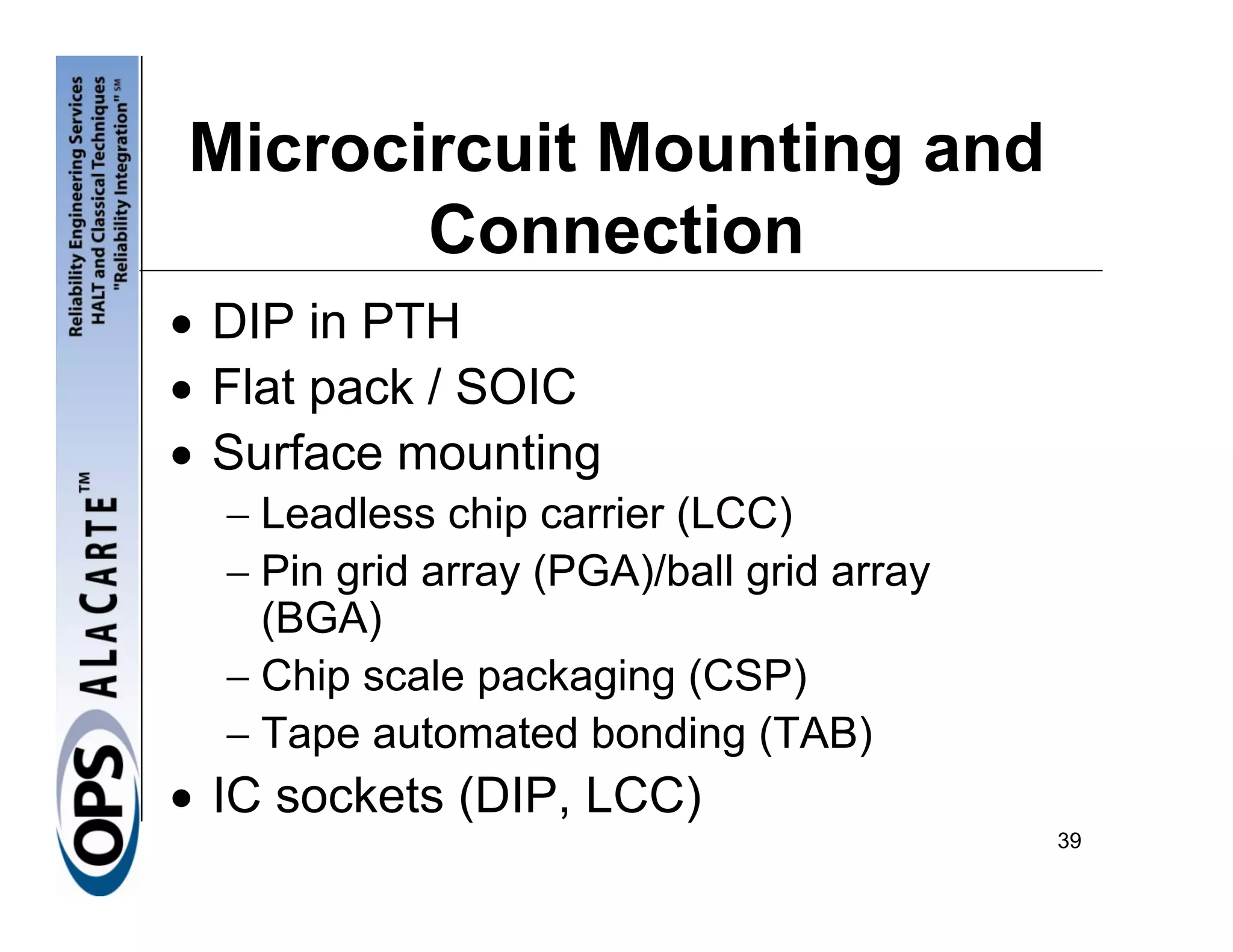

- 39. Microcircuit Mounting and Connection • DIP in PTH • Flat pack / SOIC • Surface mounting − Leadless chip carrier (LCC) − Pin grid array (PGA)/ball grid array (BGA) − Chip scale packaging (CSP) − Tape automated bonding (TAB) • IC sockets (DIP, LCC) 39

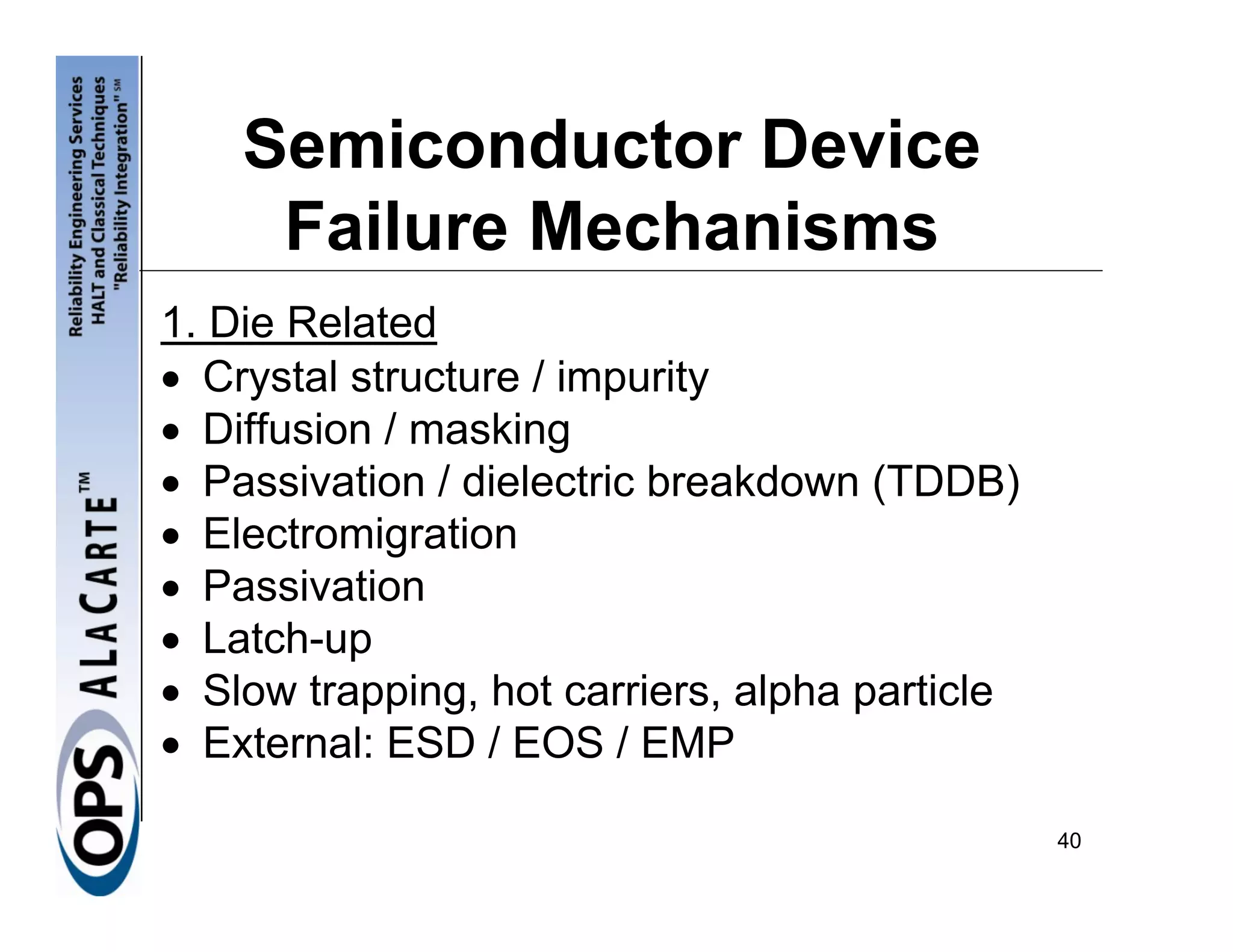

- 40. Semiconductor Device Failure Mechanisms 1. Die Related • Crystal structure / impurity • Diffusion / masking • Passivation / dielectric breakdown (TDDB) • Electromigration • Passivation • Latch-up • Slow trapping, hot carriers, alpha particle • External: ESD / EOS / EMP 40

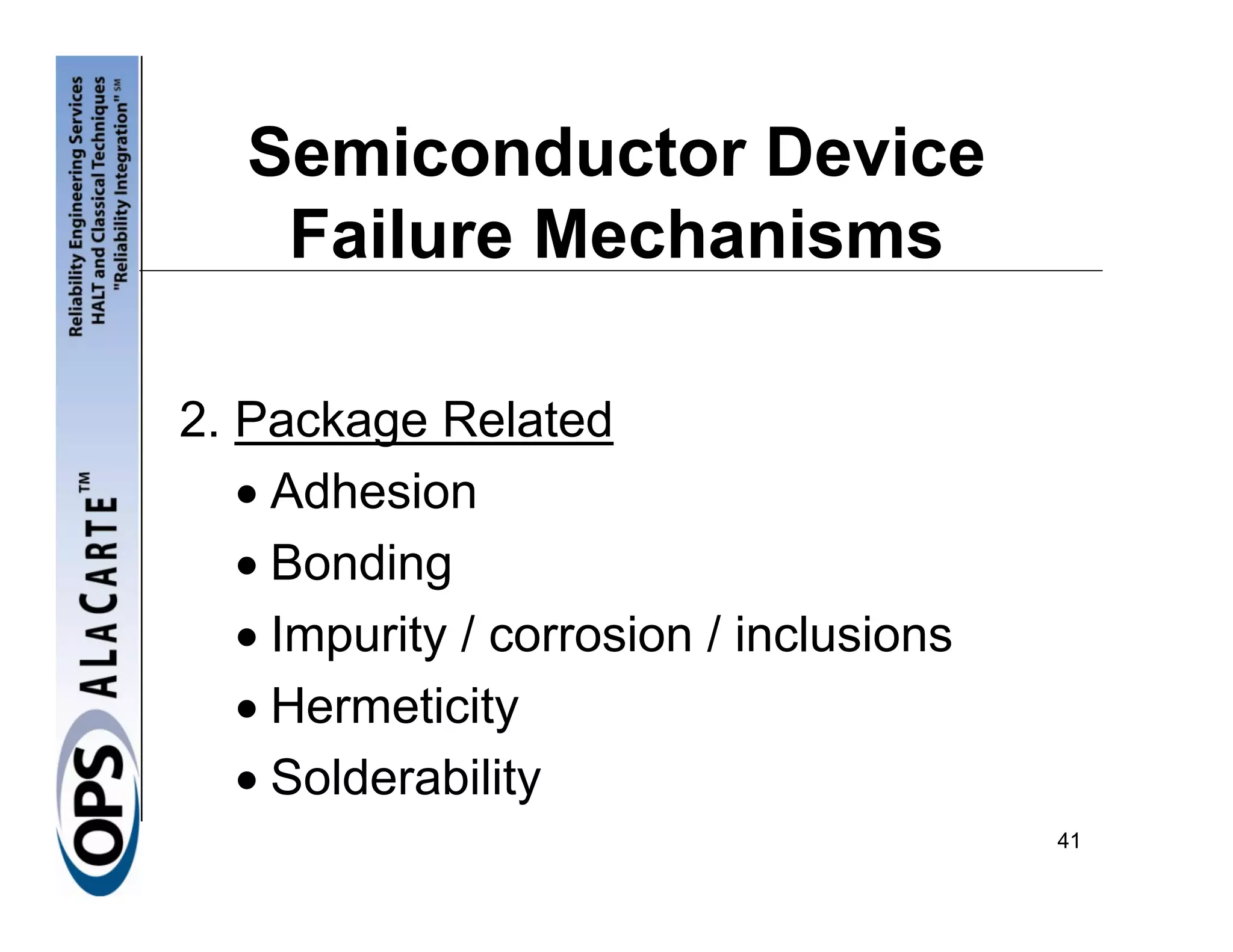

- 41. Semiconductor Device Failure Mechanisms 2. Package Related • Adhesion • Bonding • Impurity / corrosion / inclusions • Hermeticity • Solderability 41

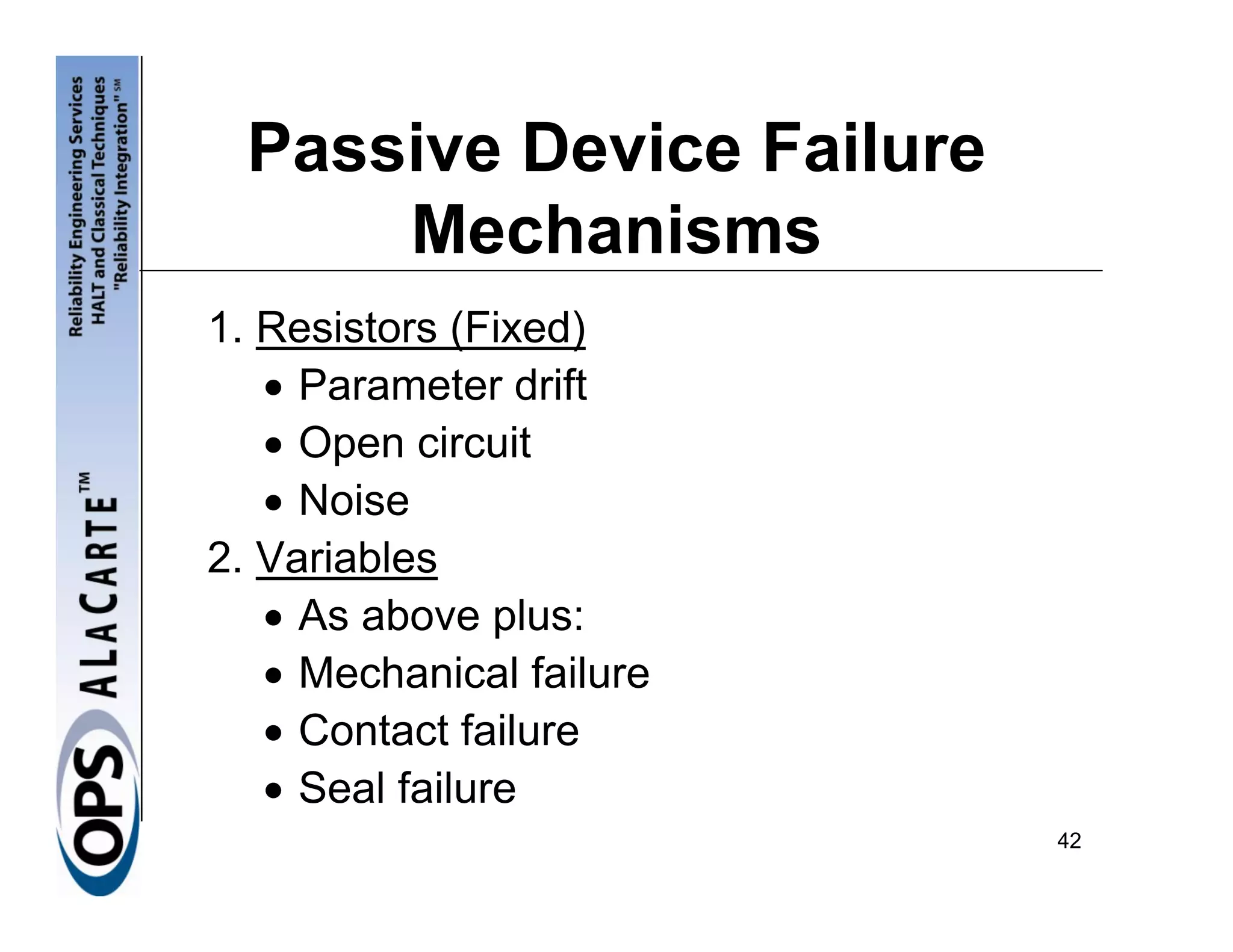

- 42. Passive Device Failure Mechanisms 1. Resistors (Fixed) • Parameter drift • Open circuit • Noise 2. Variables • As above plus: • Mechanical failure • Contact failure • Seal failure 42

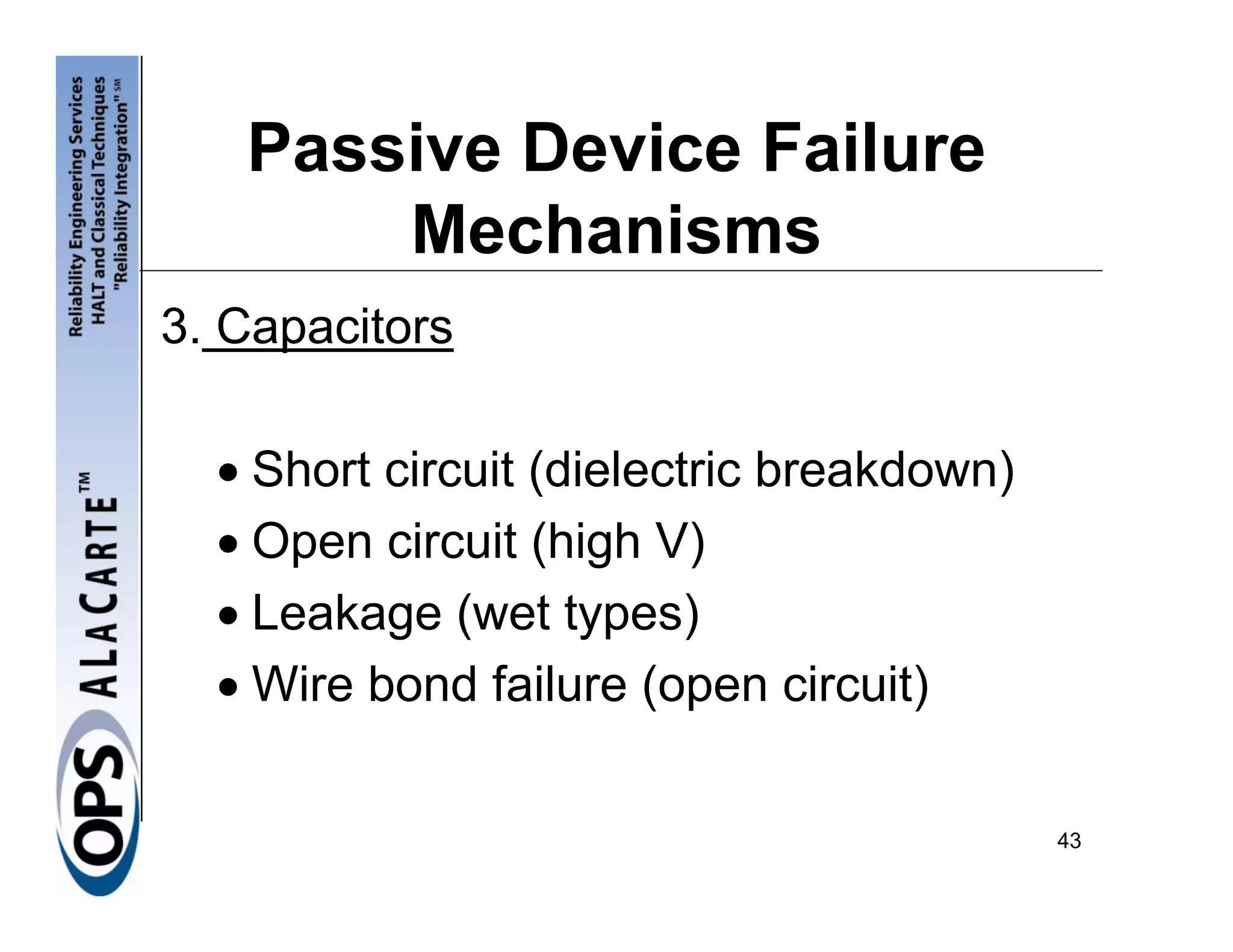

- 43. Passive Device Failure Mechanisms 3. Capacitors • Short circuit (dielectric breakdown) • Open circuit (high V) • Leakage (wet types) • Wire bond failure (open circuit) 43

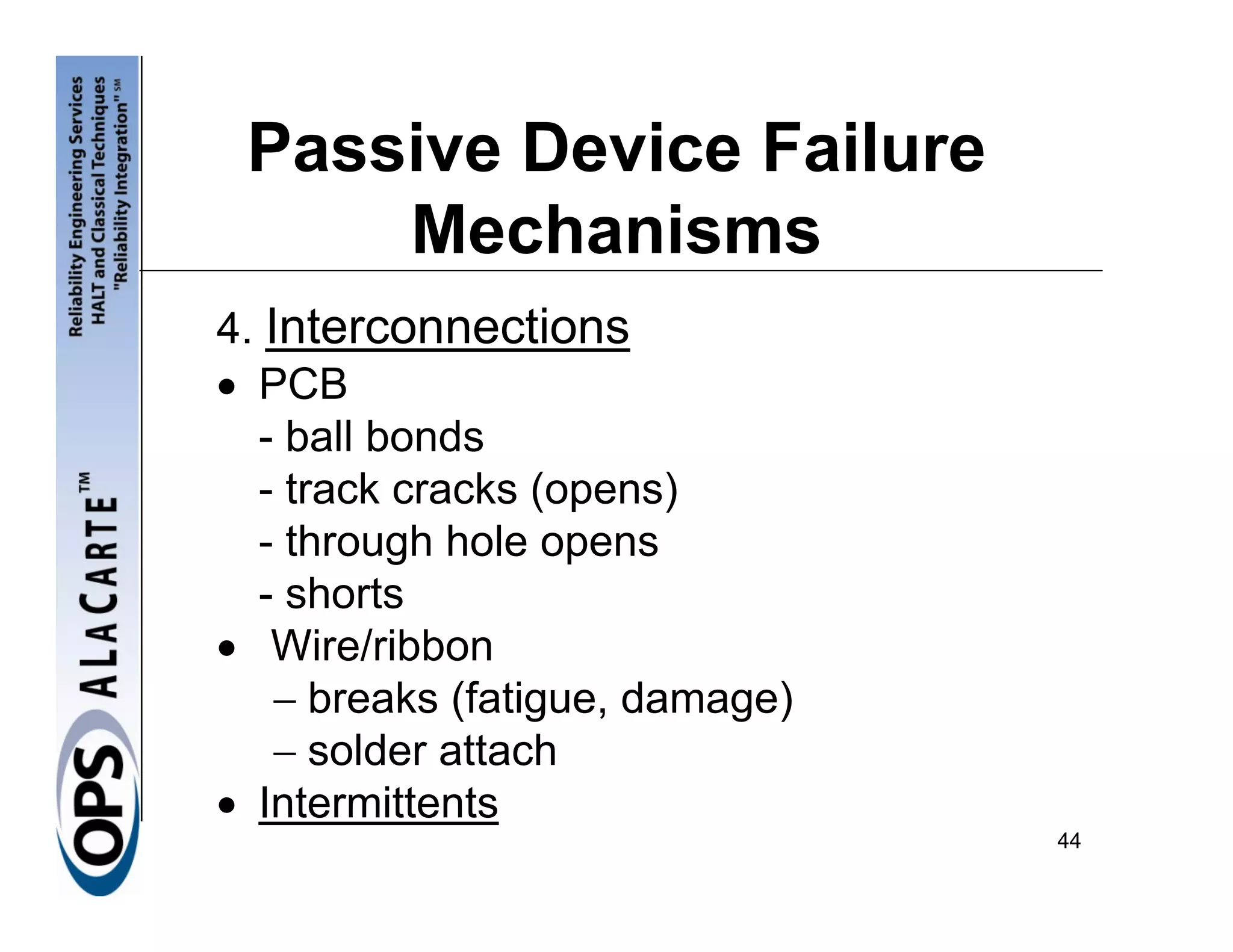

- 44. Passive Device Failure Mechanisms 4. Interconnections • PCB - ball bonds - track cracks (opens) - through hole opens - shorts • Wire/ribbon − breaks (fatigue, damage) − solder attach • Intermittents 44

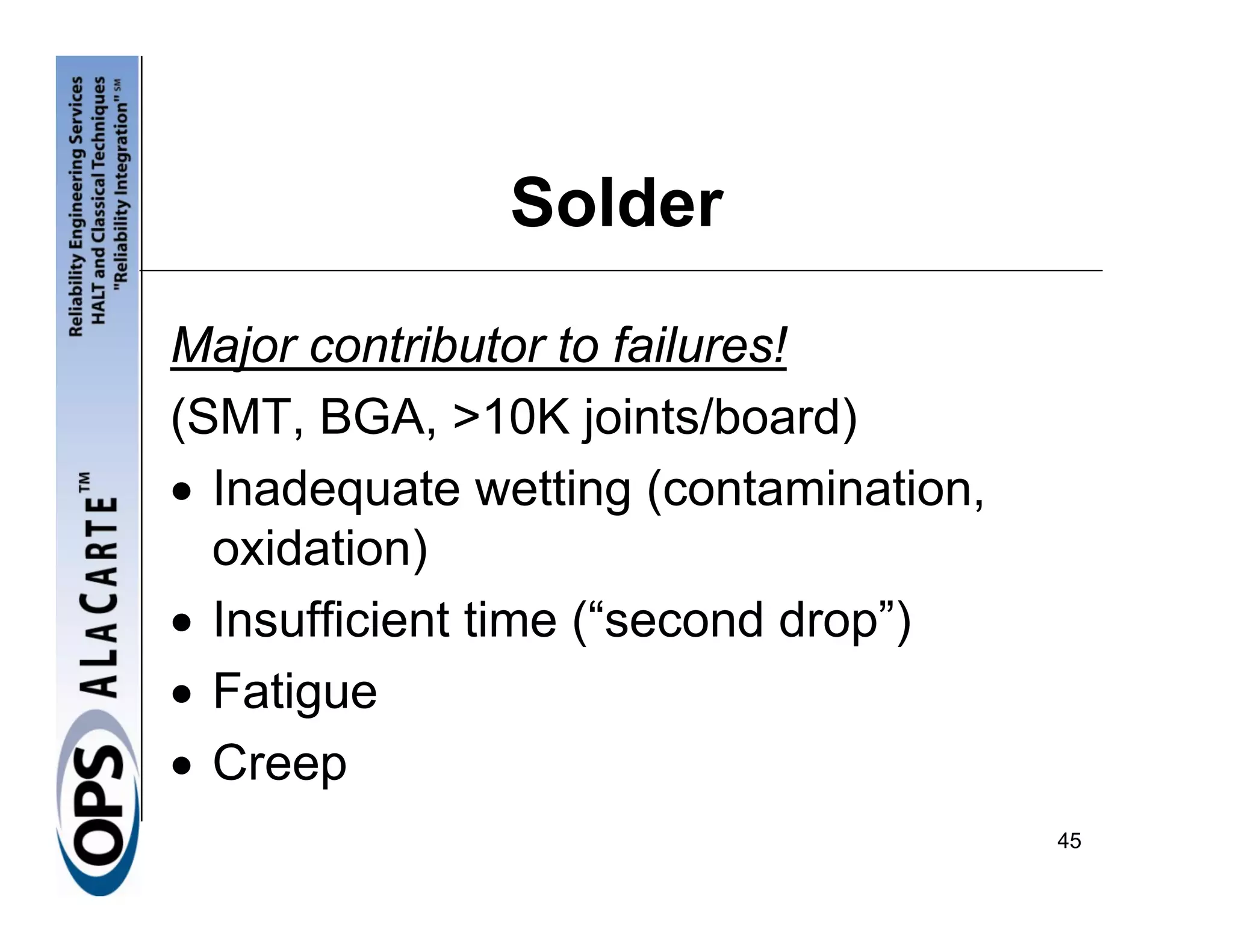

- 45. Solder Major contributor tofailures! (SMT, BGA, >10K joints/board) • Inadequate wetting (contamination, oxidation) • Insufficient time (“second drop”) • Fatigue • Creep 45

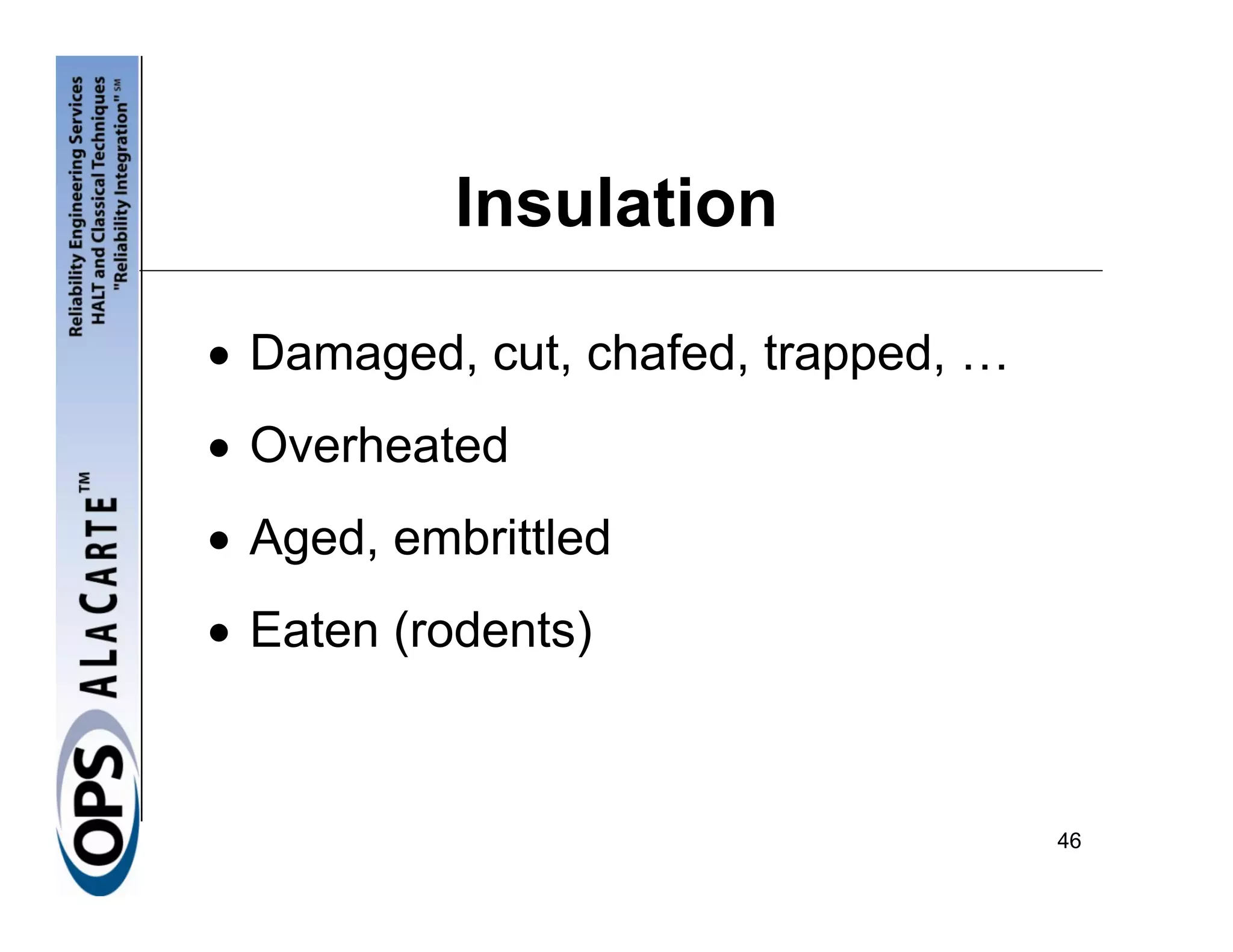

- 46. Insulation • Damaged, cut,chafed, trapped, … • Overheated • Aged, embrittled • Eaten (rodents) 46

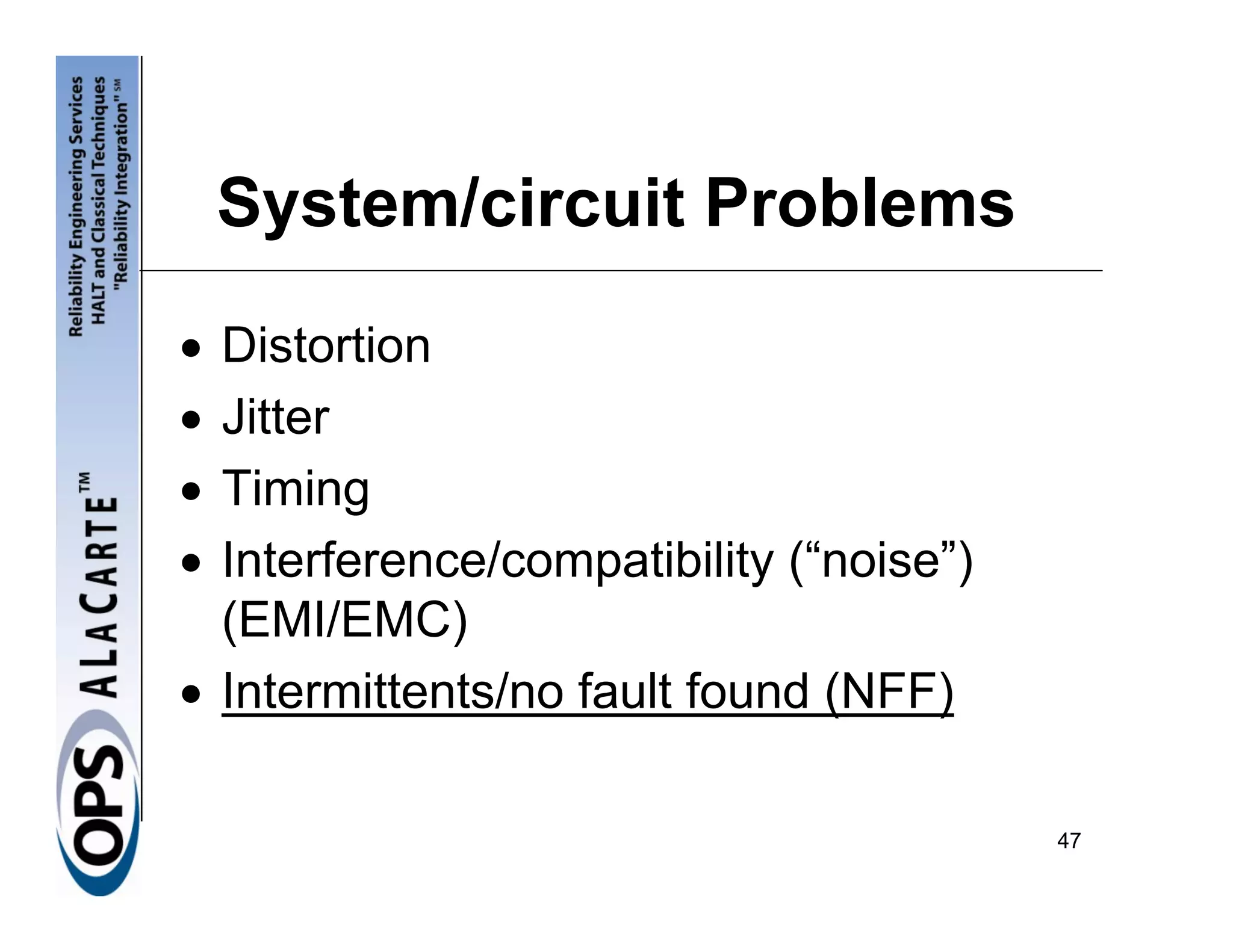

- 47. System/circuit Problems • Distortion •Jitter • Timing • Interference/compatibility (“noise”) (EMI/EMC) • Intermittents/no fault found (NFF) 47

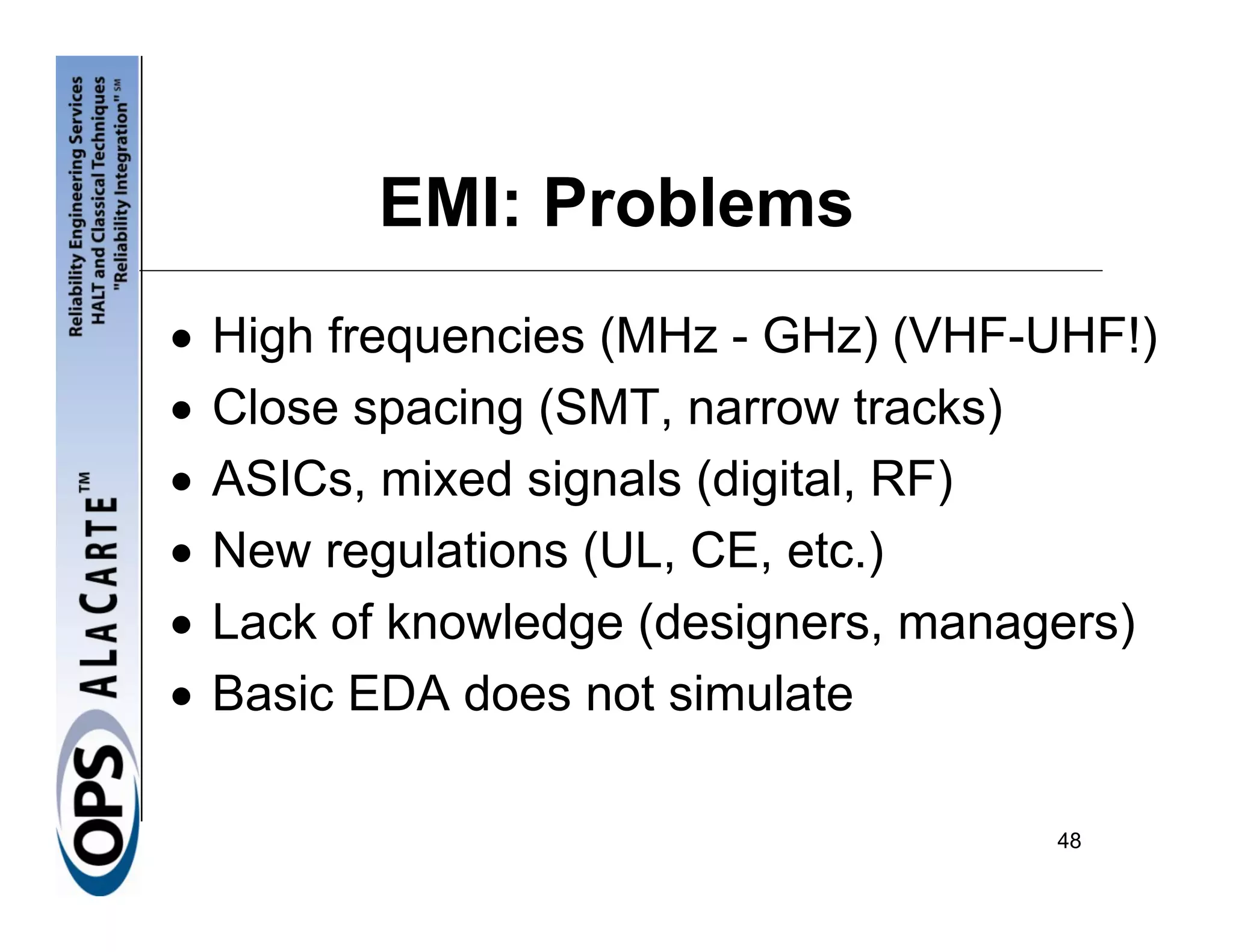

- 48. EMI: Problems • High frequencies (MHz - GHz) (VHF-UHF!) • Close spacing (SMT, narrow tracks) • ASICs, mixed signals (digital, RF) • New regulations (UL, CE, etc.) • Lack of knowledge (designers, managers) • Basic EDA does not simulate 48

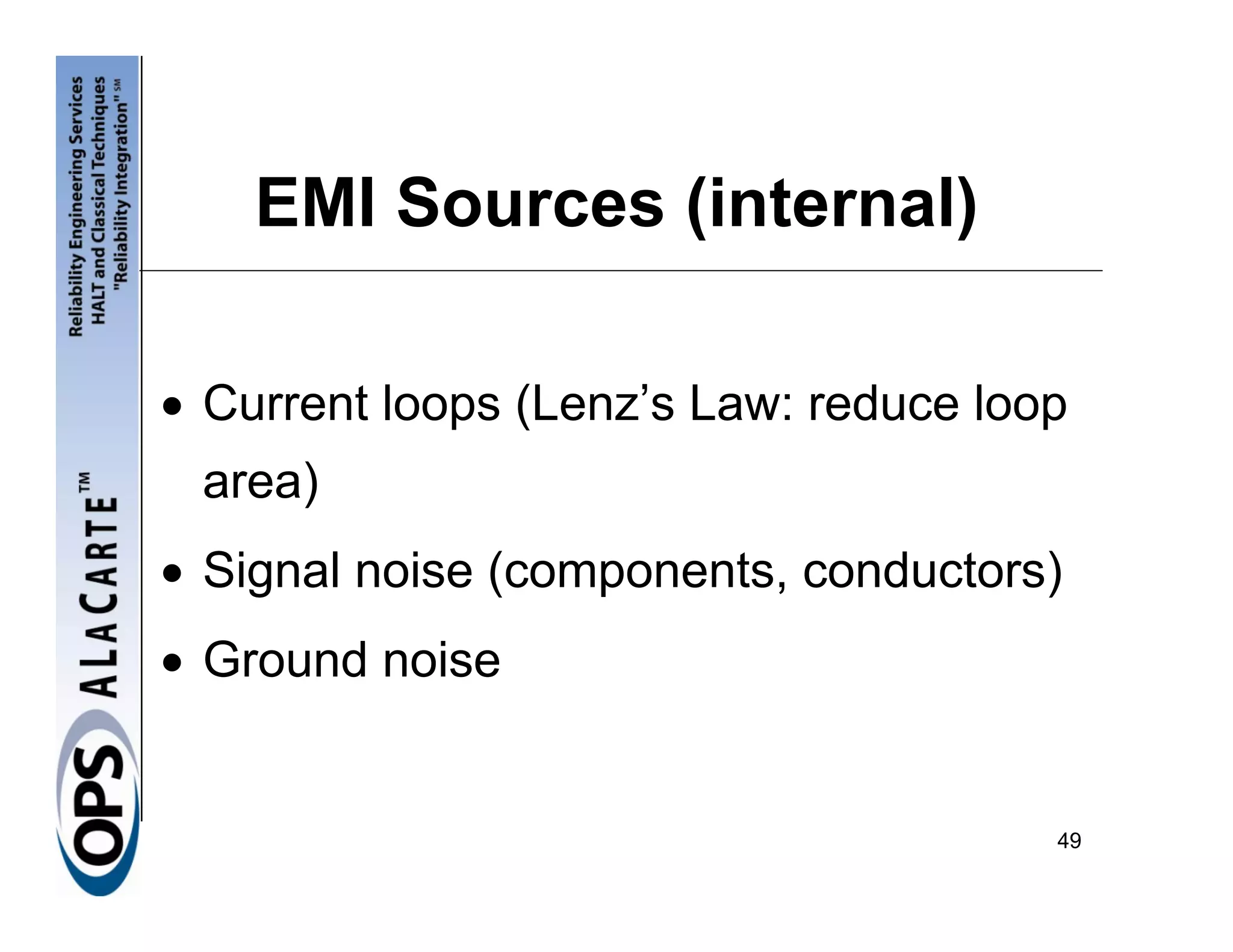

- 49. EMI Sources (internal) •Current loops (Lenz’s Law: reduce loop area) • Signal noise (components, conductors) • Ground noise 49

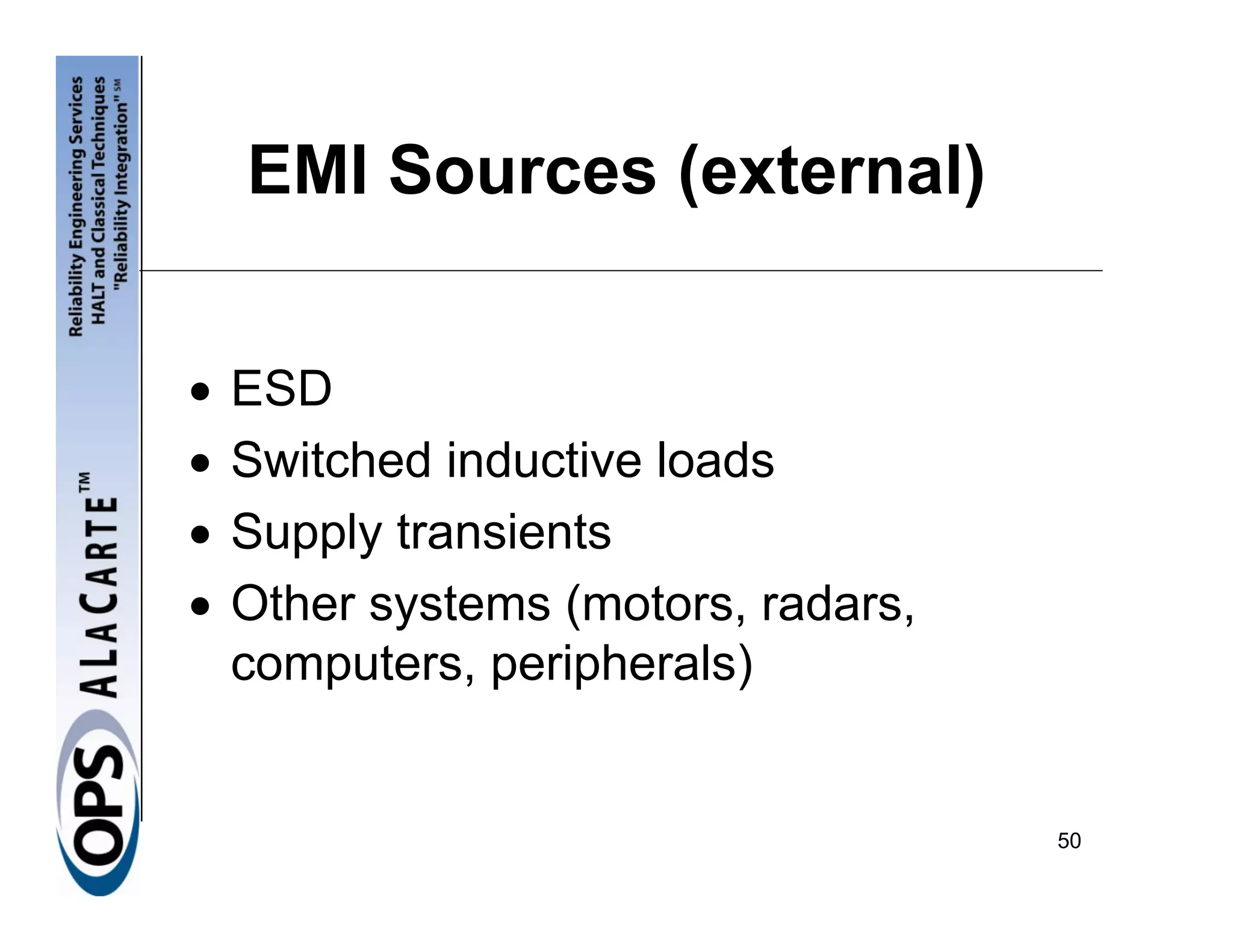

- 50. EMI Sources (external) • ESD • Switched inductive loads • Supply transients • Other systems (motors, radars, computers, peripherals) 50

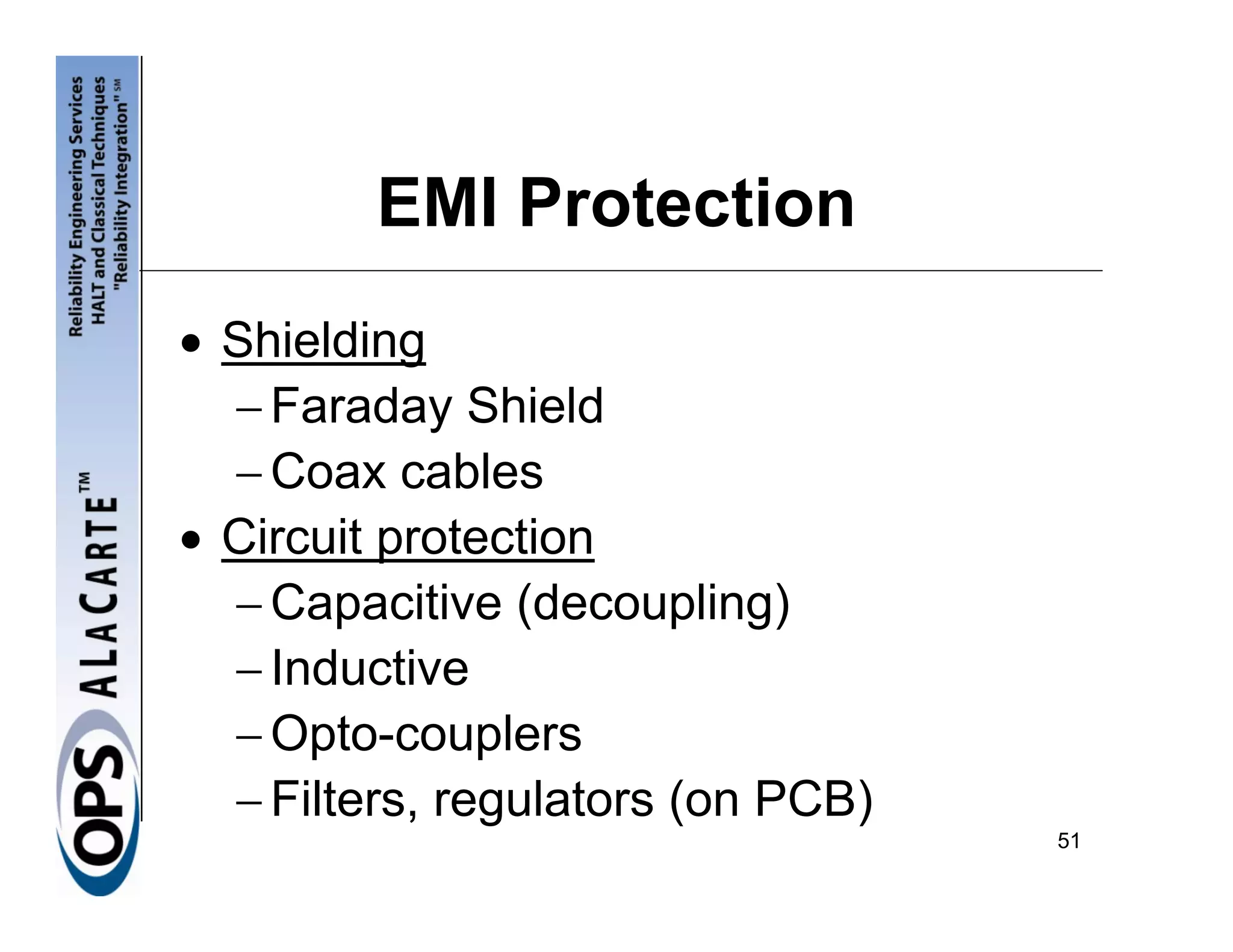

- 51. EMI Protection • Shielding − Faraday Shield − Coax cables • Circuit protection − Capacitive (decoupling) − Inductive − Opto-couplers − Filters, regulators (on PCB) 51

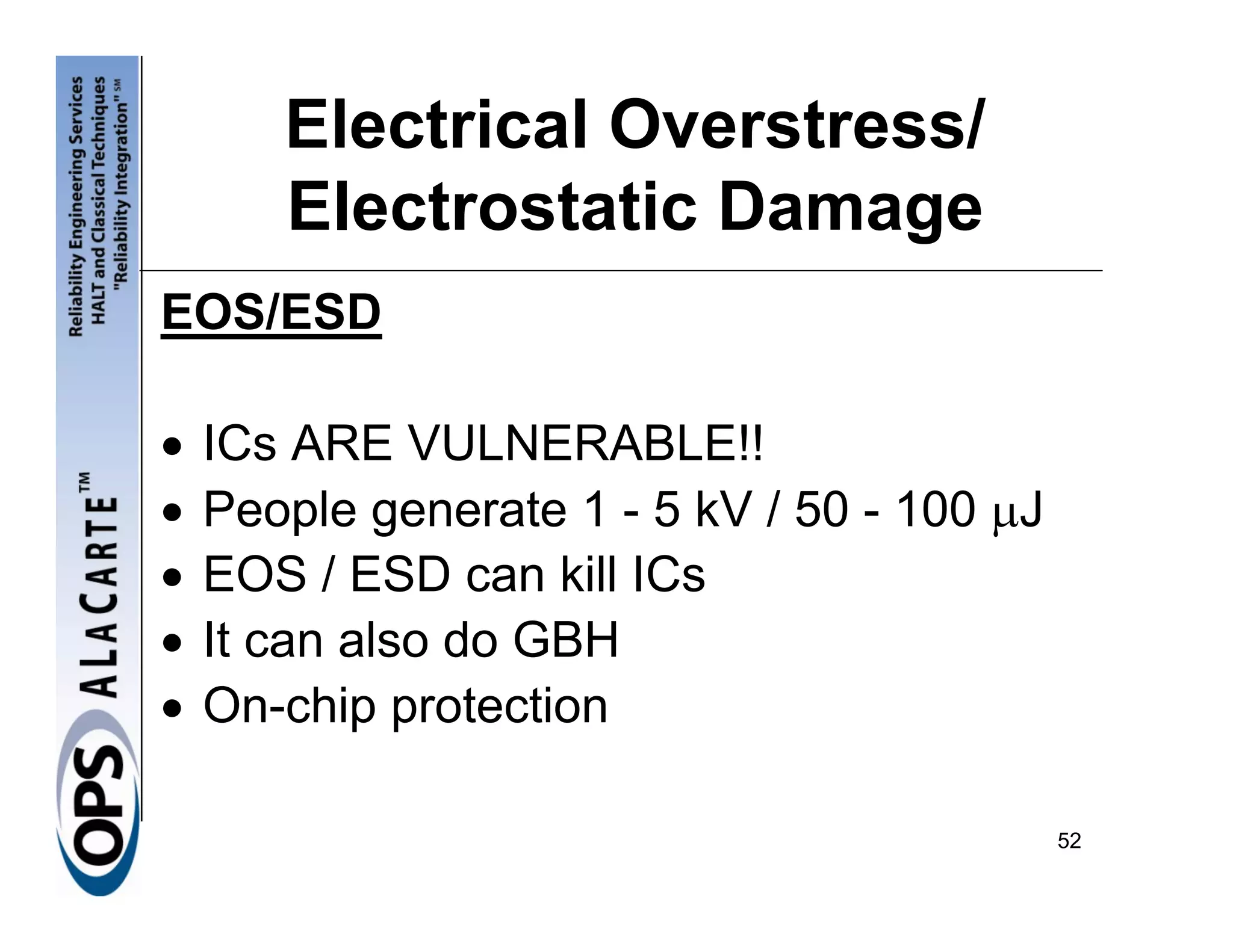

- 52. Electrical Overstress/ Electrostatic Damage EOS/ESD • ICs ARE VULNERABLE!! • People generate 1 - 5 kV / 50 - 100 μJ • EOS / ESD can kill ICs • It can also do GBH • On-chip protection 52

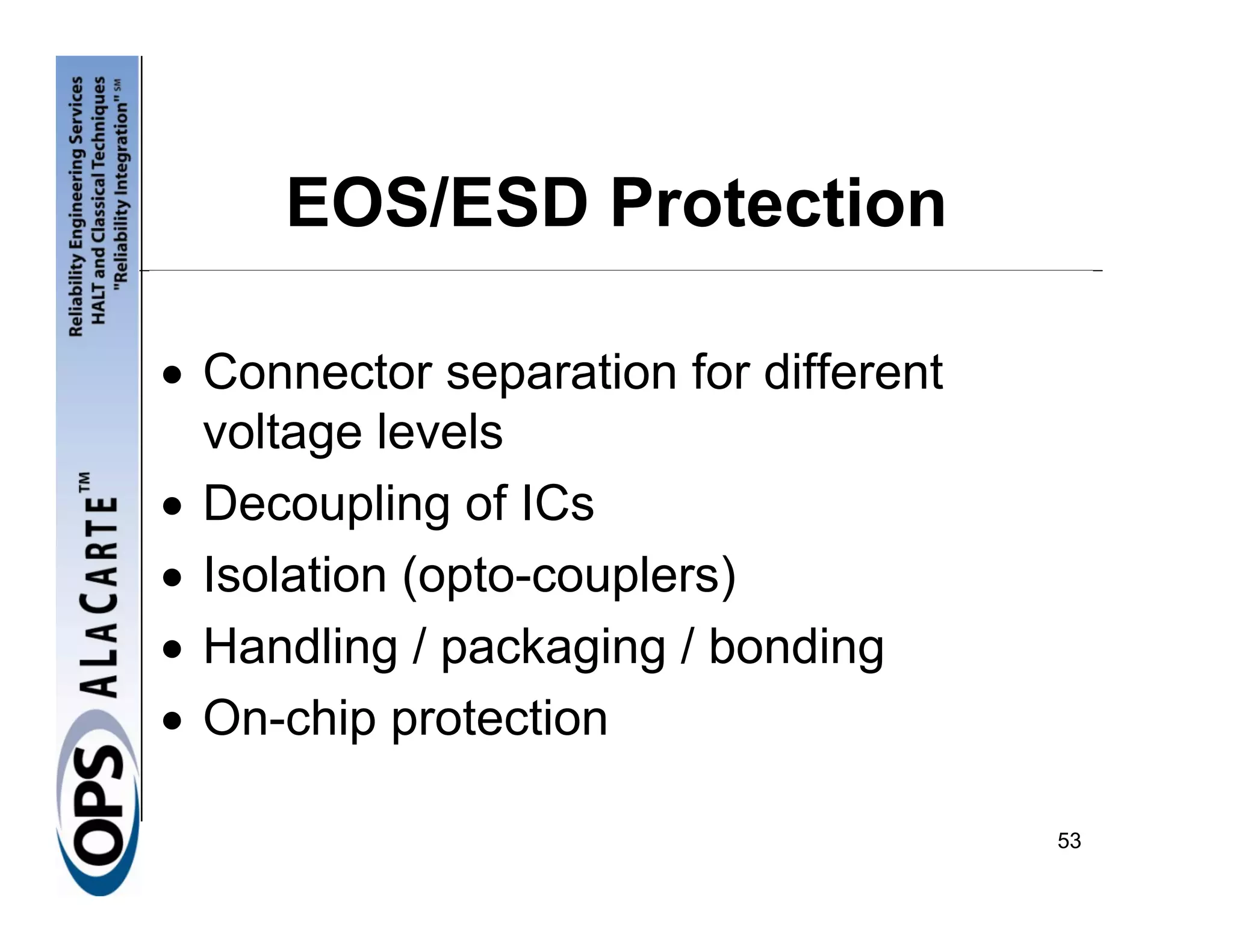

- 53. EOS/ESD Protection • Connectorseparation for different voltage levels • Decoupling of ICs • Isolation (opto-couplers) • Handling / packaging / bonding • On-chip protection 53

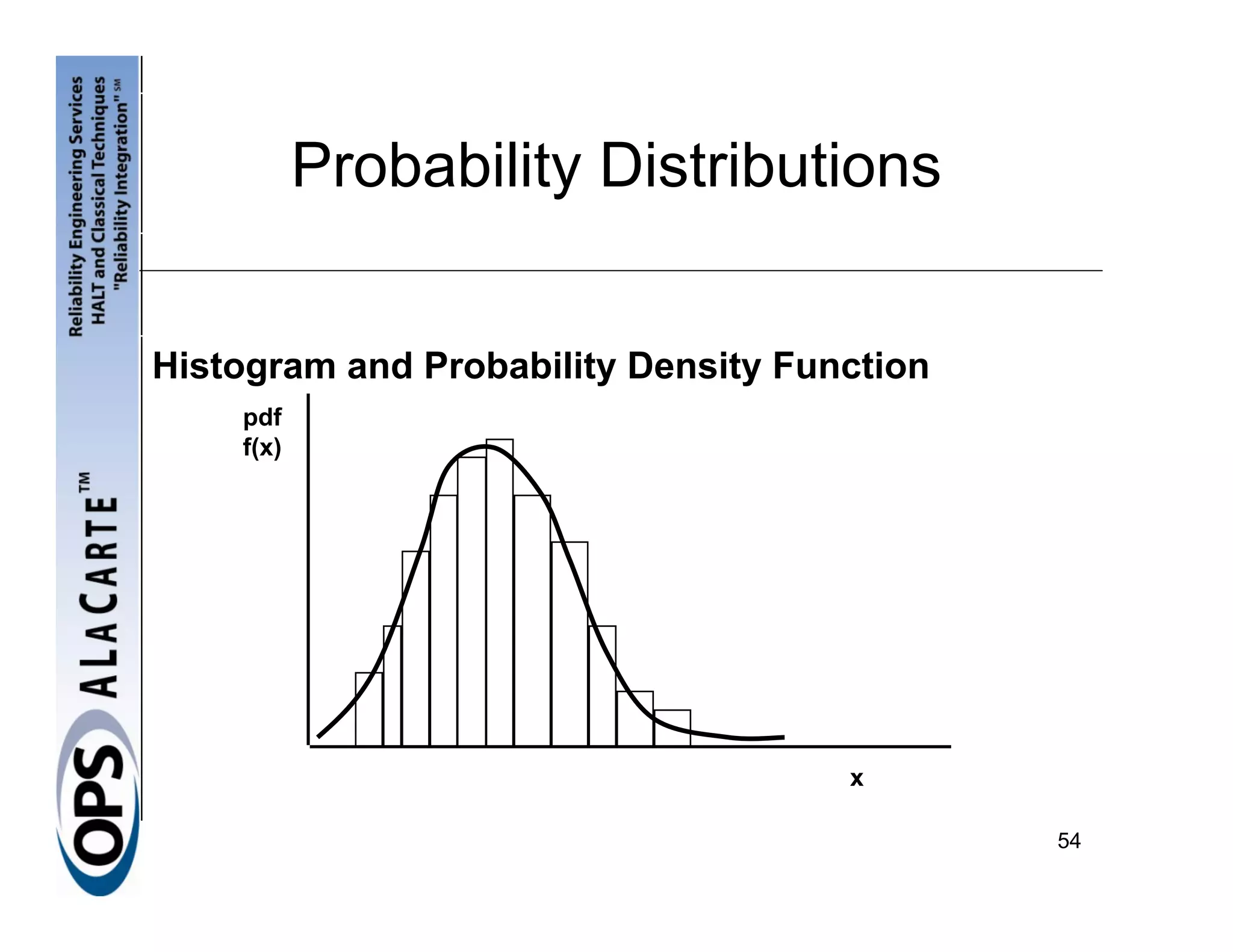

- 54. Probability Distributions Histogram andProbability Density Function pdf f(x) x 54

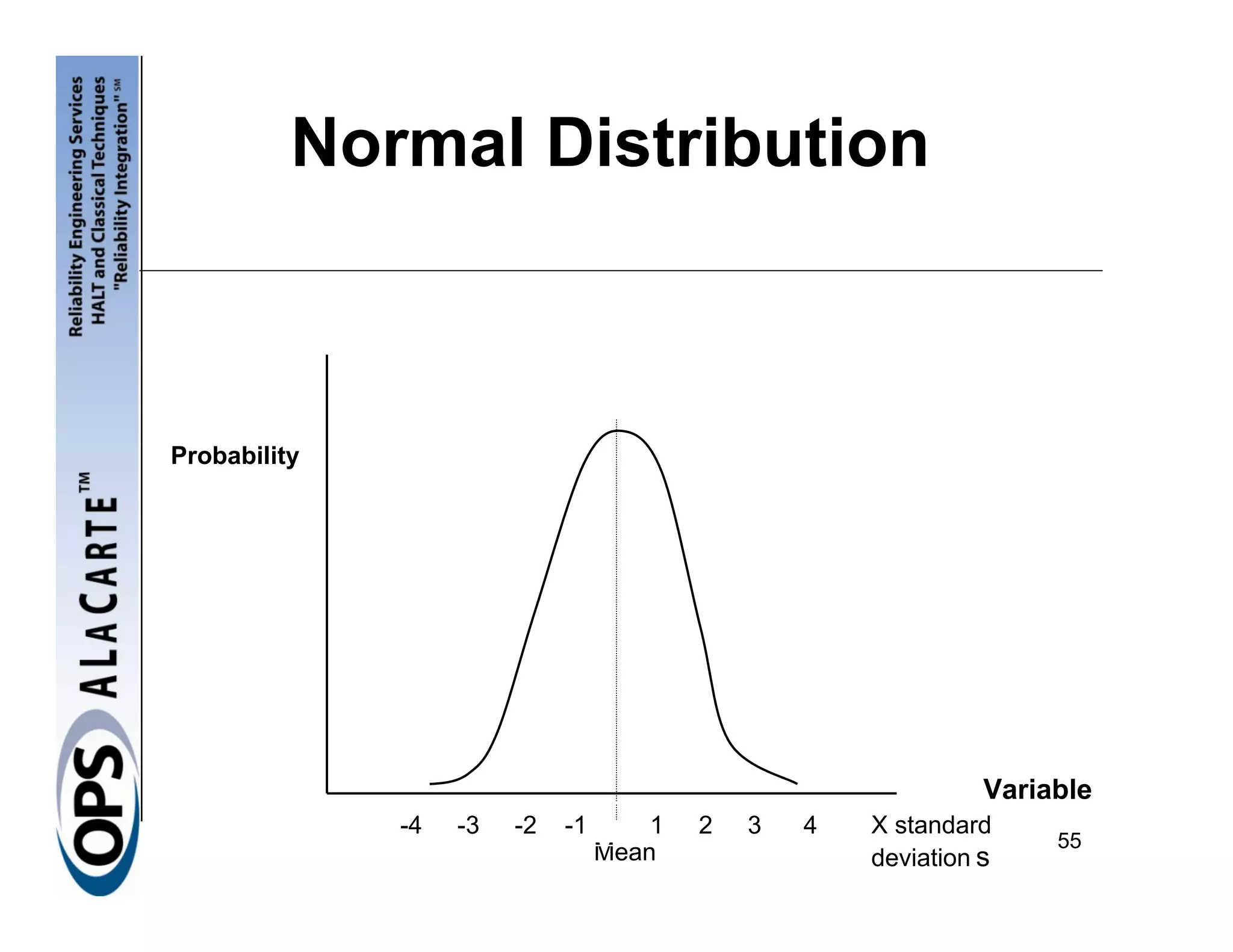

- 55. Normal Distribution Probability Variable -4 -3 -2 -1 1 2 3 4 X standard 55 Mean deviation s

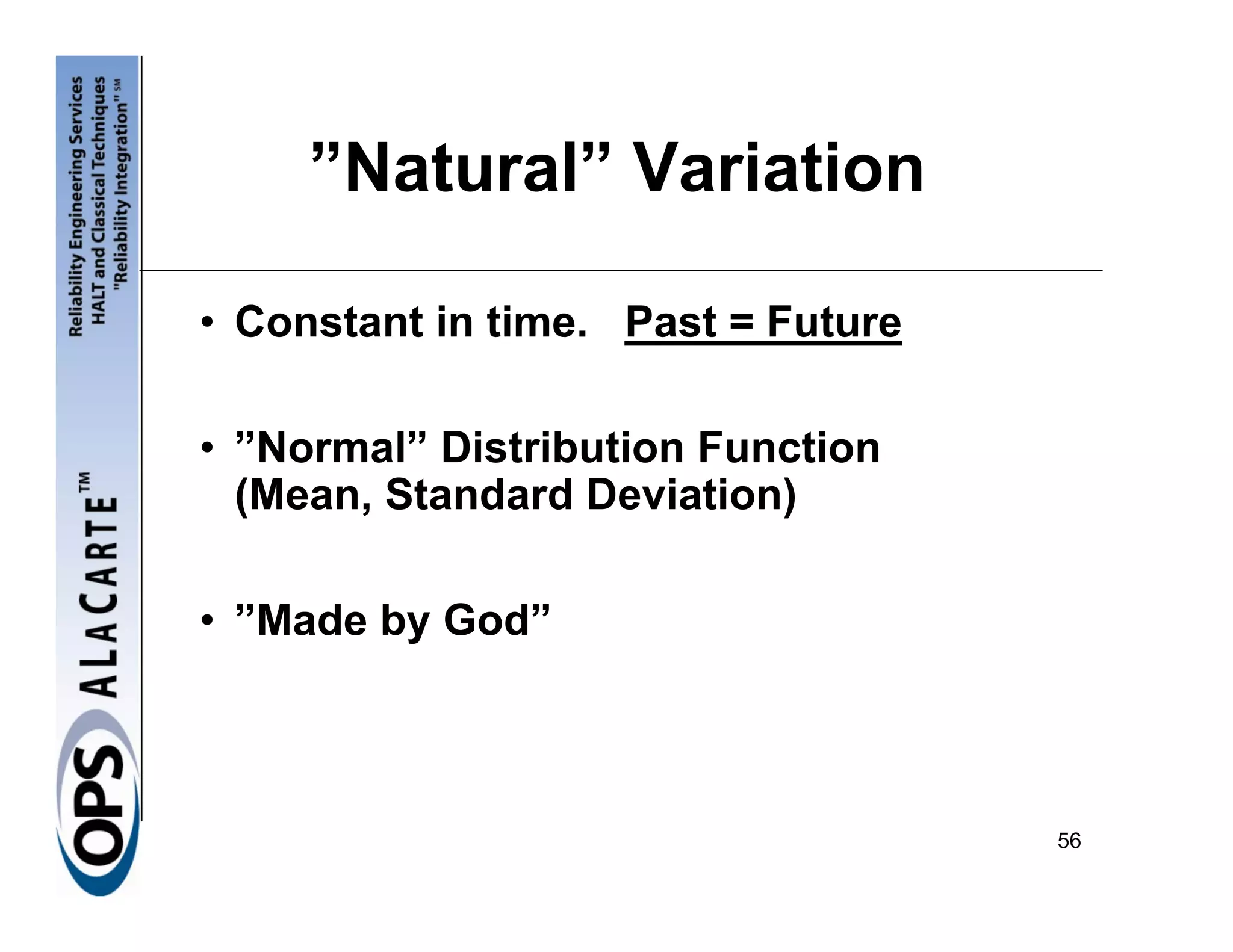

- 56. ”Natural” Variation • Constantin time. Past = Future • ”Normal” Distribution Function (Mean, Standard Deviation) • ”Made by God” 56

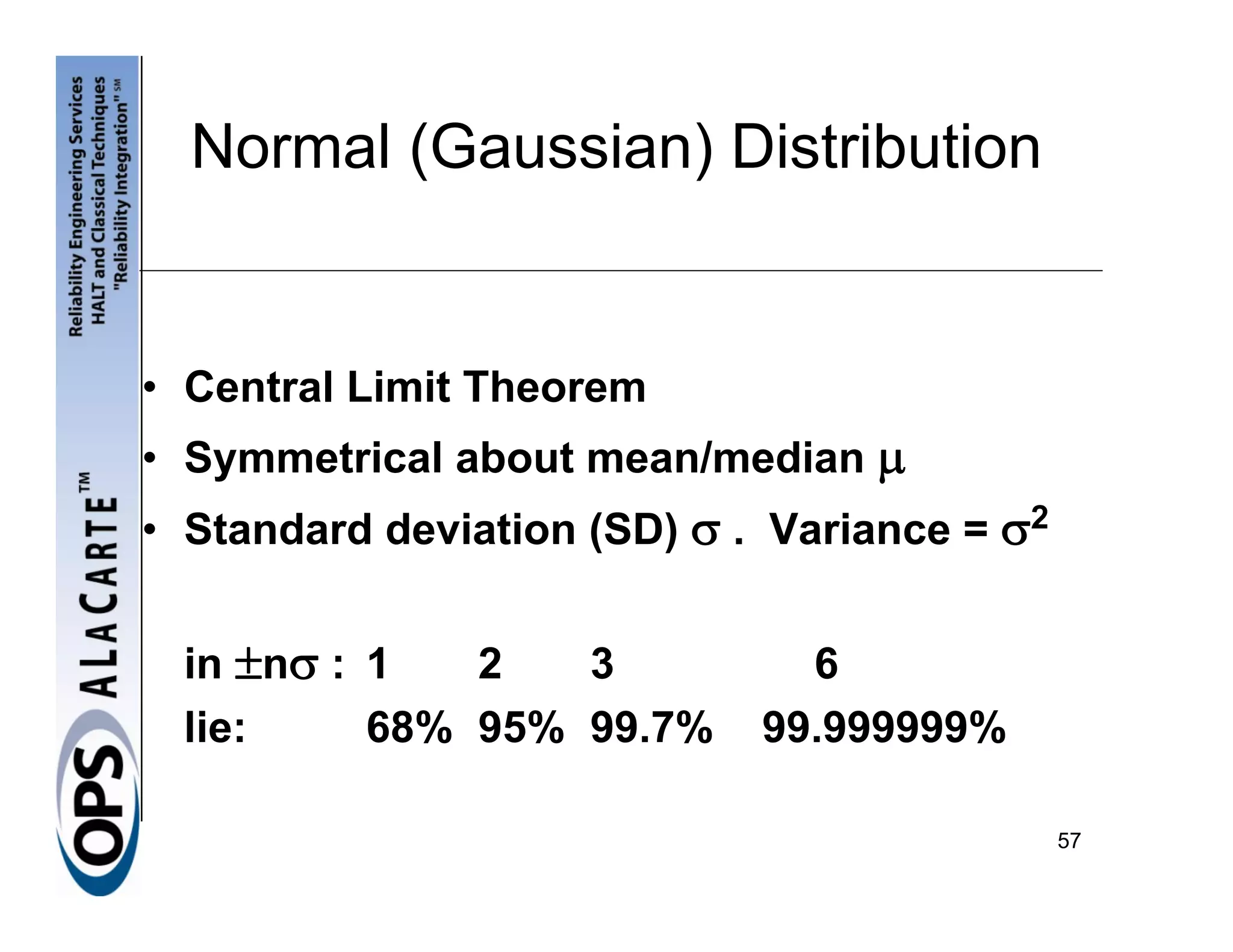

- 57. Normal (Gaussian) Distribution •Central Limit Theorem • Symmetrical about mean/median μ • Standard deviation (SD) σ . Variance = σ2 in ±nσ : 1 2 3 6 lie: 68% 95% 99.7% 99.999999% 57

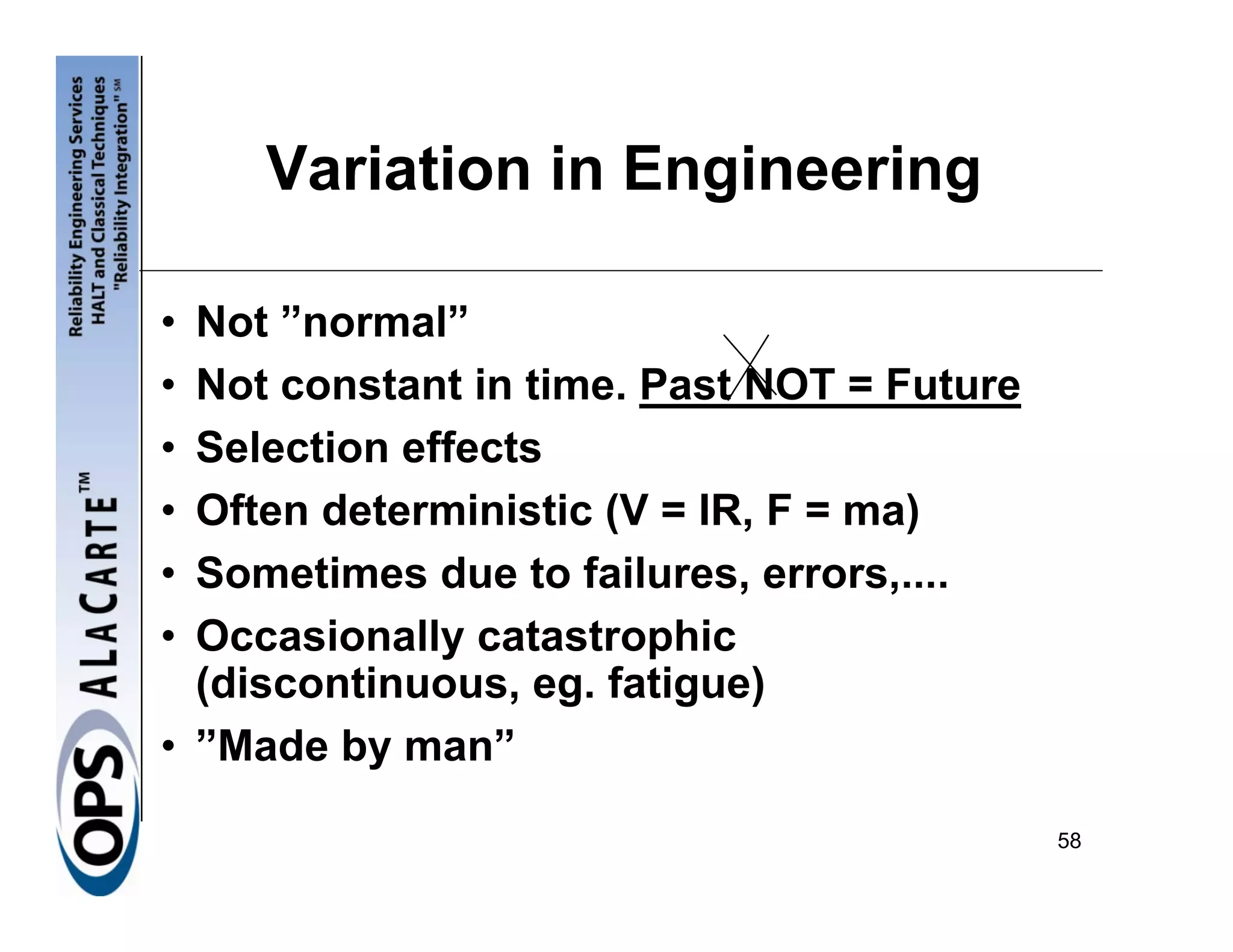

- 58. Variation in Engineering •Not ”normal” • Not constant in time. Past NOT = Future • Selection effects • Often deterministic (V = IR, F = ma) • Sometimes due to failures, errors,.... • Occasionally catastrophic (discontinuous, eg. fatigue) • ”Made by man” 58

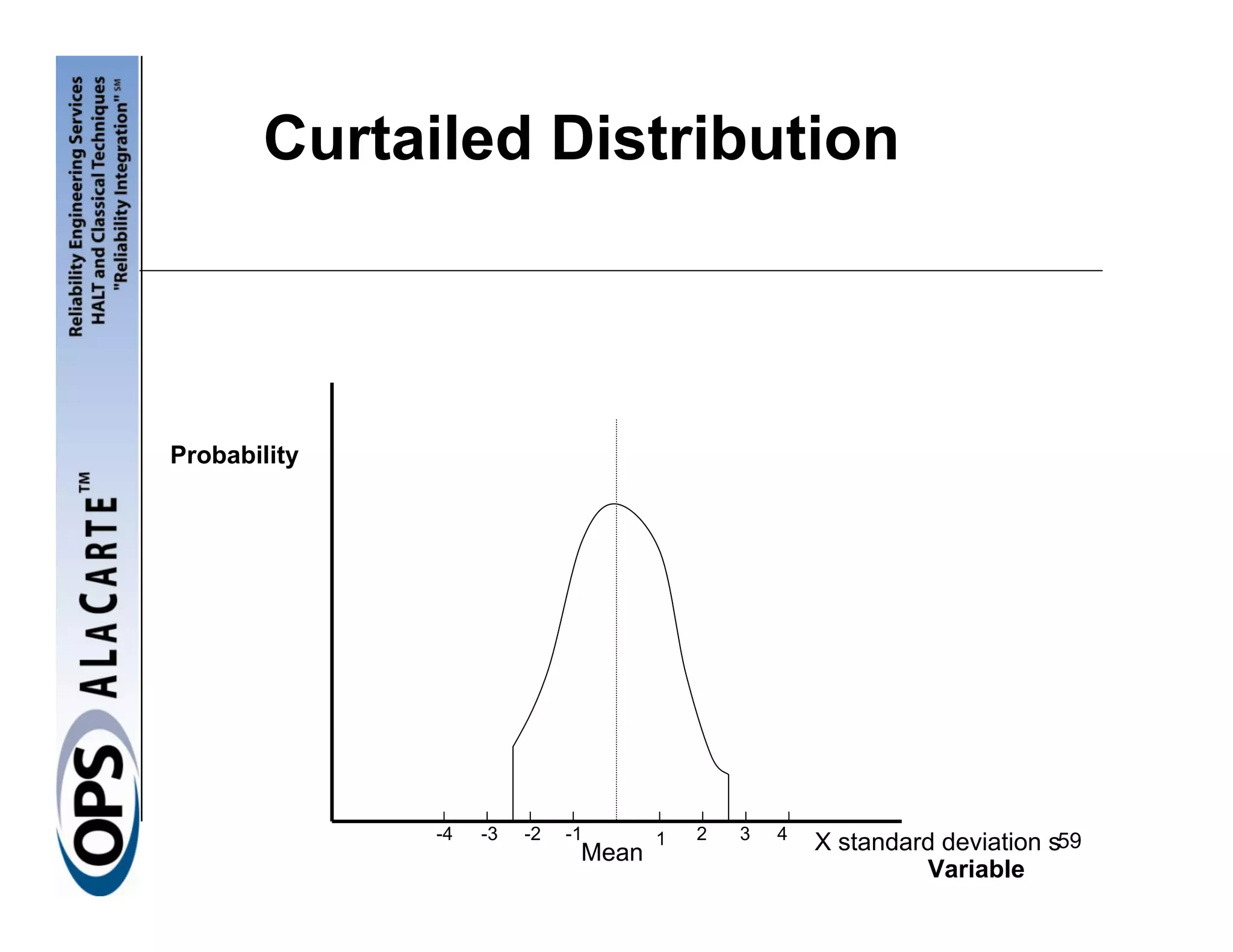

- 59. Curtailed Distribution Probability -4 -3 -2 -1 1 2 3 4 Mean X standard deviation s59 Variable

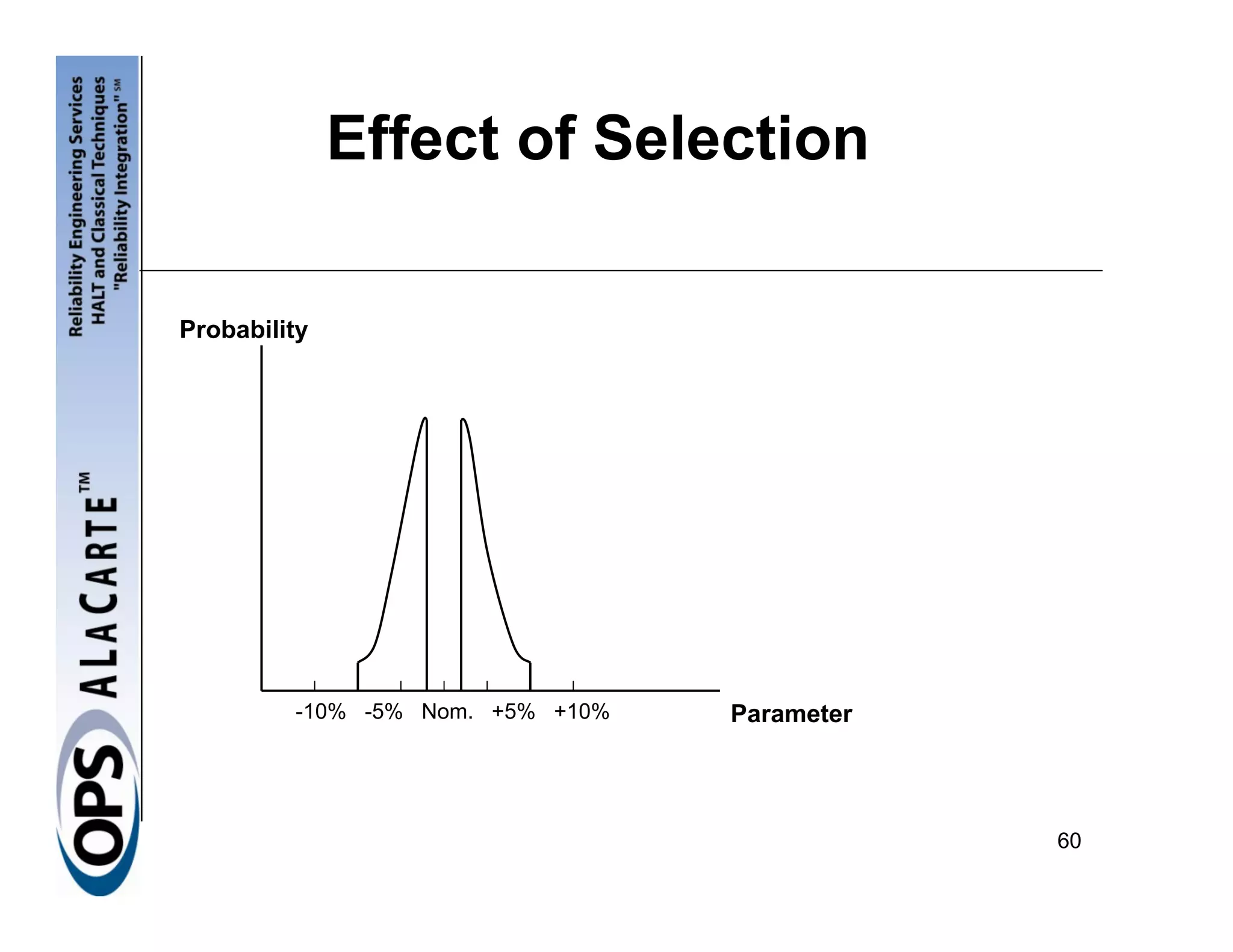

- 60. Effect of Selection Probability -10% -5% Nom. +5% +10% Parameter 60

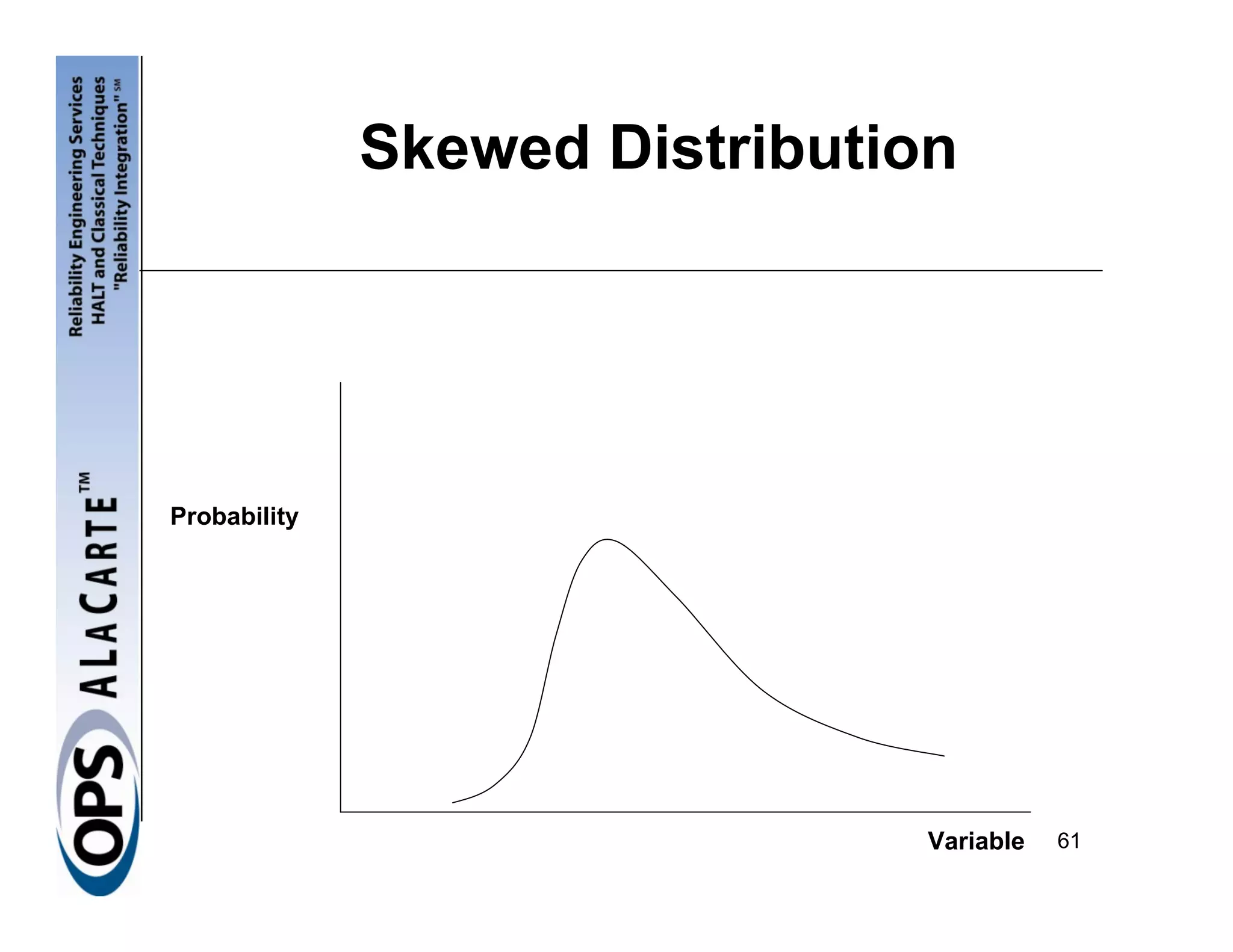

- 61. Skewed Distribution Probability Variable 61

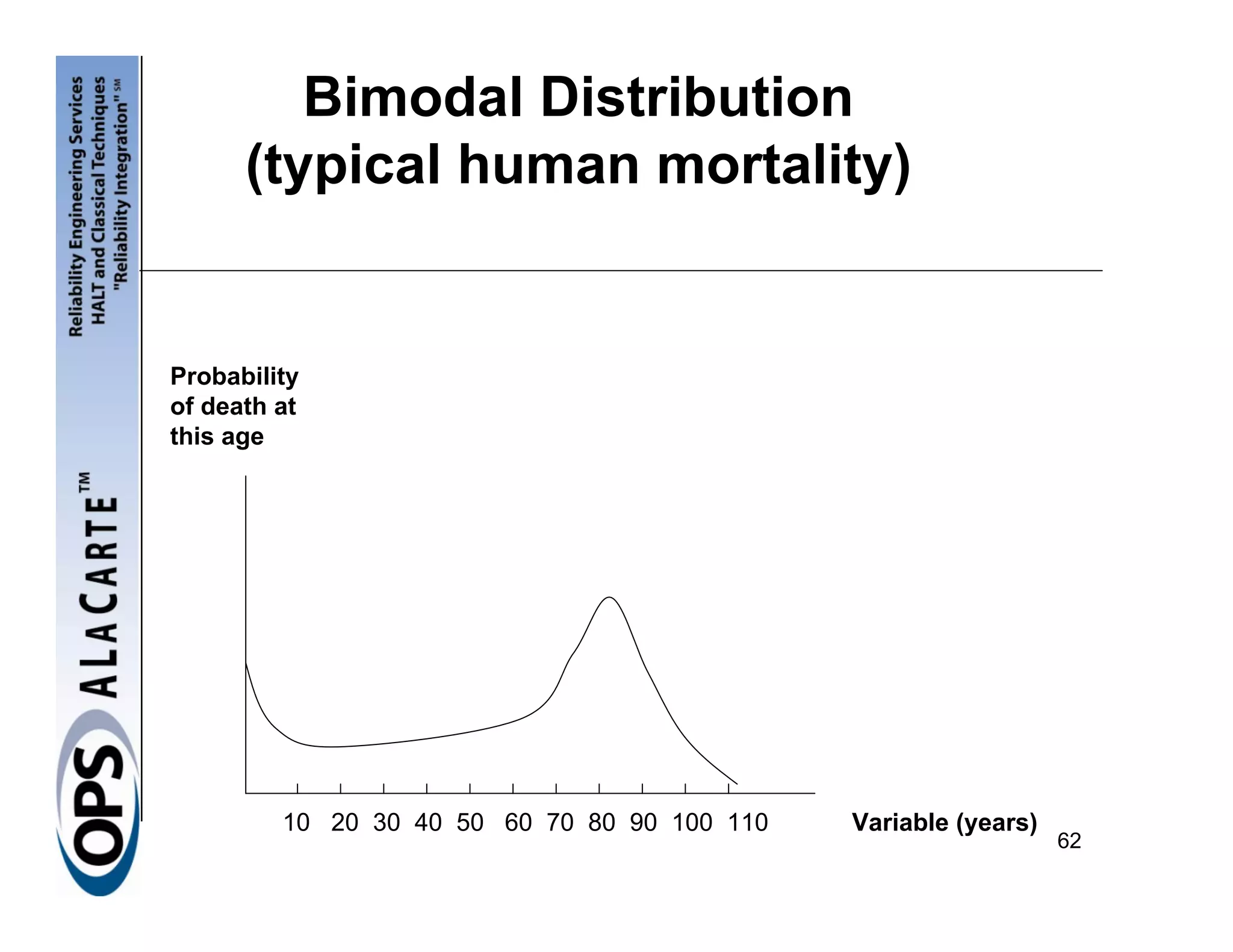

- 62. Bimodal Distribution (typical human mortality) Probability of death at this age 10 20 30 40 50 60 70 80 90 100 110 Variable (years) 62

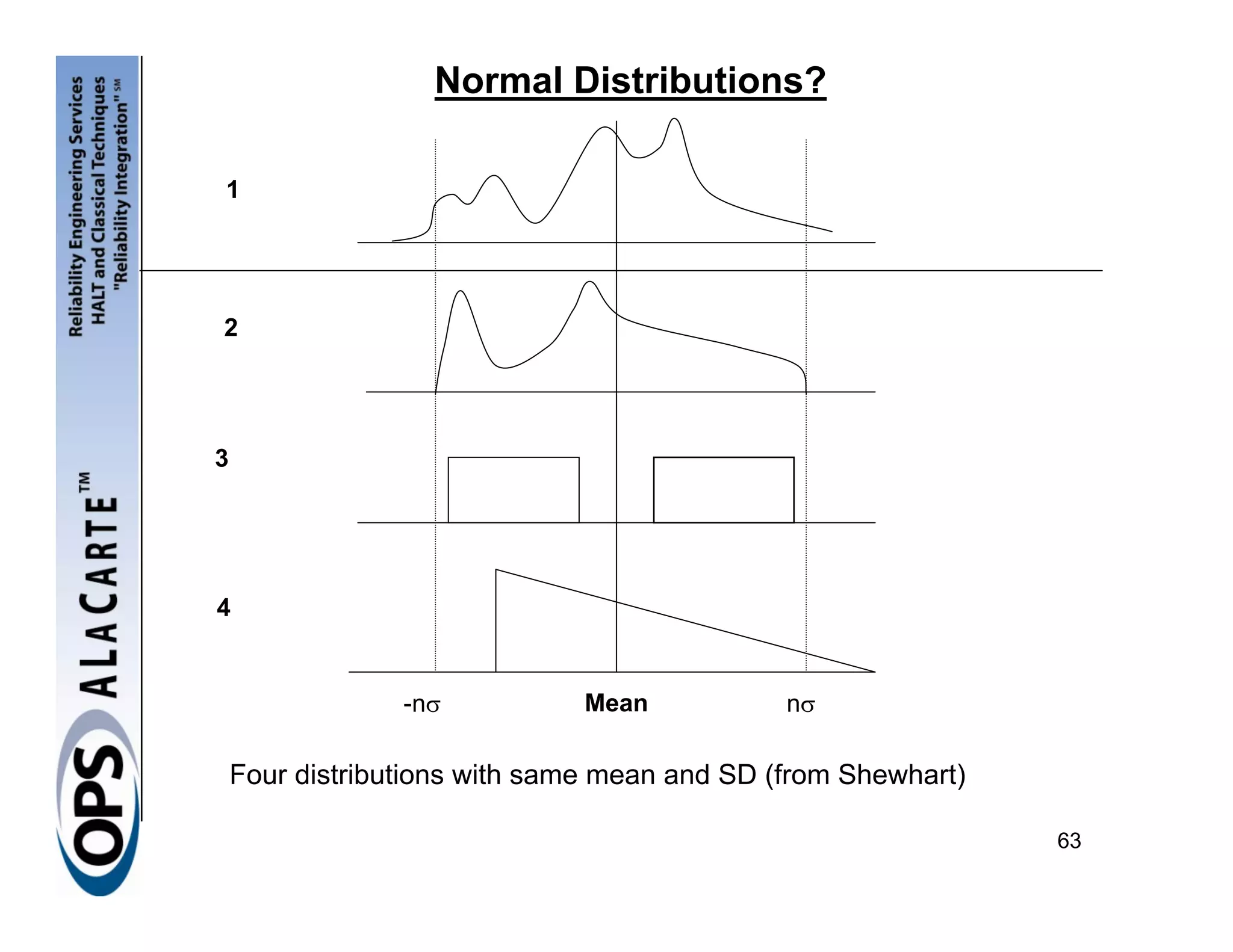

- 63. Normal Distributions? 1 2 3 4 -nσ Mean nσ Four distributions with same mean and SD (from Shewhart) 63

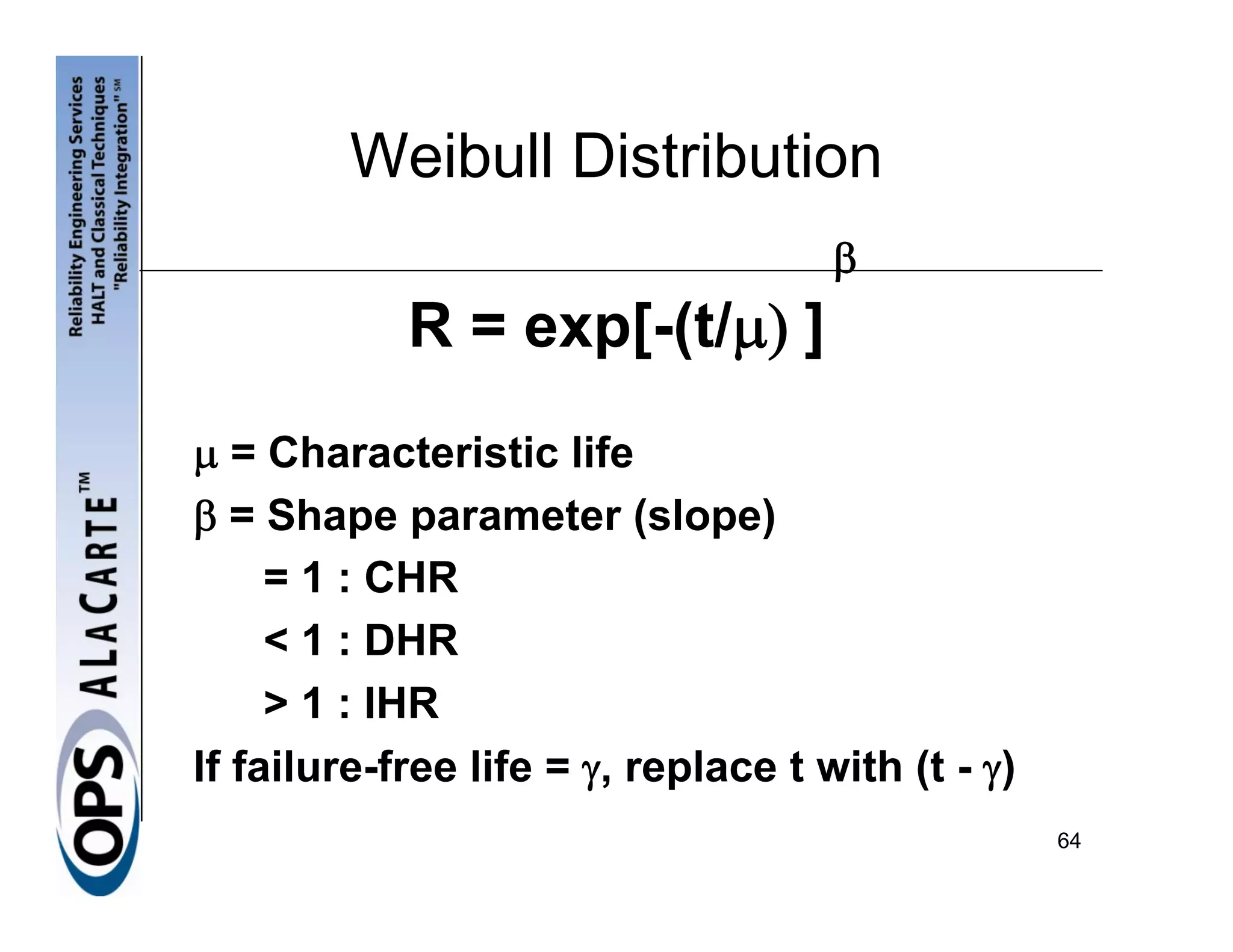

- 64. Weibull Distribution β R = exp[-(t/μ) ] μ = Characteristic life β = Shape parameter (slope) = 1 : CHR < 1 : DHR > 1 : IHR If failure-free life = γ, replace t with (t - γ) 64

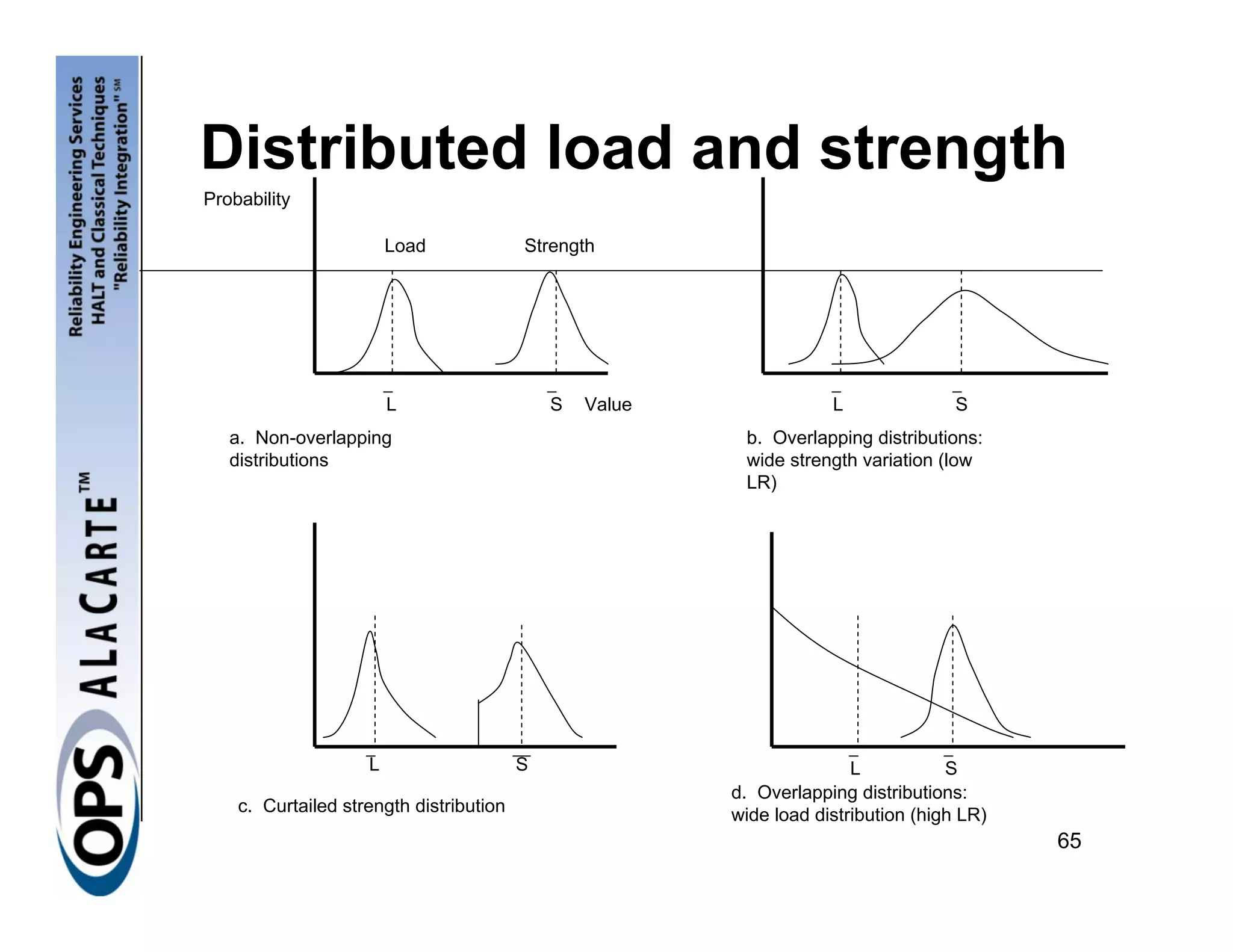

- 65. Distributed load andstrength Probability Load Strength L S Value L S a. Non-overlapping b. Overlapping distributions: distributions wide strength variation (low LR) L S L S d. Overlapping distributions: c. Curtailed strength distribution wide load distribution (high LR) 65

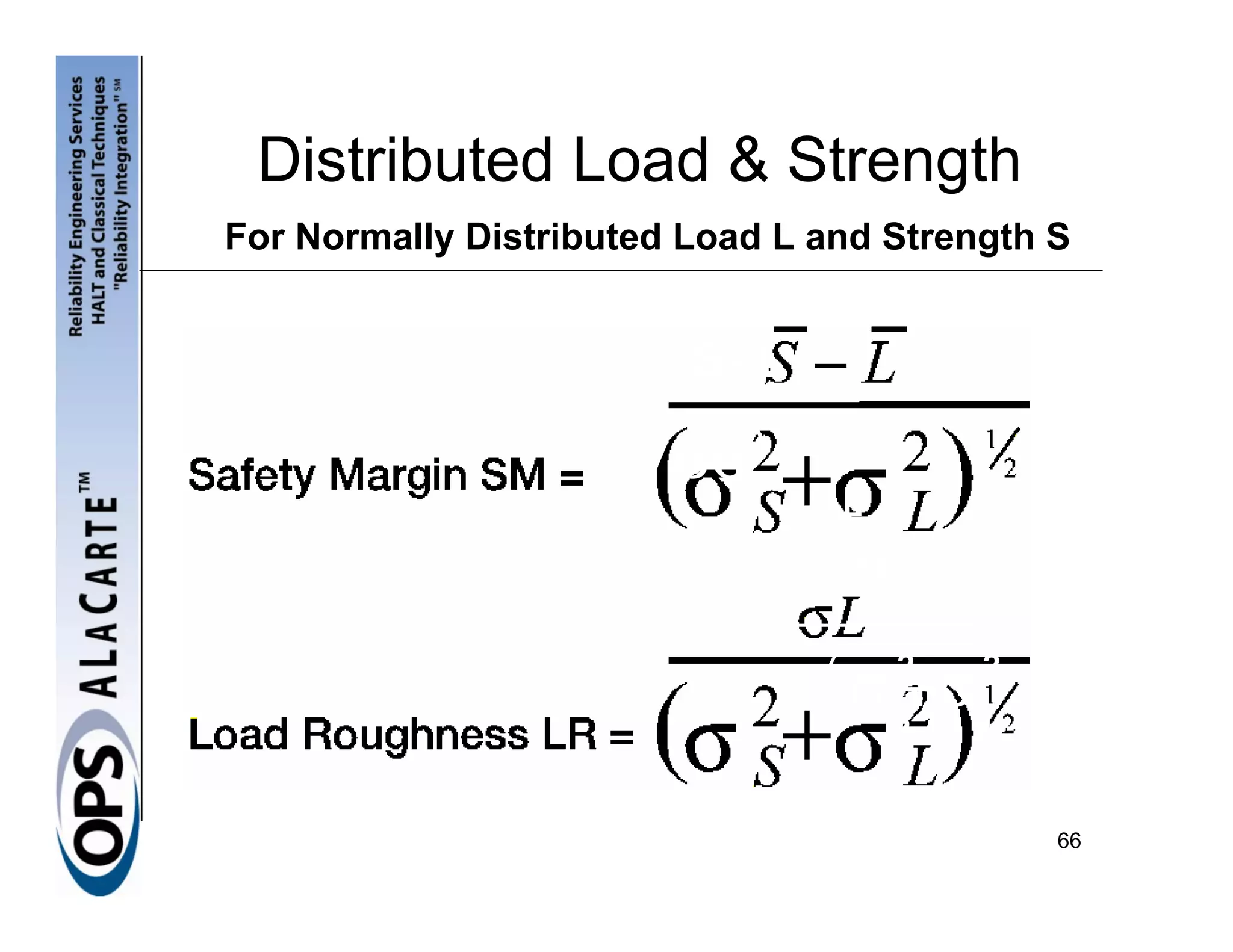

- 66. Distributed Load &Strength For Normally Distributed Load L and Strength S S- L σσ 2 2 L σL σS+σ L 2 2 66

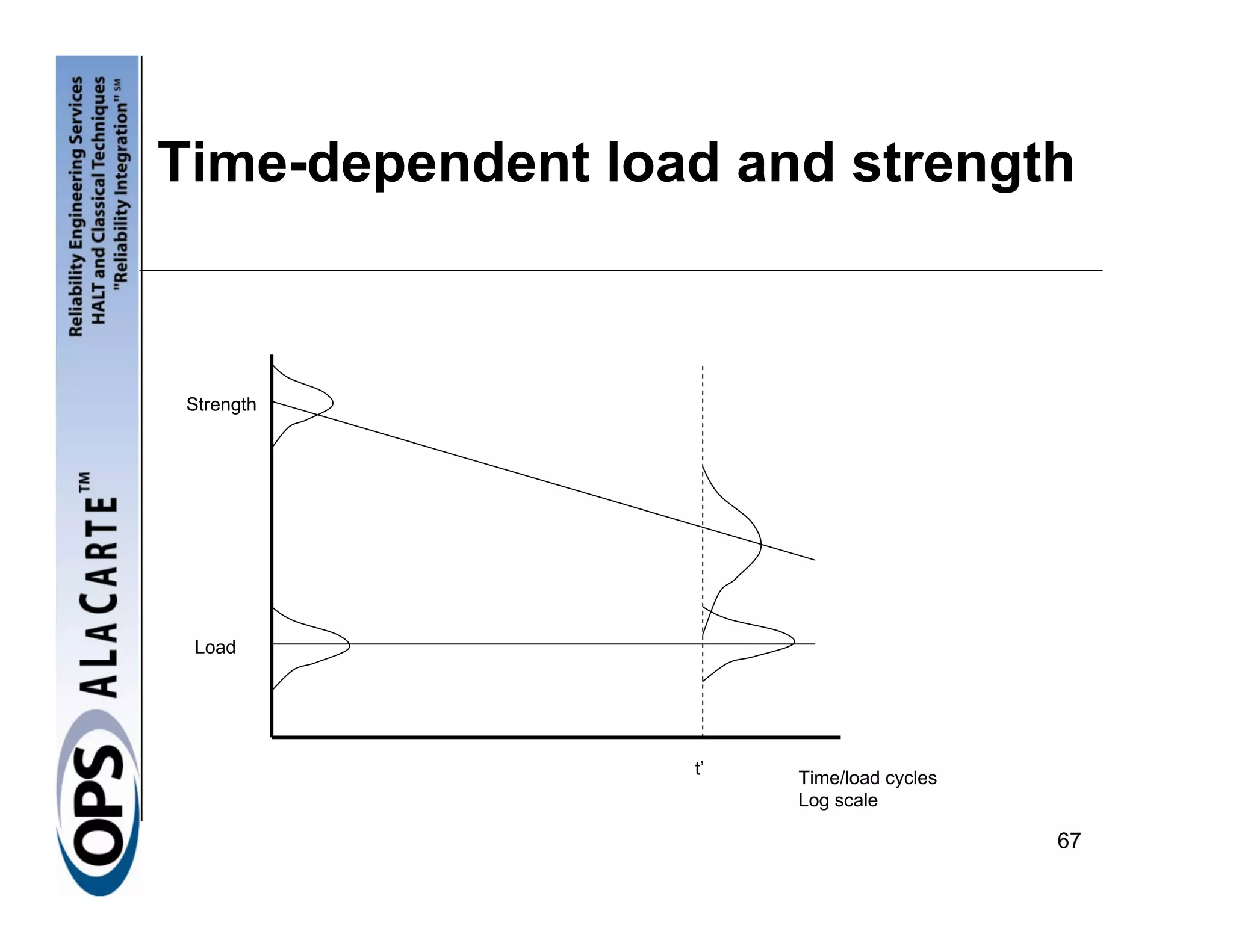

- 67. Time-dependent load andstrength Strength Load t’ Time/load cycles Log scale 67

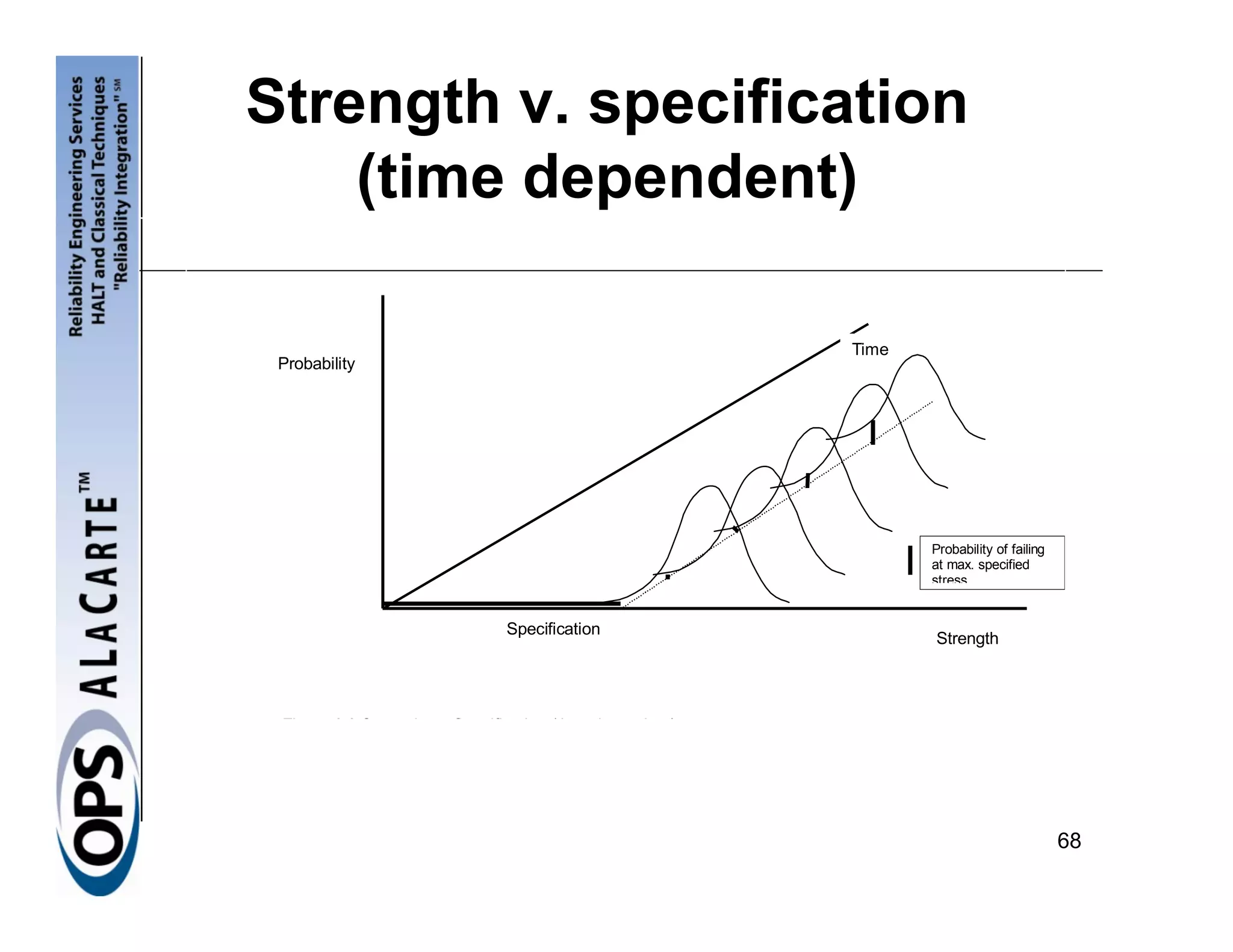

- 68. Strength v. specification (time dependent) Time Probability Probability of failing at max. specified stress Specification Strength Figure 6.3 Strength vs. Specification (time-dependent) 68

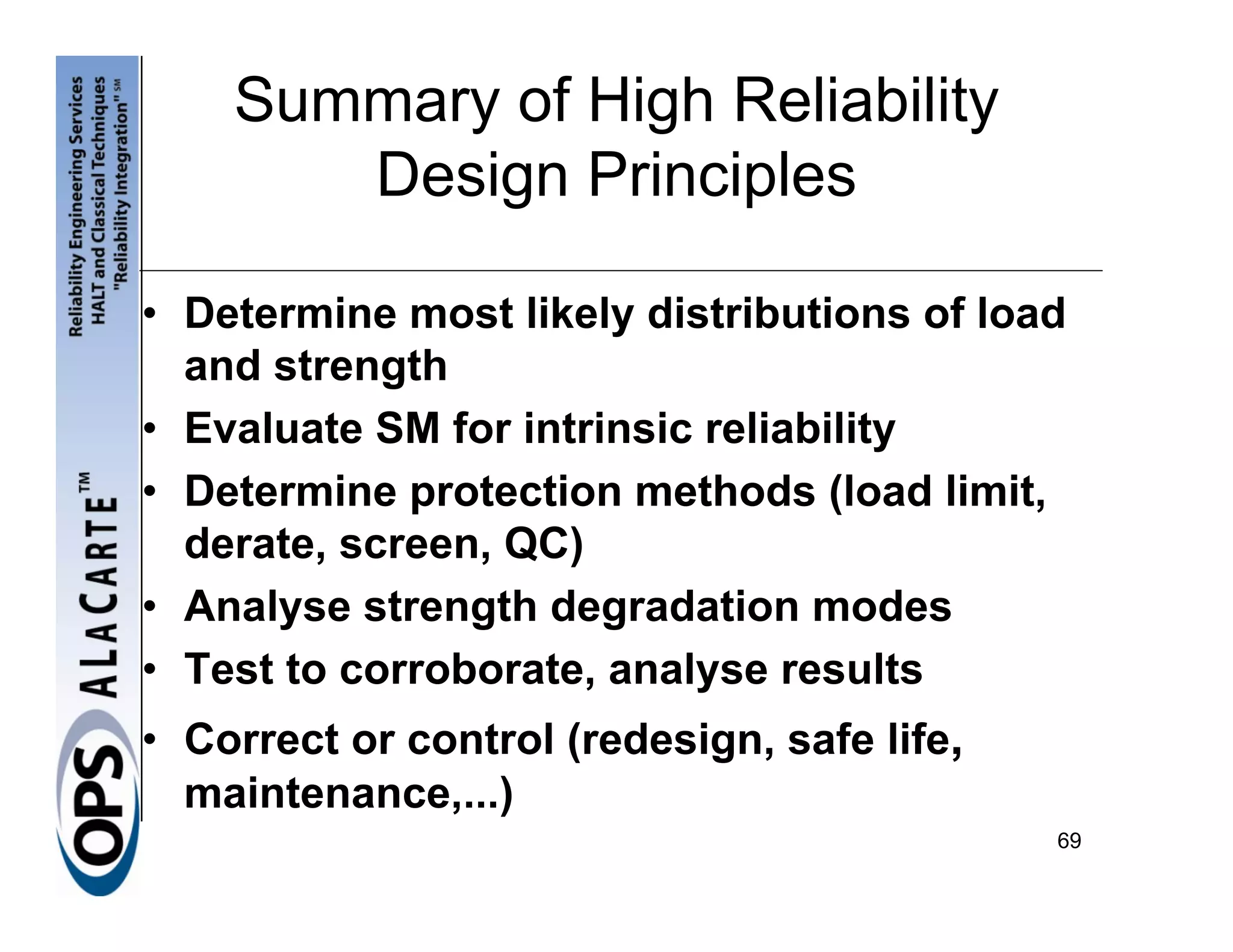

- 69. Summary of HighReliability Design Principles • Determine most likely distributions of load and strength • Evaluate SM for intrinsic reliability • Determine protection methods (load limit, derate, screen, QC) • Analyse strength degradation modes • Test to corroborate, analyse results • Correct or control (redesign, safe life, maintenance,...) 69

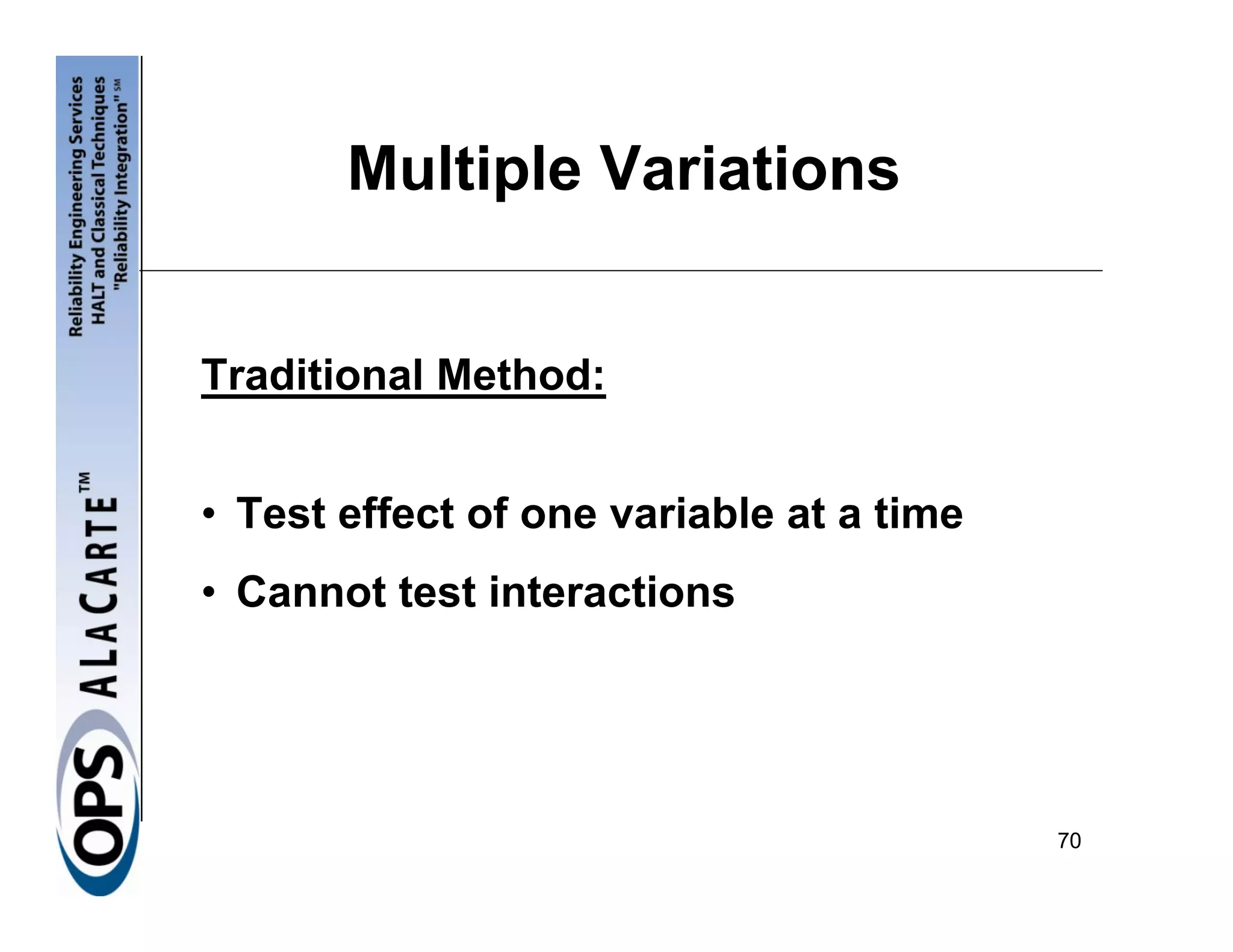

- 70. Multiple Variations Traditional Method: •Test effect of one variable at a time • Cannot test interactions 70

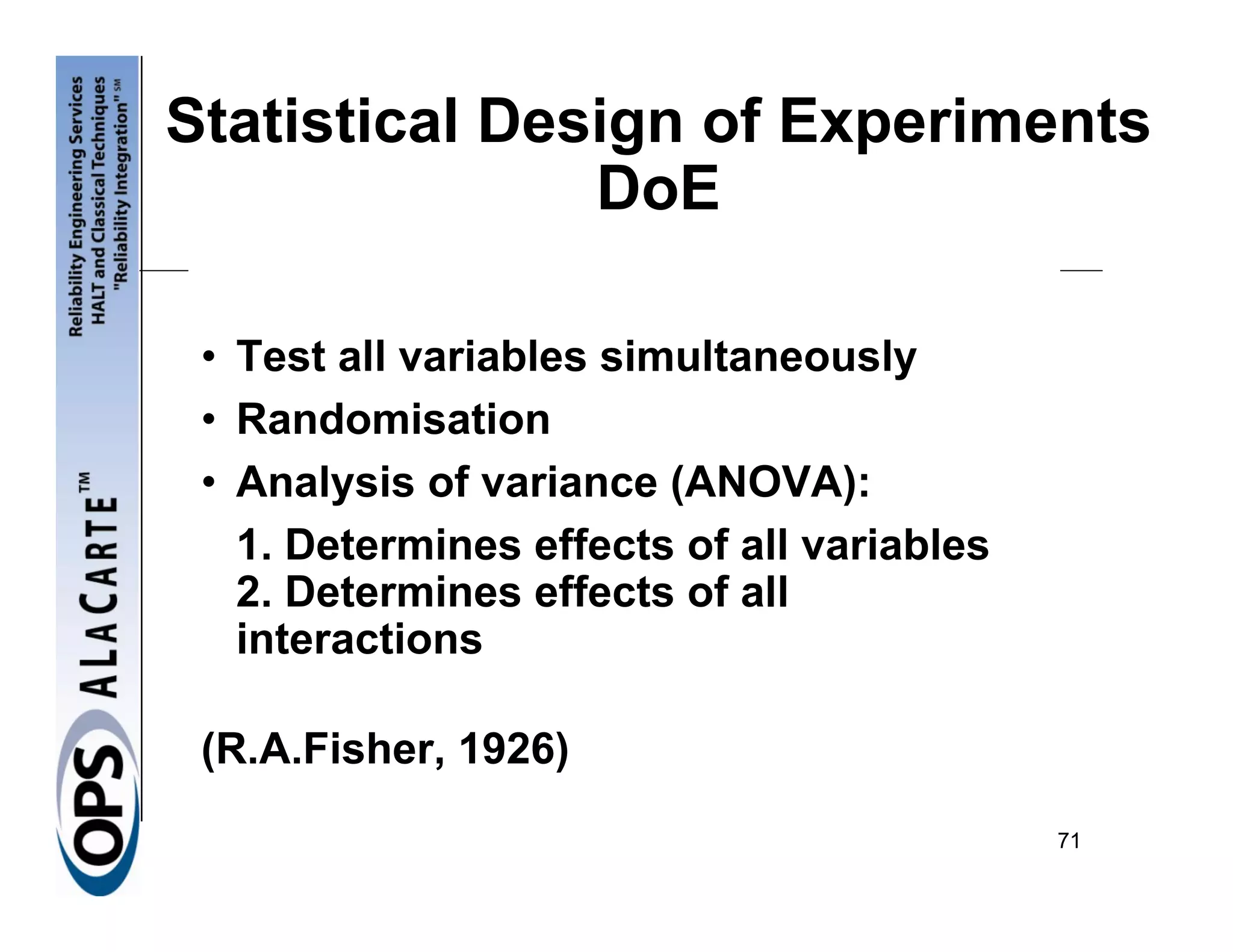

- 71. Statistical Design ofExperiments DoE • Test all variables simultaneously • Randomisation • Analysis of variance (ANOVA): 1. Determines effects of all variables 2. Determines effects of all interactions (R.A.Fisher, 1926) 71

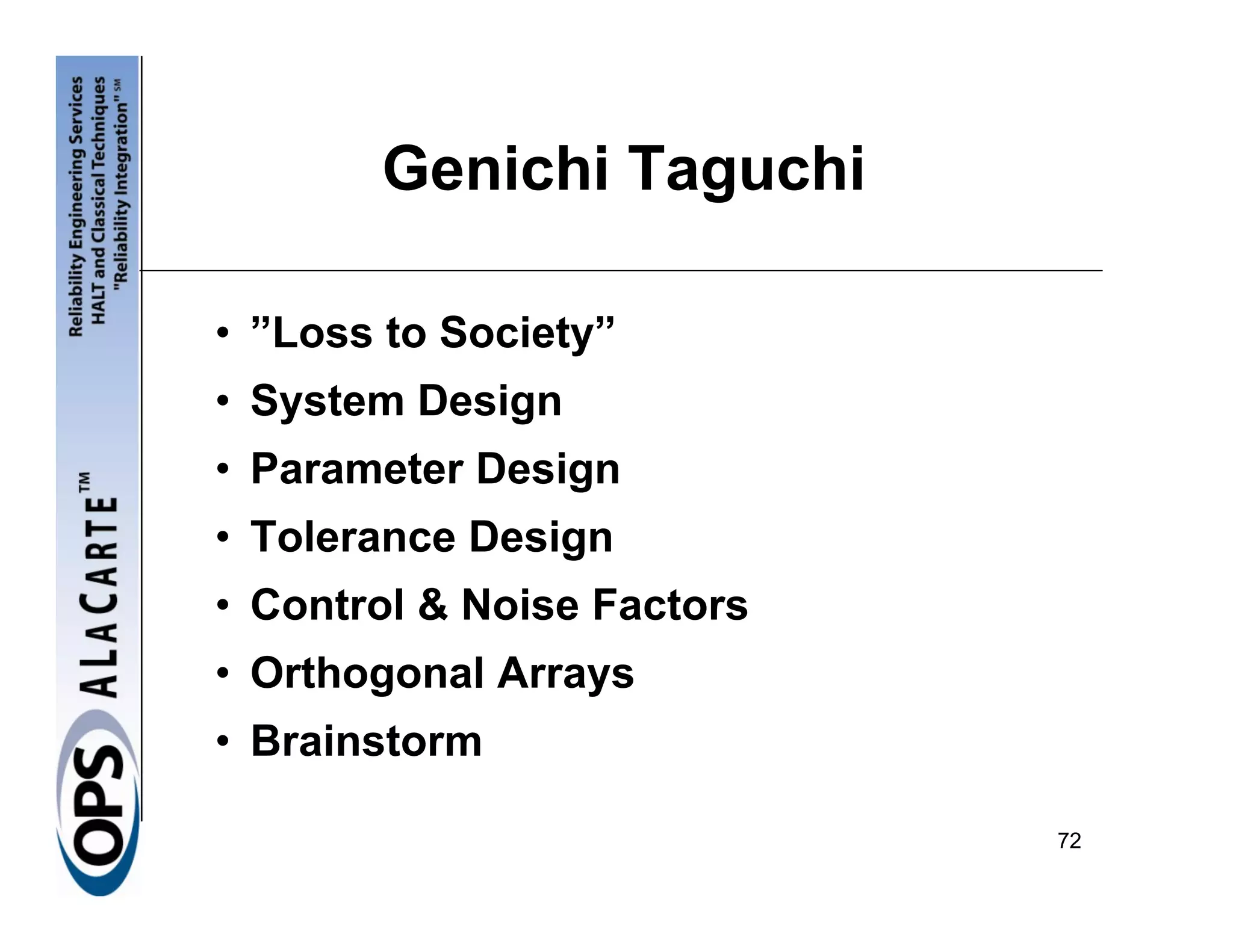

- 72. Genichi Taguchi • ”Lossto Society” • System Design • Parameter Design • Tolerance Design • Control & Noise Factors • Orthogonal Arrays • Brainstorm 72

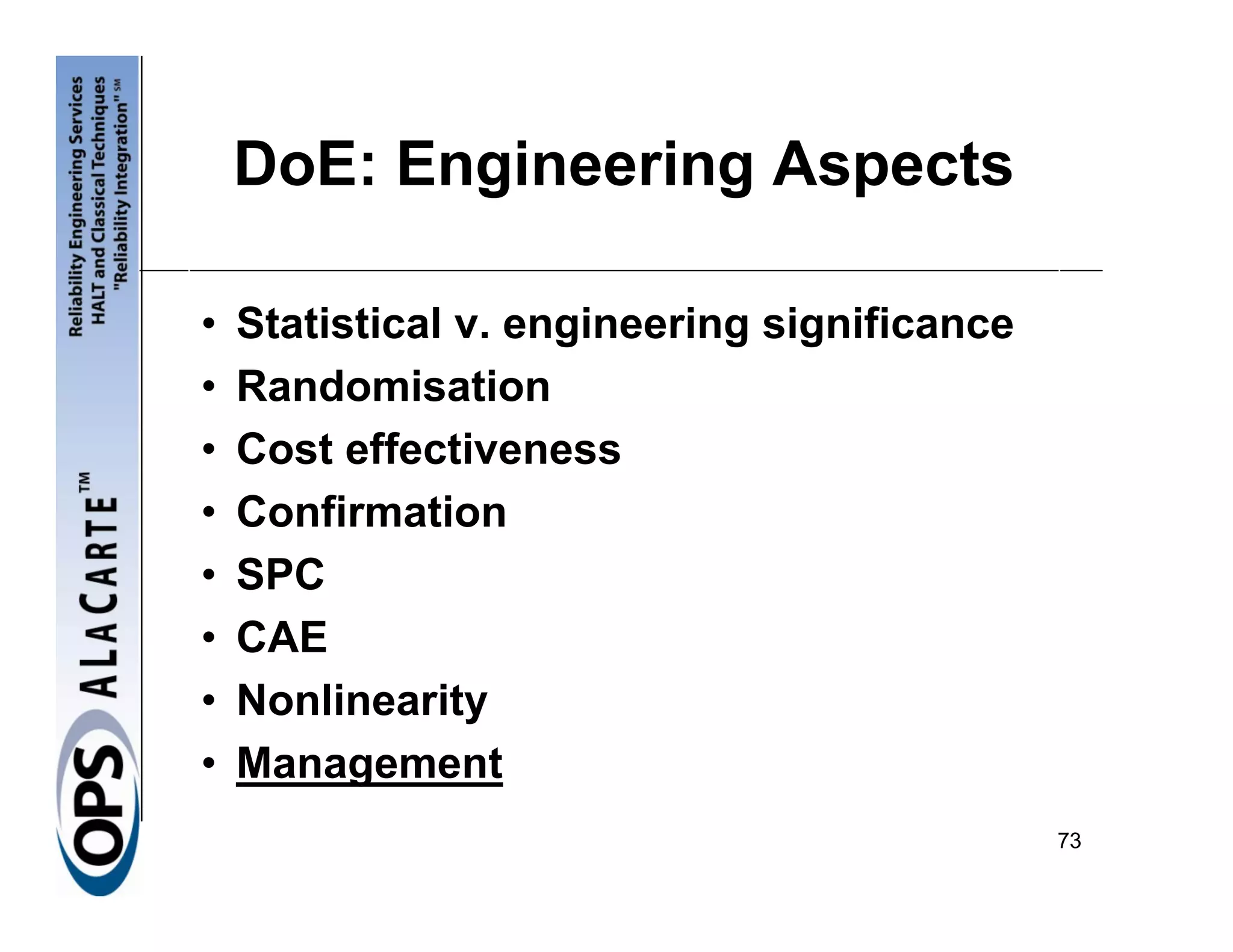

- 73. DoE: Engineering Aspects • Statistical v. engineering significance • Randomisation • Cost effectiveness • Confirmation • SPC • CAE • Nonlinearity • Management 73

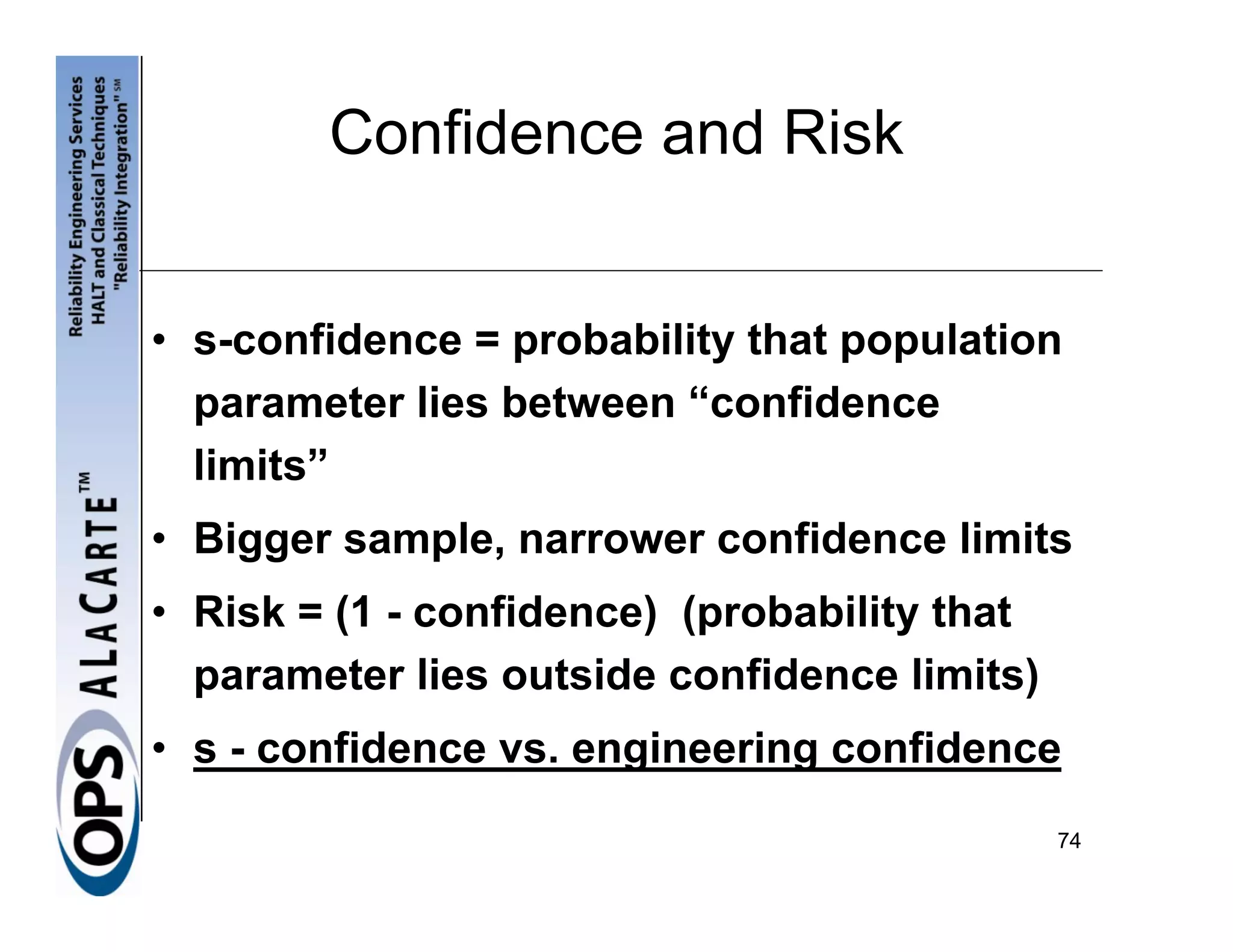

- 74. Confidence and Risk •s-confidence = probability that population parameter lies between “confidence limits” • Bigger sample, narrower confidence limits • Risk = (1 - confidence) (probability that parameter lies outside confidence limits) • s - confidence vs. engineering confidence 74

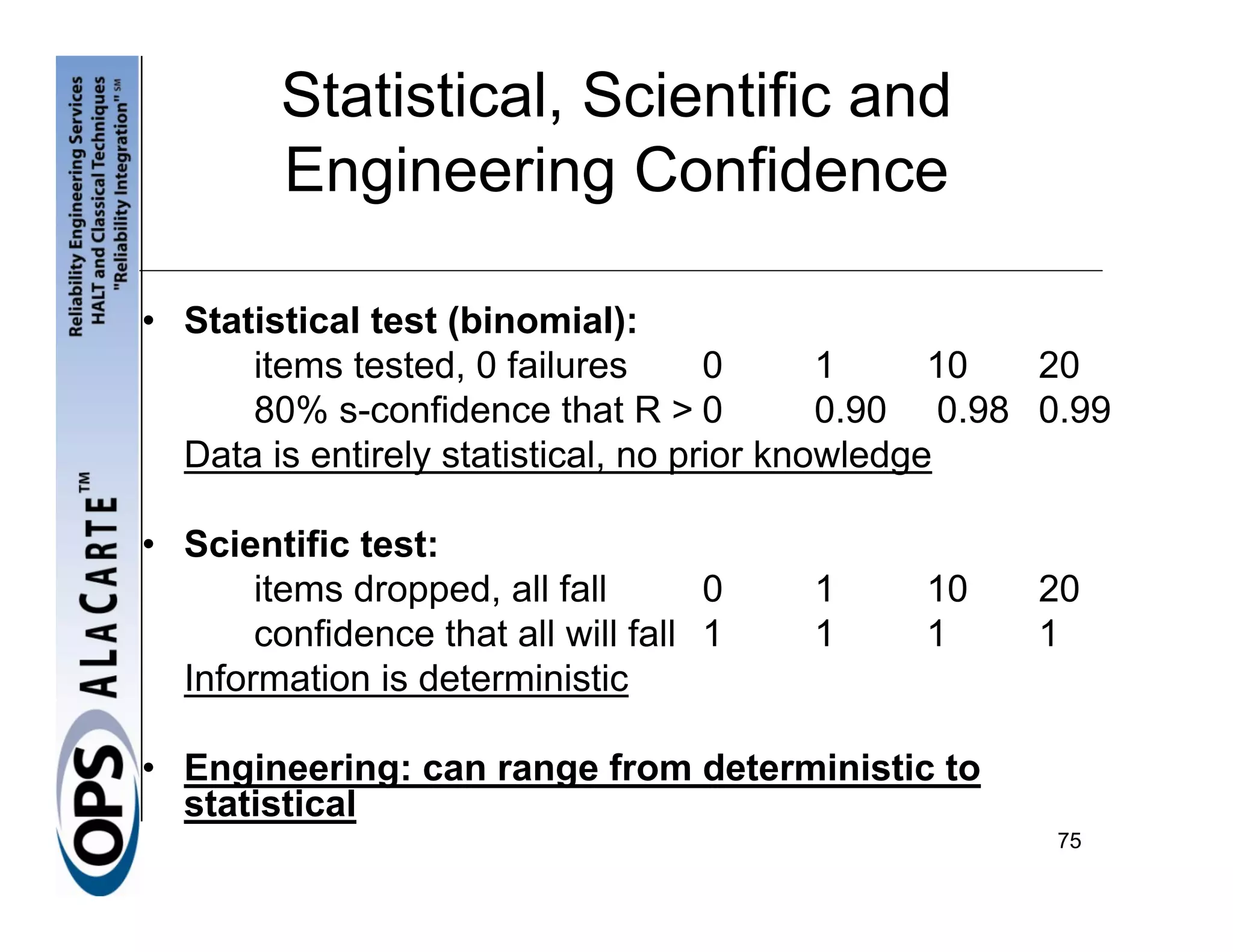

- 75. Statistical, Scientific and Engineering Confidence • Statistical test (binomial): items tested, 0 failures 0 1 10 20 80% s-confidence that R > 0 0.90 0.98 0.99 Data is entirely statistical, no prior knowledge • Scientific test: items dropped, all fall 0 1 10 20 confidence that all will fall 1 1 1 1 Information is deterministic • Engineering: can range from deterministic to statistical 75

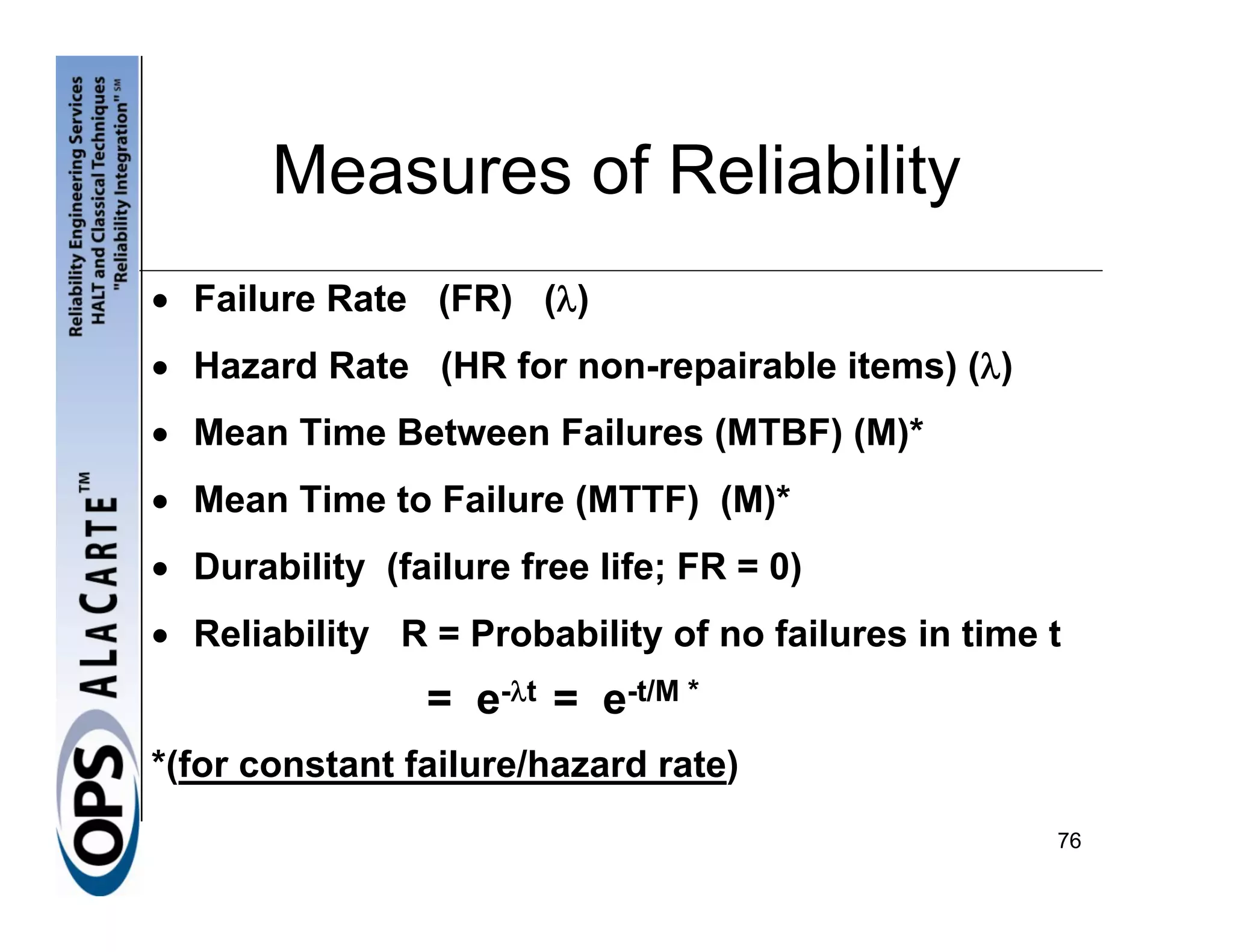

- 76. Measures of Reliability •Failure Rate (FR) (λ) • Hazard Rate (HR for non-repairable items) (λ) • Mean Time Between Failures (MTBF) (M)* • Mean Time to Failure (MTTF) (M)* • Durability (failure free life; FR = 0) • Reliability R = Probability of no failures in time t = e-λt = e-t/M * *(for constant failure/hazard rate) 76

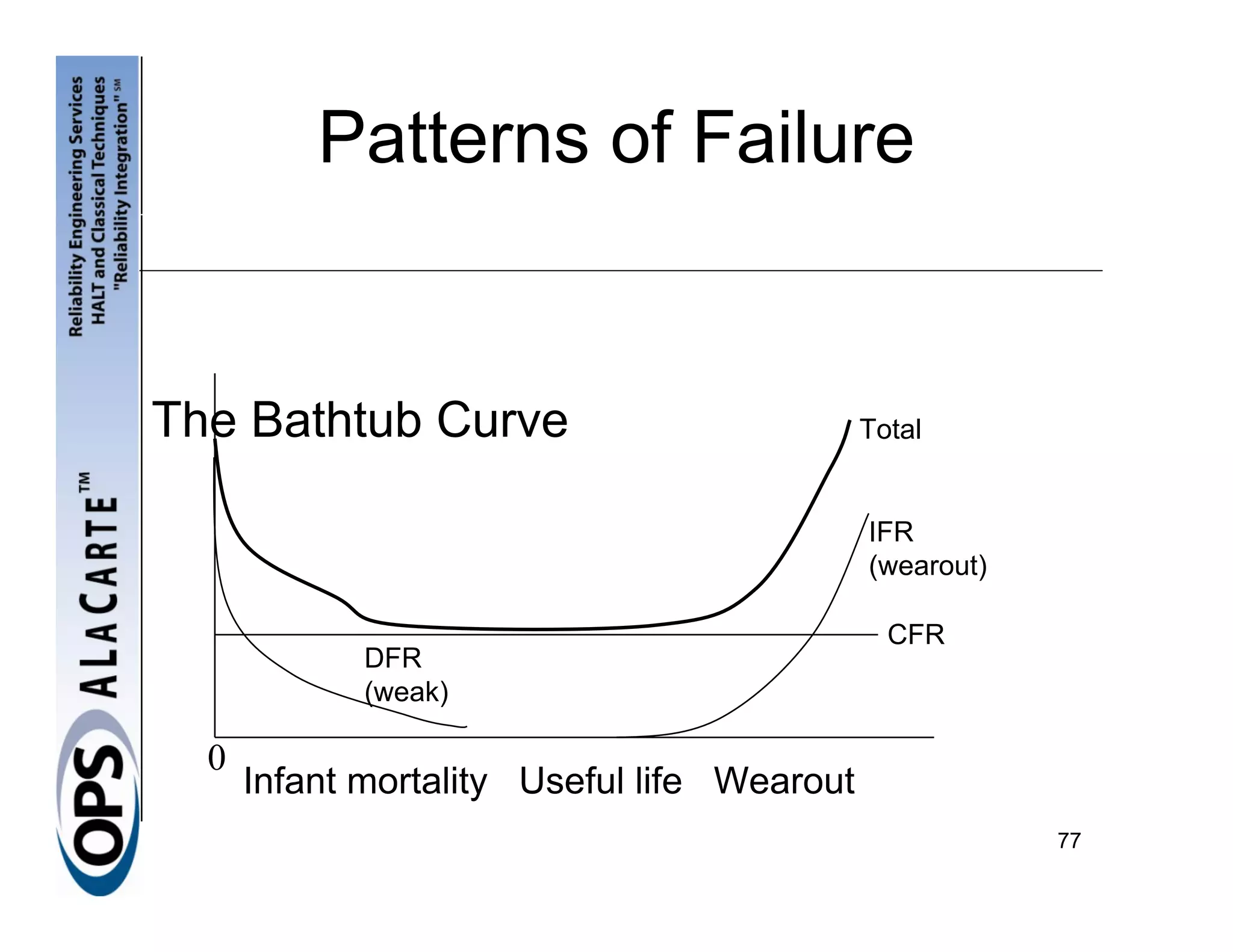

- 77. Patterns of Failure TheBathtub Curve Total IFR (wearout) CFR DFR (weak) 0 t Infant mortality Useful life Wearout 77

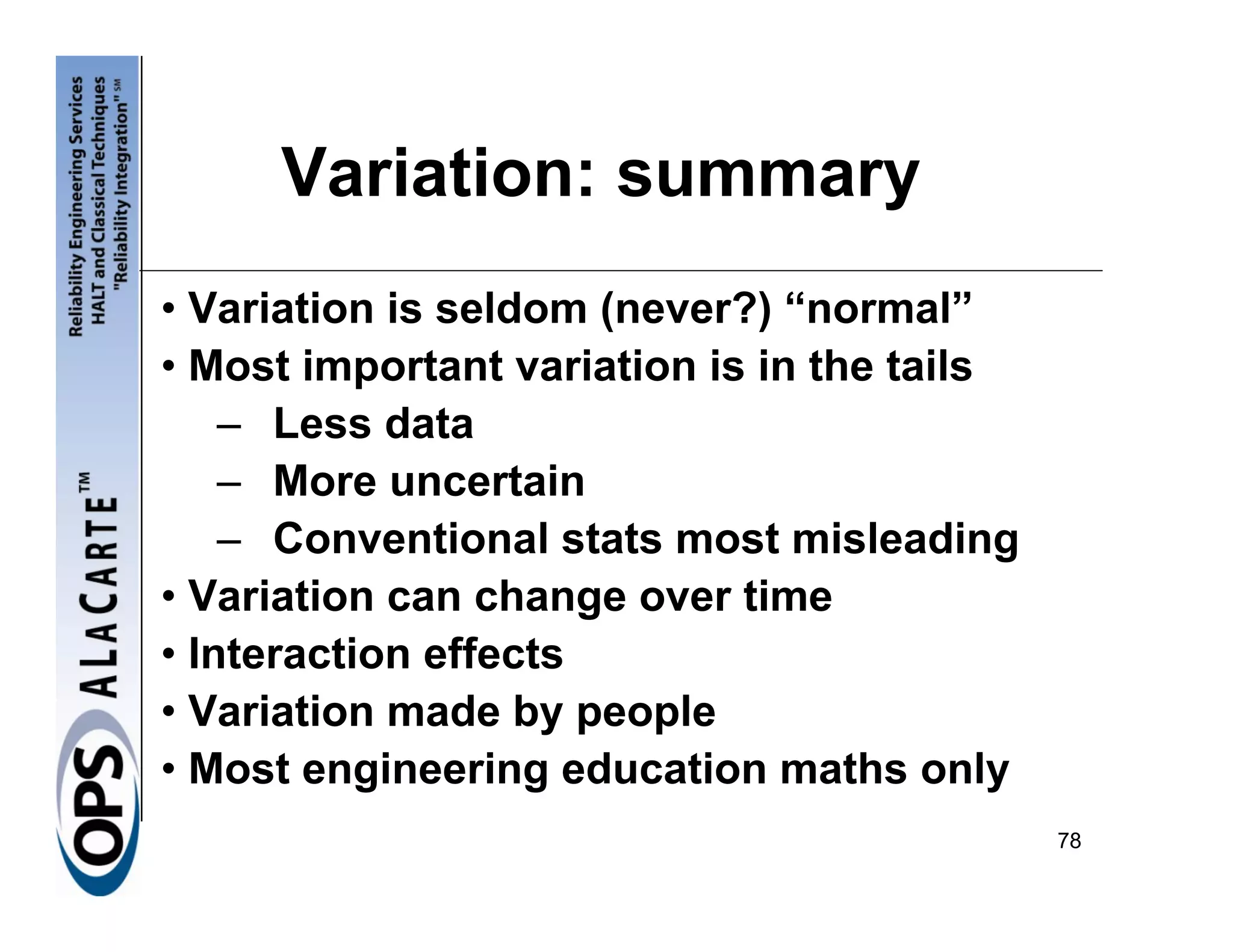

- 78. Variation: summary • Variationis seldom (never?) “normal” • Most important variation is in the tails – Less data – More uncertain – Conventional stats most misleading • Variation can change over time • Interaction effects • Variation made by people • Most engineering education maths only 78

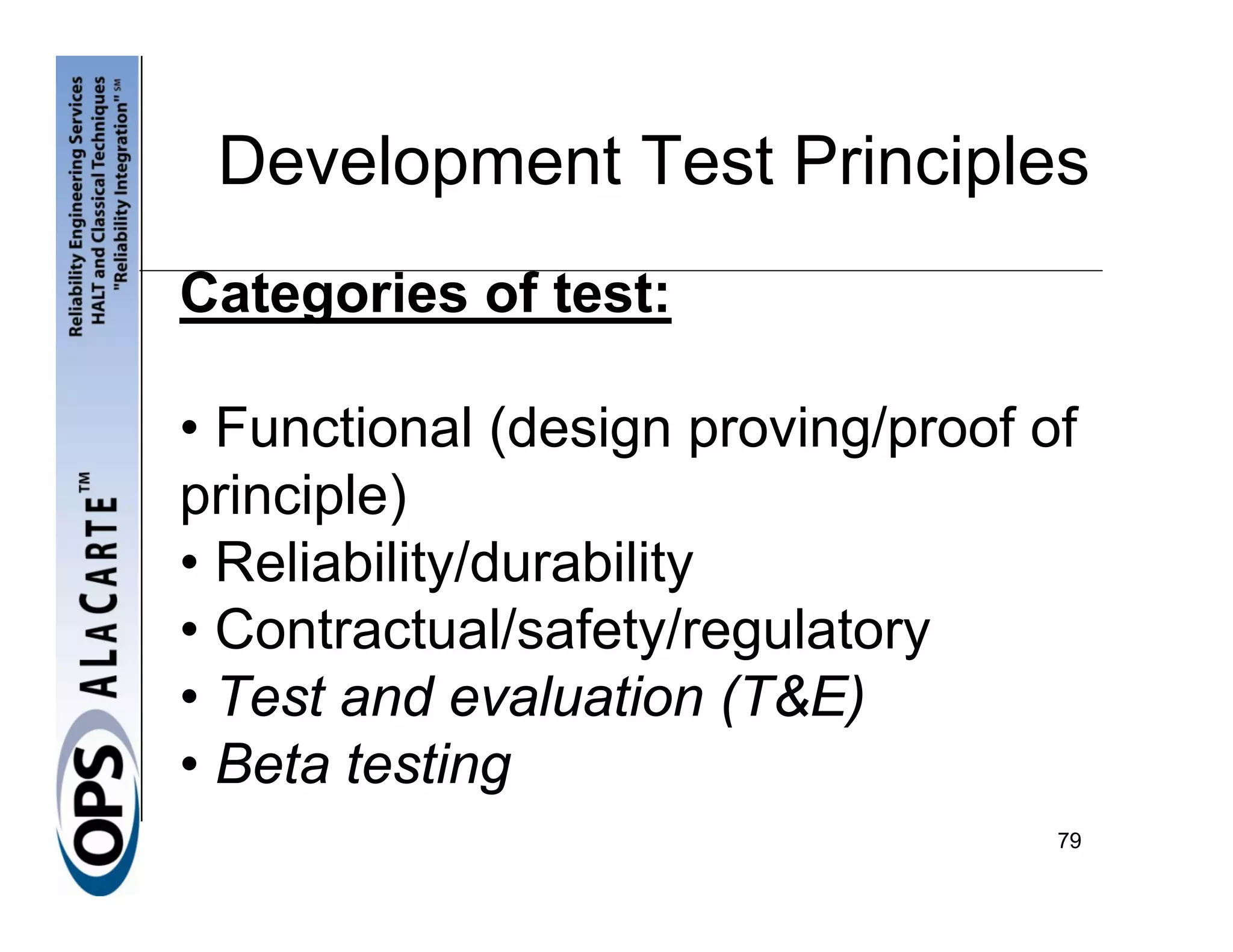

- 79. Development Test Principles Categoriesof test: • Functional (design proving/proof of principle) • Reliability/durability • Contractual/safety/regulatory • Test and evaluation (T&E) • Beta testing 79

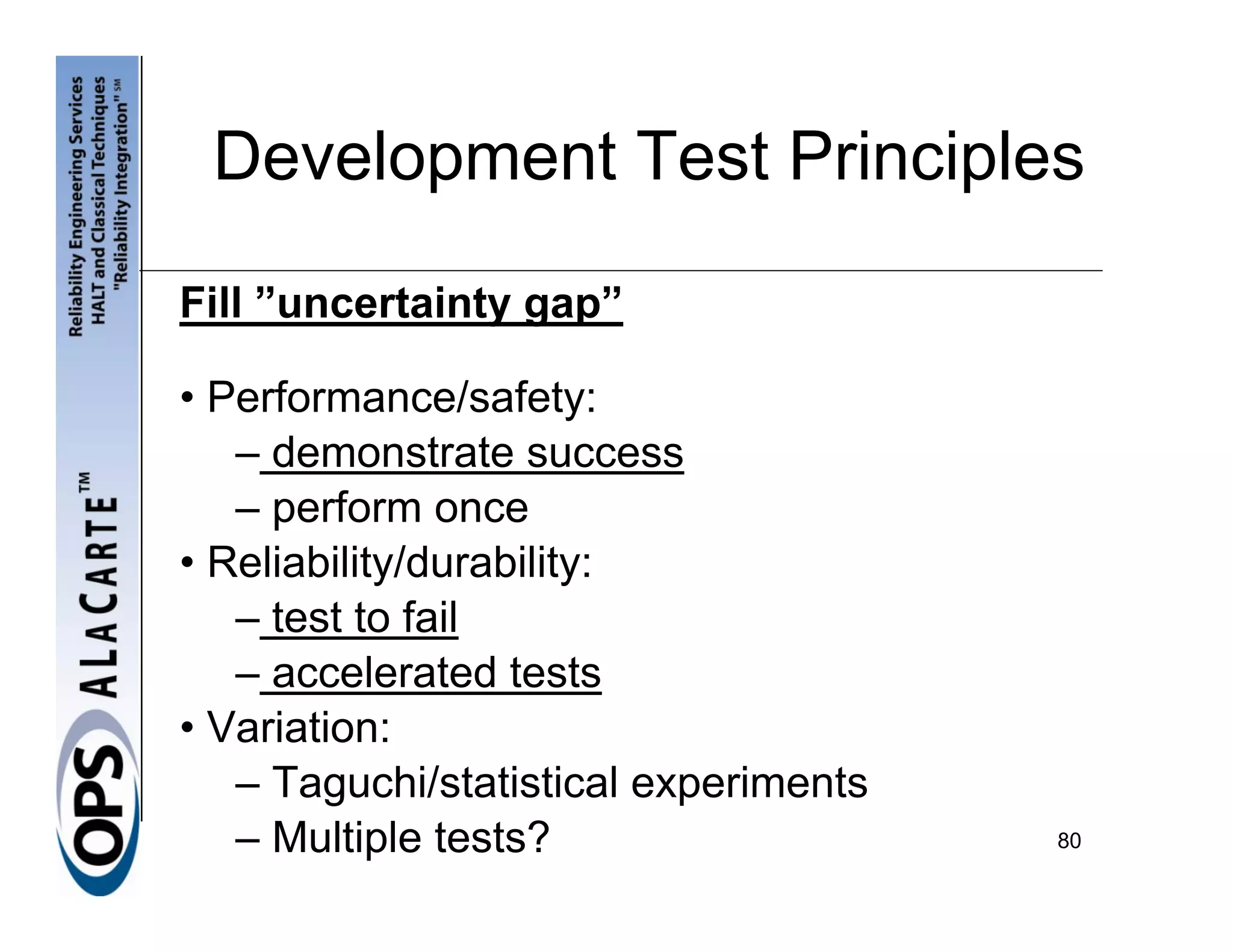

- 80. Development Test Principles Fill”uncertainty gap” • Performance/safety: – demonstrate success – perform once • Reliability/durability: – test to fail – accelerated tests • Variation: – Taguchi/statistical experiments – Multiple tests? 80

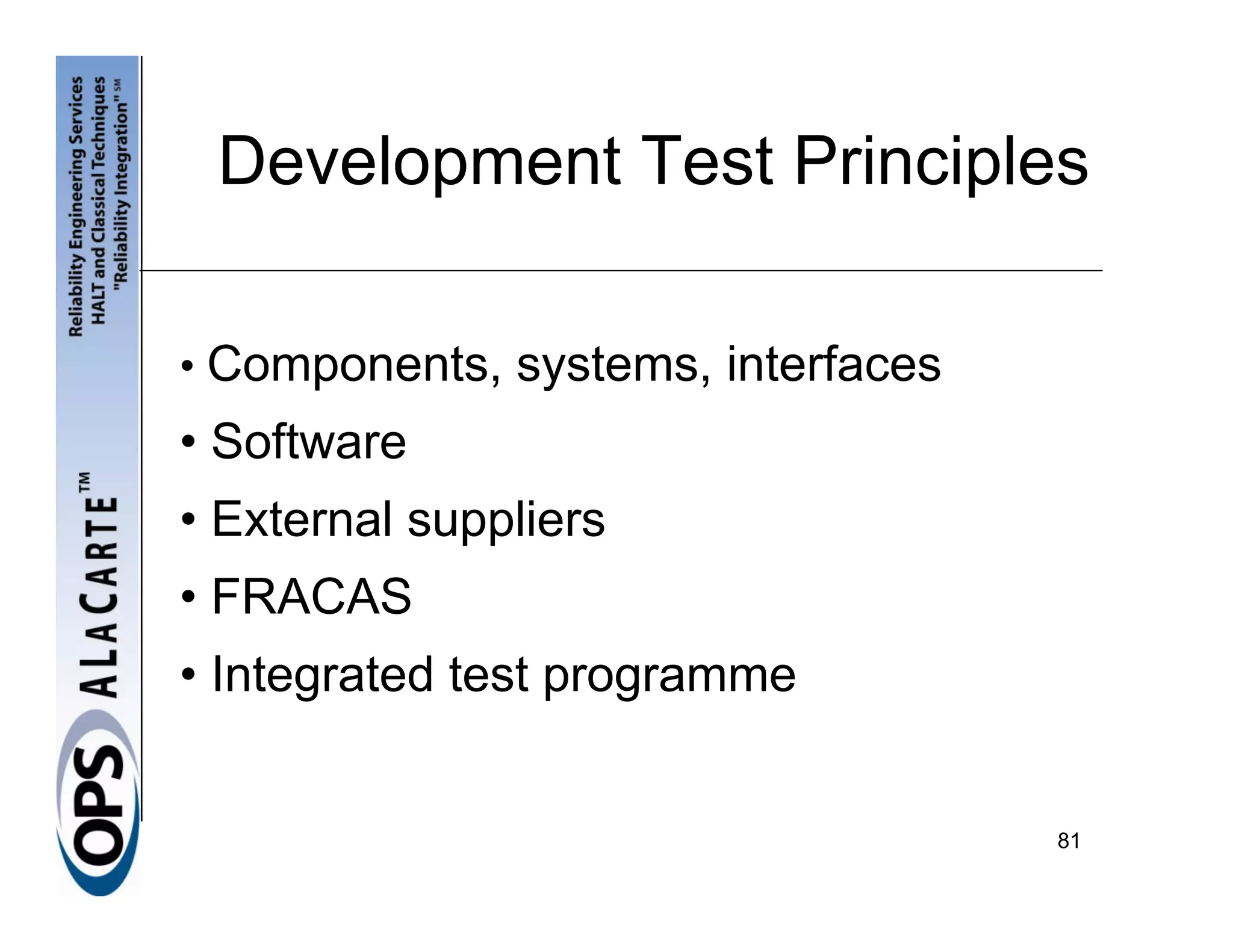

- 81. Development Test Principles •Components, systems, interfaces • Software • External suppliers • FRACAS • Integrated test programme 81

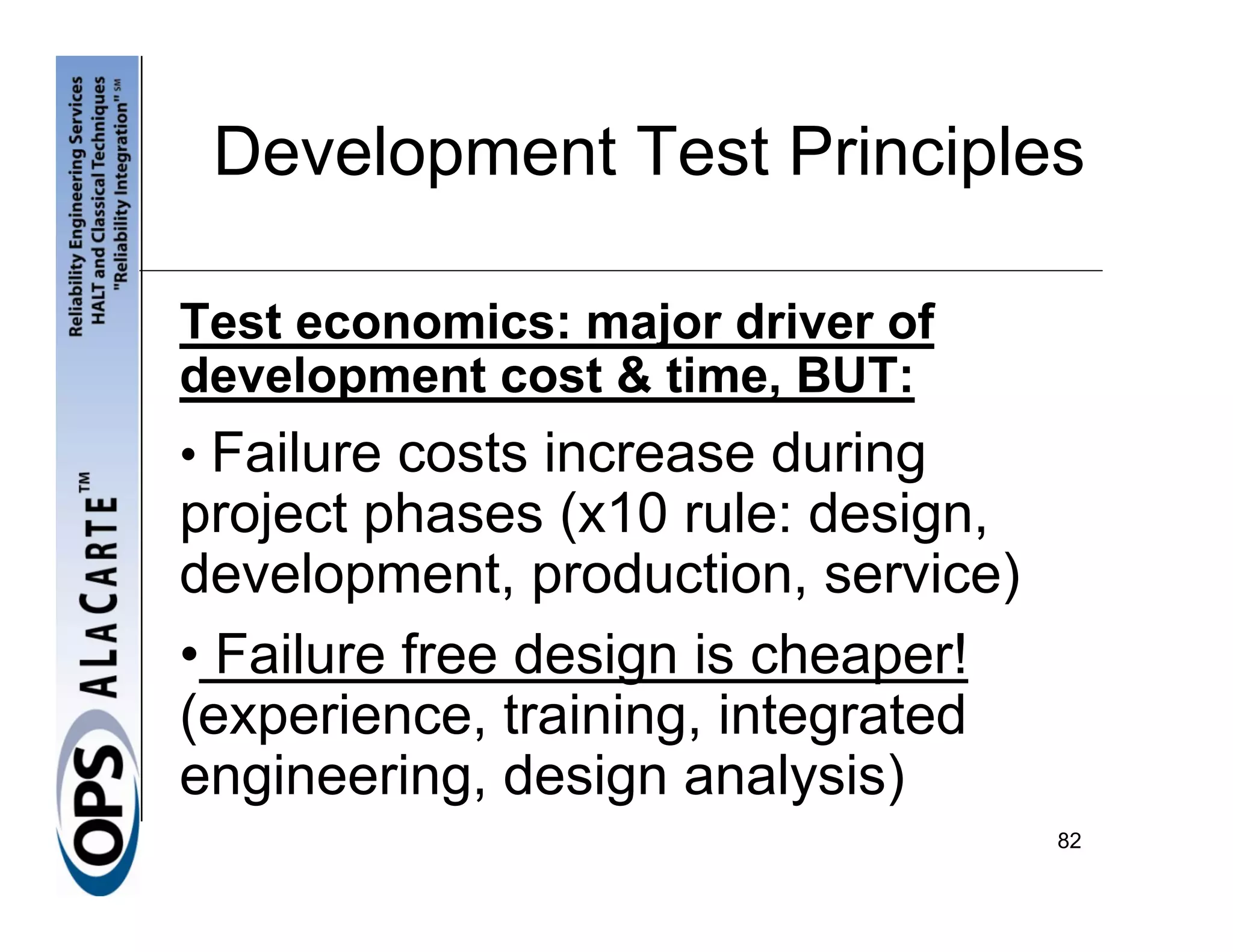

- 82. Development Test Principles Testeconomics: major driver of development cost & time, BUT: • Failure costs increase during project phases (x10 rule: design, development, production, service) • Failure free design is cheaper! (experience, training, integrated engineering, design analysis) 82

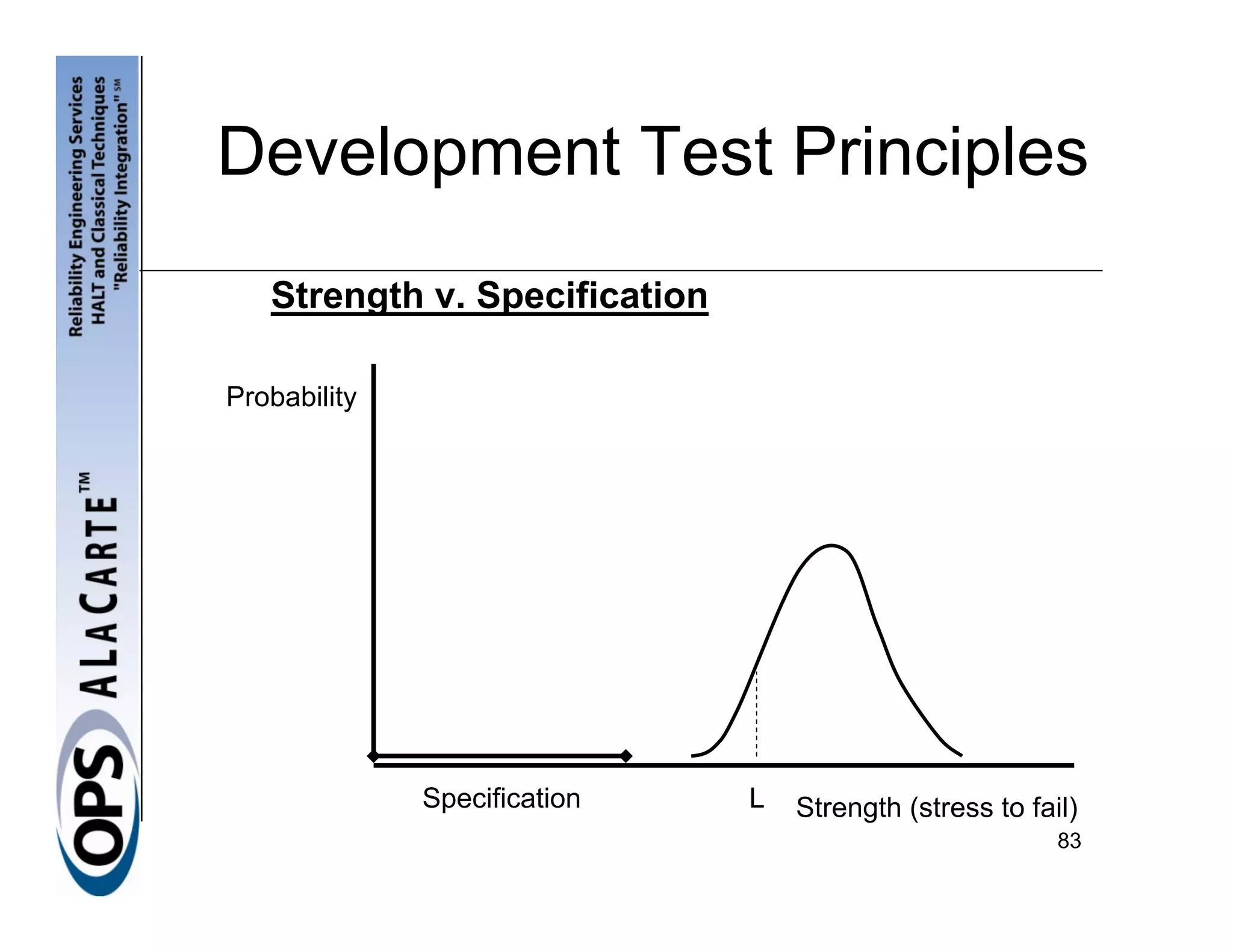

- 83. Development Test Principles Strength v. Specification Probability Specification L Strength (stress to fail) 83

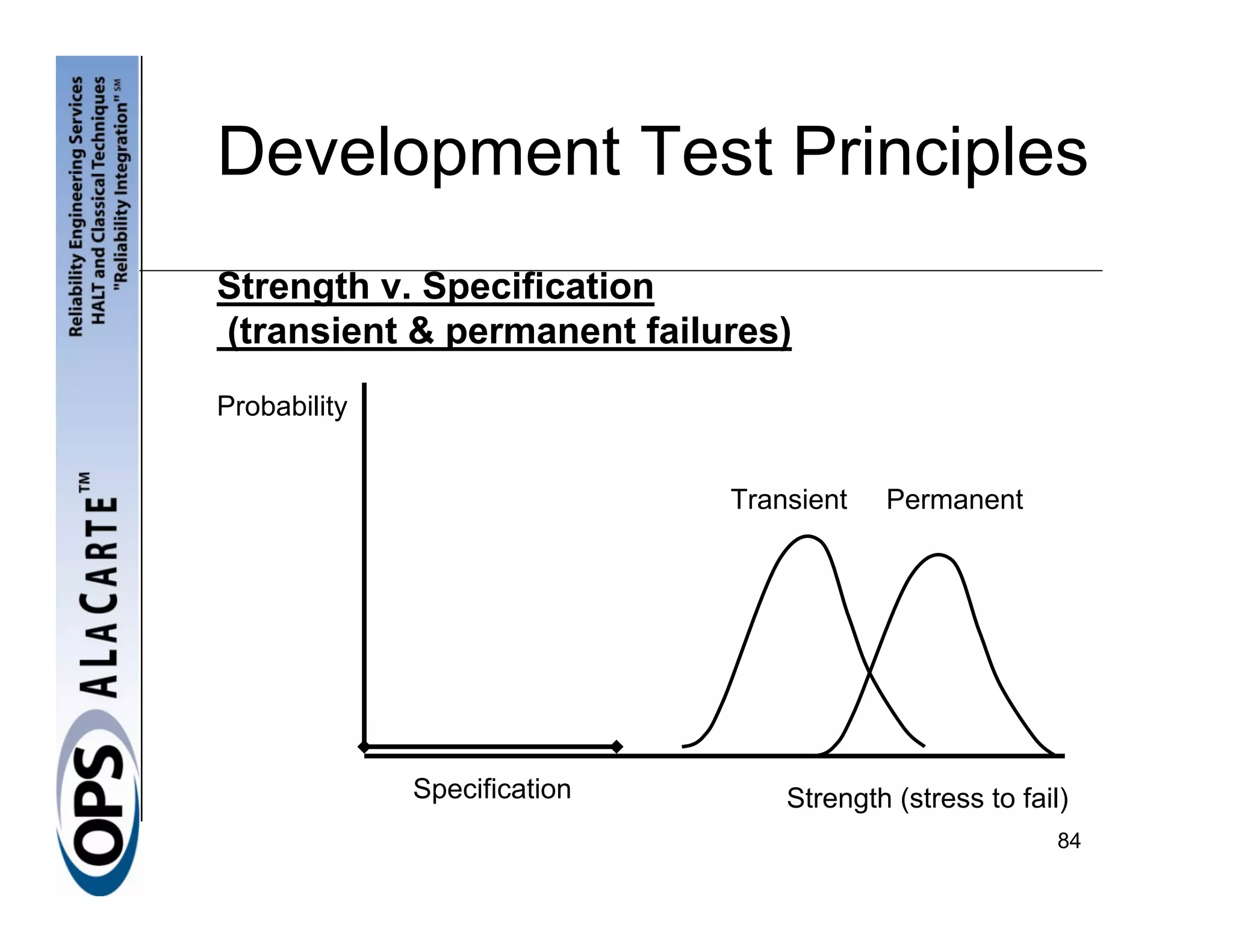

- 84. Development Test Principles Strengthv. Specification (transient & permanent failures) Probability Transient Permanent Specification Strength (stress to fail) 84

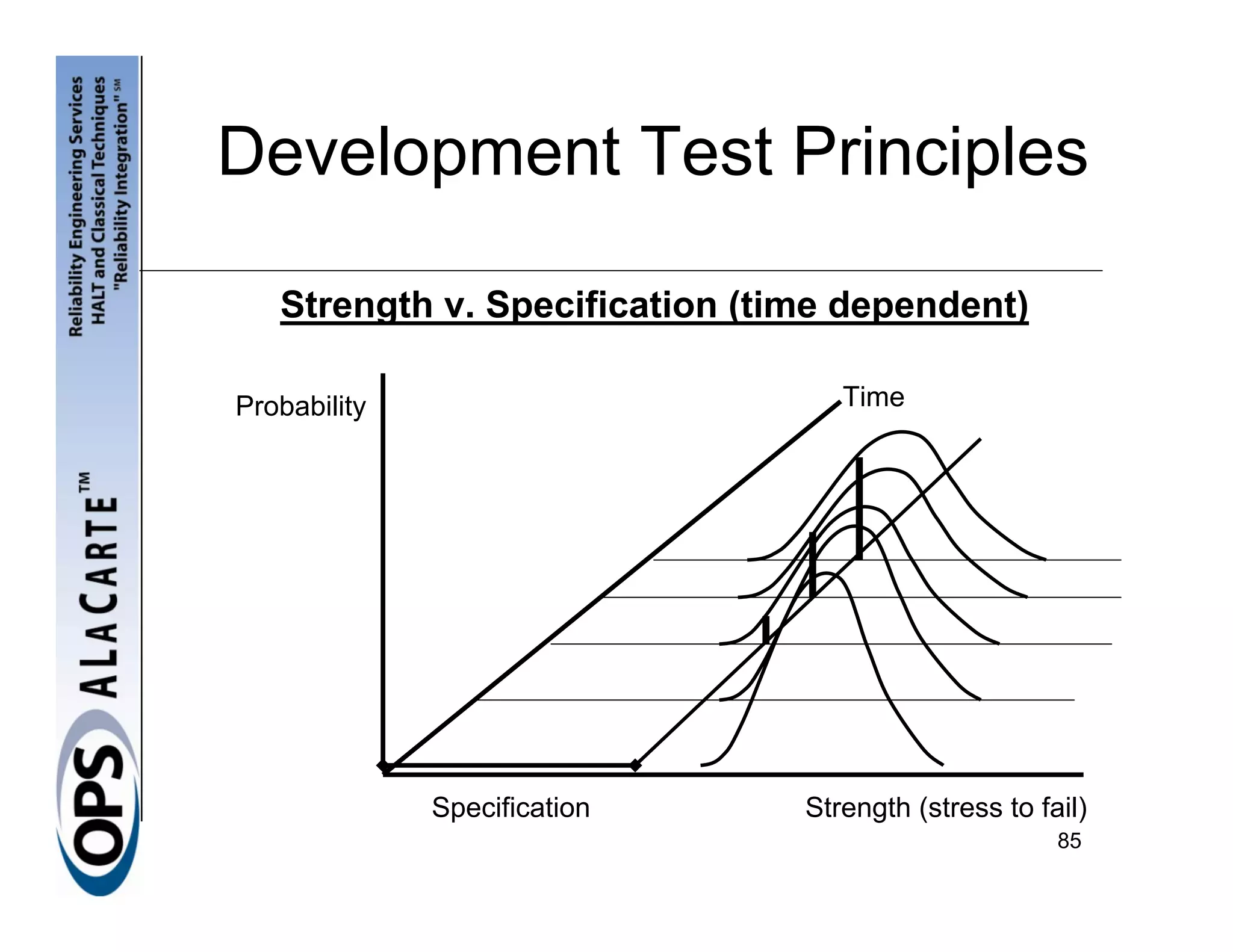

- 85. Development Test Principles Strength v. Specification (time dependent) Probability Time Specification Strength (stress to fail) 85

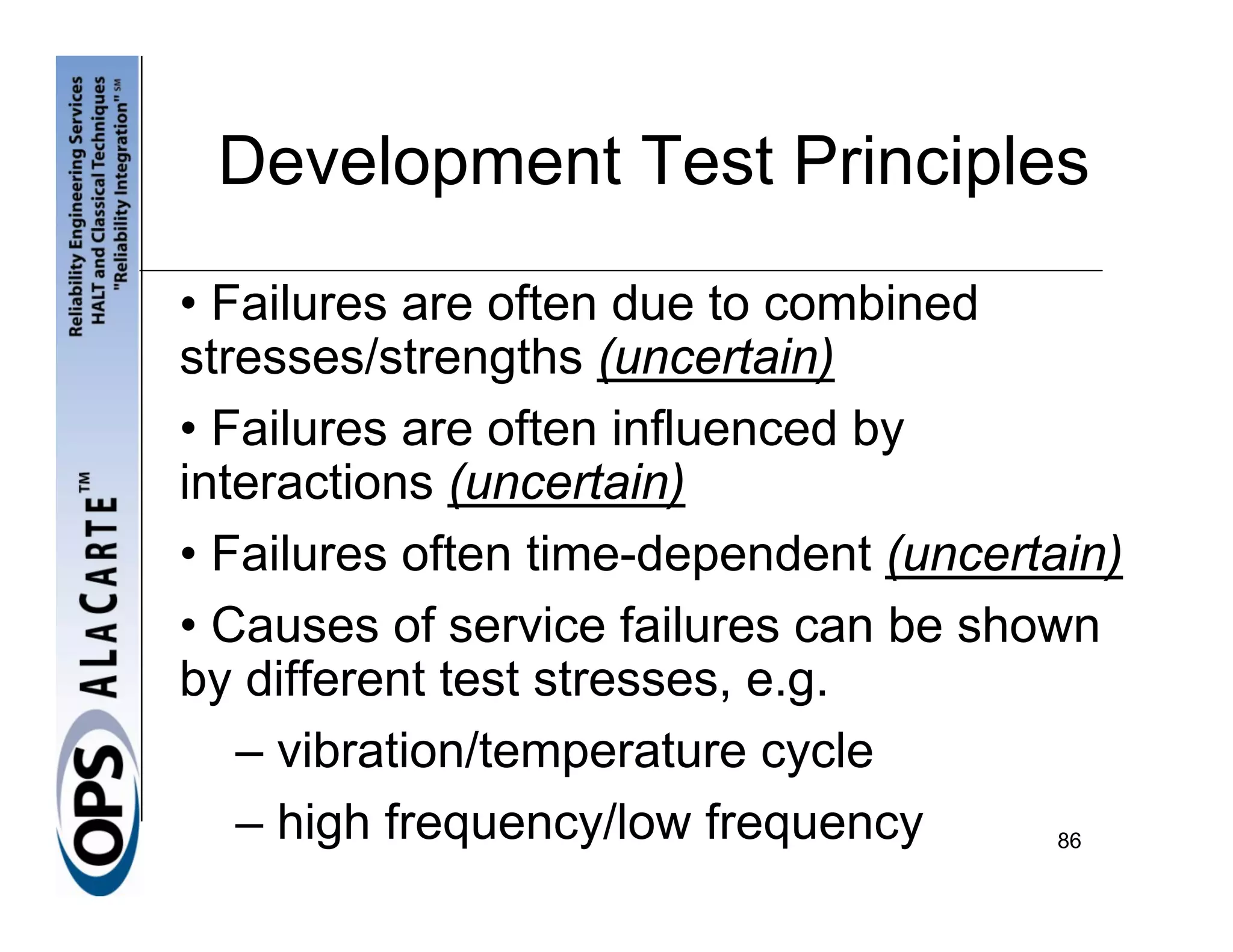

- 86. Development Test Principles •Failures are often due to combined stresses/strengths (uncertain) • Failures are often influenced by interactions (uncertain) • Failures often time-dependent (uncertain) • Causes of service failures can be shown by different test stresses, e.g. – vibration/temperature cycle – high frequency/low frequency 86

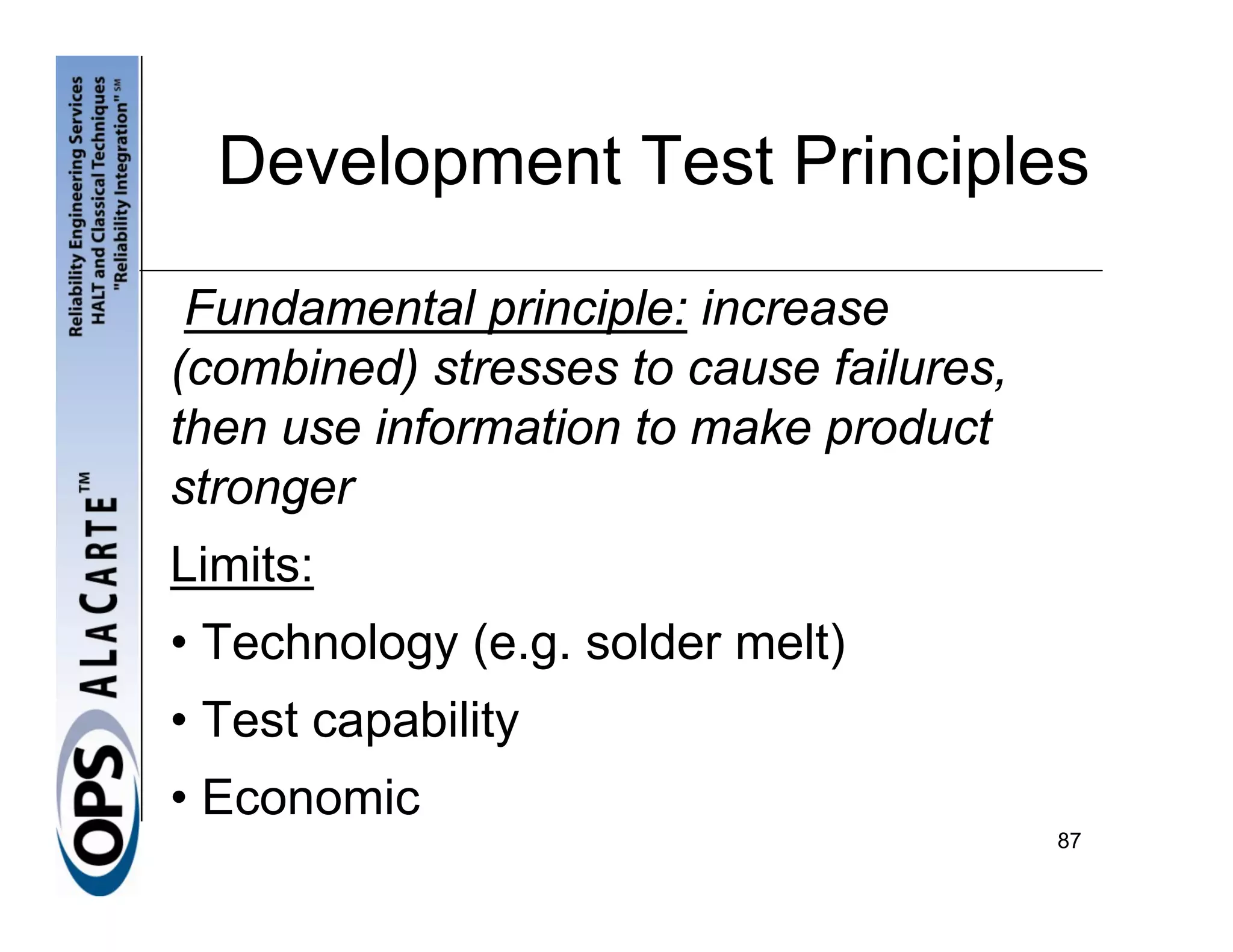

- 87. Development Test Principles Fundamental principle: increase (combined) stresses to cause failures, then use information to make product stronger Limits: • Technology (e.g. solder melt) • Test capability • Economic 87

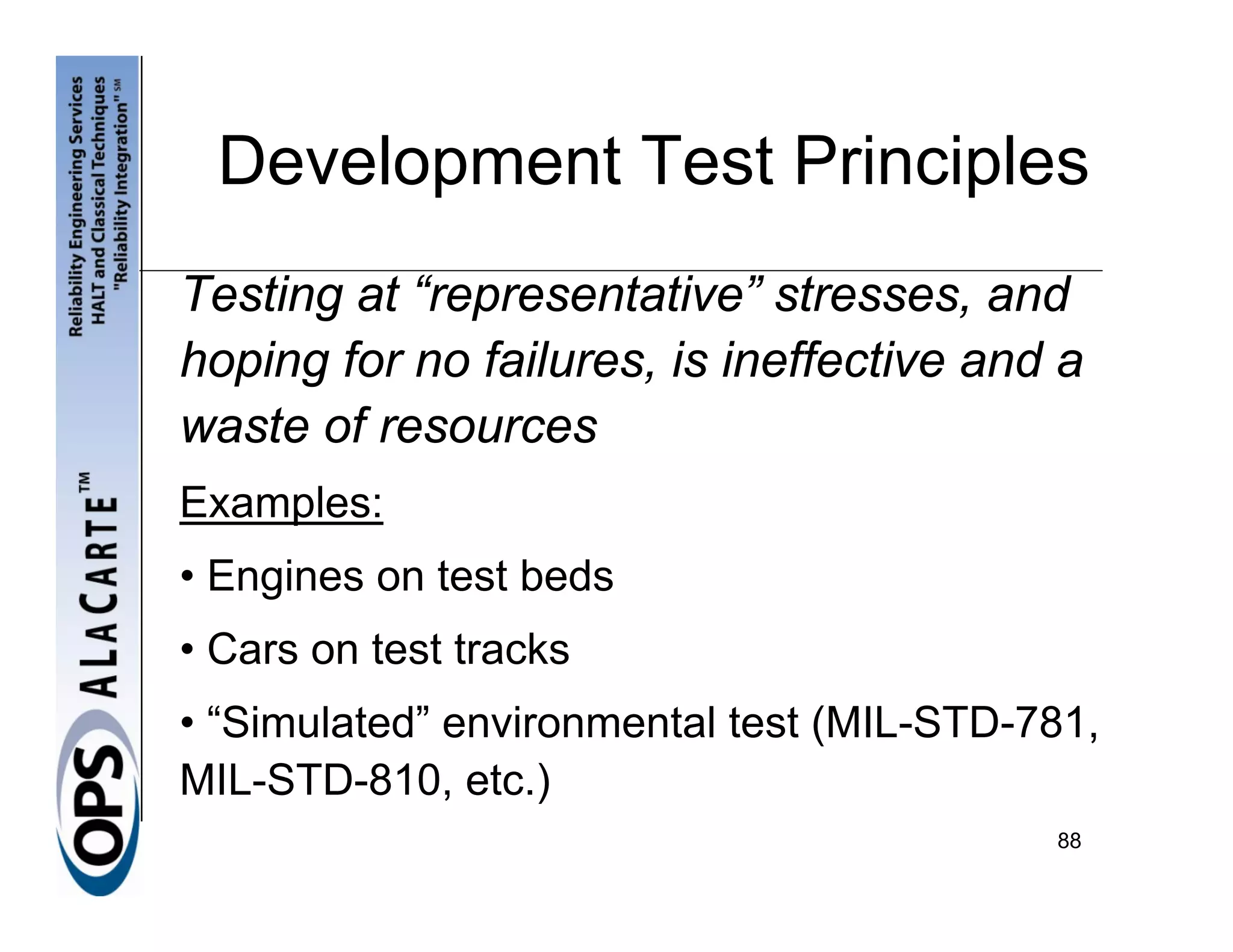

- 88. Development Test Principles Testingat “representative” stresses, and hoping for no failures, is ineffective and a waste of resources Examples: • Engines on test beds • Cars on test tracks • “Simulated” environmental test (MIL-STD-781, MIL-STD-810, etc.) 88

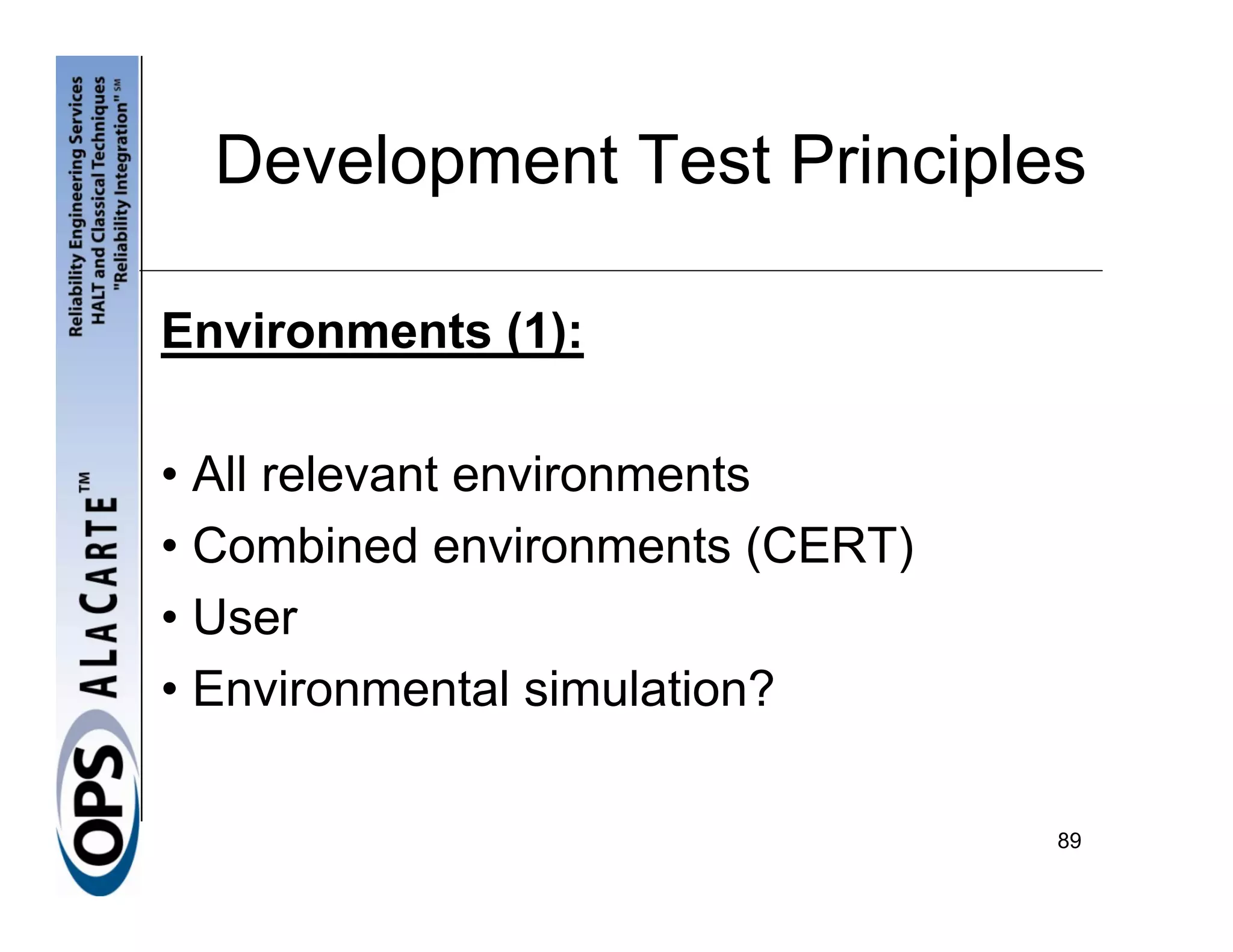

- 89. Development Test Principles Environments(1): • All relevant environments • Combined environments (CERT) • User • Environmental simulation? 89

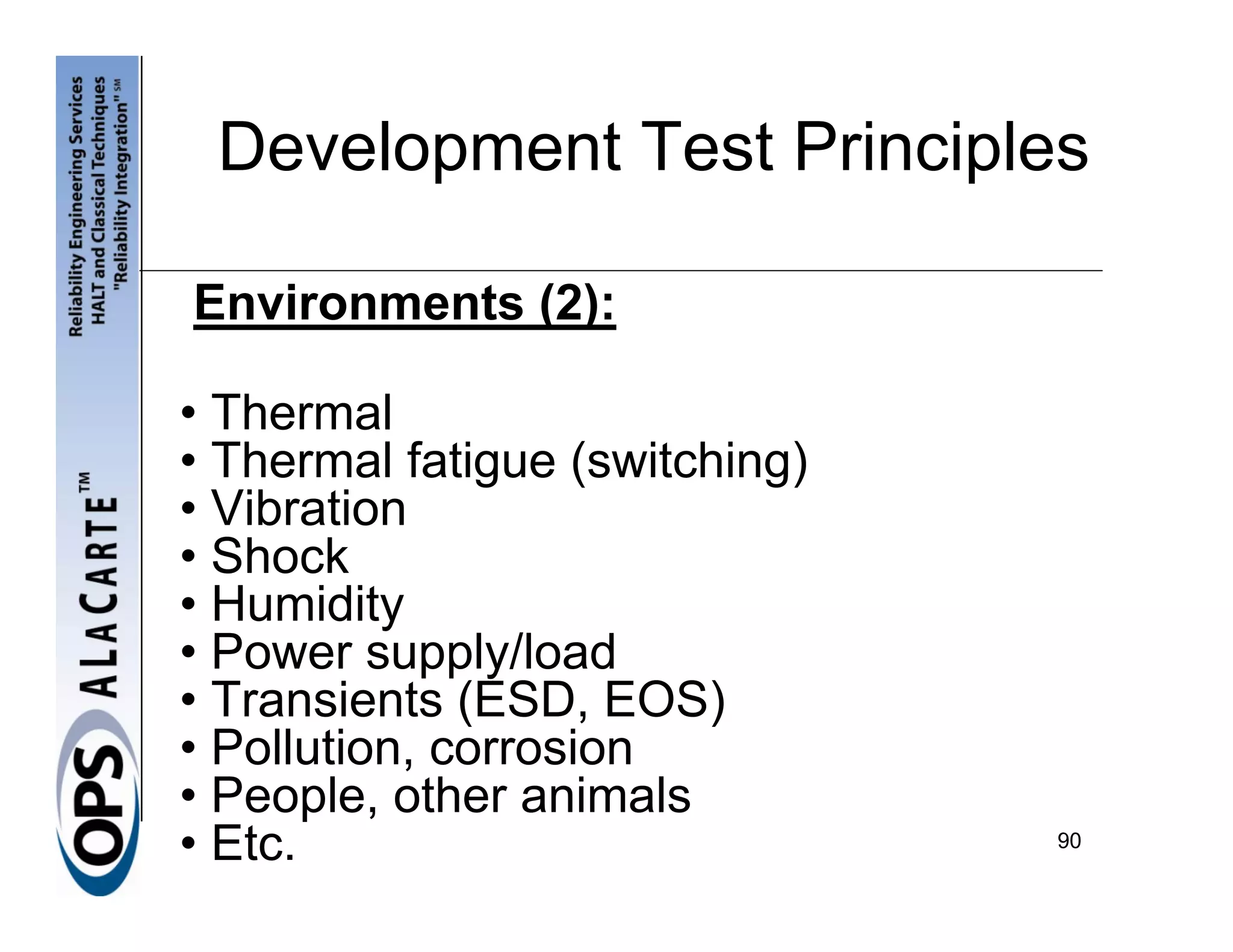

- 90. Development Test Principles Environments(2): • Thermal • Thermal fatigue (switching) • Vibration • Shock • Humidity • Power supply/load • Transients (ESD, EOS) • Pollution, corrosion • People, other animals • Etc. 90

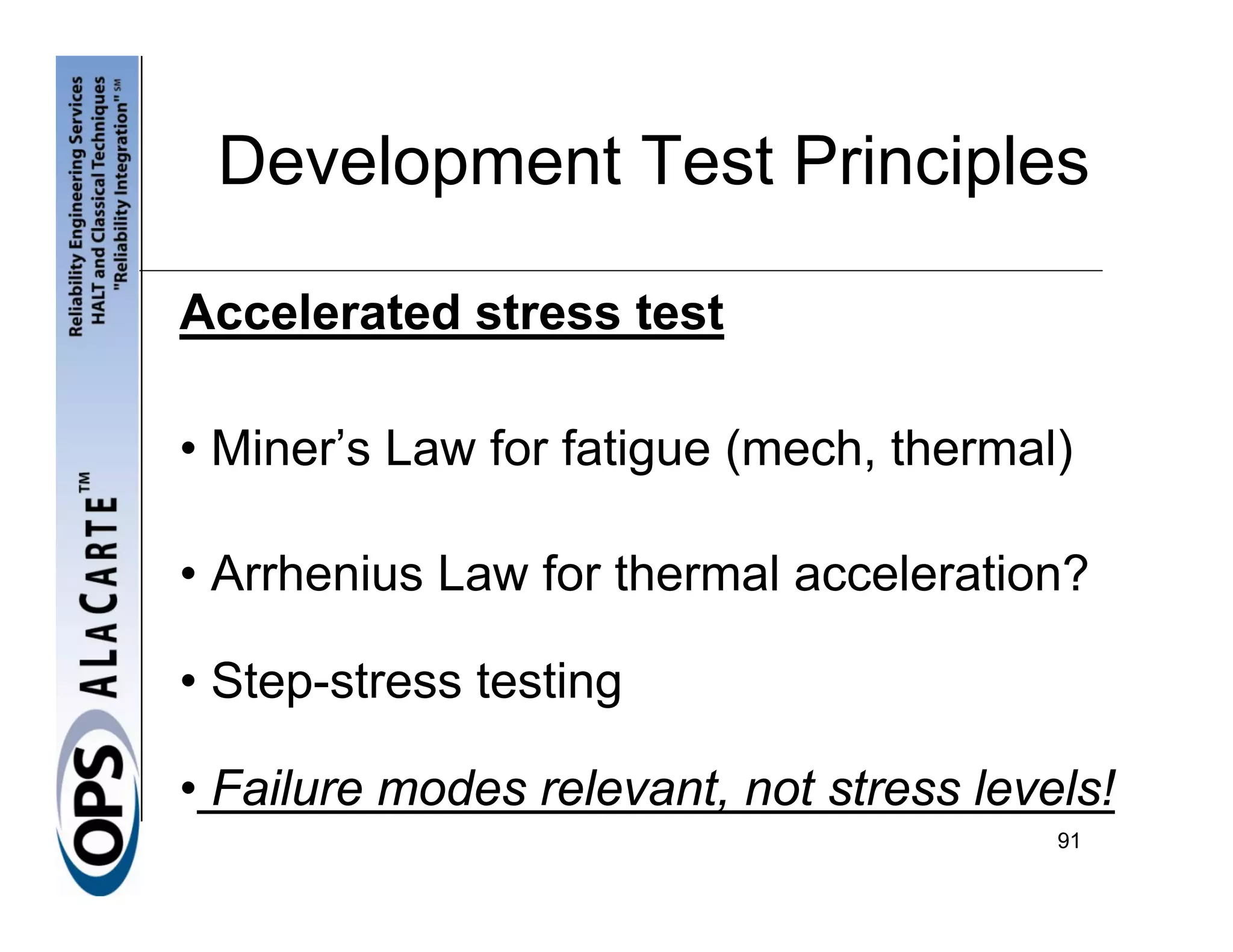

- 91. Development Test Principles Acceleratedstress test • Miner’s Law for fatigue (mech, thermal) • Arrhenius Law for thermal acceleration? • Step-stress testing • Failure modes relevant, not stress levels! 91

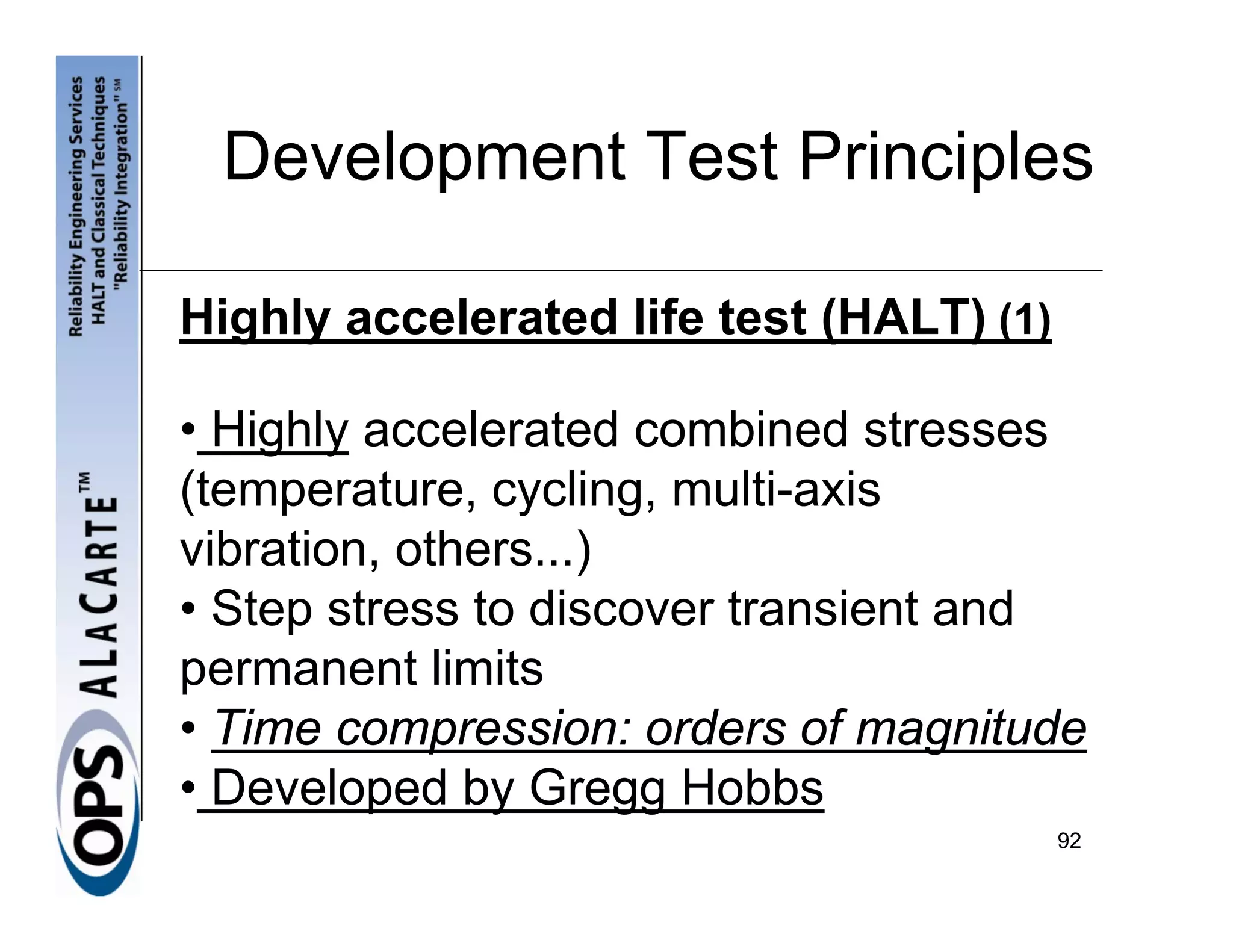

- 92. Development Test Principles Highlyaccelerated life test (HALT) (1) • Highly accelerated combined stresses (temperature, cycling, multi-axis vibration, others...) • Step stress to discover transient and permanent limits • Time compression: orders of magnitude • Developed by Gregg Hobbs 92

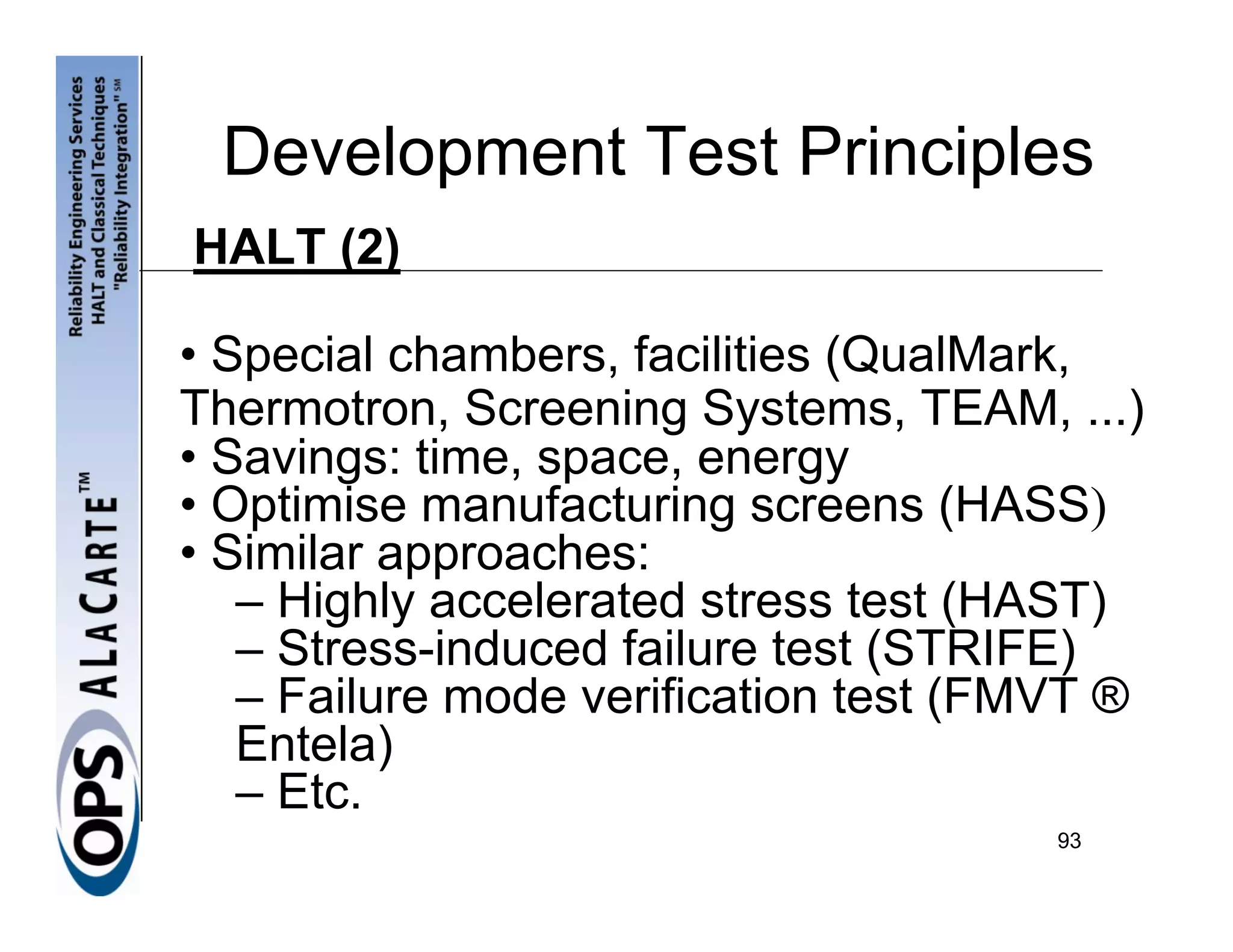

- 93. Development Test Principles HALT(2) • Special chambers, facilities (QualMark, Thermotron, Screening Systems, TEAM, ...) • Savings: time, space, energy • Optimise manufacturing screens (HASS) • Similar approaches: – Highly accelerated stress test (HAST) – Stress-induced failure test (STRIFE) – Failure mode verification test (FMVT ® Entela) – Etc. 93

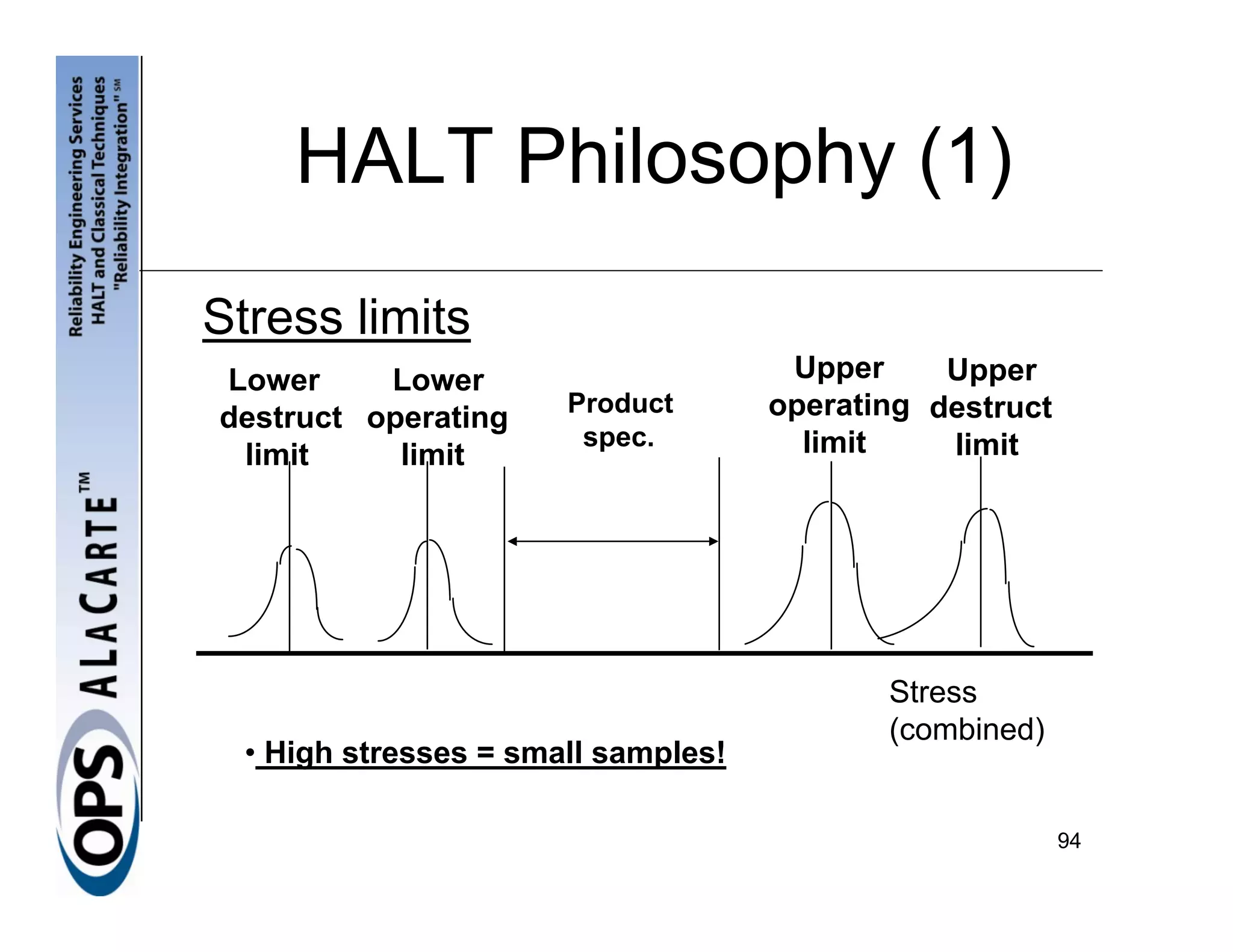

- 94. HALT Philosophy (1) Stresslimits Lower Lower Upper Upper Product operating destruct destruct operating spec. limit limit limit limit Stress (combined) • High stresses = small samples! 94

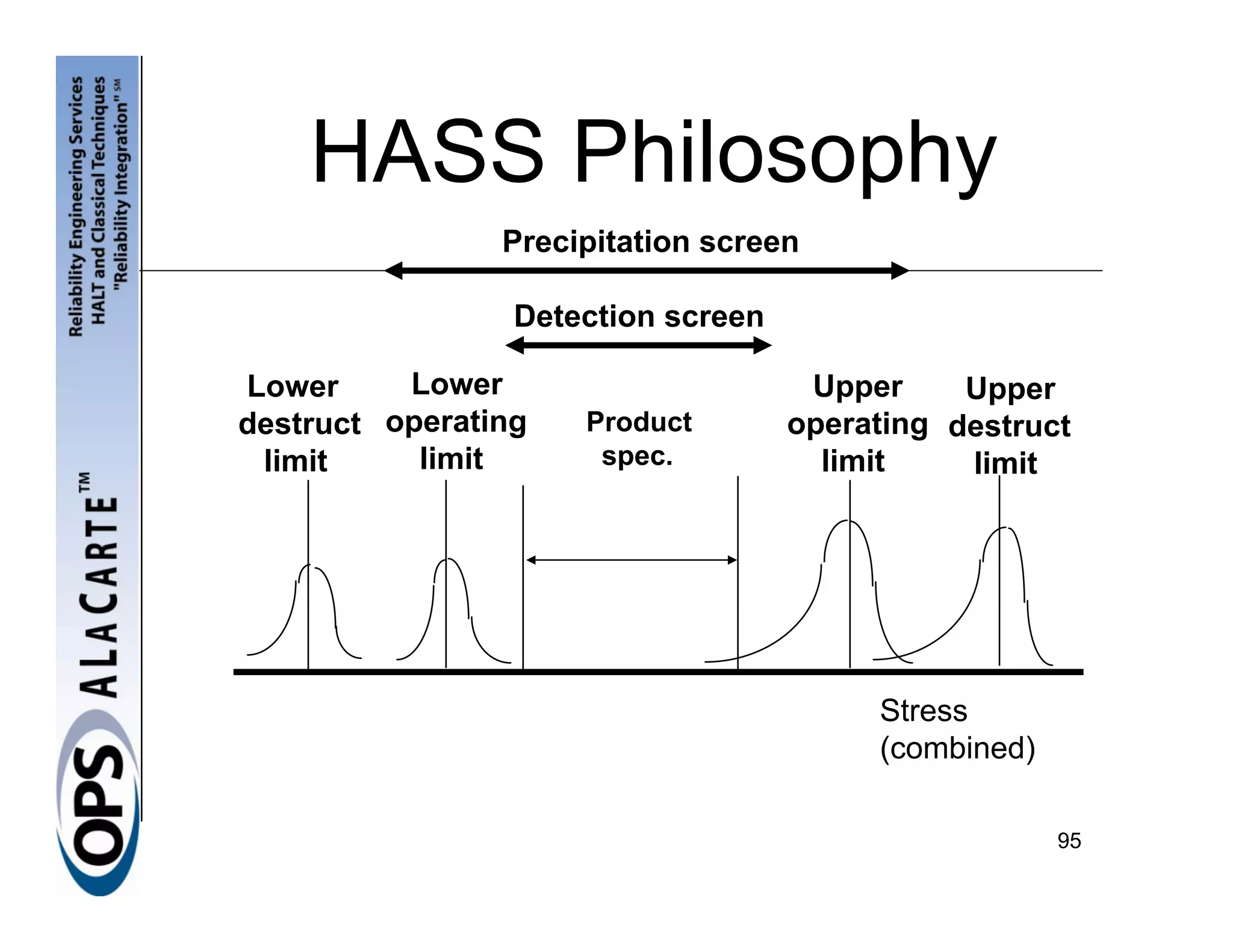

- 95. HASS Philosophy Precipitation screen Detection screen Lower Lower Upper Upper destruct operating Product operating destruct limit limit spec. limit limit Stress (combined) 95

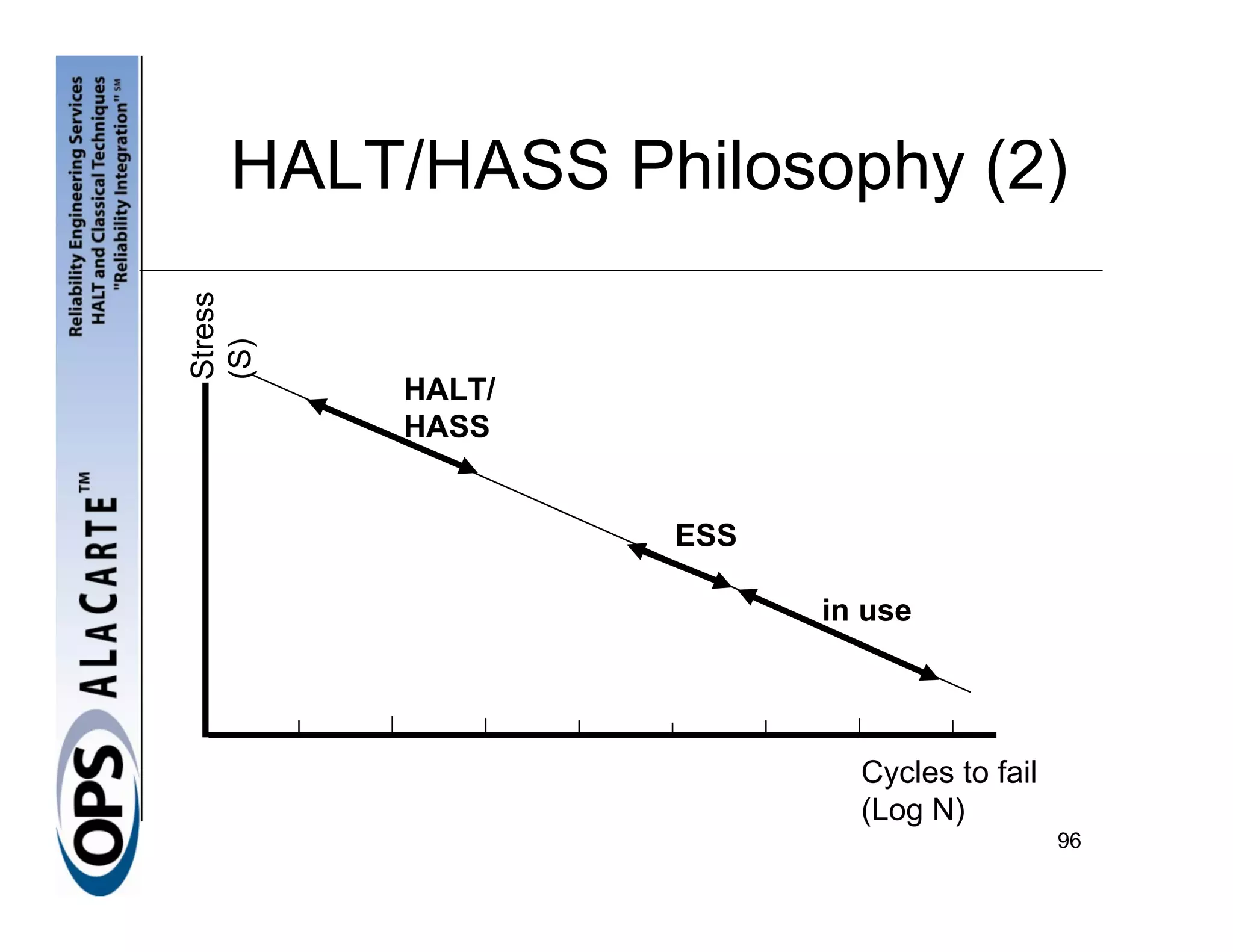

- 96. HALT/HASS Philosophy (2) Stress (S) HALT/ HASS ESS in use Cycles to fail (Log N) 96
- 97. Accelerated Test Approach TEp105 1. What failures might occur in service? (FMEA, etc). 2. List/analyse stresses, combinations. 3. Plan how to apply. 4. Apply single stresses, step increases to failure. 5. Analyse failure, strengthen design. 6. Iterate 4 & 5 to fundamental limits. 7. Repeat with combined stresses. 8. Iterate 5 & 6. 97

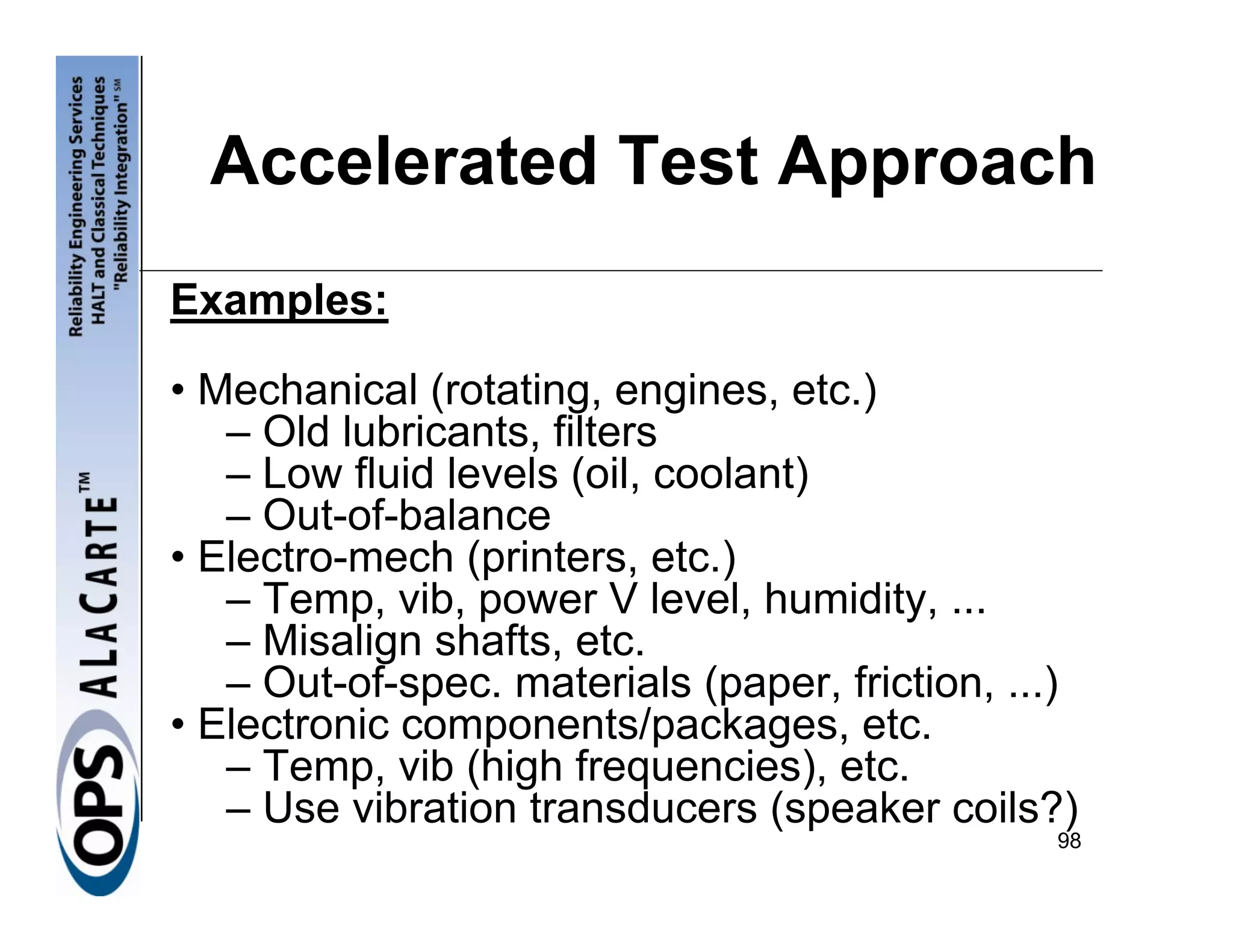

- 98. Accelerated Test Approach Examples: •Mechanical (rotating, engines, etc.) – Old lubricants, filters – Low fluid levels (oil, coolant) – Out-of-balance • Electro-mech (printers, etc.) – Temp, vib, power V level, humidity, ... – Misalign shafts, etc. – Out-of-spec. materials (paper, friction, ...) • Electronic components/packages, etc. – Temp, vib (high frequencies), etc. – Use vibration transducers (speaker coils?) 98

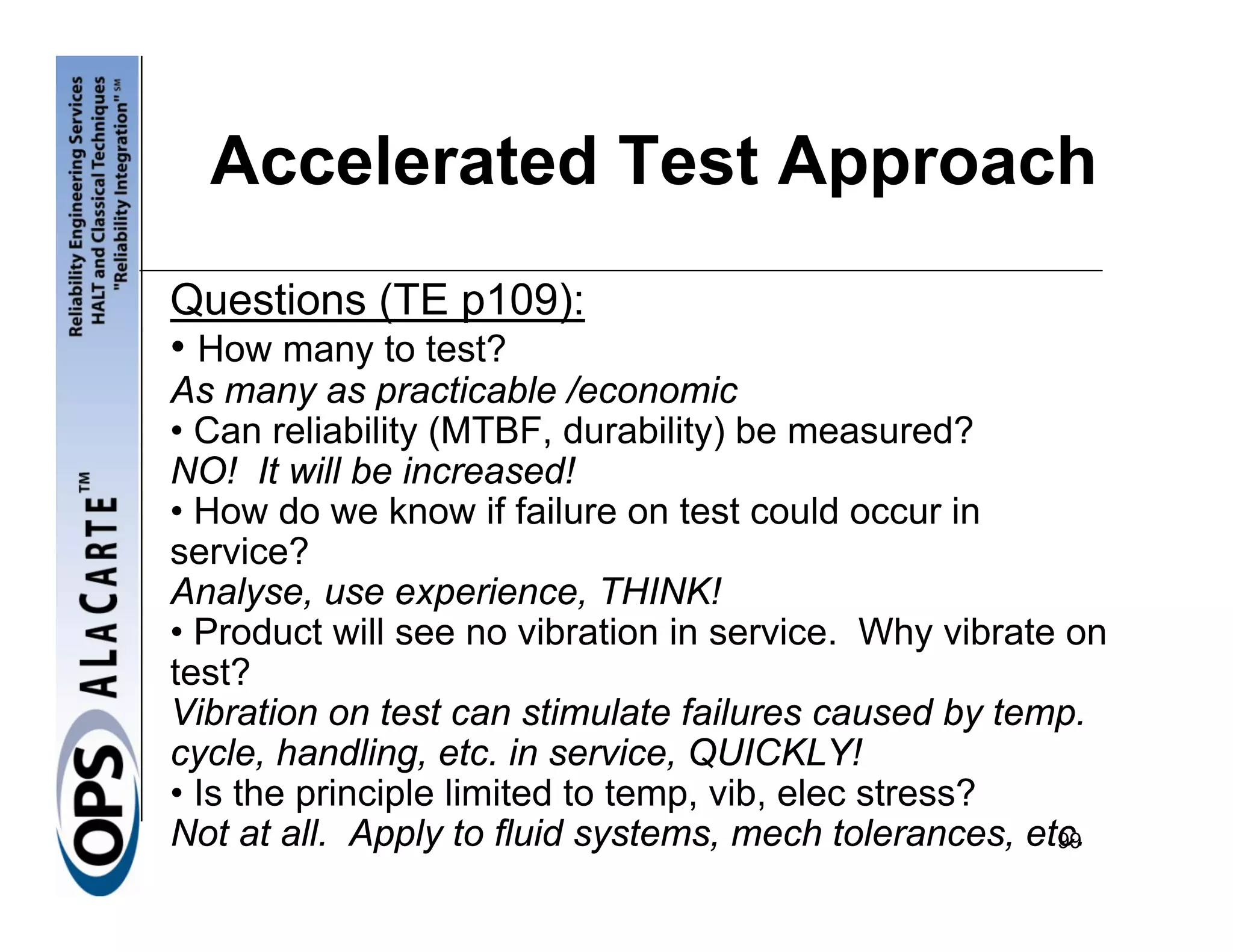

- 99. Accelerated Test Approach Questions(TE p109): • How many to test? As many as practicable /economic • Can reliability (MTBF, durability) be measured? NO! It will be increased! • How do we know if failure on test could occur in service? Analyse, use experience, THINK! • Product will see no vibration in service. Why vibrate on test? Vibration on test can stimulate failures caused by temp. cycle, handling, etc. in service, QUICKLY! • Is the principle limited to temp, vib, elec stress? Not at all. Apply to fluid systems, mech tolerances, etc. 99

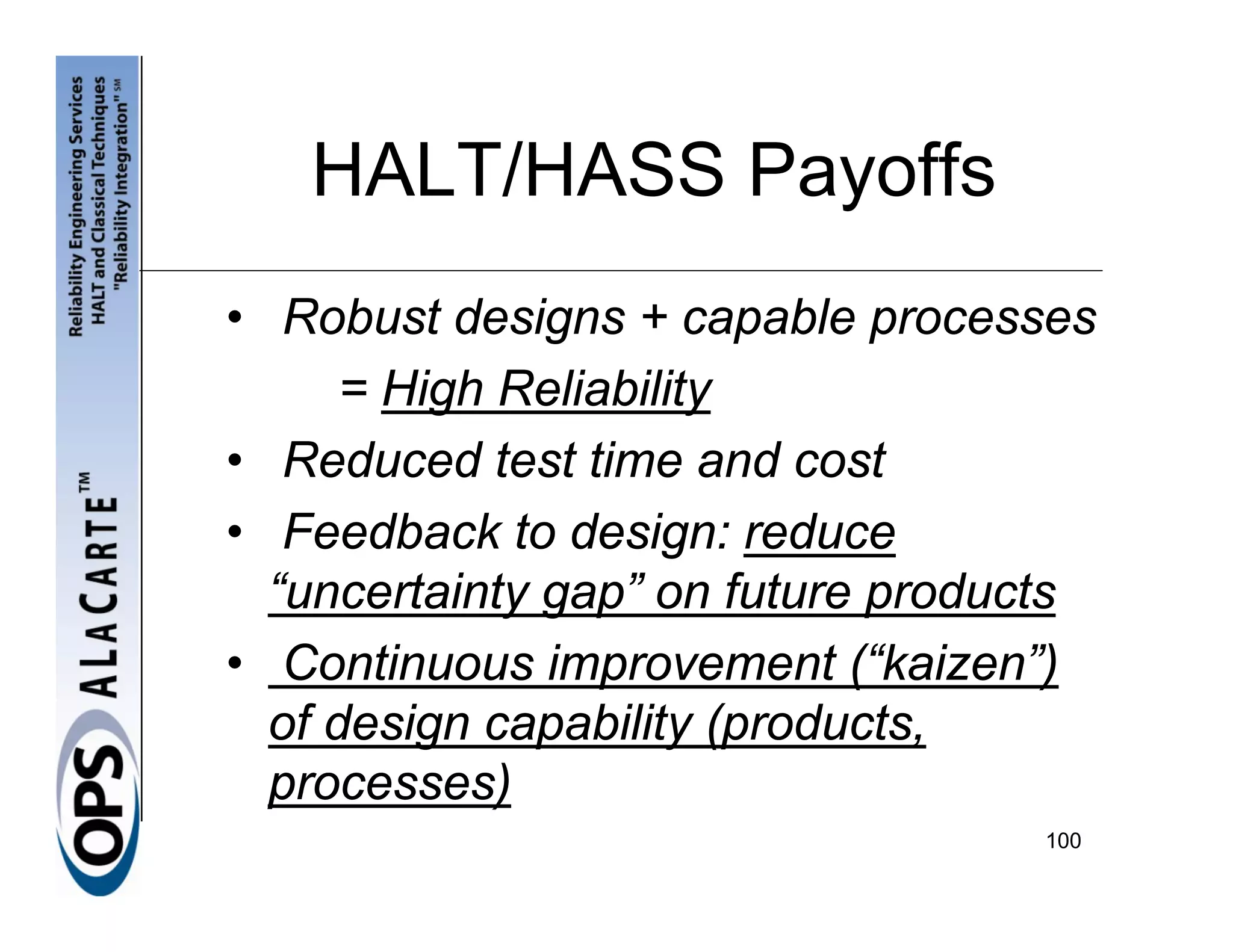

- 100. HALT/HASS Payoffs • Robustdesigns + capable processes = High Reliability • Reduced test time and cost • Feedback to design: reduce “uncertainty gap” on future products • Continuous improvement (“kaizen”) of design capability (products, processes) 100

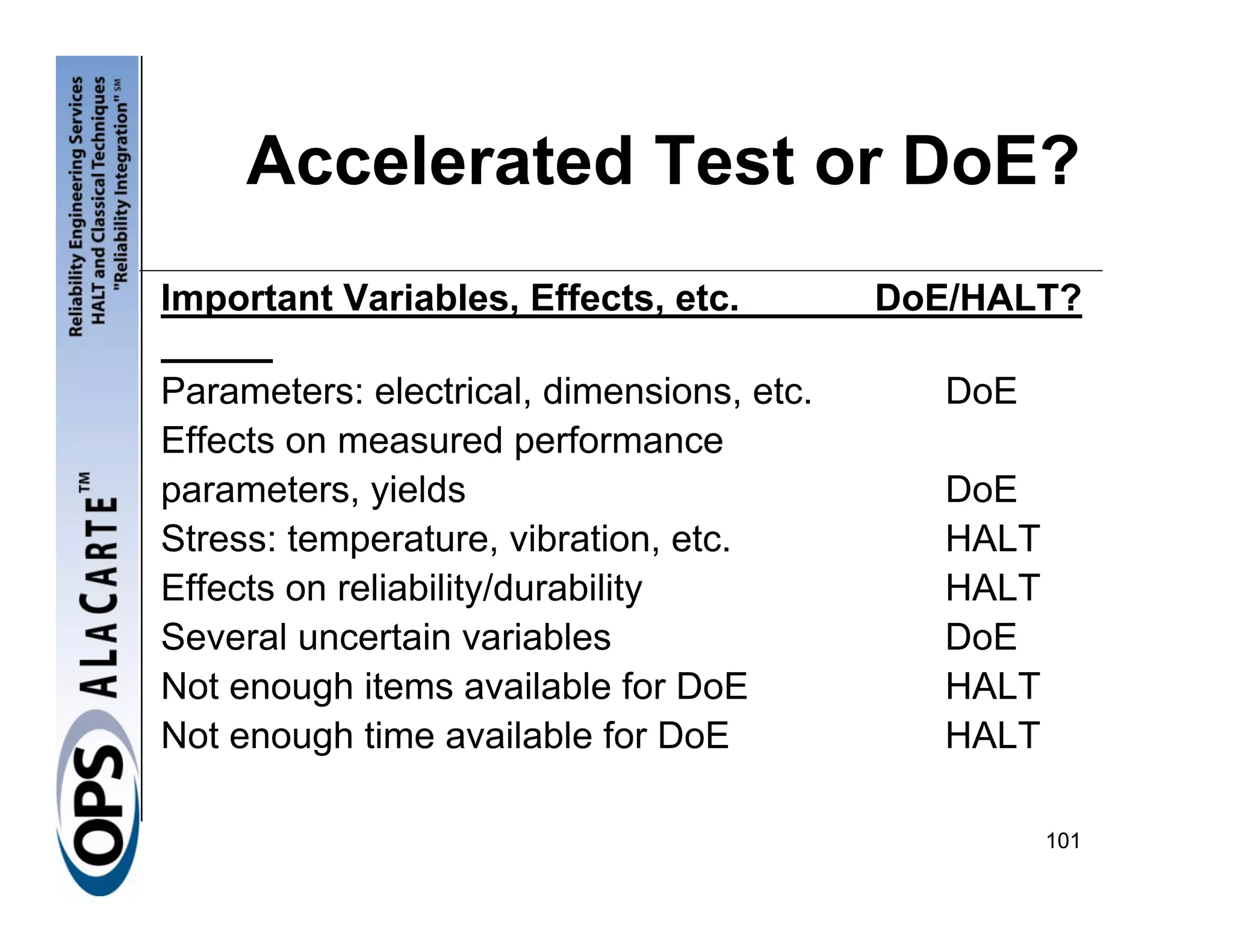

- 101. Accelerated Test orDoE? Important Variables, Effects, etc. DoE/HALT? Parameters: electrical, dimensions, etc. DoE Effects on measured performance parameters, yields DoE Stress: temperature, vibration, etc. HALT Effects on reliability/durability HALT Several uncertain variables DoE Not enough items available for DoE HALT Not enough time available for DoE HALT 101

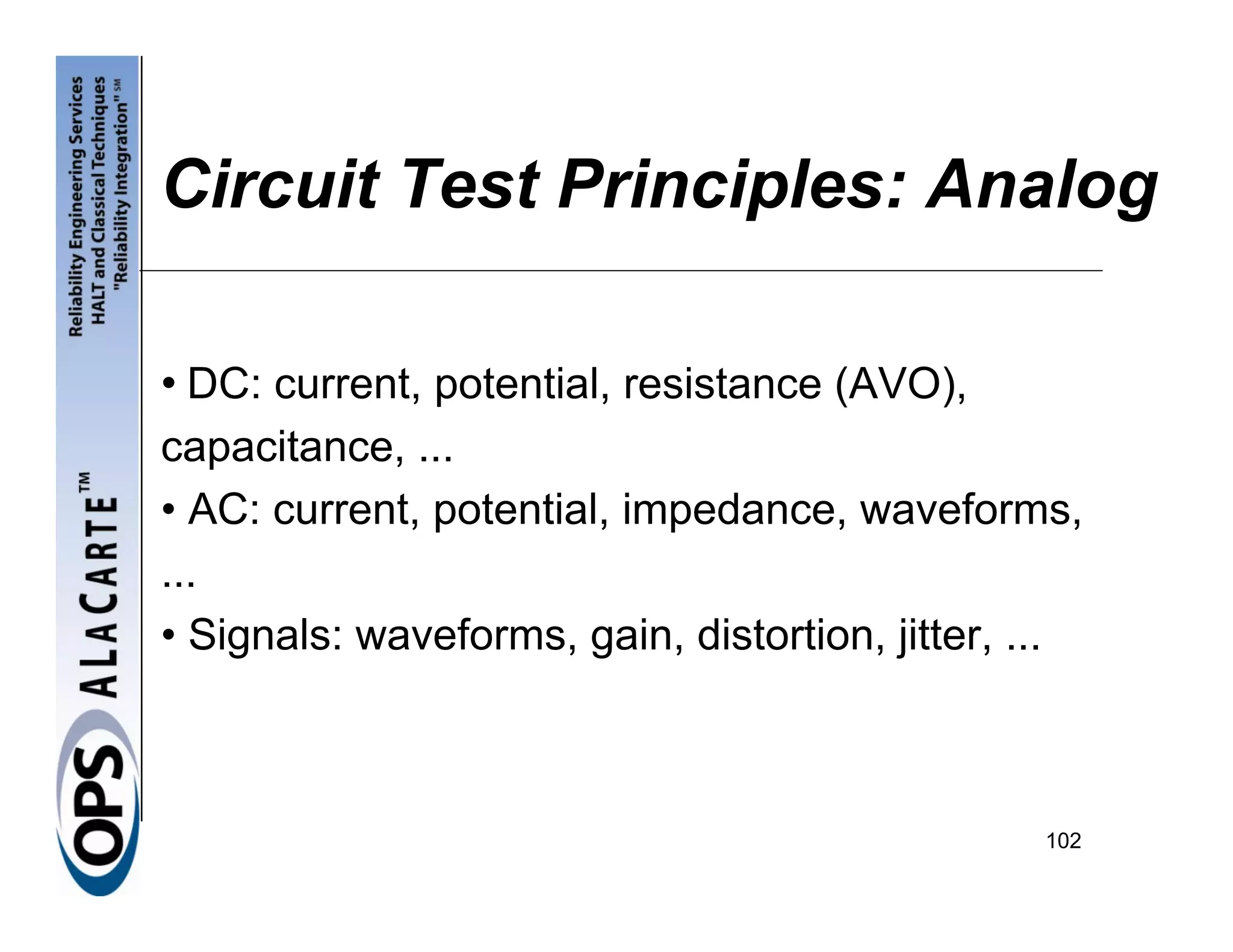

- 102. Circuit Test Principles:Analog • DC: current, potential, resistance (AVO), capacitance, ... • AC: current, potential, impedance, waveforms, ... • Signals: waveforms, gain, distortion, jitter, ... 102

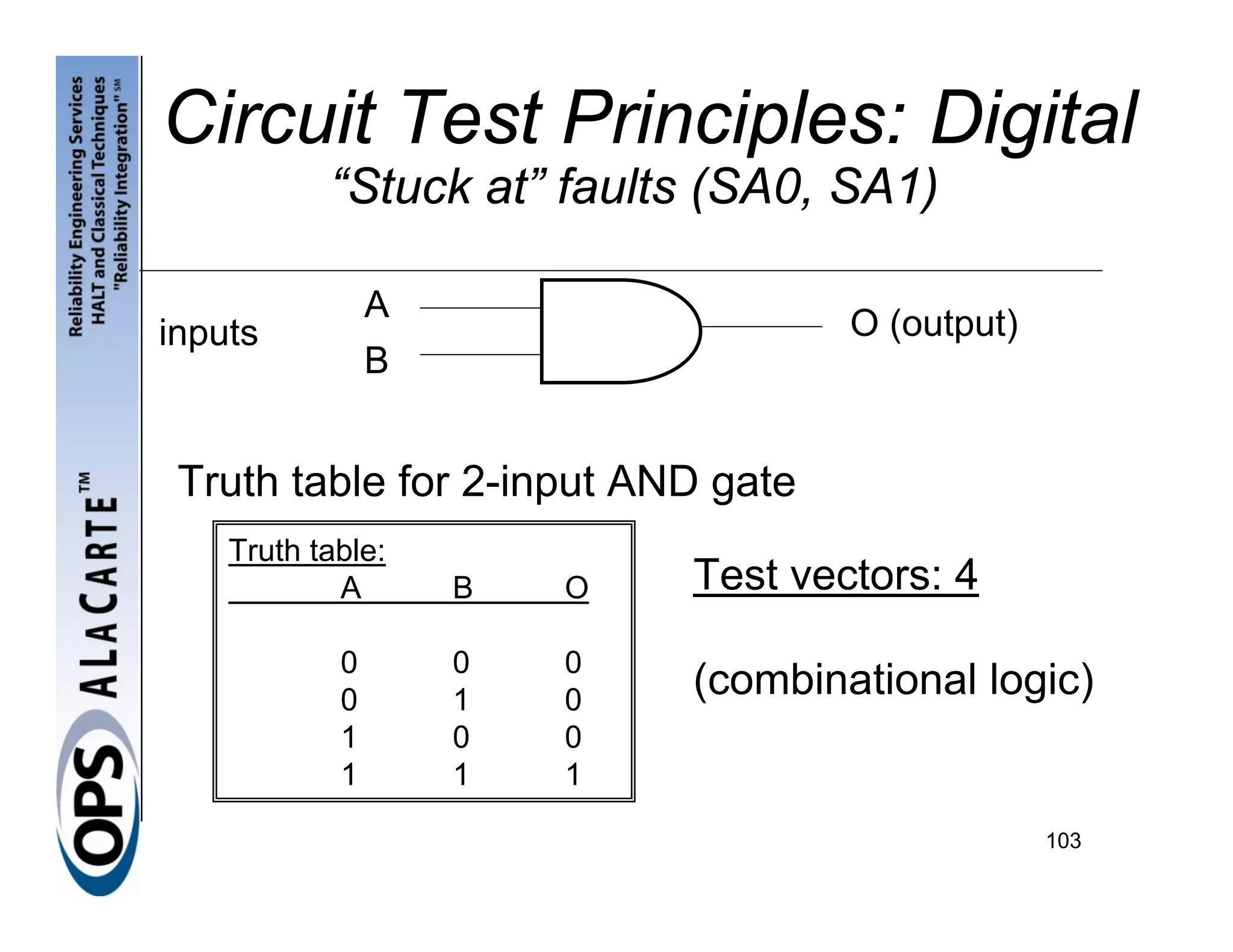

- 103. Circuit Test Principles:Digital “Stuck at” faults (SA0, SA1) A inputs O (output) B Truth table for 2-input AND gate Truth table: A B O Test vectors: 4 0 0 0 0 1 0 (combinational logic) 1 0 0 1 1 1 103

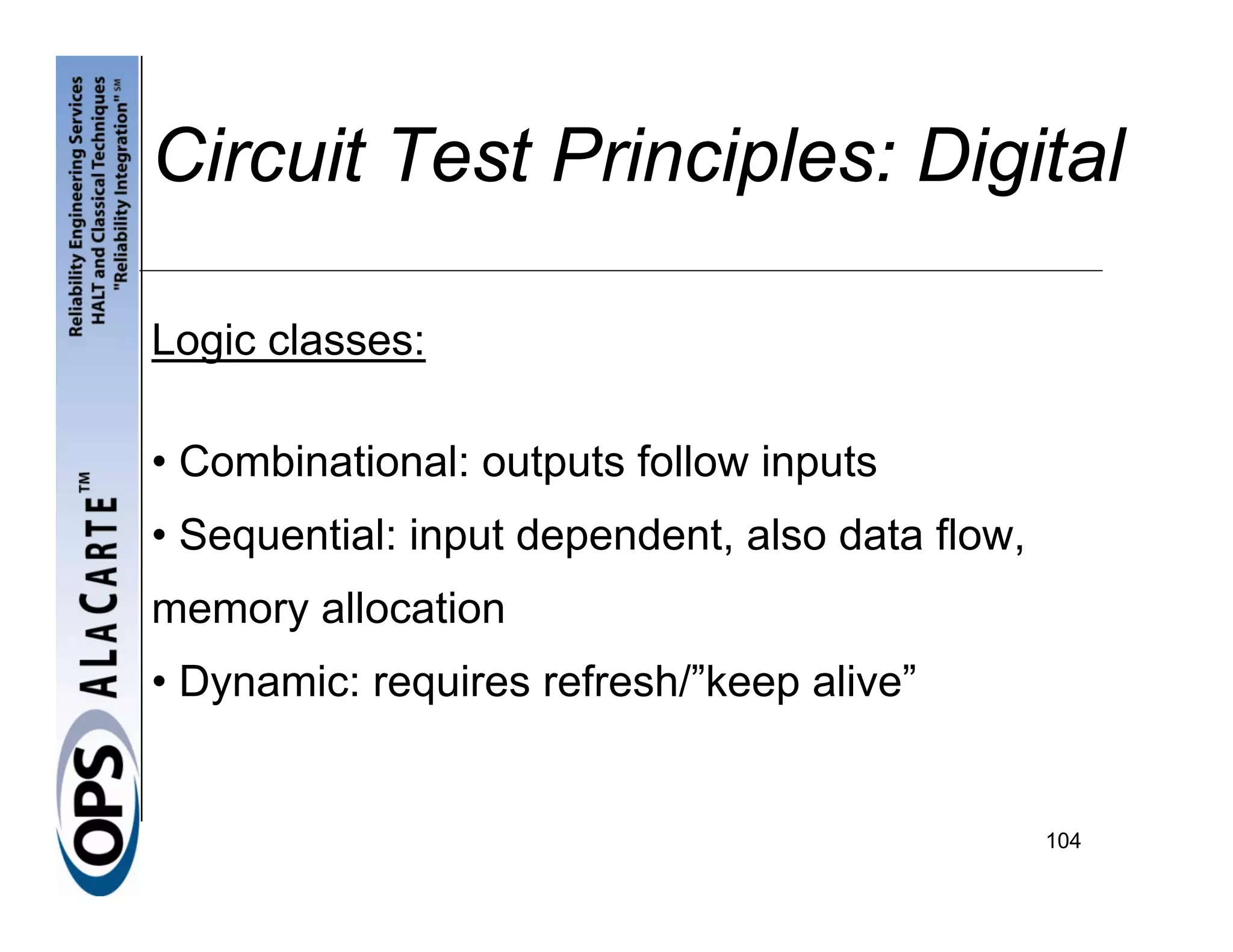

- 104. Circuit Test Principles:Digital Logic classes: • Combinational: outputs follow inputs • Sequential: input dependent, also data flow, memory allocation • Dynamic: requires refresh/”keep alive” 104

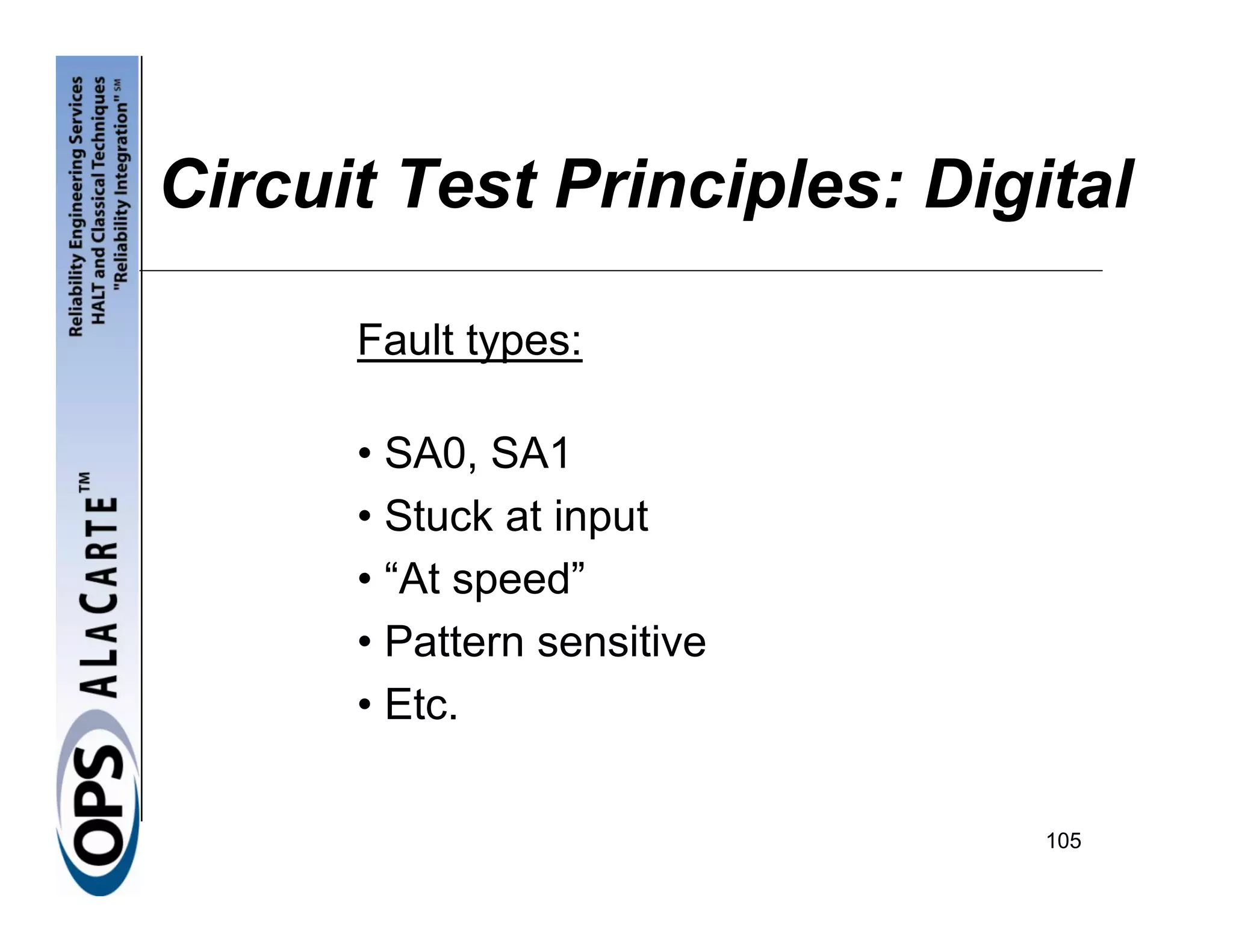

- 105. Circuit Test Principles:Digital Fault types: • SA0, SA1 • Stuck at input • “At speed” • Pattern sensitive • Etc. 105

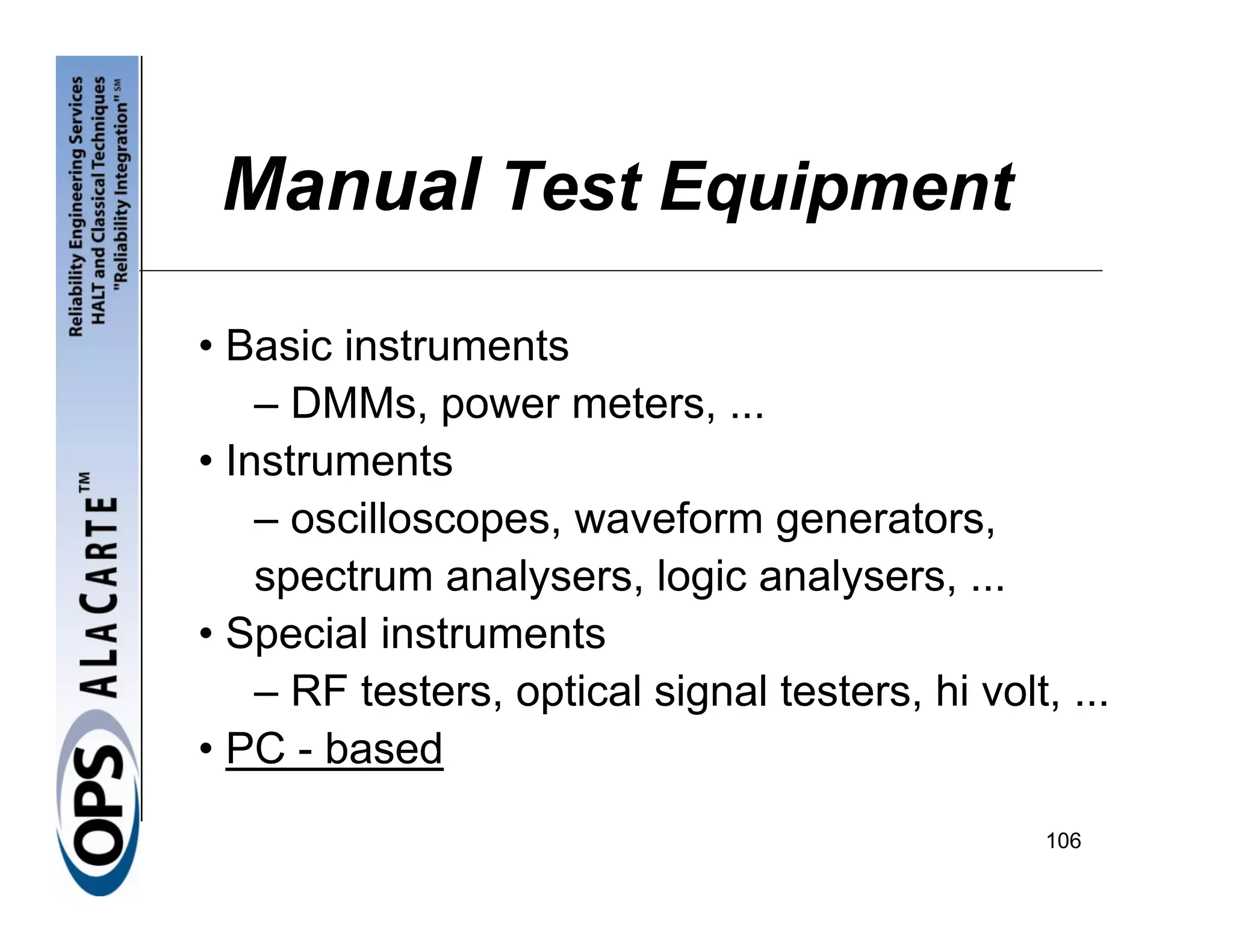

- 106. Manual Test Equipment •Basic instruments – DMMs, power meters, ... • Instruments – oscilloscopes, waveform generators, spectrum analysers, logic analysers, ... • Special instruments – RF testers, optical signal testers, hi volt, ... • PC - based 106

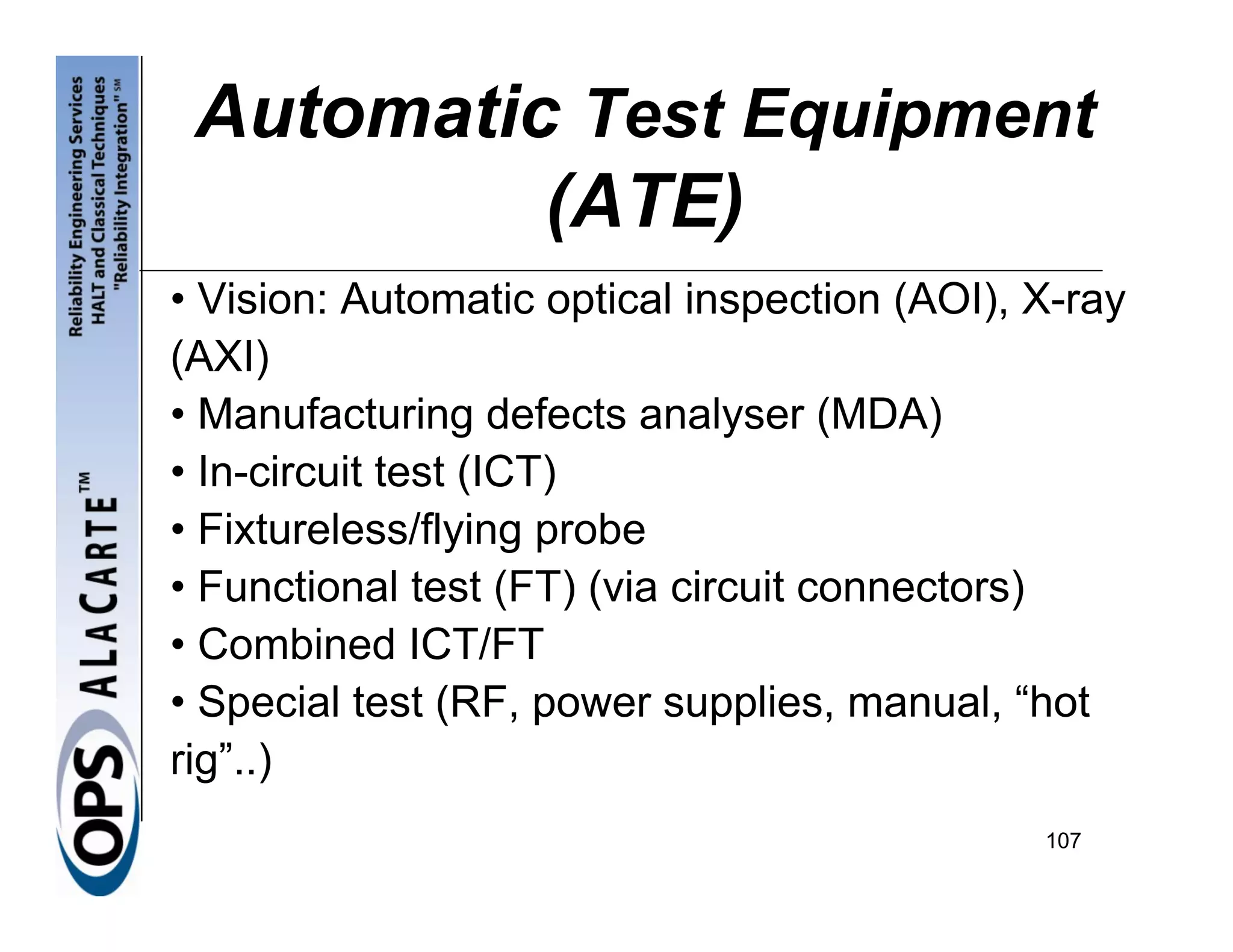

- 107. Automatic Test Equipment (ATE) • Vision: Automatic optical inspection (AOI), X-ray (AXI) • Manufacturing defects analyser (MDA) • In-circuit test (ICT) • Fixtureless/flying probe • Functional test (FT) (via circuit connectors) • Combined ICT/FT • Special test (RF, power supplies, manual, “hot rig”..) 107

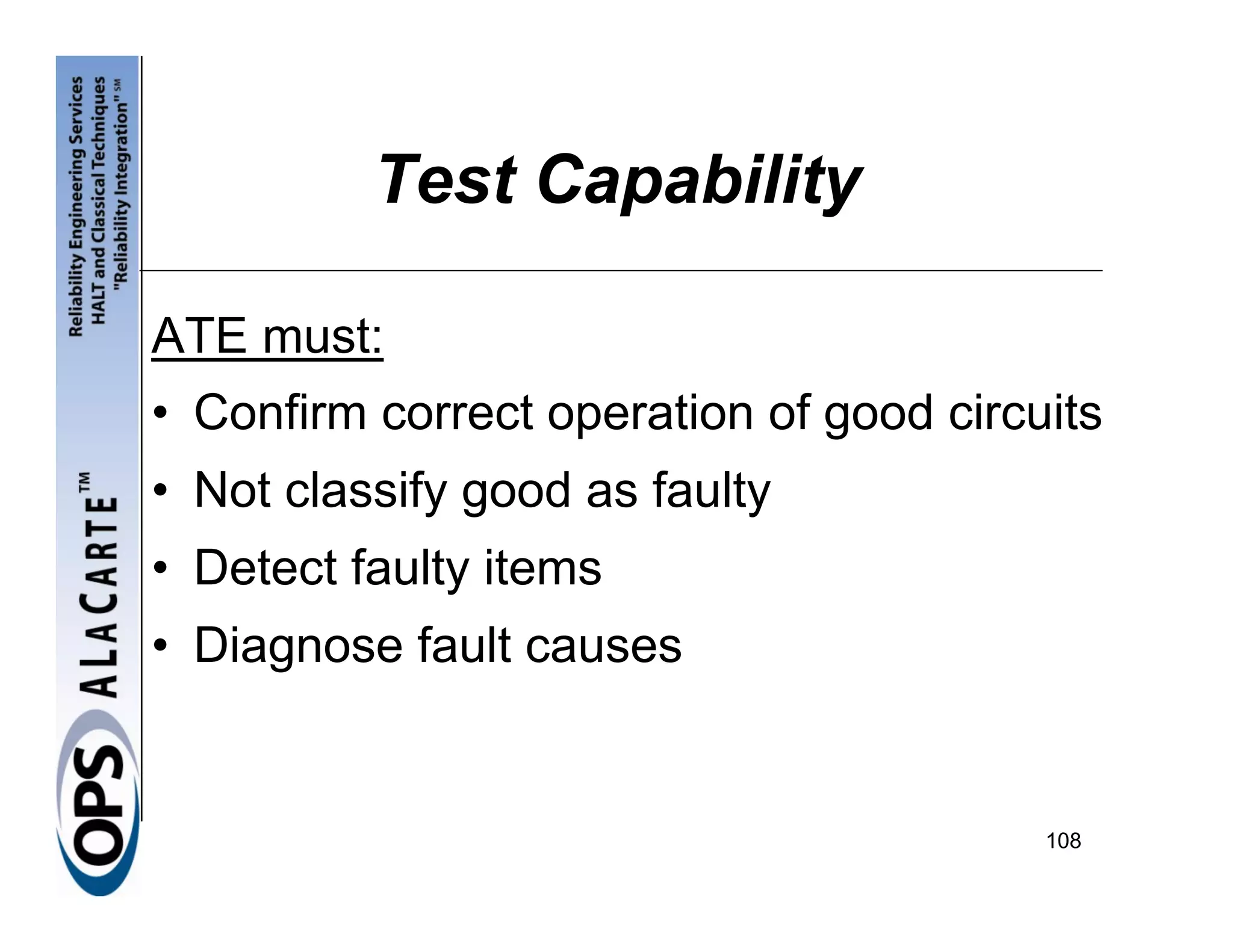

- 108. Test Capability ATE must: •Confirm correct operation of good circuits • Not classify good as faulty • Detect faulty items • Diagnose fault causes 108

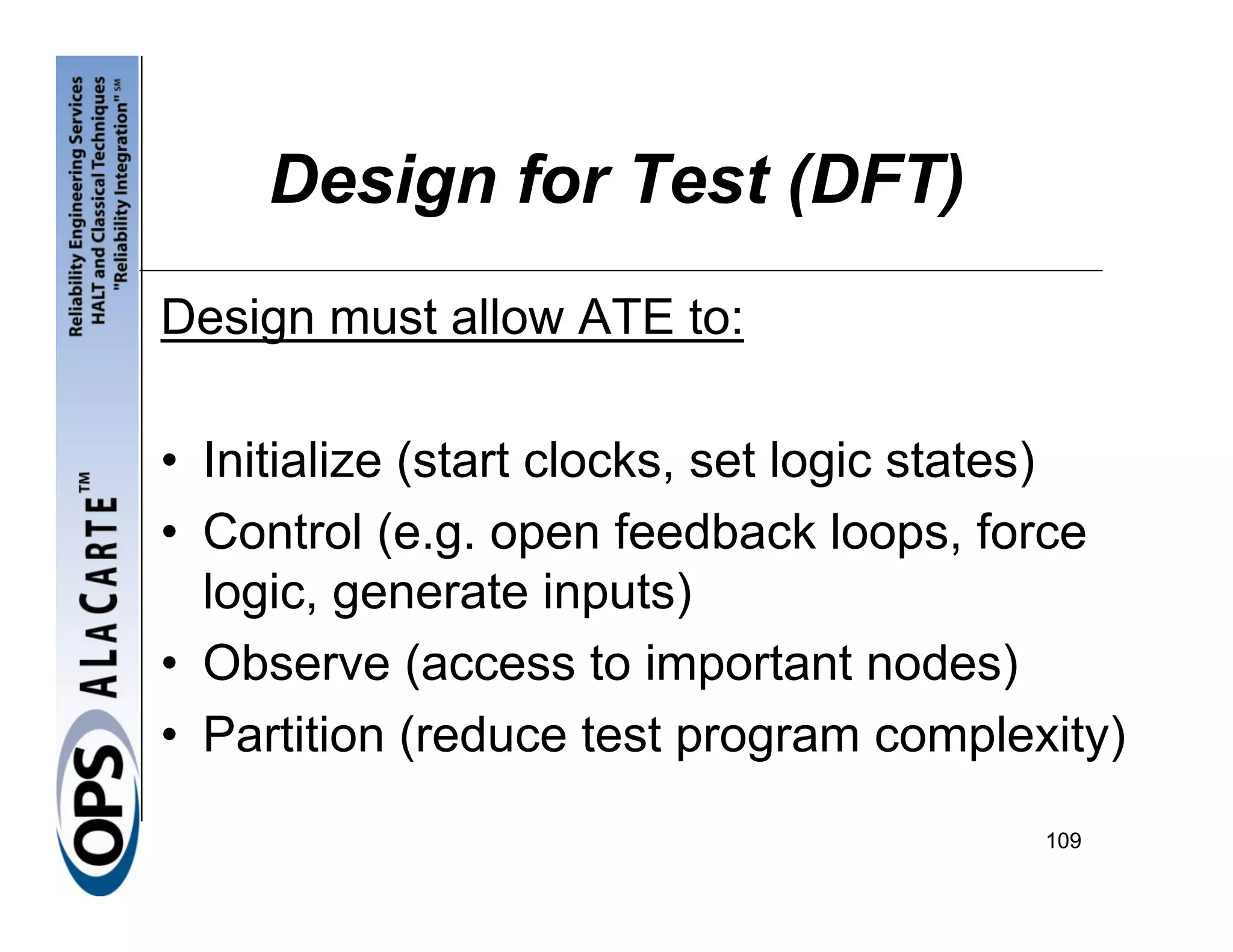

- 109. Design for Test(DFT) Design must allow ATE to: • Initialize (start clocks, set logic states) • Control (e.g. open feedback loops, force logic, generate inputs) • Observe (access to important nodes) • Partition (reduce test program complexity) 109

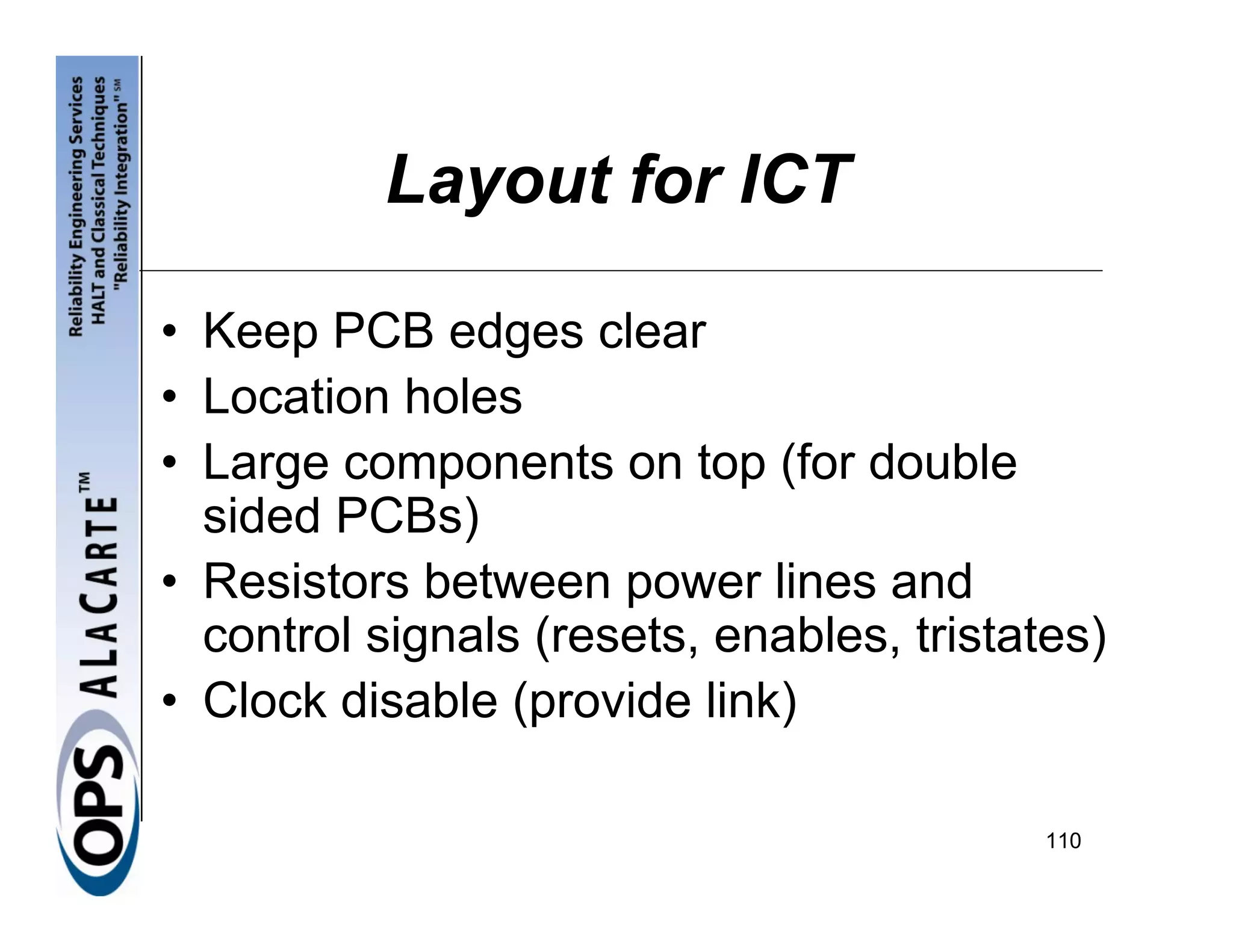

- 110. Layout for ICT •Keep PCB edges clear • Location holes • Large components on top (for double sided PCBs) • Resistors between power lines and control signals (resets, enables, tristates) • Clock disable (provide link) 110

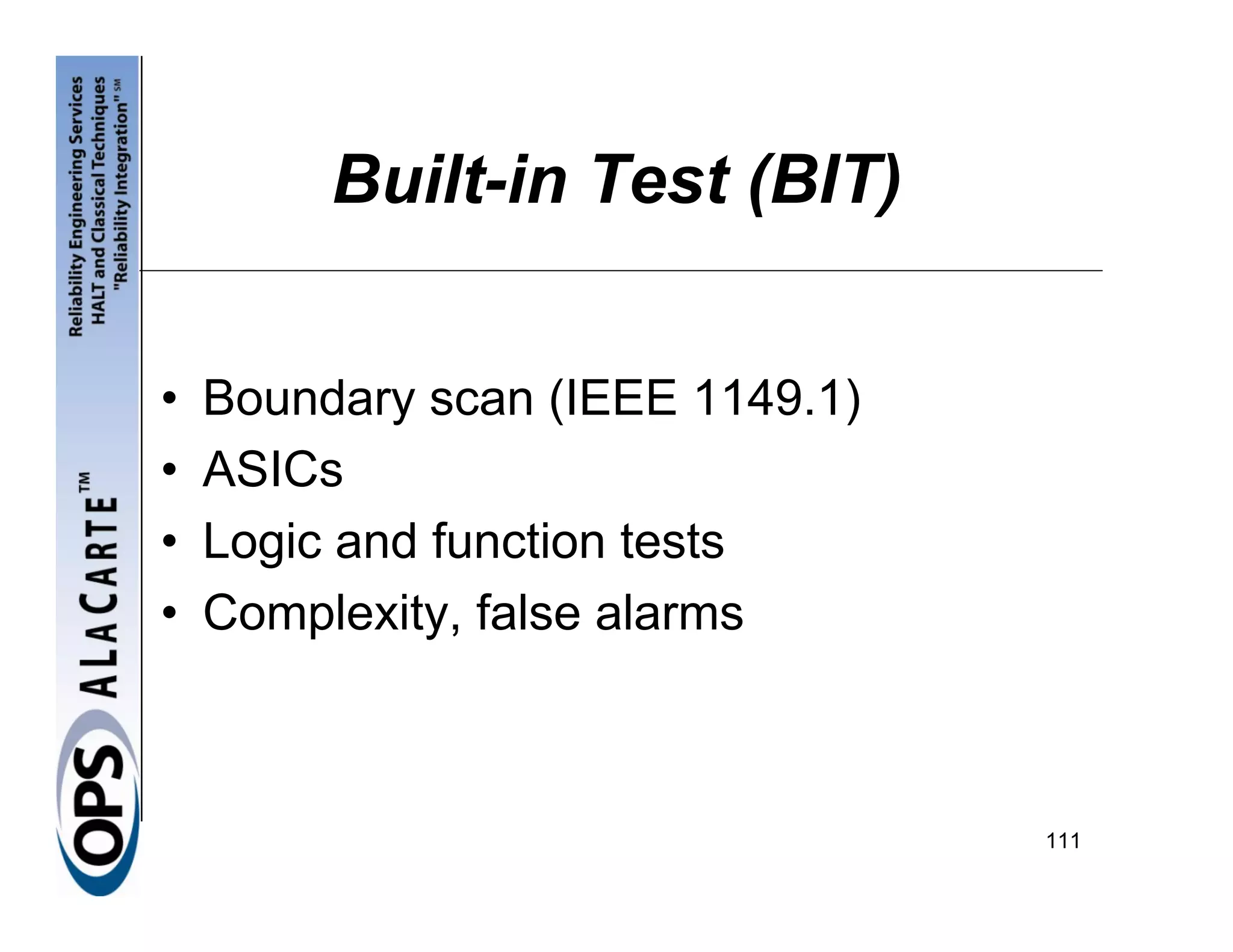

- 111. Built-in Test (BIT) • Boundary scan (IEEE 1149.1) • ASICs • Logic and function tests • Complexity, false alarms 111

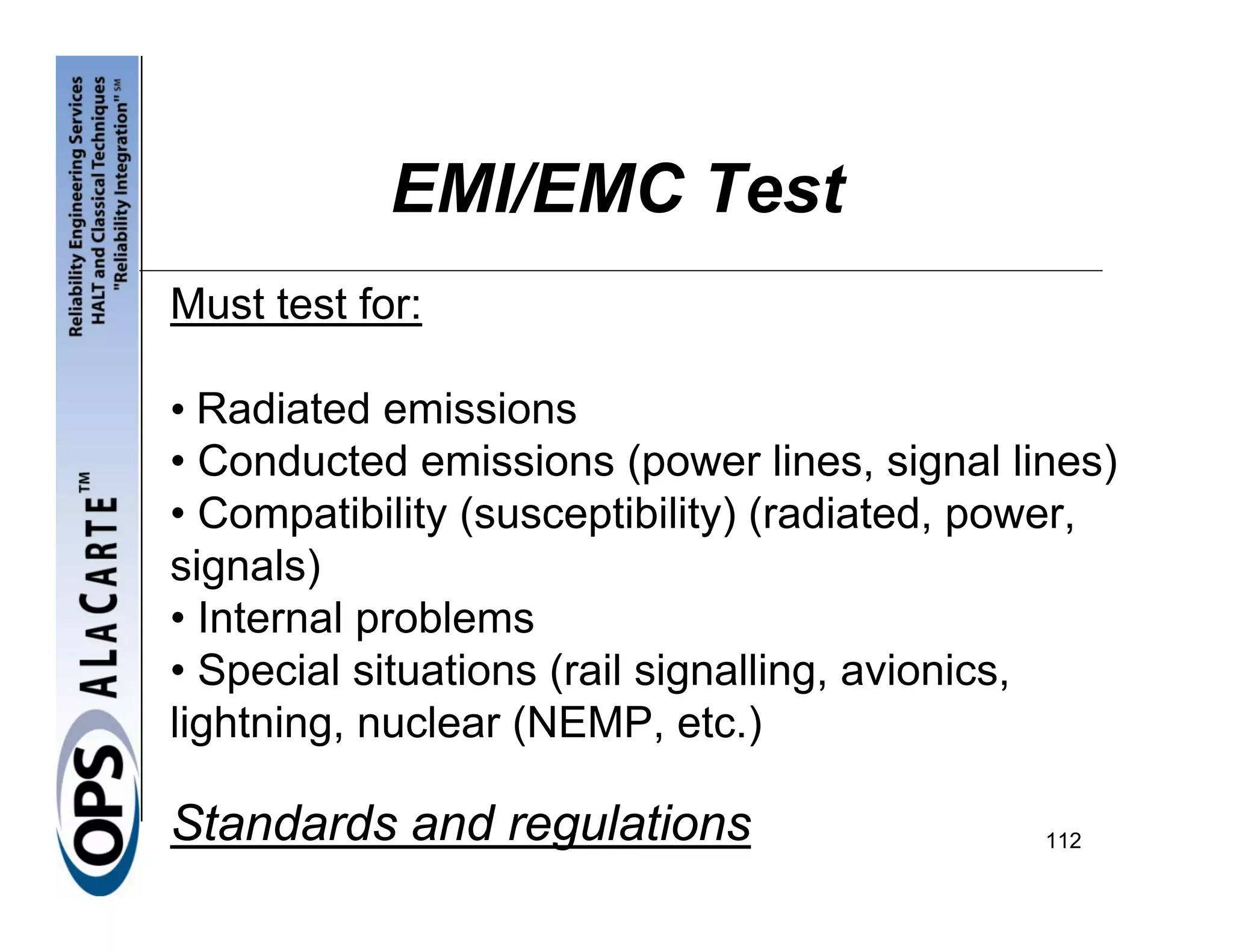

- 112. EMI/EMC Test Must testfor: • Radiated emissions • Conducted emissions (power lines, signal lines) • Compatibility (susceptibility) (radiated, power, signals) • Internal problems • Special situations (rail signalling, avionics, lightning, nuclear (NEMP, etc.) Standards and regulations 112

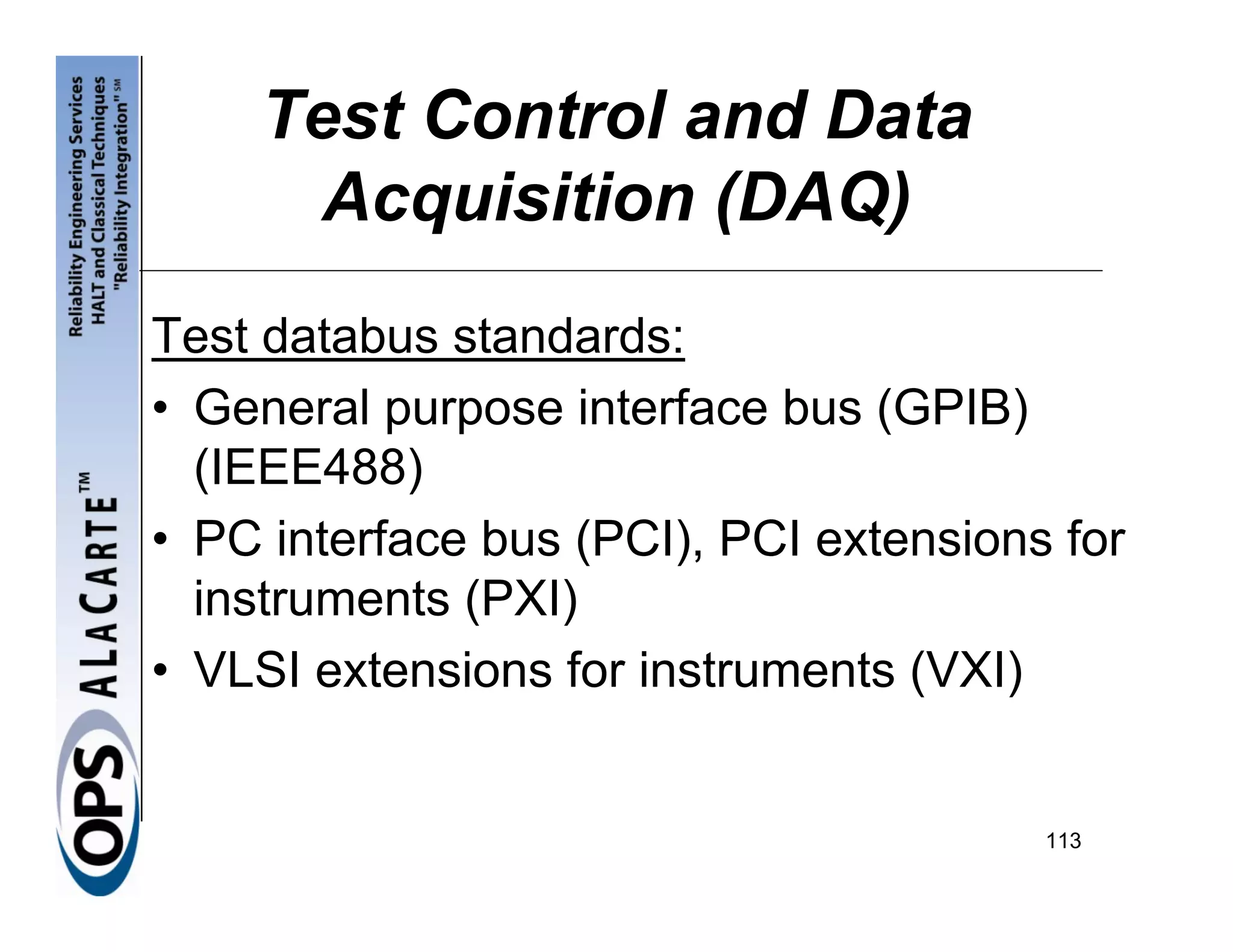

- 113. Test Control andData Acquisition (DAQ) Test databus standards: • General purpose interface bus (GPIB) (IEEE488) • PC interface bus (PCI), PCI extensions for instruments (PXI) • VLSI extensions for instruments (VXI) 113

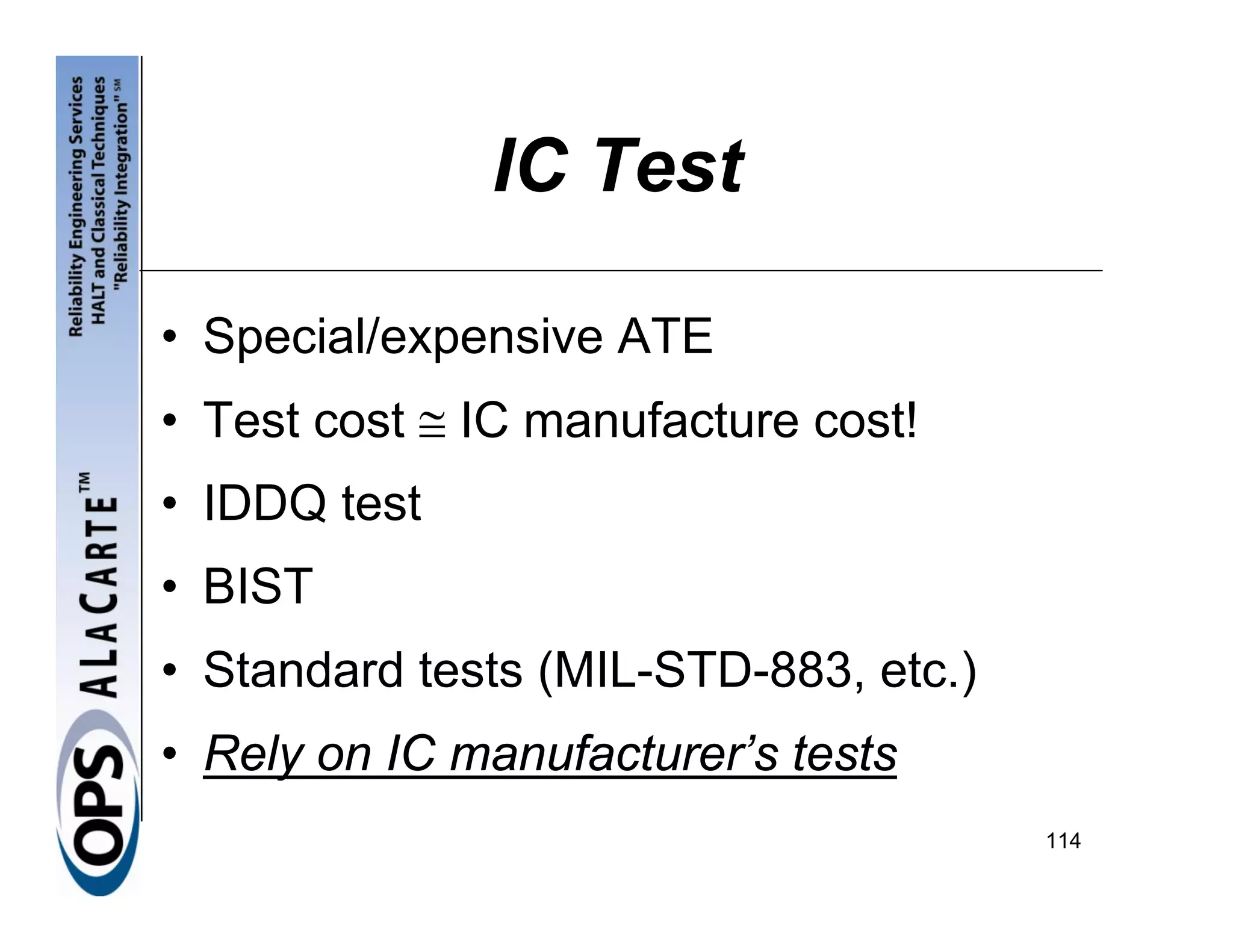

- 114. IC Test • Special/expensiveATE • Test cost ≅ IC manufacture cost! • IDDQ test • BIST • Standard tests (MIL-STD-883, etc.) • Rely on IC manufacturer’s tests 114

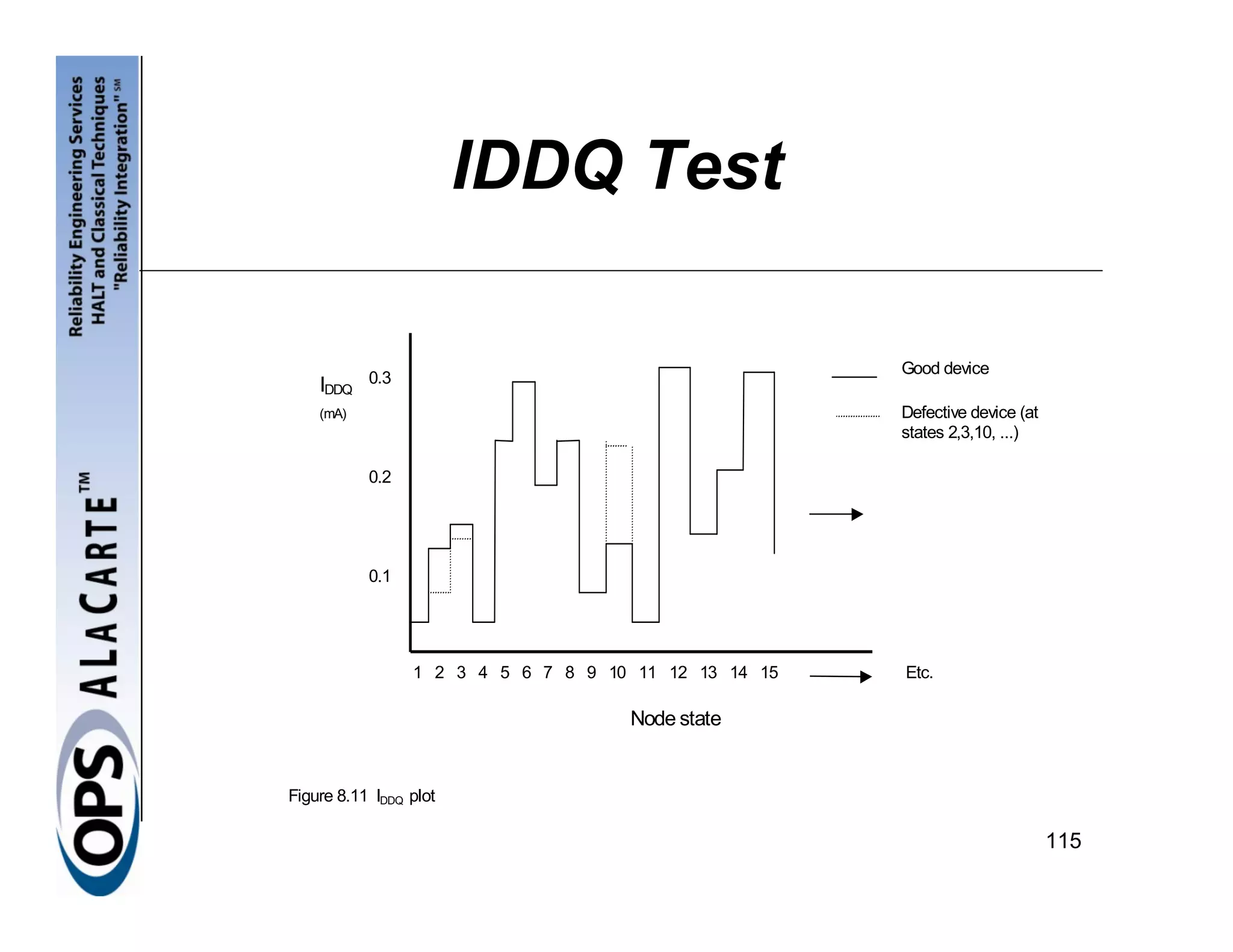

- 115. IDDQ Test Good device IDDQ 0.3 (mA) Defective device (at states 2,3,10, ...) 0.2 0.1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Etc. Node state Figure 8.11 IDDQ plot 115

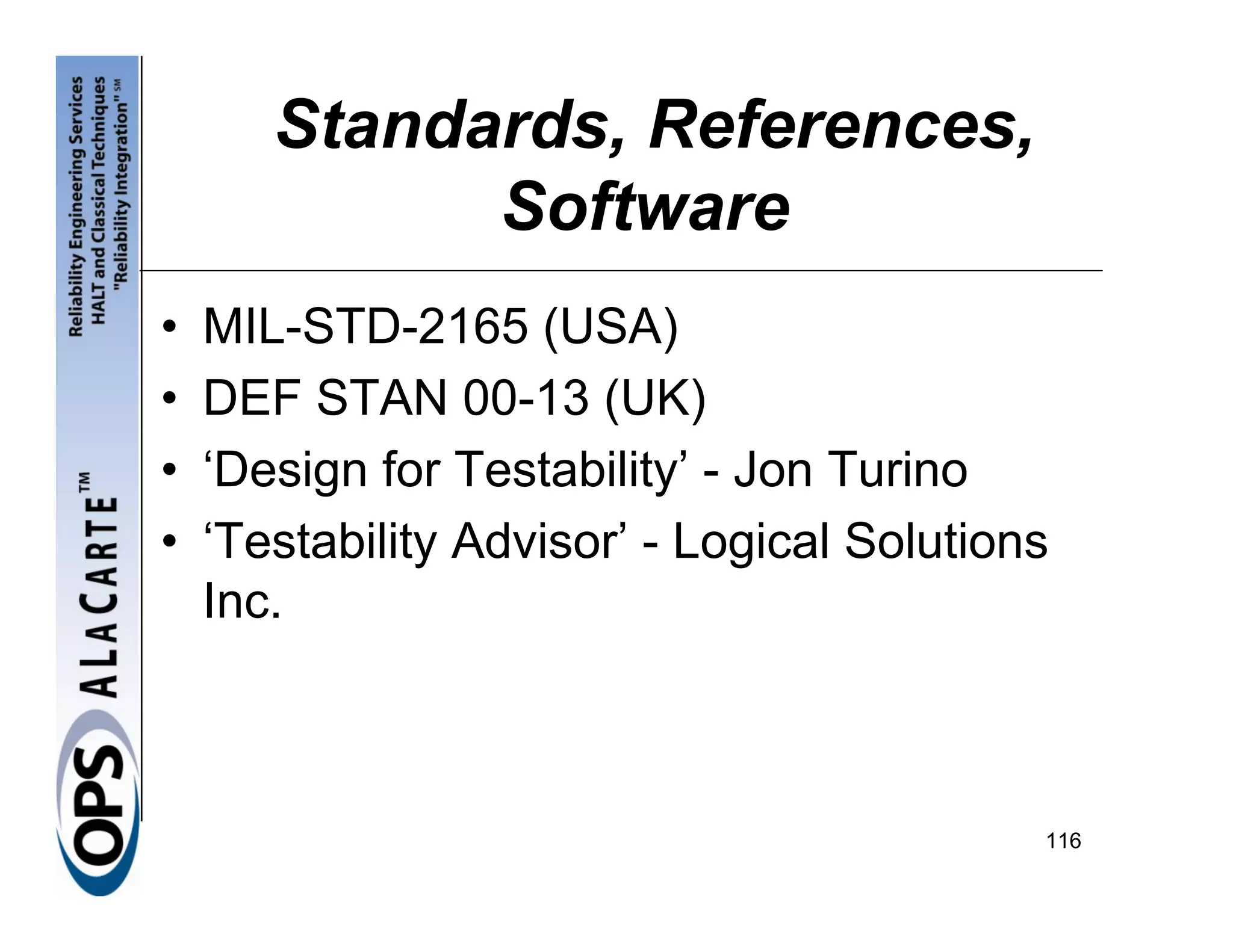

- 116. Standards, References, Software • MIL-STD-2165 (USA) • DEF STAN 00-13 (UK) • ‘Design for Testability’ - Jon Turino • ‘Testability Advisor’ - Logical Solutions Inc. 116

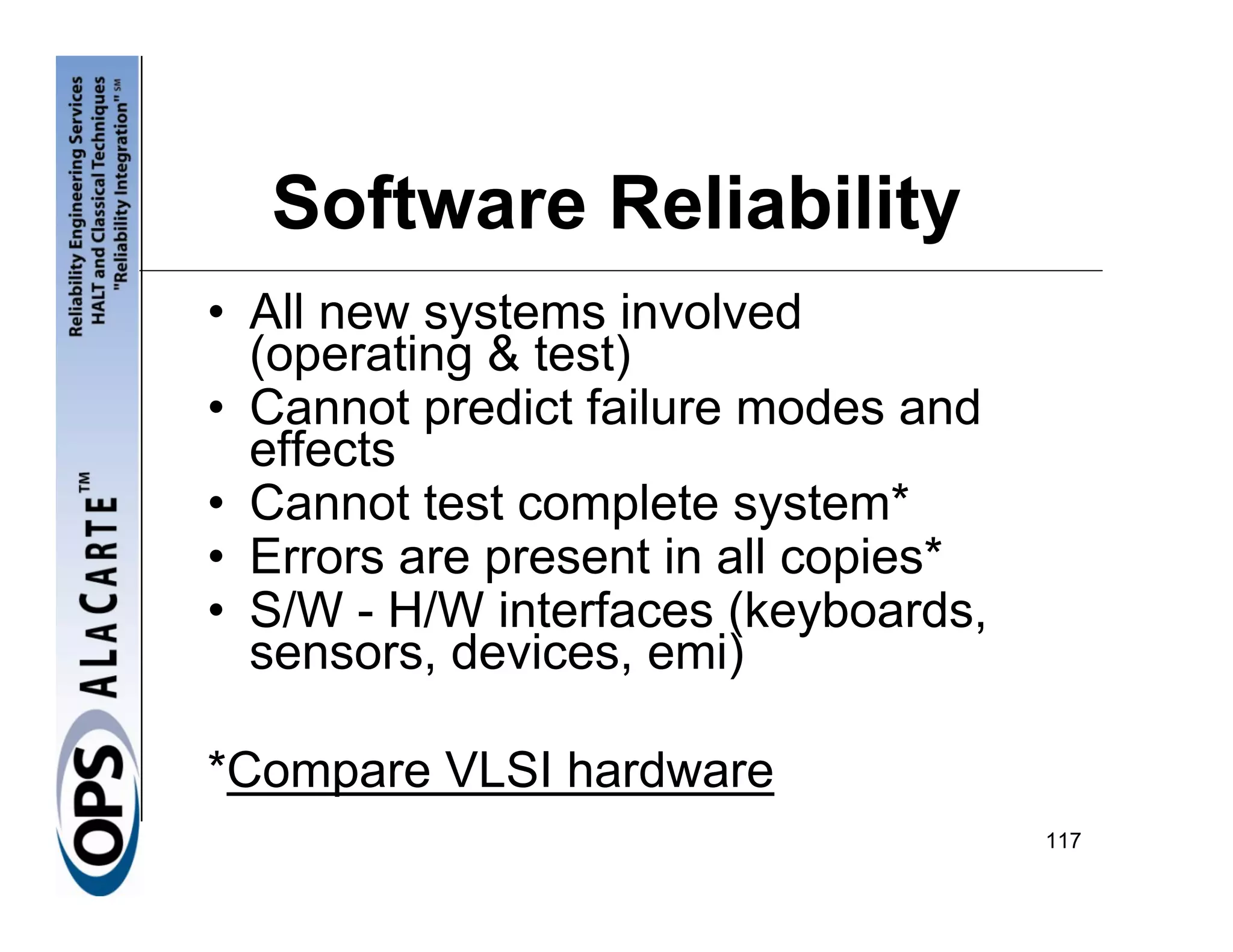

- 117. Software Reliability • Allnew systems involved (operating & test) • Cannot predict failure modes and effects • Cannot test complete system* • Errors are present in all copies* • S/W - H/W interfaces (keyboards, sensors, devices, emi) *Compare VLSI hardware 117

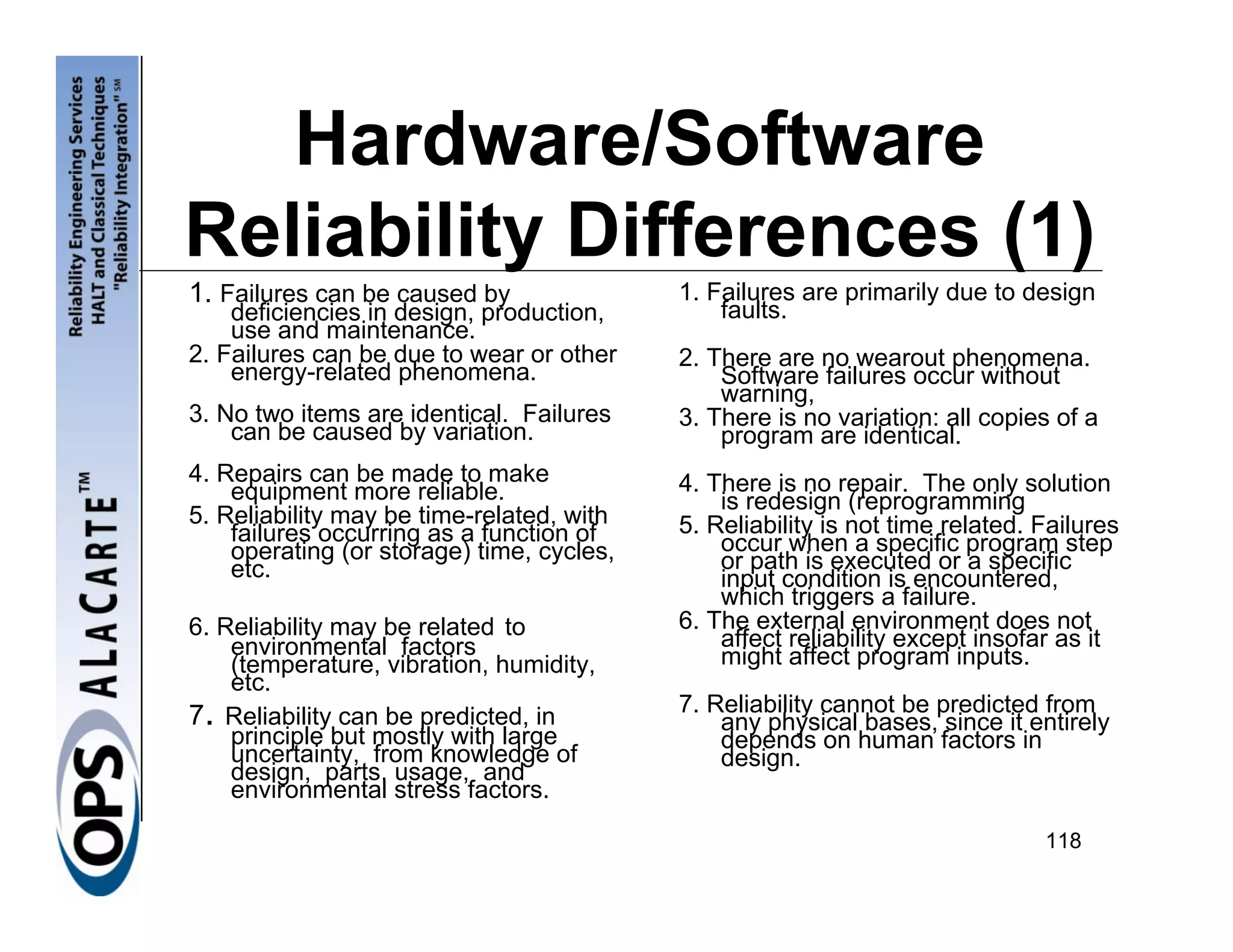

- 118. Hardware/Software Reliability Differences (1) 1.Failures can be caused by 1. Failures are primarily due to design deficiencies in design, production, faults. use and maintenance. 2. Failures can be due to wear or other 2. There are no wearout phenomena. energy-related phenomena. Software failures occur without warning, 3. No two items are identical. Failures 3. There is no variation: all copies of a can be caused by variation. program are identical. 4. Repairs can be made to make 4. There is no repair. The only solution equipment more reliable. is redesign (reprogramming 5. Reliability may be time-related, with 5. Reliability is not time related. Failures failures occurring as a function of occur when a specific program step operating (or storage) time, cycles, or path is executed or a specific etc. input condition is encountered, which triggers a failure. 6. Reliability may be related to 6. The external environment does not environmental factors affect reliability except insofar as it (temperature, vibration, humidity, might affect program inputs. etc. 7. Reliability can be predicted, in 7. Reliability cannot be predicted from any physical bases, since it entirely principle but mostly with large depends on human factors in uncertainty, from knowledge of design. design, parts, usage, and environmental stress factors. 118

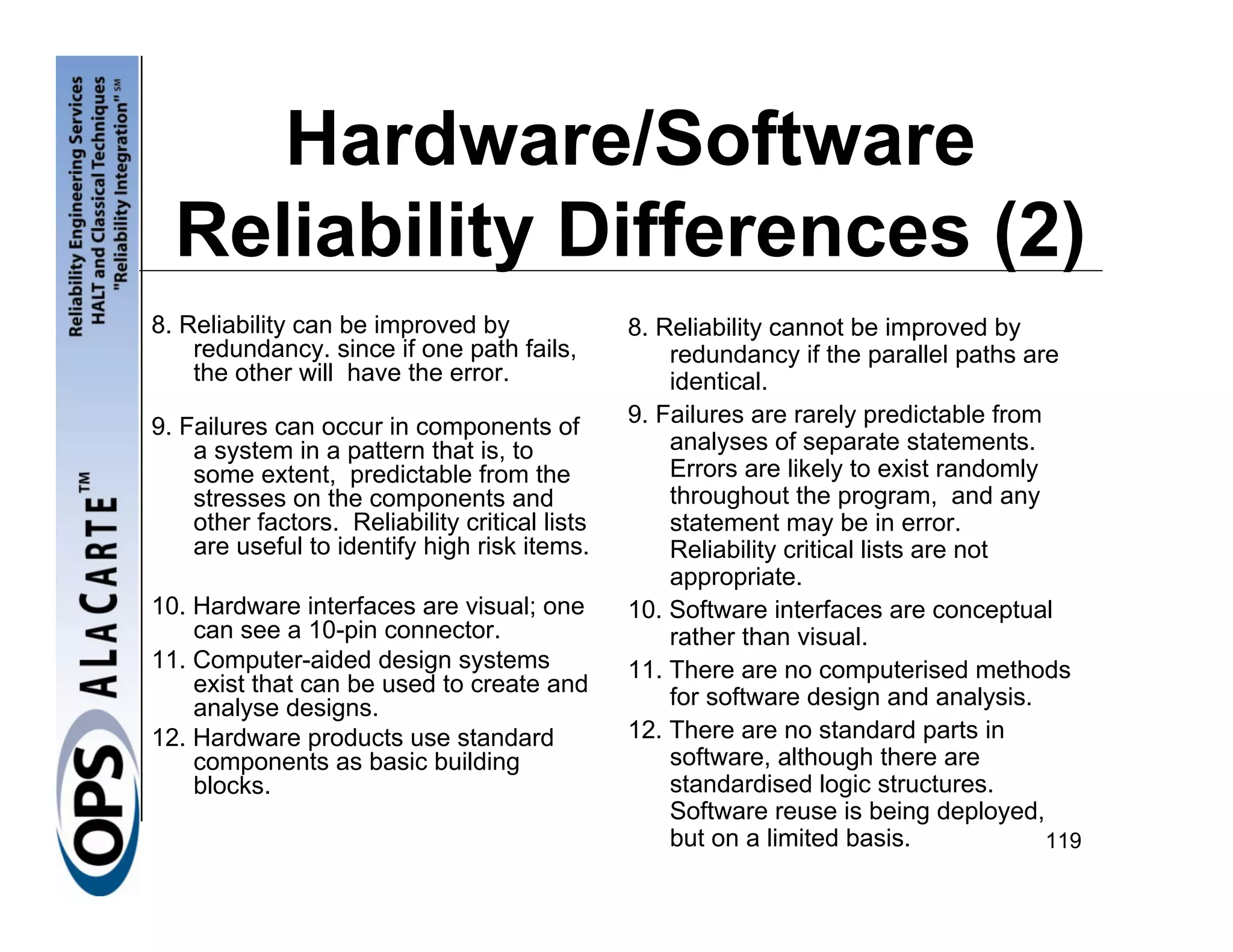

- 119. Hardware/Software ReliabilityDifferences (2) 8. Reliability can be improved by 8. Reliability cannot be improved by redundancy. since if one path fails, redundancy if the parallel paths are the other will have the error. identical. 9. Failures can occur in components of 9. Failures are rarely predictable from a system in a pattern that is, to analyses of separate statements. some extent, predictable from the Errors are likely to exist randomly stresses on the components and throughout the program, and any other factors. Reliability critical lists statement may be in error. are useful to identify high risk items. Reliability critical lists are not appropriate. 10. Hardware interfaces are visual; one 10. Software interfaces are conceptual can see a 10-pin connector. rather than visual. 11. Computer-aided design systems 11. There are no computerised methods exist that can be used to create and analyse designs. for software design and analysis. 12. Hardware products use standard 12. There are no standard parts in components as basic building software, although there are blocks. standardised logic structures. Software reuse is being deployed, but on a limited basis. 119

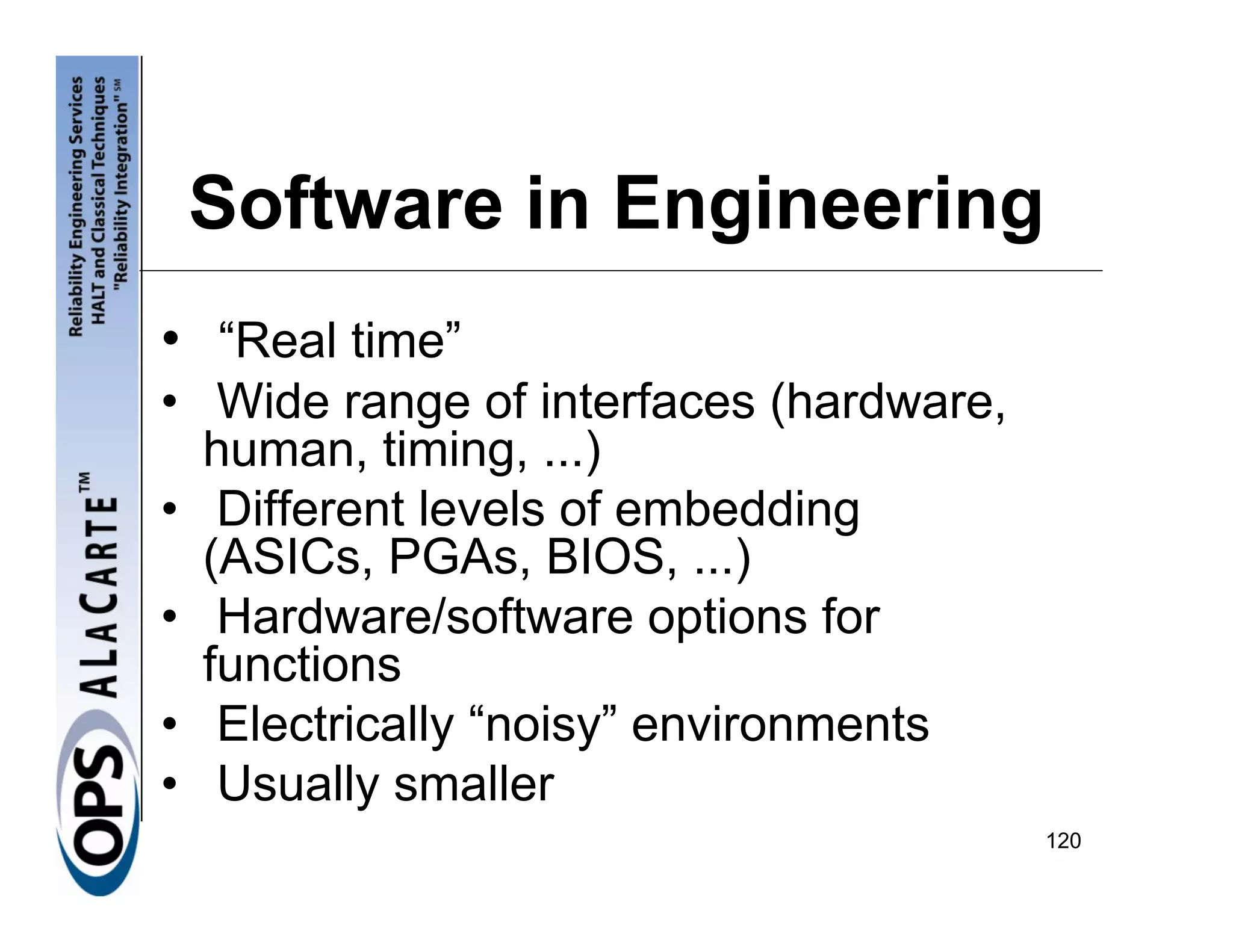

- 120. Software in Engineering •“Real time” • Wide range of interfaces (hardware, human, timing, ...) • Different levels of embedding (ASICs, PGAs, BIOS, ...) • Hardware/software options for functions • Electrically “noisy” environments • Usually smaller 120

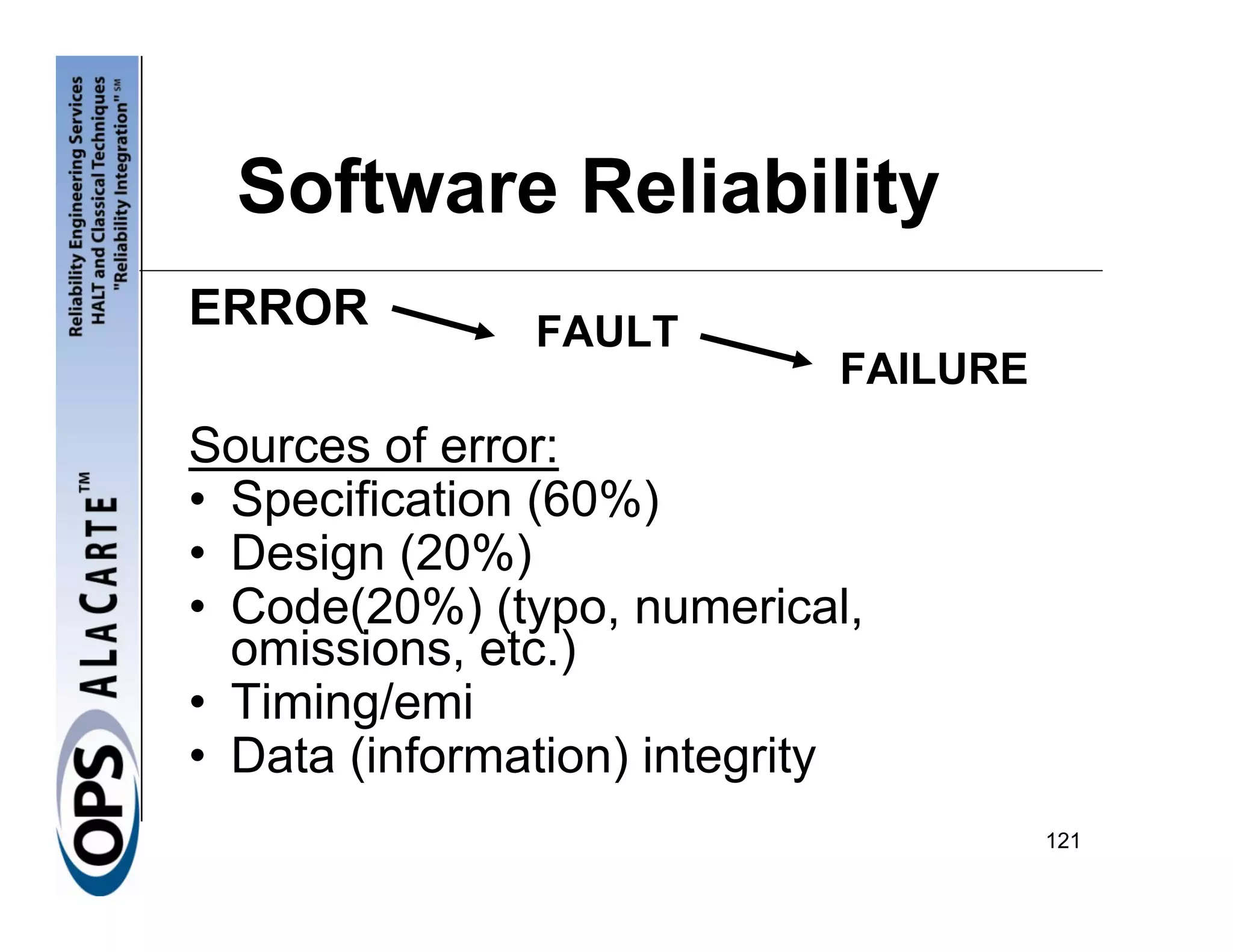

- 121. Software Reliability ERROR FAULT FAILURE Sources of error: • Specification (60%) • Design (20%) • Code(20%) (typo, numerical, omissions, etc.) • Timing/emi • Data (information) integrity 121

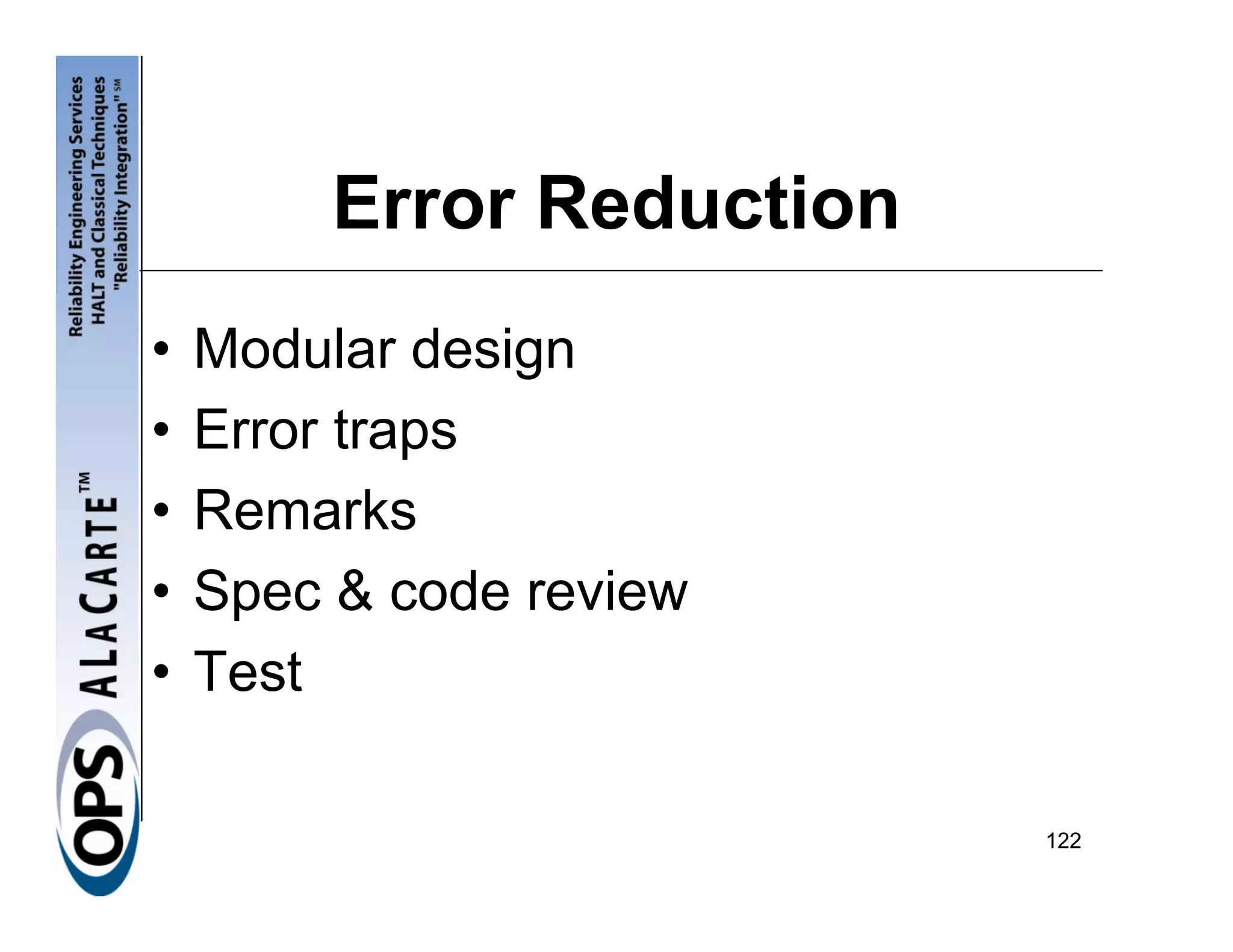

- 122. Error Reduction • Modular design • Error traps • Remarks • Spec & code review • Test 122

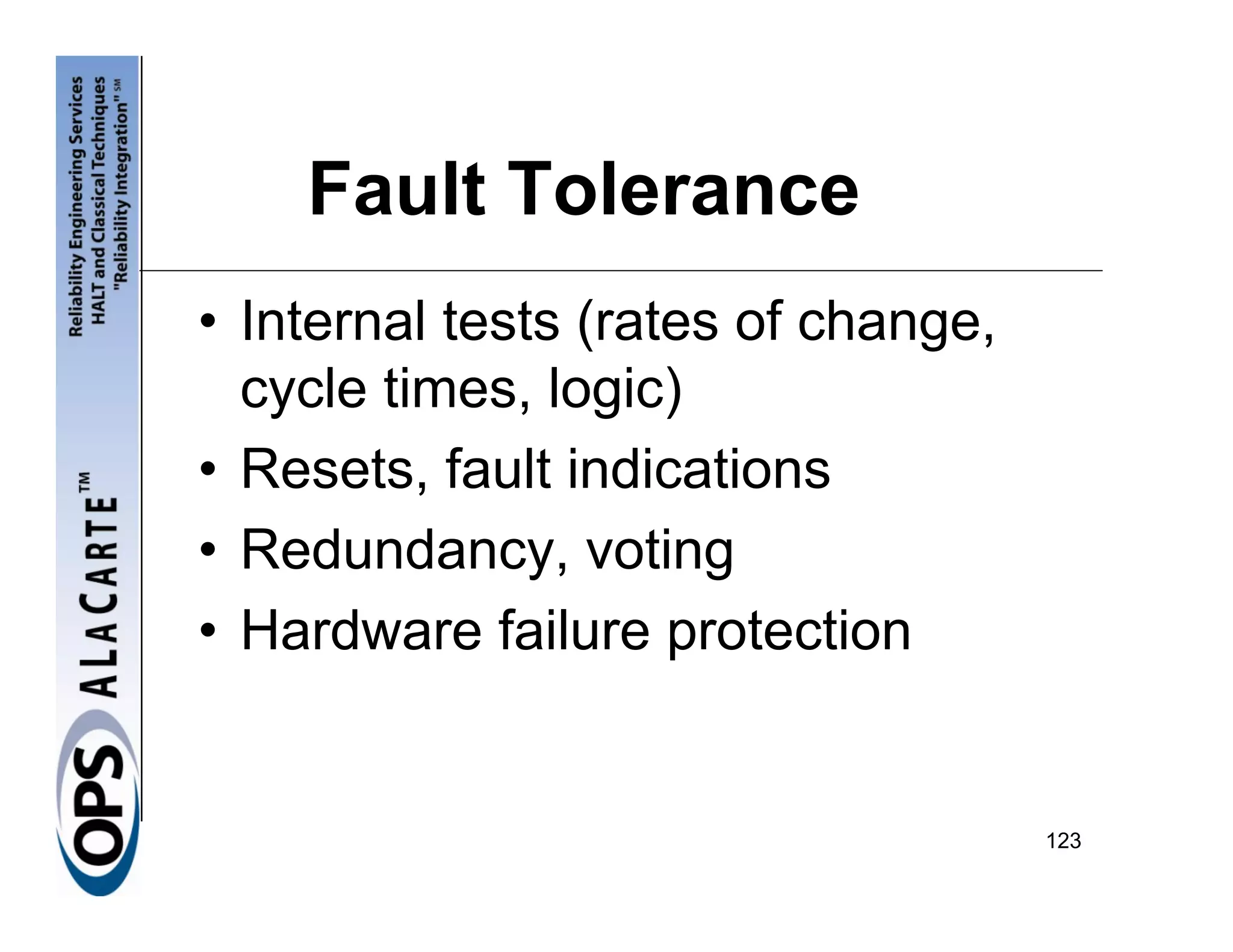

- 123. Fault Tolerance • Internaltests (rates of change, cycle times, logic) • Resets, fault indications • Redundancy, voting • Hardware failure protection 123

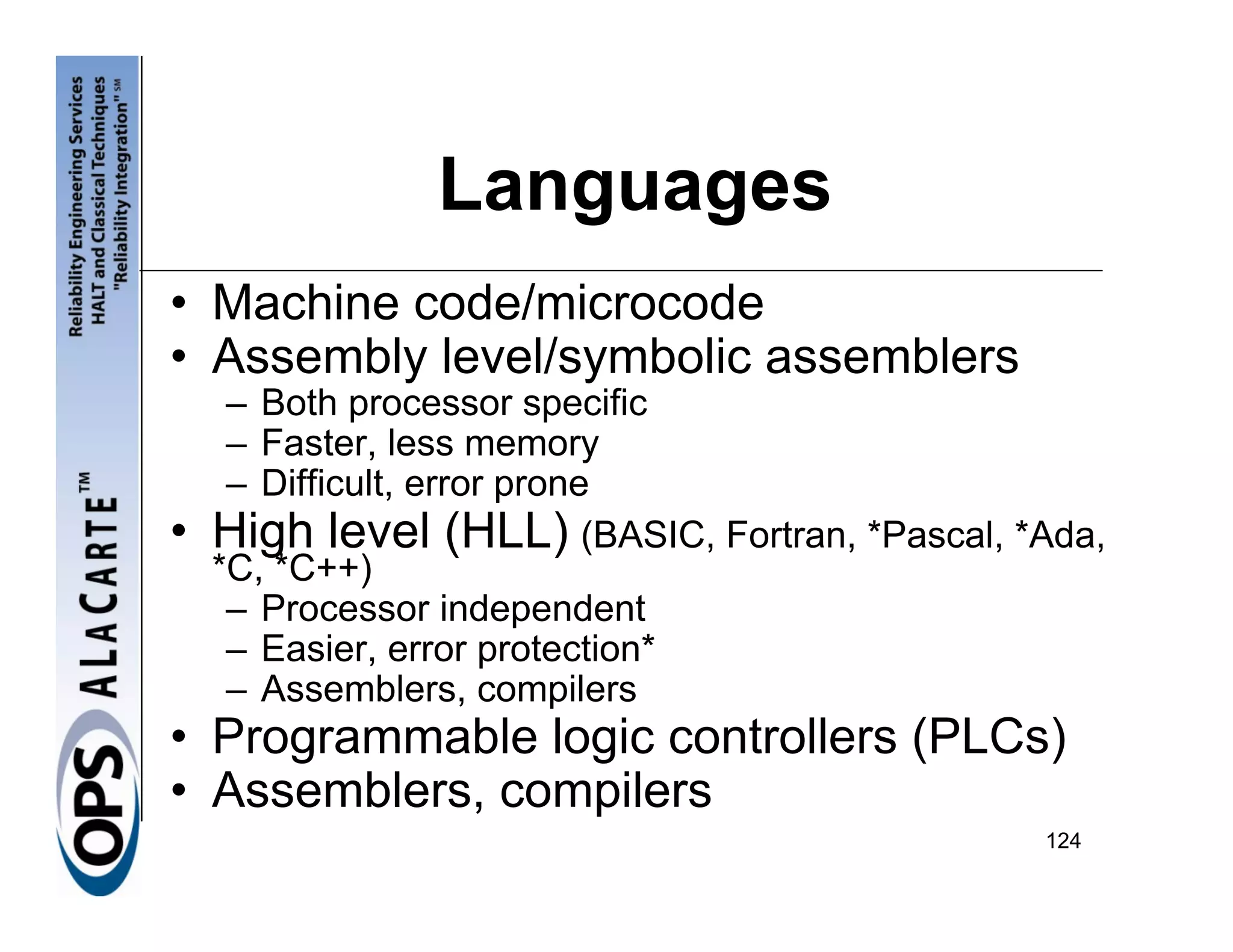

- 124. Languages • Machine code/microcode •Assembly level/symbolic assemblers – Both processor specific – Faster, less memory – Difficult, error prone • High level (HLL) (BASIC, Fortran, *Pascal, *Ada, *C, *C++) – Processor independent – Easier, error protection* – Assemblers, compilers • Programmable logic controllers (PLCs) • Assemblers, compilers 124

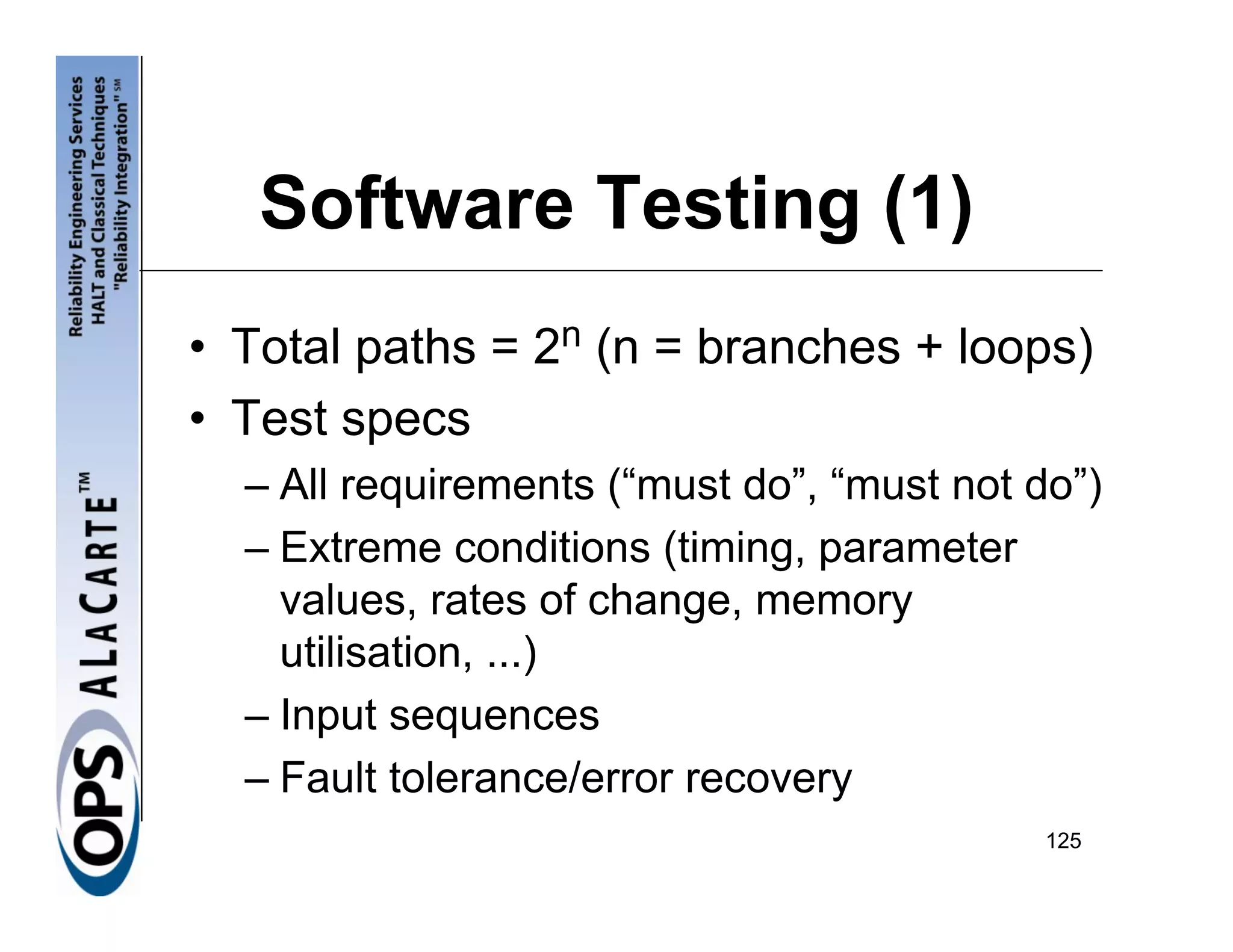

- 125. Software Testing (1) •Total paths = 2n (n = branches + loops) • Test specs – All requirements (“must do”, “must not do”) – Extreme conditions (timing, parameter values, rates of change, memory utilisation, ...) – Input sequences – Fault tolerance/error recovery 125

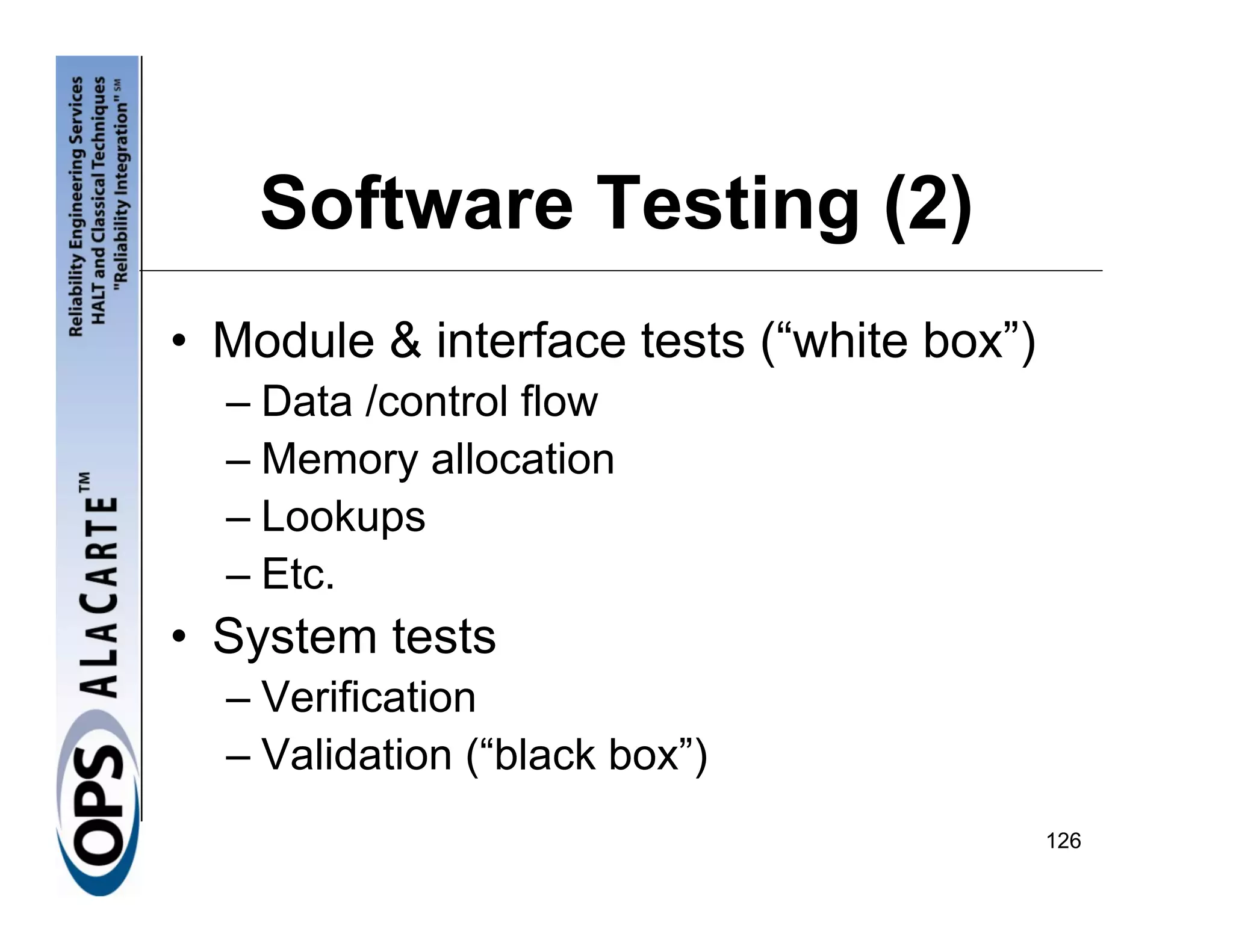

- 126. Software Testing (2) •Module & interface tests (“white box”) – Data /control flow – Memory allocation – Lookups – Etc. • System tests – Verification – Validation (“black box”) 126

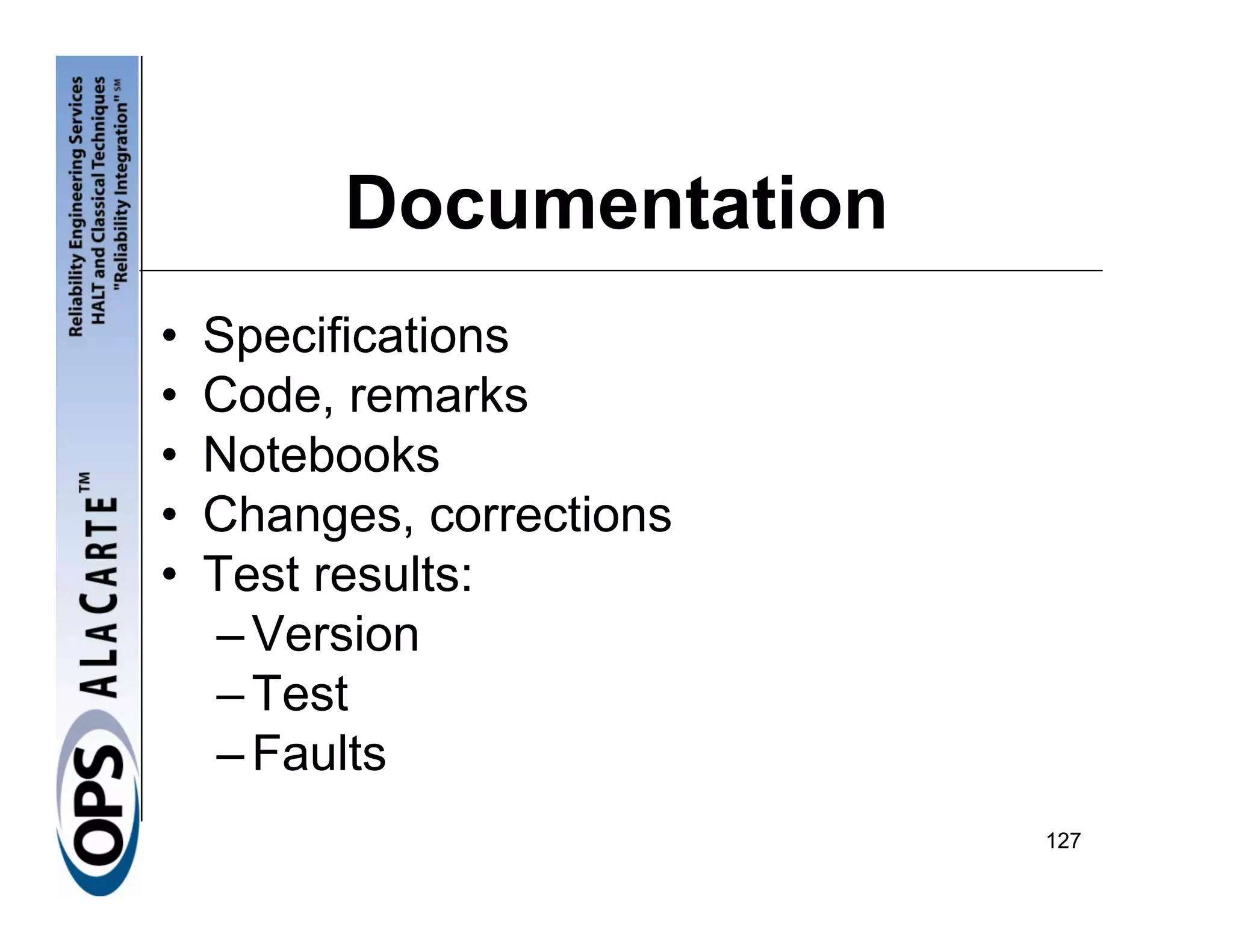

- 127. Documentation • Specifications • Code, remarks • Notebooks • Changes, corrections • Test results: – Version – Test – Faults 127

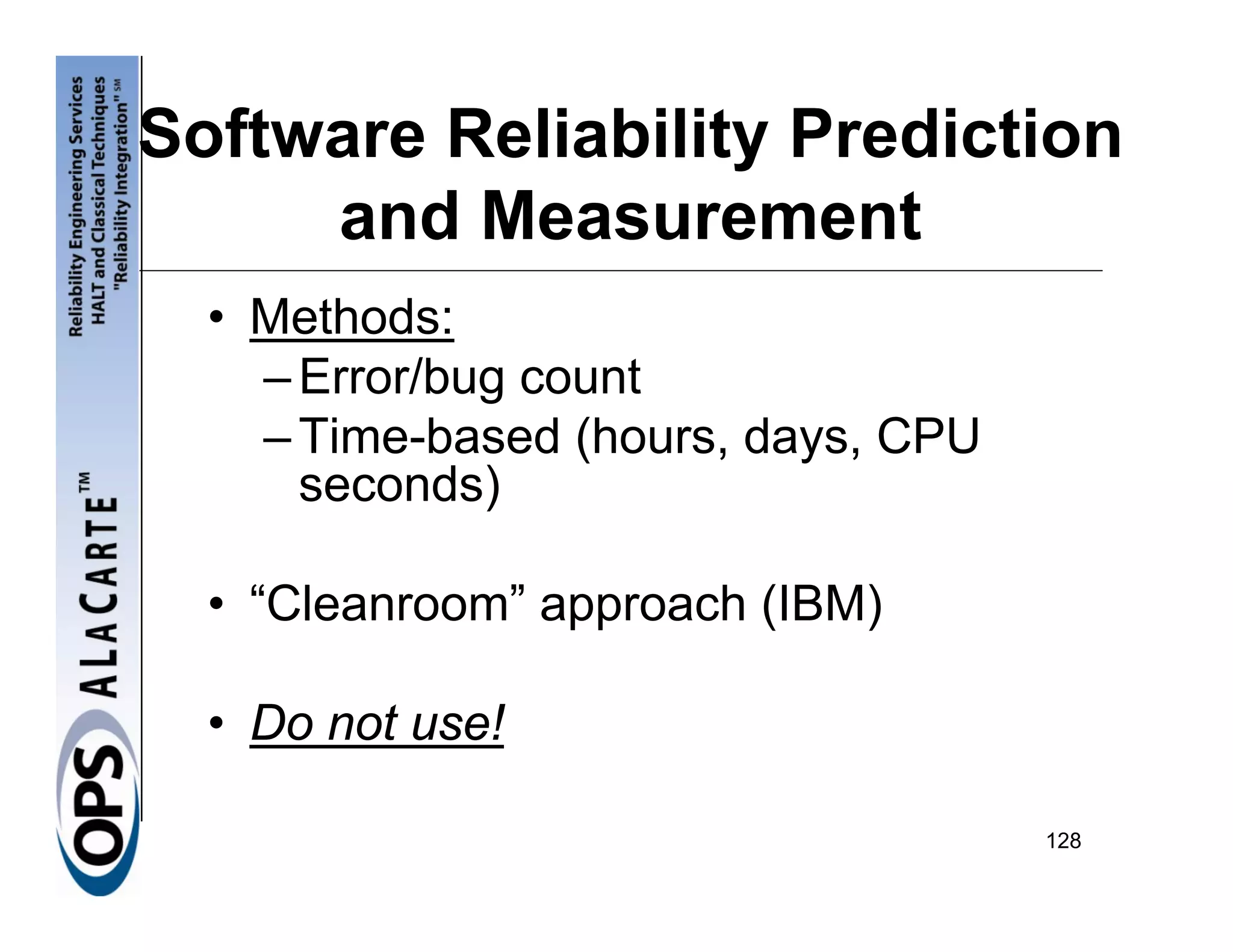

- 128. Software Reliability Prediction and Measurement • Methods: – Error/bug count – Time-based (hours, days, CPU seconds) • “Cleanroom” approach (IBM) • Do not use! 128

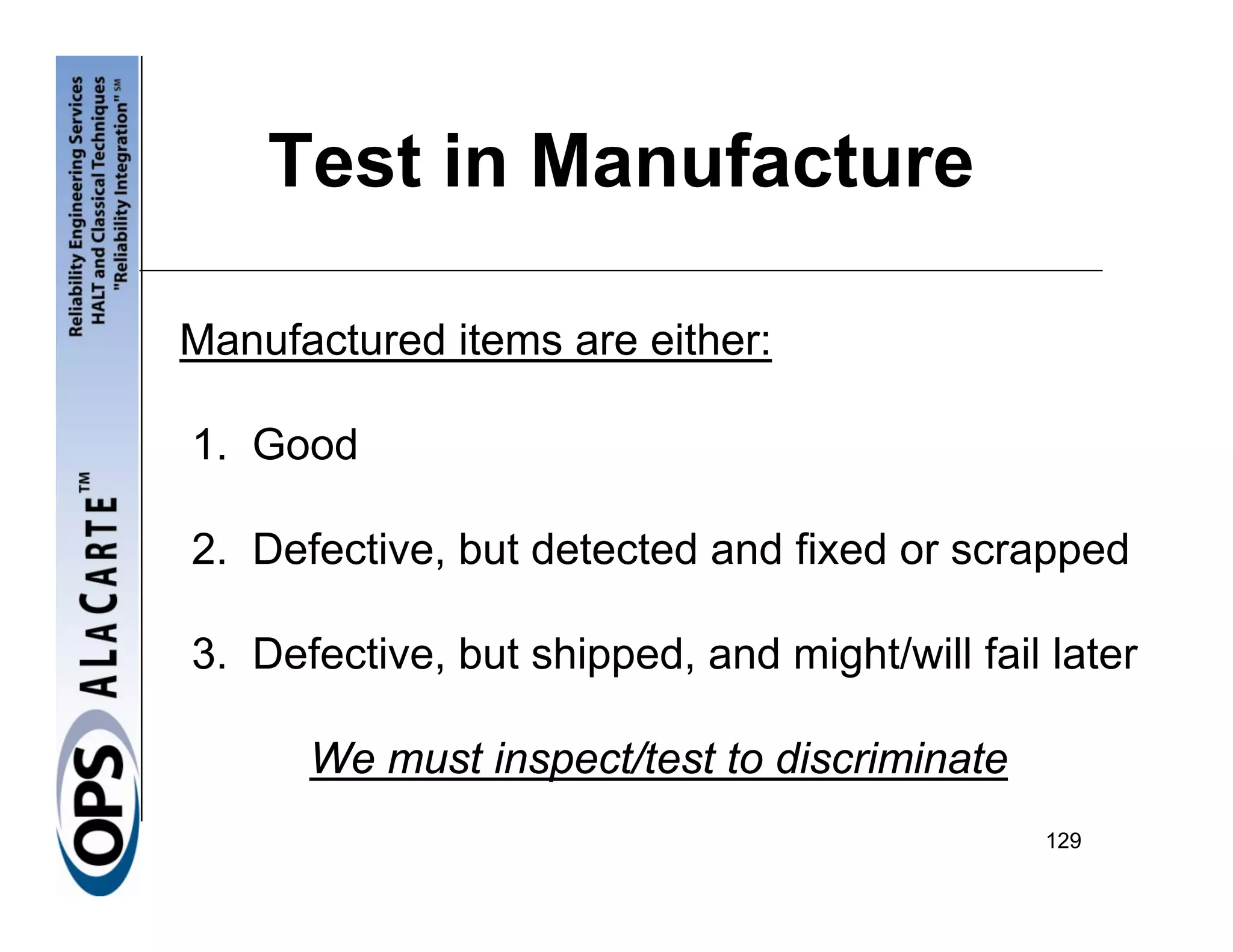

- 129. Test in Manufacture Manufactureditems are either: 1. Good 2. Defective, but detected and fixed or scrapped 3. Defective, but shipped, and might/will fail later We must inspect/test to discriminate 129

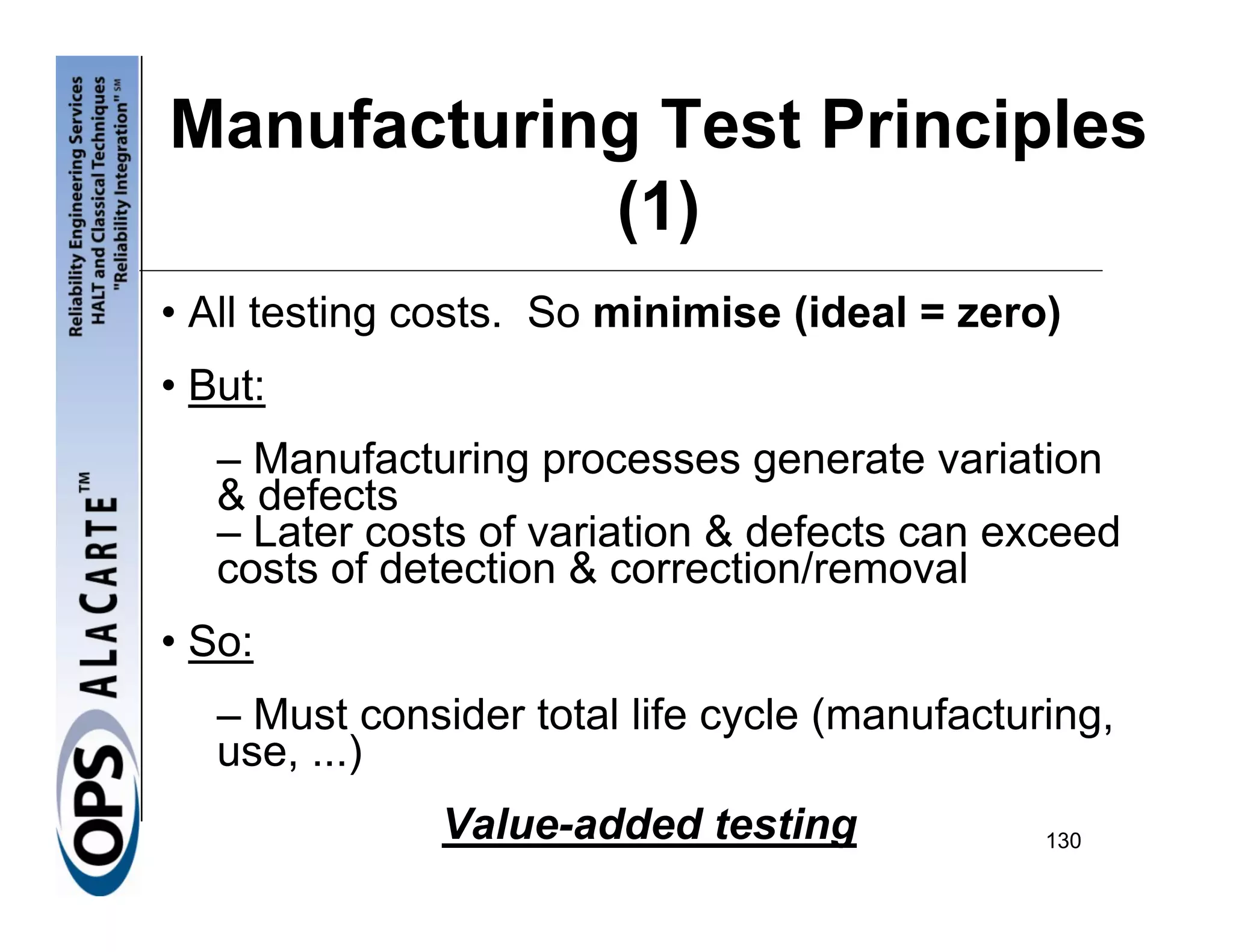

- 130. Manufacturing Test Principles (1) • All testing costs. So minimise (ideal = zero) • But: – Manufacturing processes generate variation & defects – Later costs of variation & defects can exceed costs of detection & correction/removal • So: – Must consider total life cycle (manufacturing, use, ...) Value-added testing 130

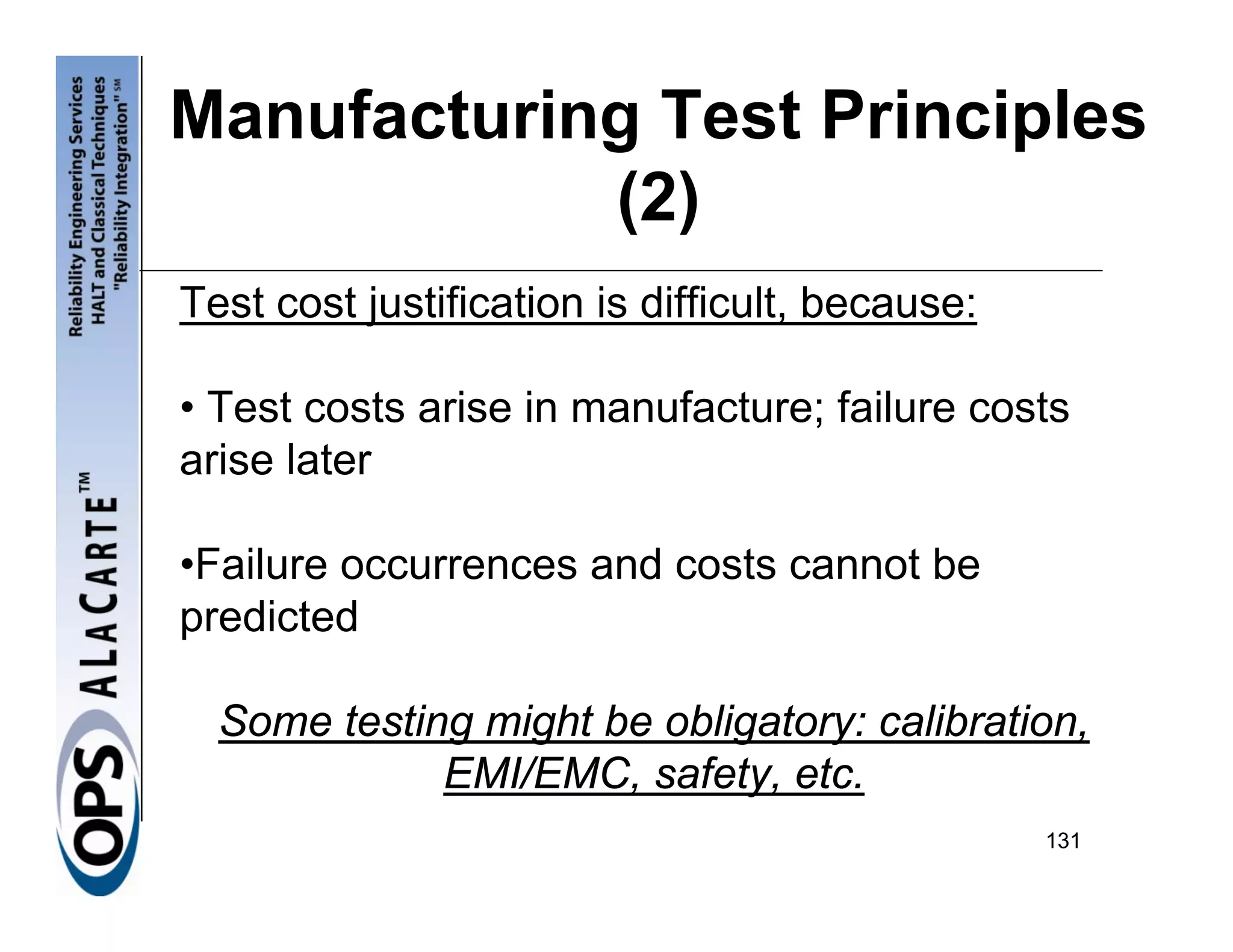

- 131. Manufacturing Test Principles (2) Test cost justification is difficult, because: • Test costs arise in manufacture; failure costs arise later •Failure occurrences and costs cannot be predicted Some testing might be obligatory: calibration, EMI/EMC, safety, etc. 131

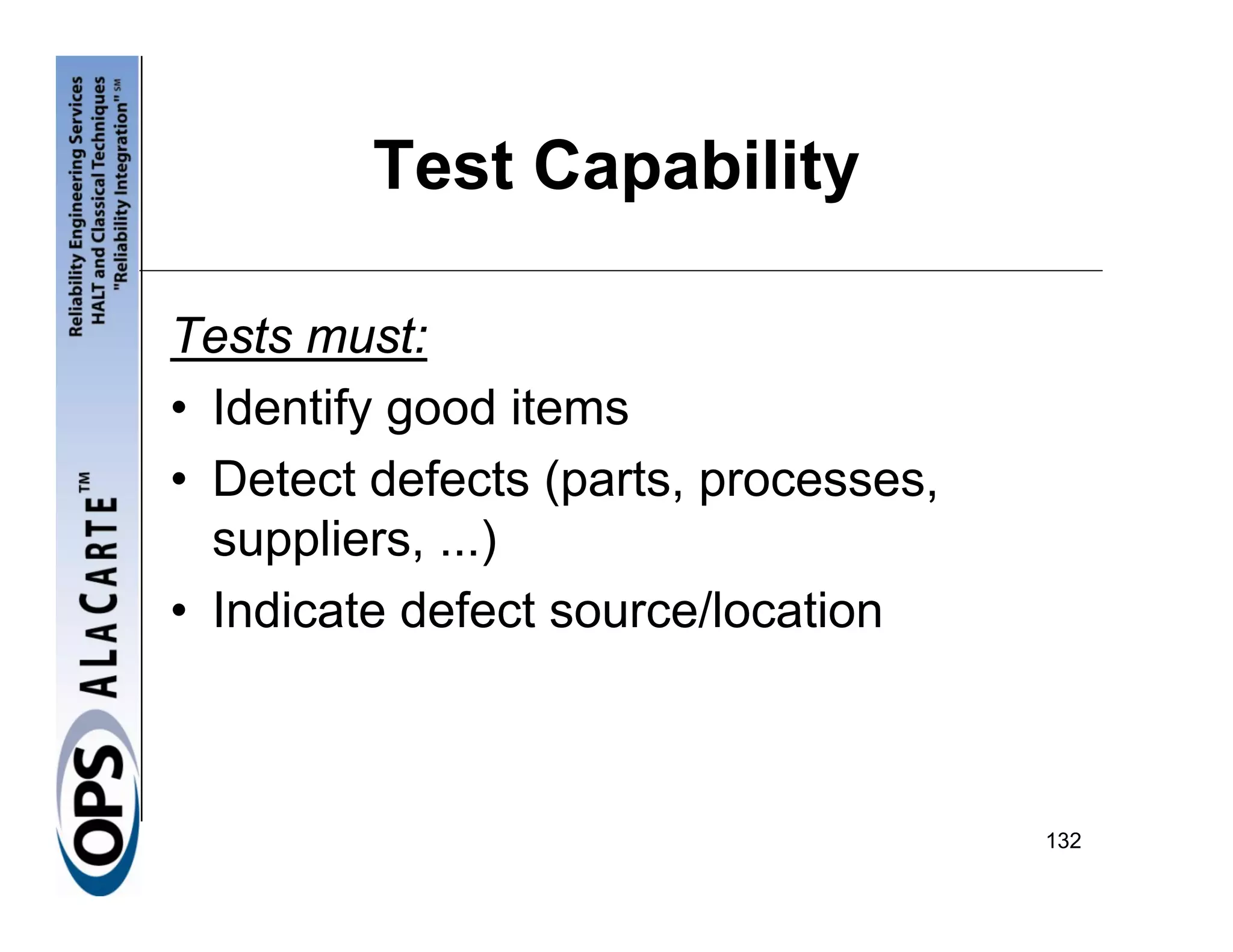

- 132. Test Capability Tests must: •Identify good items • Detect defects (parts, processes, suppliers, ...) • Indicate defect source/location 132

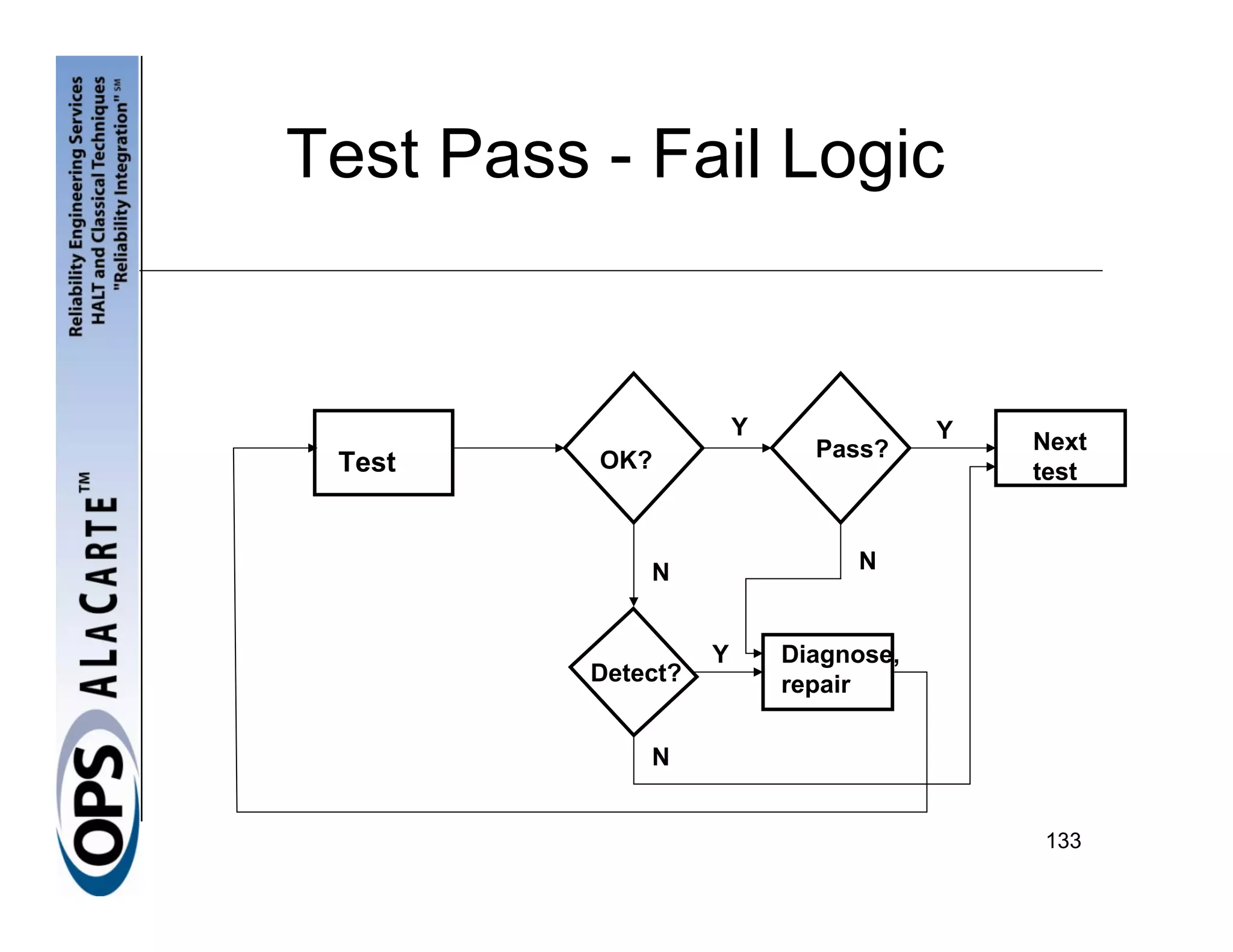

- 133. Test Pass -Fail Logic Y Y Pass? Next Test OK? test N N Y Diagnose, Detect? repair N 133 Figure 10.6 Test pass-fail logic

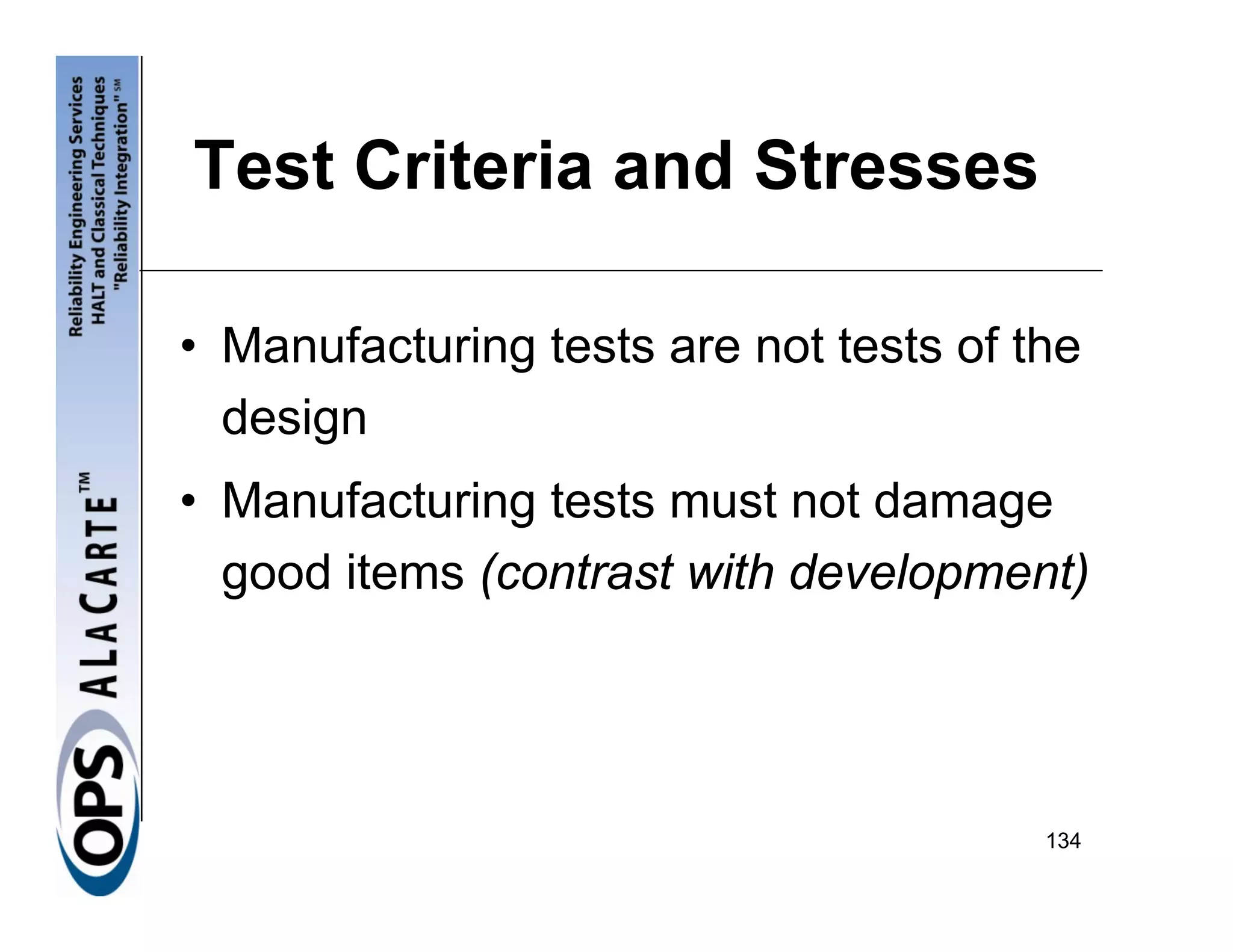

- 134. Test Criteria andStresses • Manufacturing tests are not tests of the design • Manufacturing tests must not damage good items (contrast with development) 134

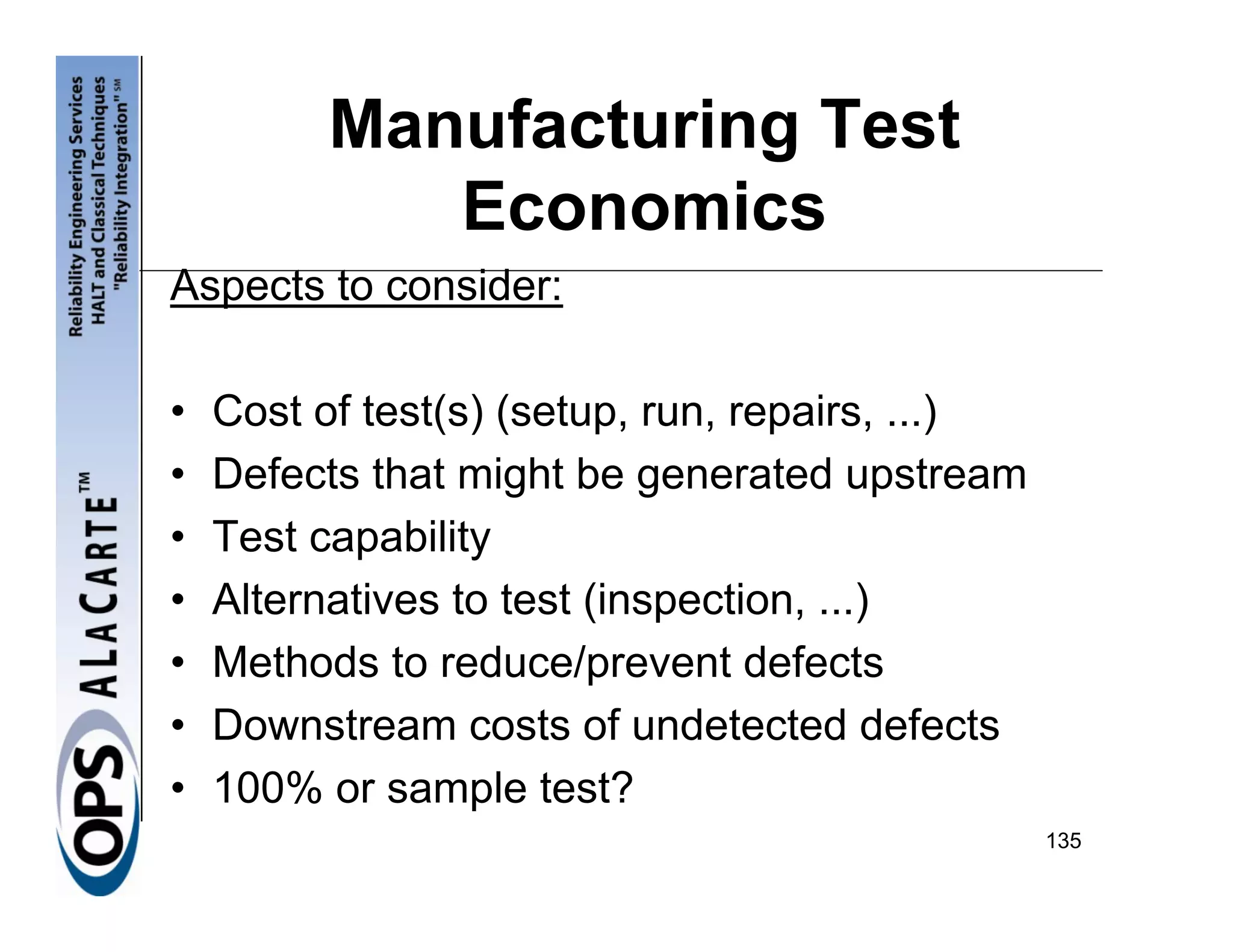

- 135. Manufacturing Test Economics Aspects to consider: • Cost of test(s) (setup, run, repairs, ...) • Defects that might be generated upstream • Test capability • Alternatives to test (inspection, ...) • Methods to reduce/prevent defects • Downstream costs of undetected defects • 100% or sample test? 135

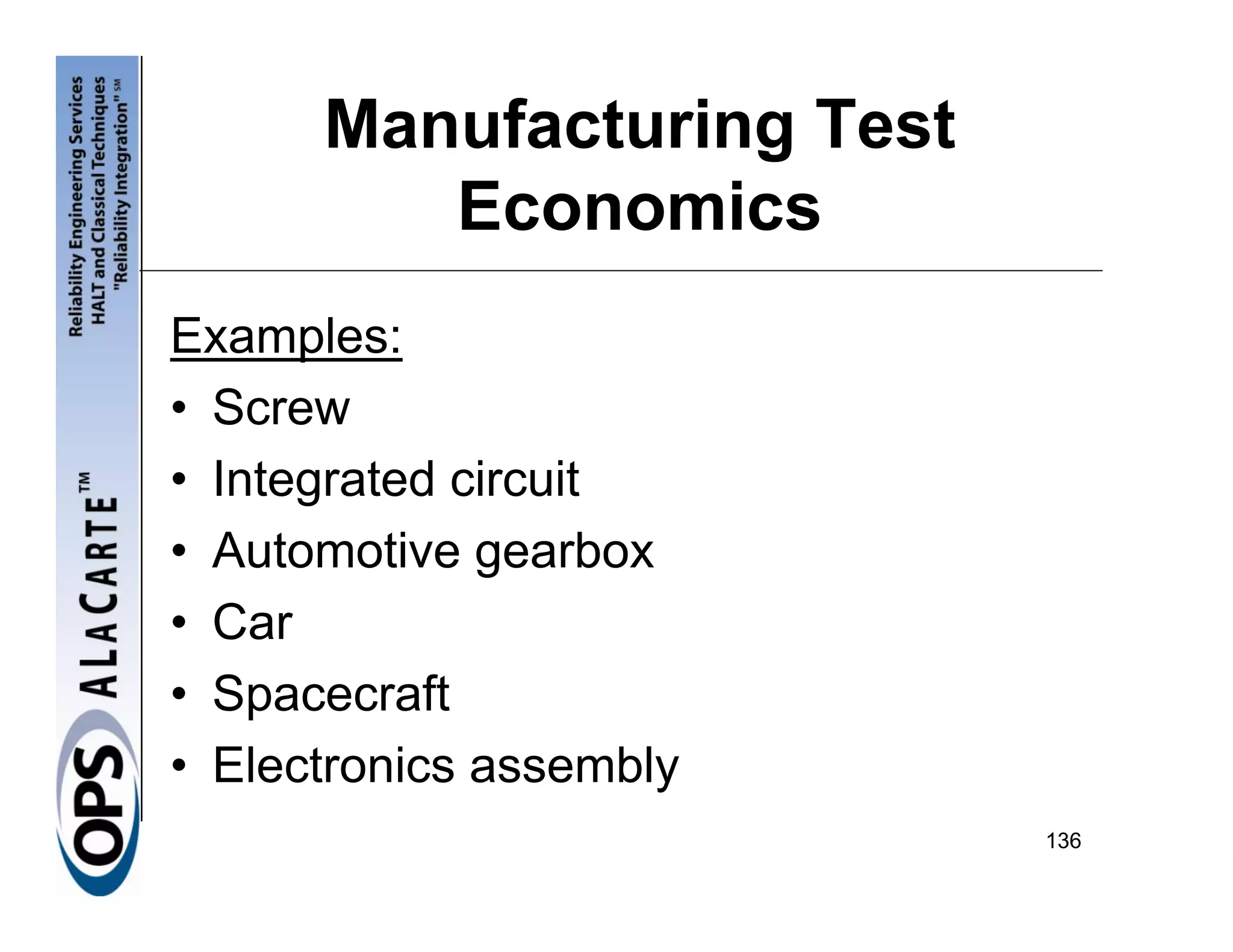

- 136. Manufacturing Test Economics Examples: • Screw • Integrated circuit • Automotive gearbox • Car • Spacecraft • Electronics assembly 136

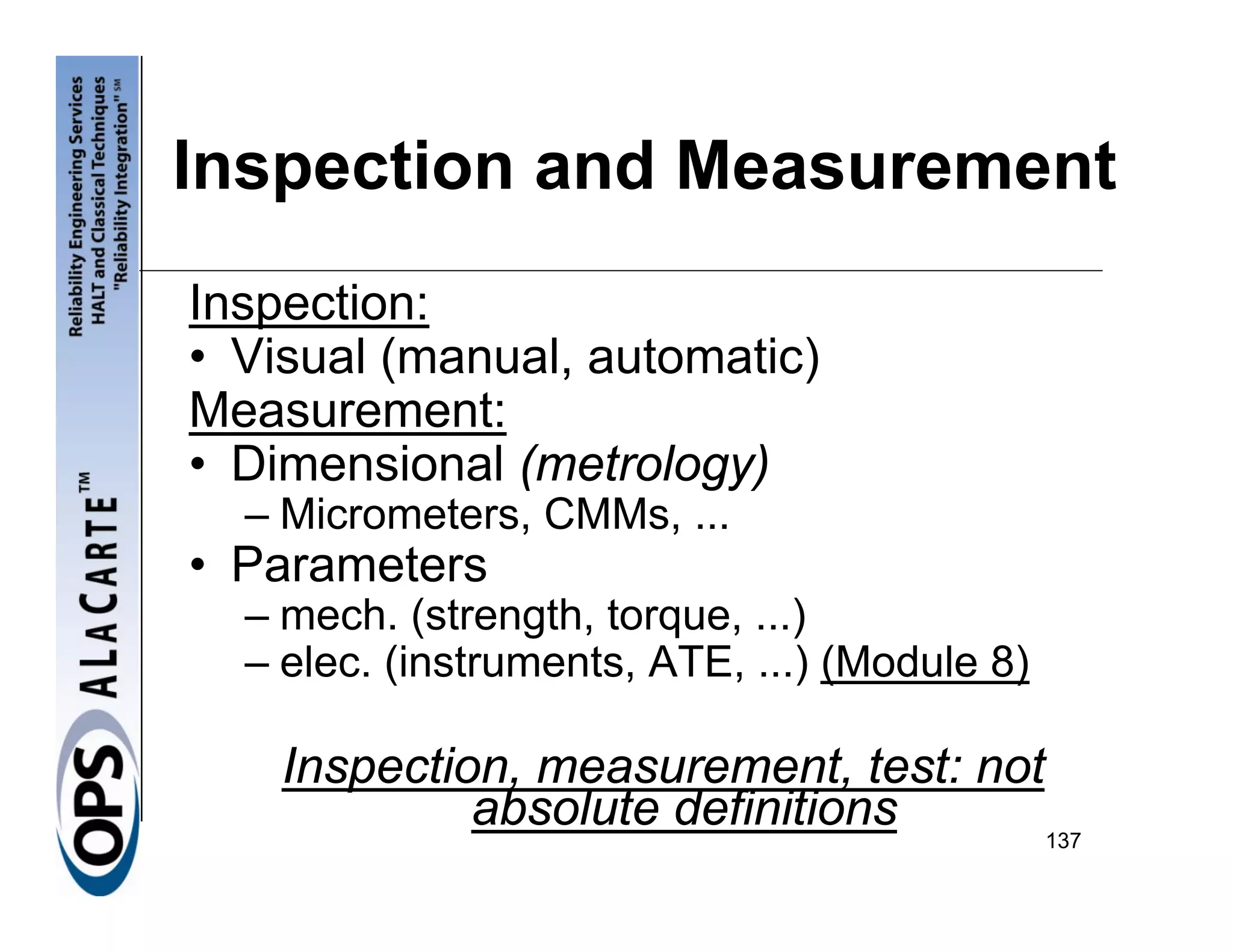

- 137. Inspection and Measurement Inspection: •Visual (manual, automatic) Measurement: • Dimensional (metrology) – Micrometers, CMMs, ... • Parameters – mech. (strength, torque, ...) – elec. (instruments, ATE, ...) (Module 8) Inspection, measurement, test: not absolute definitions 137

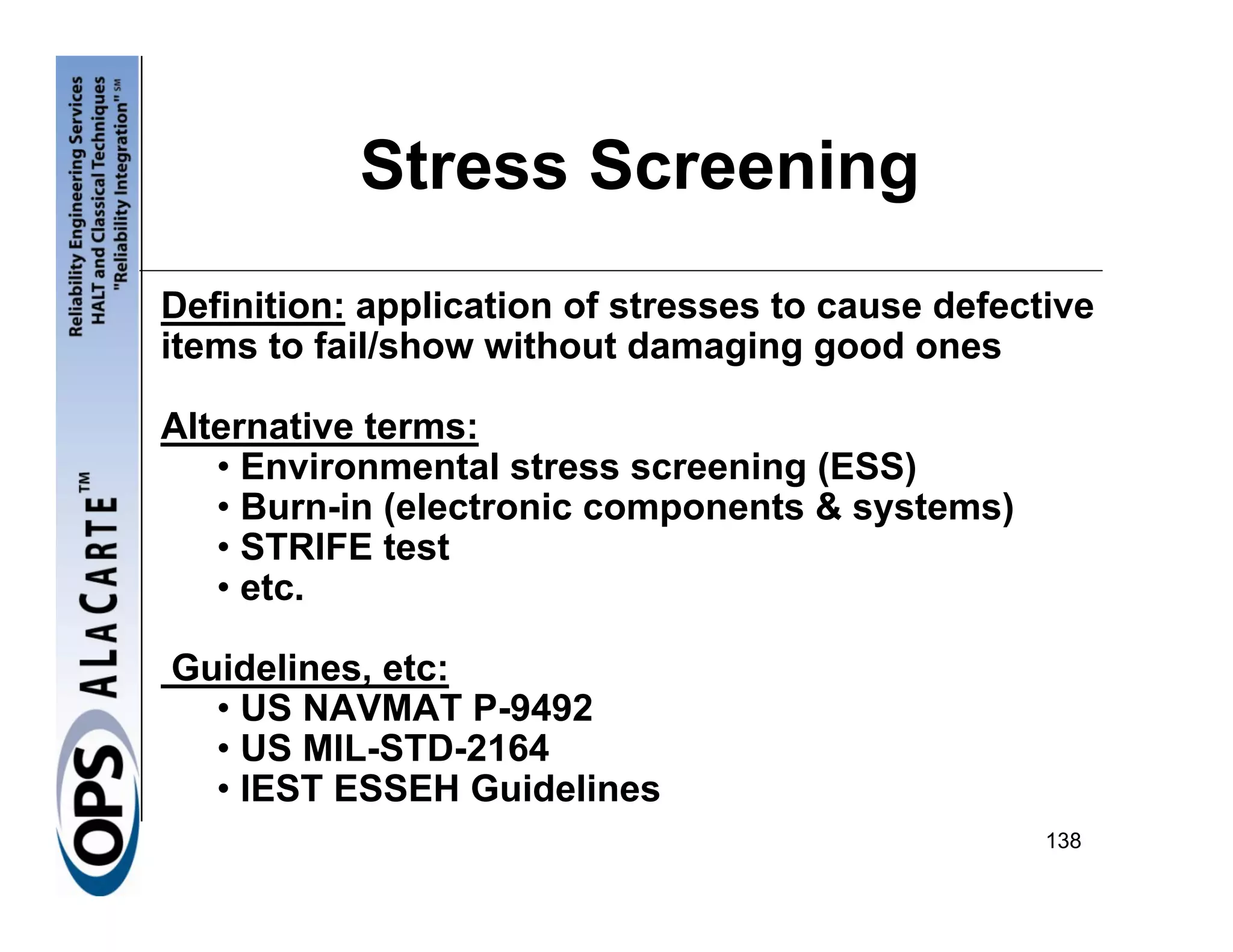

- 138. Stress Screening Definition: applicationof stresses to cause defective items to fail/show without damaging good ones Alternative terms: • Environmental stress screening (ESS) • Burn-in (electronic components & systems) • STRIFE test • etc. Guidelines, etc: • US NAVMAT P-9492 • US MIL-STD-2164 • IEST ESSEH Guidelines 138

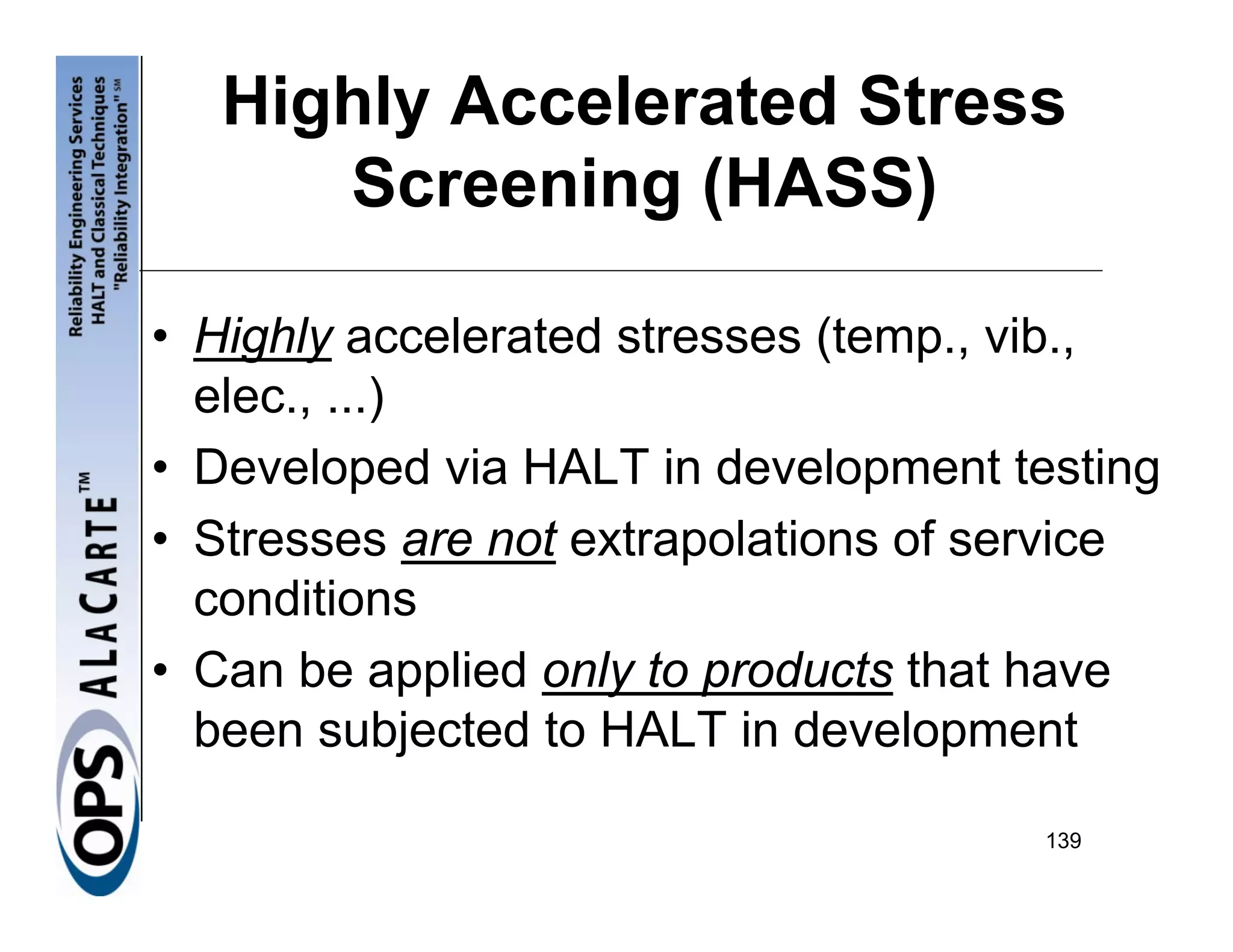

- 139. Highly Accelerated Stress Screening (HASS) • Highly accelerated stresses (temp., vib., elec., ...) • Developed via HALT in development testing • Stresses are not extrapolations of service conditions • Can be applied only to products that have been subjected to HALT in development 139

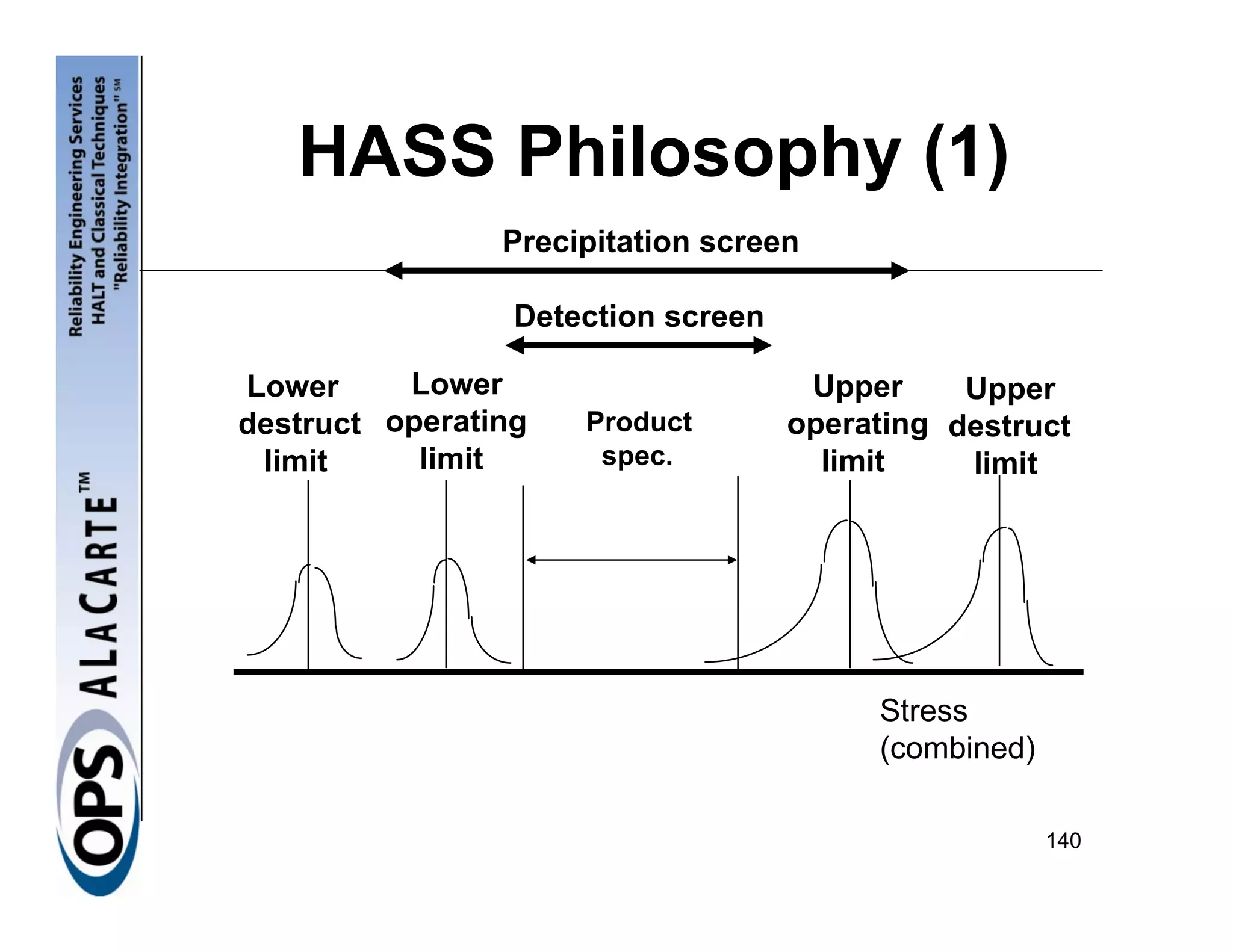

- 140. HASS Philosophy (1) Precipitation screen Detection screen Lower Lower Upper Upper destruct operating Product operating destruct limit limit spec. limit limit Stress (combined) 140
- 141. HALT/HASS Philosophy (2) Stress (S) HALT/ HASS ESS in use Cycles to fail (Log N) 141

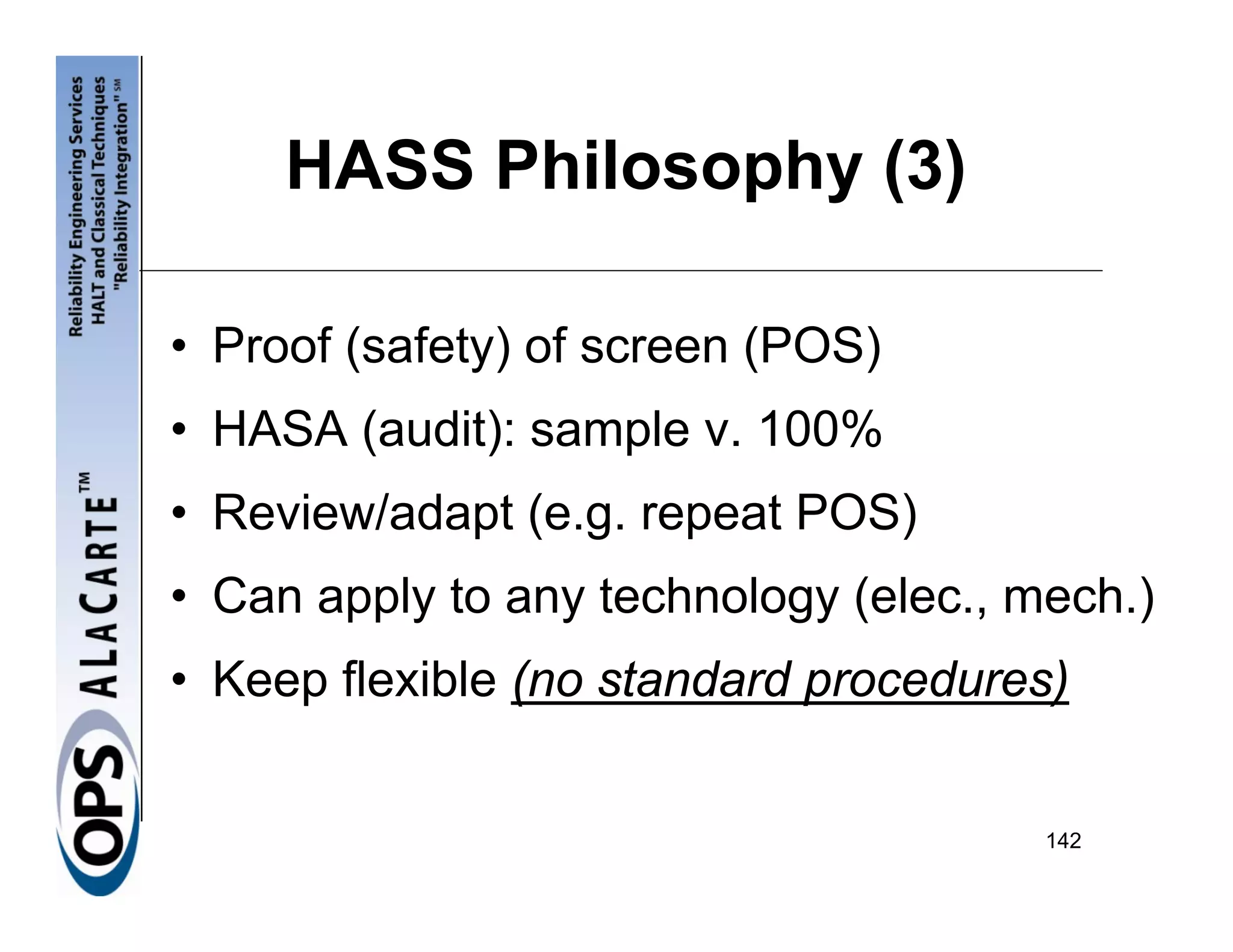

- 142. HASS Philosophy (3) •Proof (safety) of screen (POS) • HASA (audit): sample v. 100% • Review/adapt (e.g. repeat POS) • Can apply to any technology (elec., mech.) • Keep flexible (no standard procedures) 142

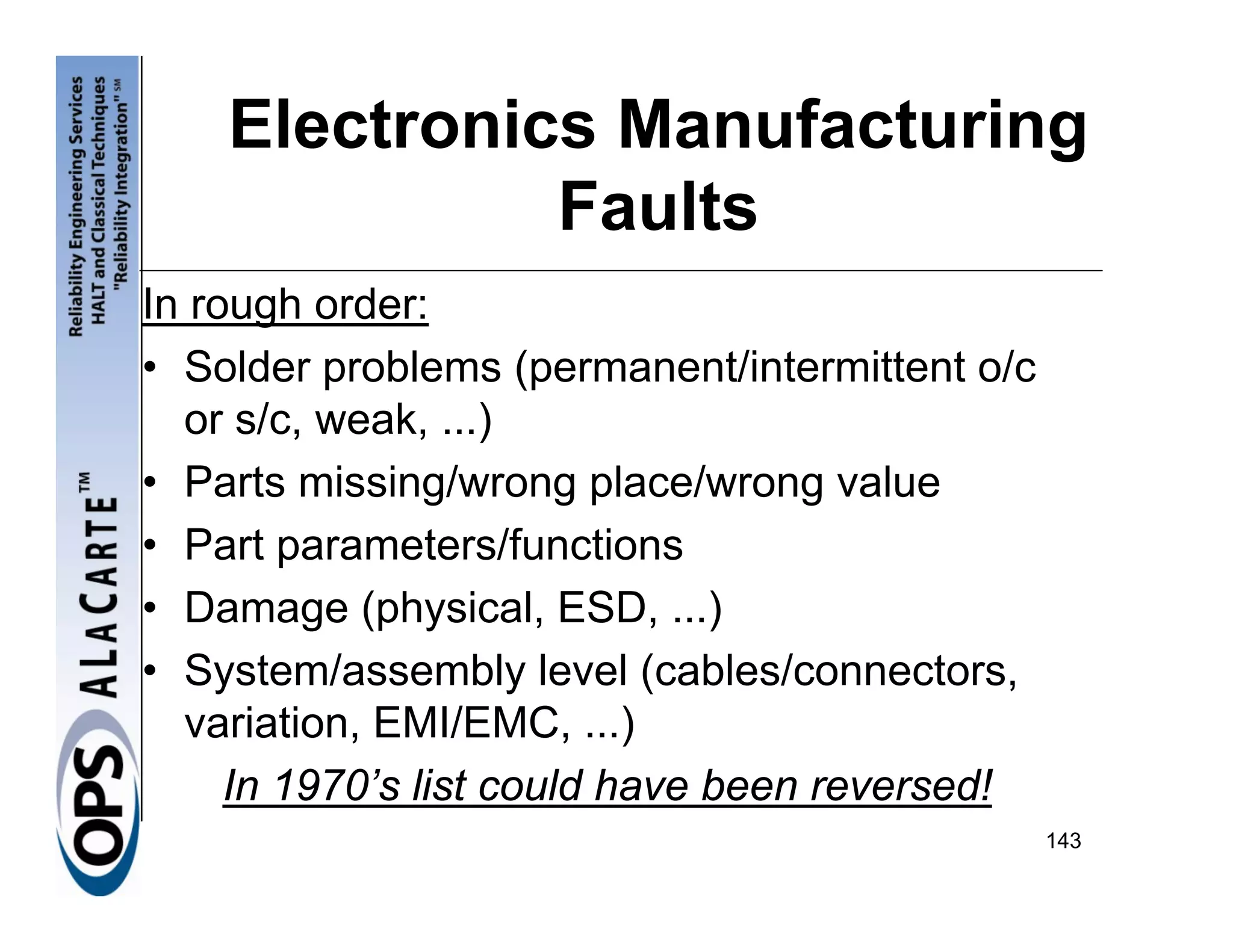

- 143. Electronics Manufacturing Faults In rough order: • Solder problems (permanent/intermittent o/c or s/c, weak, ...) • Parts missing/wrong place/wrong value • Part parameters/functions • Damage (physical, ESD, ...) • System/assembly level (cables/connectors, variation, EMI/EMC, ...) In 1970’s list could have been reversed! 143

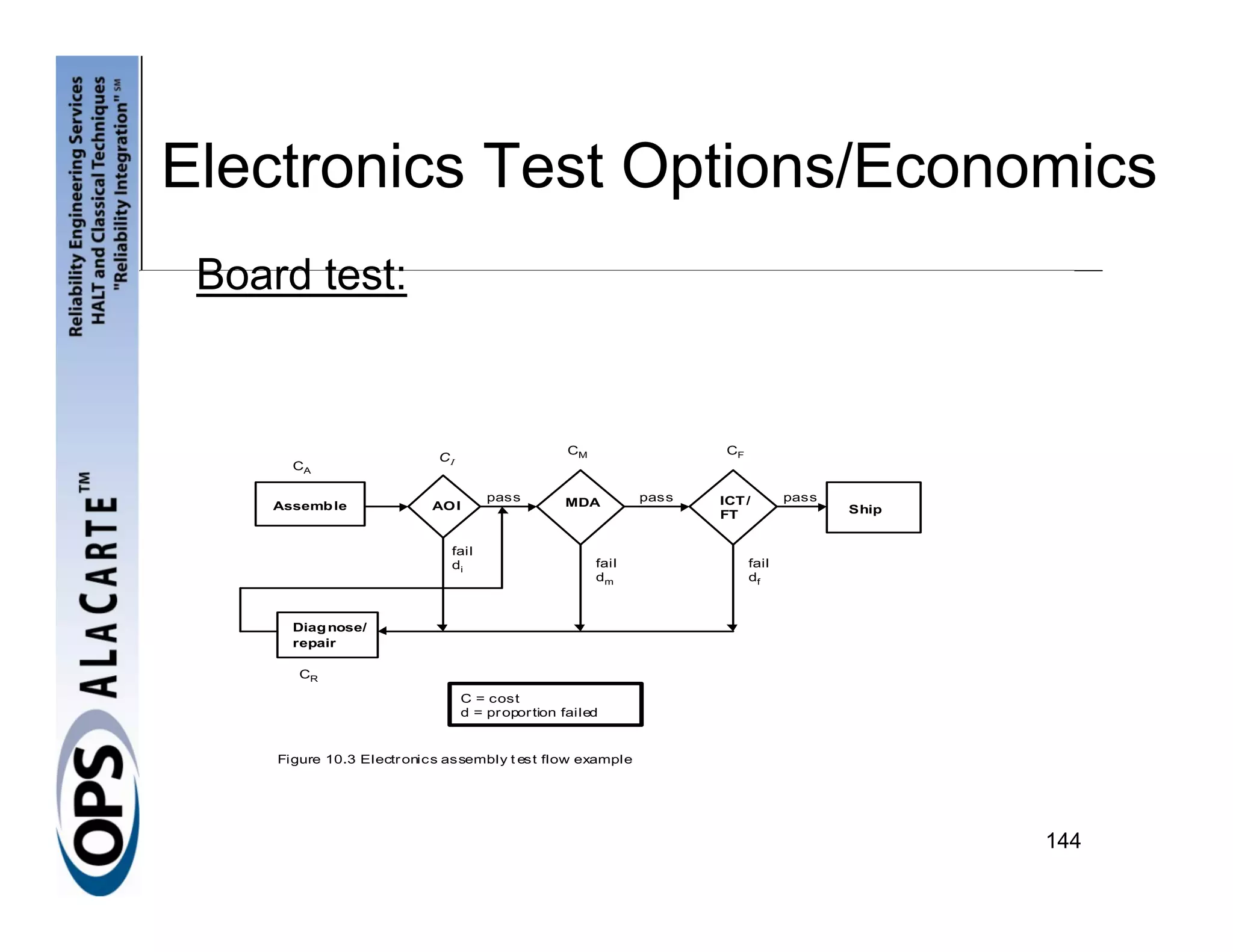

- 144. Electronics Test Options/Economics Board test: CM CF CΙ CA pass MDA pass ICT / pass Assemb le AOI Ship FT fail di fail fail dm df Diag nose/ repair CR C = cost d = pr opor tion failed Figure 10.3 Electr onics assembly t est flow example 144

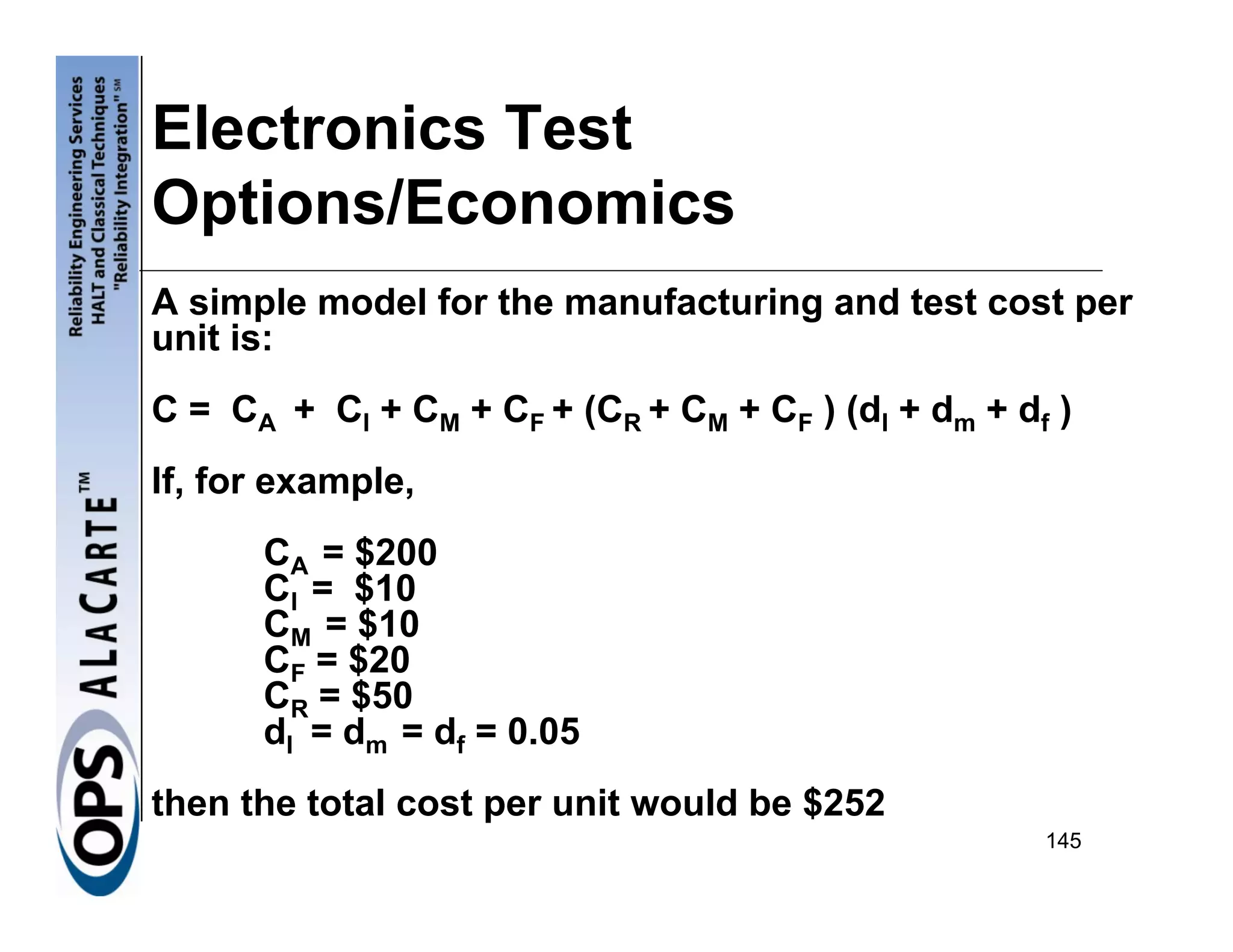

- 145. Electronics Test Options/Economics A simplemodel for the manufacturing and test cost per unit is: C = CA + CI + CM + CF + (CR + CM + CF ) (dI + dm + df ) If, for example, CA = $200 CI = $10 CM = $10 CF = $20 CR = $50 dI = dm = df = 0.05 then the total cost per unit would be $252 145

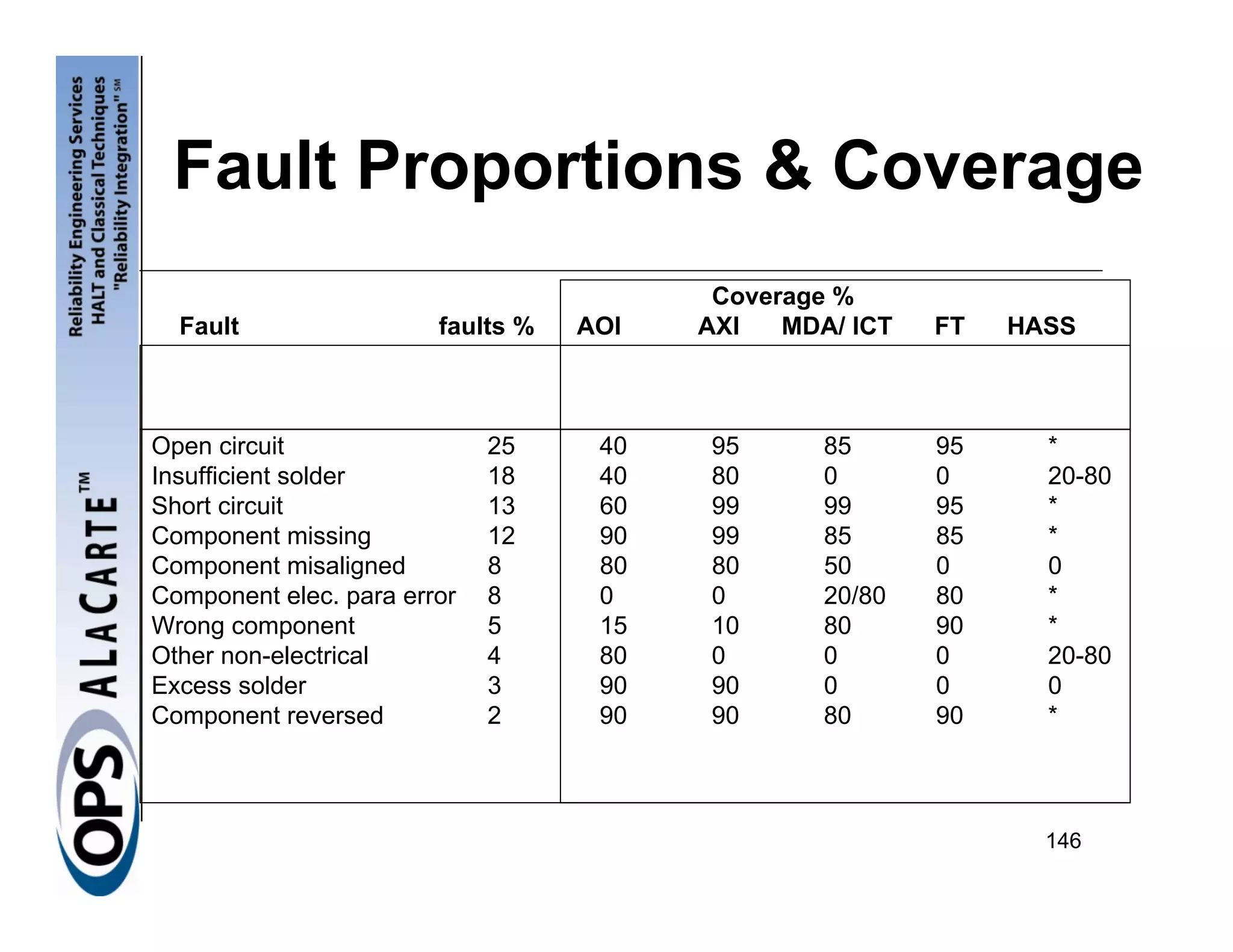

- 146. Fault Proportions &Coverage Coverage % Fault faults % AOI AXI MDA/ ICT FT HASS Open circuit 25 40 95 85 95 * Insufficient solder 18 40 80 0 0 20-80 Short circuit 13 60 99 99 95 * Component missing 12 90 99 85 85 * Component misaligned 8 80 80 50 0 0 Component elec. para error 8 0 0 20/80 80 * Wrong component 5 15 10 80 90 * Other non-electrical 4 80 0 0 0 20-80 Excess solder 3 90 90 0 0 0 Component reversed 2 90 90 80 90 * 146

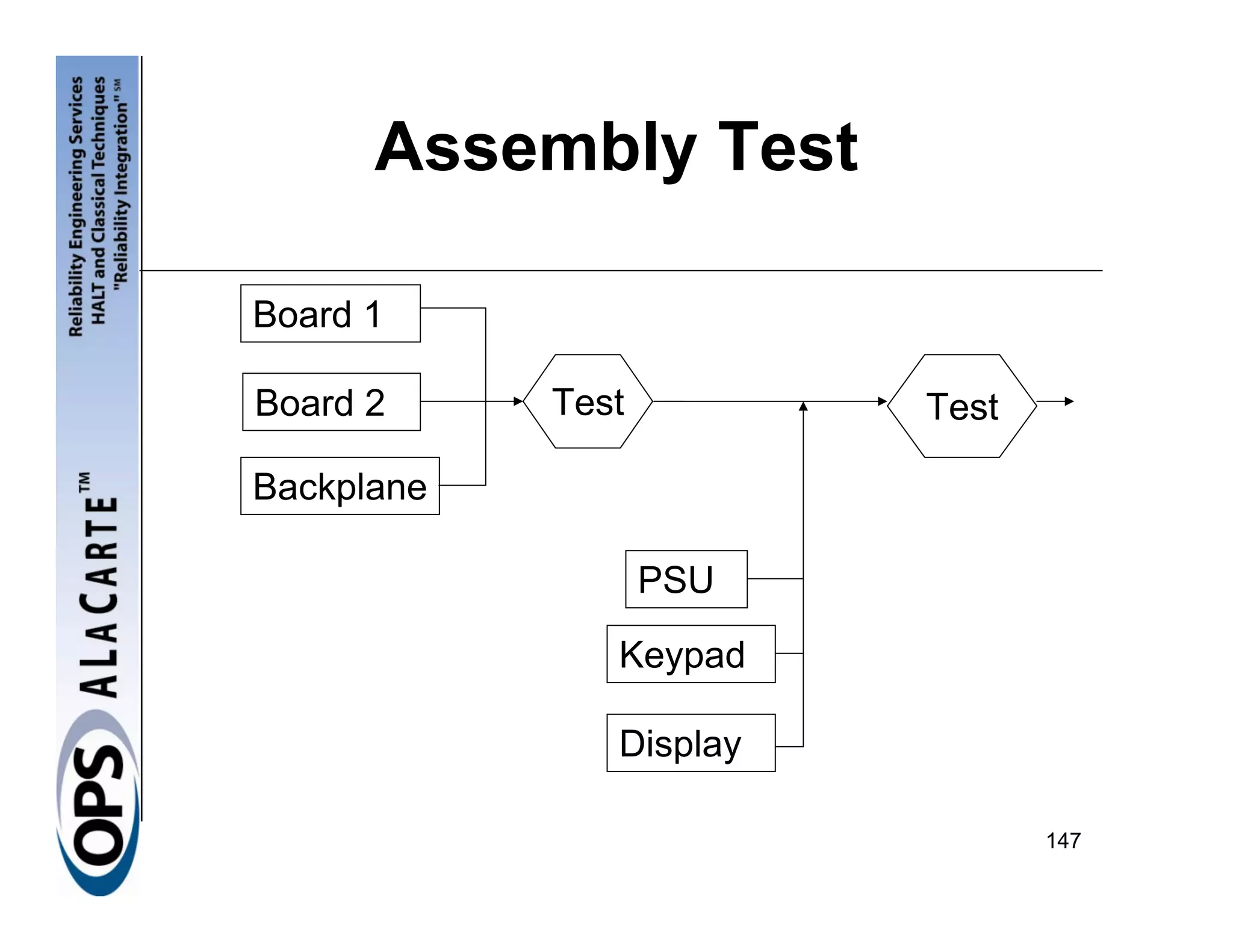

- 147. Assembly Test Board 1 Board2 Test Test Backplane PSU Keypad Display 147

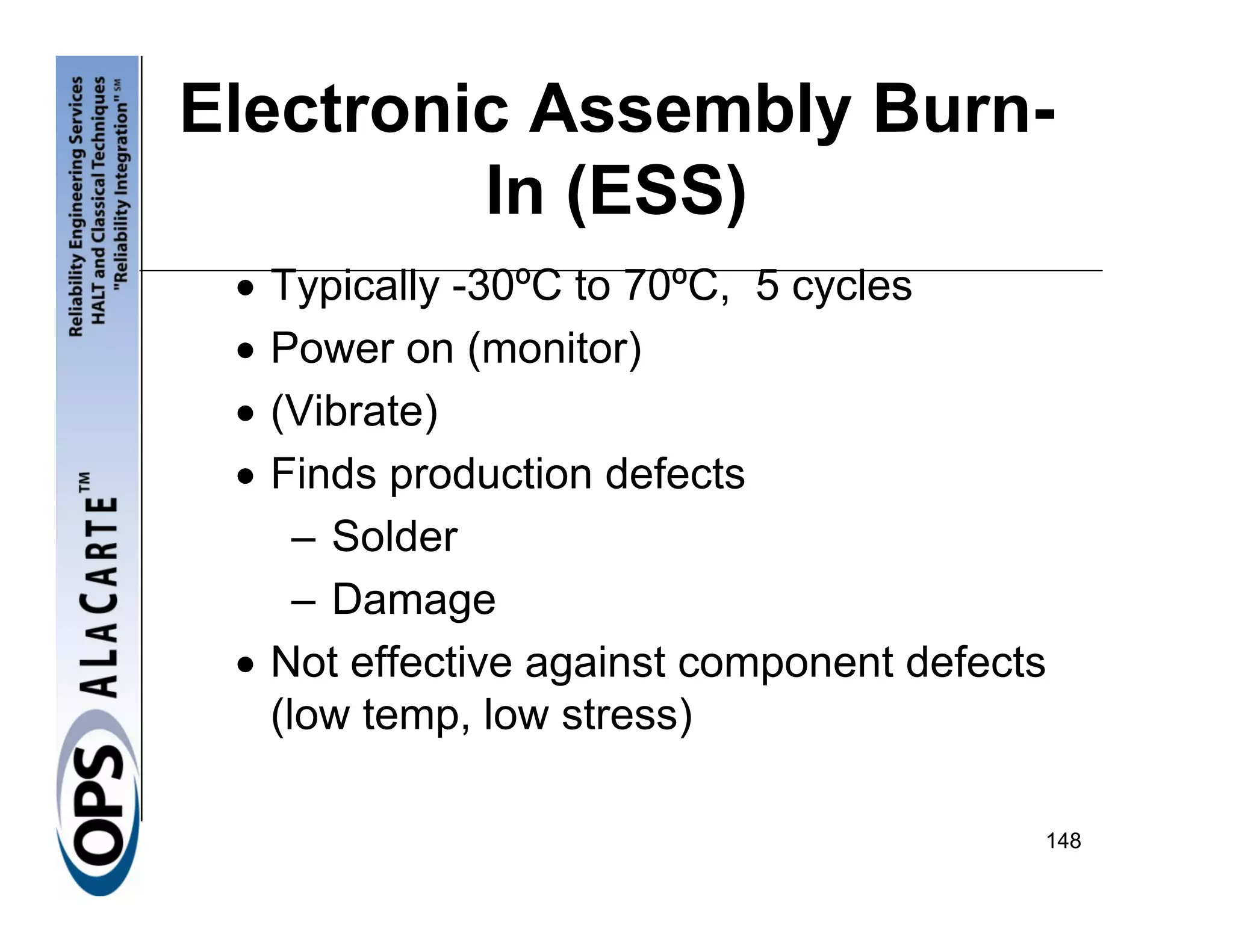

- 148. Electronic Assembly Burn- In (ESS) • Typically -30ºC to 70ºC, 5 cycles • Power on (monitor) • (Vibrate) • Finds production defects – Solder – Damage • Not effective against component defects (low temp, low stress) 148

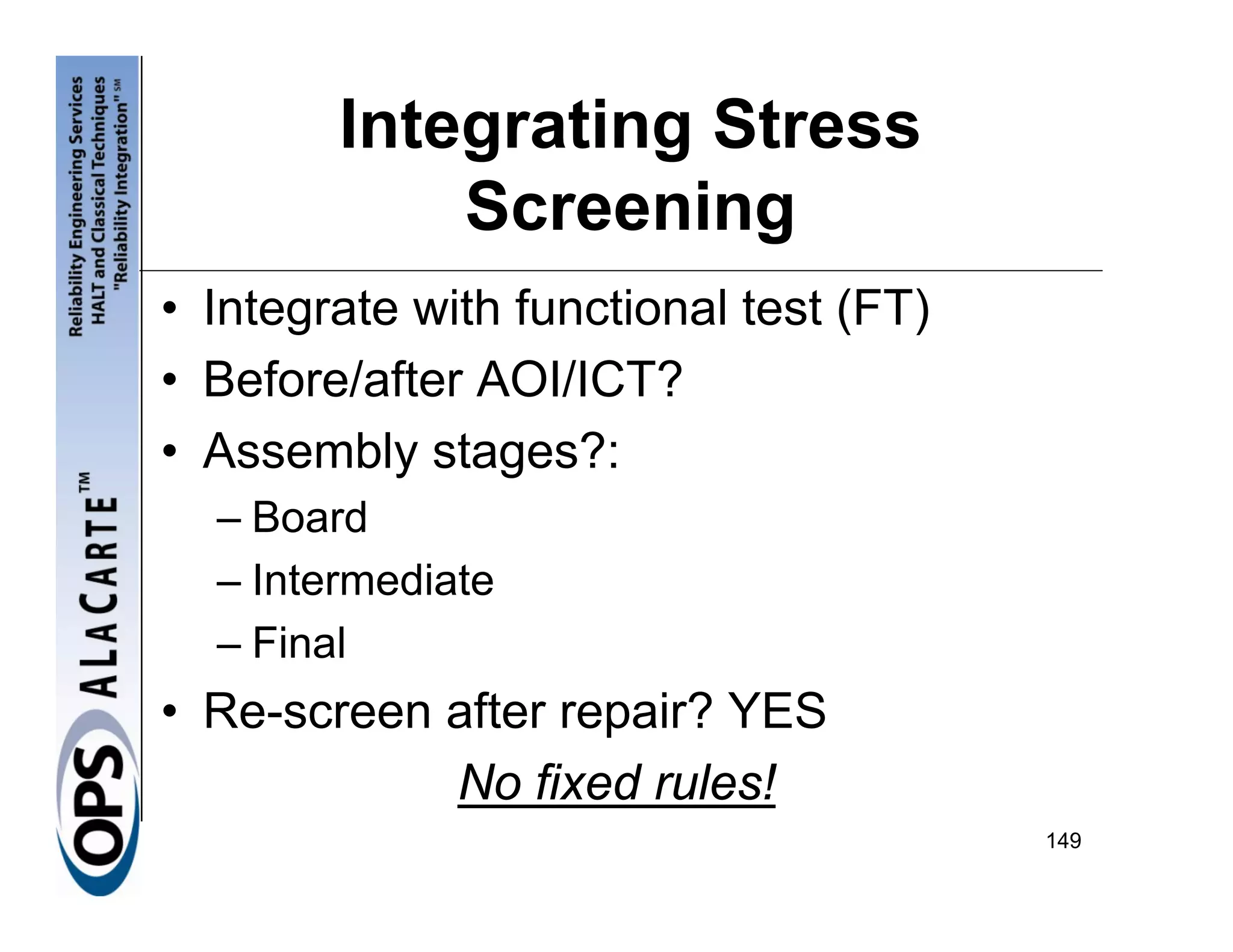

- 149. Integrating Stress Screening • Integrate with functional test (FT) • Before/after AOI/ICT? • Assembly stages?: – Board – Intermediate – Final • Re-screen after repair? YES No fixed rules! 149

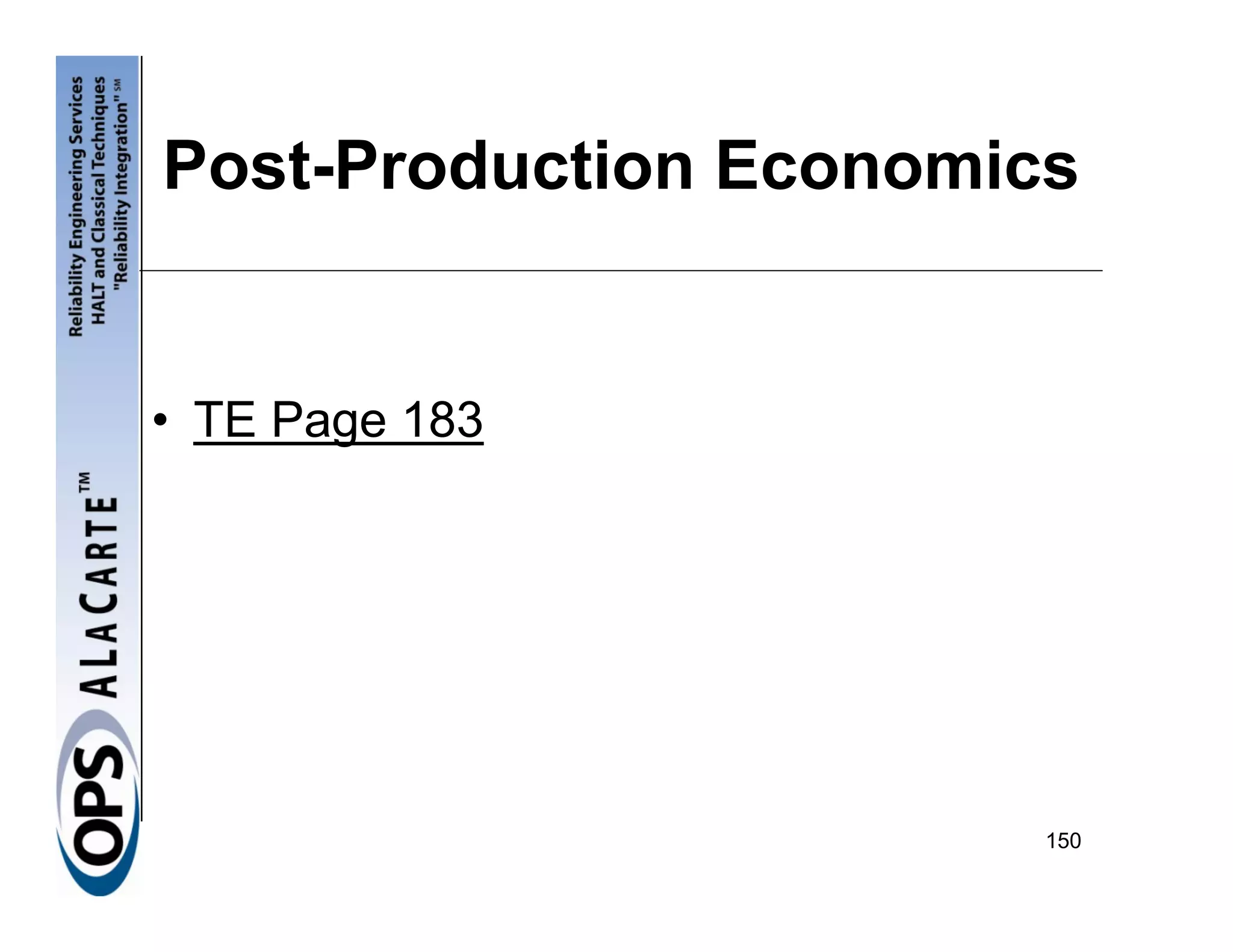

- 150. Post-Production Economics • TEPage 183 150

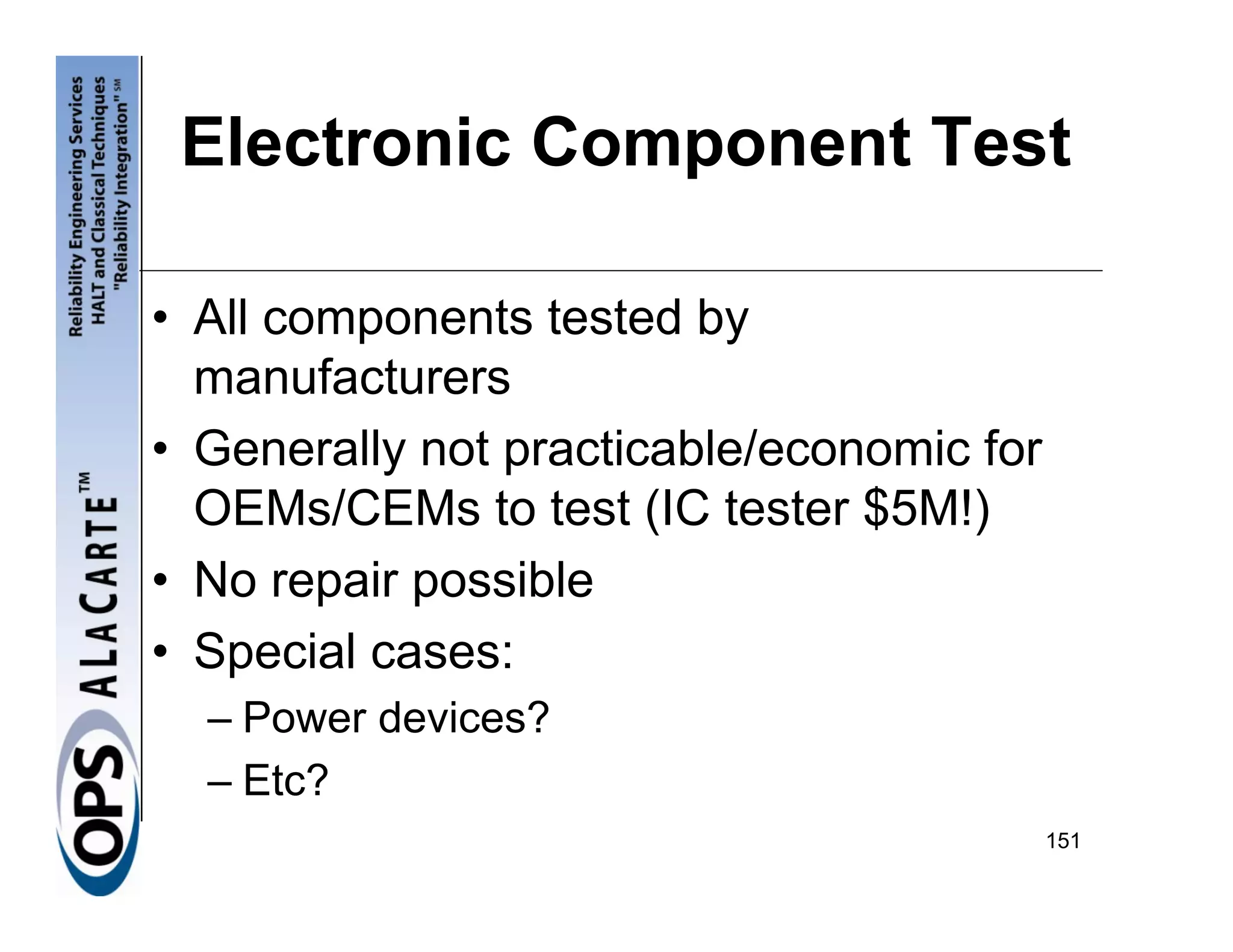

- 151. Electronic Component Test •All components tested by manufacturers • Generally not practicable/economic for OEMs/CEMs to test (IC tester $5M!) • No repair possible • Special cases: – Power devices? – Etc? 151

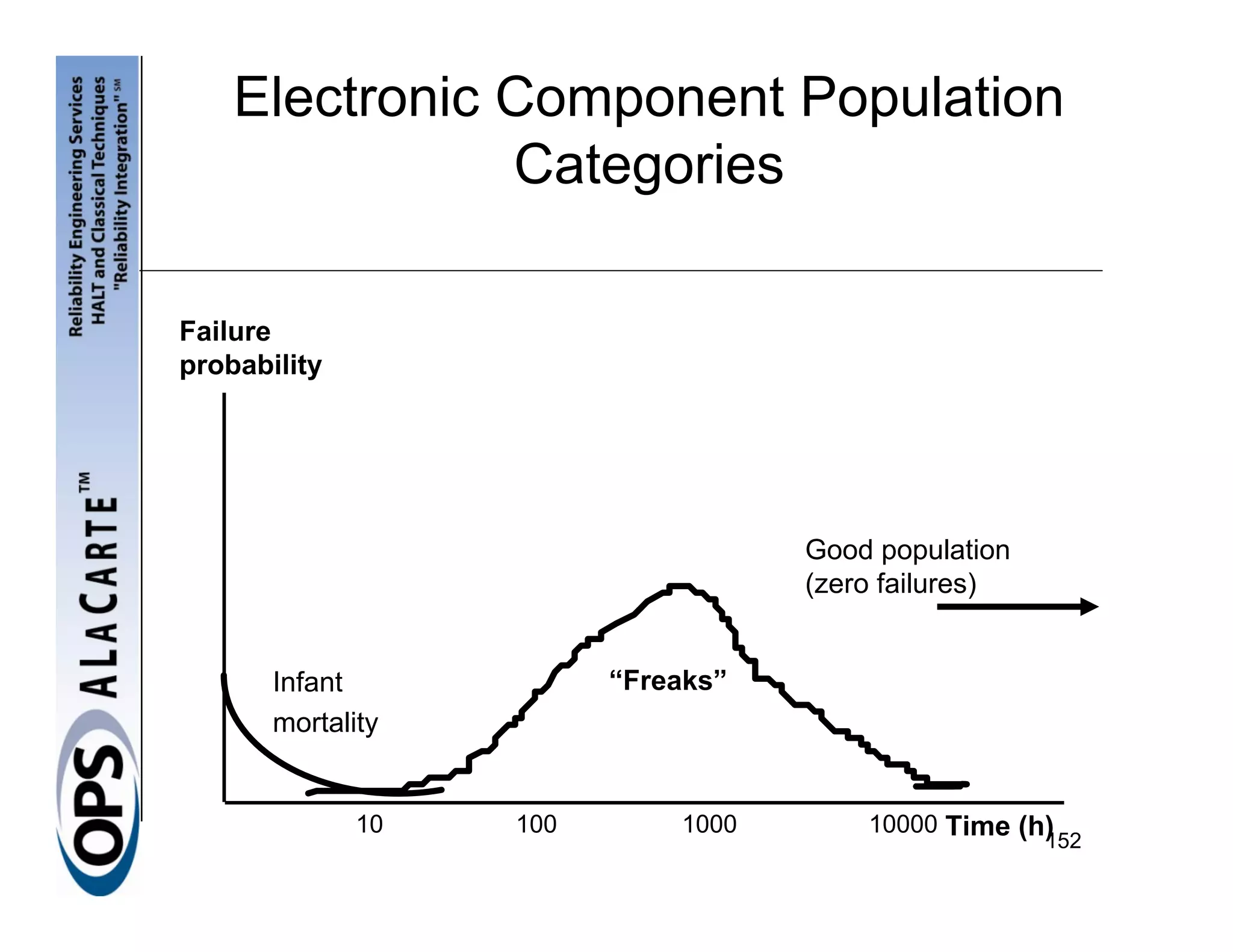

- 152. Electronic Component Population Categories Failure probability Good population (zero failures) Infant “Freaks” mortality 10 100 1000 10000 Time (h) 152

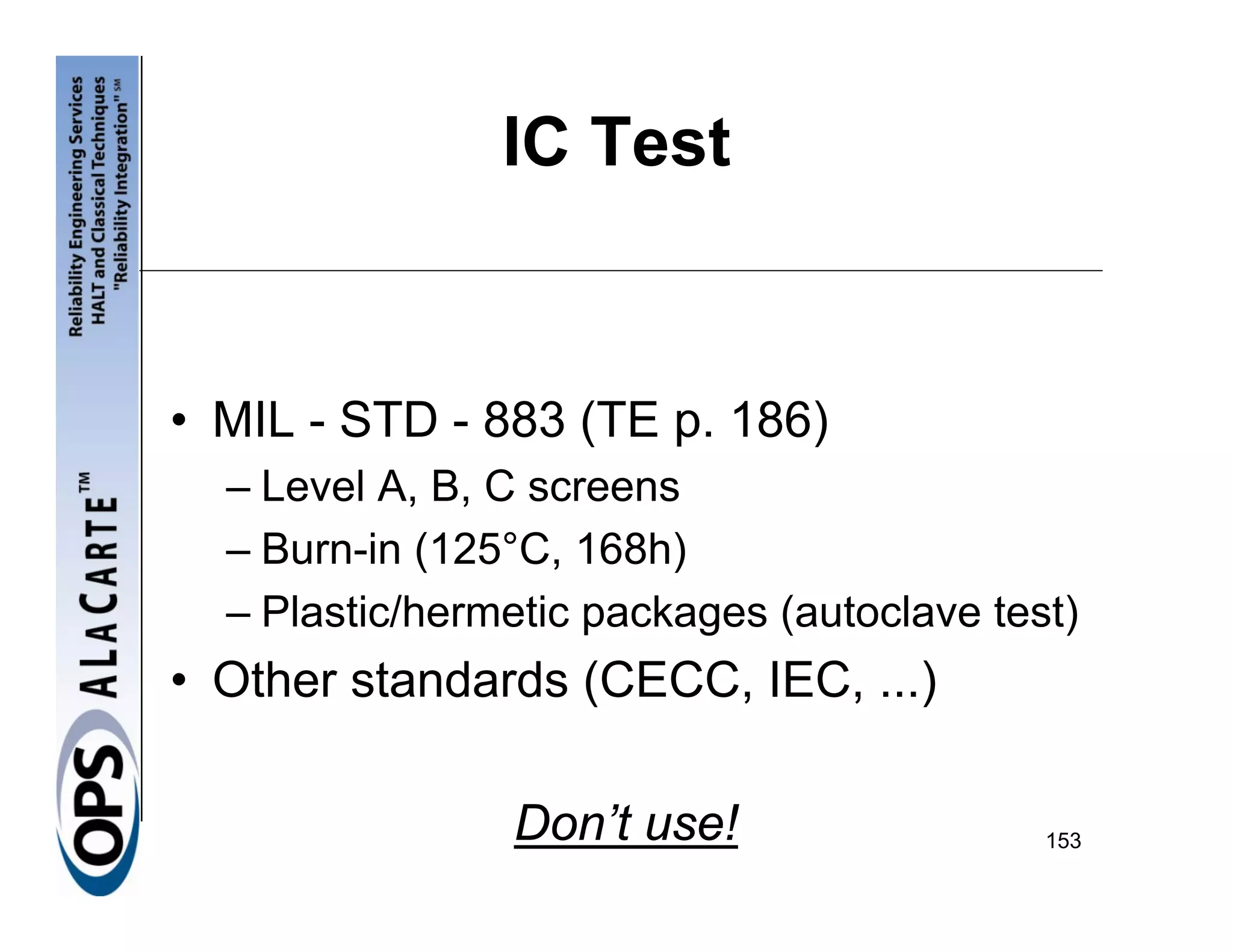

- 153. IC Test • MIL- STD - 883 (TE p. 186) – Level A, B, C screens – Burn-in (125°C, 168h) – Plastic/hermetic packages (autoclave test) • Other standards (CECC, IEC, ...) Don’t use! 153

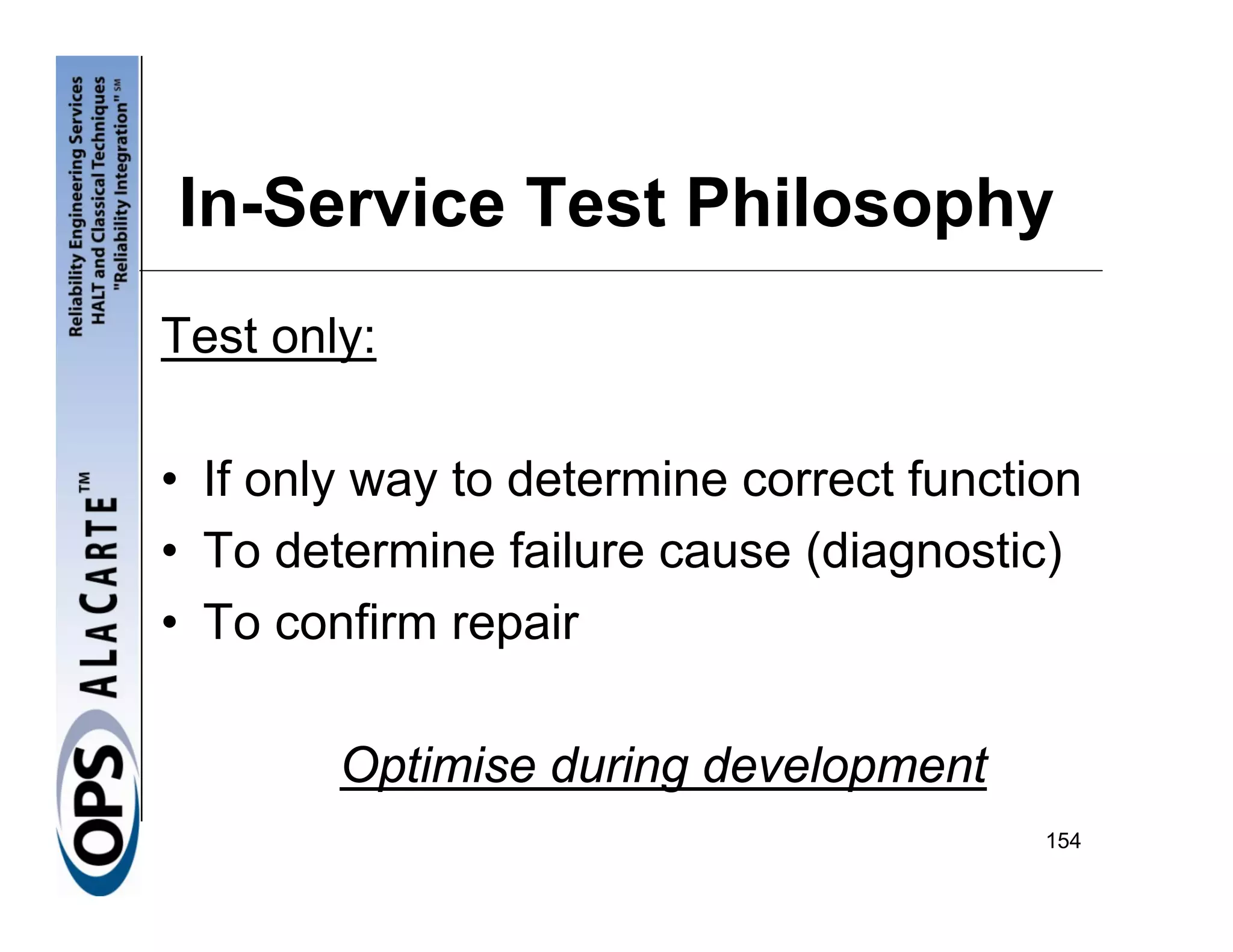

- 154. In-Service Test Philosophy Testonly: • If only way to determine correct function • To determine failure cause (diagnostic) • To confirm repair Optimise during development 154

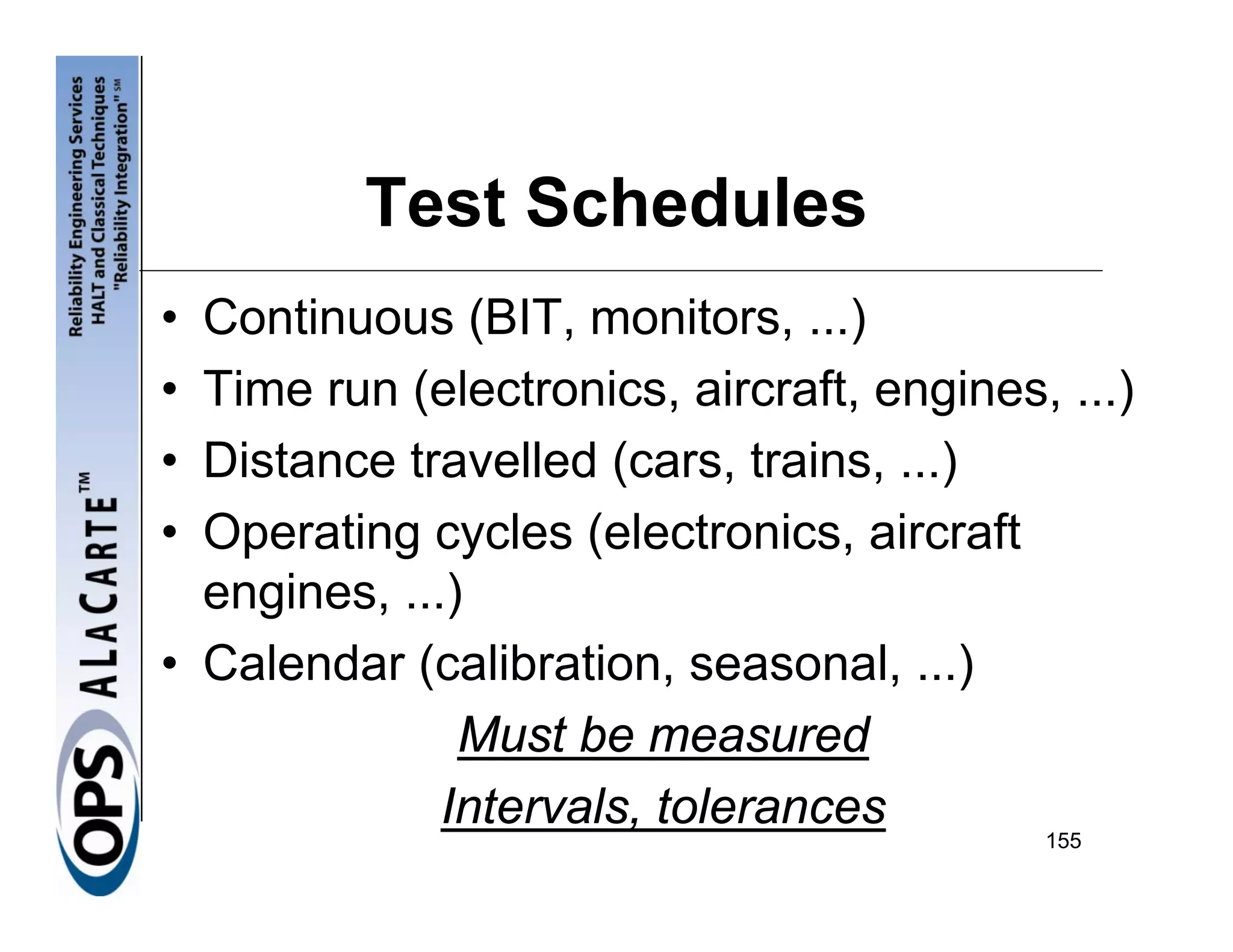

- 155. Test Schedules • Continuous(BIT, monitors, ...) • Time run (electronics, aircraft, engines, ...) • Distance travelled (cars, trains, ...) • Operating cycles (electronics, aircraft engines, ...) • Calendar (calibration, seasonal, ...) Must be measured Intervals, tolerances 155
- 156. Examples • TE pages191-193 156

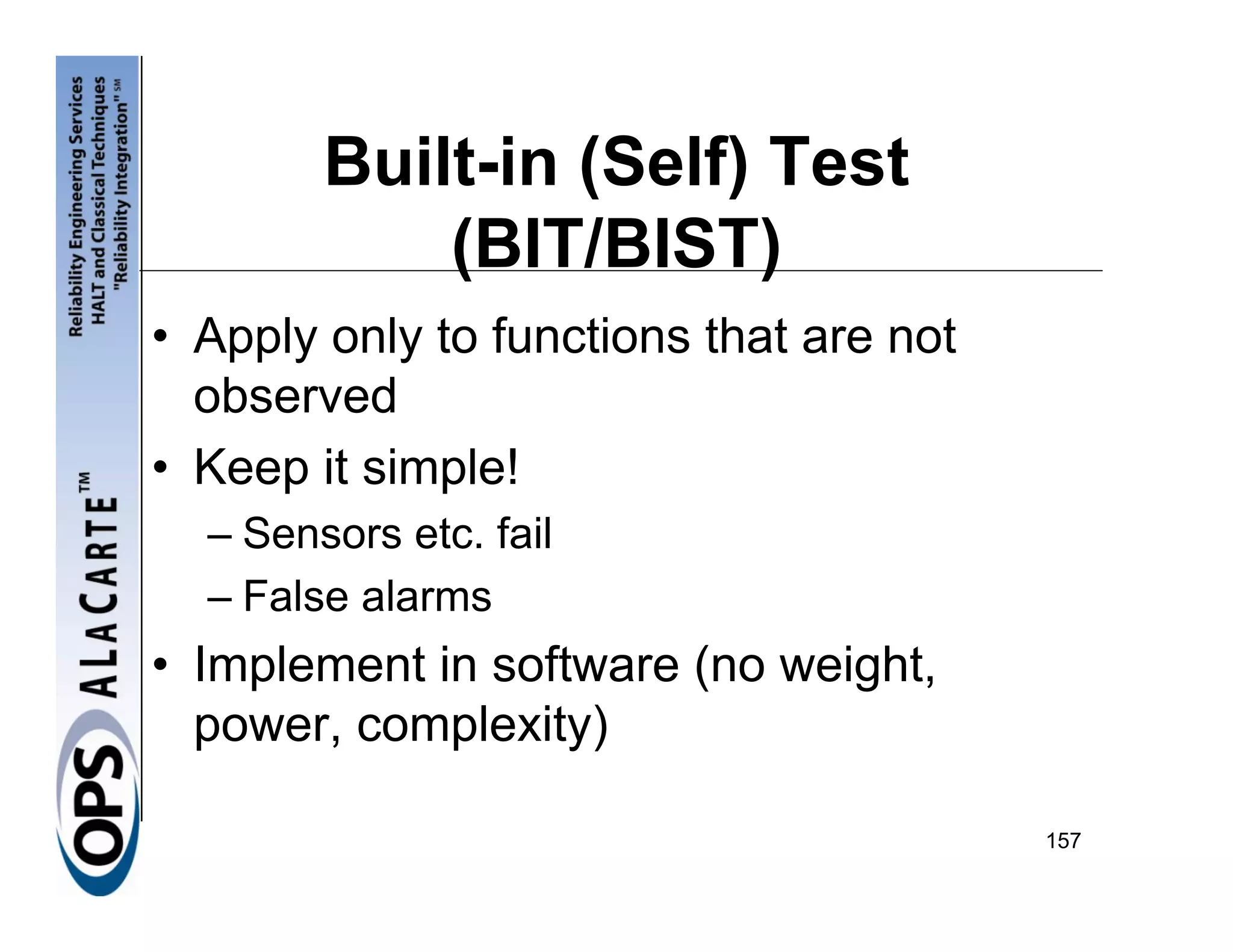

- 157. Built-in (Self) Test (BIT/BIST) • Apply only to functions that are not observed • Keep it simple! – Sensors etc. fail – False alarms • Implement in software (no weight, power, complexity) 157

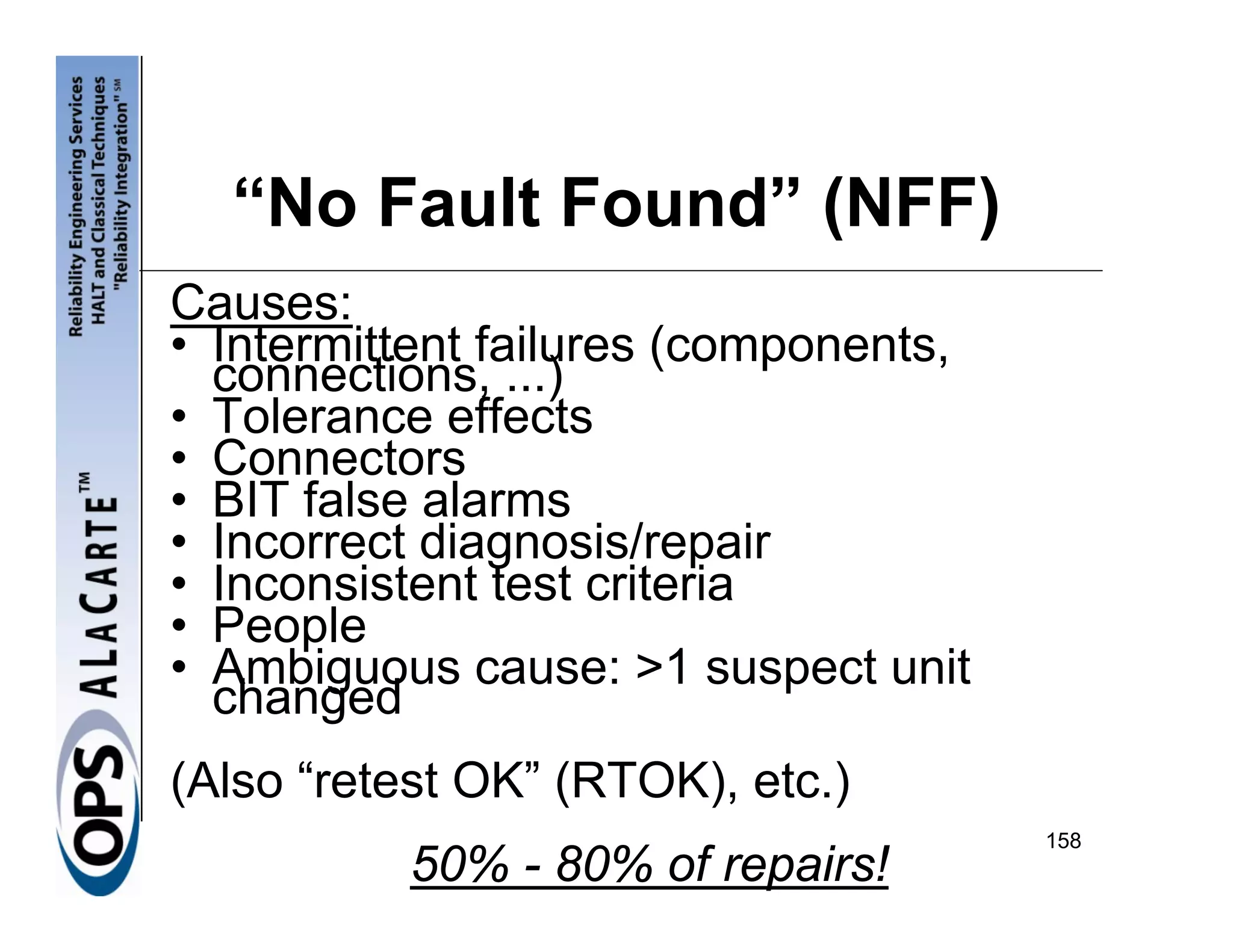

- 158. “No Fault Found”(NFF) Causes: • Intermittent failures (components, connections, ...) • Tolerance effects • Connectors • BIT false alarms • Incorrect diagnosis/repair • Inconsistent test criteria • People • Ambiguous cause: >1 suspect unit changed (Also “retest OK” (RTOK), etc.) 158 50% - 80% of repairs!

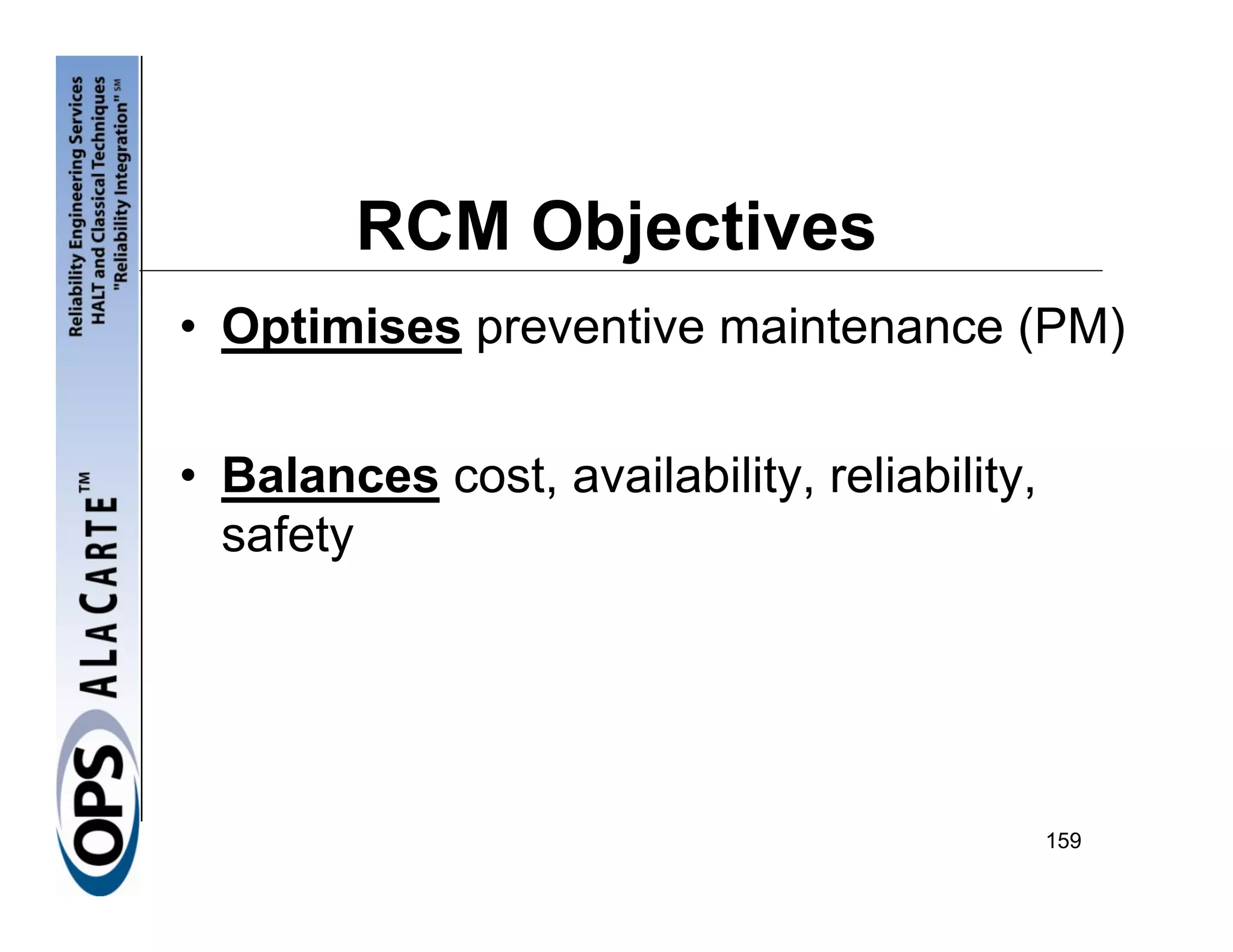

- 159. RCM Objectives • Optimisespreventive maintenance (PM) • Balances cost, availability, reliability, safety 159

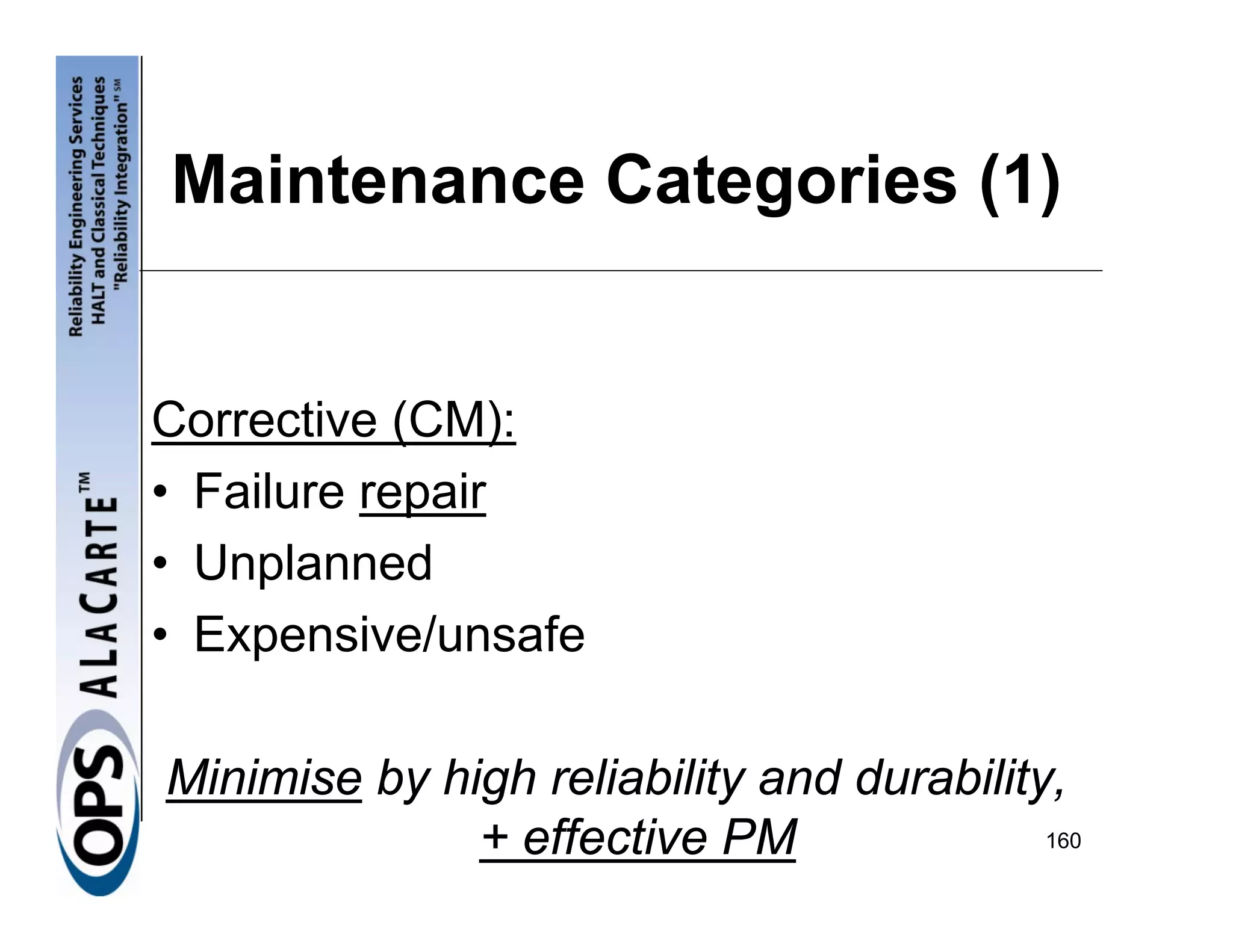

- 160. Maintenance Categories (1) Corrective(CM): • Failure repair • Unplanned • Expensive/unsafe Minimise by high reliability and durability, + effective PM 160

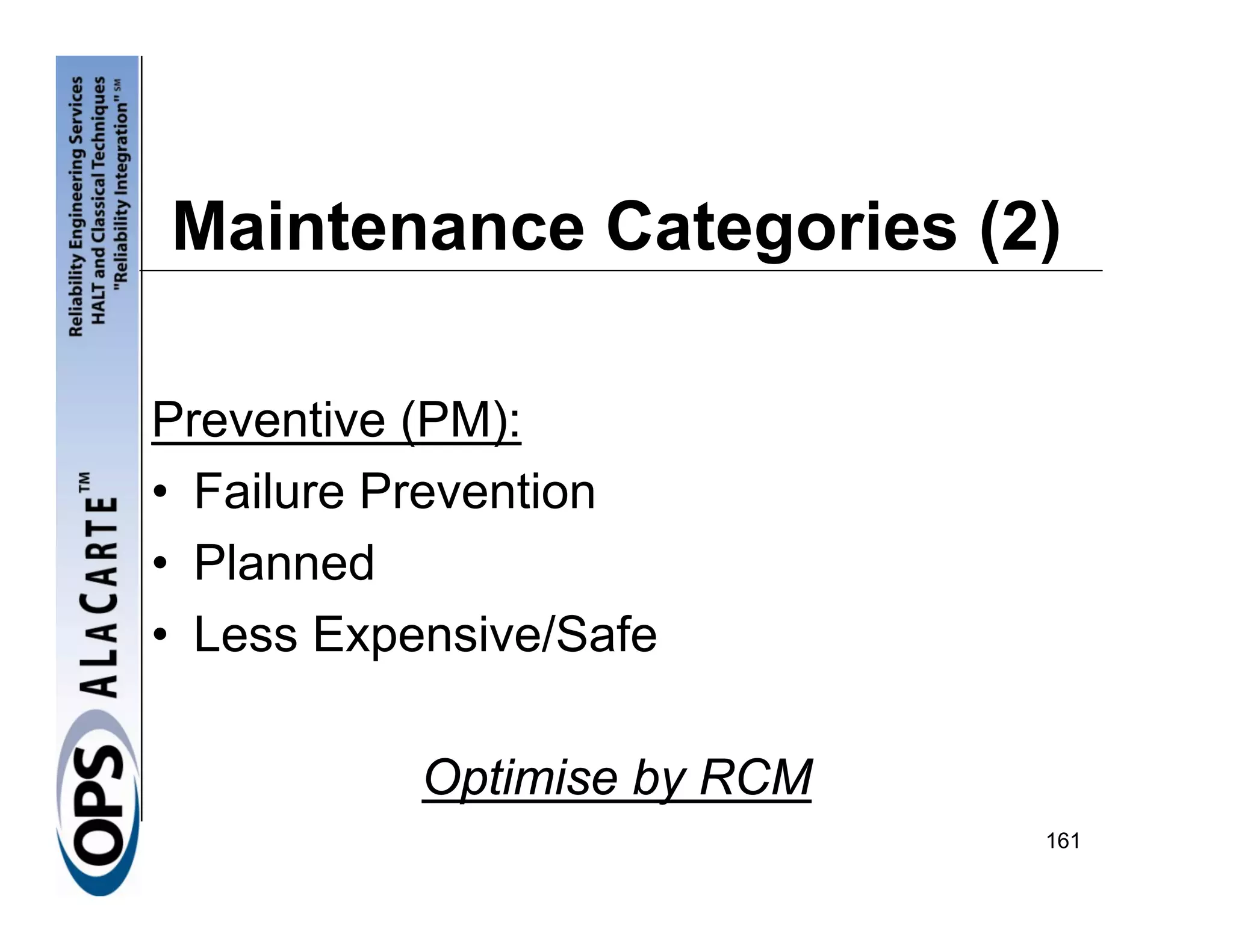

- 161. Maintenance Categories (2) Preventive(PM): • Failure Prevention • Planned • Less Expensive/Safe Optimise by RCM 161

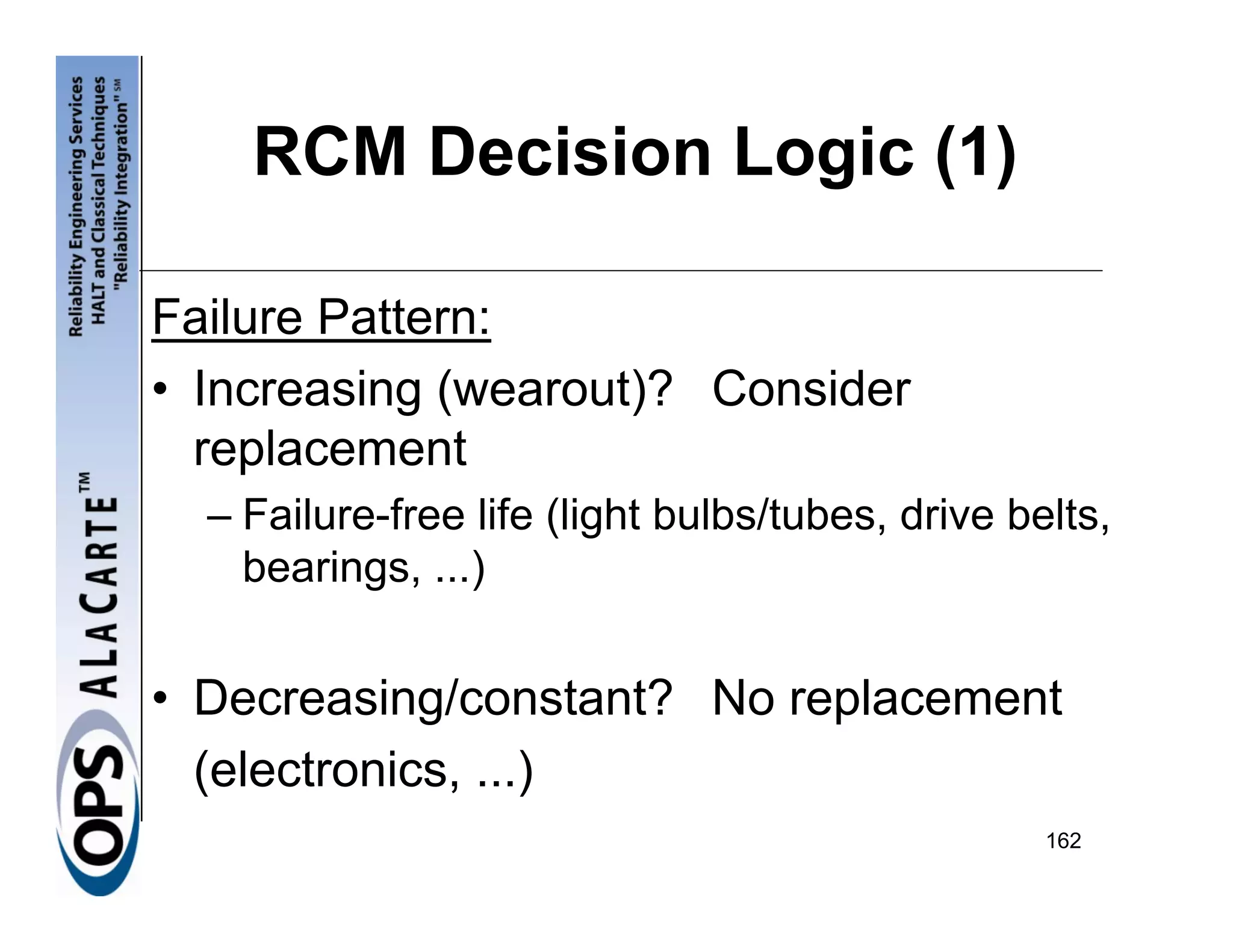

- 162. RCM Decision Logic(1) Failure Pattern: • Increasing (wearout)? Consider replacement – Failure-free life (light bulbs/tubes, drive belts, bearings, ...) • Decreasing/constant? No replacement (electronics, ...) 162

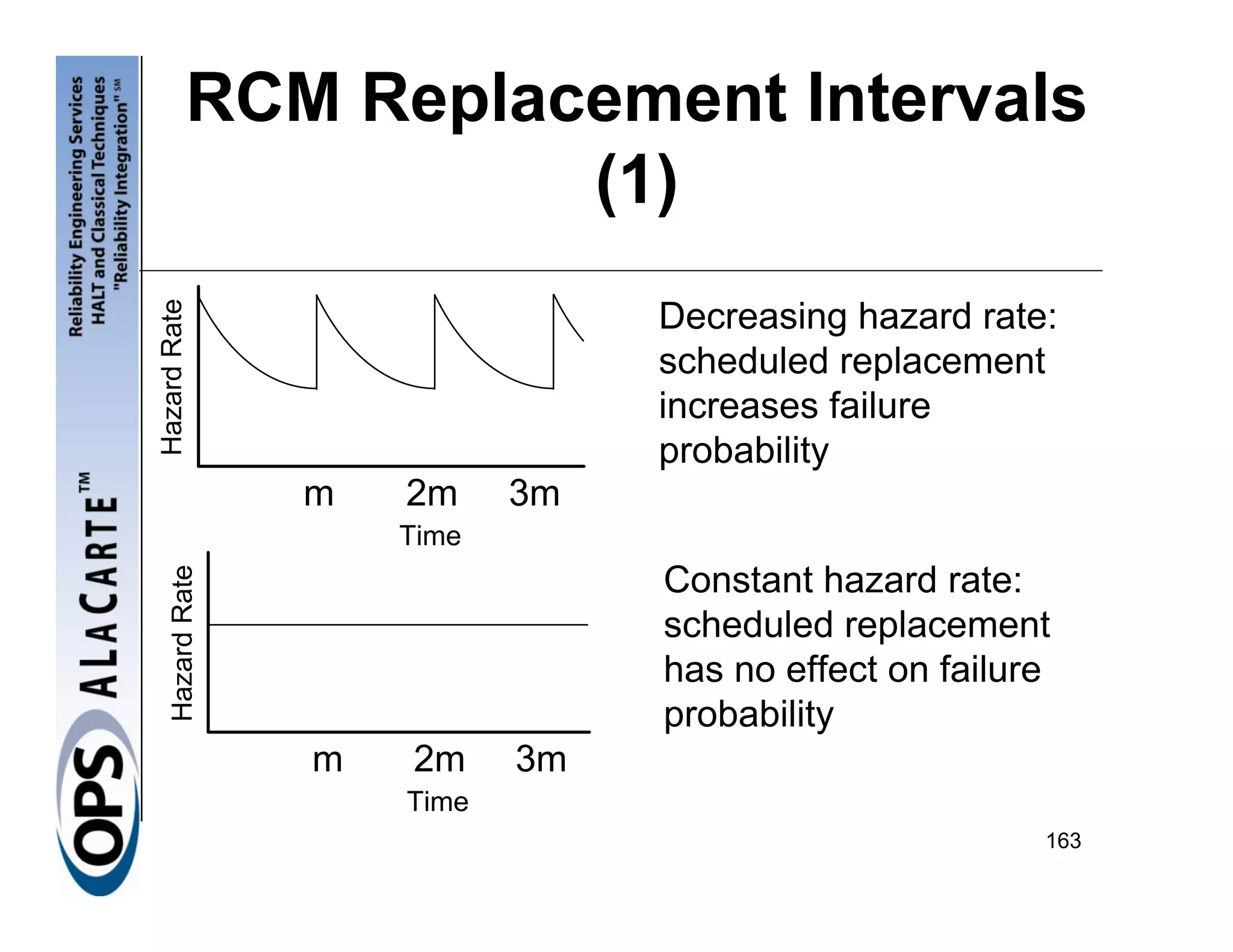

- 163. RCM Replacement Intervals HazardRate (1) Decreasing hazard rate: scheduled replacement increases failure probability m 2m 3m Time Hazard Rate Constant hazard rate: scheduled replacement has no effect on failure probability m 2m 3m Time 163

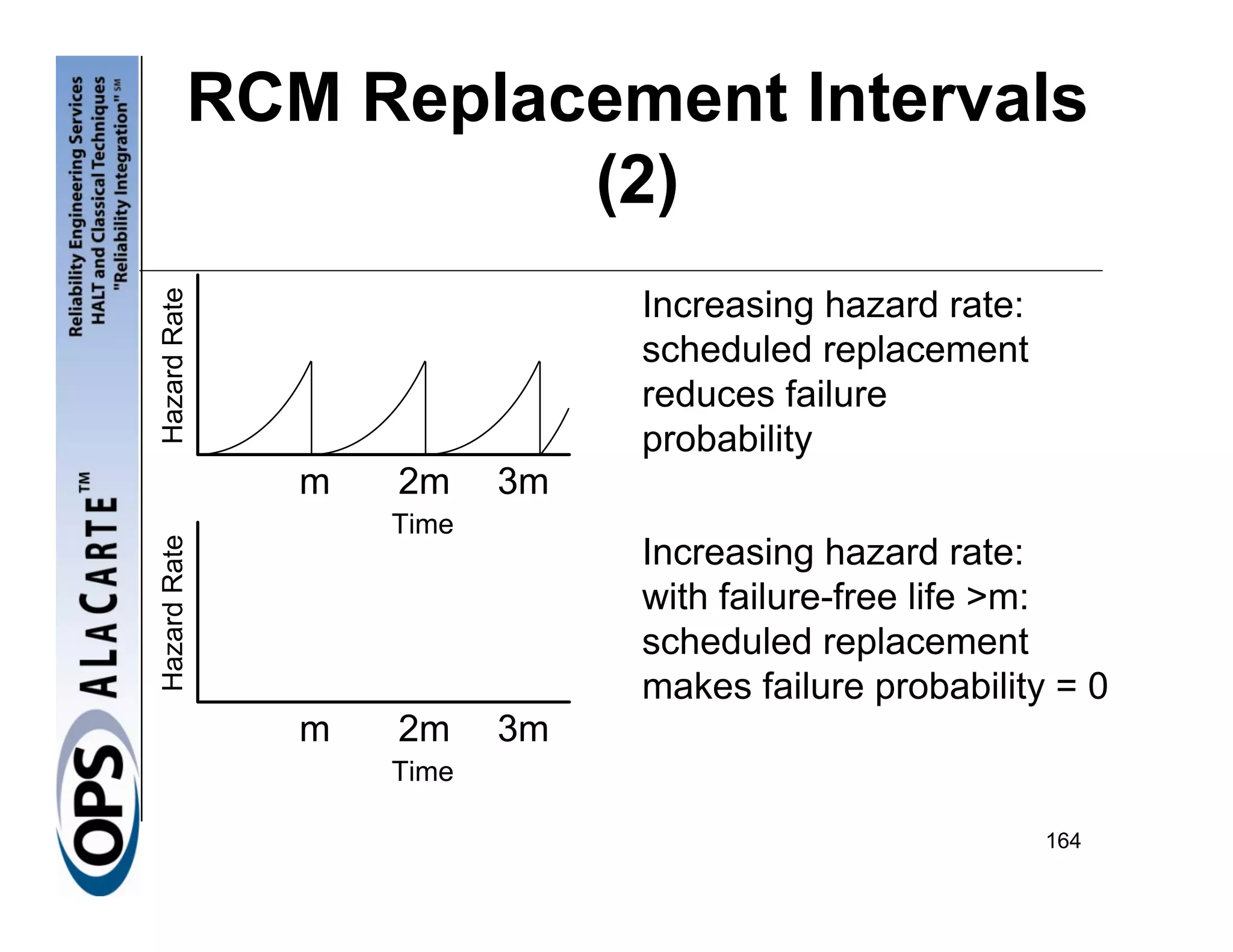

- 164. RCM Replacement Intervals HazardRate (2) Increasing hazard rate: scheduled replacement reduces failure probability m 2m 3m Time Hazard Rate Increasing hazard rate: with failure-free life >m: scheduled replacement makes failure probability = 0 m 2m 3m Time 164

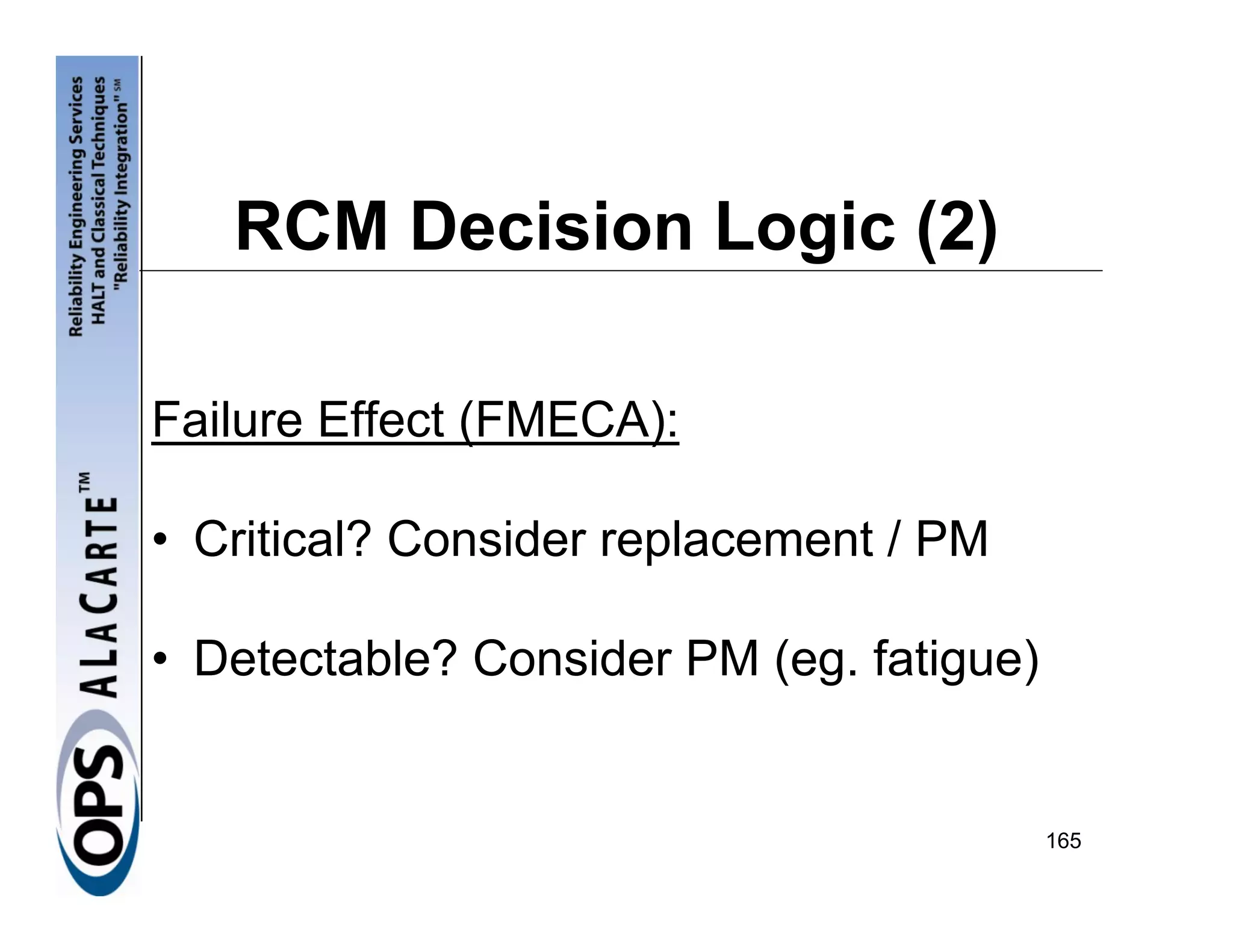

- 165. RCM Decision Logic(2) Failure Effect (FMECA): • Critical? Consider replacement / PM • Detectable? Consider PM (eg. fatigue) 165

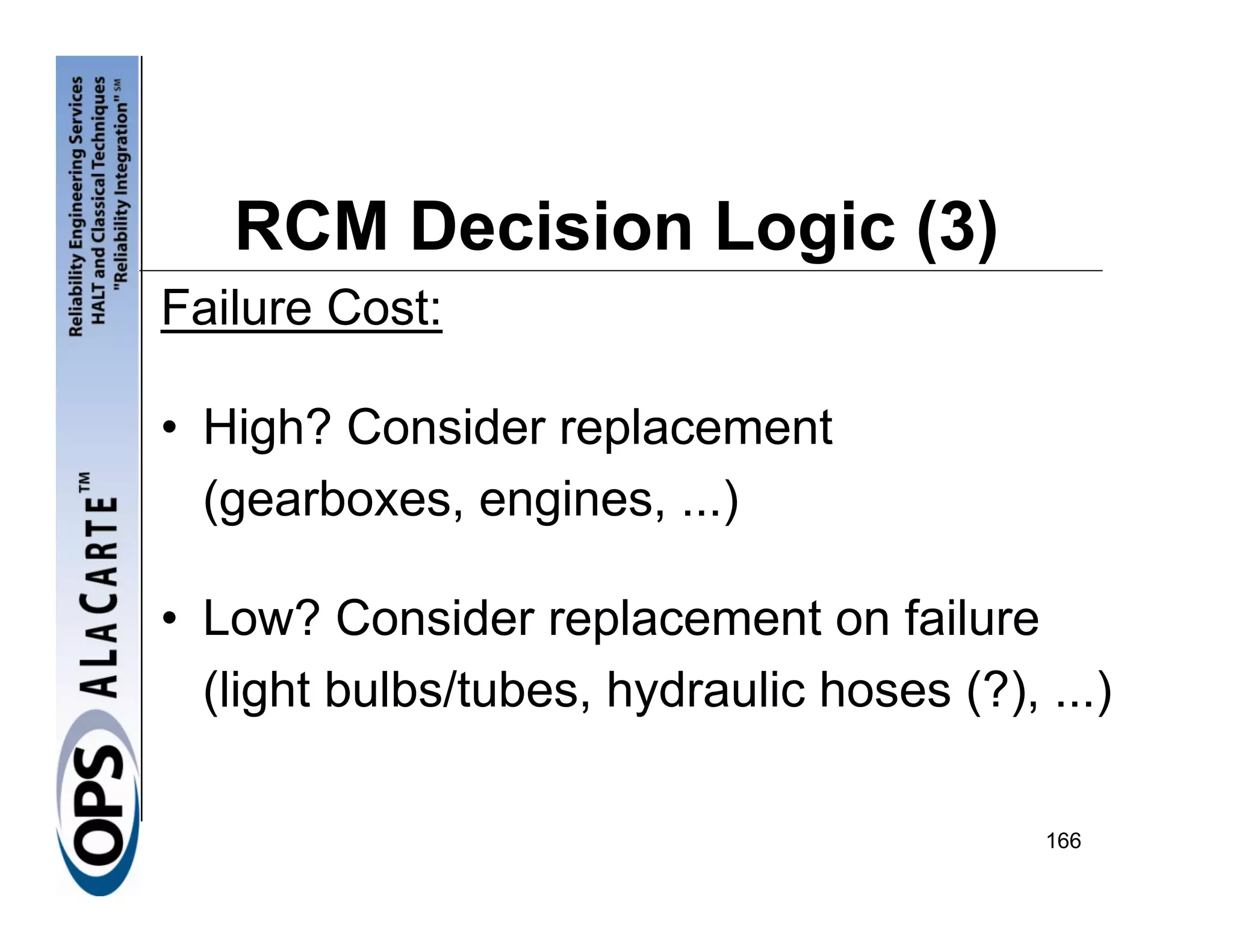

- 166. RCM Decision Logic(3) Failure Cost: • High? Consider replacement (gearboxes, engines, ...) • Low? Consider replacement on failure (light bulbs/tubes, hydraulic hoses (?), ...) 166
- 167. RCM Decision Logic(4) FR No No Increasing? Replacement Yes FE No Failure No Replace On Critical? Cost Failure High? Yes Yes Failure Yes Detectable? PM No Scheduled Replacement 167

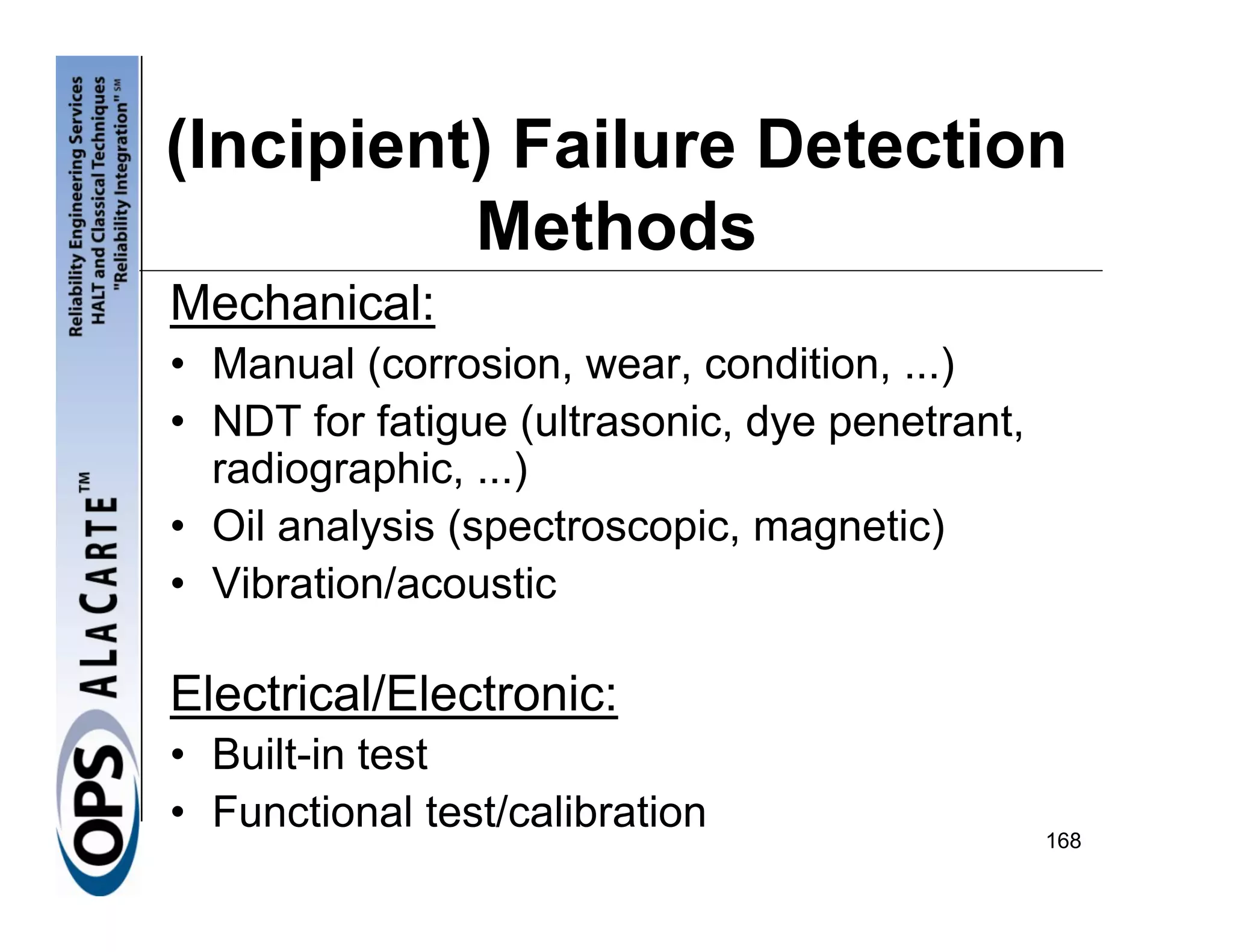

- 168. (Incipient) Failure Detection Methods Mechanical: • Manual (corrosion, wear, condition, ...) • NDT for fatigue (ultrasonic, dye penetrant, radiographic, ...) • Oil analysis (spectroscopic, magnetic) • Vibration/acoustic Electrical/Electronic: • Built-in test • Functional test/calibration 168

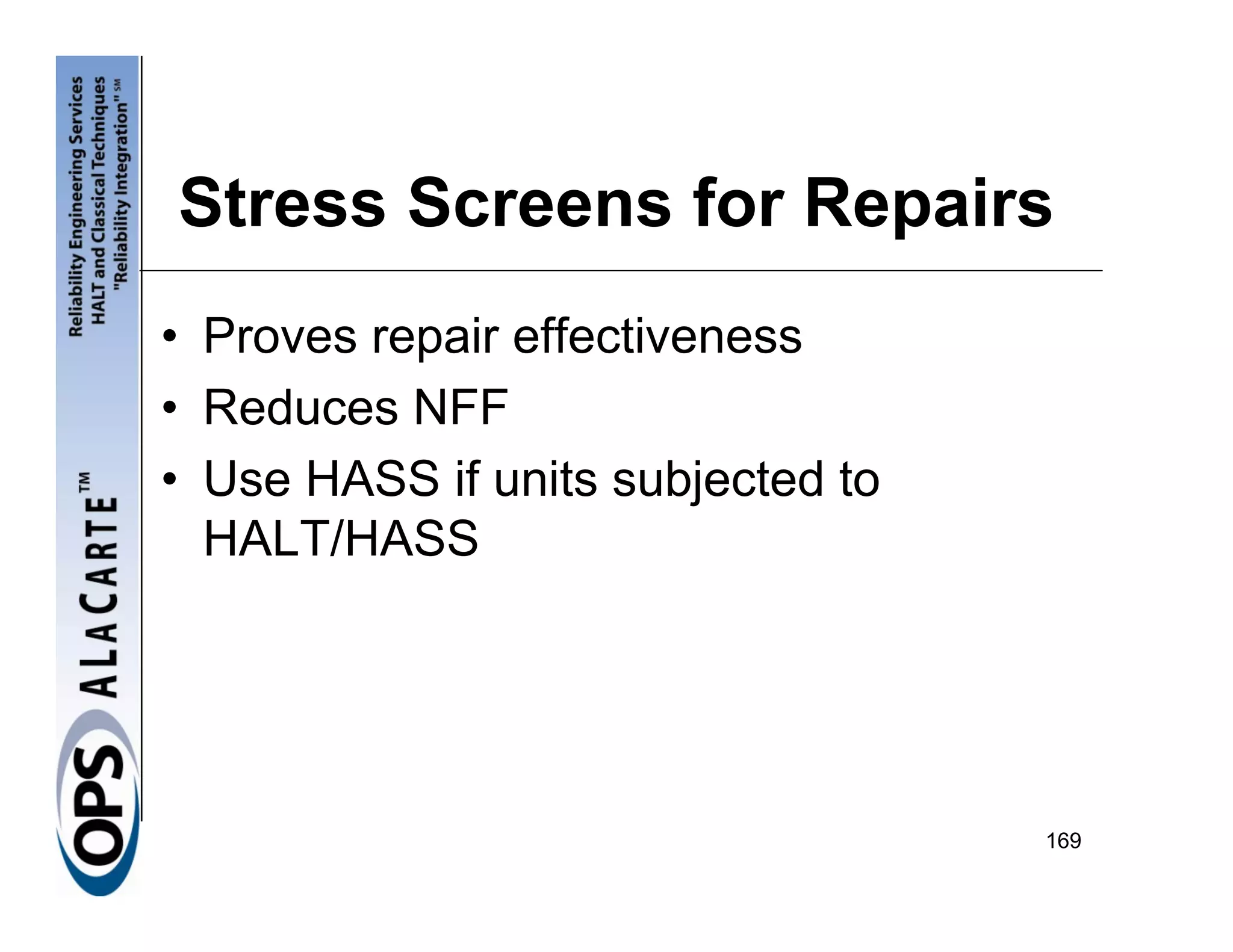

- 169. Stress Screens forRepairs • Proves repair effectiveness • Reduces NFF • Use HASS if units subjected to HALT/HASS 169

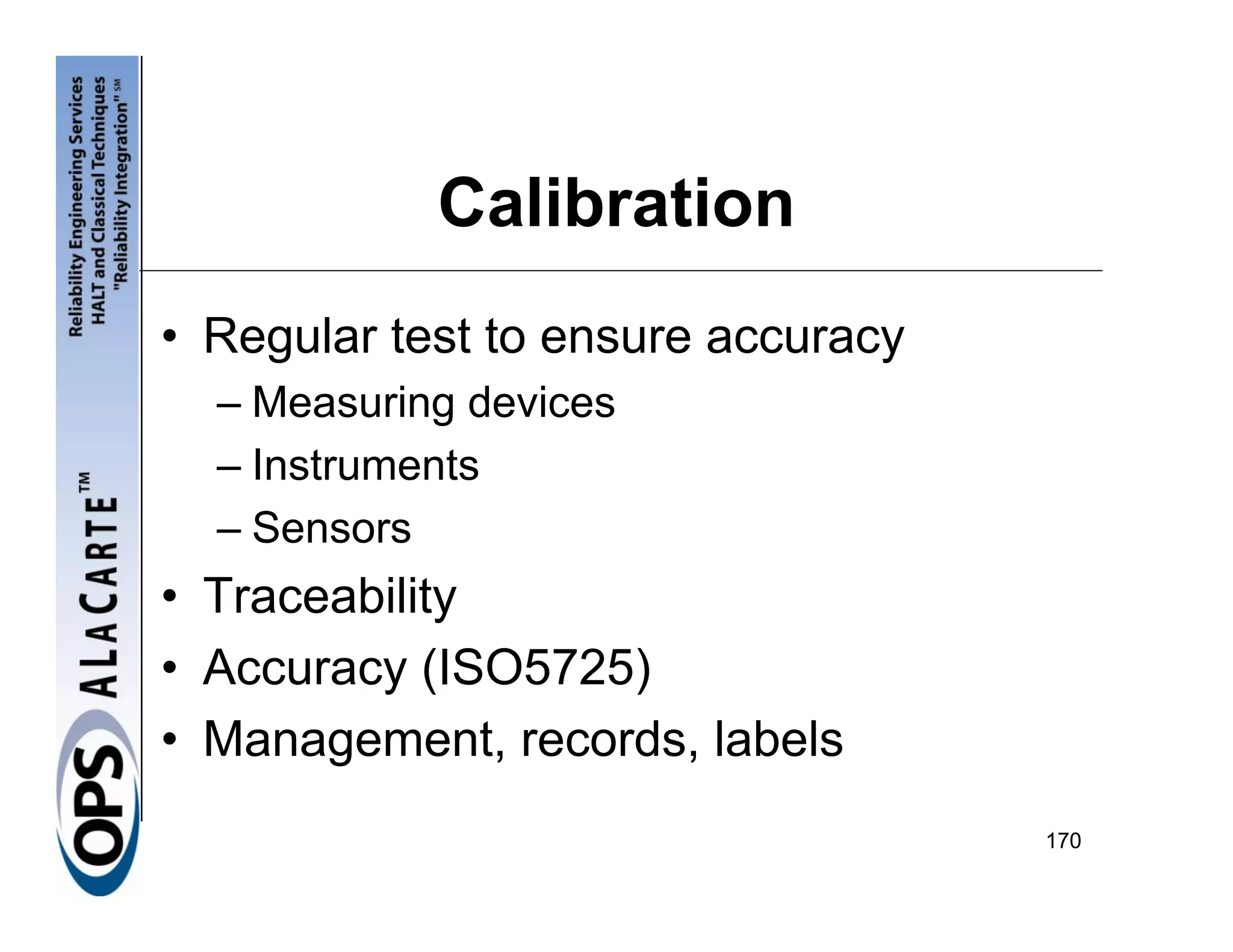

- 170. Calibration • Regular testto ensure accuracy – Measuring devices – Instruments – Sensors • Traceability • Accuracy (ISO5725) • Management, records, labels 170

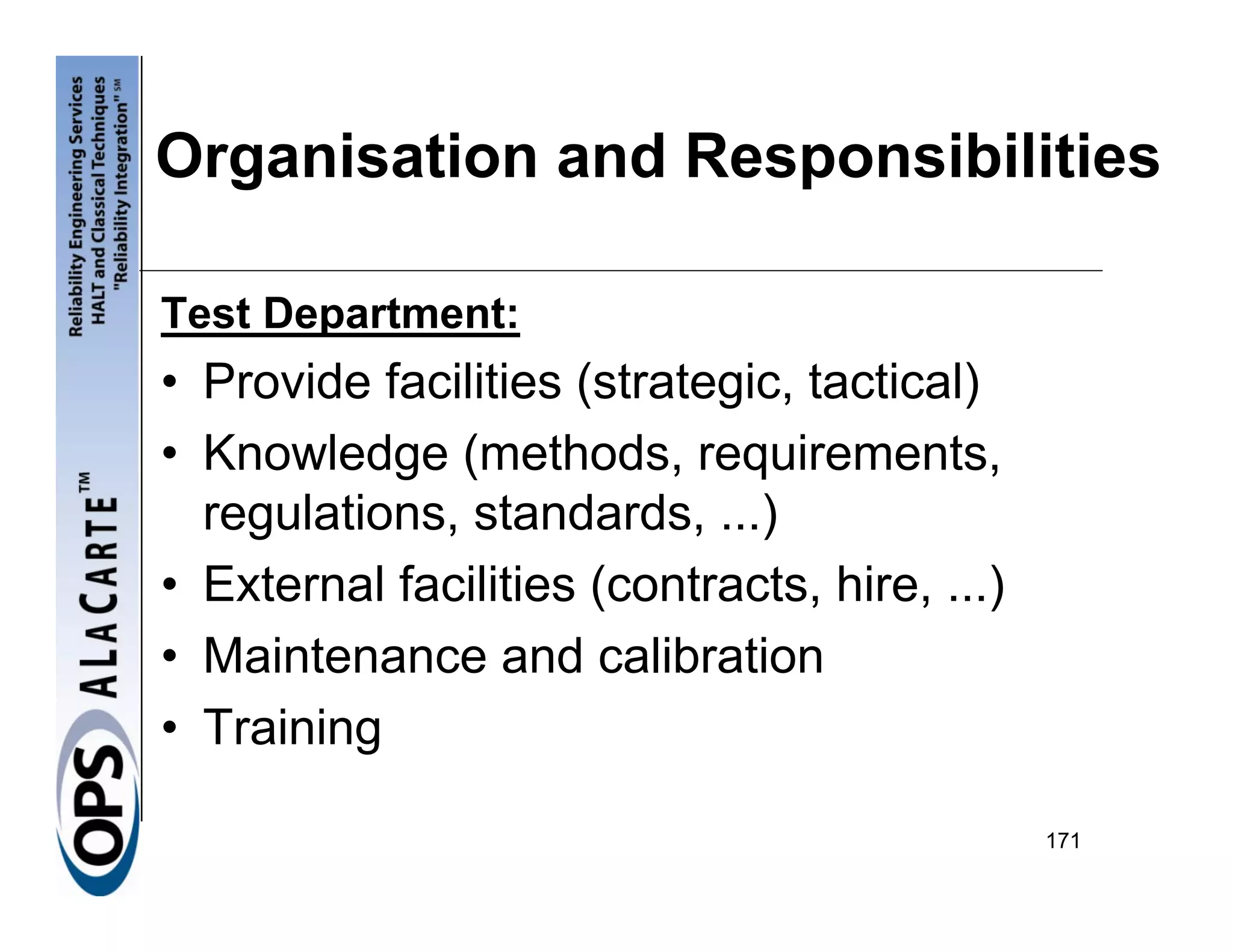

- 171. Organisation and Responsibilities TestDepartment: • Provide facilities (strategic, tactical) • Knowledge (methods, requirements, regulations, standards, ...) • External facilities (contracts, hire, ...) • Maintenance and calibration • Training 171

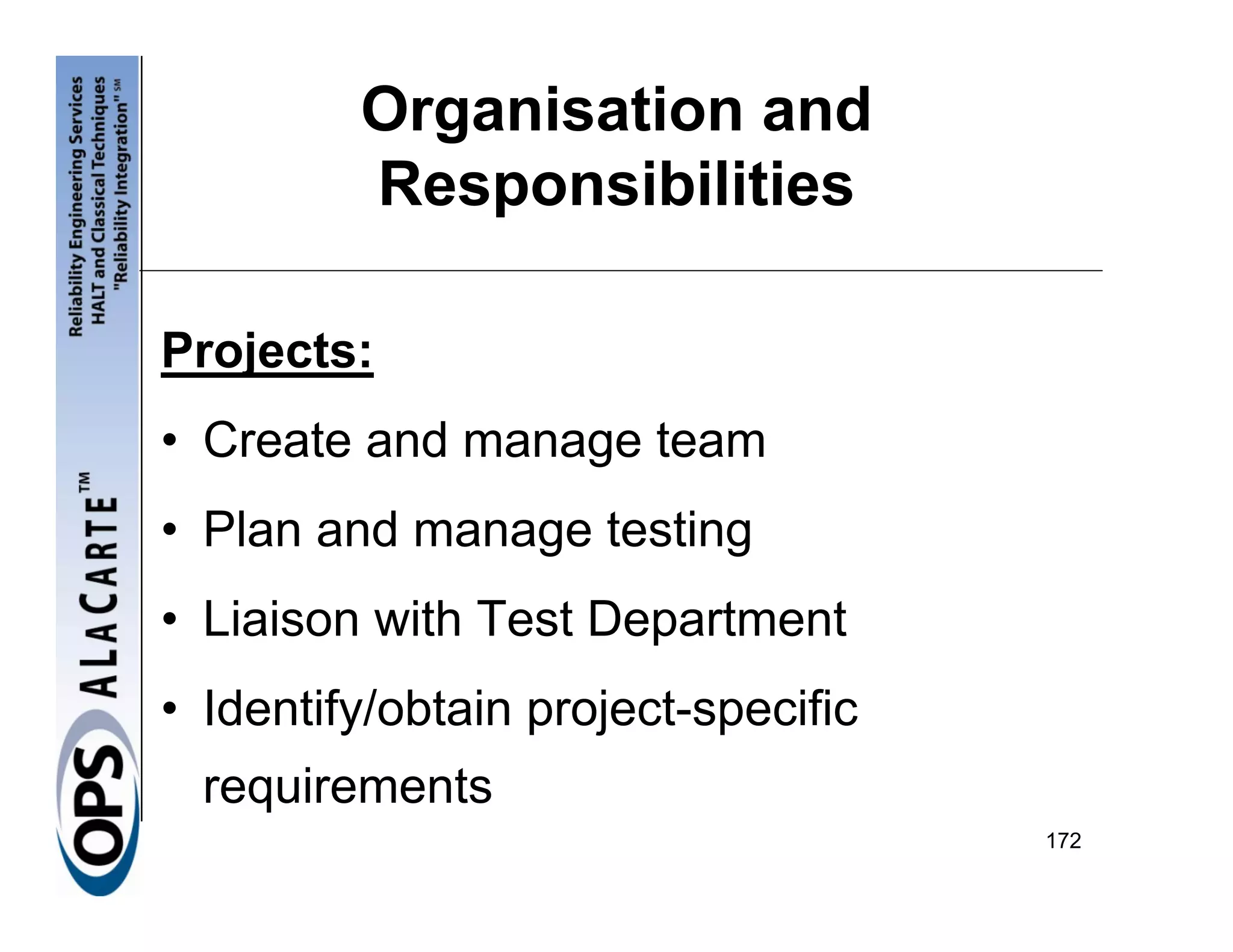

- 172. Organisation and Responsibilities Projects: • Create and manage team • Plan and manage testing • Liaison with Test Department • Identify/obtain project-specific requirements 172

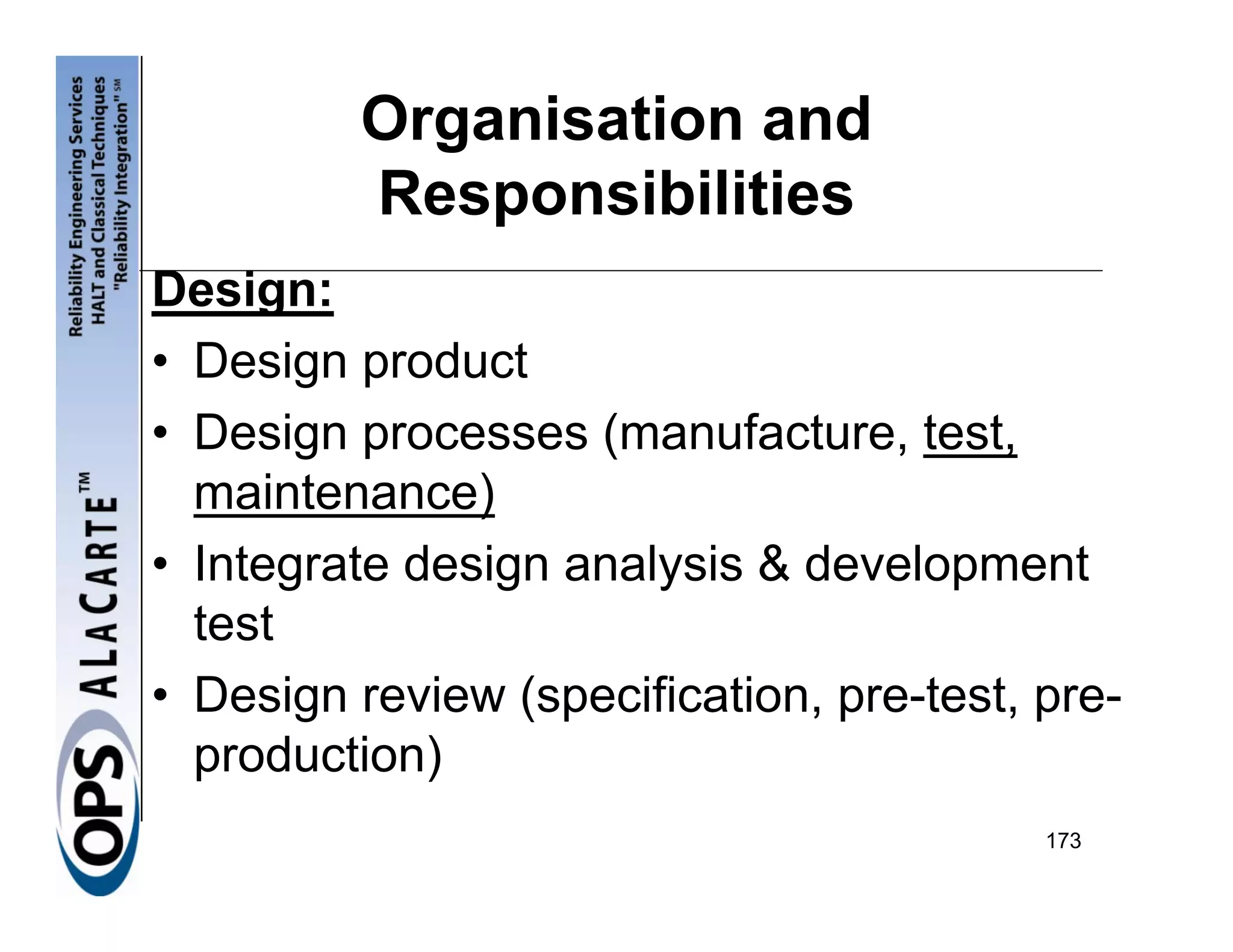

- 173. Organisation and Responsibilities Design: • Design product • Design processes (manufacture, test, maintenance) • Integrate design analysis & development test • Design review (specification, pre-test, pre- production) 173

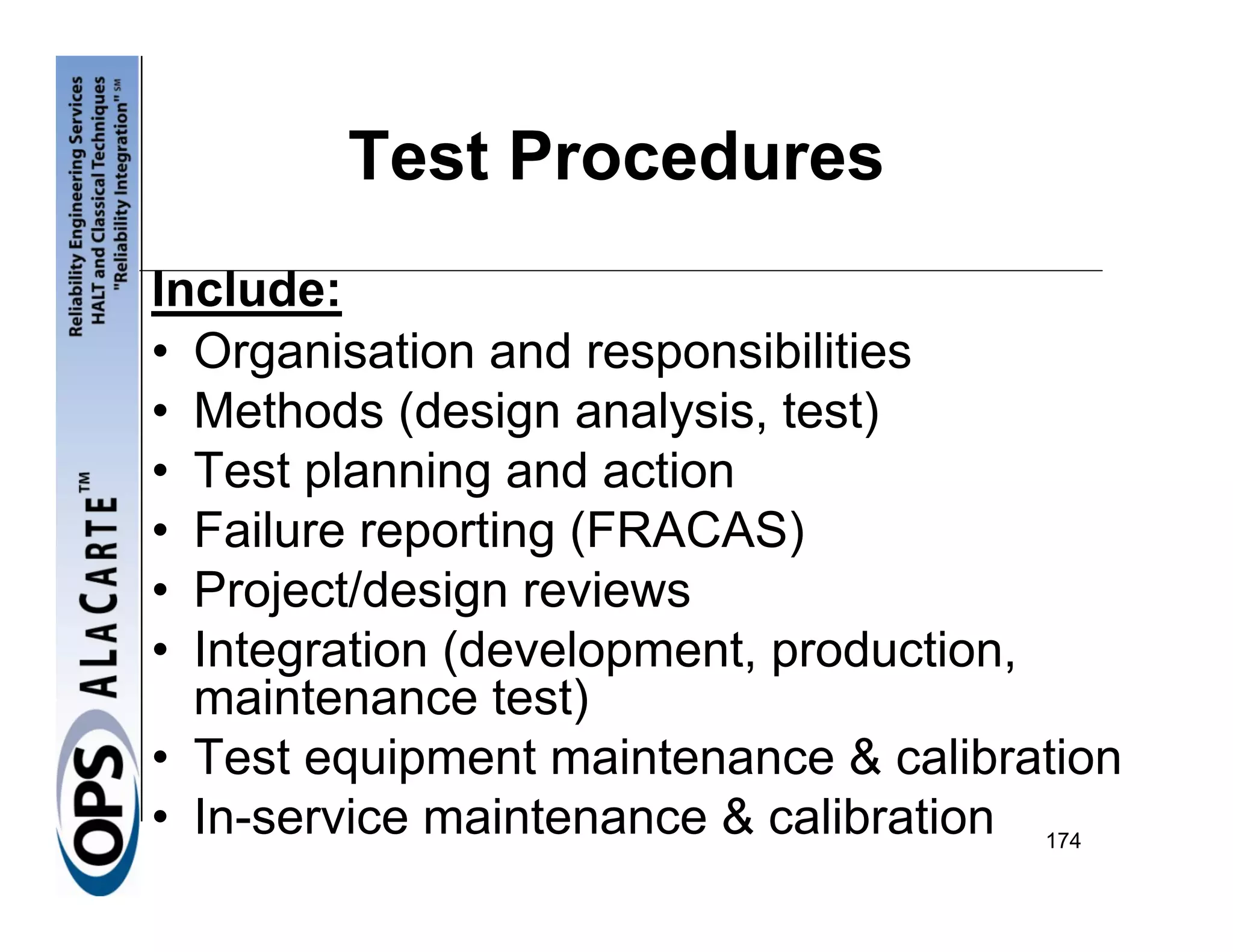

- 174. Test Procedures Include: • Organisationand responsibilities • Methods (design analysis, test) • Test planning and action • Failure reporting (FRACAS) • Project/design reviews • Integration (development, production, maintenance test) • Test equipment maintenance & calibration • In-service maintenance & calibration 174

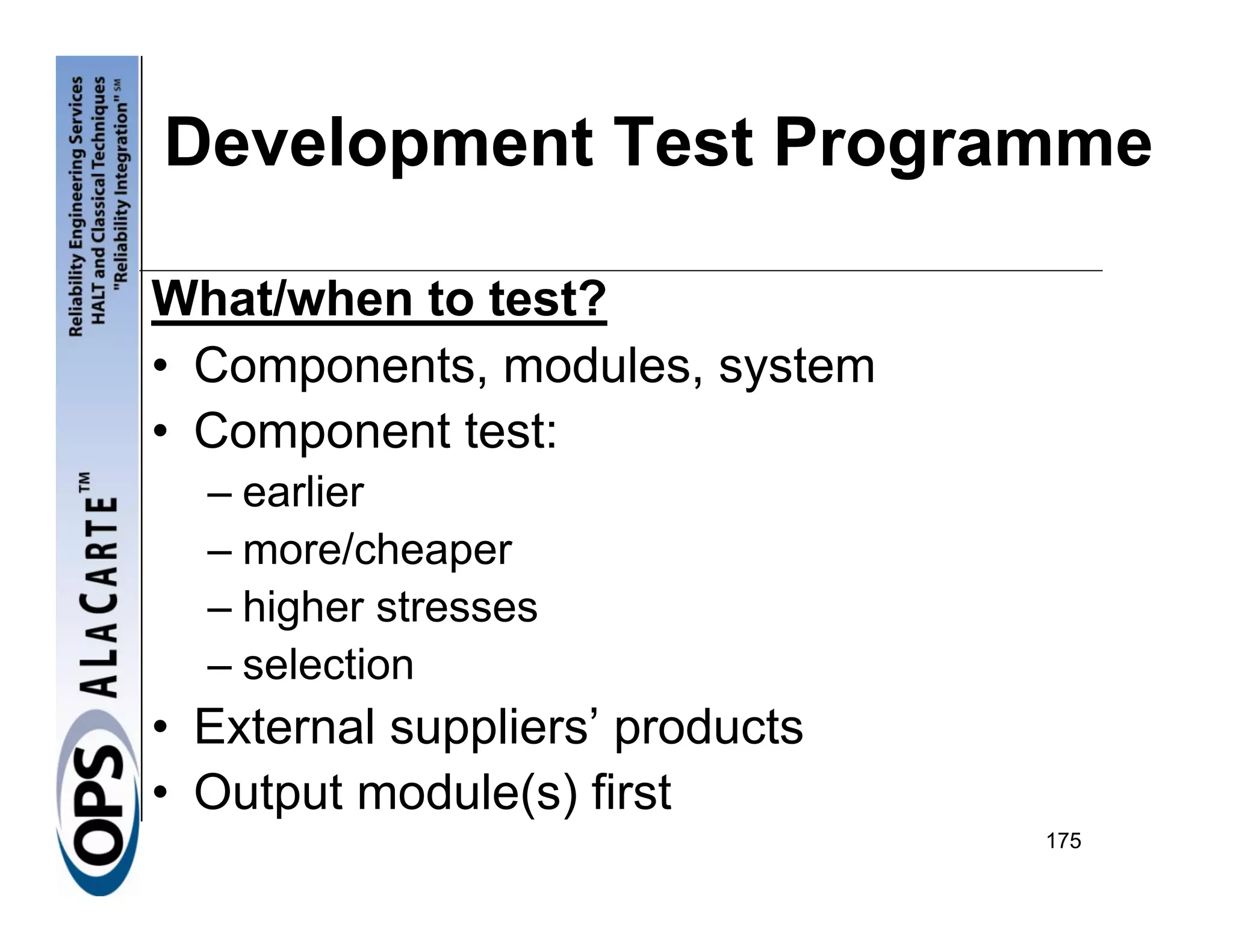

- 175. Development Test Programme What/whento test? • Components, modules, system • Component test: – earlier – more/cheaper – higher stresses – selection • External suppliers’ products • Output module(s) first 175

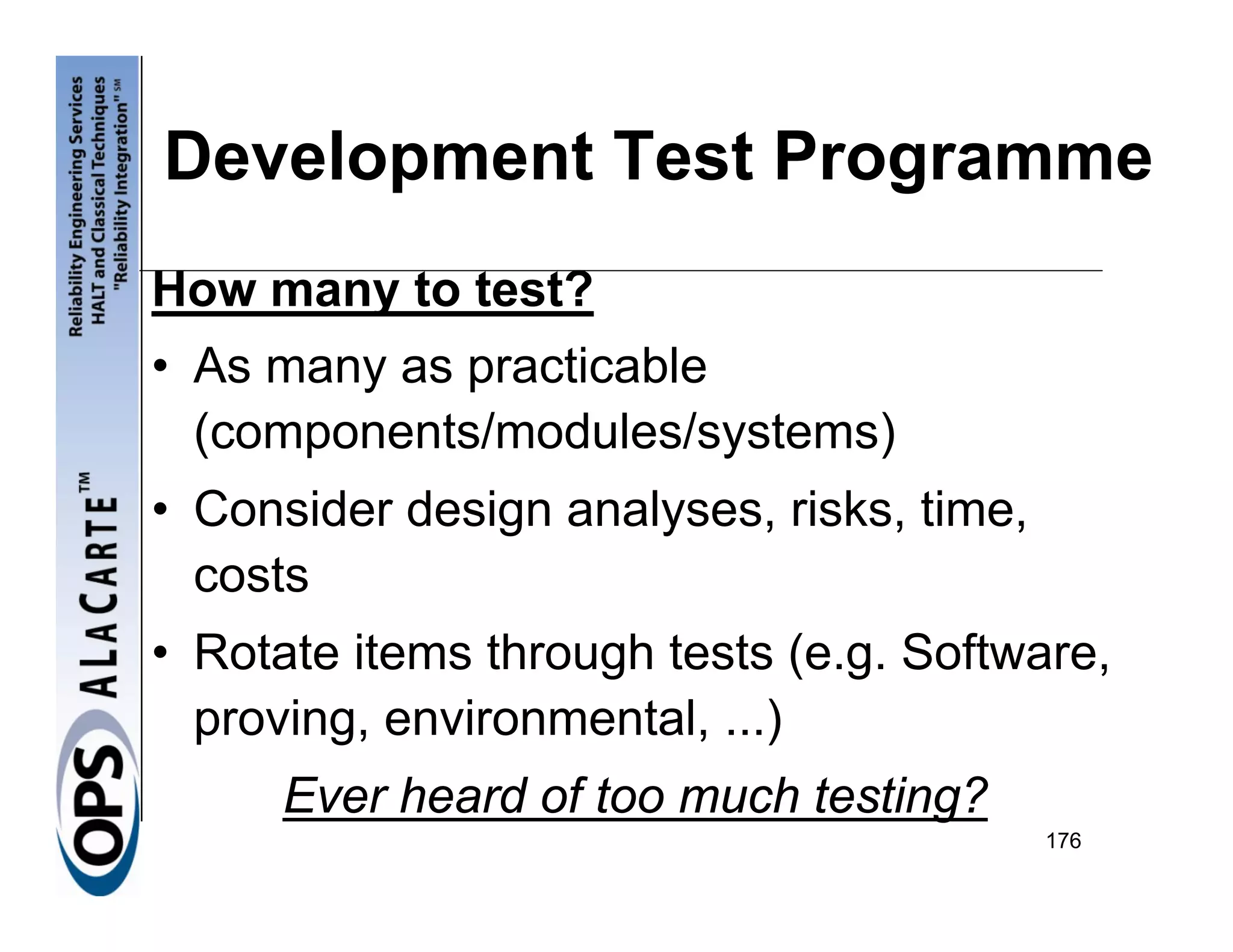

- 176. Development Test Programme Howmany to test? • As many as practicable (components/modules/systems) • Consider design analyses, risks, time, costs • Rotate items through tests (e.g. Software, proving, environmental, ...) Ever heard of too much testing? 176

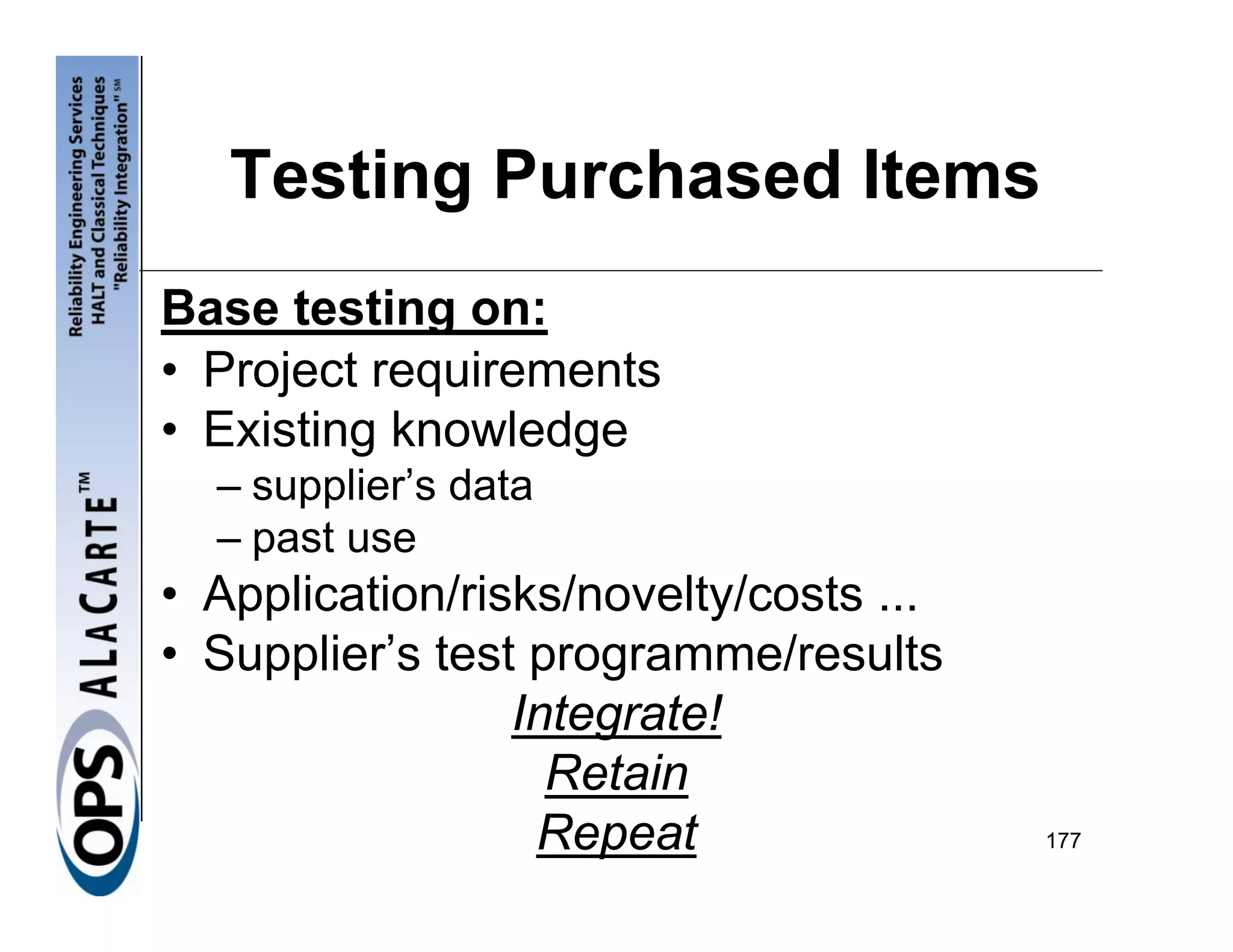

- 177. Testing Purchased Items Basetesting on: • Project requirements • Existing knowledge – supplier’s data – past use • Application/risks/novelty/costs ... • Supplier’s test programme/results Integrate! Retain Repeat 177

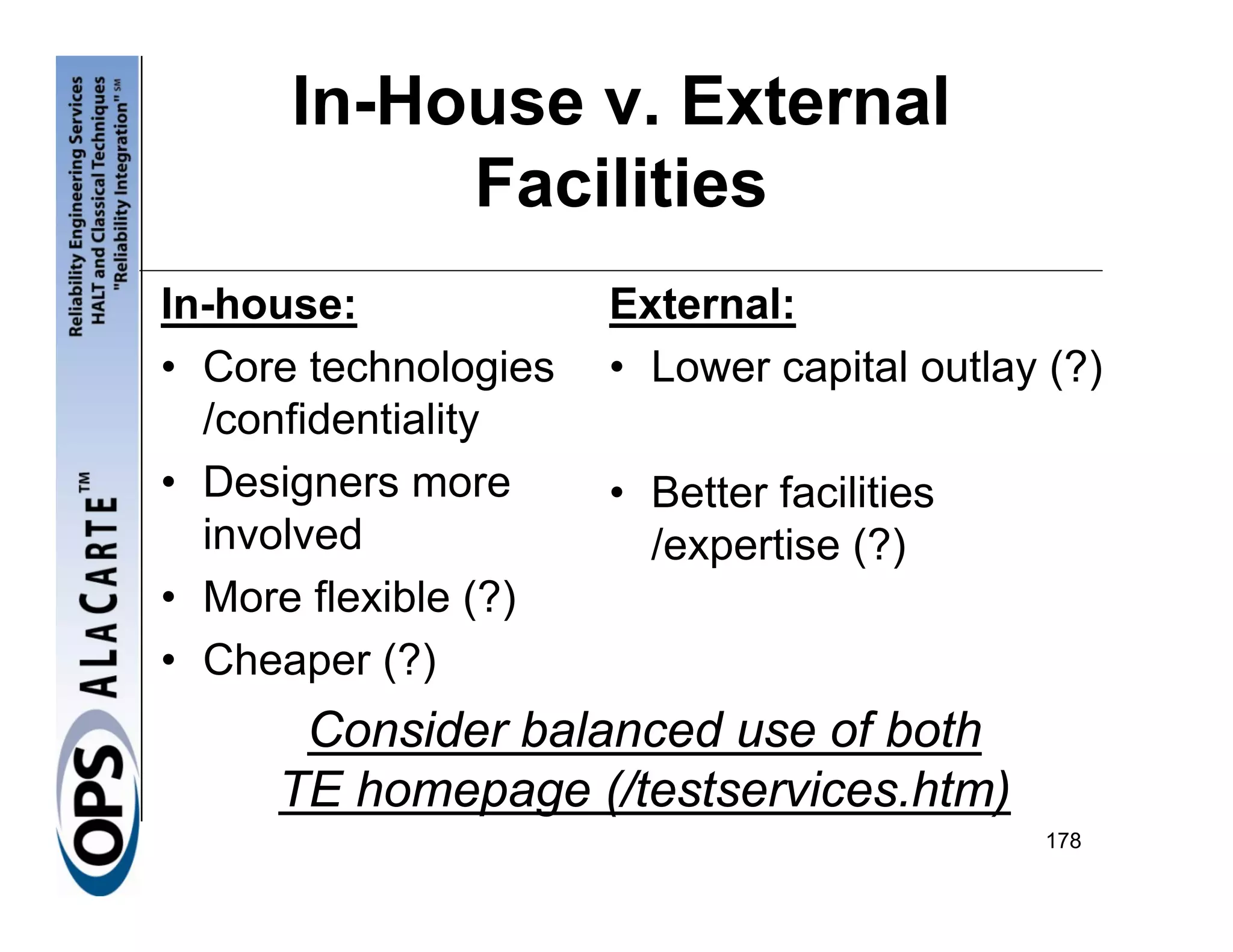

- 178. In-House v. External Facilities In-house: External: • Core technologies • Lower capital outlay (?) /confidentiality • Designers more • Better facilities involved /expertise (?) • More flexible (?) • Cheaper (?) Consider balanced use of both TE homepage (/testservices.htm) 178

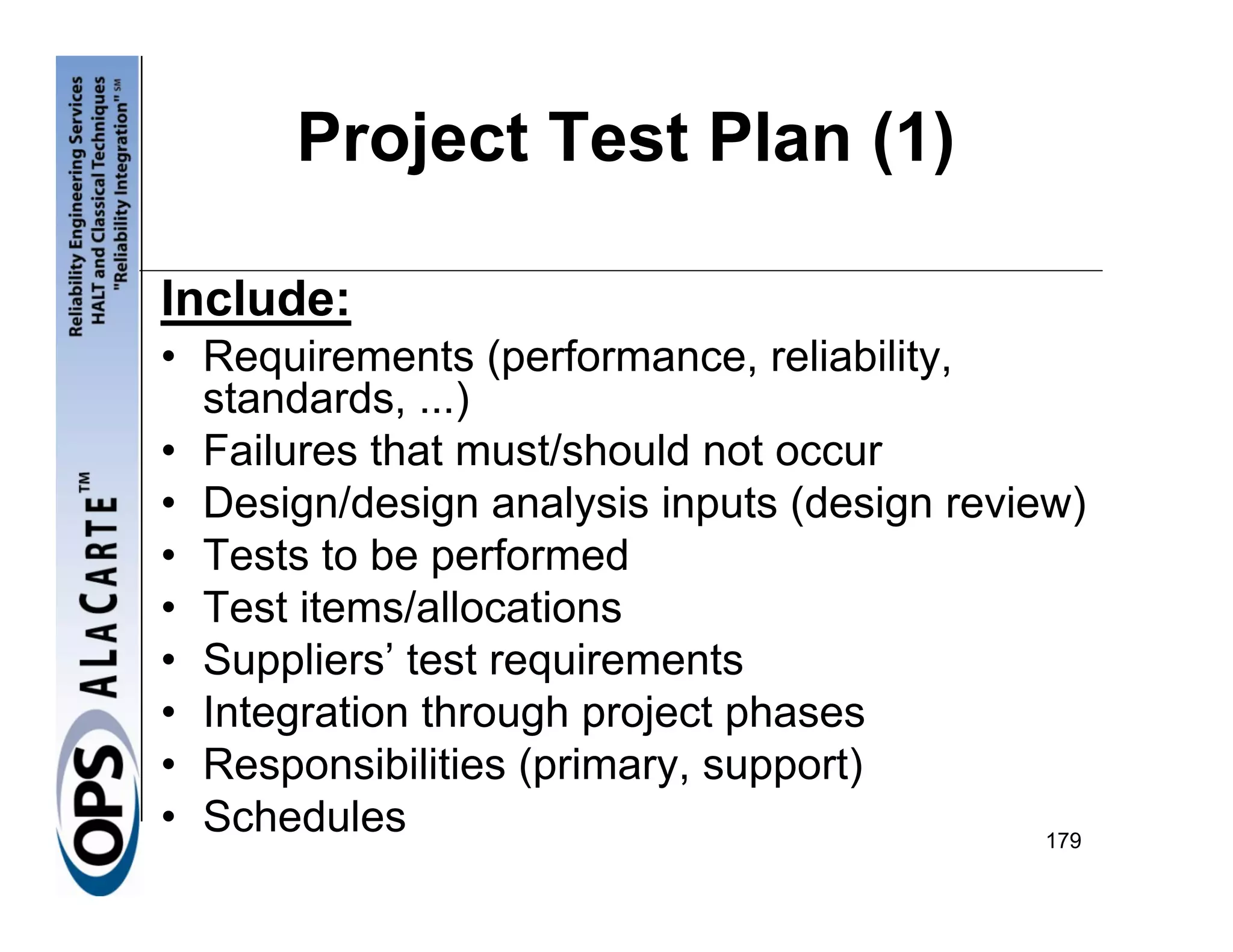

- 179. Project Test Plan(1) Include: • Requirements (performance, reliability, standards, ...) • Failures that must/should not occur • Design/design analysis inputs (design review) • Tests to be performed • Test items/allocations • Suppliers’ test requirements • Integration through project phases • Responsibilities (primary, support) • Schedules 179

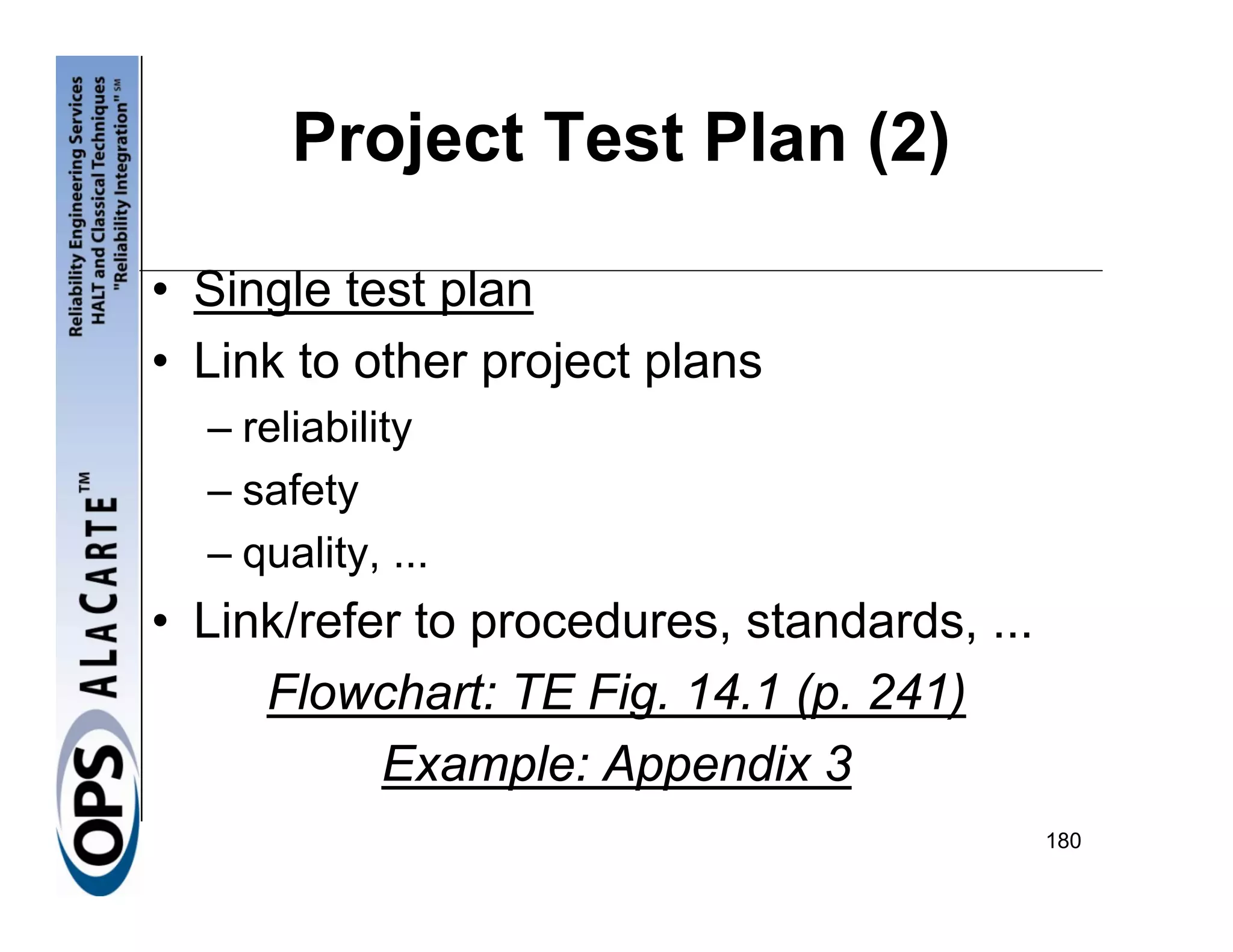

- 180. Project Test Plan(2) • Single test plan • Link to other project plans – reliability – safety – quality, ... • Link/refer to procedures, standards, ... Flowchart: TE Fig. 14.1 (p. 241) Example: Appendix 3 180

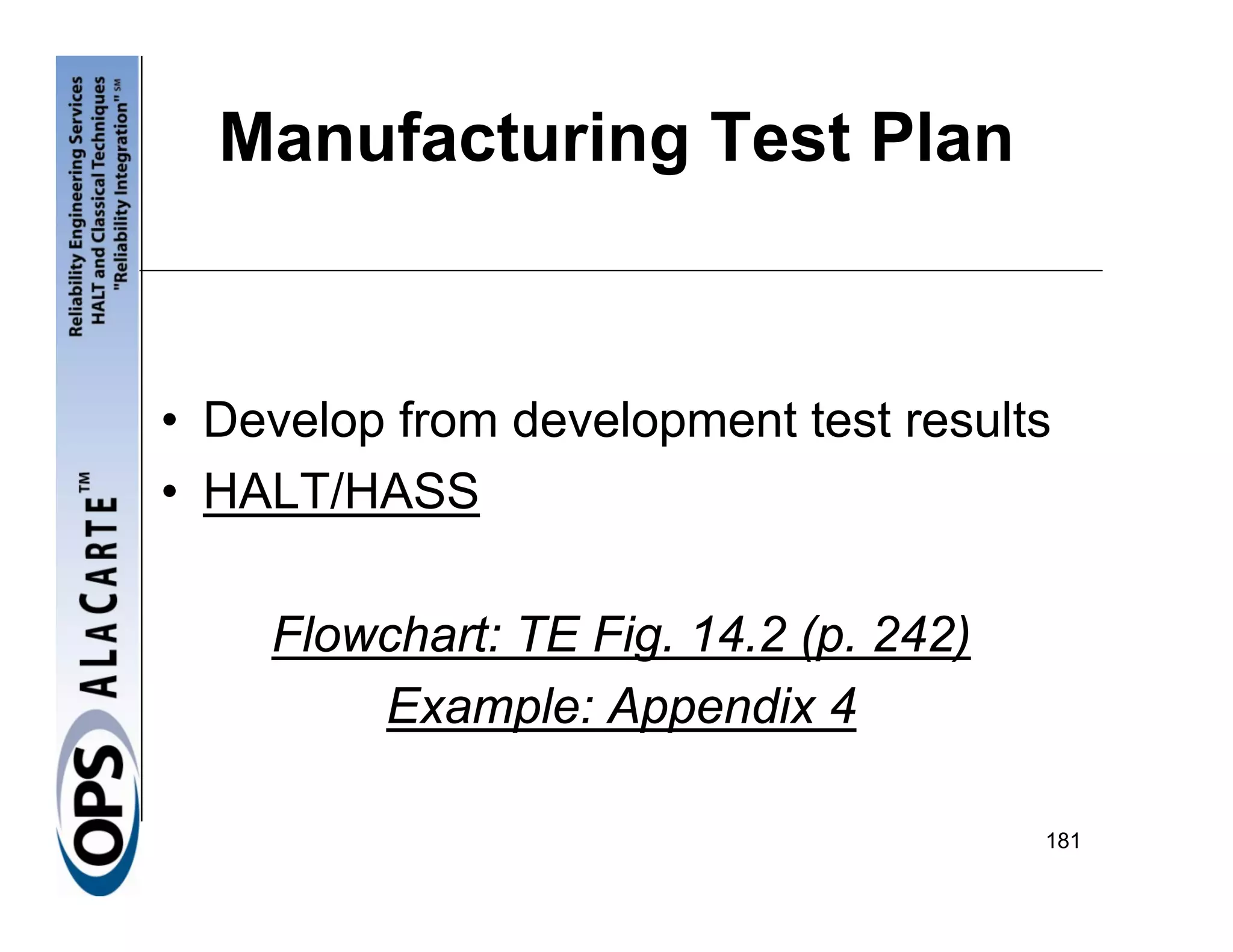

- 181. Manufacturing Test Plan •Develop from development test results • HALT/HASS Flowchart: TE Fig. 14.2 (p. 242) Example: Appendix 4 181

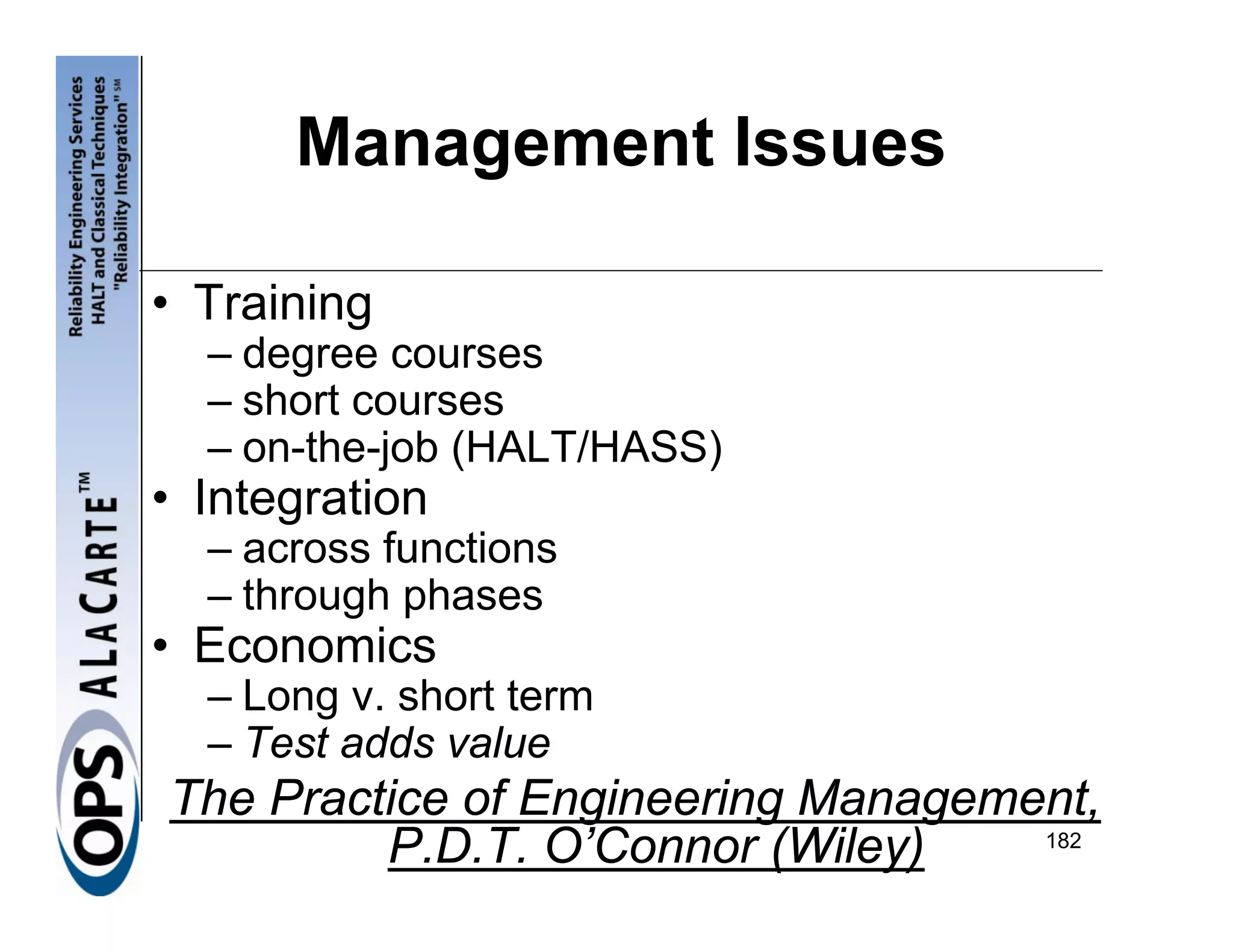

- 182. Management Issues • Training – degree courses – short courses – on-the-job (HALT/HASS) • Integration – across functions – through phases • Economics – Long v. short term – Test adds value The Practice of Engineering Management, P.D.T. O’Connor (Wiley) 182

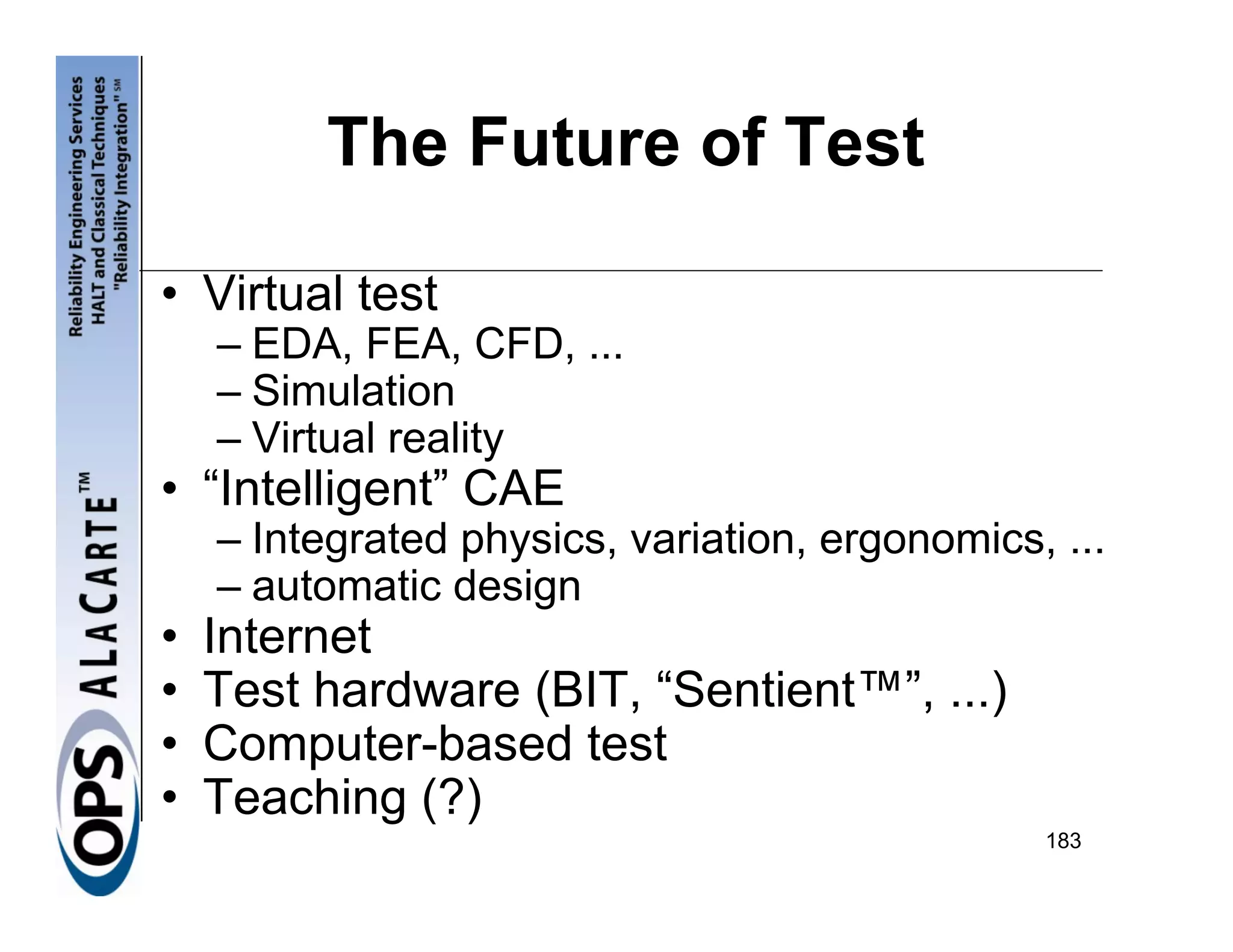

- 183. The Future ofTest • Virtual test – EDA, FEA, CFD, ... – Simulation – Virtual reality • “Intelligent” CAE – Integrated physics, variation, ergonomics, ... – automatic design • Internet • Test hardware (BIT, “Sentient™”, ...) • Computer-based test • Teaching (?) 183
