Density based traffic signal system

Density Based
Traffic
Signal System

http://www.edgefxkits.com/
Density Based Traffic Signal
System
Introduction
 When traffic demand is great enough that the interaction between
vehicles slows the speed of the traffic stream, these results in
some congestion. As demand approaches the capacity of a road
extreme traffic congestion sets in.
 Traffic congestion can lead to drivers becoming frustrated and
engaging in road rage. In order to avoid the congestion in the
traffic, Traffic Sign Recognition (TSR) is used. It is used to regulate
traffic signs, warn the driver, and command or prohibit certain
actions.

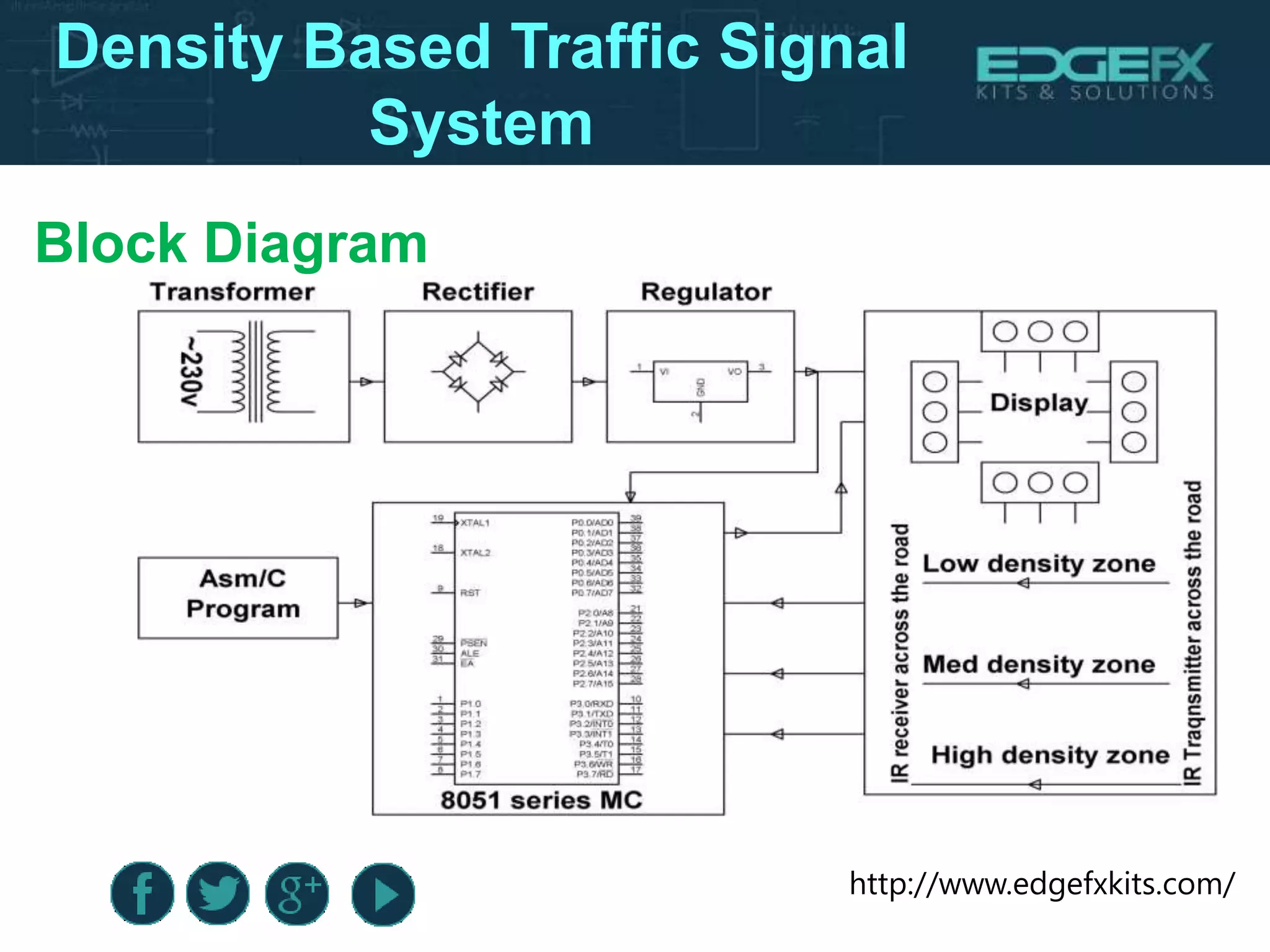

Block Diagram
System

Hardware Components
• 8051 series Microcontroller
• LEDs
• Voltage Regulator
• Resistors
• Capacitors
• Crystal
• Diodes
• Transformer
• IR-LED & Photodiodes
• Transistor
Density Based Traffic
Signal
System

Circuit Diagram
System

Microcontroller
 Microcontroller (MC) may be called computer on chip .
 It has basic features of microprocessor with internal ROM, RAM,
Parallel and serial ports within single chip.
 This is widely used in washing machines, vcd player, microwave
oven, robotics or in industries.
 Microcontroller can be classified on the basis of their bits
processed like 8bit MC, 16bit MC.
System

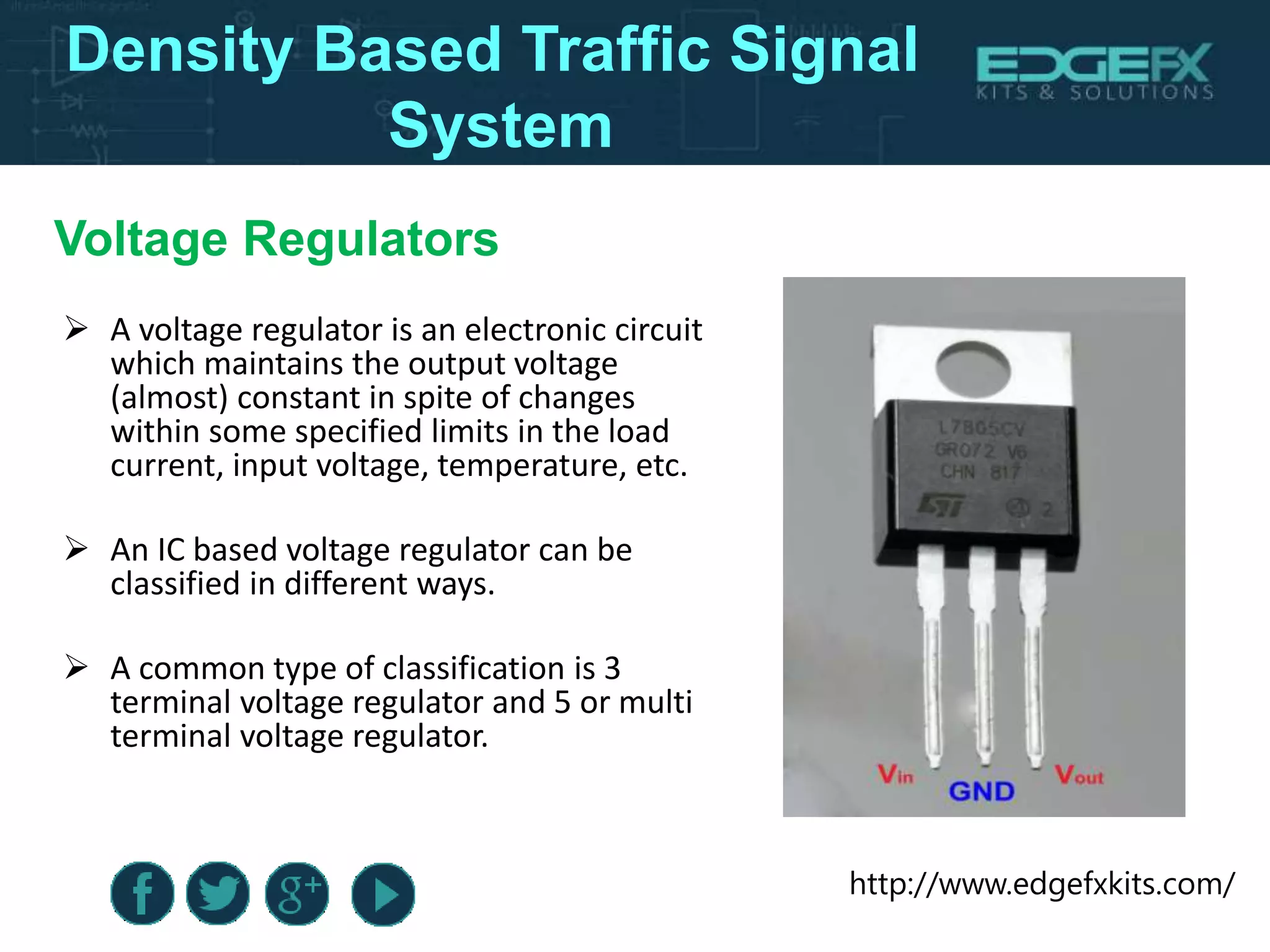

Voltage Regulators
 A voltage regulator is an electronic circuit
which maintains the output voltage
(almost) constant in spite of changes
within some specified limits in the load
current, input voltage, temperature, etc.
 An IC based voltage regulator can be
classified in different ways.
 A common type of classification is 3
terminal voltage regulator and 5 or multi
terminal voltage regulator.
System

LED
Applications of LED :
Devices, medical applications, clothing, toys
• Remote Controls (TVs, VCRs)
• Lighting
• Indicators and signs
• Optoisolators and optocouplers
Density Based Traffic Signal System
System

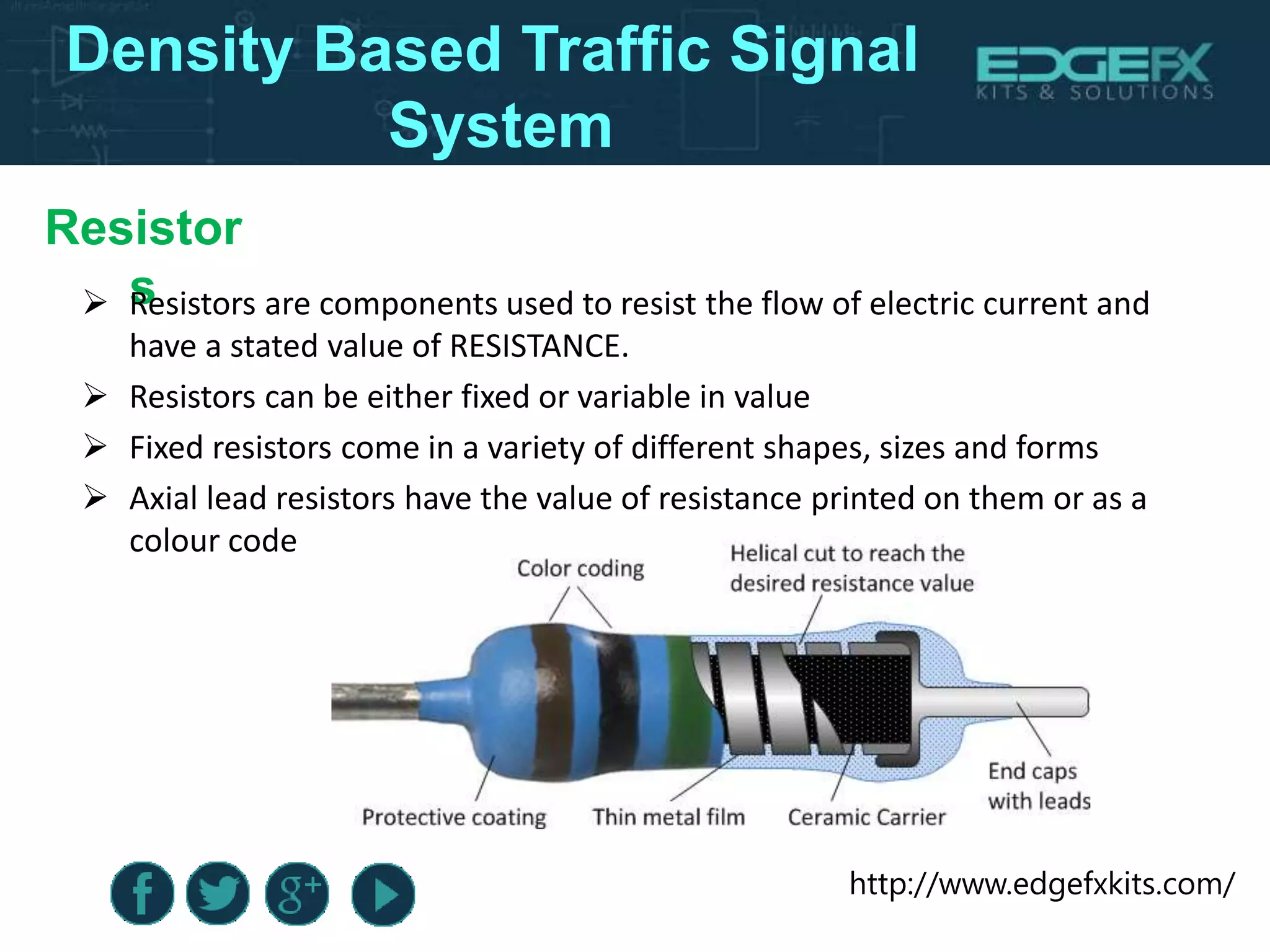

Resistor
s Resistors are components used to resist the flow of electric current and
have a stated value of RESISTANCE.
 Resistors can be either fixed or variable in value
 Fixed resistors come in a variety of different shapes, sizes and forms
 Axial lead resistors have the value of resistance printed on them or as a
colour code
System

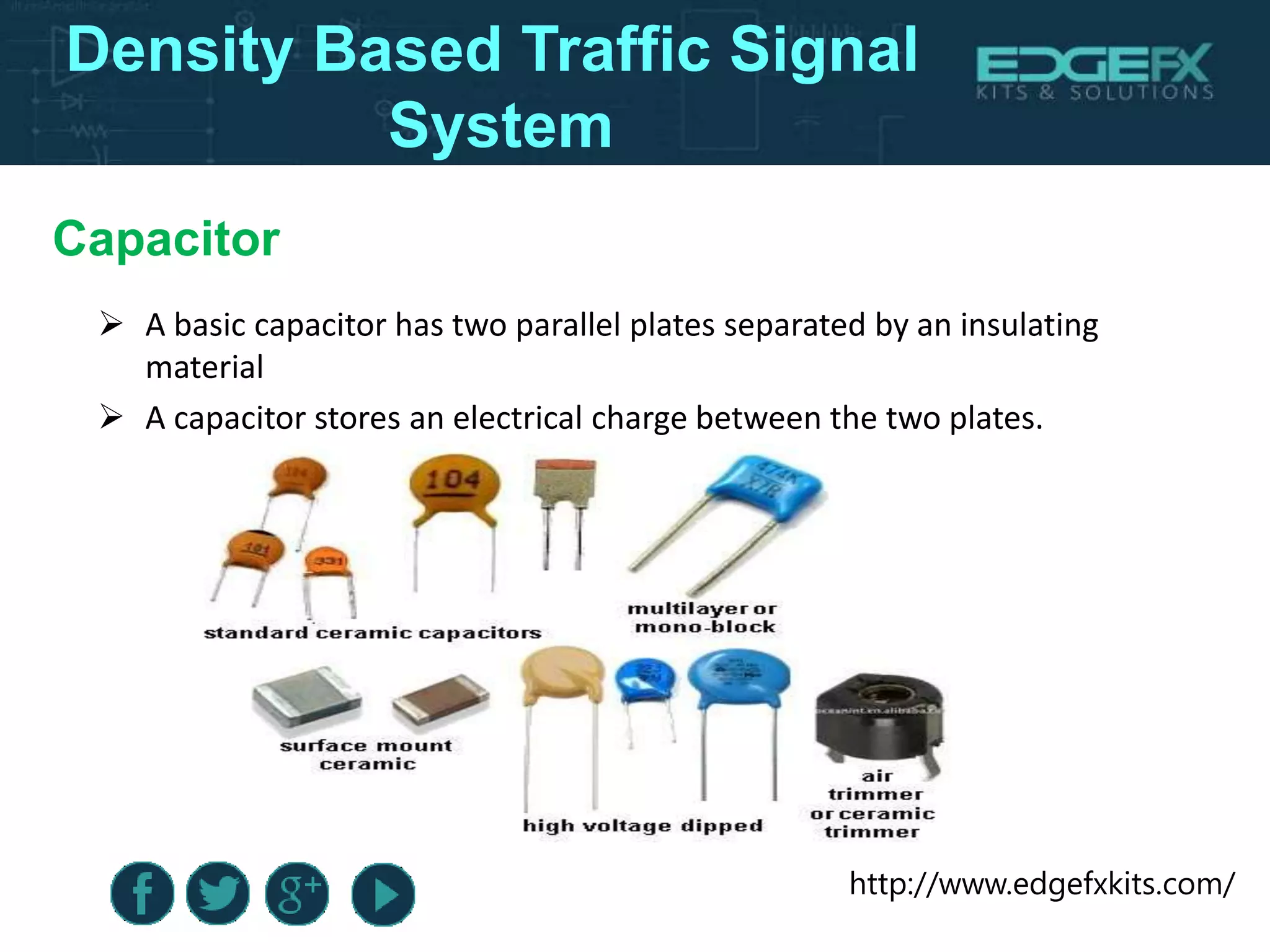

Capacitor
 A basic capacitor has two parallel plates separated by an insulating
material
 A capacitor stores an electrical charge between the two plates.
System

Diodes
 The 1N4148 is a standard small signal silicon diode used in
signal processing.
 The 1N4148 is generally available in a DO-35 glass package
and is very useful at high
 Frequencies with a reverse recovery time of no more than
4ns.
 This permits rectification and detection of radio frequency
signals very effectively, as long as their amplitude is above
the forward conduction threshold of silicon (around 0.7V)
or the diode is biased.
System

Transformer
sThe principle parts of a transformer and their functions are:
 The core, which makes a path for the magnetic flux.
 The primary coil, which receives energy from the ac source.
 The secondary coil, which receives energy from the primary winding
and delivers it to the load.
System

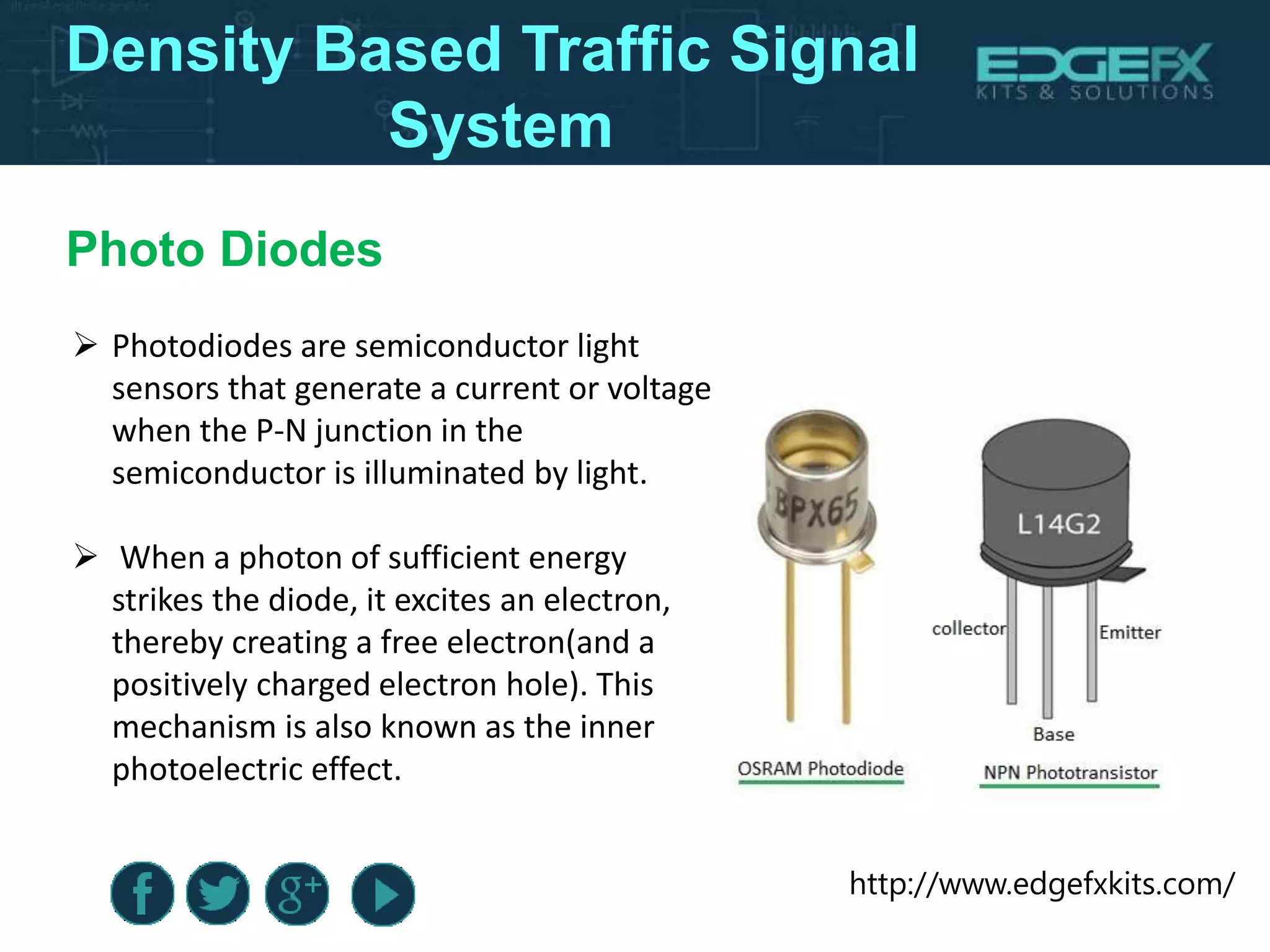

Photo Diodes
 Photodiodes are semiconductor light
sensors that generate a current or voltage
when the P-N junction in the
semiconductor is illuminated by light.
 When a photon of sufficient energy
strikes the diode, it excites an electron,
thereby creating a free electron(and a
positively charged electron hole). This
mechanism is also known as the inner
photoelectric effect.
System

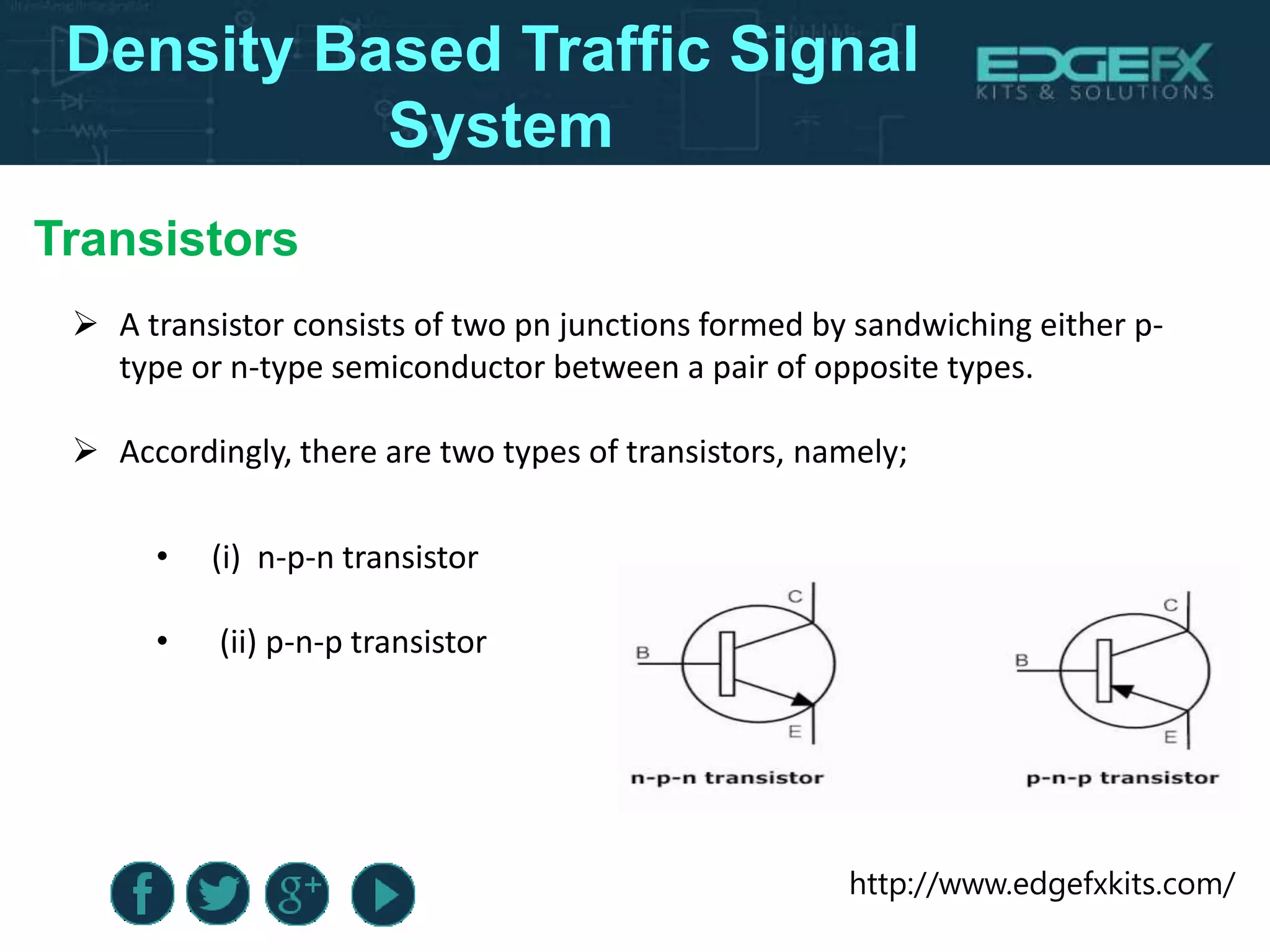

Transistors
 A transistor consists of two pn junctions formed by sandwiching either p-
type or n-type semiconductor between a pair of opposite types.
 Accordingly, there are two types of transistors, namely;
• (i) n-p-n transistor
• (ii) p-n-p transistor
System

7-SEGMENT DISPLAY
 An LED or Light Emitting Diode is a solid state optical PN-junction
diode .
 It emits light energy in the form of “photons” when it is forward
biased by a voltage allowing current to flow across its junction, and
in Electronics we call this process electroluminescence.
 The actual colour of the visible light emitted by an LED, ranging from
blue to red to orange, is decided by the spectral wavelength of the
emitted light which itself is dependent upon the mixture of the
various impurities added to the semiconductor materials used to
produce it.
System

Interfacing Seven segment display to 8051
System

Working Principle
 The purpose of the system is to improve efficiency of existing
automatic traffic signalling system.
 The system will be image processing based adaptive signal
controlling.
 The timing will be calculated each time change automatically
depending upon the traffic load.
 Proposed system will functioning based on traditional system along
with automated signalling.
System

System

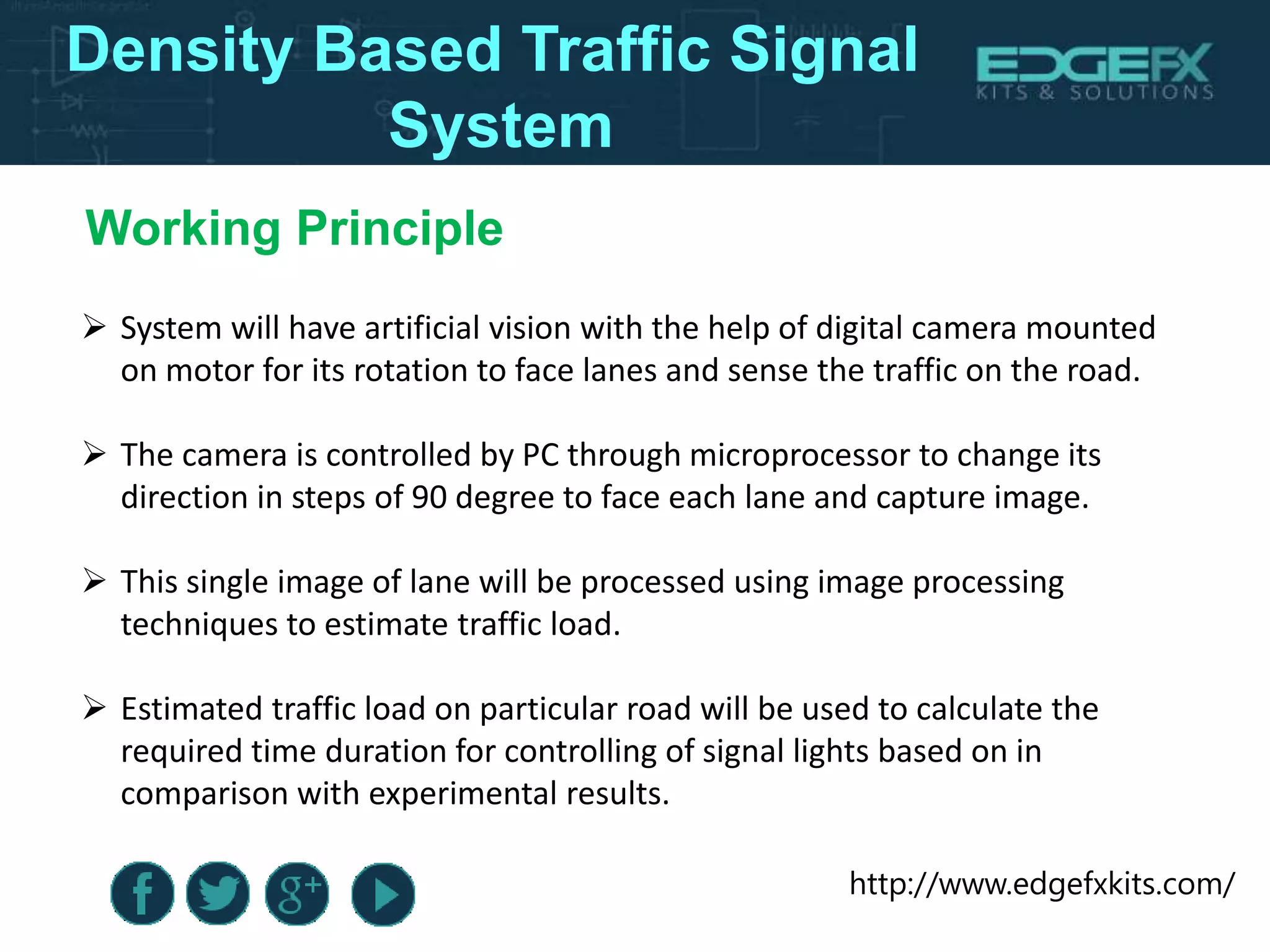

 System will have artificial vision with the help of digital camera mounted
on motor for its rotation to face lanes and sense the traffic on the road.
 The camera is controlled by PC through microprocessor to change its
direction in steps of 90 degree to face each lane and capture image.
 This single image of lane will be processed using image processing
techniques to estimate traffic load.
 Estimated traffic load on particular road will be used to calculate the
required time duration for controlling of signal lights based on in
comparison with experimental results.
Working Principle

 System will be intelligent and will calculate the time every time and
operate in a cyclic clockwise signal lights control.
 Maximum and minimum time limit will be maintained .
 It is to prevent over waiting of vehicle in queue of other lanes
which would be found out experimentally.
 Controls of the signal will be routed through the microcontroller.
System
Working Principle

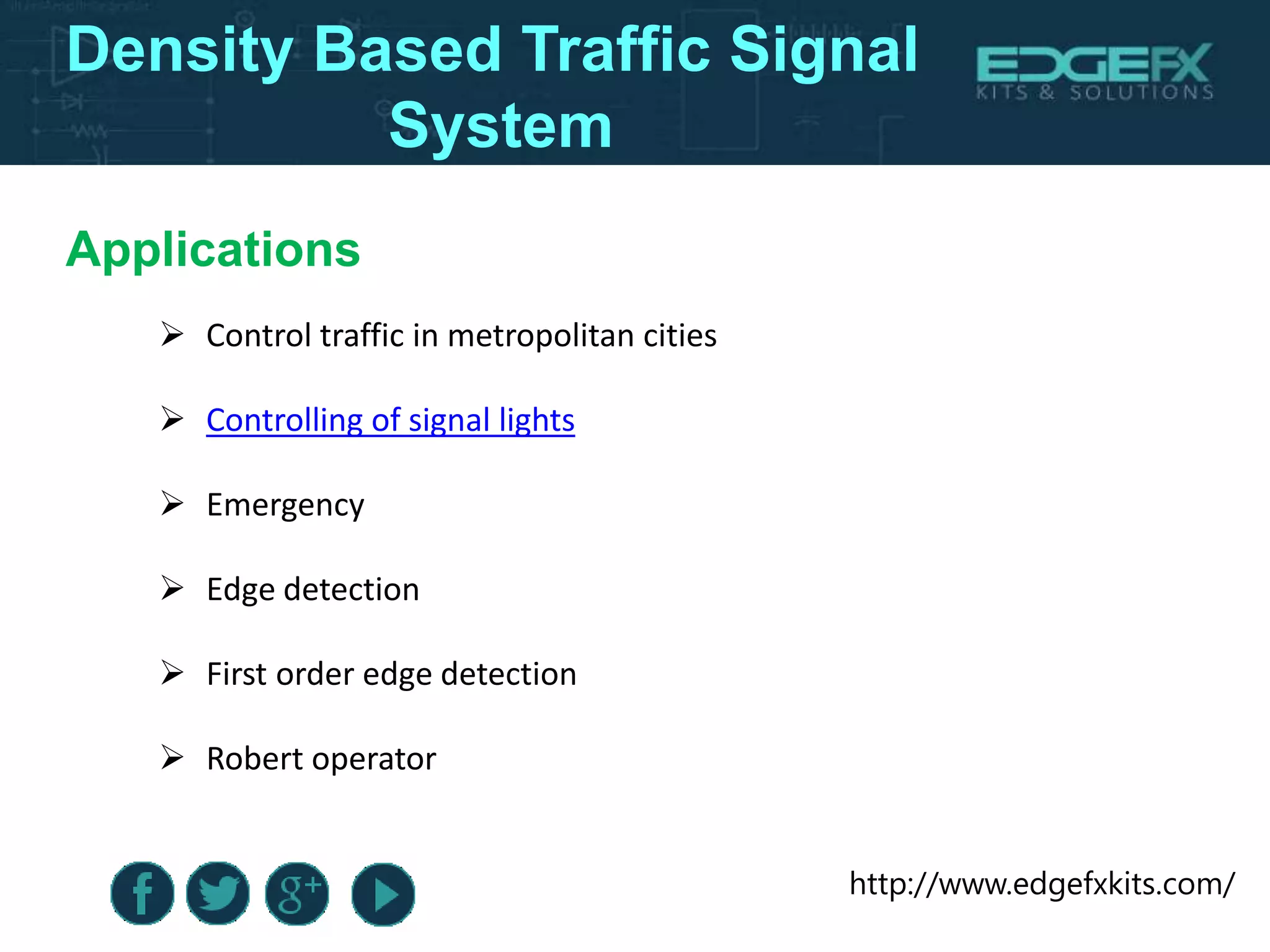

Applications
 Control traffic in metropolitan cities
 Controlling of signal lights
 Emergency
 Edge detection
 First order edge detection
 Robert operator
System

Applications
 Sobel operator
 Prewitt operator
 Second order edge detection
 Laplacian edge detection
 Canny edge detection
System

Advantages
 Avoids wastage of time due to the traffic.
 Fully automatic.
 Low power consumption.
 It provides the easy access in the traffic light.
 Low cost to design the circuit, maintenance of the circuit is good.
 By using this microcontroller IC we can create many more control to
the appliances
System

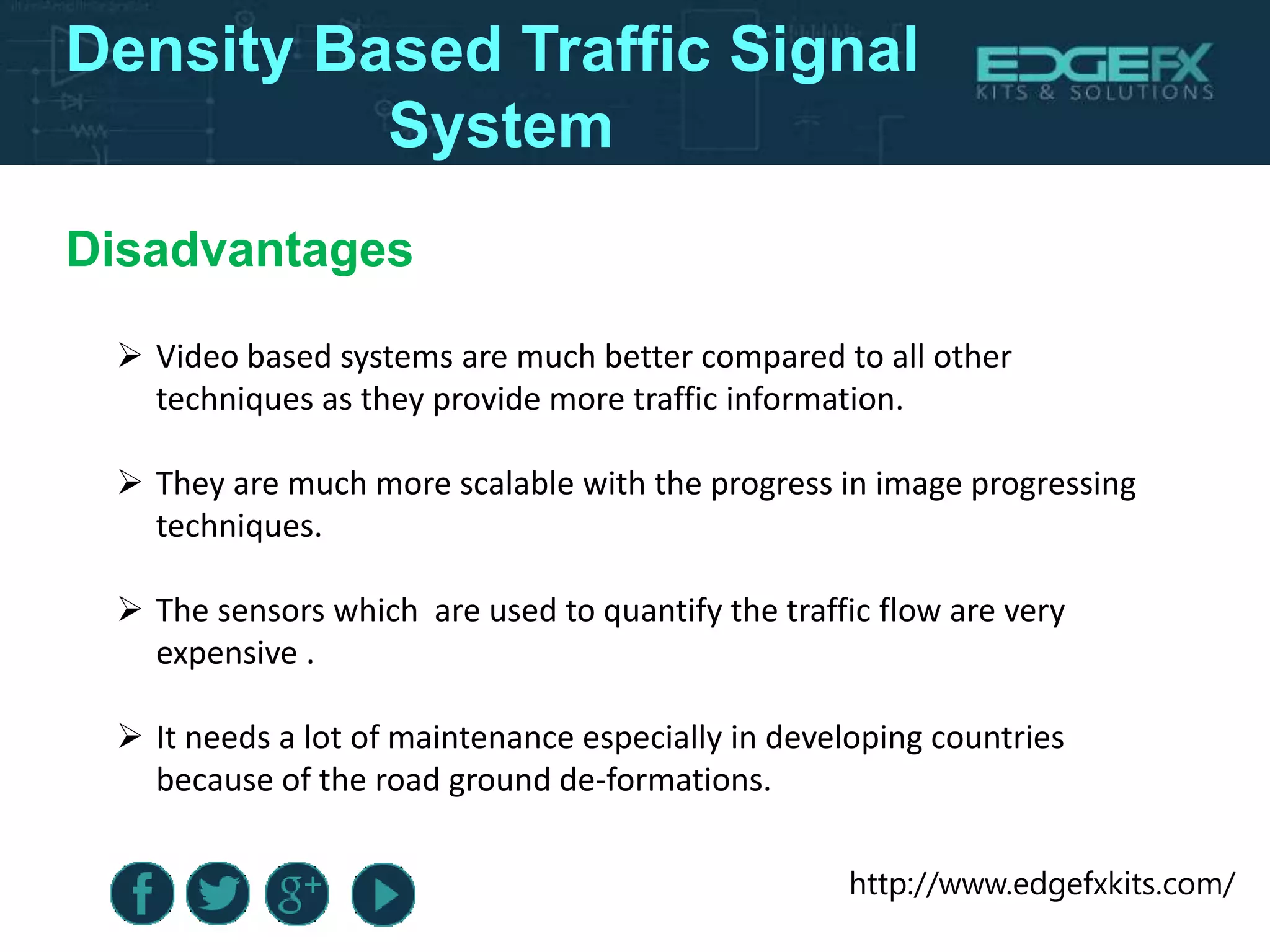

Disadvantages
Density Based Traffic Signal System
 Video based systems are much better compared to all other
techniques as they provide more traffic information.
 They are much more scalable with the progress in image progressing
techniques.
 The sensors which are used to quantify the traffic flow are very
expensive .
 It needs a lot of maintenance especially in developing countries
because of the road ground de-formations.
System

Conclusion
 The project may be very well used in where the traffic signals is kept
and in many other places where we need to full fill the need of the
automation. In the future we implement the project’s idea in the
industries. By using this density based traffic signal system in future
we can know traffic density in the city and so that remedies can be
made according to that.
