PROJECT REPORT
ON
“OBSTACLE AVOIDING ROBOT”
BACHELOR OF TECHNOLOGY
IN
ELECTRONICS & COMMUNICATION ENGINEERING
BHARAT INSTITUE OF ENGINEERING & TECHNOLOGY
JNTUH: HYDERABAD
2014-2015
Submitted To:- Submitted By:-
Lect.in ECE Deptt. Umera Anjum (12E15A0401)
2
BHARAT INSTITUTE OF ENGINEERING AND TECHNOLOGY
Mangalpally (V), Ibrahimpatnam (M), R.R.DIST-501510
Aug 2014
Department of Electronics and Communication Engineering
CERTIFICATE
This is to certify that the project work entitled “OBSTACLE AVOIDING ROBOT” is carried
out by K. Sri Arun Sai (11E11A0443), Umera Anjum (12E15A0401) in partial fulfillment for the
award of degree of BACHELOR OF TECHNOLOGY in Electronics and Communication
Engineering, Jawaharlal Nehru Technological University, Hyderabad during the academic year 2011-
15.
INTERNAL GUIDE HEAD OF THE DEPARTMENT
Prof. G. Kumaraswamy Rao
EXTERNAL EXAMINER
3
ACKNOWLEDGMENT
We owe a great many thanks to many people who have helped and supported us throughout this
project, which would not have taken shape without their co-operation. Thanks to all.
We express our profound gratitude to Sri CH. Venugopal Reddy, Secretary and indebtedness
to our management, BHARAT INSTITUTE OF ENGINEERING & TECHNOLOGY,
IBRAHIMPATNAM for their constructive criticism.
We would like to specially thank our beloved Head, Department of ECE, Prof.
G. Kumaraswamy Rao, for his guidance, inspiration and constant encouragement throughout this
research work.
We would like to express our deep gratitude to our Project Coordinator Mr. E.
Venkat Reddy, Associate Professor and Mr. Jogi Raju, Associate Professor for providing us an
opportunity to work and guiding in our college.
We convey our thanks to our Internal Guide ________________Assistant Professor for his
timely guidance, moral support and personal supervision throughout the project.
These few words would never be complete if we were not to mention our thanks to our parents,
department laboratory, staff members and all friends without whose co-operation this project could not
have become a reality.
By,
K. Sri Arun Sai (11E11A0443)
Umera Anjum (12E15A0401)
4

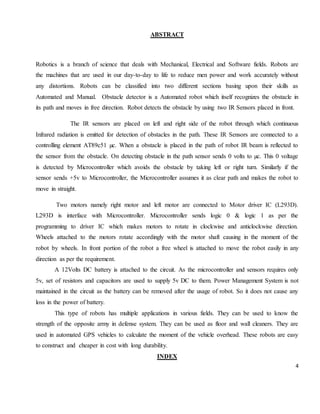

ABSTRACT
Robotics is a branch of science that deals with Mechanical, Electrical and Software fields. Robots are
the machines that are used in our day-to-day to life to reduce men power and work accurately without
any distortions. Robots can be classified into two different sections basing upon their skills as
Automated and Manual. Obstacle detector is a Automated robot which itself recognizes the obstacle in
its path and moves in free direction. Robot detects the obstacle by using two IR Sensors placed in front.
The IR sensors are placed on left and right side of the robot through which continuous
Infrared radiation is emitted for detection of obstacles in the path. These IR Sensors are connected to a
controlling element AT89c51 µc. When a obstacle is placed in the path of robot IR beam is reflected to
the sensor from the obstacle. On detecting obstacle in the path sensor sends 0 volts to µc. This 0 voltage
is detected by Microcontroller which avoids the obstacle by taking left or right turn. Similarly if the
sensor sends +5v to Microcontroller, the Microcontroller assumes it as clear path and makes the robot to
move in straight.
Two motors namely right motor and left motor are connected to Motor driver IC (L293D).
L293D is interface with Microcontroller. Microcontroller sends logic 0 & logic 1 as per the
programming to driver IC which makes motors to rotate in clockwise and anticlockwise direction.
Wheels attached to the motors rotate accordingly with the motor shaft causing in the moment of the
robot by wheels. In front portion of the robot a free wheel is attached to move the robot easily in any
direction as per the requirement.
A 12Volts DC battery is attached to the circuit. As the microcontroller and sensors requires only
5v, set of resistors and capacitors are used to supply 5v DC to them. Power Management System is not
maintained in the circuit as the battery can be removed after the usage of robot. So it does not cause any
loss in the power of battery.
This type of robots has multiple applications in various fields. They can be used to know the
strength of the opposite army in defense system. They can be used as floor and wall cleaners. They are
used in automated GPS vehicles to calculate the moment of the vehicle overhead. These robots are easy
to construct and cheaper in cost with long durability.

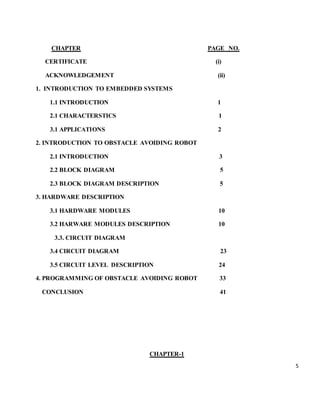

INDEX
5
CHAPTER PAGE NO.
CERTIFICATE (i)
ACKNOWLEDGEMENT (ii)
1. INTRODUCTION TO EMBEDDED SYSTEMS
1.1 INTRODUCTION 1
2.1 CHARACTERSTICS 1
3.1 APPLICATIONS 2
2. INTRODUCTION TO OBSTACLE AVOIDING ROBOT
2.1 INTRODUCTION 3
2.2 BLOCK DIAGRAM 5
2.3 BLOCK DIAGRAM DESCRIPTION 5
3. HARDWARE DESCRIPTION
3.1 HARDWARE MODULES 10
3.2 HARWARE MODULES DESCRIPTION 10
3.3. CIRCUIT DIAGRAM
3.4 CIRCUIT DIAGRAM 23
3.5 CIRCUIT LEVEL DESCRIPTION 24
4. PROGRAMMING OF OBSTACLE AVOIDING ROBOT 33
CONCLUSION 41
CHAPTER-1
6
1. INTRODUCTION TO THE DEPARTMENT
1.1 INTORDUTION:
An embedded system is a computer system designed to perform one or a few dedicated functions often
with real-time computing constraints. It is embedded as part of a complete device often including
hardware and mechanical parts. By contrast, a general-purpose computer, such as a personal computer
(PC), is designed to be flexible and to meet a wide range of end-user needs. Embedded systems control
many devices in common use today.
Embedded systems are controlled by one or more main processing cores that is typically either a
microcontroller or a digital signal processor (DSP). The key characteristic is however being dedicated
to handle a particular task, which may require very powerful processors. Since the embedded system is
dedicated to specific tasks, design engineers can optimize it reducing the size and cost of the product
and increasing the reliability and performance.
1.2 CHARACTERISTICS
1. Embedded systems are designed to do some specific task, rather than be a general-purpose
computer for multiple tasks. Some also have real-time performance constraints that must be met,
for reasons such as safety and usability others may have low or no performance requirements,
allowing the system hardware to be simplified to reduce costs.
2. Embedded systems are not always stand alone devices. Many embedded systems consist of
small, computerized parts within a larger device that serves a more general purpose.
3. The program instructions written for embedded systems are referred to as firmware, and are
stored in read-only memory or Flash memory chips. They run with limited computer hardware
resources: little memory, small or non-existent keyboard and/or screen.
1.3 APPLICATIONS:
Embedded controllers may be found in many different kinds of system and are used for many different
applications. Such as:
● Manufacturing and process control
● Construction industry

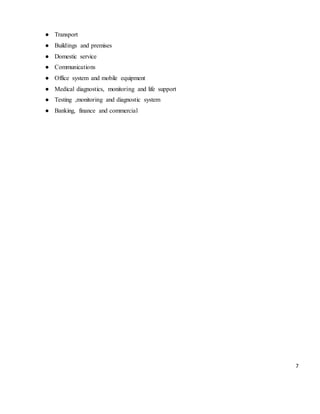

7
● Transport
● Buildings and premises
● Domestic service
● Communications
● Office system and mobile equipment
● Medical diagnostics, monitoring and life support
● Testing ,monitoring and diagnostic system
● Banking, finance and commercial
8
CHAPTER-2
INTRODUCTION TO OBSTACLE AVOIDING ROBOT
Robotics is part of Today's communication. In today’s world ROBOTICS is fast growing and
interesting field. It is simplest way for latest technology modification. Now a day's communication is
part of advancement of technology, so we decided to work on ROBOTICS field, and design something
which will make human life simpler in day today aspect. Thus we are supporting this cause. This
project is basic stage of any automatic robot. This ROBOT has sufficient intelligence to cover the
maximum area of provided space. It has a infrared sensor which are used to sense the obstacles coming
in between the path of ROBOT. It will move in a particular direction and avoid the obstacle which is
coming in its path. We have used two D.C motors to give motion to the ROBOT. The construction of
the ROBOT circuit is easy and small .The electronics parts used in the ROBOT circuits are easily
available and cheap too.
The project uses μc AT89C52 as the controlling element. It uses IR (Infra Red) sensors and two
IR transmitting circuitry. When the obstacle comes in path of robot IR beam is reflected from the
obstacle then sensor gives zero voltage to μc. This zero voltage is detected then μc decides to avoid the
obstacle by taking left or right turn. If the sensor gives +5v to μc that means there is no obstacle present
in its path so it goes straight until any obstacle is detected. The two IR transmitter circuits are fitted in
front on right and left side of robot. The two IR sensors are placed near to transmitters’ IR LEDs. The
connections can be given from main circuit to sensors using simple twisted pair cables. Two motors
namely right motor and left motor are connected to driver IC (L293D). L293D is interface with μc.
Micro-controller sends logic 0 & logic 1 as per the programming to driver IC which moves motors
forward or reverse direction.
2.1 BLOCK DIAGRAM:
9

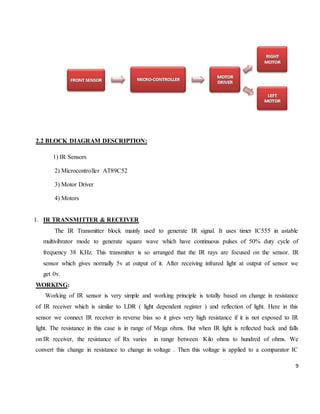

2.2 BLOCK DIAGRAM DESCRIPTION:
1) IR Sensors
2) Microcontroller AT89C52
3) Motor Driver
4) Motors

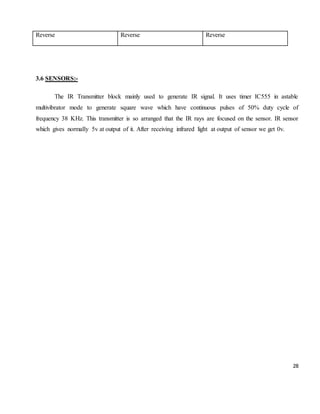

1. IR TRANSMITTER & RECEIVER
The IR Transmitter block mainly used to generate IR signal. It uses timer IC555 in astable
multivibrator mode to generate square wave which have continuous pulses of 50% duty cycle of
frequency 38 KHz. This transmitter is so arranged that the IR rays are focused on the sensor. IR
sensor which gives normally 5v at output of it. After receiving infrared light at output of sensor we
get 0v.
WORKING:
Working of IR sensor is very simple and working principle is totally based on change in resistance
of IR receiver which is similar to LDR ( light dependent register ) and reflection of light. Here in this
sensor we connect IR receiver in reverse bias so it gives very high resistance if it is not exposed to IR
light. The resistance in this case is in range of Mega ohms. But when IR light is reflected back and falls
on IR receiver, the resistance of Rx varies in range between Kilo ohms to hundred of ohms. We
convert this change in resistance to change in voltage . Then this voltage is applied to a comparator IC

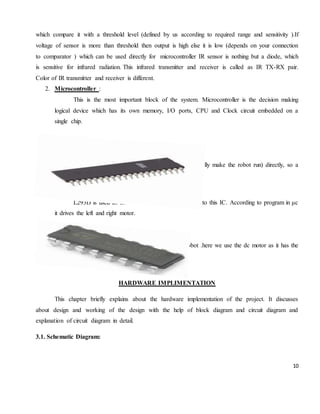

10
which compare it with a threshold level (defined by us according to required range and sensitivity ).If
voltage of sensor is more than threshold then output is high else it is low (depends on your connection
to comparator ) which can be used directly for microcontroller IR sensor is nothing but a diode, which
is sensitive for infrared radiation. This infrared transmitter and receiver is called as IR TX-RX pair.
Color of IR transmitter and receiver is different.
2. Microcontroller :
This is the most important block of the system. Microcontroller is the decision making
logical device which has its own memory, I/O ports, CPU and Clock circuit embedded on a
single chip.
3. MOTOR DRIVER:
The MCU cannot drive the motors (used to actually make the robot run) directly, so a
motor driver is used.

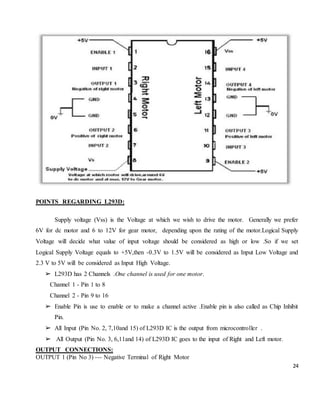

L293D is used as driver IC. Motors are connected to this IC. According to program in μc
it drives the left and right motor.
4. MOTOR Motor are used for the movement of the robot .here we use the dc motor as it has the
principle of speed controlling.
CHAPTER-3
HARDWARE IMPLIMENTATION
This chapter briefly explains about the hardware implementation of the project. It discusses
about design and working of the design with the help of block diagram and circuit diagram and
explanation of circuit diagram in detail.
3.1. Schematic Diagram:
11

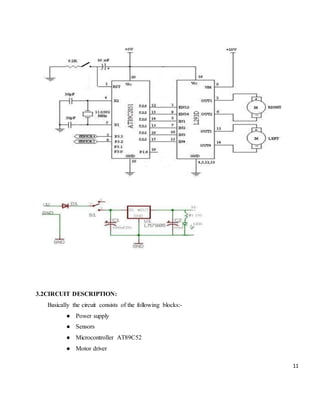

3.2CIRCUIT DESCRIPTION:
Basically the circuit consists of the following blocks:-
● Power supply
● Sensors
● Microcontroller AT89C52
● Motor driver
12
● Motors
Let us take the overview of each block one by one
3.2.1POWER SUPPLY CIRCUIT:

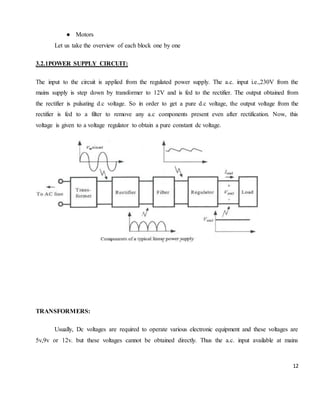

The input to the circuit is applied from the regulated power supply. The a.c. input i.e.,230V from the
mains supply is step down by transformer to 12V and is fed to the rectifier. The output obtained from
the rectifier is pulsating d.c voltage. So in order to get a pure d.c voltage, the output voltage from the
rectifier is fed to a filter to remove any a.c components present even after rectification. Now, this
voltage is given to a voltage regulator to obtain a pure constant dc voltage.
TRANSFORMERS:
Usually, Dc voltages are required to operate various electronic equipment and these voltages are
5v,9v or 12v. but these voltages cannot be obtained directly. Thus the a.c. input available at mains
13
supply i.e.,230v is to be brought down to the required voltages level. This is done by a transformer.
Thus, a step down transformer is employed to decrease the voltage to a required level.
RECTIFIER:

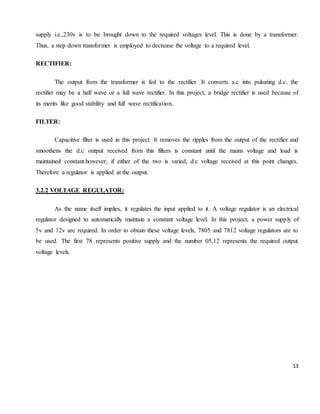

The output from the transformer is fed to the rectifier. It converts a.c into pulsating d.c. the
rectifier may be a half wave or a full wave rectifier. In this project, a bridge rectifier is used because of
its merits like good stability and full wave rectification.
FILTER:
Capacitive filter is used in this project. It removes the ripples from the output of the rectifier and
smoothens the d.c output received from this filters is constant until the mains voltage and load is
maintained constant.however, if either of the two is varied, d.c voltage received at this point changes.
Therefore a regulator is applied at the output.
3.2.2 VOLTAGE REGULATOR:
As the name itself implies, it regulates the input applied to it. A voltage regulator is an electrical
regulator designed to automatically maintain a constant voltage level. In this project, a power supply of
5v and 12v are required. In order to obtain these voltage levels, 7805 and 7812 voltage regulators are to
be used. The first 78 represents positive supply and the number 05,12 represents the required output
voltage levels.
14

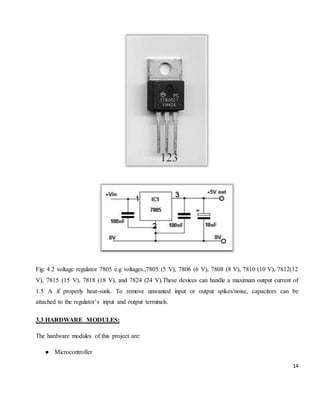

Fig: 4.2 voltage regulator 7805 e.g voltages.,7805 (5 V), 7806 (6 V), 7808 (8 V), 7810 (10 V), 7812(12
V), 7815 (15 V), 7818 (18 V), and 7824 (24 V).These devices can handle a maximum output current of
1.5 A if properly heat-sunk. To remove unwanted input or output spikes/noise, capacitors can be
attached to the regulator’s input and output terminals.
3.3 HARDWARE MODULES:
The hardware modules of this project are:
● Microcontroller

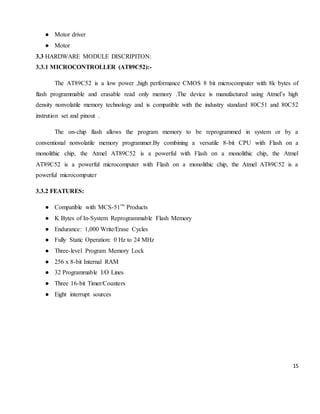

15
● Motor driver
● Motor
3.3 HARDWARE MODULE DISCRIPITON:
3.3.1 MICROCONTROLLER (AT89C52):-
The AT89C52 is a low power ,high performance CMOS 8 bit microcomputer with 8k bytes of
flash programmable and erasable read only memory .The device is manufactured using Atmel’s high
density nonvolatile memory technology and is compatible with the industry standard 80C51 and 80C52
instrution set and pinout .
The on-chip flash allows the program memory to be reprogrammed in system or by a
conventional nonvolatile memory programmer.By combining a versatile 8-bit CPU with Flash on a
monolithic chip, the Atmel AT89C52 is a powerful with Flash on a monolithic chip, the Atmel
AT89C52 is a powerful microcomputer with Flash on a monolithic chip, the Atmel AT89C52 is a
powerful microcomputer
3.3.2 FEATURES:
● Compatible with MCS-51™ Products
● K Bytes of In-System Reprogrammable Flash Memory
● Endurance: 1,000 Write/Erase Cycles
● Fully Static Operation: 0 Hz to 24 MHz
● Three-level Program Memory Lock
● 256 x 8-bit Internal RAM
● 32 Programmable I/O Lines
● Three 16-bit Timer/Counters
● Eight interrupt sources
16

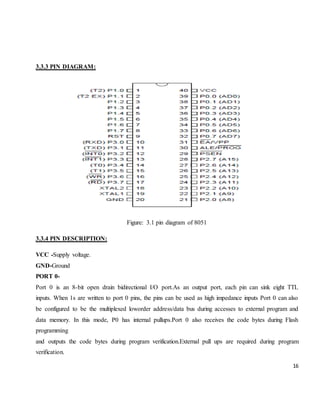

3.3.3 PIN DIAGRAM:
Figure: 3.1 pin diagram of 8051
3.3.4 PIN DESCRIPTION:
VCC -Supply voltage.
GND-Ground
PORT 0-
Port 0 is an 8-bit open drain bidirectional I/O port.As an output port, each pin can sink eight TTL
inputs. When 1s are written to port 0 pins, the pins can be used as high impedance inputs Port 0 can also
be configured to be the multiplexed loworder address/data bus during accesses to external program and
data memory. In this mode, P0 has internal pullups.Port 0 also receives the code bytes during Flash
programming
and outputs the code bytes during program verification.External pull ups are required during program
verification.
17

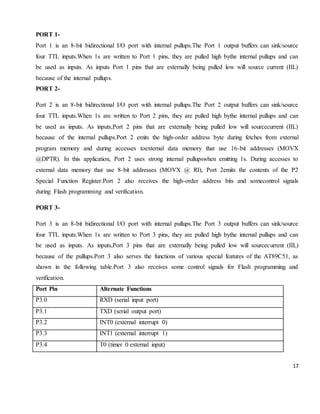

PORT 1-
Port 1 is an 8-bit bidirectional I/O port with internal pullups.The Port 1 output buffers can sink/source
four TTL inputs.When 1s are written to Port 1 pins, they are pulled high bythe internal pullups and can
be used as inputs. As inputs Port 1 pins that are externally being pulled low will source current (IIL)
because of the internal pullups.
PORT 2-
Port 2 is an 8-bit bidirectional I/O port with internal pullups.The Port 2 output buffers can sink/source
four TTL inputs.When 1s are written to Port 2 pins, they are pulled high bythe internal pullups and can
be used as inputs. As inputs,Port 2 pins that are externally being pulled low will sourcecurrent (IIL)
because of the internal pullups.Port 2 emits the high-order address byte during fetches from external
program memory and during accesses toexternal data memory that use 16-bit addresses (MOVX
@DPTR). In this application, Port 2 uses strong internal pullupswhen emitting 1s. During accesses to
external data memory that use 8-bit addresses (MOVX @ RI), Port 2emits the contents of the P2
Special Function Register.Port 2 also receives the high-order address bits and somecontrol signals
during Flash programming and verification.
PORT 3-
Port 3 is an 8-bit bidirectional I/O port with internal pullups.The Port 3 output buffers can sink/source
four TTL inputs.When 1s are written to Port 3 pins, they are pulled high bythe internal pullups and can
be used as inputs. As inputs,Port 3 pins that are externally being pulled low will sourcecurrent (IIL)
because of the pullups.Port 3 also serves the functions of various special features of the AT89C51, as
shown in the following table.Port 3 also receives some control signals for Flash programming and
verification.
Port Pin Alternate Functions
P3.0 RXD (serial input port)
P3.1 TXD (serial output port)
P3.2 INT0 (external interrupt 0)
P3.3 INT1 (external interrupt 1)
P3.4 T0 (timer 0 external input)
18
P3.5 T1 (timer 1 external input)
P3.6 WR (external data memory write strobe)
P3.7 RD (external data memory read strobe)

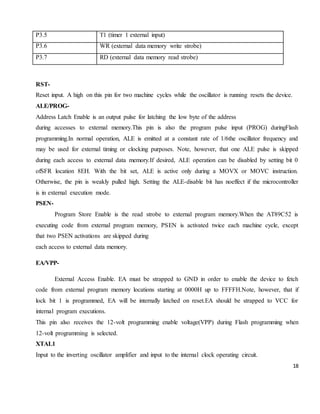

RST-
Reset input. A high on this pin for two machine cycles while the oscillator is running resets the device.
ALE/PROG-
Address Latch Enable is an output pulse for latching the low byte of the address
during accesses to external memory.This pin is also the program pulse input (PROG) duringFlash
programming.In normal operation, ALE is emitted at a constant rate of 1/6the oscillator frequency and
may be used for external timing or clocking purposes. Note, however, that one ALE pulse is skipped
during each access to external data memory.If desired, ALE operation can be disabled by setting bit 0
ofSFR location 8EH. With the bit set, ALE is active only during a MOVX or MOVC instruction.
Otherwise, the pin is weakly pulled high. Setting the ALE-disable bit has noeffect if the microcontroller
is in external execution mode.
PSEN-
Program Store Enable is the read strobe to external program memory.When the AT89C52 is
executing code from external program memory, PSEN is activated twice each machine cycle, except
that two PSEN activations are skipped during
each access to external data memory.
EA/VPP-
External Access Enable. EA must be strapped to GND in order to enable the device to fetch
code from external program memory locations starting at 0000H up to FFFFH.Note, however, that if
lock bit 1 is programmed, EA will be internally latched on reset.EA should be strapped to VCC for
internal program executions.
This pin also receives the 12-volt programming enable voltage(VPP) during Flash programming when
12-volt programming is selected.
XTAL1
Input to the inverting oscillator amplifier and input to the internal clock operating circuit.
19
XTAL2
Output from the inverting oscillator amplifier.
Oscillator Characteristics
XTAL1 and XTAL2 are the input and output, respectively,of an inverting amplifier that can be
configured for use as an on-chip oscillator, as shown in Figure 7. Either a quartz crystal or ceramic
resonator may be used. To drive the device from an external clock source, XTAL2 should be left
unconnected while XTAL1 is driven.
There are no requirements on the duty cycle of the external clock signal, since the input to the internal
clocking circuitry is through a divide-by-two flip-flop, but minimum and maximum voltage high and
low time specifications must be
3.3.5 BLOCK DIAGRAM:
20
3.4 MOTOR DRIVER:
The L293d is a quadruple high-current half-H driver designed to provide bidirectional drive
currents of up to 1 A at voltages from 4.5 V to 36 V. It is designed to drive inductive loads such as
relays,solenoids, dc and bipolar stepping motors, as wellas other high-current/high-voltage loads in
positive-supply applications.All inputs are TTL compatible. Each output is a complete totem-pole drive
circuit with a Darlington transistor sink and a pseudo-Darlington source.
21
Drivers are enabled in pairs with drivers 1 and 2 enabled by 1,2EN and drivers 3 and 4 enabled
by3,4EN. When an enable input is high, the associated drivers are enabled and their outputs are active
and in phase with their inputs. When the enable input is low, those drivers are disabled and their outputs
are off and in a high-impedance state. With the proper data inputs, each pair of drivers form a full-H (or
bridge) reversible drive suitable for solenoid or motor applications.
External high-speed output clamp diodes should be used for inductive transient suppression.
AVCC1 terminal, separate from VCC2, is provided for the logic inputs to minimize device power
dissipation. The L293d is designed for operation from 0°C

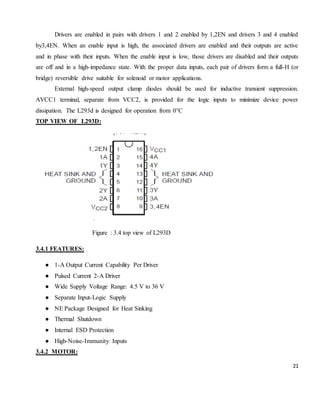

TOP VIEW OF L293D:
Figure : 3.4 top view of L293D
3.4.1 FEATURES:
● 1-A Output Current Capability Per Driver
● Pulsed Current 2-A Driver
● Wide Supply Voltage Range: 4.5 V to 36 V
● Separate Input-Logic Supply
● NE Package Designed for Heat Sinking
● Thermal Shutdown
● Internal ESD Protection
● High-Noise-Immunity Inputs
3.4.2 MOTOR:
22
A direct current (DC) motor is another widely used device that translates electrical pulses into
mechanical movement. In the DC motor we have only + and - leads. Connecting them to a DC voltage
source moves the motor in one direction. By reversing the polarity, the DC motor will move in the
opposite direction. One can easily experiment with the DC motor. For example, small fans used in
many motherboards to cool the CPU are run by DC motors. By connecting their leads to the + and -
voltage source, the DC motor moves. While a stepper motor moves in steps of 1 to 15 degrees, the DC
motor moves continuously.
In a stepper motor, if we know the starting position we can easily count the number of
steps the motor has moved and calculate the final position of the motor. This is not possible in a DC
motor. The maximum speed of a DC motor is indicated in rpm and is given in the data sheet. The DC
motor has two rpms: no-load and loaded. The manufacturer's data sheet gives the no-load rpm. The no-
load rpm can be from a few thousand to tens of thousands. The rpm is reduced when moving a load and
it decreases as the load is increased. For example, a drill turning a screw has a much lower rpm speed
than when it is in the no-load situation. DC motors also have voltage and current ratings. The nominal
voltage is the voltage for that motor under normal conditions, and can be from 1 to 150V, depending on
the motor. As we increase the voltage, the rpm goes up. The current rating is the current consumption
when the nominal voltage is applied with no load, and can be from 25mA to a few amps. As the load
increases, the rpm is decreased, unless the current or voltage provided to the motor is increased, which
in turn increases the torque. With a fixed voltage, as the load increases, the current (power)
consumption of a DC motor is increased. If we overload the motor it will stall, and that can damage the
motor due to the heat generated by high current consumption.

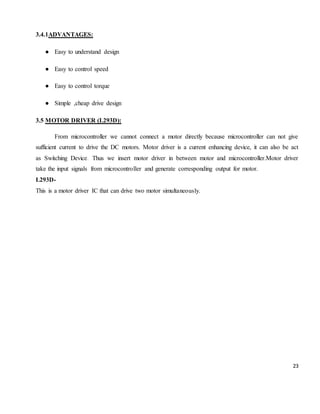

23
3.4.1ADVANTAGES:
● Easy to understand design
● Easy to control speed
● Easy to control torque
● Simple ,cheap drive design
3.5 MOTOR DRIVER (L293D):
From microcontroller we cannot connect a motor directly because microcontroller can not give
sufficient current to drive the DC motors. Motor driver is a current enhancing device, it can also be act
as Switching Device. Thus we insert motor driver in between motor and microcontroller.Motor driver
take the input signals from microcontroller and generate corresponding output for motor.
L293D-
This is a motor driver IC that can drive two motor simultaneously.
24
POINTS REGARDING L293D:
Supply voltage (Vss) is the Voltage at which we wish to drive the motor. Generally we prefer
6V for dc motor and 6 to 12V for gear motor, depending upon the rating of the motor.Logical Supply
Voltage will decide what value of input voltage should be considered as high or low .So if we set
Logical Supply Voltage equals to +5V,then -0.3V to 1.5V will be considered as Input Low Voltage and
2.3 V to 5V will be considered as Input High Voltage.
➢ L293D has 2 Channels .One channel is used for one motor.
Channel 1 - Pin 1 to 8
Channel 2 - Pin 9 to 16
➢ Enable Pin is use to enable or to make a channel active .Enable pin is also called as Chip Inhibit
Pin.
➢ All Input (Pin No. 2, 7,10and 15) of L293D IC is the output from microcontroller .
➢ All Output (Pin No. 3, 6,11and 14) of L293D IC goes to the input of Right and Left motor.

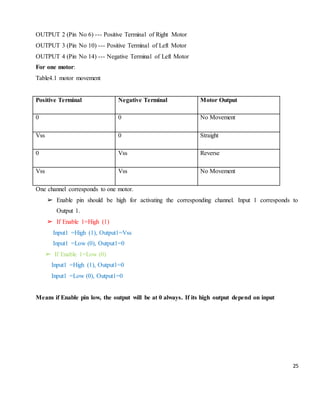

OUTPUT CONNECTIONS:
OUTPUT 1 (Pin No 3) --- Negative Terminal of Right Motor
25
OUTPUT 2 (Pin No 6) --- Positive Terminal of Right Motor
OUTPUT 3 (Pin No 10) --- Positive Terminal of Left Motor
OUTPUT 4 (Pin No 14) --- Negative Terminal of Left Motor
For one motor:
Table4.1 motor movement
Positive Terminal Negative Terminal Motor Output
0 0 No Movement
Vss 0 Straight
0 Vss Reverse
Vss Vss No Movement
One channel corresponds to one motor.
➢ Enable pin should be high for activating the corresponding channel. Input 1 corresponds to
Output 1.
➢ If Enable 1=High (1)
Input1 =High (1), Output1=Vss
Input1 =Low (0), Output1=0
➢ If Enable 1=Low (0)
Input1 =High (1), Output1=0
Input1 =Low (0), Output1=0
Means if Enable pin low, the output will be at 0 always. If its high output depend on input
26

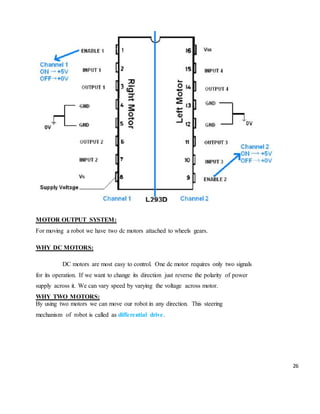

MOTOR OUTPUT SYSTEM:
For moving a robot we have two dc motors attached to wheels gears.
WHY DC MOTORS:
DC motors are most easy to control. One dc motor requires only two signals
for its operation. If we want to change its direction just reverse the polarity of power
supply across it. We can vary speed by varying the voltage across motor.
WHY TWO MOTORS:
By using two motors we can move our robot in any direction. This steering
mechanism of robot is called as differential drive.
27

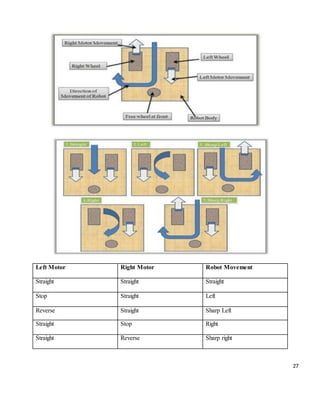

Left Motor Right Motor Robot Movement
Straight Straight Straight
Stop Straight Left
Reverse Straight Sharp Left
Straight Stop Right
Straight Reverse Sharp right
28
Reverse Reverse Reverse
3.6 SENSORS:-
The IR Transmitter block mainly used to generate IR signal. It uses timer IC555 in astable
multivibrator mode to generate square wave which have continuous pulses of 50% duty cycle of
frequency 38 KHz. This transmitter is so arranged that the IR rays are focused on the sensor. IR sensor
which gives normally 5v at output of it. After receiving infrared light at output of sensor we get 0v.
29
CHAPTER-5
SOFTWARE IMPLIMENTATION
Software tools required:

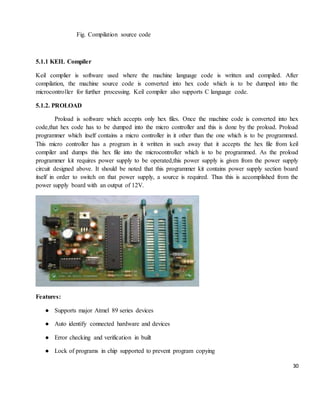

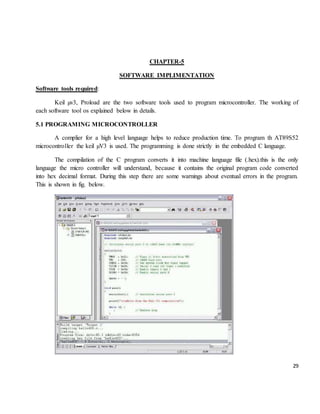

Keil µv3, Proload are the two software tools used to program microcontroller. The working of
each software tool os explained below in details.
5.1 PROGRAMING MICROCONTROLLER
A complier for a high level language helps to reduce production time. To program th AT89S52
microcontroller the keil µV3 is used. The programming is done strictly in the embedded C language.
The compilation of the C program converts it into machine language file (.hex).this is the only
language the micro controller will understand, because it contains the original program code converted
into hex decimal format. During this step there are some warnings about eventual errors in the program.
This is shown in fig. below.
30
Fig. Compilation source code
5.1.1 KEIL Compiler
Keil complier is software used where the machine language code is written and compiled. After
compilation, the machine source code is converted into hex code which is to be dumped into the
microcontroller for further processing. Keil compiler also supports C language code.
5.1.2. PROLOAD
Proload is software which accepts only hex files. Once the machine code is converted into hex
code,that hex code has to be dumped into the micro controller and this is done by the proload. Proload
programmer which itself contains a micro controller in it other than the one which is to be programmed.
This micro controller has a program in it written in such away that it accepts the hex file from keil
compiler and dumps this hex file into the microcontroller which is to be programmed. As the proload
programmer kit requires power supply to be operated,this power supply is given from the power supply
circuit designed above. It should be noted that this programmer kit contains power supply section board
itself in order to switch on that power supply, a source is required. Thus this is accomplished from the
power supply board with an output of 12V.
Features:
● Supports major Atmel 89 series devices
● Auto identify connected hardware and devices
● Error checking and verification in built
● Lock of programs in chip supported to prevent program copying
31
● 20-40 pins ZIF socket on board
● Auto Erase before writing and Auto verify after writing
● Informative status bar and access to latest programmed file
● Simple and easy to use
● Works on 57600 speed
CODING:
#include<reg51.h>
//Motor connections
sbit en1=P2^0;
sbit in1 =P2^2;
sbit in 2=P2^3;
sbit En 2=P2^1;
sbit in3= P2^4;
sbit in4= P2^5;
// IR Sensor
sbit ir1= P1^1; //right
sbit ir2= P1^2; //left
void main( )
{
ir1=ir2=0;
en1=en2=in3=in4=in1=in2=0;
while( 1)
{
32

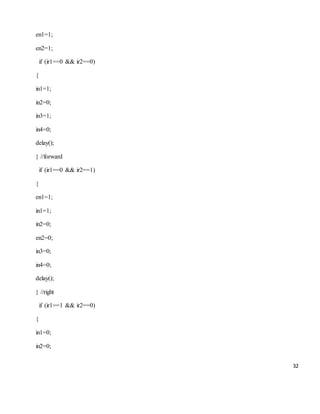

en1=1;
en2=1;
if (ir1==0 && ir2==0)
{
in1=1;
in2=0;
in3=1;
in4=0;
delay();
} //forward
if (ir1==0 && ir2==1)
{
en1=1;
in1=1;
in2=0;
en2=0;
in3=0;
in4=0;
delay();
} //right
if (ir1==1 && ir2==0)
{
in1=0;
in2=0;

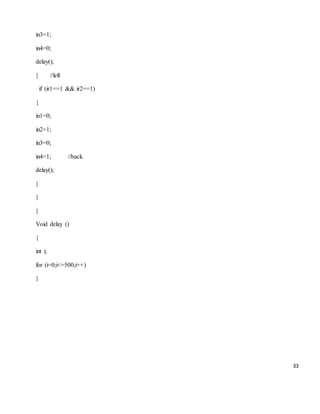

33
in3=1;
in4=0;
delay();
} //left
if (ir1==1 && ir2==1)
{
in1=0;
in2=1;
in3=0;
in4=1; //back
delay();
}
}
}
Void delay ()
{
int i;
for (i=0;i<=500;i++)
}
34

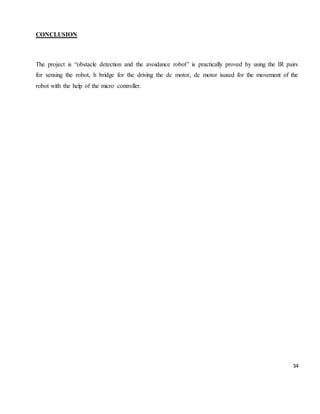

CONCLUSION
The project is “obstacle detection and the avoidance robot” is practically proved by using the IR pairs
for sensing the robot, h bridge for the driving the dc motor, dc motor isused for the movement of the
robot with the help of the micro controller.

More Related Content

What's hot

Line follower robot
Line follower robotLine follower robot
Line follower robot
Priya Hada

Obstacle avoiding Robot
Obstacle avoiding RobotObstacle avoiding Robot
Obstacle avoiding Robot
Rasheed Khan

BLUETOOTH CONTROL ROBOT WITH ANDROID APPLICATION
BLUETOOTH CONTROL ROBOT WITH ANDROID APPLICATIONBLUETOOTH CONTROL ROBOT WITH ANDROID APPLICATION
BLUETOOTH CONTROL ROBOT WITH ANDROID APPLICATION
Varun Divekar

OBSTACLE AVOIDING CAR
OBSTACLE AVOIDING CAROBSTACLE AVOIDING CAR
OBSTACLE AVOIDING CAR
Shubham Thakur

Obstacle avoiding robot(Lab report)
Obstacle  avoiding  robot(Lab report)Obstacle  avoiding  robot(Lab report)
Obstacle avoiding robot(Lab report)
Захір Райхан

Arduino bluetooth controlled robot
Arduino bluetooth controlled robotArduino bluetooth controlled robot
Arduino bluetooth controlled robot
UVSofts Technologies

Obstacle avoiding car project slide
Obstacle avoiding car project slideObstacle avoiding car project slide
Obstacle avoiding car project slide
ShourovSarkerJoy

Street Light that Glows on Detecting Vehicle Movement
Street Light that Glows on Detecting Vehicle MovementStreet Light that Glows on Detecting Vehicle Movement
Street Light that Glows on Detecting Vehicle Movement
Edgefxkits & Solutions

PIR sensing with arduino
PIR sensing  with  arduinoPIR sensing  with  arduino
PIR sensing with arduino
chetan kadiwal

Bluetooth Controlled Robot/Car
Bluetooth Controlled Robot/CarBluetooth Controlled Robot/Car
Bluetooth Controlled Robot/Car
Varun A M

line following robot ppt
line following robot pptline following robot ppt
line following robot ppt
Suchit Moon

Obstacle Avoiding robot
Obstacle Avoiding robotObstacle Avoiding robot
Obstacle Avoiding robot
Durga Singh

Rail gate controller ppt
Rail gate controller pptRail gate controller ppt
Rail gate controller ppt
Sajal Das

Bluetooth controlled robot
Bluetooth controlled robotBluetooth controlled robot
Bluetooth controlled robot
UVSofts Technologies

Anti drowsy alarm for drivers
Anti drowsy alarm for driversAnti drowsy alarm for drivers
Anti drowsy alarm for drivers
Duc Nguyen Van

Obstacle Avoidance Robot (Powered by Arduino)
Obstacle Avoidance Robot (Powered by Arduino)Obstacle Avoidance Robot (Powered by Arduino)
Obstacle Avoidance Robot (Powered by Arduino)
Amanullah Mahmood

The line follower robot
The line follower robotThe line follower robot
The line follower robot
Poonam Narang

Gesture Control Robot
Gesture Control RobotGesture Control Robot
Gesture Control Robot
nikhilsaini25

Obstacle avoiding robot
Obstacle avoiding robotObstacle avoiding robot
Obstacle avoiding robot
Electronics - Embedded System

Automatic railway gate control using arduino uno
Automatic railway gate control using arduino unoAutomatic railway gate control using arduino uno
Automatic railway gate control using arduino uno
selvalakshmi24


What's hot (20)

Line follower robot
Line follower robotLine follower robot
Line follower robot

Obstacle avoiding Robot
Obstacle avoiding RobotObstacle avoiding Robot
Obstacle avoiding Robot

BLUETOOTH CONTROL ROBOT WITH ANDROID APPLICATION
BLUETOOTH CONTROL ROBOT WITH ANDROID APPLICATIONBLUETOOTH CONTROL ROBOT WITH ANDROID APPLICATION
BLUETOOTH CONTROL ROBOT WITH ANDROID APPLICATION

OBSTACLE AVOIDING CAR
OBSTACLE AVOIDING CAROBSTACLE AVOIDING CAR
OBSTACLE AVOIDING CAR

Obstacle avoiding robot(Lab report)
Obstacle  avoiding  robot(Lab report)Obstacle  avoiding  robot(Lab report)
Obstacle avoiding robot(Lab report)

Arduino bluetooth controlled robot
Arduino bluetooth controlled robotArduino bluetooth controlled robot
Arduino bluetooth controlled robot

Obstacle avoiding car project slide
Obstacle avoiding car project slideObstacle avoiding car project slide
Obstacle avoiding car project slide

Street Light that Glows on Detecting Vehicle Movement
Street Light that Glows on Detecting Vehicle MovementStreet Light that Glows on Detecting Vehicle Movement
Street Light that Glows on Detecting Vehicle Movement

PIR sensing with arduino
PIR sensing  with  arduinoPIR sensing  with  arduino
PIR sensing with arduino

Bluetooth Controlled Robot/Car
Bluetooth Controlled Robot/CarBluetooth Controlled Robot/Car
Bluetooth Controlled Robot/Car

line following robot ppt
line following robot pptline following robot ppt
line following robot ppt

Obstacle Avoiding robot
Obstacle Avoiding robotObstacle Avoiding robot
Obstacle Avoiding robot

Rail gate controller ppt
Rail gate controller pptRail gate controller ppt
Rail gate controller ppt

Bluetooth controlled robot
Bluetooth controlled robotBluetooth controlled robot
Bluetooth controlled robot

Anti drowsy alarm for drivers
Anti drowsy alarm for driversAnti drowsy alarm for drivers
Anti drowsy alarm for drivers

Obstacle Avoidance Robot (Powered by Arduino)
Obstacle Avoidance Robot (Powered by Arduino)Obstacle Avoidance Robot (Powered by Arduino)
Obstacle Avoidance Robot (Powered by Arduino)

The line follower robot
The line follower robotThe line follower robot
The line follower robot

Gesture Control Robot
Gesture Control RobotGesture Control Robot
Gesture Control Robot

Obstacle avoiding robot
Obstacle avoiding robotObstacle avoiding robot
Obstacle avoiding robot

Automatic railway gate control using arduino uno
Automatic railway gate control using arduino unoAutomatic railway gate control using arduino uno
Automatic railway gate control using arduino uno


Similar to Obstacle avoiding robot.doc

IRJET- Gesture Controlled Robot with Obstacle Avoidance using Arduino and And...
IRJET- Gesture Controlled Robot with Obstacle Avoidance using Arduino and And...IRJET- Gesture Controlled Robot with Obstacle Avoidance using Arduino and And...
IRJET- Gesture Controlled Robot with Obstacle Avoidance using Arduino and And...
IRJET Journal

IRJET- Line following and Obstacle avoiding Bluetooth Controlled Surveillance...
IRJET- Line following and Obstacle avoiding Bluetooth Controlled Surveillance...IRJET- Line following and Obstacle avoiding Bluetooth Controlled Surveillance...
IRJET- Line following and Obstacle avoiding Bluetooth Controlled Surveillance...
IRJET Journal

23 2 feb17 15nov16 13357 27441-1-sp(edit)
23 2 feb17 15nov16 13357 27441-1-sp(edit)23 2 feb17 15nov16 13357 27441-1-sp(edit)
23 2 feb17 15nov16 13357 27441-1-sp(edit)
IAESIJEECS

Autonomous navigation robot
Autonomous navigation robotAutonomous navigation robot
Autonomous navigation robot
IRJET Journal

IRJET - Driverless Metro Train to Shuttle between Two Stations
IRJET -  	  Driverless Metro Train to Shuttle between Two StationsIRJET -  	  Driverless Metro Train to Shuttle between Two Stations
IRJET - Driverless Metro Train to Shuttle between Two Stations
IRJET Journal

PERSON ALIVE DETECTION
PERSON ALIVE DETECTIONPERSON ALIVE DETECTION
PERSON ALIVE DETECTION
mohammad mubeena sulthana

Jun 13 ijbi_002
Jun 13 ijbi_002Jun 13 ijbi_002
Jun 13 ijbi_002
anuj87420

Jun 13 ijbi_002
Jun 13 ijbi_002Jun 13 ijbi_002
Jun 13 ijbi_002
Anuj Raj

Floor cleaning robot(autonomus mannual) vatsal shah-ec_4th year
Floor cleaning robot(autonomus mannual)  vatsal shah-ec_4th yearFloor cleaning robot(autonomus mannual)  vatsal shah-ec_4th year
Floor cleaning robot(autonomus mannual) vatsal shah-ec_4th year
Vatsal N Shah

Developing Infrared Controlled Automated Door System
Developing Infrared Controlled Automated Door SystemDeveloping Infrared Controlled Automated Door System
Developing Infrared Controlled Automated Door System
IJMER

Minor project report on
Minor project report on Minor project report on
Minor project report on
Arindam Paul

Iaetsd real time implementation of railway
Iaetsd real time implementation of railwayIaetsd real time implementation of railway
Iaetsd real time implementation of railway
Iaetsd Iaetsd

IRJET- Smart Blind Stick for Visually Impaired People
IRJET-  	  Smart Blind Stick for Visually Impaired PeopleIRJET-  	  Smart Blind Stick for Visually Impaired People
IRJET- Smart Blind Stick for Visually Impaired People
IRJET Journal

Automatic breaking system.docx
Automatic breaking system.docxAutomatic breaking system.docx
Automatic breaking system.docx
PraveenYadav581556

Robotic Vehicle with Hand Motion Control Using a RF Module
Robotic Vehicle with Hand Motion Control Using a RF Module Robotic Vehicle with Hand Motion Control Using a RF Module
Robotic Vehicle with Hand Motion Control Using a RF Module
Associate Professor in VSB Coimbatore

WIRELESS FLOOR CLEANING ROBOT
WIRELESS FLOOR CLEANING ROBOTWIRELESS FLOOR CLEANING ROBOT
WIRELESS FLOOR CLEANING ROBOT
Asish Nayak

A Low Cost Yet Super efficient Means to Prevent Overloading as Well as Accide...
A Low Cost Yet Super efficient Means to Prevent Overloading as Well as Accide...A Low Cost Yet Super efficient Means to Prevent Overloading as Well as Accide...
A Low Cost Yet Super efficient Means to Prevent Overloading as Well as Accide...
IRJET Journal

IRJET- Wireless Controlled Robot for Bomb Detection and Defusion
IRJET- Wireless Controlled Robot for Bomb Detection and DefusionIRJET- Wireless Controlled Robot for Bomb Detection and Defusion
IRJET- Wireless Controlled Robot for Bomb Detection and Defusion
IRJET Journal

Using capacitive switch cum sensor made of reclaimed materials for preventing...
Using capacitive switch cum sensor made of reclaimed materials for preventing...Using capacitive switch cum sensor made of reclaimed materials for preventing...
Using capacitive switch cum sensor made of reclaimed materials for preventing...
IRJET Journal

B044020609
B044020609B044020609
B044020609
IJERA Editor


Similar to Obstacle avoiding robot.doc (20)

IRJET- Gesture Controlled Robot with Obstacle Avoidance using Arduino and And...
IRJET- Gesture Controlled Robot with Obstacle Avoidance using Arduino and And...IRJET- Gesture Controlled Robot with Obstacle Avoidance using Arduino and And...
IRJET- Gesture Controlled Robot with Obstacle Avoidance using Arduino and And...

IRJET- Line following and Obstacle avoiding Bluetooth Controlled Surveillance...
IRJET- Line following and Obstacle avoiding Bluetooth Controlled Surveillance...IRJET- Line following and Obstacle avoiding Bluetooth Controlled Surveillance...
IRJET- Line following and Obstacle avoiding Bluetooth Controlled Surveillance...

23 2 feb17 15nov16 13357 27441-1-sp(edit)
23 2 feb17 15nov16 13357 27441-1-sp(edit)23 2 feb17 15nov16 13357 27441-1-sp(edit)
23 2 feb17 15nov16 13357 27441-1-sp(edit)

Autonomous navigation robot
Autonomous navigation robotAutonomous navigation robot
Autonomous navigation robot

IRJET - Driverless Metro Train to Shuttle between Two Stations
IRJET -  	  Driverless Metro Train to Shuttle between Two StationsIRJET -  	  Driverless Metro Train to Shuttle between Two Stations
IRJET - Driverless Metro Train to Shuttle between Two Stations

PERSON ALIVE DETECTION
PERSON ALIVE DETECTIONPERSON ALIVE DETECTION
PERSON ALIVE DETECTION

Jun 13 ijbi_002
Jun 13 ijbi_002Jun 13 ijbi_002
Jun 13 ijbi_002

Jun 13 ijbi_002
Jun 13 ijbi_002Jun 13 ijbi_002
Jun 13 ijbi_002

Floor cleaning robot(autonomus mannual) vatsal shah-ec_4th year
Floor cleaning robot(autonomus mannual)  vatsal shah-ec_4th yearFloor cleaning robot(autonomus mannual)  vatsal shah-ec_4th year
Floor cleaning robot(autonomus mannual) vatsal shah-ec_4th year

Developing Infrared Controlled Automated Door System
Developing Infrared Controlled Automated Door SystemDeveloping Infrared Controlled Automated Door System
Developing Infrared Controlled Automated Door System

Minor project report on
Minor project report on Minor project report on
Minor project report on

Iaetsd real time implementation of railway
Iaetsd real time implementation of railwayIaetsd real time implementation of railway
Iaetsd real time implementation of railway

IRJET- Smart Blind Stick for Visually Impaired People
IRJET-  	  Smart Blind Stick for Visually Impaired PeopleIRJET-  	  Smart Blind Stick for Visually Impaired People
IRJET- Smart Blind Stick for Visually Impaired People

Automatic breaking system.docx
Automatic breaking system.docxAutomatic breaking system.docx
Automatic breaking system.docx

Robotic Vehicle with Hand Motion Control Using a RF Module
Robotic Vehicle with Hand Motion Control Using a RF Module Robotic Vehicle with Hand Motion Control Using a RF Module
Robotic Vehicle with Hand Motion Control Using a RF Module

WIRELESS FLOOR CLEANING ROBOT
WIRELESS FLOOR CLEANING ROBOTWIRELESS FLOOR CLEANING ROBOT
WIRELESS FLOOR CLEANING ROBOT

A Low Cost Yet Super efficient Means to Prevent Overloading as Well as Accide...
A Low Cost Yet Super efficient Means to Prevent Overloading as Well as Accide...A Low Cost Yet Super efficient Means to Prevent Overloading as Well as Accide...
A Low Cost Yet Super efficient Means to Prevent Overloading as Well as Accide...

IRJET- Wireless Controlled Robot for Bomb Detection and Defusion
IRJET- Wireless Controlled Robot for Bomb Detection and DefusionIRJET- Wireless Controlled Robot for Bomb Detection and Defusion
IRJET- Wireless Controlled Robot for Bomb Detection and Defusion

Using capacitive switch cum sensor made of reclaimed materials for preventing...
Using capacitive switch cum sensor made of reclaimed materials for preventing...Using capacitive switch cum sensor made of reclaimed materials for preventing...
Using capacitive switch cum sensor made of reclaimed materials for preventing...

B044020609
B044020609B044020609
B044020609


More from Electronics - Embedded System

virtual memory - Computer operating system
virtual memory - Computer operating systemvirtual memory - Computer operating system
virtual memory - Computer operating system
Electronics - Embedded System

International Human Resource Management
International Human Resource ManagementInternational Human Resource Management
International Human Resource Management
Electronics - Embedded System

Zero polluting bike!
Zero polluting bike!Zero polluting bike!
Zero polluting bike!
Electronics - Embedded System

Training and development
Training and developmentTraining and development
Training and development
Electronics - Embedded System

What is Cognitive Radio ?
What is Cognitive Radio ?What is Cognitive Radio ?
What is Cognitive Radio ?
Electronics - Embedded System

RADAR Jamming and Anti-Jamming
RADAR Jamming and Anti-JammingRADAR Jamming and Anti-Jamming
RADAR Jamming and Anti-Jamming
Electronics - Embedded System

FM Demodulator
FM DemodulatorFM Demodulator
Research methodology-mcq
Research methodology-mcqResearch methodology-mcq
Research methodology-mcq
Electronics - Embedded System

Device - to - Device communication (Pen drive) without PC
Device - to - Device communication (Pen drive) without PCDevice - to - Device communication (Pen drive) without PC
Device - to - Device communication (Pen drive) without PC
Electronics - Embedded System

Obstacle Avoiding Robot Using Micro Controller
Obstacle Avoiding Robot Using Micro ControllerObstacle Avoiding Robot Using Micro Controller
Obstacle Avoiding Robot Using Micro Controller
Electronics - Embedded System


More from Electronics - Embedded System (10)

virtual memory - Computer operating system
virtual memory - Computer operating systemvirtual memory - Computer operating system
virtual memory - Computer operating system

International Human Resource Management
International Human Resource ManagementInternational Human Resource Management
International Human Resource Management

Zero polluting bike!
Zero polluting bike!Zero polluting bike!
Zero polluting bike!

Training and development
Training and developmentTraining and development
Training and development

What is Cognitive Radio ?
What is Cognitive Radio ?What is Cognitive Radio ?
What is Cognitive Radio ?

RADAR Jamming and Anti-Jamming
RADAR Jamming and Anti-JammingRADAR Jamming and Anti-Jamming
RADAR Jamming and Anti-Jamming

FM Demodulator
FM DemodulatorFM Demodulator
FM Demodulator

Research methodology-mcq
Research methodology-mcqResearch methodology-mcq
Research methodology-mcq

Device - to - Device communication (Pen drive) without PC
Device - to - Device communication (Pen drive) without PCDevice - to - Device communication (Pen drive) without PC
Device - to - Device communication (Pen drive) without PC

Obstacle Avoiding Robot Using Micro Controller
Obstacle Avoiding Robot Using Micro ControllerObstacle Avoiding Robot Using Micro Controller
Obstacle Avoiding Robot Using Micro Controller


Recently uploaded

Buy a fake University of Washington diploma
Buy a fake University of Washington diplomaBuy a fake University of Washington diploma
Buy a fake University of Washington diploma
College diploma

Sustainable construction is the use of renewable and recyclable materials in ...
Sustainable construction is the use of renewable and recyclable materials in ...Sustainable construction is the use of renewable and recyclable materials in ...
Sustainable construction is the use of renewable and recyclable materials in ...
RohitGhulanavar2

The world of Technology Management MEM 814.pptx
The world of Technology Management MEM 814.pptxThe world of Technology Management MEM 814.pptx
The world of Technology Management MEM 814.pptx
engrasjadshahzad

20240710 ISSIP GGG Qtrly Community Connection Slides.pptx
20240710 ISSIP GGG Qtrly Community Connection Slides.pptx20240710 ISSIP GGG Qtrly Community Connection Slides.pptx
20240710 ISSIP GGG Qtrly Community Connection Slides.pptx
VaishaliM24

High Profile Girls Call Delhi 9711199171 Provide Best And Top Girl Service An...
High Profile Girls Call Delhi 9711199171 Provide Best And Top Girl Service An...High Profile Girls Call Delhi 9711199171 Provide Best And Top Girl Service An...
High Profile Girls Call Delhi 9711199171 Provide Best And Top Girl Service An...
janvikumar4133

1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf
1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf
1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf
AsiimweJulius2

NOVEC 1230 Fire Suppression System Presentation
NOVEC 1230 Fire Suppression System PresentationNOVEC 1230 Fire Suppression System Presentation
NOVEC 1230 Fire Suppression System Presentation
miniruwan1

# Smart Parking Management System.pptx using IOT
# Smart Parking Management System.pptx using IOT# Smart Parking Management System.pptx using IOT
# Smart Parking Management System.pptx using IOT
Yesh20

Presentation slide on DESIGN AND FABRICATION OF MOBILE CONTROLLED DRAINAGE.pptx
Presentation slide on DESIGN AND FABRICATION OF MOBILE CONTROLLED DRAINAGE.pptxPresentation slide on DESIGN AND FABRICATION OF MOBILE CONTROLLED DRAINAGE.pptx
Presentation slide on DESIGN AND FABRICATION OF MOBILE CONTROLLED DRAINAGE.pptx
Er. Kushal Ghimire

Generative AI and Large Language Models (LLMs)
Generative AI and Large Language Models (LLMs)Generative AI and Large Language Models (LLMs)
Generative AI and Large Language Models (LLMs)
rkpv2002

JORC_Review_presentation. 2024 código jorcpdf
JORC_Review_presentation. 2024 código jorcpdfJORC_Review_presentation. 2024 código jorcpdf
JORC_Review_presentation. 2024 código jorcpdf
WilliamsNuezEspetia

Red Hat Enterprise Linux Administration 9.0 RH134 pdf
Red Hat Enterprise Linux Administration 9.0 RH134 pdfRed Hat Enterprise Linux Administration 9.0 RH134 pdf
Red Hat Enterprise Linux Administration 9.0 RH134 pdf
mdfkobir

AI INTRODUCTION Artificial intelligence.ppt
AI INTRODUCTION Artificial intelligence.pptAI INTRODUCTION Artificial intelligence.ppt
AI INTRODUCTION Artificial intelligence.ppt
GeethaAL

charting the development of the autonomous train
charting the development of the autonomous traincharting the development of the autonomous train
charting the development of the autonomous train
huseindihon

LOCAL-BUDGET-CIRCULAR-NO-158-DATED-JULY-11-2024.pdf
LOCAL-BUDGET-CIRCULAR-NO-158-DATED-JULY-11-2024.pdfLOCAL-BUDGET-CIRCULAR-NO-158-DATED-JULY-11-2024.pdf
LOCAL-BUDGET-CIRCULAR-NO-158-DATED-JULY-11-2024.pdf
jellyjm

Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 in City
Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 in CityGirls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 in City
Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 in City
sunnuchadda

The Control of Relative Humidity & Moisture Content in The Air
The Control of Relative Humidity & Moisture Content in The AirThe Control of Relative Humidity & Moisture Content in The Air
The Control of Relative Humidity & Moisture Content in The Air
Ashraf Ismail

Adv. Digital Signal Processing LAB MANUAL.pdf
Adv. Digital Signal Processing LAB MANUAL.pdfAdv. Digital Signal Processing LAB MANUAL.pdf
Adv. Digital Signal Processing LAB MANUAL.pdf
T.D. Shashikala

"Operational and Technical Overview of Electric Locomotives at the Kanpur Ele...
"Operational and Technical Overview of Electric Locomotives at the Kanpur Ele..."Operational and Technical Overview of Electric Locomotives at the Kanpur Ele...
"Operational and Technical Overview of Electric Locomotives at the Kanpur Ele...
nanduchaihan9

AFCAT STATIC Genral knowledge important CAPSULE.pdf
AFCAT STATIC Genral knowledge important CAPSULE.pdfAFCAT STATIC Genral knowledge important CAPSULE.pdf
AFCAT STATIC Genral knowledge important CAPSULE.pdf
vibhapatil140


Recently uploaded (20)

Buy a fake University of Washington diploma
Buy a fake University of Washington diplomaBuy a fake University of Washington diploma
Buy a fake University of Washington diploma

Sustainable construction is the use of renewable and recyclable materials in ...
Sustainable construction is the use of renewable and recyclable materials in ...Sustainable construction is the use of renewable and recyclable materials in ...
Sustainable construction is the use of renewable and recyclable materials in ...

The world of Technology Management MEM 814.pptx
The world of Technology Management MEM 814.pptxThe world of Technology Management MEM 814.pptx
The world of Technology Management MEM 814.pptx

20240710 ISSIP GGG Qtrly Community Connection Slides.pptx
20240710 ISSIP GGG Qtrly Community Connection Slides.pptx20240710 ISSIP GGG Qtrly Community Connection Slides.pptx
20240710 ISSIP GGG Qtrly Community Connection Slides.pptx

High Profile Girls Call Delhi 9711199171 Provide Best And Top Girl Service An...
High Profile Girls Call Delhi 9711199171 Provide Best And Top Girl Service An...High Profile Girls Call Delhi 9711199171 Provide Best And Top Girl Service An...
High Profile Girls Call Delhi 9711199171 Provide Best And Top Girl Service An...

1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf
1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf
1. DEE 1203 ELECTRICAL ENGINEERING DRAWING.pdf

NOVEC 1230 Fire Suppression System Presentation
NOVEC 1230 Fire Suppression System PresentationNOVEC 1230 Fire Suppression System Presentation
NOVEC 1230 Fire Suppression System Presentation

# Smart Parking Management System.pptx using IOT
# Smart Parking Management System.pptx using IOT# Smart Parking Management System.pptx using IOT
# Smart Parking Management System.pptx using IOT

Presentation slide on DESIGN AND FABRICATION OF MOBILE CONTROLLED DRAINAGE.pptx
Presentation slide on DESIGN AND FABRICATION OF MOBILE CONTROLLED DRAINAGE.pptxPresentation slide on DESIGN AND FABRICATION OF MOBILE CONTROLLED DRAINAGE.pptx
Presentation slide on DESIGN AND FABRICATION OF MOBILE CONTROLLED DRAINAGE.pptx

Generative AI and Large Language Models (LLMs)
Generative AI and Large Language Models (LLMs)Generative AI and Large Language Models (LLMs)
Generative AI and Large Language Models (LLMs)

JORC_Review_presentation. 2024 código jorcpdf
JORC_Review_presentation. 2024 código jorcpdfJORC_Review_presentation. 2024 código jorcpdf
JORC_Review_presentation. 2024 código jorcpdf

Red Hat Enterprise Linux Administration 9.0 RH134 pdf
Red Hat Enterprise Linux Administration 9.0 RH134 pdfRed Hat Enterprise Linux Administration 9.0 RH134 pdf
Red Hat Enterprise Linux Administration 9.0 RH134 pdf

AI INTRODUCTION Artificial intelligence.ppt
AI INTRODUCTION Artificial intelligence.pptAI INTRODUCTION Artificial intelligence.ppt
AI INTRODUCTION Artificial intelligence.ppt

charting the development of the autonomous train
charting the development of the autonomous traincharting the development of the autonomous train
charting the development of the autonomous train

LOCAL-BUDGET-CIRCULAR-NO-158-DATED-JULY-11-2024.pdf
LOCAL-BUDGET-CIRCULAR-NO-158-DATED-JULY-11-2024.pdfLOCAL-BUDGET-CIRCULAR-NO-158-DATED-JULY-11-2024.pdf
LOCAL-BUDGET-CIRCULAR-NO-158-DATED-JULY-11-2024.pdf

Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 in City
Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 in CityGirls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 in City
Girls Call Chennai 000XX00000 Provide Best And Top Girl Service And No1 in City

The Control of Relative Humidity & Moisture Content in The Air
The Control of Relative Humidity & Moisture Content in The AirThe Control of Relative Humidity & Moisture Content in The Air
The Control of Relative Humidity & Moisture Content in The Air

Adv. Digital Signal Processing LAB MANUAL.pdf
Adv. Digital Signal Processing LAB MANUAL.pdfAdv. Digital Signal Processing LAB MANUAL.pdf
Adv. Digital Signal Processing LAB MANUAL.pdf

"Operational and Technical Overview of Electric Locomotives at the Kanpur Ele...
"Operational and Technical Overview of Electric Locomotives at the Kanpur Ele..."Operational and Technical Overview of Electric Locomotives at the Kanpur Ele...
"Operational and Technical Overview of Electric Locomotives at the Kanpur Ele...

AFCAT STATIC Genral knowledge important CAPSULE.pdf
AFCAT STATIC Genral knowledge important CAPSULE.pdfAFCAT STATIC Genral knowledge important CAPSULE.pdf
AFCAT STATIC Genral knowledge important CAPSULE.pdf


Obstacle avoiding robot.doc

  • 1. 1 PROJECT REPORT ON “OBSTACLE AVOIDING ROBOT” BACHELOR OF TECHNOLOGY IN ELECTRONICS & COMMUNICATION ENGINEERING BHARAT INSTITUE OF ENGINEERING & TECHNOLOGY JNTUH: HYDERABAD 2014-2015 Submitted To:- Submitted By:- Lect.in ECE Deptt. Umera Anjum (12E15A0401)
  • 2. 2 BHARAT INSTITUTE OF ENGINEERING AND TECHNOLOGY Mangalpally (V), Ibrahimpatnam (M), R.R.DIST-501510 Aug 2014 Department of Electronics and Communication Engineering CERTIFICATE This is to certify that the project work entitled “OBSTACLE AVOIDING ROBOT” is carried out by K. Sri Arun Sai (11E11A0443), Umera Anjum (12E15A0401) in partial fulfillment for the award of degree of BACHELOR OF TECHNOLOGY in Electronics and Communication Engineering, Jawaharlal Nehru Technological University, Hyderabad during the academic year 2011- 15. INTERNAL GUIDE HEAD OF THE DEPARTMENT Prof. G. Kumaraswamy Rao EXTERNAL EXAMINER
  • 3. 3 ACKNOWLEDGMENT We owe a great many thanks to many people who have helped and supported us throughout this project, which would not have taken shape without their co-operation. Thanks to all. We express our profound gratitude to Sri CH. Venugopal Reddy, Secretary and indebtedness to our management, BHARAT INSTITUTE OF ENGINEERING & TECHNOLOGY, IBRAHIMPATNAM for their constructive criticism. We would like to specially thank our beloved Head, Department of ECE, Prof. G. Kumaraswamy Rao, for his guidance, inspiration and constant encouragement throughout this research work. We would like to express our deep gratitude to our Project Coordinator Mr. E. Venkat Reddy, Associate Professor and Mr. Jogi Raju, Associate Professor for providing us an opportunity to work and guiding in our college. We convey our thanks to our Internal Guide ________________Assistant Professor for his timely guidance, moral support and personal supervision throughout the project. These few words would never be complete if we were not to mention our thanks to our parents, department laboratory, staff members and all friends without whose co-operation this project could not have become a reality. By, K. Sri Arun Sai (11E11A0443) Umera Anjum (12E15A0401)
  • 4. 4 ABSTRACT Robotics is a branch of science that deals with Mechanical, Electrical and Software fields. Robots are the machines that are used in our day-to-day to life to reduce men power and work accurately without any distortions. Robots can be classified into two different sections basing upon their skills as Automated and Manual. Obstacle detector is a Automated robot which itself recognizes the obstacle in its path and moves in free direction. Robot detects the obstacle by using two IR Sensors placed in front. The IR sensors are placed on left and right side of the robot through which continuous Infrared radiation is emitted for detection of obstacles in the path. These IR Sensors are connected to a controlling element AT89c51 µc. When a obstacle is placed in the path of robot IR beam is reflected to the sensor from the obstacle. On detecting obstacle in the path sensor sends 0 volts to µc. This 0 voltage is detected by Microcontroller which avoids the obstacle by taking left or right turn. Similarly if the sensor sends +5v to Microcontroller, the Microcontroller assumes it as clear path and makes the robot to move in straight. Two motors namely right motor and left motor are connected to Motor driver IC (L293D). L293D is interface with Microcontroller. Microcontroller sends logic 0 & logic 1 as per the programming to driver IC which makes motors to rotate in clockwise and anticlockwise direction. Wheels attached to the motors rotate accordingly with the motor shaft causing in the moment of the robot by wheels. In front portion of the robot a free wheel is attached to move the robot easily in any direction as per the requirement. A 12Volts DC battery is attached to the circuit. As the microcontroller and sensors requires only 5v, set of resistors and capacitors are used to supply 5v DC to them. Power Management System is not maintained in the circuit as the battery can be removed after the usage of robot. So it does not cause any loss in the power of battery. This type of robots has multiple applications in various fields. They can be used to know the strength of the opposite army in defense system. They can be used as floor and wall cleaners. They are used in automated GPS vehicles to calculate the moment of the vehicle overhead. These robots are easy to construct and cheaper in cost with long durability. INDEX
  • 5. 5 CHAPTER PAGE NO. CERTIFICATE (i) ACKNOWLEDGEMENT (ii) 1. INTRODUCTION TO EMBEDDED SYSTEMS 1.1 INTRODUCTION 1 2.1 CHARACTERSTICS 1 3.1 APPLICATIONS 2 2. INTRODUCTION TO OBSTACLE AVOIDING ROBOT 2.1 INTRODUCTION 3 2.2 BLOCK DIAGRAM 5 2.3 BLOCK DIAGRAM DESCRIPTION 5 3. HARDWARE DESCRIPTION 3.1 HARDWARE MODULES 10 3.2 HARWARE MODULES DESCRIPTION 10 3.3. CIRCUIT DIAGRAM 3.4 CIRCUIT DIAGRAM 23 3.5 CIRCUIT LEVEL DESCRIPTION 24 4. PROGRAMMING OF OBSTACLE AVOIDING ROBOT 33 CONCLUSION 41 CHAPTER-1
  • 6. 6 1. INTRODUCTION TO THE DEPARTMENT 1.1 INTORDUTION: An embedded system is a computer system designed to perform one or a few dedicated functions often with real-time computing constraints. It is embedded as part of a complete device often including hardware and mechanical parts. By contrast, a general-purpose computer, such as a personal computer (PC), is designed to be flexible and to meet a wide range of end-user needs. Embedded systems control many devices in common use today. Embedded systems are controlled by one or more main processing cores that is typically either a microcontroller or a digital signal processor (DSP). The key characteristic is however being dedicated to handle a particular task, which may require very powerful processors. Since the embedded system is dedicated to specific tasks, design engineers can optimize it reducing the size and cost of the product and increasing the reliability and performance. 1.2 CHARACTERISTICS 1. Embedded systems are designed to do some specific task, rather than be a general-purpose computer for multiple tasks. Some also have real-time performance constraints that must be met, for reasons such as safety and usability others may have low or no performance requirements, allowing the system hardware to be simplified to reduce costs. 2. Embedded systems are not always stand alone devices. Many embedded systems consist of small, computerized parts within a larger device that serves a more general purpose. 3. The program instructions written for embedded systems are referred to as firmware, and are stored in read-only memory or Flash memory chips. They run with limited computer hardware resources: little memory, small or non-existent keyboard and/or screen. 1.3 APPLICATIONS: Embedded controllers may be found in many different kinds of system and are used for many different applications. Such as: ● Manufacturing and process control ● Construction industry
  • 7. 7 ● Transport ● Buildings and premises ● Domestic service ● Communications ● Office system and mobile equipment ● Medical diagnostics, monitoring and life support ● Testing ,monitoring and diagnostic system ● Banking, finance and commercial
  • 8. 8 CHAPTER-2 INTRODUCTION TO OBSTACLE AVOIDING ROBOT Robotics is part of Today's communication. In today’s world ROBOTICS is fast growing and interesting field. It is simplest way for latest technology modification. Now a day's communication is part of advancement of technology, so we decided to work on ROBOTICS field, and design something which will make human life simpler in day today aspect. Thus we are supporting this cause. This project is basic stage of any automatic robot. This ROBOT has sufficient intelligence to cover the maximum area of provided space. It has a infrared sensor which are used to sense the obstacles coming in between the path of ROBOT. It will move in a particular direction and avoid the obstacle which is coming in its path. We have used two D.C motors to give motion to the ROBOT. The construction of the ROBOT circuit is easy and small .The electronics parts used in the ROBOT circuits are easily available and cheap too. The project uses μc AT89C52 as the controlling element. It uses IR (Infra Red) sensors and two IR transmitting circuitry. When the obstacle comes in path of robot IR beam is reflected from the obstacle then sensor gives zero voltage to μc. This zero voltage is detected then μc decides to avoid the obstacle by taking left or right turn. If the sensor gives +5v to μc that means there is no obstacle present in its path so it goes straight until any obstacle is detected. The two IR transmitter circuits are fitted in front on right and left side of robot. The two IR sensors are placed near to transmitters’ IR LEDs. The connections can be given from main circuit to sensors using simple twisted pair cables. Two motors namely right motor and left motor are connected to driver IC (L293D). L293D is interface with μc. Micro-controller sends logic 0 & logic 1 as per the programming to driver IC which moves motors forward or reverse direction. 2.1 BLOCK DIAGRAM:
  • 9. 9 2.2 BLOCK DIAGRAM DESCRIPTION: 1) IR Sensors 2) Microcontroller AT89C52 3) Motor Driver 4) Motors 1. IR TRANSMITTER & RECEIVER The IR Transmitter block mainly used to generate IR signal. It uses timer IC555 in astable multivibrator mode to generate square wave which have continuous pulses of 50% duty cycle of frequency 38 KHz. This transmitter is so arranged that the IR rays are focused on the sensor. IR sensor which gives normally 5v at output of it. After receiving infrared light at output of sensor we get 0v. WORKING: Working of IR sensor is very simple and working principle is totally based on change in resistance of IR receiver which is similar to LDR ( light dependent register ) and reflection of light. Here in this sensor we connect IR receiver in reverse bias so it gives very high resistance if it is not exposed to IR light. The resistance in this case is in range of Mega ohms. But when IR light is reflected back and falls on IR receiver, the resistance of Rx varies in range between Kilo ohms to hundred of ohms. We convert this change in resistance to change in voltage . Then this voltage is applied to a comparator IC
  • 10. 10 which compare it with a threshold level (defined by us according to required range and sensitivity ).If voltage of sensor is more than threshold then output is high else it is low (depends on your connection to comparator ) which can be used directly for microcontroller IR sensor is nothing but a diode, which is sensitive for infrared radiation. This infrared transmitter and receiver is called as IR TX-RX pair. Color of IR transmitter and receiver is different. 2. Microcontroller : This is the most important block of the system. Microcontroller is the decision making logical device which has its own memory, I/O ports, CPU and Clock circuit embedded on a single chip. 3. MOTOR DRIVER: The MCU cannot drive the motors (used to actually make the robot run) directly, so a motor driver is used. L293D is used as driver IC. Motors are connected to this IC. According to program in μc it drives the left and right motor. 4. MOTOR Motor are used for the movement of the robot .here we use the dc motor as it has the principle of speed controlling. CHAPTER-3 HARDWARE IMPLIMENTATION This chapter briefly explains about the hardware implementation of the project. It discusses about design and working of the design with the help of block diagram and circuit diagram and explanation of circuit diagram in detail. 3.1. Schematic Diagram:
  • 11. 11 3.2CIRCUIT DESCRIPTION: Basically the circuit consists of the following blocks:- ● Power supply ● Sensors ● Microcontroller AT89C52 ● Motor driver
  • 12. 12 ● Motors Let us take the overview of each block one by one 3.2.1POWER SUPPLY CIRCUIT: The input to the circuit is applied from the regulated power supply. The a.c. input i.e.,230V from the mains supply is step down by transformer to 12V and is fed to the rectifier. The output obtained from the rectifier is pulsating d.c voltage. So in order to get a pure d.c voltage, the output voltage from the rectifier is fed to a filter to remove any a.c components present even after rectification. Now, this voltage is given to a voltage regulator to obtain a pure constant dc voltage. TRANSFORMERS: Usually, Dc voltages are required to operate various electronic equipment and these voltages are 5v,9v or 12v. but these voltages cannot be obtained directly. Thus the a.c. input available at mains
  • 13. 13 supply i.e.,230v is to be brought down to the required voltages level. This is done by a transformer. Thus, a step down transformer is employed to decrease the voltage to a required level. RECTIFIER: The output from the transformer is fed to the rectifier. It converts a.c into pulsating d.c. the rectifier may be a half wave or a full wave rectifier. In this project, a bridge rectifier is used because of its merits like good stability and full wave rectification. FILTER: Capacitive filter is used in this project. It removes the ripples from the output of the rectifier and smoothens the d.c output received from this filters is constant until the mains voltage and load is maintained constant.however, if either of the two is varied, d.c voltage received at this point changes. Therefore a regulator is applied at the output. 3.2.2 VOLTAGE REGULATOR: As the name itself implies, it regulates the input applied to it. A voltage regulator is an electrical regulator designed to automatically maintain a constant voltage level. In this project, a power supply of 5v and 12v are required. In order to obtain these voltage levels, 7805 and 7812 voltage regulators are to be used. The first 78 represents positive supply and the number 05,12 represents the required output voltage levels.
  • 14. 14 Fig: 4.2 voltage regulator 7805 e.g voltages.,7805 (5 V), 7806 (6 V), 7808 (8 V), 7810 (10 V), 7812(12 V), 7815 (15 V), 7818 (18 V), and 7824 (24 V).These devices can handle a maximum output current of 1.5 A if properly heat-sunk. To remove unwanted input or output spikes/noise, capacitors can be attached to the regulator’s input and output terminals. 3.3 HARDWARE MODULES: The hardware modules of this project are: ● Microcontroller
  • 15. 15 ● Motor driver ● Motor 3.3 HARDWARE MODULE DISCRIPITON: 3.3.1 MICROCONTROLLER (AT89C52):- The AT89C52 is a low power ,high performance CMOS 8 bit microcomputer with 8k bytes of flash programmable and erasable read only memory .The device is manufactured using Atmel’s high density nonvolatile memory technology and is compatible with the industry standard 80C51 and 80C52 instrution set and pinout . The on-chip flash allows the program memory to be reprogrammed in system or by a conventional nonvolatile memory programmer.By combining a versatile 8-bit CPU with Flash on a monolithic chip, the Atmel AT89C52 is a powerful with Flash on a monolithic chip, the Atmel AT89C52 is a powerful microcomputer with Flash on a monolithic chip, the Atmel AT89C52 is a powerful microcomputer 3.3.2 FEATURES: ● Compatible with MCS-51™ Products ● K Bytes of In-System Reprogrammable Flash Memory ● Endurance: 1,000 Write/Erase Cycles ● Fully Static Operation: 0 Hz to 24 MHz ● Three-level Program Memory Lock ● 256 x 8-bit Internal RAM ● 32 Programmable I/O Lines ● Three 16-bit Timer/Counters ● Eight interrupt sources
  • 16. 16 3.3.3 PIN DIAGRAM: Figure: 3.1 pin diagram of 8051 3.3.4 PIN DESCRIPTION: VCC -Supply voltage. GND-Ground PORT 0- Port 0 is an 8-bit open drain bidirectional I/O port.As an output port, each pin can sink eight TTL inputs. When 1s are written to port 0 pins, the pins can be used as high impedance inputs Port 0 can also be configured to be the multiplexed loworder address/data bus during accesses to external program and data memory. In this mode, P0 has internal pullups.Port 0 also receives the code bytes during Flash programming and outputs the code bytes during program verification.External pull ups are required during program verification.
  • 17. 17 PORT 1- Port 1 is an 8-bit bidirectional I/O port with internal pullups.The Port 1 output buffers can sink/source four TTL inputs.When 1s are written to Port 1 pins, they are pulled high bythe internal pullups and can be used as inputs. As inputs Port 1 pins that are externally being pulled low will source current (IIL) because of the internal pullups. PORT 2- Port 2 is an 8-bit bidirectional I/O port with internal pullups.The Port 2 output buffers can sink/source four TTL inputs.When 1s are written to Port 2 pins, they are pulled high bythe internal pullups and can be used as inputs. As inputs,Port 2 pins that are externally being pulled low will sourcecurrent (IIL) because of the internal pullups.Port 2 emits the high-order address byte during fetches from external program memory and during accesses toexternal data memory that use 16-bit addresses (MOVX @DPTR). In this application, Port 2 uses strong internal pullupswhen emitting 1s. During accesses to external data memory that use 8-bit addresses (MOVX @ RI), Port 2emits the contents of the P2 Special Function Register.Port 2 also receives the high-order address bits and somecontrol signals during Flash programming and verification. PORT 3- Port 3 is an 8-bit bidirectional I/O port with internal pullups.The Port 3 output buffers can sink/source four TTL inputs.When 1s are written to Port 3 pins, they are pulled high bythe internal pullups and can be used as inputs. As inputs,Port 3 pins that are externally being pulled low will sourcecurrent (IIL) because of the pullups.Port 3 also serves the functions of various special features of the AT89C51, as shown in the following table.Port 3 also receives some control signals for Flash programming and verification. Port Pin Alternate Functions P3.0 RXD (serial input port) P3.1 TXD (serial output port) P3.2 INT0 (external interrupt 0) P3.3 INT1 (external interrupt 1) P3.4 T0 (timer 0 external input)
  • 18. 18 P3.5 T1 (timer 1 external input) P3.6 WR (external data memory write strobe) P3.7 RD (external data memory read strobe) RST- Reset input. A high on this pin for two machine cycles while the oscillator is running resets the device. ALE/PROG- Address Latch Enable is an output pulse for latching the low byte of the address during accesses to external memory.This pin is also the program pulse input (PROG) duringFlash programming.In normal operation, ALE is emitted at a constant rate of 1/6the oscillator frequency and may be used for external timing or clocking purposes. Note, however, that one ALE pulse is skipped during each access to external data memory.If desired, ALE operation can be disabled by setting bit 0 ofSFR location 8EH. With the bit set, ALE is active only during a MOVX or MOVC instruction. Otherwise, the pin is weakly pulled high. Setting the ALE-disable bit has noeffect if the microcontroller is in external execution mode. PSEN- Program Store Enable is the read strobe to external program memory.When the AT89C52 is executing code from external program memory, PSEN is activated twice each machine cycle, except that two PSEN activations are skipped during each access to external data memory. EA/VPP- External Access Enable. EA must be strapped to GND in order to enable the device to fetch code from external program memory locations starting at 0000H up to FFFFH.Note, however, that if lock bit 1 is programmed, EA will be internally latched on reset.EA should be strapped to VCC for internal program executions. This pin also receives the 12-volt programming enable voltage(VPP) during Flash programming when 12-volt programming is selected. XTAL1 Input to the inverting oscillator amplifier and input to the internal clock operating circuit.
  • 19. 19 XTAL2 Output from the inverting oscillator amplifier. Oscillator Characteristics XTAL1 and XTAL2 are the input and output, respectively,of an inverting amplifier that can be configured for use as an on-chip oscillator, as shown in Figure 7. Either a quartz crystal or ceramic resonator may be used. To drive the device from an external clock source, XTAL2 should be left unconnected while XTAL1 is driven. There are no requirements on the duty cycle of the external clock signal, since the input to the internal clocking circuitry is through a divide-by-two flip-flop, but minimum and maximum voltage high and low time specifications must be 3.3.5 BLOCK DIAGRAM:
  • 20. 20 3.4 MOTOR DRIVER: The L293d is a quadruple high-current half-H driver designed to provide bidirectional drive currents of up to 1 A at voltages from 4.5 V to 36 V. It is designed to drive inductive loads such as relays,solenoids, dc and bipolar stepping motors, as wellas other high-current/high-voltage loads in positive-supply applications.All inputs are TTL compatible. Each output is a complete totem-pole drive circuit with a Darlington transistor sink and a pseudo-Darlington source.
  • 21. 21 Drivers are enabled in pairs with drivers 1 and 2 enabled by 1,2EN and drivers 3 and 4 enabled by3,4EN. When an enable input is high, the associated drivers are enabled and their outputs are active and in phase with their inputs. When the enable input is low, those drivers are disabled and their outputs are off and in a high-impedance state. With the proper data inputs, each pair of drivers form a full-H (or bridge) reversible drive suitable for solenoid or motor applications. External high-speed output clamp diodes should be used for inductive transient suppression. AVCC1 terminal, separate from VCC2, is provided for the logic inputs to minimize device power dissipation. The L293d is designed for operation from 0°C TOP VIEW OF L293D: Figure : 3.4 top view of L293D 3.4.1 FEATURES: ● 1-A Output Current Capability Per Driver ● Pulsed Current 2-A Driver ● Wide Supply Voltage Range: 4.5 V to 36 V ● Separate Input-Logic Supply ● NE Package Designed for Heat Sinking ● Thermal Shutdown ● Internal ESD Protection ● High-Noise-Immunity Inputs 3.4.2 MOTOR:
  • 22. 22 A direct current (DC) motor is another widely used device that translates electrical pulses into mechanical movement. In the DC motor we have only + and - leads. Connecting them to a DC voltage source moves the motor in one direction. By reversing the polarity, the DC motor will move in the opposite direction. One can easily experiment with the DC motor. For example, small fans used in many motherboards to cool the CPU are run by DC motors. By connecting their leads to the + and - voltage source, the DC motor moves. While a stepper motor moves in steps of 1 to 15 degrees, the DC motor moves continuously. In a stepper motor, if we know the starting position we can easily count the number of steps the motor has moved and calculate the final position of the motor. This is not possible in a DC motor. The maximum speed of a DC motor is indicated in rpm and is given in the data sheet. The DC motor has two rpms: no-load and loaded. The manufacturer's data sheet gives the no-load rpm. The no- load rpm can be from a few thousand to tens of thousands. The rpm is reduced when moving a load and it decreases as the load is increased. For example, a drill turning a screw has a much lower rpm speed than when it is in the no-load situation. DC motors also have voltage and current ratings. The nominal voltage is the voltage for that motor under normal conditions, and can be from 1 to 150V, depending on the motor. As we increase the voltage, the rpm goes up. The current rating is the current consumption when the nominal voltage is applied with no load, and can be from 25mA to a few amps. As the load increases, the rpm is decreased, unless the current or voltage provided to the motor is increased, which in turn increases the torque. With a fixed voltage, as the load increases, the current (power) consumption of a DC motor is increased. If we overload the motor it will stall, and that can damage the motor due to the heat generated by high current consumption.
  • 23. 23 3.4.1ADVANTAGES: ● Easy to understand design ● Easy to control speed ● Easy to control torque ● Simple ,cheap drive design 3.5 MOTOR DRIVER (L293D): From microcontroller we cannot connect a motor directly because microcontroller can not give sufficient current to drive the DC motors. Motor driver is a current enhancing device, it can also be act as Switching Device. Thus we insert motor driver in between motor and microcontroller.Motor driver take the input signals from microcontroller and generate corresponding output for motor. L293D- This is a motor driver IC that can drive two motor simultaneously.
  • 24. 24 POINTS REGARDING L293D: Supply voltage (Vss) is the Voltage at which we wish to drive the motor. Generally we prefer 6V for dc motor and 6 to 12V for gear motor, depending upon the rating of the motor.Logical Supply Voltage will decide what value of input voltage should be considered as high or low .So if we set Logical Supply Voltage equals to +5V,then -0.3V to 1.5V will be considered as Input Low Voltage and 2.3 V to 5V will be considered as Input High Voltage. ➢ L293D has 2 Channels .One channel is used for one motor. Channel 1 - Pin 1 to 8 Channel 2 - Pin 9 to 16 ➢ Enable Pin is use to enable or to make a channel active .Enable pin is also called as Chip Inhibit Pin. ➢ All Input (Pin No. 2, 7,10and 15) of L293D IC is the output from microcontroller . ➢ All Output (Pin No. 3, 6,11and 14) of L293D IC goes to the input of Right and Left motor. OUTPUT CONNECTIONS: OUTPUT 1 (Pin No 3) --- Negative Terminal of Right Motor
  • 25. 25 OUTPUT 2 (Pin No 6) --- Positive Terminal of Right Motor OUTPUT 3 (Pin No 10) --- Positive Terminal of Left Motor OUTPUT 4 (Pin No 14) --- Negative Terminal of Left Motor For one motor: Table4.1 motor movement Positive Terminal Negative Terminal Motor Output 0 0 No Movement Vss 0 Straight 0 Vss Reverse Vss Vss No Movement One channel corresponds to one motor. ➢ Enable pin should be high for activating the corresponding channel. Input 1 corresponds to Output 1. ➢ If Enable 1=High (1) Input1 =High (1), Output1=Vss Input1 =Low (0), Output1=0 ➢ If Enable 1=Low (0) Input1 =High (1), Output1=0 Input1 =Low (0), Output1=0 Means if Enable pin low, the output will be at 0 always. If its high output depend on input
  • 26. 26 MOTOR OUTPUT SYSTEM: For moving a robot we have two dc motors attached to wheels gears. WHY DC MOTORS: DC motors are most easy to control. One dc motor requires only two signals for its operation. If we want to change its direction just reverse the polarity of power supply across it. We can vary speed by varying the voltage across motor. WHY TWO MOTORS: By using two motors we can move our robot in any direction. This steering mechanism of robot is called as differential drive.
  • 27. 27 Left Motor Right Motor Robot Movement Straight Straight Straight Stop Straight Left Reverse Straight Sharp Left Straight Stop Right Straight Reverse Sharp right
  • 28. 28 Reverse Reverse Reverse 3.6 SENSORS:- The IR Transmitter block mainly used to generate IR signal. It uses timer IC555 in astable multivibrator mode to generate square wave which have continuous pulses of 50% duty cycle of frequency 38 KHz. This transmitter is so arranged that the IR rays are focused on the sensor. IR sensor which gives normally 5v at output of it. After receiving infrared light at output of sensor we get 0v.
  • 29. 29 CHAPTER-5 SOFTWARE IMPLIMENTATION Software tools required: Keil µv3, Proload are the two software tools used to program microcontroller. The working of each software tool os explained below in details. 5.1 PROGRAMING MICROCONTROLLER A complier for a high level language helps to reduce production time. To program th AT89S52 microcontroller the keil µV3 is used. The programming is done strictly in the embedded C language. The compilation of the C program converts it into machine language file (.hex).this is the only language the micro controller will understand, because it contains the original program code converted into hex decimal format. During this step there are some warnings about eventual errors in the program. This is shown in fig. below.
  • 30. 30 Fig. Compilation source code 5.1.1 KEIL Compiler Keil complier is software used where the machine language code is written and compiled. After compilation, the machine source code is converted into hex code which is to be dumped into the microcontroller for further processing. Keil compiler also supports C language code. 5.1.2. PROLOAD Proload is software which accepts only hex files. Once the machine code is converted into hex code,that hex code has to be dumped into the micro controller and this is done by the proload. Proload programmer which itself contains a micro controller in it other than the one which is to be programmed. This micro controller has a program in it written in such away that it accepts the hex file from keil compiler and dumps this hex file into the microcontroller which is to be programmed. As the proload programmer kit requires power supply to be operated,this power supply is given from the power supply circuit designed above. It should be noted that this programmer kit contains power supply section board itself in order to switch on that power supply, a source is required. Thus this is accomplished from the power supply board with an output of 12V. Features: ● Supports major Atmel 89 series devices ● Auto identify connected hardware and devices ● Error checking and verification in built ● Lock of programs in chip supported to prevent program copying
  • 31. 31 ● 20-40 pins ZIF socket on board ● Auto Erase before writing and Auto verify after writing ● Informative status bar and access to latest programmed file ● Simple and easy to use ● Works on 57600 speed CODING: #include<reg51.h> //Motor connections sbit en1=P2^0; sbit in1 =P2^2; sbit in 2=P2^3; sbit En 2=P2^1; sbit in3= P2^4; sbit in4= P2^5; // IR Sensor sbit ir1= P1^1; //right sbit ir2= P1^2; //left void main( ) { ir1=ir2=0; en1=en2=in3=in4=in1=in2=0; while( 1) {
  • 32. 32 en1=1; en2=1; if (ir1==0 && ir2==0) { in1=1; in2=0; in3=1; in4=0; delay(); } //forward if (ir1==0 && ir2==1) { en1=1; in1=1; in2=0; en2=0; in3=0; in4=0; delay(); } //right if (ir1==1 && ir2==0) { in1=0; in2=0;
  • 33. 33 in3=1; in4=0; delay(); } //left if (ir1==1 && ir2==1) { in1=0; in2=1; in3=0; in4=1; //back delay(); } } } Void delay () { int i; for (i=0;i<=500;i++) }
  • 34. 34 CONCLUSION The project is “obstacle detection and the avoidance robot” is practically proved by using the IR pairs for sensing the robot, h bridge for the driving the dc motor, dc motor isused for the movement of the robot with the help of the micro controller.
