This document describes a vehicle accident detection and tracking system using GPS, GSM, and MEMS sensors. The system detects accidents using a MEMS sensor and then uses GPS to determine the vehicle's location. The location is sent via GSM to emergency services and authorized contacts to provide rapid response. The system aims to quickly locate accident sites and notify help in remote areas with limited communication infrastructure.

1. ACCIDENT DETECTION AND
VEHICLE TRACKING
USING GPS,GSM AND MEMS
BY
M.KRISHNA KANTH (08UQ1A0401)
MOINUDDIN(08UQ1A0446)
ABHILASH KUMAR SINGH (08UQ1A0457)

2. INTRODUCTION
 The main intention of this project is to find the accident
spot at any place and intimating it to ambulance through the
GPS and GSM networks
 The GPS based vehicle accident identification module
contains MEMS,GSM module and a GPS modem connected
to the microcontroller
 Global System for Mobiles (GSM) technology is used to
establish cellular connection
GPS is used to trace the position of the vehicle

3. INTRODUCTION….

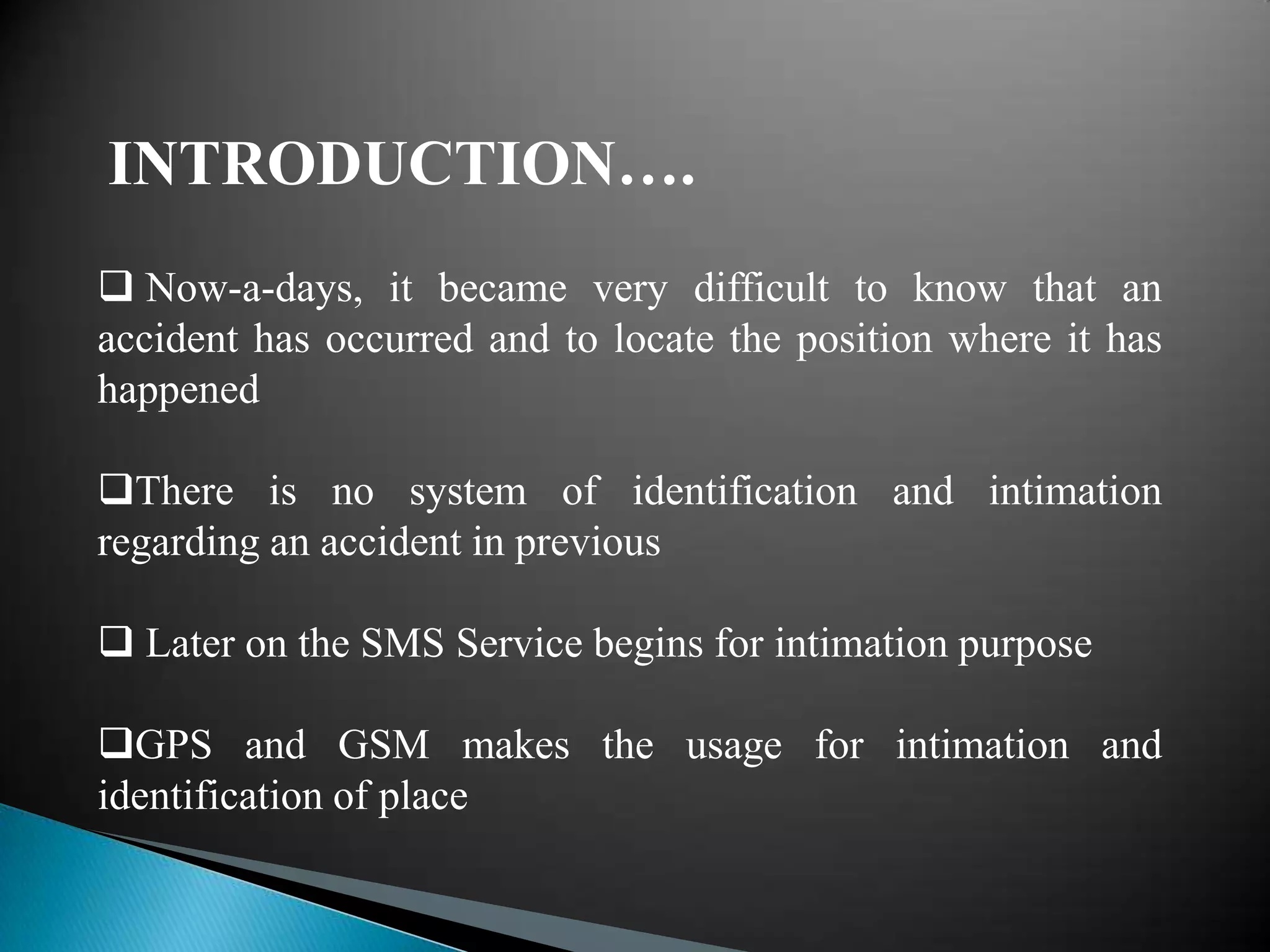

 Now-a-days, it became very difficult to know that an
accident has occurred and to locate the position where it has
happened
There is no system of identification and intimation
regarding an accident in previous
 Later on the SMS Service begins for intimation purpose
GPS and GSM makes the usage for intimation and
identification of place

4. PREVIOUS SYSTEM
When an accident occurs the information only is sent through
GSM but there is no possibility to locate the spot

5. PROPOSED SYSTEM
This Project presents an automotive localization system
using GPS and GSM-SMS services

6. TRANSMITTER SECTION:
MEMS L
P
C POWER SUPPLY
M 2
GPS
A
MODEM 1
X
2 4
GSM 3
2 8
MODEM

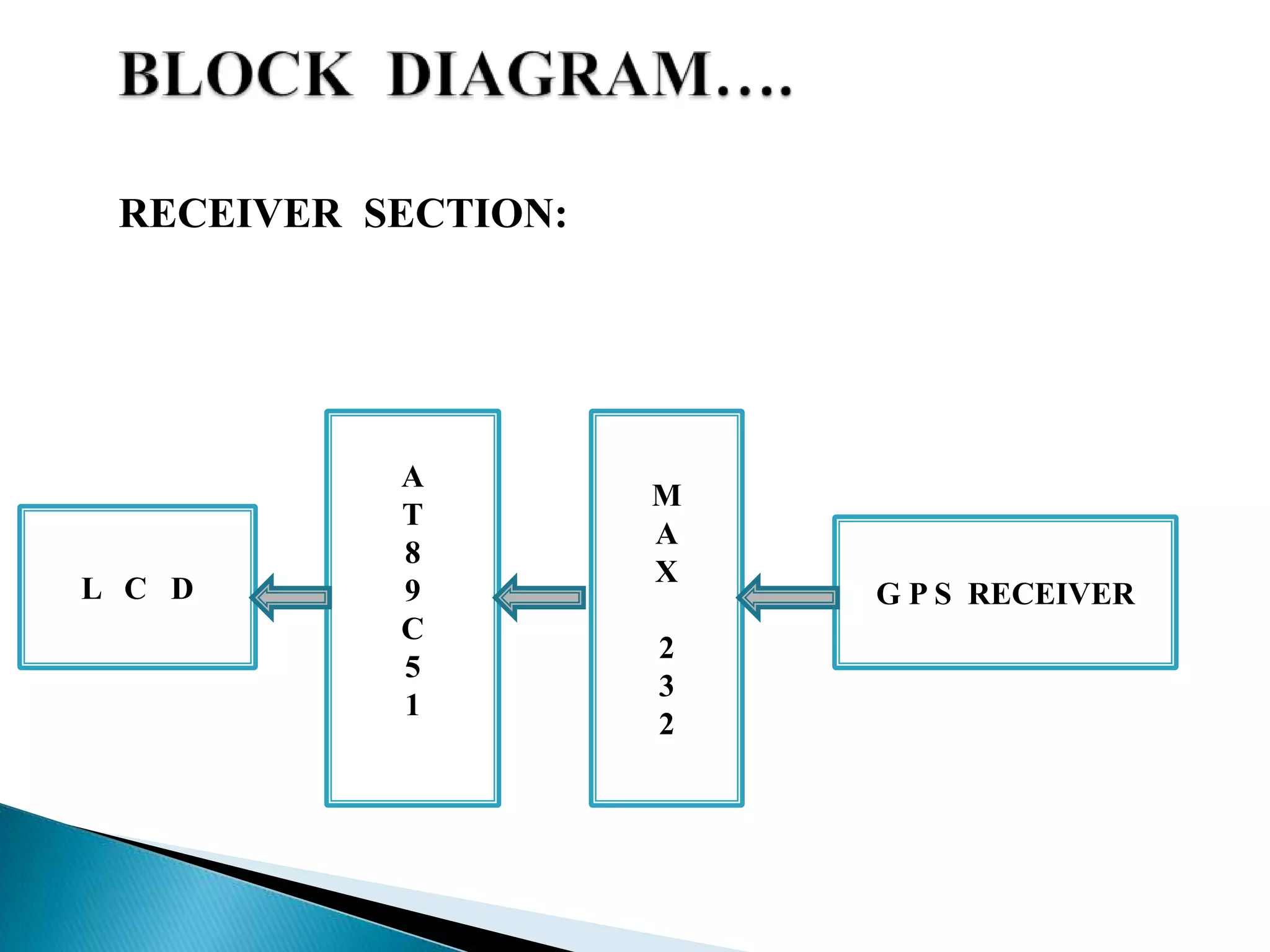

7. RECEIVER SECTION:
A
M
T
A
8
X
L C D 9 G P S RECEIVER
C
2
5
3
1
2

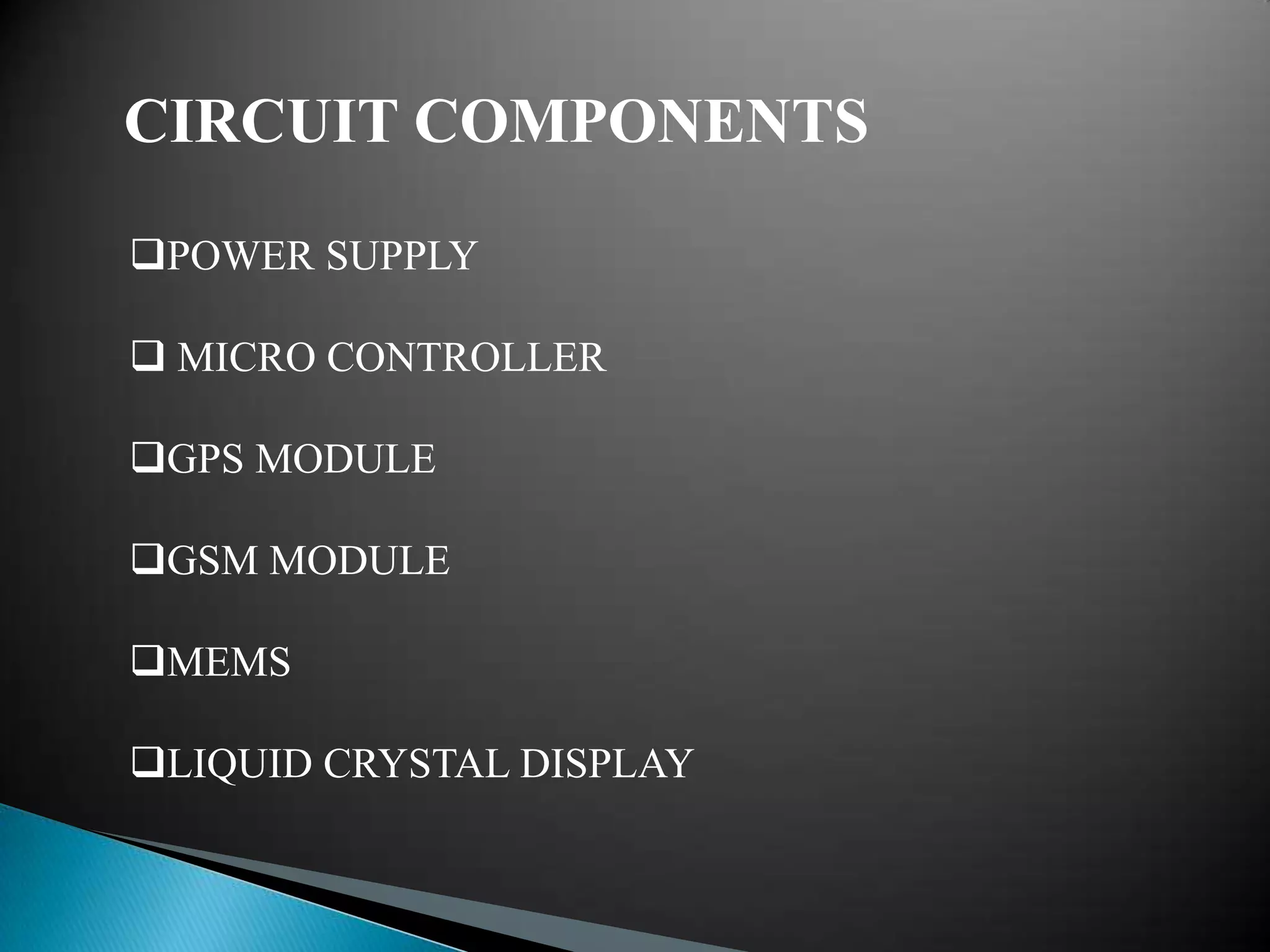

8. CIRCUIT COMPONENTS
POWER SUPPLY

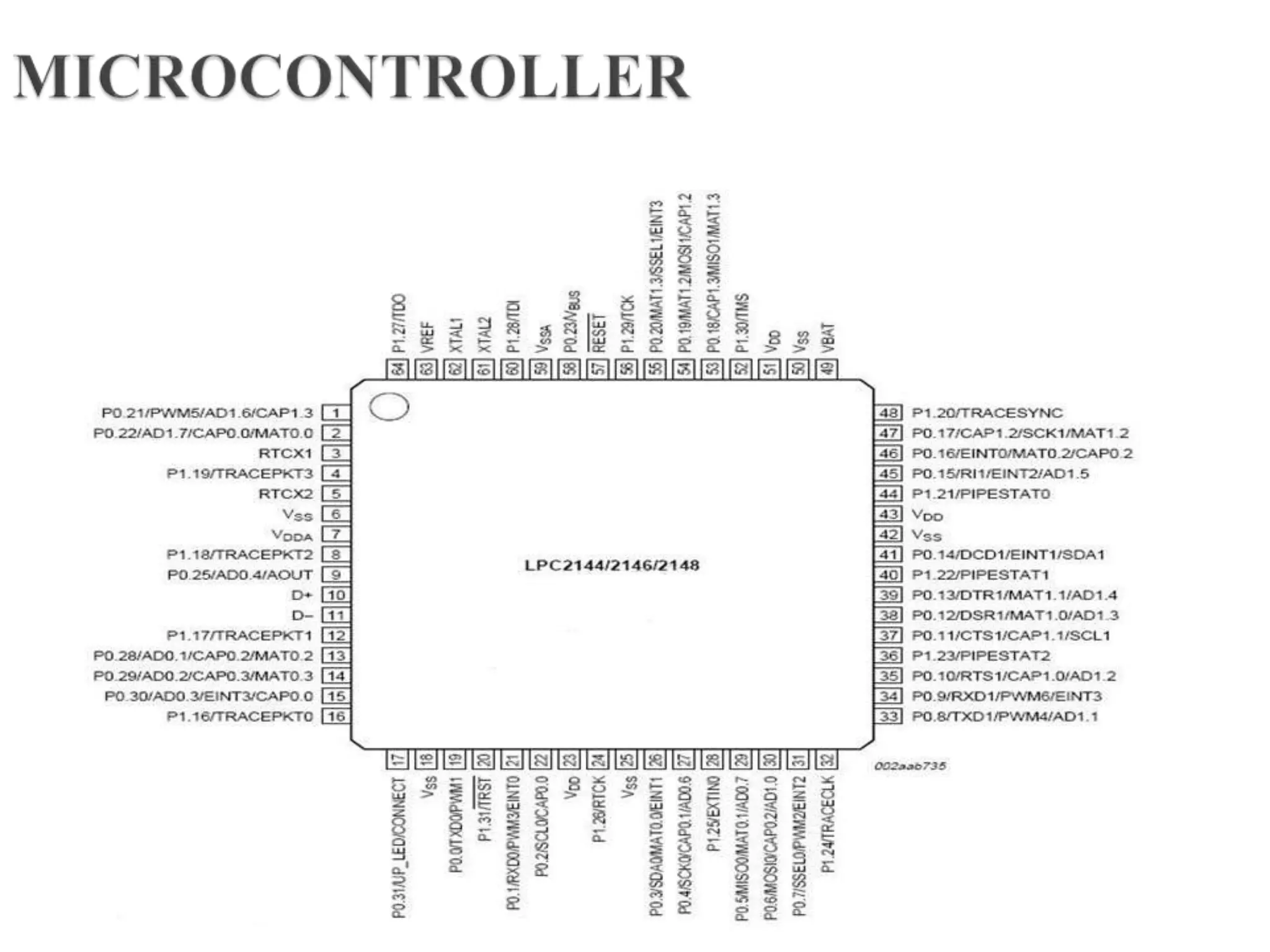

 MICRO CONTROLLER
GPS MODULE
GSM MODULE
MEMS
LIQUID CRYSTAL DISPLAY

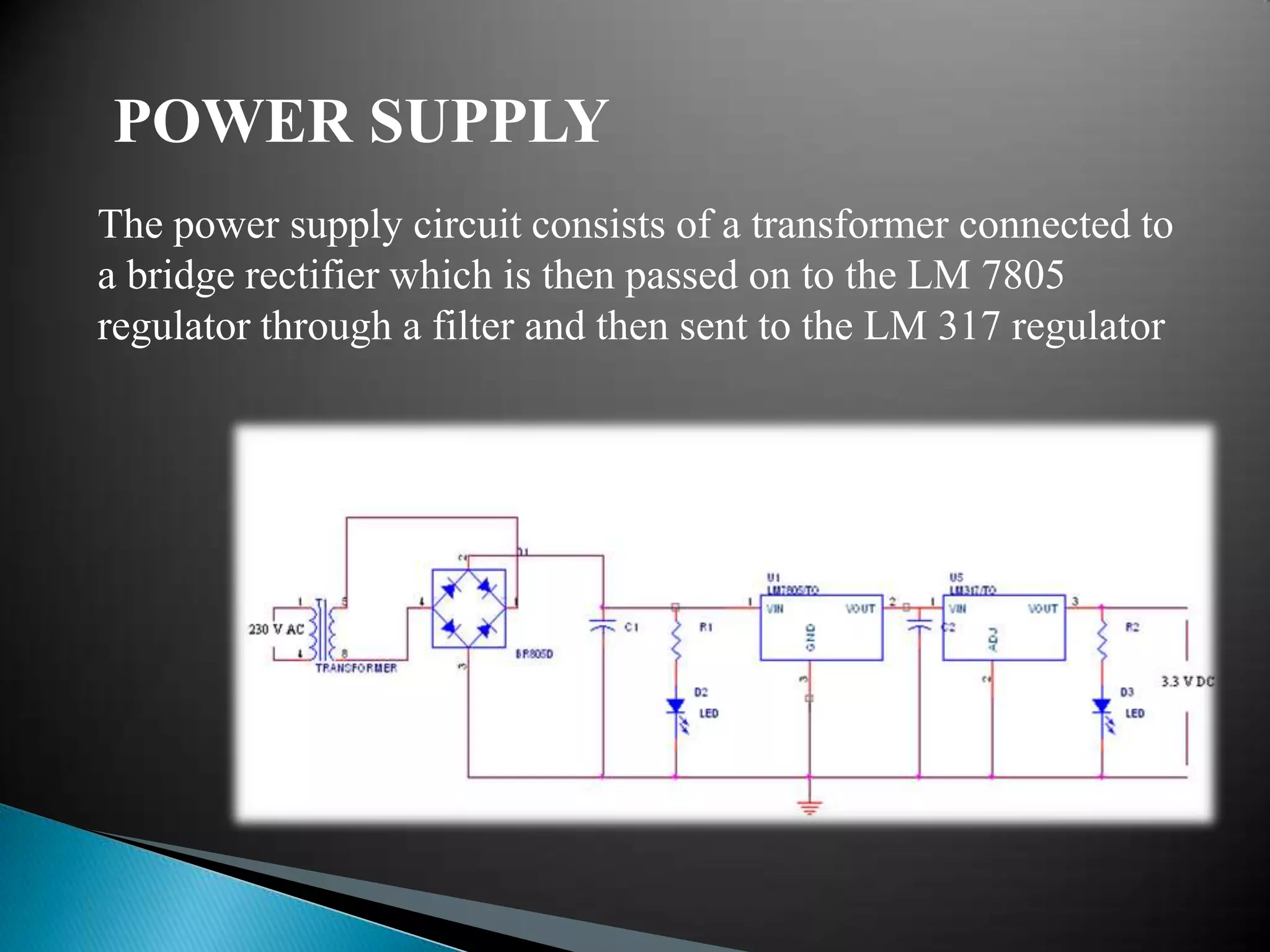

9. POWER SUPPLY
The power supply circuit consists of a transformer connected to
a bridge rectifier which is then passed on to the LM 7805
regulator through a filter and then sent to the LM 317 regulator

11. Global Positioning System
27 Satellites
Orbit the Earth twice a day
Equipped with an Atomic clock
GPS Receiver
3-D Trilateration
GPS Receiver locates 4 satellites above it
Then it calculates the distance to GPS satellites by
timing a signal's journey from satellite to receiver

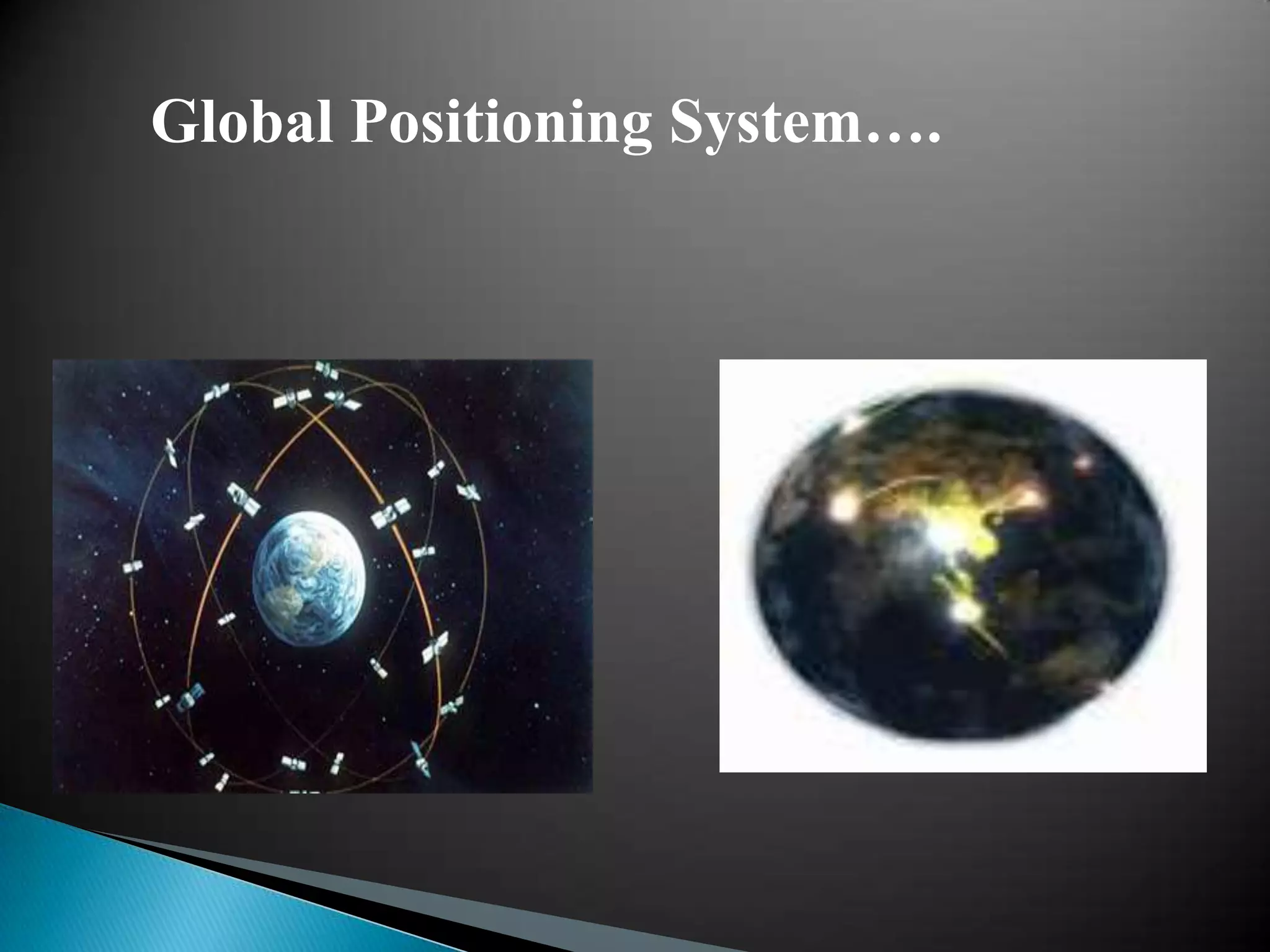

12. Global Positioning System….

13. GPS MODULE

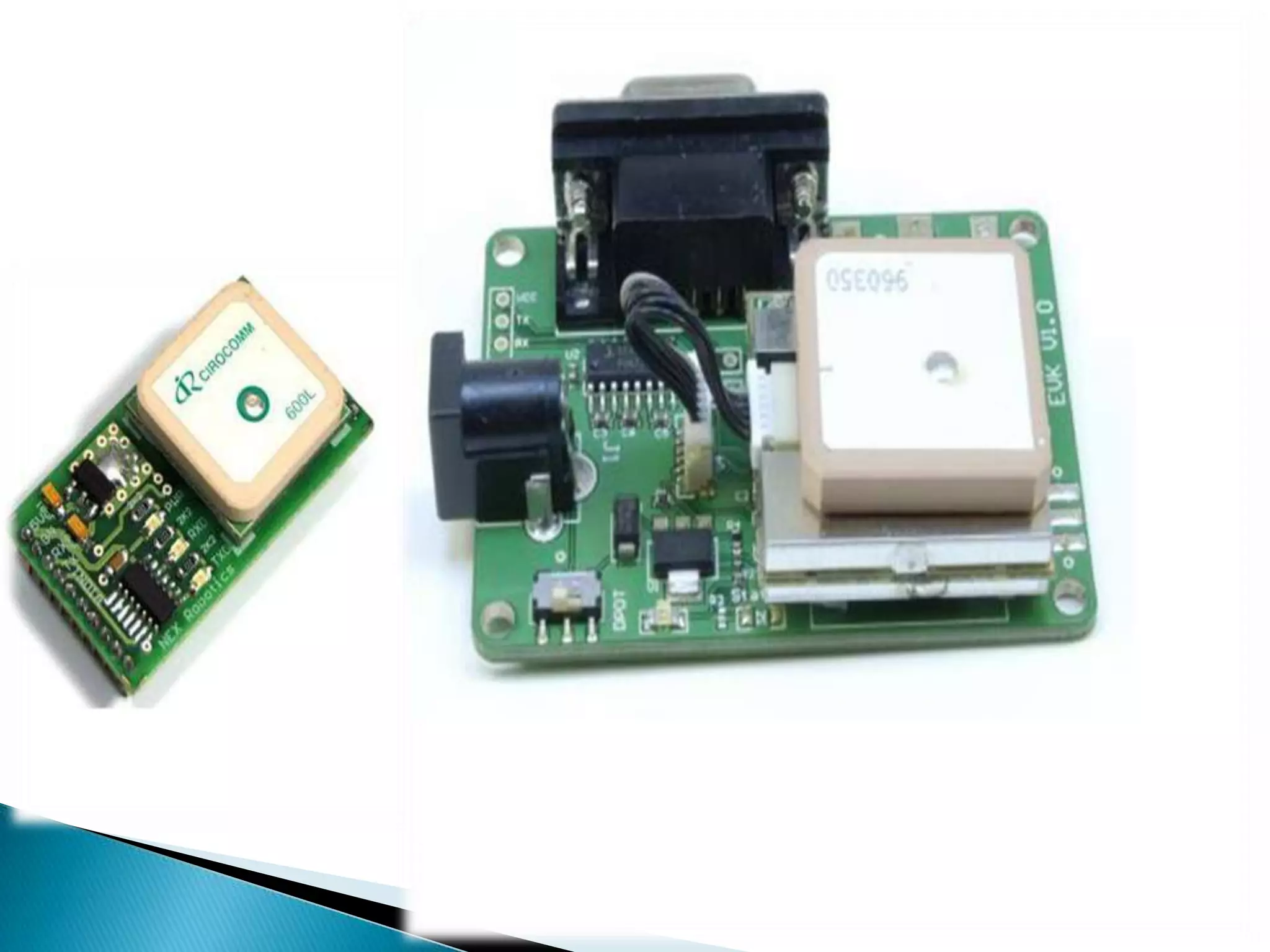

The GPS module ProGin SR-87 series is used
High performance receiver tracks up to 20 satellites
The module communicates with application system via
RS232 with NMEA-0183 protocol
Average Cold Start time under 42 seconds
NMEA 0183 a combined electrical and data specification for
communication between marine electronic devices such as
GPS receivers, anemometer ,etc

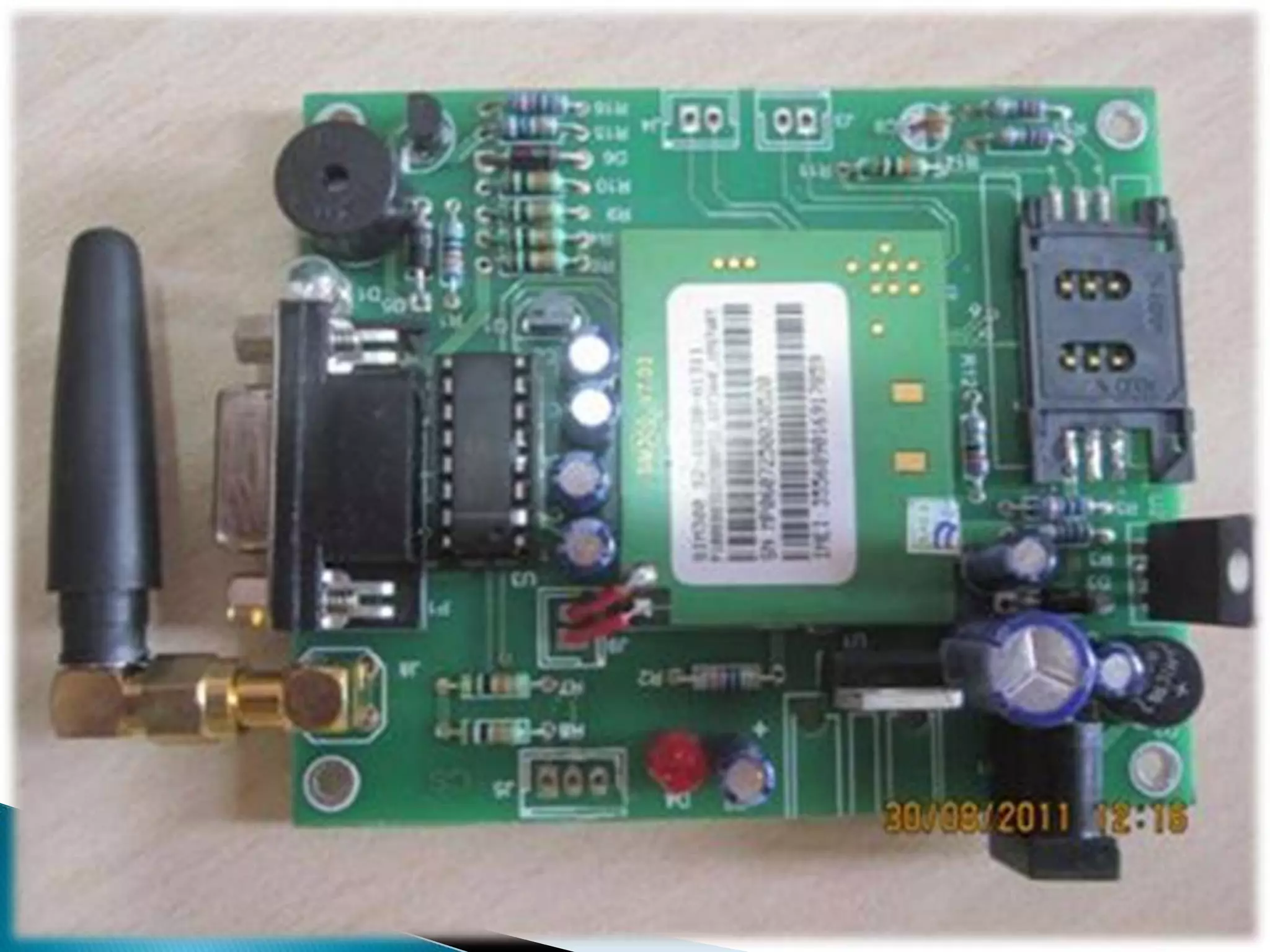

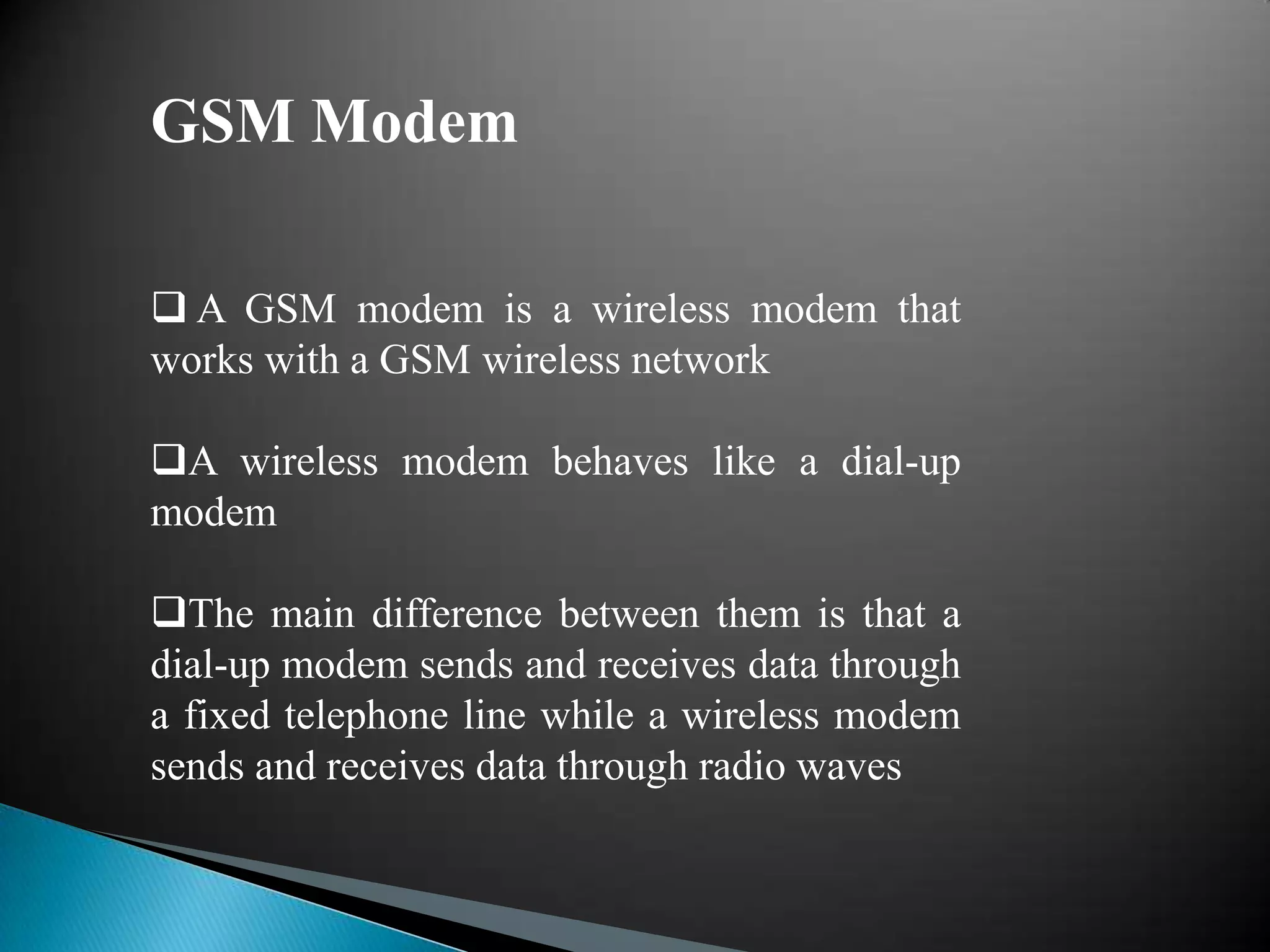

15. GSM Modem
 A GSM modem is a wireless modem that
works with a GSM wireless network
A wireless modem behaves like a dial-up
modem
The main difference between them is that a
dial-up modem sends and receives data through
a fixed telephone line while a wireless modem
sends and receives data through radio waves

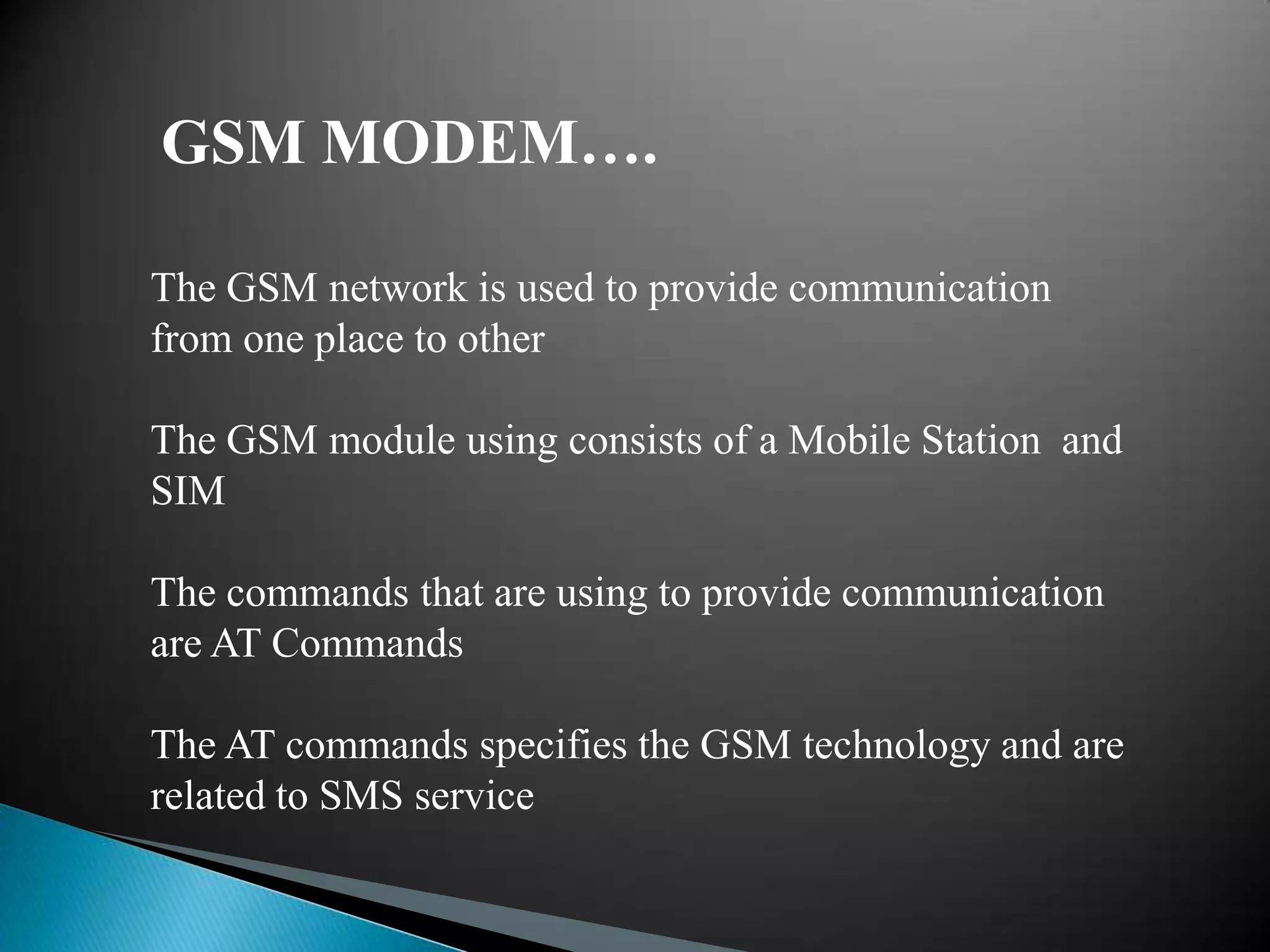

16. GSM MODEM….
The GSM network is used to provide communication
from one place to other
The GSM module using consists of a Mobile Station and
SIM
The commands that are using to provide communication
are AT Commands
The AT commands specifies the GSM technology and are
related to SMS service

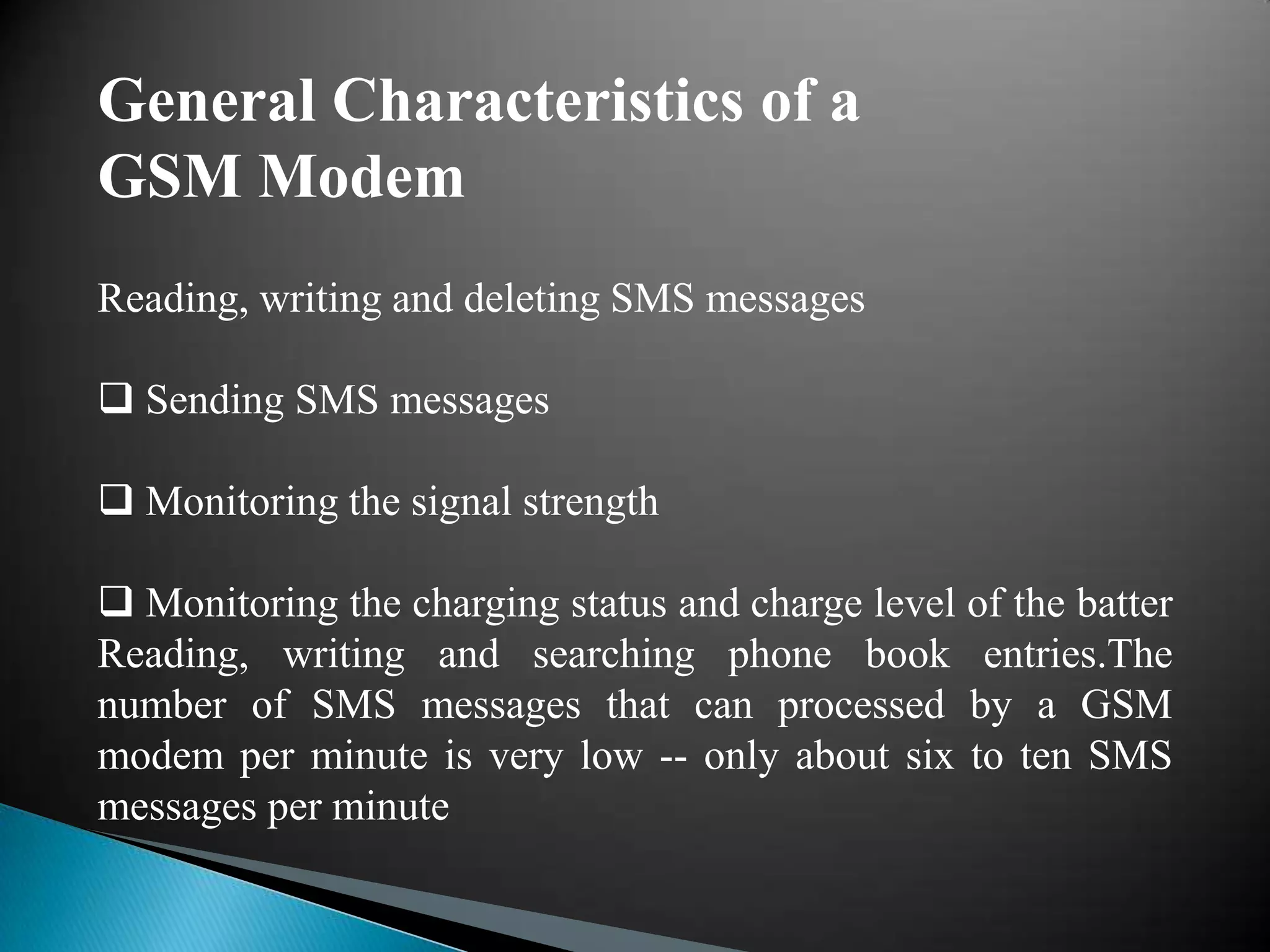

18. General Characteristics of a
GSM Modem
Reading, writing and deleting SMS messages
 Sending SMS messages
 Monitoring the signal strength
 Monitoring the charging status and charge level of the batter
Reading, writing and searching phone book entries.The
number of SMS messages that can processed by a GSM
modem per minute is very low -- only about six to ten SMS
messages per minute

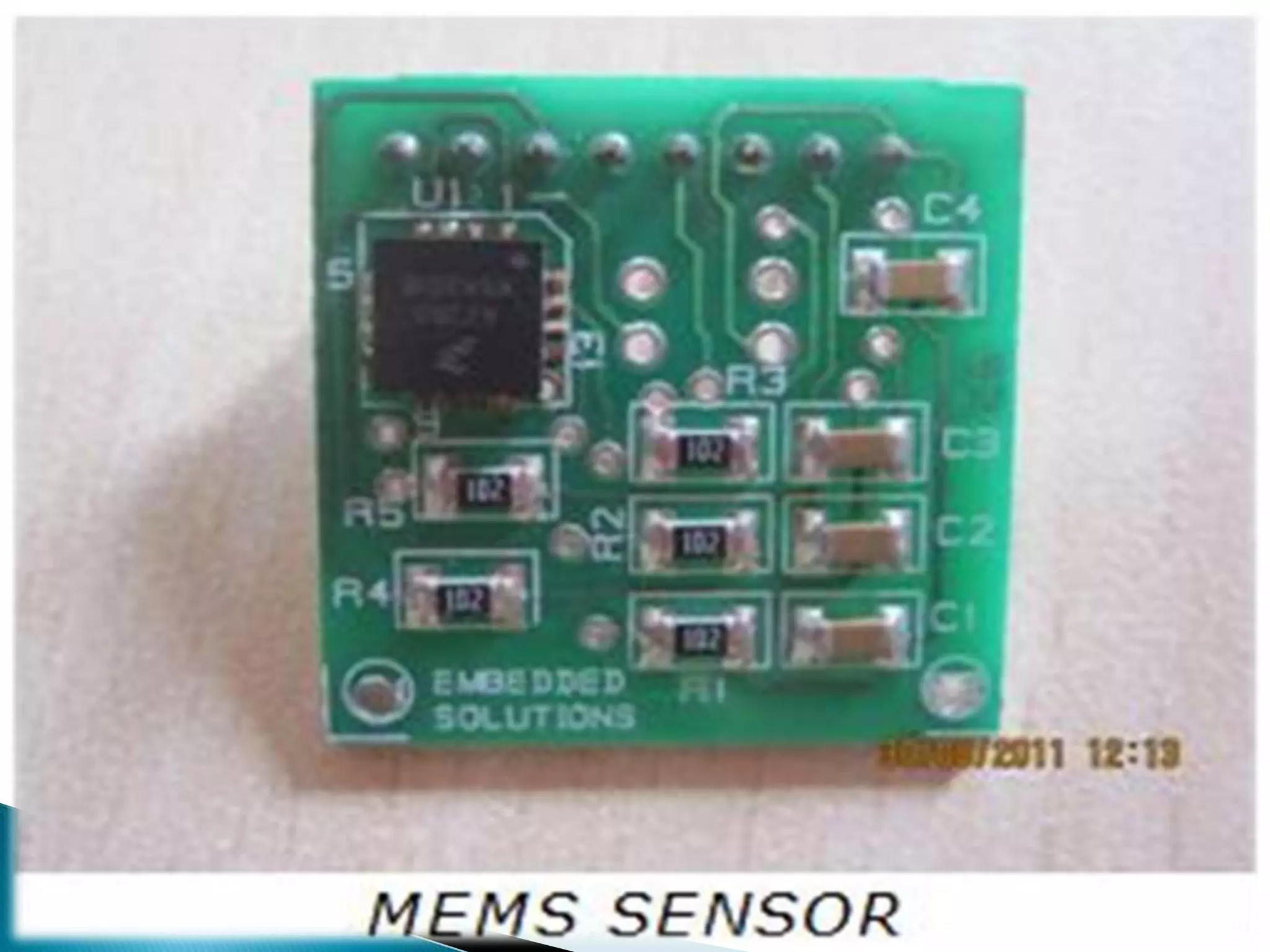

19. MEMS
MEMS or Micro Electro Mechanical Systems is a
technique of combining Electrical and Mechanical
components together on a chip, to produce a system of
miniature dimensions

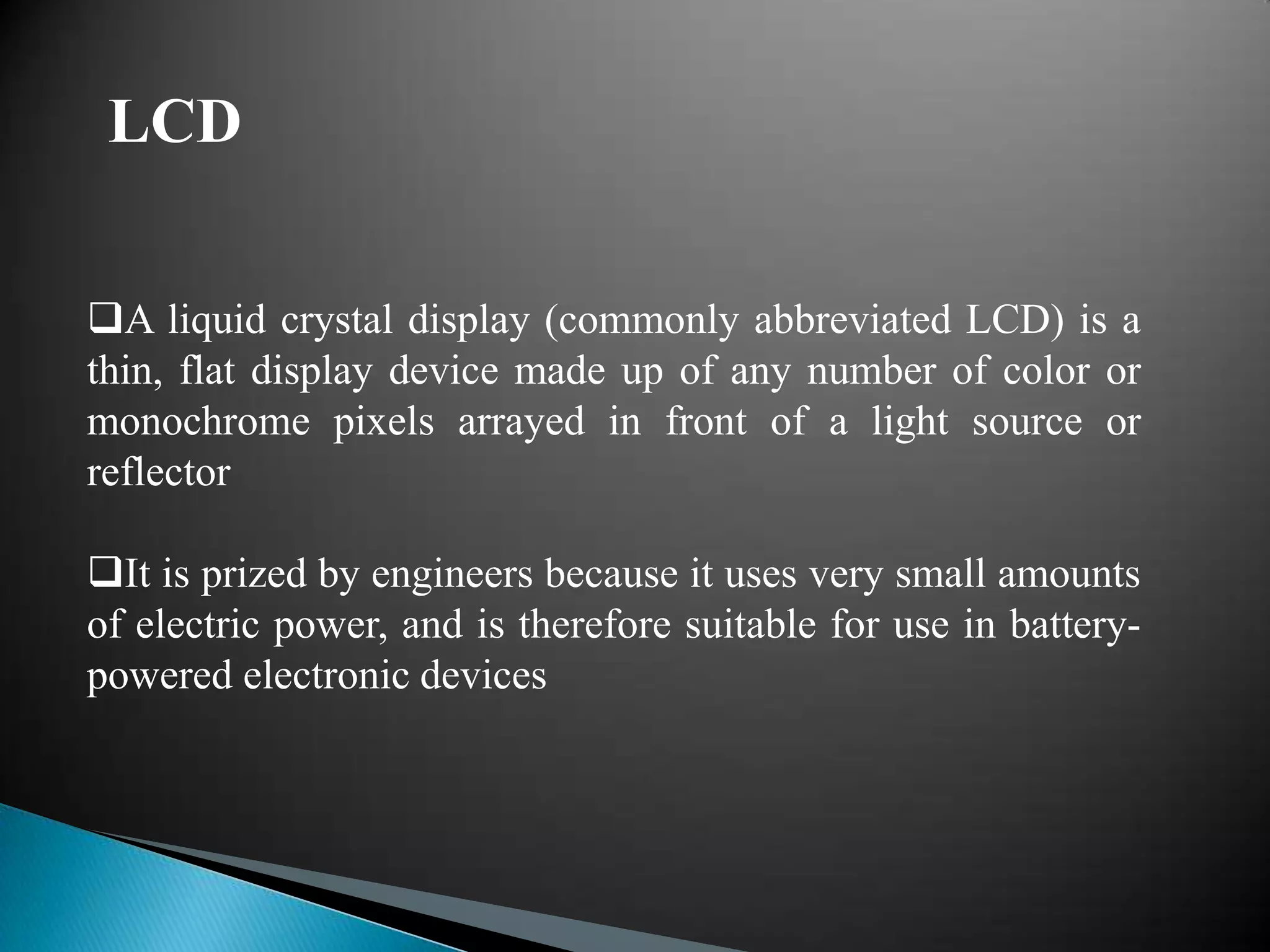

21. LCD
A liquid crystal display (commonly abbreviated LCD) is a
thin, flat display device made up of any number of color or
monochrome pixels arrayed in front of a light source or
reflector
It is prized by engineers because it uses very small amounts
of electric power, and is therefore suitable for use in battery-
powered electronic devices

22. LCD….

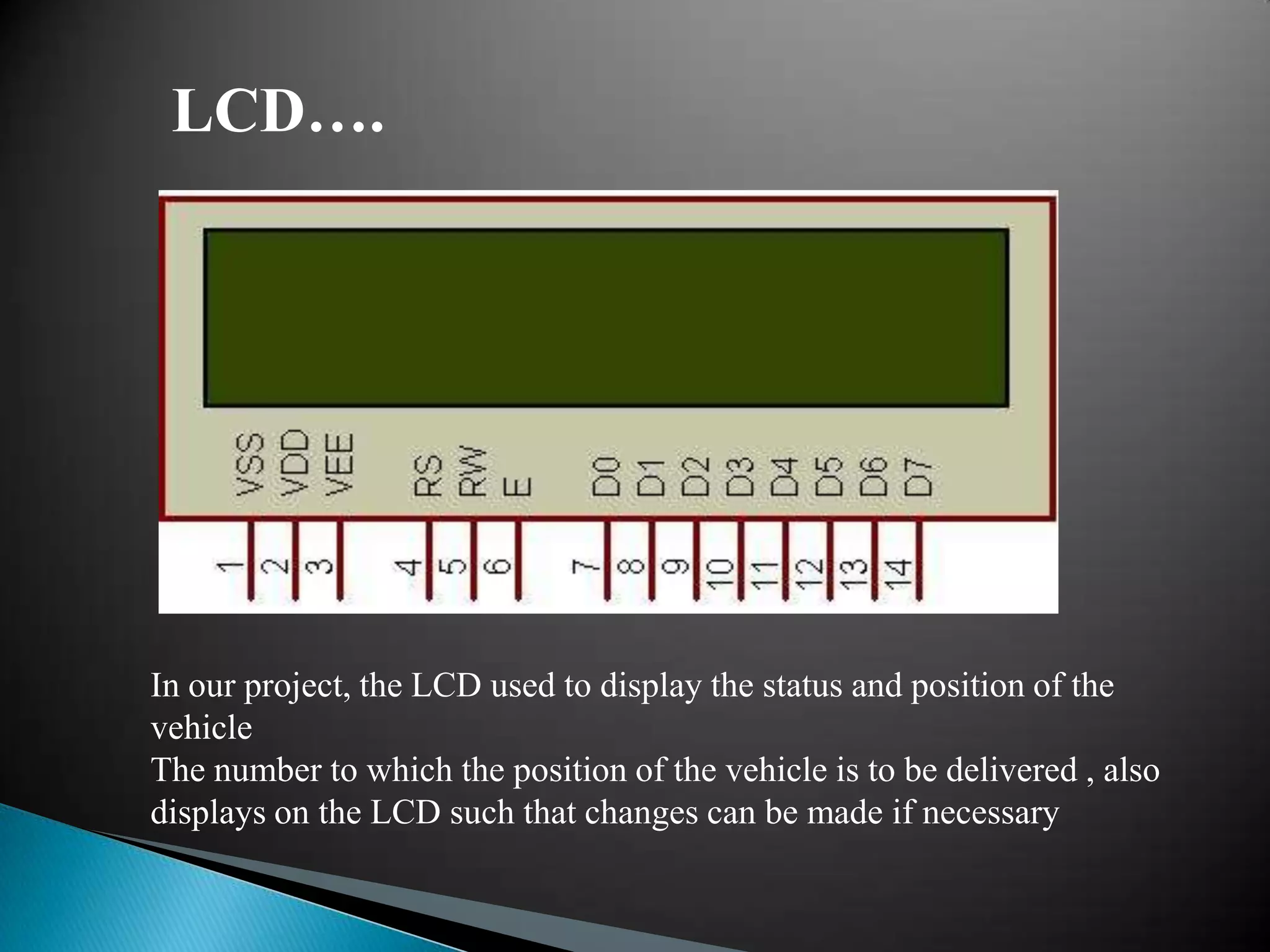

In our project, the LCD used to display the status and position of the
vehicle
The number to which the position of the vehicle is to be delivered , also
displays on the LCD such that changes can be made if necessary

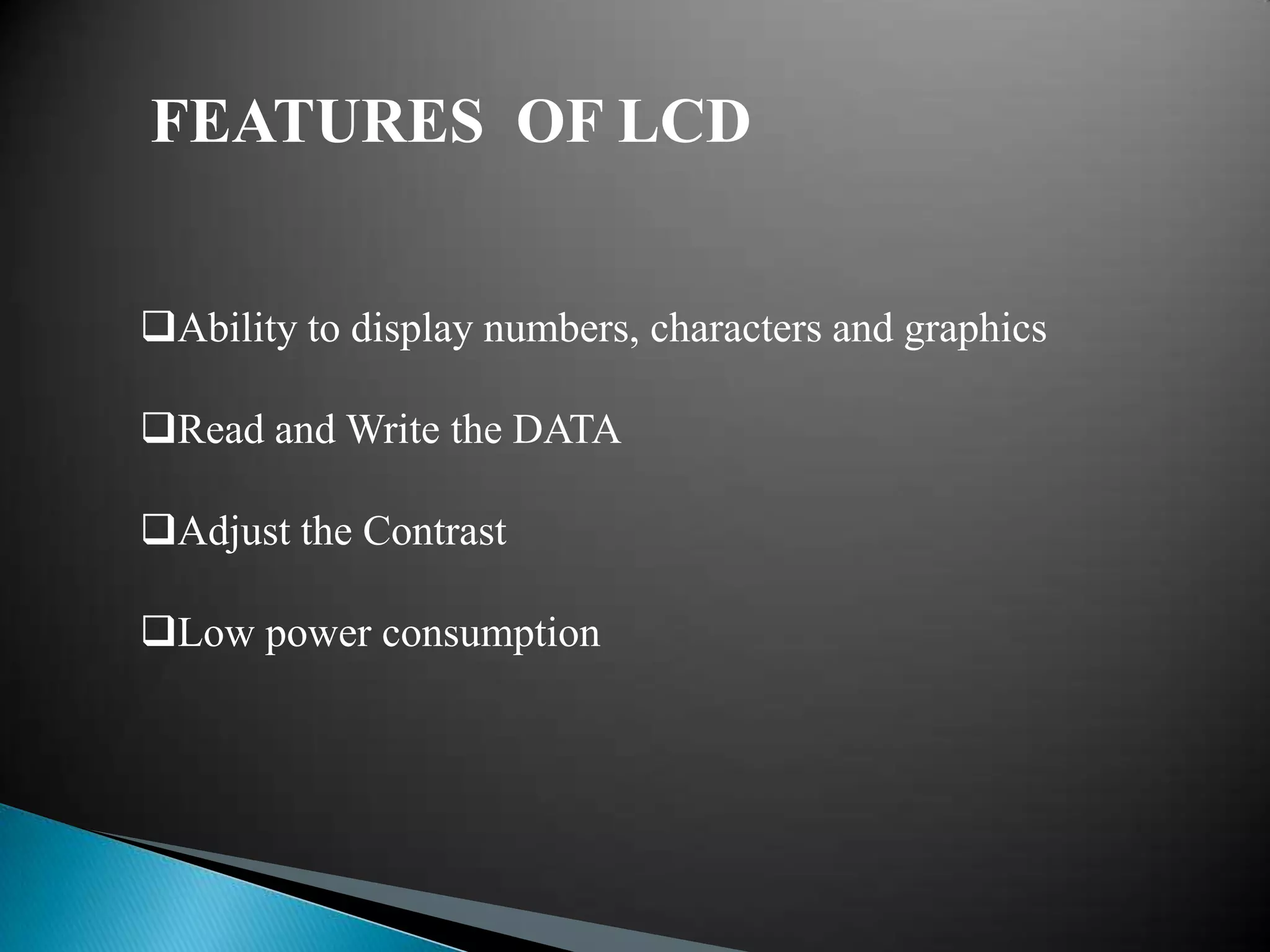

23. FEATURES OF LCD
Ability to display numbers, characters and graphics
Read and Write the DATA
Adjust the Contrast
Low power consumption

24. CIRCUIT DIAGRAM
TRANSMITTER SECTION:

25. RECEIVER SECTION:

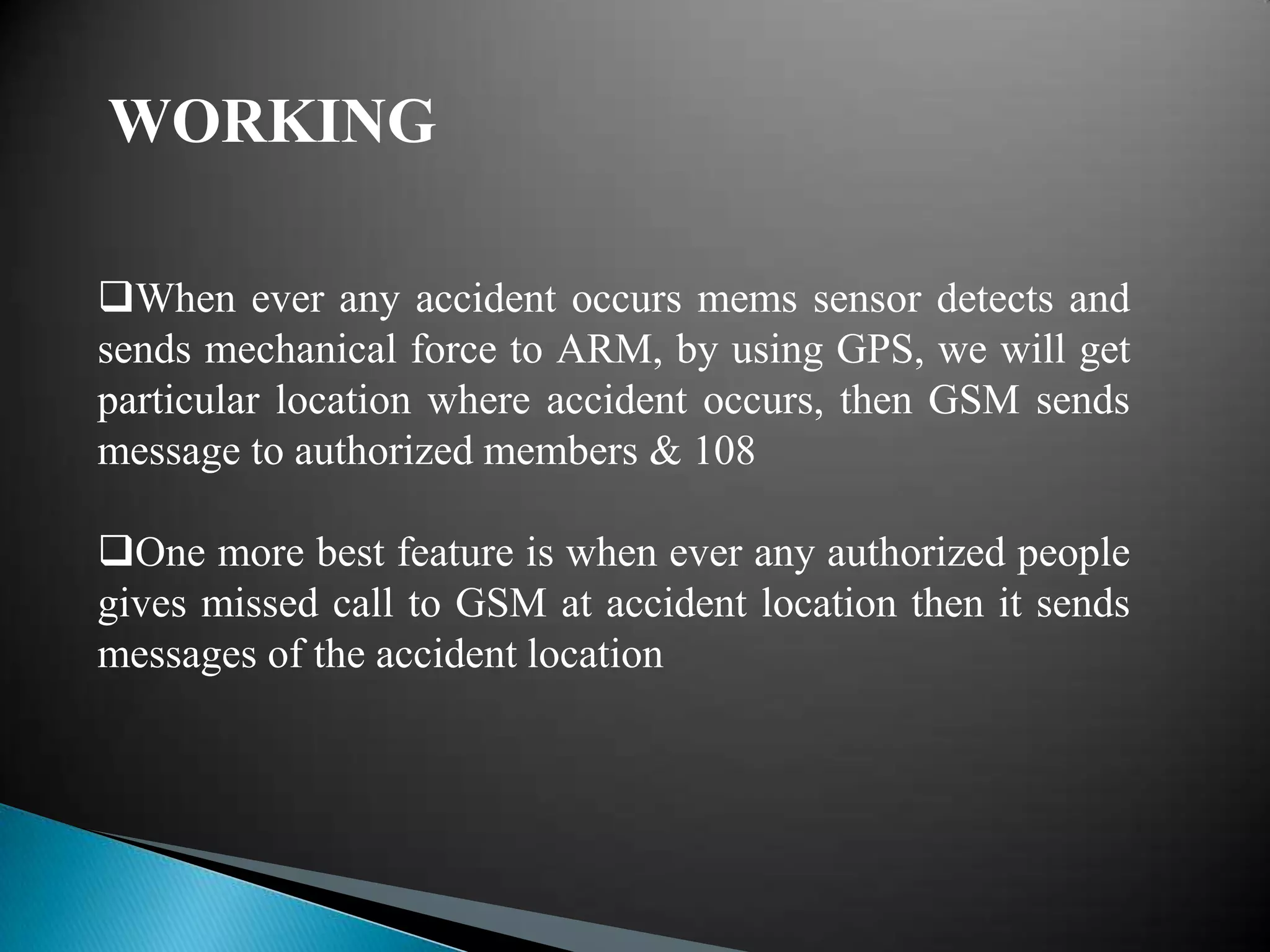

26. WORKING
When ever any accident occurs mems sensor detects and
sends mechanical force to ARM, by using GPS, we will get
particular location where accident occurs, then GSM sends
message to authorized members & 108
One more best feature is when ever any authorized people
gives missed call to GSM at accident location then it sends
messages of the accident location

27. WORKING….

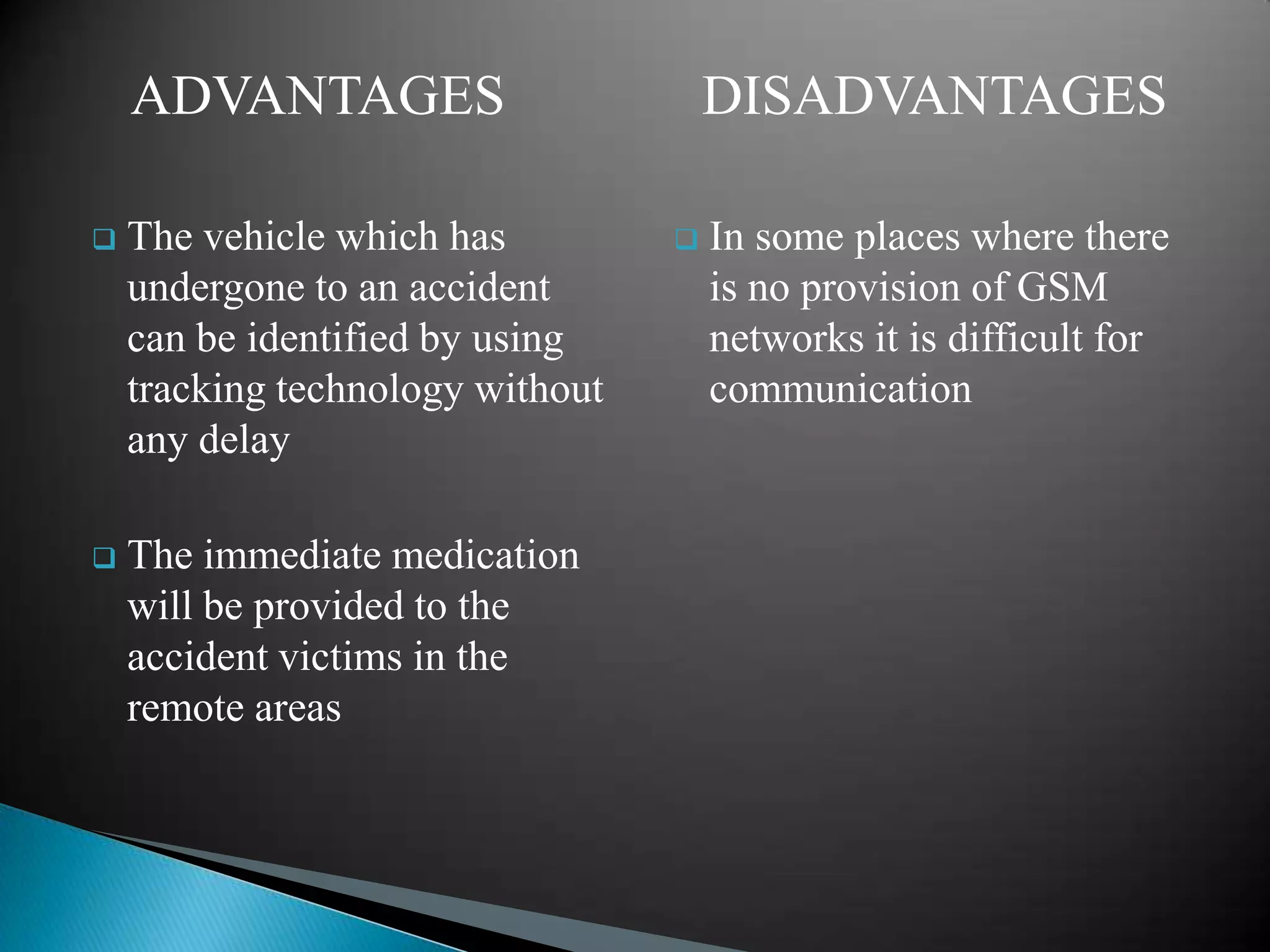

28. ADVANTAGES DISADVANTAGES
 The vehicle which has  In some places where there
undergone to an accident is no provision of GSM
can be identified by using networks it is difficult for
tracking technology without communication
any delay
 The immediate medication
will be provided to the
accident victims in the
remote areas

29. FUTURE SCOPE
This system can be interfaced with Vehicle airbag system that
prevents vehicle occupants from striking interior objects such as
the steering wheel or window
This can also be developed by interconnecting a camera to the
Controller Module that takes the photograph of the accident spot
that makes the tracking easier

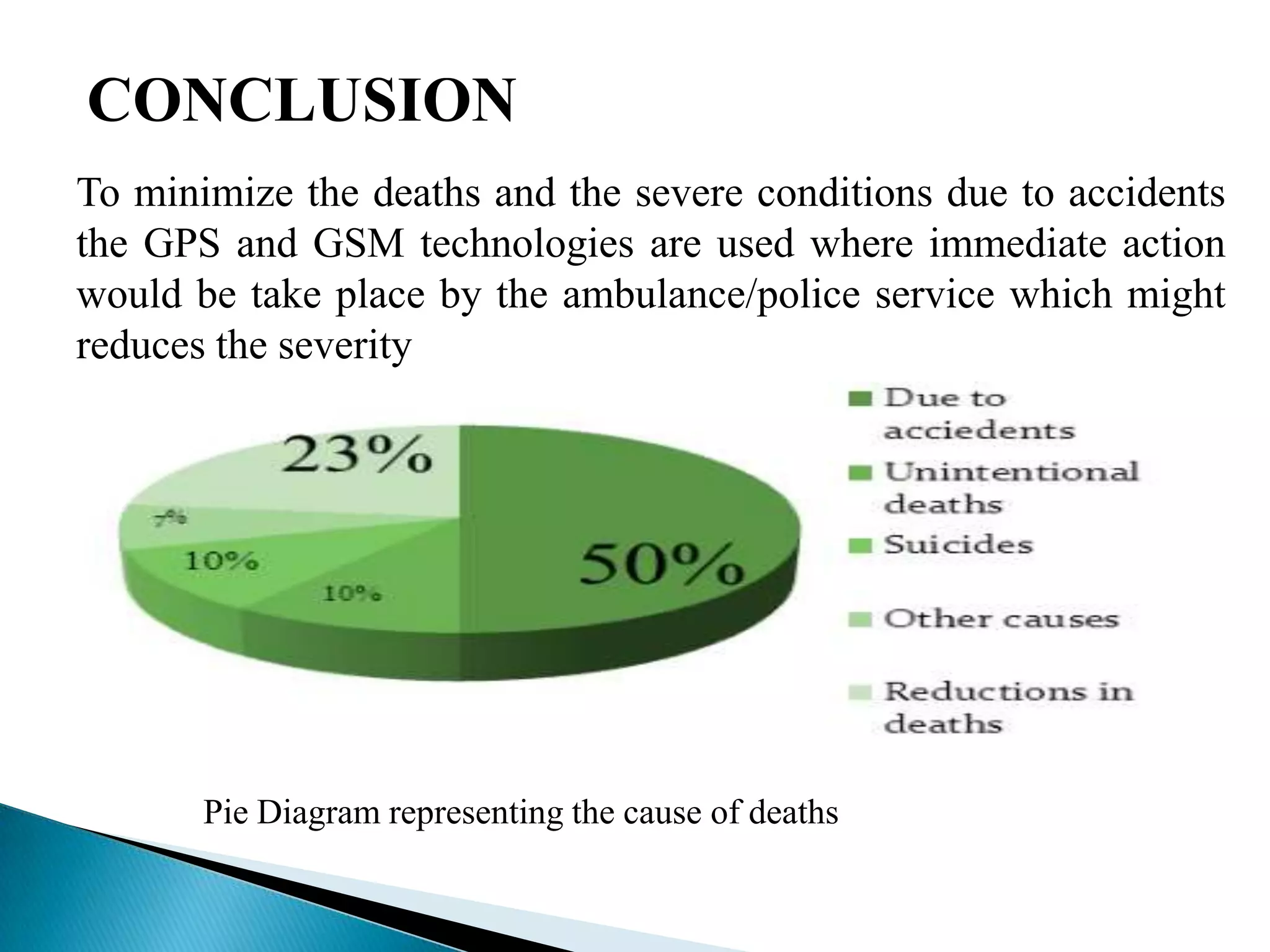

30. CONCLUSION
To minimize the deaths and the severe conditions due to accidents
the GPS and GSM technologies are used where immediate action
would be take place by the ambulance/police service which might
reduces the severity
Pie Diagram representing the cause of deaths
