1. Multiplexer and Demultiplexer
MEC

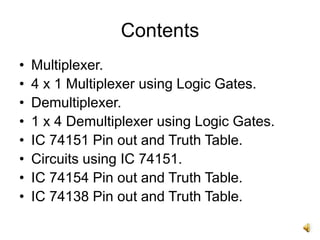

2. Contents
• Multiplexer.
• 4 x 1 Multiplexer using Logic Gates.
• Demultiplexer.
• 1 x 4 Demultiplexer using Logic Gates.
• IC 74151 Pin out and Truth Table.
• Circuits using IC 74151.
• IC 74154 Pin out and Truth Table.
• IC 74138 Pin out and Truth Table.

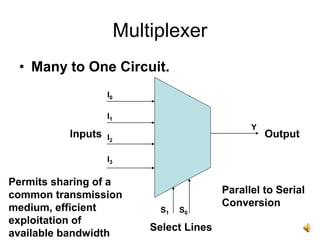

3. Multiplexer
• Many to One Circuit.
Inputs Output
Select Lines
I0
I1
I2
I3
S1 S0
Y
Parallel to Serial
Conversion
Permits sharing of a
common transmission
medium, efficient
exploitation of
available bandwidth

4. 4 to 1 Multiplexer using
Logic Gates

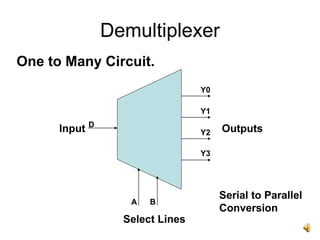

5. Demultiplexer
Input Outputs
Select Lines
One to Many Circuit.
D
A B
Y0
Y1
Y2
Y3
Serial to Parallel
Conversion

6. 1 to 4 Demultiplexer using
Logic Gates
Input
Select Lines
Outputs

7. 8 x 1 Multiplexer

8. IC 74151 Pin out

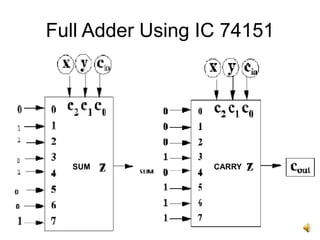

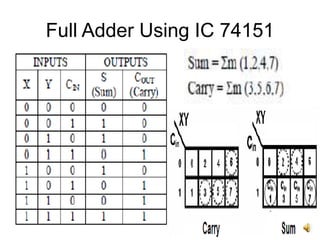

9. Full Adder Using IC 74151

10. Full Adder Using IC 74151
SUM CARRY

11. Design using a MUX Table
16 x 1 MUX using IC 74151 8 x 1 MUX
Y = ∑m(2,4,5,7,10,14)
LSB
MSB
Data Input (D)
ABC
Select

12. Demultiplexer vs Decoder
• Decoder a certain case of a demultiplexer.
• Decoder is a demultiplexer without data
input stream.
• Decoder to decrypt the input streams from
one format into another.
• Demultiplexer to route information from a
data input line to any of the multiple output
lines.

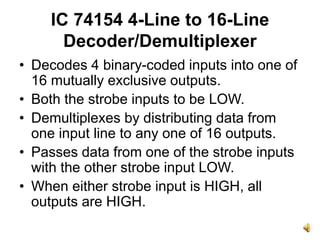

13. IC 74154 4-Line to 16-Line
Decoder/Demultiplexer
• Decodes 4 binary-coded inputs into one of
16 mutually exclusive outputs.
• Both the strobe inputs to be LOW.
• Demultiplexes by distributing data from
one input line to any one of 16 outputs.
• Passes data from one of the strobe inputs
with the other strobe input LOW.
• When either strobe input is HIGH, all
outputs are HIGH.

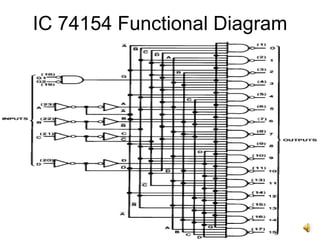

14. IC 74154 Functional Diagram

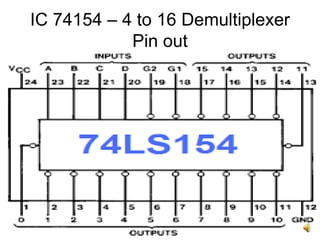

15. IC 74154 – 4 to 16 Demultiplexer
Pin out

16. IC 74154 Truth Table

17. IC 74154 Applications.
• In demultiplexing applications such as:
- digital clocks.
- LED matrices and other graphical
outputs.
• Multiplies the number of select lines 4
times to choose upto 16 devices/chips.

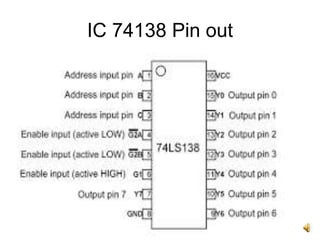

18. IC 74138 Pin out

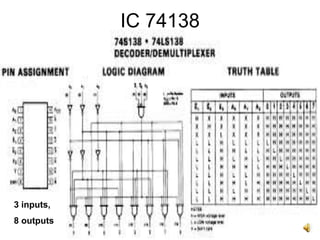

19. IC 74138
3 inputs,
8 outputs

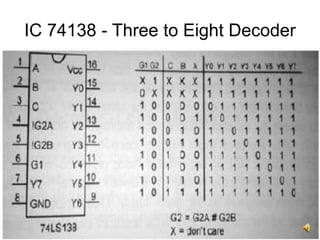

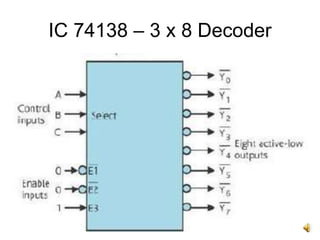

20. IC 74138 - Three to Eight Decoder

21. IC 74138 Logic Diagram

22. IC 74138 – 3 x 8 Decoder

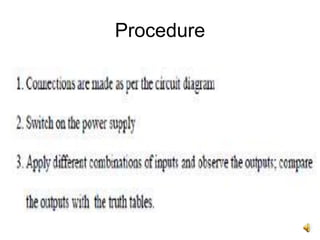

23. Procedure

24. MUX and DeMUX for
Communication
Shared
Transmission
Medium
MUX DEMUX
IN
Transmitter Side Receiver Side

25. Online Resources
• https://www.youtube.com/watch?v=ZQbdv
HjXRwY
• https://www.youtube.com/watch?v=M4JnE
NLKbi8
• https://www.youtube.com/watch?v=HcO0L
Nr4UEI
• https://www.youtube.com/watch?v=ehetG6
uN54U

26. Thank You
