The document discusses various types of cooling towers, including open, closed, and mixed systems, along with their necessity and operational methods. It highlights the environmental concerns associated with cooling towers, particularly relating to water evaporation, drift droplets, and their potential impact on highways and vegetation. Additionally, it contrasts dry cooling systems with wet cooling systems and mentions the adverse effects of cooling tower emissions.

1. Cooling Towers Presented by; Satender Kumar Rahul Bajpai Mohit Gupta

2. What is the necessity of cooling condenser water ?

3. Cooling systems Open or once Through systems Closed systems Mixed Systems Water cooling air cooling Cooling ponds Cooling towers Direct dry type Cooling towers Indirect dry type Cooling towers

4. Mixed cooling systems

5. Induced draft Counter flow Cross flow Mechanical draft cooling towers 2 )

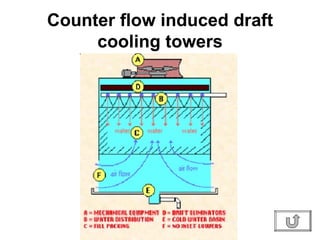

6. Counter flow induced draft cooling towers

7. Cross flow induced draft cooling towers Proceed

8. HOME

9. Mechanical Draft cooling towers Forced draft 1 ) back

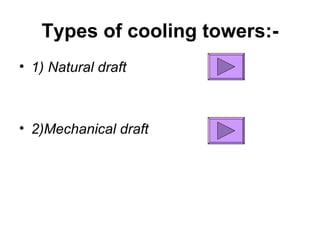

10. Types of cooling towers:- 1) Natural draft 2)Mechanical draft

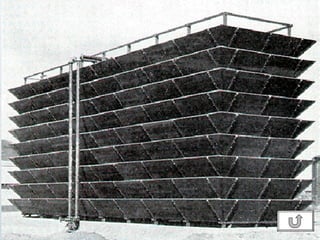

11. Natural draft cooling tower

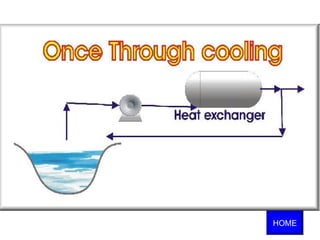

12. HOME

13. A disadvantage of using wet or evaporative cooling towers!

14. Water evaporation rate = 0.6 gallon per KWhr(approx) = 9700 acre ft per year for a 800 MW plant (equivalent to one full river)

15. Dry cooling towers or air cooling towers Two types of dry cooling systems:- 1) Indirect or hellar dry cooling systems 2) Direct dry cooling systems

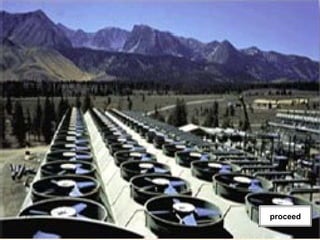

16. Direct dry type cooling system proceed

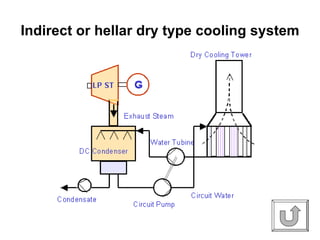

17. Indirect or hellar dry type cooling system

18. Dry cooling towers + wet cooling towers = Dry wet combined cooling towers

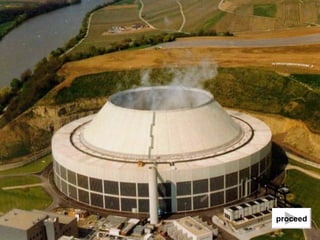

19. Dry wet combined cooling towers proceed

20. Environmental effects of cooling towers!

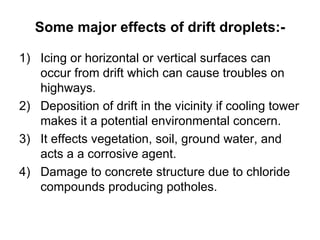

21. Some major effects of drift droplets:- Icing or horizontal or vertical surfaces can occur from drift which can cause troubles on highways. Deposition of drift in the vicinity if cooling tower makes it a potential environmental concern. It effects vegetation, soil, ground water, and acts a a corrosive agent. Damage to concrete structure due to chloride compounds producing potholes.
