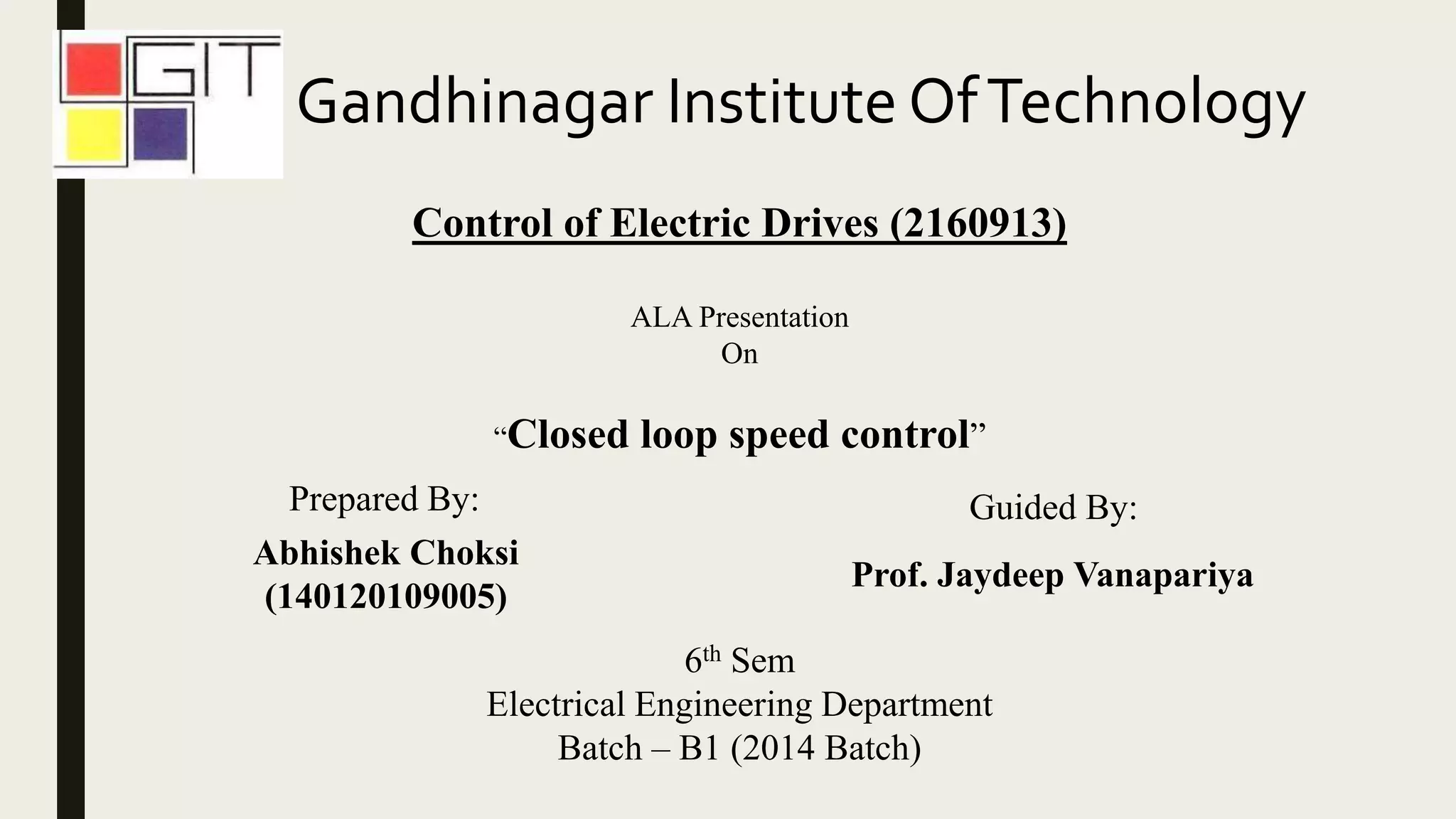

1. 6th Sem
Electrical Engineering Department
Batch – B1 (2014 Batch)
Abhishek Choksi
(140120109005)
Control of Electric Drives (2160913)
ALA Presentation
On
“Closed loop speed control”
Prepared By: Guided By:
Prof. Jaydeep Vanapariya
Gandhinagar Institute OfTechnology

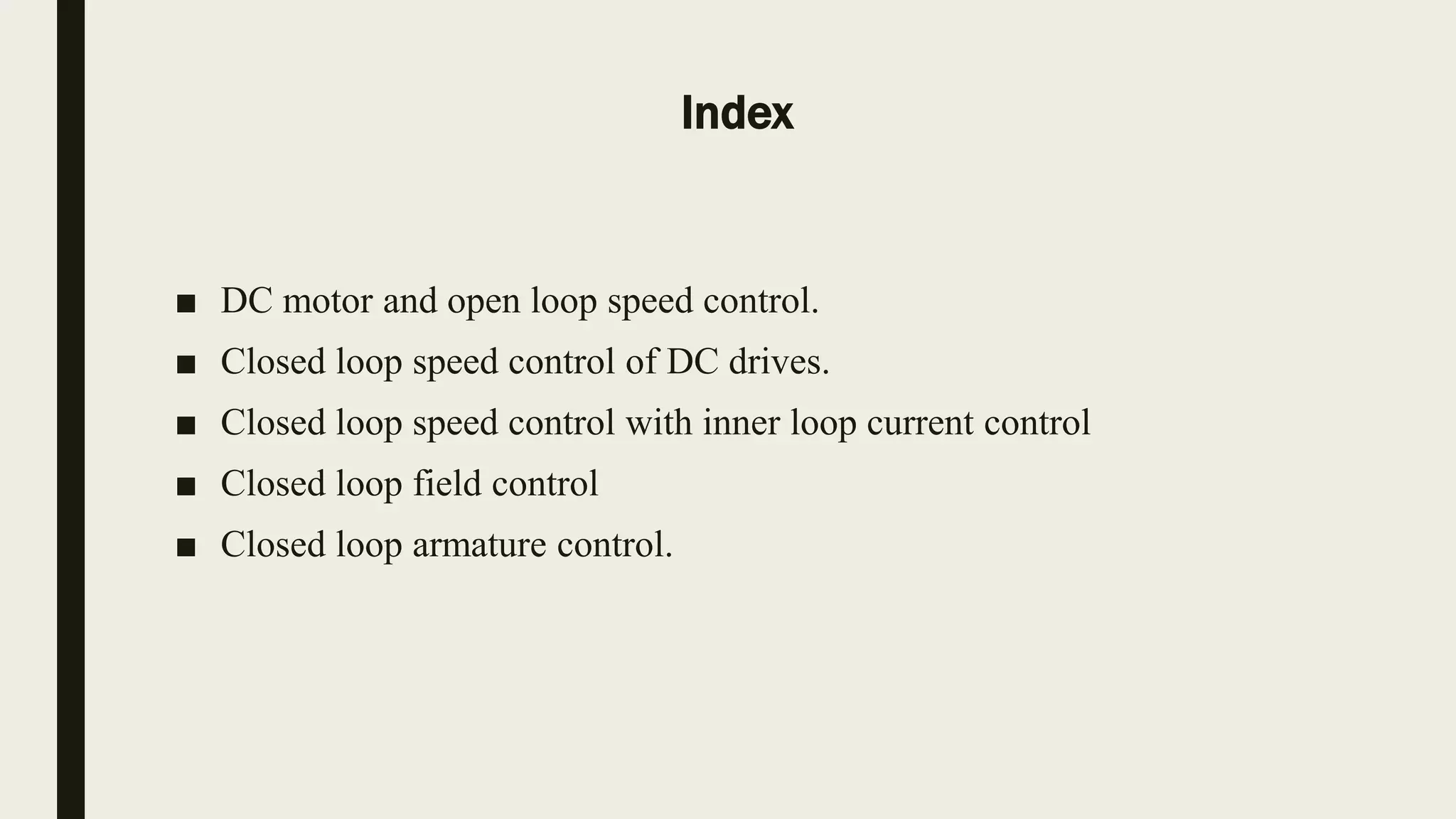

2. Index
■ DC motor and open loop speed control.
■ Closed loop speed control of DC drives.
■ Closed loop speed control with inner loop current control
■ Closed loop field control
■ Closed loop armature control.

3. DC motors
 DC motor is extensively used machine where the wide range of speed
control is desired.
 The operation of DC motor in different steps are easy compared to AC
motors.

4. Open loop speed control
 By the open loop speed control the DC motor can be operated at any
intermediate speed by changing the voltage, armature current etc.
 But in open loop control accuracy cannot be obtained i.e. speed will
not be constant for load variations on the motor.
 There will not be any feedback to the controller to indicate the change
in speed due to load .

5. Closed loop speed control of DC drive
■ To avoid the disadvantage that is caused due to open loop speed control
closed loop speed control technique is implemented.
■ Here the output speed measured is feed back to the speed controller.
■ In closed loop controller the speed can be maintained by adjusting
terminal voltage according to the speed difference caused by the load
torque i.e. a fine control of speed can be obtained using closed loop
speed control.

6. Closed loop speed control of DC drive
■ The potentiometer adjusts the voltage between 0- 10 volts which
represents the reference speed.
■ A tacho-generator is used for producing the speed feedback signal.it
produces a DC voltage which is proportional to actual speed of the
motor. This voltage is called speed feedback signal.
■ Reference speed is compared with the speed feedback signal via
comparator.

7.  Its output is the error signal which is applied to the speed controller.
 It produces a dc voltage such that error is brought down to zero.
 This DC voltage is applied to the firing pulse generator. The firing angle
α will vary depending on the value of control voltage.
 The firing pulses at desired value of α is applied to the SCR’s connected
in the power circuit.
 The firing angle is thus automatically adjusted in order to operate the
motor at the desired speed.

8. Closed loop speed control with inner loop current
control.
■ Here speed output signal generates a corresponding armature current
signal and this signal is compared with the existing armature feedback
to the comparator circuit.
■ The difference in the current drive the current loop controller and
produces a control signal to the power convert.

9. ■ This introduces a very smooth increase in terminal voltage and thus
armature current by providing a dual controller. the current controller can
be proportional or proportional integral controller.
■ Most probably PI is used because of less steady state error and smooth
response compared to proportional controller.

10. Closed loop field control
 This method is used for varying speed of DC shunt motor above the
rated speed. The armature voltage is kept constant and field current is
varied.
 The reference voltage is passed through the ramp unit to provide soft
starting of the motor.
 The o/p of ramps unit acts as the speed reference, this reference signal is
compared with the speed feedback signal obtained from tachogenerator.

11. ■ The o/p of comparator is called as speed error signal.
■ The speed controller will produce a control voltage from error
signal i/p and this control signal changes the firing angle α in
such a way that the field voltage is automatically increased or
decreased.

12. Closed loop armature control
■ In this method the field winding is excited by a constant d.c. voltage and
the armature voltage is varied in order to vary the speed of the motor.
■ The working of armature control scheme is basicaly same as the field
control scheme.
■ The control signal changes the firing angle α in such a way that the
armature voltage is automatically increased or decreased so that the speed
error gets reduced and the armature voltage is varied to vary the speed of
a DC shunt motor.

13. References
■ International Conference on Science, Technology, Engineering &
Management
■ M.Nedeljkovic and Z.Stojiljkovic, Fast current control for thyristor
rectifiers, IEE Proceeding. Electr. Power Appl, 150(6), 2003, 636-
628.
■ Wikipedia -- https://en.wikipedia.org/wiki/Pulse-
width_modulation#Principle
■ D.A. Staton, M.I.McGilp and T.J.E.Miller, DC machine
teaching experiment, in proceedings of the European
Power Electronics Association EPE, Brighton, 1993, 35-40.
