Statistics for Managers
Using Microsoft® Excel
4th Edition
Chapter 10
Analysis of Variance

Statistics for Managers Using Microsoft Excel, 4e © 2004 Prentice-Hall, Inc.

Chap 10-1

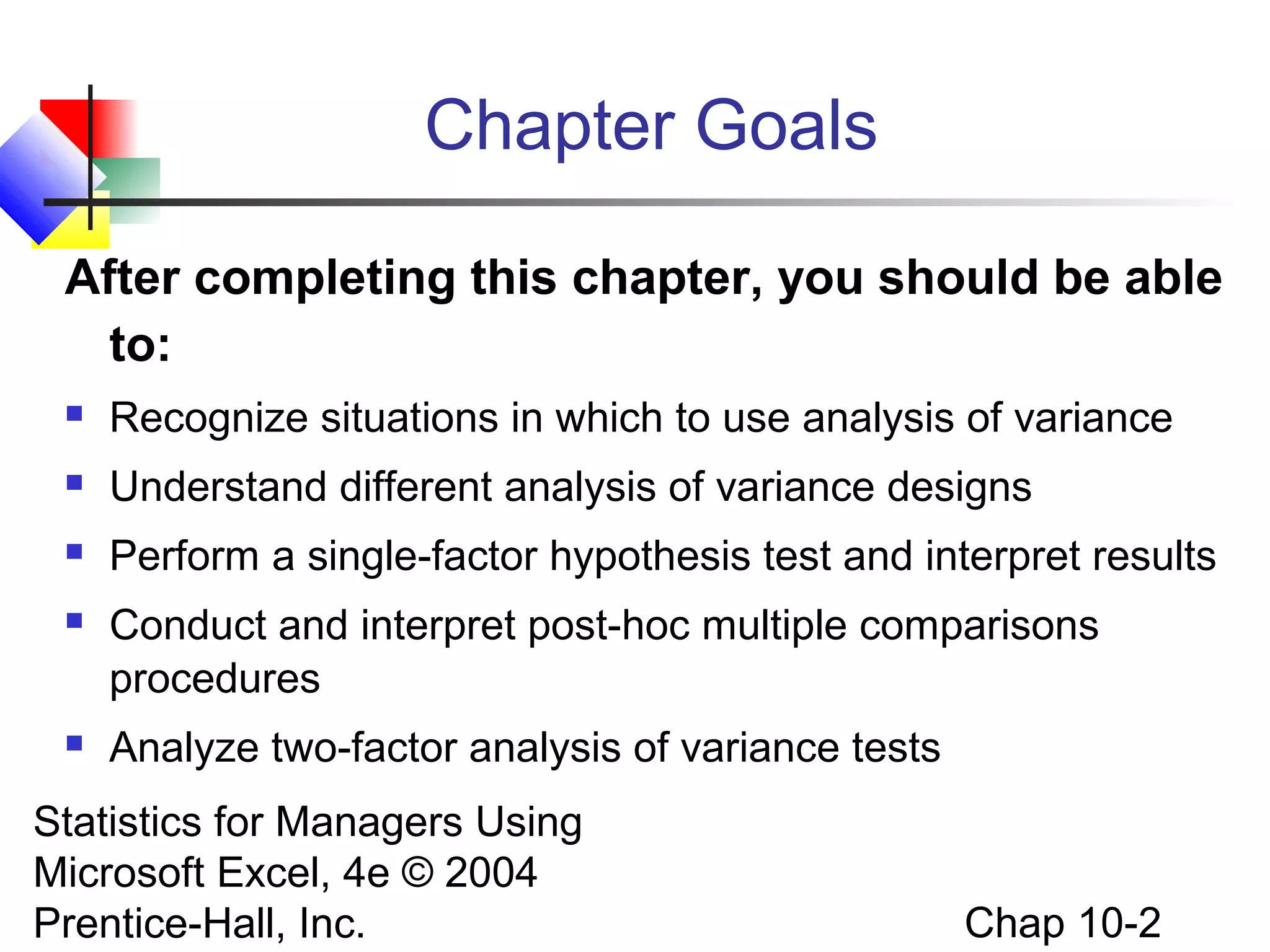

Chapter Goals
After completing this chapter, you should be able
to:


Recognize situations in which to use analysis of variance



Understand different analysis of variance designs



Perform a single-factor hypothesis test and interpret results



Conduct and interpret post-hoc multiple comparisons
procedures



Analyze two-factor analysis of variance tests

Statistics for Managers Using
Microsoft Excel, 4e © 2004
Prentice-Hall, Inc.

Chap 10-2

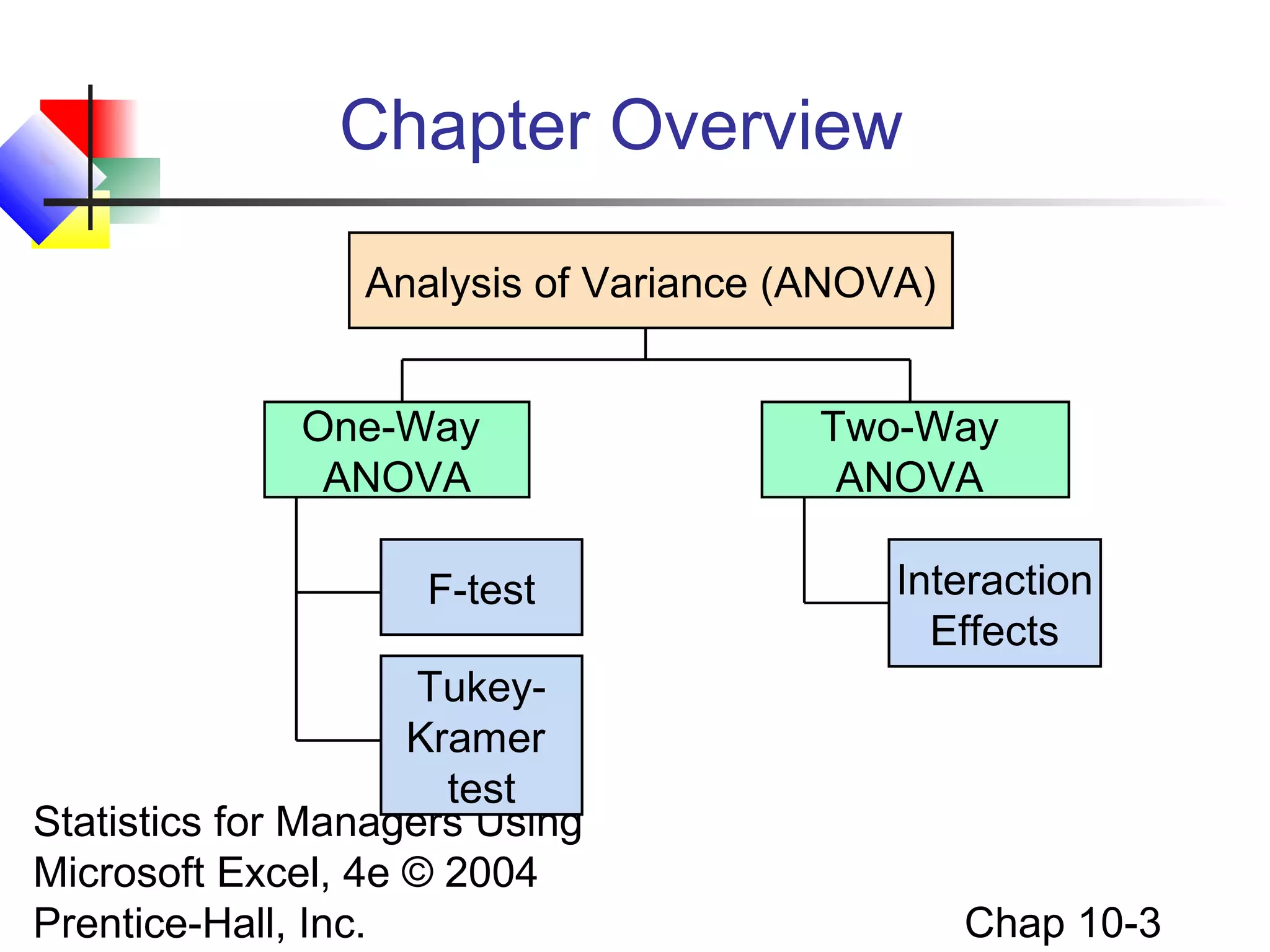

Chapter Overview
Analysis of Variance (ANOVA)
One-Way
ANOVA
F-test
TukeyKramer
test
Statistics for Managers Using
Microsoft Excel, 4e © 2004
Prentice-Hall, Inc.

Two-Way
ANOVA
Interaction
Effects

Chap 10-3

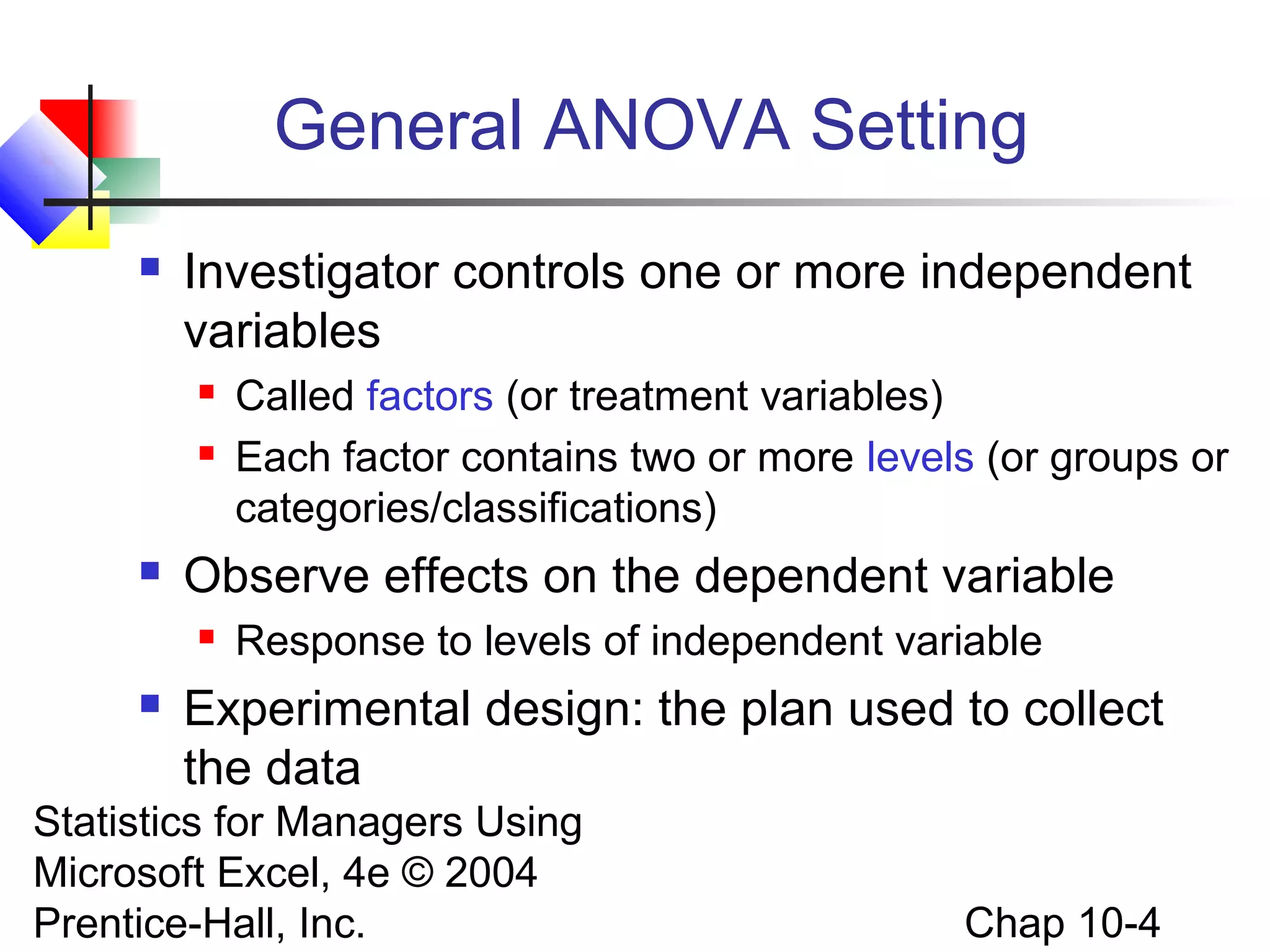

General ANOVA Setting


Investigator controls one or more independent
variables





Observe effects on the dependent variable




Called factors (or treatment variables)
Each factor contains two or more levels (or groups or
categories/classifications)
Response to levels of independent variable

Experimental design: the plan used to collect
the data

Statistics for Managers Using
Microsoft Excel, 4e © 2004
Prentice-Hall, Inc.

Chap 10-4

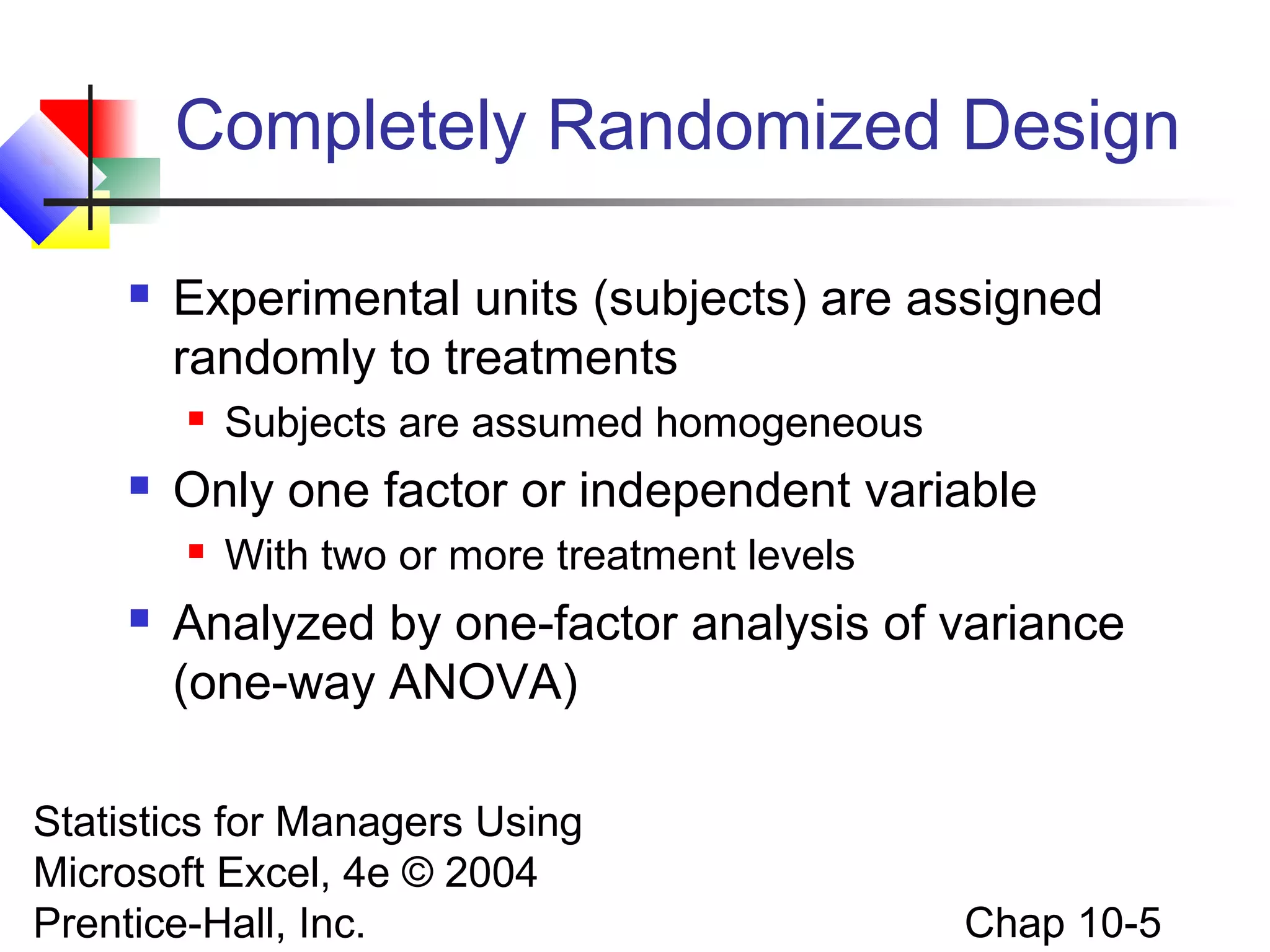

Completely Randomized Design


Experimental units (subjects) are assigned
randomly to treatments




Only one factor or independent variable




Subjects are assumed homogeneous
With two or more treatment levels

Analyzed by one-factor analysis of variance
(one-way ANOVA)

Statistics for Managers Using
Microsoft Excel, 4e © 2004
Prentice-Hall, Inc.

Chap 10-5

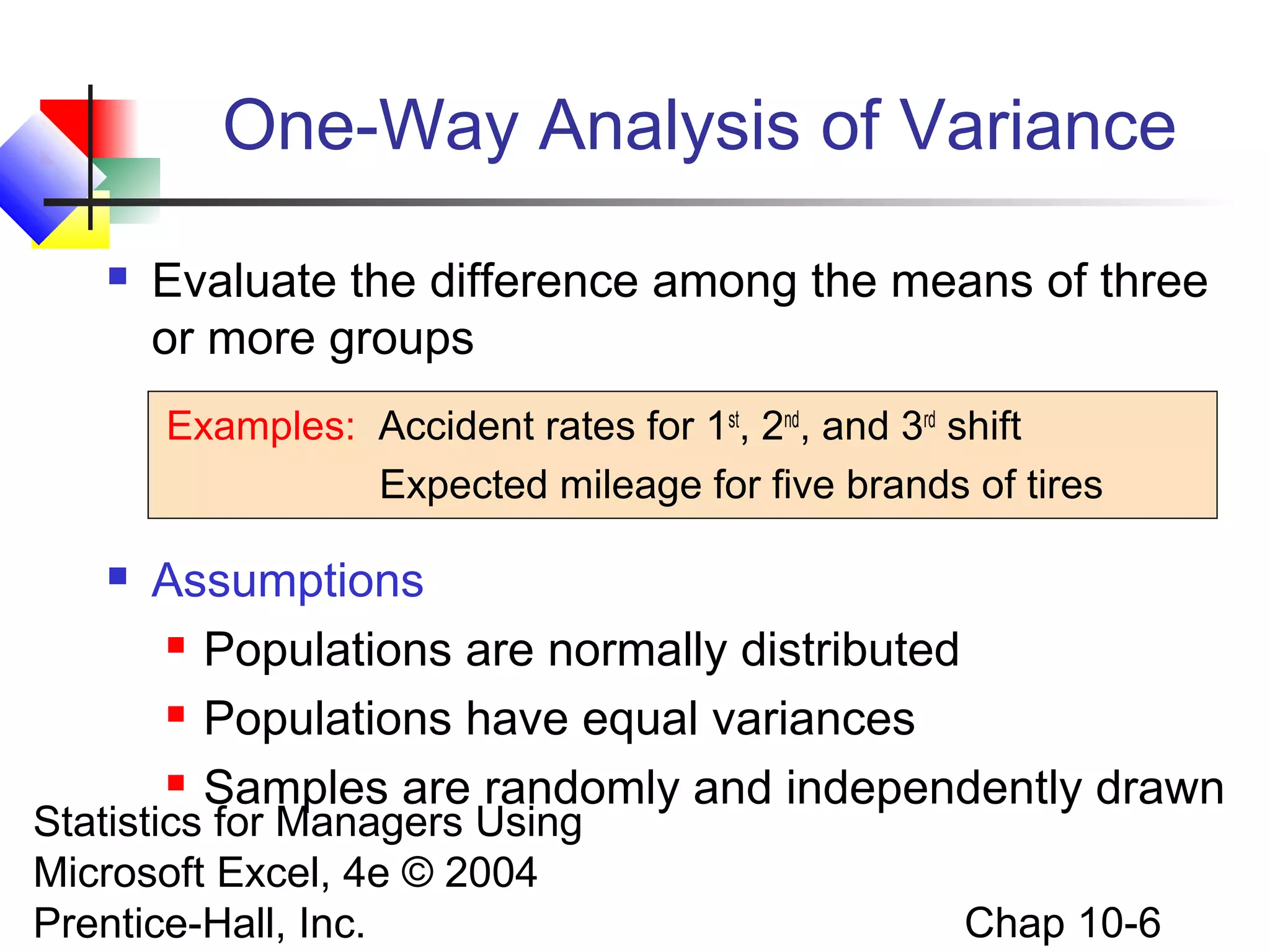

One-Way Analysis of Variance


Evaluate the difference among the means of three
or more groups
Examples: Accident rates for 1st, 2nd, and 3rd shift
Expected mileage for five brands of tires



Assumptions
 Populations are normally distributed
 Populations have equal variances
 Samples are randomly and independently drawn

Statistics for Managers Using
Microsoft Excel, 4e © 2004
Prentice-Hall, Inc.

Chap 10-6

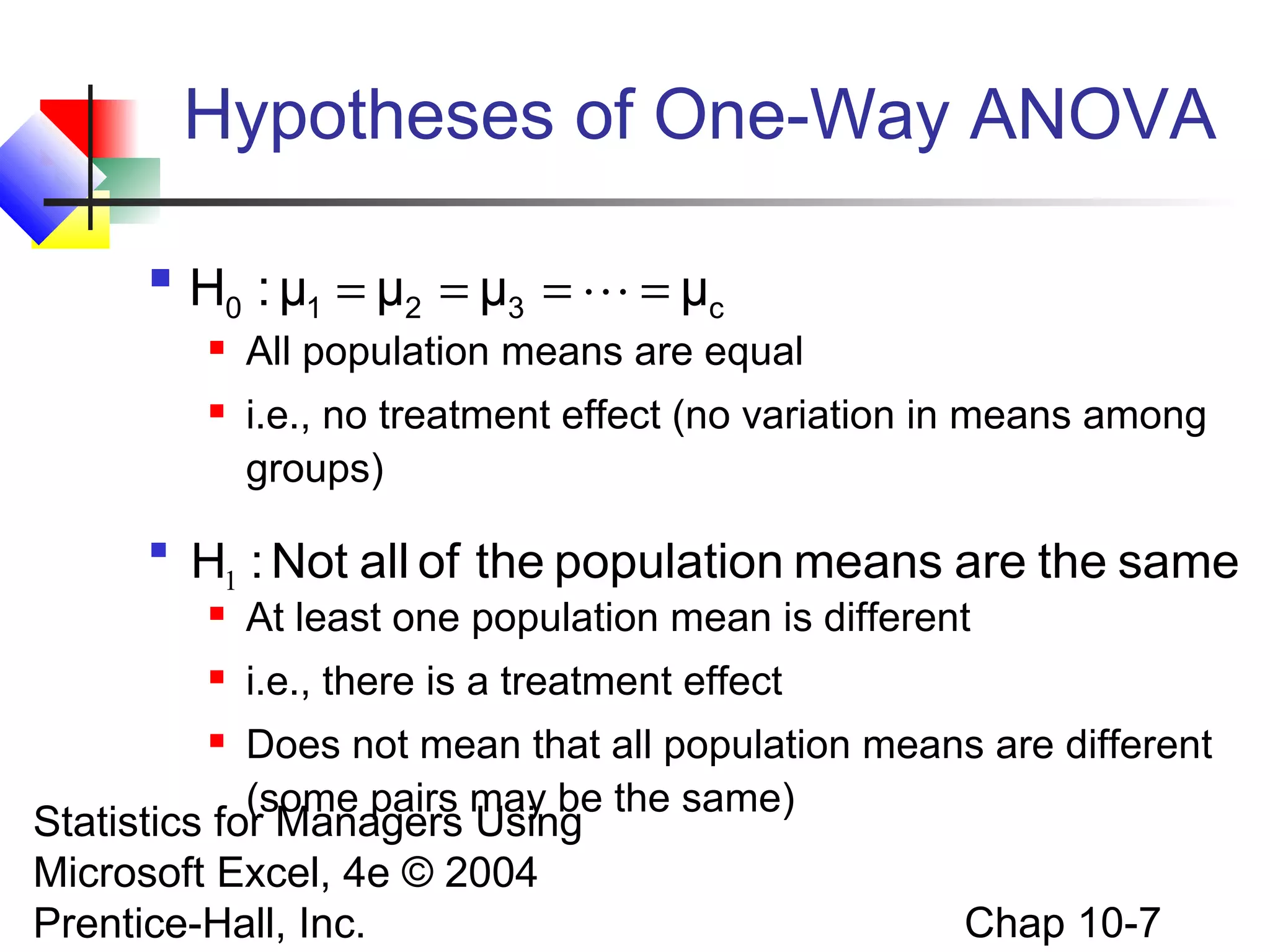

Hypotheses of One-Way ANOVA


H0 : μ1 = μ2 = μ3 =  = μc





All population means are equal
i.e., no treatment effect (no variation in means among
groups)

H1 : Not all of the population means are the same


At least one population mean is different



i.e., there is a treatment effect

Does not mean that all population means are different
(some pairs may be the same)
Statistics for Managers Using
Microsoft Excel, 4e © 2004
Chap 10-7
Prentice-Hall, Inc.


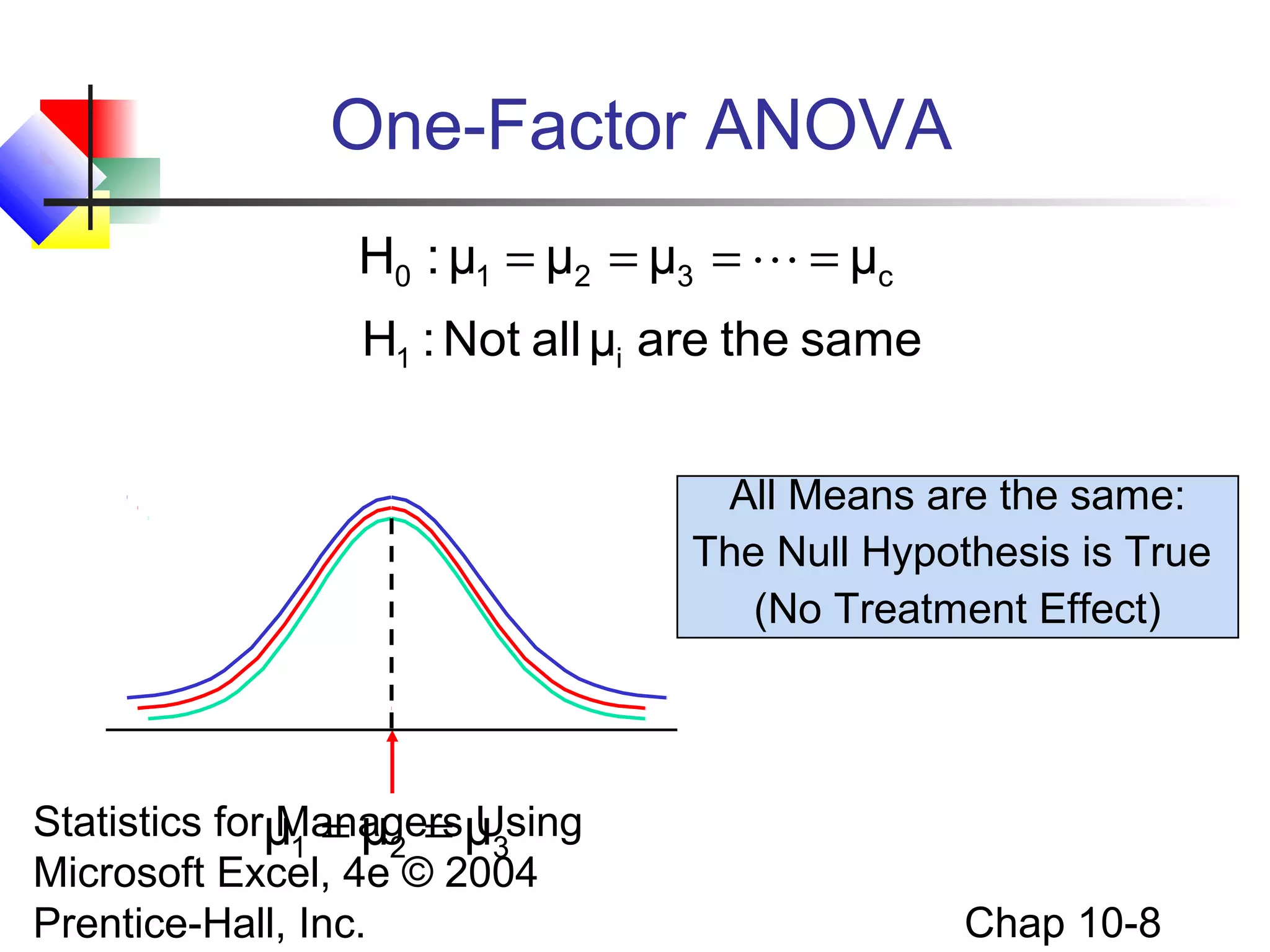

One-Factor ANOVA
H0 : μ1 = μ2 = μ3 =  = μc
H1 : Not all μi are the same
All Means are the same:
The Null Hypothesis is True
(No Treatment Effect)

Statistics forμ = μ = μ
Managers Using
1
2
3
Microsoft Excel, 4e © 2004
Prentice-Hall, Inc.

Chap 10-8

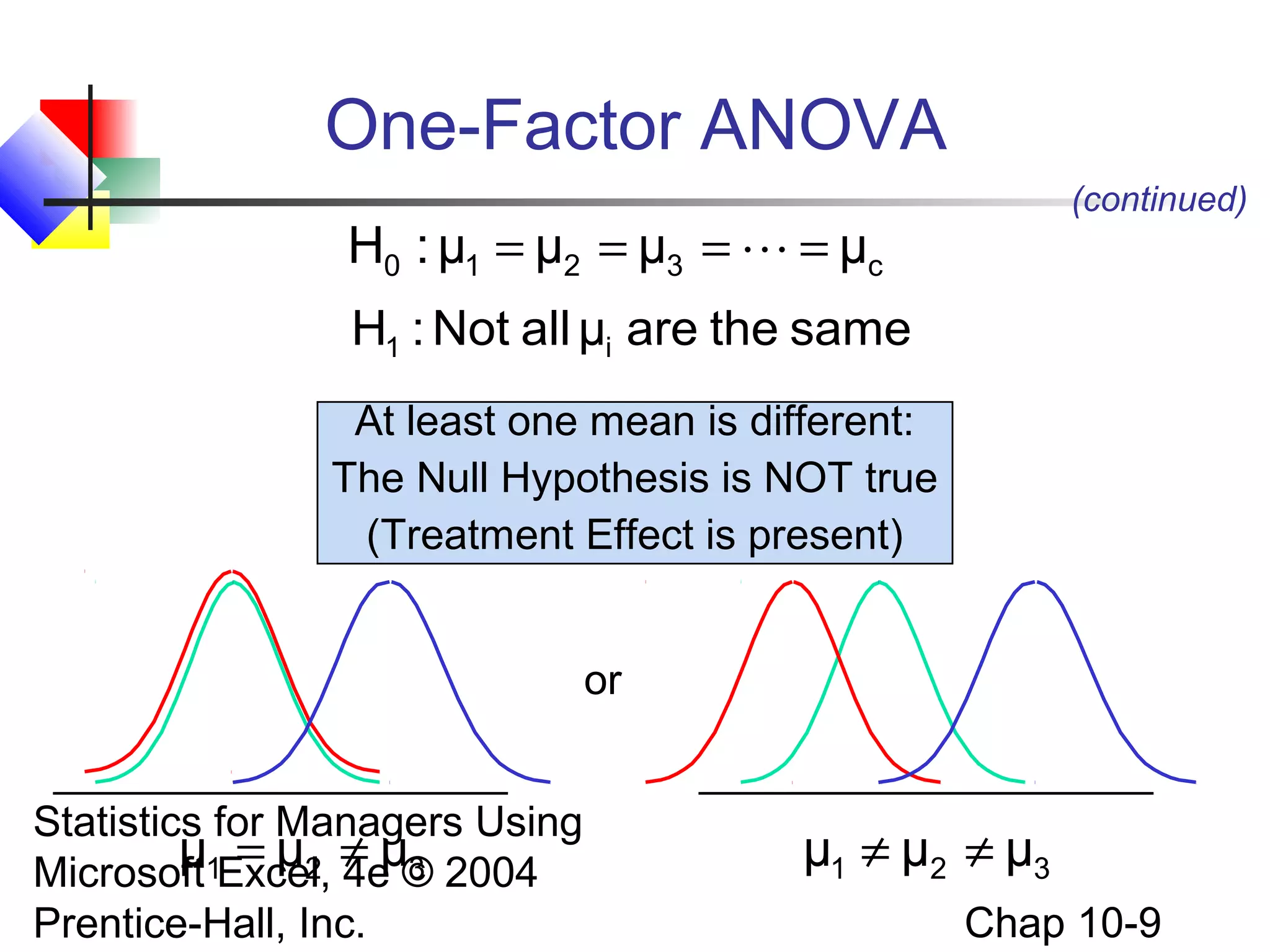

One-Factor ANOVA
(continued)

H0 : μ1 = μ2 = μ3 =  = μc
H1 : Not all μi are the same
At least one mean is different:
The Null Hypothesis is NOT true
(Treatment Effect is present)
or
Statistics for Managers Using
μ = μ2 4e 3
Microsoft1Excel, ≠ μ© 2004
Prentice-Hall, Inc.

μ1 ≠ μ2 ≠ μ3
Chap 10-9

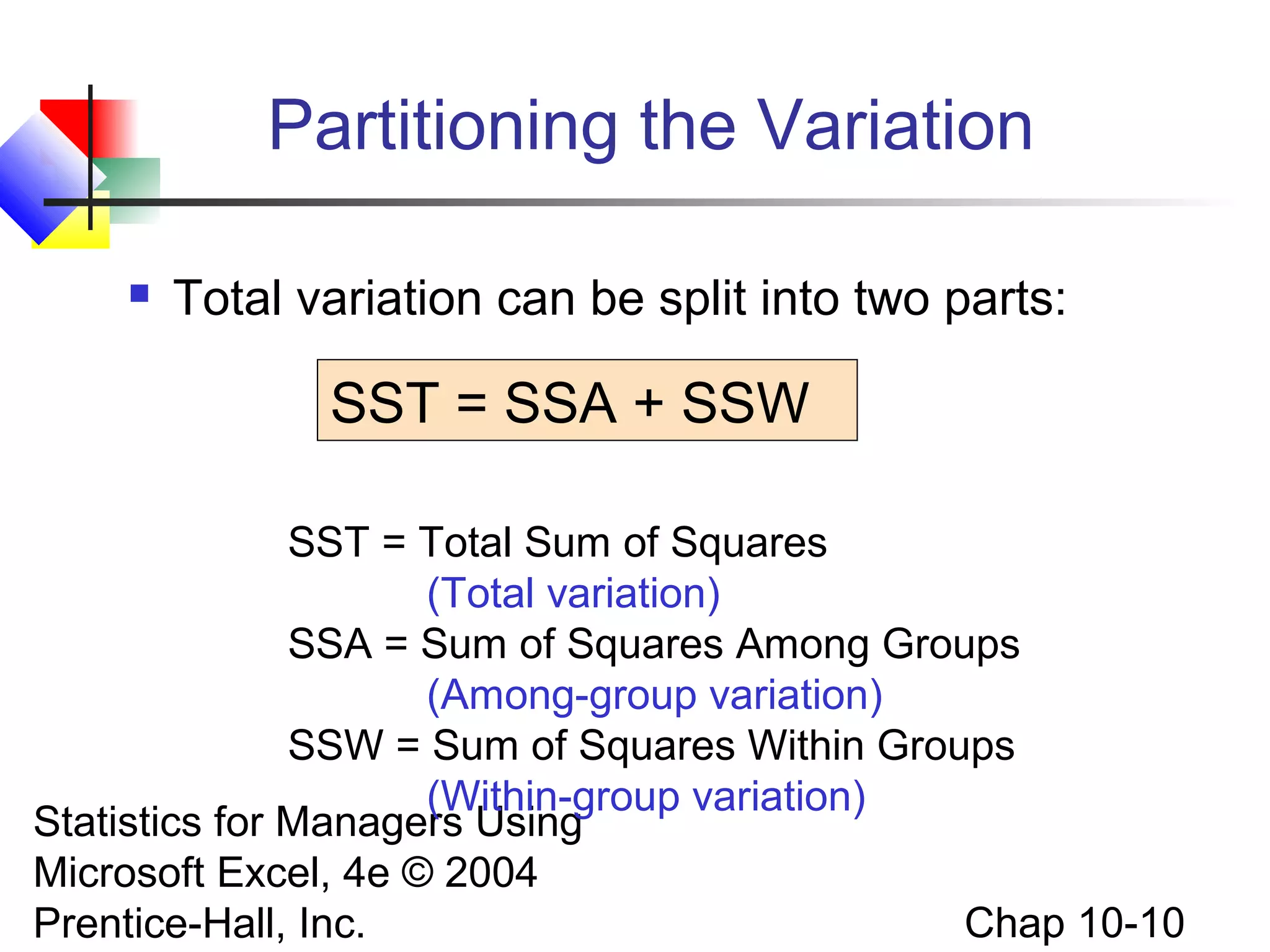

Partitioning the Variation


Total variation can be split into two parts:

SST = SSA + SSW
SST = Total Sum of Squares
(Total variation)
SSA = Sum of Squares Among Groups
(Among-group variation)
SSW = Sum of Squares Within Groups
(Within-group variation)
Statistics for Managers Using
Microsoft Excel, 4e © 2004
Chap 10-10
Prentice-Hall, Inc.

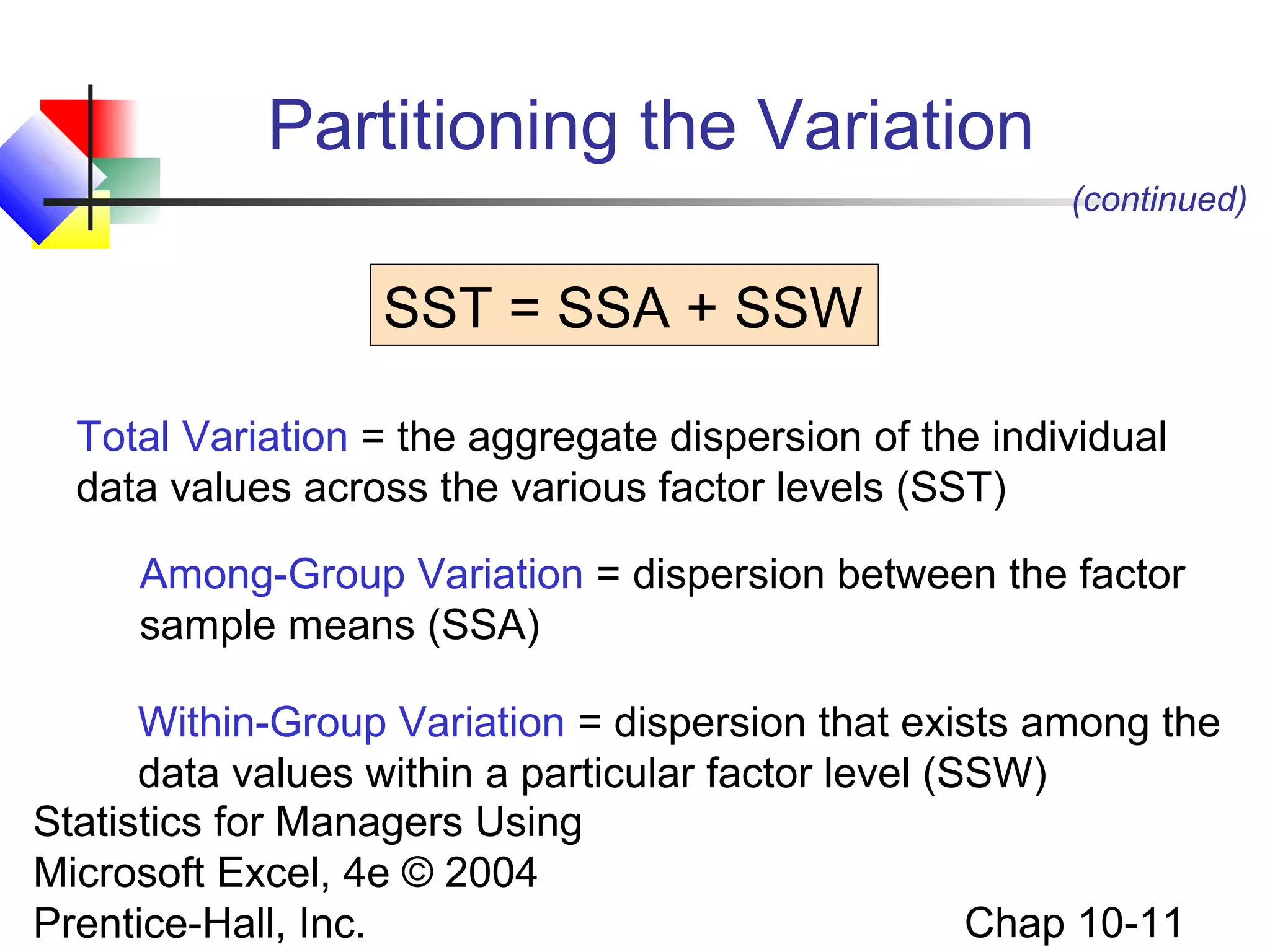

Partitioning the Variation
(continued)

SST = SSA + SSW
Total Variation = the aggregate dispersion of the individual
data values across the various factor levels (SST)
Among-Group Variation = dispersion between the factor
sample means (SSA)
Within-Group Variation = dispersion that exists among the
data values within a particular factor level (SSW)
Statistics for Managers Using
Microsoft Excel, 4e © 2004
Chap 10-11
Prentice-Hall, Inc.

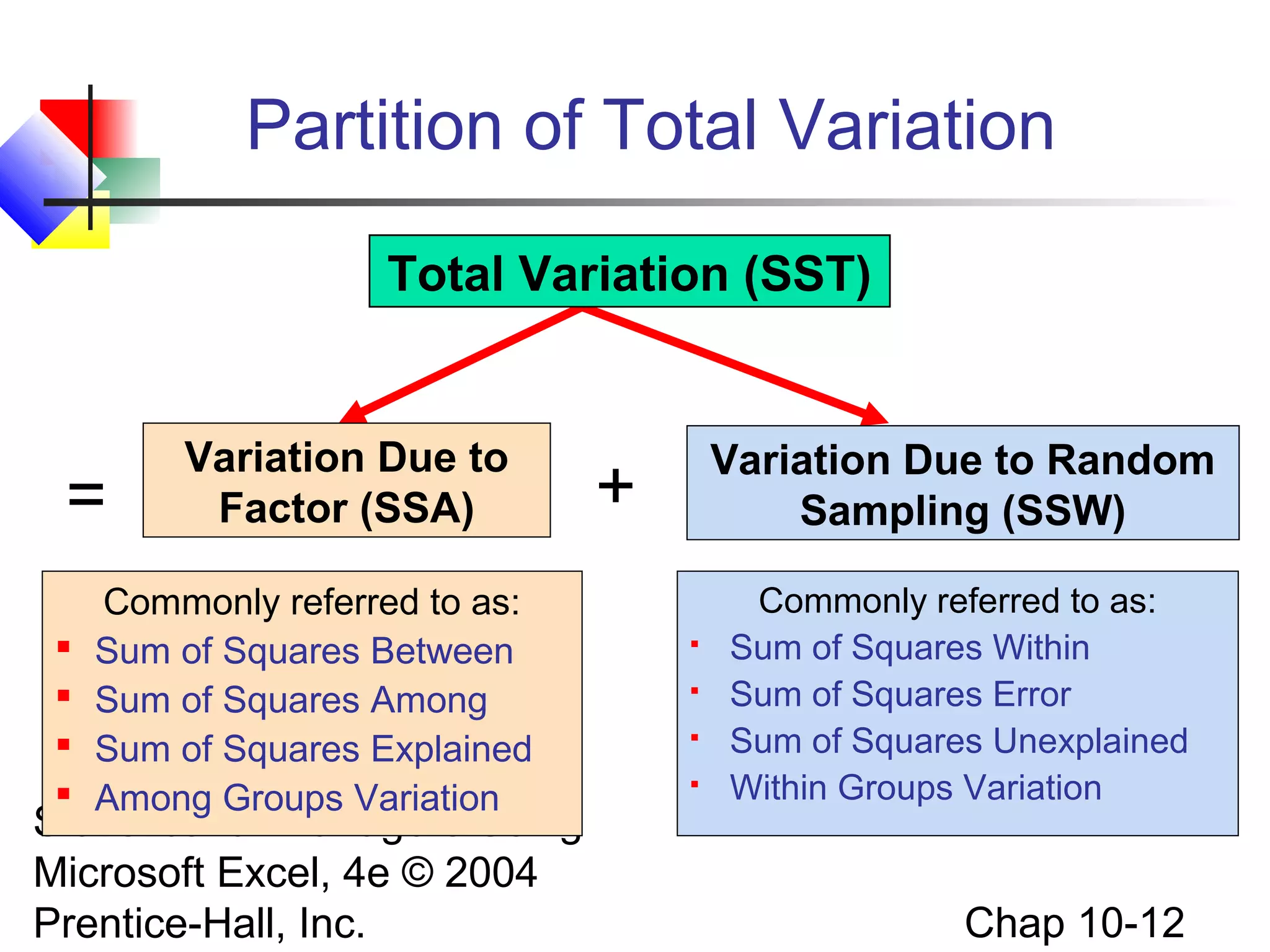

Partition of Total Variation
Total Variation (SST)

=





Variation Due to
Factor (SSA)

Commonly referred to as:
Sum of Squares Between
Sum of Squares Among
Sum of Squares Explained
Among Groups Variation

Statistics for Managers Using
Microsoft Excel, 4e © 2004
Prentice-Hall, Inc.

Variation Due to Random
Sampling (SSW)

+





Commonly referred to as:
Sum of Squares Within
Sum of Squares Error
Sum of Squares Unexplained
Within Groups Variation

Chap 10-12

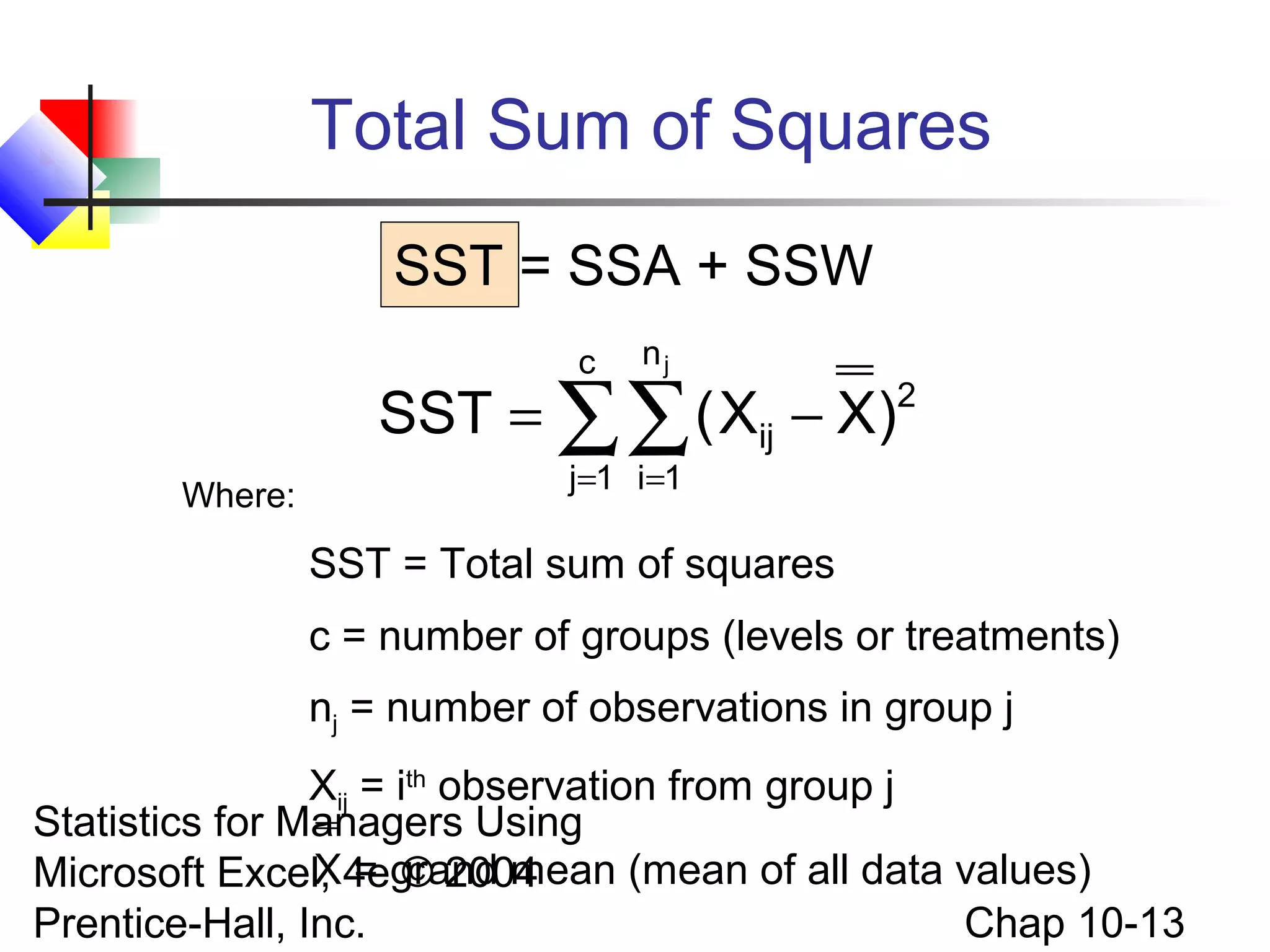

Total Sum of Squares
SST = SSA + SSW
c

nj

SST = ∑∑ ( Xij − X)
Where:

2

j=1 i =1

SST = Total sum of squares
c = number of groups (levels or treatments)
nj = number of observations in group j
Xij = ith observation from group j
Statistics for Managers Using
X = © 2004
Microsoft Excel, 4egrand mean (mean of all data values)
Chap 10-13
Prentice-Hall, Inc.

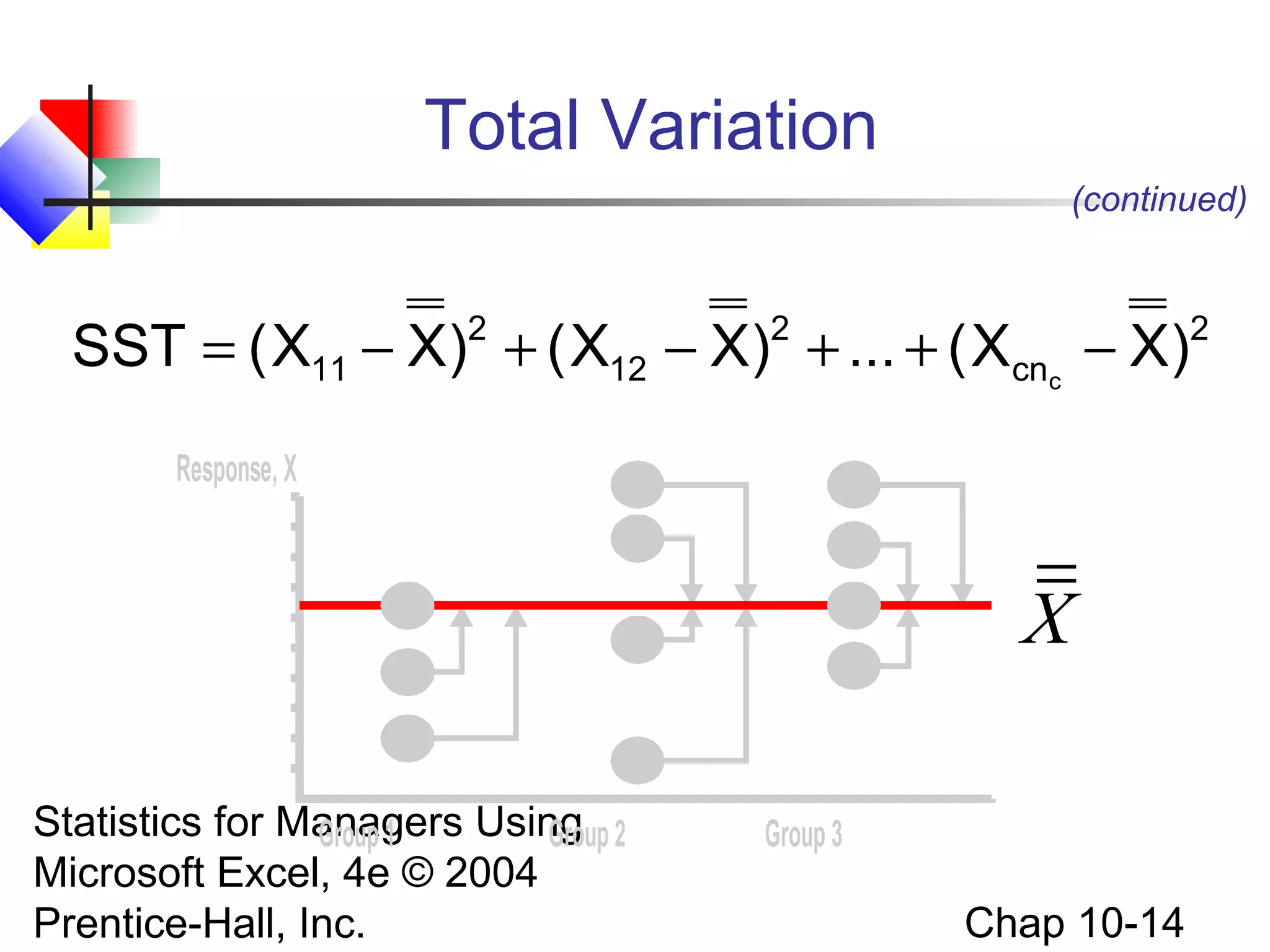

Total Variation
(continued)

SST = ( X11 − X)2 + ( X12 − X)2 + ... + ( Xcnc − X)2
Response, X

X
Statistics for Managers Using 2
Group 1
Group
Microsoft Excel, 4e © 2004
Prentice-Hall, Inc.

Group 3

Chap 10-14

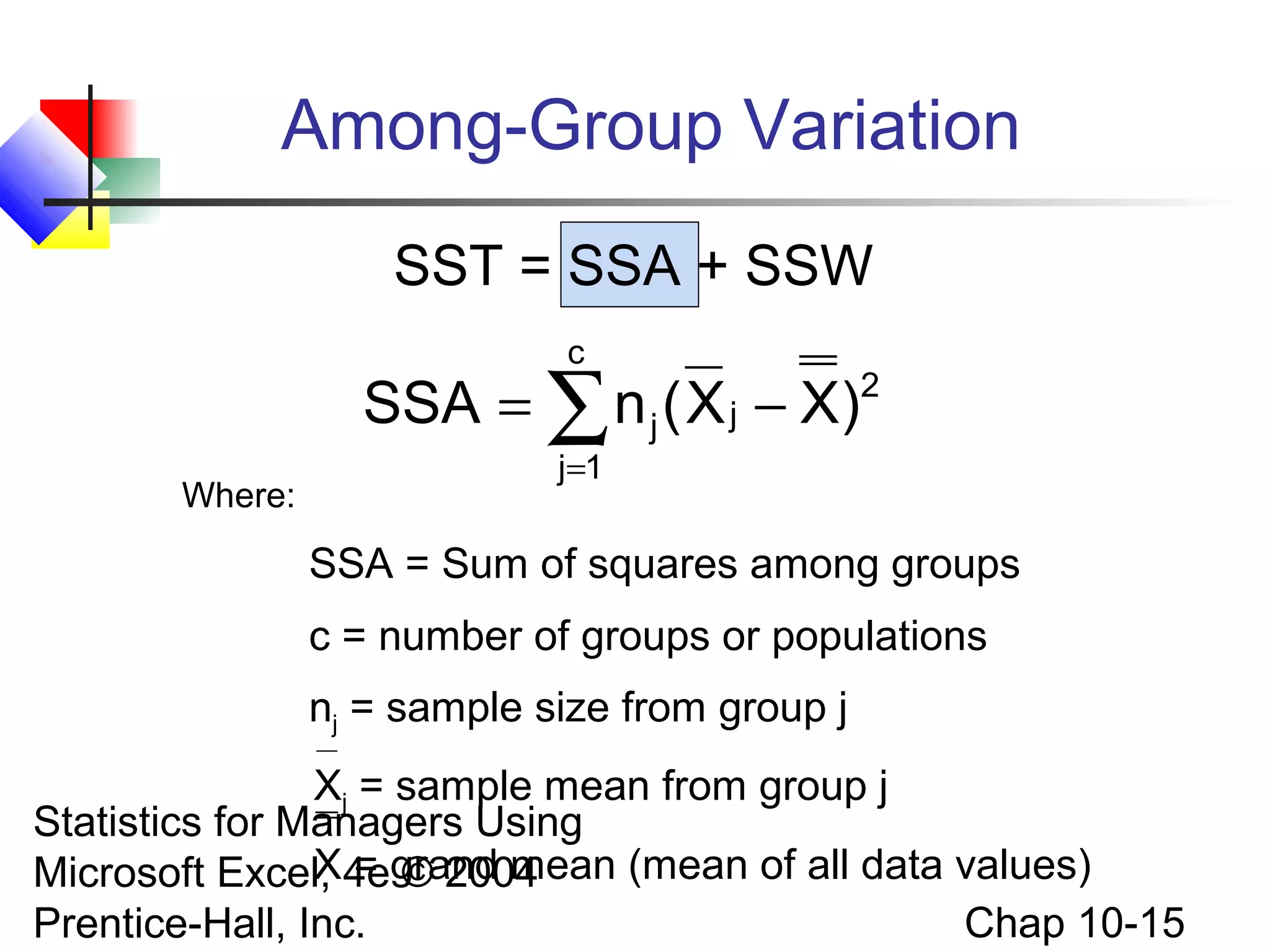

Among-Group Variation
SST = SSA + SSW
c

SSA = ∑ n j ( X j − X)2
Where:

j =1

SSA = Sum of squares among groups
c = number of groups or populations
nj = sample size from group j
Xj = sample mean from group j
Statistics for Managers Using
X = © 2004
Microsoft Excel, 4egrand mean (mean of all data values)
Chap 10-15
Prentice-Hall, Inc.

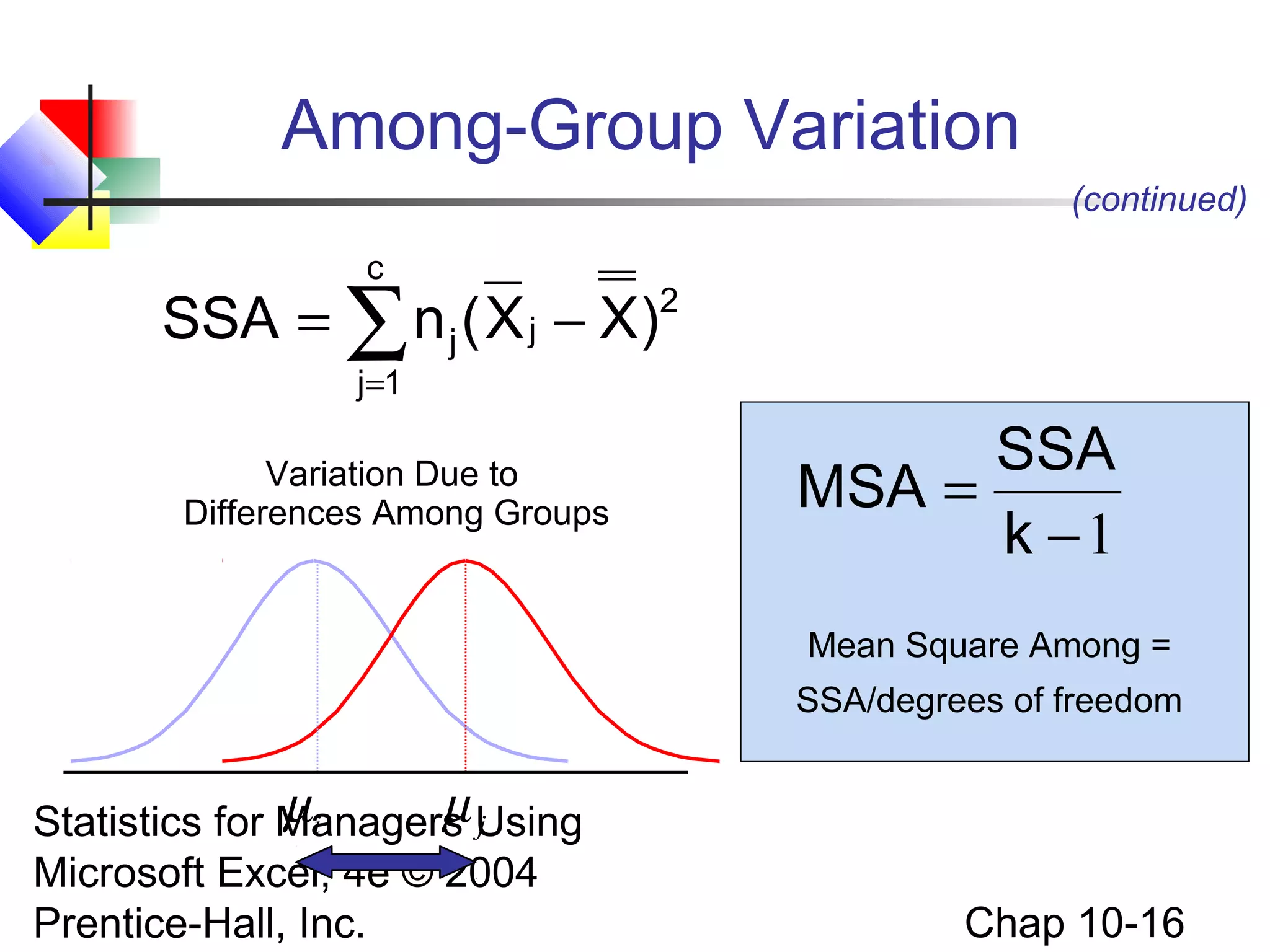

Among-Group Variation
(continued)
c

SSA = ∑ n j ( X j − X)2
j =1

Variation Due to
Differences Among Groups

SSA
MSA =
k −1
Mean Square Among =
SSA/degrees of freedom

µi
µj
Statistics for Managers Using
Microsoft Excel, 4e © 2004
Prentice-Hall, Inc.

Chap 10-16

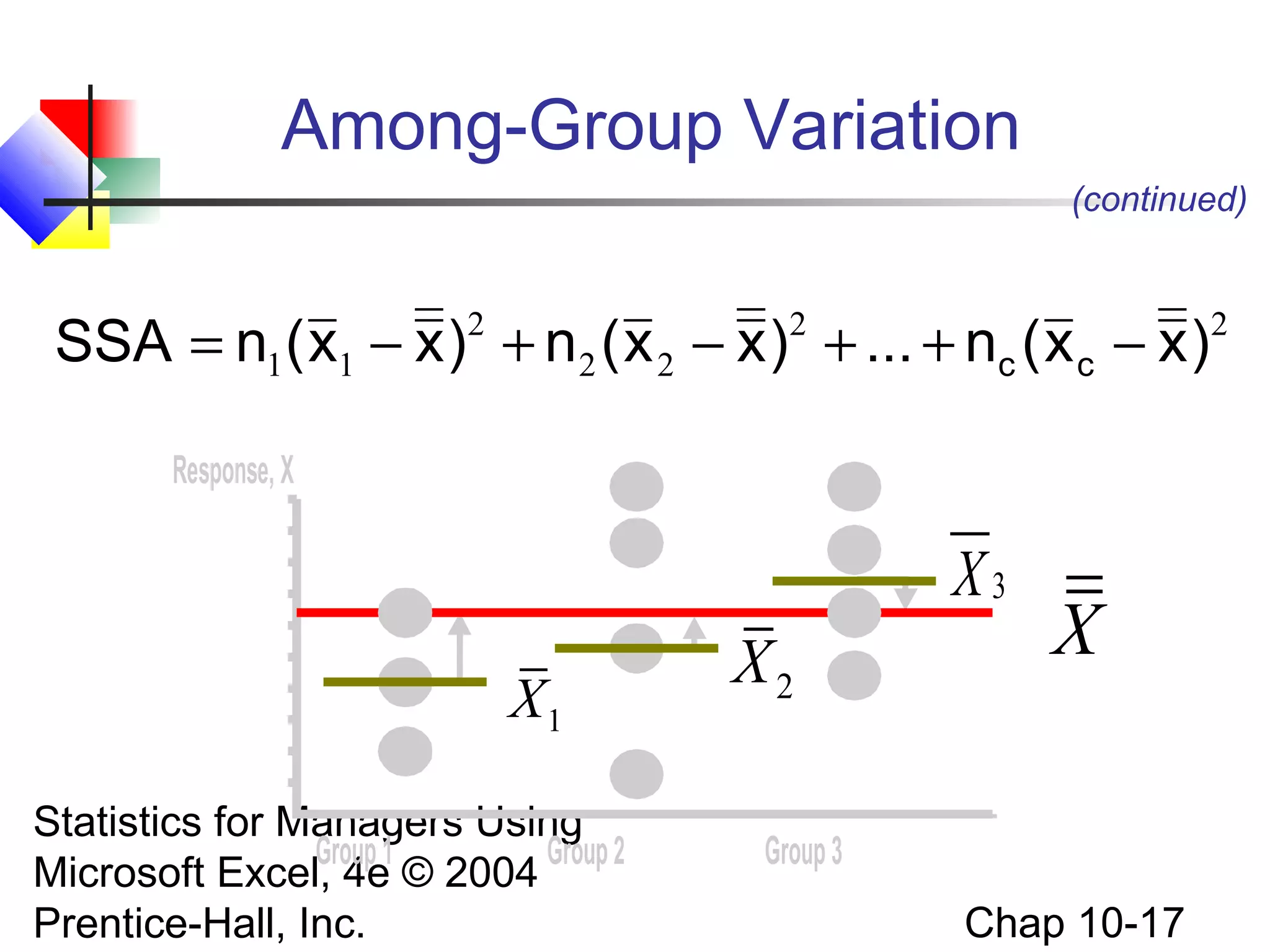

Among-Group Variation
(continued)

SSA = n1 ( x1 − x ) + n 2 ( x 2 − x ) + ... + nc ( x c − x )
2

2

Response, X

X3
X1
Statistics for Managers Using
Group 1
Group 2
Microsoft Excel, 4e © 2004
Prentice-Hall, Inc.

X2

X

Group 3

Chap 10-17

2

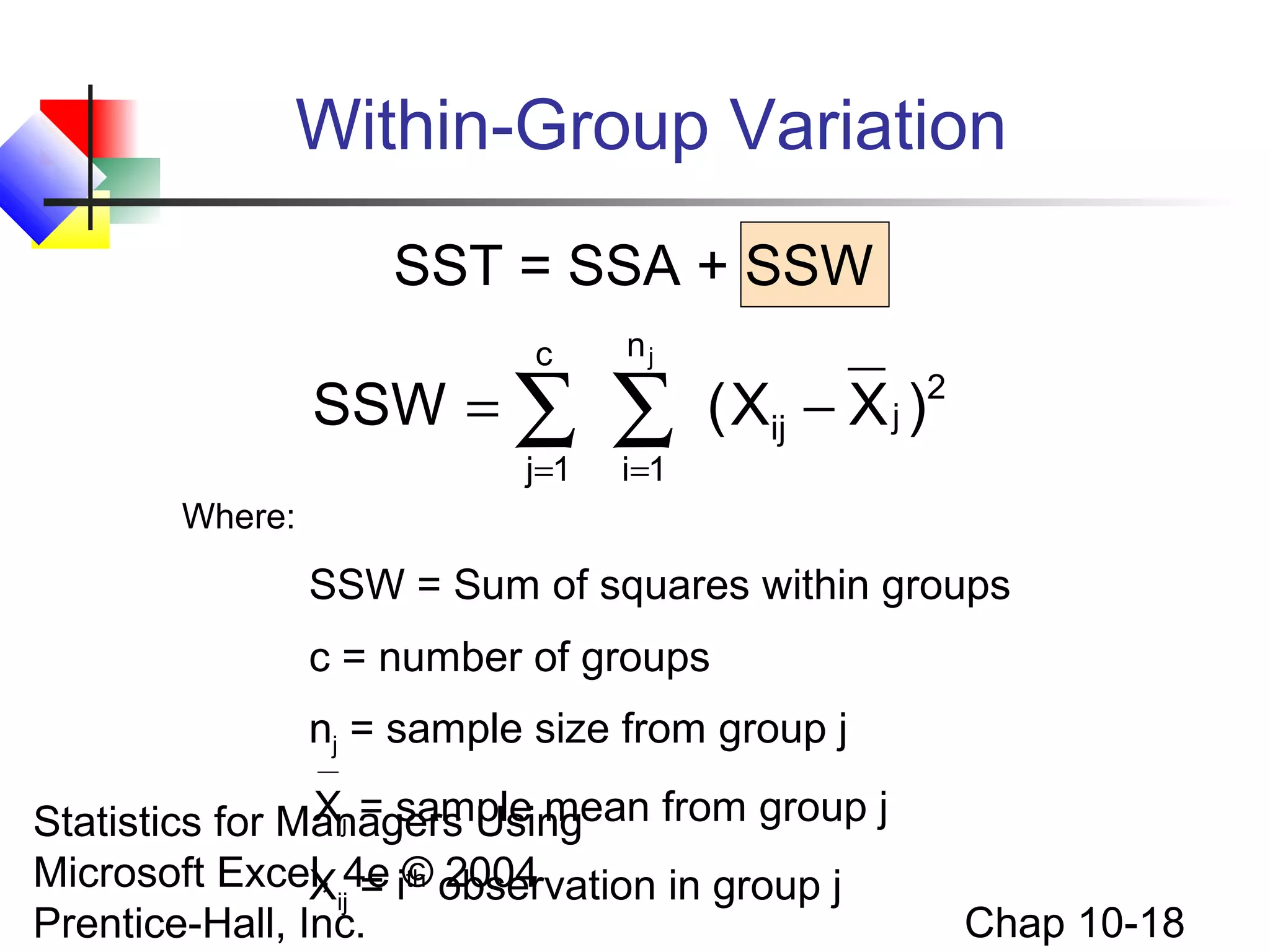

Within-Group Variation
SST = SSA + SSW
c

SSW = ∑
j=1

nj

∑
i =1

( Xij − X j )

2

Where:

SSW = Sum of squares within groups
c = number of groups
nj = sample size from group j
Xj = sample mean from group j
Statistics for Managers Using
Microsoft Excel, 4e i© observation in group j
Xij = th 2004
Prentice-Hall, Inc.

Chap 10-18

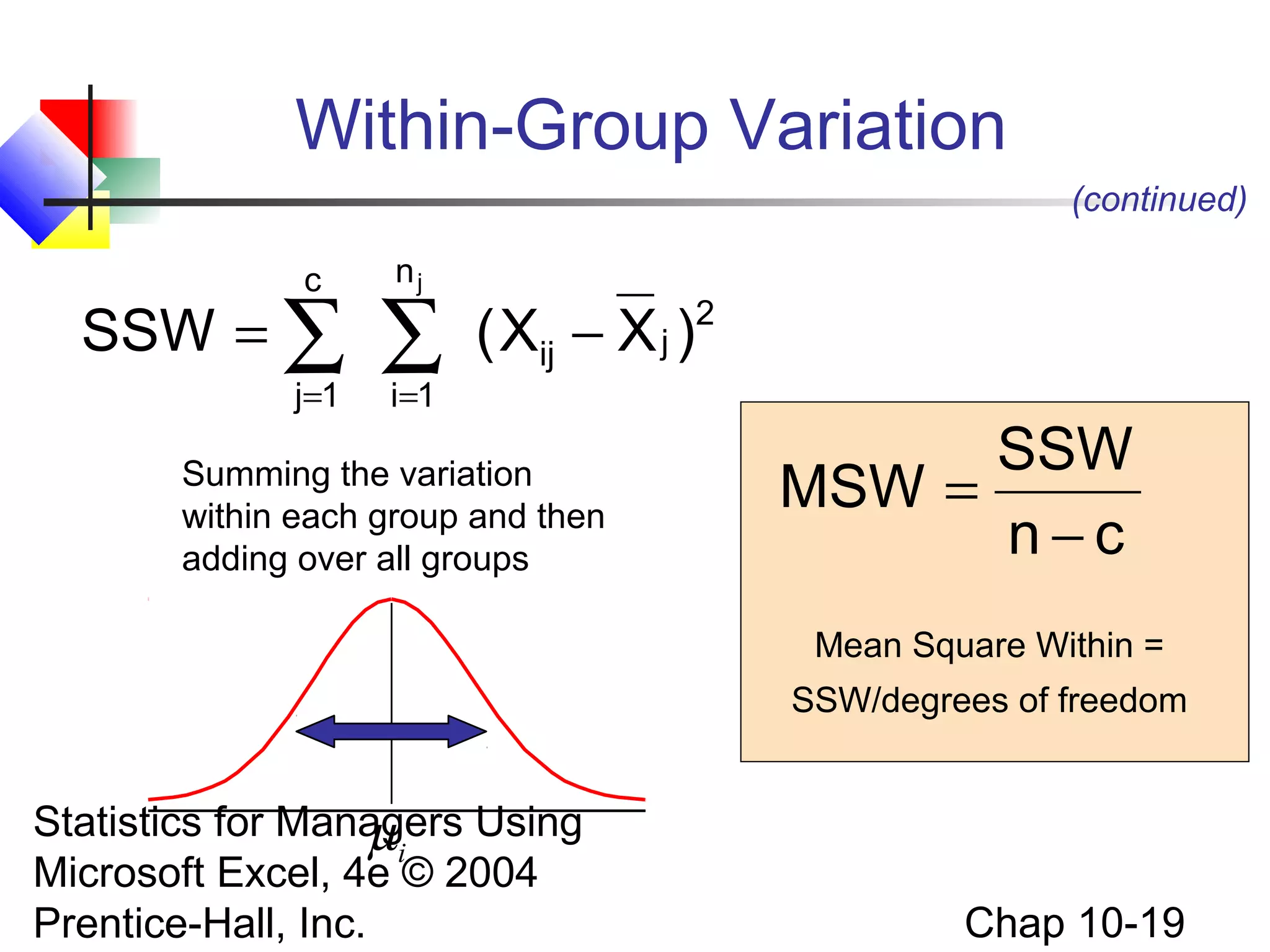

Within-Group Variation
(continued)
c

SSW = ∑
j=1

nj

∑
i =1

( Xij − X j )2

Summing the variation
within each group and then
adding over all groups

SSW
MSW =
n−c
Mean Square Within =
SSW/degrees of freedom

Statistics for Managers Using
µi
Microsoft Excel, 4e © 2004
Prentice-Hall, Inc.

Chap 10-19

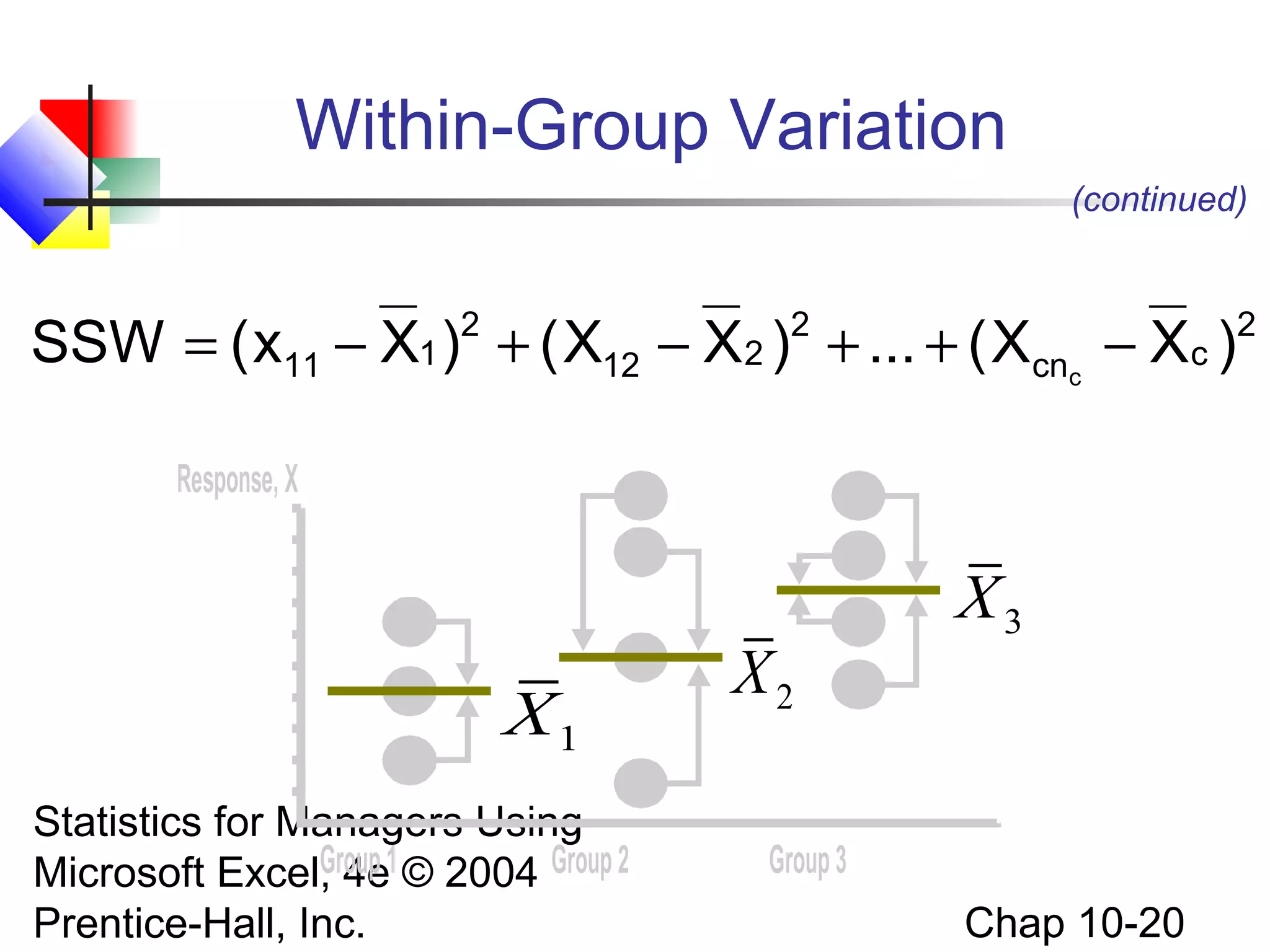

Within-Group Variation
(continued)

SSW = ( x11 − X1 ) + ( X12 − X 2 ) + ... + ( Xcnc − Xc )
2

2

Response, X

X1
Statistics for Managers Using
Group
Microsoft Excel, 4e1 © 2004 Group 2
Prentice-Hall, Inc.

X2

X3

Group 3

Chap 10-20

2

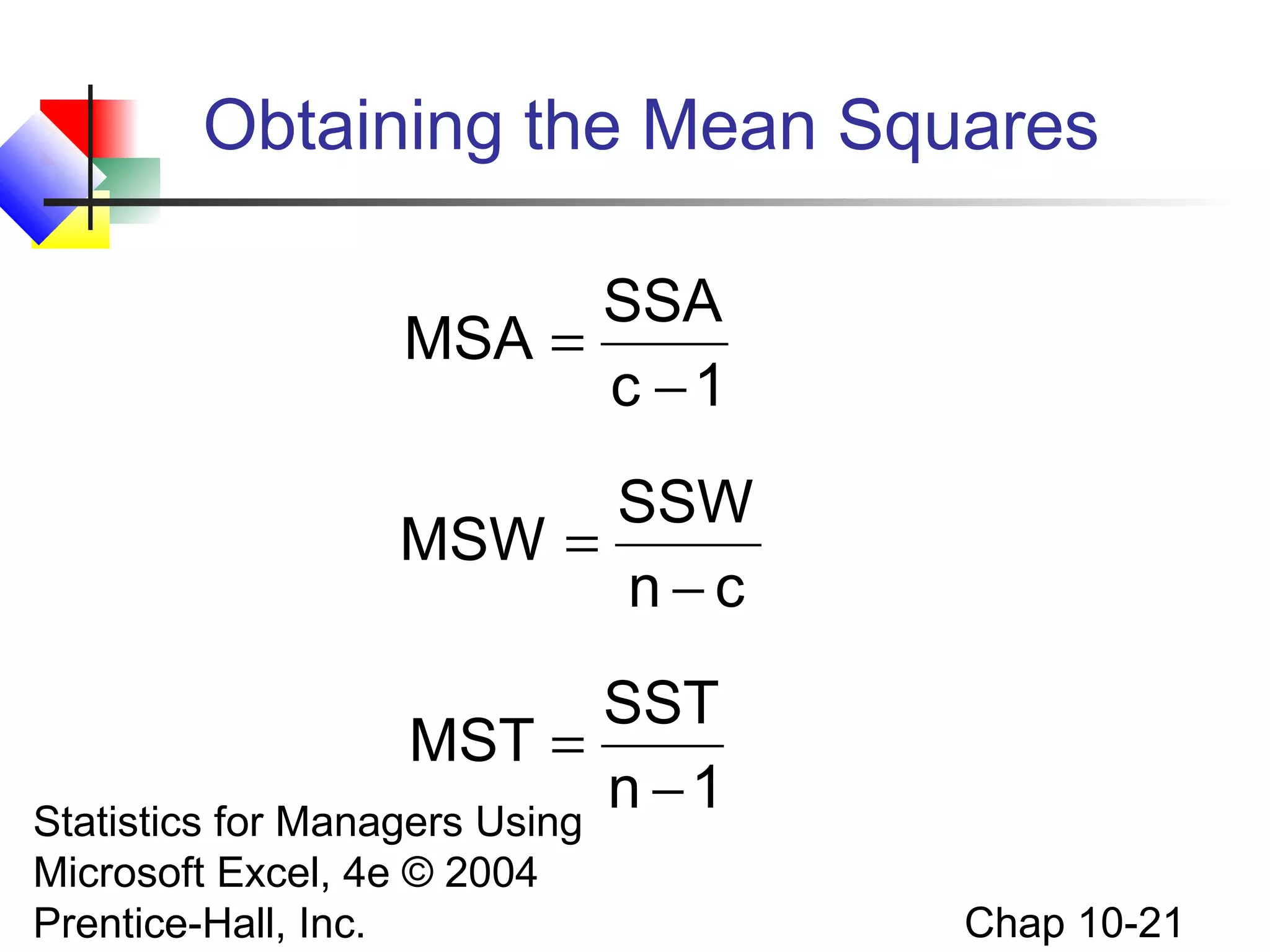

Obtaining the Mean Squares
SSA
MSA =
c −1
SSW
MSW =
n−c
SST
MST =
n −1
Statistics for Managers Using
Microsoft Excel, 4e © 2004
Prentice-Hall, Inc.

Chap 10-21

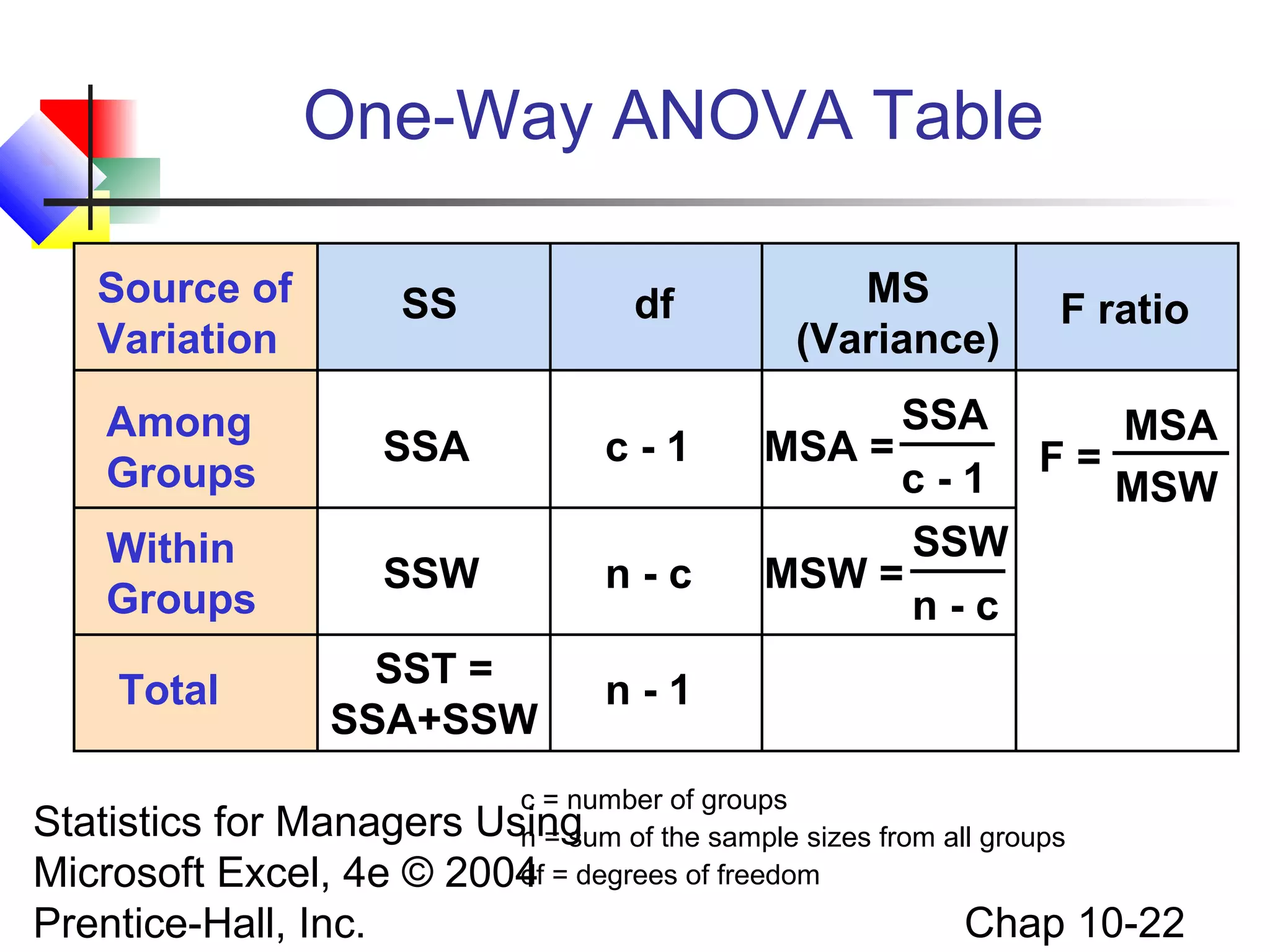

One-Way ANOVA Table
Source of
Variation

SS

df

Among
Groups

SSA

c-1

Within
Groups

SSW

n-c

Total

SST =
SSA+SSW

MS
(Variance)

F ratio

SSA
MSA
MSA =
c - 1 F = MSW
SSW
MSW =
n-c

n-1

c = number of groups
for Managers Using of the sample sizes from all groups
n = sum
df
Excel, 4e © 2004 = degrees of freedom

Statistics
Microsoft
Prentice-Hall, Inc.

Chap 10-22

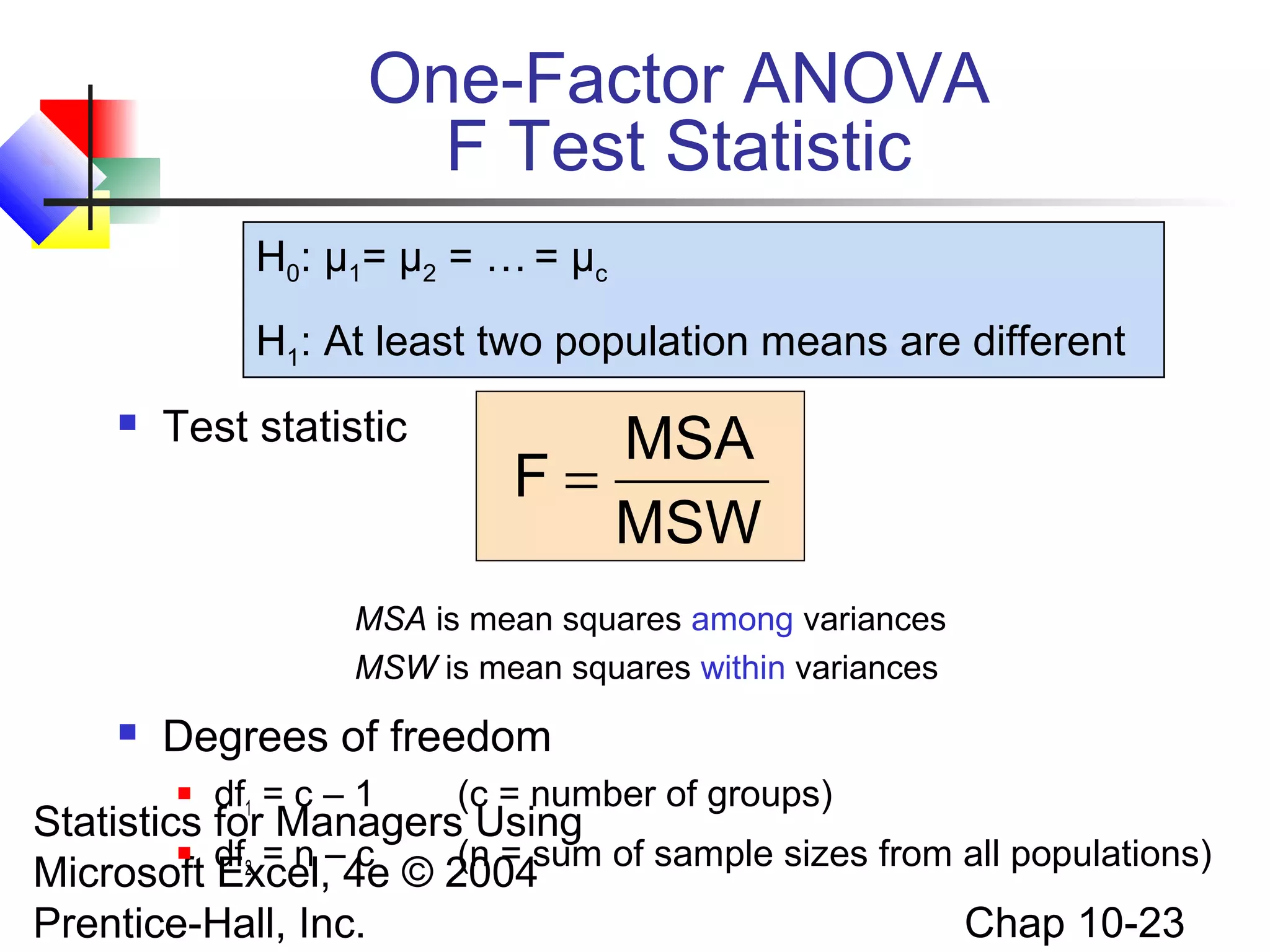

One-Factor ANOVA
F Test Statistic
H0: μ1= μ2 = … = μc
H1: At least two population means are different


Test statistic

MSA
F=
MSW

MSA is mean squares among variances
MSW is mean squares within variances


Degrees of freedom


df1 = c – 1

(c = number of groups)

Statistics for Managers Using

(n =
Microsoft df2 = n –4e © 2004sum of sample sizes from all populations)
Excel, c
Chap 10-23
Prentice-Hall, Inc.

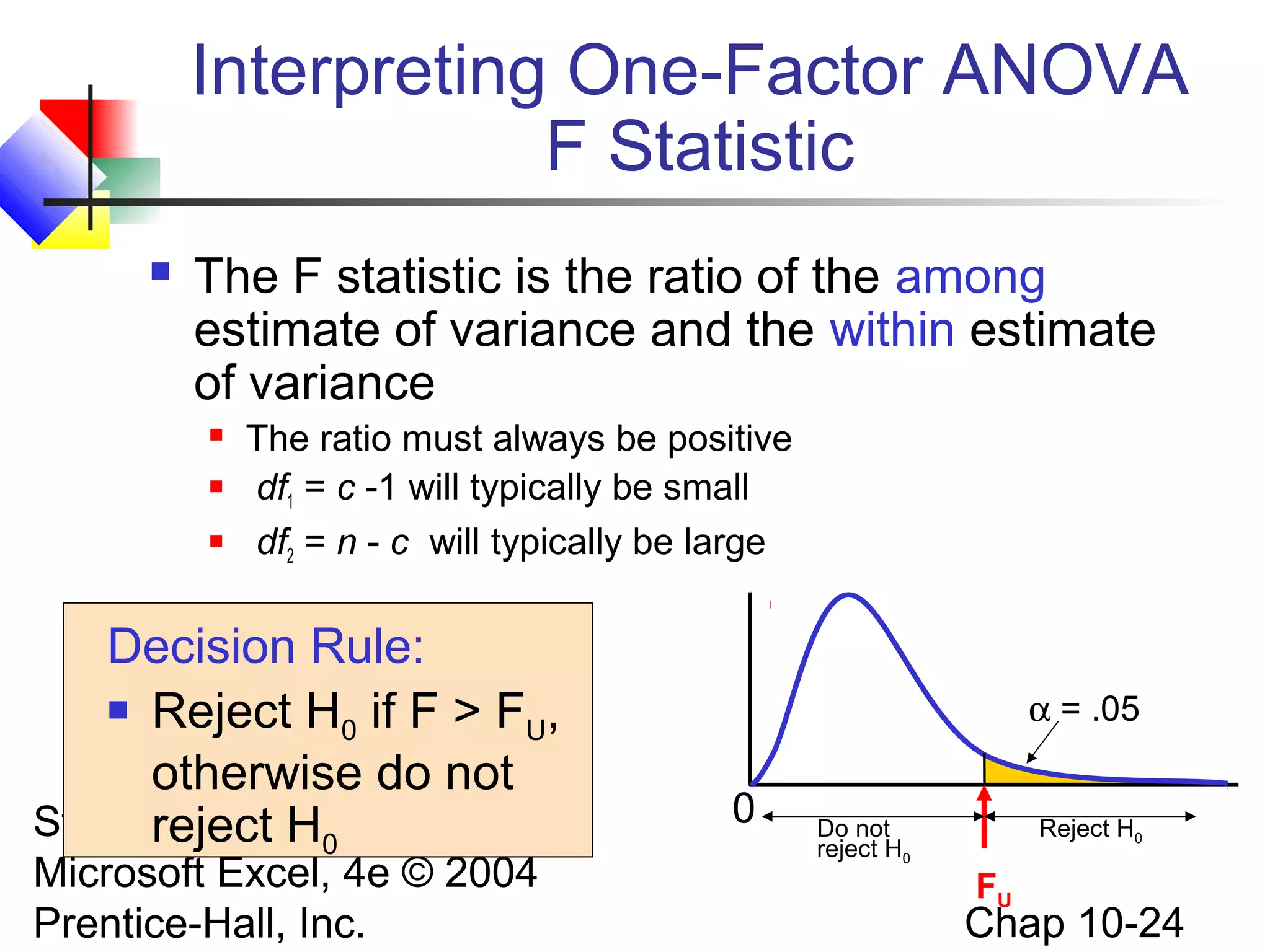

Interpreting One-Factor ANOVA
F Statistic


The F statistic is the ratio of the among
estimate of variance and the within estimate
of variance




The ratio must always be positive
df1 = c -1 will typically be small
df2 = n - c will typically be large

Decision Rule:
 Reject H if F > F ,
0
U
otherwise do not
Statistics for Managers Using
reject H0
Microsoft Excel, 4e © 2004
Prentice-Hall, Inc.

α = .05

0

Do not
reject H0

Reject H0

FU

Chap 10-24

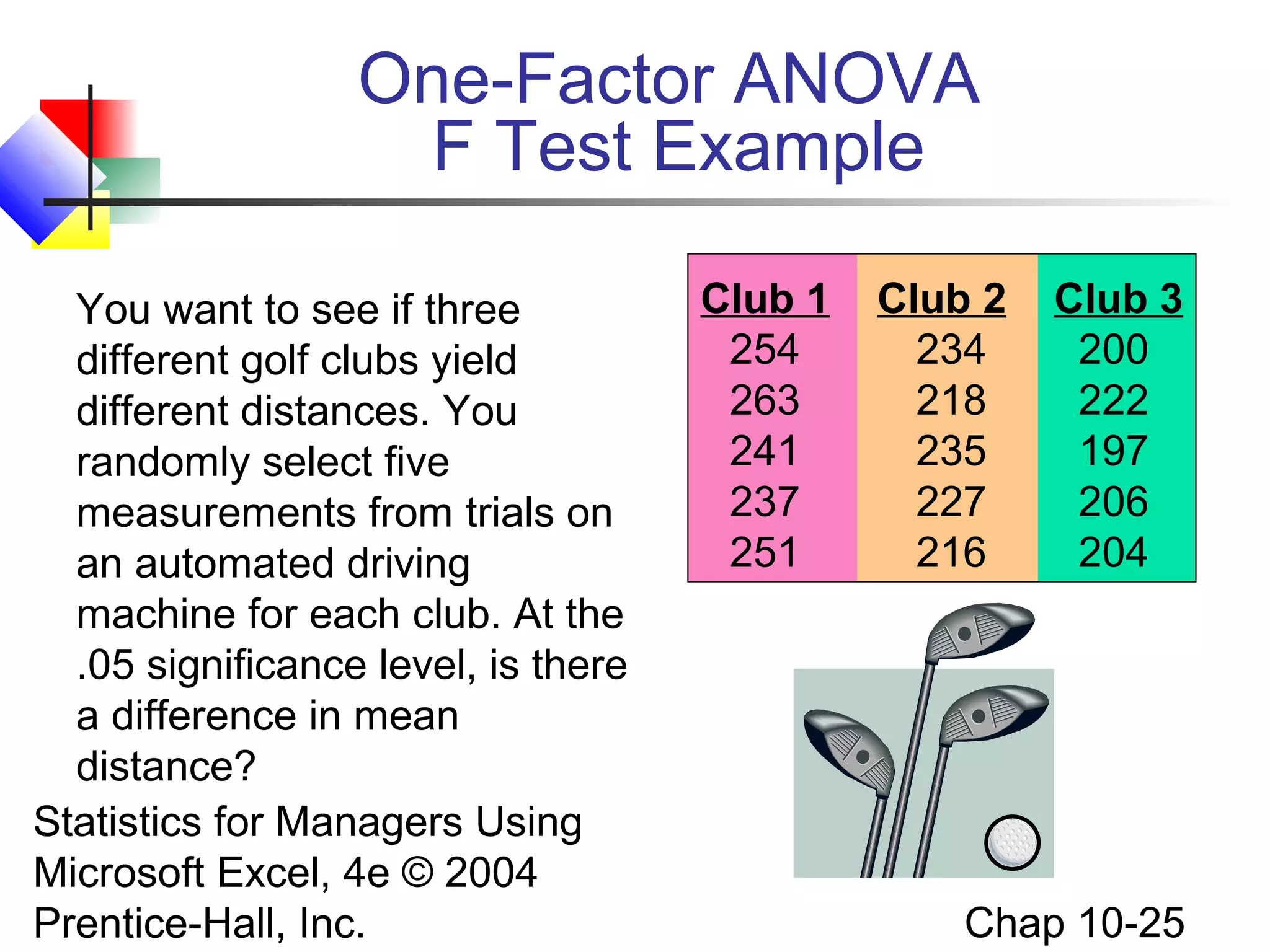

One-Factor ANOVA
F Test Example
You want to see if three
different golf clubs yield
different distances. You
randomly select five
measurements from trials on
an automated driving
machine for each club. At the
.05 significance level, is there
a difference in mean
distance?
Statistics for Managers Using
Microsoft Excel, 4e © 2004
Prentice-Hall, Inc.

Club 1
254
263
241
237
251

Club 2
234
218
235
227
216

Club 3
200
222
197
206
204

Chap 10-25

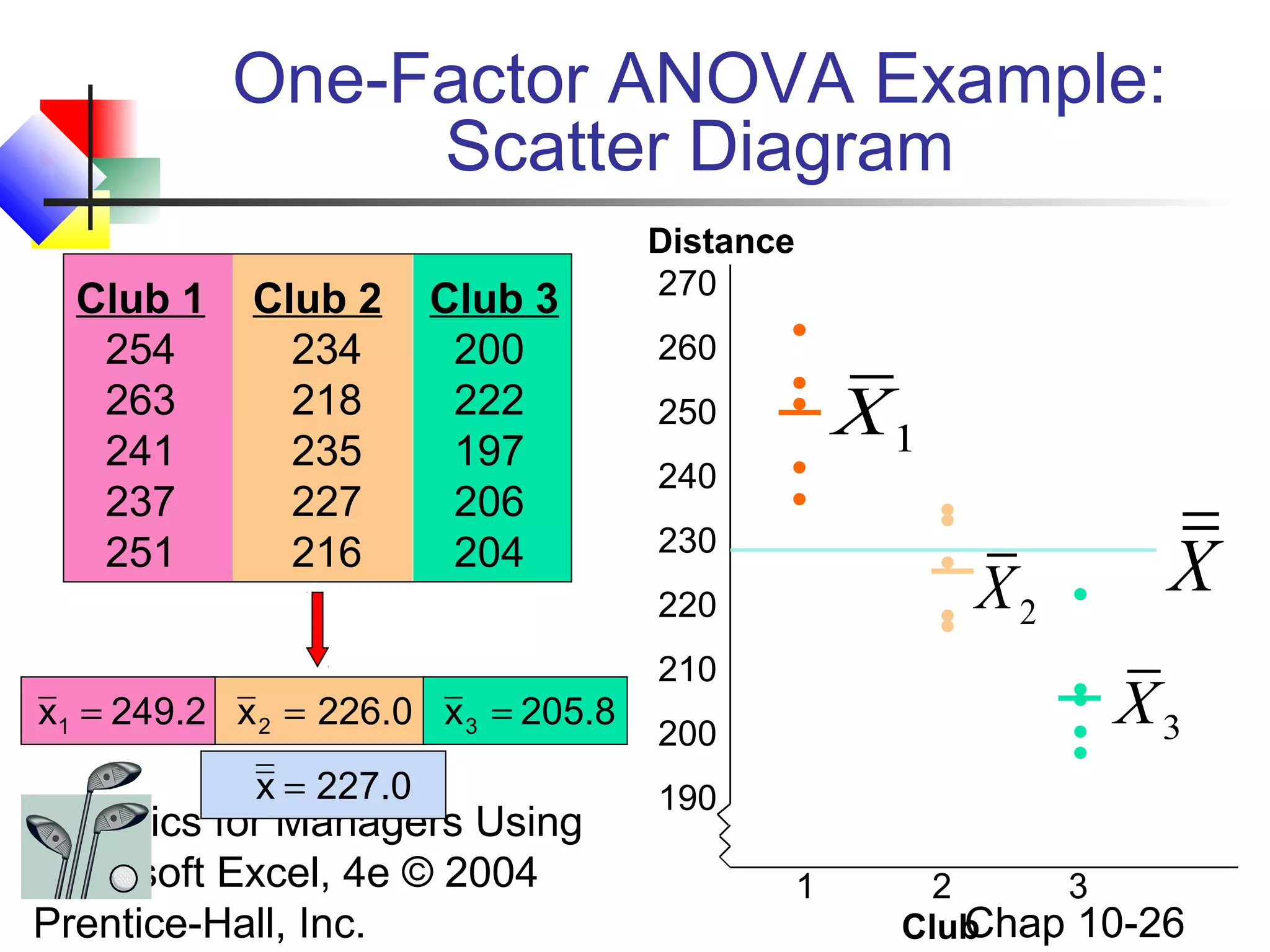

One-Factor ANOVA Example:
Scatter Diagram
Club 1
254
263
241
237
251

Club 2
234
218
235
227
216

Club 3
200
222
197
206
204

Distance
270
260
250
240
230

•
•
•
•
•

220

x1 = 249.2 x 2 = 226.0 x 3 = 205.8
x = 227.0

Statistics for Managers Using
Microsoft Excel, 4e © 2004
Prentice-Hall, Inc.

210

X1
•
•
•
•
•

X2

•
•
•
•
•

200

X
X3

190
1

2
3
Chap 10-26
Club

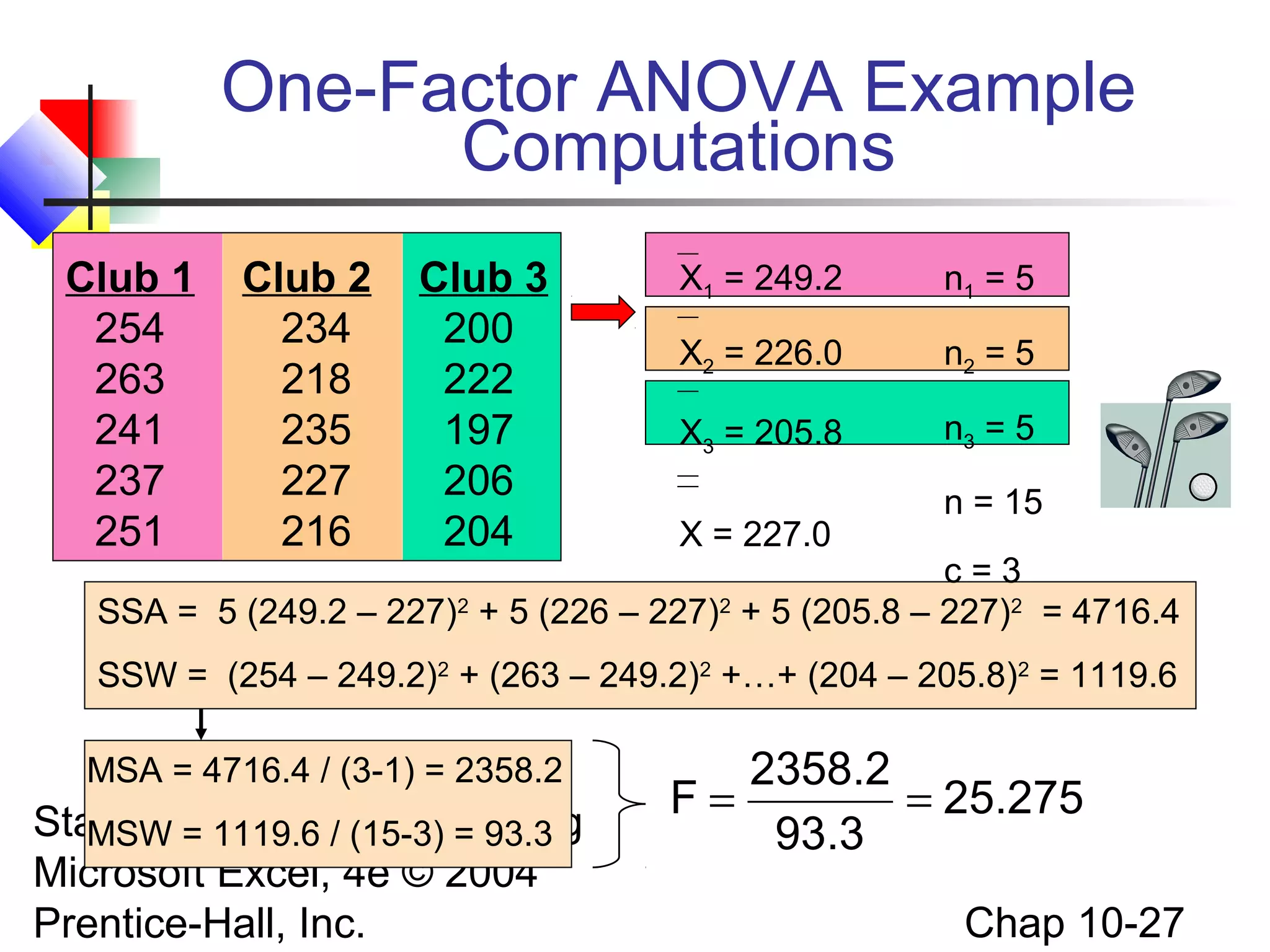

One-Factor ANOVA Example
Computations
Club 1
254
263
241
237
251

Club 2
234
218
235
227
216

Club 3
200
222
197
206
204

X1 = 249.2

n1 = 5

X2 = 226.0

n2 = 5

X3 = 205.8

n3 = 5

X = 227.0

n = 15

c=3
SSA = 5 (249.2 – 227)2 + 5 (226 – 227)2 + 5 (205.8 – 227)2 = 4716.4
SSW = (254 – 249.2)2 + (263 – 249.2)2 +…+ (204 – 205.8)2 = 1119.6

MSA = 4716.4 / (3-1) = 2358.2

Statistics 1119.6 / (15-3) =Using
MSW = for Managers 93.3
Microsoft Excel, 4e © 2004
Prentice-Hall, Inc.

2358.2
F=
= 25.275
93.3
Chap 10-27

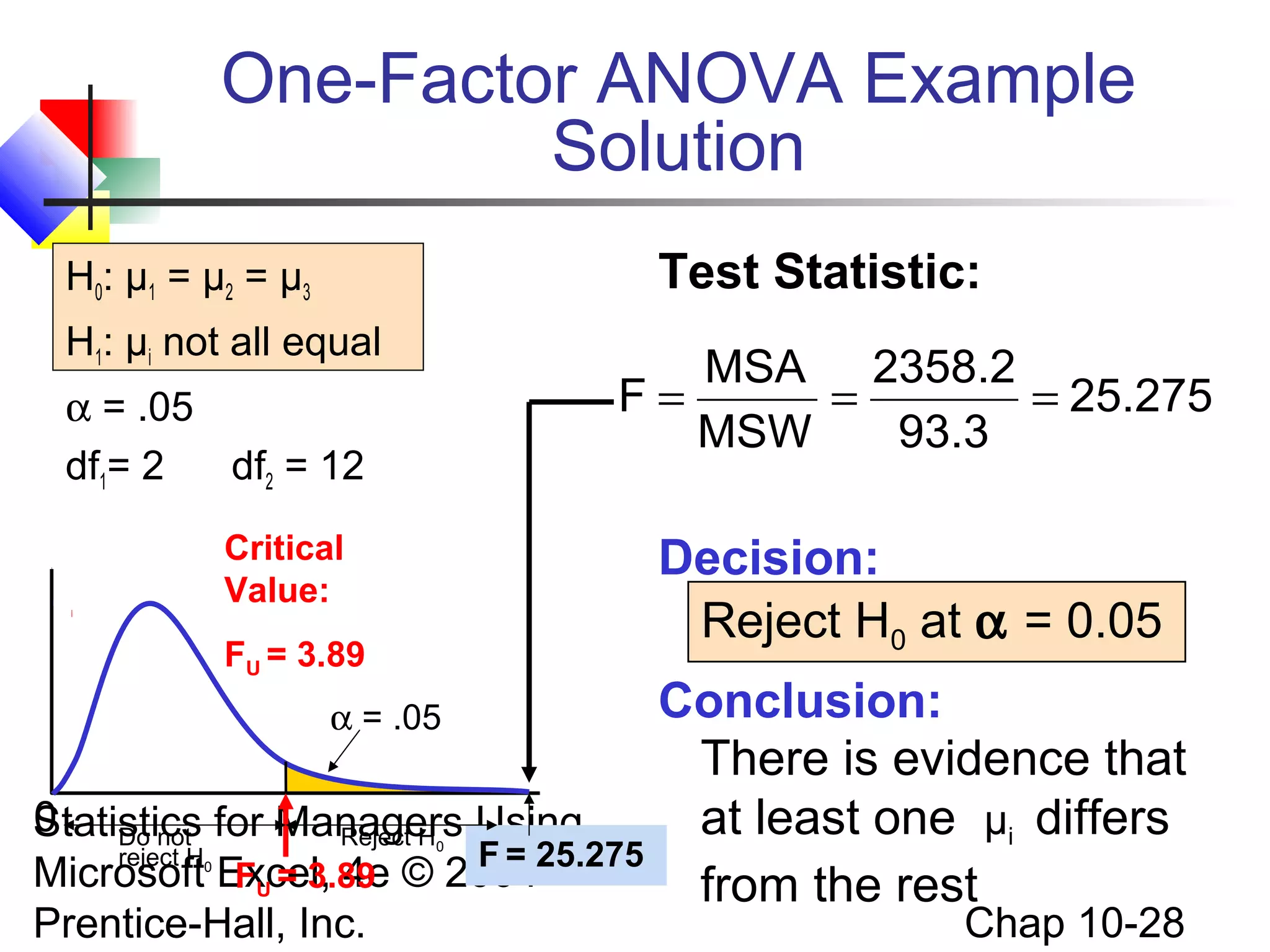

One-Factor ANOVA Example
Solution
Test Statistic:

H0: μ1 = μ2 = μ3
H1: μi not all equal

MSA 2358.2
F=
=
= 25.275
MSW
93.3

α = .05
df1= 2
df2 = 12
Critical
Value:

Decision:
Reject H0 at α = 0.05

FU = 3.89

Conclusion:
There is evidence that
0 Do not
at least one μi differs
Statistics for Managers Using
Reject H
reject H
F=
Microsoft Excel, 4e © 200425.275 from the rest
FU = 3.89
α = .05

0

0

Prentice-Hall, Inc.

Chap 10-28

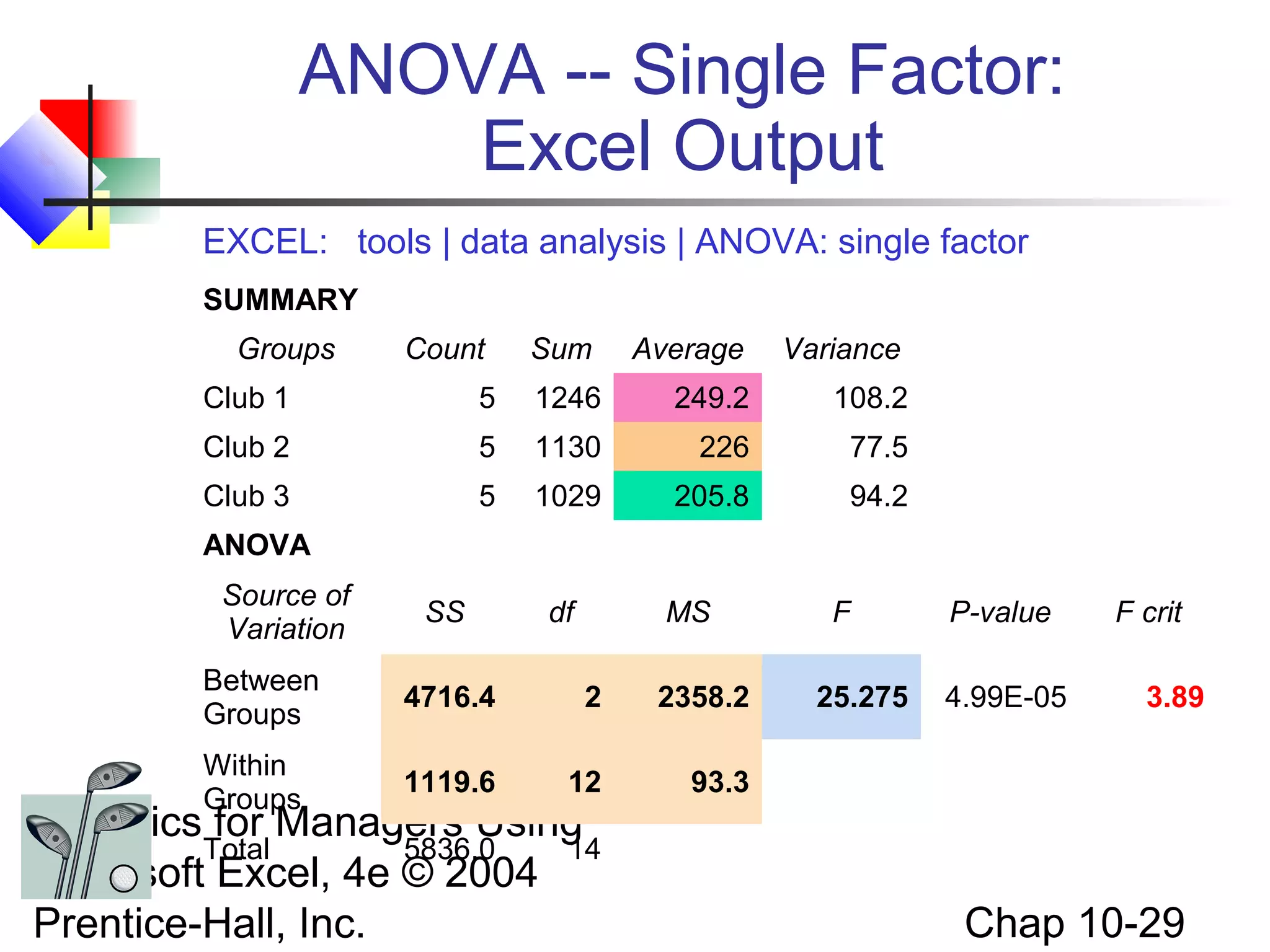

ANOVA -- Single Factor:
Excel Output
EXCEL: tools | data analysis | ANOVA: single factor
SUMMARY
Groups

Count

Sum

Average

Variance

Club 1

5

1246

249.2

108.2

Club 2

5

1130

226

77.5

Club 3

5

1029

205.8

94.2

ANOVA
Source of
Variation

SS

df

MS

Between
Groups

4716.4

2

2358.2

Within
Groups

1119.6

12

F

P-value

F crit

93.3

Statistics for Managers Using
Total
5836.0
14
Microsoft Excel, 4e © 2004
Prentice-Hall, Inc.

25.275

4.99E-05

3.89

Chap 10-29

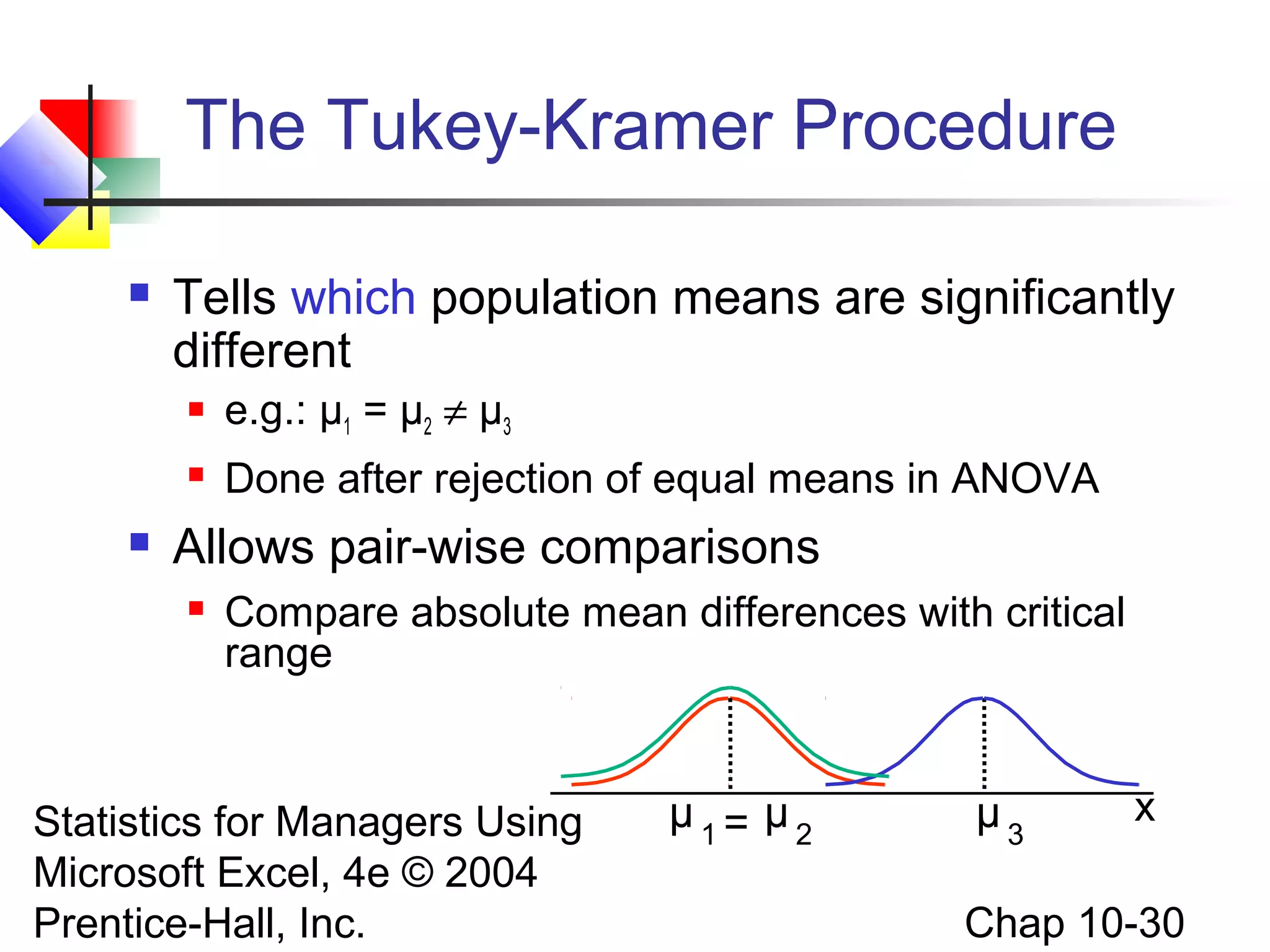

The Tukey-Kramer Procedure


Tells which population means are significantly
different





e.g.: μ1 = μ2 ≠ μ3
Done after rejection of equal means in ANOVA

Allows pair-wise comparisons


Compare absolute mean differences with critical
range

Statistics for Managers Using
Microsoft Excel, 4e © 2004
Prentice-Hall, Inc.

μ1= μ2

μ3

x

Chap 10-30

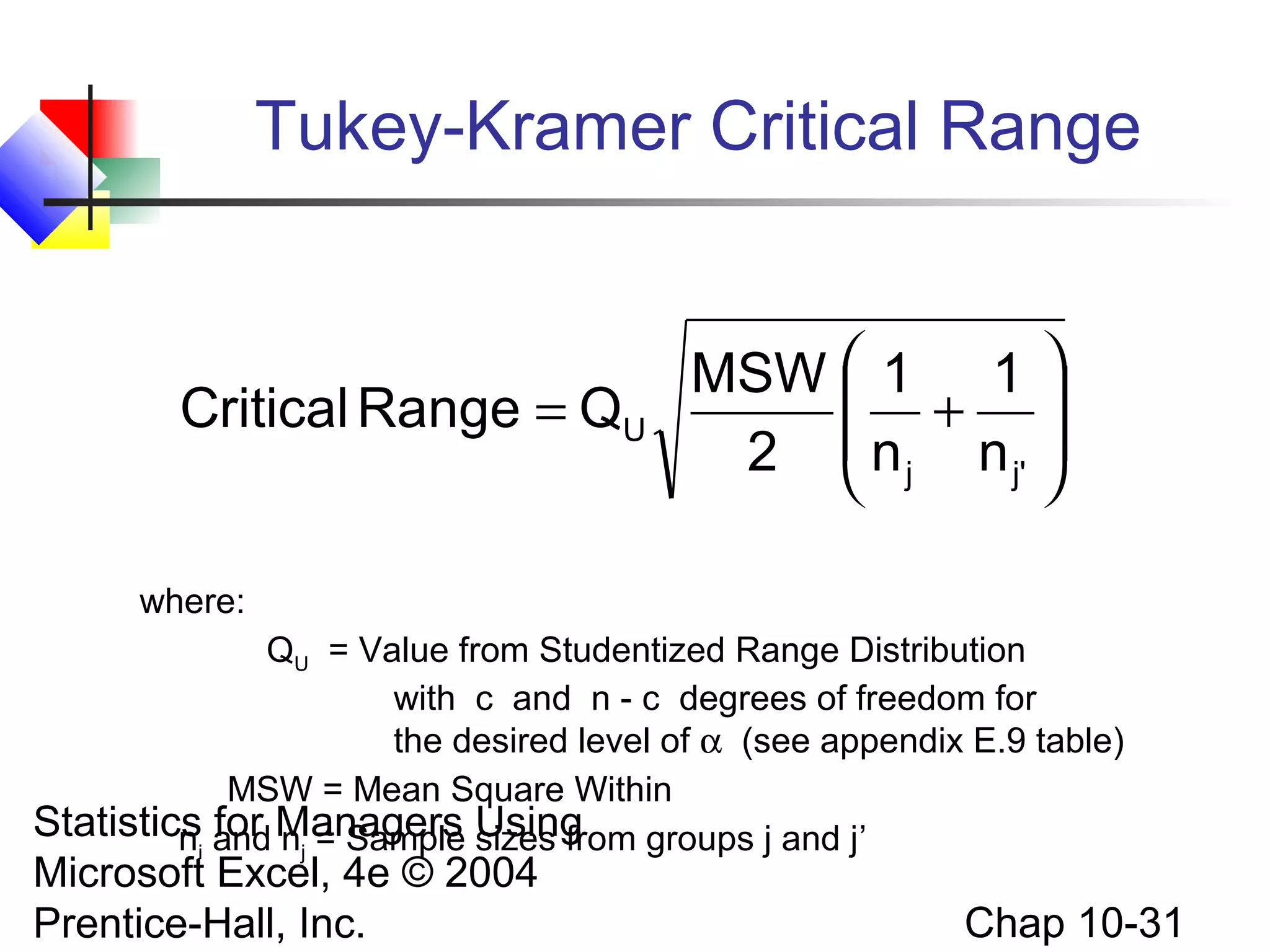

Tukey-Kramer Critical Range

Critical Range = QU

MSW  1 1 
 + 
2  n j n j' 



where:
QU = Value from Studentized Range Distribution
with c and n - c degrees of freedom for
the desired level of α (see appendix E.9 table)
MSW = Mean Square Within
Statistics and Managers Using groups j and j’
ni for nj = Sample sizes from

Microsoft Excel, 4e © 2004
Prentice-Hall, Inc.

Chap 10-31
The Tukey-Kramer Procedure:
Example
Club 1
254
263
241
237
251

Club 2
234
218
235
227
216

Club 3
200
222
197
206
204

1. Compute absolute mean
differences:
x1 − x 2 = 249.2 − 226.0 = 23.2
x1 − x 3 = 249.2 − 205.8 = 43.4
x 2 − x 3 = 226.0 − 205.8 = 20.2

2. Find the QU value from the table in appendix E.9 with
c = 3 and (n – c) = (15 – 3) = 12 degrees of freedom
for the desired level of α (α = .05 used here):

Statistics for Managers Using U
Q
Microsoft Excel, 4e © 2004
Prentice-Hall, Inc.

= 3.77
Chap 10-32

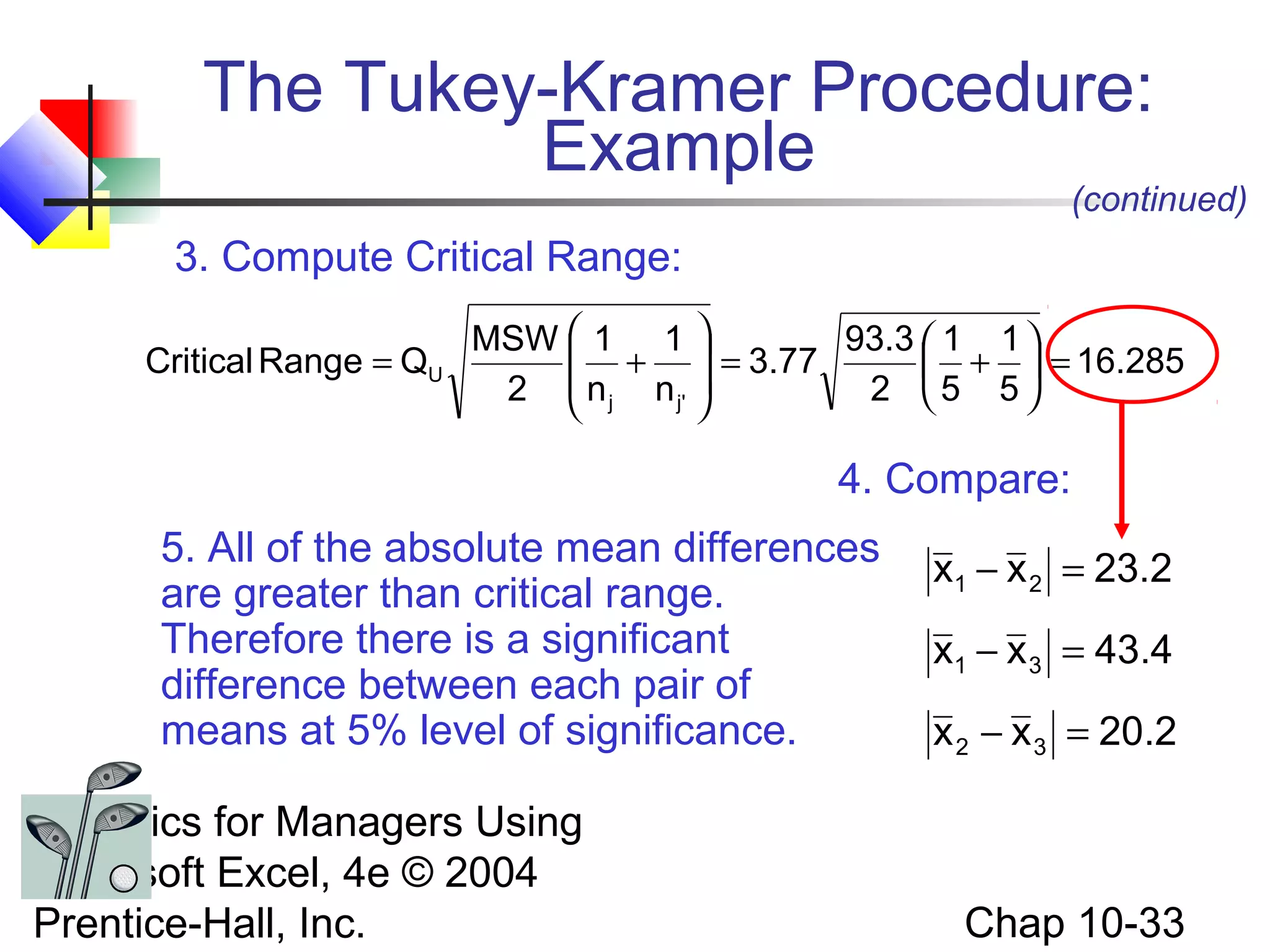

The Tukey-Kramer Procedure:
Example

(continued)

3. Compute Critical Range:
Critical Range = QU

MSW  1 1 
 +  = 3.77 93.3  1 + 1  = 16.285


2  n j n j' 
2 5 5



4. Compare:
5. All of the absolute mean differences
are greater than critical range.
Therefore there is a significant
difference between each pair of
means at 5% level of significance.
Statistics for Managers Using
Microsoft Excel, 4e © 2004
Prentice-Hall, Inc.

x1 − x 2 = 23.2
x1 − x 3 = 43.4
x 2 − x 3 = 20.2

Chap 10-33

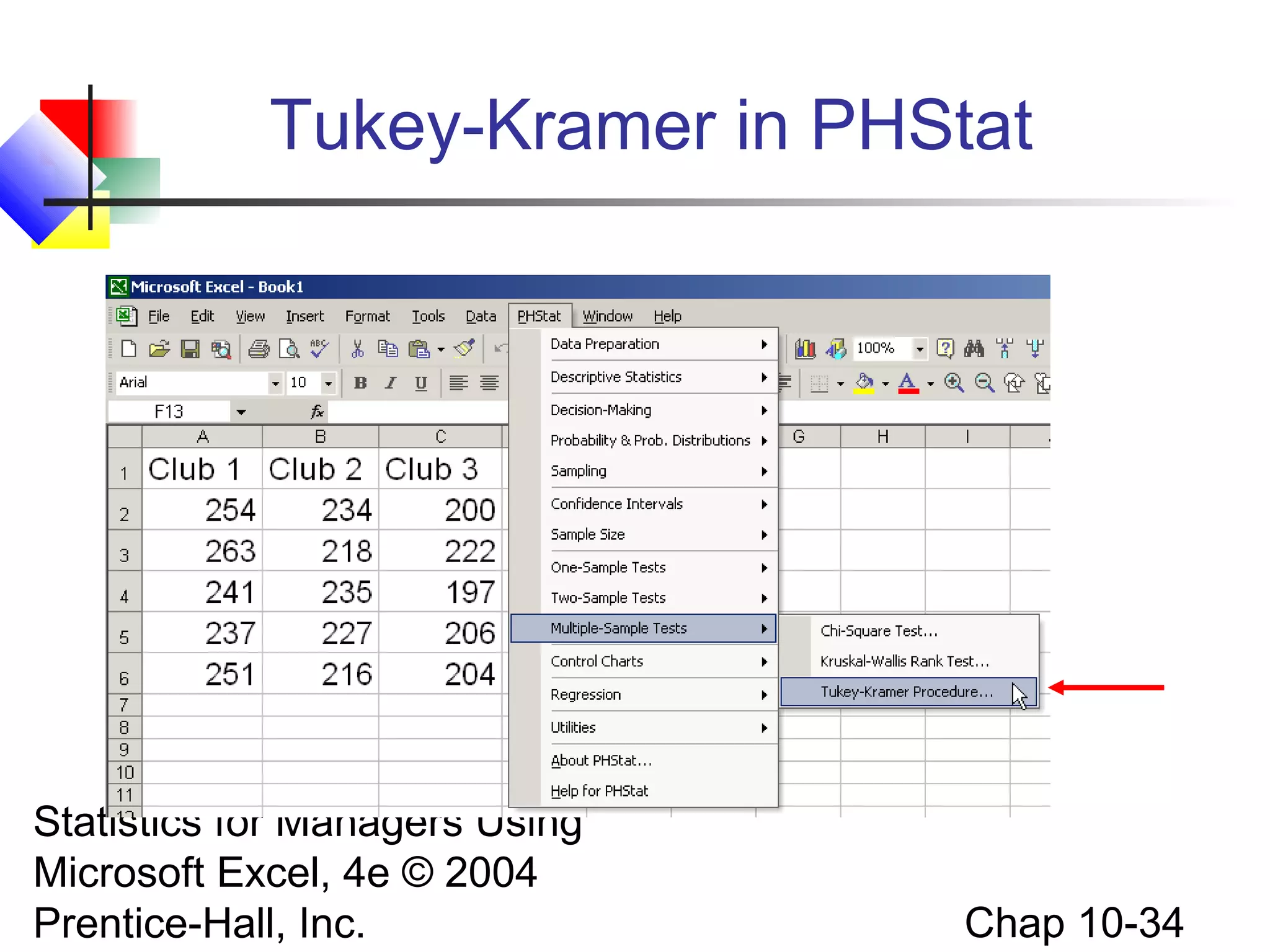

Tukey-Kramer in PHStat

Statistics for Managers Using
Microsoft Excel, 4e © 2004
Prentice-Hall, Inc.

Chap 10-34

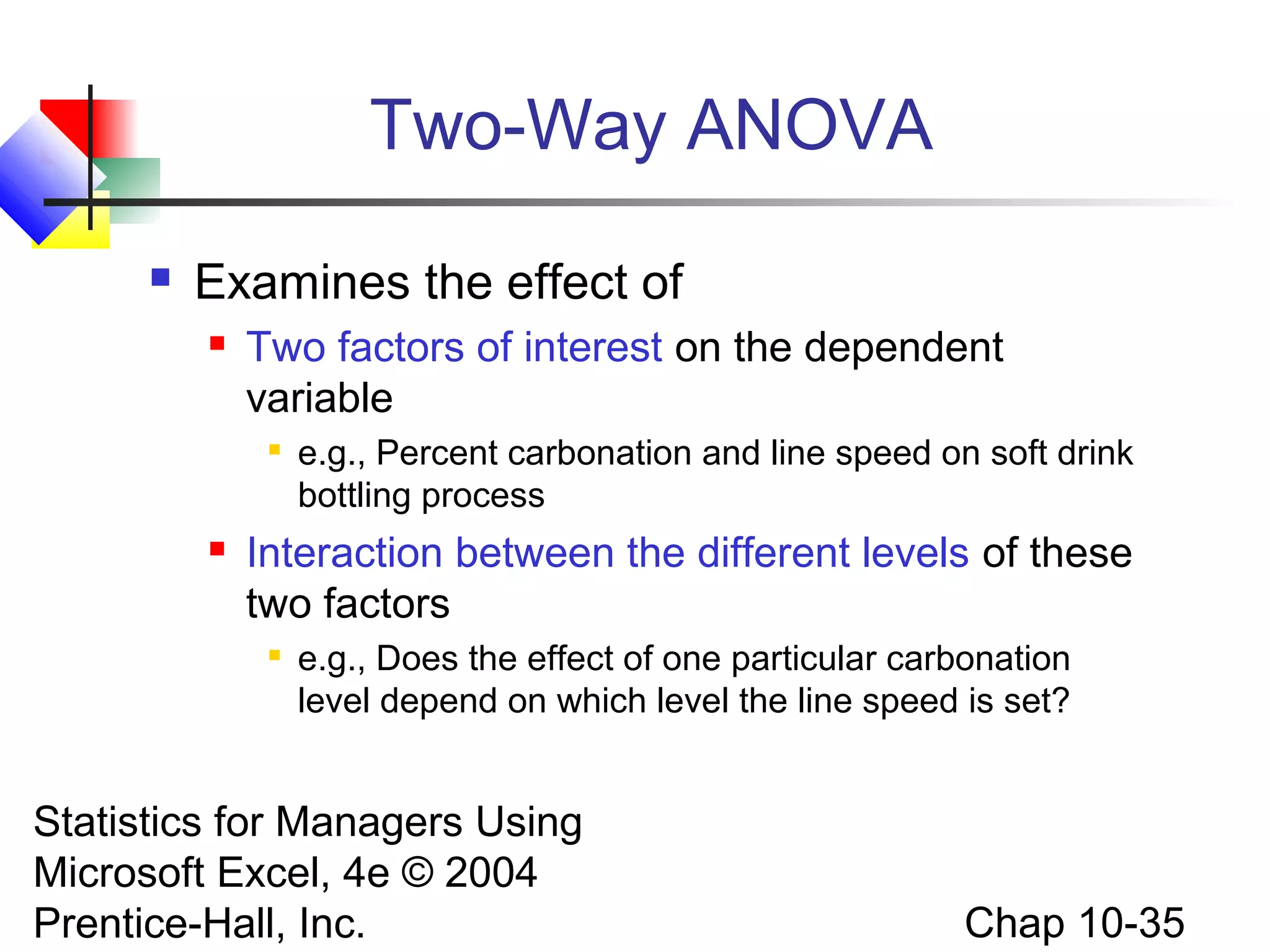

Two-Way ANOVA


Examines the effect of


Two factors of interest on the dependent
variable




e.g., Percent carbonation and line speed on soft drink
bottling process

Interaction between the different levels of these
two factors


e.g., Does the effect of one particular carbonation
level depend on which level the line speed is set?

Statistics for Managers Using
Microsoft Excel, 4e © 2004
Prentice-Hall, Inc.

Chap 10-35

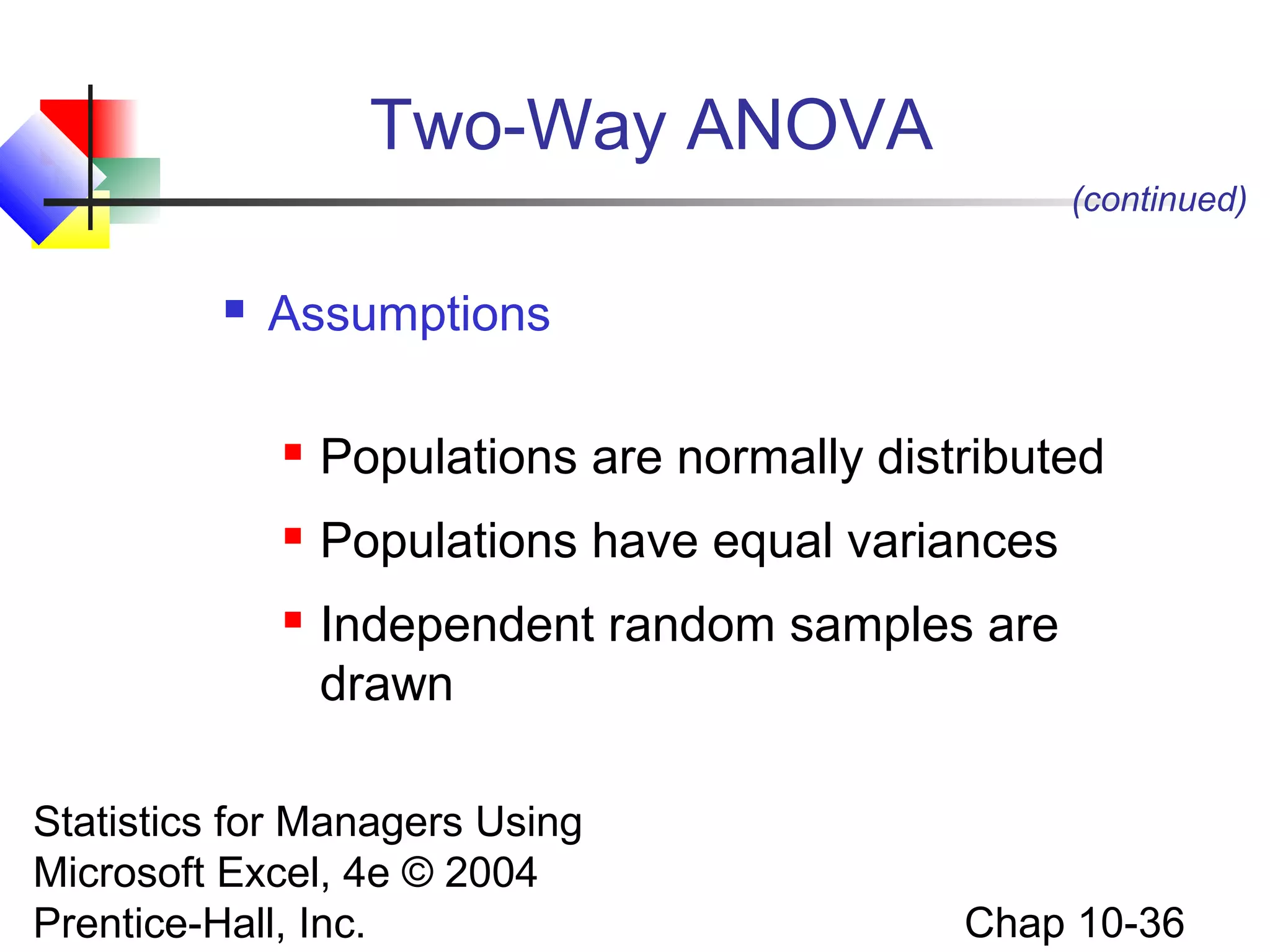

Two-Way ANOVA
(continued)


Assumptions


Populations are normally distributed



Populations have equal variances



Independent random samples are
drawn

Statistics for Managers Using
Microsoft Excel, 4e © 2004
Prentice-Hall, Inc.

Chap 10-36

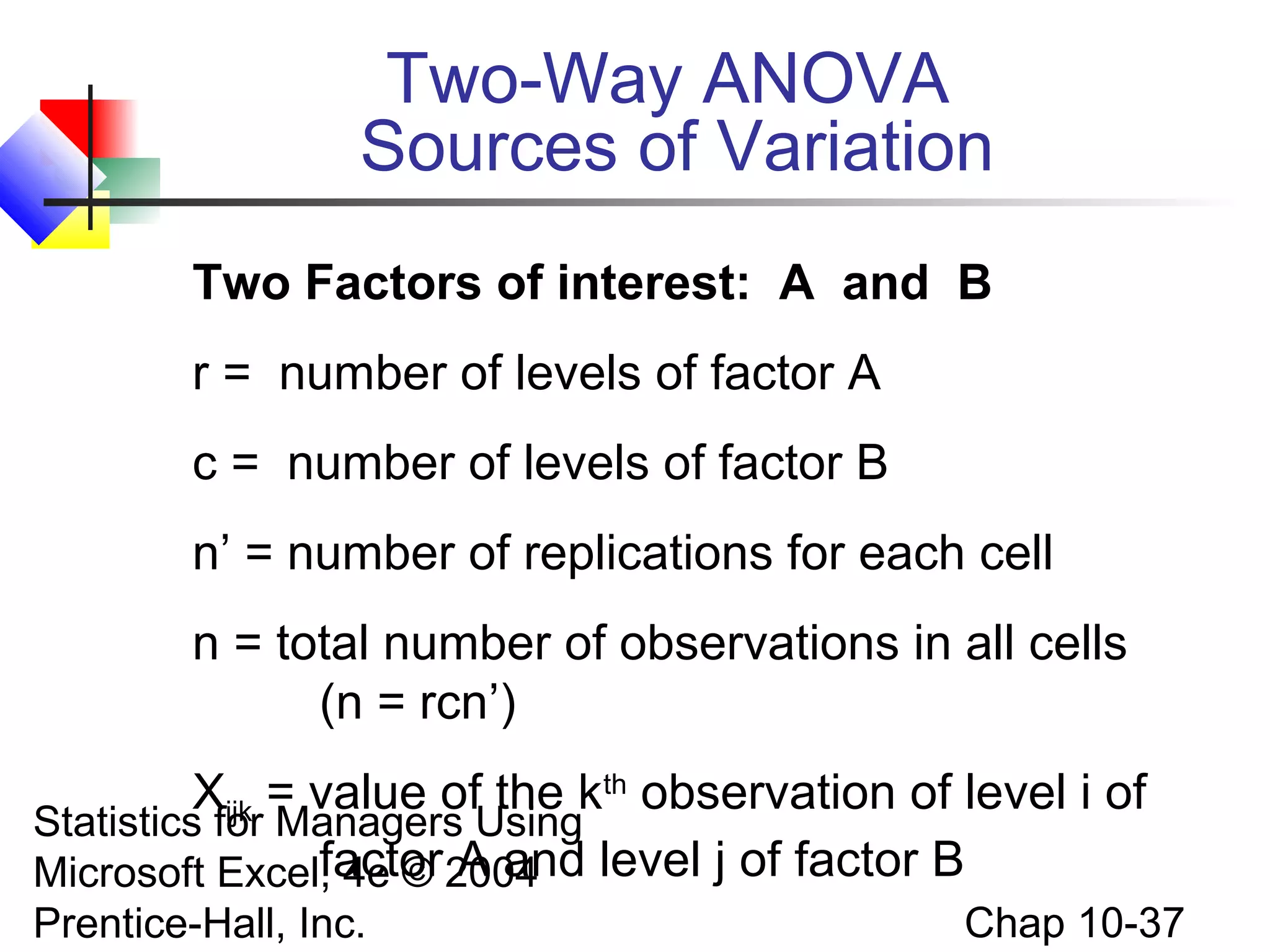

Two-Way ANOVA
Sources of Variation
Two Factors of interest: A and B
r = number of levels of factor A
c = number of levels of factor B
n’ = number of replications for each cell
n = total number of observations in all cells
(n = rcn’)
Xijk = value of the kth observation of level i of
Statistics for Managers Using
factor A and
Microsoft Excel, 4e © 2004 level j of factor B
Prentice-Hall, Inc.

Chap 10-37

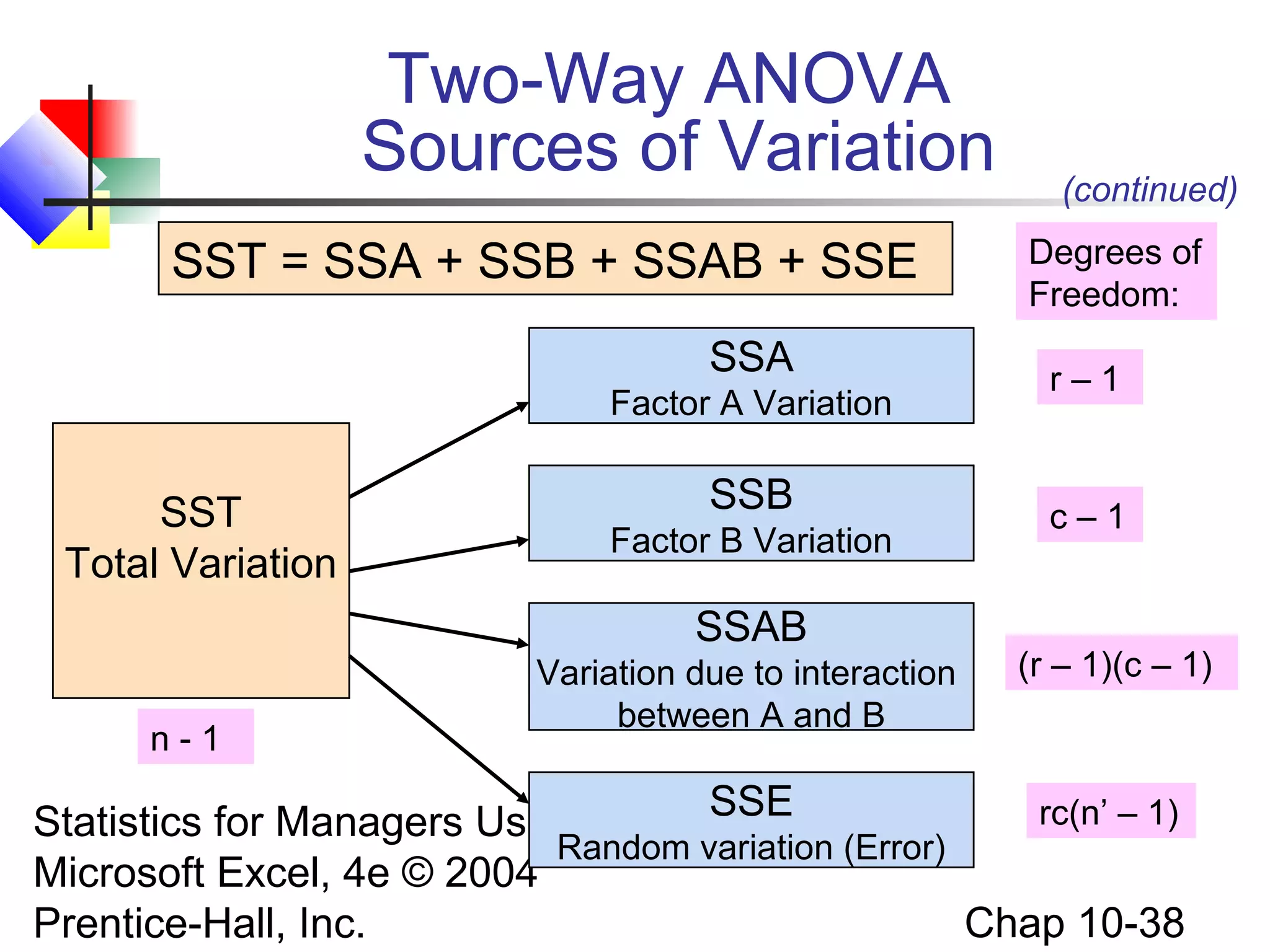

Two-Way ANOVA
Sources of Variation
SST = SSA + SSB + SSAB + SSE
SSA
Factor A Variation

SST
Total Variation

SSB
Factor B Variation

SSAB
n-1

Variation due to interaction
between A and B

(continued)
Degrees of
Freedom:
r–1

c–1

(r – 1)(c – 1)

SSE
rc(n’ – 1)
Statistics for Managers Using
Random variation (Error)
Microsoft Excel, 4e © 2004
Chap 10-38
Prentice-Hall, Inc.

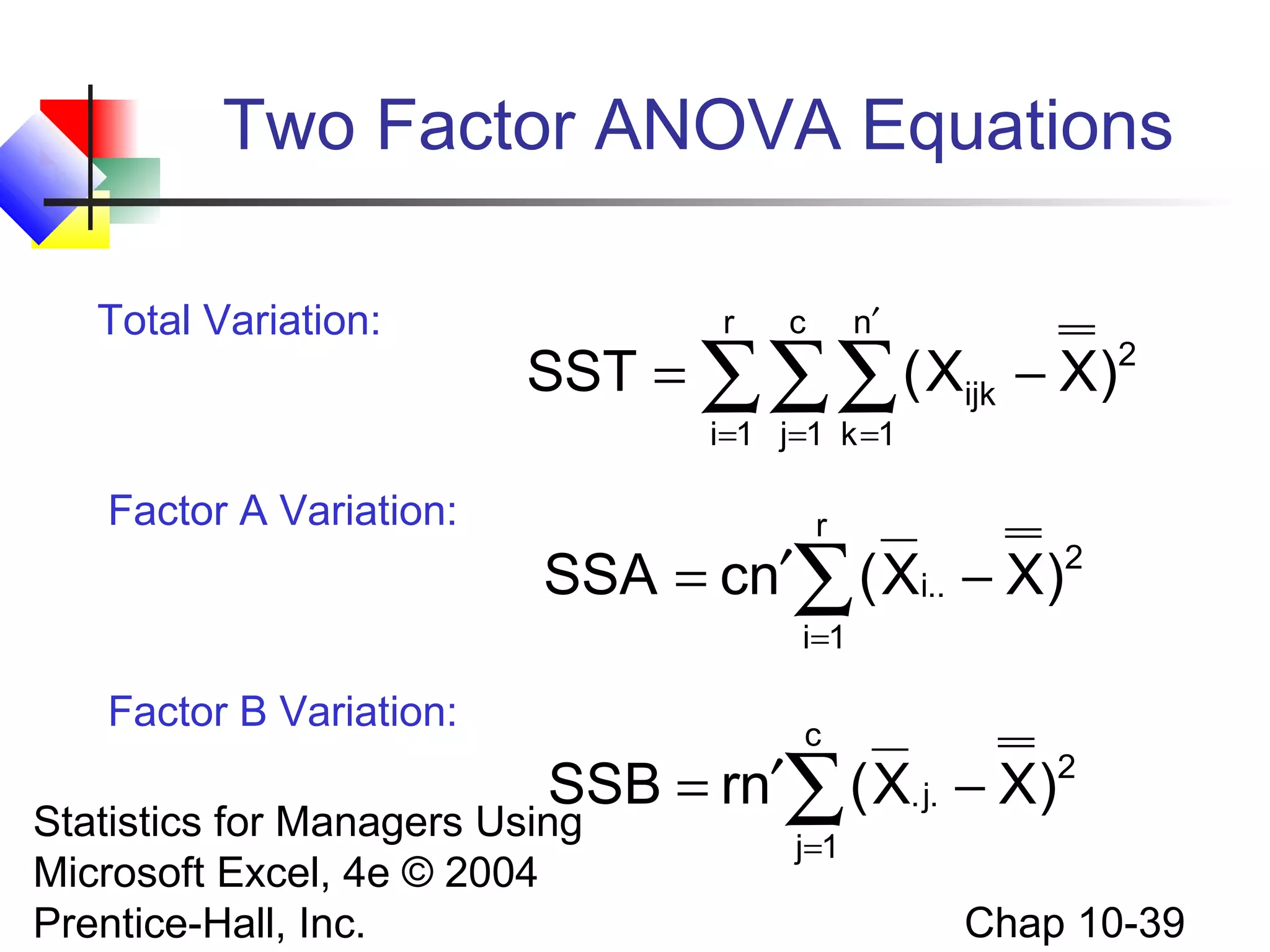

Two Factor ANOVA Equations
Total Variation:

r

n′

c

SST = ∑∑∑ ( Xijk − X)

2

i =1 j=1 k =1

Factor A Variation:

r

′∑ ( Xi.. − X)2
SSA = cn
i=1

Factor B Variation:

c

SSB = rn′∑ ( X. j. − X)2

Statistics for Managers Using
Microsoft Excel, 4e © 2004
Prentice-Hall, Inc.

j=1

Chap 10-39

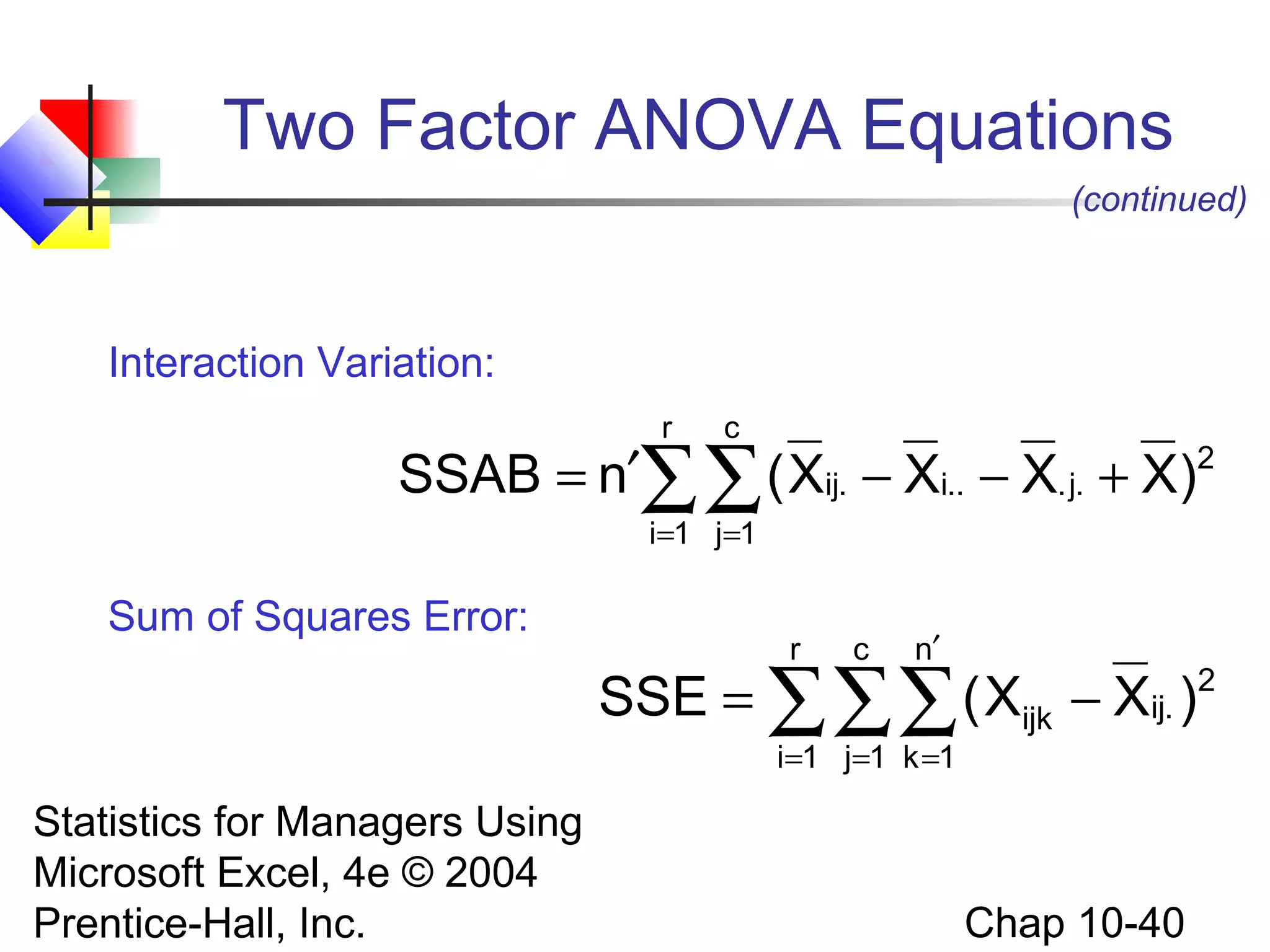

Two Factor ANOVA Equations
(continued)

Interaction Variation:
r

c

SSAB = n′∑∑ ( Xij. − Xi.. − X. j. + X)2
i =1 j =1

Sum of Squares Error:

r

c

n′

SSE = ∑∑∑ ( Xijk − Xij. )
i =1 j=1 k =1

Statistics for Managers Using
Microsoft Excel, 4e © 2004
Prentice-Hall, Inc.

Chap 10-40

2

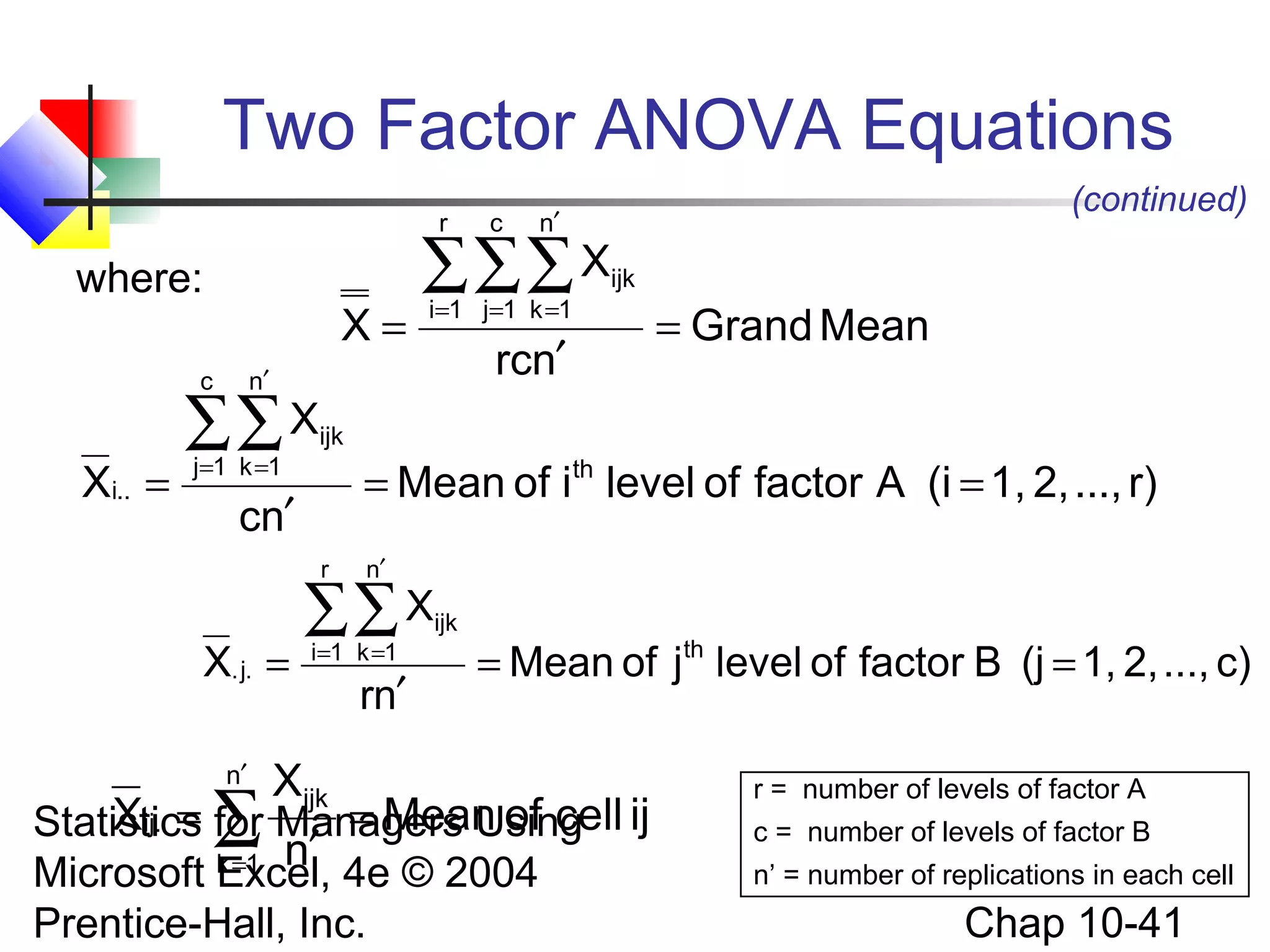

Two Factor ANOVA Equations
r

where:

X=

Xi.. =

∑∑ X
j=1 k =1

i=1 j=1 k =1

ijk

rcn′

= Grand Mean

ijk

= Mean of ith level of factor A (i = 1, 2, ..., r)

cn′
r

X. j. =

(continued)

n′

∑∑∑ X

n′

c

c

n′

∑∑ X
i=1 k =1

rn′

ijk

= Mean of jth level of factor B (j = 1, 2, ..., c)

Xijk
Xij. = for
= Mean of cell
Statistics ∑ Managers Using ij
k =1 n′
n′

Microsoft Excel, 4e © 2004
Prentice-Hall, Inc.

r = number of levels of factor A
c = number of levels of factor B
n’ = number of replications in each cell

Chap 10-41

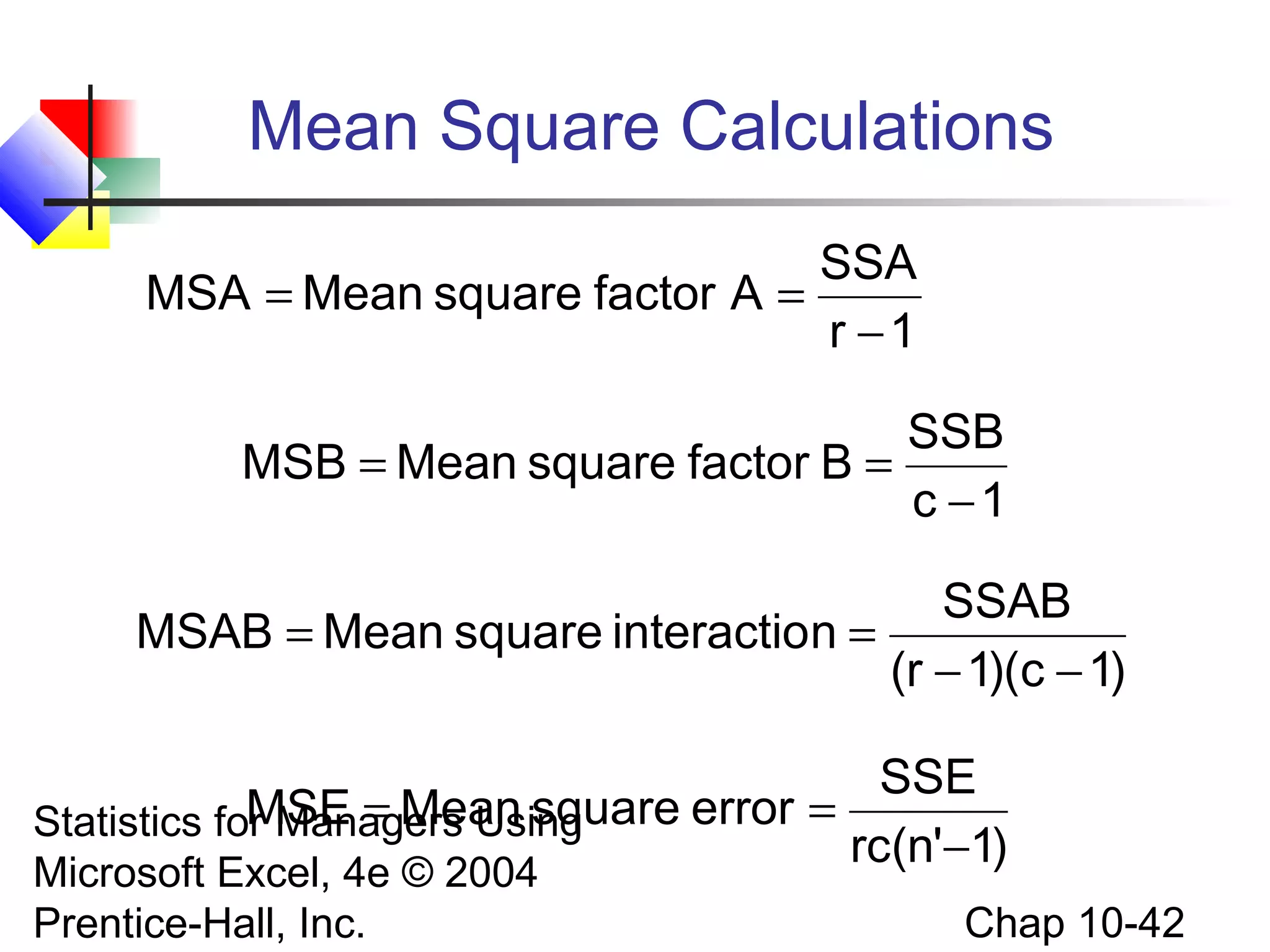

Mean Square Calculations
SSA
MSA = Mean square factor A =
r −1
SSB
MSB = Mean square factor B =
c −1

SSAB
MSAB = Mean square interaction =
(r − 1)(c − 1)
SSE
MSE = Mean square error =
Statistics for Managers Using
rc(n'−1)
Microsoft Excel, 4e © 2004
Prentice-Hall, Inc.

Chap 10-42

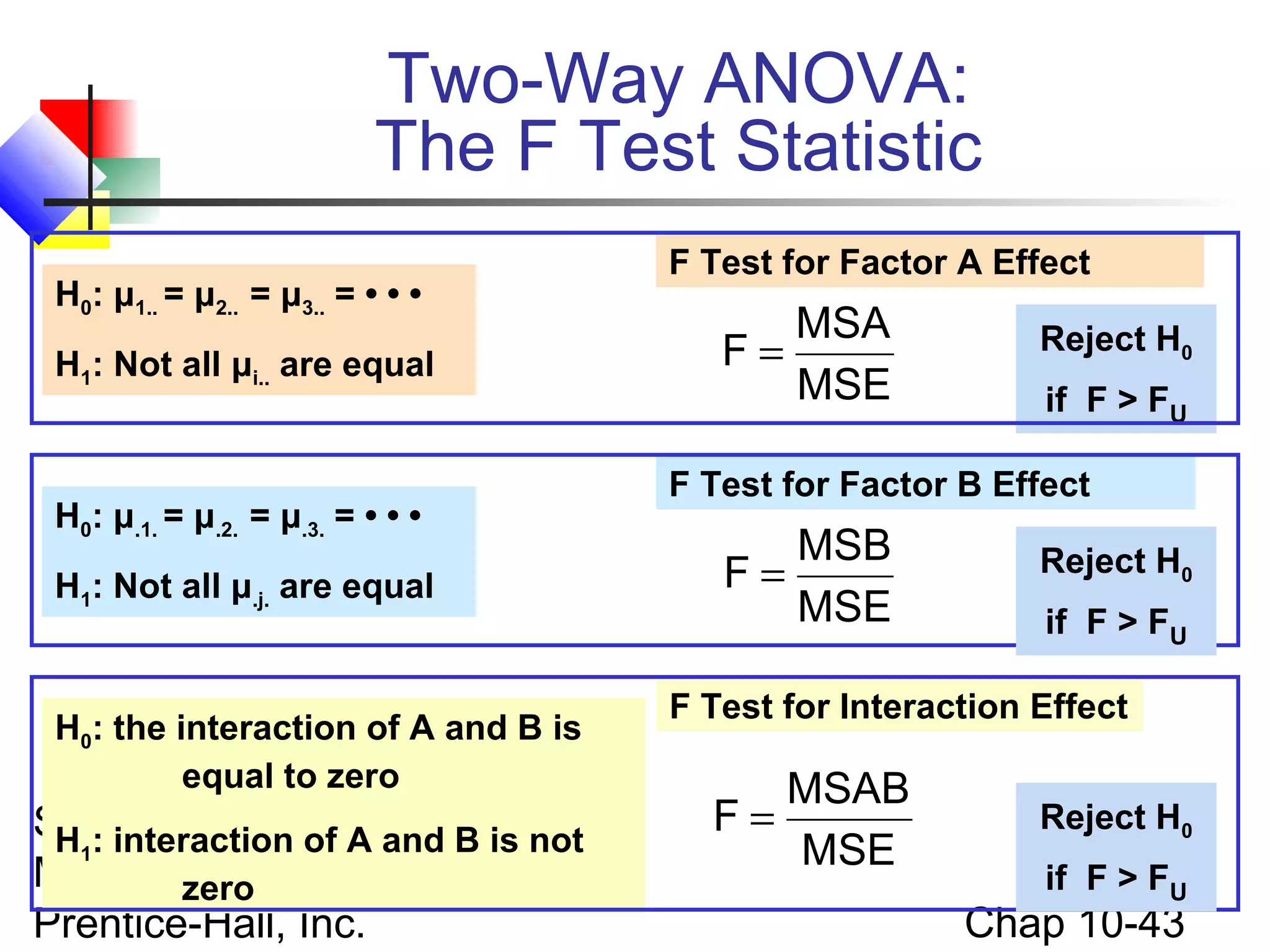

Two-Way ANOVA:
The F Test Statistic
H0: μ1.. = μ2.. = μ3.. = • • •
H1: Not all μi.. are equal

H0: μ.1. = μ.2. = μ.3. = • • •
H1: Not all μ.j. are equal

H0: the interaction of A and B is
equal to zero

Statistics for Managers Using
H1: interaction of A and B is not
Microsoft Excel, 4e © 2004
zero
Prentice-Hall, Inc.

F Test for Factor A Effect

MSA
F=
MSE

Reject H0
if F > FU

F Test for Factor B Effect

MSB
F=
MSE

Reject H0
if F > FU

F Test for Interaction Effect

MSAB
F=
MSE

Reject H0
if F > FU

Chap 10-43
Two-Way ANOVA
Summary Table
Source of
Variation

Sum of
Squares

Degrees of
Freedom

Factor A

SSA

r–1

Factor B

SSB

c–1

AB
(Interaction)

SSAB

(r – 1)(c – 1)

Error

SSE

rc(n’ – 1)

Statistics for Managers Using
Total
SST
n–1
Microsoft Excel, 4e © 2004
Prentice-Hall, Inc.

Mean
Squares

F
Statistic

MSA

MSA
MSE

= SSA /(r – 1)

MSB
= SSB /(c – 1)

MSAB
= SSAB / (r – 1)(c – 1)

MSB
MSE
MSAB
MSE

MSE =
SSE/rc(n’ – 1)

Chap 10-44

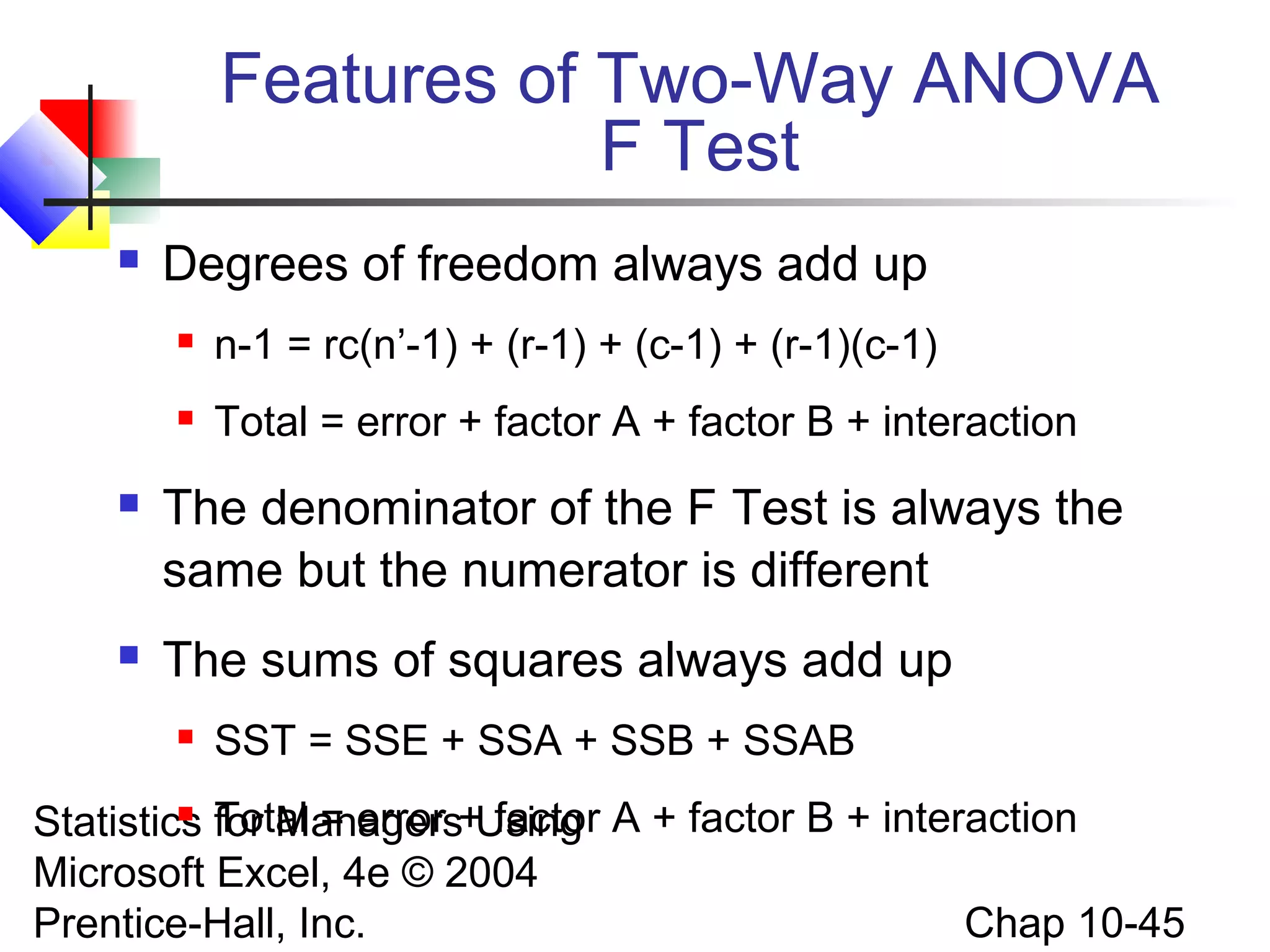

Features of Two-Way ANOVA
F Test


Degrees of freedom always add up


n-1 = rc(n’-1) + (r-1) + (c-1) + (r-1)(c-1)



Total = error + factor A + factor B + interaction



The denominator of the F Test is always the
same but the numerator is different



The sums of squares always add up


SST = SSE + SSA + SSB + SSAB

 Total = error
factor
Statistics for Managers+Using A + factor B + interaction
Microsoft Excel, 4e © 2004
Chap 10-45
Prentice-Hall, Inc.

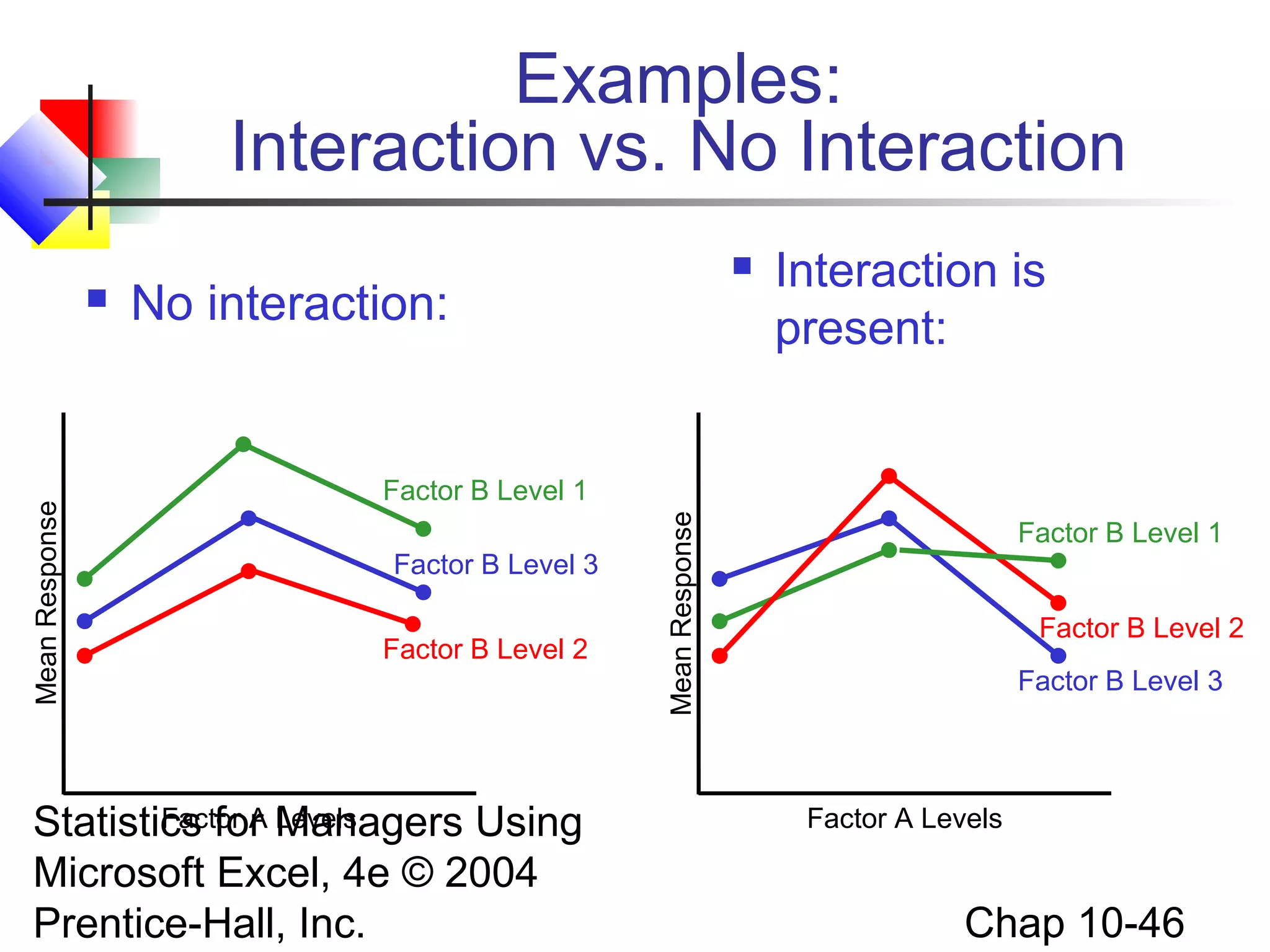

Examples:
Interaction vs. No Interaction
No interaction:

Interaction is
present:

Factor B Level 1
Factor B Level 3
Factor B Level 2

Factor A Levels
Statistics for Managers Using
Microsoft Excel, 4e © 2004
Prentice-Hall, Inc.

Mean Response

Mean Response





Factor B Level 1
Factor B Level 2
Factor B Level 3

Factor A Levels

Chap 10-46

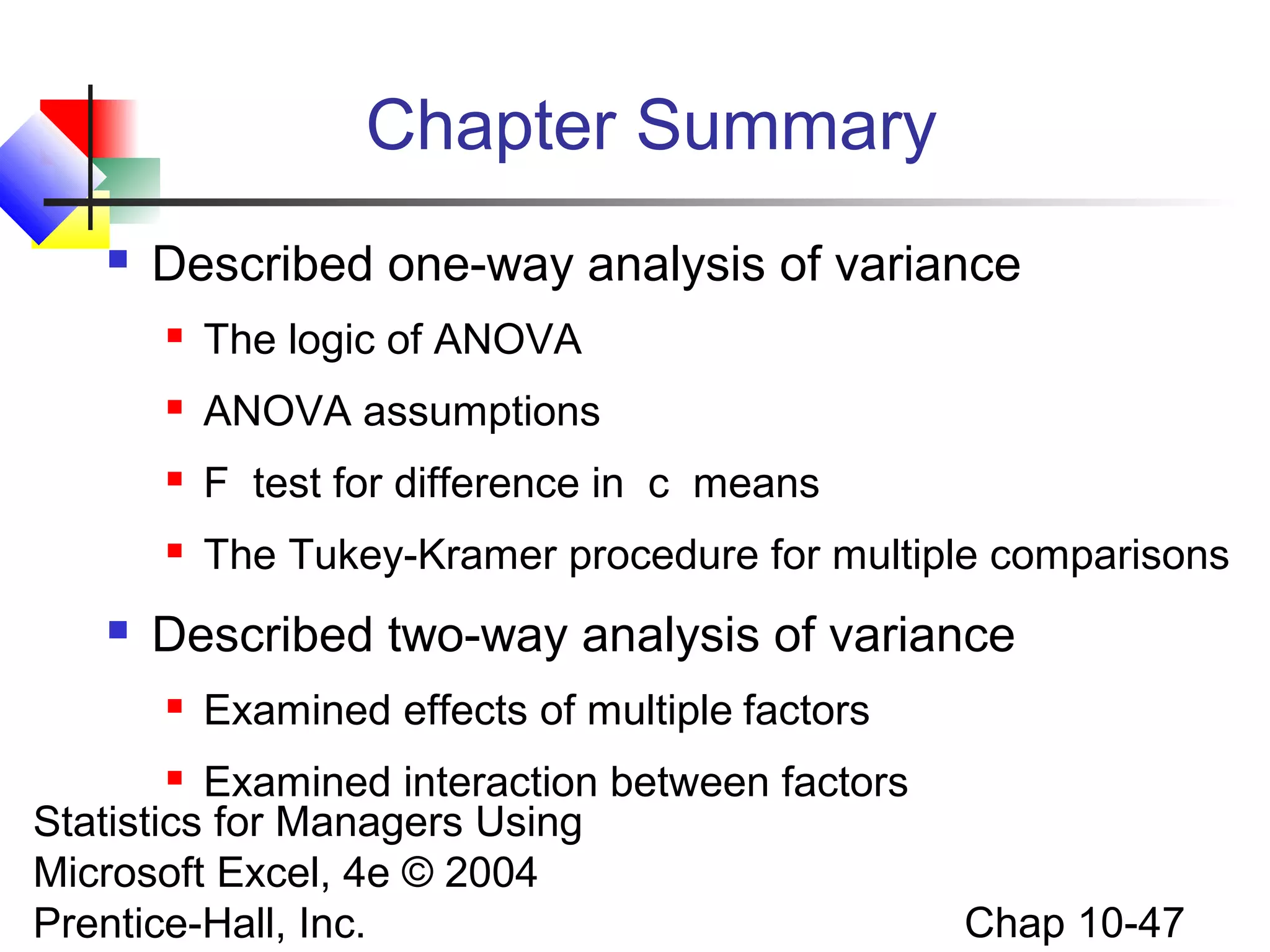

Chapter Summary


Described one-way analysis of variance



ANOVA assumptions



F test for difference in c means





The logic of ANOVA

The Tukey-Kramer procedure for multiple comparisons

Described two-way analysis of variance


Examined effects of multiple factors

Examined interaction between factors
Statistics for Managers Using
Microsoft Excel, 4e © 2004
Prentice-Hall, Inc.


Chap 10-47

More Related Content

What's hot

Chap15 time series forecasting & index number
Chap15 time series forecasting & index numberChap15 time series forecasting & index number
Chap15 time series forecasting & index numberUni Azza Aunillah

Chapter 5 part1- The Sampling Distribution of a Sample Mean
Chapter 5 part1- The Sampling Distribution of a Sample MeanChapter 5 part1- The Sampling Distribution of a Sample Mean
Chapter 5 part1- The Sampling Distribution of a Sample Meannszakir

Numerical Descriptive Measures
Numerical Descriptive MeasuresNumerical Descriptive Measures
Numerical Descriptive MeasuresYesica Adicondro

Chap13 intro to multiple regression
Chap13 intro to multiple regressionChap13 intro to multiple regression
Chap13 intro to multiple regressionUni Azza Aunillah

Some Important Discrete Probability Distributions
Some Important Discrete Probability DistributionsSome Important Discrete Probability Distributions
Some Important Discrete Probability DistributionsYesica Adicondro

Expected value of random variables
Expected value of random variablesExpected value of random variables
Expected value of random variablesAfrasiyab Haider

Basic business statistics 2
Basic business statistics 2Basic business statistics 2
Basic business statistics 2Anwar Afridi

Regression analysis
Regression analysisRegression analysis
Regression analysisRavi shankar

quartiles,deciles,percentiles.ppt
quartiles,deciles,percentiles.pptquartiles,deciles,percentiles.ppt
quartiles,deciles,percentiles.pptSyedSaifUrRehman3

Sampling Distribution of Sample proportion
Sampling Distribution of Sample proportionSampling Distribution of Sample proportion
Sampling Distribution of Sample proportionRobert Geofroy

t test using spss
t test using spsst test using spss
t test using spssParag Shah


What's hot (20)

Chap12 simple regression
Chap12 simple regressionChap12 simple regression
Chap12 simple regression

Chap15 time series forecasting & index number
Chap15 time series forecasting & index numberChap15 time series forecasting & index number
Chap15 time series forecasting & index number

Chapter 5 part1- The Sampling Distribution of a Sample Mean
Chapter 5 part1- The Sampling Distribution of a Sample MeanChapter 5 part1- The Sampling Distribution of a Sample Mean
Chapter 5 part1- The Sampling Distribution of a Sample Mean

Chap04 basic probability
Chap04 basic probabilityChap04 basic probability
Chap04 basic probability

Numerical Descriptive Measures
Numerical Descriptive MeasuresNumerical Descriptive Measures
Numerical Descriptive Measures

Chap13 intro to multiple regression
Chap13 intro to multiple regressionChap13 intro to multiple regression
Chap13 intro to multiple regression

Simple Linear Regression
Simple Linear RegressionSimple Linear Regression
Simple Linear Regression

In Anova
In  AnovaIn  Anova
In Anova

Some Important Discrete Probability Distributions
Some Important Discrete Probability DistributionsSome Important Discrete Probability Distributions
Some Important Discrete Probability Distributions

Expected value of random variables
Expected value of random variablesExpected value of random variables
Expected value of random variables

Two sample t-test
Two sample t-testTwo sample t-test
Two sample t-test

Point Estimation
Point EstimationPoint Estimation
Point Estimation

Basic business statistics 2
Basic business statistics 2Basic business statistics 2
Basic business statistics 2

Regression analysis
Regression analysisRegression analysis
Regression analysis

Sampling & Sampling Distribtutions
Sampling & Sampling DistribtutionsSampling & Sampling Distribtutions
Sampling & Sampling Distribtutions

Data Analysis Using Spss T Test
Data Analysis Using Spss   T TestData Analysis Using Spss   T Test
Data Analysis Using Spss T Test

quartiles,deciles,percentiles.ppt
quartiles,deciles,percentiles.pptquartiles,deciles,percentiles.ppt
quartiles,deciles,percentiles.ppt

Binomial distribution
Binomial distributionBinomial distribution
Binomial distribution

Sampling Distribution of Sample proportion
Sampling Distribution of Sample proportionSampling Distribution of Sample proportion
Sampling Distribution of Sample proportion

t test using spss
t test using spsst test using spss
t test using spss


Viewers also liked

Analysis of variance (ANOVA)
Analysis of variance (ANOVA)Analysis of variance (ANOVA)
Analysis of variance (ANOVA)Sneh Kumari

ANOVA 2-WAY Classification
ANOVA 2-WAY ClassificationANOVA 2-WAY Classification
ANOVA 2-WAY ClassificationSharlaine Ruth

Analysis of variance ppt @ bec doms
Analysis of variance ppt @ bec domsAnalysis of variance ppt @ bec doms
Analysis of variance ppt @ bec domsBabasab Patil

Standard Deviation and Variance
Standard Deviation and VarianceStandard Deviation and Variance
Standard Deviation and VarianceJufil Hombria

Chap01 intro & data collection
Chap01 intro & data collectionChap01 intro & data collection
Chap01 intro & data collectionUni Azza Aunillah

Chap03 numerical descriptive measures
Chap03 numerical descriptive measuresChap03 numerical descriptive measures
Chap03 numerical descriptive measuresUni Azza Aunillah

Chap02 presenting data in chart & tables
Chap02 presenting data in chart & tablesChap02 presenting data in chart & tables
Chap02 presenting data in chart & tablesUni Azza Aunillah

Chap11 chie square & non parametrics
Chap11 chie square & non parametricsChap11 chie square & non parametrics
Chap11 chie square & non parametricsUni Azza Aunillah

Experimental Methods in Mass Communication Research
Experimental Methods in Mass Communication ResearchExperimental Methods in Mass Communication Research
Experimental Methods in Mass Communication ResearchEisa Al Nashmi

Chap17 statistical applications on management
Chap17 statistical applications on managementChap17 statistical applications on management
Chap17 statistical applications on managementUni Azza Aunillah

Variance Analysis
Variance AnalysisVariance Analysis
Variance Analysisvenkatesh y

Chap06 normal distributions & continous
Chap06 normal distributions & continousChap06 normal distributions & continous
Chap06 normal distributions & continousUni Azza Aunillah

Confidence interval with Z
Confidence interval with ZConfidence interval with Z
Confidence interval with ZHabiba UR Rehman


Viewers also liked (20)

Analysis of variance (ANOVA)
Analysis of variance (ANOVA)Analysis of variance (ANOVA)
Analysis of variance (ANOVA)

ANOVA 2-WAY Classification
ANOVA 2-WAY ClassificationANOVA 2-WAY Classification
ANOVA 2-WAY Classification

Analysis of variance ppt @ bec doms
Analysis of variance ppt @ bec domsAnalysis of variance ppt @ bec doms
Analysis of variance ppt @ bec doms

Variance And Standard Deviation
Variance And Standard DeviationVariance And Standard Deviation
Variance And Standard Deviation

Analysis of Variance (ANOVA)
Analysis of Variance (ANOVA)Analysis of Variance (ANOVA)
Analysis of Variance (ANOVA)

Standard Deviation and Variance
Standard Deviation and VarianceStandard Deviation and Variance
Standard Deviation and Variance

Clr model
Clr modelClr model
Clr model

Advertising
AdvertisingAdvertising
Advertising

Chap01 intro & data collection
Chap01 intro & data collectionChap01 intro & data collection
Chap01 intro & data collection

Tabla f05
Tabla f05Tabla f05
Tabla f05

Chap03 numerical descriptive measures
Chap03 numerical descriptive measuresChap03 numerical descriptive measures
Chap03 numerical descriptive measures

Chap02 presenting data in chart & tables
Chap02 presenting data in chart & tablesChap02 presenting data in chart & tables
Chap02 presenting data in chart & tables

Chap16 decision making
Chap16 decision makingChap16 decision making
Chap16 decision making

Chap11 chie square & non parametrics
Chap11 chie square & non parametricsChap11 chie square & non parametrics
Chap11 chie square & non parametrics

Experimental Methods in Mass Communication Research
Experimental Methods in Mass Communication ResearchExperimental Methods in Mass Communication Research
Experimental Methods in Mass Communication Research

Chap17 statistical applications on management
Chap17 statistical applications on managementChap17 statistical applications on management
Chap17 statistical applications on management

Variance Analysis
Variance AnalysisVariance Analysis
Variance Analysis

Drug delivery to respiratory system
Drug delivery to respiratory systemDrug delivery to respiratory system
Drug delivery to respiratory system

Chap06 normal distributions & continous
Chap06 normal distributions & continousChap06 normal distributions & continous
Chap06 normal distributions & continous

Confidence interval with Z
Confidence interval with ZConfidence interval with Z
Confidence interval with Z


Similar to Chap10 anova

The Normal Distribution and Other Continuous Distributions
The Normal Distribution and Other Continuous DistributionsThe Normal Distribution and Other Continuous Distributions
The Normal Distribution and Other Continuous DistributionsYesica Adicondro

Introduction to Multiple Regression
Introduction to Multiple RegressionIntroduction to Multiple Regression
Introduction to Multiple RegressionYesica Adicondro

Chap14 multiple regression model building
Chap14 multiple regression model buildingChap14 multiple regression model building
Chap14 multiple regression model buildingUni Azza Aunillah

Two-sample Hypothesis Tests
Two-sample Hypothesis Tests Two-sample Hypothesis Tests
Two-sample Hypothesis Tests mgbardossy

Newbold_chap17.ppt
Newbold_chap17.pptNewbold_chap17.ppt
Newbold_chap17.pptcfisicaster

Fundamentals of Testing Hypothesis
Fundamentals of Testing HypothesisFundamentals of Testing Hypothesis
Fundamentals of Testing HypothesisYesica Adicondro

multiple regression model building
 multiple regression model building multiple regression model building
multiple regression model buildingYesica Adicondro

Confidence Interval Estimation
Confidence Interval EstimationConfidence Interval Estimation
Confidence Interval EstimationYesica Adicondro

SWOT AnalysisHCS499 Version 32University of Phoenix Mater.docx
SWOT AnalysisHCS499 Version 32University of Phoenix Mater.docxSWOT AnalysisHCS499 Version 32University of Phoenix Mater.docx
SWOT AnalysisHCS499 Version 32University of Phoenix Mater.docxssuserf9c51d

Class 3 Measures central tendency 2024.pptx
Class 3 Measures central tendency 2024.pptxClass 3 Measures central tendency 2024.pptx
Class 3 Measures central tendency 2024.pptxassaasdf351

Project for MA135 You are doing research on balance and fitn.docx
Project for MA135   You are doing research on balance and fitn.docxProject for MA135   You are doing research on balance and fitn.docx
Project for MA135 You are doing research on balance and fitn.docxpauline234567

Bbs11 ppt ch11
Bbs11 ppt ch11Bbs11 ppt ch11
Bbs11 ppt ch11Tuul Tuul

Fractional Factorial Designs
Fractional Factorial DesignsFractional Factorial Designs
Fractional Factorial DesignsThomas Abraham

Measures of Central Tendency.pptx
Measures of Central Tendency.pptxMeasures of Central Tendency.pptx
Measures of Central Tendency.pptxMelba Shaya Sweety

Empirics of standard deviation
Empirics of standard deviationEmpirics of standard deviation
Empirics of standard deviationAdebanji Ayeni

Presenting Data in Tables and Charts
Presenting Data in Tables and ChartsPresenting Data in Tables and Charts
Presenting Data in Tables and ChartsYesica Adicondro


Similar to Chap10 anova (20)

Analysis of Variance
Analysis of VarianceAnalysis of Variance
Analysis of Variance

The Normal Distribution and Other Continuous Distributions
The Normal Distribution and Other Continuous DistributionsThe Normal Distribution and Other Continuous Distributions
The Normal Distribution and Other Continuous Distributions

Chi square using excel
Chi square using excelChi square using excel
Chi square using excel

Introduction to Multiple Regression
Introduction to Multiple RegressionIntroduction to Multiple Regression
Introduction to Multiple Regression

chap06-1.pptx
chap06-1.pptxchap06-1.pptx
chap06-1.pptx

Chap14 multiple regression model building
Chap14 multiple regression model buildingChap14 multiple regression model building
Chap14 multiple regression model building

Two-sample Hypothesis Tests
Two-sample Hypothesis Tests Two-sample Hypothesis Tests
Two-sample Hypothesis Tests

Newbold_chap17.ppt
Newbold_chap17.pptNewbold_chap17.ppt
Newbold_chap17.ppt

Fundamentals of Testing Hypothesis
Fundamentals of Testing HypothesisFundamentals of Testing Hypothesis
Fundamentals of Testing Hypothesis

multiple regression model building
 multiple regression model building multiple regression model building
multiple regression model building

Two Sample Tests
Two Sample TestsTwo Sample Tests
Two Sample Tests

Confidence Interval Estimation
Confidence Interval EstimationConfidence Interval Estimation
Confidence Interval Estimation

SWOT AnalysisHCS499 Version 32University of Phoenix Mater.docx
SWOT AnalysisHCS499 Version 32University of Phoenix Mater.docxSWOT AnalysisHCS499 Version 32University of Phoenix Mater.docx
SWOT AnalysisHCS499 Version 32University of Phoenix Mater.docx

Class 3 Measures central tendency 2024.pptx
Class 3 Measures central tendency 2024.pptxClass 3 Measures central tendency 2024.pptx
Class 3 Measures central tendency 2024.pptx

Project for MA135 You are doing research on balance and fitn.docx
Project for MA135   You are doing research on balance and fitn.docxProject for MA135   You are doing research on balance and fitn.docx
Project for MA135 You are doing research on balance and fitn.docx

Bbs11 ppt ch11
Bbs11 ppt ch11Bbs11 ppt ch11
Bbs11 ppt ch11

Fractional Factorial Designs
Fractional Factorial DesignsFractional Factorial Designs
Fractional Factorial Designs

Measures of Central Tendency.pptx
Measures of Central Tendency.pptxMeasures of Central Tendency.pptx
Measures of Central Tendency.pptx

Empirics of standard deviation
Empirics of standard deviationEmpirics of standard deviation
Empirics of standard deviation

Presenting Data in Tables and Charts
Presenting Data in Tables and ChartsPresenting Data in Tables and Charts
Presenting Data in Tables and Charts


More from Uni Azza Aunillah

More from Uni Azza Aunillah (13)

Chap07 interval estimation
Chap07 interval estimationChap07 interval estimation
Chap07 interval estimation

Chap02 presenting data in chart & tables
Chap02 presenting data in chart & tablesChap02 presenting data in chart & tables
Chap02 presenting data in chart & tables

Equation
EquationEquation
Equation

Saluran distribusi
Saluran distribusiSaluran distribusi
Saluran distribusi

Mengintegrasikan teori
Mengintegrasikan teoriMengintegrasikan teori
Mengintegrasikan teori

Kepemimpinen Dahlan Iskan
Kepemimpinen Dahlan IskanKepemimpinen Dahlan Iskan
Kepemimpinen Dahlan Iskan

presentation listening and summarize
presentation listening and summarizepresentation listening and summarize
presentation listening and summarize

Perbankan syariah
Perbankan syariahPerbankan syariah
Perbankan syariah

Uu bi no 3 tahun 2004
Uu bi no 3 tahun 2004Uu bi no 3 tahun 2004
Uu bi no 3 tahun 2004

Modul ekonomi moneter
Modul ekonomi moneterModul ekonomi moneter
Modul ekonomi moneter

Teori manajemen klasik
Teori manajemen klasikTeori manajemen klasik
Teori manajemen klasik

Proses pengawasan dalam manajemen
Proses pengawasan dalam manajemenProses pengawasan dalam manajemen
Proses pengawasan dalam manajemen

Etika bisnis dalam lingkungan produksi
Etika bisnis dalam lingkungan produksiEtika bisnis dalam lingkungan produksi
Etika bisnis dalam lingkungan produksi


Recently uploaded

UiPath Test Automation using UiPath Test Suite series, part 2
UiPath Test Automation using UiPath Test Suite series, part 2UiPath Test Automation using UiPath Test Suite series, part 2
UiPath Test Automation using UiPath Test Suite series, part 2DianaGray10

What's New in Teams Calling, Meetings and Devices April 2024
What's New in Teams Calling, Meetings and Devices April 2024What's New in Teams Calling, Meetings and Devices April 2024
What's New in Teams Calling, Meetings and Devices April 2024Stephanie Beckett

ODC, Data Fabric and Architecture User Group
ODC, Data Fabric and Architecture User GroupODC, Data Fabric and Architecture User Group
ODC, Data Fabric and Architecture User GroupCatarinaPereira64715

Connecting the Dots in Product Design at KAYAK
Connecting the Dots in Product Design at KAYAKConnecting the Dots in Product Design at KAYAK
Connecting the Dots in Product Design at KAYAKUXDXConf

Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024
Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024
Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024Tobias Schneck

IOS-PENTESTING-BEGINNERS-PRACTICAL-GUIDE-.pptx
IOS-PENTESTING-BEGINNERS-PRACTICAL-GUIDE-.pptxIOS-PENTESTING-BEGINNERS-PRACTICAL-GUIDE-.pptx
IOS-PENTESTING-BEGINNERS-PRACTICAL-GUIDE-.pptxAbida Shariff

A Business-Centric Approach to Design System Strategy
A Business-Centric Approach to Design System StrategyA Business-Centric Approach to Design System Strategy
A Business-Centric Approach to Design System StrategyUXDXConf

Powerful Start- the Key to Project Success, Barbara Laskowska
Powerful Start- the Key to Project Success, Barbara LaskowskaPowerful Start- the Key to Project Success, Barbara Laskowska
Powerful Start- the Key to Project Success, Barbara LaskowskaCzechDreamin

Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...
Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...
Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...CzechDreamin

AI revolution and Salesforce, Jiří Karpíšek
AI revolution and Salesforce, Jiří KarpíšekAI revolution and Salesforce, Jiří Karpíšek
AI revolution and Salesforce, Jiří KarpíšekCzechDreamin

Server-Driven User Interface (SDUI) at Priceline
Server-Driven User Interface (SDUI) at PricelineServer-Driven User Interface (SDUI) at Priceline
Server-Driven User Interface (SDUI) at PricelineUXDXConf

UiPath Test Automation using UiPath Test Suite series, part 1
UiPath Test Automation using UiPath Test Suite series, part 1UiPath Test Automation using UiPath Test Suite series, part 1
UiPath Test Automation using UiPath Test Suite series, part 1DianaGray10

Intelligent Gimbal FINAL PAPER Engineering.pdf
Intelligent Gimbal FINAL PAPER Engineering.pdfIntelligent Gimbal FINAL PAPER Engineering.pdf
Intelligent Gimbal FINAL PAPER Engineering.pdfAnthony Lucente

Introduction to Open Source RAG and RAG Evaluation
Introduction to Open Source RAG and RAG EvaluationIntroduction to Open Source RAG and RAG Evaluation
Introduction to Open Source RAG and RAG EvaluationZilliz

Connector Corner: Automate dynamic content and events by pushing a button
Connector Corner: Automate dynamic content and events by pushing a buttonConnector Corner: Automate dynamic content and events by pushing a button
Connector Corner: Automate dynamic content and events by pushing a buttonDianaGray10

Exploring UiPath Orchestrator API: updates and limits in 2024 🚀
Exploring UiPath Orchestrator API: updates and limits in 2024 🚀Exploring UiPath Orchestrator API: updates and limits in 2024 🚀
Exploring UiPath Orchestrator API: updates and limits in 2024 🚀DianaGray10

Salesforce Adoption – Metrics, Methods, and Motivation, Antone Kom
Salesforce Adoption – Metrics, Methods, and Motivation, Antone KomSalesforce Adoption – Metrics, Methods, and Motivation, Antone Kom
Salesforce Adoption – Metrics, Methods, and Motivation, Antone KomCzechDreamin

Speed Wins: From Kafka to APIs in Minutes
Speed Wins: From Kafka to APIs in MinutesSpeed Wins: From Kafka to APIs in Minutes
Speed Wins: From Kafka to APIs in Minutesconfluent

In-Depth Performance Testing Guide for IT Professionals
In-Depth Performance Testing Guide for IT ProfessionalsIn-Depth Performance Testing Guide for IT Professionals
In-Depth Performance Testing Guide for IT ProfessionalsExpeed Software

Unpacking Value Delivery - Agile Oxford Meetup - May 2024.pptx
Unpacking Value Delivery - Agile Oxford Meetup - May 2024.pptxUnpacking Value Delivery - Agile Oxford Meetup - May 2024.pptx
Unpacking Value Delivery - Agile Oxford Meetup - May 2024.pptxDavid Michel


Recently uploaded (20)

UiPath Test Automation using UiPath Test Suite series, part 2
UiPath Test Automation using UiPath Test Suite series, part 2UiPath Test Automation using UiPath Test Suite series, part 2
UiPath Test Automation using UiPath Test Suite series, part 2

What's New in Teams Calling, Meetings and Devices April 2024
What's New in Teams Calling, Meetings and Devices April 2024What's New in Teams Calling, Meetings and Devices April 2024
What's New in Teams Calling, Meetings and Devices April 2024

ODC, Data Fabric and Architecture User Group
ODC, Data Fabric and Architecture User GroupODC, Data Fabric and Architecture User Group
ODC, Data Fabric and Architecture User Group

Connecting the Dots in Product Design at KAYAK
Connecting the Dots in Product Design at KAYAKConnecting the Dots in Product Design at KAYAK
Connecting the Dots in Product Design at KAYAK

Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024
Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024
Kubernetes & AI - Beauty and the Beast !?! @KCD Istanbul 2024

IOS-PENTESTING-BEGINNERS-PRACTICAL-GUIDE-.pptx
IOS-PENTESTING-BEGINNERS-PRACTICAL-GUIDE-.pptxIOS-PENTESTING-BEGINNERS-PRACTICAL-GUIDE-.pptx
IOS-PENTESTING-BEGINNERS-PRACTICAL-GUIDE-.pptx

A Business-Centric Approach to Design System Strategy
A Business-Centric Approach to Design System StrategyA Business-Centric Approach to Design System Strategy
A Business-Centric Approach to Design System Strategy

Powerful Start- the Key to Project Success, Barbara Laskowska
Powerful Start- the Key to Project Success, Barbara LaskowskaPowerful Start- the Key to Project Success, Barbara Laskowska
Powerful Start- the Key to Project Success, Barbara Laskowska

Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...
Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...
Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...

AI revolution and Salesforce, Jiří Karpíšek
AI revolution and Salesforce, Jiří KarpíšekAI revolution and Salesforce, Jiří Karpíšek
AI revolution and Salesforce, Jiří Karpíšek

Server-Driven User Interface (SDUI) at Priceline
Server-Driven User Interface (SDUI) at PricelineServer-Driven User Interface (SDUI) at Priceline
Server-Driven User Interface (SDUI) at Priceline

UiPath Test Automation using UiPath Test Suite series, part 1
UiPath Test Automation using UiPath Test Suite series, part 1UiPath Test Automation using UiPath Test Suite series, part 1
UiPath Test Automation using UiPath Test Suite series, part 1

Intelligent Gimbal FINAL PAPER Engineering.pdf
Intelligent Gimbal FINAL PAPER Engineering.pdfIntelligent Gimbal FINAL PAPER Engineering.pdf
Intelligent Gimbal FINAL PAPER Engineering.pdf

Introduction to Open Source RAG and RAG Evaluation
Introduction to Open Source RAG and RAG EvaluationIntroduction to Open Source RAG and RAG Evaluation
Introduction to Open Source RAG and RAG Evaluation

Connector Corner: Automate dynamic content and events by pushing a button
Connector Corner: Automate dynamic content and events by pushing a buttonConnector Corner: Automate dynamic content and events by pushing a button
Connector Corner: Automate dynamic content and events by pushing a button

Exploring UiPath Orchestrator API: updates and limits in 2024 🚀
Exploring UiPath Orchestrator API: updates and limits in 2024 🚀Exploring UiPath Orchestrator API: updates and limits in 2024 🚀
Exploring UiPath Orchestrator API: updates and limits in 2024 🚀

Salesforce Adoption – Metrics, Methods, and Motivation, Antone Kom
Salesforce Adoption – Metrics, Methods, and Motivation, Antone KomSalesforce Adoption – Metrics, Methods, and Motivation, Antone Kom
Salesforce Adoption – Metrics, Methods, and Motivation, Antone Kom

Speed Wins: From Kafka to APIs in Minutes
Speed Wins: From Kafka to APIs in MinutesSpeed Wins: From Kafka to APIs in Minutes
Speed Wins: From Kafka to APIs in Minutes

In-Depth Performance Testing Guide for IT Professionals
In-Depth Performance Testing Guide for IT ProfessionalsIn-Depth Performance Testing Guide for IT Professionals
In-Depth Performance Testing Guide for IT Professionals

Unpacking Value Delivery - Agile Oxford Meetup - May 2024.pptx
Unpacking Value Delivery - Agile Oxford Meetup - May 2024.pptxUnpacking Value Delivery - Agile Oxford Meetup - May 2024.pptx
Unpacking Value Delivery - Agile Oxford Meetup - May 2024.pptx


Chap10 anova

  • 1. Statistics for Managers Using Microsoft® Excel 4th Edition Chapter 10 Analysis of Variance Statistics for Managers Using Microsoft Excel, 4e © 2004 Prentice-Hall, Inc. Chap 10-1
  • 2. Chapter Goals After completing this chapter, you should be able to:  Recognize situations in which to use analysis of variance  Understand different analysis of variance designs  Perform a single-factor hypothesis test and interpret results  Conduct and interpret post-hoc multiple comparisons procedures  Analyze two-factor analysis of variance tests Statistics for Managers Using Microsoft Excel, 4e © 2004 Prentice-Hall, Inc. Chap 10-2
  • 3. Chapter Overview Analysis of Variance (ANOVA) One-Way ANOVA F-test TukeyKramer test Statistics for Managers Using Microsoft Excel, 4e © 2004 Prentice-Hall, Inc. Two-Way ANOVA Interaction Effects Chap 10-3
  • 4. General ANOVA Setting  Investigator controls one or more independent variables    Observe effects on the dependent variable   Called factors (or treatment variables) Each factor contains two or more levels (or groups or categories/classifications) Response to levels of independent variable Experimental design: the plan used to collect the data Statistics for Managers Using Microsoft Excel, 4e © 2004 Prentice-Hall, Inc. Chap 10-4
  • 5. Completely Randomized Design  Experimental units (subjects) are assigned randomly to treatments   Only one factor or independent variable   Subjects are assumed homogeneous With two or more treatment levels Analyzed by one-factor analysis of variance (one-way ANOVA) Statistics for Managers Using Microsoft Excel, 4e © 2004 Prentice-Hall, Inc. Chap 10-5
  • 6. One-Way Analysis of Variance  Evaluate the difference among the means of three or more groups Examples: Accident rates for 1st, 2nd, and 3rd shift Expected mileage for five brands of tires  Assumptions  Populations are normally distributed  Populations have equal variances  Samples are randomly and independently drawn Statistics for Managers Using Microsoft Excel, 4e © 2004 Prentice-Hall, Inc. Chap 10-6
  • 7. Hypotheses of One-Way ANOVA  H0 : μ1 = μ2 = μ3 =  = μc    All population means are equal i.e., no treatment effect (no variation in means among groups) H1 : Not all of the population means are the same  At least one population mean is different  i.e., there is a treatment effect Does not mean that all population means are different (some pairs may be the same) Statistics for Managers Using Microsoft Excel, 4e © 2004 Chap 10-7 Prentice-Hall, Inc. 
  • 8. One-Factor ANOVA H0 : μ1 = μ2 = μ3 =  = μc H1 : Not all μi are the same All Means are the same: The Null Hypothesis is True (No Treatment Effect) Statistics forμ = μ = μ Managers Using 1 2 3 Microsoft Excel, 4e © 2004 Prentice-Hall, Inc. Chap 10-8
  • 9. One-Factor ANOVA (continued) H0 : μ1 = μ2 = μ3 =  = μc H1 : Not all μi are the same At least one mean is different: The Null Hypothesis is NOT true (Treatment Effect is present) or Statistics for Managers Using μ = μ2 4e 3 Microsoft1Excel, ≠ μ© 2004 Prentice-Hall, Inc. μ1 ≠ μ2 ≠ μ3 Chap 10-9
  • 10. Partitioning the Variation  Total variation can be split into two parts: SST = SSA + SSW SST = Total Sum of Squares (Total variation) SSA = Sum of Squares Among Groups (Among-group variation) SSW = Sum of Squares Within Groups (Within-group variation) Statistics for Managers Using Microsoft Excel, 4e © 2004 Chap 10-10 Prentice-Hall, Inc.
  • 11. Partitioning the Variation (continued) SST = SSA + SSW Total Variation = the aggregate dispersion of the individual data values across the various factor levels (SST) Among-Group Variation = dispersion between the factor sample means (SSA) Within-Group Variation = dispersion that exists among the data values within a particular factor level (SSW) Statistics for Managers Using Microsoft Excel, 4e © 2004 Chap 10-11 Prentice-Hall, Inc.
  • 12. Partition of Total Variation Total Variation (SST) =     Variation Due to Factor (SSA) Commonly referred to as: Sum of Squares Between Sum of Squares Among Sum of Squares Explained Among Groups Variation Statistics for Managers Using Microsoft Excel, 4e © 2004 Prentice-Hall, Inc. Variation Due to Random Sampling (SSW) +     Commonly referred to as: Sum of Squares Within Sum of Squares Error Sum of Squares Unexplained Within Groups Variation Chap 10-12
  • 13. Total Sum of Squares SST = SSA + SSW c nj SST = ∑∑ ( Xij − X) Where: 2 j=1 i =1 SST = Total sum of squares c = number of groups (levels or treatments) nj = number of observations in group j Xij = ith observation from group j Statistics for Managers Using X = © 2004 Microsoft Excel, 4egrand mean (mean of all data values) Chap 10-13 Prentice-Hall, Inc.
  • 14. Total Variation (continued) SST = ( X11 − X)2 + ( X12 − X)2 + ... + ( Xcnc − X)2 Response, X X Statistics for Managers Using 2 Group 1 Group Microsoft Excel, 4e © 2004 Prentice-Hall, Inc. Group 3 Chap 10-14
  • 15. Among-Group Variation SST = SSA + SSW c SSA = ∑ n j ( X j − X)2 Where: j =1 SSA = Sum of squares among groups c = number of groups or populations nj = sample size from group j Xj = sample mean from group j Statistics for Managers Using X = © 2004 Microsoft Excel, 4egrand mean (mean of all data values) Chap 10-15 Prentice-Hall, Inc.
  • 16. Among-Group Variation (continued) c SSA = ∑ n j ( X j − X)2 j =1 Variation Due to Differences Among Groups SSA MSA = k −1 Mean Square Among = SSA/degrees of freedom µi µj Statistics for Managers Using Microsoft Excel, 4e © 2004 Prentice-Hall, Inc. Chap 10-16
  • 17. Among-Group Variation (continued) SSA = n1 ( x1 − x ) + n 2 ( x 2 − x ) + ... + nc ( x c − x ) 2 2 Response, X X3 X1 Statistics for Managers Using Group 1 Group 2 Microsoft Excel, 4e © 2004 Prentice-Hall, Inc. X2 X Group 3 Chap 10-17 2
  • 18. Within-Group Variation SST = SSA + SSW c SSW = ∑ j=1 nj ∑ i =1 ( Xij − X j ) 2 Where: SSW = Sum of squares within groups c = number of groups nj = sample size from group j Xj = sample mean from group j Statistics for Managers Using Microsoft Excel, 4e i© observation in group j Xij = th 2004 Prentice-Hall, Inc. Chap 10-18
  • 19. Within-Group Variation (continued) c SSW = ∑ j=1 nj ∑ i =1 ( Xij − X j )2 Summing the variation within each group and then adding over all groups SSW MSW = n−c Mean Square Within = SSW/degrees of freedom Statistics for Managers Using µi Microsoft Excel, 4e © 2004 Prentice-Hall, Inc. Chap 10-19
  • 20. Within-Group Variation (continued) SSW = ( x11 − X1 ) + ( X12 − X 2 ) + ... + ( Xcnc − Xc ) 2 2 Response, X X1 Statistics for Managers Using Group Microsoft Excel, 4e1 © 2004 Group 2 Prentice-Hall, Inc. X2 X3 Group 3 Chap 10-20 2
  • 21. Obtaining the Mean Squares SSA MSA = c −1 SSW MSW = n−c SST MST = n −1 Statistics for Managers Using Microsoft Excel, 4e © 2004 Prentice-Hall, Inc. Chap 10-21
  • 22. One-Way ANOVA Table Source of Variation SS df Among Groups SSA c-1 Within Groups SSW n-c Total SST = SSA+SSW MS (Variance) F ratio SSA MSA MSA = c - 1 F = MSW SSW MSW = n-c n-1 c = number of groups for Managers Using of the sample sizes from all groups n = sum df Excel, 4e © 2004 = degrees of freedom Statistics Microsoft Prentice-Hall, Inc. Chap 10-22
  • 23. One-Factor ANOVA F Test Statistic H0: μ1= μ2 = … = μc H1: At least two population means are different  Test statistic MSA F= MSW MSA is mean squares among variances MSW is mean squares within variances  Degrees of freedom  df1 = c – 1 (c = number of groups) Statistics for Managers Using  (n = Microsoft df2 = n –4e © 2004sum of sample sizes from all populations) Excel, c Chap 10-23 Prentice-Hall, Inc.
  • 24. Interpreting One-Factor ANOVA F Statistic  The F statistic is the ratio of the among estimate of variance and the within estimate of variance    The ratio must always be positive df1 = c -1 will typically be small df2 = n - c will typically be large Decision Rule:  Reject H if F > F , 0 U otherwise do not Statistics for Managers Using reject H0 Microsoft Excel, 4e © 2004 Prentice-Hall, Inc. α = .05 0 Do not reject H0 Reject H0 FU Chap 10-24
  • 25. One-Factor ANOVA F Test Example You want to see if three different golf clubs yield different distances. You randomly select five measurements from trials on an automated driving machine for each club. At the .05 significance level, is there a difference in mean distance? Statistics for Managers Using Microsoft Excel, 4e © 2004 Prentice-Hall, Inc. Club 1 254 263 241 237 251 Club 2 234 218 235 227 216 Club 3 200 222 197 206 204 Chap 10-25
  • 26. One-Factor ANOVA Example: Scatter Diagram Club 1 254 263 241 237 251 Club 2 234 218 235 227 216 Club 3 200 222 197 206 204 Distance 270 260 250 240 230 • • • • • 220 x1 = 249.2 x 2 = 226.0 x 3 = 205.8 x = 227.0 Statistics for Managers Using Microsoft Excel, 4e © 2004 Prentice-Hall, Inc. 210 X1 • • • • • X2 • • • • • 200 X X3 190 1 2 3 Chap 10-26 Club
  • 27. One-Factor ANOVA Example Computations Club 1 254 263 241 237 251 Club 2 234 218 235 227 216 Club 3 200 222 197 206 204 X1 = 249.2 n1 = 5 X2 = 226.0 n2 = 5 X3 = 205.8 n3 = 5 X = 227.0 n = 15 c=3 SSA = 5 (249.2 – 227)2 + 5 (226 – 227)2 + 5 (205.8 – 227)2 = 4716.4 SSW = (254 – 249.2)2 + (263 – 249.2)2 +…+ (204 – 205.8)2 = 1119.6 MSA = 4716.4 / (3-1) = 2358.2 Statistics 1119.6 / (15-3) =Using MSW = for Managers 93.3 Microsoft Excel, 4e © 2004 Prentice-Hall, Inc. 2358.2 F= = 25.275 93.3 Chap 10-27
  • 28. One-Factor ANOVA Example Solution Test Statistic: H0: μ1 = μ2 = μ3 H1: μi not all equal MSA 2358.2 F= = = 25.275 MSW 93.3 α = .05 df1= 2 df2 = 12 Critical Value: Decision: Reject H0 at α = 0.05 FU = 3.89 Conclusion: There is evidence that 0 Do not at least one μi differs Statistics for Managers Using Reject H reject H F= Microsoft Excel, 4e © 200425.275 from the rest FU = 3.89 α = .05 0 0 Prentice-Hall, Inc. Chap 10-28
  • 29. ANOVA -- Single Factor: Excel Output EXCEL: tools | data analysis | ANOVA: single factor SUMMARY Groups Count Sum Average Variance Club 1 5 1246 249.2 108.2 Club 2 5 1130 226 77.5 Club 3 5 1029 205.8 94.2 ANOVA Source of Variation SS df MS Between Groups 4716.4 2 2358.2 Within Groups 1119.6 12 F P-value F crit 93.3 Statistics for Managers Using Total 5836.0 14 Microsoft Excel, 4e © 2004 Prentice-Hall, Inc. 25.275 4.99E-05 3.89 Chap 10-29
  • 30. The Tukey-Kramer Procedure  Tells which population means are significantly different    e.g.: μ1 = μ2 ≠ μ3 Done after rejection of equal means in ANOVA Allows pair-wise comparisons  Compare absolute mean differences with critical range Statistics for Managers Using Microsoft Excel, 4e © 2004 Prentice-Hall, Inc. μ1= μ2 μ3 x Chap 10-30
  • 31. Tukey-Kramer Critical Range Critical Range = QU MSW  1 1   +  2  n j n j'    where: QU = Value from Studentized Range Distribution with c and n - c degrees of freedom for the desired level of α (see appendix E.9 table) MSW = Mean Square Within Statistics and Managers Using groups j and j’ ni for nj = Sample sizes from Microsoft Excel, 4e © 2004 Prentice-Hall, Inc. Chap 10-31
  • 32. The Tukey-Kramer Procedure: Example Club 1 254 263 241 237 251 Club 2 234 218 235 227 216 Club 3 200 222 197 206 204 1. Compute absolute mean differences: x1 − x 2 = 249.2 − 226.0 = 23.2 x1 − x 3 = 249.2 − 205.8 = 43.4 x 2 − x 3 = 226.0 − 205.8 = 20.2 2. Find the QU value from the table in appendix E.9 with c = 3 and (n – c) = (15 – 3) = 12 degrees of freedom for the desired level of α (α = .05 used here): Statistics for Managers Using U Q Microsoft Excel, 4e © 2004 Prentice-Hall, Inc. = 3.77 Chap 10-32
  • 33. The Tukey-Kramer Procedure: Example (continued) 3. Compute Critical Range: Critical Range = QU MSW  1 1   +  = 3.77 93.3  1 + 1  = 16.285   2  n j n j'  2 5 5   4. Compare: 5. All of the absolute mean differences are greater than critical range. Therefore there is a significant difference between each pair of means at 5% level of significance. Statistics for Managers Using Microsoft Excel, 4e © 2004 Prentice-Hall, Inc. x1 − x 2 = 23.2 x1 − x 3 = 43.4 x 2 − x 3 = 20.2 Chap 10-33
  • 34. Tukey-Kramer in PHStat Statistics for Managers Using Microsoft Excel, 4e © 2004 Prentice-Hall, Inc. Chap 10-34
  • 35. Two-Way ANOVA  Examines the effect of  Two factors of interest on the dependent variable   e.g., Percent carbonation and line speed on soft drink bottling process Interaction between the different levels of these two factors  e.g., Does the effect of one particular carbonation level depend on which level the line speed is set? Statistics for Managers Using Microsoft Excel, 4e © 2004 Prentice-Hall, Inc. Chap 10-35
  • 36. Two-Way ANOVA (continued)  Assumptions  Populations are normally distributed  Populations have equal variances  Independent random samples are drawn Statistics for Managers Using Microsoft Excel, 4e © 2004 Prentice-Hall, Inc. Chap 10-36
  • 37. Two-Way ANOVA Sources of Variation Two Factors of interest: A and B r = number of levels of factor A c = number of levels of factor B n’ = number of replications for each cell n = total number of observations in all cells (n = rcn’) Xijk = value of the kth observation of level i of Statistics for Managers Using factor A and Microsoft Excel, 4e © 2004 level j of factor B Prentice-Hall, Inc. Chap 10-37
  • 38. Two-Way ANOVA Sources of Variation SST = SSA + SSB + SSAB + SSE SSA Factor A Variation SST Total Variation SSB Factor B Variation SSAB n-1 Variation due to interaction between A and B (continued) Degrees of Freedom: r–1 c–1 (r – 1)(c – 1) SSE rc(n’ – 1) Statistics for Managers Using Random variation (Error) Microsoft Excel, 4e © 2004 Chap 10-38 Prentice-Hall, Inc.
  • 39. Two Factor ANOVA Equations Total Variation: r n′ c SST = ∑∑∑ ( Xijk − X) 2 i =1 j=1 k =1 Factor A Variation: r ′∑ ( Xi.. − X)2 SSA = cn i=1 Factor B Variation: c SSB = rn′∑ ( X. j. − X)2 Statistics for Managers Using Microsoft Excel, 4e © 2004 Prentice-Hall, Inc. j=1 Chap 10-39
  • 40. Two Factor ANOVA Equations (continued) Interaction Variation: r c SSAB = n′∑∑ ( Xij. − Xi.. − X. j. + X)2 i =1 j =1 Sum of Squares Error: r c n′ SSE = ∑∑∑ ( Xijk − Xij. ) i =1 j=1 k =1 Statistics for Managers Using Microsoft Excel, 4e © 2004 Prentice-Hall, Inc. Chap 10-40 2
  • 41. Two Factor ANOVA Equations r where: X= Xi.. = ∑∑ X j=1 k =1 i=1 j=1 k =1 ijk rcn′ = Grand Mean ijk = Mean of ith level of factor A (i = 1, 2, ..., r) cn′ r X. j. = (continued) n′ ∑∑∑ X n′ c c n′ ∑∑ X i=1 k =1 rn′ ijk = Mean of jth level of factor B (j = 1, 2, ..., c) Xijk Xij. = for = Mean of cell Statistics ∑ Managers Using ij k =1 n′ n′ Microsoft Excel, 4e © 2004 Prentice-Hall, Inc. r = number of levels of factor A c = number of levels of factor B n’ = number of replications in each cell Chap 10-41
  • 42. Mean Square Calculations SSA MSA = Mean square factor A = r −1 SSB MSB = Mean square factor B = c −1 SSAB MSAB = Mean square interaction = (r − 1)(c − 1) SSE MSE = Mean square error = Statistics for Managers Using rc(n'−1) Microsoft Excel, 4e © 2004 Prentice-Hall, Inc. Chap 10-42
  • 43. Two-Way ANOVA: The F Test Statistic H0: μ1.. = μ2.. = μ3.. = • • • H1: Not all μi.. are equal H0: μ.1. = μ.2. = μ.3. = • • • H1: Not all μ.j. are equal H0: the interaction of A and B is equal to zero Statistics for Managers Using H1: interaction of A and B is not Microsoft Excel, 4e © 2004 zero Prentice-Hall, Inc. F Test for Factor A Effect MSA F= MSE Reject H0 if F > FU F Test for Factor B Effect MSB F= MSE Reject H0 if F > FU F Test for Interaction Effect MSAB F= MSE Reject H0 if F > FU Chap 10-43
  • 44. Two-Way ANOVA Summary Table Source of Variation Sum of Squares Degrees of Freedom Factor A SSA r–1 Factor B SSB c–1 AB (Interaction) SSAB (r – 1)(c – 1) Error SSE rc(n’ – 1) Statistics for Managers Using Total SST n–1 Microsoft Excel, 4e © 2004 Prentice-Hall, Inc. Mean Squares F Statistic MSA MSA MSE = SSA /(r – 1) MSB = SSB /(c – 1) MSAB = SSAB / (r – 1)(c – 1) MSB MSE MSAB MSE MSE = SSE/rc(n’ – 1) Chap 10-44
  • 45. Features of Two-Way ANOVA F Test  Degrees of freedom always add up  n-1 = rc(n’-1) + (r-1) + (c-1) + (r-1)(c-1)  Total = error + factor A + factor B + interaction  The denominator of the F Test is always the same but the numerator is different  The sums of squares always add up  SST = SSE + SSA + SSB + SSAB  Total = error factor Statistics for Managers+Using A + factor B + interaction Microsoft Excel, 4e © 2004 Chap 10-45 Prentice-Hall, Inc.
  • 46. Examples: Interaction vs. No Interaction No interaction: Interaction is present: Factor B Level 1 Factor B Level 3 Factor B Level 2 Factor A Levels Statistics for Managers Using Microsoft Excel, 4e © 2004 Prentice-Hall, Inc. Mean Response Mean Response   Factor B Level 1 Factor B Level 2 Factor B Level 3 Factor A Levels Chap 10-46
  • 47. Chapter Summary  Described one-way analysis of variance   ANOVA assumptions  F test for difference in c means   The logic of ANOVA The Tukey-Kramer procedure for multiple comparisons Described two-way analysis of variance  Examined effects of multiple factors Examined interaction between factors Statistics for Managers Using Microsoft Excel, 4e © 2004 Prentice-Hall, Inc.  Chap 10-47
