Blister & Strip Packaging
Shobhaben Pratapbhai Patel School of Pharmacy & Technology Management,
SVKM’S NMIMS, Mumbai
Dr. Anil M. Pethe
Blister Pack Introduction
 Blister pack is a term for several types of
pre-formed plastic packaging used for
small consumer goods.
 The two primary components of a blister
pack are the cavity or pocket made from a
 "formable" web, either plastic or aluminum
 the lidding, made from paper, paperboard,
plastic or aluminum.
 The "formed" cavity or pocket contains
the product and the "lidding" seals the
product in the package.
Blister Pack Introduction (Cont.)
 Blister packs are commonly used as unit-dose packaging for
pharmaceutical tablets, capsules or lozenges.
 Blister packs can provide barrier protection for shelf life
requirements, and a degree of tamper resistance.
 In the USA, blister packs are mainly used for packing physician
samples of drug products, or for Over The Counter (OTC)
products in the pharmacy.
 In other parts of the world, blister packs are the main packaging
type since pharmacy dispensing and re-packaging are not
common.
 A series of blister cavities is sometimes called a blister card or
blister strip as well as blister pack. In some parts of the world the
blister pack is known as a Push-Through-Pack (PTP).
Blister Pack Introduction (Cont.)
 The main advantages of unit-dose blister packs over other
methods of packing pharmaceutical products are the
assurance of product/packaging integrity (including shelf life)
of each individual dose
 The possibility to create a compliance pack or calendar pack
by printing the days of the week above each dose.
 Blister packs also hinder the use of OTC drugs in the
manufacture of illegal drugs.
Consumer goods Blister Packs
 Other types of blister packs consist of carded packaging where
goods such as toys, hardware, and electrical items are contained
between a specially made paperboard card and clear pre-formed
plastic such as PVC.
 The consumer can easily examine the product through the
transparent plastic.
 The adhesive is strong enough so that the pack may hang on a peg,
but weak enough so that the package can be easily opened.

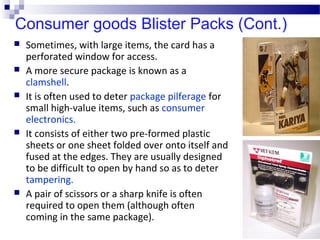

Consumer goods Blister Packs (Cont.)
 Sometimes, with large items, the card has a
perforated window for access.
 A more secure package is known as a
clamshell.
 It is often used to deter package pilferage for
small high-value items, such as consumer
electronics.
 It consists of either two pre-formed plastic
sheets or one sheet folded over onto itself and
fused at the edges. They are usually designed
to be difficult to open by hand so as to deter
tampering.
 A pair of scissors or a sharp knife is often
required to open them (although often
coming in the same package).
 They provide barrier protection for shelf life requirements.
 They also provide a degree of tamper resistance.
 The most important reason for introducing blister
packaging technology was to offer patients a clearly marked
individual dose, enabling them to check whether they had
taken the prescribed drugs on a given day.
 Moreover, the drugs that were not taken remained in the
original package and were fully protected against adverse
external conditions.
 The patient could handle the blister package more easily
and could store it more conveniently than conventional
packages.
 Protection from Moisture, Gas, Light & Temperature
 Compliance – Regulatory & Patient
Uses of Blister Packaging
Advantages of blister packaging
 Reduced costs and higher packaging speeds relative to
other packaging materials.
 Blister packaging helps retain product integrity because
drugs that are prepackaged in blisters are shielded from
adverse conditions.
 Furthermore, opportunities for product contamination are
minimal.
 and each dose is identified by product name, lot number,
and expiration date.
Advantages of blister packaging (cont.)
 Blister packaging protects pharmaceuticals in the home
better than bottles do.
 Tamper evidence is another strength of blister packaging.
The dosage units are individually sealed in constructions of
plastic, foil, and/or paper. With blister packaging, however,
each tablet or capsule is individually protected from
tampering until use, so any form of tampering with a
blister package is immediately visible.

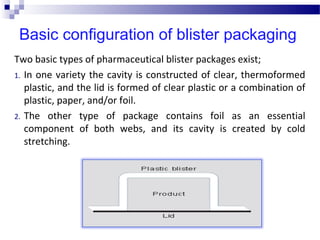

Basic configuration of blister packaging
Two basic types of pharmaceutical blister packages exist;
1. In one variety the cavity is constructed of clear, thermoformed
plastic, and the lid is formed of clear plastic or a combination of
plastic, paper, and/or foil.
2. The other type of package contains foil as an essential
component of both webs, and its cavity is created by cold
stretching.

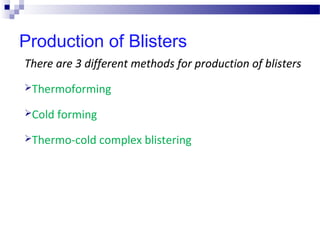

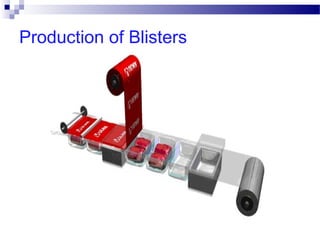

Production of Blisters
There are 3 different methods for production of blisters
Thermoforming
Cold forming

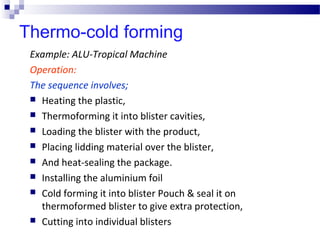

Thermo-cold complex blistering
Production of Blisters

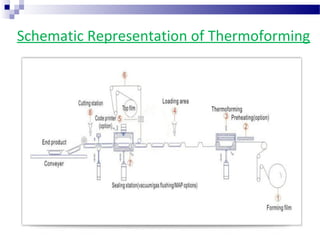

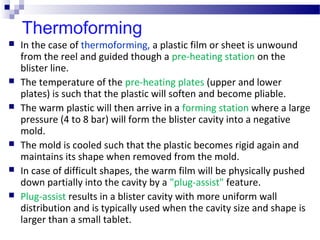

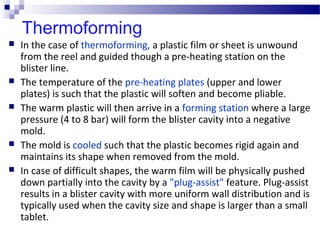

Thermoforming

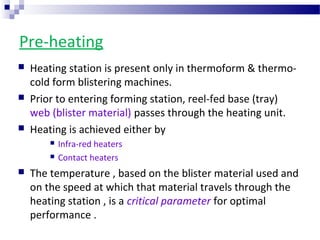

 In the case of thermoforming, a plastic film or sheet is unwound
from the reel and guided though a pre-heating station on the
blister line.
 The temperature of the pre-heating plates (upper and lower
plates) is such that the plastic will soften and become pliable.

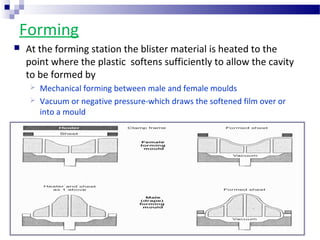

 The warm plastic will then arrive in a forming station where a large
pressure (4 to 8 bar) will form the blister cavity into a negative
mold.

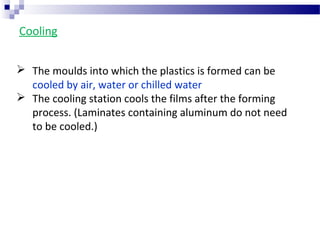

 The mold is cooled such that the plastic becomes rigid again and
maintains its shape when removed from the mold.

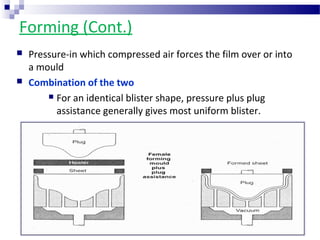

 In case of difficult shapes, the warm film will be physically pushed
down partially into the cavity by a "plug-assist" feature.
 Plug-assist results in a blister cavity with more uniform wall
distribution and is typically used when the cavity size and shape is
larger than a small tablet.

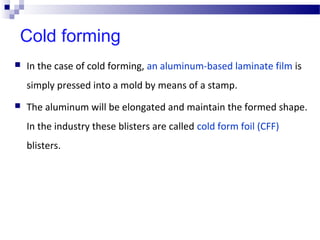

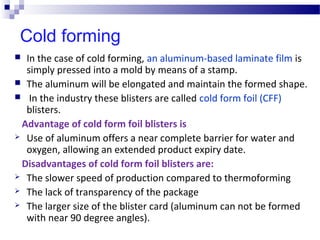

Cold forming
 In the case of cold forming, an aluminum-based laminate film is
simply pressed into a mold by means of a stamp.
 The aluminum will be elongated and maintain the formed shape.

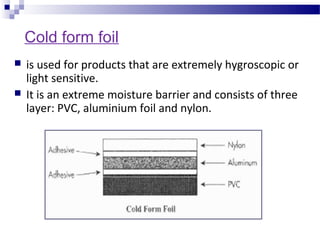

 In the industry these blisters are called cold form foil (CFF)
blisters.

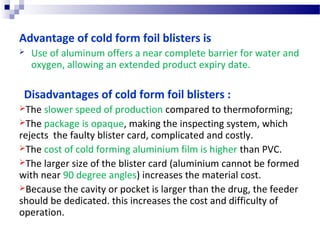

Advantage of cold form foil blisters is
 Use of aluminum offers a near complete barrier for water and
oxygen, allowing an extended product expiry date.
Disadvantages of cold form foil blisters are:
 The slower speed of production compared to thermoforming
 The lack of transparency of the package

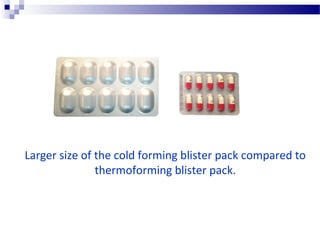

 The larger size of the blister card (aluminum can not be formed
with near 90 degree angles).

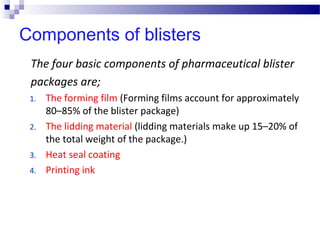

Components of blisters
The four basic components of pharmaceutical blister
packages are;
1. The forming film (Forming films account for approximately
80–85% of the blister package)
2. The lidding material (lidding materials make up 15–20% of
the total weight of the package.)

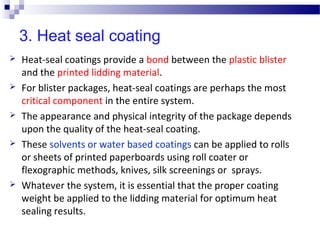

3. Heat seal coating

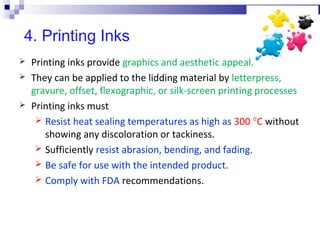

4. Printing ink
1. Forming Film
 The forming film is the packaging component that
receives the product in deep drawn pockets.
 One key to package success is selecting the right
plastic film for the blisters in terms of its;
 Property type,
 Grade,
 Thickness.
Selection of forming film
Consideration must be given to the;
 Height and weight of the product,
 Sharp or pointed edges of the final package,
 The impact resistance,
 Aging, migration, and cost of the film.
 The plastic also must be compatible with the product.
 Factors influencing package production and speed of
assembly must be taken into account, including heat sealing
properties and the ease of cutting and trimming formed
blisters.

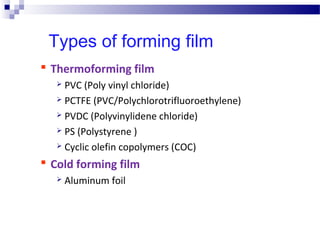

Types of forming film
 Thermoforming film
 PVC (Poly vinyl chloride)
 PCTFE (PVC/Polychlorotrifluoroethylene)
 PVDC (Polyvinylidene chloride)
 PS (Polystyrene )
 Cyclic olefin copolymers (COC)
 Cold forming film
 Aluminum foil

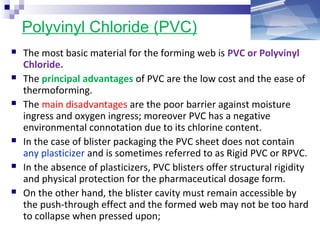

Polyvinyl Chloride (PVC)

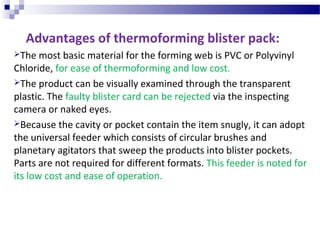

 The most basic material for the forming web is PVC or Polyvinyl
Chloride.
 The principal advantages of PVC are the low cost and the ease of
thermoforming.
 The main disadvantages are the poor barrier against moisture
ingress and oxygen ingress; moreover PVC has a negative
environmental connotation due to its chlorine content.
 In the case of blister packaging the PVC sheet does not contain
any plasticizer and is sometimes referred to as Rigid PVC or RPVC.
 In the absence of plasticizers, PVC blisters offer structural rigidity
and physical protection for the pharmaceutical dosage form.
 On the other hand, the blister cavity must remain accessible by
the push-through effect and the formed web may not be too hard
to collapse when pressed upon;
Polyvinyl Chloride (PVC)
 For this reason the PVC sheet thickness is typically chosen
between 200µ to 300µ depending on the cavity size and shape.
 Most PVC sheets for pharmaceutical blisters are 250µ or
0.250 mm in thickness.
 Typical values for the WVTR or MVTR of a 250µ PVC film are
around 3.0 g/m2
/day measured at 38°C/90%RH
 The Oxygen Transmission Rate (OTR) is around 20 cc/m2
/day.
 In order to overcome the lack of barrier properties of PVC film, it
can be coated with PVDC or laminated to PCTFE or COC to
increase the protective properties.
 Multi-layer blister films based on PVC are often used for
pharmaceutical blister packaging, whereby the PVC serves as the
thermo formable backbone of the structure.
 Also, the PVC layer can be colored with pigments and/or UV
filters.

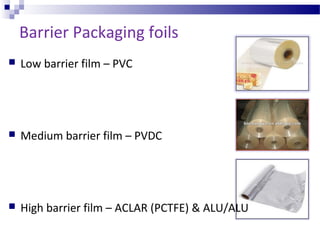

Barrier Packaging foils
 Low barrier film – PVC
 Medium barrier film – PVDC
 High barrier film – ACLAR (PCTFE) & ALU/ALU
Poly-chloro-tri-fluroethylene (PCTFE)
 Polychlorotrifluoro ethylene or PCTFE can be laminated to PVC
to obtain very high moisture barrier.
 Typical constructions used for pharmaceutical products are 250µ
PVC film laminated to 15µ-100µ PCTFE film.
 Duplex structures are PVC/PCTFE
 Triplex laminates are PVC/PE/PCTFE.
 Deeper cavities can be formed by using the triplex structures
with PE. Typical WVTR values are between 0.06 - 0.40 g/m2/day.

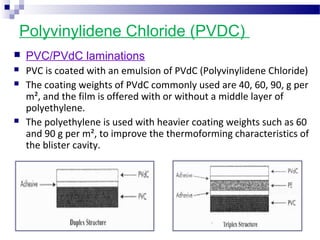

Polyvinylidene Chloride (PVDC)
 PVC/PVdC laminations
 PVC is coated with an emulsion of PVdC (Polyvinylidene Chloride)
 The coating weights of PVdC commonly used are 40, 60, 90, g per
m², and the film is offered with or without a middle layer of
polyethylene.
 The polyethylene is used with heavier coating weights such as 60
and 90 g per m², to improve the thermoforming characteristics of
the blister cavity.

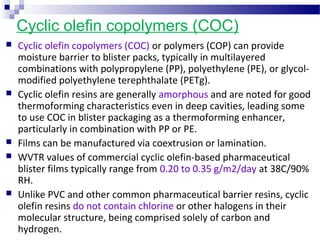

Cyclic olefin copolymers (COC)
 Cyclic olefin copolymers (COC) or polymers (COP) can provide
moisture barrier to blister packs, typically in multilayered
combinations with polypropylene (PP), polyethylene (PE), or glycol-
modified polyethylene terephthalate (PETg).
 Cyclic olefin resins are generally amorphous and are noted for good
thermoforming characteristics even in deep cavities, leading some
to use COC in blister packaging as a thermoforming enhancer,
particularly in combination with PP or PE.
 Films can be manufactured via coextrusion or lamination.
 WVTR values of commercial cyclic olefin-based pharmaceutical
blister films typically range from 0.20 to 0.35 g/m2/day at 38C/90%
RH.
 Unlike PVC and other common pharmaceutical barrier resins, cyclic
olefin resins do not contain chlorine or other halogens in their
molecular structure, being comprised solely of carbon and
hydrogen.
Cold form foil
 is used for products that are extremely hygroscopic or
light sensitive.
 It is an extreme moisture barrier and consists of three
layer: PVC, aluminium foil and nylon.

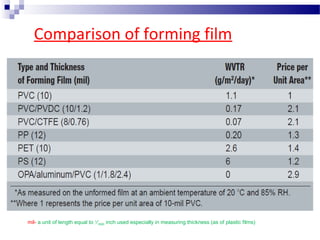

Comparison of forming film
mil- a unit of length equal to 1
⁄1000 inch used especially in measuring thickness (as of plastic films)
2. Lidding Material
The lidding material provides the base or main structural
component upon which the final blister package is built.
It must be selected according to;
The size,
Shape,
Weight of the product
As well as the style of the package to be produced

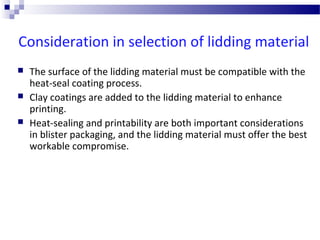

Consideration in selection of lidding material
 The surface of the lidding material must be compatible with the
heat-seal coating process.
 Clay coatings are added to the lidding material to enhance
printing.
 Heat-sealing and printability are both important considerations
in blister packaging, and the lidding material must offer the best
workable compromise.

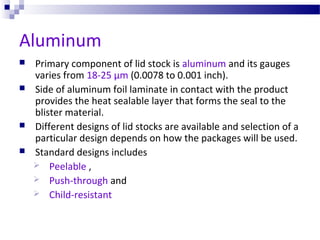

Aluminum
 Primary component of lid stock is aluminum and its gauges
varies from 18-25 µm (0.0078 to 0.001 inch).
 Side of aluminum foil laminate in contact with the product
provides the heat sealable layer that forms the seal to the
blister material.
 Different designs of lid stocks are available and selection of a
particular design depends on how the packages will be used.
 Standard designs includes
 Peelable ,
 Push-through and
 Child-resistant

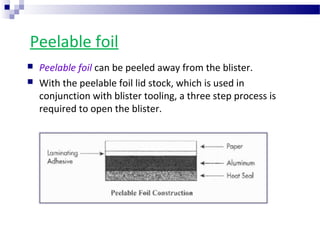

Peelable foil
 Peelable foil can be peeled away from the blister.
 With the peelable foil lid stock, which is used in
conjunction with blister tooling, a three step process is
required to open the blister.

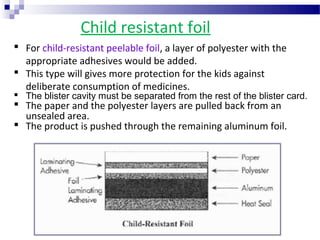

Child resistant foil
 For child-resistant peelable foil, a layer of polyester with the
appropriate adhesives would be added.
 This type will gives more protection for the kids against
deliberate consumption of medicines.
 The blister cavity must be separated from the rest of the blister card.
 The paper and the polyester layers are pulled back from an
unsealed area.
 The product is pushed through the remaining aluminum foil.

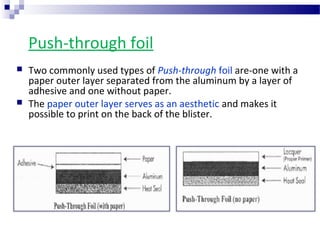

Push-through foil
 Two commonly used types of Push-through foil are-one with a
paper outer layer separated from the aluminum by a layer of
adhesive and one without paper.
 The paper outer layer serves as an aesthetic and makes it
possible to print on the back of the blister.

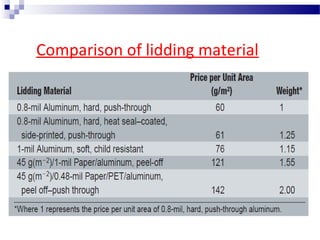

Comparison of lidding material
3. Heat seal coating
 Heat-seal coatings provide a bond between the plastic blister
and the printed lidding material.
 For blister packages, heat-seal coatings are perhaps the most
critical component in the entire system.
 The appearance and physical integrity of the package depends
upon the quality of the heat-seal coating.
 These solvents or water based coatings can be applied to rolls
or sheets of printed paperboards using roll coater or
flexographic methods, knives, silk screenings or sprays.
 Whatever the system, it is essential that the proper coating
weight be applied to the lidding material for optimum heat
sealing results.

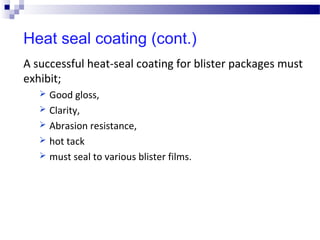

A successful heat-seal coating for blister packages must
exhibit;
 Good gloss,
 Clarity,
 Abrasion resistance,
 hot tack
 must seal to various blister films.
Heat seal coating (cont.)
Hot tack
 Hot tack is particularly important because the product usually is
loaded into the blister and the lidding material heat sealed in
place (face down) onto the blister.
 When the package is ejected from the heat-seal jig, the still-
warm bond line must support its entire weight.
 The heat seal coating must precisely match the lidding material
and the plastic material of the forming film.
 Precisely match means that with pre determined sealing
parameters, a permanent sealing effect between the lidding
material and the forming film must be guaranteed under any
climatic condition.
4. Printing Inks
 Printing inks provide graphics and aesthetic appeal.
 They can be applied to the lidding material by letterpress,
gravure, offset, flexographic, or silk-screen printing processes
 Printing inks must
 Resist heat sealing temperatures as high as 300 °C without
showing any discoloration or tackiness.
 Sufficiently resist abrasion, bending, and fading.
 Be safe for use with the intended product.
 Comply with FDA recommendations.

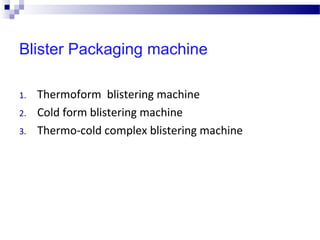

Blister Packaging machine
1. Thermoform blistering machine
2. Cold form blistering machine
3. Thermo-cold complex blistering machine
Production of Blisters
Thermoforming
 In the case of thermoforming, a plastic film or sheet is unwound
from the reel and guided though a pre-heating station on the
blister line.
 The temperature of the pre-heating plates (upper and lower
plates) is such that the plastic will soften and become pliable.
 The warm plastic will then arrive in a forming station where a large
pressure (4 to 8 bar) will form the blister cavity into a negative
mold.
 The mold is cooled such that the plastic becomes rigid again and
maintains its shape when removed from the mold.
 In case of difficult shapes, the warm film will be physically pushed
down partially into the cavity by a "plug-assist" feature. Plug-assist
results in a blister cavity with more uniform wall distribution and is
typically used when the cavity size and shape is larger than a small
tablet.
Advantages of thermoforming blister pack:
The most basic material for the forming web is PVC or Polyvinyl
Chloride, for ease of thermoforming and low cost.
The product can be visually examined through the transparent
plastic. The faulty blister card can be rejected via the inspecting
camera or naked eyes.
Because the cavity or pocket contain the item snugly, it can adopt
the universal feeder which consists of circular brushes and
planetary agitators that sweep the products into blister pockets.
Parts are not required for different formats. This feeder is noted for
its low cost and ease of operation.
Disadvantages of thermoforming blister pack:
The protective properties are not strong because of the PVC’s
poor barrier against moisture and oxygen ingress.
Not suitable for light-sensitive drugs because of the
transparency of PVC.
Thermoforming
Thermoforming process consists of four basic stations
where following operations occur
1. Forming
• Pre heating
• Thermoforming
• Cooling
1. Filling (Loading)
2. Sealing
3. Finishing
Schematic Representation of Thermoforming
Pre-heating
 Heating station is present only in thermoform & thermo-
cold form blistering machines.
 Prior to entering forming station, reel-fed base (tray)
web (blister material) passes through the heating unit.
 Heating is achieved either by
 Infra-red heaters
 Contact heaters
 The temperature , based on the blister material used and
on the speed at which that material travels through the
heating station , is a critical parameter for optimal
performance .
Forming
 At the forming station the blister material is heated to the
point where the plastic softens sufficiently to allow the cavity
to be formed by
 Mechanical forming between male and female moulds
 Vacuum or negative pressure-which draws the softened film over or
into a mould
Forming (Cont.)
 Pressure-in which compressed air forces the film over or into
a mould
 Combination of the two
 For an identical blister shape, pressure plus plug
assistance generally gives most uniform blister.
Cooling
 The moulds into which the plastics is formed can be
cooled by air, water or chilled water
 The cooling station cools the films after the forming
process. (Laminates containing aluminum do not need
to be cooled.)

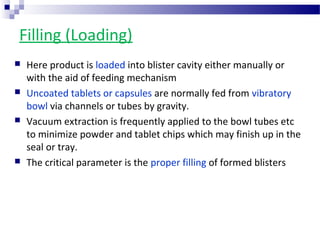

Filling (Loading)
 Here product is loaded into blister cavity either manually or
with the aid of feeding mechanism
 Uncoated tablets or capsules are normally fed from vibratory
bowl via channels or tubes by gravity.
 Vacuum extraction is frequently applied to the bowl tubes etc
to minimize powder and tablet chips which may finish up in the
seal or tray.
 The critical parameter is the proper filling of formed blisters

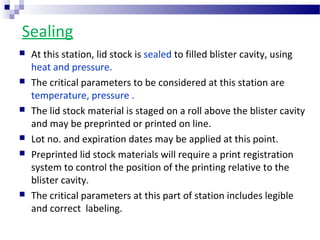

Sealing
 At this station, lid stock is sealed to filled blister cavity, using
heat and pressure.
 The critical parameters to be considered at this station are
temperature, pressure .
 The lid stock material is staged on a roll above the blister cavity
and may be preprinted or printed on line.
 Lot no. and expiration dates may be applied at this point.
 Preprinted lid stock materials will require a print registration
system to control the position of the printing relative to the
blister cavity.
 The critical parameters at this part of station includes legible
and correct labeling.
Finishing
 Includes embossing, perforation and cutting.
 Embossing involves application of lot no. and expiration date to
package. This process is carried out at printing station.
 Steel type is used to emboss information on the edges of the
blister package.
 At Trimming station, the blisters are cut into individual unit
 Embossing, perforation, cutting process should not
compromise blister lid or seal. Package integrity and quality of
embossing are critical parameter in the process.
Cold forming
 In the case of cold forming, an aluminum-based laminate film is
simply pressed into a mold by means of a stamp.
 The aluminum will be elongated and maintain the formed shape.
In the industry these blisters are called cold form foil (CFF)
blisters.
Advantage of cold form foil blisters is
 Use of aluminum offers a near complete barrier for water and
oxygen, allowing an extended product expiry date.
Disadvantages of cold form foil blisters :
The slower speed of production compared to thermoforming;
The package is opaque, making the inspecting system, which
rejects the faulty blister card, complicated and costly.
The cost of cold forming aluminium film is higher than PVC.
The larger size of the blister card (aluminium cannot be formed
with near 90 degree angles) increases the material cost.
Because the cavity or pocket is larger than the drug, the feeder
should be dedicated. this increases the cost and difficulty of
operation.
Operation of Cold Forming
The sequence involves;
Installing the Aluminium Foil,
Cold forming it into blister cavities via punch pins,
Loading the blister with the product,
Placing lidding material over the blister,
Heat-sealing the package.
Cutting into individual blisters
Types of Cold forming processes
1. Clamping the material and carrying out a true punch action
where the non-held area is extended (stretch forming).
2. Taking a foil which has been embossed or finely creased; can be
extended by air or mechanical pressure without showing flex
cracks.
3. Taking a reel of material with regular cross-direction slits (as used
on suppository machine).
4. A male/female mechanical forming operation is carried out
between each slit. This mechanical operation forms the foil and
the slit area moves (opens), thereby preventing any high degree
of stress
5. Latest innovations include a double forming operation which
reduces the tray size to 20% (Advanced Forming Technology
(AFT) process). These tend to use Teflon stretching dies.
Larger size of the cold forming blister pack compared to
thermoforming blister pack.
Thermo-cold forming
Example: ALU-Tropical Machine
Operation:
The sequence involves;
 Heating the plastic,
 Thermoforming it into blister cavities,
 Loading the blister with the product,
 Placing lidding material over the blister,
 And heat-sealing the package.
 Installing the aluminium foil
 Cold forming it into blister Pouch & seal it on
thermoformed blister to give extra protection,
 Cutting into individual blisters
Strip Packaging
 Strip packs present an alternative form of pack for a
unit dosage.
 Strips can be produced from single or multi-ply
materials, provided the two inner plies can be sealed by
heat or pressure (e.g. cold ‘self-adhesive’ seal).
 Materials can range from relatively permeable plies to
those which incorporate a foil ply of sufficient thickness
(and effectiveness of seal) that an individual hermetic
seal is produced for each dosage.
 Usually produced at lower speeds and also occupy
greater volume than blisters.
59
Strip Packs
Consists of one or two plies, made from
 Regenerated cellulose
 Paper
 Plastics,
 Foil or any combination
--------------an item is inserted into a pocket area against
a recess in a heated roller
Strip Packs (cont.)
 Heat Sealable Cellophane
 Heat Sealable Polyester
 Paper / Polyethylene / Foil
62
Strip forming material

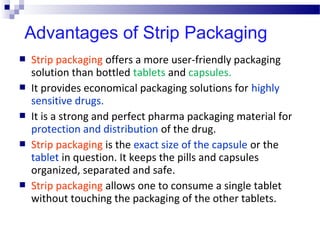

 Strip packaging offers a more user-friendly packaging
solution than bottled tablets and capsules.
 It provides economical packaging solutions for highly
sensitive drugs.
 It is a strong and perfect pharma packaging material for
protection and distribution of the drug.
 Strip packaging is the exact size of the capsule or the
tablet in question. It keeps the pills and capsules
organized, separated and safe.
 Strip packaging allows one to consume a single tablet
without touching the packaging of the other tablets.
Advantages of Strip Packaging

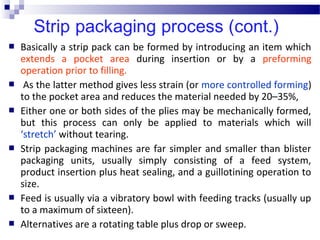

 Basically a strip pack can be formed by introducing an item which
extends a pocket area during insertion or by a preforming
operation prior to filling.
 As the latter method gives less strain (or more controlled forming)
to the pocket area and reduces the material needed by 20–35%,
 Either one or both sides of the plies may be mechanically formed,
but this process can only be applied to materials which will
‘stretch’ without tearing.

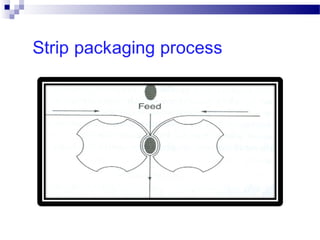

 Strip packaging machines are far simpler and smaller than blister
packaging units, usually simply consisting of a feed system,
product insertion plus heat sealing, and a guillotining operation to
size.
 Feed is usually via a vibratory bowl with feeding tracks (usually up
to a maximum of sixteen).
 Alternatives are a rotating table plus drop or sweep.

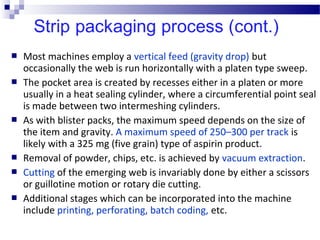

 Most machines employ a vertical feed (gravity drop) but
occasionally the web is run horizontally with a platen type sweep.
 The pocket area is created by recesses either in a platen or more
usually in a heat sealing cylinder, where a circumferential point seal
is made between two intermeshing cylinders.
 As with blister packs, the maximum speed depends on the size of
the item and gravity. A maximum speed of 250–300 per track is
likely with a 325 mg (five grain) type of aspirin product.
 Removal of powder, chips, etc. is achieved by vacuum extraction.
 Cutting of the emerging web is invariably done by either a scissors
or guillotine motion or rotary die cutting.
 Additional stages which can be incorporated into the machine
include printing, perforating, batch coding, etc.

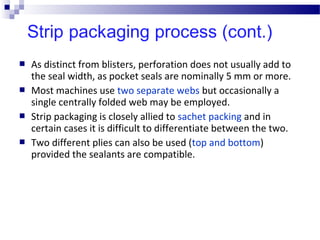

 As distinct from blisters, perforation does not usually add to
the seal width, as pocket seals are nominally 5 mm or more.
 Most machines use two separate webs but occasionally a
single centrally folded web may be employed.
 Strip packaging is closely allied to sachet packing and in
certain cases it is difficult to differentiate between the two.
 Two different plies can also be used (top and bottom)
provided the sealants are compatible.
Strip designs
 Strip designs are very basic, as the emerging units are
invariably rectangular or square strips.
 The pocket portion can, however, be round, oval or square.
 The pocket area is critical to the diameter, shape and thickness
of the product.
 If the pocket is too ‘tight’, tearing, perforation of the pocket
periphery or wrinkling of the seal area may occur.
 The seal width may be as low as 4 mm, but usually 5 mm and
above is employed. If the seal area is likely to wrinkle or crease
then wider seals may be necessary.
Materials of Construction/
Type
Critical Properties Area of use
PVC 200/250/350 Low barrier / Simple unit
pack / Aesthetic
Stable products like Paracetamol,
Co-trimoxazole, certain softgel capsules etc.,
PVC / PVdC (250/40) Low barrier better than PVC Products not very sensitive to moisture, gases
and with moderate self life- Multivitamin tablets
and capsules
PVC / PVdC (250/60)/ (250/90)/
(250/120)
Good barrier Moderate to high sensitive range of products,
certain FDC/ Enzyme products
PVC / PE / PVdC (200/25/60)/
(250/25/90)(300/30/90)
Good barrier Quite high sensitive range of products – 4
FDC(RHZE)
Ultrasafe Duplex High barrier/economical Quite high sensitive range of products
Ultrasafe Triplex High barrier/economical Quite high sensitive range of products
PVC/Aclar (PCTFE) (10μ to
100μ)
Excellent barrier Extremely sensitive range of products
PVC/COC, PE/COC Excellent barrier Extremely sensitive range of products
OPA/Al foil/PVC Excellent barrier Extremely sensitive range of products

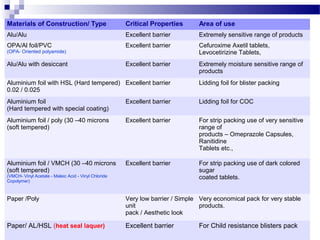

Materials of Construction/ Type Critical Properties Area of use
Alu/Alu Excellent barrier Extremely sensitive range of products
OPA/Al foil/PVC
(OPA- Oriented polyamide)
Excellent barrier Cefuroxime Axetil tablets,
Levocetirizine Tablets,
Alu/Alu with desiccant Excellent barrier Extremely moisture sensitive range of
products
Aluminium foil with HSL (Hard tempered)
0.02 / 0.025
Excellent barrier Lidding foil for blister packing
Aluminium foil
(Hard tempered with special coating)
Excellent barrier Lidding foil for COC
Aluminium foil / poly (30 –40 microns
(soft tempered)
Excellent barrier For strip packing use of very sensitive
range of
products – Omeprazole Capsules,
Ranitidine
Tablets etc.,
Aluminium foil / VMCH (30 –40 microns
(soft tempered)
(VMCH- Vinyl Acetate - Maleic Acid - Vinyl Chloride
Copolymer)
Excellent barrier For strip packing use of dark colored
sugar
coated tablets.
Paper /Poly Very low barrier / Simple
unit
pack / Aesthetic look
Very economical pack for very stable
products.
Paper/ AL/HSL (heat seal laquer) Excellent barrier For Child resistance blisters pack

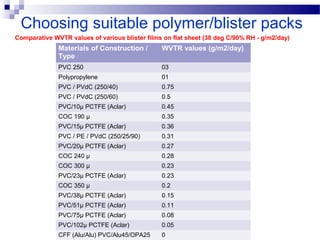

Choosing suitable polymer/blister packs
Comparative WVTR values of various blister films on flat sheet (38 deg C/90% RH - g/m2/day)
Materials of Construction /
Type
WVTR values (g/m2/day)
PVC 250 03
Polypropylene 01
PVC / PVdC (250/40) 0.75
PVC / PVdC (250/60) 0.5
PVC/10μ PCTFE (Aclar) 0.45
COC 190 μ 0.35
PVC/15μ PCTFE (Aclar) 0.36
PVC / PE / PVdC (250/25/90) 0.31
PVC/20μ PCTFE (Aclar) 0.27
COC 240 μ 0.28
COC 300 μ 0.23
PVC/23μ PCTFE (Aclar) 0.23
COC 350 μ 0.2
PVC/38μ PCTFE (Aclar) 0.15
PVC/51μ PCTFE (Aclar) 0.11
PVC/75μ PCTFE (Aclar) 0.08
PVC/102μ PCTFE (Aclar) 0.05
CFF (Alu/Alu) PVC/Alu45/OPA25 0

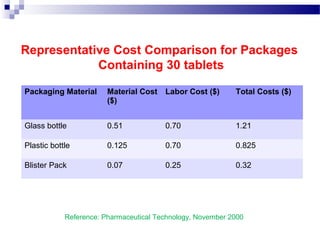

Representative Cost Comparison for Packages
Containing 30 tablets
Packaging Material Material Cost
($)
Labor Cost ($) Total Costs ($)
Glass bottle 0.51 0.70 1.21
Plastic bottle 0.125 0.70 0.825
Blister Pack 0.07 0.25 0.32
Reference: Pharmaceutical Technology, November 2000

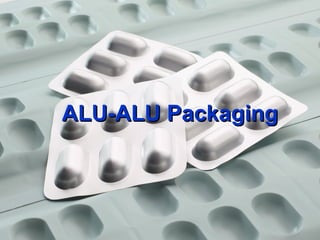

ALU-ALU PackagingALU-ALU Packaging
ALU ALU Blisters

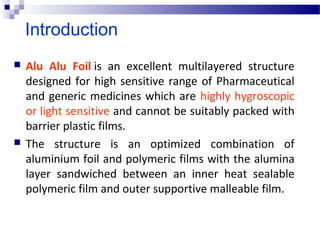

Introduction
 Alu Alu Foil is  an  excellent  multilayered  structure
designed for high sensitive range of Pharmaceutical
and generic medicines which are highly hygroscopic
or light sensitive and cannot be suitably packed with
barrier plastic films.
 The  structure  is  an  optimized  combination  of
aluminium foil and polymeric films with the alumina
layer  sandwiched  between  an  inner  heat  sealable
polymeric film and outer supportive malleable film.
Introduction (cont)
 Alu-alu blister represents the new generation in
pharmaceutical packaging, its the material with best
barrier performance at present, and can absolute
resist vapor, oxygen and UV rays, good performance of
aroma barrier.
 Each blister is a single protection unit, no effect to
barrier after opening first cavity, especially suitable for
drugs that easy to be affected in wet regions and
tropics.
  Alu-alu blister can be shaped in various appearances
by changing mold, simultaneous, its glorious silvery
white luster no doubt can promote selling.

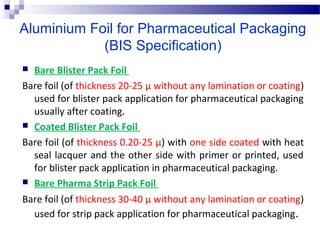

Aluminium Foil for Pharmaceutical Packaging
(BIS Specification)
 Bare Blister Pack Foil
Bare foil (of thickness 20-25 µ without any lamination or coating)
used for blister pack application for pharmaceutical packaging
usually after coating.
 Coated Blister Pack Foil
Bare foil (of thickness 0.20-25 µ) with one side coated with heat
seal lacquer and the other side with primer or printed, used
for blister pack application in pharmaceutical packaging.
 Bare Pharma Strip Pack Foil
Bare foil (of thickness 30-40 µ without any lamination or coating)
used for strip pack application for pharmaceutical packaging.
Benefits of ALU ALU Packaging
 100% Barrier against water vapour, gases, light etc
 Excellent Thermo-formability
 High degree of Thermal stability
 High Malleability for deep drawing blister cavities
 Effective anti counterfeit packaging
Cold forming for ALU ALU
 In the case of cold forming, an aluminum-based laminate film is
simply pressed into a mold by means of a stamp.
 The aluminum will be elongated and maintain the formed
shape. In the industry these blisters are called cold form foil
(CFF) blisters.
 Advantage of cold form foil blisters is
 Use of aluminum offers a near complete barrier for water and oxygen,
allowing an extended product expiry date.
 Disadvantages of cold form foil blisters are:
 the slower speed of production compared to thermoforming
  the lack of transparency of the package
 The larger size of the blister card (aluminum can not be formed with near 90
degree angles).

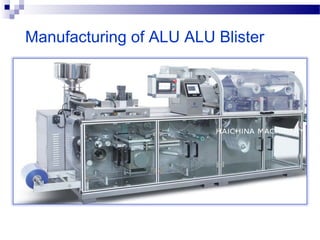

Manufacturing of ALU ALU Blister
Evaluation of Blister/Strip
1. WVTR Studies
 A  desiccant  (usually  silica  gel  or  magnesium  chloride)  is  placed
inside the blister rather than the actual pharmaceutical product.
 This standard was introduced decades ago by U.S. Pharmacopeia.
 These  blisters  to  be  placed  in  an  environmental  chamber  at
constant temperature and humidity conditions (there are several
combinations, but the most common one is 23°C and 75%RH).
 The  weight  of  the  sample  blister  is  then  measured  at  certain
intervals of time for 28 days.
 From the weight gained and the number of individual blisters in
the pack, the Water Vapor Transfer Rate (WVTR) is determined in
terms of grams of water per day per blister.
 A typical blister pack with two cavities and silica gel desiccant is
shown in above Figure

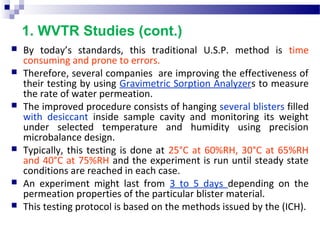

1. WVTR Studies (cont.)
 By  today’s  standards,  this  traditional  U.S.P.  method  is  time
consuming and prone to errors.
 Therefore, several companies  are improving the effectiveness of
their testing by using Gravimetric Sorption Analyzers to measure
the rate of water permeation.
 The improved procedure consists of hanging several blisters filled
with  desiccant  inside  sample  cavity  and  monitoring  its  weight
under  selected  temperature  and  humidity  using  precision
microbalance design.
 Typically, this testing is done at 25°C at 60%RH, 30°C at 65%RH
and 40°C at 75%RH and the experiment is run until steady state
conditions are reached in each case.
 An  experiment  might  last  from  3  to  5  days  depending  on  the
permeation properties of the particular blister material.
 This testing protocol is based on the methods issued by the (ICH).

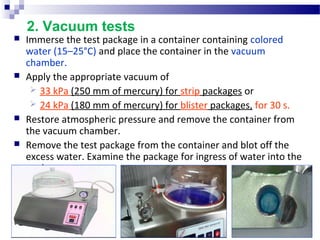

2. Vacuum tests
 Immerse the test package in a container containing colored
water (15–25°C) and place the container in the vacuum
chamber.
 Apply the appropriate vacuum of
 33 kPa (250 mm of mercury) for strip packages or
 24 kPa (180 mm of mercury) for blister packages, for 30 s.
 Restore atmospheric pressure and remove the container from
the vacuum chamber.
 Remove the test package from the container and blot off the
excess water. Examine the package for ingress of water into the
pockets.
Blister / Strip Defects
Common defects include
Pin-hole
Seal defect
Curls of trays
Sharp edges
blocking

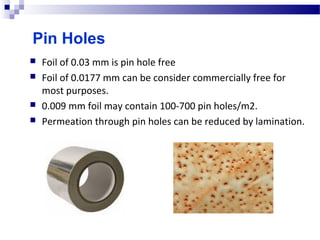

Pin Holes
 Foil of 0.03 mm is pin hole free
 Foil of 0.0177 mm can be consider commercially free for
most purposes.
 0.009 mm foil may contain 100-700 pin holes/m2.
 Permeation through pin holes can be reduced by lamination.

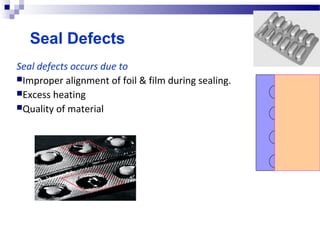

Seal Defects
Seal defects occurs due to
Improper alignment of foil & film during sealing.
Excess heating
Quality of material
Curl Of Trays
 Occurs due to heat-sealing operation
 Amount of curl depends partially on type of
machine employed, the type of web and
design of tray.
 Curl occurs due to different co-efficient of
expansion for foil and film plus film
shrinkage due to molecular reorientation.
REMEDY:
 By incorporating thermoformed ribs in the
tray
 Reversing the web curvature by passing over
a tension roller .
Sharp Corners & Blocking
SHARP CORNERS
It occurs during punching out or die cutting
If not handled carefully may penetrate pockets of trays.
BLOCKING:
During manufacturing two adjacent layer of film stick
together
Damaged Tablets
 In Blister packing the dimensions of the tablets
plays a very important role.
  It invariably gets jammed in the transport chutes
thus producing unfilled / half filled / broken tablets
in to blisters.
 This dimensional check improves the efficiency of
the Blister packing machine

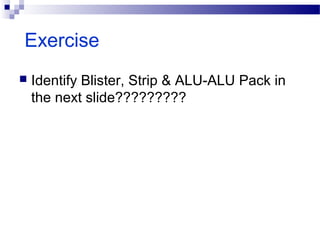

Exercise

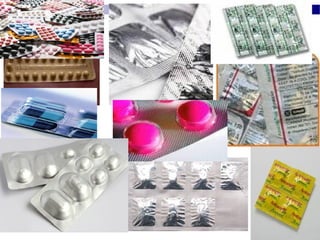

 Identify Blister, Strip & ALU-ALU Pack in
the next slide?????????
92
References
Pharmaceutical. Packaging Technology, Dean DA, Evans ER and Hall IH, Taylor & Francis
Inc., 2000.
Pharmaceutical Packaging Handbook. Bauer E, Taylor & Francis Inc., 2009.
Pharmaceutical Technology, November, 2000
www.slideshare.com
www.encyclopedia.com
www.google.com

More Related Content

What's hot

Selection and evaluation of pharmaceutical packaging materials
Selection and evaluation of pharmaceutical packaging materialsSelection and evaluation of pharmaceutical packaging materials
Selection and evaluation of pharmaceutical packaging materialsTushar Naik

Presentation film coating
Presentation film coatingPresentation film coating
Presentation film coatingAjit Jha

EVULATION OF PHARMACUTICAL PACAKGING MATERIALS/EVULATION PARAMETERS OF PAKAGI...
EVULATION OF PHARMACUTICAL PACAKGING MATERIALS/EVULATION PARAMETERS OF PAKAGI...EVULATION OF PHARMACUTICAL PACAKGING MATERIALS/EVULATION PARAMETERS OF PAKAGI...
EVULATION OF PHARMACUTICAL PACAKGING MATERIALS/EVULATION PARAMETERS OF PAKAGI...Ashwani Kumar Singh

Pharmacceutical packaging
Pharmacceutical packagingPharmacceutical packaging
Pharmacceutical packagingnirmal marasine

Pharmaceutical closures
Pharmaceutical closuresPharmaceutical closures
Pharmaceutical closuresNazia Jauhar

CMA-CPP-CQA for oral solid dosageform
CMA-CPP-CQA for oral solid dosageformCMA-CPP-CQA for oral solid dosageform
CMA-CPP-CQA for oral solid dosageformGuru Balaji .S

Pharmaceutical Packaging tablet and capsules
Pharmaceutical Packaging tablet and capsulesPharmaceutical Packaging tablet and capsules
Pharmaceutical Packaging tablet and capsulesGirish Sahu

Glass as a packaging material in pharmaceutical packaging
Glass as a packaging material in pharmaceutical packagingGlass as a packaging material in pharmaceutical packaging
Glass as a packaging material in pharmaceutical packagingShweta Shelke

Pharmaceutical packaging ppt
Pharmaceutical packaging pptPharmaceutical packaging ppt
Pharmaceutical packaging pptAkshayAkotkar

Parenteral production
Parenteral   productionParenteral   production
Parenteral productionceutics1315

QUALITY CONTROL OF CAPSULES
QUALITY CONTROL OF CAPSULESQUALITY CONTROL OF CAPSULES
QUALITY CONTROL OF CAPSULESRamya priya

TABLET COMPRESSION
TABLET COMPRESSIONTABLET COMPRESSION
TABLET COMPRESSIONSAJJAD AHMAD

Formulation and development of parenterals
Formulation and development of parenteralsFormulation and development of parenterals
Formulation and development of parenteralsSai Datri Arige

TABLET COMPRESSION MACHINE
TABLET COMPRESSION MACHINETABLET COMPRESSION MACHINE
TABLET COMPRESSION MACHINESagar Savale


What's hot (20)

Selection and evaluation of pharmaceutical packaging materials
Selection and evaluation of pharmaceutical packaging materialsSelection and evaluation of pharmaceutical packaging materials
Selection and evaluation of pharmaceutical packaging materials

Presentation film coating
Presentation film coatingPresentation film coating
Presentation film coating

EVULATION OF PHARMACUTICAL PACAKGING MATERIALS/EVULATION PARAMETERS OF PAKAGI...
EVULATION OF PHARMACUTICAL PACAKGING MATERIALS/EVULATION PARAMETERS OF PAKAGI...EVULATION OF PHARMACUTICAL PACAKGING MATERIALS/EVULATION PARAMETERS OF PAKAGI...
EVULATION OF PHARMACUTICAL PACAKGING MATERIALS/EVULATION PARAMETERS OF PAKAGI...

Pharmacceutical packaging
Pharmacceutical packagingPharmacceutical packaging
Pharmacceutical packaging

Pharmaceutical closures
Pharmaceutical closuresPharmaceutical closures
Pharmaceutical closures

CMA-CPP-CQA for oral solid dosageform
CMA-CPP-CQA for oral solid dosageformCMA-CPP-CQA for oral solid dosageform
CMA-CPP-CQA for oral solid dosageform

Pharmaceutical Packaging tablet and capsules
Pharmaceutical Packaging tablet and capsulesPharmaceutical Packaging tablet and capsules
Pharmaceutical Packaging tablet and capsules

Packaging material
Packaging materialPackaging material
Packaging material

Glass as a packaging material in pharmaceutical packaging
Glass as a packaging material in pharmaceutical packagingGlass as a packaging material in pharmaceutical packaging
Glass as a packaging material in pharmaceutical packaging

Pharmaceutical packaging ppt
Pharmaceutical packaging pptPharmaceutical packaging ppt
Pharmaceutical packaging ppt

Primary And Second Packaging
Primary And Second PackagingPrimary And Second Packaging
Primary And Second Packaging

Ipqc for tablets
Ipqc for tablets Ipqc for tablets
Ipqc for tablets

Parenteral production
Parenteral   productionParenteral   production
Parenteral production

QUALITY CONTROL OF CAPSULES
QUALITY CONTROL OF CAPSULESQUALITY CONTROL OF CAPSULES
QUALITY CONTROL OF CAPSULES

Pharmaceutical Packaging
Pharmaceutical Packaging Pharmaceutical Packaging
Pharmaceutical Packaging

TABLET COMPRESSION
TABLET COMPRESSIONTABLET COMPRESSION
TABLET COMPRESSION

Blister machine
Blister machineBlister machine
Blister machine

Formulation and development of parenterals
Formulation and development of parenteralsFormulation and development of parenterals
Formulation and development of parenterals

pharmaceutical packaging
pharmaceutical packagingpharmaceutical packaging
pharmaceutical packaging

TABLET COMPRESSION MACHINE
TABLET COMPRESSION MACHINETABLET COMPRESSION MACHINE
TABLET COMPRESSION MACHINE


Similar to Blister & strip packaging

Temper resistant packaging
Temper resistant packagingTemper resistant packaging
Temper resistant packagingAvishek Sanyal

Container and closures for pharmaceutical
Container and closures for pharmaceuticalContainer and closures for pharmaceutical
Container and closures for pharmaceuticalVaishnaviFatangare1

temperresistante-190503164148 (1) (1).pptx
temperresistante-190503164148 (1) (1).pptxtemperresistante-190503164148 (1) (1).pptx
temperresistante-190503164148 (1) (1).pptxPoooi2

temperresistante-190503164148 (1) (1).pptx
temperresistante-190503164148 (1) (1).pptxtemperresistante-190503164148 (1) (1).pptx
temperresistante-190503164148 (1) (1).pptxPoooi2

Types of closure and closure liners
Types of closure and closure linersTypes of closure and closure liners
Types of closure and closure linersSaniyaShaikh579803

Packaging Material.pptx
Packaging Material.pptxPackaging Material.pptx
Packaging Material.pptxSandipPhoke

Pharmaceutical Packing Material .pdf
Pharmaceutical Packing Material     .pdfPharmaceutical Packing Material     .pdf
Pharmaceutical Packing Material .pdfShreeharsh Sharma

FOOD PACKAGING food technology_10_02_23.pptx
FOOD PACKAGING food technology_10_02_23.pptxFOOD PACKAGING food technology_10_02_23.pptx
FOOD PACKAGING food technology_10_02_23.pptxSayanShee7

Validation of packaging operations
Validation of packaging operations Validation of packaging operations
Validation of packaging operations Divesh Singla

Validation of packaging operations Pharma
Validation of packaging operations PharmaValidation of packaging operations Pharma
Validation of packaging operations PharmaDivesh Singla

validation of packaging issue by rahul sagar, bbau lucknow
validation of packaging issue by rahul sagar, bbau lucknowvalidation of packaging issue by rahul sagar, bbau lucknow
validation of packaging issue by rahul sagar, bbau lucknowBrajesh Kumar

Sterile Products_07_LGIS_Dr. Wajeeha Khalid - Copy.pptx
Sterile Products_07_LGIS_Dr. Wajeeha Khalid - Copy.pptxSterile Products_07_LGIS_Dr. Wajeeha Khalid - Copy.pptx
Sterile Products_07_LGIS_Dr. Wajeeha Khalid - Copy.pptxkaabimran1

Food Packaging Technology
Food Packaging TechnologyFood Packaging Technology
Food Packaging TechnologyNazrul

Introduction to food packaging.ppt
Introduction to food packaging.pptIntroduction to food packaging.ppt
Introduction to food packaging.pptThayumanavanTha1

Packaging And Its Materia Properties Packaging Media Package Testing And Its ...
Packaging And Its Materia Properties Packaging Media Package Testing And Its ...Packaging And Its Materia Properties Packaging Media Package Testing And Its ...
Packaging And Its Materia Properties Packaging Media Package Testing And Its ...Girish Kumar K


Similar to Blister & strip packaging (20)

Packaging science
Packaging sciencePackaging science
Packaging science

Temper resistant packaging
Temper resistant packagingTemper resistant packaging
Temper resistant packaging

packaging materilas
 packaging materilas packaging materilas
packaging materilas

Container and closures for pharmaceutical
Container and closures for pharmaceuticalContainer and closures for pharmaceutical
Container and closures for pharmaceutical

Mahesh semi
Mahesh semiMahesh semi
Mahesh semi

temperresistante-190503164148 (1) (1).pptx
temperresistante-190503164148 (1) (1).pptxtemperresistante-190503164148 (1) (1).pptx
temperresistante-190503164148 (1) (1).pptx

temperresistante-190503164148 (1) (1).pptx
temperresistante-190503164148 (1) (1).pptxtemperresistante-190503164148 (1) (1).pptx
temperresistante-190503164148 (1) (1).pptx

Types of closure and closure liners
Types of closure and closure linersTypes of closure and closure liners
Types of closure and closure liners

Packaging Material.pptx
Packaging Material.pptxPackaging Material.pptx
Packaging Material.pptx

Temper proof packaging
Temper proof packagingTemper proof packaging
Temper proof packaging

Pharmaceutical Packing Material .pdf
Pharmaceutical Packing Material     .pdfPharmaceutical Packing Material     .pdf
Pharmaceutical Packing Material .pdf

Temper resistante. ppt
Temper resistante. pptTemper resistante. ppt
Temper resistante. ppt

FOOD PACKAGING food technology_10_02_23.pptx
FOOD PACKAGING food technology_10_02_23.pptxFOOD PACKAGING food technology_10_02_23.pptx
FOOD PACKAGING food technology_10_02_23.pptx

Validation of packaging operations
Validation of packaging operations Validation of packaging operations
Validation of packaging operations

Validation of packaging operations Pharma
Validation of packaging operations PharmaValidation of packaging operations Pharma
Validation of packaging operations Pharma

validation of packaging issue by rahul sagar, bbau lucknow
validation of packaging issue by rahul sagar, bbau lucknowvalidation of packaging issue by rahul sagar, bbau lucknow
validation of packaging issue by rahul sagar, bbau lucknow

Sterile Products_07_LGIS_Dr. Wajeeha Khalid - Copy.pptx
Sterile Products_07_LGIS_Dr. Wajeeha Khalid - Copy.pptxSterile Products_07_LGIS_Dr. Wajeeha Khalid - Copy.pptx
Sterile Products_07_LGIS_Dr. Wajeeha Khalid - Copy.pptx

Food Packaging Technology
Food Packaging TechnologyFood Packaging Technology
Food Packaging Technology

Introduction to food packaging.ppt
Introduction to food packaging.pptIntroduction to food packaging.ppt
Introduction to food packaging.ppt

Packaging And Its Materia Properties Packaging Media Package Testing And Its ...
Packaging And Its Materia Properties Packaging Media Package Testing And Its ...Packaging And Its Materia Properties Packaging Media Package Testing And Its ...
Packaging And Its Materia Properties Packaging Media Package Testing And Its ...


More from Anil Pethe

Recent trends in healthcare technology
Recent trends in healthcare technologyRecent trends in healthcare technology
Recent trends in healthcare technologyAnil Pethe

Maintaining lab note book
Maintaining lab note bookMaintaining lab note book
Maintaining lab note bookAnil Pethe

Nanosuspension
NanosuspensionNanosuspension
NanosuspensionAnil Pethe

Glass as Pharmaceutical packaging material
Glass as Pharmaceutical packaging materialGlass as Pharmaceutical packaging material
Glass as Pharmaceutical packaging materialAnil Pethe

Characterization of nanoparticles
Characterization of nanoparticlesCharacterization of nanoparticles
Characterization of nanoparticlesAnil Pethe

Dendrimers in drug delivery
Dendrimers in drug deliveryDendrimers in drug delivery
Dendrimers in drug deliveryAnil Pethe

Probe sonicator
Probe sonicatorProbe sonicator
Probe sonicatorAnil Pethe

High pressure homogenization
High pressure homogenizationHigh pressure homogenization
High pressure homogenizationAnil Pethe

Nano robotics future medicine
Nano robotics future medicineNano robotics future medicine
Nano robotics future medicineAnil Pethe

Corrugated fiberboard
Corrugated fiberboardCorrugated fiberboard
Corrugated fiberboardAnil Pethe

Drug and cosmetic act 1940
Drug and cosmetic act 1940Drug and cosmetic act 1940
Drug and cosmetic act 1940Anil Pethe

Ancillary material for packaging
Ancillary material for packagingAncillary material for packaging
Ancillary material for packagingAnil Pethe

Pilferproof packaging
Pilferproof packagingPilferproof packaging
Pilferproof packagingAnil Pethe

Plastic packaging material
Plastic packaging materialPlastic packaging material
Plastic packaging materialAnil Pethe


More from Anil Pethe (20)

Recent trends in healthcare technology
Recent trends in healthcare technologyRecent trends in healthcare technology
Recent trends in healthcare technology

Maintaining lab note book
Maintaining lab note bookMaintaining lab note book
Maintaining lab note book

Nanosuspension
NanosuspensionNanosuspension
Nanosuspension

Glass as Pharmaceutical packaging material
Glass as Pharmaceutical packaging materialGlass as Pharmaceutical packaging material
Glass as Pharmaceutical packaging material

Characterization of nanoparticles
Characterization of nanoparticlesCharacterization of nanoparticles
Characterization of nanoparticles

Ethosomes
EthosomesEthosomes
Ethosomes

Nanosponges
NanospongesNanosponges
Nanosponges

Dendrimers in drug delivery
Dendrimers in drug deliveryDendrimers in drug delivery
Dendrimers in drug delivery

Liposomes
LiposomesLiposomes
Liposomes

Niosomes
NiosomesNiosomes
Niosomes

Phytosomes
PhytosomesPhytosomes
Phytosomes

Probe sonicator
Probe sonicatorProbe sonicator
Probe sonicator

Nanofibers
NanofibersNanofibers
Nanofibers

High pressure homogenization
High pressure homogenizationHigh pressure homogenization
High pressure homogenization

Nano robotics future medicine
Nano robotics future medicineNano robotics future medicine
Nano robotics future medicine

Corrugated fiberboard
Corrugated fiberboardCorrugated fiberboard
Corrugated fiberboard

Drug and cosmetic act 1940
Drug and cosmetic act 1940Drug and cosmetic act 1940
Drug and cosmetic act 1940

Ancillary material for packaging
Ancillary material for packagingAncillary material for packaging
Ancillary material for packaging

Pilferproof packaging
Pilferproof packagingPilferproof packaging
Pilferproof packaging

Plastic packaging material
Plastic packaging materialPlastic packaging material
Plastic packaging material


Recently uploaded

Physiologic Anatomy of Heart_AntiCopy.pdf
Physiologic Anatomy of Heart_AntiCopy.pdfPhysiologic Anatomy of Heart_AntiCopy.pdf
Physiologic Anatomy of Heart_AntiCopy.pdfMedicoseAcademics

💚Gorgeous Mumbai Escorts Service 💯Call Us 🔝 9920874524 🔝💃Top Class Call Girl ...
💚Gorgeous Mumbai Escorts Service 💯Call Us 🔝 9920874524 🔝💃Top Class Call Girl ...💚Gorgeous Mumbai Escorts Service 💯Call Us 🔝 9920874524 🔝💃Top Class Call Girl ...
💚Gorgeous Mumbai Escorts Service 💯Call Us 🔝 9920874524 🔝💃Top Class Call Girl ...golu varma

spinal cord disorders and paraplegia .
spinal cord disorders  and  paraplegia .spinal cord disorders  and  paraplegia .
spinal cord disorders and paraplegia .Mohamed Rizk Khodair

Lachesis Mutus- a Homoeopathic medicinel.pptx
Lachesis Mutus- a Homoeopathic medicinel.pptxLachesis Mutus- a Homoeopathic medicinel.pptx
Lachesis Mutus- a Homoeopathic medicinel.pptxMUHAMMADZAHID314

Top 10 Most Beautiful Russian Pornstars List 2024
Top 10 Most Beautiful Russian Pornstars List 2024Top 10 Most Beautiful Russian Pornstars List 2024
Top 10 Most Beautiful Russian Pornstars List 2024locantocallgirl01

TEST BANK For Porth's Essentials of Pathophysiology, 5th Edition by Tommie L ...
TEST BANK For Porth's Essentials of Pathophysiology, 5th Edition by Tommie L ...TEST BANK For Porth's Essentials of Pathophysiology, 5th Edition by Tommie L ...
TEST BANK For Porth's Essentials of Pathophysiology, 5th Edition by Tommie L ...rightmanforbloodline

Top 10 Most Beautiful Chinese Pornstars List 2024
Top 10 Most Beautiful Chinese Pornstars List 2024Top 10 Most Beautiful Chinese Pornstars List 2024
Top 10 Most Beautiful Chinese Pornstars List 2024locantocallgirl01

Intro to disinformation and public health
Intro to disinformation and public healthIntro to disinformation and public health
Intro to disinformation and public healthTina Purnat

Top 10 Most Beautiful Russian Pornstars List 2024
Top 10 Most Beautiful Russian Pornstars List 2024Top 10 Most Beautiful Russian Pornstars List 2024
Top 10 Most Beautiful Russian Pornstars List 2024locantocallgirl01

💚Independent In Mumbai Escorts Service 💯Call Us 🔝 9920874524 🔝💃Top Class Call...
💚Independent In Mumbai Escorts Service 💯Call Us 🔝 9920874524 🔝💃Top Class Call...💚Independent In Mumbai Escorts Service 💯Call Us 🔝 9920874524 🔝💃Top Class Call...
💚Independent In Mumbai Escorts Service 💯Call Us 🔝 9920874524 🔝💃Top Class Call...golu varma

Failure to thrive in neonates and infants + pediatric case.pptx
Failure to thrive in neonates and infants  + pediatric case.pptxFailure to thrive in neonates and infants  + pediatric case.pptx
Failure to thrive in neonates and infants + pediatric case.pptxclaviclebrown44

VIP ℂall Girls Korremula Hyderabad 9079923931 WhatsApp: Me All Time Serviℂe A...
VIP ℂall Girls Korremula Hyderabad 9079923931 WhatsApp: Me All Time Serviℂe A...VIP ℂall Girls Korremula Hyderabad 9079923931 WhatsApp: Me All Time Serviℂe A...
VIP ℂall Girls Korremula Hyderabad 9079923931 WhatsApp: Me All Time Serviℂe A...rano khanrk#N06

💚Mature Women / Aunty Call Girl Chennai Escorts Service 💯Call Us 🔝 6367492432...
💚Mature Women / Aunty Call Girl Chennai Escorts Service 💯Call Us 🔝 6367492432...💚Mature Women / Aunty Call Girl Chennai Escorts Service 💯Call Us 🔝 6367492432...
💚Mature Women / Aunty Call Girl Chennai Escorts Service 💯Call Us 🔝 6367492432...chaddanishu186

Difference Between Skeletal Smooth and Cardiac Muscles
Difference Between Skeletal Smooth and Cardiac MusclesDifference Between Skeletal Smooth and Cardiac Muscles
Difference Between Skeletal Smooth and Cardiac MusclesMedicoseAcademics

Vesu * HiFi ℂall Girls Surat Phone No 8849756361 Elite ℂall Serviℂe Available...
Vesu * HiFi ℂall Girls Surat Phone No 8849756361 Elite ℂall Serviℂe Available...Vesu * HiFi ℂall Girls Surat Phone No 8849756361 Elite ℂall Serviℂe Available...
Vesu * HiFi ℂall Girls Surat Phone No 8849756361 Elite ℂall Serviℂe Available...Dharvi Mehra$I11

Gross Anatomy and Histology of Tongue by Dr. Rabia Inam Gandapore.pptx
Gross Anatomy and Histology of Tongue by Dr. Rabia Inam Gandapore.pptxGross Anatomy and Histology of Tongue by Dr. Rabia Inam Gandapore.pptx
Gross Anatomy and Histology of Tongue by Dr. Rabia Inam Gandapore.pptxDr. Rabia Inam Gandapore

High Purity 99% PMK Ethyl Glycidate Powder CAS 28578-16-7
High Purity 99% PMK Ethyl Glycidate Powder CAS 28578-16-7High Purity 99% PMK Ethyl Glycidate Powder CAS 28578-16-7
High Purity 99% PMK Ethyl Glycidate Powder CAS 28578-16-7grandmotherprocess99

VIP ℂall Girls Kaggadasapura {{ Bangalore }} 6378878445 WhatsApp: Me 24/7 Hou...
VIP ℂall Girls Kaggadasapura {{ Bangalore }} 6378878445 WhatsApp: Me 24/7 Hou...VIP ℂall Girls Kaggadasapura {{ Bangalore }} 6378878445 WhatsApp: Me 24/7 Hou...
VIP ℂall Girls Kaggadasapura {{ Bangalore }} 6378878445 WhatsApp: Me 24/7 Hou...deepakkumar115120

VIP ℂall Girls Budhwar Peth Pune 8005736733 WhatsApp: Me All Time Serviℂe Ava...
VIP ℂall Girls Budhwar Peth Pune 8005736733 WhatsApp: Me All Time Serviℂe Ava...VIP ℂall Girls Budhwar Peth Pune 8005736733 WhatsApp: Me All Time Serviℂe Ava...
VIP ℂall Girls Budhwar Peth Pune 8005736733 WhatsApp: Me All Time Serviℂe Ava...patanjali9823#S07

VIP ℂall Girls Arekere Bangalore 6378878445 WhatsApp: Me All Time Serviℂe Ava...
VIP ℂall Girls Arekere Bangalore 6378878445 WhatsApp: Me All Time Serviℂe Ava...VIP ℂall Girls Arekere Bangalore 6378878445 WhatsApp: Me All Time Serviℂe Ava...
VIP ℂall Girls Arekere Bangalore 6378878445 WhatsApp: Me All Time Serviℂe Ava...deepakkumar115120


Recently uploaded (20)

Physiologic Anatomy of Heart_AntiCopy.pdf
Physiologic Anatomy of Heart_AntiCopy.pdfPhysiologic Anatomy of Heart_AntiCopy.pdf
Physiologic Anatomy of Heart_AntiCopy.pdf

💚Gorgeous Mumbai Escorts Service 💯Call Us 🔝 9920874524 🔝💃Top Class Call Girl ...
💚Gorgeous Mumbai Escorts Service 💯Call Us 🔝 9920874524 🔝💃Top Class Call Girl ...💚Gorgeous Mumbai Escorts Service 💯Call Us 🔝 9920874524 🔝💃Top Class Call Girl ...
💚Gorgeous Mumbai Escorts Service 💯Call Us 🔝 9920874524 🔝💃Top Class Call Girl ...

spinal cord disorders and paraplegia .
spinal cord disorders  and  paraplegia .spinal cord disorders  and  paraplegia .
spinal cord disorders and paraplegia .

Lachesis Mutus- a Homoeopathic medicinel.pptx
Lachesis Mutus- a Homoeopathic medicinel.pptxLachesis Mutus- a Homoeopathic medicinel.pptx
Lachesis Mutus- a Homoeopathic medicinel.pptx

Top 10 Most Beautiful Russian Pornstars List 2024
Top 10 Most Beautiful Russian Pornstars List 2024Top 10 Most Beautiful Russian Pornstars List 2024
Top 10 Most Beautiful Russian Pornstars List 2024

TEST BANK For Porth's Essentials of Pathophysiology, 5th Edition by Tommie L ...
TEST BANK For Porth's Essentials of Pathophysiology, 5th Edition by Tommie L ...TEST BANK For Porth's Essentials of Pathophysiology, 5th Edition by Tommie L ...
TEST BANK For Porth's Essentials of Pathophysiology, 5th Edition by Tommie L ...

Top 10 Most Beautiful Chinese Pornstars List 2024
Top 10 Most Beautiful Chinese Pornstars List 2024Top 10 Most Beautiful Chinese Pornstars List 2024
Top 10 Most Beautiful Chinese Pornstars List 2024

Intro to disinformation and public health
Intro to disinformation and public healthIntro to disinformation and public health
Intro to disinformation and public health

Top 10 Most Beautiful Russian Pornstars List 2024
Top 10 Most Beautiful Russian Pornstars List 2024Top 10 Most Beautiful Russian Pornstars List 2024
Top 10 Most Beautiful Russian Pornstars List 2024

💚Independent In Mumbai Escorts Service 💯Call Us 🔝 9920874524 🔝💃Top Class Call...
💚Independent In Mumbai Escorts Service 💯Call Us 🔝 9920874524 🔝💃Top Class Call...💚Independent In Mumbai Escorts Service 💯Call Us 🔝 9920874524 🔝💃Top Class Call...
💚Independent In Mumbai Escorts Service 💯Call Us 🔝 9920874524 🔝💃Top Class Call...

Failure to thrive in neonates and infants + pediatric case.pptx
Failure to thrive in neonates and infants  + pediatric case.pptxFailure to thrive in neonates and infants  + pediatric case.pptx
Failure to thrive in neonates and infants + pediatric case.pptx

VIP ℂall Girls Korremula Hyderabad 9079923931 WhatsApp: Me All Time Serviℂe A...
VIP ℂall Girls Korremula Hyderabad 9079923931 WhatsApp: Me All Time Serviℂe A...VIP ℂall Girls Korremula Hyderabad 9079923931 WhatsApp: Me All Time Serviℂe A...
VIP ℂall Girls Korremula Hyderabad 9079923931 WhatsApp: Me All Time Serviℂe A...

💚Mature Women / Aunty Call Girl Chennai Escorts Service 💯Call Us 🔝 6367492432...
💚Mature Women / Aunty Call Girl Chennai Escorts Service 💯Call Us 🔝 6367492432...💚Mature Women / Aunty Call Girl Chennai Escorts Service 💯Call Us 🔝 6367492432...
💚Mature Women / Aunty Call Girl Chennai Escorts Service 💯Call Us 🔝 6367492432...

Difference Between Skeletal Smooth and Cardiac Muscles
Difference Between Skeletal Smooth and Cardiac MusclesDifference Between Skeletal Smooth and Cardiac Muscles
Difference Between Skeletal Smooth and Cardiac Muscles

Vesu * HiFi ℂall Girls Surat Phone No 8849756361 Elite ℂall Serviℂe Available...
Vesu * HiFi ℂall Girls Surat Phone No 8849756361 Elite ℂall Serviℂe Available...Vesu * HiFi ℂall Girls Surat Phone No 8849756361 Elite ℂall Serviℂe Available...
Vesu * HiFi ℂall Girls Surat Phone No 8849756361 Elite ℂall Serviℂe Available...

Gross Anatomy and Histology of Tongue by Dr. Rabia Inam Gandapore.pptx
Gross Anatomy and Histology of Tongue by Dr. Rabia Inam Gandapore.pptxGross Anatomy and Histology of Tongue by Dr. Rabia Inam Gandapore.pptx
Gross Anatomy and Histology of Tongue by Dr. Rabia Inam Gandapore.pptx

High Purity 99% PMK Ethyl Glycidate Powder CAS 28578-16-7
High Purity 99% PMK Ethyl Glycidate Powder CAS 28578-16-7High Purity 99% PMK Ethyl Glycidate Powder CAS 28578-16-7
High Purity 99% PMK Ethyl Glycidate Powder CAS 28578-16-7

VIP ℂall Girls Kaggadasapura {{ Bangalore }} 6378878445 WhatsApp: Me 24/7 Hou...
VIP ℂall Girls Kaggadasapura {{ Bangalore }} 6378878445 WhatsApp: Me 24/7 Hou...VIP ℂall Girls Kaggadasapura {{ Bangalore }} 6378878445 WhatsApp: Me 24/7 Hou...
VIP ℂall Girls Kaggadasapura {{ Bangalore }} 6378878445 WhatsApp: Me 24/7 Hou...

VIP ℂall Girls Budhwar Peth Pune 8005736733 WhatsApp: Me All Time Serviℂe Ava...
VIP ℂall Girls Budhwar Peth Pune 8005736733 WhatsApp: Me All Time Serviℂe Ava...VIP ℂall Girls Budhwar Peth Pune 8005736733 WhatsApp: Me All Time Serviℂe Ava...
VIP ℂall Girls Budhwar Peth Pune 8005736733 WhatsApp: Me All Time Serviℂe Ava...

VIP ℂall Girls Arekere Bangalore 6378878445 WhatsApp: Me All Time Serviℂe Ava...
VIP ℂall Girls Arekere Bangalore 6378878445 WhatsApp: Me All Time Serviℂe Ava...VIP ℂall Girls Arekere Bangalore 6378878445 WhatsApp: Me All Time Serviℂe Ava...
VIP ℂall Girls Arekere Bangalore 6378878445 WhatsApp: Me All Time Serviℂe Ava...


Blister & strip packaging

  • 1. Blister & Strip Packaging Shobhaben Pratapbhai Patel School of Pharmacy & Technology Management, SVKM’S NMIMS, Mumbai Dr. Anil M. Pethe
  • 2. Blister Pack Introduction  Blister pack is a term for several types of pre-formed plastic packaging used for small consumer goods.  The two primary components of a blister pack are the cavity or pocket made from a  "formable" web, either plastic or aluminum  the lidding, made from paper, paperboard, plastic or aluminum.  The "formed" cavity or pocket contains the product and the "lidding" seals the product in the package.
  • 3. Blister Pack Introduction (Cont.)  Blister packs are commonly used as unit-dose packaging for pharmaceutical tablets, capsules or lozenges.  Blister packs can provide barrier protection for shelf life requirements, and a degree of tamper resistance.  In the USA, blister packs are mainly used for packing physician samples of drug products, or for Over The Counter (OTC) products in the pharmacy.  In other parts of the world, blister packs are the main packaging type since pharmacy dispensing and re-packaging are not common.  A series of blister cavities is sometimes called a blister card or blister strip as well as blister pack. In some parts of the world the blister pack is known as a Push-Through-Pack (PTP).
  • 4. Blister Pack Introduction (Cont.)  The main advantages of unit-dose blister packs over other methods of packing pharmaceutical products are the assurance of product/packaging integrity (including shelf life) of each individual dose  The possibility to create a compliance pack or calendar pack by printing the days of the week above each dose.  Blister packs also hinder the use of OTC drugs in the manufacture of illegal drugs.
  • 5. Consumer goods Blister Packs  Other types of blister packs consist of carded packaging where goods such as toys, hardware, and electrical items are contained between a specially made paperboard card and clear pre-formed plastic such as PVC.  The consumer can easily examine the product through the transparent plastic.  The adhesive is strong enough so that the pack may hang on a peg, but weak enough so that the package can be easily opened.
  • 6. Consumer goods Blister Packs (Cont.)  Sometimes, with large items, the card has a perforated window for access.  A more secure package is known as a clamshell.  It is often used to deter package pilferage for small high-value items, such as consumer electronics.  It consists of either two pre-formed plastic sheets or one sheet folded over onto itself and fused at the edges. They are usually designed to be difficult to open by hand so as to deter tampering.  A pair of scissors or a sharp knife is often required to open them (although often coming in the same package).
  • 7.  They provide barrier protection for shelf life requirements.  They also provide a degree of tamper resistance.  The most important reason for introducing blister packaging technology was to offer patients a clearly marked individual dose, enabling them to check whether they had taken the prescribed drugs on a given day.  Moreover, the drugs that were not taken remained in the original package and were fully protected against adverse external conditions.  The patient could handle the blister package more easily and could store it more conveniently than conventional packages.  Protection from Moisture, Gas, Light & Temperature  Compliance – Regulatory & Patient Uses of Blister Packaging
  • 8. Advantages of blister packaging  Reduced costs and higher packaging speeds relative to other packaging materials.  Blister packaging helps retain product integrity because drugs that are prepackaged in blisters are shielded from adverse conditions.  Furthermore, opportunities for product contamination are minimal.  and each dose is identified by product name, lot number, and expiration date.
  • 9. Advantages of blister packaging (cont.)  Blister packaging protects pharmaceuticals in the home better than bottles do.  Tamper evidence is another strength of blister packaging. The dosage units are individually sealed in constructions of plastic, foil, and/or paper. With blister packaging, however, each tablet or capsule is individually protected from tampering until use, so any form of tampering with a blister package is immediately visible.
  • 10. Basic configuration of blister packaging Two basic types of pharmaceutical blister packages exist; 1. In one variety the cavity is constructed of clear, thermoformed plastic, and the lid is formed of clear plastic or a combination of plastic, paper, and/or foil. 2. The other type of package contains foil as an essential component of both webs, and its cavity is created by cold stretching.
  • 11. Production of Blisters There are 3 different methods for production of blisters Thermoforming Cold forming Thermo-cold complex blistering
  • 13. Thermoforming  In the case of thermoforming, a plastic film or sheet is unwound from the reel and guided though a pre-heating station on the blister line.  The temperature of the pre-heating plates (upper and lower plates) is such that the plastic will soften and become pliable.  The warm plastic will then arrive in a forming station where a large pressure (4 to 8 bar) will form the blister cavity into a negative mold.  The mold is cooled such that the plastic becomes rigid again and maintains its shape when removed from the mold.  In case of difficult shapes, the warm film will be physically pushed down partially into the cavity by a "plug-assist" feature.  Plug-assist results in a blister cavity with more uniform wall distribution and is typically used when the cavity size and shape is larger than a small tablet.
  • 14. Cold forming  In the case of cold forming, an aluminum-based laminate film is simply pressed into a mold by means of a stamp.  The aluminum will be elongated and maintain the formed shape.  In the industry these blisters are called cold form foil (CFF) blisters. Advantage of cold form foil blisters is  Use of aluminum offers a near complete barrier for water and oxygen, allowing an extended product expiry date. Disadvantages of cold form foil blisters are:  The slower speed of production compared to thermoforming  The lack of transparency of the package  The larger size of the blister card (aluminum can not be formed with near 90 degree angles).
  • 15. Components of blisters The four basic components of pharmaceutical blister packages are; 1. The forming film (Forming films account for approximately 80–85% of the blister package) 2. The lidding material (lidding materials make up 15–20% of the total weight of the package.) 3. Heat seal coating 4. Printing ink
  • 16. 1. Forming Film  The forming film is the packaging component that receives the product in deep drawn pockets.  One key to package success is selecting the right plastic film for the blisters in terms of its;  Property type,  Grade,  Thickness.
  • 17. Selection of forming film Consideration must be given to the;  Height and weight of the product,  Sharp or pointed edges of the final package,  The impact resistance,  Aging, migration, and cost of the film.  The plastic also must be compatible with the product.  Factors influencing package production and speed of assembly must be taken into account, including heat sealing properties and the ease of cutting and trimming formed blisters.
  • 18. Types of forming film  Thermoforming film  PVC (Poly vinyl chloride)  PCTFE (PVC/Polychlorotrifluoroethylene)  PVDC (Polyvinylidene chloride)  PS (Polystyrene )  Cyclic olefin copolymers (COC)  Cold forming film  Aluminum foil
  • 19. Polyvinyl Chloride (PVC)  The most basic material for the forming web is PVC or Polyvinyl Chloride.  The principal advantages of PVC are the low cost and the ease of thermoforming.  The main disadvantages are the poor barrier against moisture ingress and oxygen ingress; moreover PVC has a negative environmental connotation due to its chlorine content.  In the case of blister packaging the PVC sheet does not contain any plasticizer and is sometimes referred to as Rigid PVC or RPVC.  In the absence of plasticizers, PVC blisters offer structural rigidity and physical protection for the pharmaceutical dosage form.  On the other hand, the blister cavity must remain accessible by the push-through effect and the formed web may not be too hard to collapse when pressed upon;
  • 20. Polyvinyl Chloride (PVC)  For this reason the PVC sheet thickness is typically chosen between 200µ to 300µ depending on the cavity size and shape.  Most PVC sheets for pharmaceutical blisters are 250µ or 0.250 mm in thickness.  Typical values for the WVTR or MVTR of a 250µ PVC film are around 3.0 g/m2 /day measured at 38°C/90%RH  The Oxygen Transmission Rate (OTR) is around 20 cc/m2 /day.  In order to overcome the lack of barrier properties of PVC film, it can be coated with PVDC or laminated to PCTFE or COC to increase the protective properties.  Multi-layer blister films based on PVC are often used for pharmaceutical blister packaging, whereby the PVC serves as the thermo formable backbone of the structure.  Also, the PVC layer can be colored with pigments and/or UV filters.
  • 21. Barrier Packaging foils  Low barrier film – PVC  Medium barrier film – PVDC  High barrier film – ACLAR (PCTFE) & ALU/ALU
  • 22. Poly-chloro-tri-fluroethylene (PCTFE)  Polychlorotrifluoro ethylene or PCTFE can be laminated to PVC to obtain very high moisture barrier.  Typical constructions used for pharmaceutical products are 250µ PVC film laminated to 15µ-100µ PCTFE film.  Duplex structures are PVC/PCTFE  Triplex laminates are PVC/PE/PCTFE.  Deeper cavities can be formed by using the triplex structures with PE. Typical WVTR values are between 0.06 - 0.40 g/m2/day.
  • 23. Polyvinylidene Chloride (PVDC)  PVC/PVdC laminations  PVC is coated with an emulsion of PVdC (Polyvinylidene Chloride)  The coating weights of PVdC commonly used are 40, 60, 90, g per m², and the film is offered with or without a middle layer of polyethylene.  The polyethylene is used with heavier coating weights such as 60 and 90 g per m², to improve the thermoforming characteristics of the blister cavity.
  • 24. Cyclic olefin copolymers (COC)  Cyclic olefin copolymers (COC) or polymers (COP) can provide moisture barrier to blister packs, typically in multilayered combinations with polypropylene (PP), polyethylene (PE), or glycol- modified polyethylene terephthalate (PETg).  Cyclic olefin resins are generally amorphous and are noted for good thermoforming characteristics even in deep cavities, leading some to use COC in blister packaging as a thermoforming enhancer, particularly in combination with PP or PE.  Films can be manufactured via coextrusion or lamination.  WVTR values of commercial cyclic olefin-based pharmaceutical blister films typically range from 0.20 to 0.35 g/m2/day at 38C/90% RH.  Unlike PVC and other common pharmaceutical barrier resins, cyclic olefin resins do not contain chlorine or other halogens in their molecular structure, being comprised solely of carbon and hydrogen.
  • 25. Cold form foil  is used for products that are extremely hygroscopic or light sensitive.  It is an extreme moisture barrier and consists of three layer: PVC, aluminium foil and nylon.
  • 26. Comparison of forming film mil- a unit of length equal to 1 ⁄1000 inch used especially in measuring thickness (as of plastic films)
  • 27. 2. Lidding Material The lidding material provides the base or main structural component upon which the final blister package is built. It must be selected according to; The size, Shape, Weight of the product As well as the style of the package to be produced
  • 28. Consideration in selection of lidding material  The surface of the lidding material must be compatible with the heat-seal coating process.  Clay coatings are added to the lidding material to enhance printing.  Heat-sealing and printability are both important considerations in blister packaging, and the lidding material must offer the best workable compromise.
  • 29. Aluminum  Primary component of lid stock is aluminum and its gauges varies from 18-25 µm (0.0078 to 0.001 inch).  Side of aluminum foil laminate in contact with the product provides the heat sealable layer that forms the seal to the blister material.  Different designs of lid stocks are available and selection of a particular design depends on how the packages will be used.  Standard designs includes  Peelable ,  Push-through and  Child-resistant
  • 30. Peelable foil  Peelable foil can be peeled away from the blister.  With the peelable foil lid stock, which is used in conjunction with blister tooling, a three step process is required to open the blister.
  • 31. Child resistant foil  For child-resistant peelable foil, a layer of polyester with the appropriate adhesives would be added.  This type will gives more protection for the kids against deliberate consumption of medicines.  The blister cavity must be separated from the rest of the blister card.  The paper and the polyester layers are pulled back from an unsealed area.  The product is pushed through the remaining aluminum foil.
  • 32. Push-through foil  Two commonly used types of Push-through foil are-one with a paper outer layer separated from the aluminum by a layer of adhesive and one without paper.  The paper outer layer serves as an aesthetic and makes it possible to print on the back of the blister.
  • 34. 3. Heat seal coating  Heat-seal coatings provide a bond between the plastic blister and the printed lidding material.  For blister packages, heat-seal coatings are perhaps the most critical component in the entire system.  The appearance and physical integrity of the package depends upon the quality of the heat-seal coating.  These solvents or water based coatings can be applied to rolls or sheets of printed paperboards using roll coater or flexographic methods, knives, silk screenings or sprays.  Whatever the system, it is essential that the proper coating weight be applied to the lidding material for optimum heat sealing results.
  • 35. A successful heat-seal coating for blister packages must exhibit;  Good gloss,  Clarity,  Abrasion resistance,  hot tack  must seal to various blister films. Heat seal coating (cont.)
  • 36. Hot tack  Hot tack is particularly important because the product usually is loaded into the blister and the lidding material heat sealed in place (face down) onto the blister.  When the package is ejected from the heat-seal jig, the still- warm bond line must support its entire weight.  The heat seal coating must precisely match the lidding material and the plastic material of the forming film.  Precisely match means that with pre determined sealing parameters, a permanent sealing effect between the lidding material and the forming film must be guaranteed under any climatic condition.
  • 37. 4. Printing Inks  Printing inks provide graphics and aesthetic appeal.  They can be applied to the lidding material by letterpress, gravure, offset, flexographic, or silk-screen printing processes  Printing inks must  Resist heat sealing temperatures as high as 300 °C without showing any discoloration or tackiness.  Sufficiently resist abrasion, bending, and fading.  Be safe for use with the intended product.  Comply with FDA recommendations.
  • 38. Blister Packaging machine 1. Thermoform blistering machine 2. Cold form blistering machine 3. Thermo-cold complex blistering machine
  • 40. Thermoforming  In the case of thermoforming, a plastic film or sheet is unwound from the reel and guided though a pre-heating station on the blister line.  The temperature of the pre-heating plates (upper and lower plates) is such that the plastic will soften and become pliable.  The warm plastic will then arrive in a forming station where a large pressure (4 to 8 bar) will form the blister cavity into a negative mold.  The mold is cooled such that the plastic becomes rigid again and maintains its shape when removed from the mold.  In case of difficult shapes, the warm film will be physically pushed down partially into the cavity by a "plug-assist" feature. Plug-assist results in a blister cavity with more uniform wall distribution and is typically used when the cavity size and shape is larger than a small tablet.
  • 41. Advantages of thermoforming blister pack: The most basic material for the forming web is PVC or Polyvinyl Chloride, for ease of thermoforming and low cost. The product can be visually examined through the transparent plastic. The faulty blister card can be rejected via the inspecting camera or naked eyes. Because the cavity or pocket contain the item snugly, it can adopt the universal feeder which consists of circular brushes and planetary agitators that sweep the products into blister pockets. Parts are not required for different formats. This feeder is noted for its low cost and ease of operation.
  • 42. Disadvantages of thermoforming blister pack: The protective properties are not strong because of the PVC’s poor barrier against moisture and oxygen ingress. Not suitable for light-sensitive drugs because of the transparency of PVC.
  • 43. Thermoforming Thermoforming process consists of four basic stations where following operations occur 1. Forming • Pre heating • Thermoforming • Cooling 1. Filling (Loading) 2. Sealing 3. Finishing
  • 45. Pre-heating  Heating station is present only in thermoform & thermo- cold form blistering machines.  Prior to entering forming station, reel-fed base (tray) web (blister material) passes through the heating unit.  Heating is achieved either by  Infra-red heaters  Contact heaters  The temperature , based on the blister material used and on the speed at which that material travels through the heating station , is a critical parameter for optimal performance .
  • 46. Forming  At the forming station the blister material is heated to the point where the plastic softens sufficiently to allow the cavity to be formed by  Mechanical forming between male and female moulds  Vacuum or negative pressure-which draws the softened film over or into a mould
  • 47. Forming (Cont.)  Pressure-in which compressed air forces the film over or into a mould  Combination of the two  For an identical blister shape, pressure plus plug assistance generally gives most uniform blister.
  • 48. Cooling  The moulds into which the plastics is formed can be cooled by air, water or chilled water  The cooling station cools the films after the forming process. (Laminates containing aluminum do not need to be cooled.)
  • 49. Filling (Loading)  Here product is loaded into blister cavity either manually or with the aid of feeding mechanism  Uncoated tablets or capsules are normally fed from vibratory bowl via channels or tubes by gravity.  Vacuum extraction is frequently applied to the bowl tubes etc to minimize powder and tablet chips which may finish up in the seal or tray.  The critical parameter is the proper filling of formed blisters
  • 50. Sealing  At this station, lid stock is sealed to filled blister cavity, using heat and pressure.  The critical parameters to be considered at this station are temperature, pressure .  The lid stock material is staged on a roll above the blister cavity and may be preprinted or printed on line.  Lot no. and expiration dates may be applied at this point.  Preprinted lid stock materials will require a print registration system to control the position of the printing relative to the blister cavity.  The critical parameters at this part of station includes legible and correct labeling.
  • 51. Finishing  Includes embossing, perforation and cutting.  Embossing involves application of lot no. and expiration date to package. This process is carried out at printing station.  Steel type is used to emboss information on the edges of the blister package.  At Trimming station, the blisters are cut into individual unit  Embossing, perforation, cutting process should not compromise blister lid or seal. Package integrity and quality of embossing are critical parameter in the process.
  • 52. Cold forming  In the case of cold forming, an aluminum-based laminate film is simply pressed into a mold by means of a stamp.  The aluminum will be elongated and maintain the formed shape. In the industry these blisters are called cold form foil (CFF) blisters.
  • 53. Advantage of cold form foil blisters is  Use of aluminum offers a near complete barrier for water and oxygen, allowing an extended product expiry date. Disadvantages of cold form foil blisters : The slower speed of production compared to thermoforming; The package is opaque, making the inspecting system, which rejects the faulty blister card, complicated and costly. The cost of cold forming aluminium film is higher than PVC. The larger size of the blister card (aluminium cannot be formed with near 90 degree angles) increases the material cost. Because the cavity or pocket is larger than the drug, the feeder should be dedicated. this increases the cost and difficulty of operation.
  • 54. Operation of Cold Forming The sequence involves; Installing the Aluminium Foil, Cold forming it into blister cavities via punch pins, Loading the blister with the product, Placing lidding material over the blister, Heat-sealing the package. Cutting into individual blisters
  • 55. Types of Cold forming processes 1. Clamping the material and carrying out a true punch action where the non-held area is extended (stretch forming). 2. Taking a foil which has been embossed or finely creased; can be extended by air or mechanical pressure without showing flex cracks. 3. Taking a reel of material with regular cross-direction slits (as used on suppository machine). 4. A male/female mechanical forming operation is carried out between each slit. This mechanical operation forms the foil and the slit area moves (opens), thereby preventing any high degree of stress 5. Latest innovations include a double forming operation which reduces the tray size to 20% (Advanced Forming Technology (AFT) process). These tend to use Teflon stretching dies.
  • 56. Larger size of the cold forming blister pack compared to thermoforming blister pack.
  • 57. Thermo-cold forming Example: ALU-Tropical Machine Operation: The sequence involves;  Heating the plastic,  Thermoforming it into blister cavities,  Loading the blister with the product,  Placing lidding material over the blister,  And heat-sealing the package.  Installing the aluminium foil  Cold forming it into blister Pouch & seal it on thermoformed blister to give extra protection,  Cutting into individual blisters
  • 59.  Strip packs present an alternative form of pack for a unit dosage.  Strips can be produced from single or multi-ply materials, provided the two inner plies can be sealed by heat or pressure (e.g. cold ‘self-adhesive’ seal).  Materials can range from relatively permeable plies to those which incorporate a foil ply of sufficient thickness (and effectiveness of seal) that an individual hermetic seal is produced for each dosage.  Usually produced at lower speeds and also occupy greater volume than blisters. 59 Strip Packs
  • 60.
  • 61. Consists of one or two plies, made from  Regenerated cellulose  Paper  Plastics,  Foil or any combination --------------an item is inserted into a pocket area against a recess in a heated roller Strip Packs (cont.)
  • 62.  Heat Sealable Cellophane  Heat Sealable Polyester  Paper / Polyethylene / Foil 62 Strip forming material
  • 63.  Strip packaging offers a more user-friendly packaging solution than bottled tablets and capsules.  It provides economical packaging solutions for highly sensitive drugs.  It is a strong and perfect pharma packaging material for protection and distribution of the drug.  Strip packaging is the exact size of the capsule or the tablet in question. It keeps the pills and capsules organized, separated and safe.  Strip packaging allows one to consume a single tablet without touching the packaging of the other tablets. Advantages of Strip Packaging
  • 64.
  • 65.
  • 66.  Basically a strip pack can be formed by introducing an item which extends a pocket area during insertion or by a preforming operation prior to filling.  As the latter method gives less strain (or more controlled forming) to the pocket area and reduces the material needed by 20–35%,  Either one or both sides of the plies may be mechanically formed, but this process can only be applied to materials which will ‘stretch’ without tearing.  Strip packaging machines are far simpler and smaller than blister packaging units, usually simply consisting of a feed system, product insertion plus heat sealing, and a guillotining operation to size.  Feed is usually via a vibratory bowl with feeding tracks (usually up to a maximum of sixteen).  Alternatives are a rotating table plus drop or sweep.
  • 67.  Most machines employ a vertical feed (gravity drop) but occasionally the web is run horizontally with a platen type sweep.  The pocket area is created by recesses either in a platen or more usually in a heat sealing cylinder, where a circumferential point seal is made between two intermeshing cylinders.  As with blister packs, the maximum speed depends on the size of the item and gravity. A maximum speed of 250–300 per track is likely with a 325 mg (five grain) type of aspirin product.  Removal of powder, chips, etc. is achieved by vacuum extraction.  Cutting of the emerging web is invariably done by either a scissors or guillotine motion or rotary die cutting.  Additional stages which can be incorporated into the machine include printing, perforating, batch coding, etc.
  • 68.  As distinct from blisters, perforation does not usually add to the seal width, as pocket seals are nominally 5 mm or more.  Most machines use two separate webs but occasionally a single centrally folded web may be employed.  Strip packaging is closely allied to sachet packing and in certain cases it is difficult to differentiate between the two.  Two different plies can also be used (top and bottom) provided the sealants are compatible.
  • 69. Strip designs  Strip designs are very basic, as the emerging units are invariably rectangular or square strips.  The pocket portion can, however, be round, oval or square.  The pocket area is critical to the diameter, shape and thickness of the product.  If the pocket is too ‘tight’, tearing, perforation of the pocket periphery or wrinkling of the seal area may occur.  The seal width may be as low as 4 mm, but usually 5 mm and above is employed. If the seal area is likely to wrinkle or crease then wider seals may be necessary.
  • 70. Materials of Construction/ Type Critical Properties Area of use PVC 200/250/350 Low barrier / Simple unit pack / Aesthetic Stable products like Paracetamol, Co-trimoxazole, certain softgel capsules etc., PVC / PVdC (250/40) Low barrier better than PVC Products not very sensitive to moisture, gases and with moderate self life- Multivitamin tablets and capsules PVC / PVdC (250/60)/ (250/90)/ (250/120) Good barrier Moderate to high sensitive range of products, certain FDC/ Enzyme products PVC / PE / PVdC (200/25/60)/ (250/25/90)(300/30/90) Good barrier Quite high sensitive range of products – 4 FDC(RHZE) Ultrasafe Duplex High barrier/economical Quite high sensitive range of products Ultrasafe Triplex High barrier/economical Quite high sensitive range of products PVC/Aclar (PCTFE) (10μ to 100μ) Excellent barrier Extremely sensitive range of products PVC/COC, PE/COC Excellent barrier Extremely sensitive range of products OPA/Al foil/PVC Excellent barrier Extremely sensitive range of products
  • 71. Materials of Construction/ Type Critical Properties Area of use Alu/Alu Excellent barrier Extremely sensitive range of products OPA/Al foil/PVC (OPA- Oriented polyamide) Excellent barrier Cefuroxime Axetil tablets, Levocetirizine Tablets, Alu/Alu with desiccant Excellent barrier Extremely moisture sensitive range of products Aluminium foil with HSL (Hard tempered) 0.02 / 0.025 Excellent barrier Lidding foil for blister packing Aluminium foil (Hard tempered with special coating) Excellent barrier Lidding foil for COC Aluminium foil / poly (30 –40 microns (soft tempered) Excellent barrier For strip packing use of very sensitive range of products – Omeprazole Capsules, Ranitidine Tablets etc., Aluminium foil / VMCH (30 –40 microns (soft tempered) (VMCH- Vinyl Acetate - Maleic Acid - Vinyl Chloride Copolymer) Excellent barrier For strip packing use of dark colored sugar coated tablets. Paper /Poly Very low barrier / Simple unit pack / Aesthetic look Very economical pack for very stable products. Paper/ AL/HSL (heat seal laquer) Excellent barrier For Child resistance blisters pack
  • 72. Choosing suitable polymer/blister packs Comparative WVTR values of various blister films on flat sheet (38 deg C/90% RH - g/m2/day) Materials of Construction / Type WVTR values (g/m2/day) PVC 250 03 Polypropylene 01 PVC / PVdC (250/40) 0.75 PVC / PVdC (250/60) 0.5 PVC/10μ PCTFE (Aclar) 0.45 COC 190 μ 0.35 PVC/15μ PCTFE (Aclar) 0.36 PVC / PE / PVdC (250/25/90) 0.31 PVC/20μ PCTFE (Aclar) 0.27 COC 240 μ 0.28 COC 300 μ 0.23 PVC/23μ PCTFE (Aclar) 0.23 COC 350 μ 0.2 PVC/38μ PCTFE (Aclar) 0.15 PVC/51μ PCTFE (Aclar) 0.11 PVC/75μ PCTFE (Aclar) 0.08 PVC/102μ PCTFE (Aclar) 0.05 CFF (Alu/Alu) PVC/Alu45/OPA25 0
  • 73. Representative Cost Comparison for Packages Containing 30 tablets Packaging Material Material Cost ($) Labor Cost ($) Total Costs ($) Glass bottle 0.51 0.70 1.21 Plastic bottle 0.125 0.70 0.825 Blister Pack 0.07 0.25 0.32 Reference: Pharmaceutical Technology, November 2000
  • 76. Introduction  Alu Alu Foil is  an  excellent  multilayered  structure  designed for high sensitive range of Pharmaceutical  and generic medicines which are highly hygroscopic  or light sensitive and cannot be suitably packed with  barrier plastic films.   The  structure  is  an  optimized  combination  of  aluminium foil and polymeric films with the alumina  layer  sandwiched  between  an  inner  heat  sealable  polymeric film and outer supportive malleable film.
  • 77. Introduction (cont)  Alu-alu blister represents the new generation in  pharmaceutical packaging, its the material with best  barrier performance at present, and can absolute  resist vapor, oxygen and UV rays, good performance of  aroma barrier.  Each blister is a single protection unit, no effect to  barrier after opening first cavity, especially suitable for  drugs that easy to be affected in wet regions and  tropics.   Alu-alu blister can be shaped in various appearances  by changing mold, simultaneous, its glorious silvery  white luster no doubt can promote selling.
  • 78. Aluminium Foil for Pharmaceutical Packaging (BIS Specification)  Bare Blister Pack Foil Bare foil (of thickness 20-25 µ without any lamination or coating)  used for blister pack application for pharmaceutical packaging  usually after coating.   Coated Blister Pack Foil Bare foil (of thickness 0.20-25 µ) with one side coated with heat  seal lacquer and the other side with primer or printed, used  for blister pack application in pharmaceutical packaging.   Bare Pharma Strip Pack Foil Bare foil (of thickness 30-40 µ without any lamination or coating)  used for strip pack application for pharmaceutical packaging.
  • 79. Benefits of ALU ALU Packaging  100% Barrier against water vapour, gases, light etc  Excellent Thermo-formability  High degree of Thermal stability  High Malleability for deep drawing blister cavities  Effective anti counterfeit packaging
  • 80. Cold forming for ALU ALU  In the case of cold forming, an aluminum-based laminate film is  simply pressed into a mold by means of a stamp.   The aluminum will be elongated and maintain the formed  shape. In the industry these blisters are called cold form foil  (CFF) blisters.   Advantage of cold form foil blisters is   Use of aluminum offers a near complete barrier for water and oxygen,  allowing an extended product expiry date.   Disadvantages of cold form foil blisters are:   the slower speed of production compared to thermoforming   the lack of transparency of the package   The larger size of the blister card (aluminum can not be formed with near 90  degree angles).
  • 81. Manufacturing of ALU ALU Blister
  • 82. Evaluation of Blister/Strip 1. WVTR Studies  A  desiccant  (usually  silica  gel  or  magnesium  chloride)  is  placed  inside the blister rather than the actual pharmaceutical product.  This standard was introduced decades ago by U.S. Pharmacopeia.  These  blisters  to  be  placed  in  an  environmental  chamber  at  constant temperature and humidity conditions (there are several  combinations, but the most common one is 23°C and 75%RH).  The  weight  of  the  sample  blister  is  then  measured  at  certain  intervals of time for 28 days.   From the weight gained and the number of individual blisters in  the pack, the Water Vapor Transfer Rate (WVTR) is determined in  terms of grams of water per day per blister.   A typical blister pack with two cavities and silica gel desiccant is  shown in above Figure
  • 83. 1. WVTR Studies (cont.)  By  today’s  standards,  this  traditional  U.S.P.  method  is  time  consuming and prone to errors.   Therefore, several companies  are improving the effectiveness of  their testing by using Gravimetric Sorption Analyzers to measure  the rate of water permeation.  The improved procedure consists of hanging several blisters filled  with  desiccant  inside  sample  cavity  and  monitoring  its  weight  under  selected  temperature  and  humidity  using  precision  microbalance design.   Typically, this testing is done at 25°C at 60%RH, 30°C at 65%RH  and 40°C at 75%RH and the experiment is run until steady state  conditions are reached in each case.  An  experiment  might  last  from  3  to  5  days  depending  on  the  permeation properties of the particular blister material.   This testing protocol is based on the methods issued by the (ICH).
  • 84. 2. Vacuum tests  Immerse the test package in a container containing colored  water (15–25°C) and place the container in the vacuum  chamber.  Apply the appropriate vacuum of   33 kPa (250 mm of mercury) for strip packages or   24 kPa (180 mm of mercury) for blister packages, for 30 s.   Restore atmospheric pressure and remove the container from  the vacuum chamber.  Remove the test package from the container and blot off the  excess water. Examine the package for ingress of water into the  pockets.
  • 85. Blister / Strip Defects Common defects include Pin-hole  Seal defect Curls of trays Sharp edges blocking
  • 86. Pin Holes  Foil of 0.03 mm is pin hole free  Foil of 0.0177 mm can be consider commercially free for  most purposes.  0.009 mm foil may contain 100-700 pin holes/m2.  Permeation through pin holes can be reduced by lamination.
  • 87. Seal Defects Seal defects occurs due to Improper alignment of foil & film during sealing. Excess heating Quality of material
  • 88. Curl Of Trays  Occurs due to heat-sealing operation  Amount of curl depends partially on type of  machine employed, the type of web and  design of tray.  Curl occurs due to different co-efficient of  expansion for foil and film plus film  shrinkage due to molecular reorientation. REMEDY:  By incorporating thermoformed ribs in the  tray  Reversing the web curvature by passing over  a tension roller .
  • 89. Sharp Corners & Blocking SHARP CORNERS It occurs during punching out or die cutting If not handled carefully may penetrate pockets of trays.  BLOCKING: During manufacturing two adjacent layer of film stick   together
  • 90. Damaged Tablets  In Blister packing the dimensions of the tablets  plays a very important role.   It invariably gets jammed in the transport chutes  thus producing unfilled / half filled / broken tablets  in to blisters.   This dimensional check improves the efficiency of  the Blister packing machine
  • 91. Exercise  Identify Blister, Strip & ALU-ALU Pack in the next slide?????????
  • 92. 92
