Dr. Gurumeet C Wadhawa discusses biological assays. An assay is a procedure used to qualitatively or quantitatively assess the presence, amount, or functional activity of a target entity. There are three main types of assays: chemical, immuno, and bioassays. Bioassays involve estimating the concentration or potency of a pharmaceutical drug using animal or human subjects. While less precise than chemical assays, bioassays are more sensitive and can be used when chemical methods are not available or applicable. Bioassays are used to standardize and quantify various biological substances and products.

1. Biological Assay
Dr.Gurumeet C Wadhawa ,Assistant Professor, Department
of Chemistry.
Rayat Shikshan sansthas Veer Wajekar ASC
College,Phunde,Uran

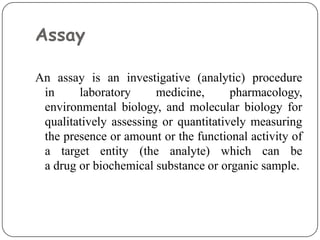

2. Assay
An assay is an investigative (analytic) procedure
in laboratory medicine, pharmacology,
environmental biology, and molecular biology for
qualitatively assessing or quantitatively measuring
the presence or amount or the functional activity of
a target entity (the analyte) which can be
a drug or biochemical substance or organic sample.

3. Types Of Assay
 Chemical Assay
 Immunoassay
 Bioassay

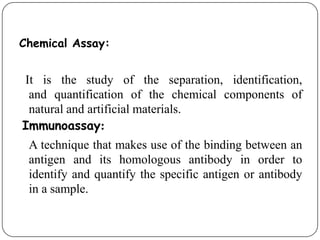

4. Chemical Assay:
It is the study of the separation, identification,
and quantification of the chemical components of
natural and artificial materials.
Immunoassay:
A technique that makes use of the binding between an
antigen and its homologous antibody in order to
identify and quantify the specific antigen or antibody
in a sample.

5. Biological Assay
Biological testing procedure for estimating the
concentration of a pharmaceutical drug substance
in a formulated drug product or bulk material.
The specific potency of drug is given to animal or
human volunteers and then drug response is
compared with the standards.

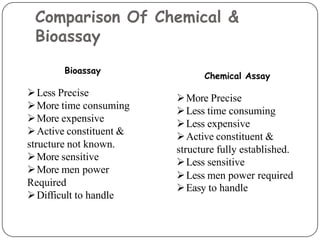

6. Comparison Of Chemical &
Bioassay
Bioassay
Less Precise
More time consuming
More expensive
Active constituent &
structure not known.
More sensitive
More men power
Required
Difficult to handle
Chemical Assay
More Precise
Less time consuming
Less expensive
Active constituent &
structure fully established.
Less sensitive
Less men power required
Easy to handle

7. Indications Of Bioassay
1. Chemical method is either
 Not available
 If available, too complex,
 Insensitive to low doses e.g. Histamine 2.
If active principle of drug is not known e.g.
insulin
3. Unknown Chemical composition, e.g. long
acting thyroid stimulator

8. 4. Chemical composition of drug variable but has same
pharmacological action e.g. cardiac glycosides.
5. Active principle cannot be isolated e.g. posterior
pituitary extract, insulin etc..

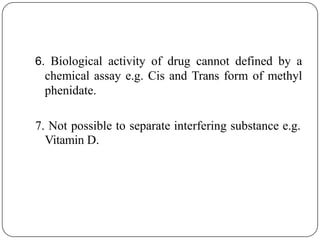

9. 6. Biological activity of drug cannot defined by a
chemical assay e.g. Cis and Trans form of methyl
phenidate.
7. Not possible to separate interfering substance e.g.
Vitamin D.

10. Principles Of Bioassay
All bioassays should be comparative against a
standard drug
 Standard & new drug should be as far as possible
identical to each other
Activity assayed should be the activity of interest

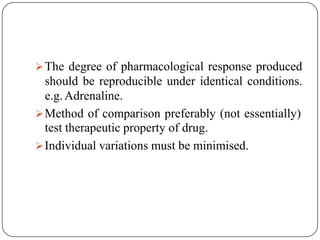

11. The degree of pharmacological response produced
should be reproducible under identical conditions.
e.g.Adrenaline.
Method of comparison preferably (not essentially)
test therapeutic property of drug.
Individual variations must be minimised.

12. Classification Of Bioassay
There are three types of bioassay:
Quantal
Graded
Effect produced in confined period

13. Quantal
All or none response in all individuals,
e.g. Digitalis induced cardiac arrest in guinea pigs
hypoglycemic convulsions in mice by insulin and
Calculation of LD50 in mice or rats
Not précised

14. Employed for:
Comparison of LD50 and ED50
Comparison of Threshold response

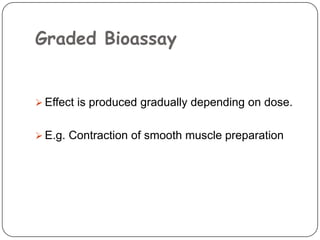

15. Graded Bioassay
 Effect is produced gradually depending on dose.
 E.g. Contraction of smooth muscle preparation

16. Accuracy Limits Of Bioassay
“Accuracy improves the efficiency of bioassay for
pharmaceutical biological products.”
 An accuracy within 20 % of true value is good.
 An accuracy within 10 % of true value is
excellent.

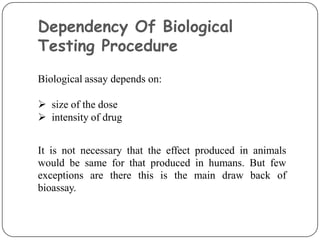

17. Dependency Of Biological
Testing Procedure
Biological assay depends on:
 size of the dose
 intensity of drug
It is not necessary that the effect produced in animals
would be same for that produced in humans. But few
exceptions are there this is the main draw back of
bioassay.

18. Partial List Of Official Quantitative
Biological Tests
Drug and Dosage
form
TestAnimal (s)
Antibiotics Suitable microorganism
Insulin Rabbit & Mice
Digitalis & other
glycosides
Pigeon & Guinea Pig
VitaminA& D Rat
Parathyroid drugs Dog
Posterior pituitary Rat
Tubocurarine Chloride Rabbit

19. Purpose Of Bioassay
1. Compare test sample with standard substance to determine
quantity of test sample required to produce an equivalent
biological response to that of the standard substance.
2. Measuring pharmacological activity of new or chemically
undefined substance.
3. Test method employed in measuring the response of living
animals to toxicity of chemical contaminant. Certain no. of
individuals of sensitive specie are exposed to specific conc.
of contaminant for specific period to examine toxic effects.

20. 4. Investigating function of endogenous mediators.
5. Determine conc.As well as potency of unknown substance.
6. Improving and maintaining standards of basic environmental
conditions affecting well-being of people e.g. pollutants
released by particular source.
7. To determine specificity of compounds to be used e.g.
penicillin's are effective against G+ve but not on G-ve.

21. Preparation of standard
A selective representative sample of a substance
for which it is to serve as a basis of the
measurement is called standard preparation.
Uniform quality
Stable

22. Types Of Standard
Preparation
Two type of standard preparation:
1) International standard and reference standard
 USP units(highly recognized-able and authorized
standard)
2) British standard and reference standard

23.  Country want to have its own standard
preparation, then used according to its own law.
 For biological assay and tests, units are referred
called GREAT BRITIAN.
 For specific biological activity small quantity of
standard preparation are used.

24. Potency
Measurement of drug activity expressed in terms
of amount required to produce an effect of given
intensity.
EXAMPLES:
Highly potent drugs like morphine, alprazolam,
chlorpromazine etc produced high response at low
conc. And low potent drugs like ibuprofen and
acetylsalicyclic acid produced low response at low
conc.

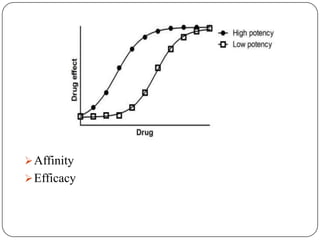

25. Affinity
Efficacy

26. Advantages
 Bioassays are procedures that can determine the
concentration of purity or biological activity of a
substance such as vitamin, hormone, and plant
growth factor.
While measuring the effect on an organism, tissue
cells, enzymes or the receptor is preparing to be
compared to a standard preparation.

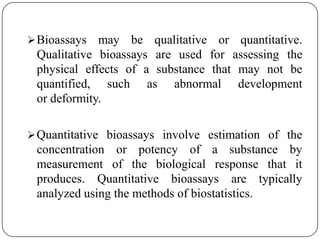

27. Bioassays may be qualitative or quantitative.
Qualitative bioassays are used for assessing the
physical effects of a substance that may not be
quantified, such as abnormal development
or deformity.
Quantitative bioassays involve estimation of the
concentration or potency of a substance by
measurement of the biological response that it
produces. Quantitative bioassays are typically
analyzed using the methods of biostatistics.

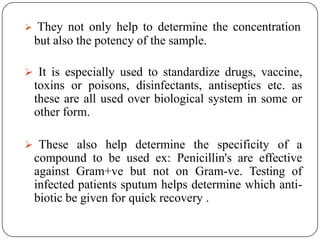

28.  They not only help to determine the concentration
but also the potency of the sample.
 It is especially used to standardize drugs, vaccine,
toxins or poisons, disinfectants, antiseptics etc. as
these are all used over biological system in some or
other form.
 These also help determine the specificity of a
compound to be used ex: Penicillin's are effective
against Gram+ve but not on Gram-ve. Testing of
infected patients sputum helps determine which anti-
biotic be given for quick recovery .

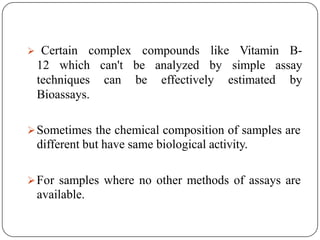

29.  Certain complex compounds like Vitamin B-
12 which can't be analyzed by simple assay
techniques can be effectively estimated by
Bioassays.
Sometimes the chemical composition of samples are
different but have same biological activity.
For samples where no other methods of assays are
available.

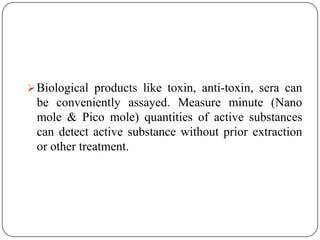

30. Biological products like toxin, anti-toxin, sera can
be conveniently assayed. Measure minute (Nano
mole & Pico mole) quantities of active substances
can detect active substance without prior extraction
or other treatment.

31. Disadvantages
Key problem is variability in response
Large number of animal to be used
Expertise in experimental design, execution of assay
& analysis of data required
Leads to expensive & time consuming

32. Time related changes ins sensitivity of test organ.
Tachyphylactic responses of substance being
assayed. .
