BIG DATA Session 7 8

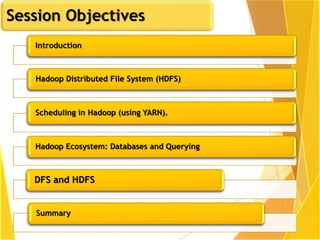

Session Objectives
Introduction
Hadoop Distributed File System (HDFS)
Scheduling in Hadoop (using YARN).
Hadoop Ecosystem: Databases and Querying

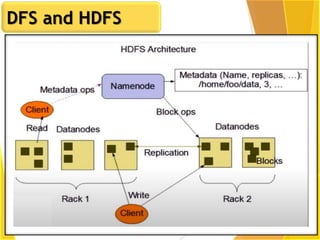

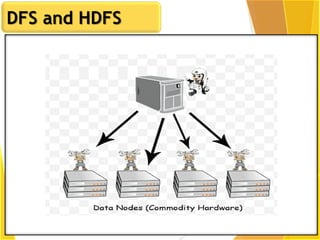

DFS and HDFS
Summary

9

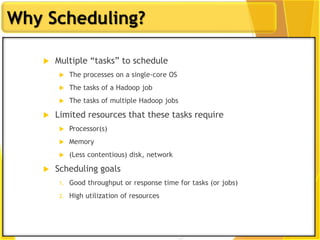

Why Scheduling?
 Multiple “tasks” to schedule
 The processes on a single-core OS
 The tasks of a Hadoop job
 The tasks of multiple Hadoop jobs
 Limited resources that these tasks require
 Processor(s)
 Memory
 (Less contentious) disk, network
 Scheduling goals
1. Good throughput or response time for tasks (or jobs)
2. High utilization of resources

10
Single Processor Scheduling
Task 1
10
Task 2
5
Task 3
3
Arrival Times  0 6 8
Processor
Task Length Arrival
1 10 0
2 5 6
3 3 8
Which tasks run when?
10

11

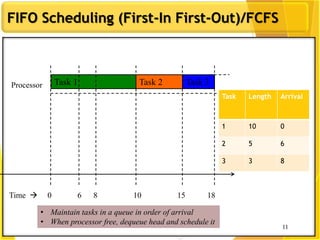

FIFO Scheduling (First-In First-Out)/FCFS
Task 1 Task 2 Task 3
Time  0 6 8 10 15 18
Processor
Task Length Arrival
1 10 0
2 5 6
3 3 8
• Maintain tasks in a queue in order of arrival
• When processor free, dequeue head and schedule it
11

12
FIFO/FCFS Performance
 Average completion time may be high
 For our example on previous slides,
 Average completion time of FIFO/FCFS =
(Task 1 + Task 2 + Task 3)/3
= (10+15+18)/3
= 43/3
= 14.33
12

13
STF Scheduling (Shortest Task First)
Task 1Task 2Task 3
Time  0 3 8 18
Processor
Task Length Arrival
1 10 0
2 5 0
3 3 0
• Maintain all tasks in a queue, in increasing order of running time
• When processor free, dequeue head and schedule
13

14

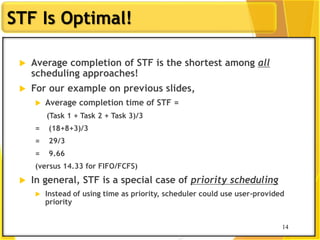

STF Is Optimal!
 Average completion of STF is the shortest among all
scheduling approaches!
 For our example on previous slides,
 Average completion time of STF =
(Task 1 + Task 2 + Task 3)/3
= (18+8+3)/3
= 29/3
= 9.66
(versus 14.33 for FIFO/FCFS)
 In general, STF is a special case of priority scheduling
 Instead of using time as priority, scheduler could use user-provided
priority
14

15

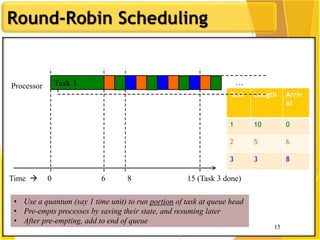

Round-Robin Scheduling
Time  0 6 8
Processor
Task Length Arriv
al
1 10 0
2 5 6
3 3 8
• Use a quantum (say 1 time unit) to run portion of task at queue head
• Pre-empts processes by saving their state, and resuming later
• After pre-empting, add to end of queue
Task 1
15 (Task 3 done)
…
15

16

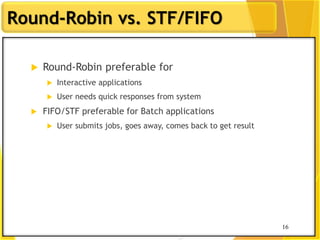

Round-Robin vs. STF/FIFO
 Round-Robin preferable for
 Interactive applications
 User needs quick responses from system
 FIFO/STF preferable for Batch applications
 User submits jobs, goes away, comes back to get result
16

17

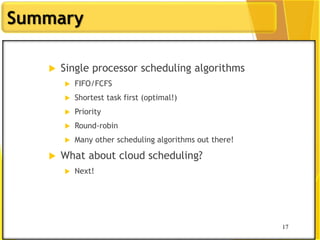

Summary
 Single processor scheduling algorithms
 FIFO/FCFS
 Shortest task first (optimal!)
 Priority
 Round-robin
 Many other scheduling algorithms out there!
 What about cloud scheduling?
 Next!
17

18

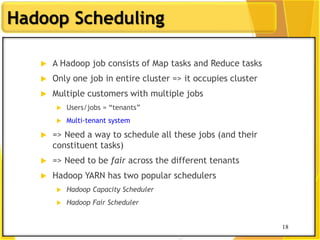

Hadoop Scheduling
 A Hadoop job consists of Map tasks and Reduce tasks
 Only one job in entire cluster => it occupies cluster
 Multiple customers with multiple jobs
 Users/jobs = “tenants”
 Multi-tenant system
 => Need a way to schedule all these jobs (and their
constituent tasks)
 => Need to be fair across the different tenants
 Hadoop YARN has two popular schedulers
 Hadoop Capacity Scheduler
 Hadoop Fair Scheduler
18

19
Hadoop Capacity Scheduler
 Contains multiple queues
 Each queue contains multiple jobs
 Each queue guaranteed some portion of the cluster capacity
E.g.,
 Queue 1 is given 80% of cluster
 Queue 2 is given 20% of cluster
 Higher-priority jobs go to Queue 1
 For jobs within same queue, FIFO typically used
 Administrators can configure queues
Source: http://hadoop.apache.org/docs/r2.3.0/hadoop-yarn/hadoop-yarn-site/CapacityScheduler.html
19

20

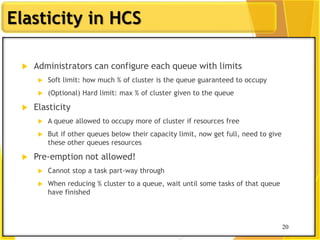

Elasticity in HCS
 Administrators can configure each queue with limits
 Soft limit: how much % of cluster is the queue guaranteed to occupy
 (Optional) Hard limit: max % of cluster given to the queue
 Elasticity
 A queue allowed to occupy more of cluster if resources free
 But if other queues below their capacity limit, now get full, need to give
these other queues resources
 Pre-emption not allowed!
 Cannot stop a task part-way through
 When reducing % cluster to a queue, wait until some tasks of that queue
have finished
20

21

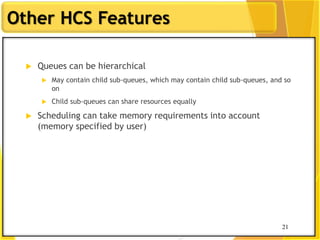

Other HCS Features
 Queues can be hierarchical
 May contain child sub-queues, which may contain child sub-queues, and so
on
 Child sub-queues can share resources equally
 Scheduling can take memory requirements into account
(memory specified by user)
21

22

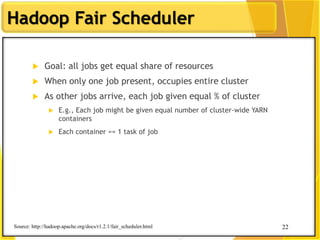

Hadoop Fair Scheduler
 Goal: all jobs get equal share of resources
 When only one job present, occupies entire cluster
 As other jobs arrive, each job given equal % of cluster
 E.g., Each job might be given equal number of cluster-wide YARN
containers
 Each container == 1 task of job
Source: http://hadoop.apache.org/docs/r1.2.1/fair_scheduler.html 22

23

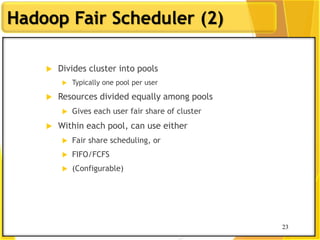

Hadoop Fair Scheduler (2)
 Divides cluster into pools
 Typically one pool per user
 Resources divided equally among pools
 Gives each user fair share of cluster
 Within each pool, can use either
 Fair share scheduling, or
 FIFO/FCFS
 (Configurable)
23

24

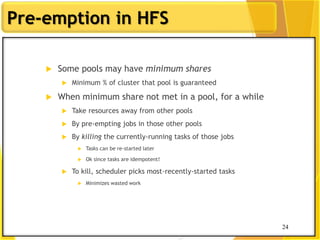

Pre-emption in HFS
 Some pools may have minimum shares
 Minimum % of cluster that pool is guaranteed
 When minimum share not met in a pool, for a while
 Take resources away from other pools
 By pre-empting jobs in those other pools
 By killing the currently-running tasks of those jobs
 Tasks can be re-started later
 Ok since tasks are idempotent!
 To kill, scheduler picks most-recently-started tasks
 Minimizes wasted work
24

25

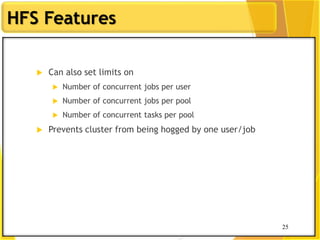

HFS Features
 Can also set limits on
 Number of concurrent jobs per user
 Number of concurrent jobs per pool
 Number of concurrent tasks per pool
 Prevents cluster from being hogged by one user/job
25

26

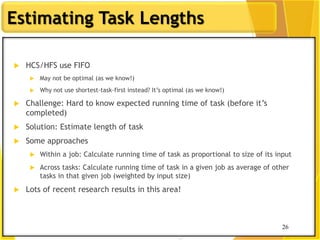

Estimating Task Lengths
 HCS/HFS use FIFO
 May not be optimal (as we know!)
 Why not use shortest-task-first instead? It‟s optimal (as we know!)
 Challenge: Hard to know expected running time of task (before it‟s
completed)
 Solution: Estimate length of task
 Some approaches
 Within a job: Calculate running time of task as proportional to size of its input
 Across tasks: Calculate running time of task in a given job as average of other
tasks in that given job (weighted by input size)
 Lots of recent research results in this area!
26

27

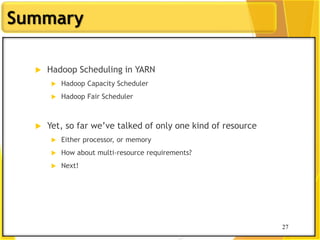

Summary
 Hadoop Scheduling in YARN
 Hadoop Capacity Scheduler
 Hadoop Fair Scheduler
 Yet, so far we‟ve talked of only one kind of resource
 Either processor, or memory
 How about multi-resource requirements?
 Next!
27

28

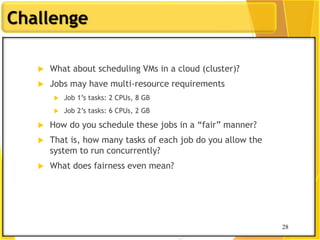

Challenge
 What about scheduling VMs in a cloud (cluster)?
 Jobs may have multi-resource requirements
 Job 1‟s tasks: 2 CPUs, 8 GB
 How do you schedule these jobs in a “fair” manner?
 That is, how many tasks of each job do you allow the
system to run concurrently?
 What does fairness even mean?
28

29

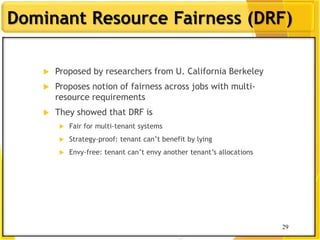

Dominant Resource Fairness (DRF)
 Proposed by researchers from U. California Berkeley
 Proposes notion of fairness across jobs with multi-
resource requirements
 They showed that DRF is
 Fair for multi-tenant systems
 Strategy-proof: tenant can‟t benefit by lying
 Envy-free: tenant can‟t envy another tenant‟s allocations
29

30
Where is DRF Useful?
 DRF is
 Usable in scheduling VMs in a cluster
 Usable in scheduling Hadoop in a cluster
 DRF used in Mesos, an OS intended for cloud environments
 DRF-like strategies also used some cloud computing
company‟s distributed OS‟s
30

31

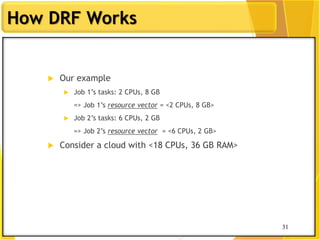

How DRF Works
 Our example
=> Job 1‟s resource vector = <2 CPUs, 8 GB>
 Consider a cloud with <18 CPUs, 36 GB RAM>
31

32

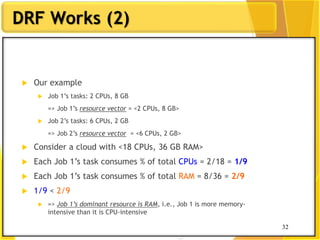

DRF Works (2)
 Our example
 Each Job 1‟s task consumes % of total CPUs = 2/18 = 1/9
 Each Job 1‟s task consumes % of total RAM = 8/36 = 2/9
 1/9 < 2/9
 => Job 1’s dominant resource is RAM, i.e., Job 1 is more memory-
intensive than it is CPU-intensive
32

33

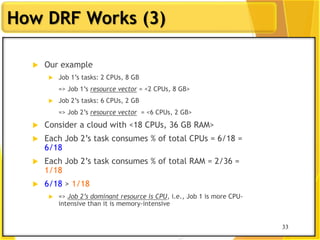

How DRF Works (3)
 Our example
 Each Job 2‟s task consumes % of total CPUs = 6/18 =
6/18
 Each Job 2‟s task consumes % of total RAM = 2/36 =
1/18
 6/18 > 1/18
 => Job 2’s dominant resource is CPU, i.e., Job 1 is more CPU-
intensive than it is memory-intensive
33

34

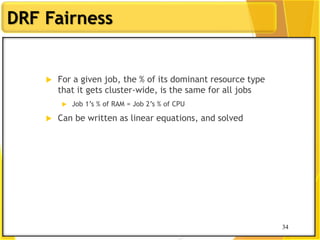

DRF Fairness
 For a given job, the % of its dominant resource type
that it gets cluster-wide, is the same for all jobs
 Job 1‟s % of RAM = Job 2‟s % of CPU
 Can be written as linear equations, and solved
34

35

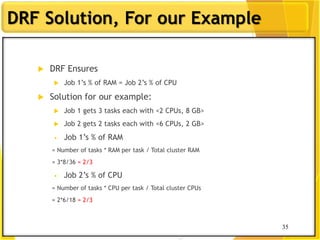

DRF Solution, For our Example
 DRF Ensures
 Job 1‟s % of RAM = Job 2‟s % of CPU
 Solution for our example:
 Job 1 gets 3 tasks each with <2 CPUs, 8 GB>
 Job 2 gets 2 tasks each with <6 CPUs, 2 GB>
• Job 1‟s % of RAM
= Number of tasks * RAM per task / Total cluster RAM
= 3*8/36 = 2/3
• Job 2‟s % of CPU
= Number of tasks * CPU per task / Total cluster CPUs
= 2*6/18 = 2/3
35

36
Other DRF Details
 DRF generalizes to multiple jobs
 DRF also generalizes to more than 2 resource types
 CPU, RAM, Network, Disk, etc.
 DRF ensures that each job gets a fair share of that
type of resource which the job desires the most
 Hence fairness
36

37
Summary: Scheduling
 Scheduling very important problem in cloud
computing
 Limited resources, lots of jobs requiring access to these jobs
 Single-processor scheduling
 FIFO/FCFS, STF, Priority, Round-Robin
 Hadoop scheduling
 Capacity scheduler, Fair scheduler
 Dominant-Resources Fairness
37

Session Objectives
Introduction, DBMS, Types
HBASE
Hive
PIG
Big table and Graph Database
Summary

40

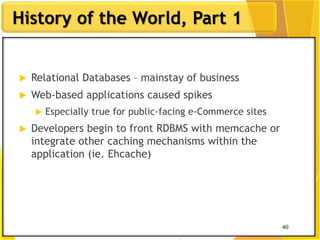

History of the World, Part 1
40

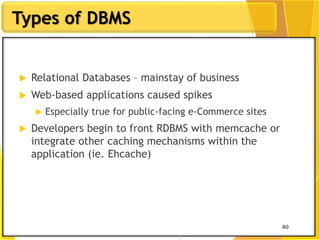

 Relational Databases – mainstay of business
 Web-based applications caused spikes
 Especially true for public-facing e-Commerce sites
 Developers begin to front RDBMS with memcache or
integrate other caching mechanisms within the
application (ie. Ehcache)

41

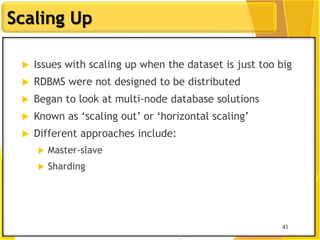

Scaling Up
41
 Issues with scaling up when the dataset is just too big
 RDBMS were not designed to be distributed
 Began to look at multi-node database solutions
 Known as „scaling out‟ or „horizontal scaling‟
 Different approaches include:
 Master-slave
 Sharding

42
Scaling RDBMS – Master/Slave
42
 Master-Slave
 All writes are written to the master. All
reads performed against the replicated
slave databases
 Critical reads may be incorrect as writes
may not have been propagated down
 Large data sets can pose problems as
master needs to duplicate data to slaves

43

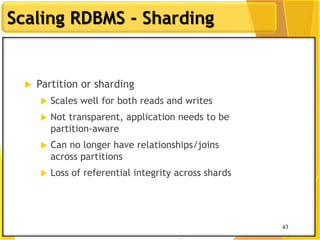

Scaling RDBMS - Sharding
43
 Partition or sharding
 Scales well for both reads and writes
 Not transparent, application needs to be
partition-aware
 Can no longer have relationships/joins
across partitions
 Loss of referential integrity across shards

44

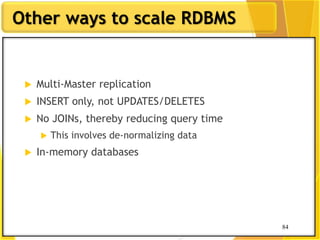

Other ways to scale RDBMS
44
 Multi-Master replication
 INSERT only, not UPDATES/DELETES
 No JOINs, thereby reducing query time
 This involves de-normalizing data
 In-memory databases

45

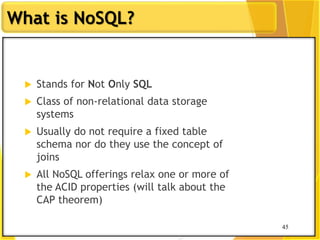

What is NoSQL?
45
 Stands for Not Only SQL
 Class of non-relational data storage
systems
 Usually do not require a fixed table
schema nor do they use the concept of
joins
 All NoSQL offerings relax one or more of
the ACID properties (will talk about the
CAP theorem)

46

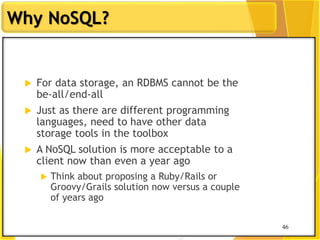

Why NoSQL?
46
 For data storage, an RDBMS cannot be the
be-all/end-all
 Just as there are different programming
languages, need to have other data
storage tools in the toolbox
 A NoSQL solution is more acceptable to a
client now than even a year ago
 Think about proposing a Ruby/Rails or
Groovy/Grails solution now versus a couple
of years ago

47

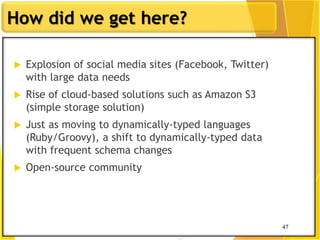

How did we get here?
47
 Explosion of social media sites (Facebook, Twitter)
with large data needs
 Rise of cloud-based solutions such as Amazon S3
(simple storage solution)
 Just as moving to dynamically-typed languages
(Ruby/Groovy), a shift to dynamically-typed data
with frequent schema changes
 Open-source community

48

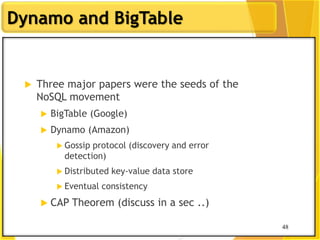

Dynamo and BigTable
48
 Three major papers were the seeds of the
NoSQL movement
 BigTable (Google)
 Dynamo (Amazon)
 Gossip protocol (discovery and error
detection)
 Distributed key-value data store
 Eventual consistency
 CAP Theorem (discuss in a sec ..)

49

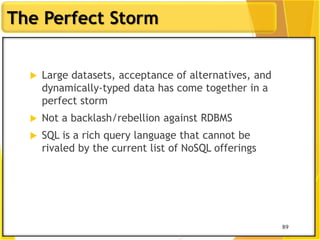

The Perfect Storm
49
 Large datasets, acceptance of alternatives, and
dynamically-typed data has come together in a
perfect storm
 Not a backlash/rebellion against RDBMS
 SQL is a rich query language that cannot be
rivaled by the current list of NoSQL offerings

50

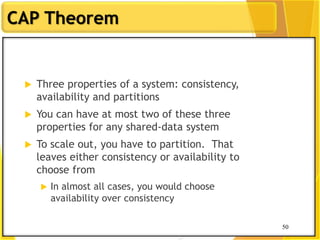

CAP Theorem
50
 Three properties of a system: consistency,
availability and partitions
 You can have at most two of these three
properties for any shared-data system
 To scale out, you have to partition. That
leaves either consistency or availability to
choose from
 In almost all cases, you would choose
availability over consistency

51

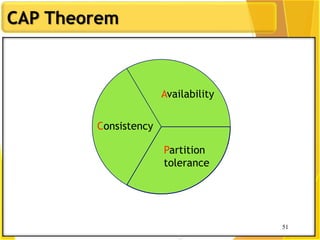

CAP Theorem
51
Consistency
Partition
tolerance
Availability

52

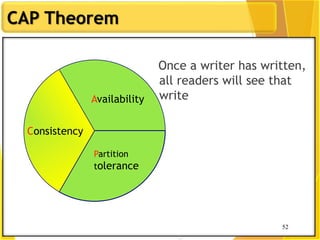

CAP Theorem
52
Once a writer has written,
all readers will see that
write
Consistency
Partition
tolerance
Availability

53

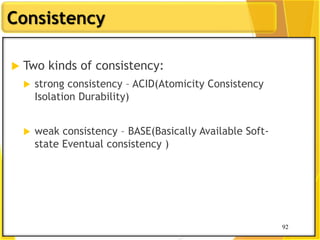

Consistency
53
 Two kinds of consistency:
 strong consistency – ACID(Atomicity Consistency
Isolation Durability)
 weak consistency – BASE(Basically Available Soft-
state Eventual consistency )

54
ACID Transactions
54
54
 A DBMS is expected to support “ACID transactions,”
processes that are:
 Atomic : Either the whole process is done or none is.
 Consistent : Database constraints are preserved.
 Isolated : It appears to the user as if only one process executes at
a time.
 Durable : Effects of a process do not get lost if the system
crashes.

55

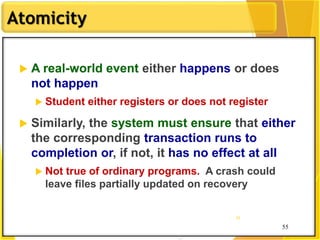

Atomicity
55
55
 A real-world event either happens or does
not happen
 Student either registers or does not register
 Similarly, the system must ensure that either
the corresponding transaction runs to
completion or, if not, it has no effect at all
 Not true of ordinary programs. A crash could
leave files partially updated on recovery

56

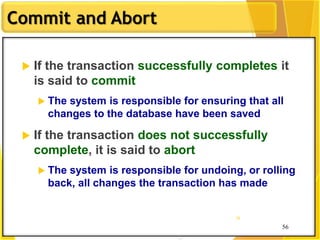

Commit and Abort
56
56
 If the transaction successfully completes it
is said to commit
 The system is responsible for ensuring that all
changes to the database have been saved
 If the transaction does not successfully
complete, it is said to abort
 The system is responsible for undoing, or rolling
back, all changes the transaction has made

57

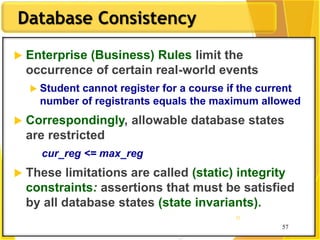

Database Consistency
57
57
 Enterprise (Business) Rules limit the
occurrence of certain real-world events
 Student cannot register for a course if the current
number of registrants equals the maximum allowed
 Correspondingly, allowable database states
are restricted
cur_reg <= max_reg
 These limitations are called (static) integrity
constraints: assertions that must be satisfied
by all database states (state invariants).

58
Database Consistency (state invariants)
58
58
 Other static consistency requirements are
related to the fact that the database might
store the same information in different ways
 cur_reg = |list_of_registered_students|
 Such limitations are also expressed as integrity
constraints
 Database is consistent if all static integrity
constraints are satisfied

59

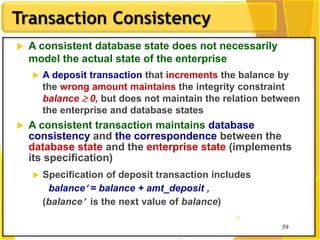

Transaction Consistency
59
59
 A consistent database state does not necessarily
model the actual state of the enterprise
 A deposit transaction that increments the balance by
the wrong amount maintains the integrity constraint
balance  0, but does not maintain the relation between
the enterprise and database states
 A consistent transaction maintains database
consistency and the correspondence between the
database state and the enterprise state (implements
its specification)
 Specification of deposit transaction includes
balance = balance + amt_deposit ,
(balance is the next value of balance)

60

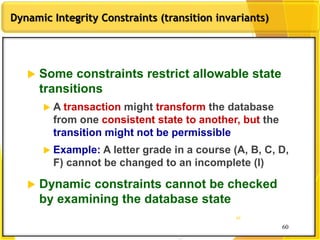

Dynamic Integrity Constraints (transition invariants)
60
60
 Some constraints restrict allowable state
transitions
 A transaction might transform the database
from one consistent state to another, but the
transition might not be permissible
 Example: A letter grade in a course (A, B, C, D,
F) cannot be changed to an incomplete (I)
 Dynamic constraints cannot be checked
by examining the database state

61

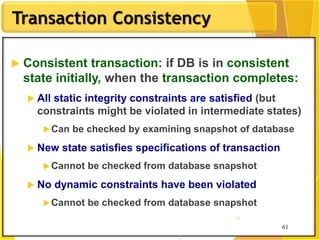

Transaction Consistency
61
61
 Consistent transaction: if DB is in consistent
state initially, when the transaction completes:
 All static integrity constraints are satisfied (but
constraints might be violated in intermediate states)
Can be checked by examining snapshot of database
 New state satisfies specifications of transaction
Cannot be checked from database snapshot
 No dynamic constraints have been violated
Cannot be checked from database snapshot

62

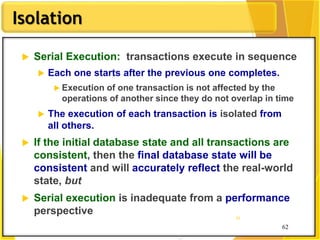

Isolation
62
62
 Serial Execution: transactions execute in sequence
 Each one starts after the previous one completes.
 Execution of one transaction is not affected by the
operations of another since they do not overlap in time
 The execution of each transaction is isolated from
all others.
 If the initial database state and all transactions are
consistent, then the final database state will be
consistent and will accurately reflect the real-world
state, but
 Serial execution is inadequate from a performance
perspective

63

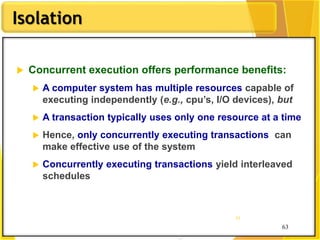

Isolation
63
63
 Concurrent execution offers performance benefits:
 A computer system has multiple resources capable of
executing independently (e.g., cpu’s, I/O devices), but
 A transaction typically uses only one resource at a time
 Hence, only concurrently executing transactions can
make effective use of the system
 Concurrently executing transactions yield interleaved
schedules

64

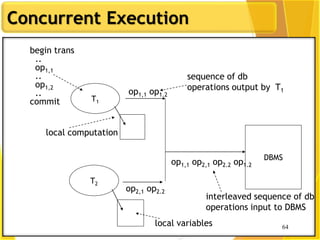

Concurrent Execution
64
T1
T2
DBMS
local computation
local variables
sequence of db
operations output by T1op1,1 op1.2
op2,1 op2.2
op1,1 op2,1 op2.2 op1.2
interleaved sequence of db
operations input to DBMS
begin trans
..
op1,1
..
op1,2
..
commit

65
Durability
65
65
 The system must ensure that once a transaction
commits, its effect on the database state is not
lost in spite of subsequent failures
 Not true of ordinary programs. A media failure after a
program successfully terminates could cause the file
system to be restored to a state that preceded the
program’s execution

66
Implementing Durability
66
 Database stored redundantly on mass storage
devices to protect against media failure
 Architecture of mass storage devices affects
type of media failures that can be tolerated
 Related to Availability: extent to which a
(possibly distributed) system can provide
service despite failure
 Non-stop DBMS (mirrored disks)
 Recovery based DBMS (log)

67

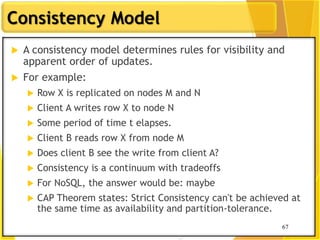

Consistency Model
67
 A consistency model determines rules for visibility and
apparent order of updates.
 For example:
 Row X is replicated on nodes M and N
 Client A writes row X to node N
 Some period of time t elapses.
 Client B reads row X from node M
 Does client B see the write from client A?
 Consistency is a continuum with tradeoffs
 For NoSQL, the answer would be: maybe
 CAP Theorem states: Strict Consistency can't be achieved at
the same time as availability and partition-tolerance.

68

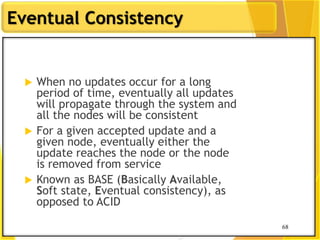

Eventual Consistency
68
 When no updates occur for a long
period of time, eventually all updates
will propagate through the system and
all the nodes will be consistent
 For a given accepted update and a
given node, eventually either the
update reaches the node or the node
is removed from service
 Known as BASE (Basically Available,
Soft state, Eventual consistency), as
opposed to ACID

69

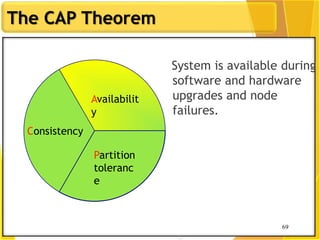

The CAP Theorem
69
System is available during
software and hardware
upgrades and node
failures.
Consistency
Partition
toleranc
e
Availabilit
y

70

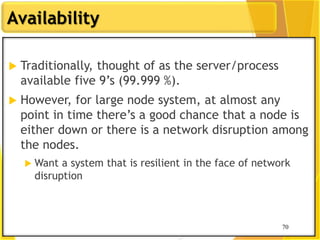

Availability
70
 Traditionally, thought of as the server/process
available five 9‟s (99.999 %).
 However, for large node system, at almost any
point in time there‟s a good chance that a node is
either down or there is a network disruption among
the nodes.
 Want a system that is resilient in the face of network
disruption

71

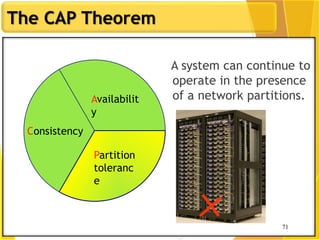

The CAP Theorem
71
A system can continue to
operate in the presence
of a network partitions.
Consistency
Partition
toleranc
e
Availabilit
y

72

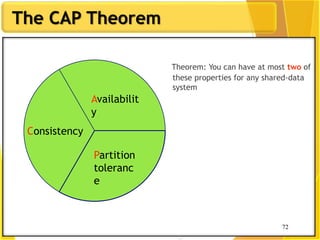

The CAP Theorem
72
Theorem: You can have at most two of
these properties for any shared-data
system
Consistency
Partition
toleranc
e
Availabilit
y

73

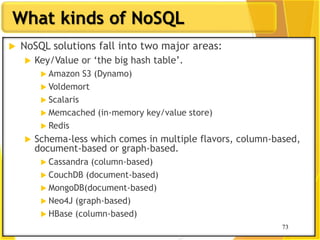

What kinds of NoSQL
73
 NoSQL solutions fall into two major areas:
 Key/Value or „the big hash table‟.
 Amazon S3 (Dynamo)
 Voldemort
 Scalaris
 Memcached (in-memory key/value store)
 Redis
 Schema-less which comes in multiple flavors, column-based,
document-based or graph-based.
 Cassandra (column-based)
 CouchDB (document-based)
 MongoDB(document-based)
 Neo4J (graph-based)
 HBase (column-based)

74

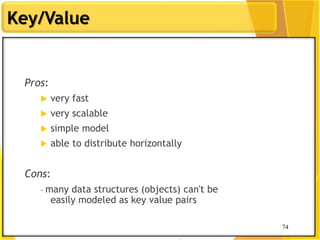

Key/Value
74
Pros:
 very fast
 very scalable
 simple model
 able to distribute horizontally
Cons:
- many data structures (objects) can't be
easily modeled as key value pairs

75

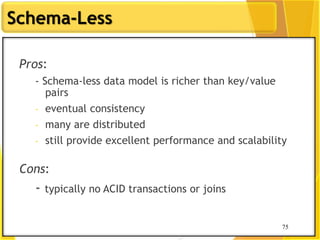

Schema-Less
75
Pros:
- Schema-less data model is richer than key/value
pairs
- eventual consistency
- many are distributed
- still provide excellent performance and scalability
Cons:
- typically no ACID transactions or joins

76
Common Advantages
76
 Cheap, easy to implement (open source)
 Data are replicated to multiple nodes (therefore identical and fault-tolerant)
and can be partitioned
 Down nodes easily replaced
 No single point of failure
 Easy to distribute
 Don't require a schema
 Can scale up and down
 Relax the data consistency requirement (CAP)

77
What am I giving up?
77
 joins
 group by
 order by
 ACID transactions
 SQL as a sometimes frustrating but still
powerful query language
 easy integration with other applications
that support SQL

79
Types of DBMS
79
 Hierarchical database
model resembles a tree structure, similar to a folder architecture in your computer system. The relationships between records are
pre-defined in a one to one manner, between 'parent and child' nodes. They require the user to pass a hierarchy in order to access
needed data. Due to limitations, such databases may be confined to specific uses. Discover more about hierarchical
 Network database
models also have a hierarchical structure. However, instead of using a single-parent tree hierarchy, this model supports many
to many relationships, as child tables can have more than one parent. See more on network databases
 NoSQL or non-relational databases
A popular alternative to relational databases, NoSQL databases take a variety of forms and allow you to store and manipulate
large amounts of unstructured and semi-structured data. Examples include key-value stores, document stores and graph
databases.
 A flat file database
A flat file database stores data in a plain text file, with each line of text typically holding one record.
Delimiters such as commas or tabs separate fields. A flat file database uses a simple structure and, unlike a
relational database, cannot contain multiple tables and relations.
 object-oriented database systems
in object-oriented databases, the information is represented as objects, with different types of relationships possible between
two or more objects. Such databases use an object-oriented programming language for development. Find out more about
object-

80
80
 Relational Databases – mainstay of business
 Web-based applications caused spikes
 Especially true for public-facing e-Commerce sites
 Developers begin to front RDBMS with memcache or
integrate other caching mechanisms within the
application (ie. Ehcache)
Types of DBMS

81
Scaling Up
81
 Issues with scaling up when the dataset is just too big
 RDBMS were not designed to be distributed
 Began to look at multi-node database solutions
 Known as „scaling out‟ or „horizontal scaling‟
 Different approaches include:
 Master-slave
 Sharding

82
Scaling RDBMS – Master/Slave
82
 Master-Slave
 All writes are written to the master. All
reads performed against the replicated
slave databases
 Critical reads may be incorrect as writes
may not have been propagated down
 Large data sets can pose problems as
master needs to duplicate data to slaves

83
Scaling RDBMS - Sharding
83
 Partition or sharding
 Scales well for both reads and writes
 Not transparent, application needs to be
partition-aware
 Can no longer have relationships/joins
across partitions
 Loss of referential integrity across shards

84
Other ways to scale RDBMS
84
 Multi-Master replication
 INSERT only, not UPDATES/DELETES
 No JOINs, thereby reducing query time
 This involves de-normalizing data
 In-memory databases

85
What is NoSQL?
85
 Stands for Not Only SQL
 RDBMS search mechanism is tuple wise
 When to use SQL: Schema, Consistency and transaction
 When to use NoSQL: Speed, Scalabilty,Flexibility
 Types of NoSql: Colum oriented, Document, Key value stored,Graph oriented,
 Class of non-relational data storage systems
 Usually do not require a fixed table schema nor do they use the concept of joins
 All NoSQL offerings relax one or more of the ACID properties (will talk about the CAP
theorem)
 Example of the user uses Samsung and iPhone ( if you want individual specific data
then SQL is preferred but if you want a data in bulk then you are preferring NoSQL
HBASE: Colum oriented

86
Why NoSQL?
86
 For data storage, an RDBMS cannot be the
be-all/end-all
 Just as there are different programming
languages, need to have other data
storage tools in the toolbox
 A NoSQL solution is more acceptable to a
client now than even a year ago
 Think about proposing a Ruby/Rails or
Groovy/Grails solution now versus a couple
of years ago

87
How did we get here?
87
 Explosion of social media sites (Facebook, Twitter)
with large data needs
 Rise of cloud-based solutions such as Amazon S3
(simple storage solution)
 Just as moving to dynamically-typed languages
(Ruby/Groovy), a shift to dynamically-typed data
with frequent schema changes
 Open-source community

88
Dynamo and BigTable
88
 Three major papers were the seeds of the
NoSQL movement
 BigTable (Google)
 Dynamo (Amazon)

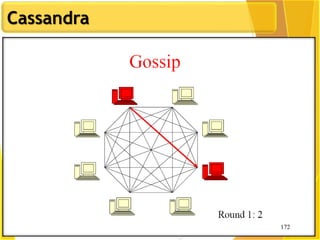

 Gossip protocol (discovery and error
detection)
 Distributed key-value data store
 CAP Theorem (discuss in a sec ..)

89
The Perfect Storm
89
 Large datasets, acceptance of alternatives, and
dynamically-typed data has come together in a
perfect storm
 Not a backlash/rebellion against RDBMS
 SQL is a rich query language that cannot be
rivaled by the current list of NoSQL offerings

90
CAP Theorem
90
 Three properties of a system: consistency,
availability and partitions
 You can have at most two of these three
properties for any shared-data system
 To scale out, you have to partition. That
leaves either consistency or availability to
choose from
 In almost all cases, you would choose
availability over consistency

91
CAP Theorem
91
Consistency
Partition
tolerance
Availability

92
Consistency
92
 Two kinds of consistency:
 strong consistency – ACID(Atomicity Consistency
Isolation Durability)
 weak consistency – BASE(Basically Available Soft-
state Eventual consistency )

93
93

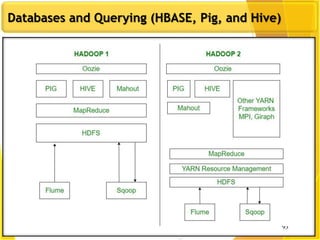

Databases and Querying (HBASE, Pig, and Hive)

94
HBASE
94
 As hadoop also can prosess the dataset then why do we require
HBASE?
Hadoop uses batch processing and sequential data access. Then for search of small data with specific
information we cannot go for one trillion tuples to be searched at once.
 IS NoSQL Column oriented/ Column family oriented
 But HABSE uses random data access permission. No need to
search dataset in a batch processing that Hadoop do.
 HA, Replication, Fault tolerance as it is installed on Hadoop it
provides all hadoop features
 When to use Hbase?
When small database size that is in MB of Gb then RDBMS with SQL. But if database is in TB/Peta Bytes the HBASE.
When you do not require Transaction, Rigid schema, Big queries, Complex joins, Speed, Scalability, Flexibility
Who are using HBASE?
Pinterest, Facebook, Adobe, Yahoo

95
HBASE
95
 A distributed data store that can scale horizontally to
1,000s of commodity servers and petabytes of indexed
storage.
 Designed to operate on top of the Hadoop distributed file
system (HDFS) or Kosmos File System (KFS, aka Cloudstore)
for scalability, fault tolerance, and high availability.
 Distributed storage
 Table-like in data structure
 multi-dimensional map
 High scalability
 High availability
 High performance

96
HBASE
96
 Started toward by Chad Walters and Jim
 2006.11
 Google releases paper on BigTable
 2007.2
 Initial HBase prototype created as Hadoop contrib.
 2007.10
 First useable HBase
 2008.1
 Hadoop become Apache top-level project and HBase becomes
subproject
 2008.10~
 HBase 0.18, 0.19 released

97
HBASE is not a…
97
 Tables have one primary index, the row key.
 No join operators.
 Limited atomicity and transaction support.
 HBase supports multiple batched mutations of single rows only.
 Data is unstructured and untyped.
 No accessed or manipulated via SQL.
 Programmatic access via Java, REST, or Thrift APIs.
 Scripting via JRuby.
 Scans and queries can select a subset of available columns, perhaps by using a
wildcard.
 There are three types of lookups:
 Fast lookup using row key and optional timestamp.
 Full table scan
 Range scan from region start to end.

98
HBASE Advantages
98
 No real indexes
 Automatic partitioning
 Scale linearly and automatically with new
nodes
 Commodity hardware
 Fault tolerance
 Batch processing

99

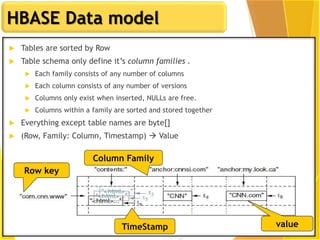

HBASE Data model
99
 Tables are sorted by Row
 Table schema only define it‟s column families .
 Each family consists of any number of columns
 Each column consists of any number of versions
 Columns only exist when inserted, NULLs are free.
 Columns within a family are sorted and stored together
 Everything except table names are byte[]
 (Row, Family: Column, Timestamp)  Value
Row key
Column Family
valueTimeStamp

100

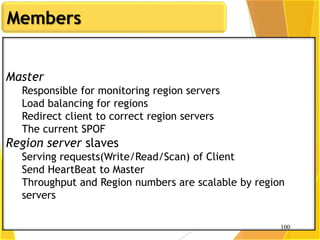

Members
Master
Responsible for monitoring region servers
Load balancing for regions
Redirect client to correct region servers
The current SPOF
Region server slaves
Serving requests(Write/Read/Scan) of Client
Send HeartBeat to Master
Throughput and Region numbers are scalable by region
servers
100

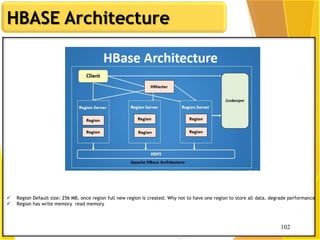

102
102
 Region Default size: 256 MB, once region full new region is created. Why not to have one region to store all data. degrade performance
 Region has write memory read memory

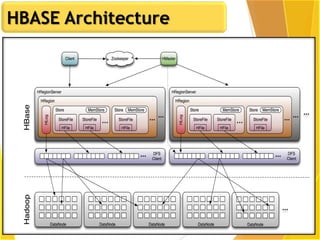

HBASE Architecture

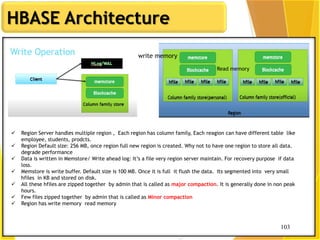

103
103
HBASE Architecture
 Region Server handles multiple region , Each region has column family, Each reagion can have different table like
employee, students, prodcts.
 Region Default size: 256 MB, once region full new region is created. Why not to have one region to store all data.
degrade performance
 Data is written in Memstore/ Write ahead log: It‟s a file very region server maintain. For recovery purpose if data
loss.
 Memstore is write buffer. Default size is 100 MB. Once it is full it flush the data. Its segmented into very small
hfiles in KB and stored on disk.
 All these hfiles are zipped together by admin that is called as major compaction. It is generally done in non peak
hours.
 Few files zipped together by admin that is called as Minor compaction
 Region has write memory read memory
write memory
Read memory

104
104

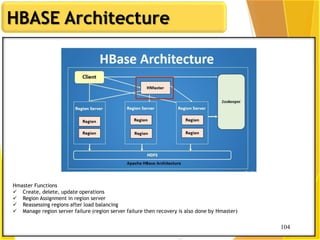

HBASE Architecture
Hmaster Functions
 Create, delete, update operations
 Region Assignment in region server
 Reassessing regions after load balancing
 Manage region server failure (region server failure then recovery is also done by Hmaster)

105
HBASE
105
Zookeeper Functions
 Active/ Inactive Hmaster, Region server ping/ Heart beat signal to zookeeper.
 If active Hmaster crashes it won‟t send the heartbeat signal then zookeeper activate inactive Hmaster
 Root table and meta tables are chandelled by zoo keeper
 Complete cluster management task is under zoo keeper.
 Root is only one and meta tables can be more ( Which data where, which region. Mestore, block cache .

106

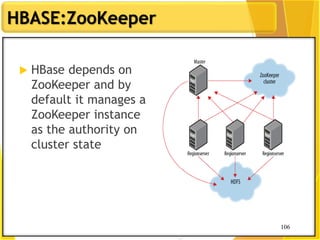

HBASE:ZooKeeper
106
 HBase depends on
ZooKeeper and by
default it manages a
ZooKeeper instance
as the authority on
cluster state

107
HBASE:ZooKeeper:Operation
107
The -ROOT-
table holds
the list
of .META.
table regions
The .META.
table holds the
list of all user-
space regions.

108

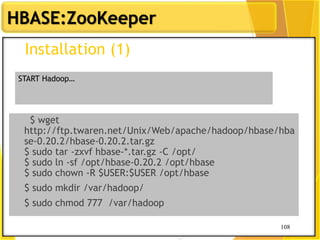

HBASE:ZooKeeper
108
Installation (1)
$ wget
http://ftp.twaren.net/Unix/Web/apache/hadoop/hbase/hba
se-0.20.2/hbase-0.20.2.tar.gz
$ sudo tar -zxvf hbase-*.tar.gz -C /opt/
$ sudo ln -sf /opt/hbase-0.20.2 /opt/hbase
$ sudo chown -R $USER:$USER /opt/hbase
$ sudo mkdir /var/hadoop/
$ sudo chmod 777 /var/hadoop
START Hadoop…

109
HBASE:ZooKeeper
109
Setup (1)
$ vim /opt/hbase/conf/hbase-env.sh
export JAVA_HOME=/usr/lib/jvm/java-6-sun
export HADOOP_CONF_DIR=/opt/hadoop/conf
export HBASE_HOME=/opt/hbase
export HBASE_LOG_DIR=/var/hadoop/hbase-logs
export HBASE_PID_DIR=/var/hadoop/hbase-pids
export HBASE_MANAGES_ZK=true
export HBASE_CLASSPATH=$HBASE_CLASSPATH:/opt/hadoop/conf
$ cd /opt/hbase/conf
$ cp /opt/hadoop/conf/core-site.xml ./
$ cp /opt/hadoop/conf/hdfs-site.xml ./
$ cp /opt/hadoop/conf/mapred-site.xml ./

110

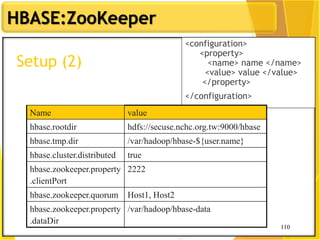

HBASE:ZooKeeper
110
Setup (2)
<configuration>
<property>
<name> name </name>
<value> value </value>
</property>
</configuration>
Name value
hbase.rootdir hdfs://secuse.nchc.org.tw:9000/hbase
hbase.tmp.dir /var/hadoop/hbase-${user.name}
hbase.cluster.distributed true
hbase.zookeeper.property
.clientPort
2222
hbase.zookeeper.quorum Host1, Host2
hbase.zookeeper.property
.dataDir
/var/hadoop/hbase-data

111
HBASE
111

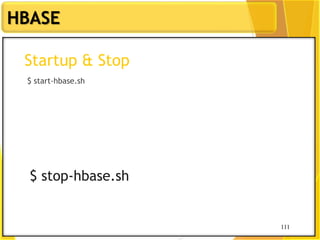

Startup & Stop
$ start-hbase.sh
$ stop-hbase.sh

112
HBASE
112
Testing (4)
$ hbase shell
> create 'test', 'data'
0 row(s) in 4.3066 seconds
> list
test
> put 'test', 'row1', 'data:1', 'value1'
> scan 'test'
ROW COLUMN+CELL
row1 column=data:1, timestamp=1240148026198, value=value1
> disable 'test'
09/04/19 06:40:13 INFO client.HBaseAdmin: Disabled test
> drop 'test'
09/04/19 06:40:17 INFO client.HBaseAdmin: Deleted test
> list

113
HBASE
113

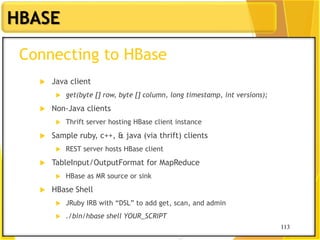

Connecting to HBase
 Java client
 get(byte [] row, byte [] column, long timestamp, int versions);
 Non-Java clients
 Thrift server hosting HBase client instance
 Sample ruby, c++, & java (via thrift) clients
 REST server hosts HBase client
 TableInput/OutputFormat for MapReduce
 HBase as MR source or sink
 HBase Shell
 JRuby IRB with “DSL” to add get, scan, and admin
 ./bin/hbase shell YOUR_SCRIPT

114
HBASE
114
Thrift
 a software framework for scalable cross-language
services development.
 By facebook
 seamlessly between C++, Java, Python, PHP, and Ruby.
 This will start the server instance, by default on port
9090
 The other similar project “rest”
$ hbase-daemon.sh start thrift
$ hbase-daemon.sh stop thrift

115
Hive
115

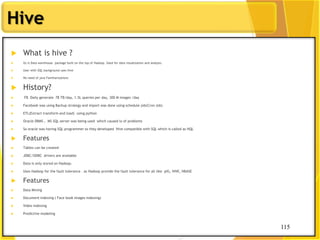

 What is hive ?
 Its is Data warehouse package built on the top of Hadoop. Used for data visualization and analysis.
 User with SQL background uses hive
 No need of java Familiarizations
 History?
 FB Daily generate 78 TB/day, 1.5L queries per day, 300 M images /day
 Facebook was using Backup strategy and import was done using schedule job(Cron Job)
 ETL(Extract transform and load) using python
 Oracle DBMS , MS SQL server was being used which caused lo of problems
 So oracle was having SQL programmer so they developed Hive compatible with SQL which is called as HQL
 Features
 Tables can be created
 JDBC/ODBC drivers are available
 Data is only stored on Hadoop.
 Uses Hadoop for the fault tolerance . as Hadoop provide the fault tolerance for all like pIG, HIVE, HBASE
 Features
 Data Mining
 Document indexing ( Face book images indexing)
 Video indexing
 Predictive modeling

116
Hive
116

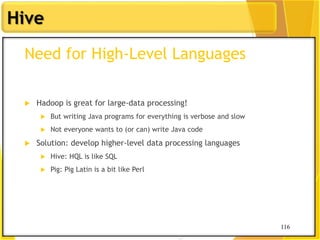

Need for High-Level Languages
 Hadoop is great for large-data processing!
 But writing Java programs for everything is verbose and slow
 Not everyone wants to (or can) write Java code
 Solution: develop higher-level data processing languages
 Hive: HQL is like SQL
 Pig: Pig Latin is a bit like Perl

117
Hive
117

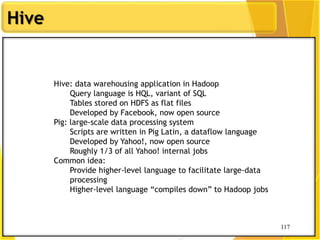

Hive: data warehousing application in Hadoop
Query language is HQL, variant of SQL
Tables stored on HDFS as flat files
Developed by Facebook, now open source
Pig: large-scale data processing system
Scripts are written in Pig Latin, a dataflow language
Developed by Yahoo!, now open source
Roughly 1/3 of all Yahoo! internal jobs
Common idea:
Provide higher-level language to facilitate large-data
processing
Higher-level language “compiles down” to Hadoop jobs

118
Hive
118
Hive: Example
 Hive looks similar to an SQL database
 Relational join on two tables:
 Table of word counts from Shakespeare collection
 Table of word counts from the bible
Source: Material drawn from Cloudera training VM
SELECT s.word, s.freq, k.freq FROM shakespeare s
JOIN bible k ON (s.word = k.word) WHERE s.freq >= 1 AND k.freq >= 1
ORDER BY s.freq DESC LIMIT 10;
the 25848 62394
I 23031 8854
and 19671 38985
to 18038 13526
of 16700 34654
a 14170 8057
you 12702 2720
my 11297 4135
in 10797 12445
is 8882 6884

119
Hive
119

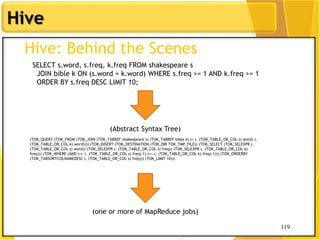

Hive: Behind the Scenes
SELECT s.word, s.freq, k.freq FROM shakespeare s
JOIN bible k ON (s.word = k.word) WHERE s.freq >= 1 AND k.freq >= 1
ORDER BY s.freq DESC LIMIT 10;
(TOK_QUERY (TOK_FROM (TOK_JOIN (TOK_TABREF shakespeare s) (TOK_TABREF bible k) (= (. (TOK_TABLE_OR_COL s) word) (.
(TOK_TABLE_OR_COL k) word)))) (TOK_INSERT (TOK_DESTINATION (TOK_DIR TOK_TMP_FILE)) (TOK_SELECT (TOK_SELEXPR (.
(TOK_TABLE_OR_COL s) word)) (TOK_SELEXPR (. (TOK_TABLE_OR_COL s) freq)) (TOK_SELEXPR (. (TOK_TABLE_OR_COL k)
freq))) (TOK_WHERE (AND (>= (. (TOK_TABLE_OR_COL s) freq) 1) (>= (. (TOK_TABLE_OR_COL k) freq) 1))) (TOK_ORDERBY
(TOK_TABSORTCOLNAMEDESC (. (TOK_TABLE_OR_COL s) freq))) (TOK_LIMIT 10)))
(one or more of MapReduce jobs)
(Abstract Syntax Tree)

120

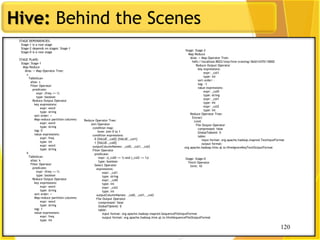

Hive: Behind the Scenes
120
STAGE DEPENDENCIES:
Stage-1 is a root stage
Stage-2 depends on stages: Stage-1
Stage-0 is a root stage
STAGE PLANS:
Stage: Stage-1
Map Reduce
Alias -> Map Operator Tree:
s
TableScan
alias: s
Filter Operator
predicate:
expr: (freq >= 1)
type: boolean
Reduce Output Operator
key expressions:
expr: word
type: string
sort order: +
Map-reduce partition columns:
expr: word
type: string
tag: 0
value expressions:
expr: freq
type: int
expr: word
type: string
k
TableScan
alias: k
Filter Operator
predicate:
expr: (freq >= 1)
type: boolean
key expressions:
expr: word
type: string
sort order: +
Map-reduce partition columns:
expr: word
type: string
tag: 1
value expressions:
expr: freq
type: int
Reduce Operator Tree:
Join Operator
condition map:
Inner Join 0 to 1
condition expressions:
0 {VALUE._col0} {VALUE._col1}
1 {VALUE._col0}
outputColumnNames: _col0, _col1, _col2
Filter Operator
predicate:
expr: ((_col0 >= 1) and (_col2 >= 1))
type: boolean
Select Operator
expressions:
expr: _col1
type: string
expr: _col0
type: int
expr: _col2
type: int
outputColumnNames: _col0, _col1, _col2
File Output Operator
compressed: false
GlobalTableId: 0
table:
input format: org.apache.hadoop.mapred.SequenceFileInputFormat
output format: org.apache.hadoop.hive.ql.io.HiveSequenceFileOutputFormat
Stage: Stage-2
Map Reduce
Alias -> Map Operator Tree:
hdfs://localhost:8022/tmp/hive-training/364214370/10002
key expressions:
expr: _col1
type: int
sort order: -
tag: -1
value expressions:
expr: _col0
type: string
expr: _col1
type: int
expr: _col2
type: int
Reduce Operator Tree:
Extract
Limit
File Output Operator
compressed: false
GlobalTableId: 0
table:
input format: org.apache.hadoop.mapred.TextInputFormat
output format:
org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat
Stage: Stage-0
Fetch Operator
limit: 10

121
Hive
121
Example Data Analysis Task
user url time
Amy www.cnn.com 8:00
Amy www.crap.com 8:05
Amy www.myblog.com 10:00
Amy www.flickr.com 10:05
Fred cnn.com/index.htm 12:00
url pagerank
www.cnn.com 0.9
www.flickr.com 0.9
www.myblog.com 0.7
www.crap.com 0.2
Find users who tend to visit “good” pages.
PagesVisits
...
...
Pig Slides adapted from Olston et al.

122
Hive
122

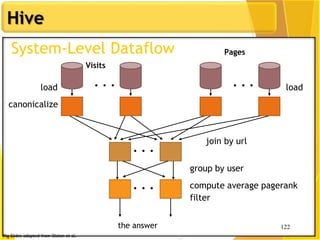

System-Level Dataflow
. . . . . .
Visits
Pages
...
... join by url
the answer
loadload
canonicalize
compute average pagerank
filter
group by user
Pig Slides adapted from Olston et al.

123

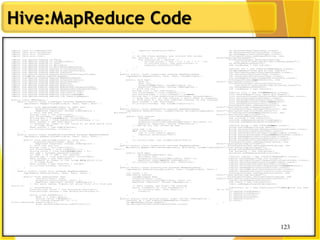

Hive:MapReduce Code
123
i m p o r t j a v a . i o . I O E x c e p t i o n ;
i m p o r t j a v a . u t i l . A r r a y L i s t ;
i m p o r t j a v a . u t i l . I t e r a t o r ;
i m p o r t j a v a . u t i l . L i s t ;
i m p o r t o r g . a p a c h e . h a d o o p . f s . P a t h ;
i m p o r t o r g . a p a c h e . h a d o o p . i o . L o n g W r i t a b l e ;
i m p o r t o r g . a p a c h e . h a d o o p . i o . T e x t ;
i m p o r t o r g . a p a c h e . h a d o o p . i o . W r i t a b l e ;
im p o r t o r g . a p a c h e . h a d o o p . i o . W r i t a b l e C o m p a r a b l e ;
i m p o r t o r g . a p a c h e . h a d o o p . m a p r e d . F i l e I n p u t F o r m a t ;
i m p o r t o r g . a p a c h e . h a d o o p . m a p r e d . F i l e O u t p u t F o r m a t ;
i m p o r t o r g . a p a c h e . h a d o o p . m a p r e d . J o b C o n f ;
i m p o r t o r g . a p a c h e . h a d o o p . m a p r e d . K e y V a l u e T e x t I n p u t F o r m a t ;
i m p o r t o r g . ap a c h e . h a d o o p . m a p r e d . M a p p e r ;
i m p o r t o r g . a p a c h e . h a d o o p . m a p r e d . M a p R e d u c e B a s e ;
i m p o r t o r g . a p a c h e . h a d o o p . m a p r e d . O u t p u t C o l l e c t o r ;
i m p o r t o r g . a p a c h e . h a d o o p . m a p r e d . R e c o r d R e a d e r ;
i m p o r t o r g . a p a c h e . h a d o o p . m a p r e d . R e d u c e r ;
i m p o r t o r g . a p a c h e . h a d o o p . m a p r e d . R e p o r t e r ;
i m po r t o r g . a p a c h e . h a d o o p . m a p r e d . S e q u e n c e F i l e I n p u t F o r m a t ;
i m p o r t o r g . a p a c h e . h a d o o p . m a p r e d . S e q u e n c e F i l e O u t p u t F o r m a t ;
i m p o r t o r g . a p a c h e . h a d o o p . m a p r e d . T e x t I n p u t F o r m a t ;
i m p o r t o r g . a p a c h e . h a d o o p . m a p r e d . j o b c o n t r o l . J o b ;
i m p o r t o r g . a p a c h e . h a d o o p . m a p r e d . j o b c o n t r o l . J o b Co n t r o l ;
i m p o r t o r g . a p a c h e . h a d o o p . m a p r e d . l i b . I d e n t i t y M a p p e r ;
p u b l i c c l a s s M R E x a m p l e {
p u b l i c s t a t i c c l a s s L o a d P a g e s e x t e n d s M a p R e d u c e B a s e
i m p l e m e n t s M a p p e r < L o n g W r i t a b l e , T e x t , T e x t , T e x t > {
p u b l i c v o i d m a p ( L o n g W r i t a b l e k , T e x t v a l ,
O u t p u t C o l l e c t o r < T e x t , T e x t > o c ,
R e p o r t e r r e p o r t e r ) t h r o w s I O E x c e p t i o n {
/ / P u l l t h e k e y o u t
S t r i n g l i n e = v a l . t o S t r i n g ( ) ;
i n t f i r s t C o m m a = l i n e . i n d e x O f ( ' , ' ) ;
S t r i n g k e y = l i n e . s u bs t r i n g ( 0 , f i r s t C o m m a ) ;
S t r i n g v a l u e = l i n e . s u b s t r i n g ( f i r s t C o m m a + 1 ) ;
T e x t o u t K e y = n e w T e x t ( k e y ) ;
/ / P r e p e n d a n i n d e x t o t h e v a l u e s o w e k n o w w h i c h f i l e
/ / i t c a m e f r o m .
T e x t o u t V a l = n e w T e x t ( " 1" + v a l u e ) ;
o c . c o l l e c t ( o u t K e y , o u t V a l ) ;
}
}
p u b l i c s t a t i c c l a s s L o a d A n d F i l t e r U s e r s e x t e n d s M a p R e d u c e B a s e
i m p l e m e n t s M a p p e r < L o n g W r i t a b l e , T e x t , T e x t , T e x t > {
p u b l i c v o i d m a p ( L o n g W r i t a b l e k , T e x t v a l ,
/ / P u l l t h e k e y o u t
S t r i n g v a l u e = l i n e . s u b s t r i n g (f i r s t C o m m a + 1 ) ;
i n t a g e = I n t e g e r . p a r s e I n t ( v a l u e ) ;
i f ( a g e < 1 8 | | a g e > 2 5 ) r e t u r n ;
S t r i n g k e y = l i n e . s u b s t r i n g ( 0 , f i r s t C o m m a ) ;
/ / P r e p e n d a n i n d e x t o t h e v a l u e s o we k n o w w h i c h f i l e
/ / i t c a m e f r o m .
T e x t o u t V a l = n e w T e x t ( " 2 " + v a l u e ) ;
o c . c o l l e c t ( o u t K e y , o u t V a l ) ;
}
}
p u b l i c s t a t i c c l a s s J o i n e x t e n d s M a p R e d u c e B a s e
i m p l e m e n t s R e d u c e r < T e x t , T e x t , T e x t , T e x t > {
p u b l i c v o i d r e d u c e ( T e x t k e y ,
I t e r a t o r < T e x t > i t e r ,
/ / F o r e a c h v a l u e , f i g u r e o u t w h i c h f i l e i t ' s f r o m a n d
s t o r e i t
/ / a c c o r d i n g l y .
L i s t < S t r i n g > f i r s t = n e w A r r a y L i s t < S t r i n g > ( ) ;
L i s t < S t r i n g > s e c o n d = n e w A r r a y L i s t < S t r i n g > ( ) ;
w h i l e ( i t e r . h a s N e x t ( ) ) {
T e x t t = i t e r . n e x t ( ) ;
S t r i n g v a l u e = t . t oS t r i n g ( ) ;
i f ( v a l u e . c h a r A t ( 0 ) = = ' 1 ' )
f i r s t . a d d ( v a l u e . s u b s t r i n g ( 1 ) ) ;
e l s e s e c o n d . a d d ( v a l u e . s u b s t r i n g ( 1 ) ) ;
r e p o r t e r . s e t S t a t u s ( " O K " ) ;
}
/ / D o t h e c r o s s p r o d u c t a n d c o l l e c t t h e v a l u e s
f o r ( S t r i n g s 1 : f i r s t ) {
f o r ( S t r i n g s 2 : s e c o n d ) {
S t r i n g o u t v a l = k e y + " , " + s 1 + " , " + s 2 ;
o c . c o l l e c t ( n u l l , n e w T e x t ( o u t v a l ) ) ;
}
}
}
}
p u b l i c s t a t i c c l a s s L o a d J o i n e d e x t e n d s M a p R e d u c e B a s e
i m p l e m e n t s M a p p e r < T e x t , T e x t , T e x t , L o n g W r i t a b l e > {
p u b l i c v o i d m a p (
T e x t k ,
T e x t v a l ,
O u t p u t C o l l ec t o r < T e x t , L o n g W r i t a b l e > o c ,
/ / F i n d t h e u r l
i n t s e c o n d C o m m a = l i n e . i n d e x O f ( ' , ' , f i r s tC o m m a ) ;
S t r i n g k e y = l i n e . s u b s t r i n g ( f i r s t C o m m a , s e c o n d C o m m a ) ;
/ / d r o p t h e r e s t o f t h e r e c o r d , I d o n ' t n e e d i t a n y m o r e ,
/ / j u s t p a s s a 1 f o r t h e c o m b i n e r / r e d u c e r t o s u m i n s t e a d .
o c . c o l l e c t ( o u t K e y , n e w L o n g W r i t a b l e ( 1 L ) ) ;
}
}
p u b l i c s t a t i c c l a s s R e d u c e U r l s e x t e n d s M a p R e d u c e B a s e
i m p l e m e n t s R e d u c e r < T e x t , L o n g W r i t a b l e , W r i t a b l e C o m p a r a b l e ,
W r i t a b l e > {
p u b l i c v o i d r e d u c e (
T e x t k ey ,
I t e r a t o r < L o n g W r i t a b l e > i t e r ,
O u t p u t C o l l e c t o r < W r i t a b l e C o m p a r a b l e , W r i t a b l e > o c ,
/ / A d d u p a l l t h e v a l u e s w e s e e
l o n g s u m = 0 ;
w hi l e ( i t e r . h a s N e x t ( ) ) {
s u m + = i t e r . n e x t ( ) . g e t ( ) ;
}
o c . c o l l e c t ( k e y , n e w L o n g W r i t a b l e ( s u m ) ) ;
}
}
p u b l i c s t a t i c c l a s s L o a d C l i c k s e x t e n d s M a p R e d u c e B a s e
im p l e m e n t s M a p p e r < W r i t a b l e C o m p a r a b l e , W r i t a b l e , L o n g W r i t a b l e ,
T e x t > {
p u b l i c v o i d m a p (
W r i t a b l e C o m p a r a b l e k e y ,
W r i t a b l e v a l ,
O u t p u t C o l l e c t o r < L o n g W r i t a b l e , T e x t > o c ,
R e p o r t e r r e p o r t e r )t h r o w s I O E x c e p t i o n {
o c . c o l l e c t ( ( L o n g W r i t a b l e ) v a l , ( T e x t ) k e y ) ;
}
}
p u b l i c s t a t i c c l a s s L i m i t C l i c k s e x t e n d s M a p R e d u c e B a s e
i m p l e m e n t s R e d u c e r < L o n g W r i t a b l e , T e x t , L o n g W r i t a b l e , T e x t > {
i n t c o u n t = 0 ;
p u b l i cv o i d r e d u c e (
L o n g W r i t a b l e k e y ,
I t e r a t o r < T e x t > i t e r ,
O u t p u t C o l l e c t o r < L o n g W r i t a b l e , T e x t > o c ,
/ / O n l y o u t p u t t h e f i r s t 1 0 0 r e c o r d s
w h i l e ( c o u n t< 1 0 0 & & i t e r . h a s N e x t ( ) ) {
o c . c o l l e c t ( k e y , i t e r . n e x t ( ) ) ;
c o u n t + + ;
}
}
}
p u b l i c s t a t i c v o i d m a i n ( S t r i n g [ ] a r g s ) t h r o w s I O E x c e p t i o n {
J o b C o n f l p = n e w J o b C o n f ( M R E x a m p l e . c l a s s ) ;
l p . s et J o b N a m e ( " L o a d P a g e s " ) ;
l p . s e t I n p u t F o r m a t ( T e x t I n p u t F o r m a t . c l a s s ) ;
l p . s e t O u t p u t K e y C l a s s ( T e x t . c l a s s ) ;
l p . s e t O u t p u t V a l u e C l a s s ( T e x t . c l a s s ) ;
l p . s e t M a p p e r C l a s s ( L o a d P a g e s . c l a s s ) ;
F i l e I n p u t F o r m a t . a d d I n p u t P a t h ( l p , n e w
P a t h ( " /u s e r / g a t e s / p a g e s " ) ) ;
F i l e O u t p u t F o r m a t . s e t O u t p u t P a t h ( l p ,
n e w P a t h ( " / u s e r / g a t e s / t m p / i n d e x e d _ p a g e s " ) ) ;
l p . s e t N u m R e d u c e T a s k s ( 0 ) ;
J o b l o a d P a g e s = n e w J o b ( l p ) ;
J o b C o n f l f u = n e w J o b C o n f ( M R E x a m p l e . c l a s s ) ;
l f u . se t J o b N a m e ( " L o a d a n d F i l t e r U s e r s " ) ;
l f u . s e t I n p u t F o r m a t ( T e x t I n p u t F o r m a t . c l a s s ) ;
l f u . s e t O u t p u t K e y C l a s s ( T e x t . c l a s s ) ;
l f u . s e t O u t p u t V a l u e C l a s s ( T e x t . c l a s s ) ;
l f u . s e t M a p p e r C l a s s ( L o a d A n d F i l t e r U s e r s . c l a s s ) ;
F i l e I n p u t F o r m a t . a d dI n p u t P a t h ( l f u , n e w
P a t h ( " / u s e r / g a t e s / u s e r s " ) ) ;
F i l e O u t p u t F o r m a t . s e t O u t p u t P a t h ( l f u ,
n e w P a t h ( " / u s e r / g a t e s / t m p / f i l t e r e d _ u s e r s " ) ) ;
l f u . s e t N u m R e d u c e T a s k s ( 0 ) ;
J o b l o a d U s e r s = n e w J o b ( l f u ) ;
J o b C o n f j o i n = n e w J o b C o n f (M R E x a m p l e . c l a s s ) ;
j o i n . s e t J o b N a m e ( " J o i n U s e r s a n d P a g e s " ) ;
j o i n . s e t I n p u t F o r m a t ( K e y V a l u e T e x t I n p u t F o r m a t . c l a s s ) ;
j o i n . s e t O u t p u t K e y C l a s s ( T e x t . c l a s s ) ;
j o i n . s e t O u t p u t V a l u e C l a s s ( T e x t . c l a s s ) ;
j o i n . s e t M a p p e r C l a s s ( I d e n t i t y M a pp e r . c l a s s ) ;
j o i n . s e t R e d u c e r C l a s s ( J o i n . c l a s s ) ;
F i l e I n p u t F o r m a t . a d d I n p u t P a t h ( j o i n , n e w
P a t h ( " / u s e r / g a t e s / t m p / i n d e x e d _ p a g e s " ) ) ;
F i l e I n p u t F o r m a t . a d d I n p u t P a t h ( j o i n , n e w
P a t h ( " / u s e r / g a t e s / t m p / f i l t e r e d _ u s e r s " ) ) ;
F i l e O u t p u t F o r m a t . s et O u t p u t P a t h ( j o i n , n e w
P a t h ( " / u s e r / g a t e s / t m p / j o i n e d " ) ) ;
j o i n . s e t N u m R e d u c e T a s k s ( 5 0 ) ;
J o b j o i n J o b = n e w J o b ( j o i n ) ;
j o i n J o b . a d d D e p e n d i n g J o b ( l o a d P a g e s ) ;
j o i n J o b . a d d D e p e n d i n g J o b ( l o a d U s e r s ) ;
J o b C o n f g r o u p = n e w J o b C o n f ( M R Ex a m p l e . c l a s s ) ;
g r o u p . s e t J o b N a m e ( " G r o u p U R L s " ) ;
g r o u p . s e t I n p u t F o r m a t ( K e y V a l u e T e x t I n p u t F o r m a t . c l a s s ) ;
g r o u p . s e t O u t p u t K e y C l a s s ( T e x t . c l a s s ) ;
g r o u p . s e t O u t p u t V a l u e C l a s s ( L o n g W r i t a b l e . c l a s s ) ;
g r o u p . s e t O u t p u t F o r m a t ( S e q u e n c e F il e O u t p u t F o r m a t . c l a s s ) ;
g r o u p . s e t M a p p e r C l a s s ( L o a d J o i n e d . c l a s s ) ;
g r o u p . s e t C o m b i n e r C l a s s ( R e d u c e U r l s . c l a s s ) ;
g r o u p . s e t R e d u c e r C l a s s ( R e d u c e U r l s . c l a s s ) ;
F i l e I n p u t F o r m a t . a d d I n p u t P a t h ( g r o u p , n e w
P a t h ( " / u s e r / g a t e s / t m p / j o i n e d " ) ) ;
F i l e O u t p u t F o r m a t . s e t O u t p u t P a t h ( g r o u p , n e w
P a t h ( " / u s e r / g a t e s / t m p / g r o u p e d " ) ) ;
g r o u p . s e t N u m R e d u c e T a s k s ( 5 0 ) ;
J o b g r o u p J o b = n e w J o b ( g r o u p ) ;
g r o u p J o b . a d d D e p e n d i n g J o b ( j o i n J o b ) ;
J o b C o n f t o p 1 0 0 = n e w J o b C o n f ( M R E x a m p l e . c l a s s ) ;
t o p 1 0 0 . s e t J o b N a m e ( " T o p 1 0 0 s i t e s " ) ;
t o p 1 0 0 . s e t I n p u t F o r m a t ( S e q u e n c e F i l e I n p u t F o r m a t . c l a s s ) ;
t o p 1 0 0 . s e t O u t p u t K e y C l a s s ( L o n g W r i t a b l e . c l a s s ) ;
t o p 1 0 0 . s e t O u t p u t V a l u e C l a s s ( T e x t . c l a s s ) ;
t o p 1 0 0 . s e t O u t p u t F o r m a t ( S e q u e n c e F i l e O u t p u t Fo r m a t . c l a s s ) ;
t o p 1 0 0 . s e t M a p p e r C l a s s ( L o a d C l i c k s . c l a s s ) ;
t o p 1 0 0 . s e t C o m b i n e r C l a s s ( L i m i t C l i c k s . c l a s s ) ;
t o p 1 0 0 . s e t R e d u c e r C l a s s ( L i m i t C l i c k s . c l a s s ) ;
F i l e I n p u t F o r m a t . a d d I n p u t P a t h ( t o p 1 0 0 , n e w
P a t h ( " / u s e r / g a t e s / t m p / g r o u p e d " ) ) ;
F i l e O u t p u t F o r m a t . s e t O u t p u t P a t h ( t o p 1 0 0 , n e w
P a t h ( " / u s e r / g a t e s / t o p 1 0 0 s i t e s f o r u s e r s 1 8 t o 2 5 " ) ) ;
t o p 1 0 0 . s e t N u m R e d u c e T a s k s ( 1 ) ;
J o b l i m i t = n e w J o b ( t o p 1 0 0 ) ;
l i m i t . a d d D e p e n d i n g J o b ( g r o u p J o b ) ;
J o b C o n t r o l j c = n e w J o b C o n t r o l ( " F i n d t o p1 0 0 s i t e s f o r u s e r s
1 8 t o 2 5 " ) ;
j c . a d d J o b ( l o a d P a g e s ) ;
j c . a d d J o b ( l o a d U s e r s ) ;
j c . a d d J o b ( j o i n J o b ) ;
j c . a d d J o b ( g r o u p J o b ) ;
j c . a d d J o b ( l i m i t ) ;
j c . r u n ( ) ;
}
}

124
Hive
124
Data Flows
 Moving HBase data
HBase Prod
Imported in parallel into
HBase MRCopyTable MR job
Read in parallel
* HBase replication currently only works for a single slave cluster, in our case HBase
replicates to a backup cluster.

125
Hive Architecture
125
 Command line interface/ Hive web interface/ Thrift server are used to access hive or firing query
 If you want to access hive on other machine you can access using thrift sever using C, C++, Java that is
cross language interface.
 Metadata of tables and hive meta data is stored in metastore .
 Meta store types: Embeded metastore (Driver- MS(Meta store)-Derby), Local Metastore (Driver- My SQL),
Remote meatstore (Driver- My SQL),
 Its is Data warehouse package built on the top of Hadoop. Used for data visualization and analysis.
 User with SQL background uses hive
 No need of java Familiarizations
 Limitations: Donot use for row level updates, Latency of Hive queries are high, Not designed for OLTP(insert update delete)

128
Hive Data Model
128
Database: path: user/warehouse/hive its folder is created :
Table: Table created employee then folder is created in database folder:
Partition: Date wise portioning is created under table folder , So the searching becomes faster.
Buckets or clusters:Similar data allocated together depending on the has value.
Types of Tables: Internal and external

129
PIG
129
Developed by:
 Abstraction of for large datasets.
Why pig?
No need of Java.
 Code reducibility
Multi query approach
Provides nested data types

130
PIG
130
Pig Latin Script
Visits = load ‘/data/visits’ as (user, url, time);
Visits = foreach Visits generate user, Canonicalize(url), time;
Pages = load ‘/data/pages’ as (url, pagerank);
VP = join Visits by url, Pages by url;
UserVisits = group VP by user;
UserPageranks = foreach UserVisits generate user, AVG(VP.pagerank) as avgpr;
GoodUsers = filter UserPageranks by avgpr > ‘0.5’;
store GoodUsers into '/data/good_users';

131
PIG
131
Java vs. Pig Latin
0
20
40
60
80
100
120
140
160
180
Hadoop Pig
1/20 the lines of code
0
50
100
150
200
250
300
Hadoop PigMinutes
1/16 the development time
Performance on par with raw Hadoop!

132
PIG
132
Pig takes care of…
 Schema and type checking
 Translating into efficient physical dataflow
 (i.e., sequence of one or more MapReduce jobs)
 Exploiting data reduction opportunities
 (e.g., early partial aggregation via a combiner)
 Executing the system-level dataflow
 (i.e., running the MapReduce jobs)
 Tracking progress, errors, etc.

133
PIG
133
Integration
 Reasons to use Hive on HBase:
 A lot of data sitting in HBase due to its usage in a real-time
environment, but never used for analysis
 Give access to data in HBase usually only queried through
MapReduce to people that don‟t code (business analysts)
 When needing a more flexible storage solution, so that rows
can be updated live by either a Hive job or an application and
can be seen immediately to the other
 Reasons not to do it:
 Run SQL queries on HBase to answer live user requests (it‟s
still a MR job)
 Hoping to see interoperability with other SQL analytics systems

134
PIG
134
Integration
 How it works:
 Hive can use tables that already exist in HBase or manage
its own ones, but they still all reside in the same HBase
instance
HBase
Hive table definitions
Points to an existing table
Manages this table from Hive

135
PIG
135
Integration
 How it works:
 When using an already existing table, defined as EXTERNAL, you can create multiple
Hive tables that point to it
HBaseHive table definitions
Points to some column
Points to other
columns,
different names

136
PIG
136
Integration
 How it works:
 Columns are mapped however you want, changing names and giving types
HBase tableHive table definition
name STRING
age INT
siblings MAP<string, string>
d:fullname
d:age
d:address
f:
persons people

137
PIG
137
Integration
 Drawbacks (that can be fixed with brain juice):
 Binary keys and values (like integers represented on 4 bytes) aren‟t
supported since Hive prefers string representations, HIVE-1634
 Compound row keys aren‟t supported, there‟s no way of using multiple
parts of a key as different “fields”
 This means that concatenated binary row keys are completely
unusable, which is what people often use for HBase
 Filters are done at Hive level instead of being pushed to the region
servers
 Partitions aren‟t supported

138
PIG
138
Data Flows
 Data is being generated all over the place:
 Apache logs
 Application logs
 MySQL clusters
 HBase clusters

139
PIG
139
Data Flows
 Moving application log files
Wild log file
Read nightly
Transforms format Dumped into HDFS
Tail’ed
continuou
sly
Inserted into
HBaseParses into HBase format

140
PIG
140
Data Flows
 Moving MySQL data
MySQL
Dumped
nightly with
CSV import
HDFS
Tungsten
replicator
Inserted into
HBaseParses into HBase format

141
PIG
141
Use Cases
 Front-end engineers
 They need some statistics regarding their latest product
 Research engineers
 Ad-hoc queries on user data to validate some assumptions
 Generating statistics about recommendation quality
 Business analysts
 Statistics on growth and activity
 Effectiveness of advertiser campaigns
 Users‟ behavior VS past activities to determine, for example,
why certain groups react better to email communications
 Ad-hoc queries on stumbling behaviors of slices of the user
base

142
PIG
142
Use Cases
 Using a simple table in HBase:
CREATE EXTERNAL TABLE blocked_users(
userid INT,
blockee INT,
blocker INT,
created BIGINT)
STORED BY 'org.apache.hadoop.hive.hbase.HBaseStorageHandler’
WITH SERDEPROPERTIES ("hbase.columns.mapping" =
":key,f:blockee,f:blocker,f:created")
TBLPROPERTIES("hbase.table.name" = "m2h_repl-userdb.stumble.blocked_users");
HBase is a special case here, it has a unique row key map with :key
Not all the columns in the table need to be mapped

143
PIG
143
Use Cases
 Using a complicated table in HBase:
CREATE EXTERNAL TABLE ratings_hbase(
userid INT,
created BIGINT,
urlid INT,
rating INT,
topic INT,
modified BIGINT)
STORED BY 'org.apache.hadoop.hive.hbase.HBaseStorageHandler’
WITH SERDEPROPERTIES ("hbase.columns.mapping" =
":key#b@0,:key#b@1,:key#b@2,default:rating#b,default:topic#b,default:modified#b")
TBLPROPERTIES("hbase.table.name" = "ratings_by_userid");
#b means binary, @ means position in composite key (SU-specific hack)

144
PIG Architecture
144
 Grunt Shell / pig server : If you want access PIG using any
program then you will be using pig server.
 Then the code goes to parser for syntax change. If it is error free
then creates a logical plan that is DAG( Directed acyclic graph).
 DAG which has logical operators. This logical plan is forwarded to
optimizer to optimize.
 After this optimized code is sent to compiler.
 Compiler output is a series of map reduce job which is given to
execution engine.
 Execution engine takes care to execute the job on map reduce

145
Data Model
145
 A table in Bigtable is a sparse, distributed, persistent
multidimensional sorted map
 Map indexed by a row key, column key, and a timestamp
 (row:string, column:string, time:int64)  uninterpreted
byte array
 Supports lookups, inserts, deletes
 Single row transactions only
Image Source: Chang et al., OSDI 2006

146
Rows and Columns
146
 Rows maintained in sorted lexicographic order
 Applications can exploit this property for efficient row
scans
 Row ranges dynamically partitioned into tablets
 Columns grouped into column families
 Column key = family:qualifier
 Column families provide locality hints
 Unbounded number of columns

147
Bigtable Building Blocks
147
 GFS
 Chubby
 SSTable

148
SSTable
148
 Basic building block of Bigtable
 Persistent, ordered immutable map from keys to values
 Stored in GFS
 Sequence of blocks on disk plus an index for block lookup
 Can be completely mapped into memory
 Supported operations:
 Look up value associated with key
 Iterate key/value pairs within a key range
Index
64K
block
64K
block
64K
block
SSTable
Source: Graphic from slides by Erik Paulson

149
Tablet
149
 Dynamically partitioned range of rows
 Built from multiple SSTables
Index
64K
block
64K
block
64K
block
SSTable
Index
64K
block
64K
block
64K
block
SSTable
Tablet Start:aardvark End:apple

150
Table
150
 Multiple tablets make up the table
 SSTables can be shared
SSTable SSTable SSTable SSTable
Tablet
aardvark apple
Tablet
apple_two_E boat

151
Architecture
151
 Client library
 Single master server
 Tablet servers

152
Bigtable Master
152
 Assigns tablets to tablet servers
 Detects addition and expiration of tablet servers
 Balances tablet server load
 Handles garbage collection
 Handles schema changes

153
Bigtable Tablet Servers
153
 Each tablet server manages a set of tablets
 Typically between ten to a thousand tablets
 Each 100-200 MB by default
 Handles read and write requests to the tablets
 Splits tablets that have grown too large

154
Tablet Location
154
Upon discovery, clients cache tablet locations

155
Tablet Assignment
155
 Master keeps track of:
 Set of live tablet servers
 Assignment of tablets to tablet servers
 Unassigned tablets
 Each tablet is assigned to one tablet server at a time
 Tablet server maintains an exclusive lock on a file in Chubby
 Master monitors tablet servers and handles assignment
 Changes to tablet structure
 Table creation/deletion (master initiated)
 Tablet merging (master initiated)
 Tablet splitting (tablet server initiated)

156
Tablet Serving
156
“Log Structured Merge Trees”

157
Compactions
157
 Minor compaction
 Converts the memtable into an SSTable
 Reduces memory usage and log traffic on restart
 Merging compaction
 Reads the contents of a few SSTables and the memtable,
and writes out a new SSTable
 Reduces number of SSTables
 Major compaction
 Merging compaction that results in only one SSTable
 No deletion records, only live data

158
Bigtable Applications
158
 Data source and data sink for MapReduce
 Google‟s web crawl
 Google Earth
 Google Analytics

159
Cassandra
159
Why Cassandra?
 Lots of data
 Copies of messages, reverse indices of messages, per user
data.
 Many incoming requests resulting in a lot of random
reads and random writes.
 No existing production ready solutions in the market
meet these requirements.

160
Cassandra
160
Design Goals
 High availability
 trade-off strong consistency in favor of high
availability
 Incremental scalability
 Optimistic Replication
 “Knobs” to tune tradeoffs between consistency,
durability and latency
 Low total cost of ownership
 Minimal administration

161
Cassandra
161
innovation at scale
 google bigtable (2006)
 consistency model: strong
 data model: sparse map
 clones: hbase, hypertable
 amazon dynamo (2007)
 O(1) dht
 consistency model: client tune-able
 clones: riak, voldemort
cassandra ~= bigtable + dynamo

162
Cassandra
162
proven
 The Facebook stores 150TB of data on 150 nodes
web 2.0
 used at Twitter, Rackspace, Mahalo, Reddit, Cloudkick, Cisco, Digg, SimpleGeo,
Ooyala, OpenX, others

163
Cassandra
163
Data Model
KEY
ColumnFamily1 Name : MailList Type : Simple Sort : Name
Name : tid1
Value : <Binary>
TimeStamp : t1
Name : tid2
Value : <Binary>
TimeStamp : t2
Name : tid3
Value : <Binary>
TimeStamp : t3
Name : tid4
Value : <Binary>
TimeStamp : t4
ColumnFamily2 Name : WordList Type : Super Sort : Time
Name : aloha
ColumnFamily3 Name : System Type : Super Sort : Name
Name : hint1
<Column List>
Name : hint2
<Column List>
Name : hint3
<Column List>
Name : hint4
<Column List>
C1
V1
T1
C2
V2
T2
C3
V3
T3
C4
V4
T4
Name : dude
C2
V2
T2
C6
V6
T6
Column Families
are declared
upfront
Columns are
added and
modified
dynamically
SuperColumns
are added and
modified
dynamically
Columns are
added and
modified
dynamically

164
Cassandra
164
Write Operations
 A client issues a write request to a random node in the
Cassandra cluster.
 The “Partitioner” determines the nodes responsible for
the data.
 Locally, write operations are logged and then applied to
an in-memory version.
 Commit log is stored on a dedicated disk local to the
machine.

166
Cassandra
166
Write cont‟d
Key (CF1 , CF2 , CF3)
Commit Log
Binary serialized
Key ( CF1 , CF2 , CF3 )
Memtable ( CF1)
Memtable ( CF2)
Memtable ( CF2)
• Data size
• Number of Objects
• Lifetime
Dedicated Disk
<Key name><Size of key Data><Index of columns/supercolumns><
Serialized column family>
---
---
---
---
<Key name><Size of key Data><Index of columns/supercolumns><
Serialized column family>
BLOCK Index <Key Name> Offset, <Key Name> Offset
K128 Offset
K256 Offset
K384 Offset
Bloom Filter
(Index in memory)
Data file on disk

167
Cassandra
167
Write Properties
 No locks in the critical path
 Sequential disk access
 Behaves like a write back Cache
 Append support without read ahead
 Atomicity guarantee for a key
“Always Writable”
accept writes during failure
scenarios

168
Cassandra
168
Read
Query
Closest replica
Cassandra Cluster
Replica A
Result
Replica B Replica C
Digest Query
Digest Response Digest Response
Result
Client
Read repair if
digests differ

169
Cassandra
169
01
1/2
F
E
D
C
B
A N=3
h(key2)
h(key1)Partitioning
And Replication

170
Cassandra
170
Cluster Membership and Failure
Detection
 Gossip protocol is used for cluster membership.
 Super lightweight with mathematically provable properties.
 State disseminated in O(logN) rounds where N is the number
of nodes in the cluster.
 Every T seconds each member increments its heartbeat
counter and selects one other member to send its list to.
 A member merges the list with its own list .

175
Cassandra
175
Accrual Failure Detector
 Valuable for system management, replication, load
balancing etc.
 Defined as a failure detector that outputs a value,
PHI, associated with each process.
 Also known as Adaptive Failure detectors - designed
to adapt to changing network conditions.
 The value output, PHI, represents a suspicion level.
 Applications set an appropriate threshold, trigger
suspicions and perform appropriate actions.
 In Cassandra the average time taken to detect a
failure is 10-15 seconds with the PHI threshold set at
5.

176
Cassandra
176
Information Flow in the Implementation

177
Cassandra
177
Performance Benchmark
 Loading of data - limited by network bandwidth.
 Read performance for Inbox Search in production:
Search Interactions Term Search
Min 7.69 ms 7.78 ms
Median 15.69 ms 18.27 ms
Average 26.13 ms 44.41 ms

178
Cassandra
178
MySQL Comparison
 MySQL > 50 GB Data
Writes Average : ~300 ms
Reads Average : ~350 ms
 Cassandra > 50 GB Data
Writes Average : 0.12 ms
Reads Average : 15 ms

179
Cassandra
179
Lessons Learnt
 Add fancy features only when absolutely required.
 Many types of failures are possible.
 Big systems need proper systems-level monitoring.
 Value simple designs

180
Graph Databases
180
NEO4J (Graphbase)
• A graph is a collection nodes (things) and edges (relationships) that connect
pairs of nodes.
• Attach properties (key-value pairs) on nodes and relationships
•Relationships connect two nodes and both nodes and relationships can hold an
arbitrary amount of key-value pairs.
• A graph database can be thought of as a key-value store, with full support for
relationships.
• http://neo4j.org/

186
Graph Databases
186
NEO4J
Properties

187
History of the World, Part 1
187
NEO4J Features
• Dual license: open source and commercial
•Well suited for many web use cases such as tagging, metadata annotations,
social networks, wikis and other network-shaped or hierarchical data sets
• Intuitive graph-oriented model for data representation. Instead of static and
rigid tables, rows and columns, you work with a flexible graph network
consisting of nodes, relationships and properties.
• Neo4j offers performance improvements on the order of 1000x
or more compared to relational DBs.
• A disk-based, native storage manager completely optimized for storing
graph structures for maximum performance and scalability
• Massive scalability. Neo4j can handle graphs of several billion
nodes/relationships/properties on a single machine and can be sharded to
scale out across multiple machines
•Fully transactional like a real database
•Neo4j traverses depths of 1000 levels and beyond at millisecond speed.
(many orders of magnitude faster than relational systems)

BIG DATA Session 7 8

More Related Content

What's hot

Similar to BIG DATA Session 7 8

More from Infinity Tech Solutions

Recently uploaded

BIG DATA Session 7 8
