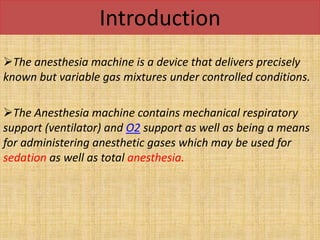

3. Introduction
The anesthesia machine is a device that delivers precisely
known but variable gas mixtures under controlled conditions.
The Anesthesia machine contains mechanical respiratory
support (ventilator) and O2 support as well as being a means
for administering anesthetic gases which may be used for
sedation as well as total anesthesia.

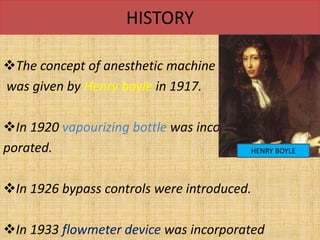

4. HISTORY
The concept of anesthetic machine
was given by Henry boyle in 1917.
In 1920 vapourizing bottle was inco
porated.
In 1926 bypass controls were introduced.
In 1933 flowmeter device was incorporated
HENRY BOYLE

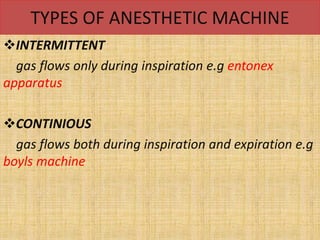

5. TYPES OF ANESTHETIC MACHINE
INTERMITTENT
gas flows only during inspiration e.g entonex
apparatus
CONTINIOUS
gas flows both during inspiration and expiration e.g
boyls machine

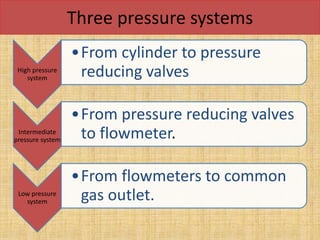

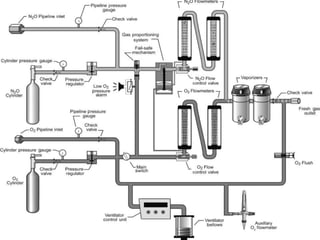

6. Three pressure systems
High pressure
system
•From cylinder to pressure
reducing valves
Intermediate
pressure system
•From pressure reducing valves
to flowmeter.
Low pressure
system
•From flowmeters to common
gas outlet.

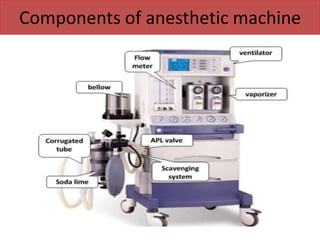

7. Components of anesthetic machine

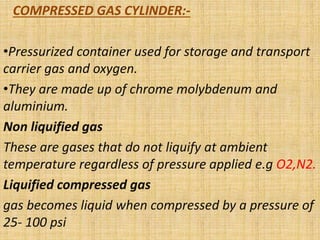

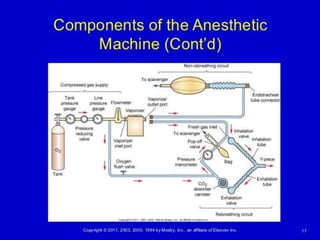

9. COMPRESSED GAS CYLINDER:-
•Pressurized container used for storage and transport
carrier gas and oxygen.
•They are made up of chrome molybdenum and
aluminium.
Non liquified gas
These are gases that do not liquify at ambient
temperature regardless of pressure applied e.g O2,N2.
Liquified compressed gas
gas becomes liquid when compressed by a pressure of
25- 100 psi

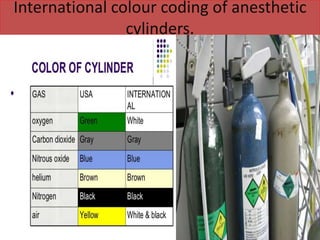

10. International colour coding of anesthetic
cylinders.

11. TANK PRESSURE GUAGE
•INDICATES THE PRESSURE OF GAS
REMAINING IN A COMPRESSED
GAS CYLINDER.
•MEASURED IN POUNDS PER SQU
ARE INCH.
•DETERMINE NO OF LITRES of gas
REMaINING IN A TANK.

12. PRESSURE REDUCING VALVES
As oxygen moves from the high-pressure tank (at up
to 2200 psi) into the anesthetic machine, the pressure
is lowered by a regulator to provide a safe operating
pressure (45-50 psi).
 Regulator also provides for constant flow as the
pressure in the tank decreases. Regulators used at
HSVMA-RAVS clinics mount on top of the oxygen
tanks.

13. FLOWMETER
From the cylinder, pressure gauge
and pressure-reducing valve, oxygen
travels through a low-pressure hose
to the flowmeter.
 Allows anesthetist to provide
measured amount of oxygen to the
patient Flow rates are expressed in liters of gas per
minute (L/min).
 Oxygen enters the flowmeter and is delivered to the
vaporizer at a constant rate as indicated on the
flowmeter dial.

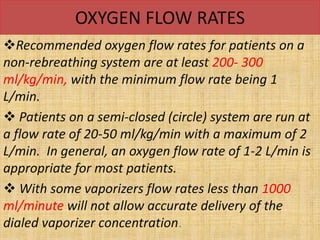

14. OXYGEN FLOW RATES
Recommended oxygen flow rates for patients on a
non-rebreathing system are at least 200- 300
ml/kg/min, with the minimum flow rate being 1
L/min.
 Patients on a semi-closed (circle) system are run at
a flow rate of 20-50 ml/kg/min with a maximum of 2
L/min. In general, an oxygen flow rate of 1-2 L/min is
appropriate for most patients.
 With some vaporizers flow rates less than 1000
ml/minute will not allow accurate delivery of the
dialed vaporizer concentration.

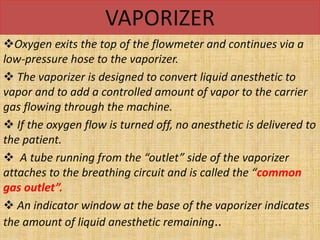

15. VAPORIZER
Oxygen exits the top of the flowmeter and continues via a
low-pressure hose to the vaporizer.
 The vaporizer is designed to convert liquid anesthetic to
vapor and to add a controlled amount of vapor to the carrier
gas flowing through the machine.
 If the oxygen flow is turned off, no anesthetic is delivered to
the patient.
 A tube running from the “outlet” side of the vaporizer
attaches to the breathing circuit and is called the “common
gas outlet”.
 An indicator window at the base of the vaporizer indicates
the amount of liquid anesthetic remaining..

16. vapourizer

17. COMMON GAS OUTLET
The common gas outlet is where the
oxygen/medical gas/anesthetic agent mixture exits
the anesthesia machine to the breathing system,
which can be either a rebreathing or nonrebreathing
system.

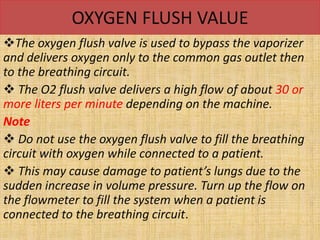

18. OXYGEN FLUSH VALUE
The oxygen flush valve is used to bypass the vaporizer
and delivers oxygen only to the common gas outlet then
to the breathing circuit.
 The O2 flush valve delivers a high flow of about 30 or
more liters per minute depending on the machine.
Note
 Do not use the oxygen flush valve to fill the breathing
circuit with oxygen while connected to a patient.
 This may cause damage to patient’s lungs due to the
sudden increase in volume pressure. Turn up the flow on
the flowmeter to fill the system when a patient is
connected to the breathing circuit.

19. BREATHING SYSTEM

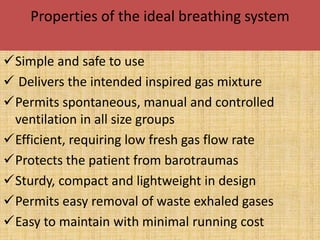

20. Properties of the ideal breathing system
Simple and safe to use
 Delivers the intended inspired gas mixture
Permits spontaneous, manual and controlled
ventilation in all size groups
Efficient, requiring low fresh gas flow rate
Protects the patient from barotraumas
Sturdy, compact and lightweight in design
Permits easy removal of waste exhaled gases
Easy to maintain with minimal running cost

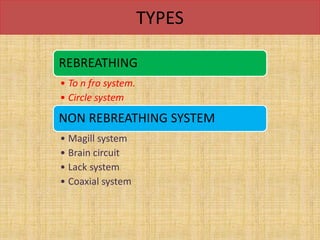

21. TYPES
REBREATHING
• To n fro system.
• Circle system
NON REBREATHING SYSTEM
• Magill system
• Brain circuit
• Lack system
• Coaxial system

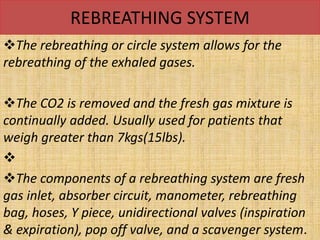

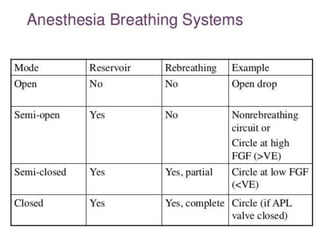

23. REBREATHING SYSTEM
The rebreathing or circle system allows for the
rebreathing of the exhaled gases.
The CO2 is removed and the fresh gas mixture is
continually added. Usually used for patients that
weigh greater than 7kgs(15lbs).

The components of a rebreathing system are fresh
gas inlet, absorber circuit, manometer, rebreathing
bag, hoses, Y piece, unidirectional valves (inspiration
& expiration), pop off valve, and a scavenger system.

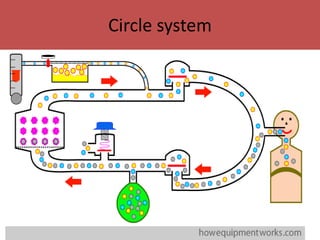

24. Circle system

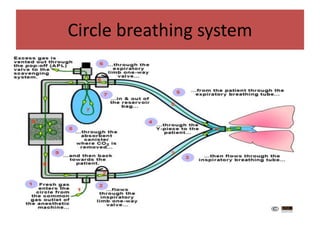

25. Circle breathing system

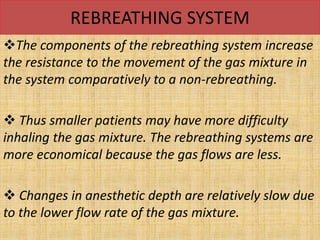

26. REBREATHING SYSTEM
The components of the rebreathing system increase
the resistance to the movement of the gas mixture in
the system comparatively to a non-rebreathing.
 Thus smaller patients may have more difficulty
inhaling the gas mixture. The rebreathing systems are
more economical because the gas flows are less.
 Changes in anesthetic depth are relatively slow due
to the lower flow rate of the gas mixture.

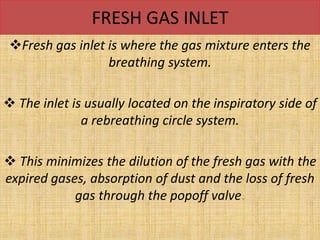

27. FRESH GAS INLET
Fresh gas inlet is where the gas mixture enters the
breathing system.
 The inlet is usually located on the inspiratory side of
a rebreathing circle system.
 This minimizes the dilution of the fresh gas with the
expired gases, absorption of dust and the loss of fresh
gas through the popoff valve.

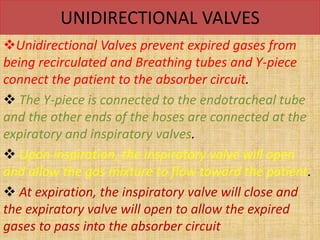

28. UNIDIRECTIONAL VALVES
Unidirectional Valves prevent expired gases from
being recirculated and Breathing tubes and Y-piece
connect the patient to the absorber circuit.
 The Y-piece is connected to the endotracheal tube
and the other ends of the hoses are connected at the
expiratory and inspiratory valves.
 Upon inspiration, the inspiratory valve will open
and allow the gas mixture to flow toward the patient.
 At expiration, the inspiratory valve will close and
the expiratory valve will open to allow the expired
gases to pass into the absorber circuit

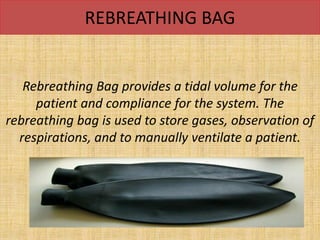

29. REBREATHING BAG
Rebreathing Bag provides a tidal volume for the
patient and compliance for the system. The
rebreathing bag is used to store gases, observation of
respirations, and to manually ventilate a patient.

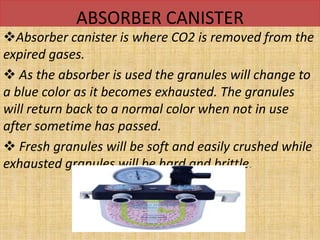

30. ABSORBER CANISTER
Absorber canister is where CO2 is removed from the
expired gases.
 As the absorber is used the granules will change to
a blue color as it becomes exhausted. The granules
will return back to a normal color when not in use
after sometime has passed.
 Fresh granules will be soft and easily crushed while
exhausted granules will be hard and brittle.

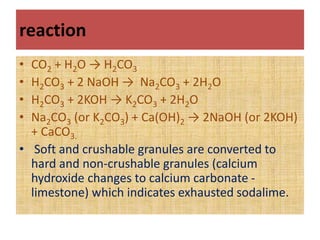

31. reaction
• CO2 + H2O → H2CO3
• H2CO3 + 2 NaOH → Na2CO3 + 2H2O
• H2CO3 + 2KOH → K2CO3 + 2H2O
• Na2CO3 (or K2CO3) + Ca(OH)2 → 2NaOH (or 2KOH)
+ CaCO3.
• Soft and crushable granules are converted to
hard and non-crushable granules (calcium
hydroxide changes to calcium carbonate -
limestone) which indicates exhausted sodalime.

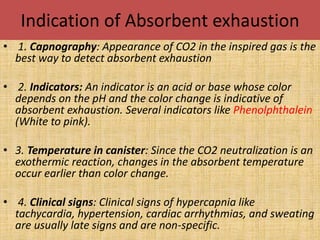

32. Indication of Absorbent exhaustion
• 1. Capnography: Appearance of CO2 in the inspired gas is the
best way to detect absorbent exhaustion
• 2. Indicators: An indicator is an acid or base whose color
depends on the pH and the color change is indicative of
absorbent exhaustion. Several indicators like Phenolphthalein
(White to pink).
• 3. Temperature in canister: Since the CO2 neutralization is an
exothermic reaction, changes in the absorbent temperature
occur earlier than color change.
• 4. Clinical signs: Clinical signs of hypercapnia like
tachycardia, hypertension, cardiac arrhythmias, and sweating
are usually late signs and are non-specific.

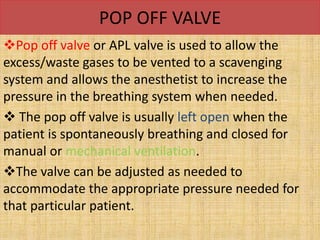

33. POP OFF VALVE
Pop off valve or APL valve is used to allow the
excess/waste gases to be vented to a scavenging
system and allows the anesthetist to increase the
pressure in the breathing system when needed.
 The pop off valve is usually left open when the
patient is spontaneously breathing and closed for
manual or mechanical ventilation.
The valve can be adjusted as needed to
accommodate the appropriate pressure needed for
that particular patient.

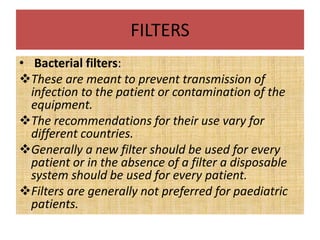

34. FILTERS
• Bacterial filters:
These are meant to prevent transmission of
infection to the patient or contamination of the
equipment.
The recommendations for their use vary for
different countries.
Generally a new filter should be used for every
patient or in the absence of a filter a disposable
system should be used for every patient.
Filters are generally not preferred for paediatric
patients.

35. . Heat and Moisture Exchange (HME)
filters:
Administration of dry gases at room temperature
could lead to heat loss and increased pulmonary
complication.
 The function of the nose is to warm and humidify
inhaled gases.
 When the nose is bypassed it is advisable to use
HME filters to achieve this objective.
 These devices also help to dehumidify the gases
that are being sampled for analysis by side
stream devices

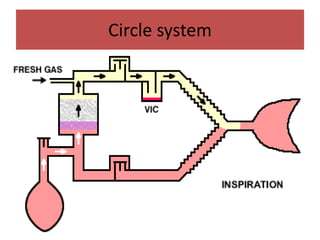

36. Circle system

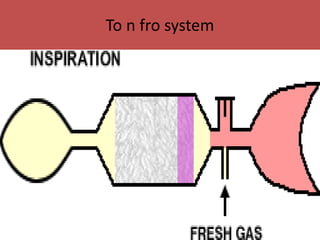

37. To n fro system

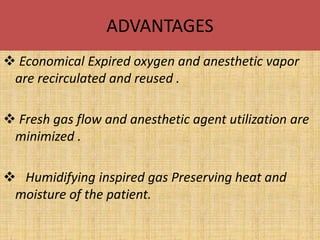

38. ADVANTAGES
 Economical Expired oxygen and anesthetic vapor
are recirculated and reused .
 Fresh gas flow and anesthetic agent utilization are
minimized .
 Humidifying inspired gas Preserving heat and
moisture of the patient.

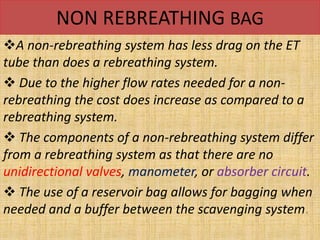

39. NON REBREATHING BAG
A non-rebreathing system has less drag on the ET
tube than does a rebreathing system.
 Due to the higher flow rates needed for a non-
rebreathing the cost does increase as compared to a
rebreathing system.
 The components of a non-rebreathing system differ
from a rebreathing system as that there are no
unidirectional valves, manometer, or absorber circuit.
 The use of a reservoir bag allows for bagging when
needed and a buffer between the scavenging system.

40. NON REBREATHING SYSTEM
In a Non-Rebreathing system little to no exhaled
gases are recirculated.
 The gases are evacuated by the scavenge system.
Usually used for patient less than 7kgs(15 lbs).
 A nonrebreathing system offers little resistance to
the patient when breathing, a significant advantage
to smaller patients.

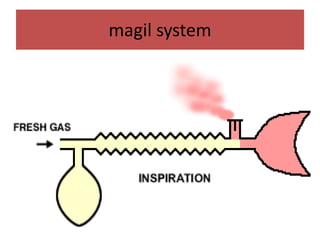

41. magil system

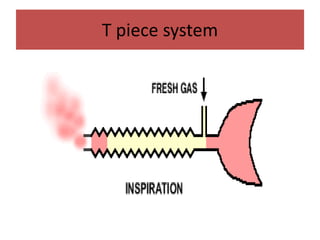

42. T piece system

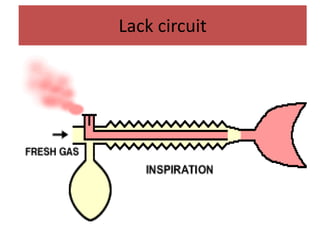

43. Lack circuit

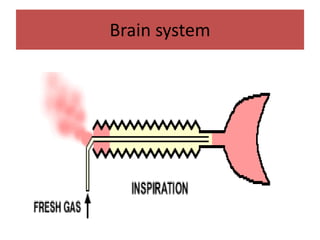

44. Brain system

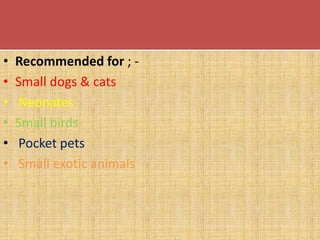

45. • Recommended for ; -
• Small dogs & cats
• Neonates
• Small birds
• Pocket pets
• Small exotic animals

46. Scavenging System

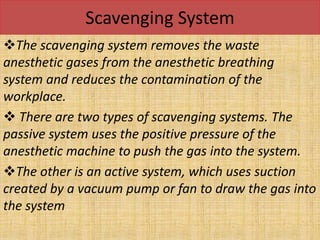

The scavenging system removes the waste
anesthetic gases from the anesthetic breathing
system and reduces the contamination of the
workplace.
 There are two types of scavenging systems. The
passive system uses the positive pressure of the
anesthetic machine to push the gas into the system.
The other is an active system, which uses suction
created by a vacuum pump or fan to draw the gas into
the system

47. SCAVANGING SYSTEM

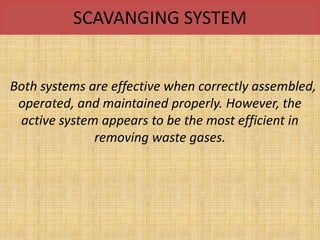

Both systems are effective when correctly assembled,
operated, and maintained properly. However, the
active system appears to be the most efficient in
removing waste gases.
