1. CSE539: Advanced Computer Architecture
Chapter 8
Multivector and SIMD Computers
Book: “Advanced Computer Architecture – Parallelism, Scalability, Programmability”, Hwang & Jotwani
Sumit Mittu
Assistant Professor, CSE/IT
Lovely Professional University
sumit.12735@lpu.co.in

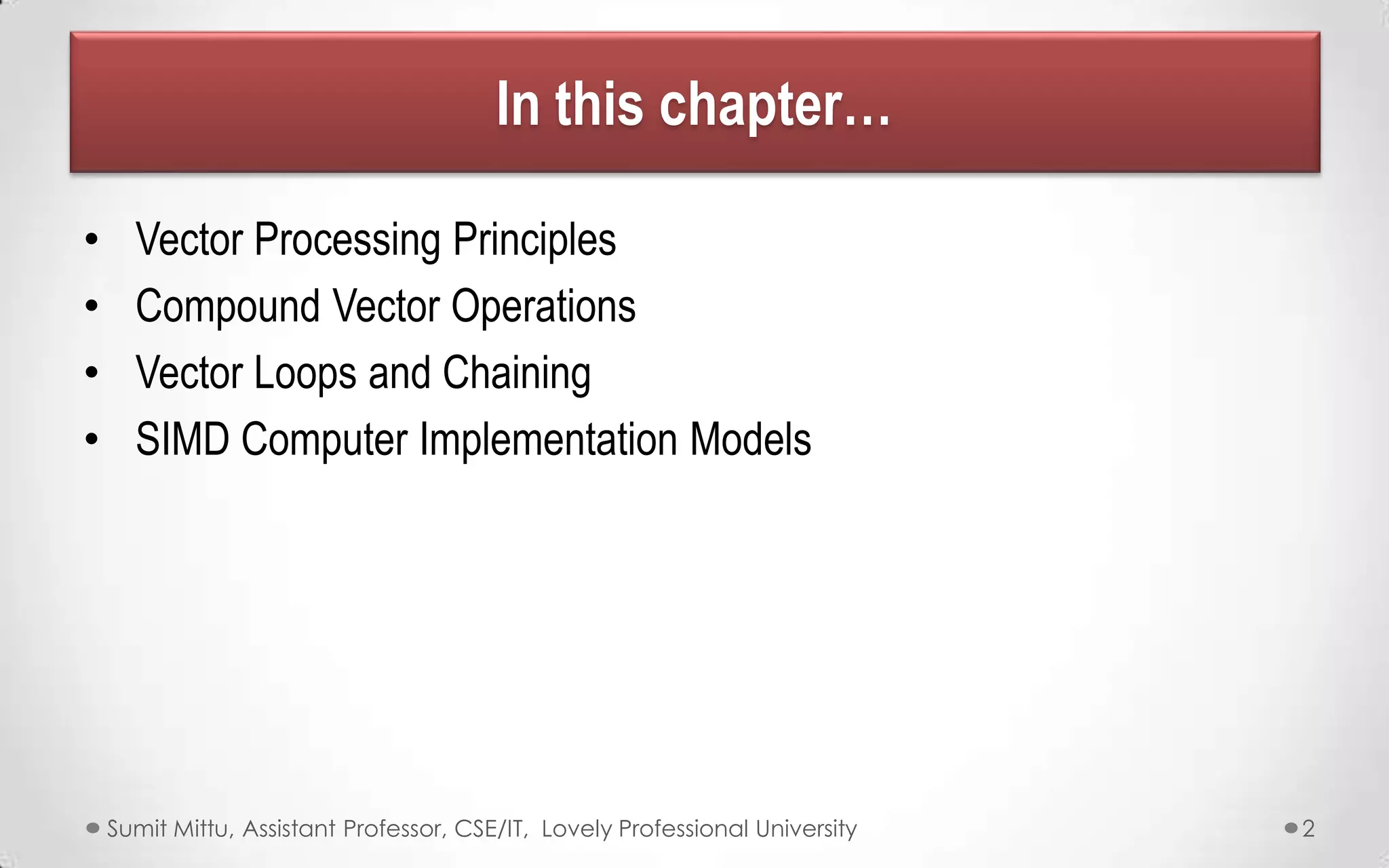

2. In this chapter…
•
•
•
•
Vector Processing Principles
Compound Vector Operations
Vector Loops and Chaining
SIMD Computer Implementation Models
Sumit Mittu, Assistant Professor, CSE/IT, Lovely Professional University
2

3. VECTOR PROCESSING PRINCIPLES
• Vector Processing Definitions
o
o
o
o
o
o
Vector
Stride
Vector Processor
Vector Processing
Vectorization
Vectorizing Compiler or Vectorizer
• Vector Instruction Types
o Vector-vector instructions
o Vector-scalar instructions
o Vector-memory instructions
Sumit Mittu, Assistant Professor, CSE/IT, Lovely Professional University
3

4. VECTOR PROCESSING PRINCIPLES
Sumit Mittu, Assistant Professor, CSE/IT, Lovely Professional University
4

5. VECTOR PROCESSING PRINCIPLES
• Vector-Vector Instructions
o F1:
o F2:
o Examples:
Vi  Vj
Vi x Vj Vk
V1 = sin(V2)
V3 = V1+ V2
• Vector-Scalar Instructions
o F3:
o Examples:
s x Vi  Vj
V2 = 6 + V1
• Vector-Memory Instructions
o F4:
o F5:
o Examples:
MV
VM
X = V1
(Vector Load)
(Vector Store)
V2 = Y
Sumit Mittu, Assistant Professor, CSE/IT, Lovely Professional University
5

6. VECTOR PROCESSING PRINCIPLES
• Vector Reduction Instructions
o F6:
o F7:
Vi  s
Vi x Vj  s
• Gather and Scatter Instructions
o F8:
o F9:
M  Vi x Vj
Vi x Vj  M
(Gather)
(Scatter)
Vi x Vm  Vj
(Vm is a binary vector)
• Masking
o F10:
• Examples…
Sumit Mittu, Assistant Professor, CSE/IT, Lovely Professional University
6

7. VECTOR PROCESSING PRINCIPLES
Sumit Mittu, Assistant Professor, CSE/IT, Lovely Professional University
7

8. VECTOR PROCESSING PRINCIPLES
• Vector-Access Memory Schemes
o Vector-operand Specifications
• Base address, stride and length
o C-Access Memory Organization
• Low-order m-way interleaved memory
o S-access Memory Organizations
• High-order m-way interleaved memory
o C/S Access Memory Organization
• Early Supercomputers (Vectors Processors)
o Cray Series
o CDC Cyber
ETA 10E
Fujitsu VP2600
NEC Sx-X 44
Hitachi 820/80
Sumit Mittu, Assistant Professor, CSE/IT, Lovely Professional University
8

9. VECTOR PROCESSING PRINCIPLES
• Relative Vector/Scalar Performance
o Vector/scalar speed ratio
o Vectorization ratio in program
o Relative Performance P is given by:
•
𝑷=
𝟏
𝟏−𝒇 + 𝒇/𝒓
=
r
f
𝒓
𝟏−𝒇 𝒓 + 𝒇
o When f is low, the speedup cannot be high even with very high r
o Limiting Case:
• P  1 if f  0
o Maximum Case:
• P  r if f  1
o Powerful single chip processors and multicore system-on-a-chip provide High-Performance
Computing (HPC) using MIMD and/or SPMD configurations with large no. of processors.
Sumit Mittu, Assistant Professor, CSE/IT, Lovely Professional University
9

10. COMPUOUND VECTOR PROCESSING
• Compound Vector Operations
o Compound Vector Functions (CVFs)
• Composite function of vector operations converted from a looping structure of linked scalar
operations
o CVF Example: The SAXPY (Single-precision A multiply X Plus Y) Code
• For I = 1 to N
o Load
R1, X(I)
o Load
R2, Y(I)
o Multiply
R1, A
o Add
R2, R1
o Store
Y(I), R2
• (End of Loop)
Sumit Mittu, Assistant Professor, CSE/IT, Lovely Professional University
10

11. COMPUOUND VECTOR PROCESSING
• One-dimensional CVF Examples
o V(I) = V2(I) + V(3) x V(4)
o V1(I) = B(I) + C(I)
o A(I) = V(I) x S + B(I)
o A(I) = V(I) + B(I) + C(I)
o A(I) = Q x v1(I) (R x B(I) + C(I)), etc.
Legend:
o Vi(I) are vector registers
o A(I), B(I), C(I) are vectors in memory
o Q, S are scalars available from scalar registers in memory
Sumit Mittu, Assistant Professor, CSE/IT, Lovely Professional University
11

12. COMPUOUND VECTOR PROCESSING
• Vector Loops
o Vector segmentation or strip-mining approach
o Example
• Vector Chaining
o Example: SAXPY code
• Limited Chaining using only one memory-access pipe in Cray-I
• Complete Chaining using three memory-access pipes in Cray X-MP
• Functional Unit Independence
• Vector Recurrence
Sumit Mittu, Assistant Professor, CSE/IT, Lovely Professional University
12

13. COMPUOUND VECTOR PROCESSING
Sumit Mittu, Assistant Professor, CSE/IT, Lovely Professional University
13

14. COMPUOUND VECTOR PROCESSING
Sumit Mittu, Assistant Professor, CSE/IT, Lovely Professional University
14

15. SIMD COMPUTER ORGANIZATIONS
• SIMD Computer Variants
o Array Processor
o Associative Processor
• SIMD Processor v/s SISD v/s Vector Processor Operation
o Illustration: for(i=0;i<5;i++) a[i] = a[i]+2;
o Lockstep mode of operation in SIMD processor
o Relative Performance comparison
• SIMD Implementation Models
o Distributed Memory Model
• E.g. Illiac IV
o Shared memory Model
• E.g. BSP (Burroughs Scientific Processor)
Sumit Mittu, Assistant Professor, CSE/IT, Lovely Professional University
15

16. SIMD COMPUTER ORGANIZATIONS
Sumit Mittu, Assistant Professor, CSE/IT, Lovely Professional University
16

17. SIMD COMPUTER ORGANIZATIONS
Sumit Mittu, Assistant Professor, CSE/IT, Lovely Professional University
17

18. SIMD COMPUTER ORGANIZATIONS
• SIMD Instructions
o Scalar Operations
• Arithmetic/Logical
o Vector Operations
• Arithmetic/Logical
o Data Routing Operations
• Permutations, broadcasts, multicasts, rotation and shifting
o Masking Operations
• Enable/Disable PEs
• Host and I/O
• Bit-slice and Word-slice Processing
o WSBS, WSBP, WPBS, WPBP
Sumit Mittu, Assistant Professor, CSE/IT, Lovely Professional University
18
