The document discusses various radiographic signs seen on chest x-rays. It describes signs such as the silhouette sign which indicates loss of contrast between adjacent structures, the hilum overlay sign which shows hilar vessels through a mediastinal mass, and air bronchograms which depict air-filled bronchi within consolidated lung. It also covers patterns of parenchymal opacities including alveolar, interstitial and nodular patterns, as well as signs of lung collapse like fissure deformities and compensatory lung changes. Specific findings like the luftsichel sign of left upper lobe collapse and the air crescent sign seen in fungal infections are also summarized.

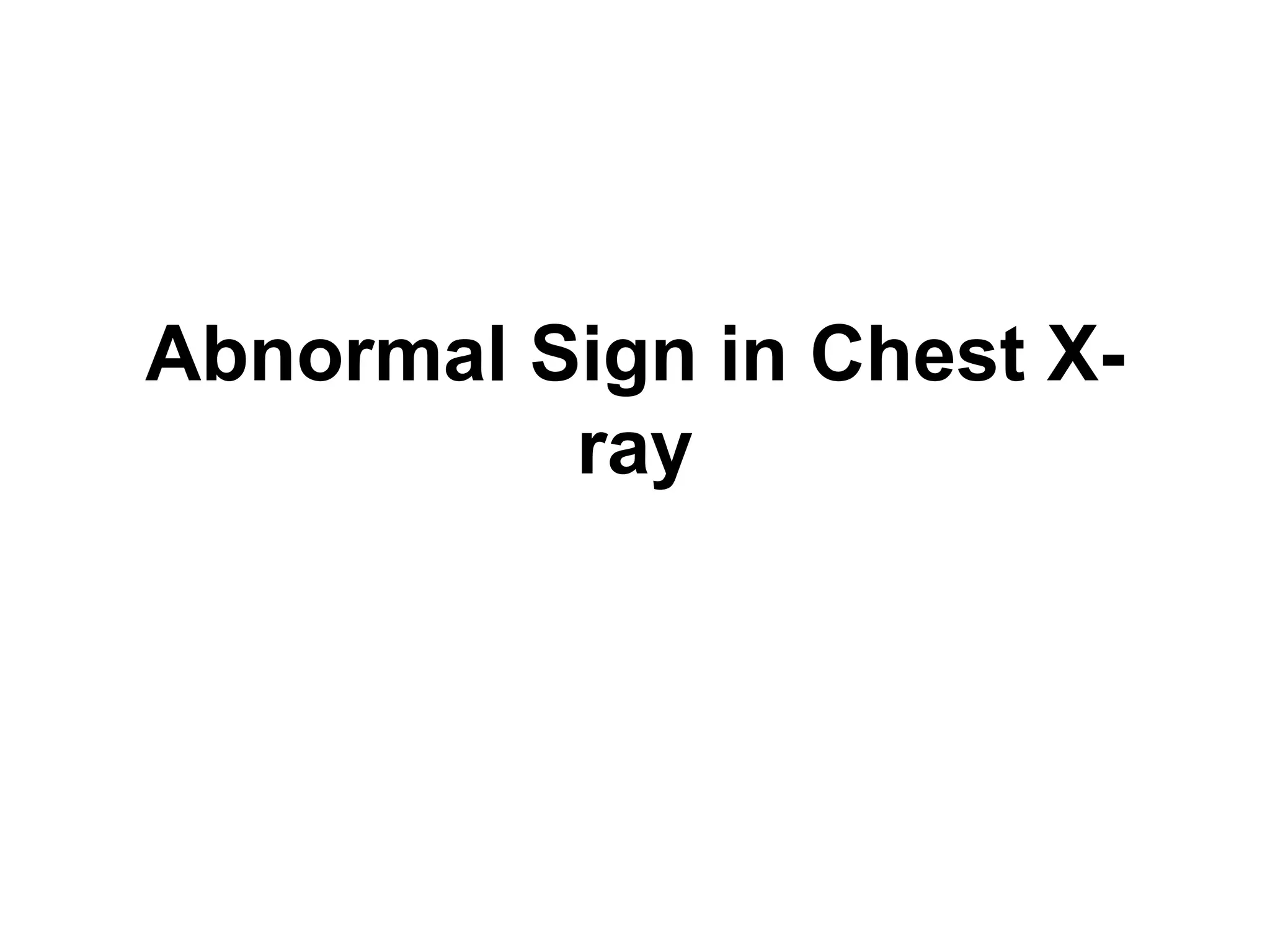

1. Abnormal Sign in Chest X-
ray

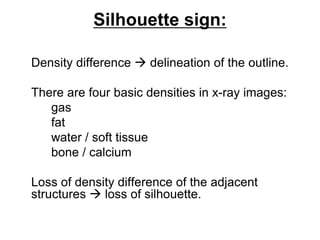

2. Silhouette sign:
Density difference  delineation of the outline.
There are four basic densities in x-ray images:
gas
fat
water / soft tissue
bone / calcium
Loss of density difference of the adjacent
structures  loss of silhouette.

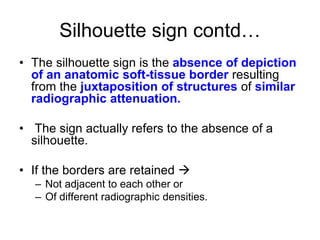

3. Silhouette sign contd…
• The silhouette sign is the absence of depiction
of an anatomic soft-tissue border resulting
from the juxtaposition of structures of similar
radiographic attenuation.
• The sign actually refers to the absence of a
silhouette.
• If the borders are retained 
– Not adjacent to each other or
– Of different radiographic densities.

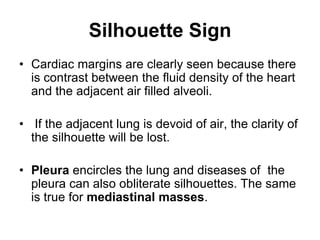

4. Silhouette Sign
• Cardiac margins are clearly seen because there
is contrast between the fluid density of the heart
and the adjacent air filled alveoli.
• If the adjacent lung is devoid of air, the clarity of
the silhouette will be lost.
• Pleura encircles the lung and diseases of the
pleura can also obliterate silhouettes. The same
is true for mediastinal masses.

5. Silhouette Adjacent
Lobe/Segment
Right diaphragm RLL/Basal segments
Right heart margin RML/Medial segment
Ascending aorta RUL/Anterior segment
Aortic knob LUL/Apicoposterior segment
Left heart margin Lingula/Inferior segment
Descending aorta LLL/Superior and medial
segments
Left diaphragm LLL/Basal segments

6. Chest radiograph shows silhouette sign, with
obscuration of right border of heart (arrows).

8. Lingular segment consolidation

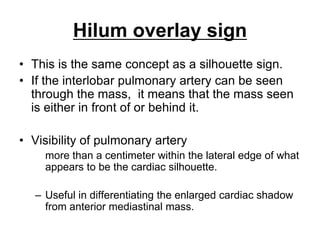

9. Hilum overlay sign
• This is the same concept as a silhouette sign.
• If the interlobar pulmonary artery can be seen
through the mass, it means that the mass seen
is either in front of or behind it.
• Visibility of pulmonary artery
more than a centimeter within the lateral edge of what
appears to be the cardiac silhouette.
– Useful in differentiating the enlarged cardiac shadow
from anterior mediastinal mass.

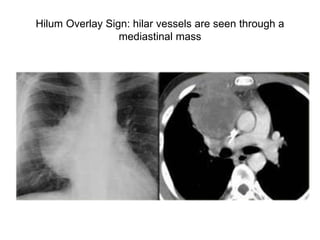

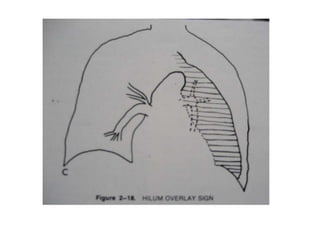

11. Hilum Overlay Sign: hilar vessels are seen through a
mediastinal mass

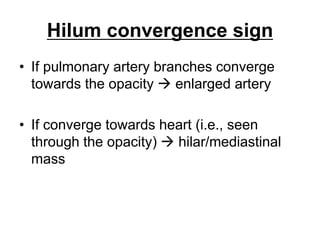

12. Hilum convergence sign
• If pulmonary artery branches converge
towards the opacity  enlarged artery
• If converge towards heart (i.e., seen
through the opacity)  hilar/mediastinal
mass

14. Cervico-thoracic sign
– If the thoracic lesion is in anatomic contact with soft tissues of
neck its contiguous border will be lost.
• Lesion clearly visible above the clavicles lies
posteriorly within the thorax.
• If cephalic border of the lesion disappears as it
approaches the clavicle  cervico-thoracic lesion
(partly in anterior mediastinum and partly in neck)

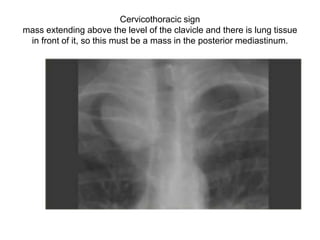

15. Cervicothoracic sign
mass extending above the level of the clavicle and there is lung tissue
in front of it, so this must be a mass in the posterior mediastinum.

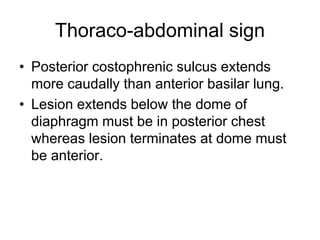

16. Thoraco-abdominal sign
• Posterior costophrenic sulcus extends
more caudally than anterior basilar lung.
• Lesion extends below the dome of
diaphragm must be in posterior chest
whereas lesion terminates at dome must
be anterior.

18. Air bronchogram
• Visualization of air-filled bronchi
surrounded by air-less lung.
Normal lung. Bronchi not seen Bronchi visible because the air
in the surrounding alveoli has
been replaced by fluid.

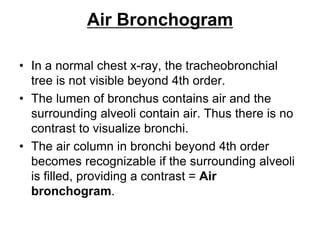

19. Air Bronchogram
• In a normal chest x-ray, the tracheobronchial
tree is not visible beyond 4th order.
• The lumen of bronchus contains air and the
surrounding alveoli contain air. Thus there is no
contrast to visualize bronchi.
• The air column in bronchi beyond 4th order
becomes recognizable if the surrounding alveoli
is filled, providing a contrast = Air
bronchogram.

20. Chest x-ray of a patient with right upper lobe consolidation.

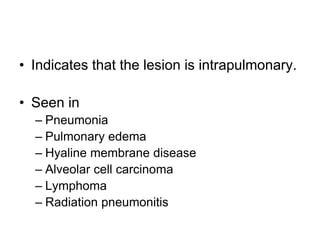

21. • Indicates that the lesion is intrapulmonary.
• Seen in
– Pneumonia
– Pulmonary edema
– Hyaline membrane disease
– Alveolar cell carcinoma
– Lymphoma
– Radiation pneumonitis

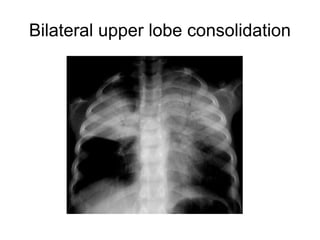

22. Bilateral upper lobe consolidation

23. • Air alveologram
– Tiny areas of radiolucency within the
surrounding air-less lung

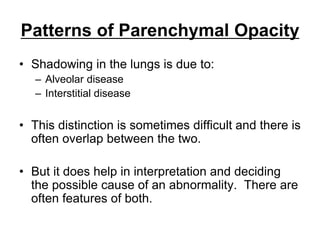

24. Patterns of Parenchymal Opacity
• Shadowing in the lungs is due to:
– Alveolar disease
– Interstitial disease
• This distinction is sometimes difficult and there is
often overlap between the two.
• But it does help in interpretation and deciding
the possible cause of an abnormality. There are
often features of both.

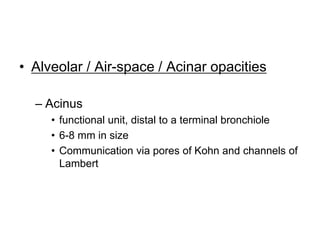

25. • Alveolar / Air-space / Acinar opacities
– Acinus
• functional unit, distal to a terminal bronchiole
• 6-8 mm in size
• Communication via pores of Kohn and channels of
Lambert

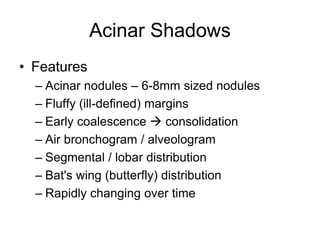

26. Acinar Shadows
• Features
– Acinar nodules – 6-8mm sized nodules
– Fluffy (ill-defined) margins
– Early coalescence  consolidation
– Air bronchogram / alveologram
– Segmental / lobar distribution
– Bat's wing (butterfly) distribution
– Rapidly changing over time

27. • Alveolar nodules

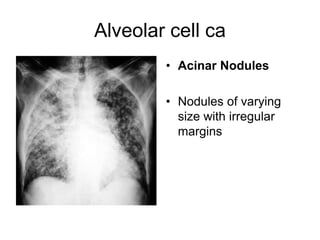

28. Alveolar cell ca
• Acinar Nodules
• Nodules of varying
size with irregular
margins

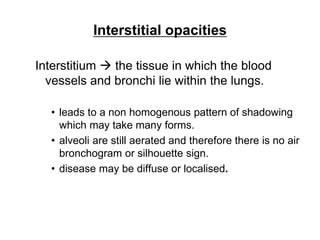

29. Interstitial opacities
Interstitium  the tissue in which the blood
vessels and bronchi lie within the lungs.
• leads to a non homogenous pattern of shadowing
which may take many forms.
• alveoli are still aerated and therefore there is no air
bronchogram or silhouette sign.
• disease may be diffuse or localised.

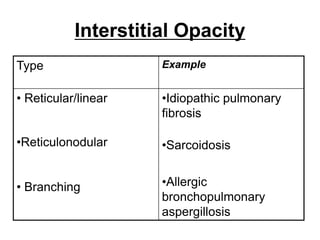

30. Interstitial Opacity
Type Example
• Reticular/linear
•Reticulonodular
• Branching
•Idiopathic pulmonary
fibrosis
•Sarcoidosis
•Allergic
bronchopulmonary
aspergillosis

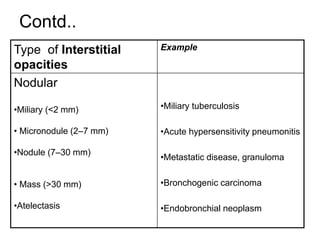

31. Contd..
Type of Interstitial
opacities
Example
Nodular
•Miliary (<2 mm)
• Micronodule (2–7 mm)
•Nodule (7–30 mm)
• Mass (>30 mm)
•Atelectasis
•Miliary tuberculosis
•Acute hypersensitivity pneumonitis
•Metastatic disease, granuloma
•Bronchogenic carcinoma
•Endobronchial neoplasm

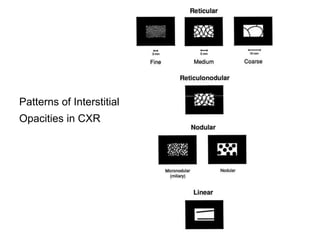

32. Patterns of Interstitial
Opacities in CXR

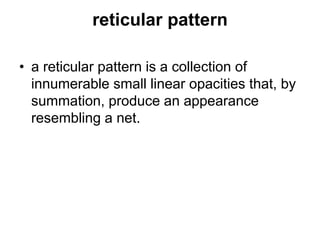

33. reticular pattern
• a reticular pattern is a collection of
innumerable small linear opacities that, by
summation, produce an appearance
resembling a net.

34. Chest radiograph shows reticular pattern

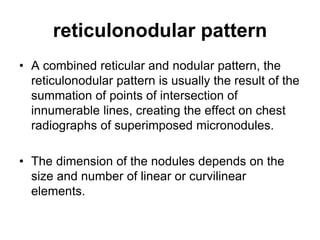

35. reticulonodular pattern
• A combined reticular and nodular pattern, the
reticulonodular pattern is usually the result of the
summation of points of intersection of
innumerable lines, creating the effect on chest
radiographs of superimposed micronodules.
• The dimension of the nodules depends on the
size and number of linear or curvilinear
elements.

36. Chest radiograph shows reticulonodular pattern

37. Bilateral reticulonodular shadowing most obvious at the bases.
This patient had rheumatoid arthritis.

38. Magnified chest radiograph shows a nodular
pattern.

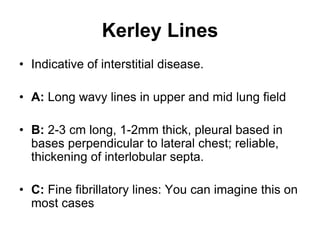

39. Kerley Lines
• Indicative of interstitial disease.
• A: Long wavy lines in upper and mid lung field
• B: 2-3 cm long, 1-2mm thick, pleural based in
bases perpendicular to lateral chest; reliable,
thickening of interlobular septa.
• C: Fine fibrillatory lines: You can imagine this on
most cases

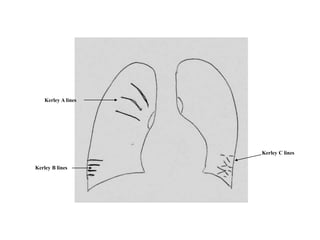

40. Kerley C lines
Kerley A lines
Kerley B lines

41. Kerley lines

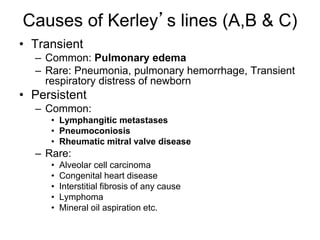

42. Causes of Kerley’s lines (A,B & C)
• Transient
– Common: Pulmonary edema
– Rare: Pneumonia, pulmonary hemorrhage, Transient
respiratory distress of newborn
• Persistent
– Common:
• Lymphangitic metastases
• Pneumoconiosis
• Rheumatic mitral valve disease
– Rare:
• Alveolar cell carcinoma
• Congenital heart disease
• Interstitial fibrosis of any cause
• Lymphoma
• Mineral oil aspiration etc.

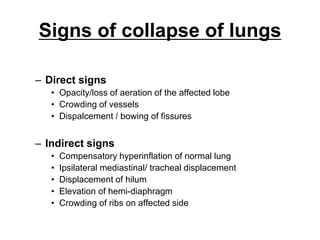

43. Signs of collapse of lungs
– Direct signs
• Opacity/loss of aeration of the affected lobe
• Crowding of vessels
• Dispalcement / bowing of fissures
– Indirect signs
• Compensatory hyperinflation of normal lung
• Ipsilateral mediastinal/ tracheal displacement
• Displacement of hilum
• Elevation of hemi-diaphragm
• Crowding of ribs on affected side

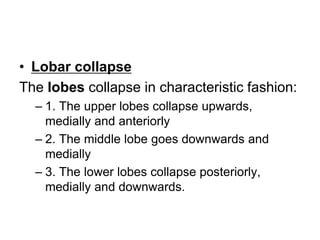

44. • Lobar collapse
The lobes collapse in characteristic fashion:
– 1. The upper lobes collapse upwards,
medially and anteriorly
– 2. The middle lobe goes downwards and
medially
– 3. The lower lobes collapse posteriorly,
medially and downwards.

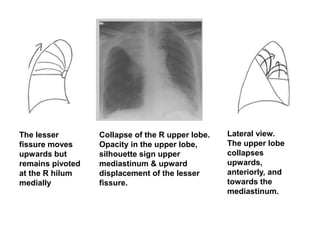

45. The lesser
fissure moves
upwards but
remains pivoted
at the R hilum
medially
Lateral view.
The upper lobe
collapses
upwards,
anteriorly, and
towards the
mediastinum.
Collapse of the R upper lobe.
Opacity in the upper lobe,
silhouette sign upper
mediastinum & upward
displacement of the lesser
fissure.

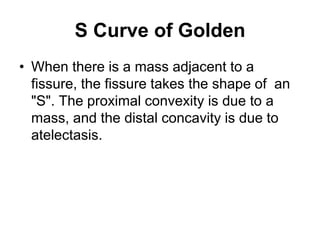

46. S Curve of Golden
• When there is a mass adjacent to a
fissure, the fissure takes the shape of an
"S". The proximal convexity is due to a
mass, and the distal concavity is due to
atelectasis.

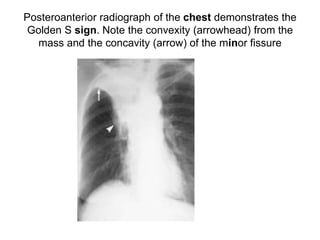

47. Posteroanterior radiograph of the chest demonstrates the
Golden S sign. Note the convexity (arrowhead) from the
mass and the concavity (arrow) of the minor fissure

48. • Golden S sign

49. Lt upper lobe collapse
•Mediastinal shift to left
•Density left upper lung field
•Loss of aortic knob and left hilar
silhouettes

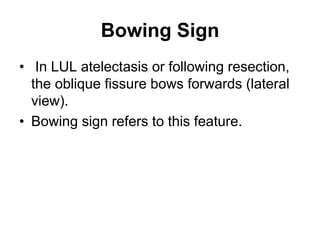

50. Bowing Sign
• In LUL atelectasis or following resection,
the oblique fissure bows forwards (lateral
view).
• Bowing sign refers to this feature.

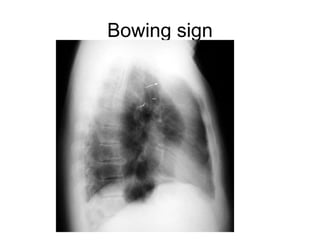

51. Bowing sign

52. Luftsichel sign
• Luft = air; sichel = crescent
• With complete collapse, the left upper lobe retracts
medially and superiorly.
• Hyperexpanded superior segment of the left lower lobe
produces a crescent of lucency interposed between the
atelectatic left upper lobe and the aortic arch.
• This crescent of air is termed the luftsichel sign.
• Other features of left upper lobe collapse are present

53. Luftsichel sign

54. Rt. middle lobe collapse. There
is a density next to the heart,
below the R hilum, which is
roughly triangular in shape
Lateral view shows the middle
lobe collapse more clearly. The
triangular opacity anteriorly is
the collapsed lobe

55. Atelectasis Right Lower Lobe
• Density in right
lower lung field
• Indistinct right
diaphragm
• Right heart
silhouette retained
• Transverse fissure
moved down
• Right hilum
moved down

56. Left Lower Lobe Atelectasis
•Inhomogeneous cardiac
density
•Left hilum pulled down
•Non-visualization of left
diaphragm
•Triangular retrocardiac
atelectatic LLL

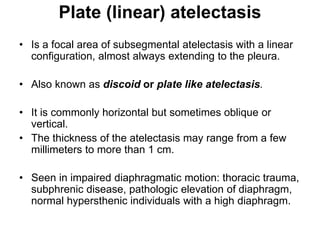

57. Plate (linear) atelectasis
• Is a focal area of subsegmental atelectasis with a linear
configuration, almost always extending to the pleura.
• Also known as discoid or plate like atelectasis.
• It is commonly horizontal but sometimes oblique or
vertical.
• The thickness of the atelectasis may range from a few
millimeters to more than 1 cm.
• Seen in impaired diaphragmatic motion: thoracic trauma,
subphrenic disease, pathologic elevation of diaphragm,
normal hypersthenic individuals with a high diaphragm.

58. Chest radiograph shows basal linear atelectasis

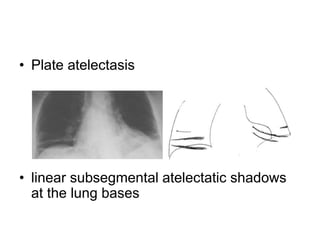

59. • Plate atelectasis
• linear subsegmental atelectatic shadows
at the lung bases

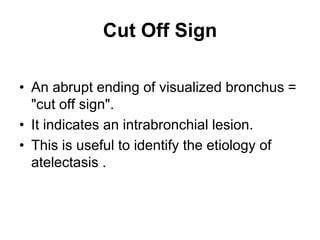

60. Cut Off Sign
• An abrupt ending of visualized bronchus =
"cut off sign".
• It indicates an intrabronchial lesion.
• This is useful to identify the etiology of
atelectasis .

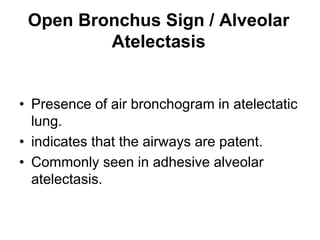

61. Open Bronchus Sign / Alveolar
Atelectasis
• Presence of air bronchogram in atelectatic
lung.
• indicates that the airways are patent.
• Commonly seen in adhesive alveolar
atelectasis.

62. Open bronchus sign

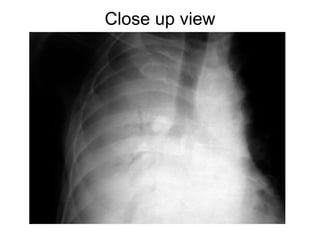

63. Close up view

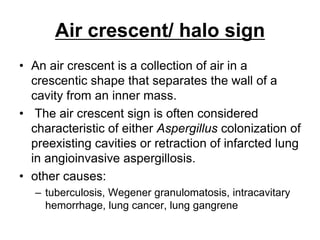

64. Air crescent/ halo sign
• An air crescent is a collection of air in a
crescentic shape that separates the wall of a
cavity from an inner mass.
• The air crescent sign is often considered
characteristic of either Aspergillus colonization of
preexisting cavities or retraction of infarcted lung
in angioinvasive aspergillosis.
• other causes:
– tuberculosis, Wegener granulomatosis, intracavitary
hemorrhage, lung cancer, lung gangrene

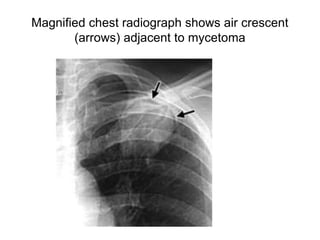

65. Magnified chest radiograph shows air crescent
(arrows) adjacent to mycetoma

66. Halo Sign
In a cavity with fungus ball there is a crescentic lucent space along the upper
portion of a density giving the appearance of a halo.

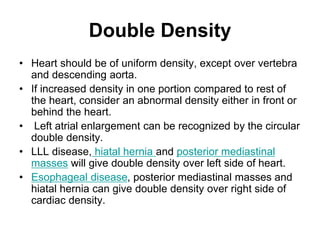

67. Double Density
• Heart should be of uniform density, except over vertebra
and descending aorta.
• If increased density in one portion compared to rest of
the heart, consider an abnormal density either in front or
behind the heart.
• Left atrial enlargement can be recognized by the circular
double density.
• LLL disease, hiatal hernia and posterior mediastinal
masses will give double density over left side of heart.
• Esophageal disease, posterior mediastinal masses and
hiatal hernia can give double density over right side of
cardiac density.

68. Double density

69. Bulging Fissure Sign
Consolidation spreading rapidly, causing lobar expansion and
bulging of the adjacent fissure inferiorly .
The most common infective causative agents are
Klebsiella pneumoniae, Streptococcus pneumoniae,
Pseudomonas aeruginosa, Staphylococcus aureus

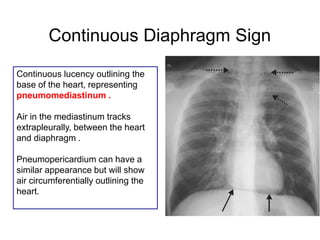

70. Continuous Diaphragm Sign
Continuous lucency outlining the
base of the heart, representing
pneumomediastinum .
Air in the mediastinum tracks
extrapleurally, between the heart
and diaphragm .
Pneumopericardium can have a
similar appearance but will show
air circumferentially outlining the
heart.

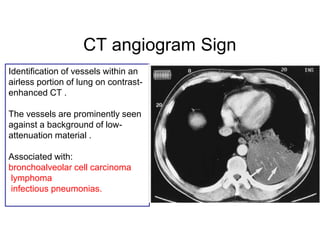

71. CT angiogram Sign
Identification of vessels within an
airless portion of lung on contrast-
enhanced CT .
The vessels are prominently seen
against a background of low-
attenuation material .
Associated with:
bronchoalveolar cell carcinoma
lymphoma
infectious pneumonias.

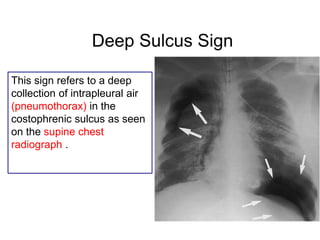

72. Deep Sulcus Sign
This sign refers to a deep
collection of intrapleural air
(pneumothorax) in the
costophrenic sulcus as seen
on the supine chest
radiograph .

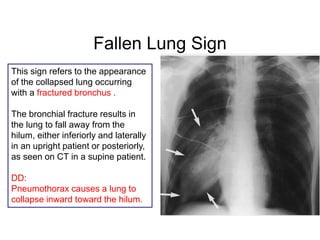

73. Fallen Lung Sign
This sign refers to the appearance
of the collapsed lung occurring
with a fractured bronchus .
The bronchial fracture results in
the lung to fall away from the
hilum, either inferiorly and laterally
in an upright patient or posteriorly,
as seen on CT in a supine patient.
DD:
Pneumothorax causes a lung to
collapse inward toward the hilum.

74. Finger in Glove Sign
In allergic bronchopulmonary aspergillosis.
The impacted bronchi appear radiographically as opacities with distinctive
shapes.

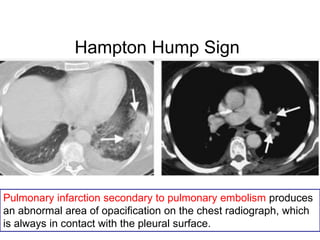

75. Hampton Hump Sign
Pulmonary infarction secondary to pulmonary embolism produces
an abnormal area of opacification on the chest radiograph, which
is always in contact with the pleural surface.

76. Juxtaphrenic Peak Sign
This sign refers to a small triangular shadow that obscures the dome of the
diaphragm secondary to upper lobe atelectasis . The shadow is caused by
traction on the lower end of the major fissure, the inferior accessory fissure, or
the inferior pulmonary ligament.

77. THANK YOU

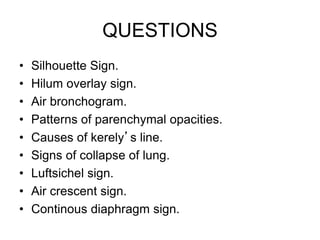

78. QUESTIONS
• Silhouette Sign.
• Hilum overlay sign.
• Air bronchogram.
• Patterns of parenchymal opacities.
• Causes of kerely’s line.
• Signs of collapse of lung.
• Luftsichel sign.
• Air crescent sign.
• Continous diaphragm sign.
