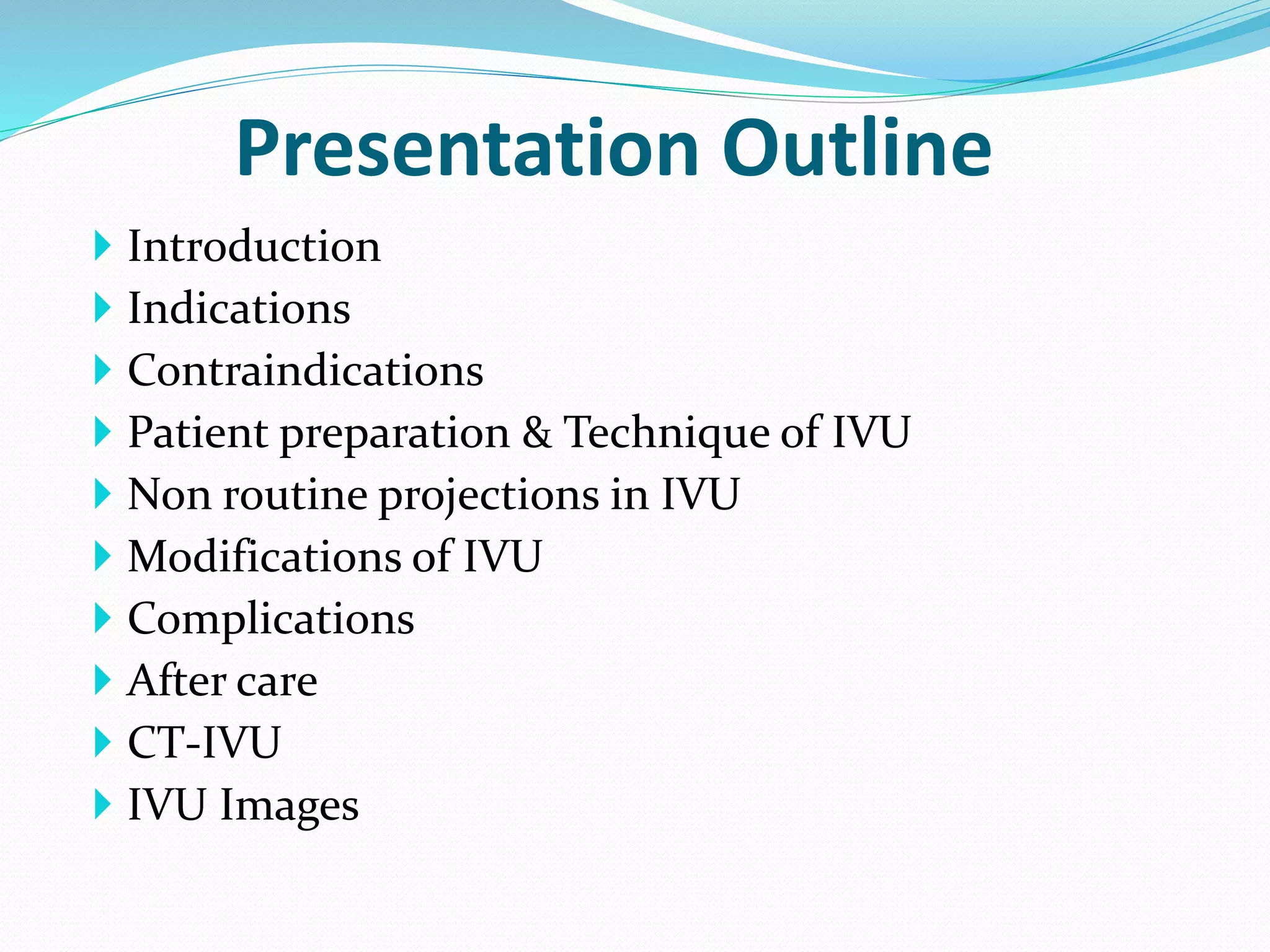

2. Presentation Outline
Introduction
Indications
Contraindications
Patient preparation & Technique of IVU
Non routine projections in IVU
Modifications of IVU
Complications
After care
CT-IVU

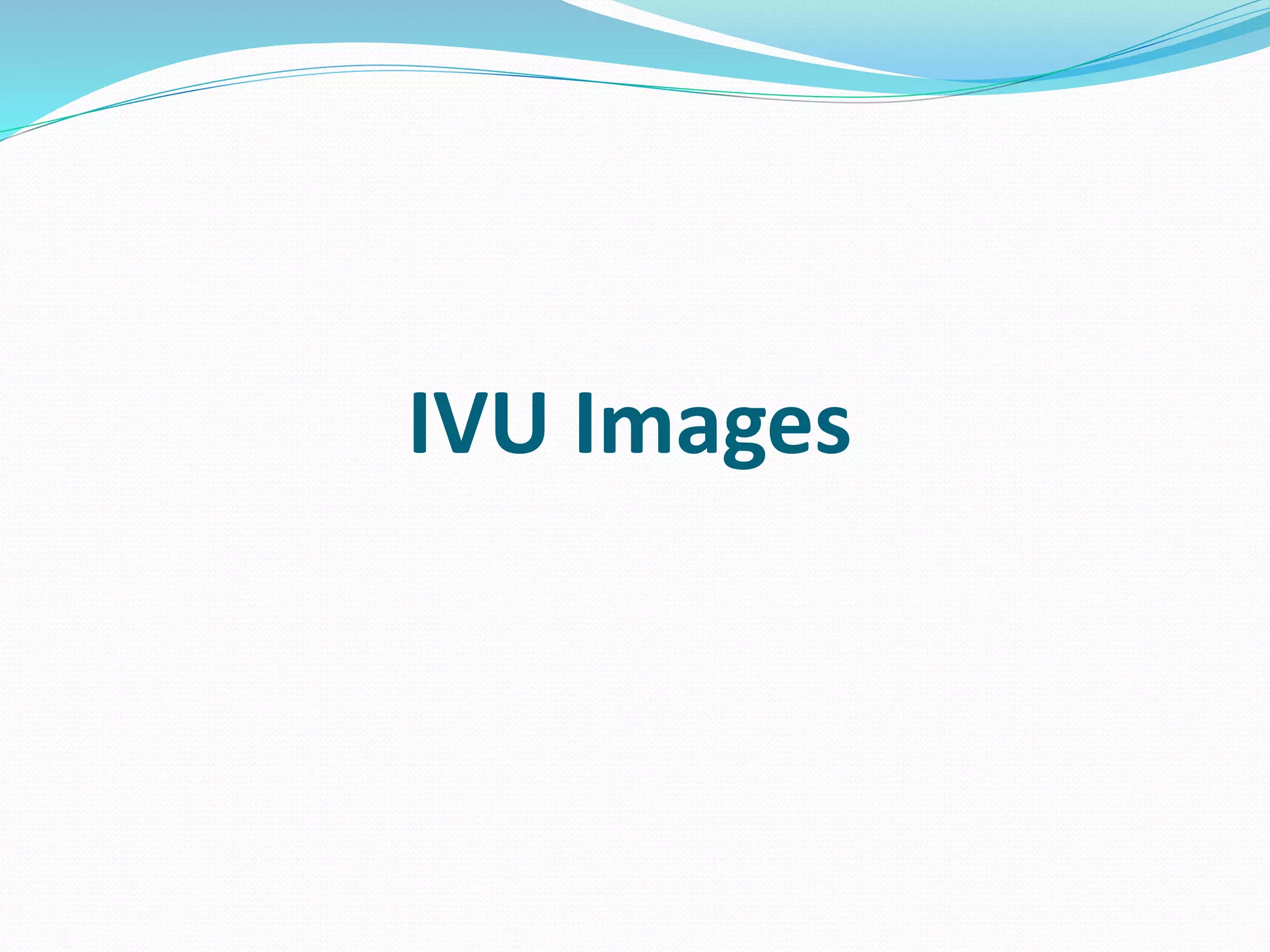

IVU Images

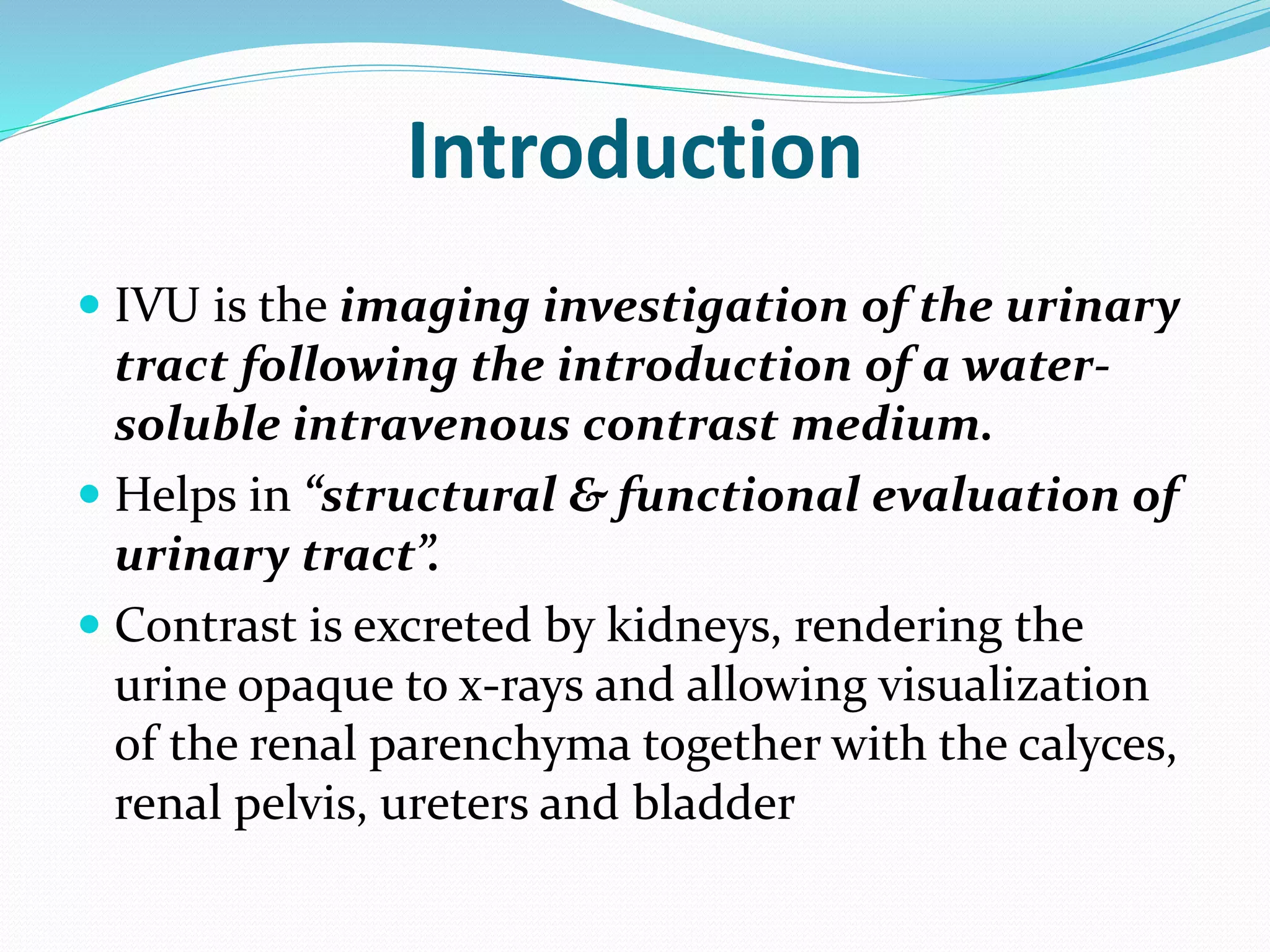

3. Introduction
IVU is the imaging investigation of the urinary
tract following the introduction of a water-
soluble intravenous contrast medium.
Helps in “structural & functional evaluation of
urinary tract”.
Contrast is excreted by kidneys, rendering the
urine opaque to x-rays and allowing visualization
of the renal parenchyma together with the calyces,
renal pelvis, ureters and bladder

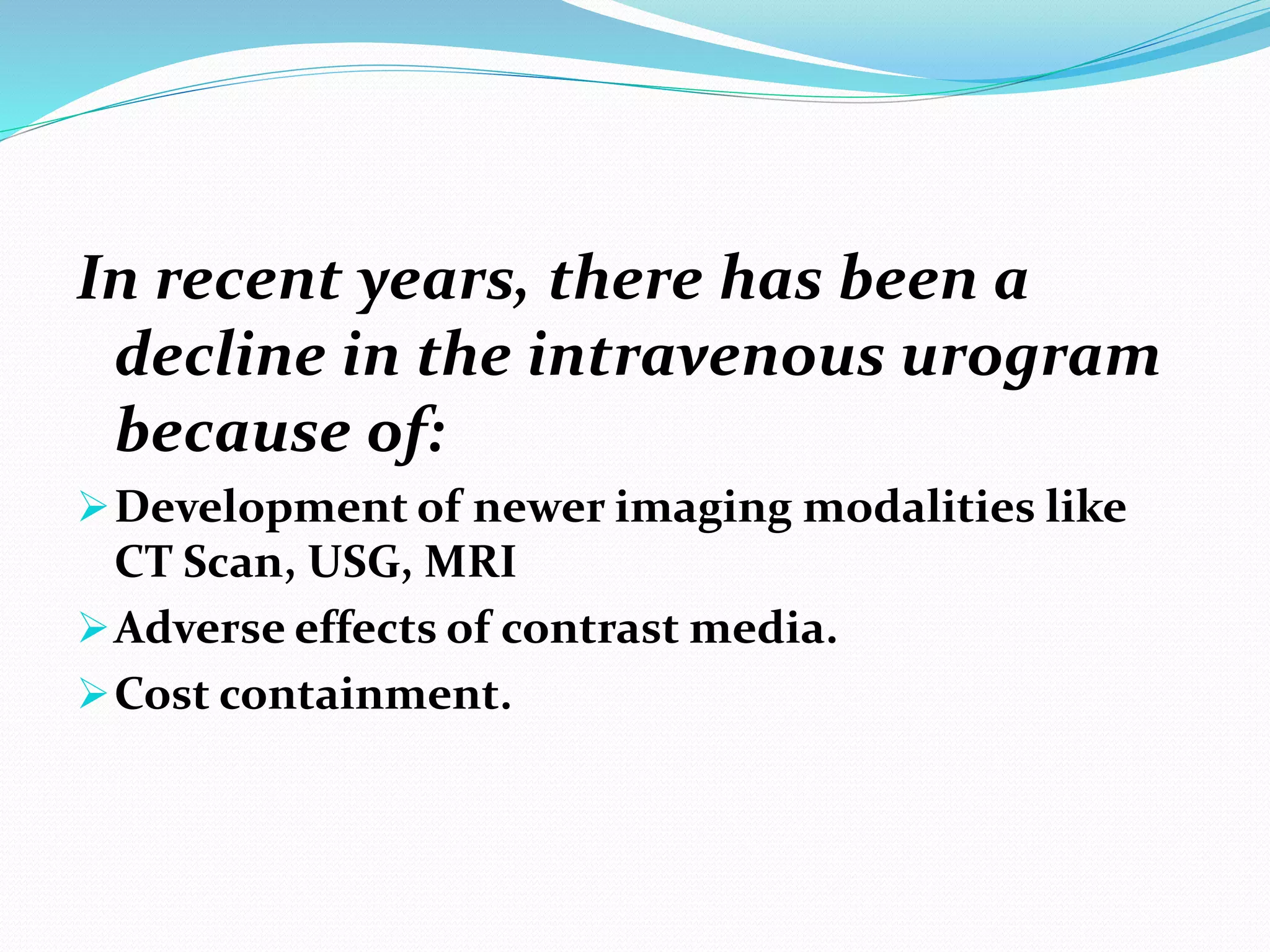

4. In recent years, there has been a
decline in the intravenous urogram
because of:
Development of newer imaging modalities like
CT Scan, USG, MRI
Adverse effects of contrast media.
Cost containment.

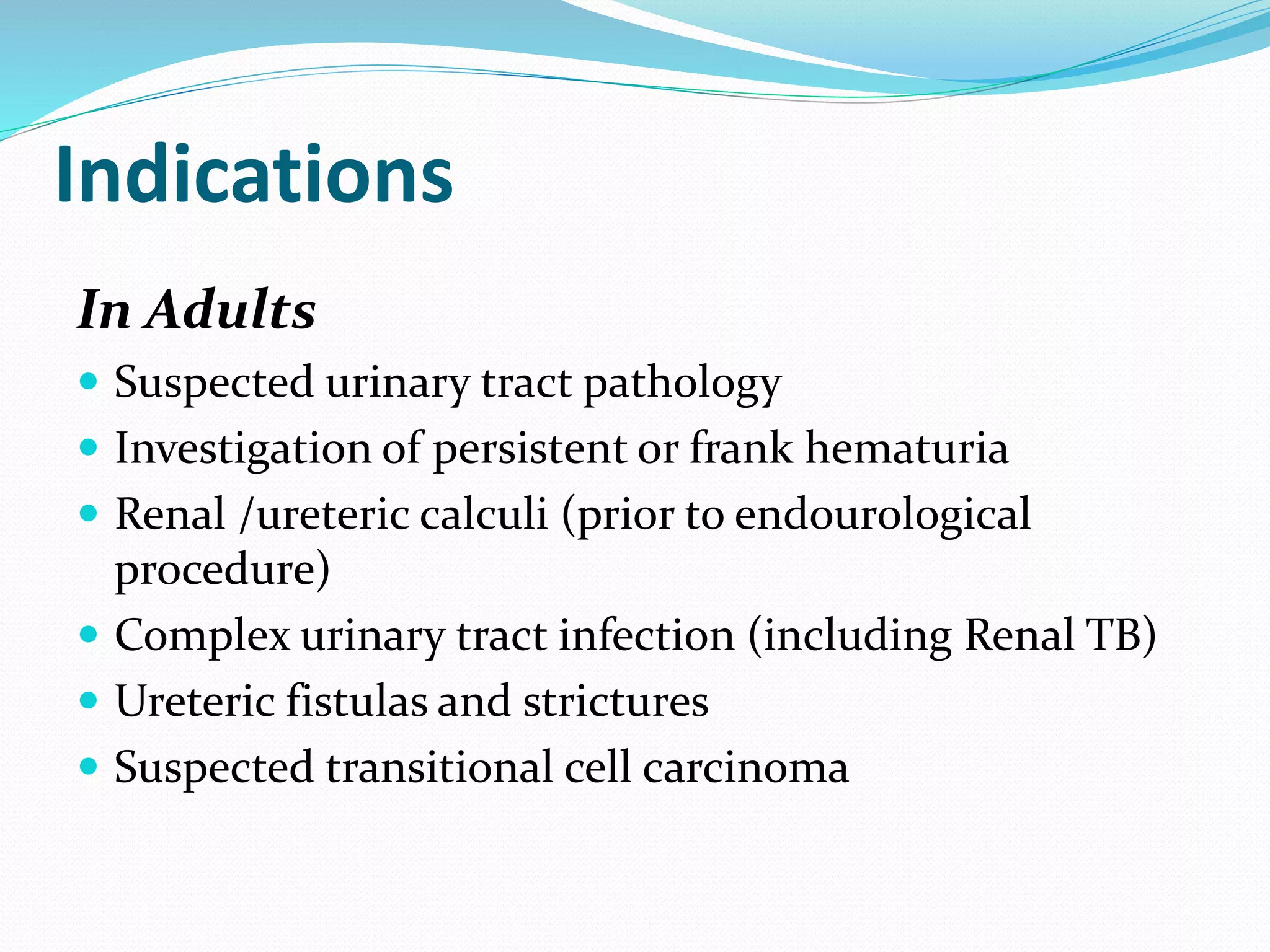

5. Indications
In Adults
Suspected urinary tract pathology
Investigation of persistent or frank hematuria
Renal /ureteric calculi (prior to endourological
procedure)
Complex urinary tract infection (including Renal TB)
Ureteric fistulas and strictures
Suspected transitional cell carcinoma

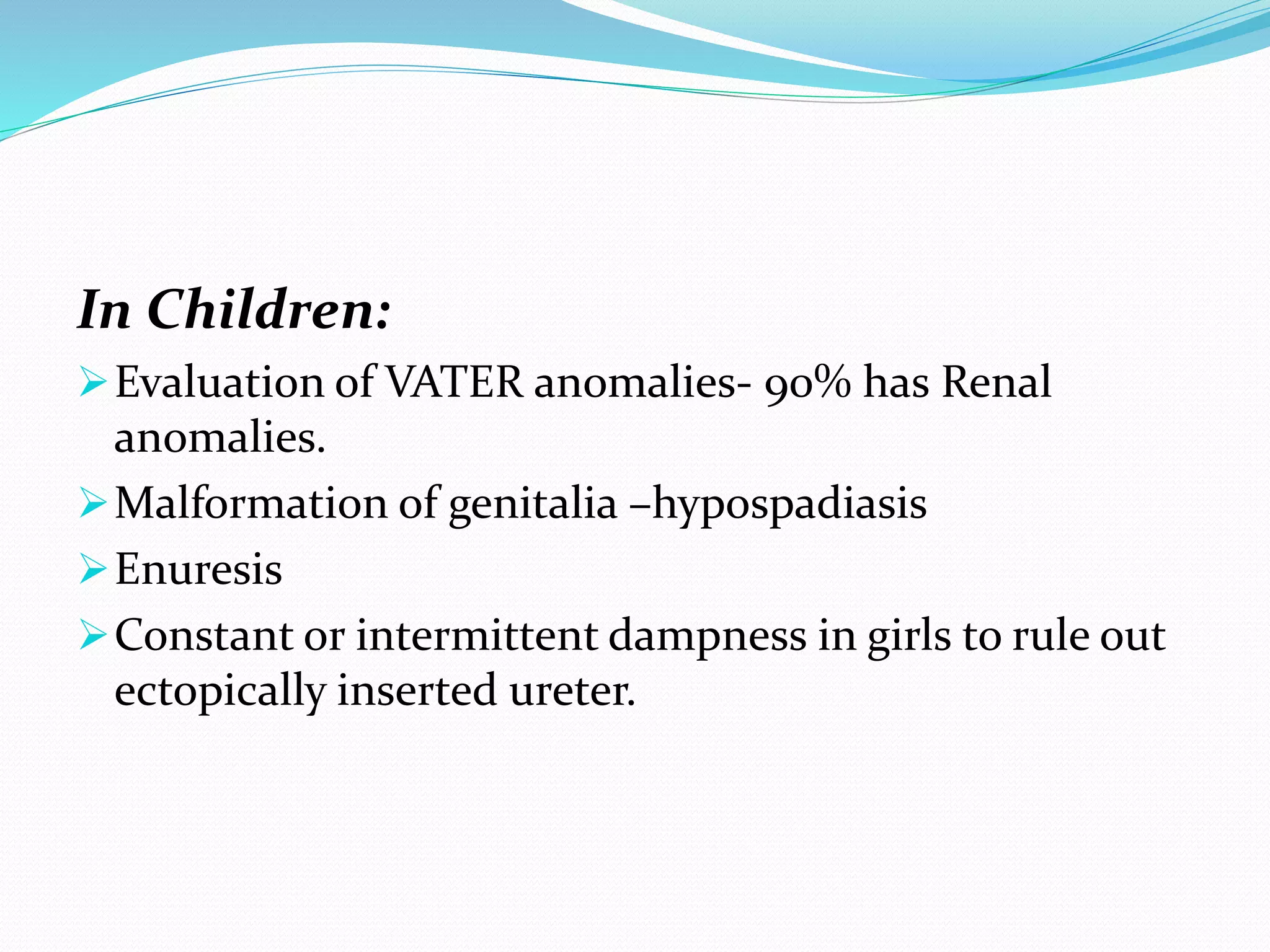

6. In Children:
Evaluation of VATER anomalies- 90% has Renal
anomalies.
Malformation of genitalia –hypospadiasis
Enuresis
Constant or intermittent dampness in girls to rule out
ectopically inserted ureter.

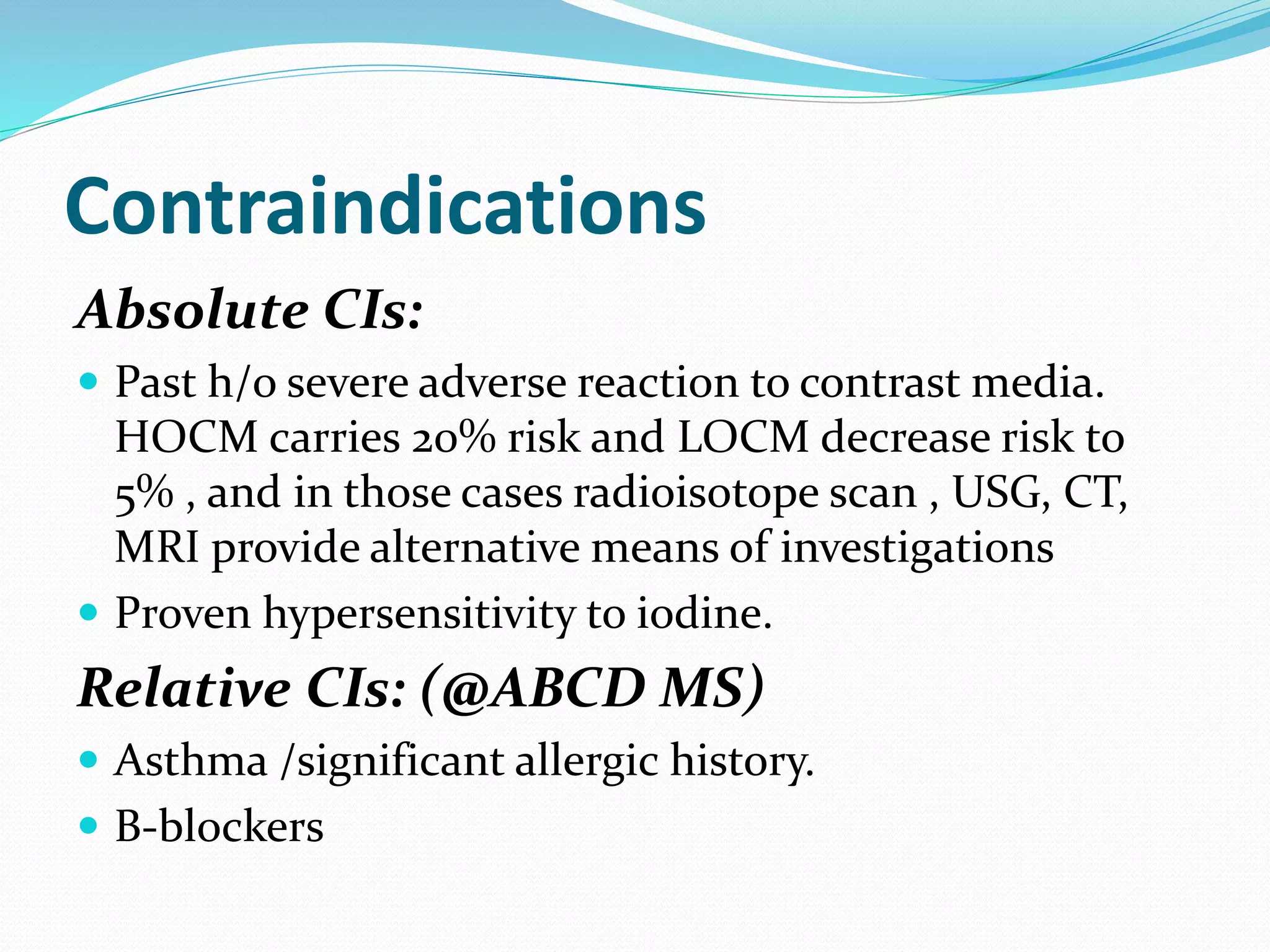

7. Contraindications
Absolute CIs:
Past h/o severe adverse reaction to contrast media.
HOCM carries 20% risk and LOCM decrease risk to
5% , and in those cases radioisotope scan , USG, CT,
MRI provide alternative means of investigations
Proven hypersensitivity to iodine.
Relative CIs: (@ABCD MS)
Asthma /significant allergic history.
B-blockers

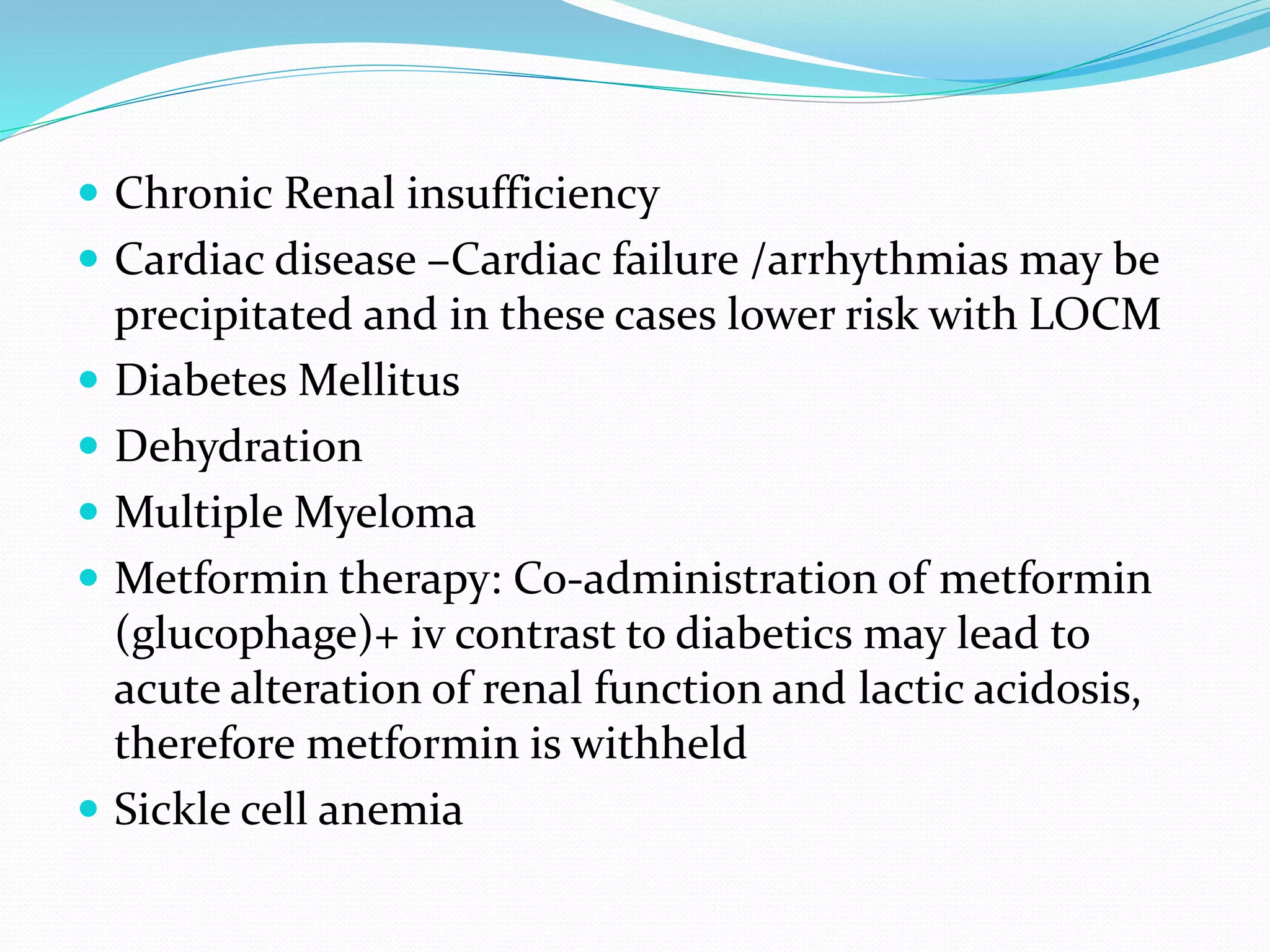

8. Chronic Renal insufficiency
Cardiac disease –Cardiac failure /arrhythmias may be
precipitated and in these cases lower risk with LOCM
Diabetes Mellitus
Dehydration
Multiple Myeloma
Metformin therapy: Co-administration of metformin
(glucophage)+ iv contrast to diabetics may lead to
acute alteration of renal function and lactic acidosis,
therefore metformin is withheld
Sickle cell anemia

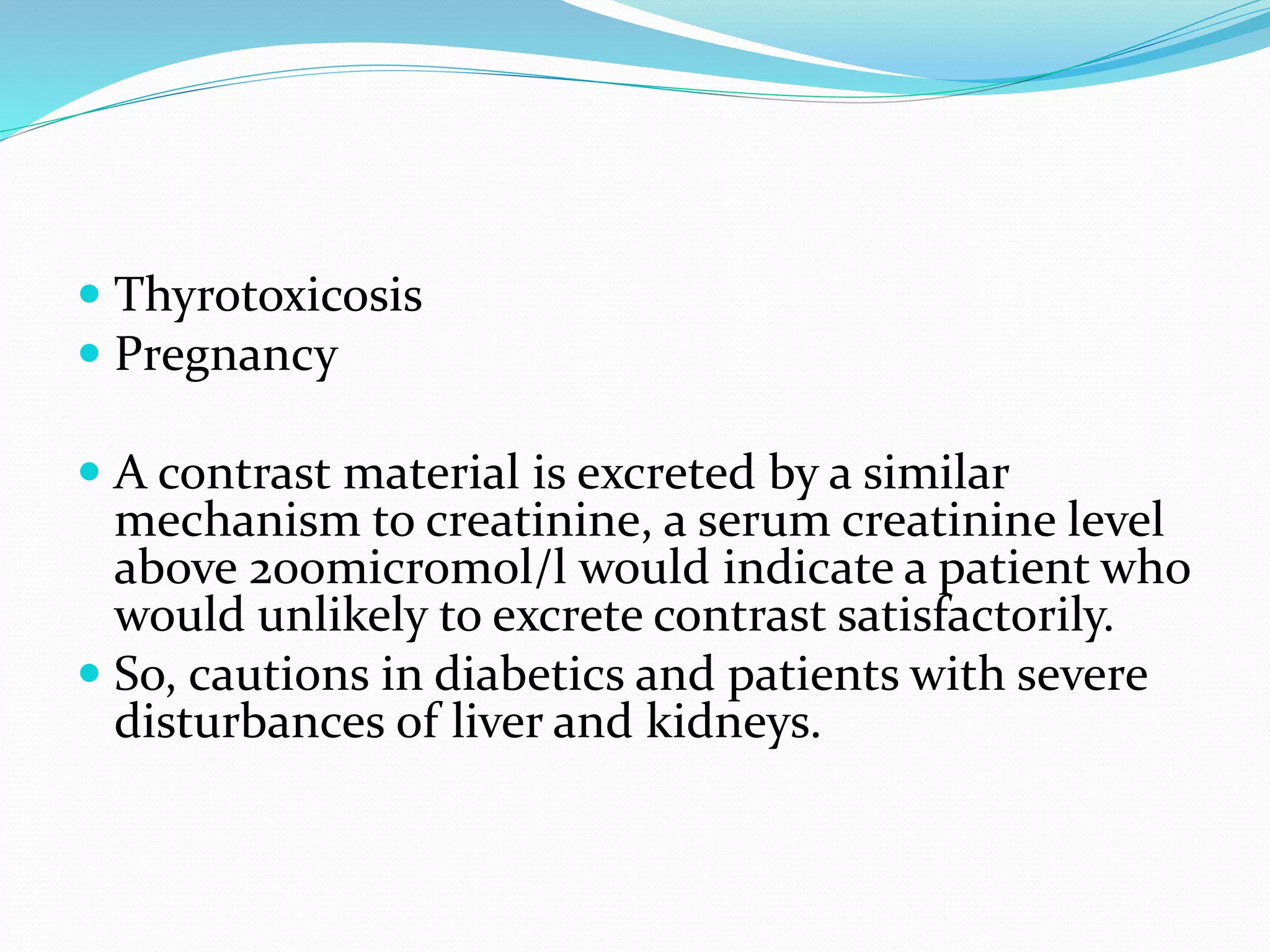

9. Thyrotoxicosis
Pregnancy
A contrast material is excreted by a similar
mechanism to creatinine, a serum creatinine level
above 200micromol/l would indicate a patient who
would unlikely to excrete contrast satisfactorily.
So, cautions in diabetics and patients with severe
disturbances of liver and kidneys.

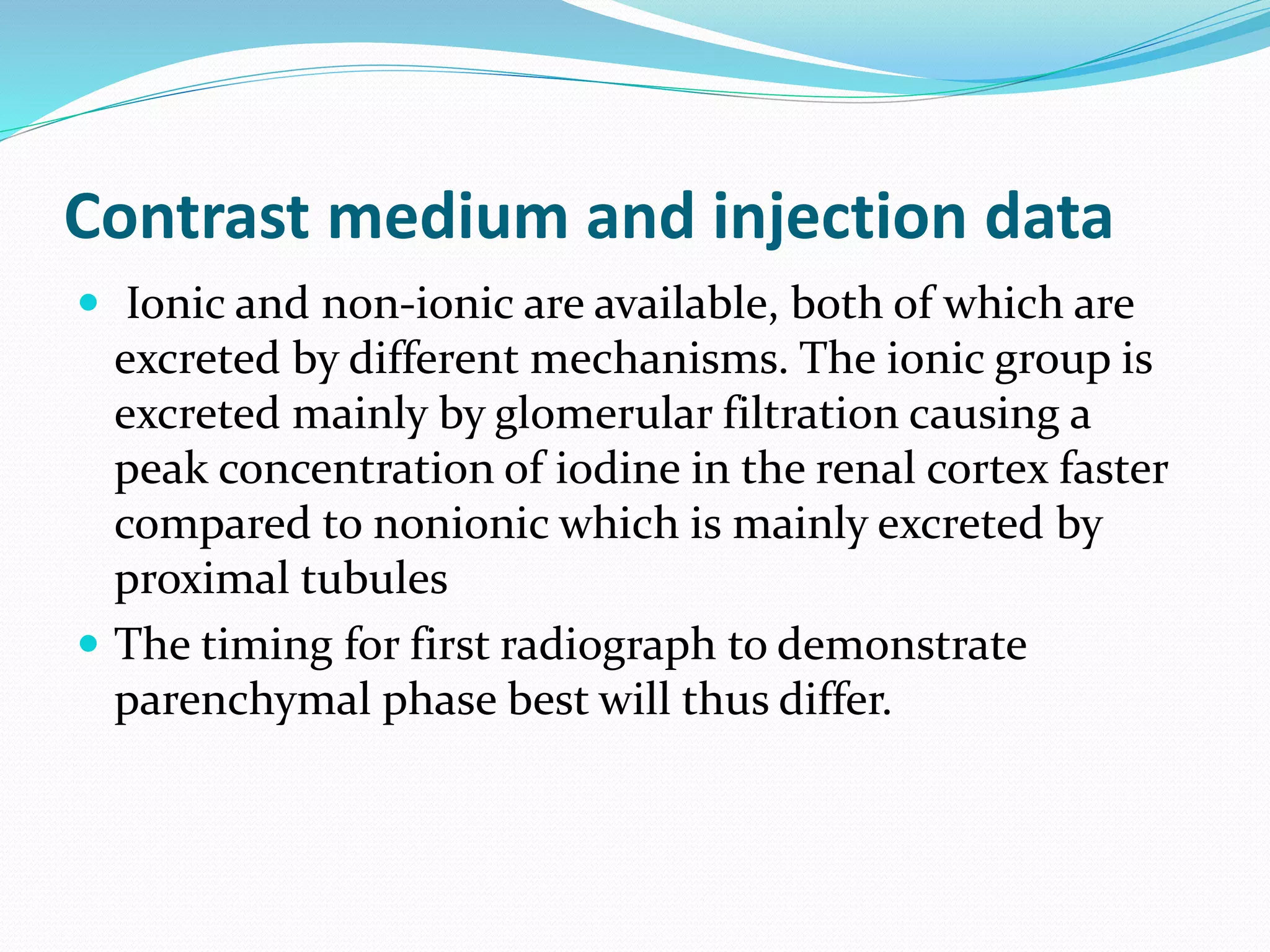

10. Contrast medium and injection data
Ionic and non-ionic are available, both of which are
excreted by different mechanisms. The ionic group is
excreted mainly by glomerular filtration causing a
peak concentration of iodine in the renal cortex faster
compared to nonionic which is mainly excreted by
proximal tubules
The timing for first radiograph to demonstrate
parenchymal phase best will thus differ.

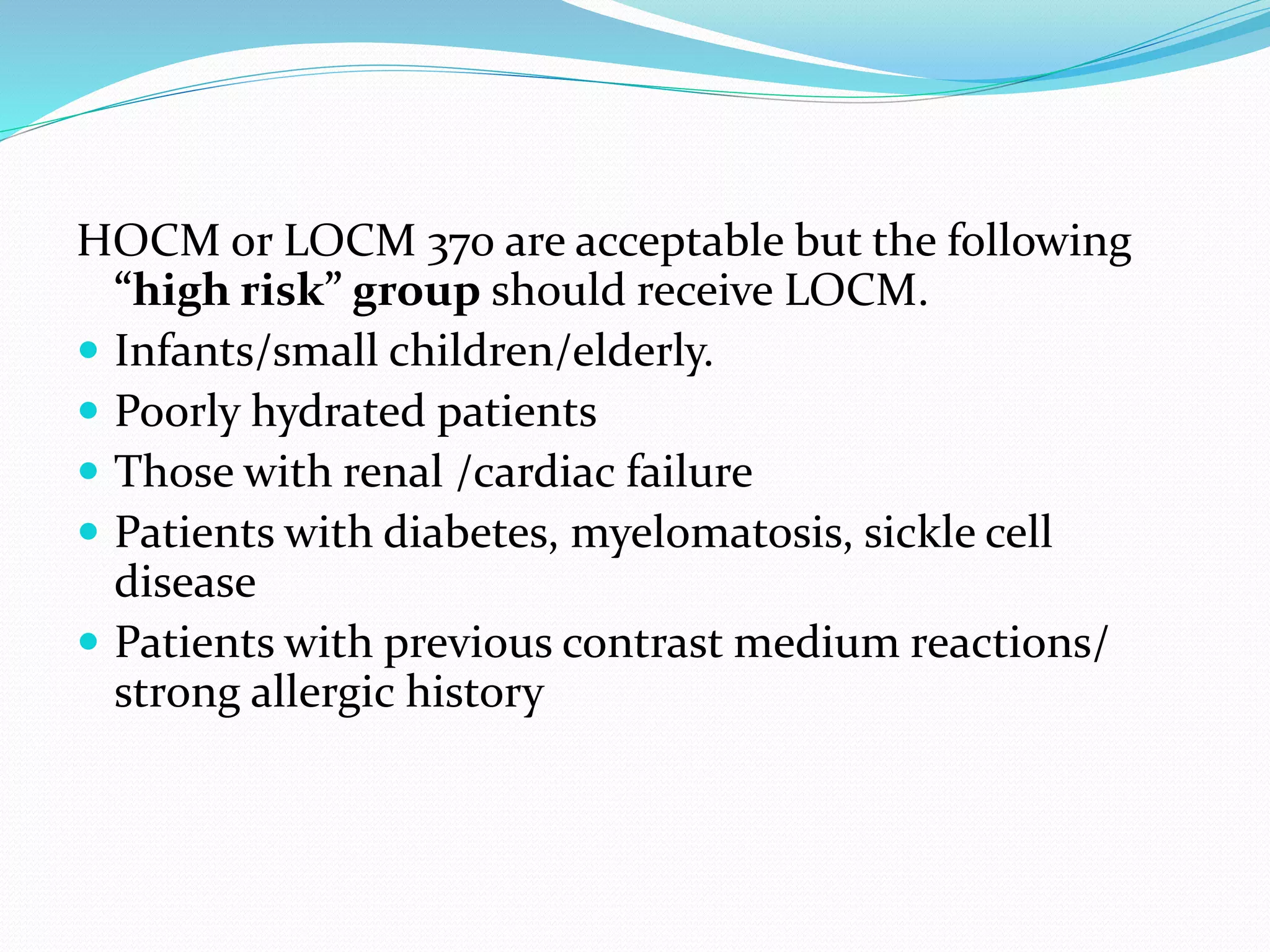

11. HOCM or LOCM 370 are acceptable but the following
“high risk” group should receive LOCM.
Infants/small children/elderly.
Poorly hydrated patients
Those with renal /cardiac failure
Patients with diabetes, myelomatosis, sickle cell
disease
Patients with previous contrast medium reactions/
strong allergic history

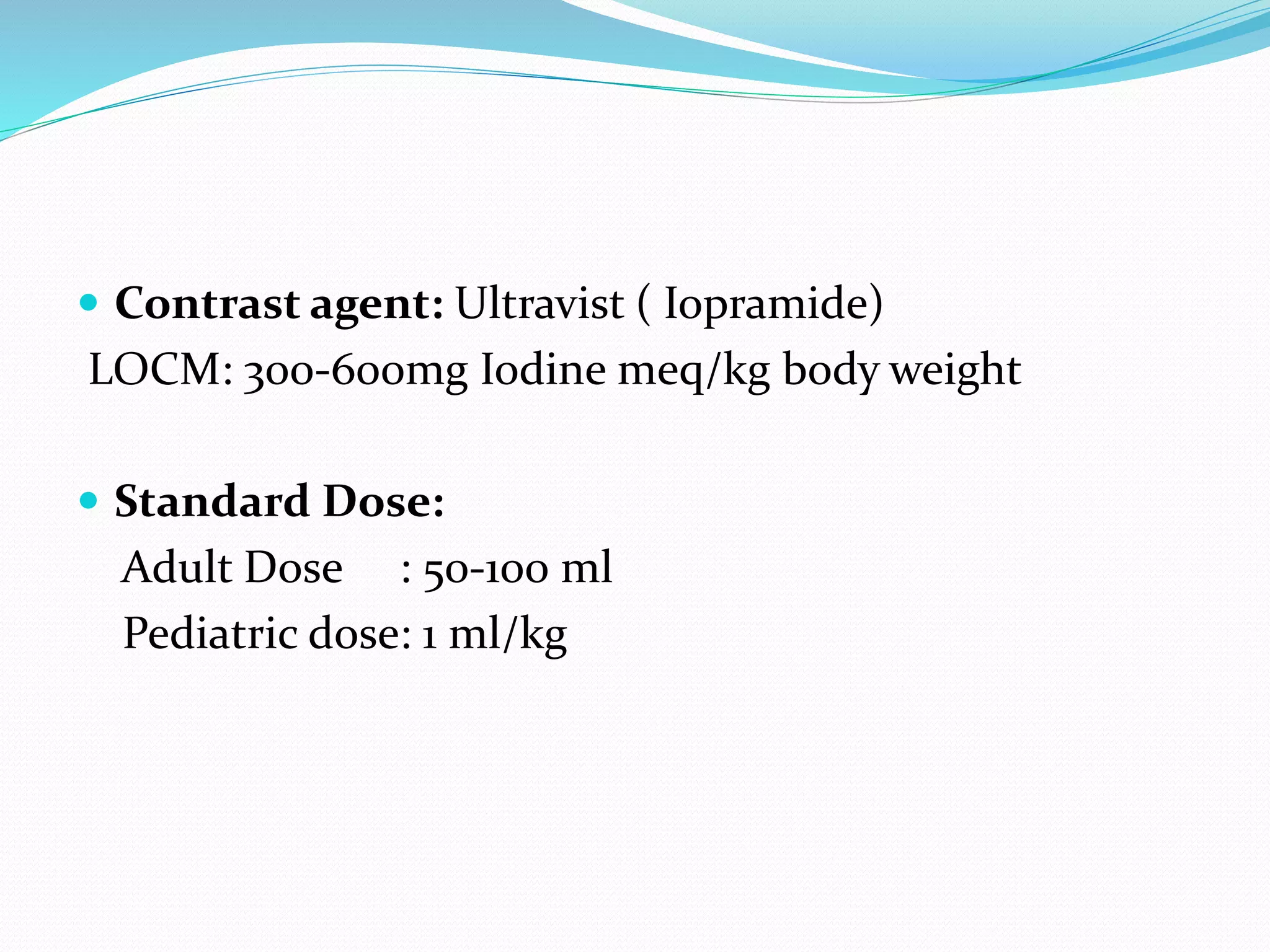

12. Contrast agent: Ultravist ( Iopramide)
LOCM: 300-600mg Iodine meq/kg body weight
Standard Dose:
Adult Dose : 50-100 ml
Pediatric dose: 1 ml/kg

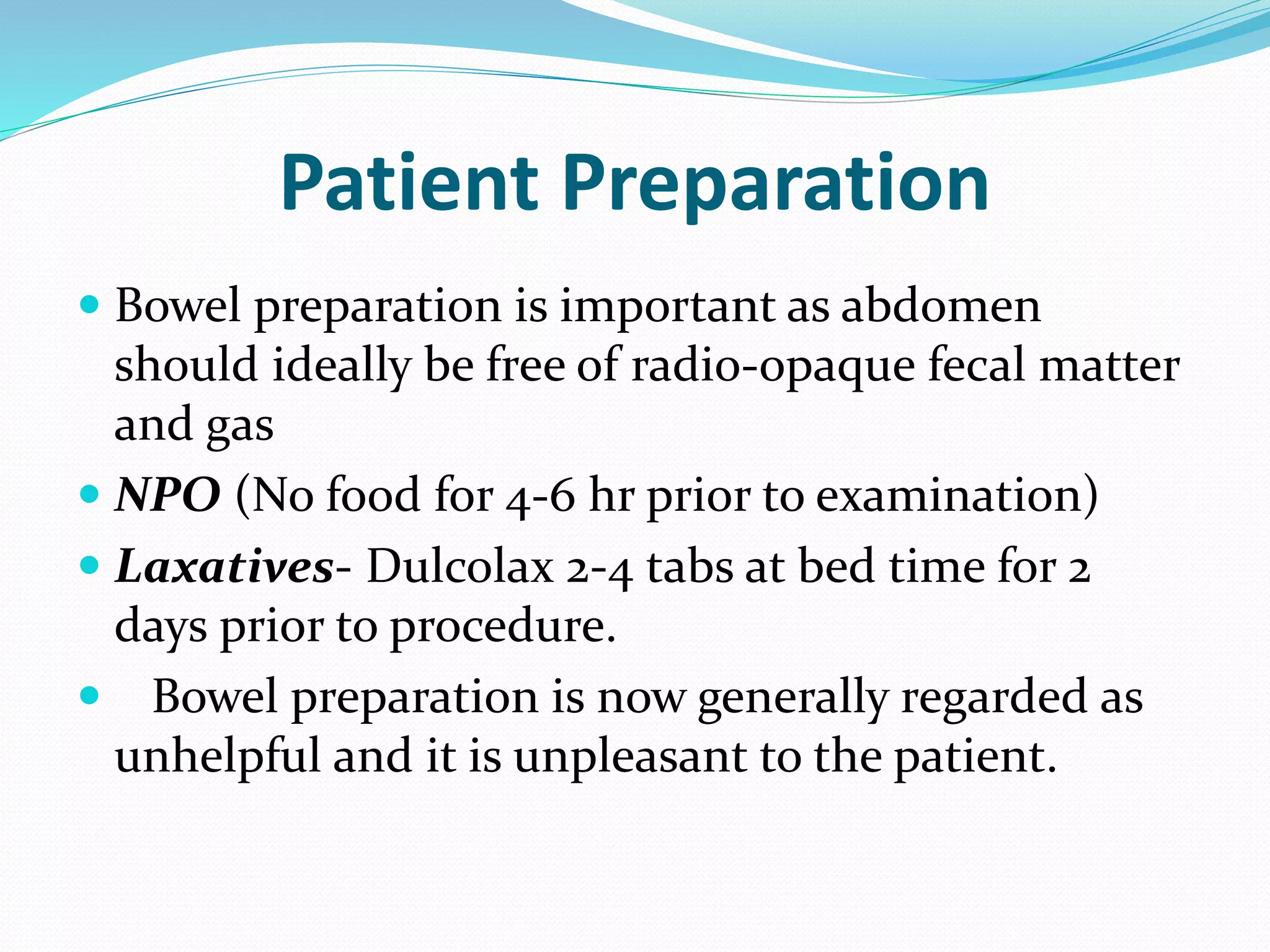

13. Patient Preparation
Bowel preparation is important as abdomen
should ideally be free of radio-opaque fecal matter
and gas
NPO (No food for 4-6 hr prior to examination)
Laxatives- Dulcolax 2-4 tabs at bed time for 2
days prior to procedure.
Bowel preparation is now generally regarded as
unhelpful and it is unpleasant to the patient.

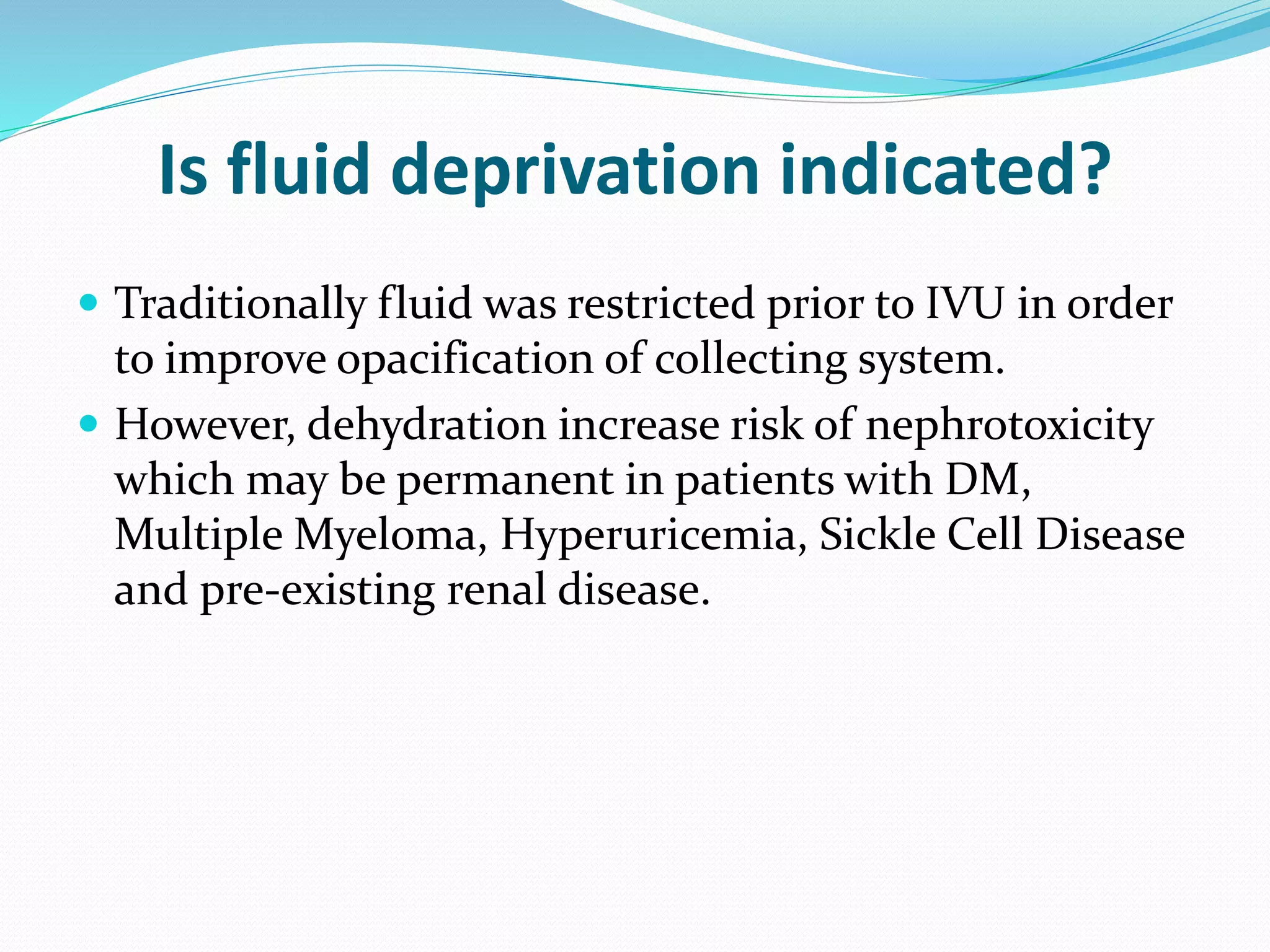

14. Is fluid deprivation indicated?
Traditionally fluid was restricted prior to IVU in order
to improve opacification of collecting system.
However, dehydration increase risk of nephrotoxicity
which may be permanent in patients with DM,
Multiple Myeloma, Hyperuricemia, Sickle Cell Disease
and pre-existing renal disease.

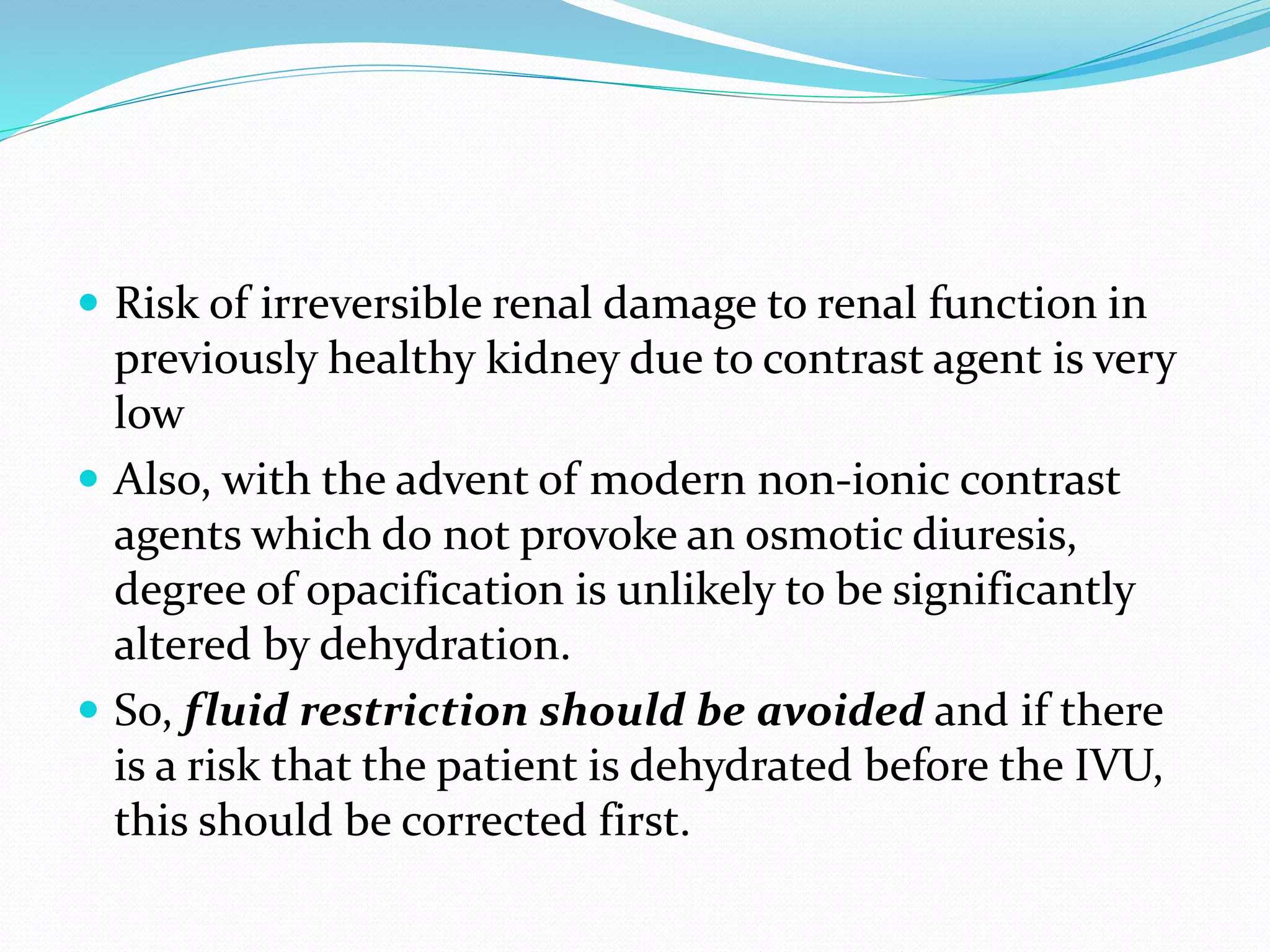

15. Risk of irreversible renal damage to renal function in
previously healthy kidney due to contrast agent is very
low
Also, with the advent of modern non-ionic contrast
agents which do not provoke an osmotic diuresis,
degree of opacification is unlikely to be significantly
altered by dehydration.
So, fluid restriction should be avoided and if there
is a risk that the patient is dehydrated before the IVU,
this should be corrected first.

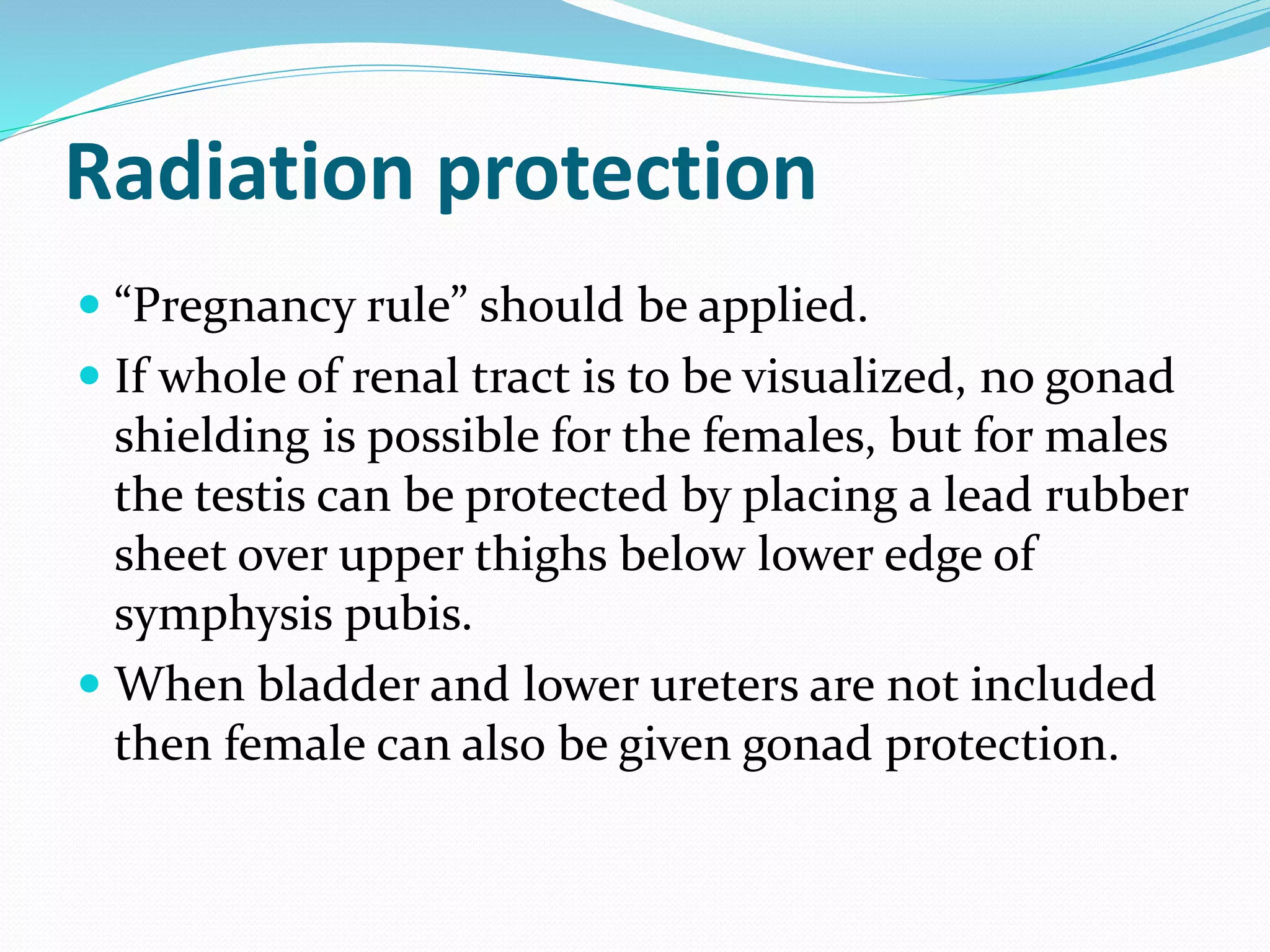

16. Radiation protection
“Pregnancy rule” should be applied.
If whole of renal tract is to be visualized, no gonad
shielding is possible for the females, but for males
the testis can be protected by placing a lead rubber
sheet over upper thighs below lower edge of
symphysis pubis.
When bladder and lower ureters are not included
then female can also be given gonad protection.

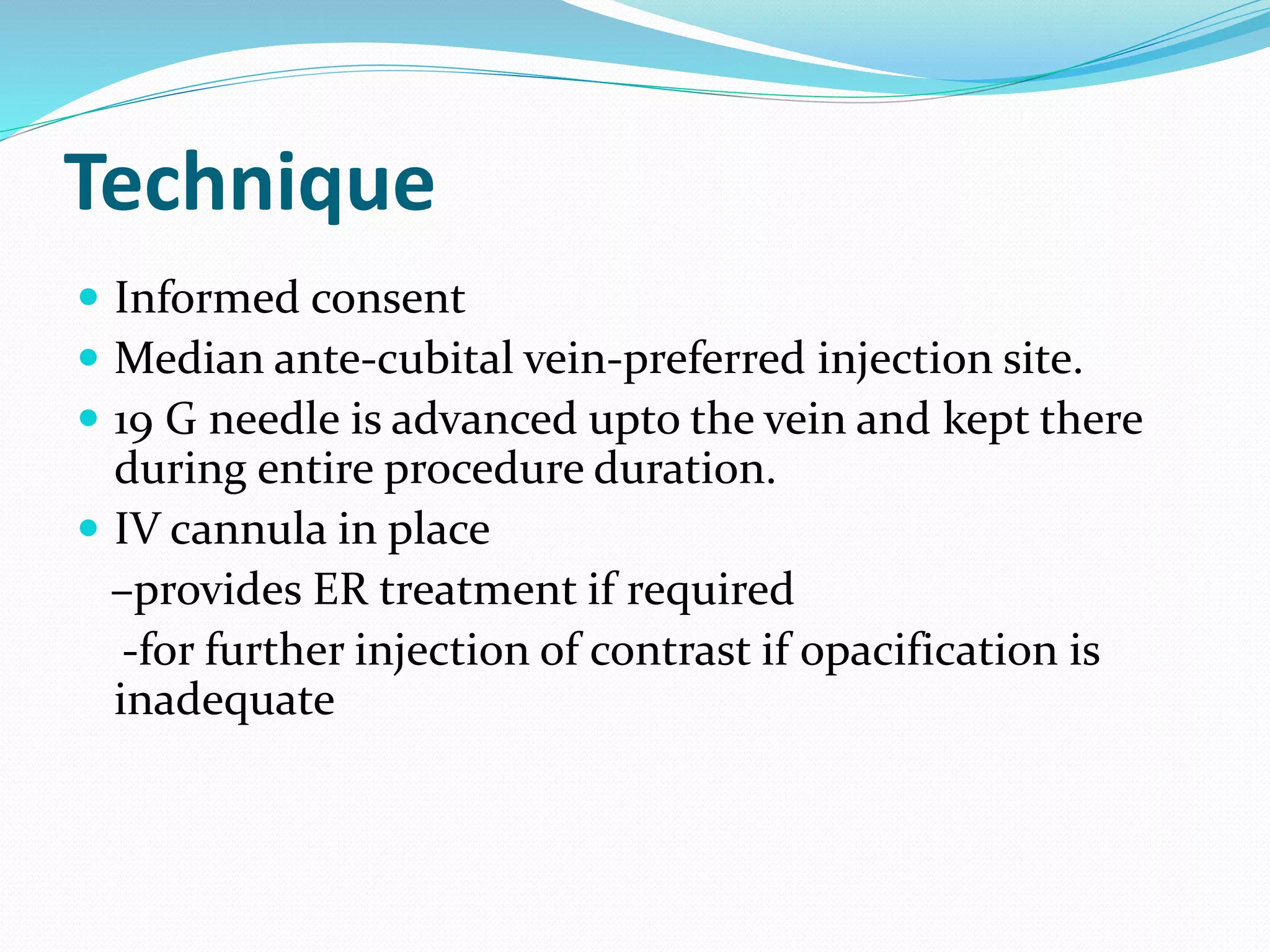

17. Technique
Informed consent
Median ante-cubital vein-preferred injection site.
19 G needle is advanced upto the vein and kept there
during entire procedure duration.
IV cannula in place
–provides ER treatment if required
-for further injection of contrast if opacification is
inadequate

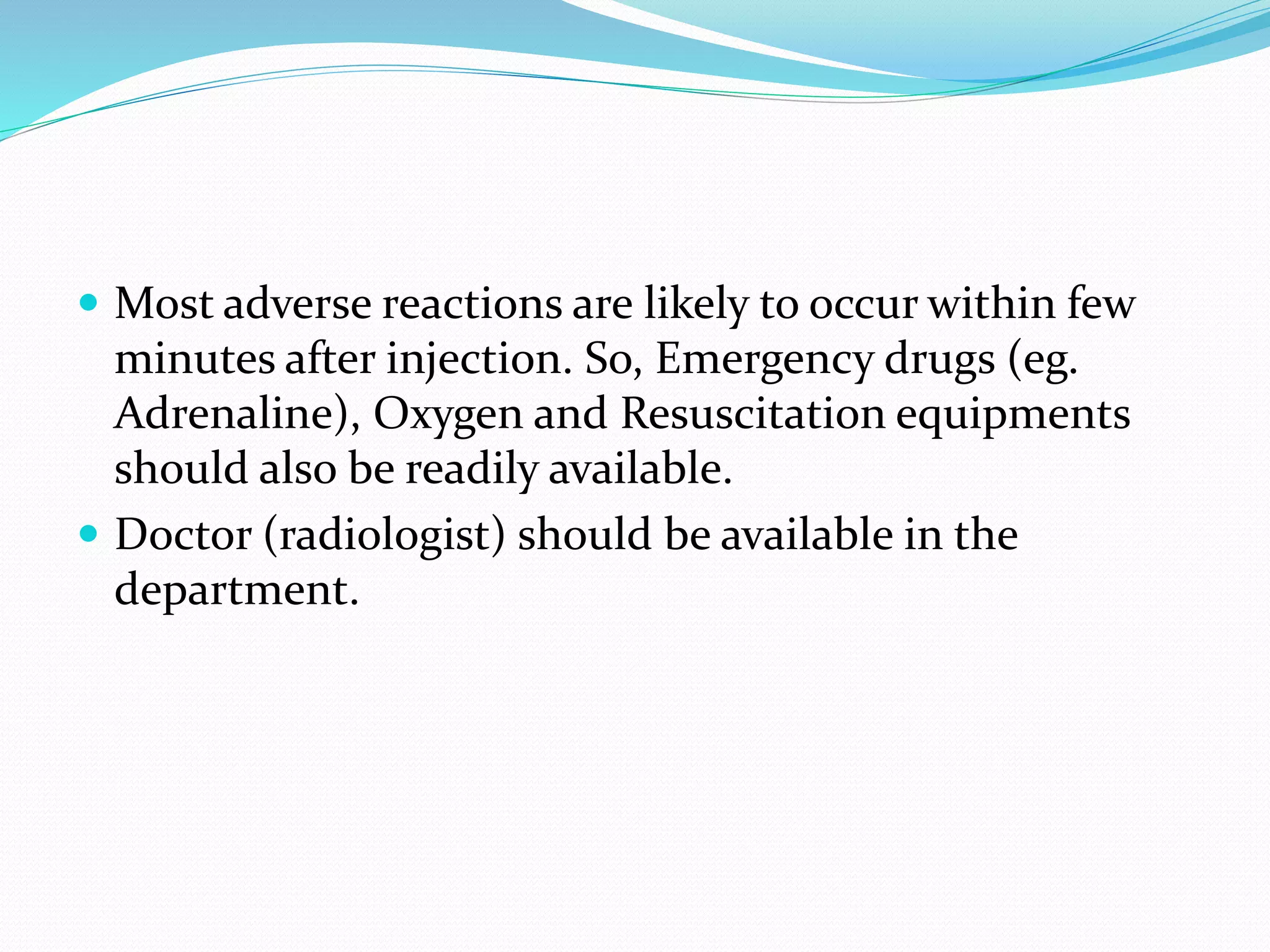

18. Most adverse reactions are likely to occur within few
minutes after injection. So, Emergency drugs (eg.
Adrenaline), Oxygen and Resuscitation equipments
should also be readily available.
Doctor (radiologist) should be available in the
department.

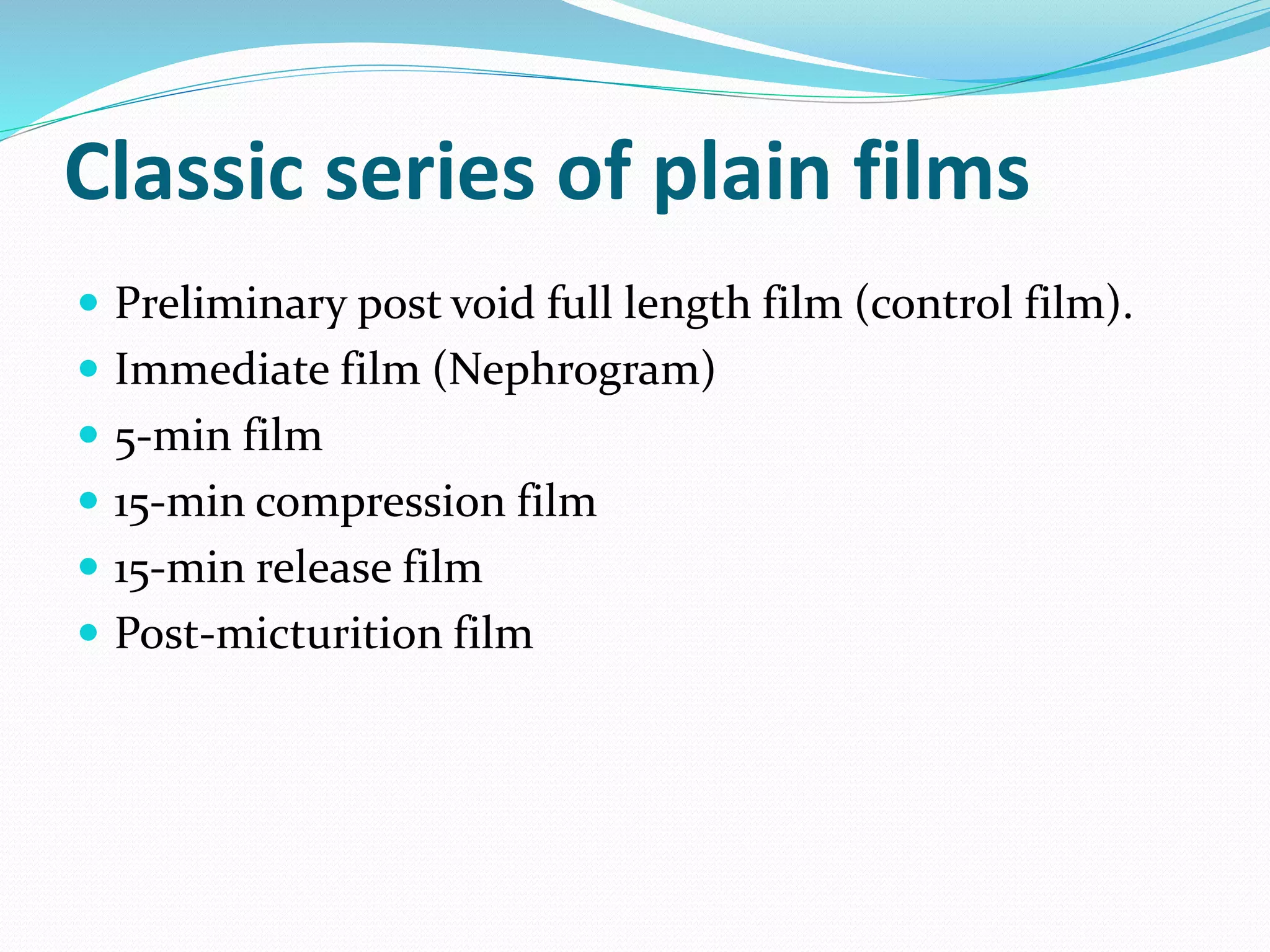

19. Classic series of plain films
Preliminary post void full length film (control film).
Immediate film (Nephrogram)
5-min film
15-min compression film
15-min release film
Post-micturition film

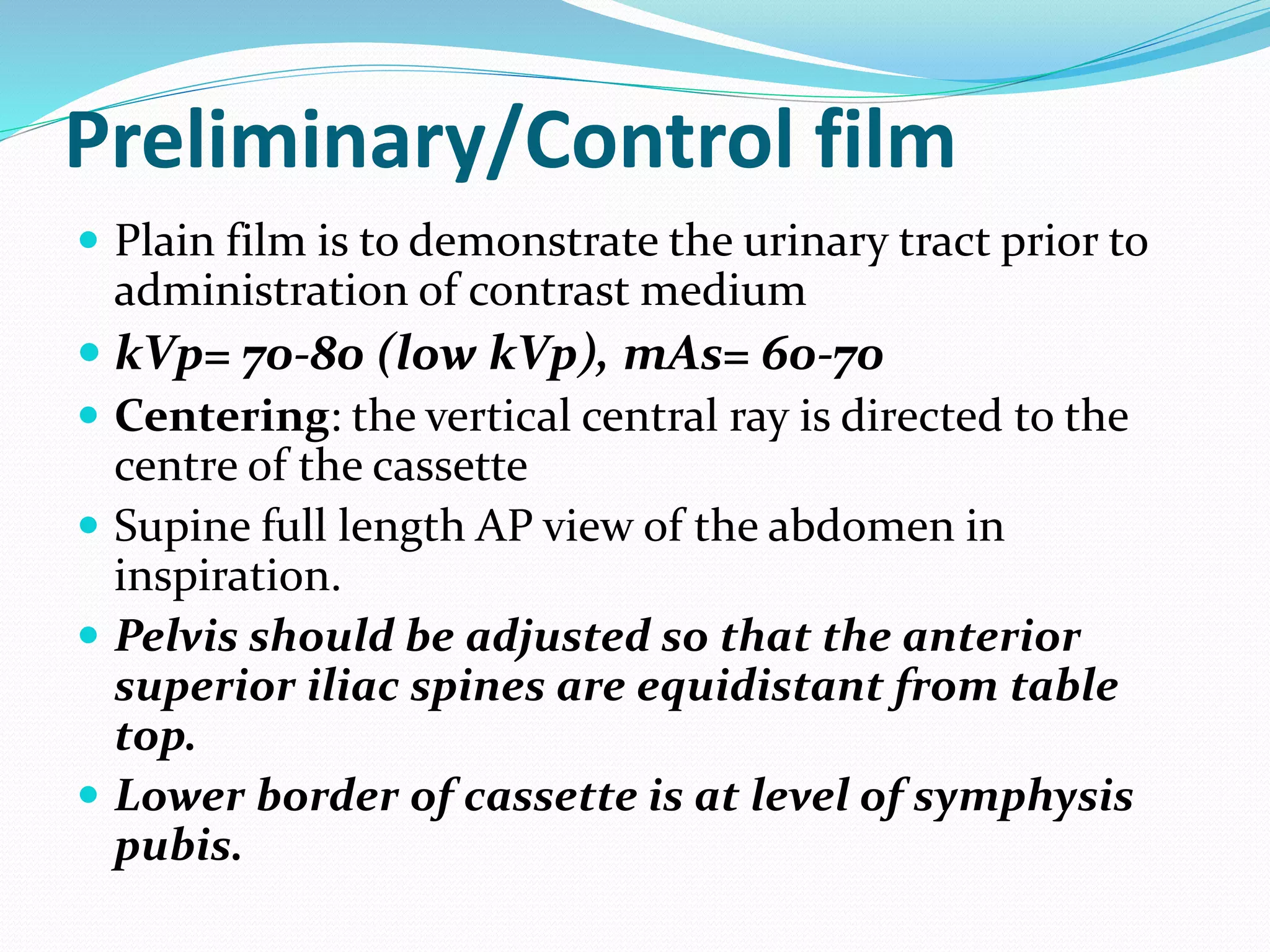

20. Preliminary/Control film
Plain film is to demonstrate the urinary tract prior to
administration of contrast medium
kVp= 70-80 (low kVp), mAs= 60-70
Centering: the vertical central ray is directed to the
centre of the cassette
Supine full length AP view of the abdomen in
inspiration.
Pelvis should be adjusted so that the anterior
superior iliac spines are equidistant from table
top.
Lower border of cassette is at level of symphysis
pubis.

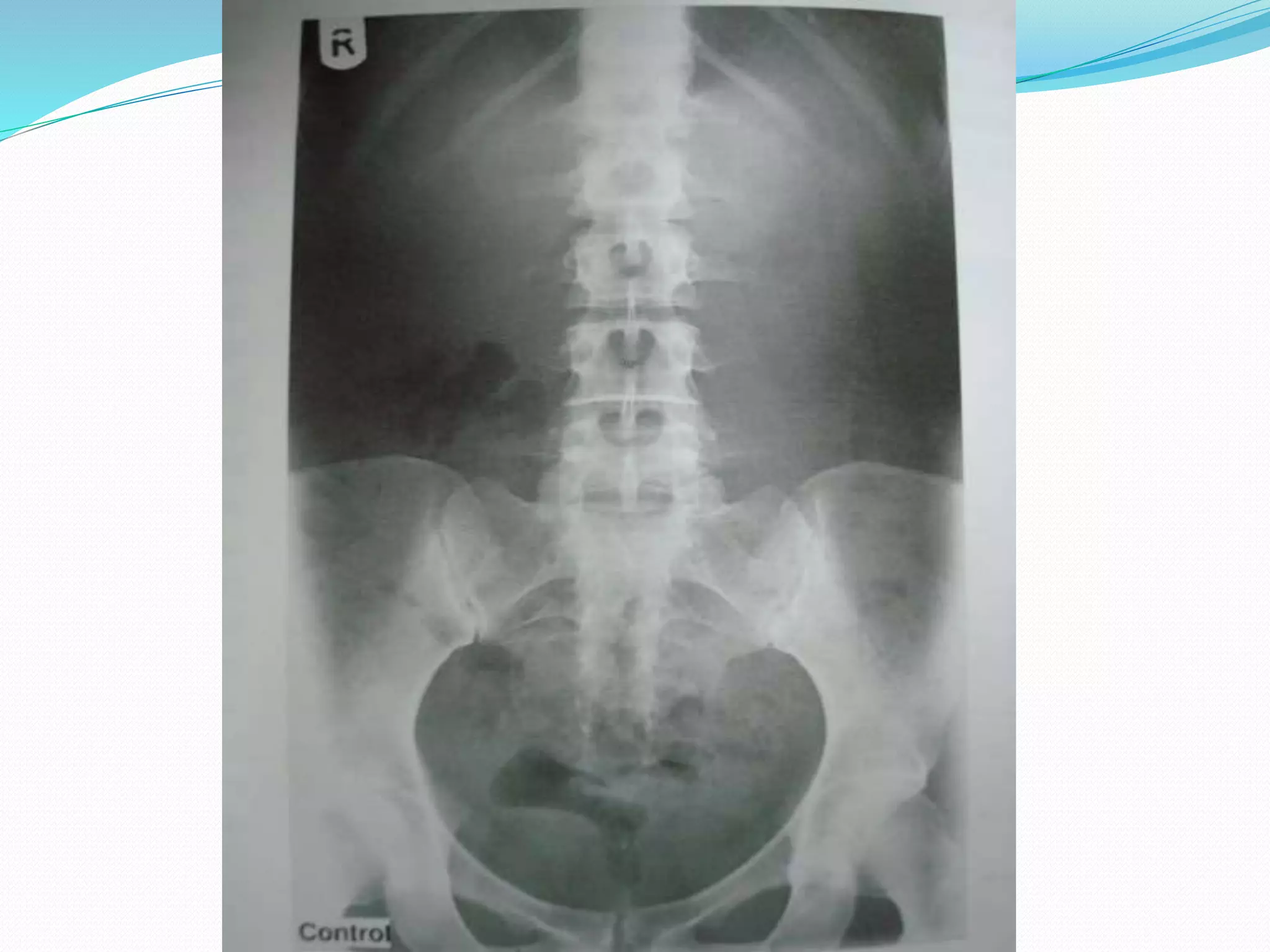

21.

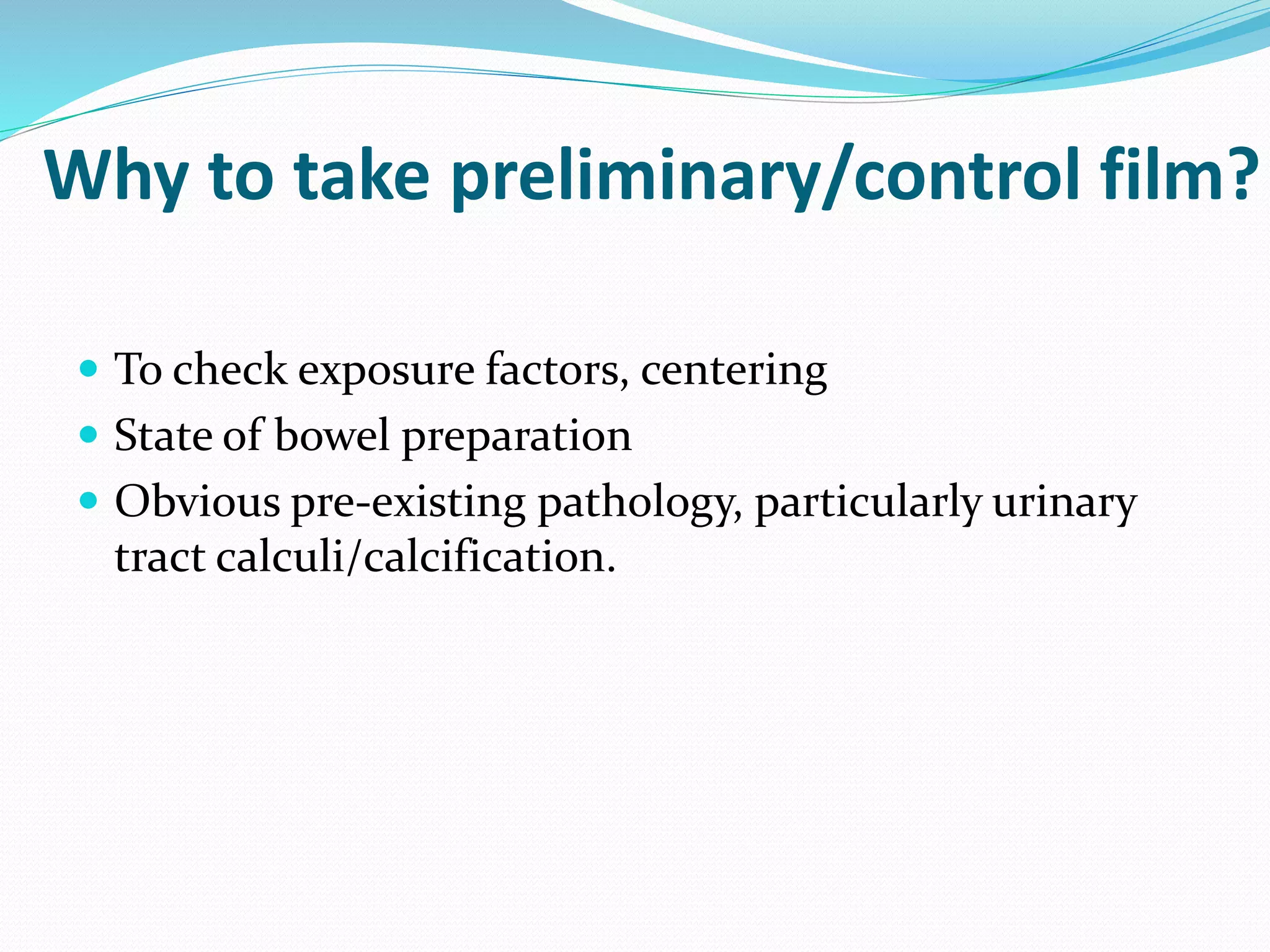

22. Why to take preliminary/control film?
To check exposure factors, centering
State of bowel preparation
Obvious pre-existing pathology, particularly urinary
tract calculi/calcification.
23. Calcification on the KUB
In the Urinary tract
Renal: calculi, renal cell carcinoma, tuberculosis,
arterial (atheroma or aneurysm)
Ureter: calculi, tuberculosis, schistosomiasis
Bladder: calculi, tuberculosis, schistosomiasis,
transitional cell carcinoma

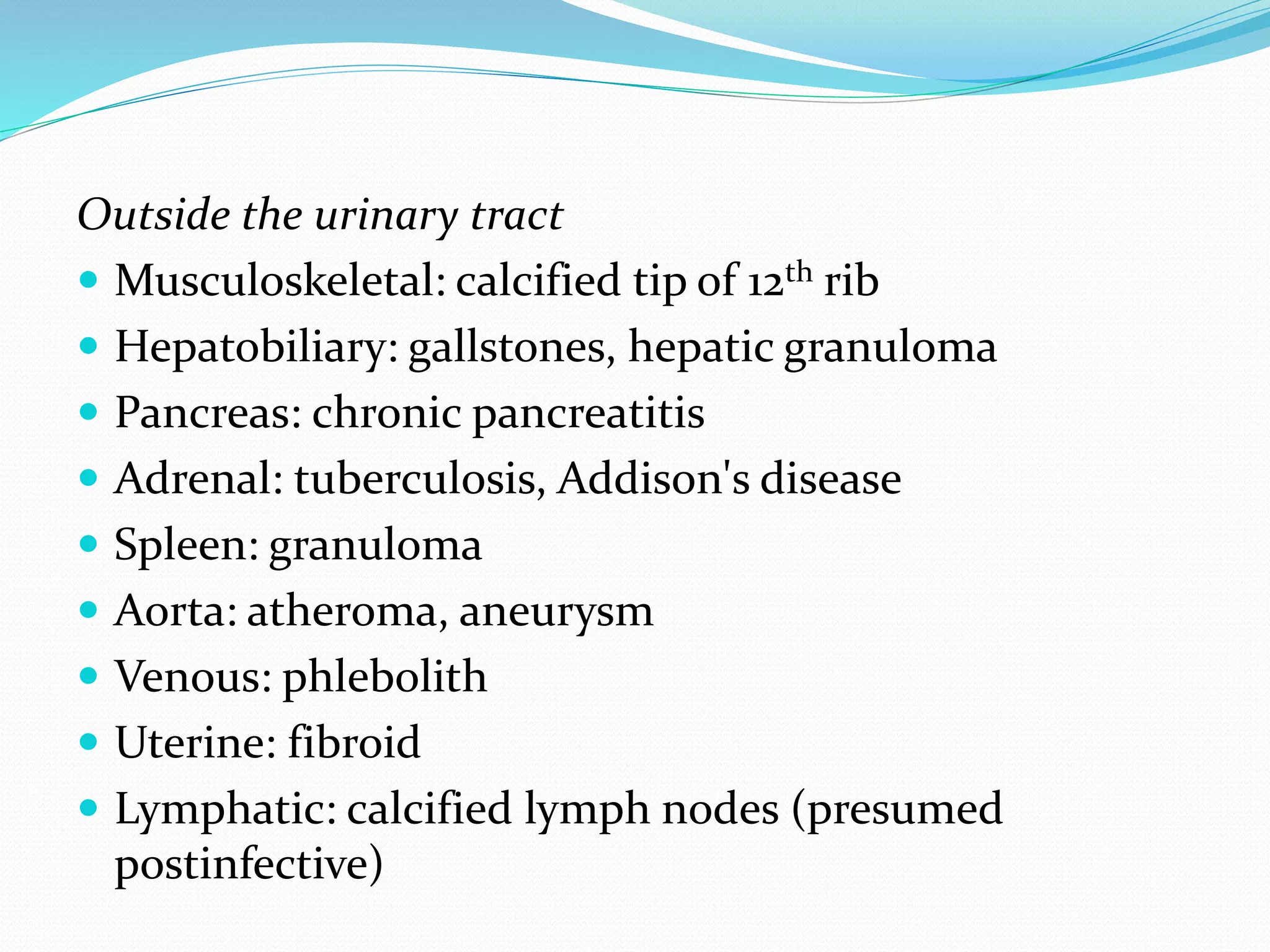

25. Immediate film (Nephrogram)
AP film of renal areas.
This film is exposed 10-14
seconds after contrast
injection (arm to kidney
time)
Renal parenchyma is
opacified by contrast
medium in the renal tubules.
Aim is to see Renal
outlines

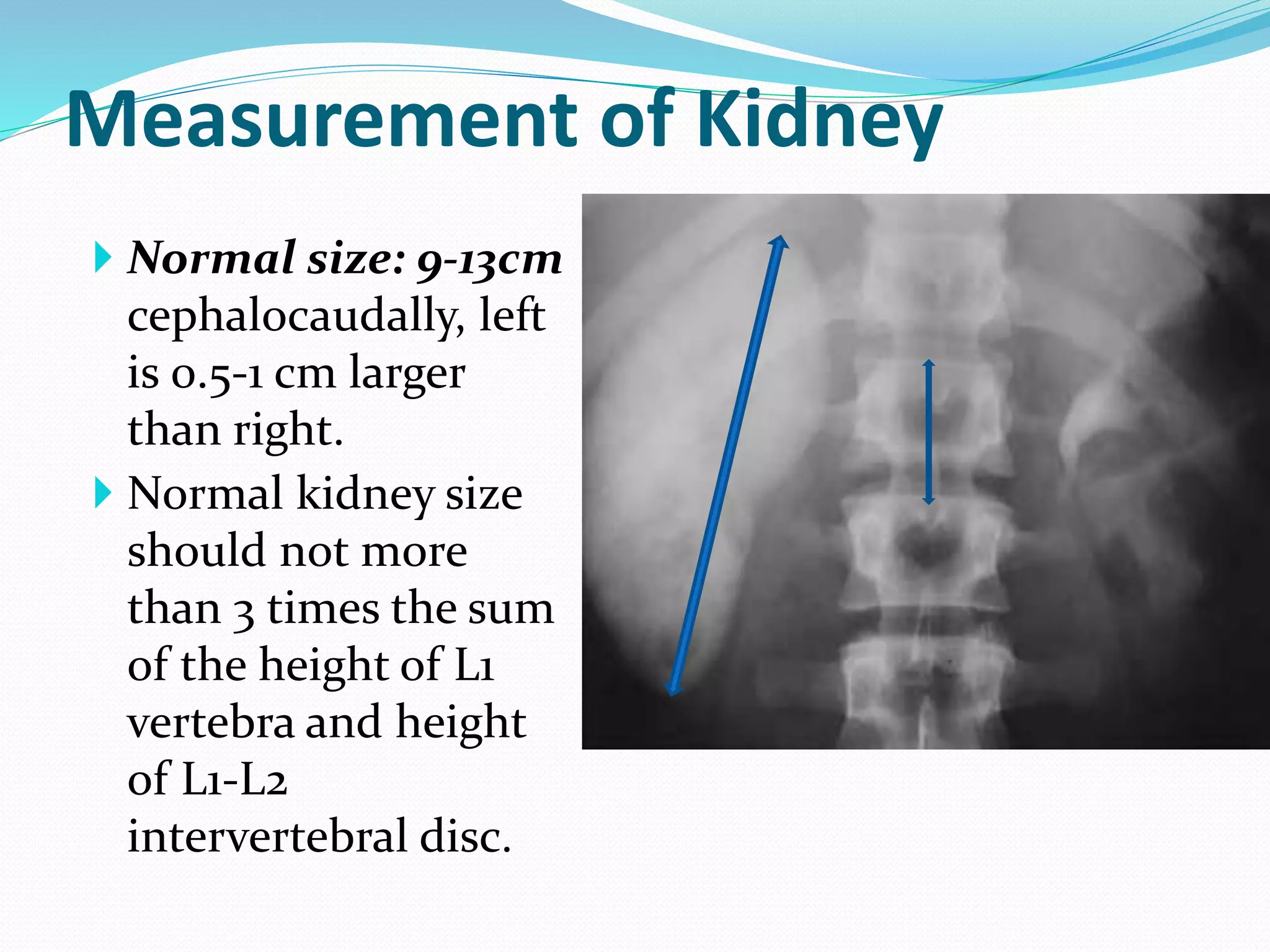

26. Normal size: 9-13cm
cephalocaudally, left
is 0.5-1 cm larger
than right.
Normal kidney size
should not more
than 3 times the sum
of the height of L1
vertebra and height
of L1-L2
intervertebral disc.
Measurement of Kidney

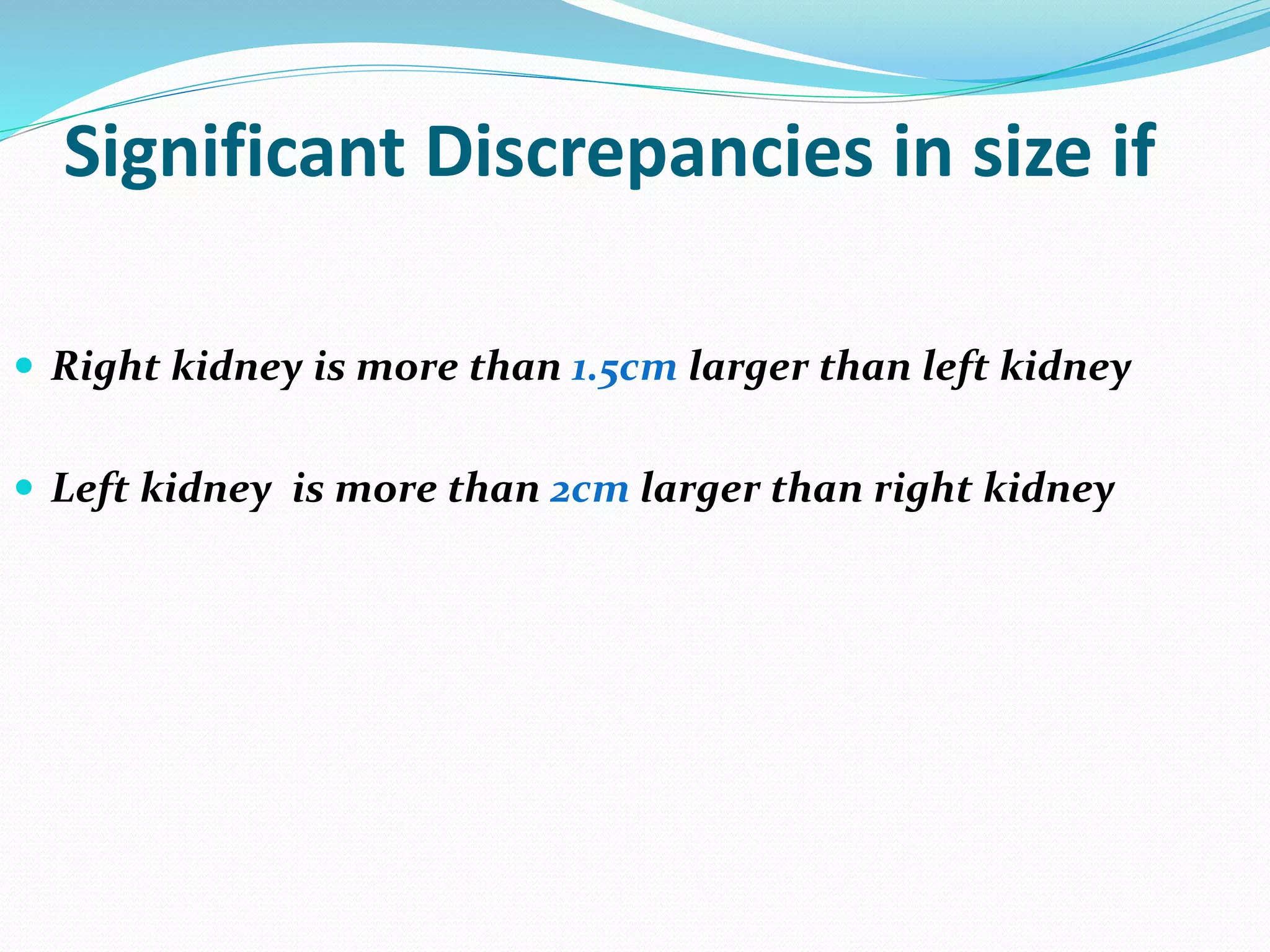

27. Right kidney is more than 1.5cm larger than left kidney
Left kidney is more than 2cm larger than right kidney
Significant Discrepancies in size if

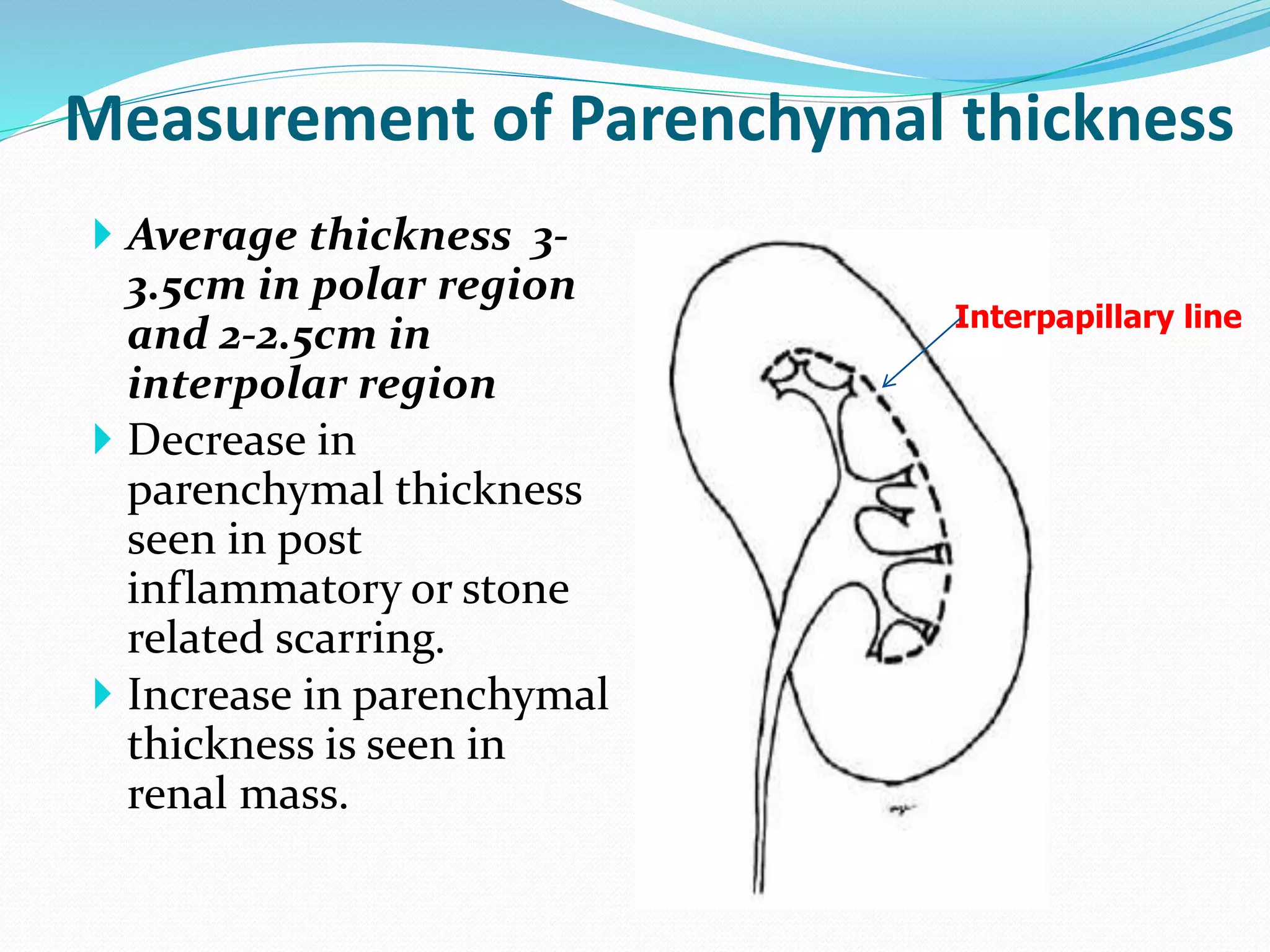

28. Average thickness 3-
3.5cm in polar region
and 2-2.5cm in
interpolar region
Decrease in
parenchymal thickness
seen in post
inflammatory or stone
related scarring.
Increase in parenchymal
thickness is seen in
renal mass.
Measurement of Parenchymal thickness
Interpapillary line
29. 5-min film
AP of Renal areas
Film is taken to
determine if excretion is
symmetrical and for
assessing if need to
modify technique e.g- a
further injection of
contrast medium if poor
opaification.
To see Pelvicalyceal
system

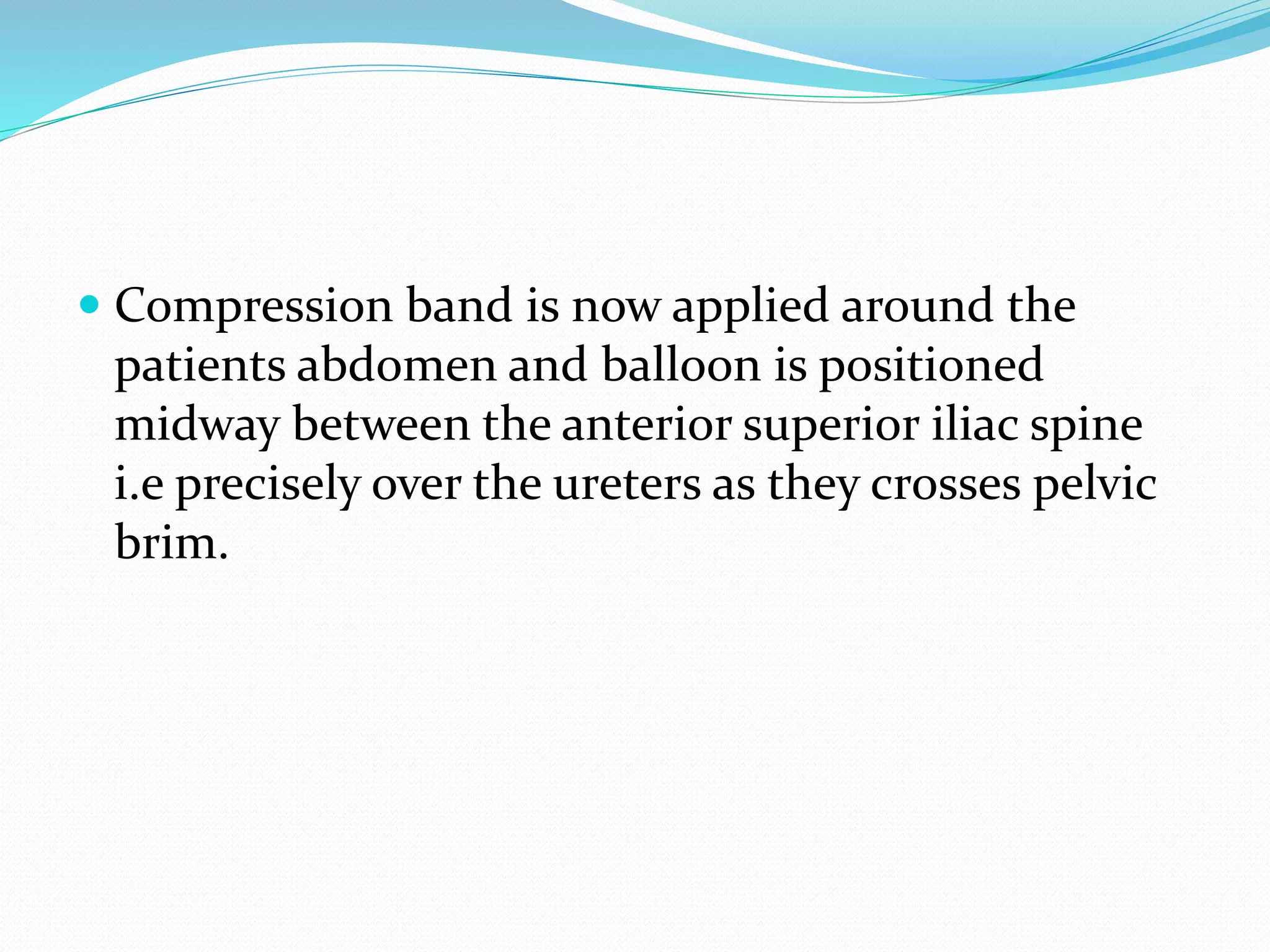

30. Compression band is now applied around the
patients abdomen and balloon is positioned
midway between the anterior superior iliac spine
i.e precisely over the ureters as they crosses pelvic
brim.

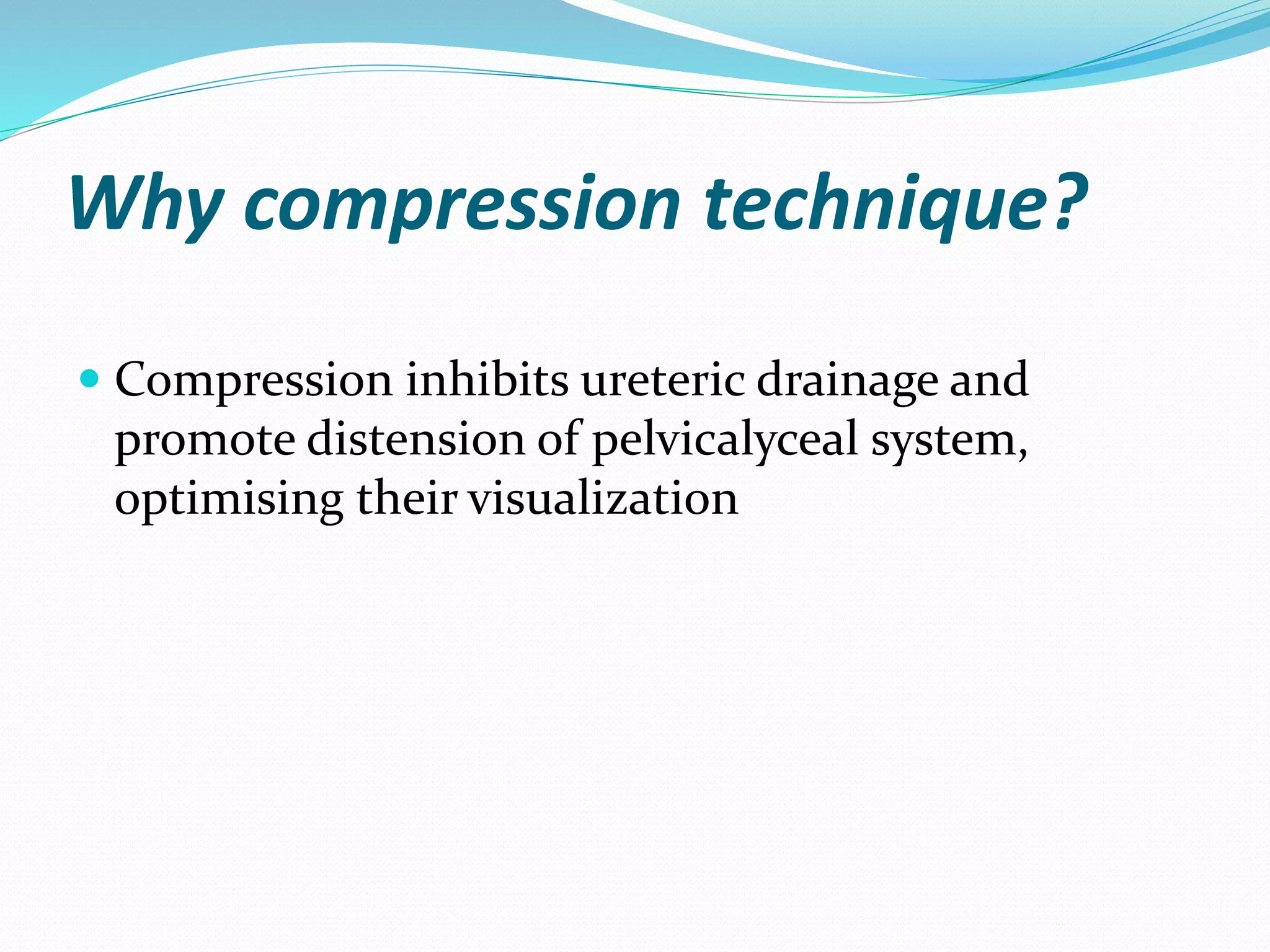

31. Why compression technique?
Compression inhibits ureteric drainage and
promote distension of pelvicalyceal system,
optimising their visualization

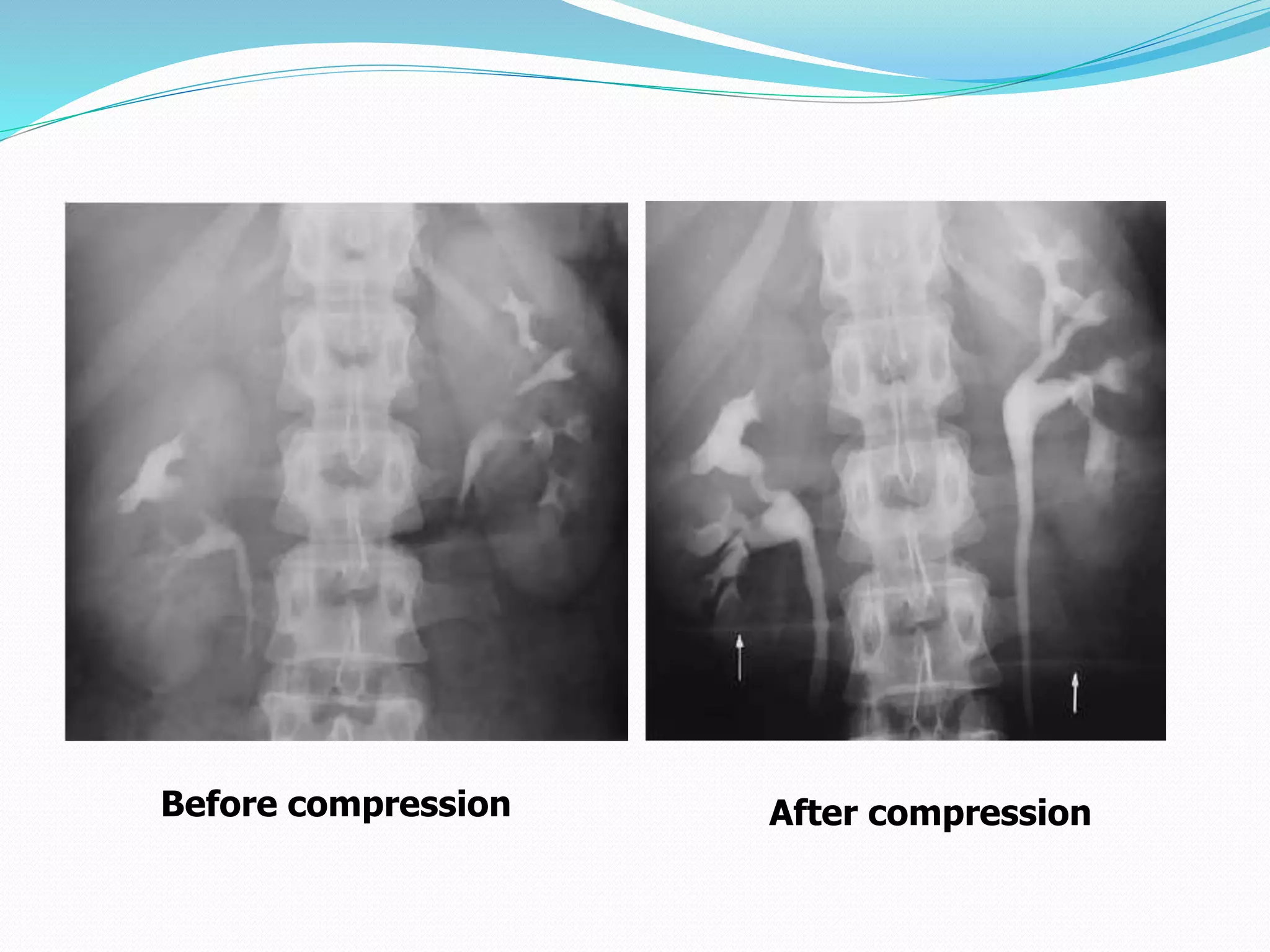

33. Contraindications of compression
Recent abdominal surgery
Abdominal Aortic Aneurysms
Acute painful abdomen/ renal colic
Large abdominal mass
Urinary tract trauma
Presence of Urinary diversion
Presence of Renal transplant
When 5-min film shows already distended calyces.
34. 15-min compression film
AP view of renal areas
There is usually adequate
distension of pelvicalyceal
system with opaque urine.
Compression removed
when satisfactory
demonstration of
pelvicalyceal system has
been achieved.
35.
36. 15-min Release film
Supine AP film
This film is taken to
show whole urinary
tract.

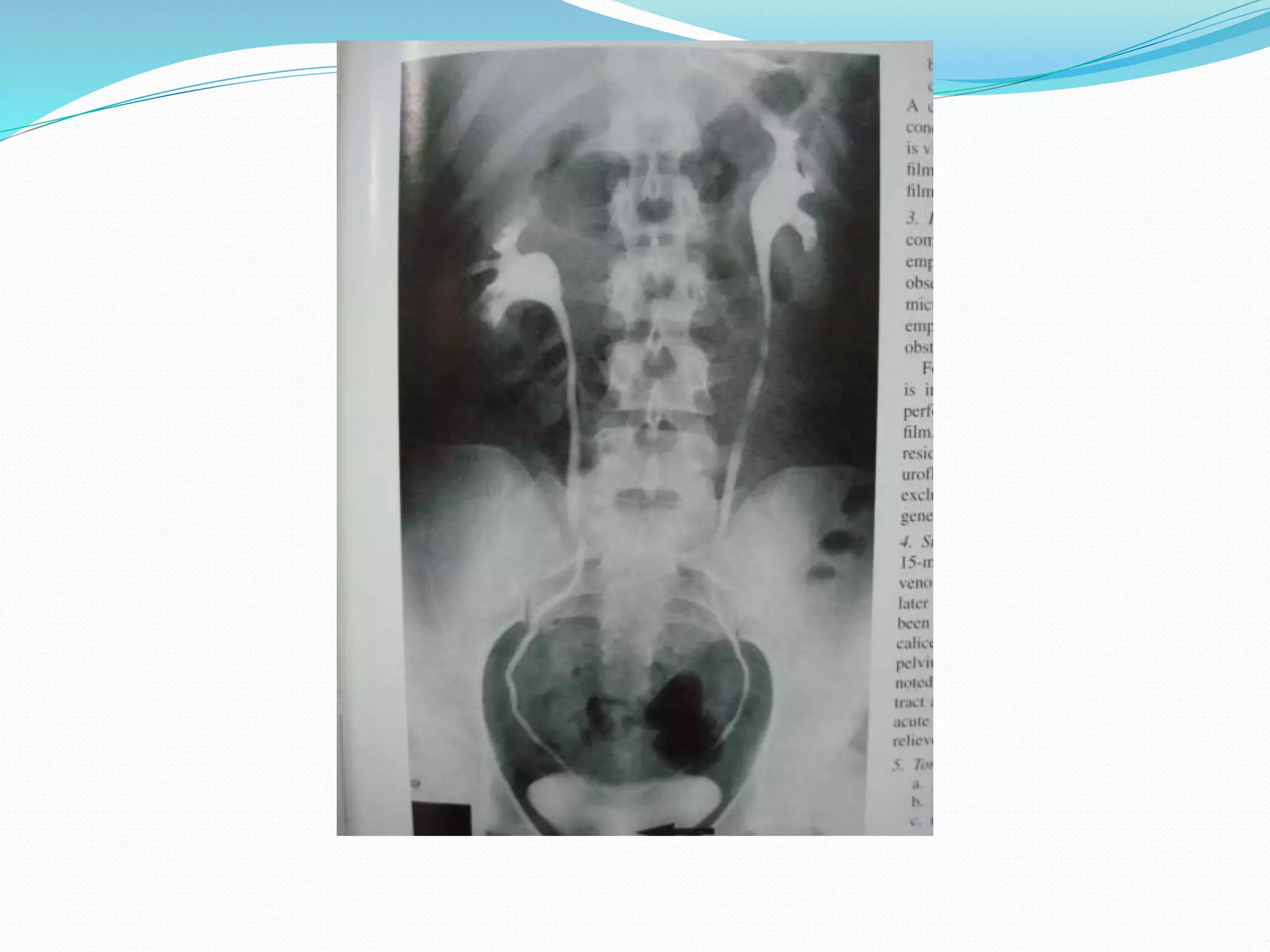

37.

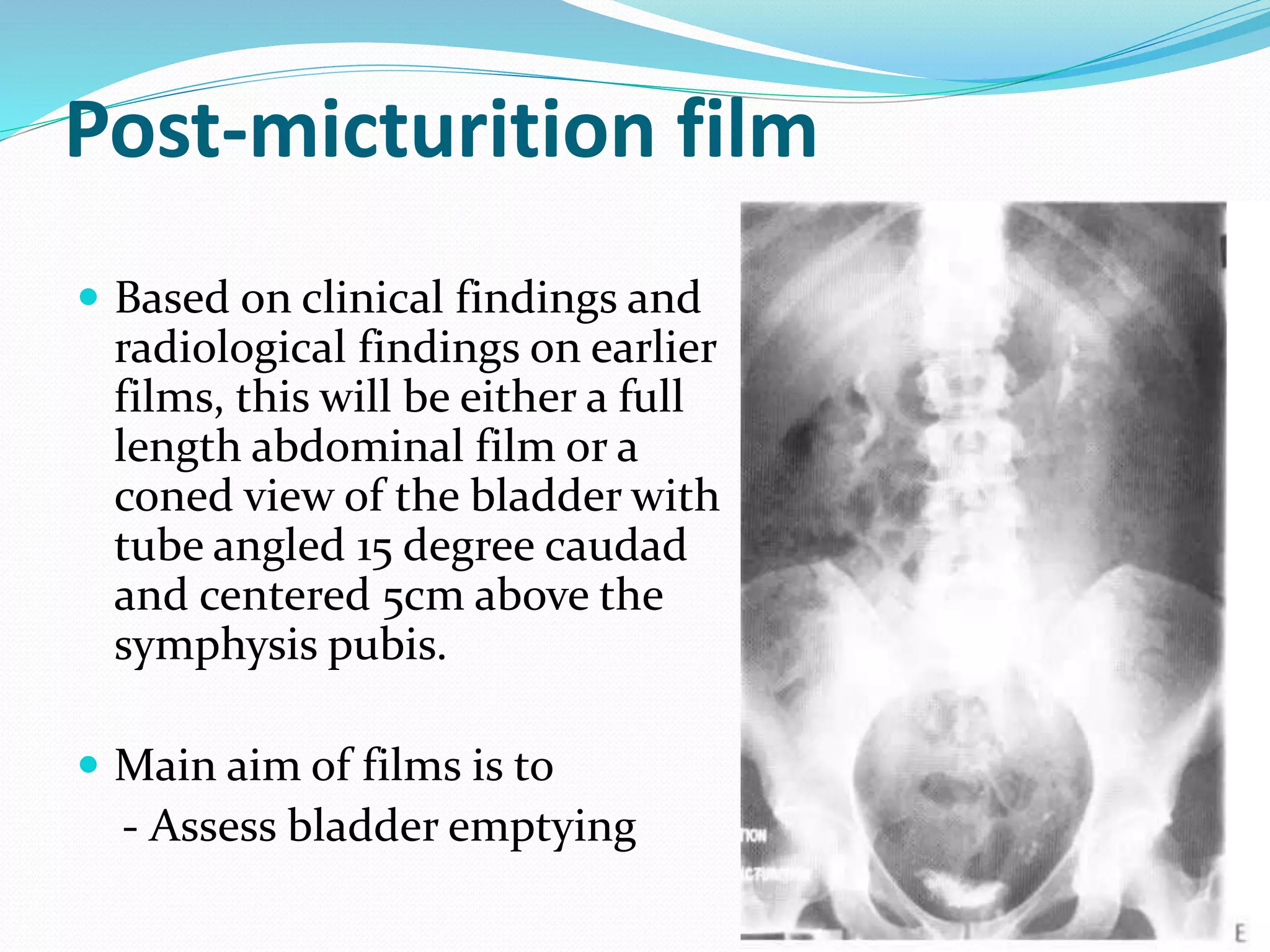

38. Post-micturition film
Based on clinical findings and
radiological findings on earlier
films, this will be either a full
length abdominal film or a
coned view of the bladder with
tube angled 15 degree caudad
and centered 5cm above the
symphysis pubis.
Main aim of films is to
- Assess bladder emptying

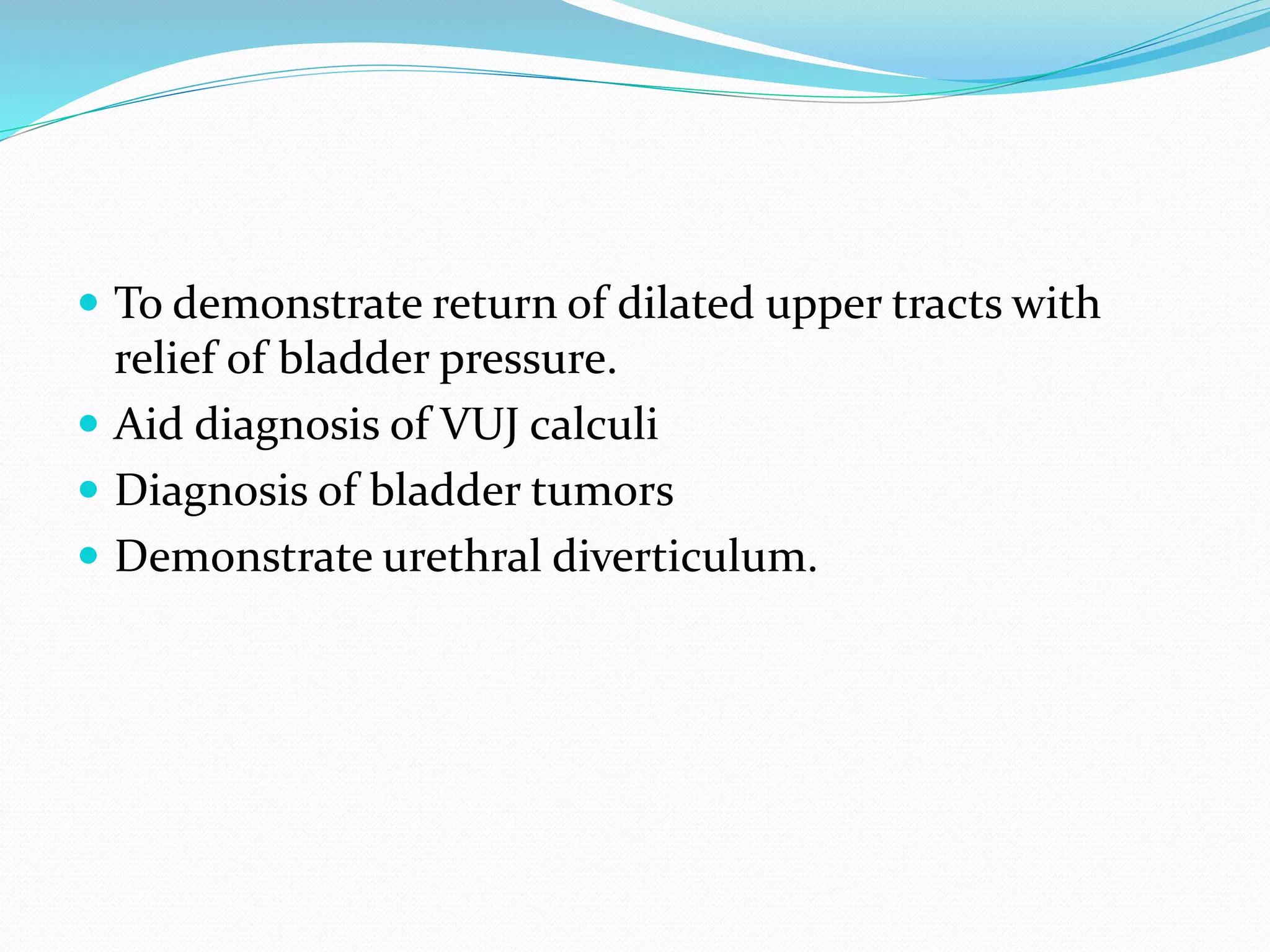

39. To demonstrate return of dilated upper tracts with
relief of bladder pressure.
Aid diagnosis of VUJ calculi
Diagnosis of bladder tumors
Demonstrate urethral diverticulum.

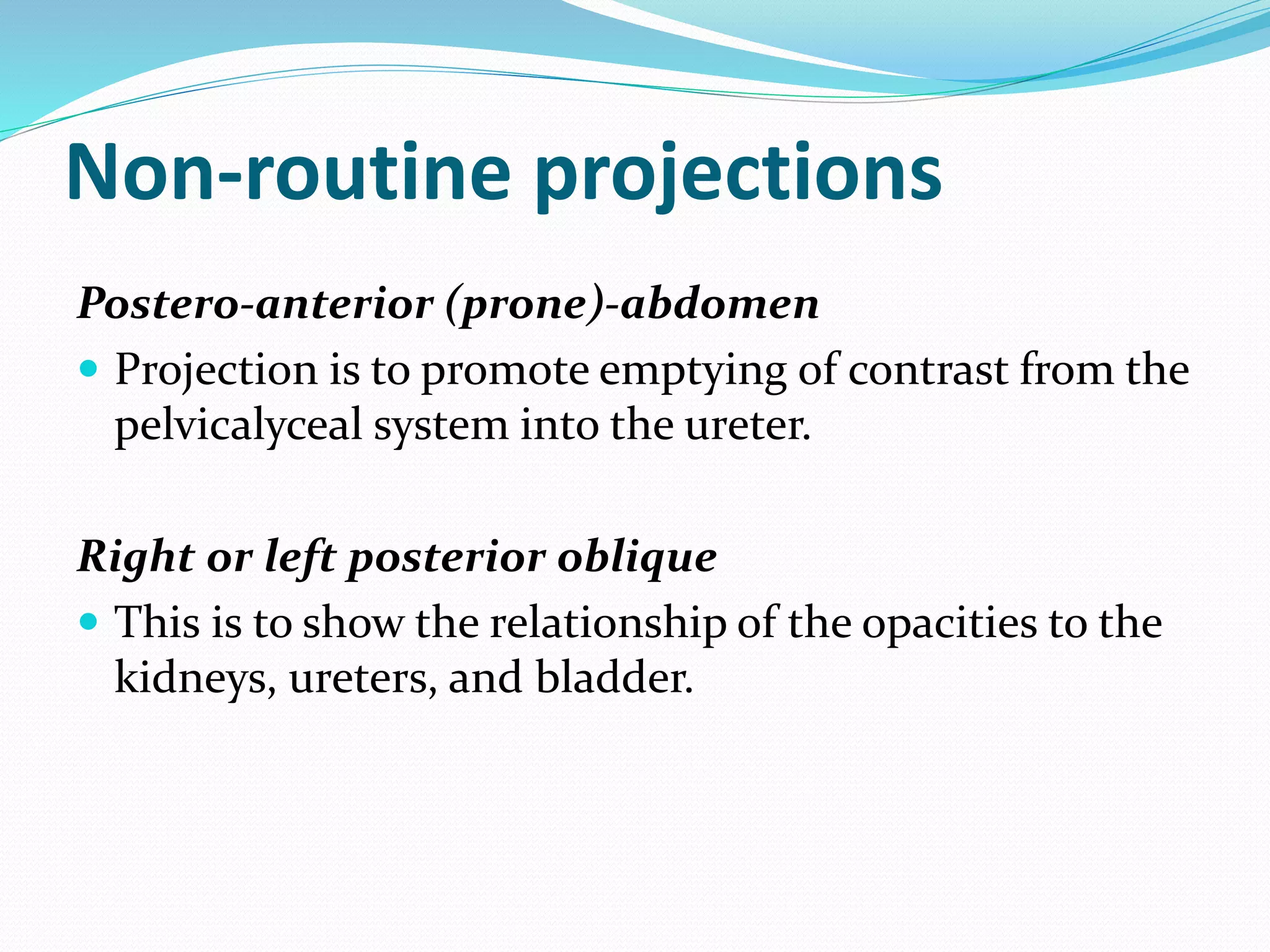

40. Non-routine projections
Postero-anterior (prone)-abdomen
Projection is to promote emptying of contrast from the
pelvicalyceal system into the ureter.
Right or left posterior oblique
This is to show the relationship of the opacities to the
kidneys, ureters, and bladder.

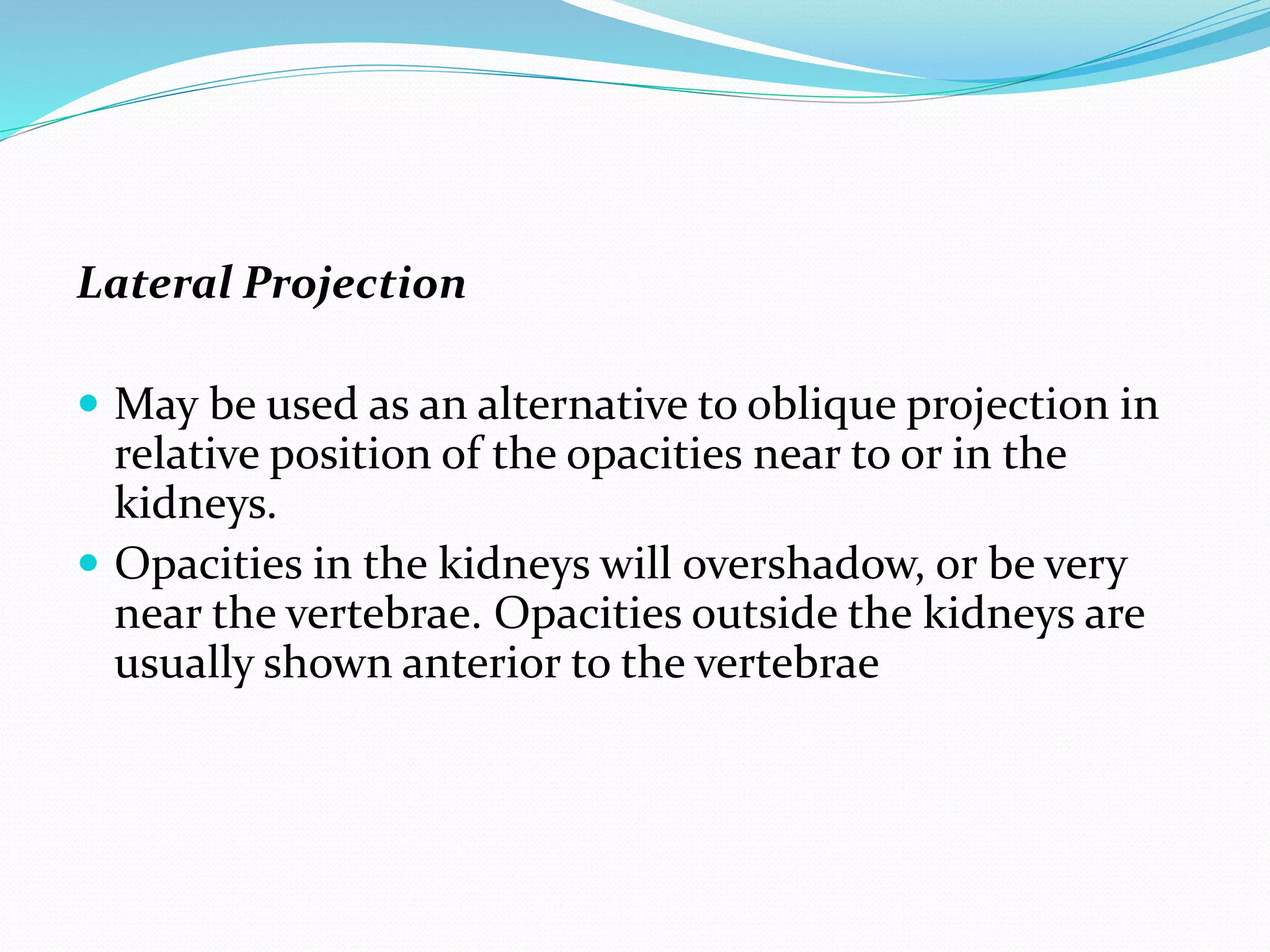

41. Lateral Projection
May be used as an alternative to oblique projection in
relative position of the opacities near to or in the
kidneys.
Opacities in the kidneys will overshadow, or be very
near the vertebrae. Opacities outside the kidneys are
usually shown anterior to the vertebrae

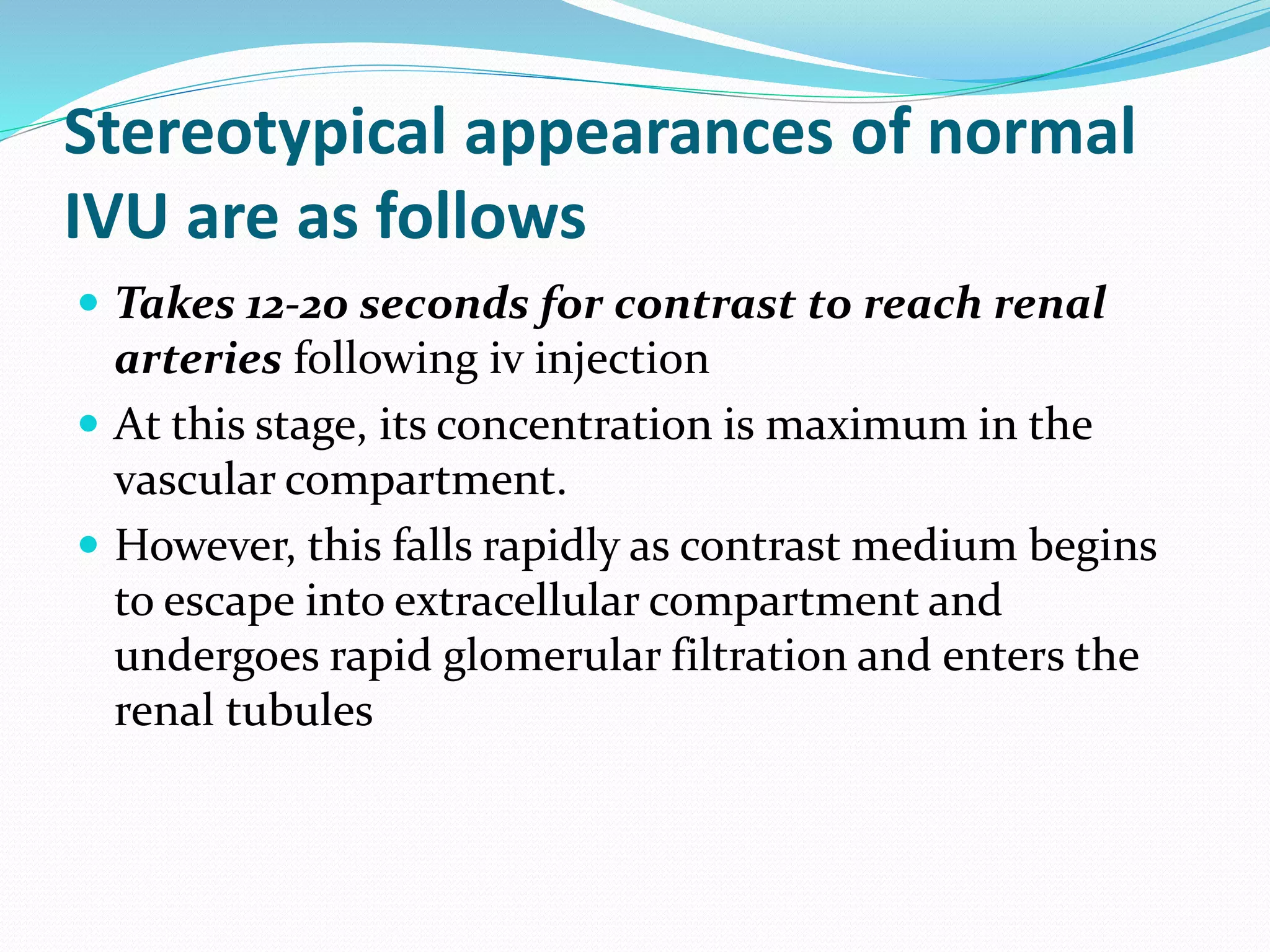

42. Stereotypical appearances of normal
IVU are as follows
Takes 12-20 seconds for contrast to reach renal
arteries following iv injection
At this stage, its concentration is maximum in the
vascular compartment.
However, this falls rapidly as contrast medium begins
to escape into extracellular compartment and
undergoes rapid glomerular filtration and enters the
renal tubules

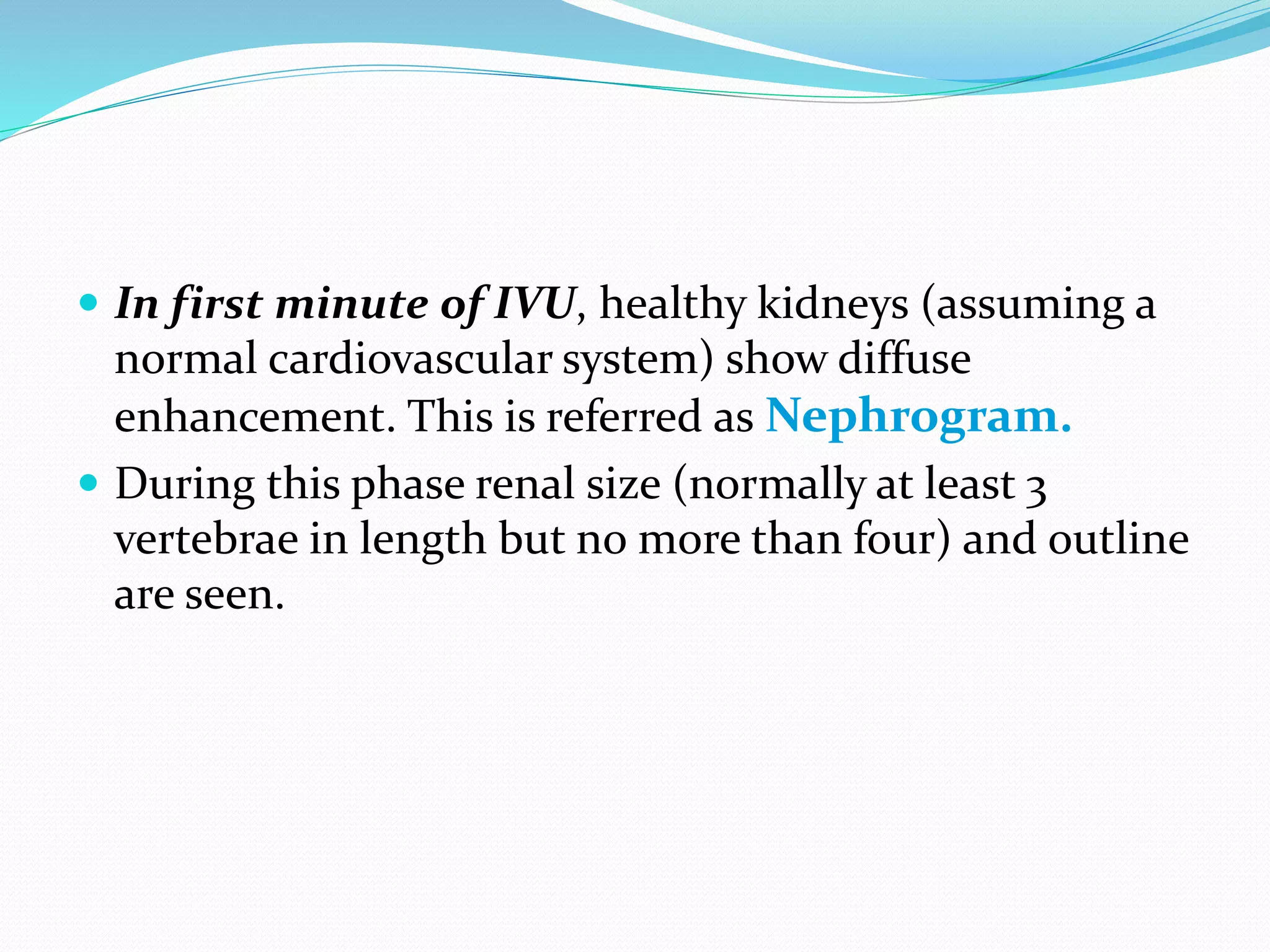

43. In first minute of IVU, healthy kidneys (assuming a
normal cardiovascular system) show diffuse
enhancement. This is referred as Nephrogram.
During this phase renal size (normally at least 3
vertebrae in length but no more than four) and outline
are seen.
44. In roughly 1st half minute – contrast in the
vascular compartment dominates and therefore
cortex is more enhanced than the medulla
This differentiation is sometimes visible in
immediate film of IVU series (but regularly visible
on CT performed at this stage)
In second half of minute - contrast in the
tubules increases and enhancement of kidneys is
more diffuse

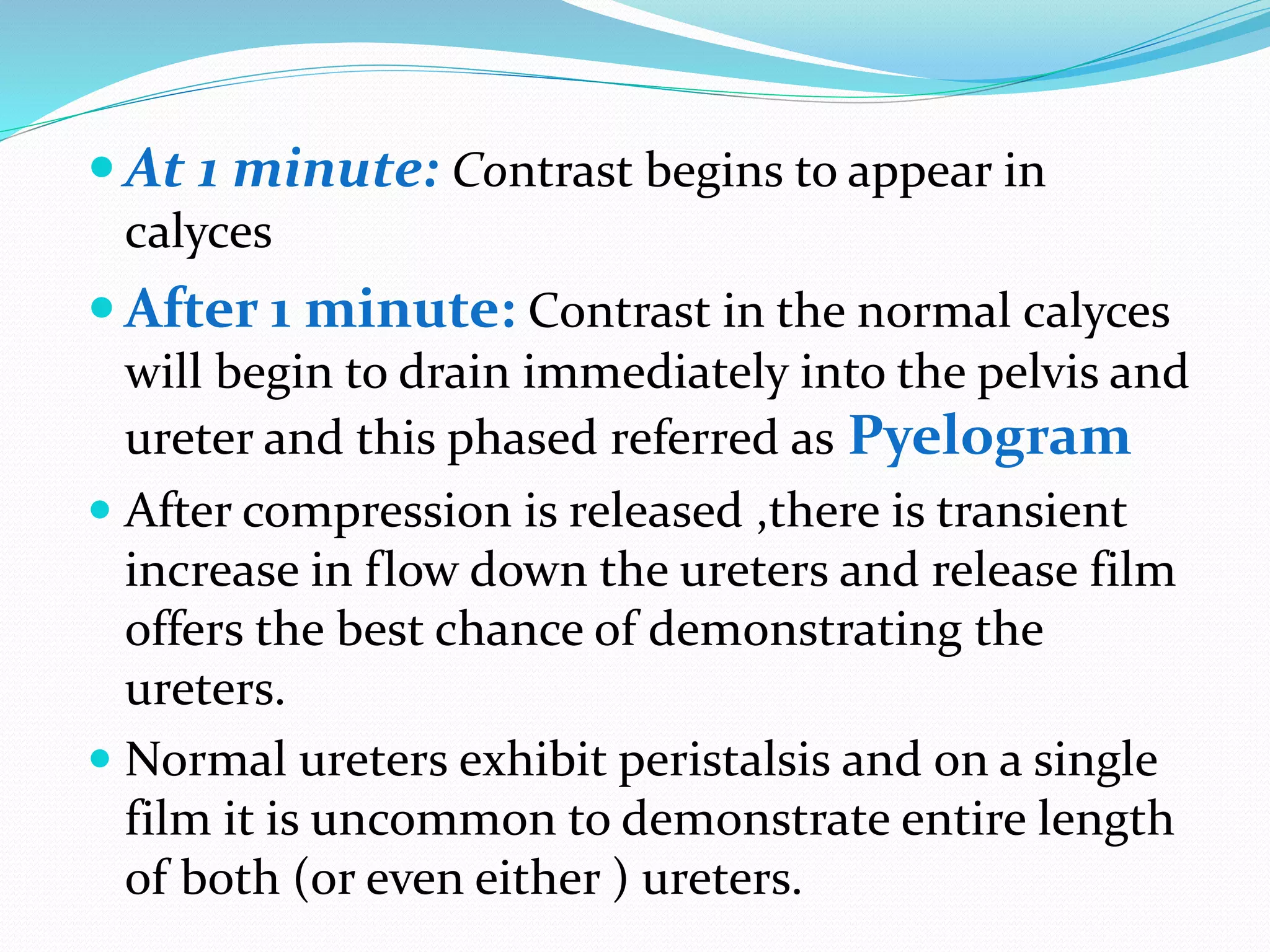

45. At 1 minute: Contrast begins to appear in
calyces
After 1 minute: Contrast in the normal calyces
will begin to drain immediately into the pelvis and
ureter and this phased referred as Pyelogram
After compression is released ,there is transient
increase in flow down the ureters and release film
offers the best chance of demonstrating the
ureters.
Normal ureters exhibit peristalsis and on a single
film it is uncommon to demonstrate entire length
of both (or even either ) ureters.
46. Modifications
To increase sensitivity and to reduce radiation dose
to the patient
3 circumstances:
1. When significant obstruction due to calculi,
there is delay in opacification of collecting system.
The delay may be considered upto 24 hr or more.
In this case, it is necessary to perform
additional films and time interval between
film traditionally is doubled, with films taken at
0.5, 1, 2, 4, 16 & 24 hours

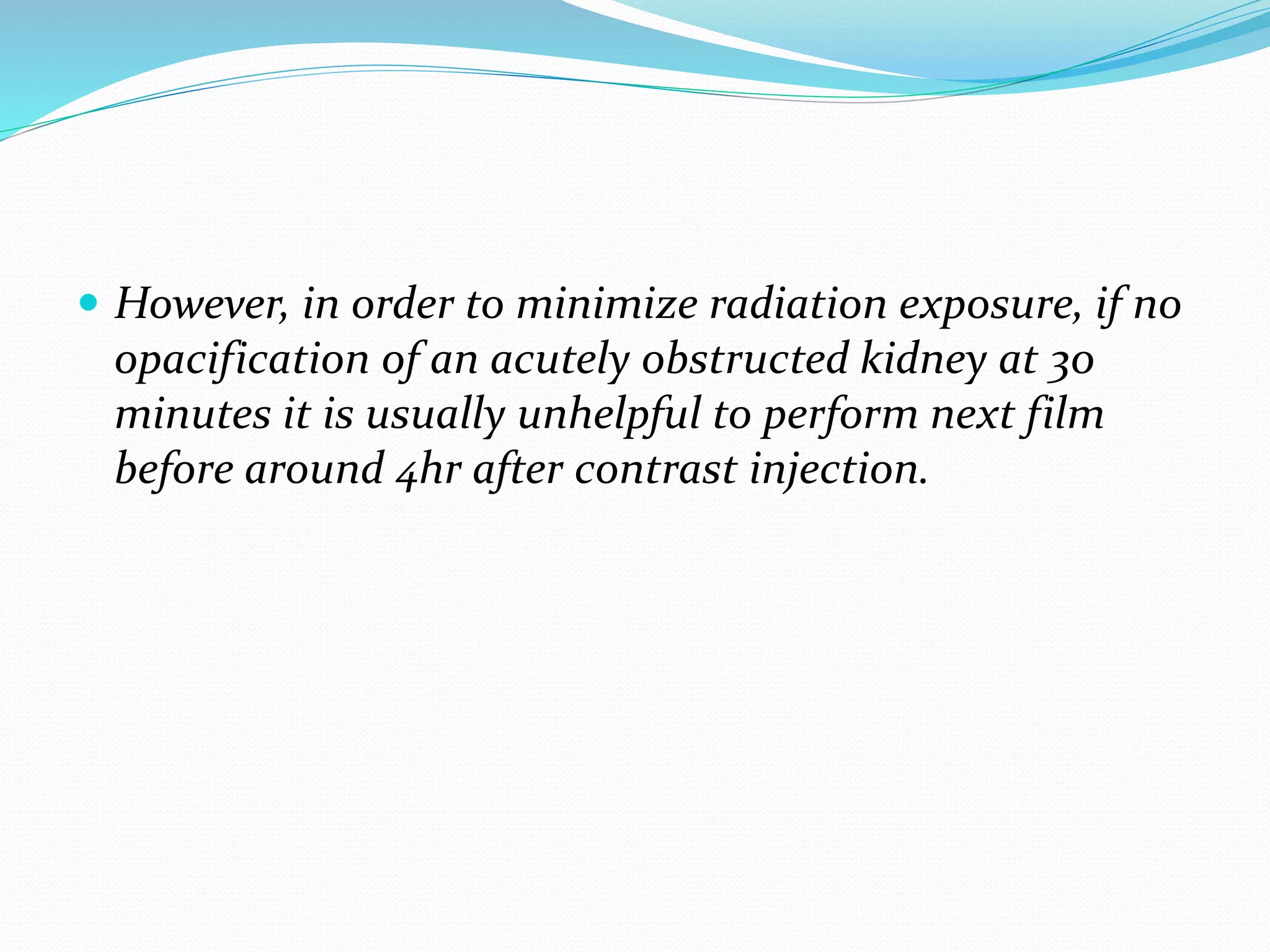

47. However, in order to minimize radiation exposure, if no
opacification of an acutely obstructed kidney at 30
minutes it is usually unhelpful to perform next film
before around 4hr after contrast injection.

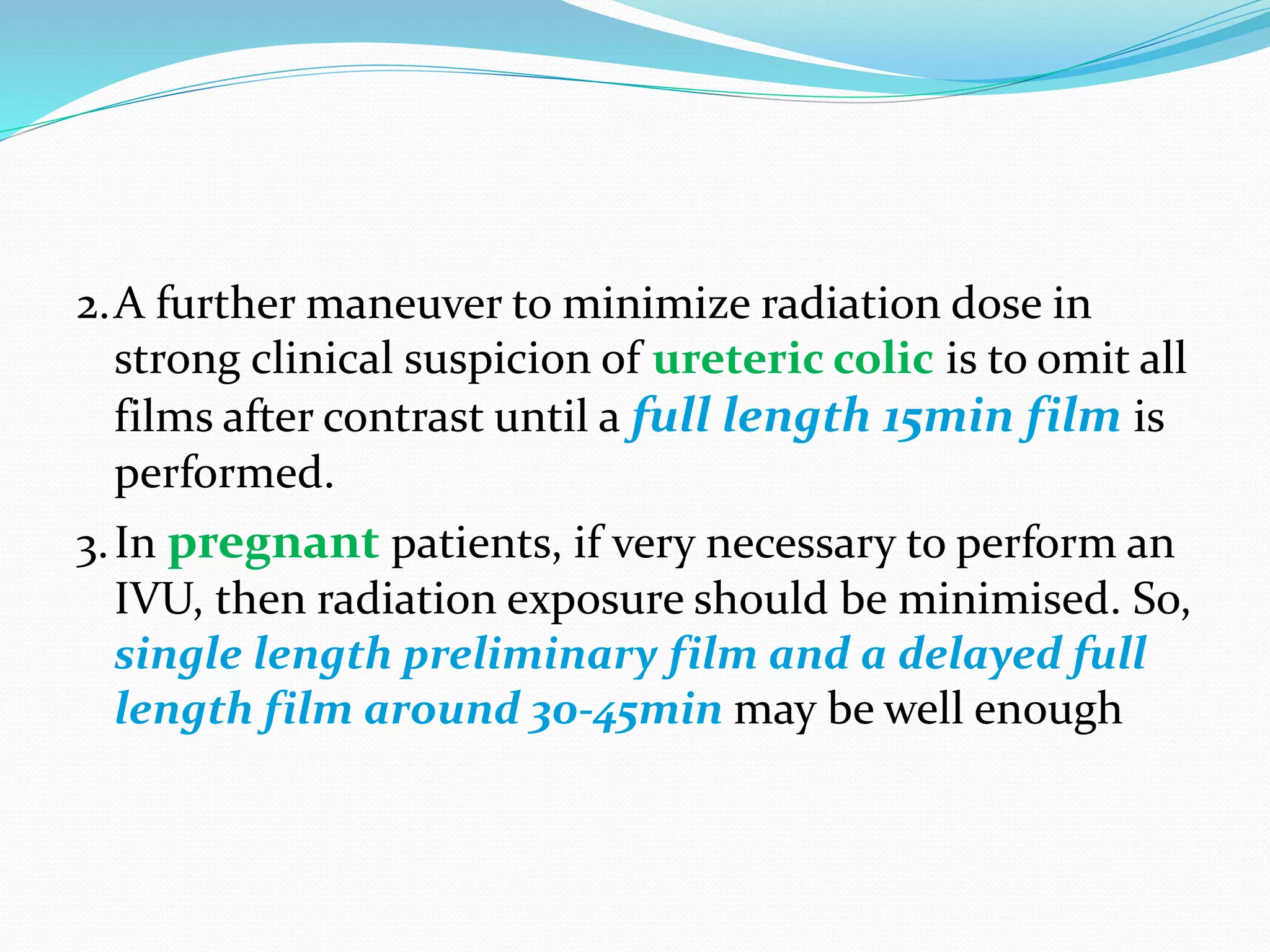

48. 2.A further maneuver to minimize radiation dose in
strong clinical suspicion of ureteric colic is to omit all
films after contrast until a full length 15min film is
performed.
3.In pregnant patients, if very necessary to perform an
IVU, then radiation exposure should be minimised. So,
single length preliminary film and a delayed full
length film around 30-45min may be well enough

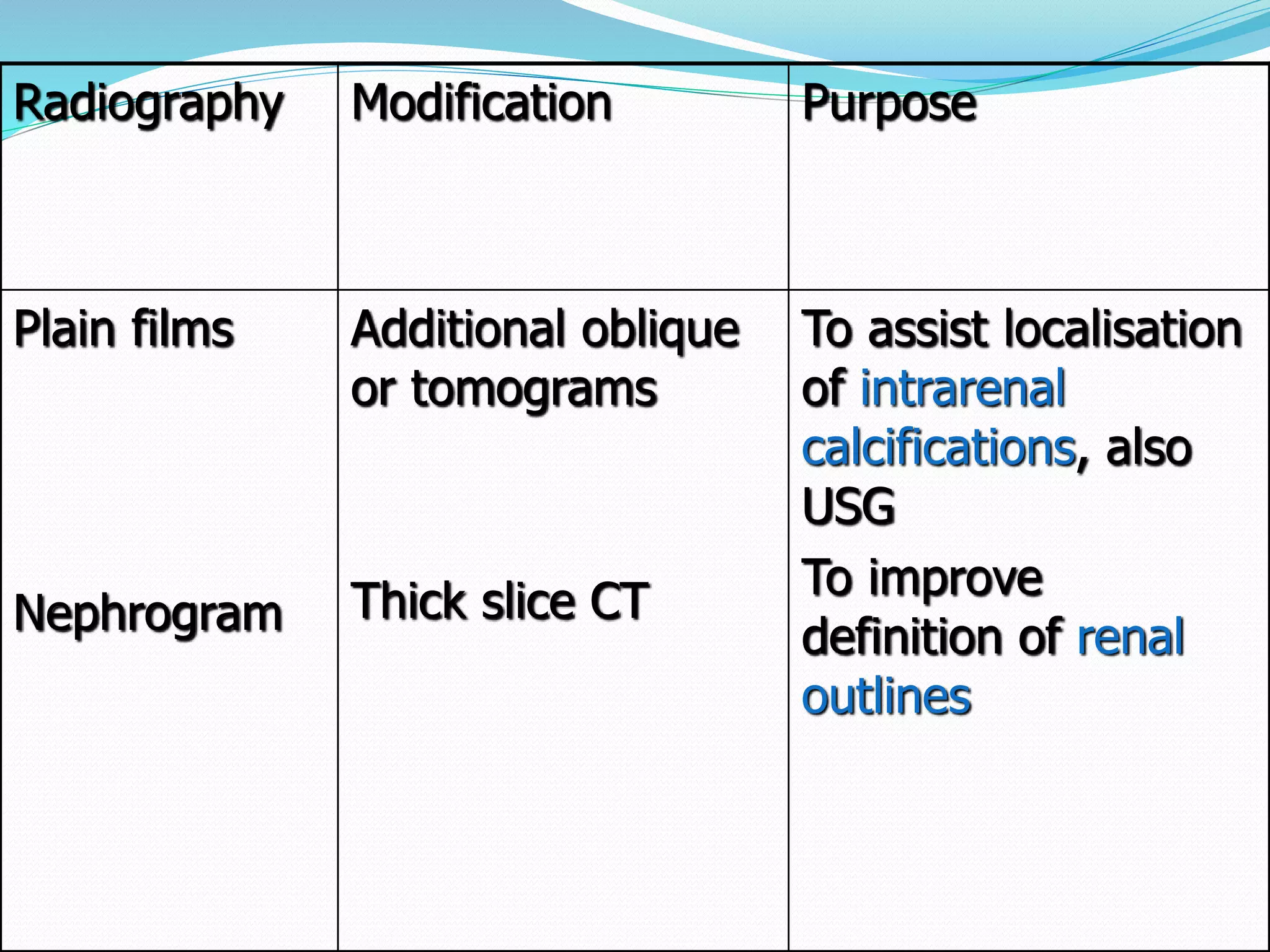

50. Radiography Modification Purpose
Plain films
Nephrogram
Additional oblique
or tomograms
Thick slice CT
To assist localisation
of intrarenal
calcifications, also
USG
To improve
definition of renal
outlines

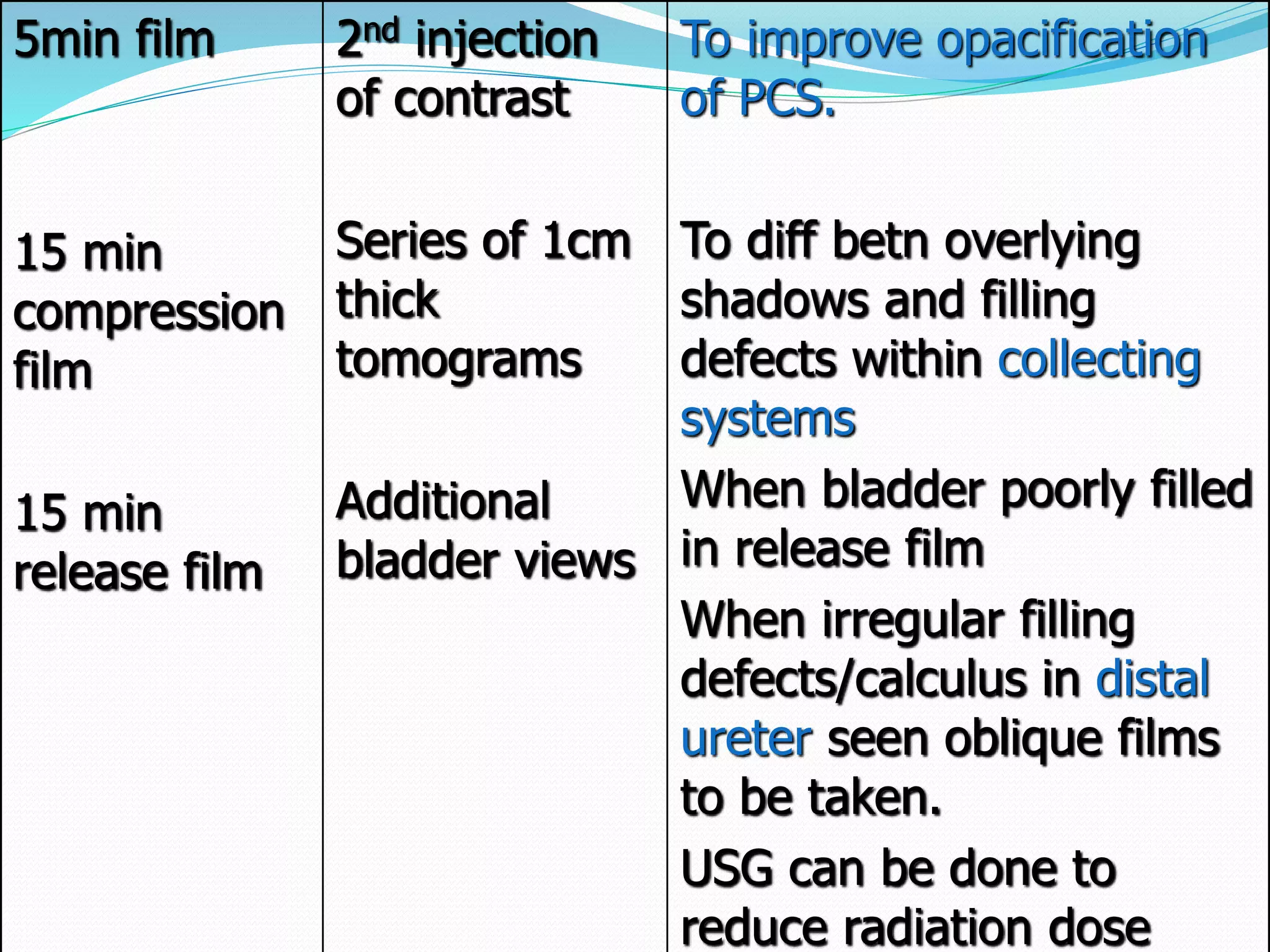

51. 5min film
15 min
compression
film
15 min
release film
2nd injection
of contrast
Series of 1cm
thick
tomograms
Additional
bladder views
To improve opacification
of PCS.
To diff betn overlying
shadows and filling
defects within collecting
systems
When bladder poorly filled
in release film
When irregular filling
defects/calculus in distal
ureter seen oblique films
to be taken.
USG can be done to
reduce radiation dose

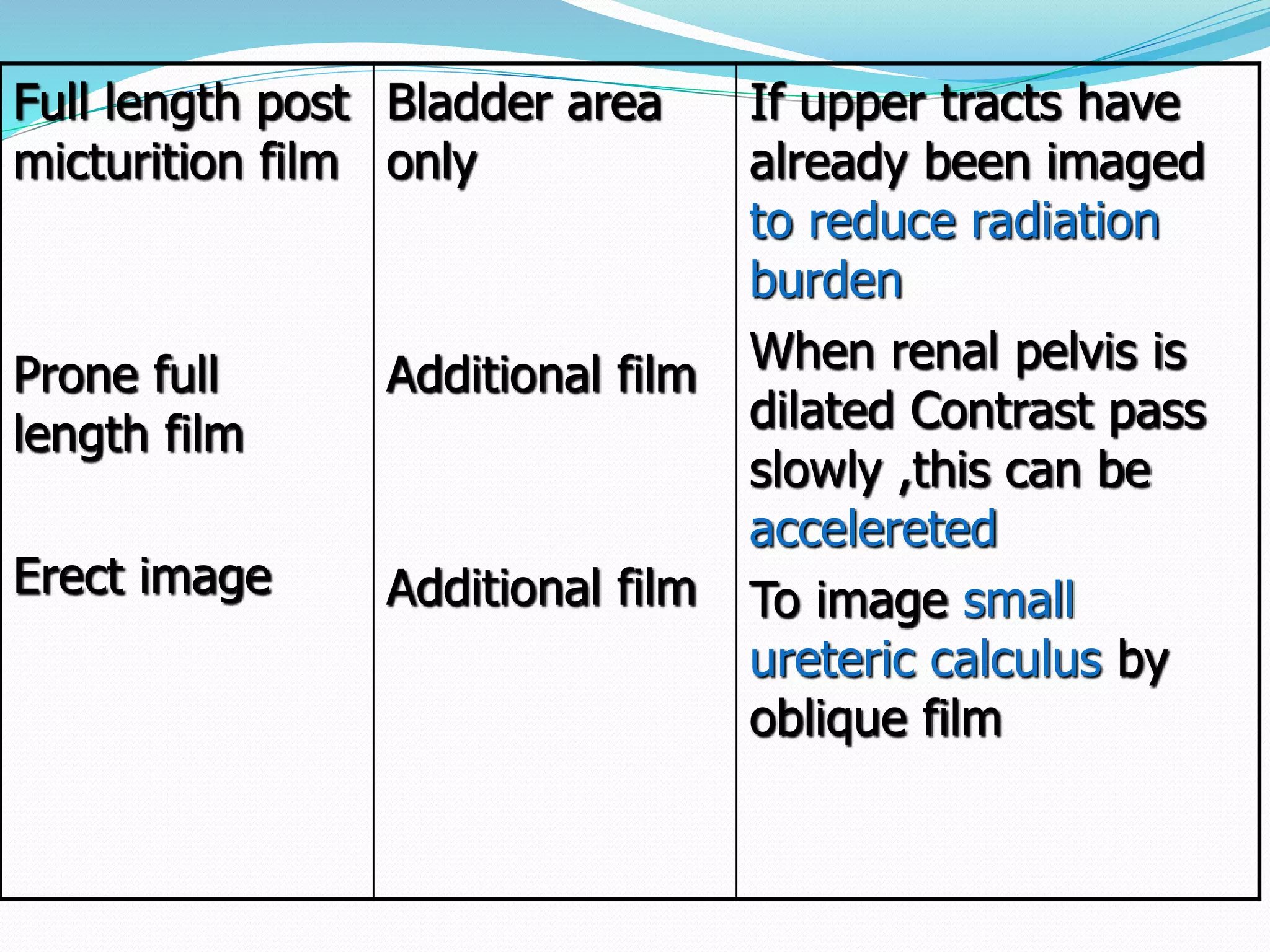

52. Full length post
micturition film
Prone full
length film
Erect image
Bladder area
only
Additional film
Additional film
If upper tracts have
already been imaged
to reduce radiation
burden
When renal pelvis is
dilated Contrast pass
slowly ,this can be
accelereted
To image small
ureteric calculus by
oblique film

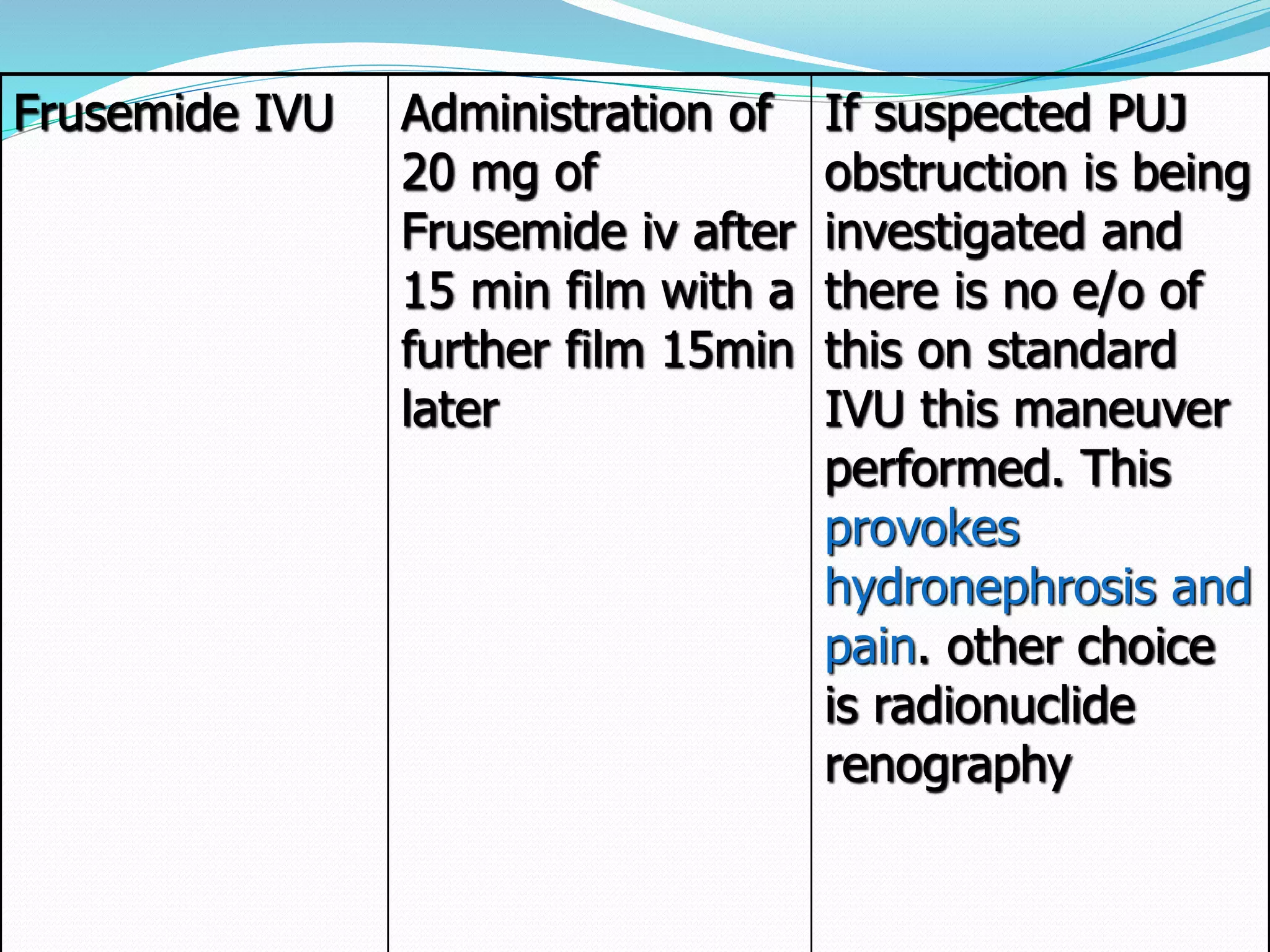

53. Frusemide IVU Administration of
20 mg of
Frusemide iv after
15 min film with a
further film 15min
later
If suspected PUJ
obstruction is being
investigated and
there is no e/o of
this on standard
IVU this maneuver
performed. This
provokes
hydronephrosis and
pain. other choice
is radionuclide
renography
54. Tailored Urogram.
Hypertensive Urogram.
Drip infusion urogram
Limited urogram
High dose urogram

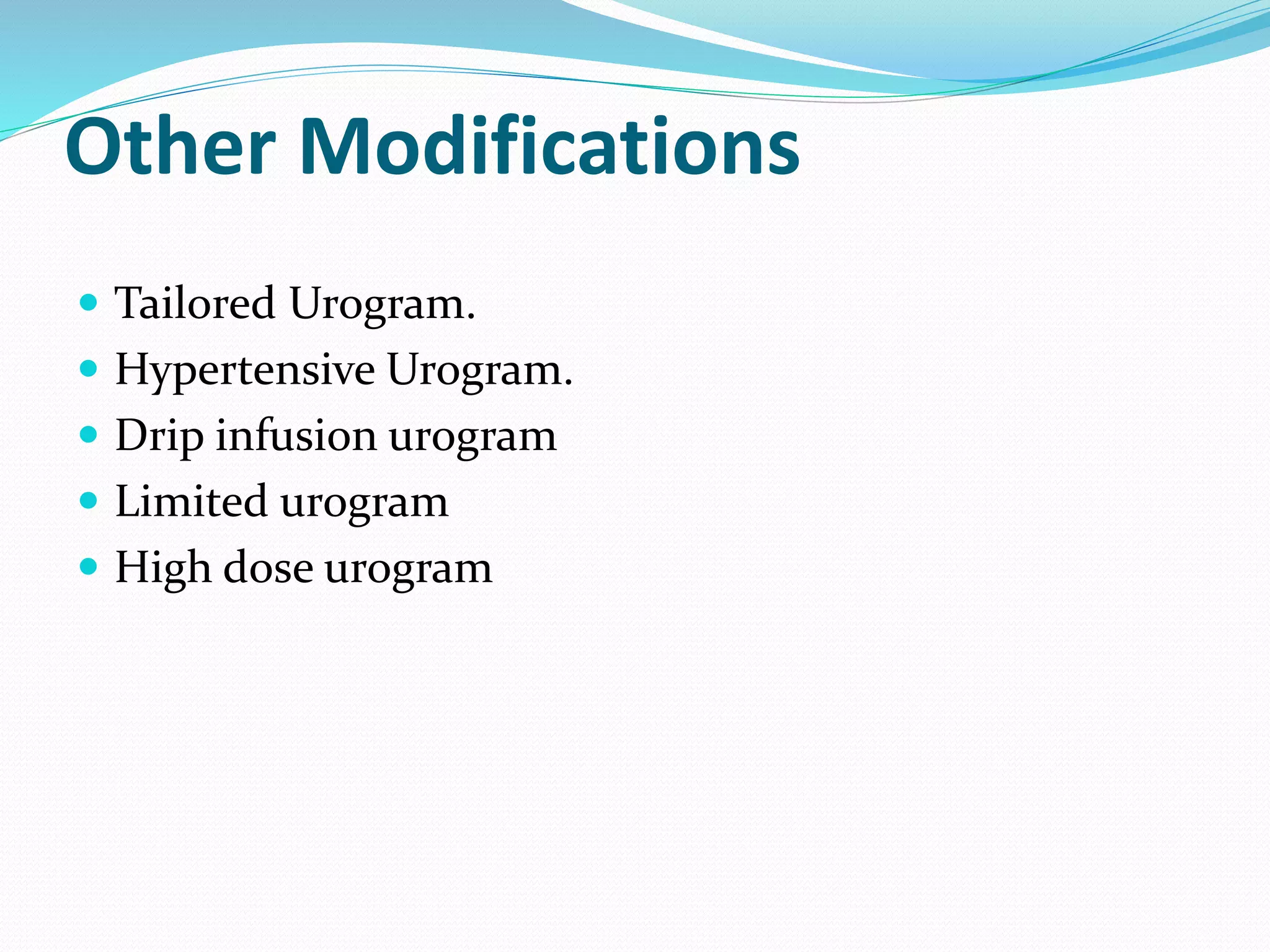

Other Modifications

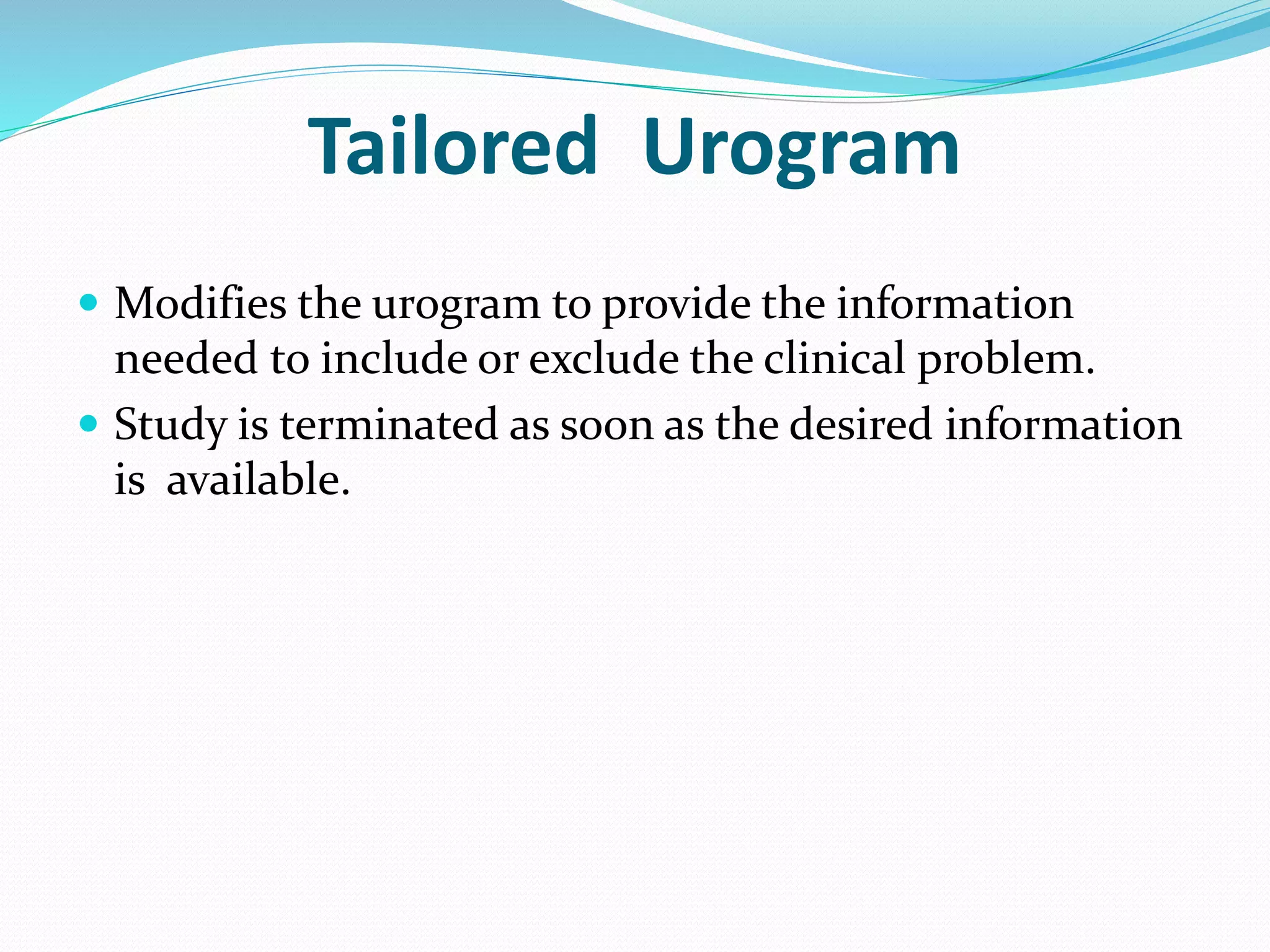

55. Modifies the urogram to provide the information
needed to include or exclude the clinical problem.
Study is terminated as soon as the desired information
is available.
Tailored Urogram

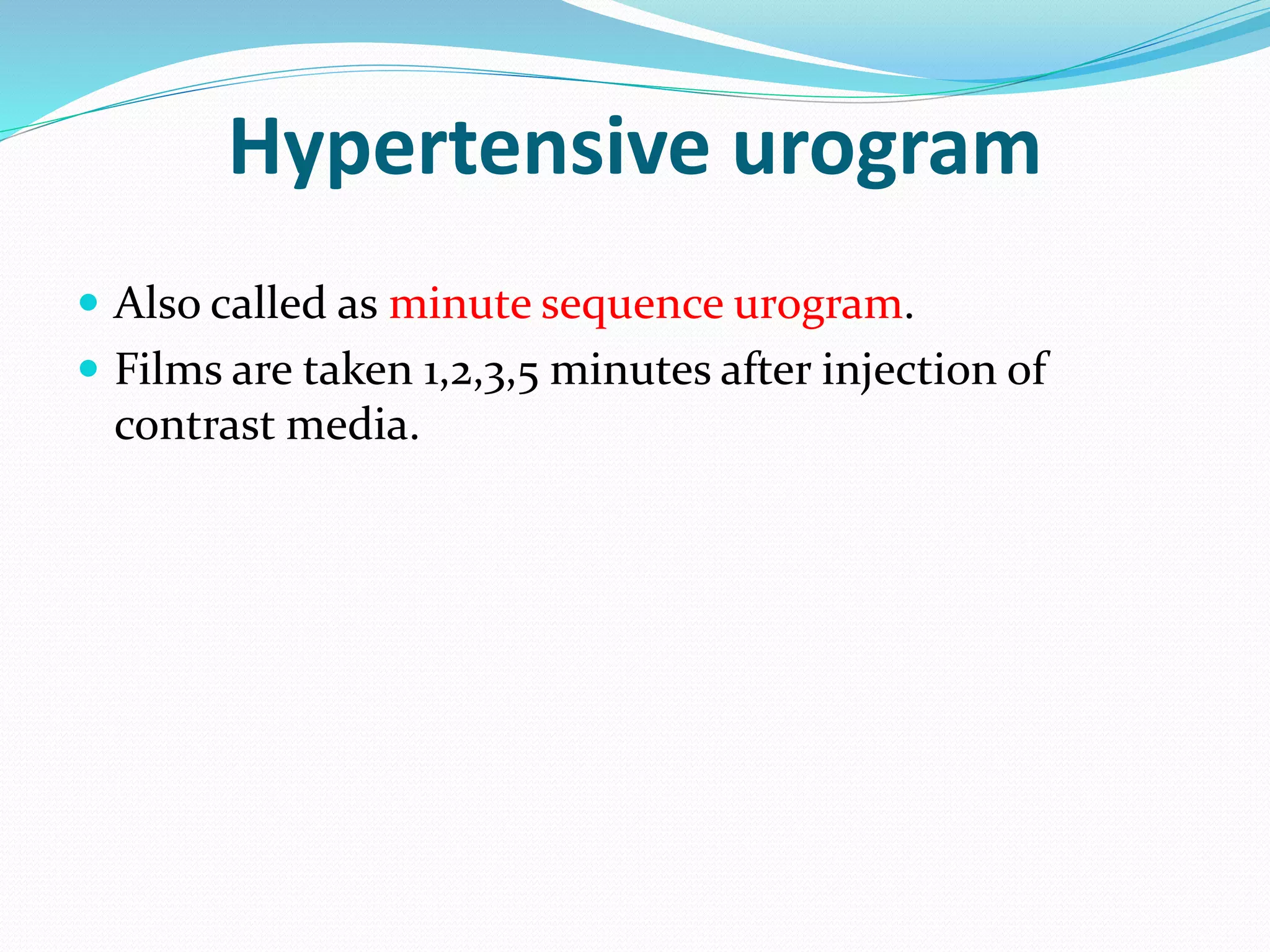

56. Also called as minute sequence urogram.
Films are taken 1,2,3,5 minutes after injection of
contrast media.
Hypertensive urogram

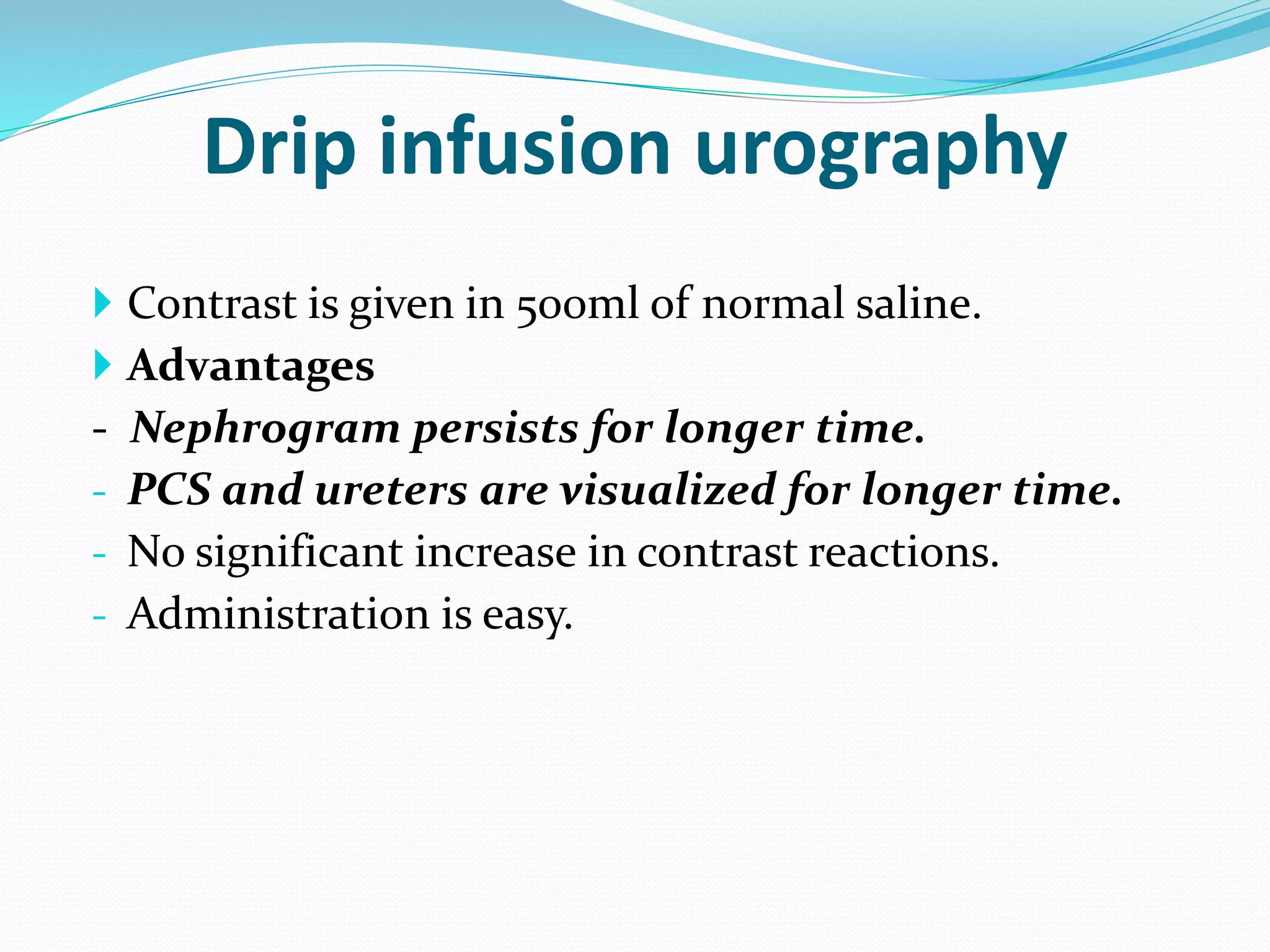

57. Contrast is given in 500ml of normal saline.
Advantages
- Nephrogram persists for longer time.
- PCS and ureters are visualized for longer time.
- No significant increase in contrast reactions.
- Administration is easy.
Drip infusion urography
58. Overload the patient with more iodine than necessary.
Calyceal blunting may be produced suggesting
abnormal dilatation.
May precipitate CCF in patient with borderline
cardiac complaints.
Initial vascular nephrogram is not obtained.
Disadvantages

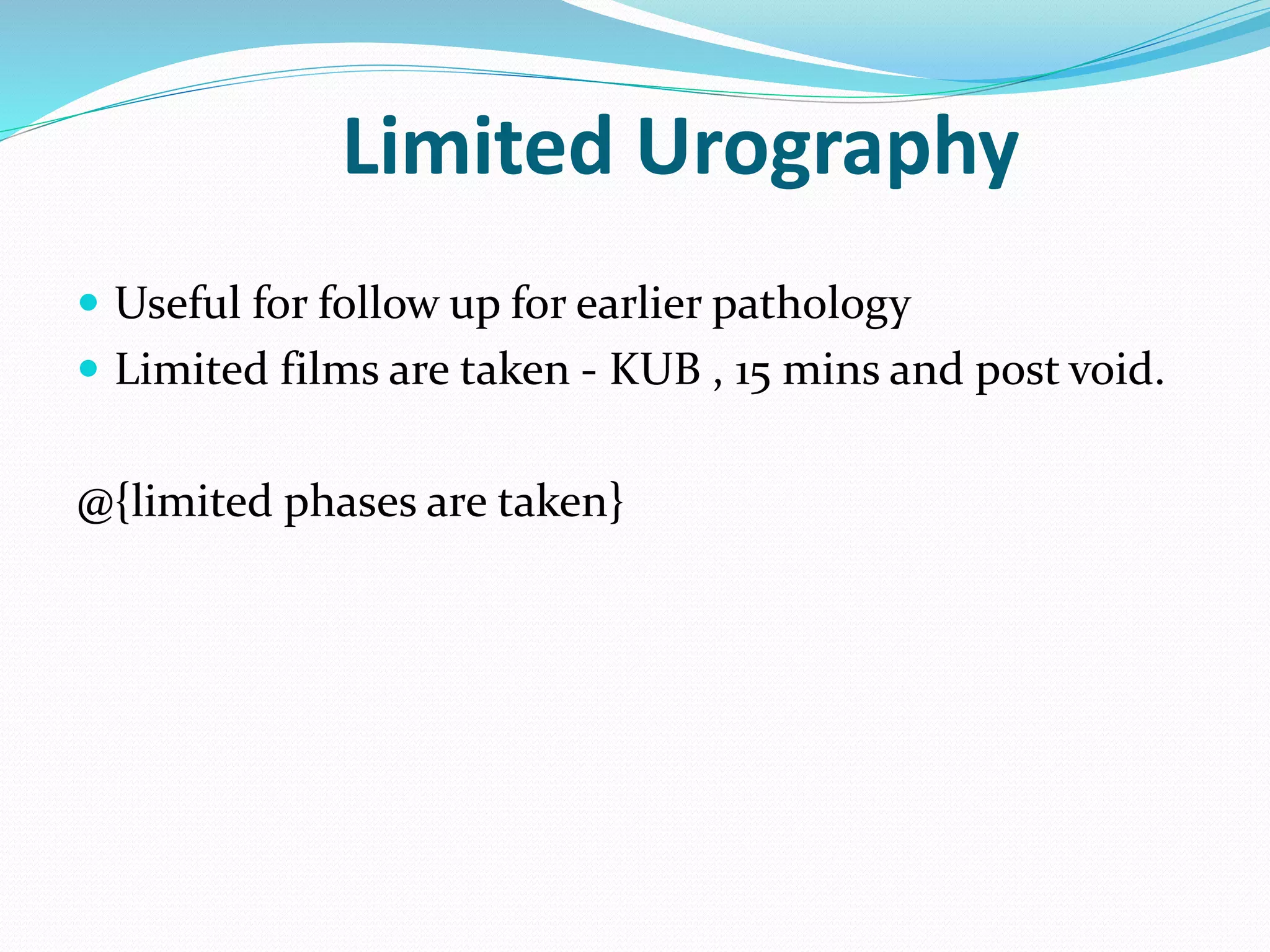

59. Useful for follow up for earlier pathology
Limited films are taken - KUB , 15 mins and post void.
@{limited phases are taken}
Limited Urography

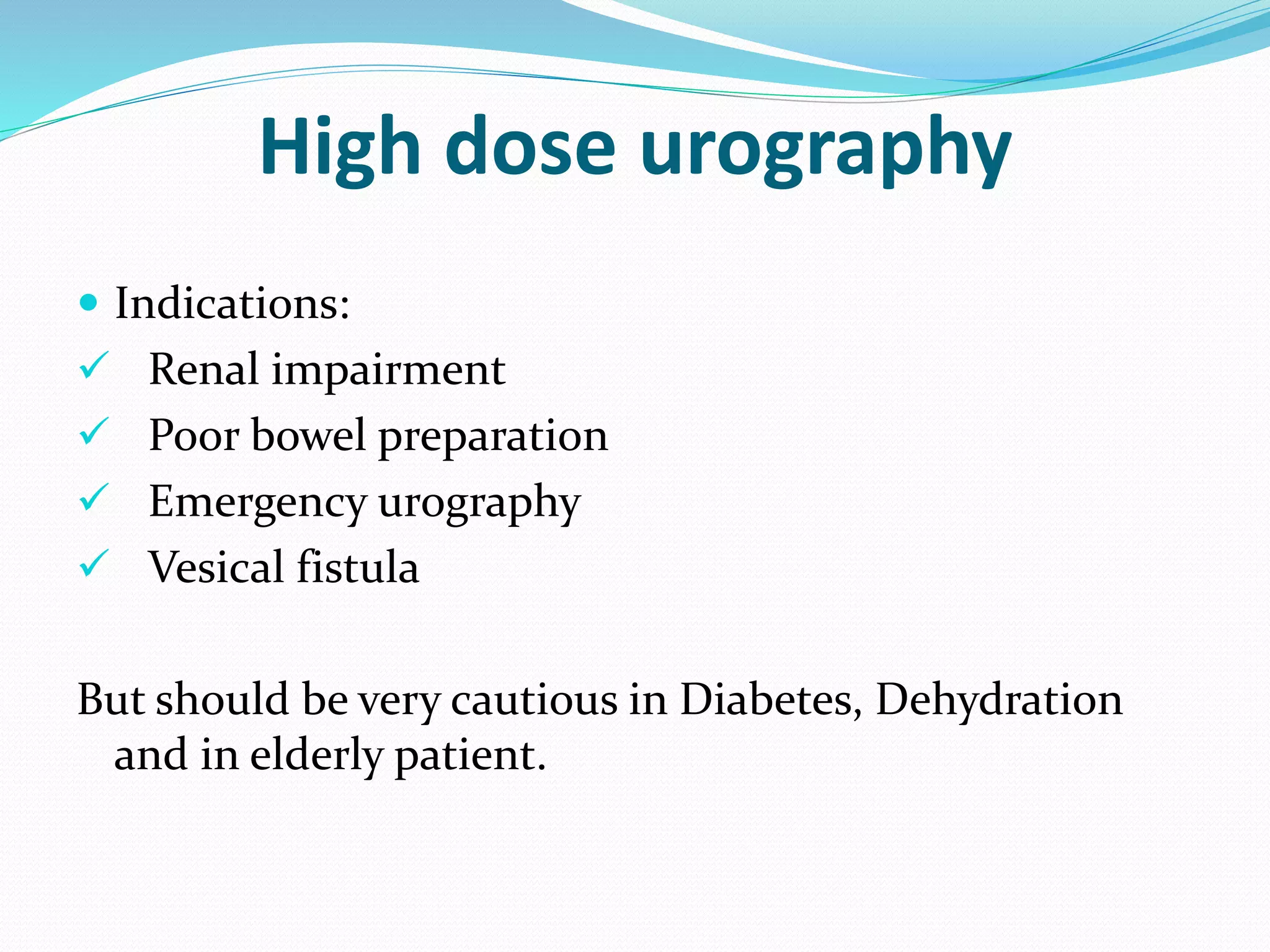

60. Indications:
Renal impairment
Poor bowel preparation
Emergency urography
Vesical fistula
But should be very cautious in Diabetes, Dehydration
and in elderly patient.
High dose urography
61. Due to contrast
Minor reactions- Nausea, vomiting, mild rash,
headache, mild dyspnea
Intermediate reactions- Extensive urticaria, facial
edema, bronchospasm, laryngeal edema, hypotension.
Severe reactions- Circulatory collapse, pulmonary
edema, MI, cardiac and respiratory arrest
Complications
62. Due to Technique
Upper arm or shoulder pain.
Extravasation of contrast at injection site.
63. Observation for 6 hrs
Watch for late contrast reactions
Prevention of dehydration
In high risk patients – RFT should be done to watch
deterioration.
After care

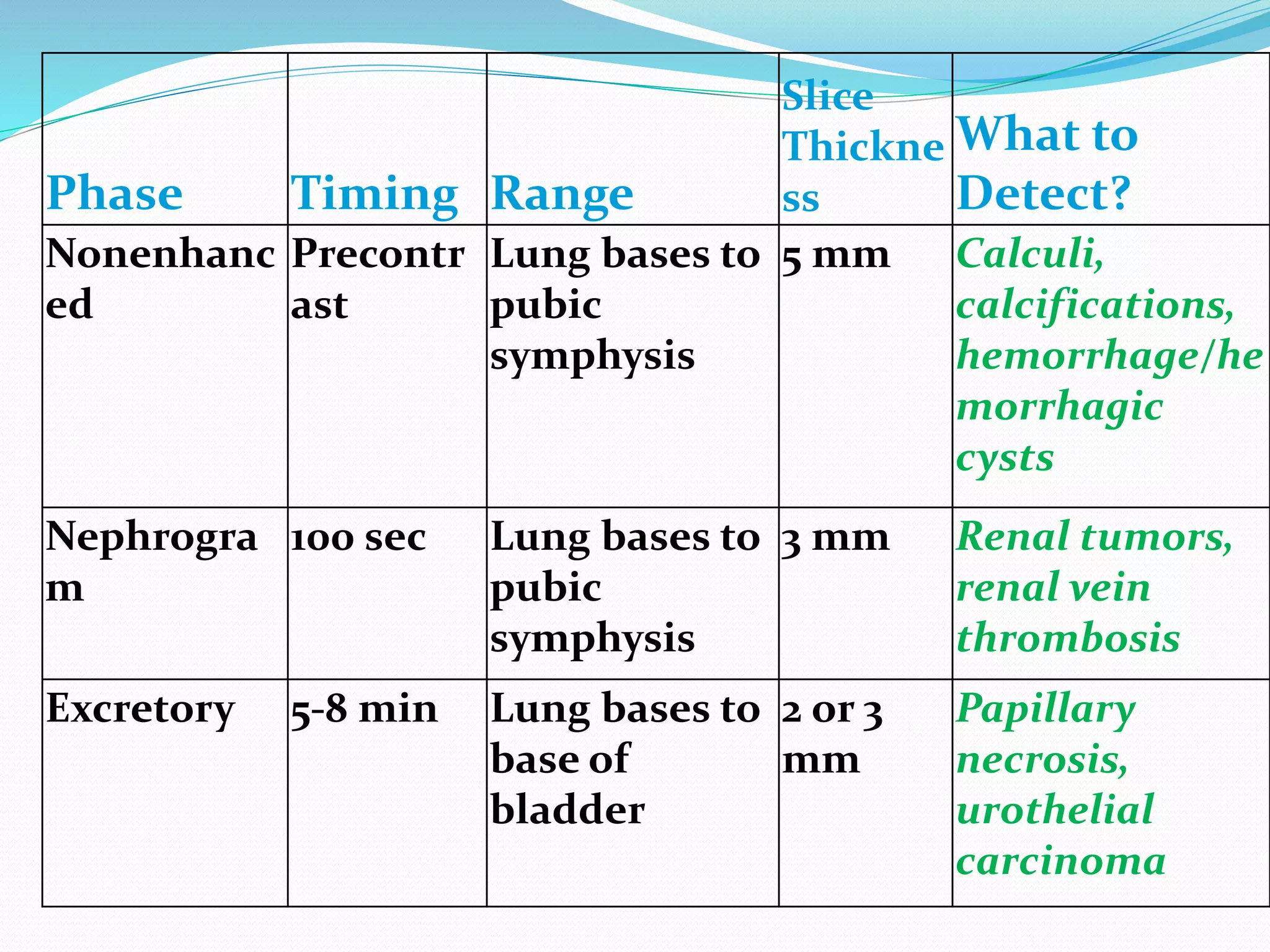

65. Phase Timing Range
Slice
Thickne
ss
What to
Detect?
Nonenhanc
ed
Precontr
ast
Lung bases to
pubic
symphysis
5 mm Calculi,
calcifications,
hemorrhage/he
morrhagic
cysts
Nephrogra
m
100 sec Lung bases to
pubic
symphysis
3 mm Renal tumors,
renal vein
thrombosis
Excretory 5-8 min Lung bases to
base of
bladder
2 or 3
mm
Papillary
necrosis,
urothelial
carcinoma

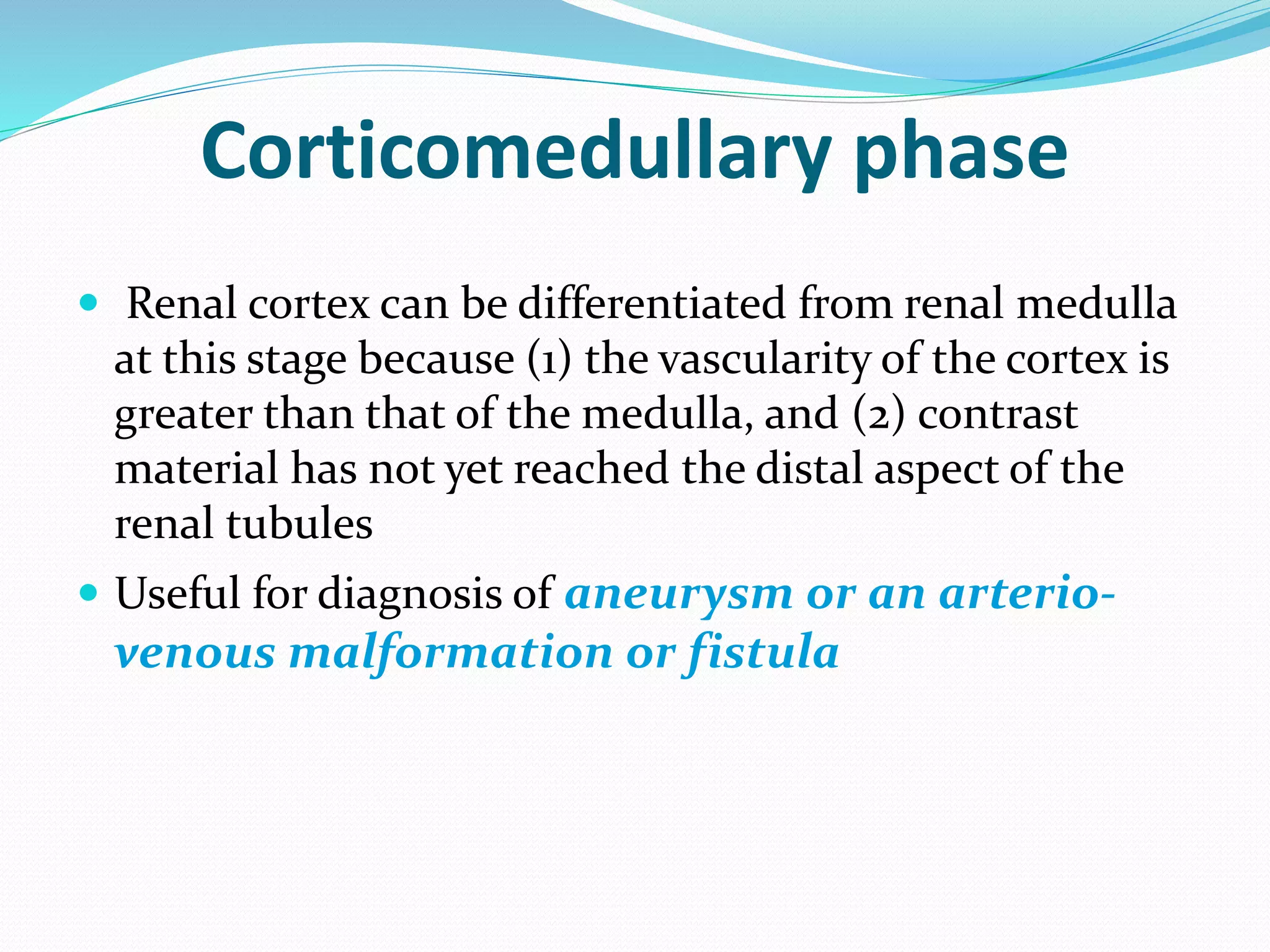

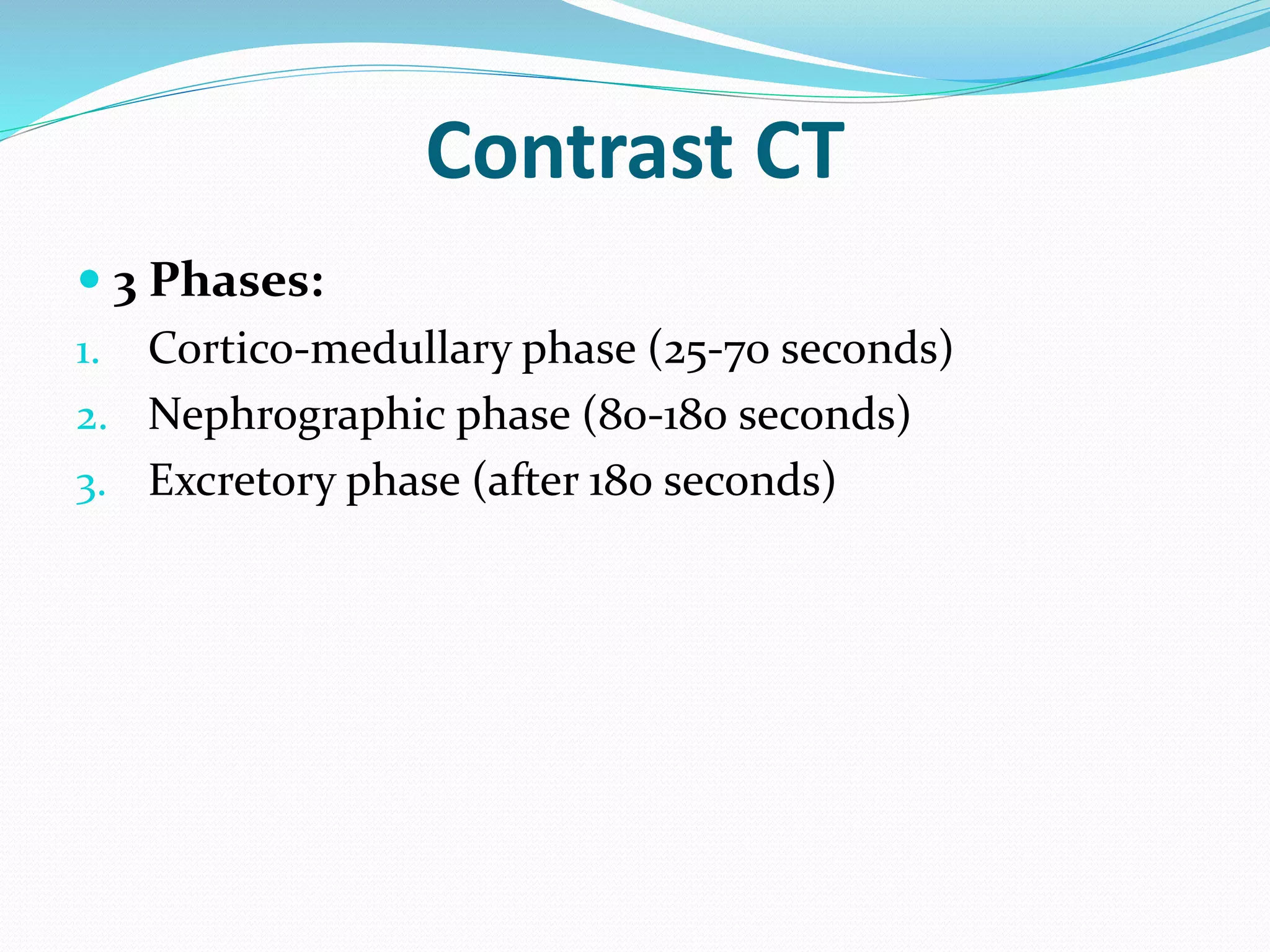

67. Corticomedullary phase
Renal cortex can be differentiated from renal medulla
at this stage because (1) the vascularity of the cortex is
greater than that of the medulla, and (2) contrast
material has not yet reached the distal aspect of the
renal tubules
Useful for diagnosis of aneurysm or an arterio-
venous malformation or fistula

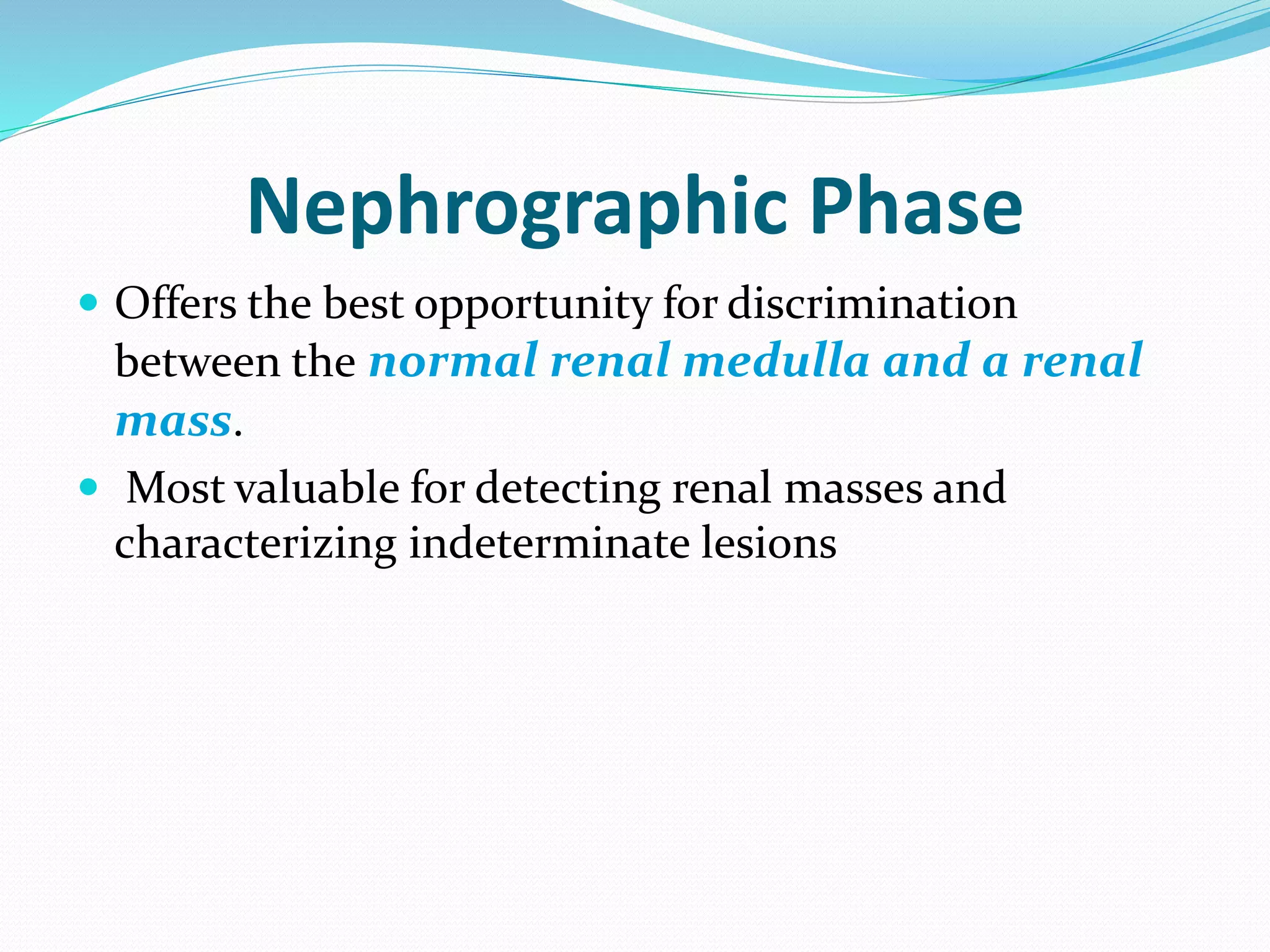

68. Nephrographic Phase
Offers the best opportunity for discrimination
between the normal renal medulla and a renal
mass.
Most valuable for detecting renal masses and
characterizing indeterminate lesions

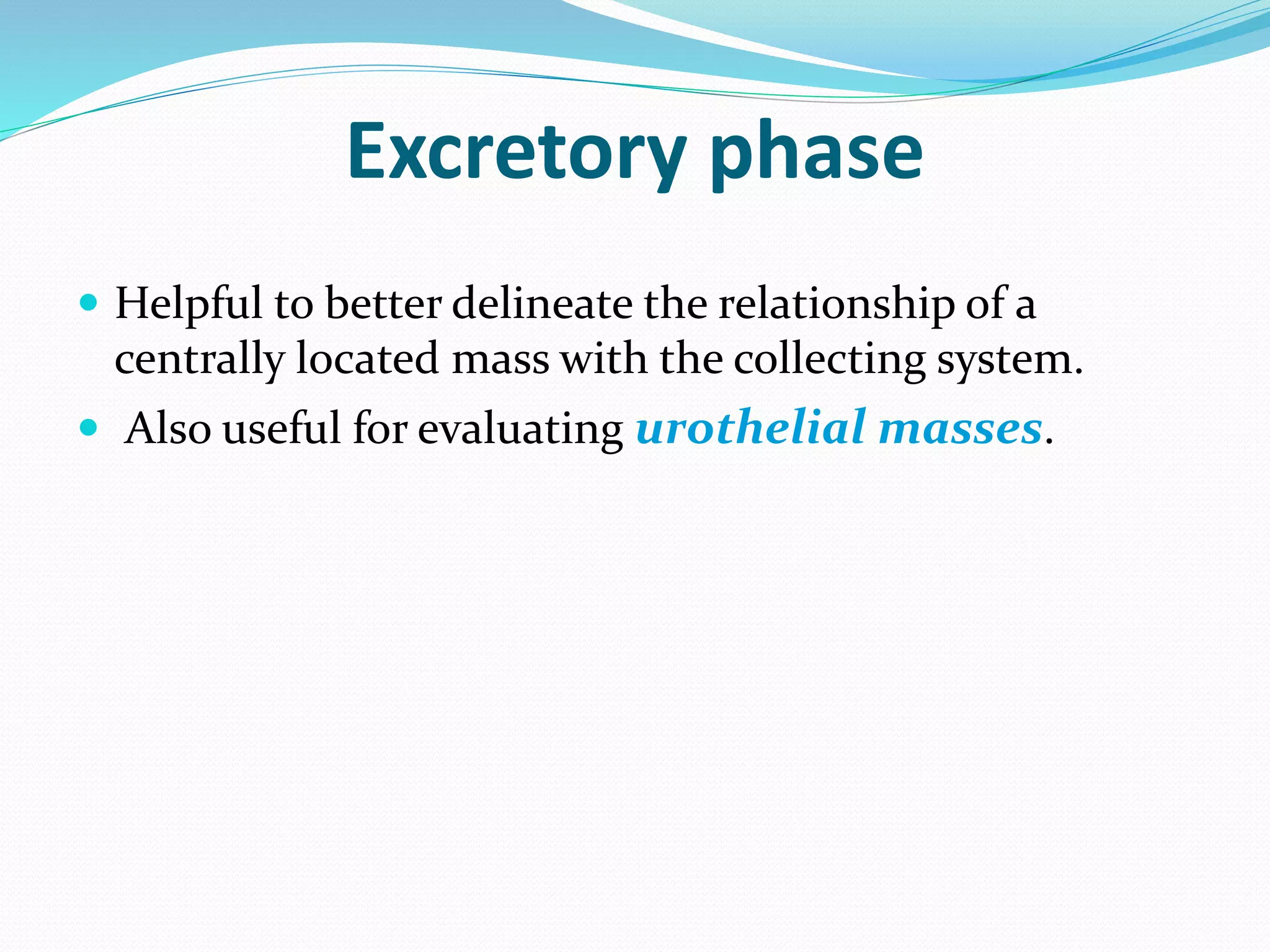

69. Excretory phase
Helpful to better delineate the relationship of a
centrally located mass with the collecting system.
Also useful for evaluating urothelial masses.

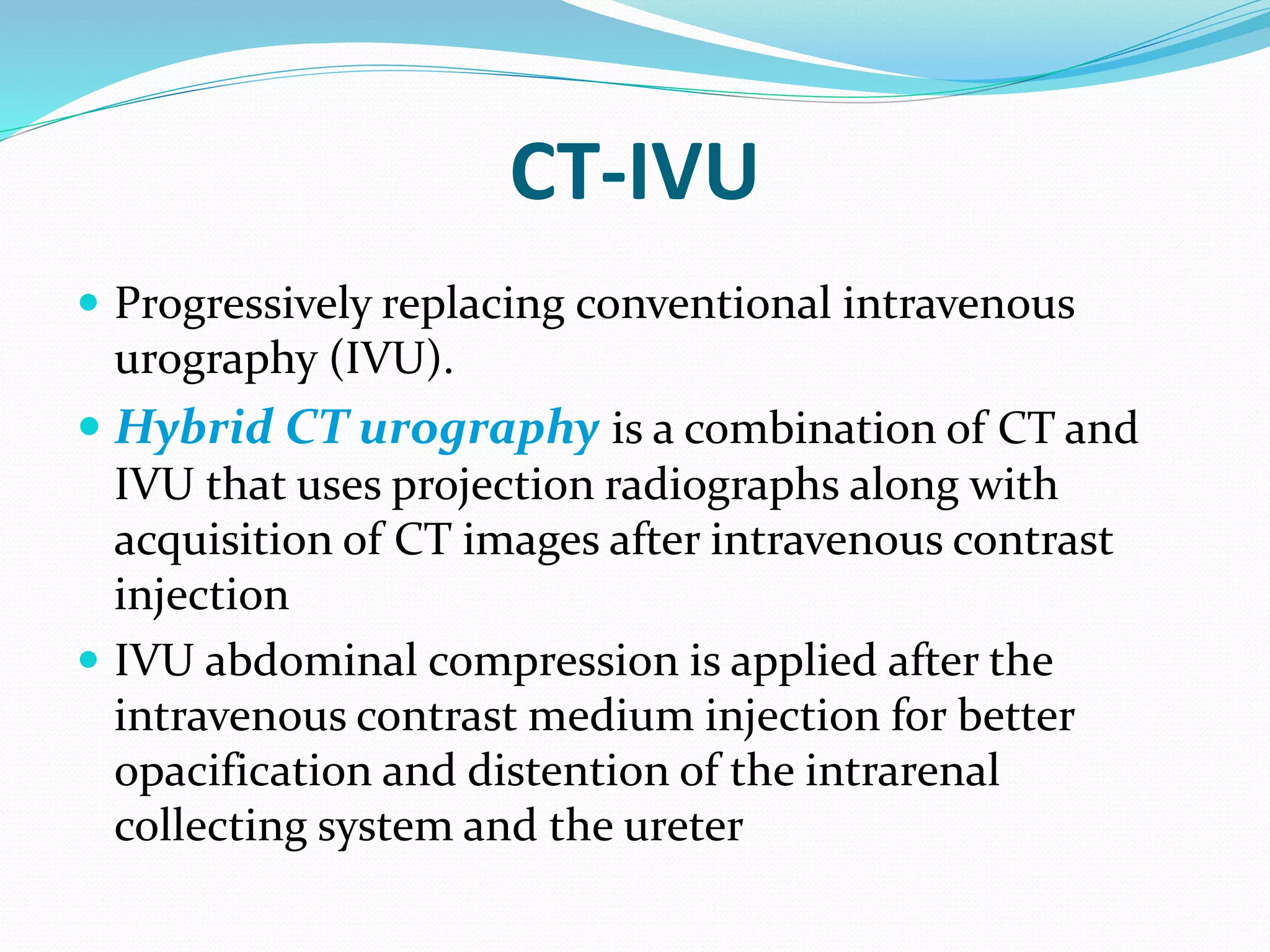

70. CT-IVU
Progressively replacing conventional intravenous
urography (IVU).
Hybrid CT urography is a combination of CT and
IVU that uses projection radiographs along with
acquisition of CT images after intravenous contrast
injection
IVU abdominal compression is applied after the
intravenous contrast medium injection for better
opacification and distention of the intrarenal
collecting system and the ureter

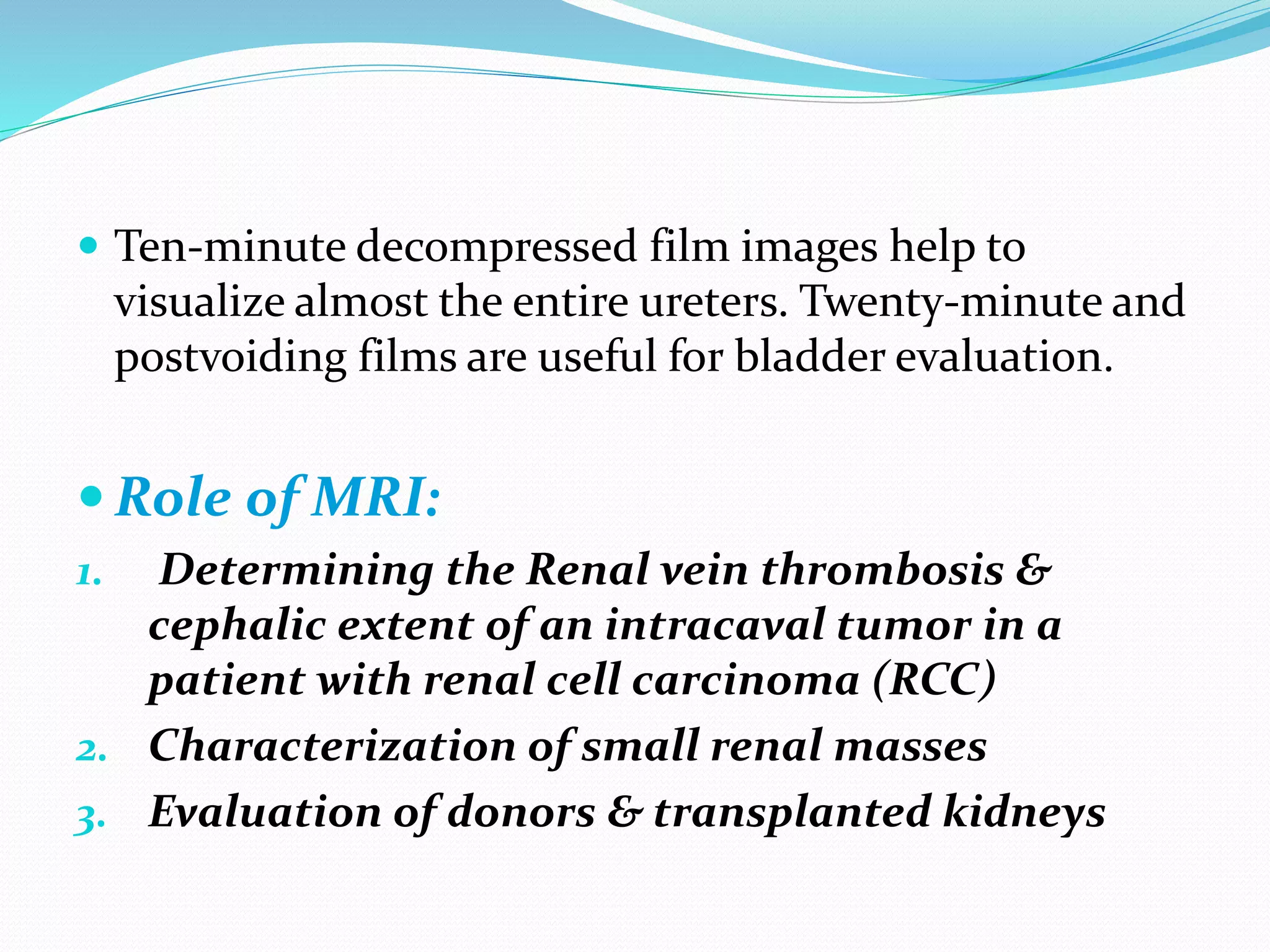

71. Ten-minute decompressed film images help to
visualize almost the entire ureters. Twenty-minute and
postvoiding films are useful for bladder evaluation.
Role of MRI:
1. Determining the Renal vein thrombosis &
cephalic extent of an intracaval tumor in a
patient with renal cell carcinoma (RCC)
2. Characterization of small renal masses
3. Evaluation of donors & transplanted kidneys

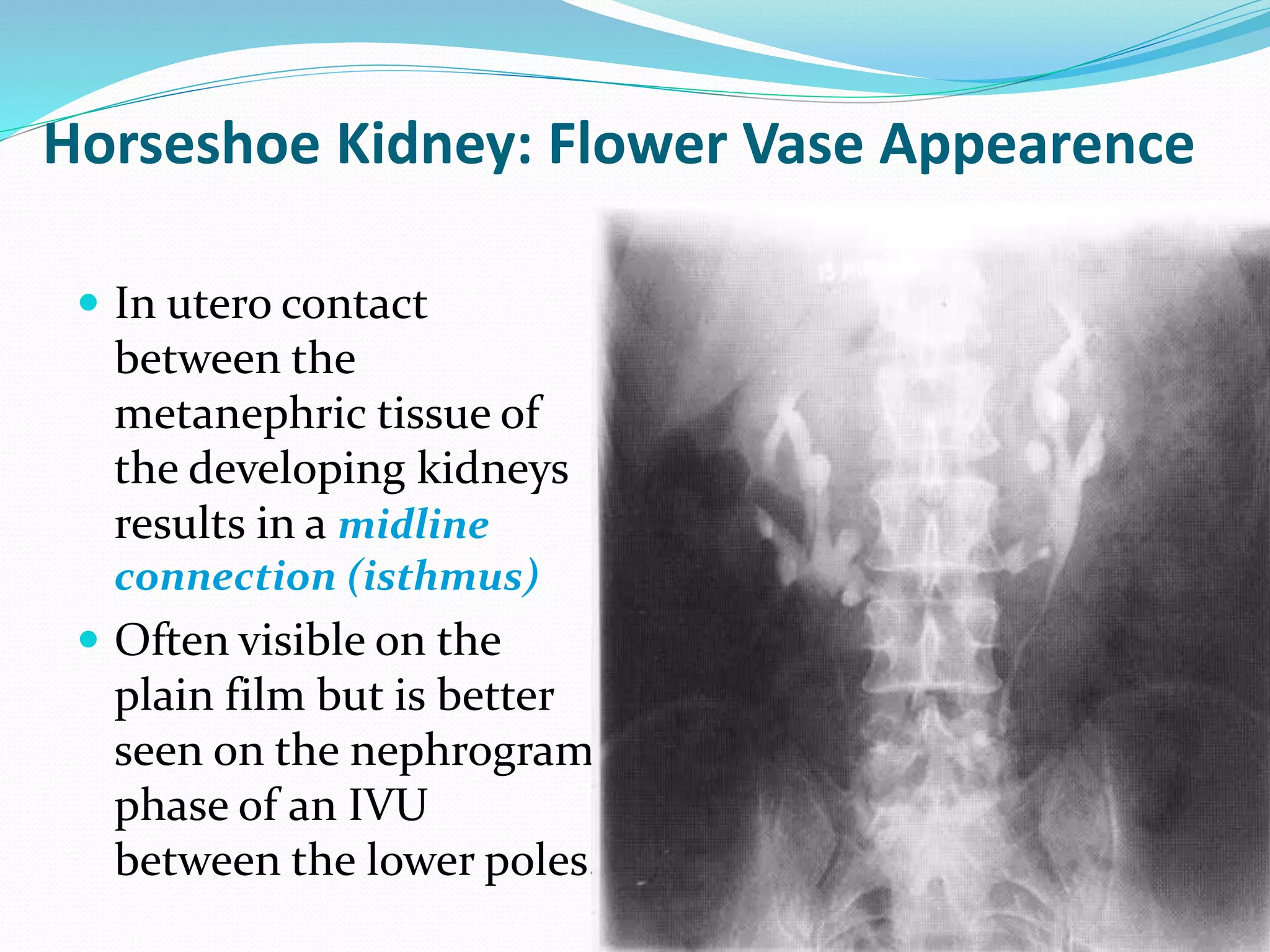

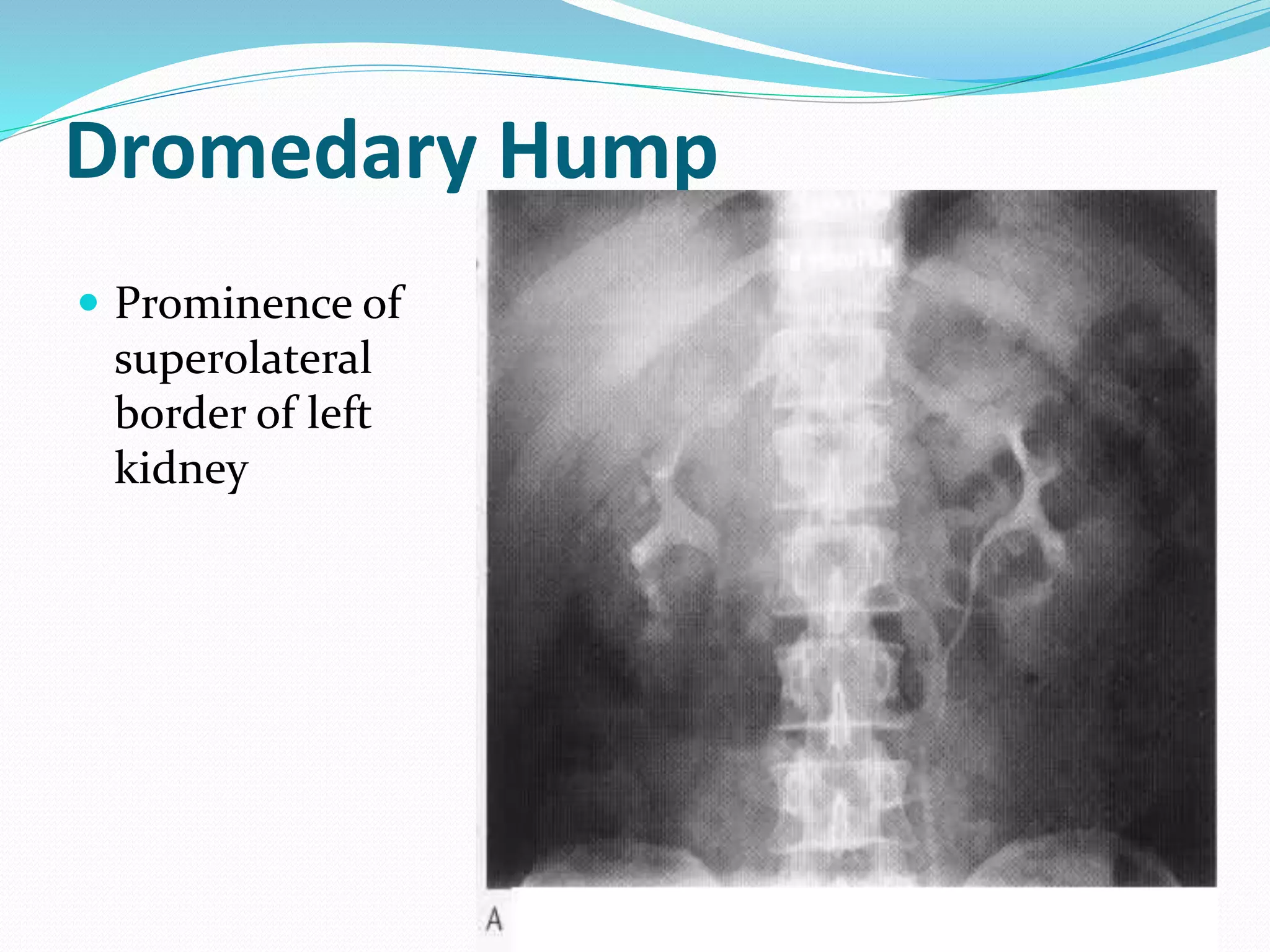

74. Horseshoe Kidney: Flower Vase Appearence
In utero contact
between the
metanephric tissue of
the developing kidneys
results in a midline
connection (isthmus)
Often visible on the
plain film but is better
seen on the nephrogram
phase of an IVU
between the lower poles.
75. Ectopic Ureter: Drooping lily appearence
The lower pole moiety
is displaced
inferolaterally by an
upper pole
hydronephrosis.
This usually occurs due to
obstruction of the upper
pole moiety ureter at its
orifice associated with
ectopic insertion or a
ureterocele.

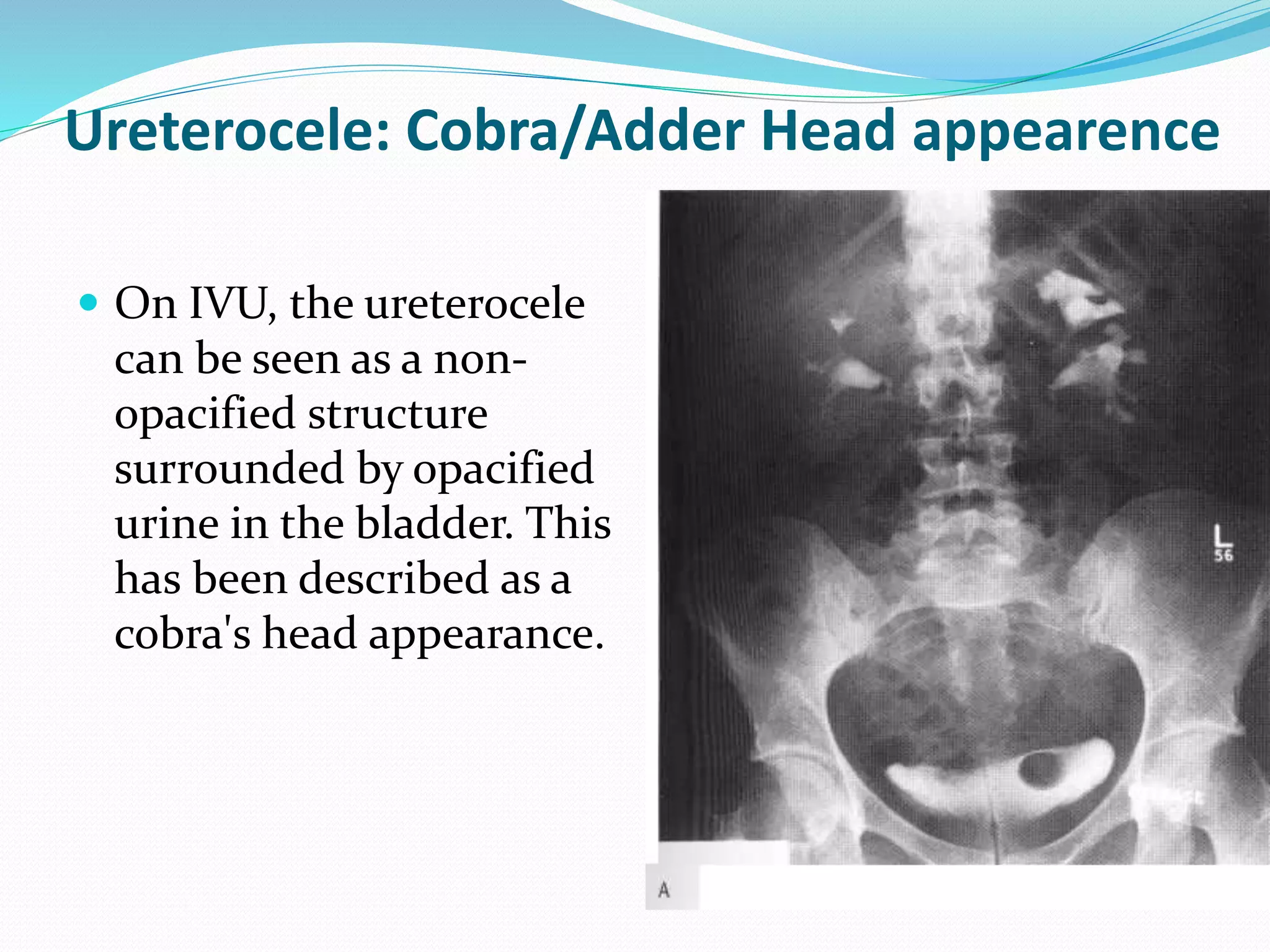

76. Ureterocele: Cobra/Adder Head appearence
On IVU, the ureterocele
can be seen as a non-
opacified structure
surrounded by opacified
urine in the bladder. This
has been described as a
cobra's head appearance.

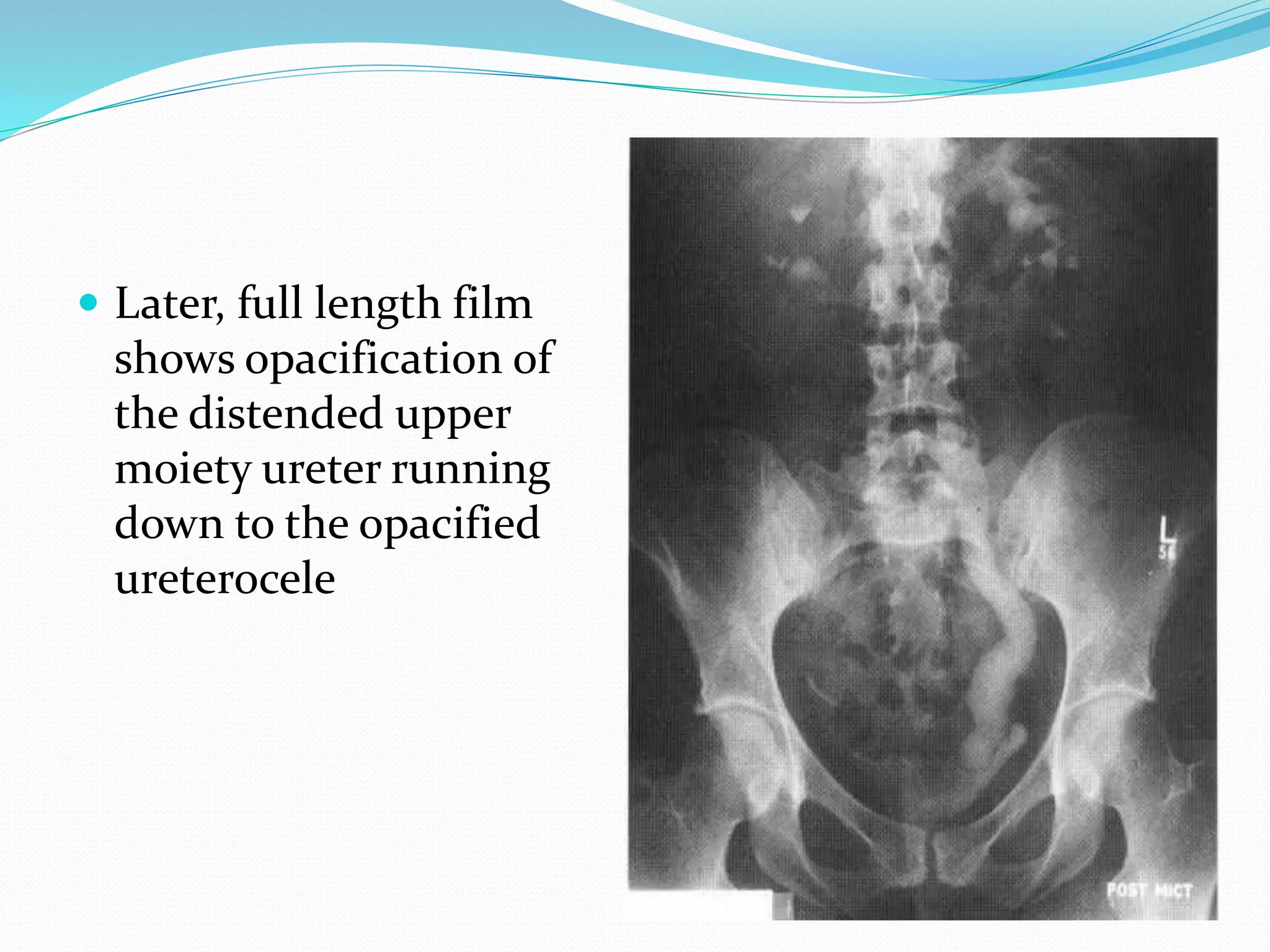

77. Later, full length film
shows opacification of
the distended upper
moiety ureter running
down to the opacified
ureterocele

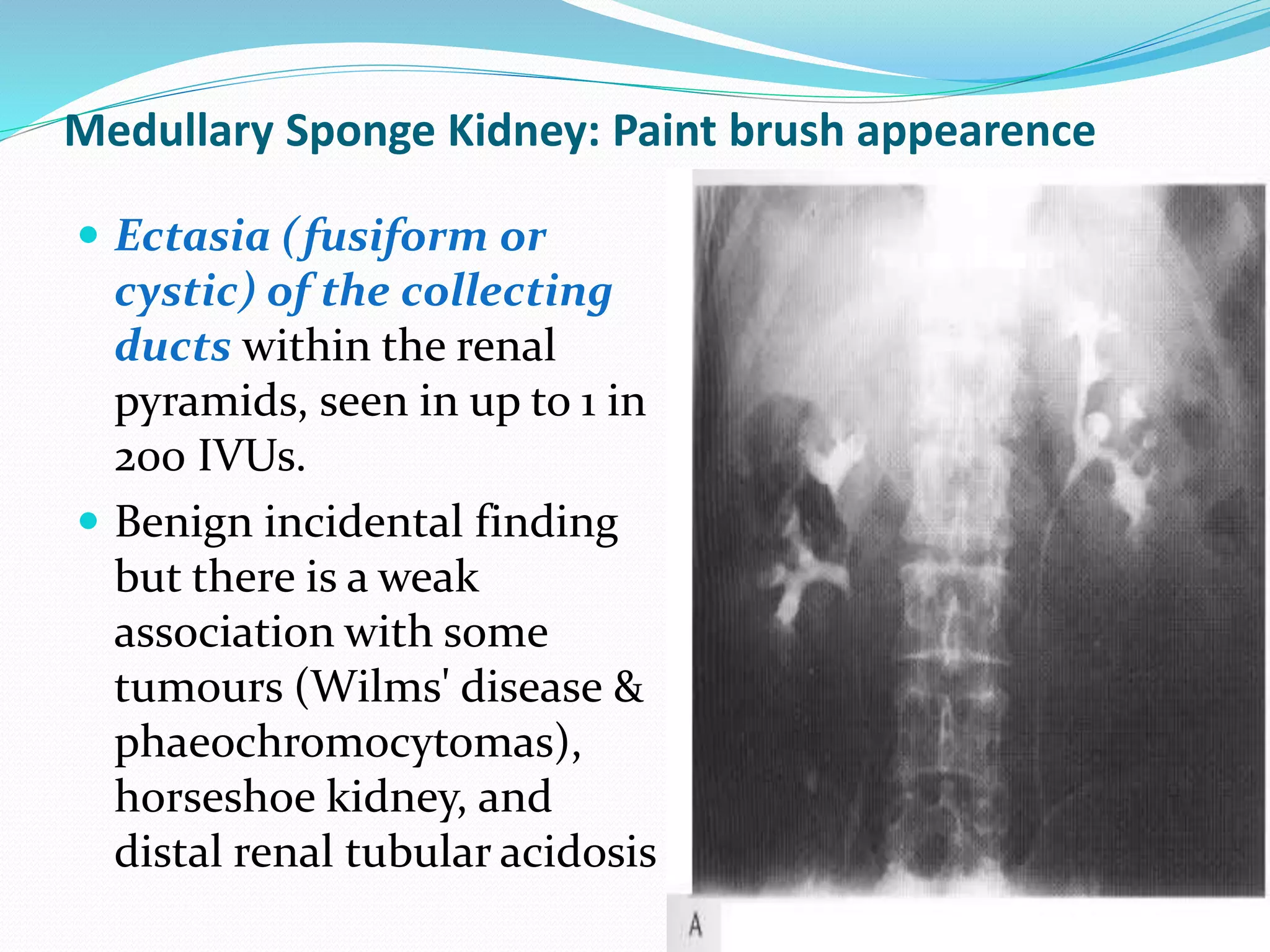

78. Medullary Sponge Kidney: Paint brush appearence
Ectasia (fusiform or
cystic) of the collecting
ducts within the renal
pyramids, seen in up to 1 in
200 IVUs.
Benign incidental finding
but there is a weak
association with some
tumours (Wilms' disease &
phaeochromocytomas),
horseshoe kidney, and
distal renal tubular acidosis

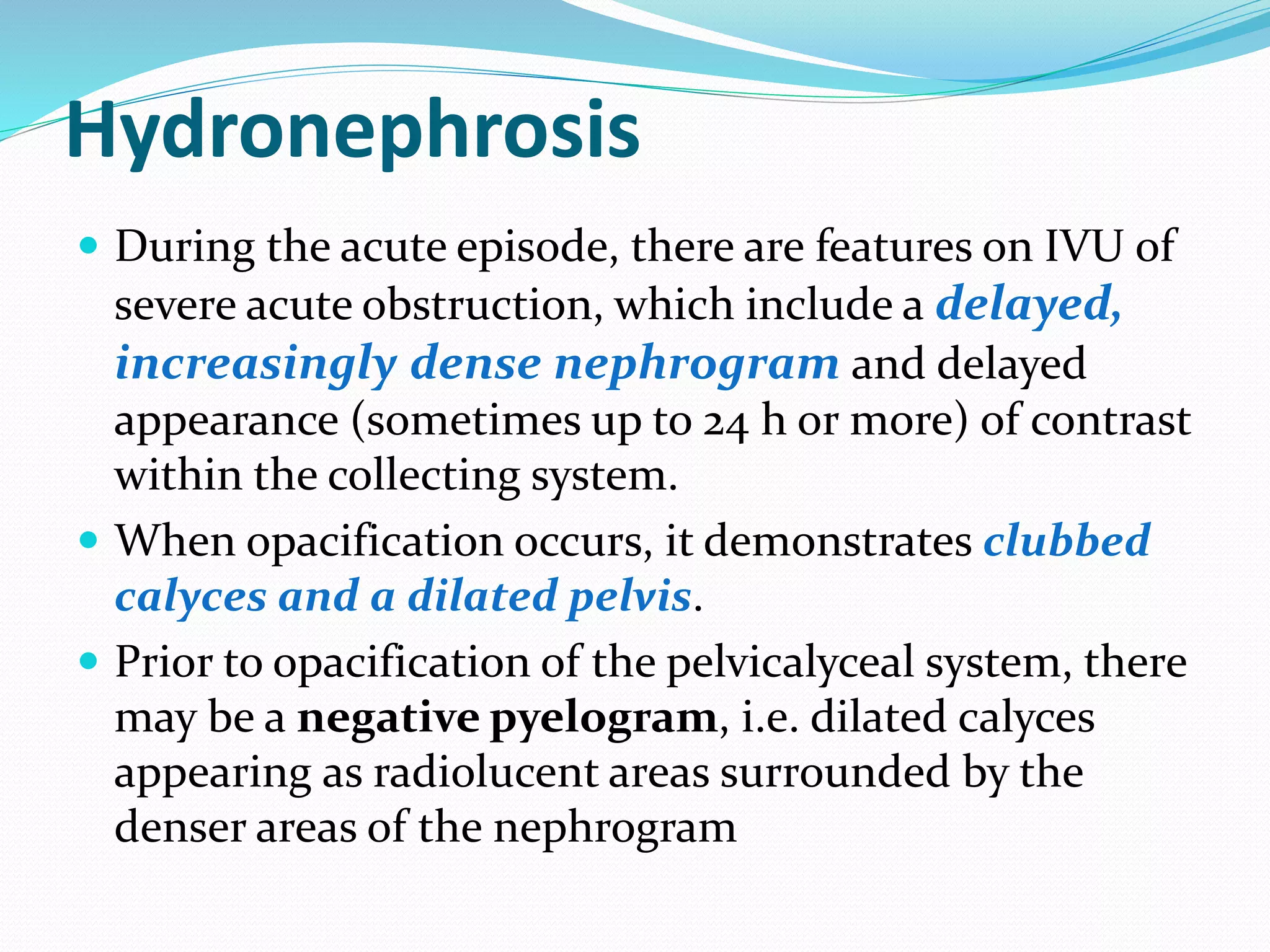

79. Hydronephrosis
During the acute episode, there are features on IVU of
severe acute obstruction, which include a delayed,
increasingly dense nephrogram and delayed
appearance (sometimes up to 24 h or more) of contrast
within the collecting system.
When opacification occurs, it demonstrates clubbed
calyces and a dilated pelvis.
Prior to opacification of the pelvicalyceal system, there
may be a negative pyelogram, i.e. dilated calyces
appearing as radiolucent areas surrounded by the
denser areas of the nephrogram

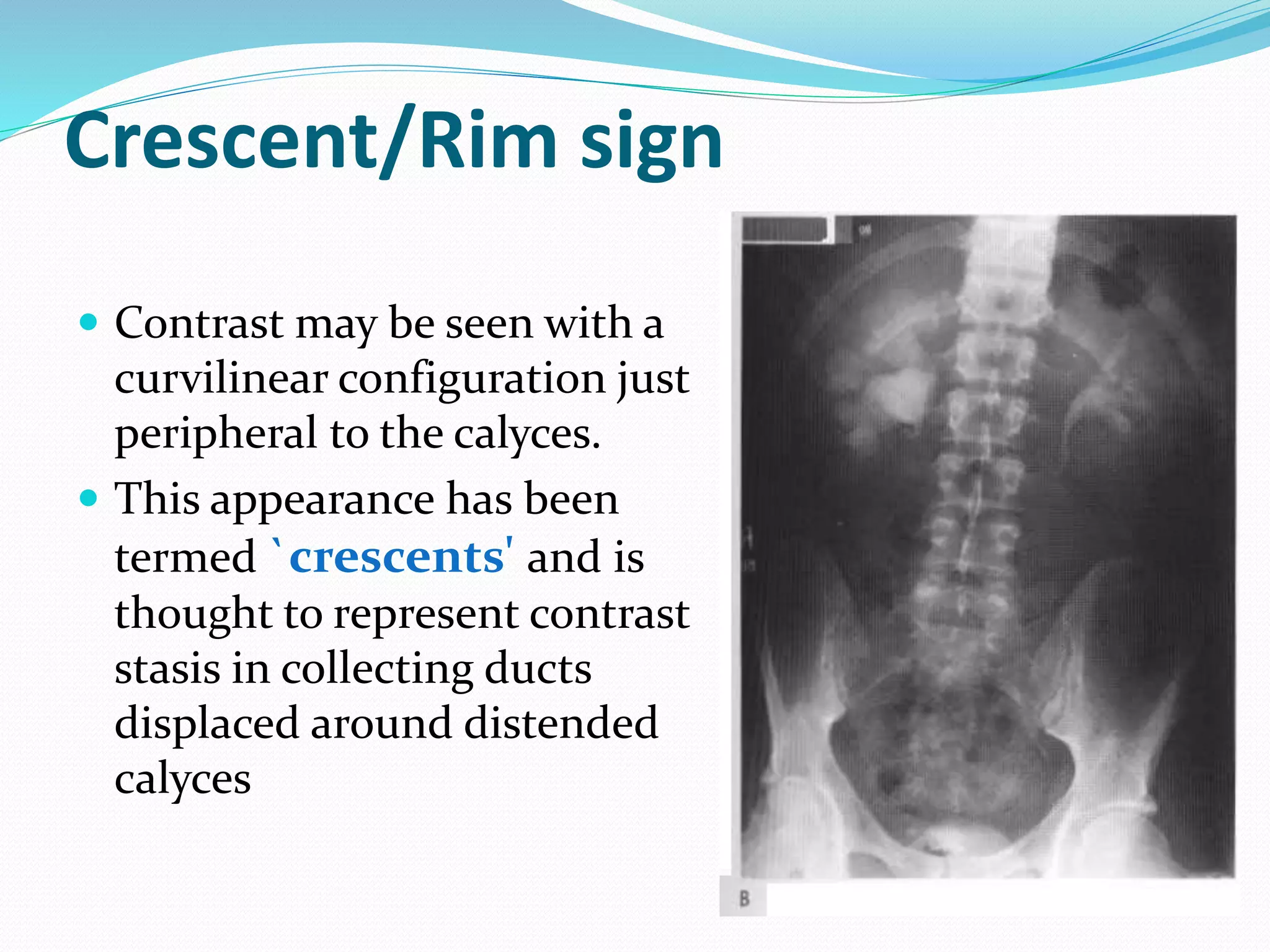

80. Crescent/Rim sign
Contrast may be seen with a
curvilinear configuration just
peripheral to the calyces.
This appearance has been
termed `crescents' and is
thought to represent contrast
stasis in collecting ducts
displaced around distended
calyces

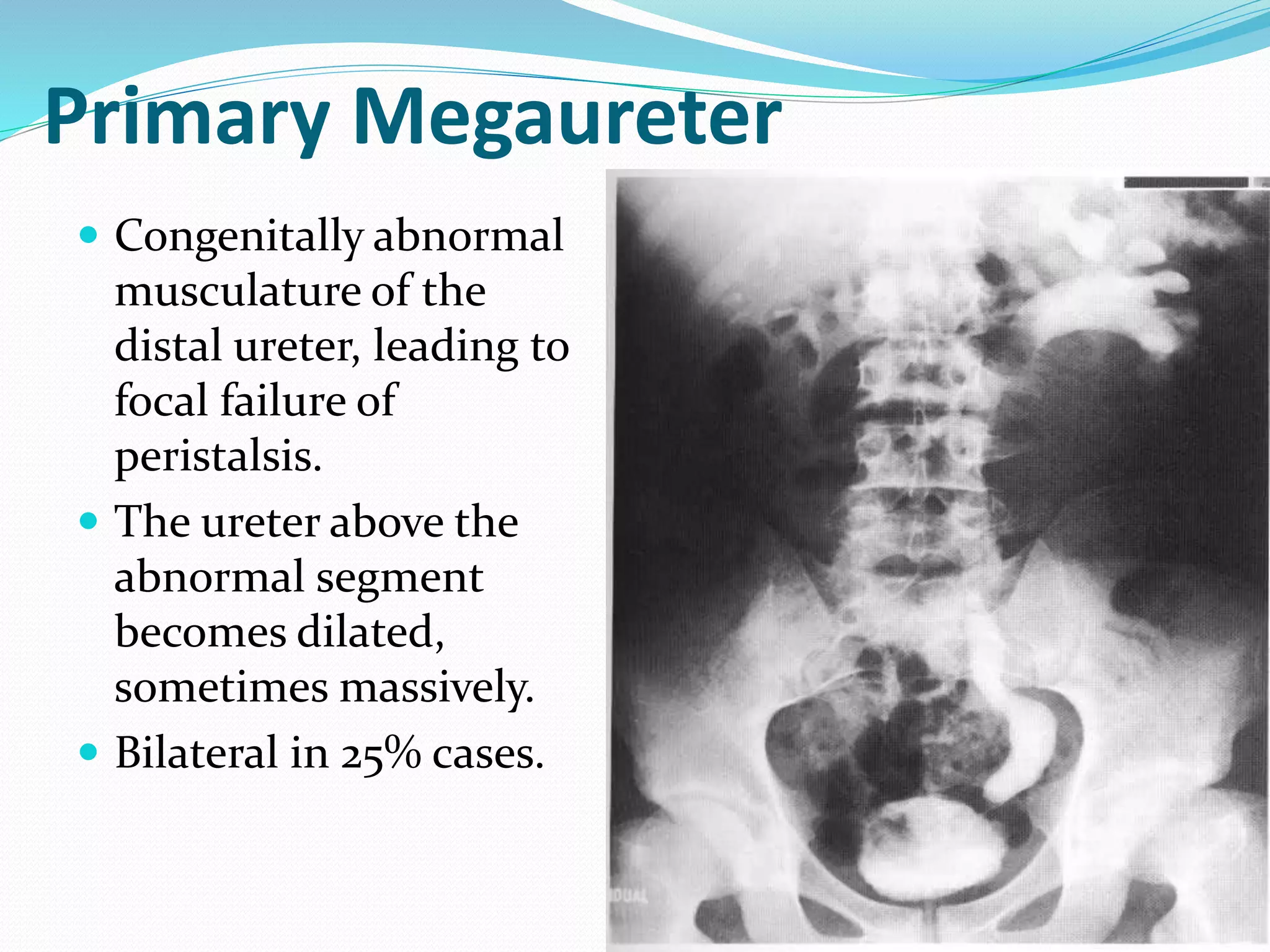

81. Primary Megaureter
Congenitally abnormal
musculature of the
distal ureter, leading to
focal failure of
peristalsis.
The ureter above the
abnormal segment
becomes dilated,
sometimes massively.
Bilateral in 25% cases.

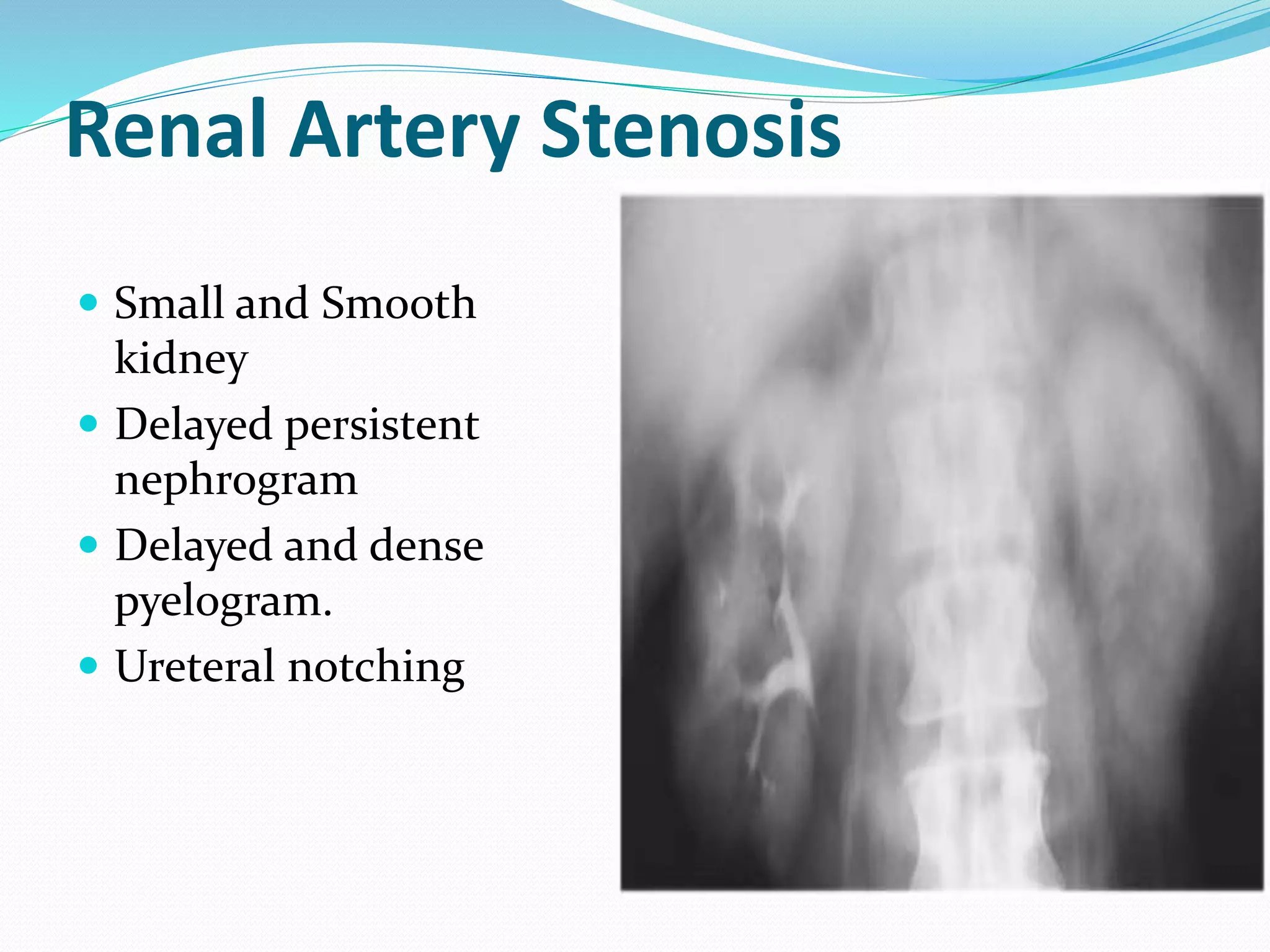

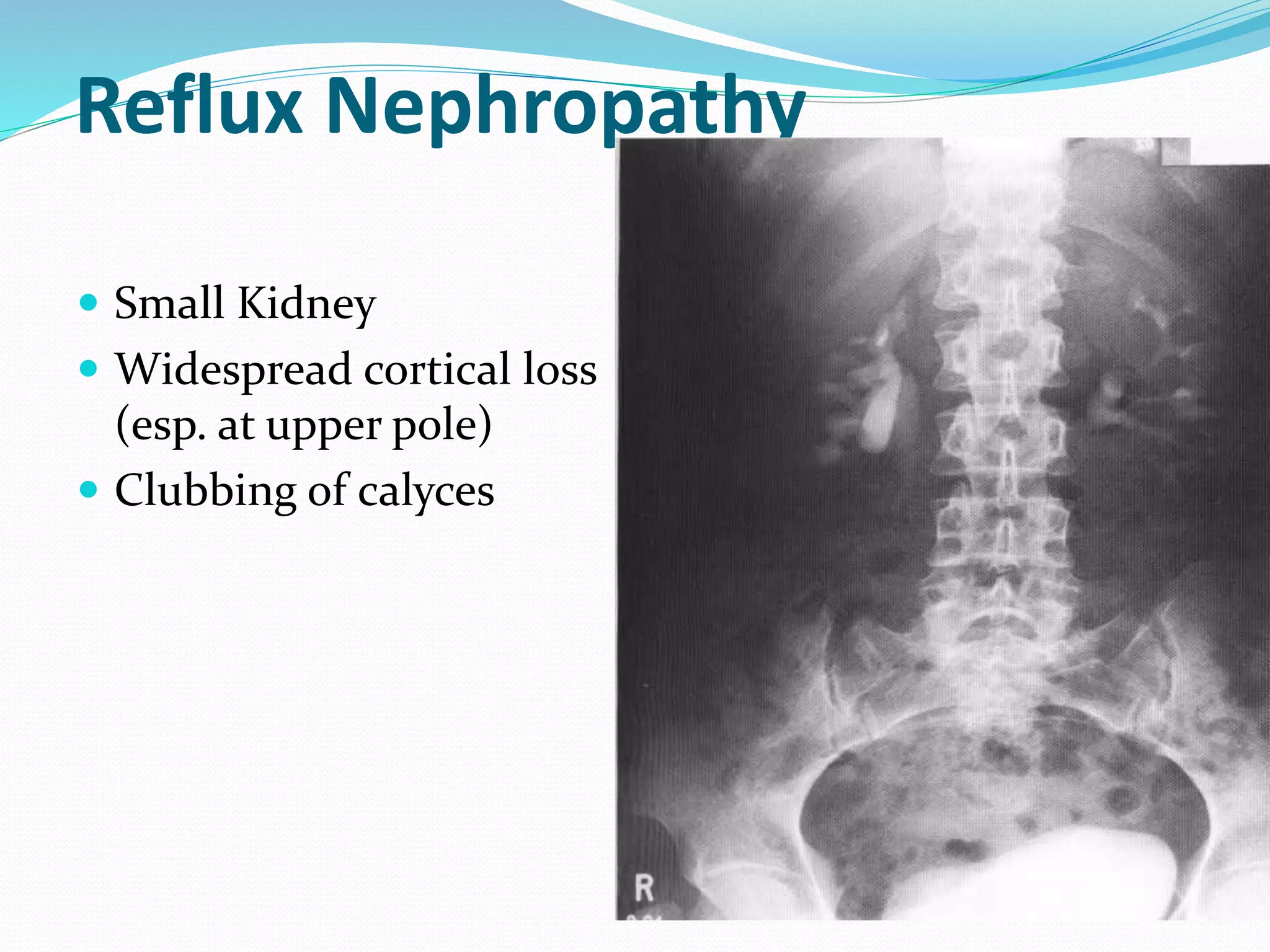

83. Small and Smooth
kidney
Delayed persistent
nephrogram
Delayed and dense
pyelogram.
Ureteral notching
Renal Artery Stenosis
84. Bladder diverticulum
Focal herniations of urothelium
and submucosa through the weak
sites in the bladder wall
In the early stages, multiple
(sometimes numerous) small
protrusions of the bladder lumen
appear between the trabeculae
(sacculations).
As they enlarge above 2 cm, they
become defined as diverticula

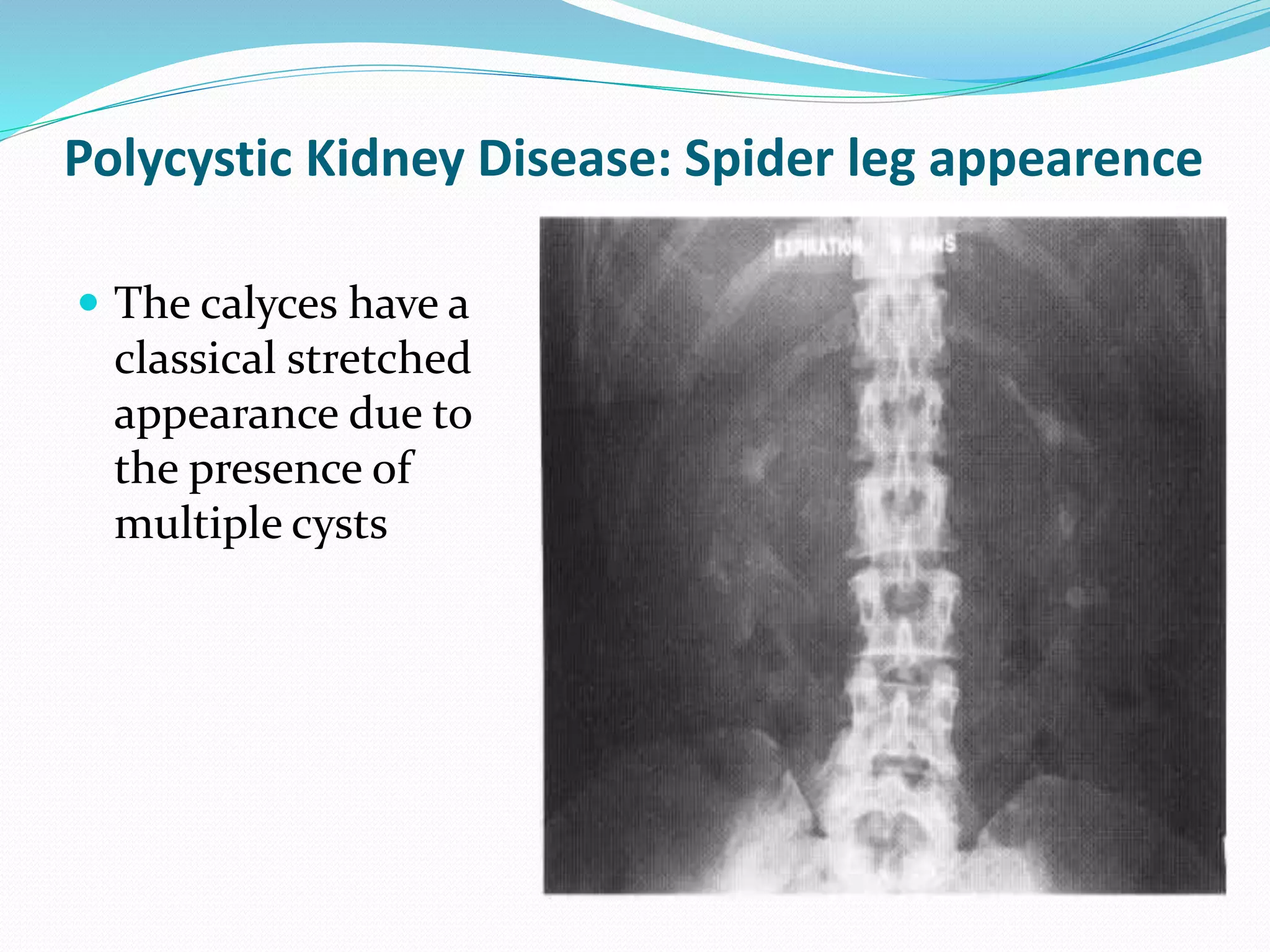

85. Polycystic Kidney Disease: Spider leg appearence
The calyces have a
classical stretched
appearance due to
the presence of
multiple cysts

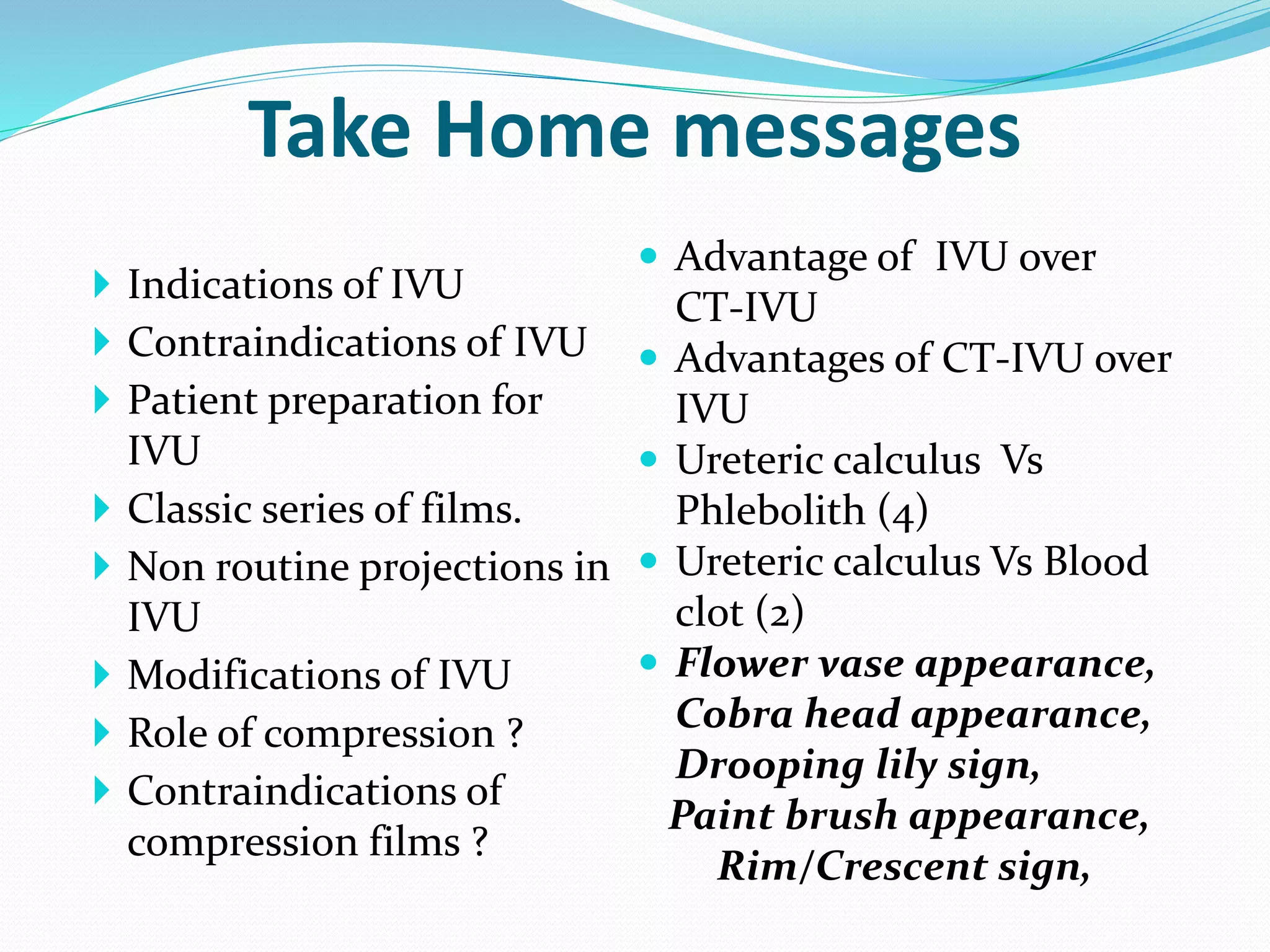

86. Take Home messages
Indications of IVU
Contraindications of IVU
Patient preparation for
IVU
Classic series of films.
Non routine projections in
IVU
Modifications of IVU
Role of compression ?
Contraindications of
compression films ?
Advantage of IVU over
CT-IVU
Advantages of CT-IVU over
IVU
Ureteric calculus Vs
Phlebolith (4)
Ureteric calculus Vs Blood
clot (2)
Flower vase appearance,
Cobra head appearance,
Drooping lily sign,
Paint brush appearance,
Rim/Crescent sign,

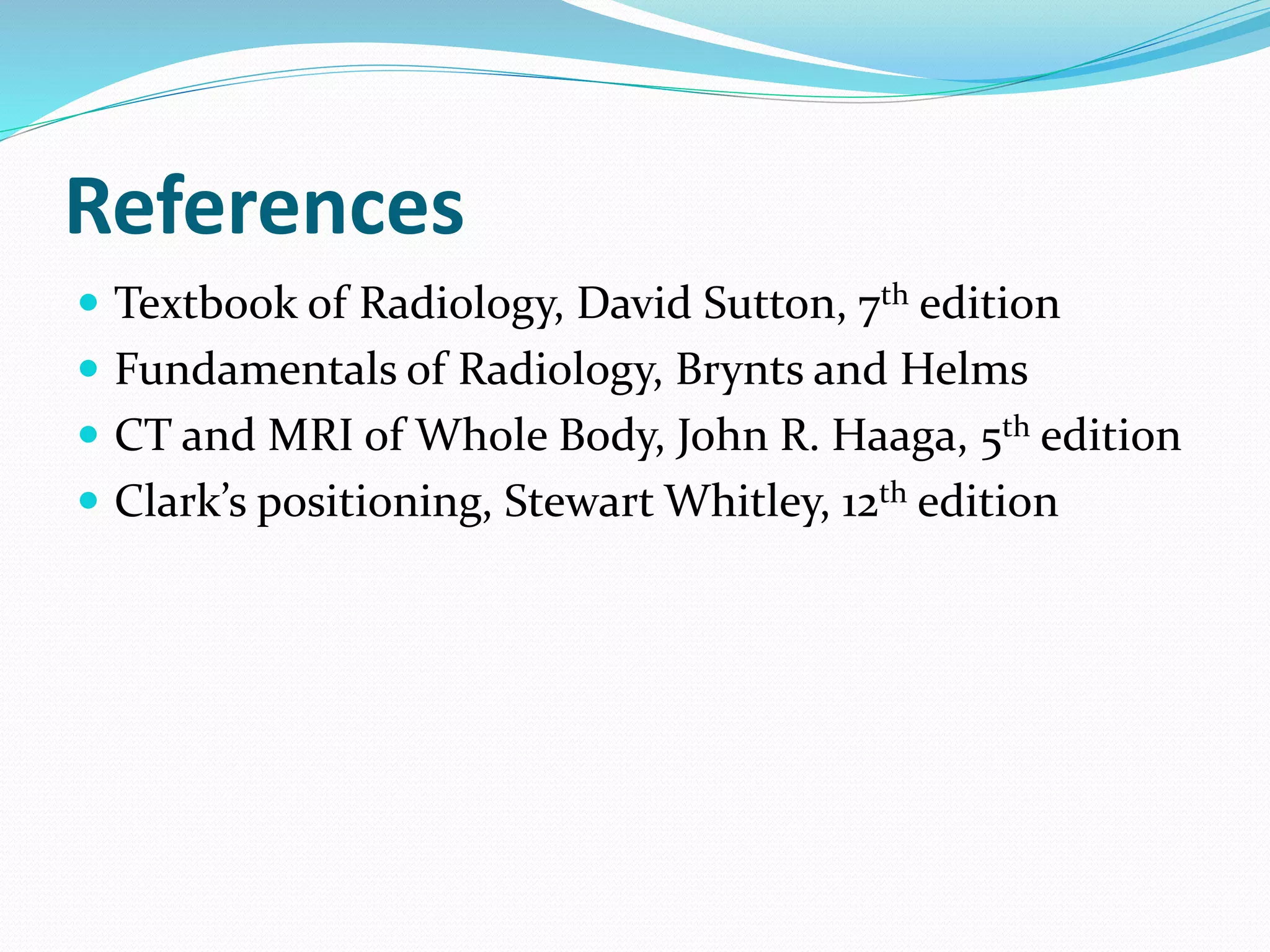

87. References
Textbook of Radiology, David Sutton, 7th edition
Fundamentals of Radiology, Brynts and Helms
CT and MRI of Whole Body, John R. Haaga, 5th edition
Clark’s positioning, Stewart Whitley, 12th edition
*to include urethra (prostatic urethra) in the film*
From lung base to pubic symphysis, kVp= 120, mAs= 250, Field of View= 300mm, Slice Thickness= 5mm, 3mm, 2mm, Radiation dose= 14.8 mSv+-3.1, 1.5 times more than Conventional IVU
Abdominal radiograph, a nonenhanced renal CT, and a multiphasic contrast-enhanced renal CT scan, followed by overhead excretory urographic and postvoid radiographs, are obtained
Gd-enhanced MRI: Risk of Nephrogenic Systemic fibrosis (NSF) in renal insufficiency (GFR<30), Advantage: can be used in Iodine allergies, Pregnancy & Children, Disadv: Insensitive for calculus compared to CT
Ectatic DCTs contain microcalcifications (bunch of grapes appearance or Bouquet of flowers appearence)
B/L PUJ obstruction, LK more severely affected
DD: Severe HN, Acute ureteric obstruction, Dehydration
Usually do not enlarge beyond this as they act to moderate the intravesical pressure by accomodating urine
IVU- higher spatial resolution & better evaluation of urothelium, CT-IVU- Higher contrast resolution & additional evaluation of soft tissues
