This document presents a framework for scene recognition using convolutional neural networks (CNNs) as feature extractors and machine learning kernels as classifiers. The framework uses a VGG dataset containing 678 images across 3 categories (highway, open country, streets). CNNs perform feature extraction via convolution and max pooling operations to reduce dimensionality by 10x. The extracted features are then classified using perceptrons and support vector machines (SVMs) in a parallel implementation. Results show SVMs achieve higher accuracy than perceptrons and accuracy increases with more training data. Future work involves task-level parallelism, increasing data size and categories, and comparing CNN features to PCA.

1. A Framework for Scene Recognition Using
Convolutional Neural Network as Feature
Extractor and Machine Learning Kernels as
Classifier
Tahmid Abtahi, Aniket Badhan and Sri Harsha
Department of Computer Science & Electrical Engineering
University of Maryland, Baltimore County
{abtahi1,yh02299,ksrihar1}@umbc.edu

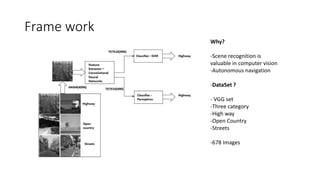

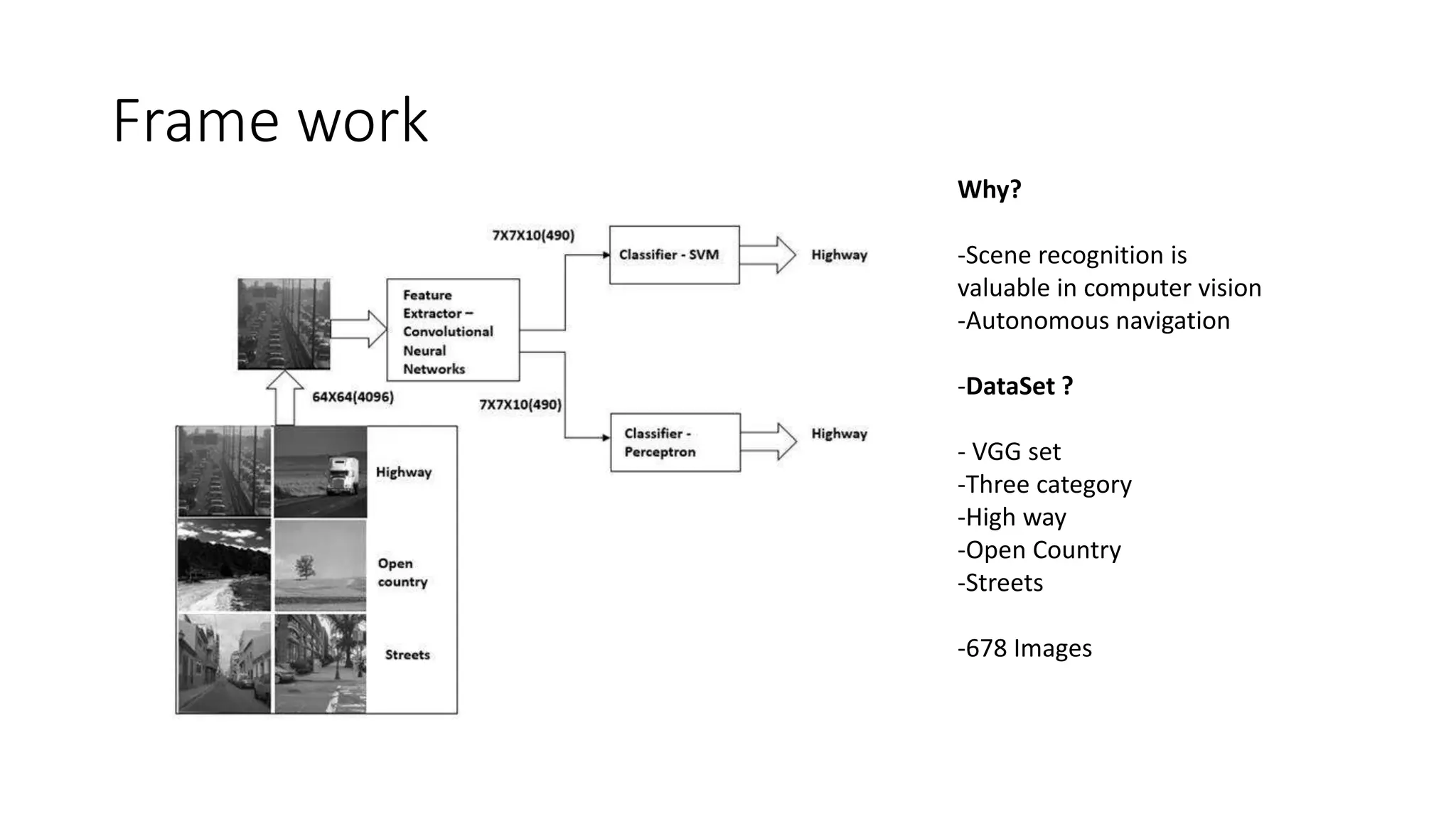

2. Frame work
Why?
-Scene recognition is
valuable in computer vision
-Autonomous navigation
-DataSet ?
- VGG set
-Three category
-High way
-Open Country
-Streets
-678 Images

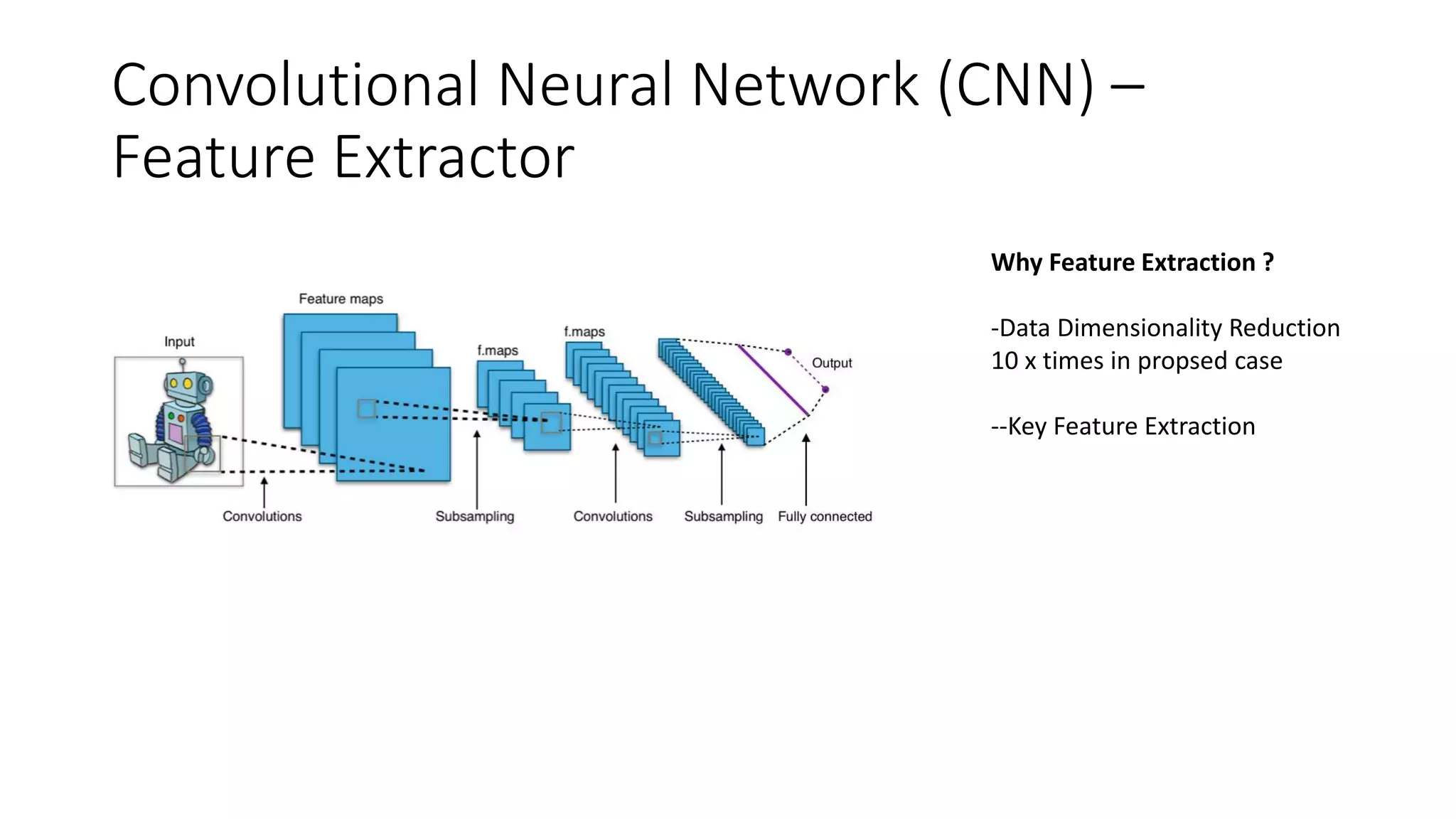

3. Convolutional Neural Network (CNN) –
Feature Extractor
Why Feature Extraction ?
-Data Dimensionality Reduction
10 x times in propsed case
--Key Feature Extraction

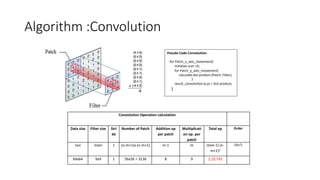

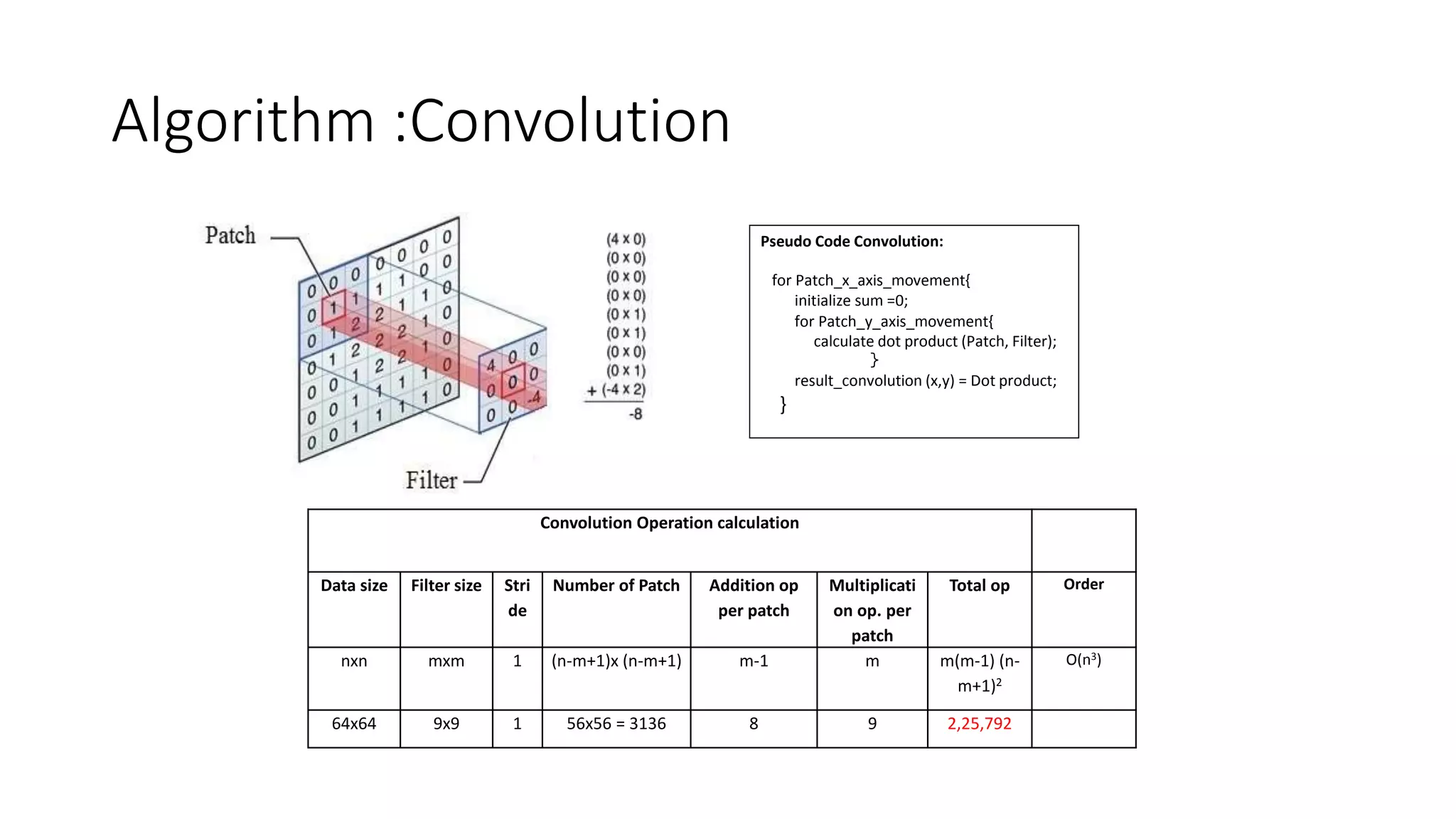

4. Algorithm :Convolution
Pseudo Code Convolution:
for Patch_x_axis_movement{
initialize sum =0;
for Patch_y_axis_movement{
calculate dot product (Patch, Filter);
}
result_convolution (x,y) = Dot product;
}
Convolution Operation calculation
Data size Filter size Stri
de
Number of Patch Addition op
per patch
Multiplicati
on op. per
patch
Total op Order
nxn mxm 1 (n-m+1)x (n-m+1) m-1 m m(m-1) (n-
m+1)2
O(n3)
64x64 9x9 1 56x56 = 3136 8 9 2,25,792

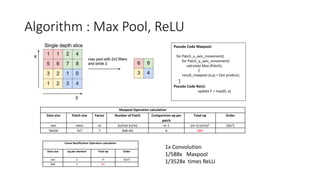

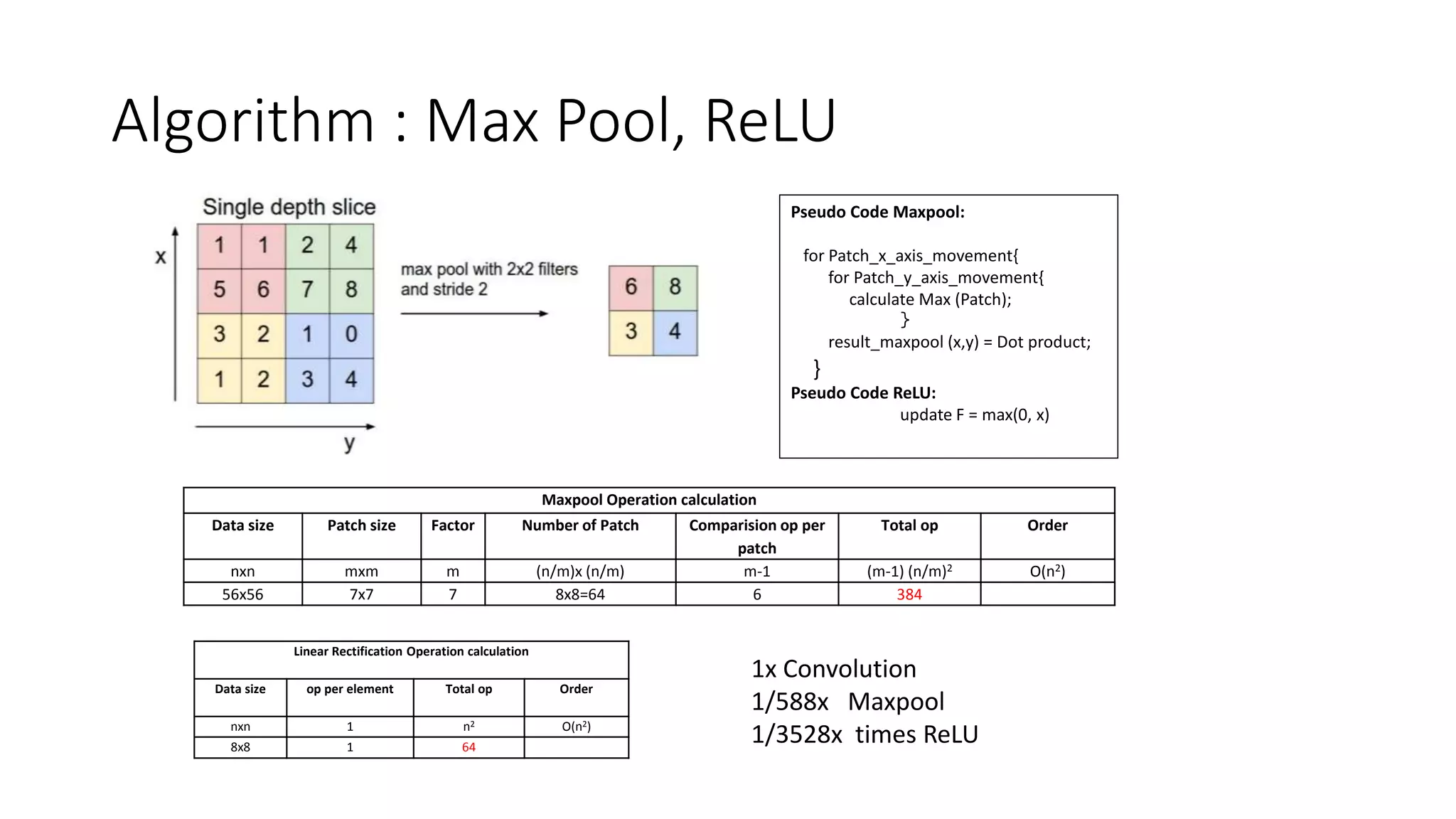

5. Algorithm : Max Pool, ReLU
Pseudo Code Maxpool:
for Patch_x_axis_movement{
for Patch_y_axis_movement{
calculate Max (Patch);
}
result_maxpool (x,y) = Dot product;
}
Pseudo Code ReLU:
update F = max(0, x)
Maxpool Operation calculation
Data size Patch size Factor Number of Patch Comparision op per
patch
Total op Order
nxn mxm m (n/m)x (n/m) m-1 (m-1) (n/m)2 O(n2)
56x56 7x7 7 8x8=64 6 384
Linear Rectification Operation calculation
Data size op per element Total op Order
nxn 1 n2 O(n2)
8x8 1 64
1x Convolution
1/588x Maxpool
1/3528x times ReLU

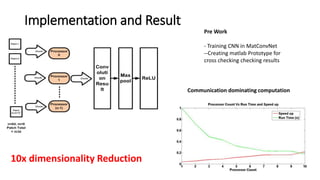

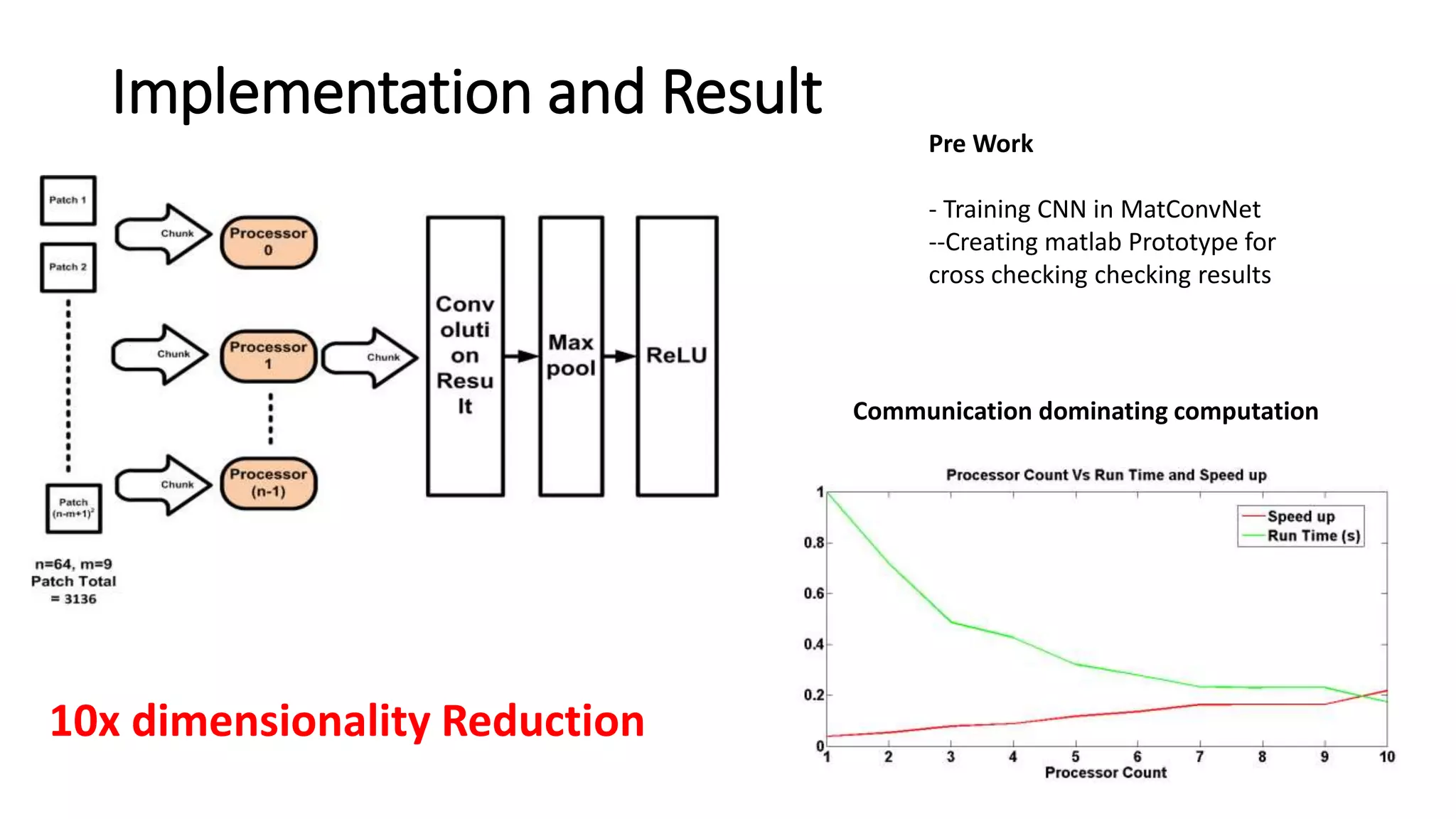

6. Implementation and Result
Communication dominating computation
10x dimensionality Reduction
Pre Work
- Training CNN in MatConvNet
--Creating matlab Prototype for
cross checking checking results

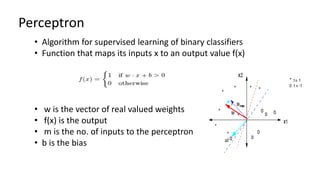

7. Perceptron
• Algorithm for supervised learning of binary classifiers
• Function that maps its inputs x to an output value f(x)
• w is the vector of real valued weights
• f(x) is the output
• m is the no. of inputs to the perceptron
• b is the bias

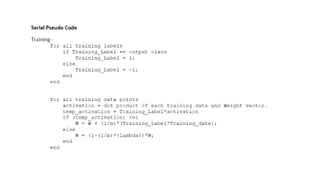

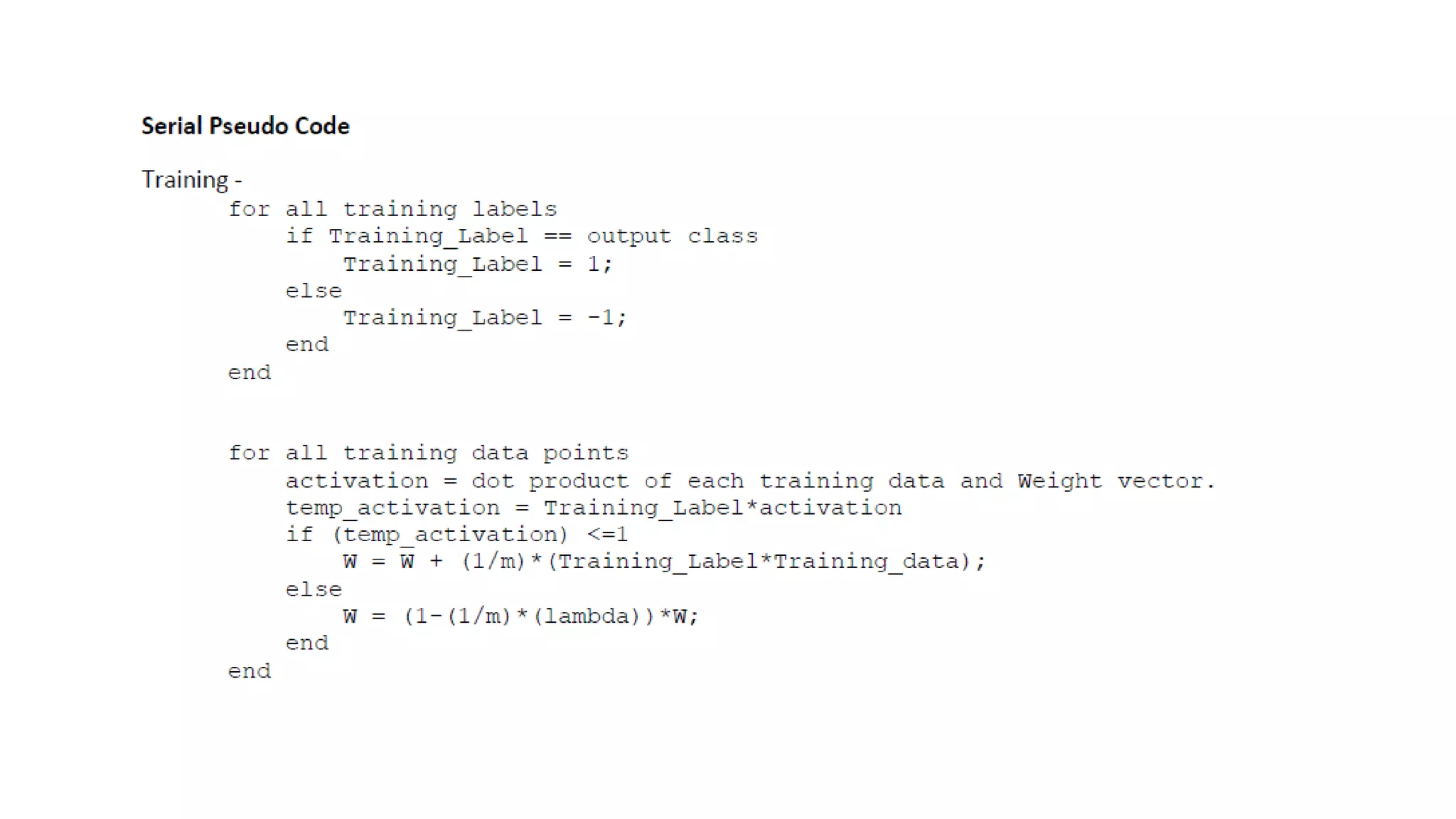

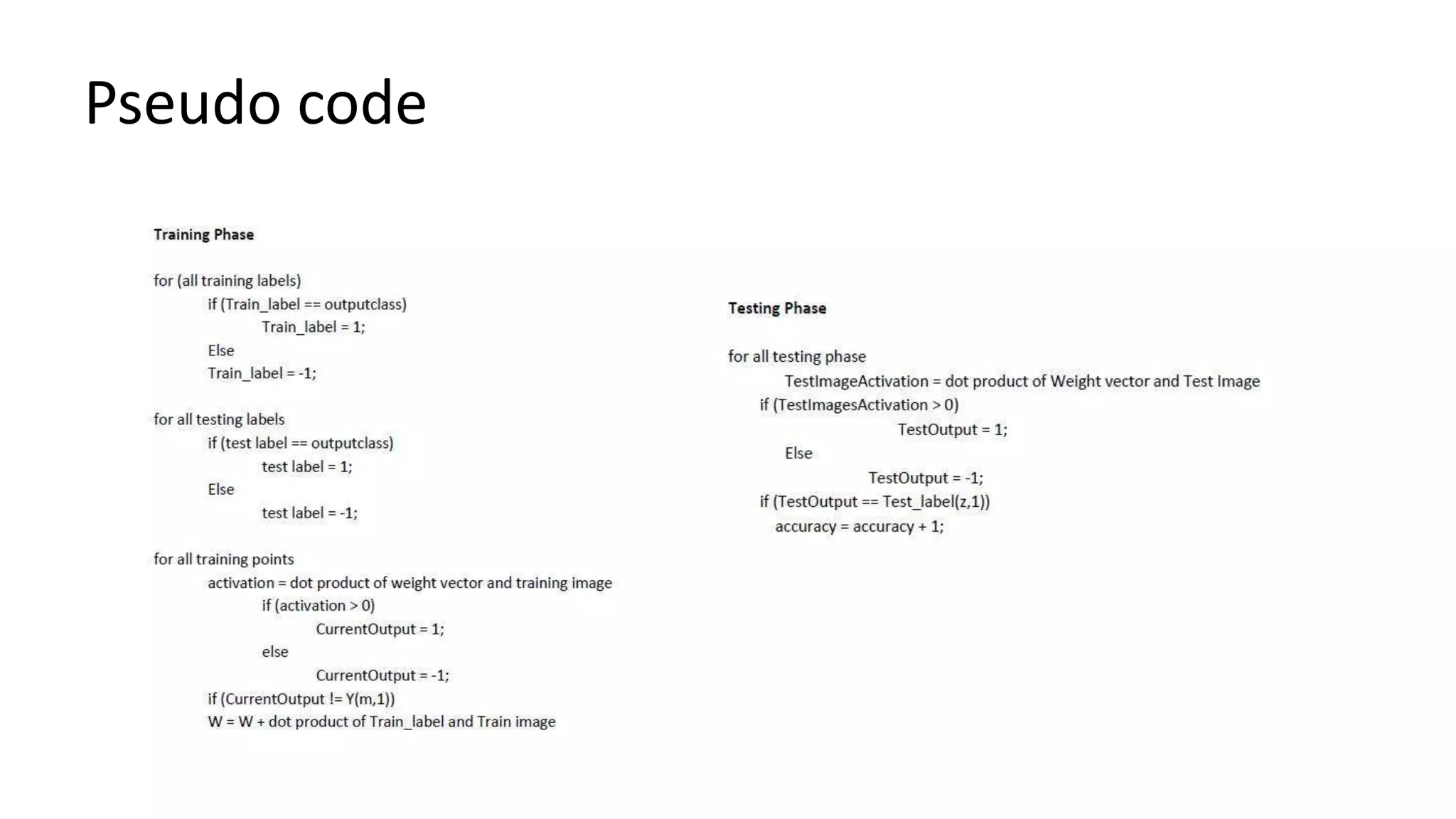

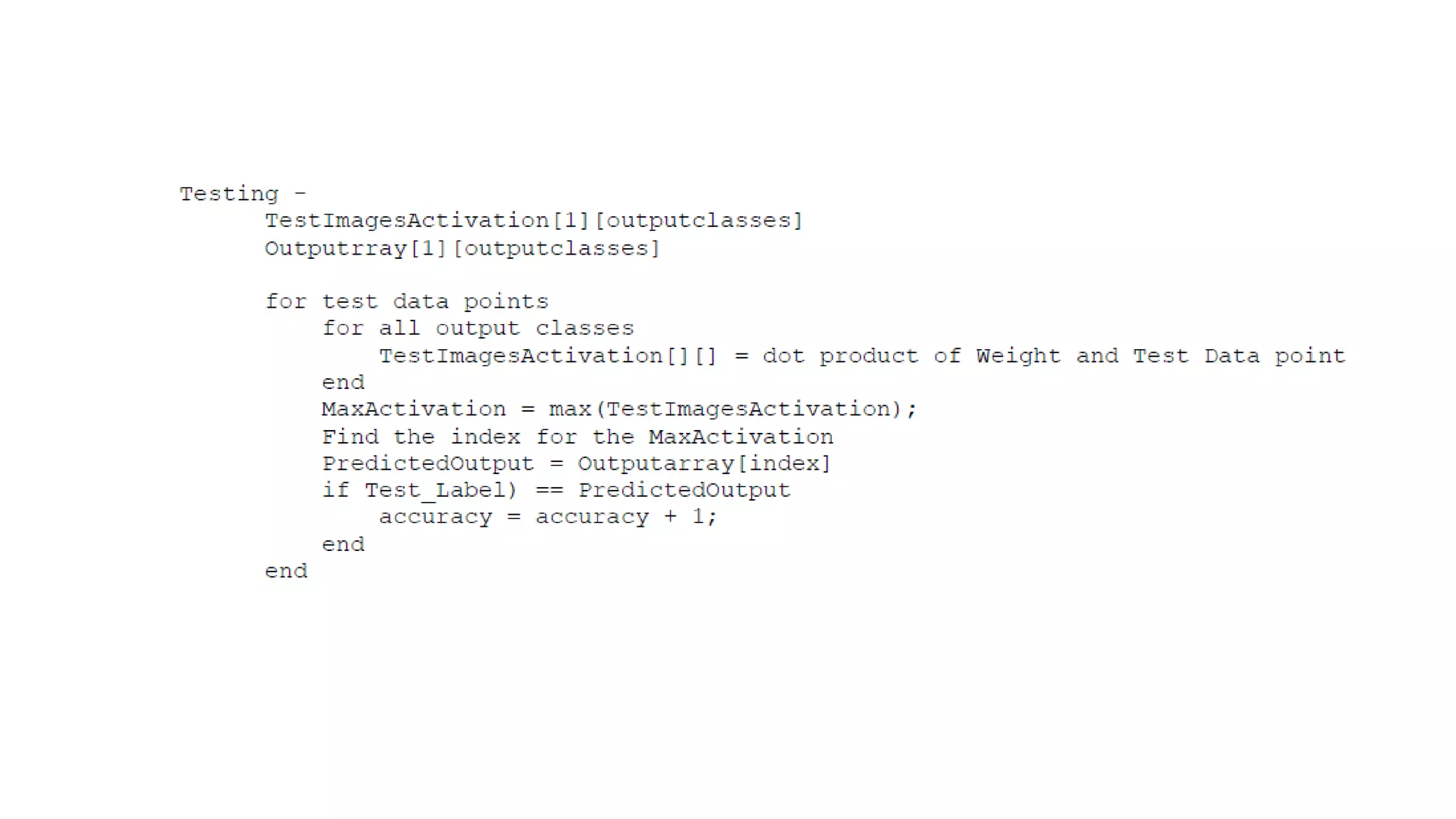

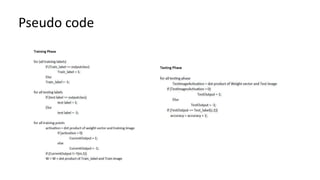

8. Pseudo code

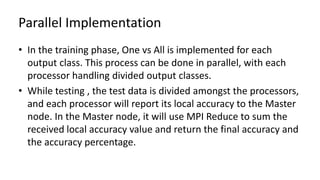

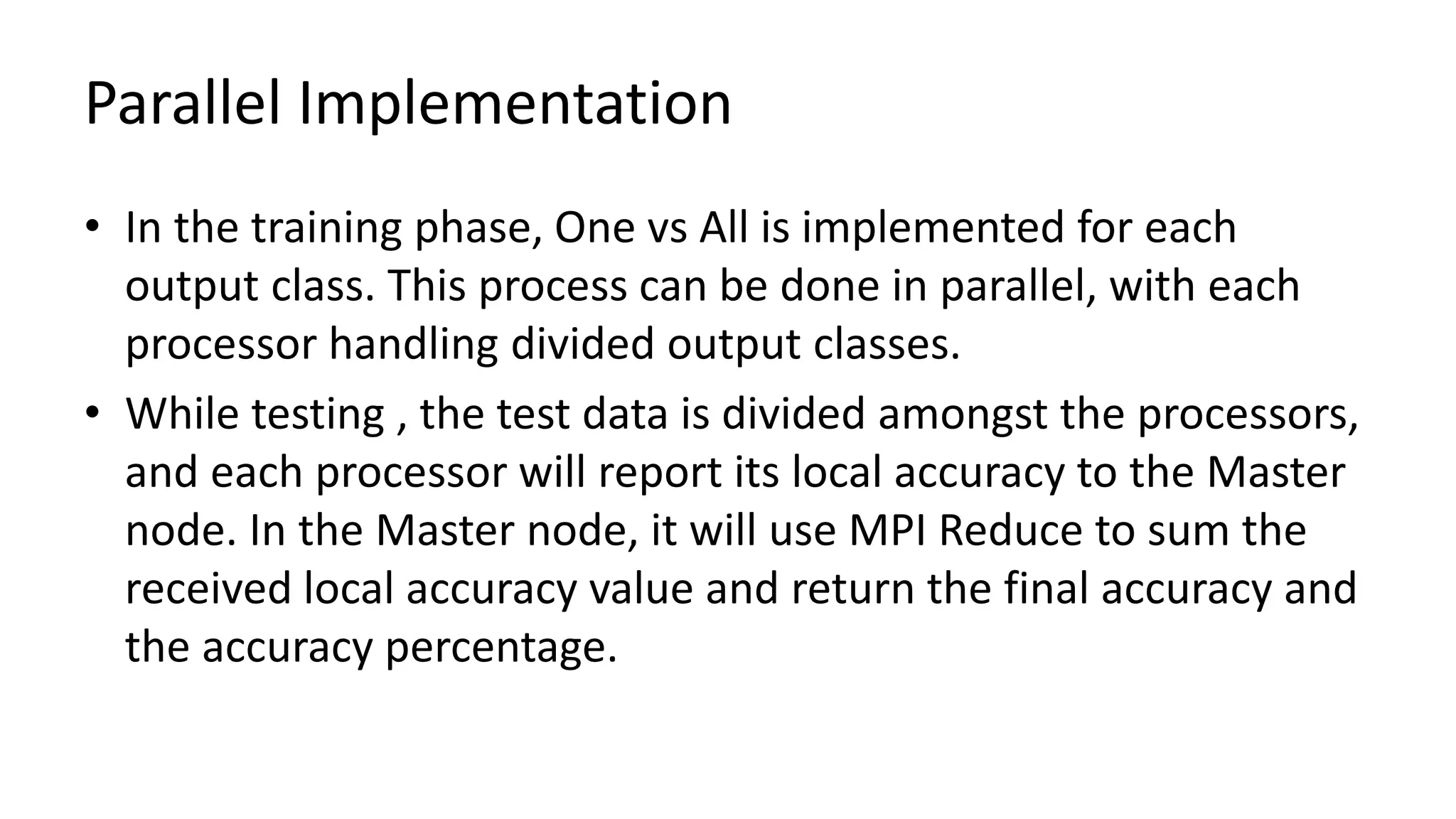

9. Parallel Implementation
• In the training phase, One vs All is implemented for each
output class. This process can be done in parallel, with each
processor handling divided output classes.
• While testing , the test data is divided amongst the processors,
and each processor will report its local accuracy to the Master
node. In the Master node, it will use MPI Reduce to sum the
received local accuracy value and return the final accuracy and
the accuracy percentage.

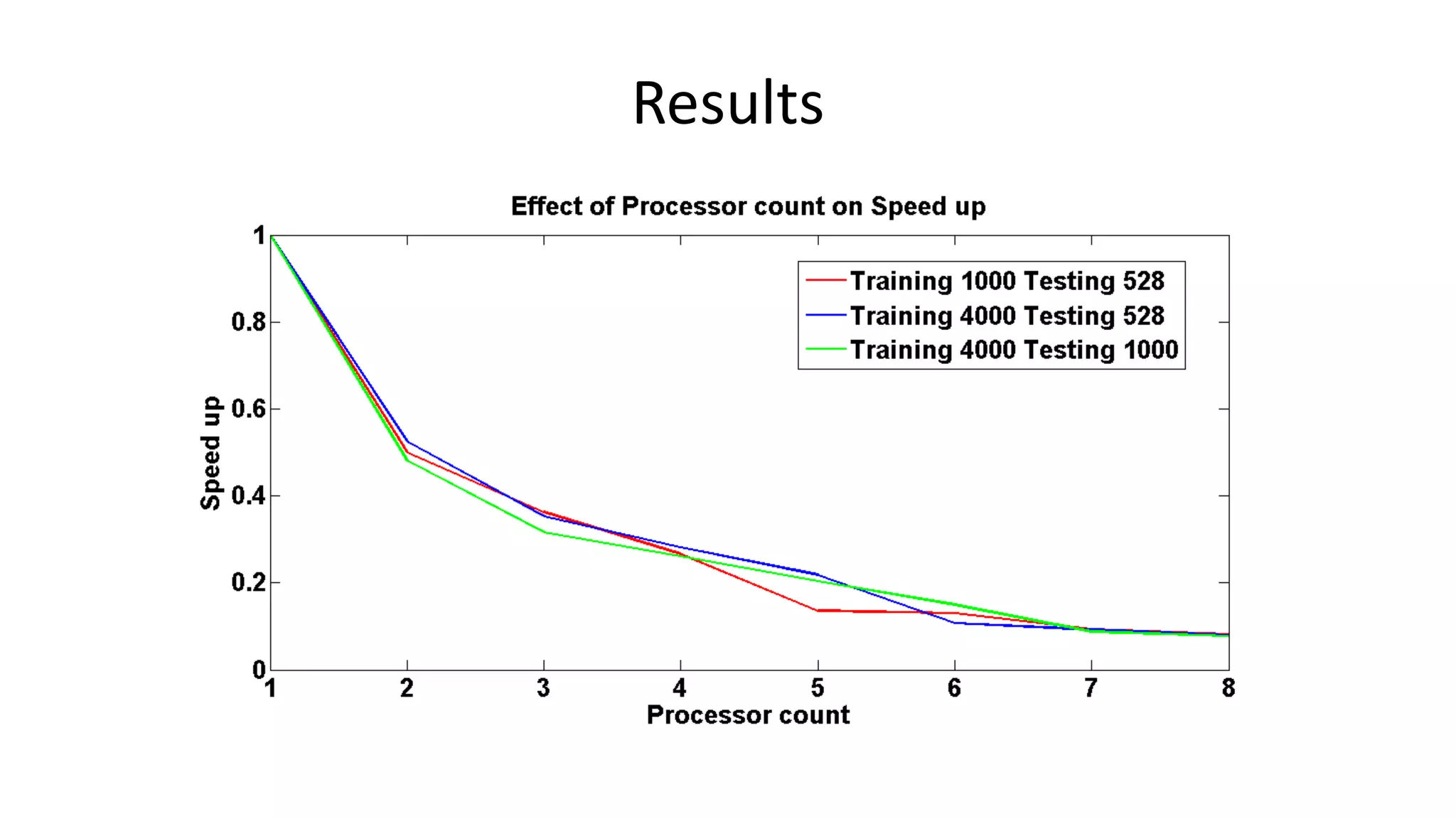

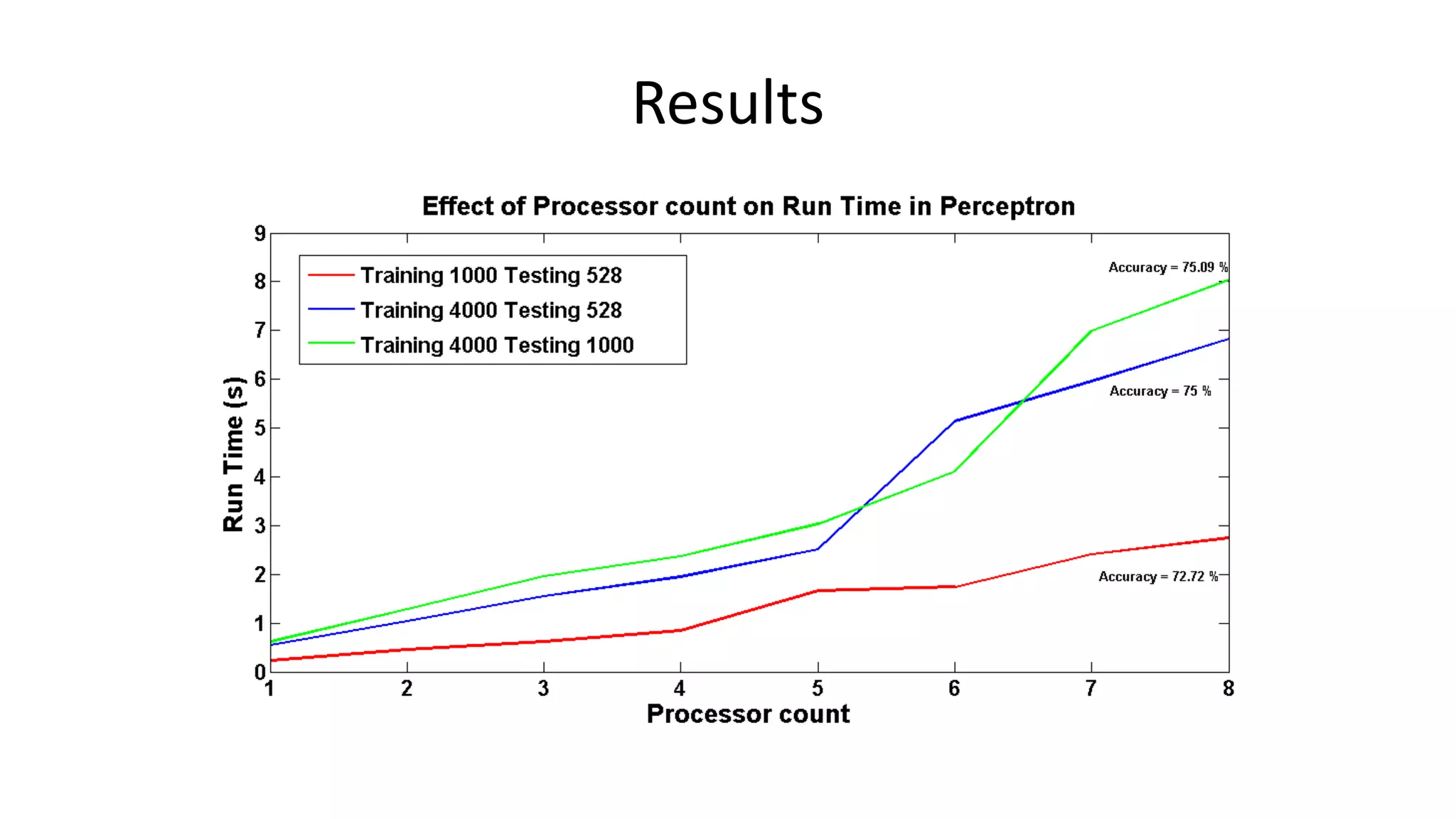

10. Results

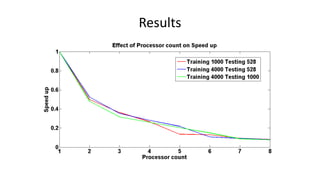

11. Results

12. Results

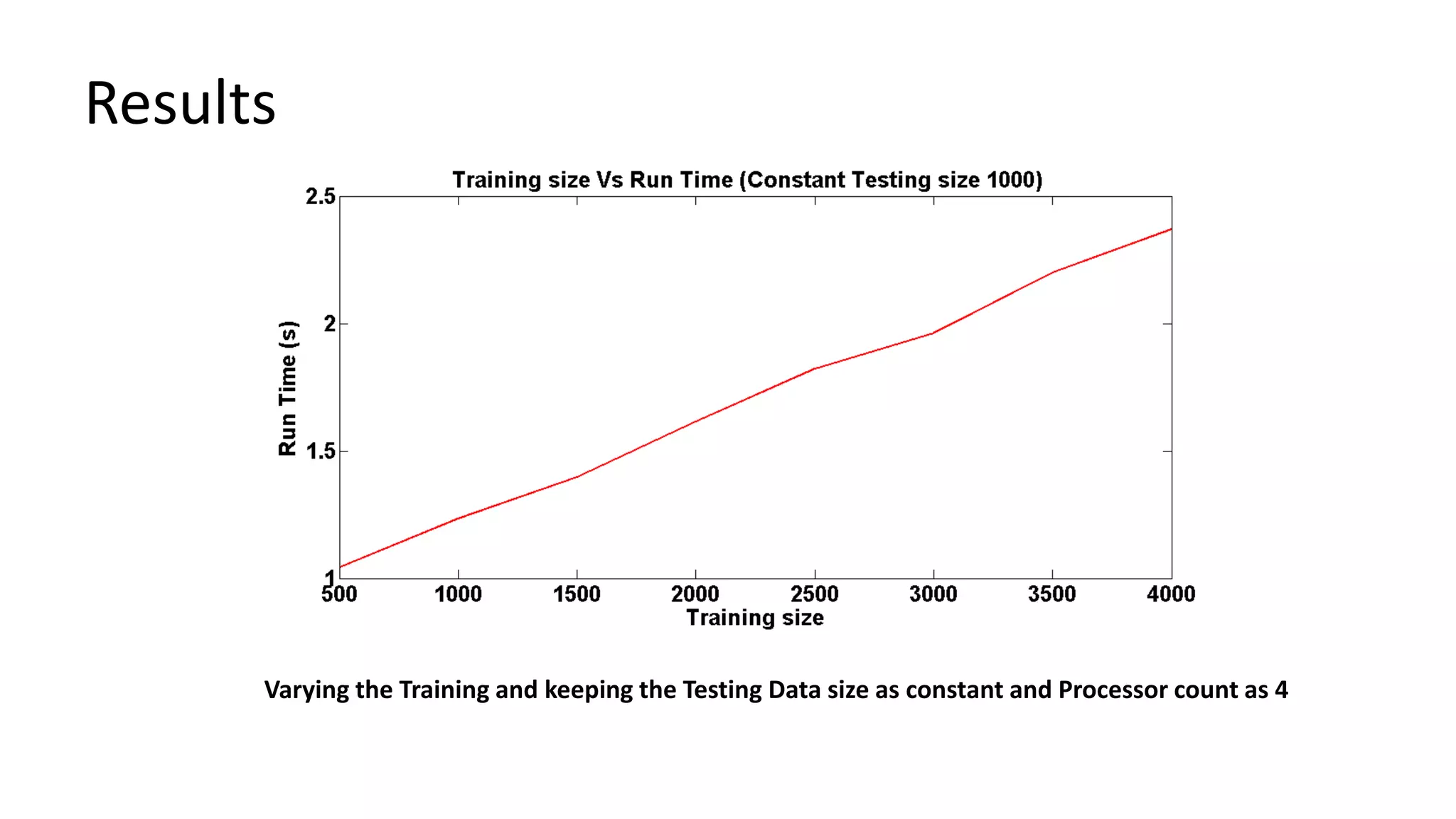

Varying the Training and keeping the Testing Data size as constant and Processor count as 4

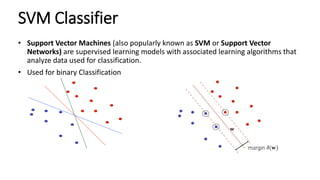

13. SVM Classifier
• Support Vector Machines (also popularly known as SVM or Support Vector
Networks) are supervised learning models with associated learning algorithms that
analyze data used for classification.
• Used for binary Classification

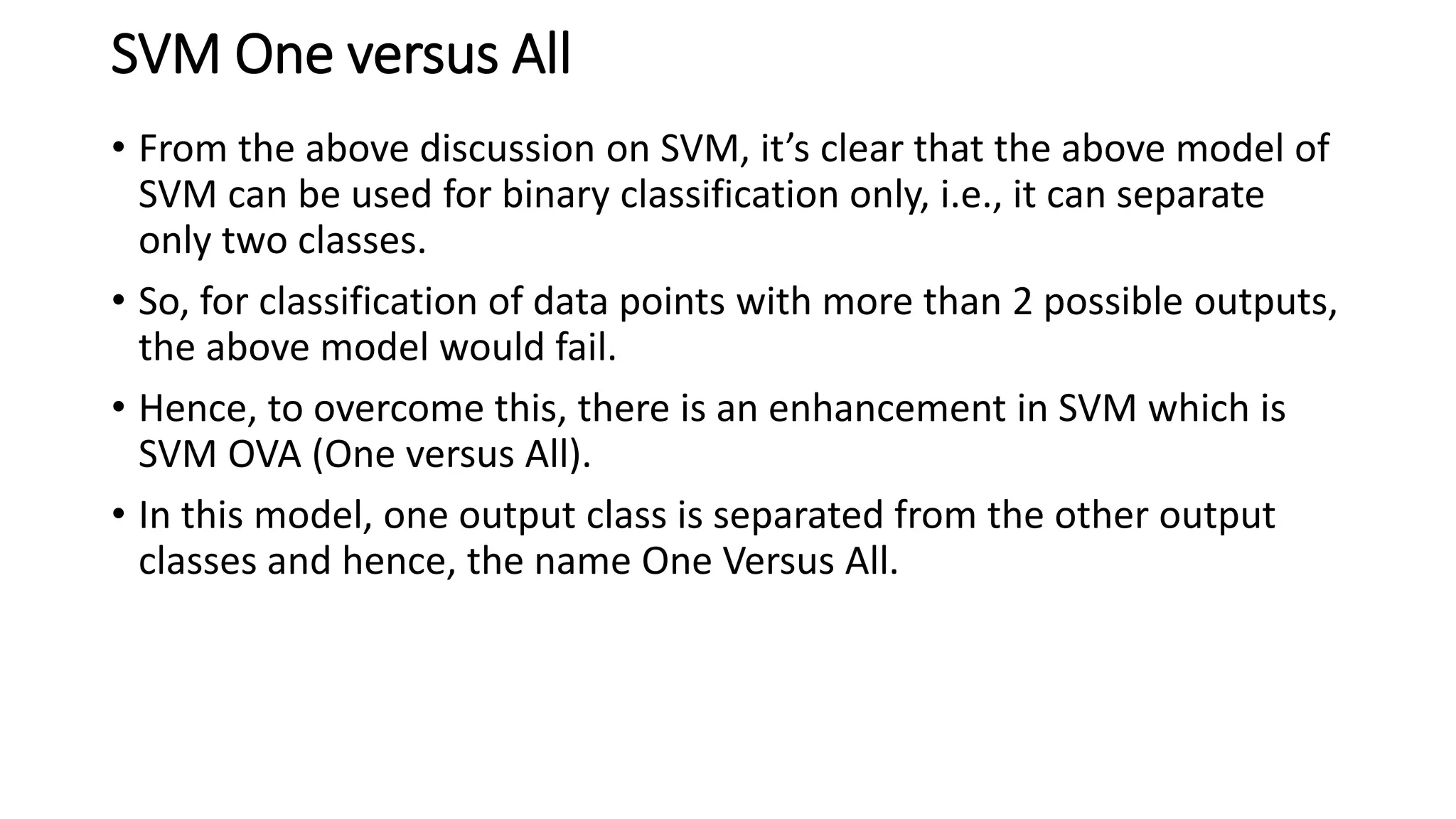

14. SVM One versus All
• From the above discussion on SVM, it’s clear that the above model of
SVM can be used for binary classification only, i.e., it can separate
only two classes.
• So, for classification of data points with more than 2 possible outputs,
the above model would fail.
• Hence, to overcome this, there is an enhancement in SVM which is
SVM OVA (One versus All).
• In this model, one output class is separated from the other output
classes and hence, the name One Versus All.

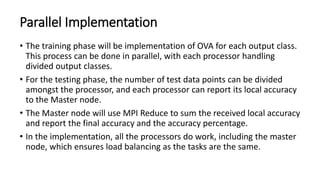

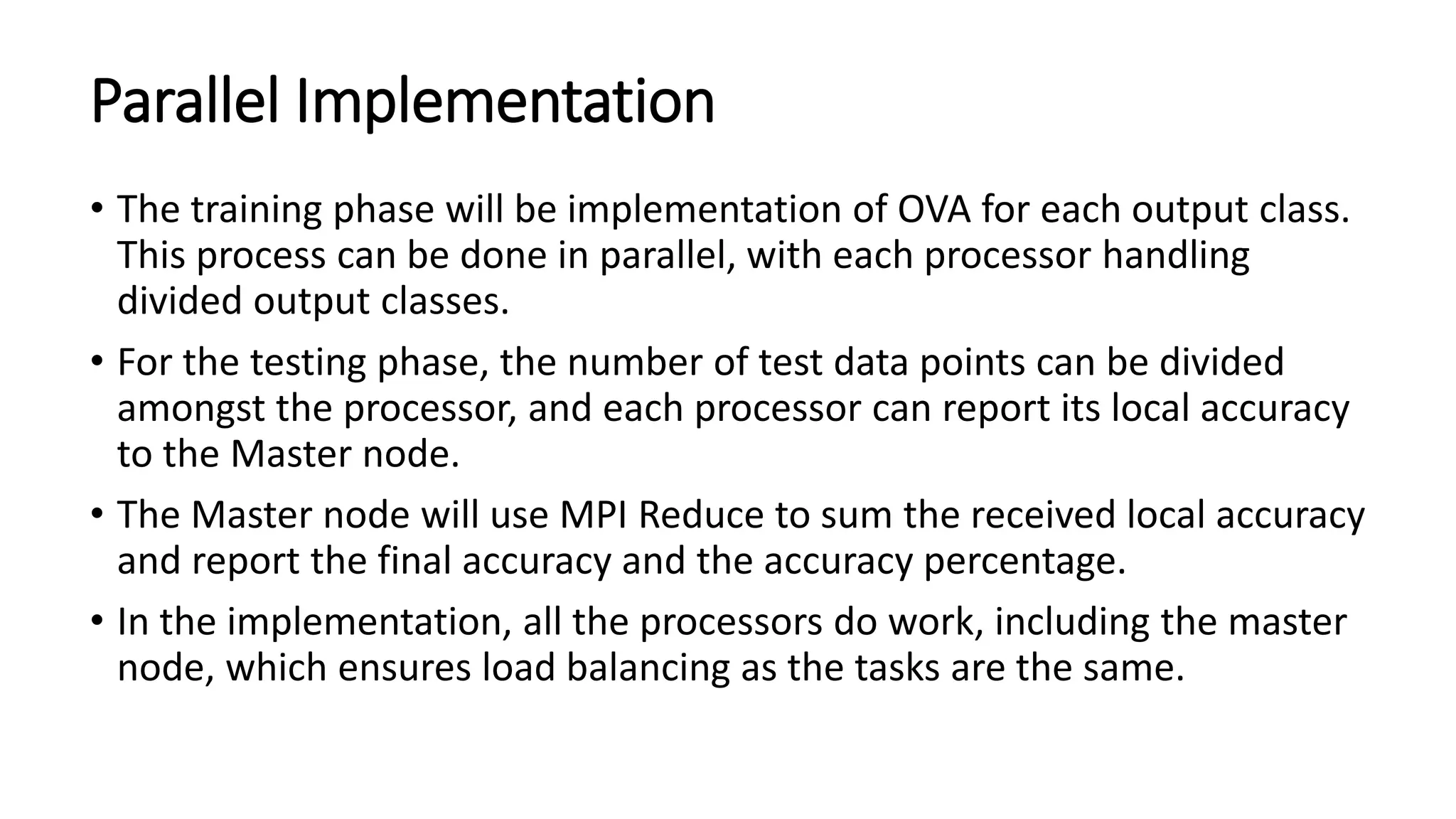

17. Parallel Implementation
• The training phase will be implementation of OVA for each output class.
This process can be done in parallel, with each processor handling
divided output classes.
• For the testing phase, the number of test data points can be divided
amongst the processor, and each processor can report its local accuracy
to the Master node.
• The Master node will use MPI Reduce to sum the received local accuracy
and report the final accuracy and the accuracy percentage.
• In the implementation, all the processors do work, including the master
node, which ensures load balancing as the tasks are the same.

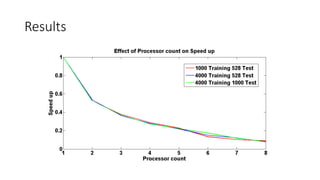

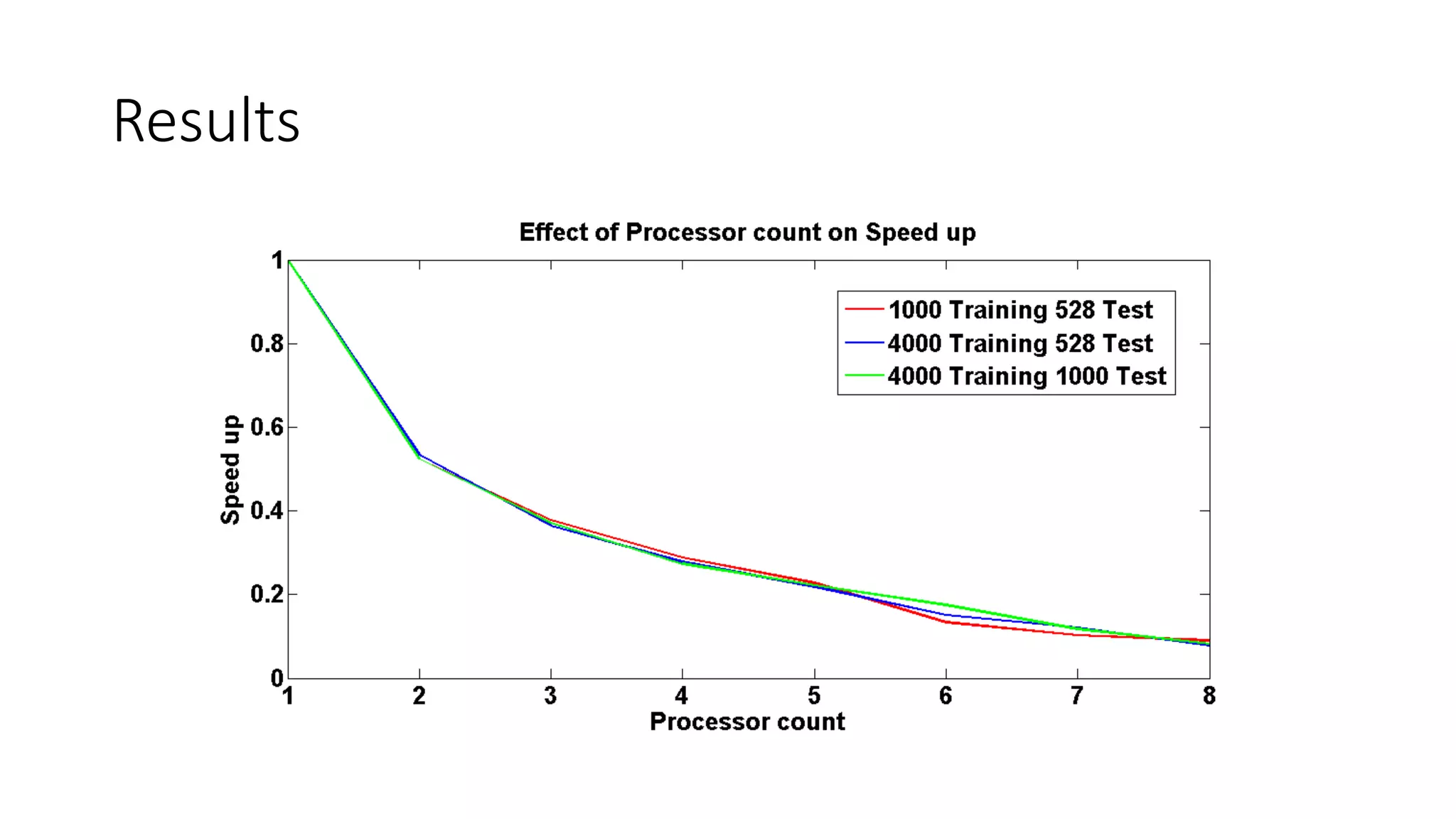

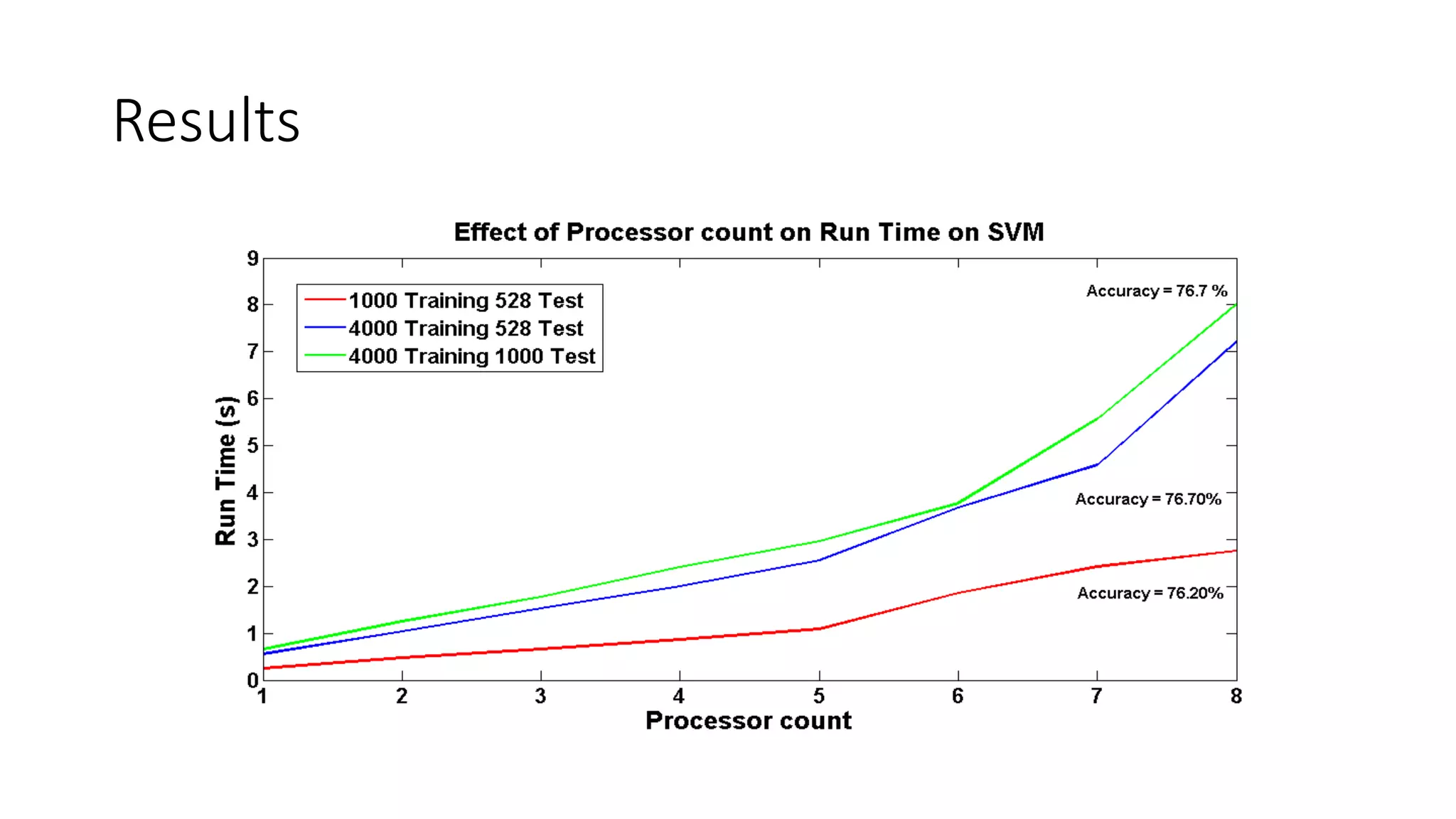

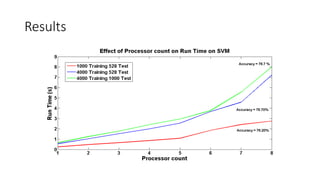

18. Results

19. Results

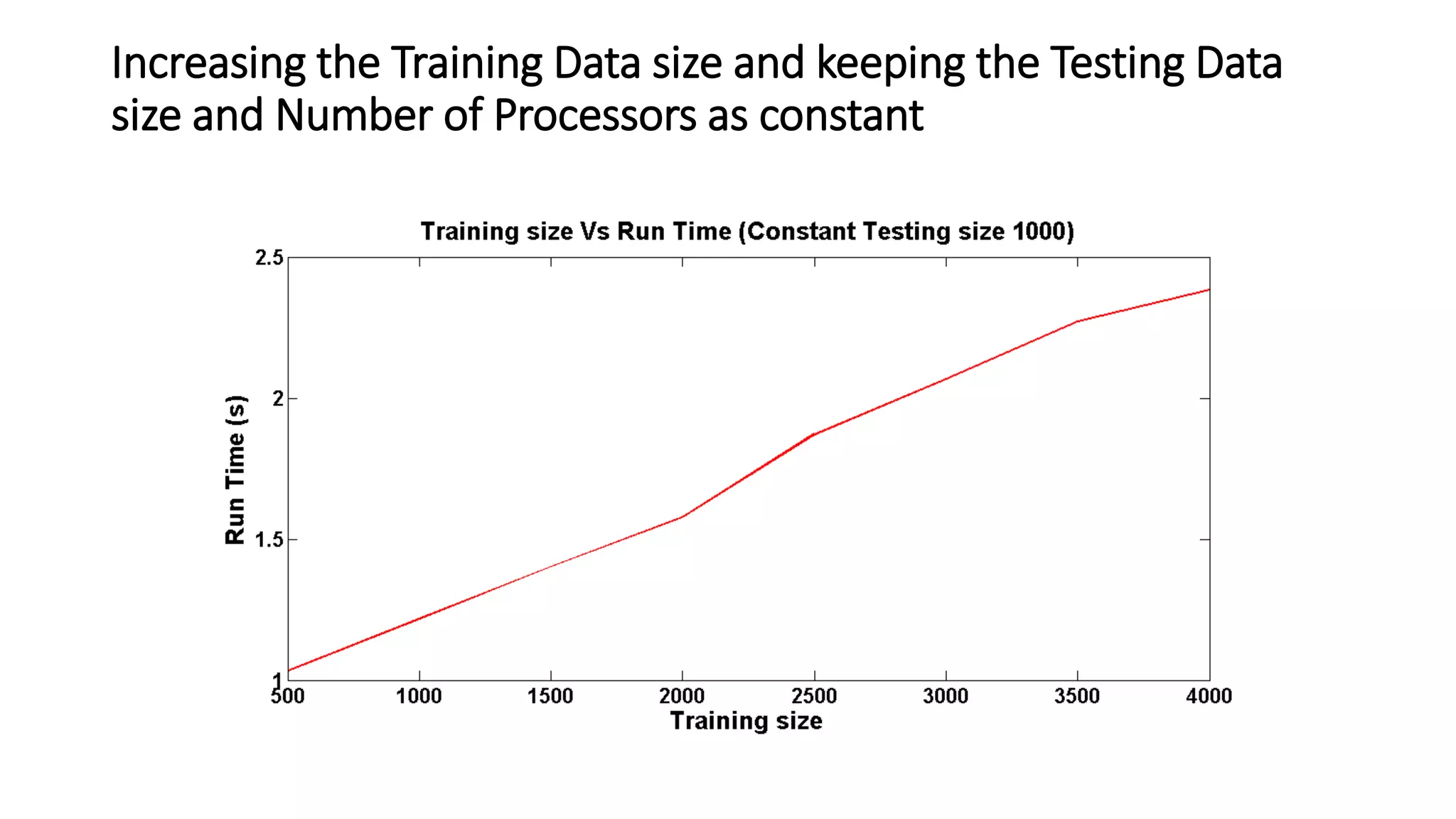

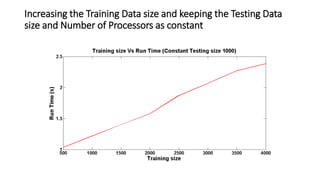

20. Increasing the Training Data size and keeping the Testing Data
size and Number of Processors as constant

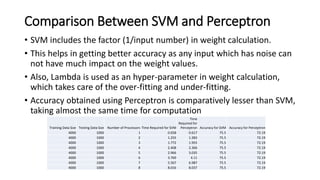

21. Comparison Between SVM and Perceptron
• SVM includes the factor (1/input number) in weight calculation.
• This helps in getting better accuracy as any input which has noise can
not have much impact on the weight values.
• Also, Lambda is used as an hyper-parameter in weight calculation,
which takes care of the over-fitting and under-fitting.
• Accuracy obtained using Perceptron is comparatively lesser than SVM,
taking almost the same time for computation
Training Data Size Testing Data Size Number of Processors Time Required for SVM
Time
Required for
Perceptron Accuracy for SVM Accuracy for Perceptron
4000 1000 1 0.658 0.617 75.5 72.19
4000 1000 2 1.255 1.283 75.5 72.19
4000 1000 3 1.772 1.955 75.5 72.19
4000 1000 4 2.408 2.366 75.5 72.19
4000 1000 5 2.966 3.035 75.5 72.19
4000 1000 6 3.769 4.11 75.5 72.19
4000 1000 7 5.567 6.987 75.5 72.19
4000 1000 8 8.016 8.037 75.5 72.19

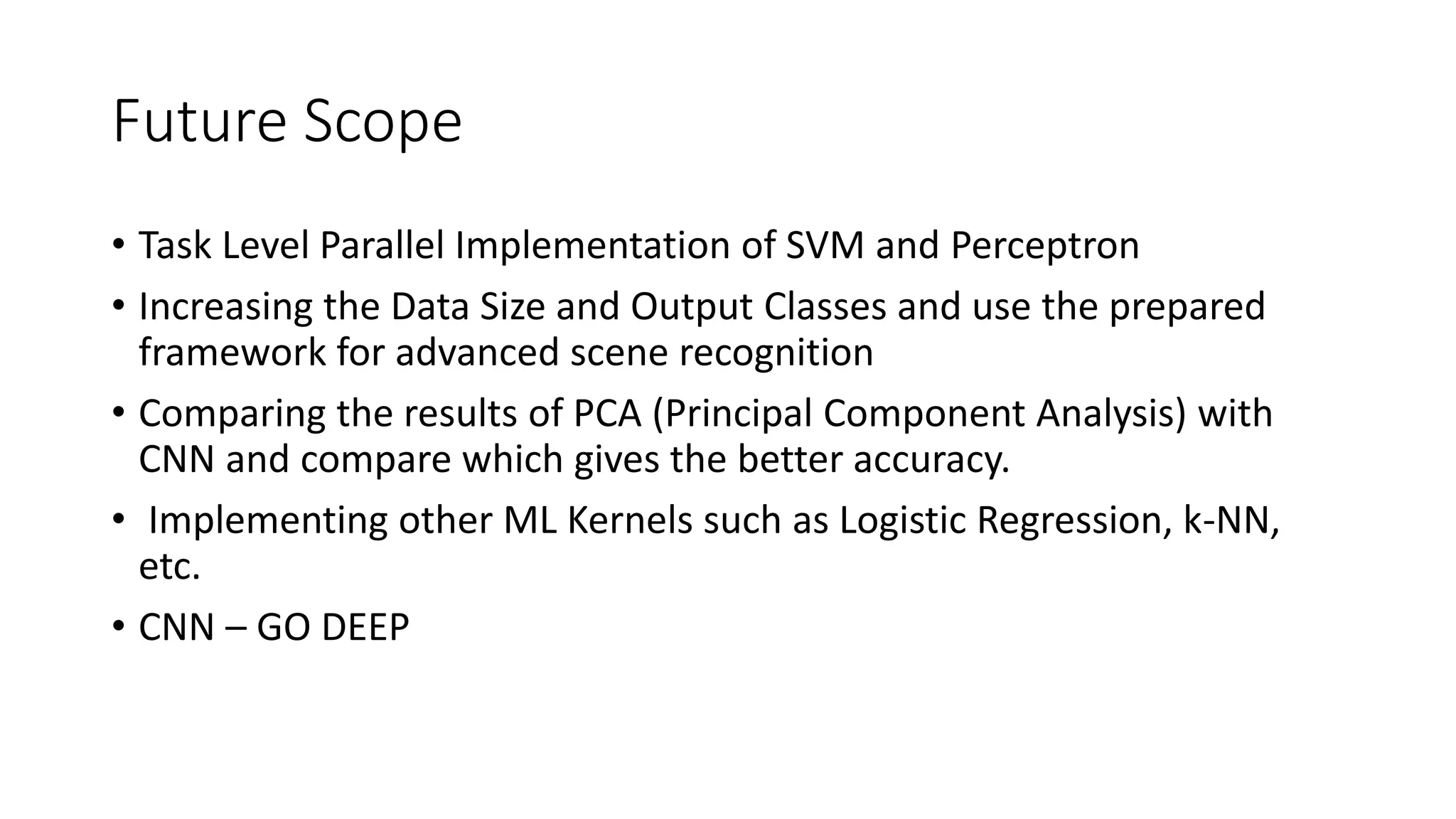

22. Future Scope
• Task Level Parallel Implementation of SVM and Perceptron
• Increasing the Data Size and Output Classes and use the prepared
framework for advanced scene recognition
• Comparing the results of PCA (Principal Component Analysis) with
CNN and compare which gives the better accuracy.
• Implementing other ML Kernels such as Logistic Regression, k-NN,
etc.
• CNN – GO DEEP

23. Questions?
