This document provides an introduction to machine learning using convolutional neural networks (CNNs) for image classification. It discusses how to prepare image data, build and train a simple CNN model using Keras, and optimize training using GPUs. The document outlines steps to normalize image sizes, convert images to matrices, save data formats, assemble a CNN in Keras including layers, compilation, and fitting. It provides resources for learning more about CNNs and deep learning frameworks like Keras and TensorFlow.
1. Machine Learning 101
Teach your computer the difference
between cats and dogs
Cole Howard & Hannes Hapke
Open Source Bridge, June 23rd, 2016
2. Who are we?
John Howard
@uglyboxer
Senior Developer at Dark Horse Comics
Master of recommendation systems,
convolutional neural networks
Hannes Hapke
@hanneshapke
Senior Developer at CrowdStreet
Excited about neural networks
applications
3. We want to show you how you can
train a computer to “recognize”
images *
* aka to decide between cats and dogs
What is this all about ...

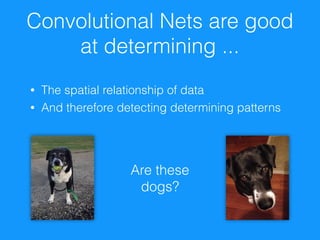

4. Convolutional Nets are good
at determining ...
• The spatial relationship of data
• And therefore detecting determining patterns
Are these
dogs?

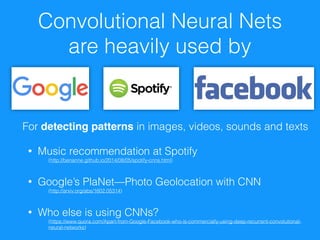

5. Convolutional Neural Nets
are heavily used by
For detecting patterns in images, videos, sounds and texts
• Music recommendation at Spotify
(http://benanne.github.io/2014/08/05/spotify-cnns.html)
• Google’s PlaNet—Photo Geolocation with CNN
(http://arxiv.org/abs/1602.05314)
• Who else is using CNNs?
(https://www.quora.com/Apart-from-Google-Facebook-who-is-commercially-using-deep-recurrent-convolutional-
neural-networks)

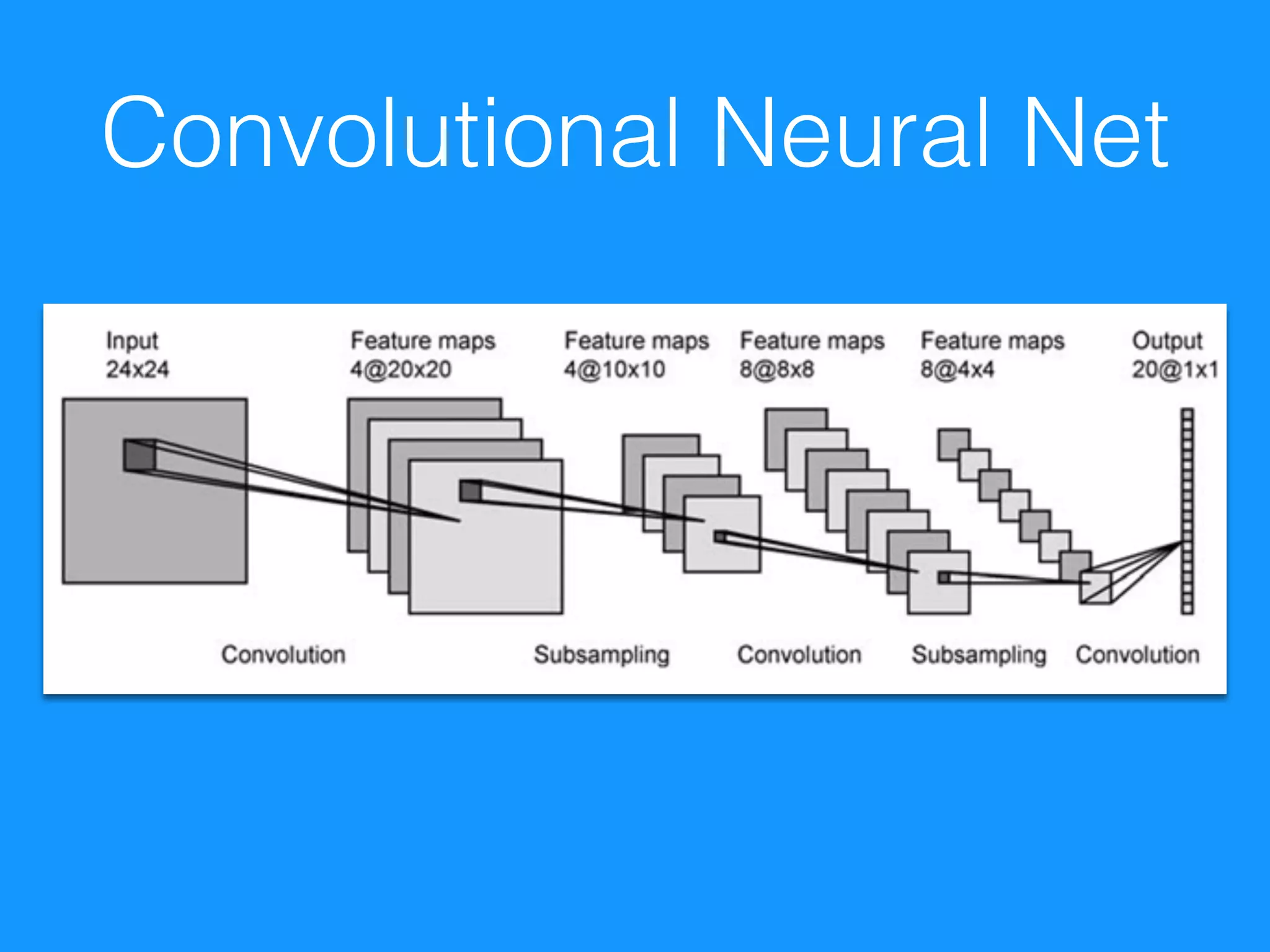

6. What are conv nets?
• In traditional feed-forward networks,
we are learning weights to apply to the data

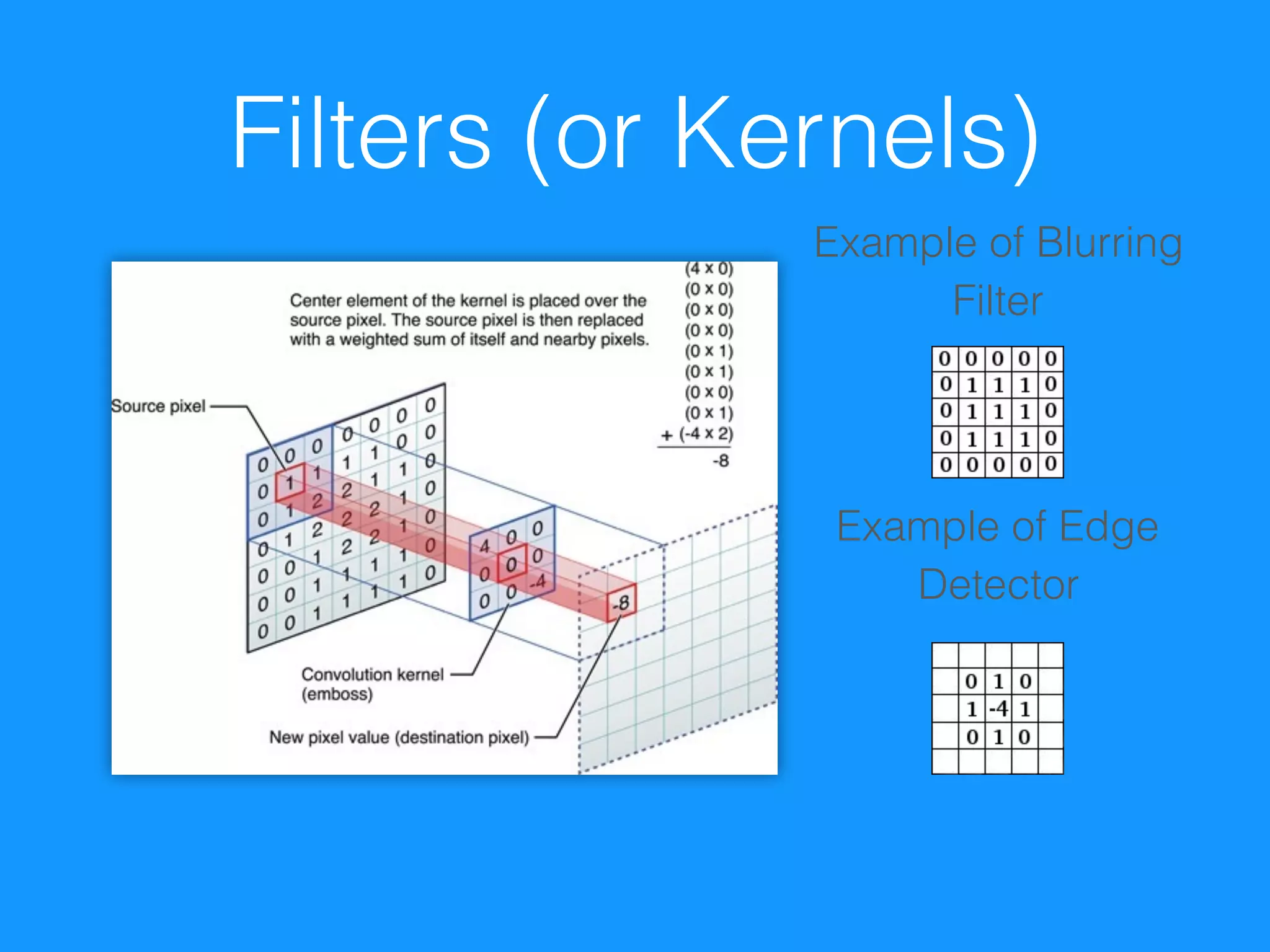

• In conv-nets, we are learning to describe filters
• After each convolutional layer we still have an
“image”
• Instead of 3 channels (r-g-b),
we have n - channels.
Each described by one of the learned filters

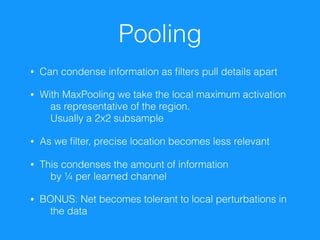

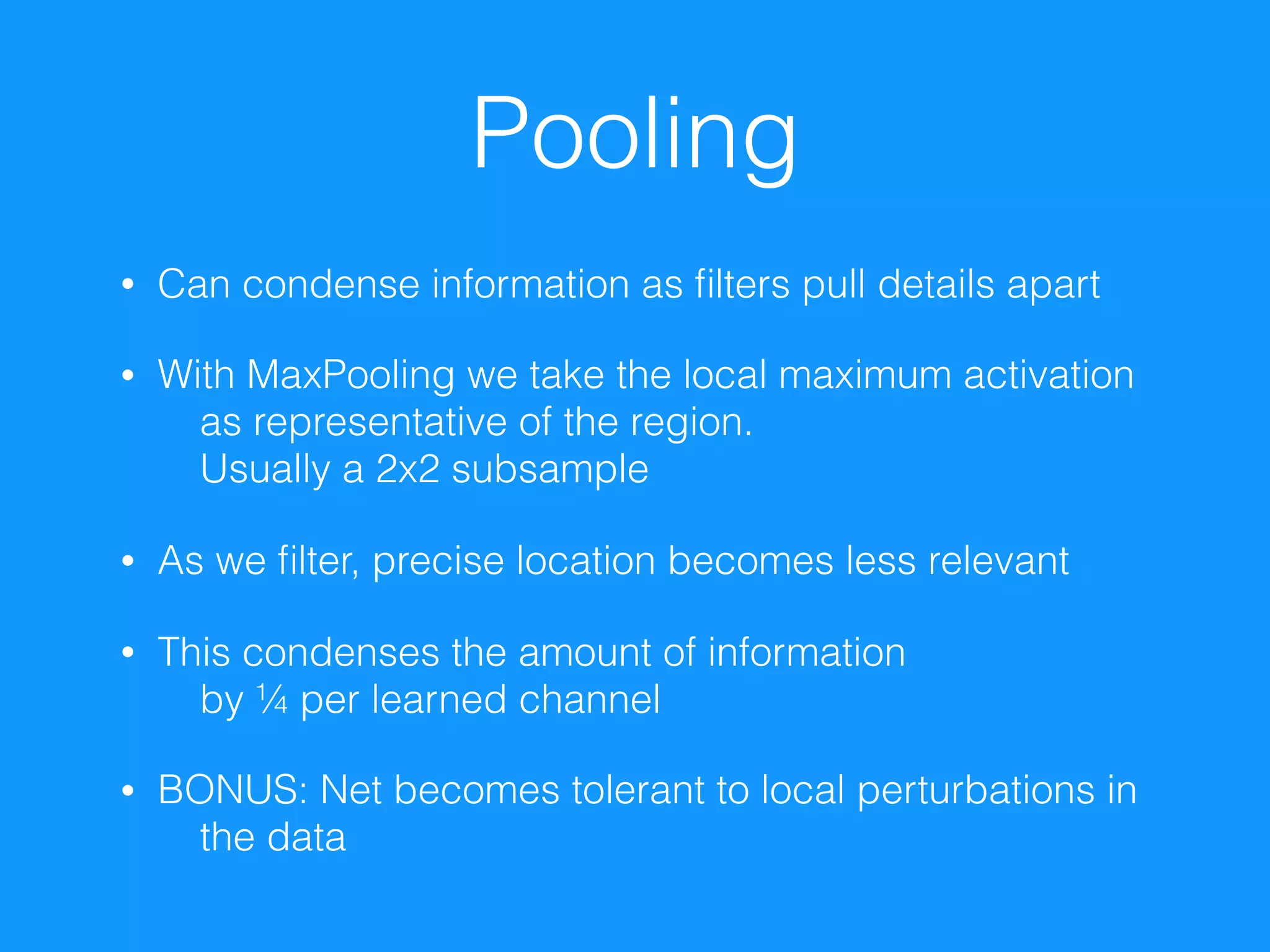

9. Pooling
• Can condense information as filters pull details apart
• With MaxPooling we take the local maximum activation
as representative of the region.
Usually a 2x2 subsample
• As we filter, precise location becomes less relevant
• This condenses the amount of information
by ¼ per learned channel
• BONUS: Net becomes tolerant to local perturbations in
the data

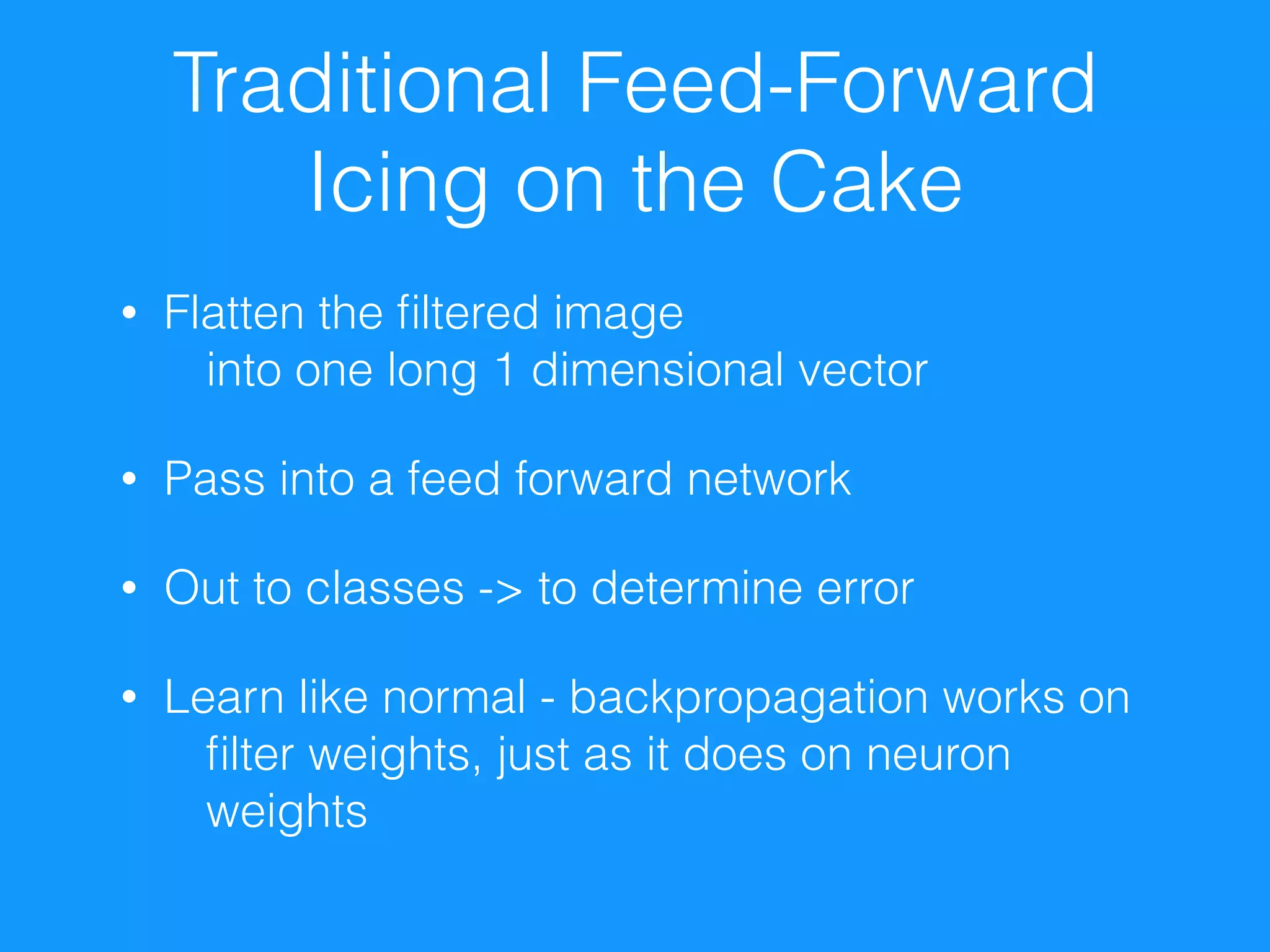

10. Traditional Feed-Forward
Icing on the Cake
• Flatten the filtered image
into one long 1 dimensional vector
• Pass into a feed forward network
• Out to classes -> to determine error
• Learn like normal - backpropagation works on
filter weights, just as it does on neuron
weights

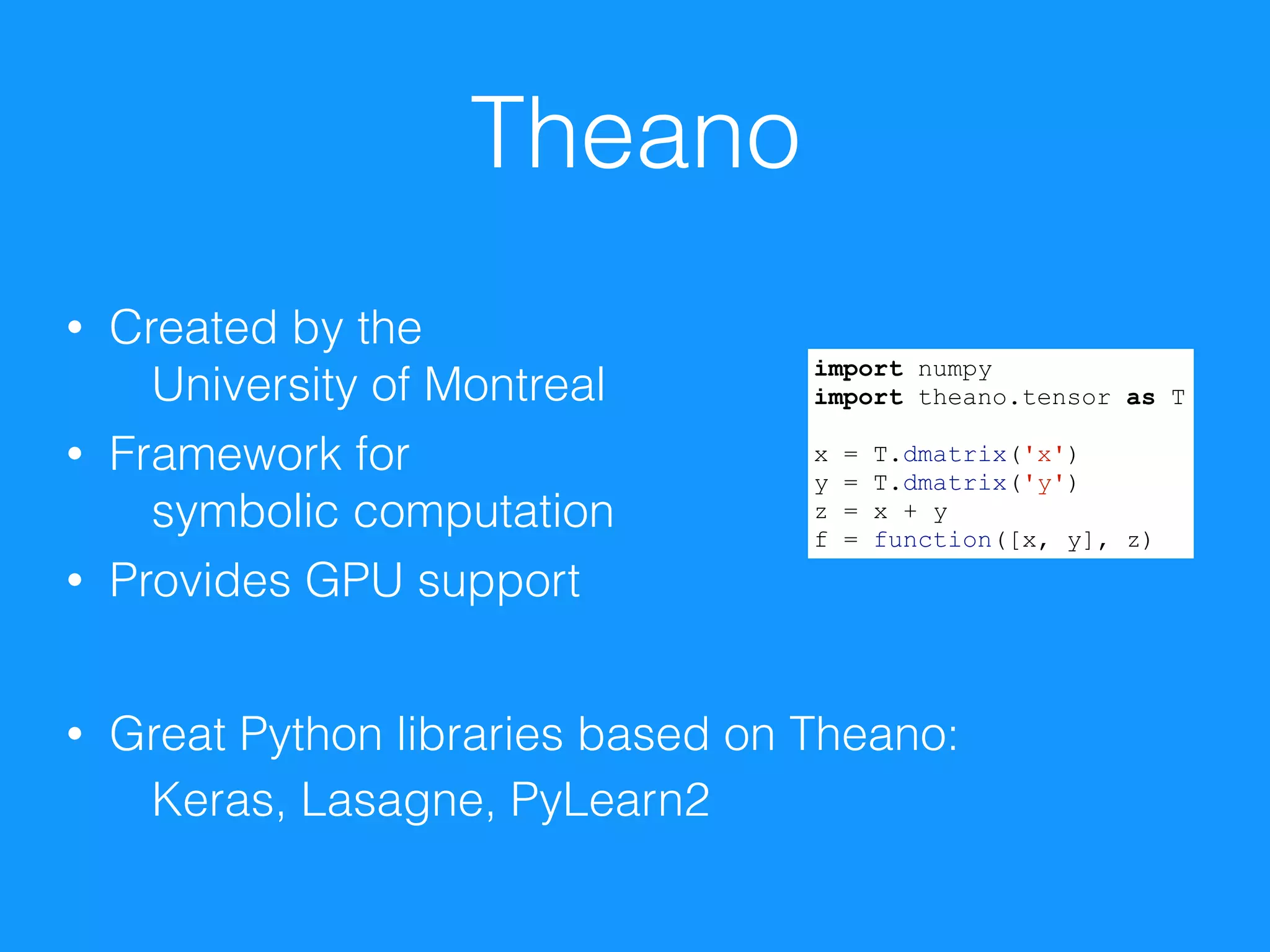

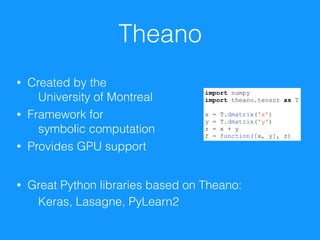

13. Theano
• Created by the
University of Montreal
• Framework for
symbolic computation
• Provides GPU support
• Great Python libraries based on Theano:
Keras, Lasagne, PyLearn2
import numpy
import theano.tensor as T
x = T.dmatrix('x')
y = T.dmatrix('y')
z = x + y
f = function([x, y], z)

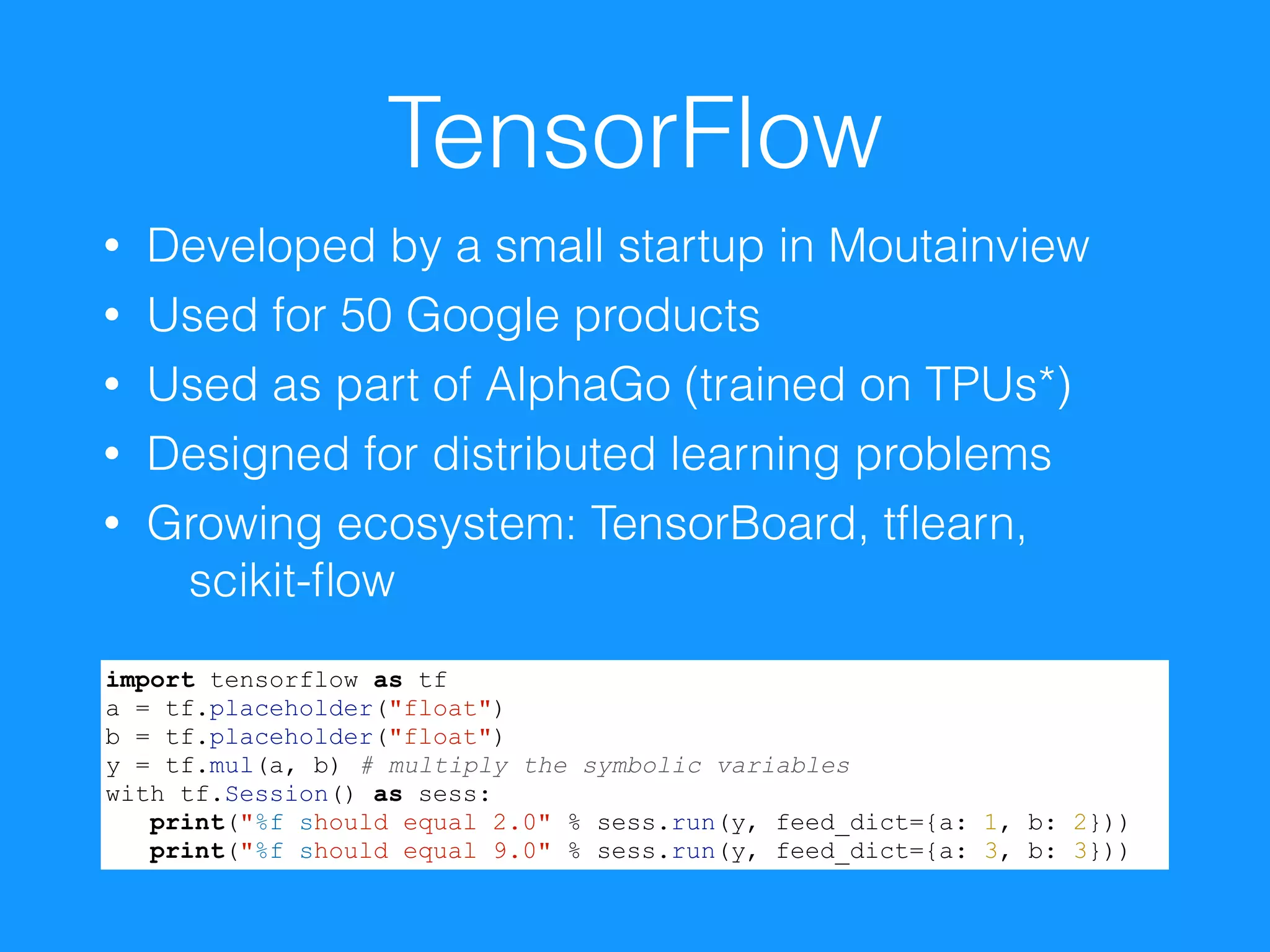

14. TensorFlow
• Developed by a small startup in Moutainview
• Used for 50 Google products
• Used as part of AlphaGo (trained on TPUs*)
• Designed for distributed learning problems
• Growing ecosystem: TensorBoard, tflearn,
scikit-flow
import tensorflow as tf
a = tf.placeholder("float")
b = tf.placeholder("float")
y = tf.mul(a, b) # multiply the symbolic variables
with tf.Session() as sess:
print("%f should equal 2.0" % sess.run(y, feed_dict={a: 1, b: 2}))
print("%f should equal 9.0" % sess.run(y, feed_dict={a: 3, b: 3}))

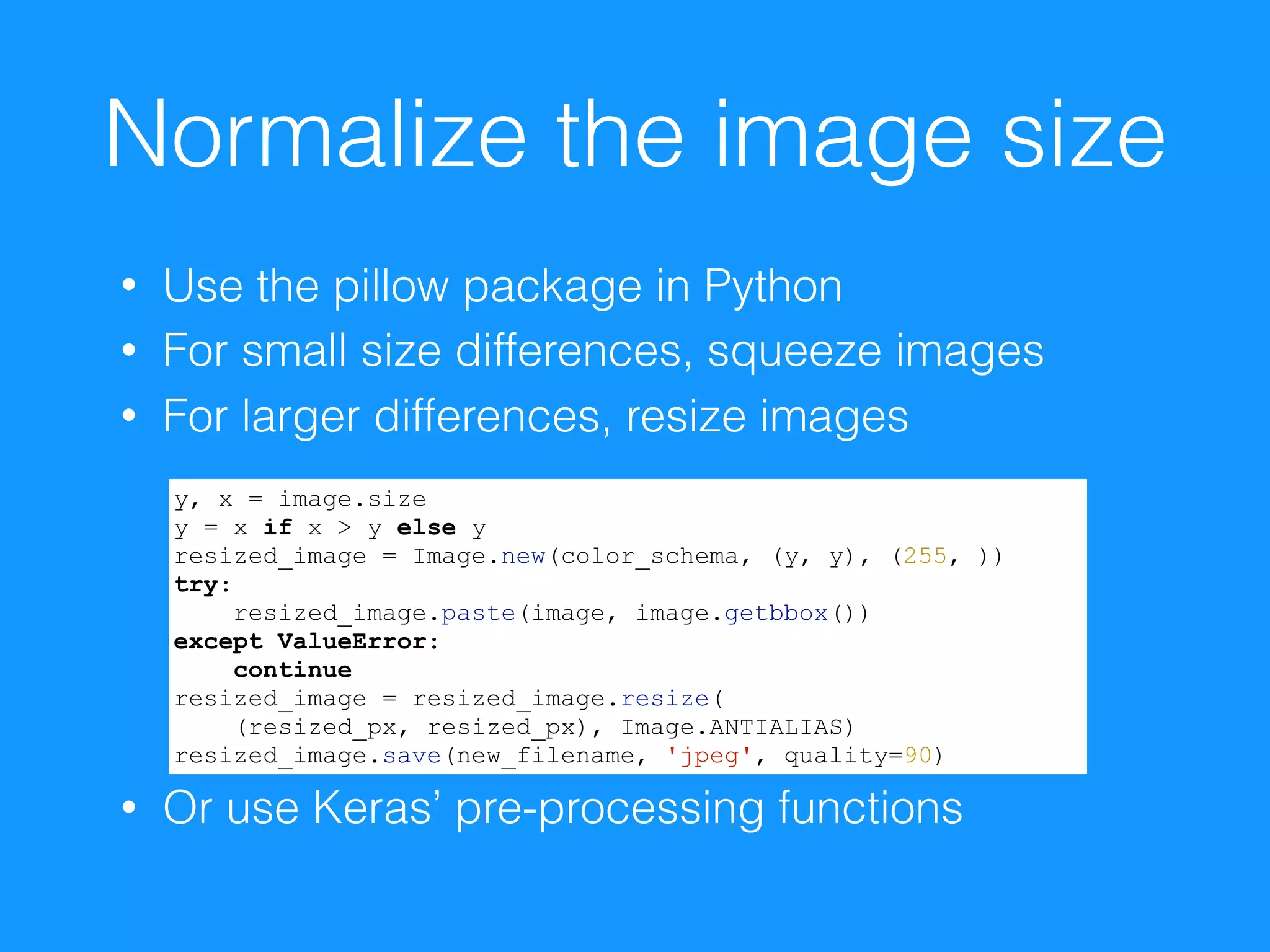

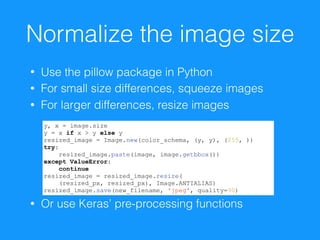

16. Normalize the image size
• Use the pillow package in Python
• For small size differences, squeeze images
• For larger differences, resize images
• Or use Keras’ pre-processing functions
y, x = image.size
y = x if x > y else y
resized_image = Image.new(color_schema, (y, y), (255, ))
try:
resized_image.paste(image, image.getbbox())
except ValueError:
continue
resized_image = resized_image.resize(
(resized_px, resized_px), Image.ANTIALIAS)
resized_image.save(new_filename, 'jpeg', quality=90)

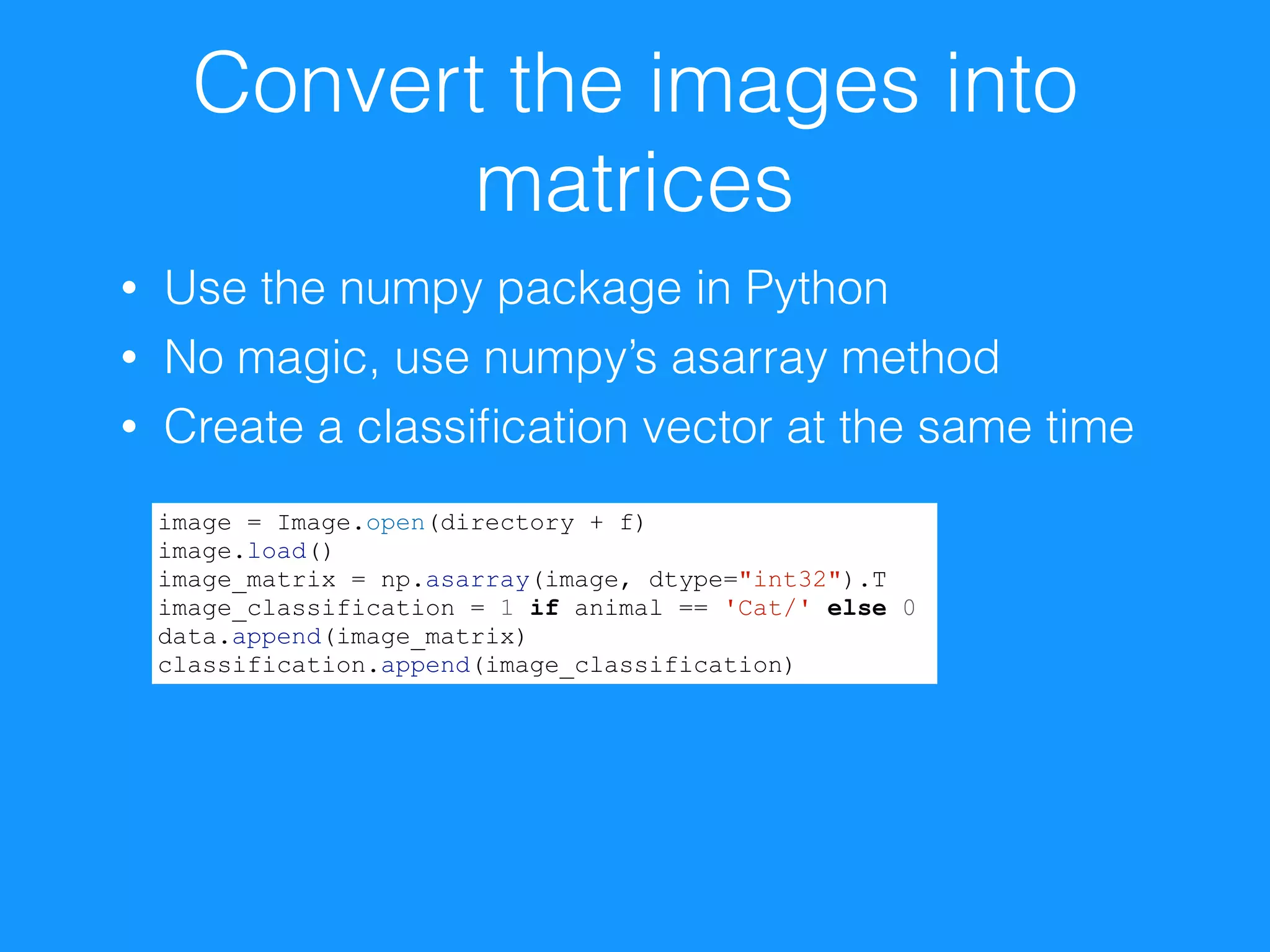

17. Convert the images into
matrices
• Use the numpy package in Python
• No magic, use numpy’s asarray method
• Create a classification vector at the same time
image = Image.open(directory + f)
image.load()
image_matrix = np.asarray(image, dtype="int32").T
image_classification = 1 if animal == 'Cat/' else 0
data.append(image_matrix)
classification.append(image_classification)

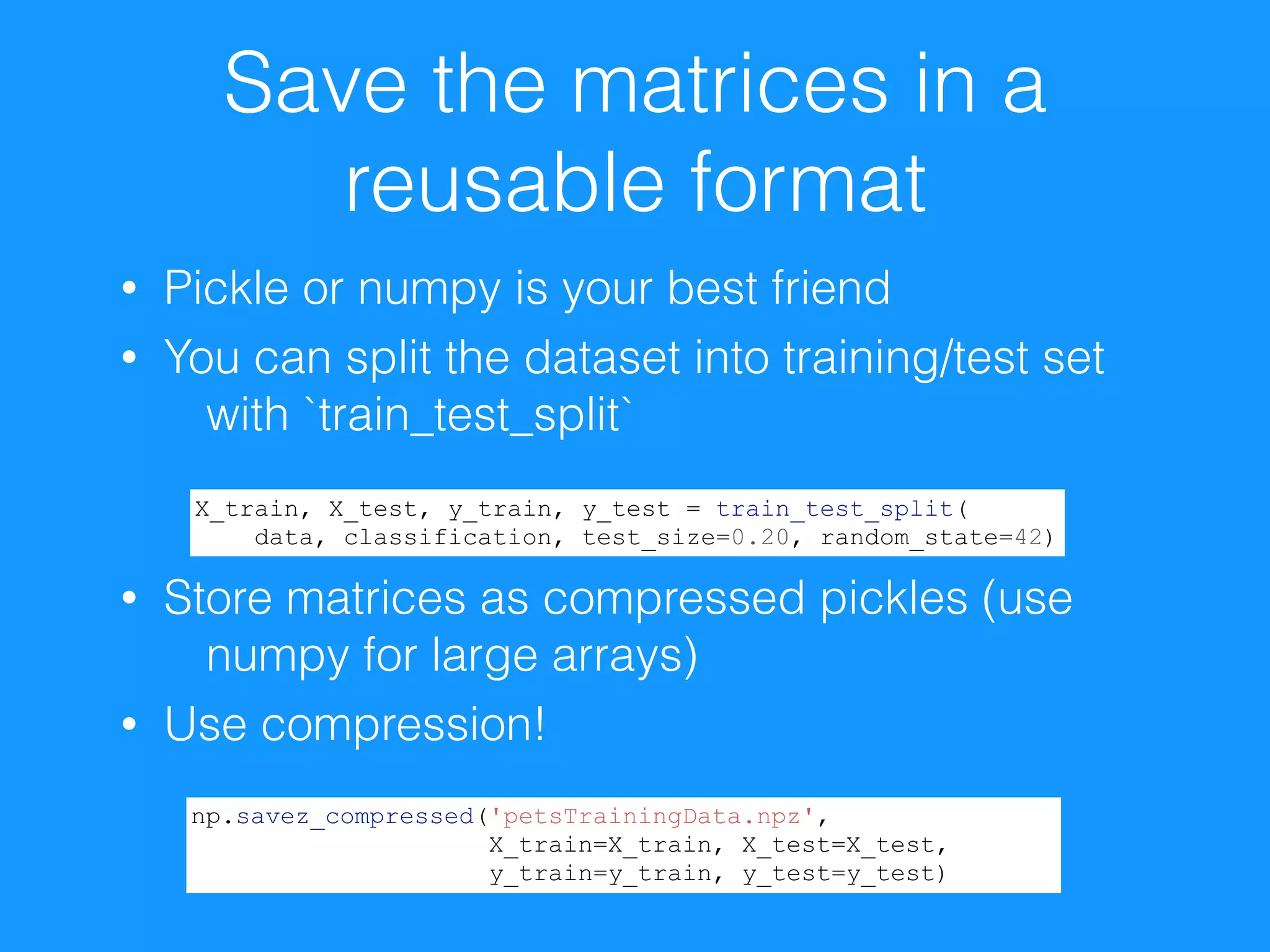

18. Save the matrices in a
reusable format
• Pickle or numpy is your best friend
• You can split the dataset into training/test set
with `train_test_split`
• Store matrices as compressed pickles (use
numpy for large arrays)
• Use compression!
X_train, X_test, y_train, y_test = train_test_split(
data, classification, test_size=0.20, random_state=42)
np.savez_compressed('petsTrainingData.npz',
X_train=X_train, X_test=X_test,
y_train=y_train, y_test=y_test)

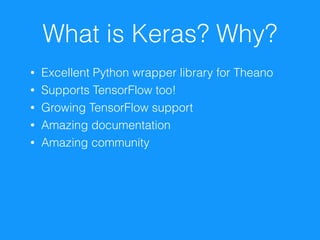

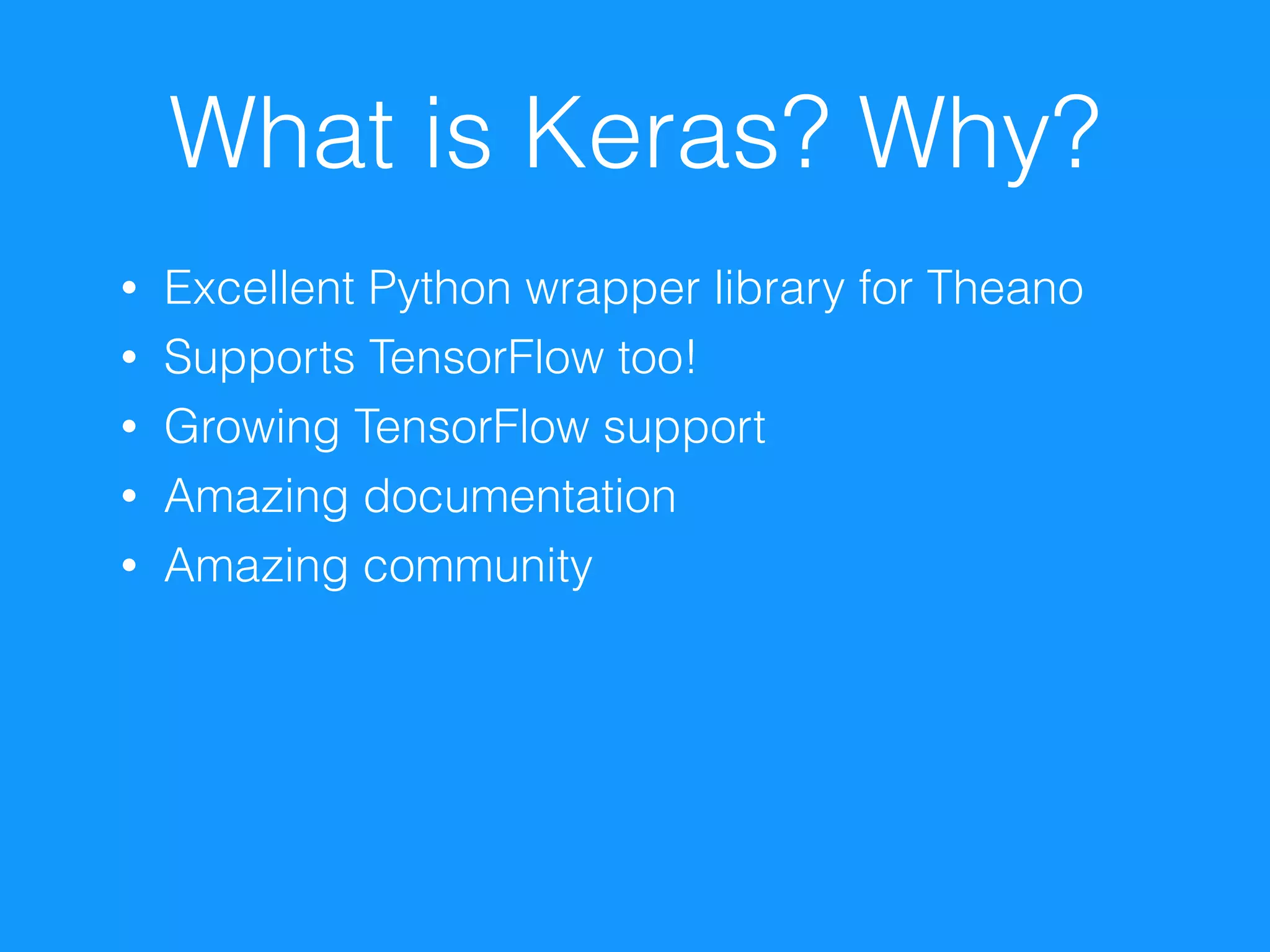

20. What is Keras? Why?
• Excellent Python wrapper library for Theano
• Supports TensorFlow too!
• Growing TensorFlow support
• Amazing documentation
• Amazing community

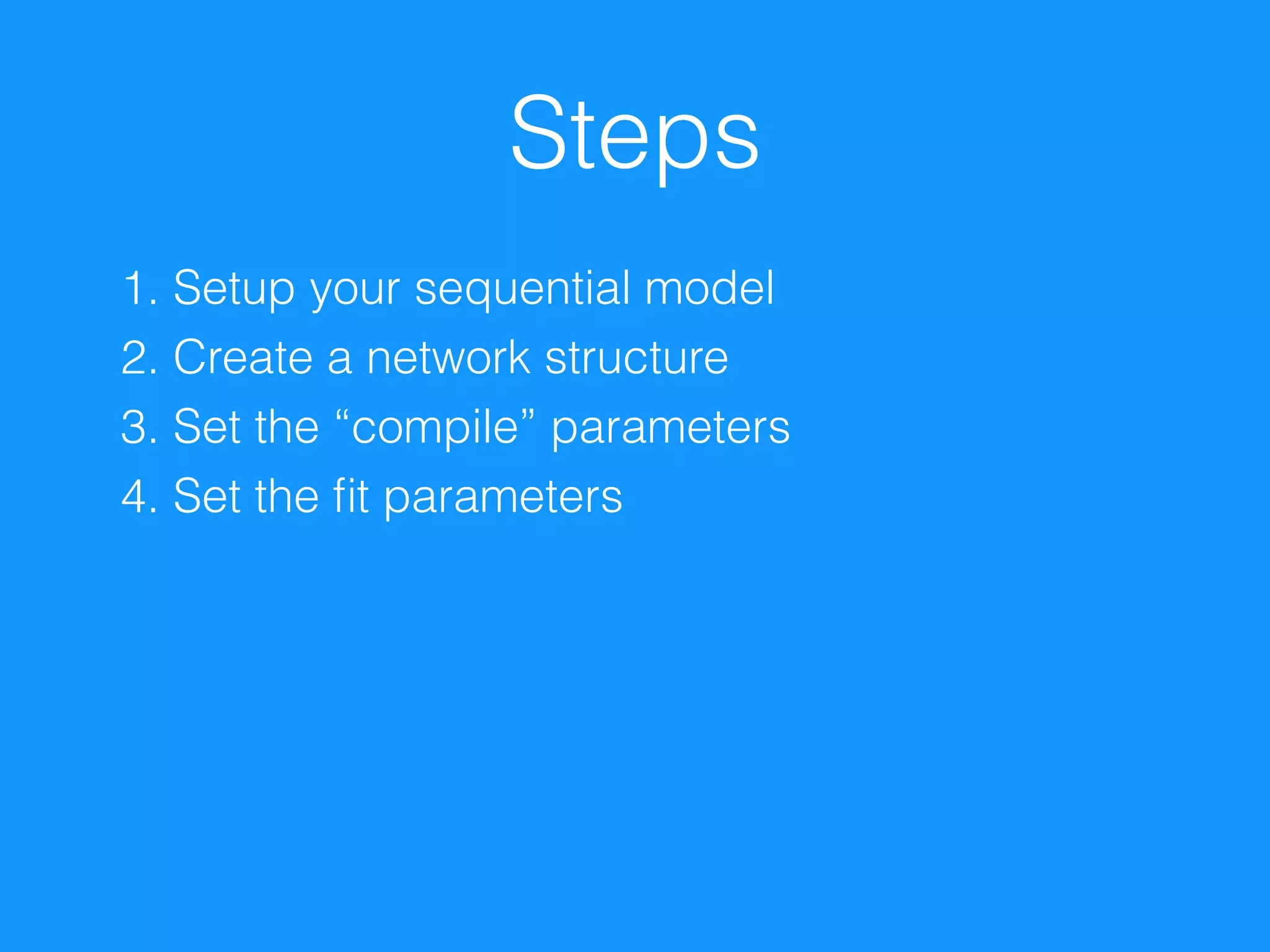

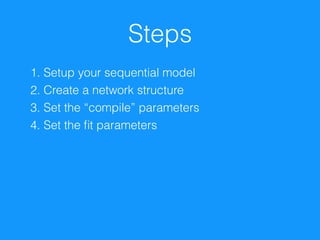

21. Steps
1. Setup your sequential model
2. Create a network structure
3. Set the “compile” parameters
4. Set the fit parameters

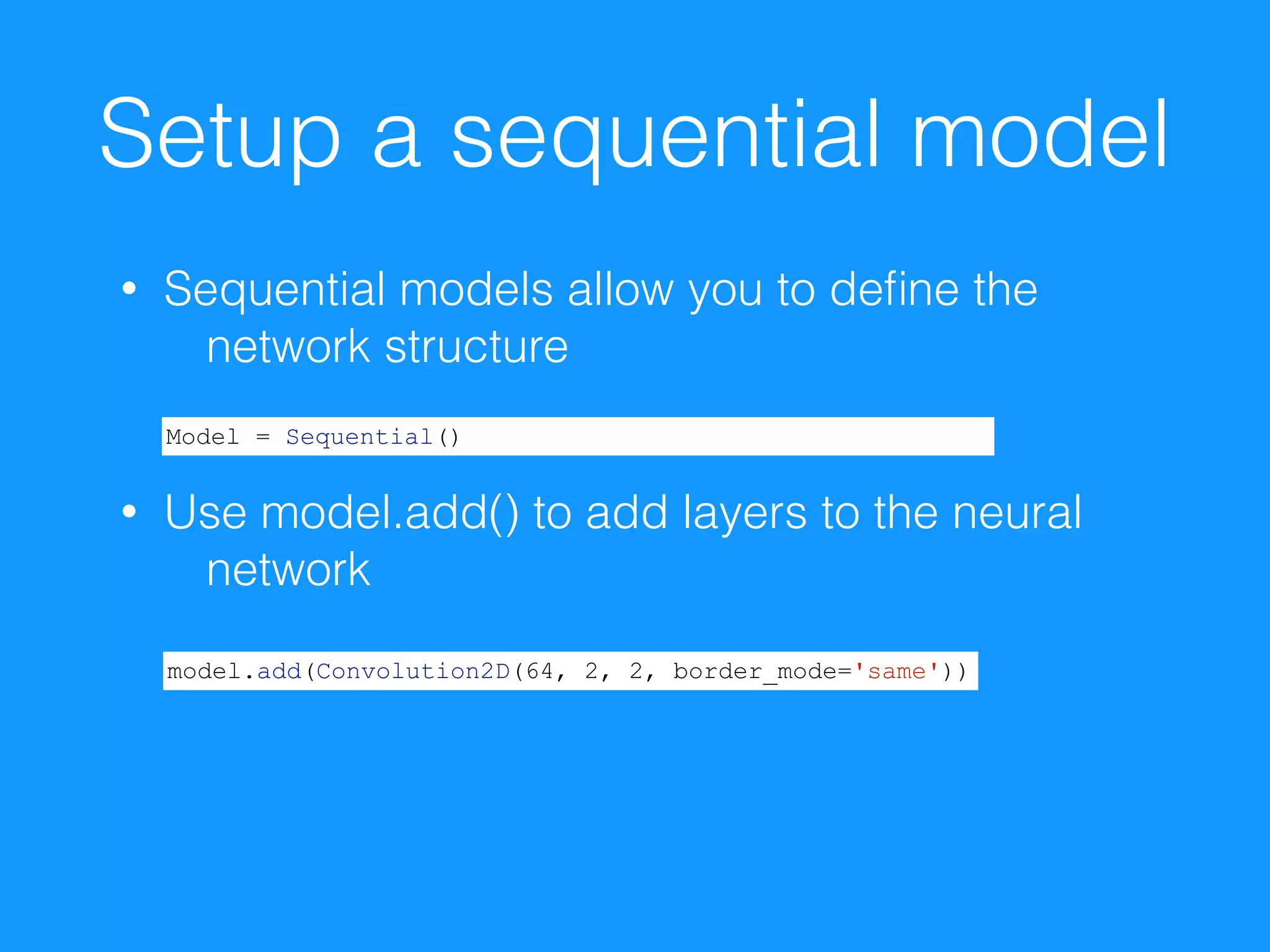

22. Setup a sequential model
• Sequential models allow you to define the
network structure
• Use model.add() to add layers to the neural
network
Model = Sequential()
model.add(Convolution2D(64, 2, 2, border_mode='same'))

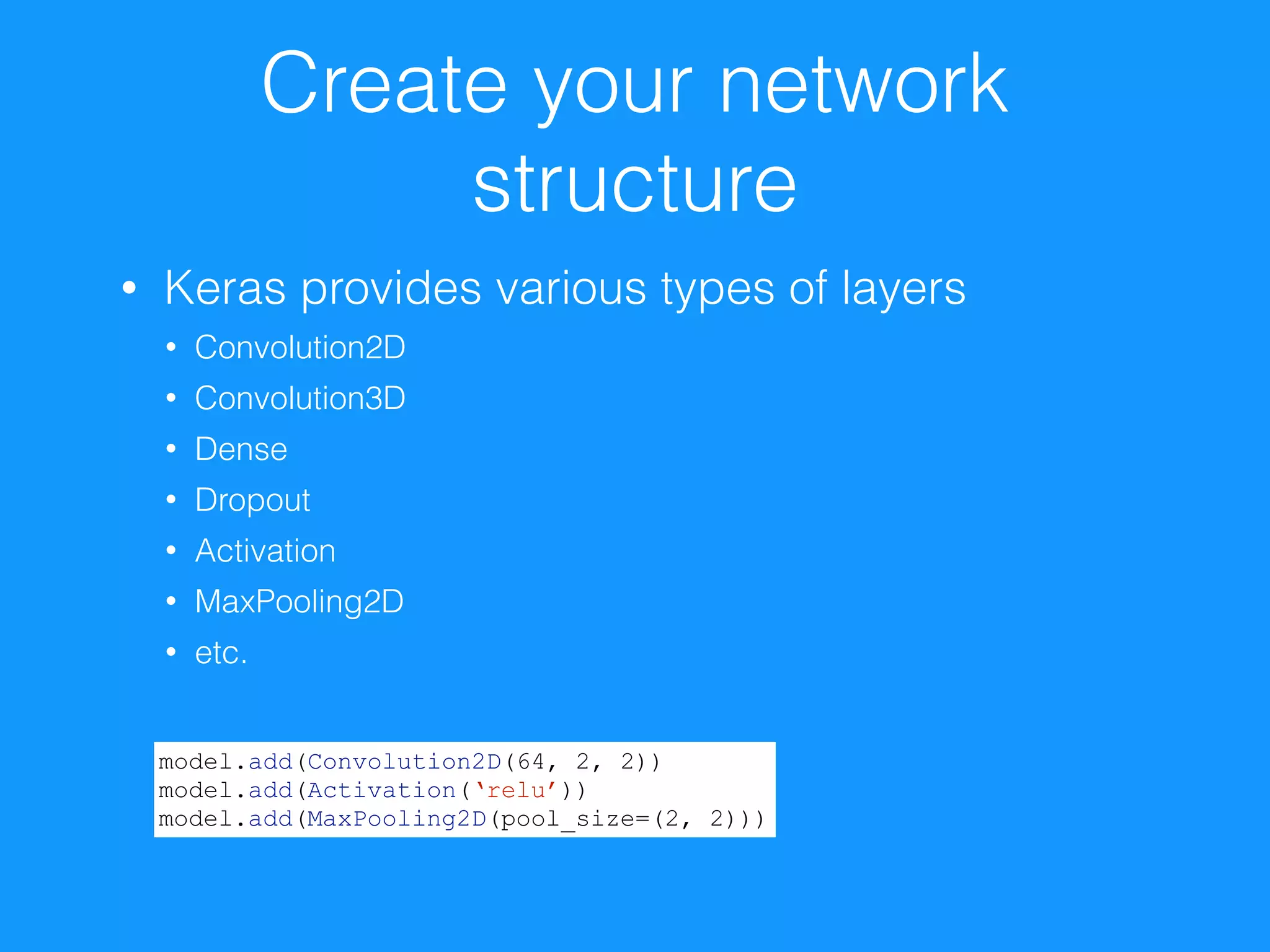

23. Create your network
structure
• Keras provides various types of layers
• Convolution2D
• Convolution3D
• Dense
• Dropout
• Activation
• MaxPooling2D
• etc.
model.add(Convolution2D(64, 2, 2))
model.add(Activation(‘relu’))
model.add(MaxPooling2D(pool_size=(2, 2)))

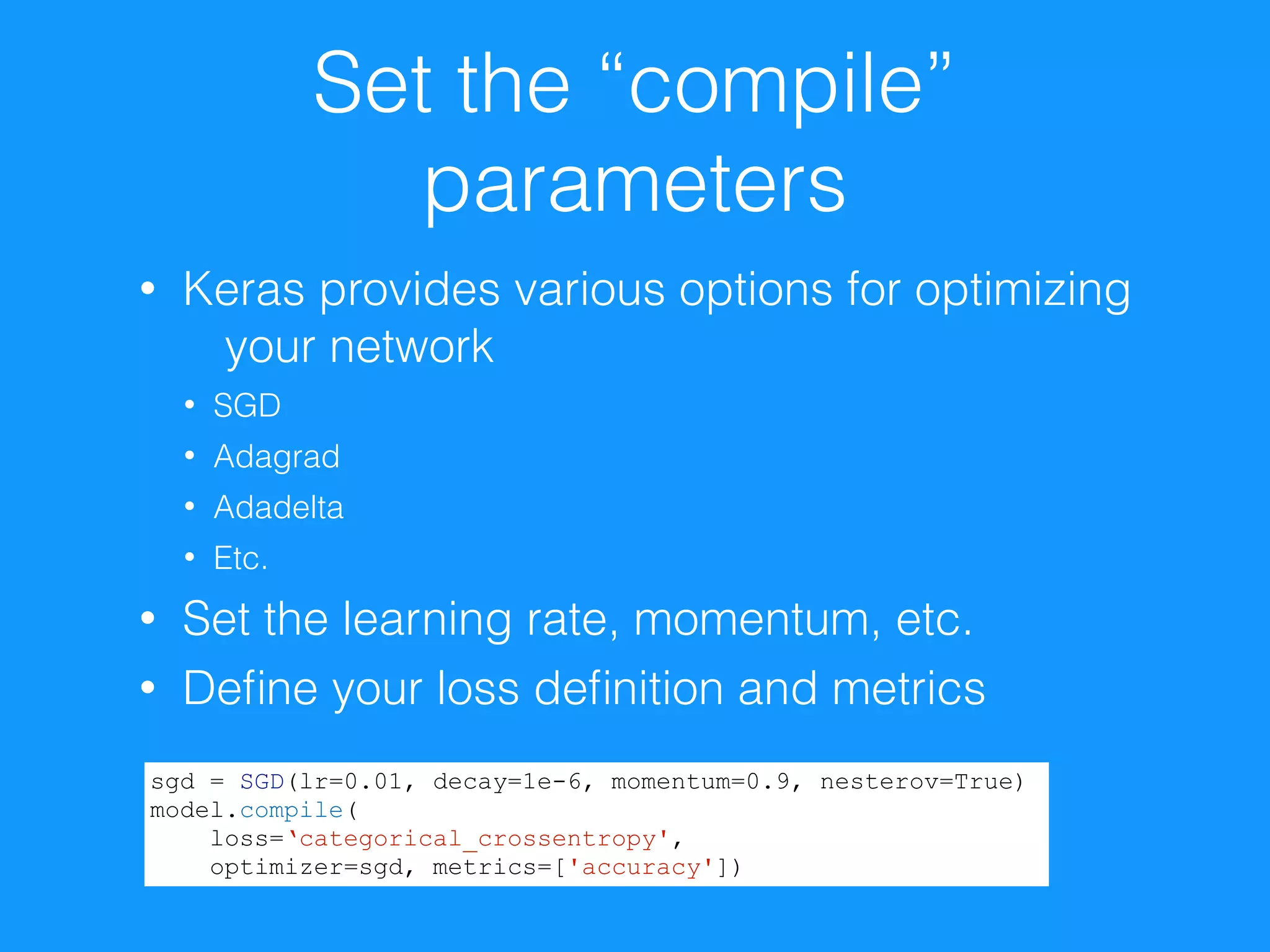

24. Set the “compile”
parameters
• Keras provides various options for optimizing
your network
• SGD
• Adagrad
• Adadelta
• Etc.
• Set the learning rate, momentum, etc.
• Define your loss definition and metrics
sgd = SGD(lr=0.01, decay=1e-6, momentum=0.9, nesterov=True)
model.compile(
loss=‘categorical_crossentropy',
optimizer=sgd, metrics=['accuracy'])

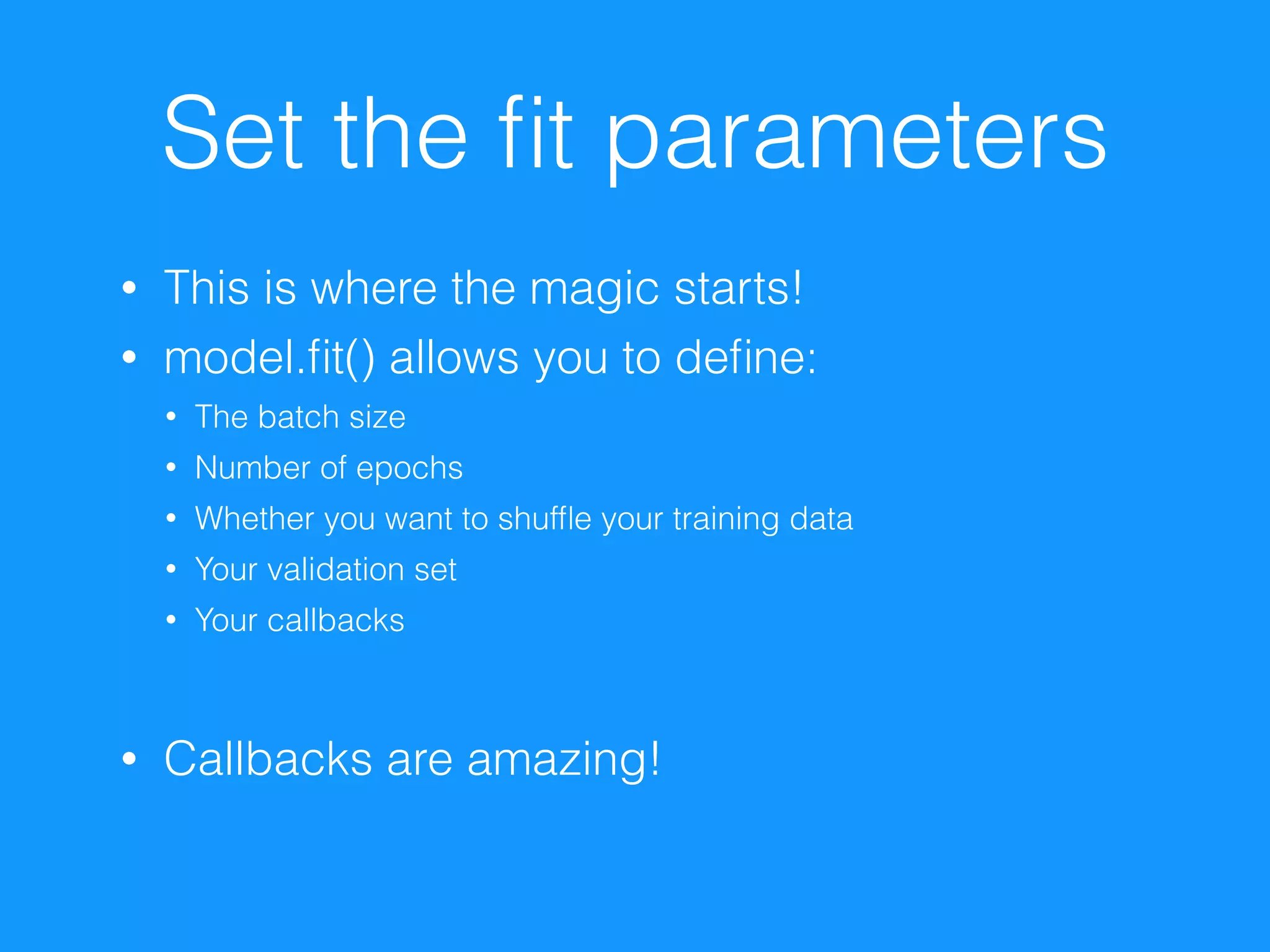

25. Set the fit parameters
• This is where the magic starts!
• model.fit() allows you to define:
• The batch size
• Number of epochs
• Whether you want to shuffle your training data
• Your validation set
• Your callbacks
• Callbacks are amazing!

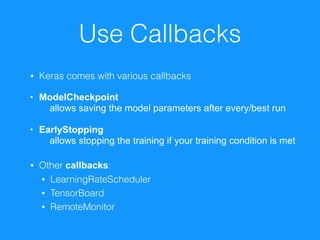

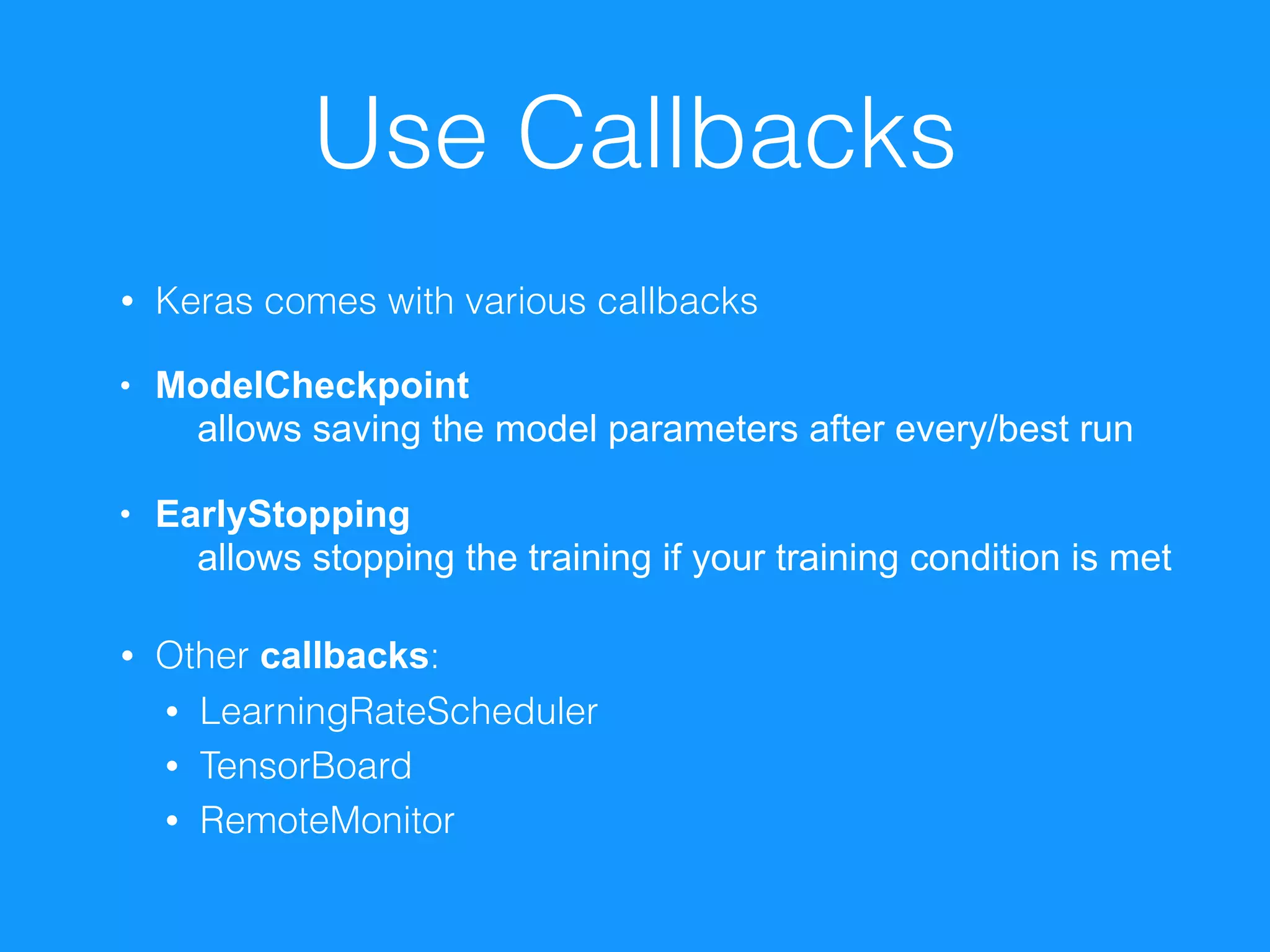

26. Use Callbacks
• Keras comes with various callbacks
• ModelCheckpoint
allows saving the model parameters after every/best run
• EarlyStopping
allows stopping the training if your training condition is met
• Other callbacks:
• LearningRateScheduler
• TensorBoard
• RemoteMonitor

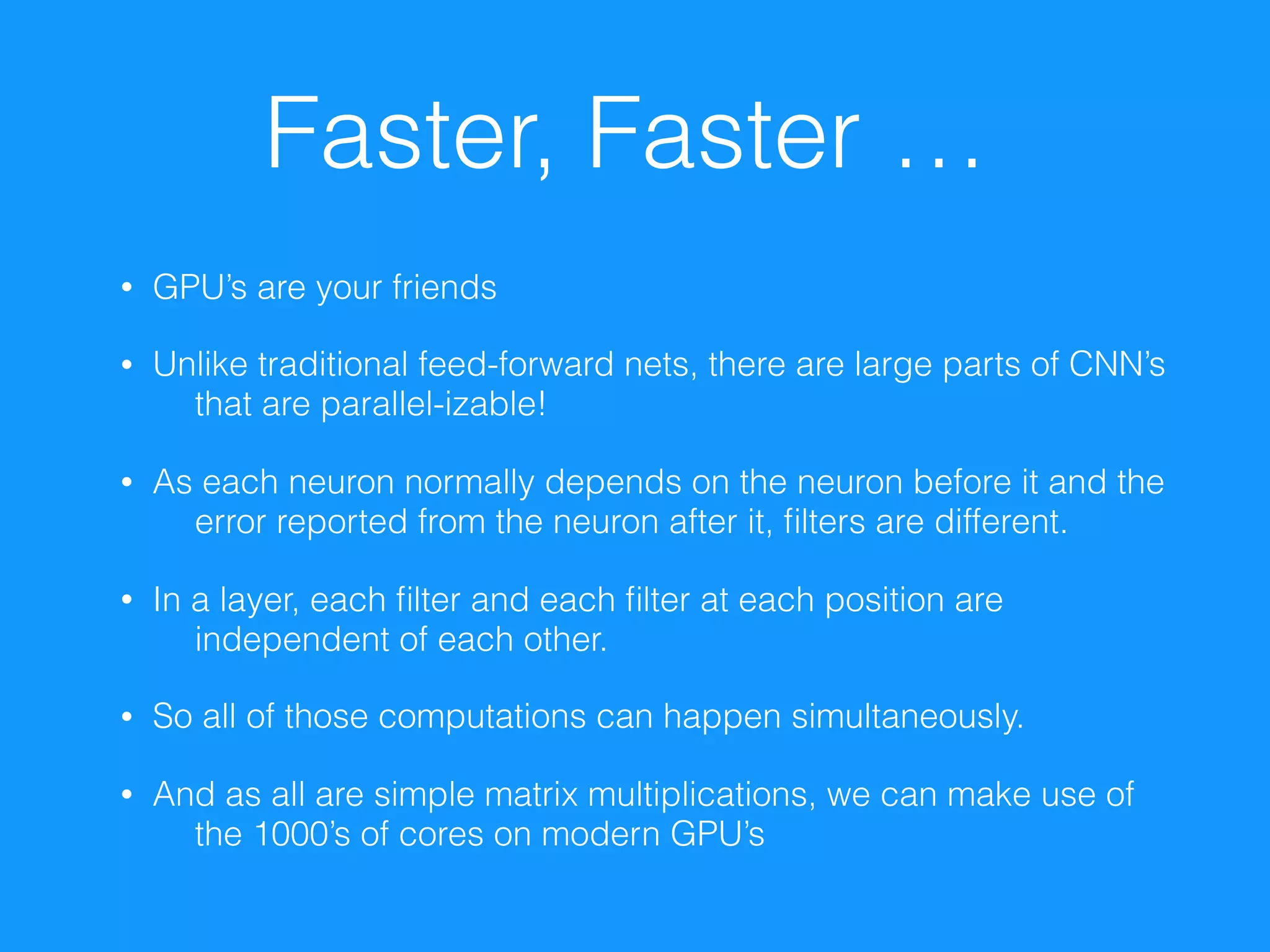

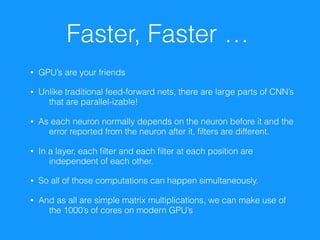

27. Faster, Faster …
• GPU’s are your friends
• Unlike traditional feed-forward nets, there are large parts of CNN’s
that are parallel-izable!
• As each neuron normally depends on the neuron before it and the
error reported from the neuron after it, filters are different.
• In a layer, each filter and each filter at each position are
independent of each other.
• So all of those computations can happen simultaneously.
• And as all are simple matrix multiplications, we can make use of
the 1000’s of cores on modern GPU’s
28. Running on a GPU
• Install proper dependencies (linux requires a few extra steps here)
• Install Theano, Keras
• Install CUDA (http://tleyden.github.io/blog/2015/11/22/cuda-7-
dot-5-on-aws-gpu-instance-running-ubuntu-14-dot-04/)
• Install cuDNN (requires registration with NVIDIA)
• Configurations in ~/.theanorc
• Set Theano Flags when running script (or in .theanorc)
• Pre-configured AMI on AWS
(ami-a6ec17c6 in region US-west-2/Oregon)
