The cylinder liner is cast separately from the cylinder block and can be made of a different, more durable material like a nodular cast iron alloyed with chromium, vanadium, and molybdenum. While the cylinder block is made of grey cast iron, the liner wears with use and may need replacement, unlike the cylinder jacket that lasts the life of the engine. Piston rings are split rings that fit into grooves on the outer diameter of engine pistons to seal the combustion chamber.

1. Cylinder liners and piston ring
manufacturing
(CASTING)

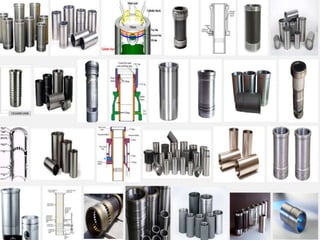

3. • The cylinder liner is cast separately from the main
cylinder frame.
• The liner can be manufactured using a superior
material to the cylinder block.
• While the cylinder block is made from a grey cast iron,
the liner is manufactured from a nodular cast iron
alloyed with chromium, vanadium and molybdenum.
(cast iron contains graphite, a lubricant. The alloying
elements help resist corrosion and improve the wear
resistance at high temperatures.)
• The cylinder liner will wear with use, and therefore may
have to be replaced. The cylinder jacket lasts the life of
the engine.

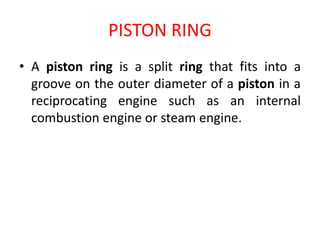

4. PISTON RING

5. PISTON RING

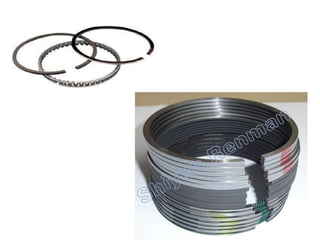

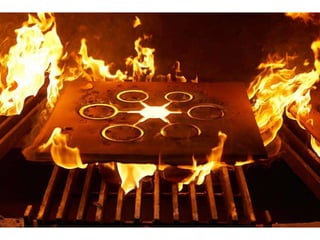

• A piston ring is a split ring that fits into a
groove on the outer diameter of a piston in a
reciprocating engine such as an internal
combustion engine or steam engine.
