The air brake system uses compressed air to apply pressure to brake pads to stop large heavy vehicles. It has several main components including a brake valve to control air flow, governors to regulate air pressure, air tanks to store compressed air, air compressors to fill the tanks, brake chambers that use air pressure to engage the brakes, and slack adjusters to ensure proper brake clearance.

1. AIR BRAKE SYSTEM

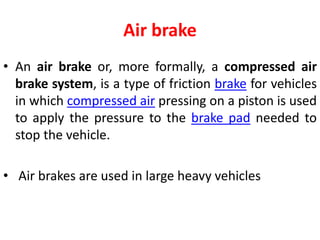

2. Air brake
• An air brake or, more formally, a compressed air
brake system, is a type of friction brake for vehicles
in which compressed air pressing on a piston is used
to apply the pressure to the brake pad needed to
stop the vehicle.
• Air brakes are used in large heavy vehicles

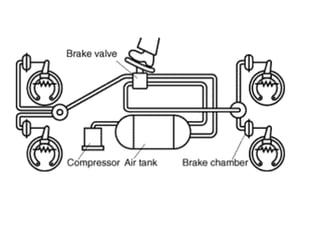

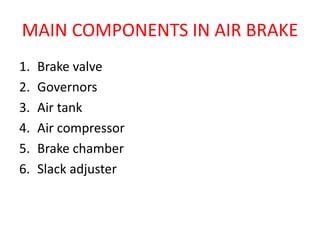

6. MAIN COMPONENTS IN AIR BRAKE
1. Brake valve

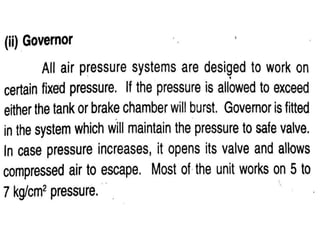

2. Governors

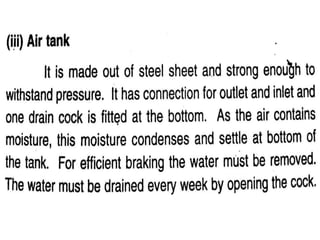

3. Air tank

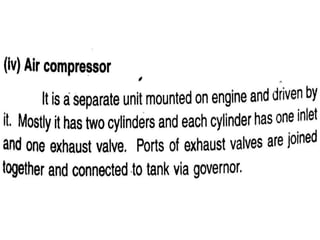

4. Air compressor

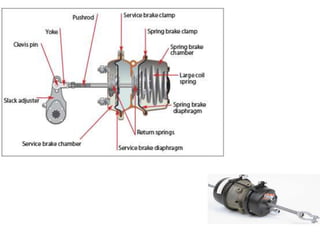

5. Brake chamber
6. Slack adjuster
