1. R
TECHNOCRACY PVT. LTD.
WATER DISTILLATION
UNIT - QUARTZ
MODEL NO. - ACM- 54093- W

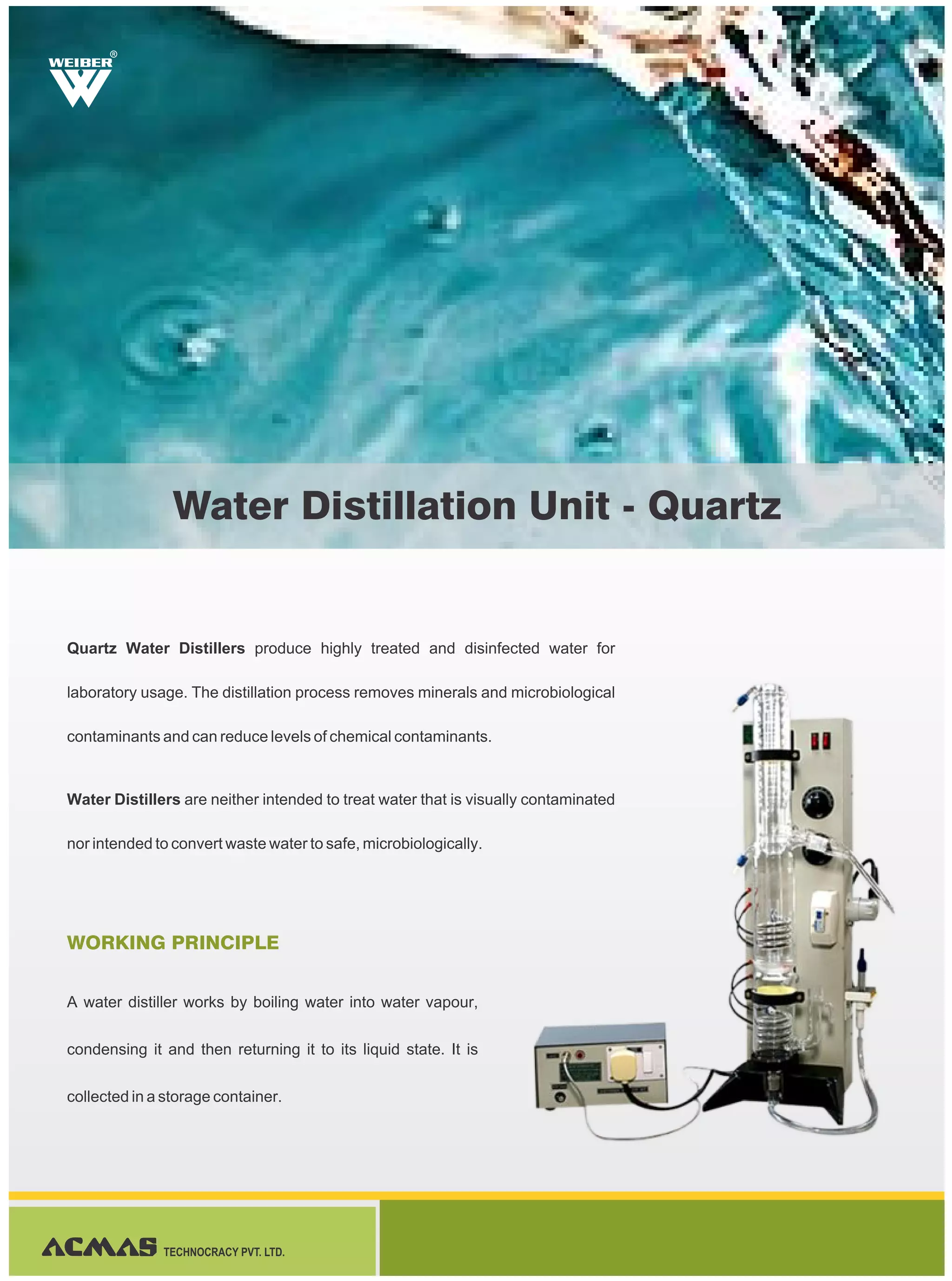

2. Quartz Water Distillers produce highly treated and disinfected water for
laboratory usage. The distillation process removes minerals and microbiological
contaminants and can reduce levels of chemical contaminants.
Water Distillers are neither intended to treat water that is visually contaminated
nor intended to convert waste water to safe, microbiologically.
A water distiller works by boiling water into water vapour,
condensing it and then returning it to its liquid state. It is
collected in a storage container.
WORKING PRINCIPLE
R
Water Distillation Unit - Quartz
TECHNOCRACY PVT. LTD.

3. The process occurs in several steps:
Ÿ Municipal or well water is manually or automatically fed into the distiller unit's boiling chamber.
Ÿ A heating element in the boiling chamber heats the water until it boils.
Ÿ The steam rises from the boiling chamber. Volatile contaminants (gases) are discharged through a built-in
vent. Minerals and salts are retained in the boiling chamber as hard deposits or scale.
Ÿ The steam enters a coiled tube (condenser), which is cooled by cool water.
Ÿ Water droplets form as condensation occurs.
Ÿ The distilled water is collected in a storage tank. If the unit is an automatic model, it is set to operate to fill
the storage tank
FEATURES
Ÿ Quartz distiller, Demountable boiler.
Ÿ Compact design, Dual safety cutout(optional).
R
TECHNOCRACY PVT. LTD.

4. Ÿ High purity, low conductivity, Pyrogen free distillate.
Ÿ Easy service and maintenance due to Demountable model.
TECHNOCRACY PVT. LTD.
TECHNICAL SPECIFICATIONS
Output
Capacity (Approx.)
Electrical
Power
Reqd.
Cooling
Water
Consumption
-
-
150lit/hr
-
1 ltr/hr
220/240 V,
Single
Phase,2.0KW
Heater
-
-
40 lit/hr
-
1.5 ltr/hr
220/240 V,
Single
Phase,3.0KW
Heater
-
-
50 lit/hr
-
2ltr/hr
220/240 V,
Single
Phase,3.5KW
Heater
-
-
65lit/hr
-
2.5ltr/hr
220/240 V,
Single
Phase,4.5 KW
Heater
-
-
70lit/hr
-
3ltr/hr
220/240 V,
Single
Phase,5KW
Heater
-
-
100lit/hr
-
5ltr/hr
440 V,
Two Phase,
8KW Heater
R

5. TECHNICAL SPECIFICATIONS
Specific Conductivity at 25 0C
PH at 25 0C
Total Organic Carbon (TOC) mg/li
Organic Matter mg/lit
Total Solids (mg/lit)
Silica (mg/lit)
KMnO 4 color retention
UV absorbance at 254 nm
Distillate Quality
Total Plate Count
Standard Plate Count
Endotoxin
Yeast and Mould
Distillate Temperature
less than 0.4 x 10 -6S/cm
*Not applicable
**Not detected
NIL
0.1 mg/lit
less than 0.01 mg/lit
60 mins.
0.007
Pyrogen Free
Zero
Zero
less than 0.25 EU/ml
Zero
65 - 75 oC
R
TECHNOCRACY PVT. LTD.

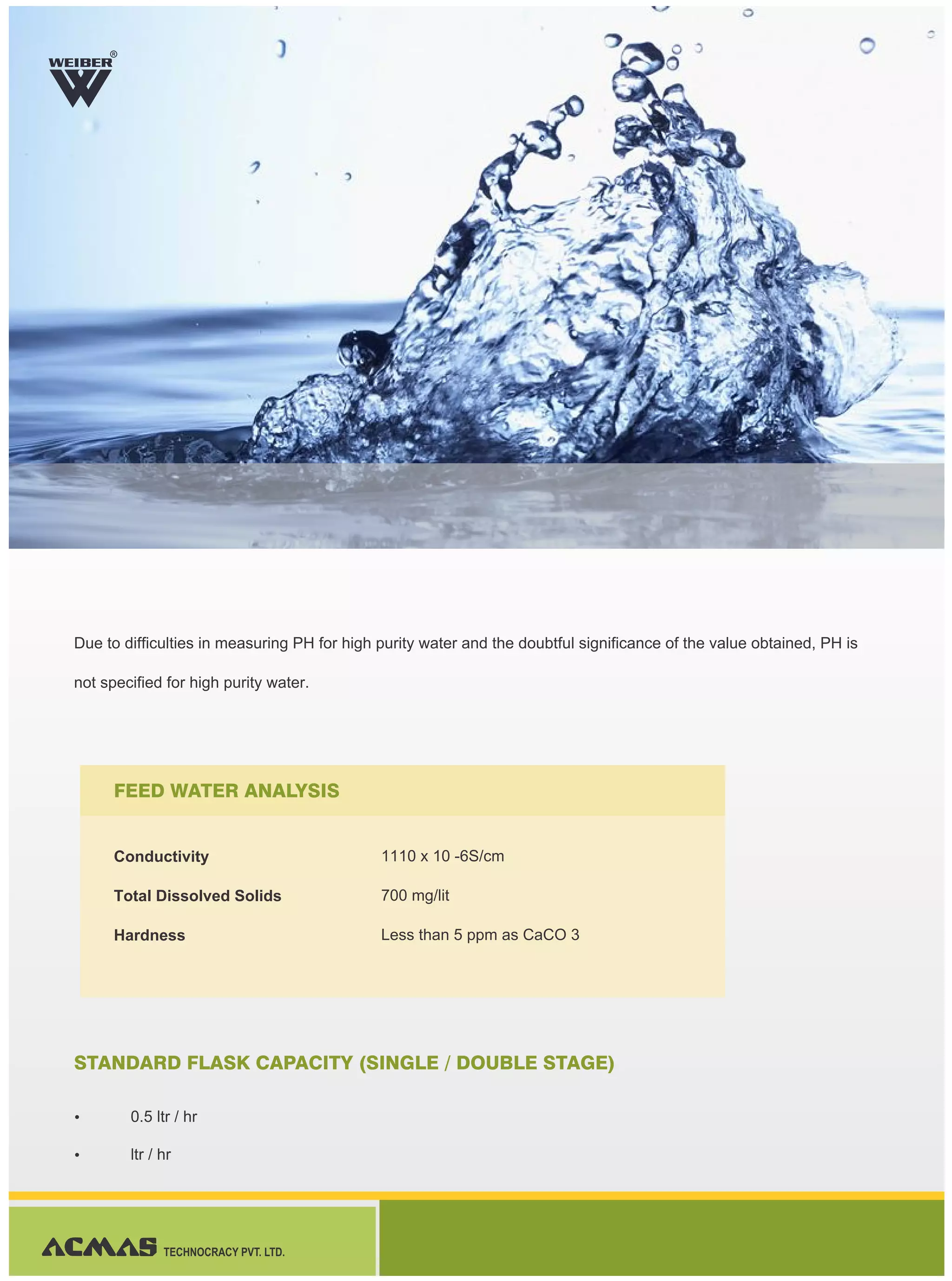

6. Due to difficulties in measuring PH for high purity water and the doubtful significance of the value obtained, PH is
not specified for high purity water.
Ÿ 0.5 ltr / hr
Ÿ ltr / hr
R
TECHNOCRACY PVT. LTD.
FEED WATER ANALYSIS
STANDARD FLASK CAPACITY (SINGLE / DOUBLE STAGE)
Conductivity
Total Dissolved Solids
Hardness
1110 x 10 -6S/cm
700 mg/lit
Less than 5 ppm as CaCO 3

7. Ÿ ltr / hr
Ÿ ltr / hr
Ÿ ltr / hr
Ÿ ltr / hr

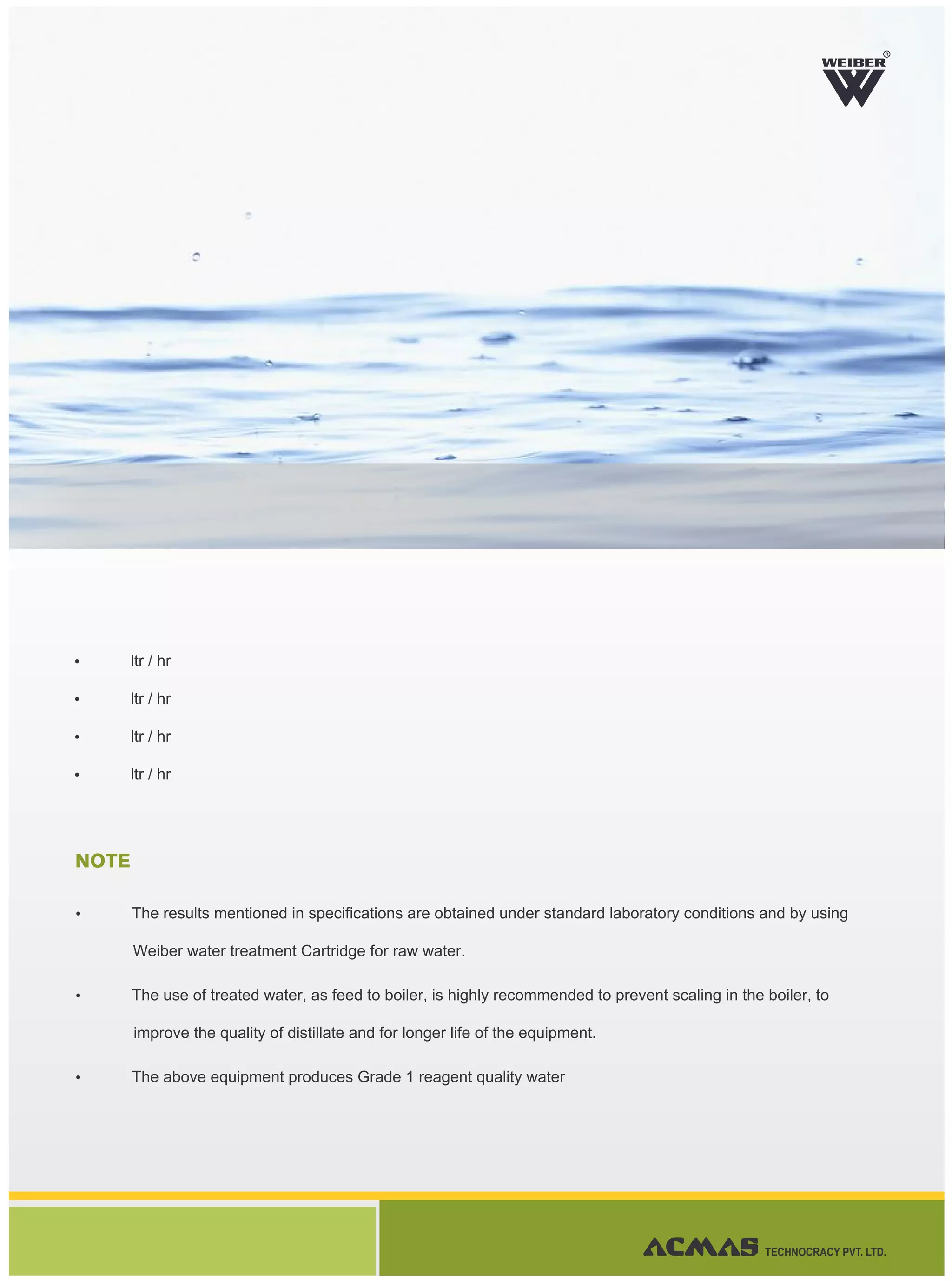

NOTE
Ÿ The results mentioned in specifications are obtained under standard laboratory conditions and by using
Weiber water treatment Cartridge for raw water.
Ÿ The use of treated water, as feed to boiler, is highly recommended to prevent scaling in the boiler, to
improve the quality of distillate and for longer life of the equipment.
