The document describes the ACM-MP-511 analytical microprocessor-based pH meter, designed for precise measurement in laboratories and manufacturing environments. Key features include an RS-232 interface, data storage for 600 samples, automatic temperature compensation, and a self-diagnostic display. Technical specifications highlight a measurement range of -1.99 to 19.99 pH and temperature compensation from -10 to 110°C.

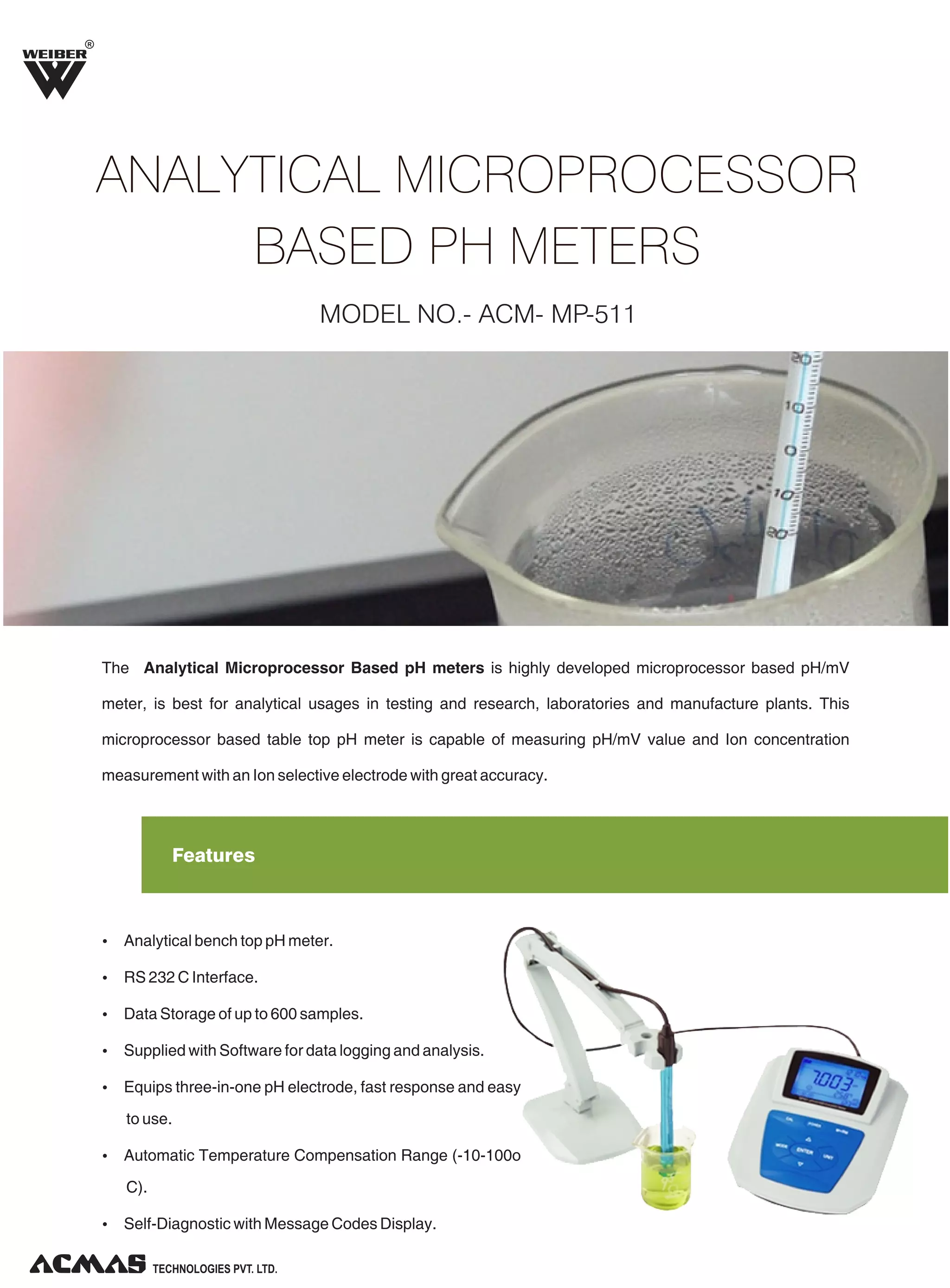

1. R
ANALYTICAL MICROPROCESSOR
BASED PH METERS
MODEL NO.- ACM- MP-511

2. R
ANALYTICAL MICROPROCESSOR
BASED PH METERS
MODEL NO.- ACM- MP-511
The Analytical Microprocessor Based pH meters is highly developed microprocessor based pH/mV
meter, is best for analytical usages in testing and research, laboratories and manufacture plants. This
microprocessor based table top pH meter is capable of measuring pH/mV value and Ion concentration
measurement with an Ion selective electrode with great accuracy.
Features
Ÿ Analytical bench top pH meter.
Ÿ RS 232 C Interface.
Ÿ Data Storage of up to 600 samples.
Ÿ Supplied with Software for data logging and analysis.
Ÿ Equips three-in-one pH electrode, fast response and easy
to use.
Ÿ Automatic Temperature Compensation Range (-10-100o
C).
Ÿ Self-Diagnostic with Message Codes Display.
TECHNOLOGIES PVT. LTD.

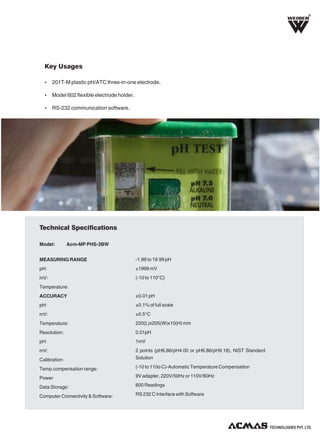

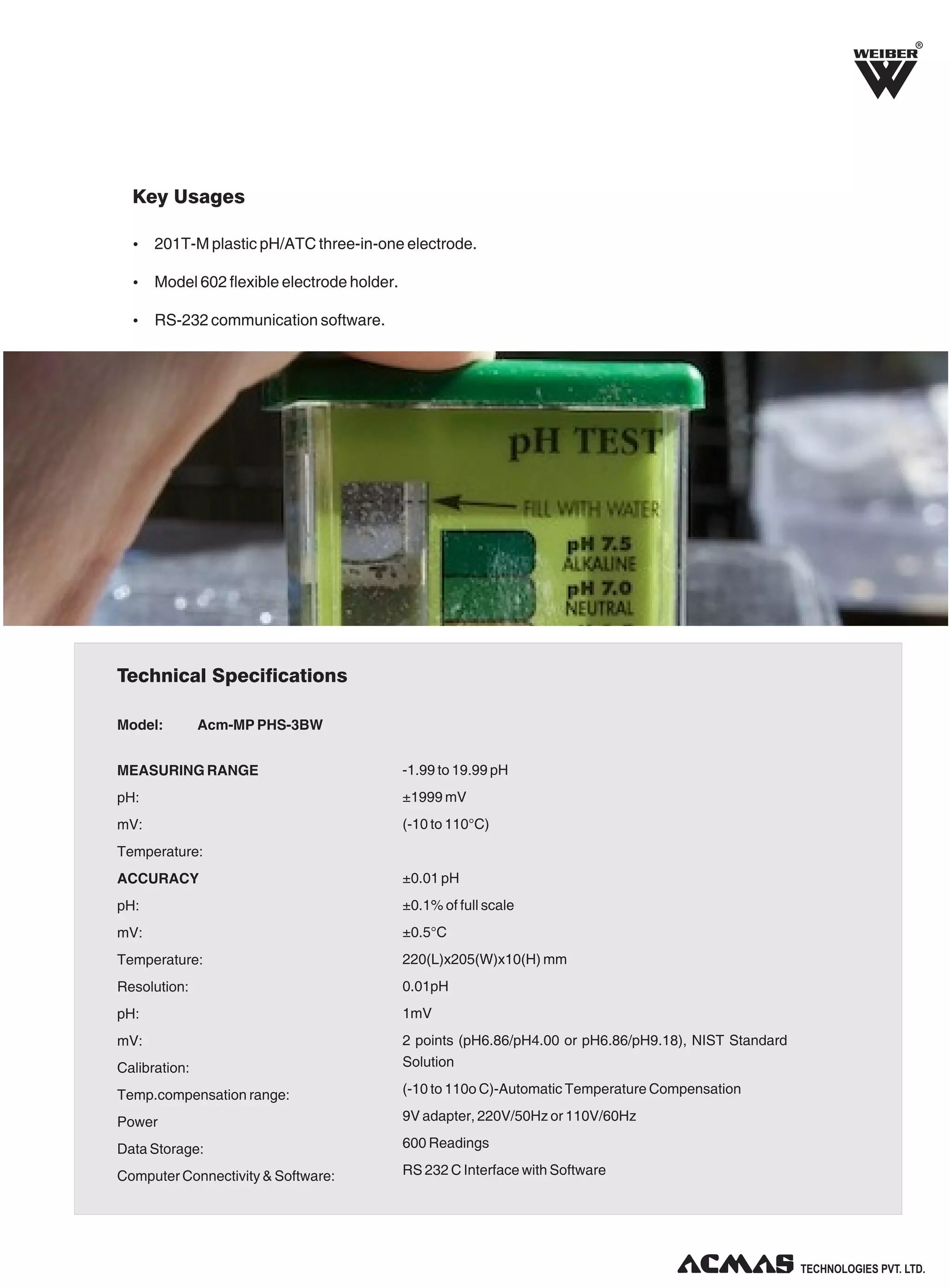

3. R
Key Usages
Ÿ 201T-M plastic pH/ATC three-in-one electrode.
Ÿ Model 602 flexible electrode holder.
Ÿ RS-232 communication software.
Technical Specifications
Model:
Acm-MP PHS-3BW
MEASURING RANGE
-1.99 to 19.99 pH
pH:
±1999 mV
mV:
(-10 to 110°C)
Temperature:
ACCURACY
±0.01 pH
pH:
±0.1% of full scale
mV:
±0.5°C
Temperature:
220(L)x205(W)x10(H) mm
Resolution:
0.01pH
pH:
1mV
mV:
Calibration:
2 points (pH6.86/pH4.00 or pH6.86/pH9.18), NIST Standard
Solution
Temp.compensation range:
(-10 to 110o C)-Automatic Temperature Compensation
Power
9V adapter, 220V/50Hz or 110V/60Hz
Data Storage:
600 Readings
Computer Connectivity & Software:
RS 232 C Interface with Software
TECHNOLOGIES PVT. LTD.

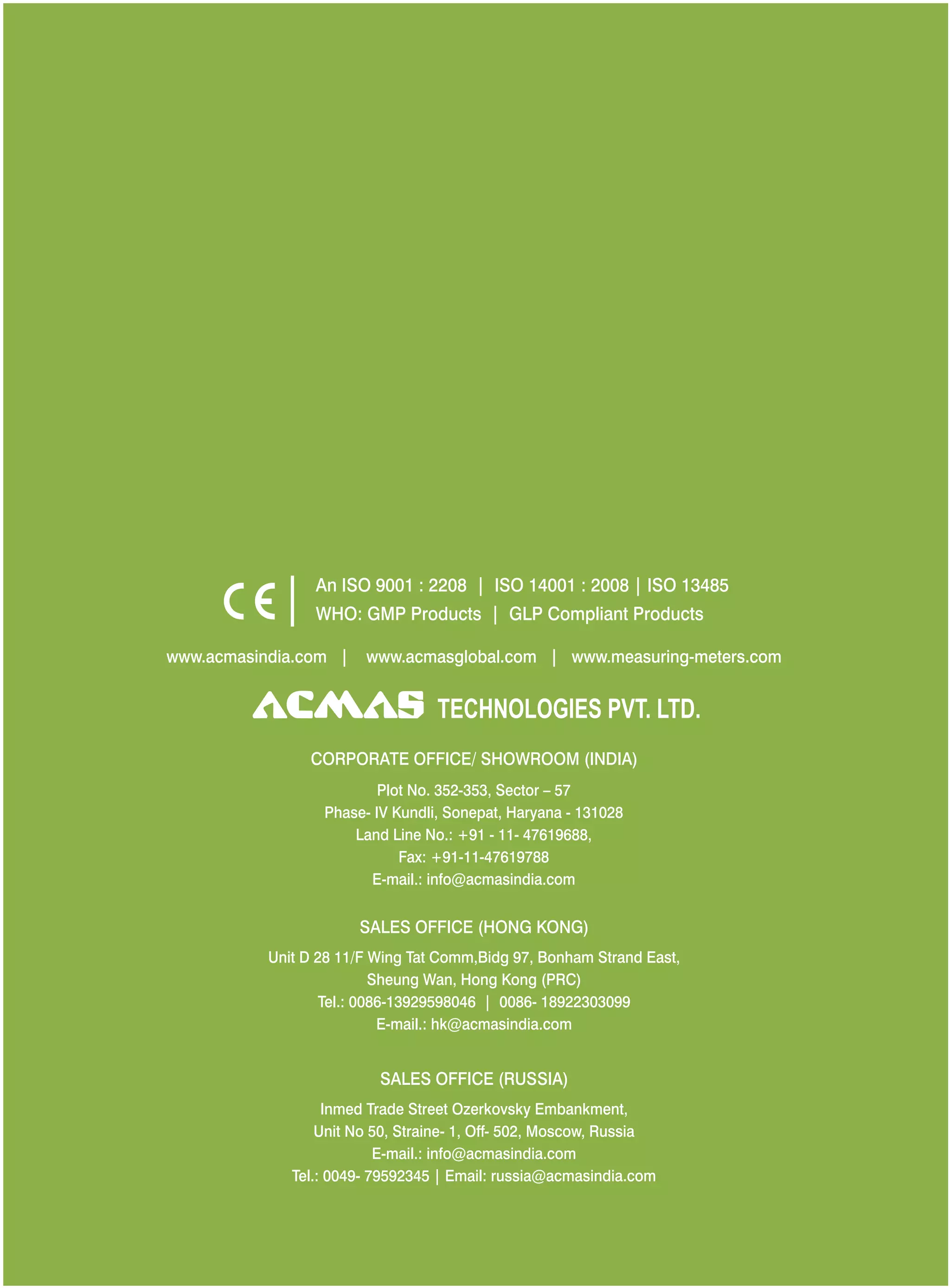

4. An ISO 9001 : 2208 | ISO 14001 : 2008 | ISO 13485
