The document details a microprocessor-based chemical oxygen demand (COD) analysis system, model ACM-LDES-2309, designed for measuring COD in various water types to assess pollution levels. It outlines the instrument's working mechanism, specifications, and applications in environmental monitoring and wastewater treatment. The system is suitable for frequent COD measurements in different aquatic environments and demonstrates features for enhanced usability.

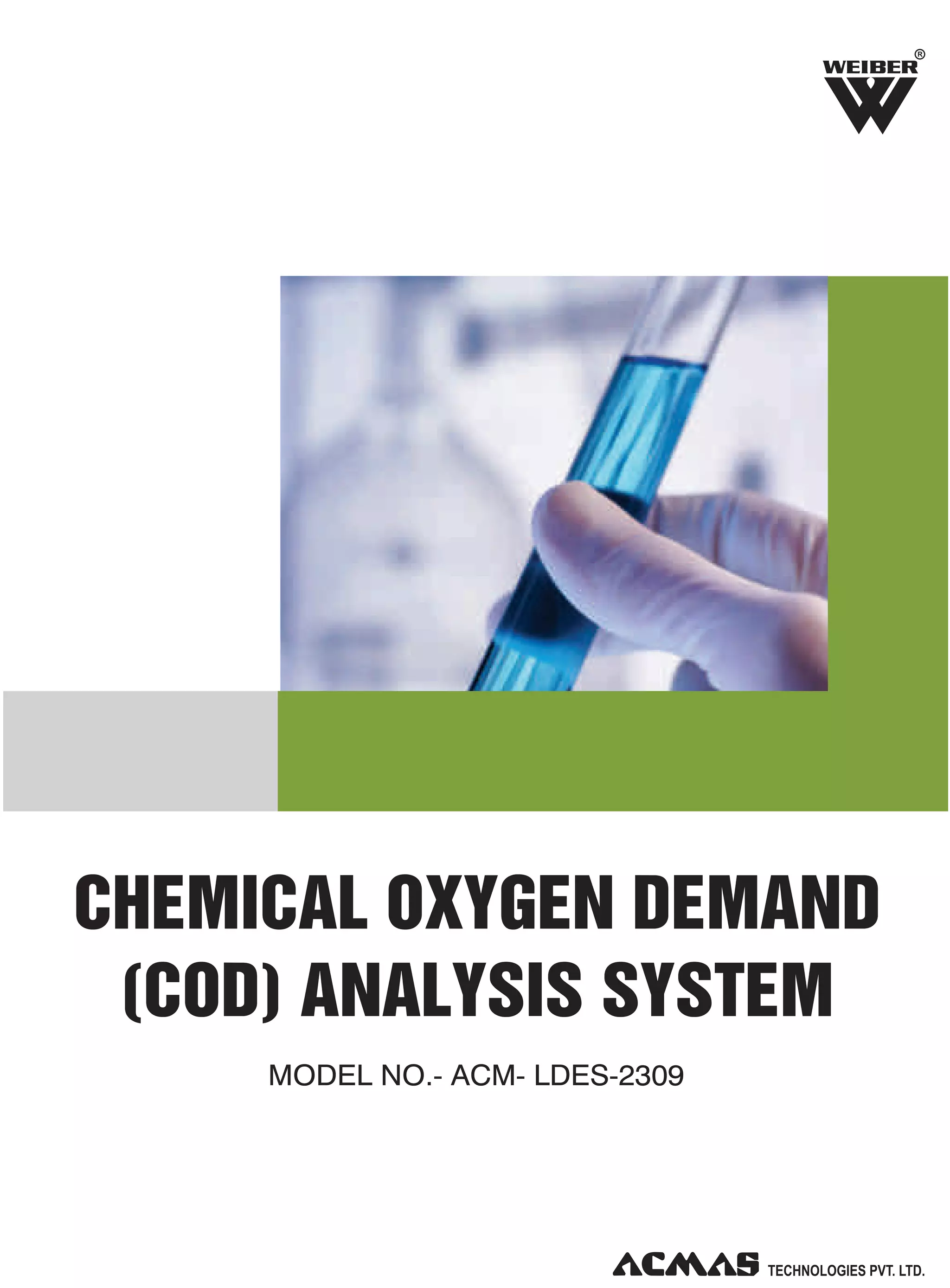

1. R
CHEMICAL OXYGEN DEMAND
(COD) ANALYSIS SYSTEM
MODEL NO.- ACM- LDES-2309

2. R
CHEMICAL OXYGEN DEMAND
ANALYSIS SYSTEM
MODEL NO.- ACM- LDES-2309
The microprocessor based automatic, advance, electronic and latest designed COD Analyzers are used for
detection of Chemical Oxygen Demand. The Laboratory COD analyzer acts as water analyzer for detection of
Chemical Oxygen Demand in both polluted and normal water. Weiber water analyzer works as high quality
analysis tool for determination of inorganic pollution, waste water, sewage and Plant Effluent Treatment.
Chemical Oxygen Demand (COD) is the laboratory measurement of amount of oxygen used in chemical
reactions that occur in water as a result of the addition of wastes to it. It measures the sum total of organic and
inorganic pollution in waste water. COD is a measure of the relative oxygen-depletion effect of a waste
contaminant in water. It is an essentially a laboratory test which acts as wastewater quality indicator and will
have a significant adverse effect aquatic life in water.This instrument is widely used by teaching or science
research academy, petrochemical industry, water quality monitoring department and environmental protection
department etc.
Weiber's Fast Response COD Analysis System is ideal equipment for measuring COD and with an additional
feature of giving fast results. COD is a kind of laboratory test to determine presence and intensity of waste in
water sample, waste having either known or unknown composition. It is used for measurement of known
substrates in synthetic wastes.
Measurement of COD in
Ÿ Wastewater
Ÿ Ecology
Ÿ Study of freshwater ponds and lakes
Ÿ Analysts and modelers working with determination of
water quality.
TECHNOLOGIES PVT. LTD.

3. R
Technical Specifications
Our Fast Response COD analysis system works on the principle of oxidation of oxidisable material with a given
amount of potassium chromate, the titration of excess chromate and the calculation of oxygen consumed.Put a
sample of 2.00 ml in a vial, heat it for 15 minutes, select the program and finally read the results displayed after
the COD analysis is complete.
Frequency of Measurement
Ground Water
Every 3 months
Lakes
Every 2 months
River
Every 2 weeks
Product Features
Ÿ Transparent Protective Lid
Ÿ Auto Shutdown at End of Completion of the Procedure
Ÿ Technical Specifications
Technical Specifications
Temperature for
COD 165°C
TP / TN 105°C
Capacity
24 vials of size 16 x 100 mm
Warm up Time
20 minutes
Power Requirements
220±22V, 50Hz, 300W
Ambient Operating
Temperature
0 to 50 ℃
Temperature Stability
±1?
Accuracy
±1?
Timer
1-1680 minutes(31 hours) with audible alarm And feature of
being automatic
Range Adjustment
105-165 ±1?, Shortcuts for 105? and 150?
TECHNOLOGIES PVT. LTD.

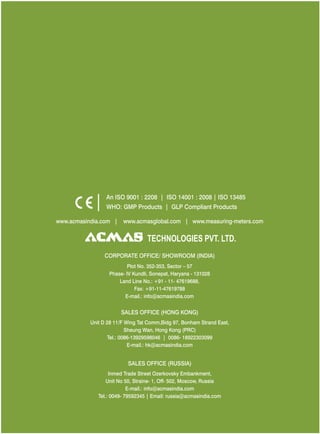

4. An ISO 9001 : 2208 | ISO 14001 : 2008 | ISO 13485
