1. R
PH AND DISSOLVED OXYGEN
METER
MODEL NO.- ACM-MP-525

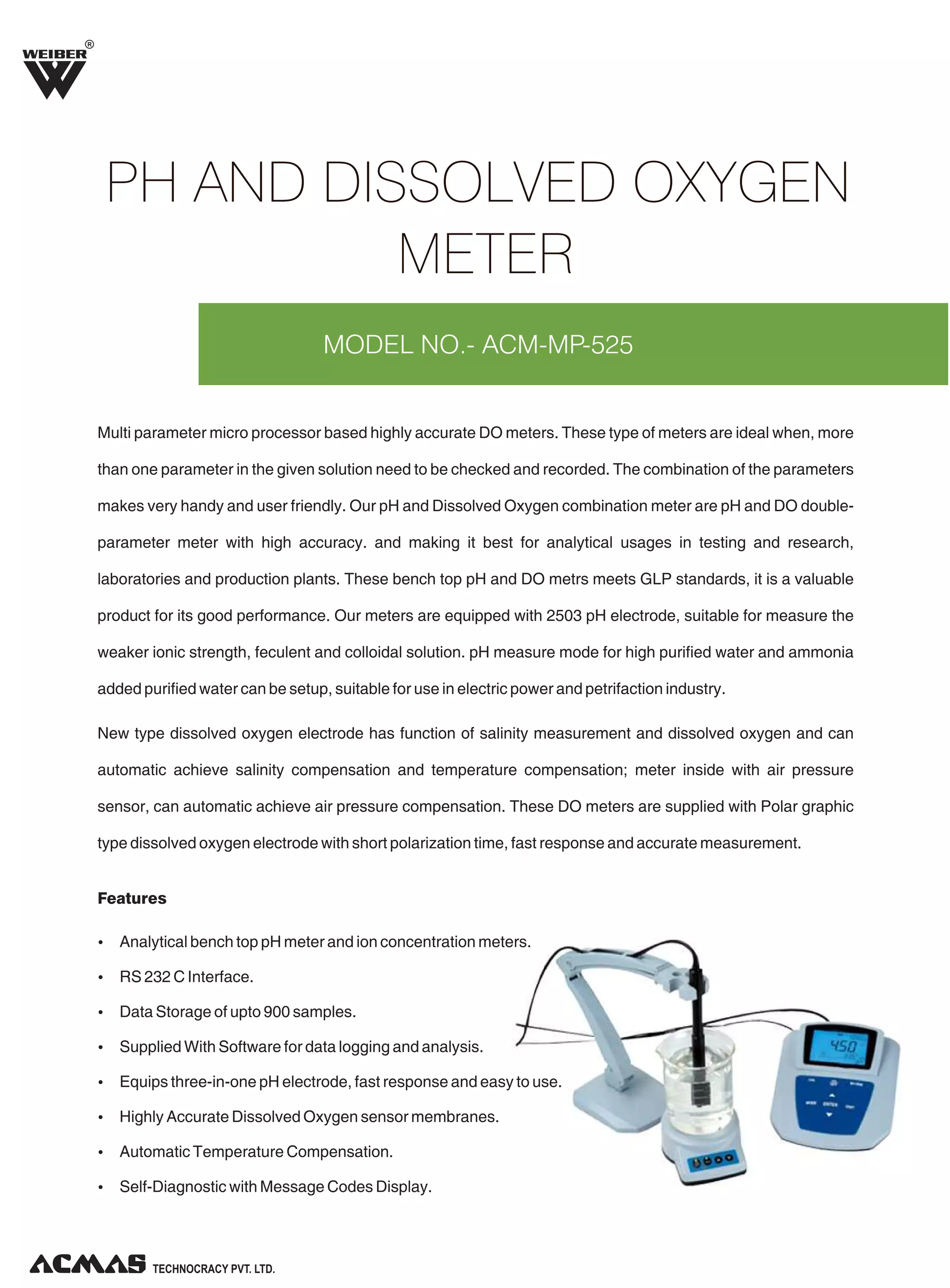

2. R
PH AND DISSOLVED OXYGEN
METER
MODEL NO.- ACM-MP-525
Multi parameter micro processor based highly accurate DO meters. These type of meters are ideal when, more
than one parameter in the given solution need to be checked and recorded. The combination of the parameters
makes very handy and user friendly. Our pH and Dissolved Oxygen combination meter are pH and DO doubleparameter meter with high accuracy. and making it best for analytical usages in testing and research,
laboratories and production plants. These bench top pH and DO metrs meets GLP standards, it is a valuable
product for its good performance. Our meters are equipped with 2503 pH electrode, suitable for measure the
weaker ionic strength, feculent and colloidal solution. pH measure mode for high purified water and ammonia
added purified water can be setup, suitable for use in electric power and petrifaction industry.
New type dissolved oxygen electrode has function of salinity measurement and dissolved oxygen and can
automatic achieve salinity compensation and temperature compensation; meter inside with air pressure
sensor, can automatic achieve air pressure compensation. These DO meters are supplied with Polar graphic
type dissolved oxygen electrode with short polarization time, fast response and accurate measurement.
Features
Ÿ Analytical bench top pH meter and ion concentration meters.
Ÿ RS 232 C Interface.
Ÿ Data Storage of upto 900 samples.
Ÿ Supplied With Software for data logging and analysis.
Ÿ Equips three-in-one pH electrode, fast response and easy to use.
Ÿ Highly Accurate Dissolved Oxygen sensor membranes.
Ÿ Automatic Temperature Compensation.
Ÿ Self-Diagnostic with Message Codes Display.
TECHNOLOGIES PVT. LTD.

3. R

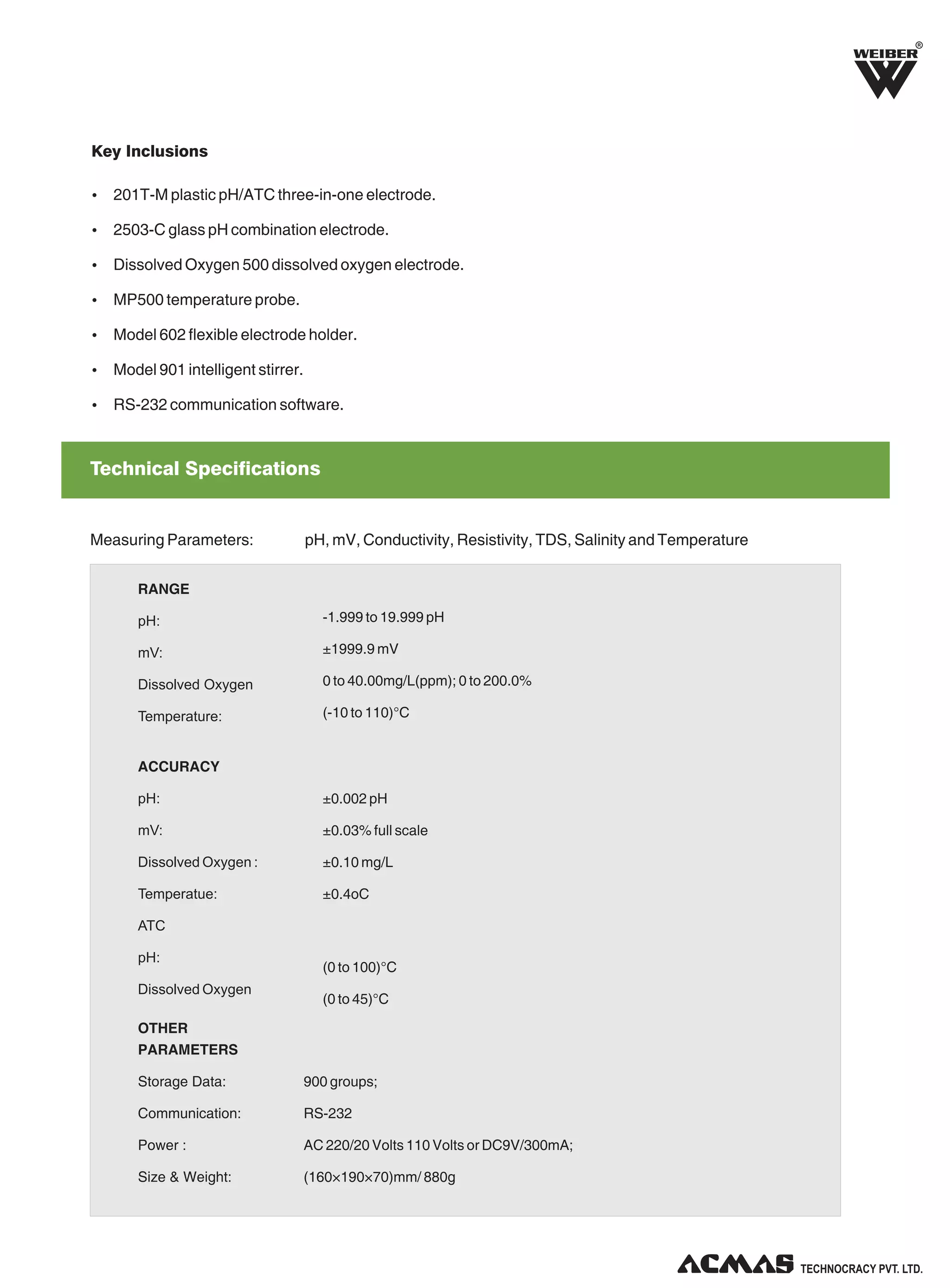

Key Inclusions
Ÿ 201T-M plastic pH/ATC three-in-one electrode.
Ÿ 2503-C glass pH combination electrode.
Ÿ Dissolved Oxygen 500 dissolved oxygen electrode.
Ÿ MP500 temperature probe.
Ÿ Model 602 flexible electrode holder.
Ÿ Model 901 intelligent stirrer.
Ÿ RS-232 communication software.
Technical Specifications
Measuring Parameters:
pH, mV, Conductivity, Resistivity, TDS, Salinity and Temperature
RANGE
pH:
-1.999 to 19.999 pH
mV:
±1999.9 mV
Dissolved Oxygen
0 to 40.00mg/L(ppm); 0 to 200.0%
Temperature:
(-10 to 110)°C
ACCURACY
pH:
±0.002 pH
mV:
±0.03% full scale
Dissolved Oxygen :
±0.10 mg/L
Temperatue:
±0.4oC
ATC
pH:
Dissolved Oxygen
(0 to 100)°C
(0 to 45)°C
OTHER
PARAMETERS
Storage Data:
900 groups;
Communication:
RS-232
Power :
AC 220/20 Volts 110 Volts or DC9V/300mA;
Size & Weight:
(160×190×70)mm/ 880g
TECHNOLOGIES PVT. LTD.
