The ACM-MP-513 is an advanced analytical microprocessor-based conductivity meter designed for testing in laboratories and manufacturing plants, capable of measuring conductivity, resistivity, TDS, salinity, and temperature. It features RS-232 connectivity, data storage for 100 readings, automatic temperature compensation, and includes various accessories like a plastic conductivity electrode and software for data analysis. The meter operates in a wide range of parameters with high accuracy and complies with international quality standards.

1. R
ANALYTICAL MICROPROCESSOR
BASED CONDUCTIVITY METER
MODEL NO.- ACM-MP-513
TECHNOLOGIES PVT. LTD.

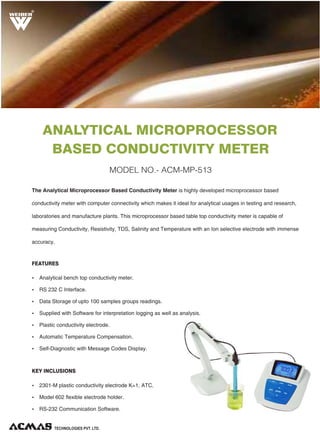

2. R
ANALYTICAL MICROPROCESSOR
BASED CONDUCTIVITY METER
MODEL NO.- ACM-MP-513
The Analytical Microprocessor Based Conductivity Meter is highly developed microprocessor based
conductivity meter with computer connectivity which makes it ideal for analytical usages in testing and research,
laboratories and manufacture plants. This microprocessor based table top conductivity meter is capable of
measuring Conductivity, Resistivity, TDS, Salinity and Temperature with an Ion selective electrode with immense
accuracy.
FEATURES
Ÿ Analytical bench top conductivity meter.
Ÿ RS 232 C Interface.
Ÿ Data Storage of upto 100 samples groups readings.
Ÿ Supplied with Software for interpretation logging as well as analysis.
Ÿ Plastic conductivity electrode.
Ÿ Automatic Temperature Compensation.
Ÿ Self-Diagnostic with Message Codes Display.
KEY INCLUSIONS
Ÿ 2301-M plastic conductivity electrode K=1, ATC.
Ÿ Model 602 flexible electrode holder.
Ÿ RS-232 Communication Software.
TECHNOLOGIES PVT. LTD.

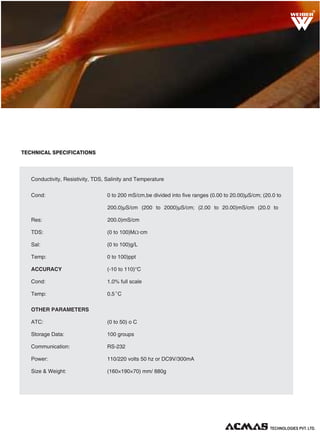

3. R
TECHNICAL SPECIFICATIONS
MEASURING PARAMETERS
Conductivity, Resistivity, TDS, Salinity and Temperature
Cond:
0 to 200 mS/cm,be divided into five ranges (0.00 to 20.00)µS/cm; (20.0 to
200.0)µS/cm (200 to 2000)µS/cm; (2.00 to 20.00)mS/cm (20.0 to
Res:
200.0)mS/cm
TDS:
(0 to 100)MΩ·cm
Sal:
(0 to 100)g/L
Temp:
0 to 100)ppt
ACCURACY
(-10 to 110)°C
Cond:
1.0% full scale
Temp:
0.5 o C
OTHER PARAMETERS
ATC:
(0 to 50) o C
Storage Data:
100 groups
Communication:
RS-232
Power:
110/220 volts 50 hz or DC9V/300mA
Size & Weight:
(160×190×70) mm/ 880g
