Virtual Retinal Display: their falling cost and rising performance
The document discusses virtual retinal display (VRD) technology, which projects images directly onto the retina, creating the illusion of a conventional display in space. It covers the system setup, safety measures, performance dimensions, technological components, and potential future applications in fields like medical, manufacturing, and virtual reality. Key advantages include compactness, high resolution, vibrant color output, and low power consumption, making VRD a promising technology for diverse uses.
More Related Content
Similar to Virtual Retinal Display: their falling cost and rising performance
Virtual Retinal Display: their falling cost and rising performance
- 1. Virtual Retinal Display (VRD) NgHeng Chung Jaryl, Muhammad Nabil, Xavier Liau For information on other technologies, please see Jeff Funk’s slide share account (http://www.slideshare.net/Funk98/presentations) or his book with Chris Magee: Exponential Change: What drives it? What does it tell us about the future? http://www.amazon.com/Exponential-Change-drives-about-future-ebook/dp/B00HPSAYEM/ref=sr_1_1?ie=UTF8&qid=1398325920&sr=8- 1&keywords=exponential+change
- 2. An Introduction toVirtual Retinal Display https://www.youtube.com/watch?v=ANivDWP2pQU
- 3. Contents • Timeline ofVRD • Virtual Reality Display • Definition • VRD System Setup • Safety • Advantaged Features (Customer needs) • Important Technological Components • Important Dimensions Of Performance & Cost • Key Components & Important Dimensions of Performance and Cost • Future Applications • Avegant Glyph/Conclusion

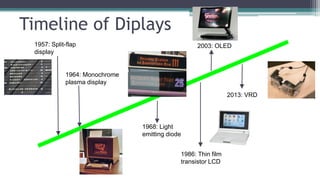

- 4. Timeline of Diplays 1957:Split-flap display 1964: Monochrome plasma display 1968: Light emitting diode 1986: Thin film transistor LCD 2003: OLED 2013: VRD

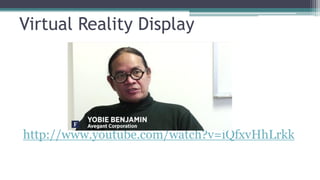

- 5.

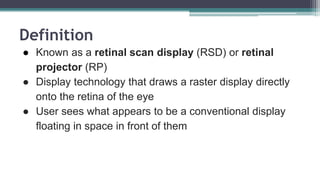

- 6. Definition ● Known asa retinal scan display (RSD) or retinal projector (RP) ● Display technology that draws a raster display directly onto the retina of the eye ● User sees what appears to be a conventional display floating in space in front of them
- 7. VRD System Set-up •No real image produced • Image formed on the retina of user’s eye
- 8. VRD System Set-up •Photon source generates a coherent beam of light • System uses it to draw a diffraction spot on the retina • Intensity modulated to match intensity of image • Modulated beam scanned to place each image point at the proper position on the retina • Scanner could be used in calligraphic mode or in raster mode

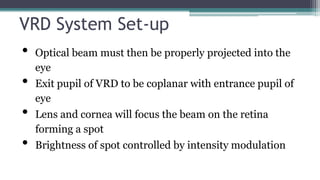

- 9. VRD System Set-up •Optical beam must then be properly projected into the eye • Exit pupil of VRD to be coplanar with entrance pupil of eye • Lens and cornea will focus the beam on the retina forming a spot • Brightness of spot controlled by intensity modulation
- 10. VRD System Set-up •Moving spot draws an image on the retina • Eye’s persistence allows image to be continuous and stable • Drive electronics synchronize the scanners and intensity modulator forming a stable image
- 11. Safety • Rigorous safetystandards by the American National Standards Institute and the International Electrotechnical Commission were applied in the development • Prevention of eye damage by constantly shifting from point to point with the beams focus • Emergency safety system • Harmless to the eyes and increase comfort during viewing due to reflected light

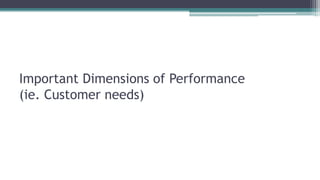

- 12. Important Dimensions ofPerformance (ie. Customer needs)

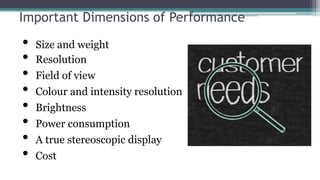

- 13. Important Dimensions ofPerformance • Size and weight • Resolution • Field of view • Colour and intensity resolution • Brightness • Power consumption • A true stereoscopic display • Cost

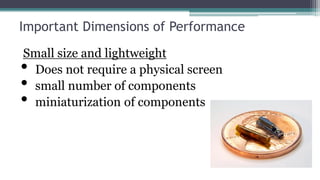

- 14. Important Dimensions ofPerformance Small size and lightweight • Does not require a physical screen • small number of components • miniaturization of components

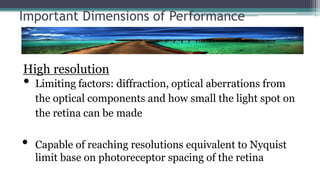

- 15. Important Dimensions ofPerformance High resolution • Limiting factors: diffraction, optical aberrations from the optical components and how small the light spot on the retina can be made • Capable of reaching resolutions equivalent to Nyquist limit base on photoreceptor spacing of the retina

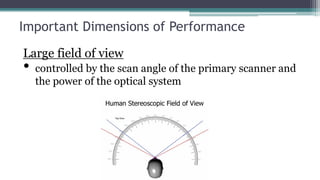

- 16. Important Dimensions ofPerformance Large field of view • controlled by the scan angle of the primary scanner and the power of the optical system

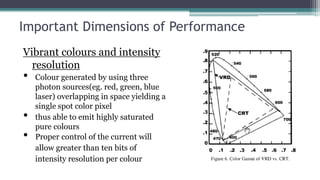

- 17. Important Dimensions ofPerformance Vibrant colours and intensity resolution • Colour generated by using three photon sources(eg. red, green, blue laser) overlapping in space yielding a single spot color pixel • thus able to emit highly saturated pure colours • Proper control of the current will allow greater than ten bits of intensity resolution per colour
- 18. Important Dimensions ofPerformance High brightness • VRD brightness is only limited by the power of the light source • a bright image can be created with under one microwatt of laser light • Laser diodes in the several milliwatt range are common • systems created with laser diode sources will operate at low laser output levels or with significant beam attenuation

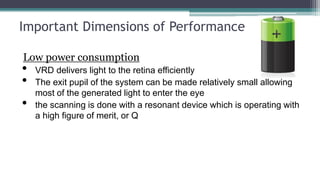

- 19. Important Dimensions ofPerformance Low power consumption • VRD delivers light to the retina efficiently • The exit pupil of the system can be made relatively small allowing most of the generated light to enter the eye • the scanning is done with a resonant device which is operating with a high figure of merit, or Q
- 20. Important Dimensions ofPerformance A true stereoscopic display • The VRD has an individual wavefront generated for each pixel • It is possible to vary the curvature of the wavefronts which determines the focus depth • This variation of the image focus distance on a pixel by pixel basis, combined with the projection of stereo images, allows for the creation of a more natural three- dimensional environment
- 21. Important Dimensions ofPerformance Falling cost • Basic design of VRD consist of subsystems that largely make use of established optical and electronic technologies • investment in specialized manufacturing equipment is not required currently • thus, due to these standards manufacturing practises and parts,VRD can be mass produced at lower cost

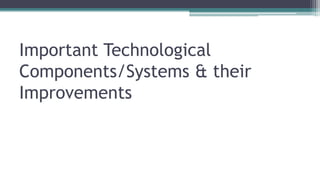

- 22. Important Technological Components/Systems &their Improvements
- 23. Light sources LED Technology •lower power consumption • cheaper and easier to manufacture • Small and durable Laser Technology • High intensity of light emitted by the photons • light can be collected and easily focused down at a point
- 24. Laser Technology During thepast several years, the evolution of high-power solid-state lasers has outstripped Moore’s law. This chart shows the power available from commercial single-mode and multimode solid-state lasers and, for comparison, what the power would be if it had doubled every year.

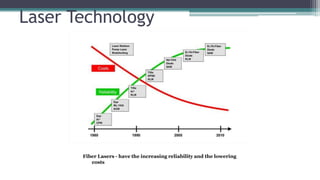

- 25. Laser Technology Fiber Lasers- have the increasing reliability and the lowering costs

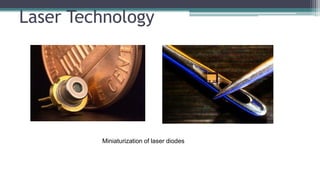

- 26. Laser Technology Miniaturization oflaser diodes

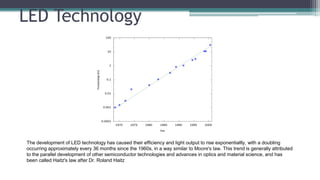

- 27. LED Technology The developmentof LED technology has caused their efficiency and light output to rise exponentiallly, with a doubling occurring approximately every 36 months since the 1960s, in a way similar to Moore's law. This trend is generally attributed to the parallel development of other semiconductor technologies and advances in optics and material science, and has been called Haitz's law after Dr. Roland Haitz

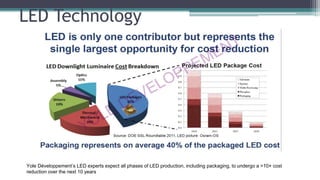

- 28. LED Technology Yole Développement’sLED experts expect all phases of LED production, including packaging, to undergo a >10× cost reduction over the next 10 years

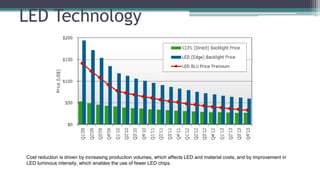

- 29. LED Technology Cost reductionis driven by increasing production volumes, which affects LED and material costs, and by improvement in LED luminous intensity, which enables the use of fewer LED chips.

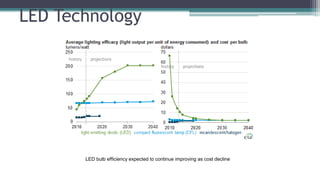

- 30. LED Technology LED bulbefficiency expected to continue improving as cost decline

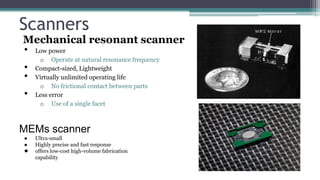

- 31. Scanners Mechanical resonant scanner •Low power o Operate at natural resonance frequency • Compact-sized, Lightweight • Virtually unlimited operating life o No frictional contact between parts • Less error o Use of a single facet MEMs scanner ● Ultra-small ● Highly precise and fast response ● offers low-cost high-volume fabrication capability

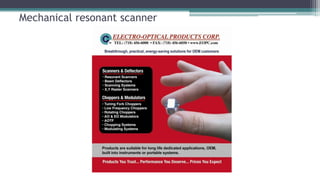

- 32.

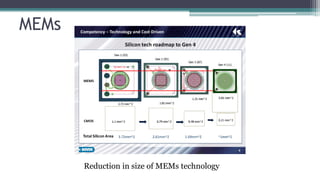

- 33. MEMs Reduction in sizeof MEMs technology

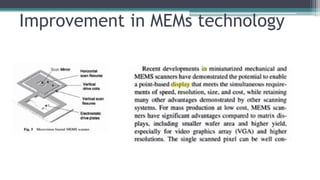

- 34. Improvement in MEMstechnology
- 35.

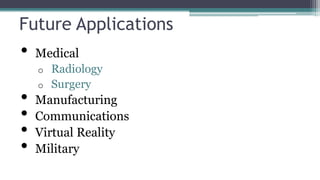

- 36. Future Applications • Medical oRadiology o Surgery • Manufacturing • Communications • Virtual Reality • Military

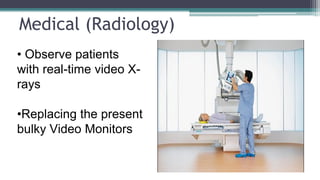

- 37. Medical (Radiology) • Observepatients with real-time video X- rays •Replacing the present bulky Video Monitors
- 38. Medical (Surgery) • Easierlocation of tumors in the body cavity •A depth indicator could be visually laid over the obstructing organ
- 39.
- 40. Communications • Personal VideoPager • Video Fax Devices • Telephone Service
- 41.
- 42.
- 43.
