Vhdl code and project report of arithmetic and logic unit

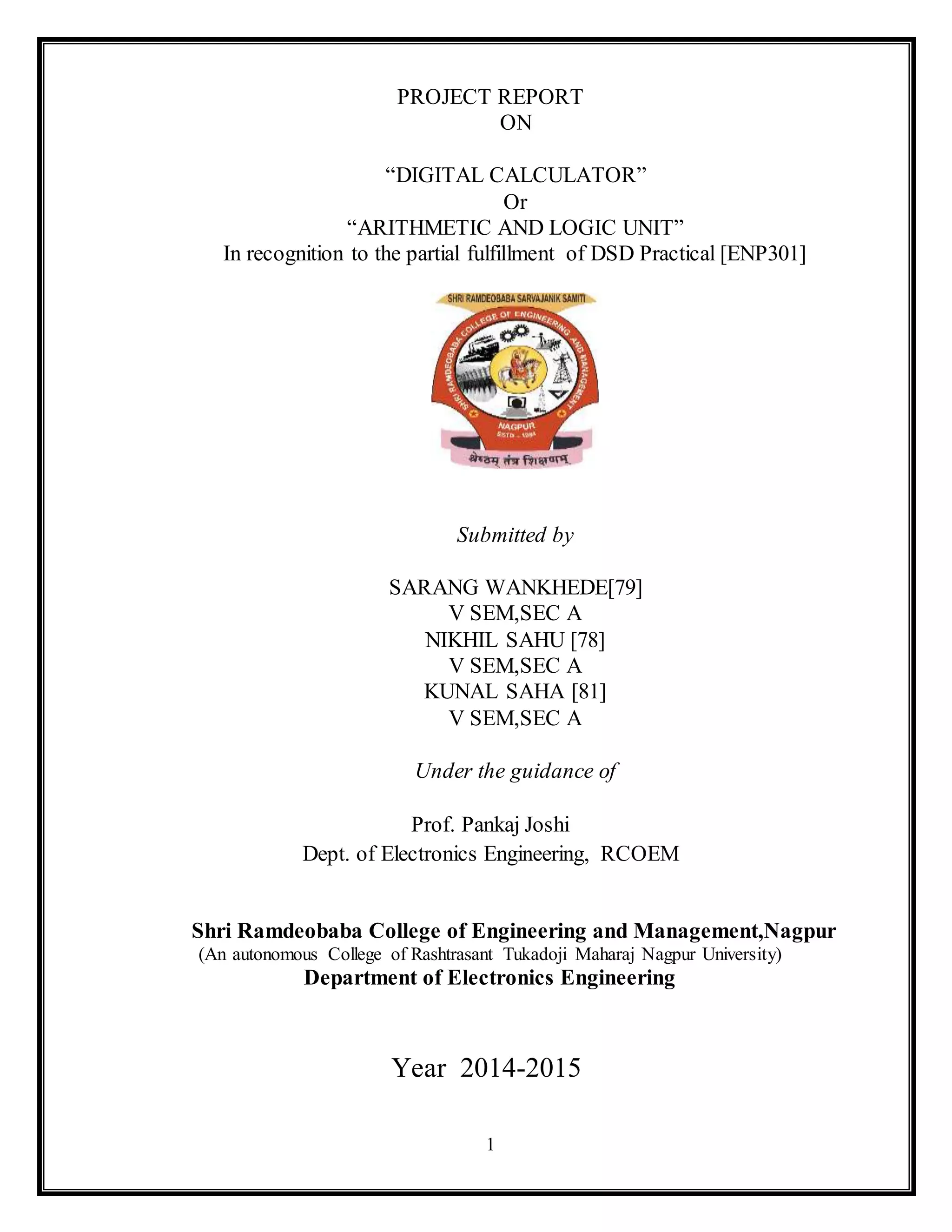

1. 1
PROJECT REPORT
ON
“DIGITAL CALCULATOR”
Or
“ARITHMETIC AND LOGIC UNIT”
In recognition to the partial fulfillment of DSD Practical [ENP301]
Submitted by
SARANG WANKHEDE[79]
V SEM,SEC A
NIKHIL SAHU [78]
V SEM,SEC A
KUNAL SAHA [81]
V SEM,SEC A
Under the guidance of
Prof. Pankaj Joshi
Dept. of Electronics Engineering, RCOEM
Shri Ramdeobaba College of Engineering and Management,Nagpur
(An autonomous College of Rashtrasant Tukadoji Maharaj Nagpur University)
Department of Electronics Engineering
Year 2014-2015

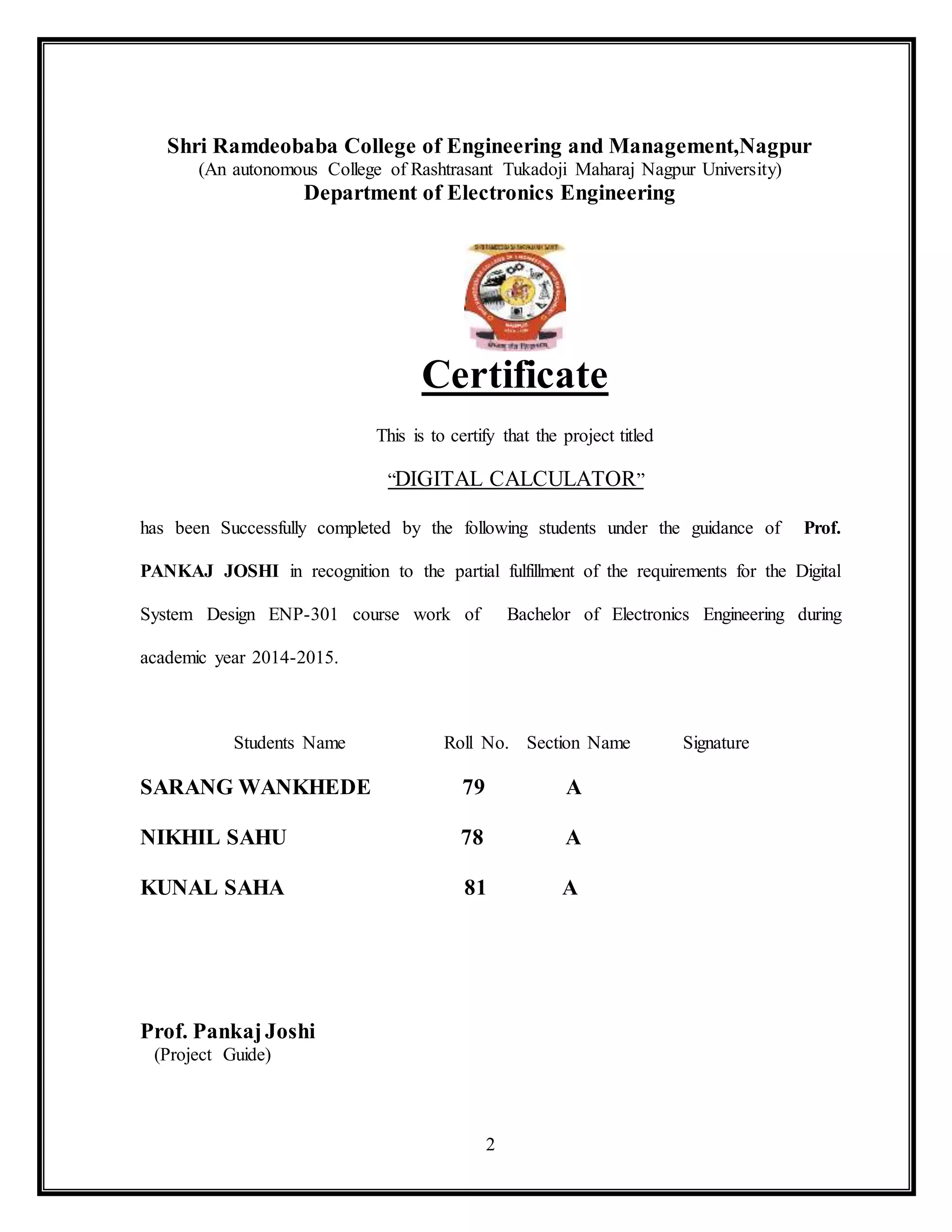

2. 2
Shri Ramdeobaba College of Engineering and Management,Nagpur
(An autonomous College of Rashtrasant Tukadoji Maharaj Nagpur University)
Department of Electronics Engineering
Certificate
This is to certify that the project titled
“DIGITAL CALCULATOR”
has been Successfully completed by the following students under the guidance of Prof.
PANKAJ JOSHI in recognition to the partial fulfillment of the requirements for the Digital
System Design ENP-301 course work of Bachelor of Electronics Engineering during
academic year 2014-2015.
Students Name Roll No. Section Name Signature
SARANG WANKHEDE 79 A
NIKHIL SAHU 78 A
KUNAL SAHA 81 A
Prof. PankajJoshi
(Project Guide)

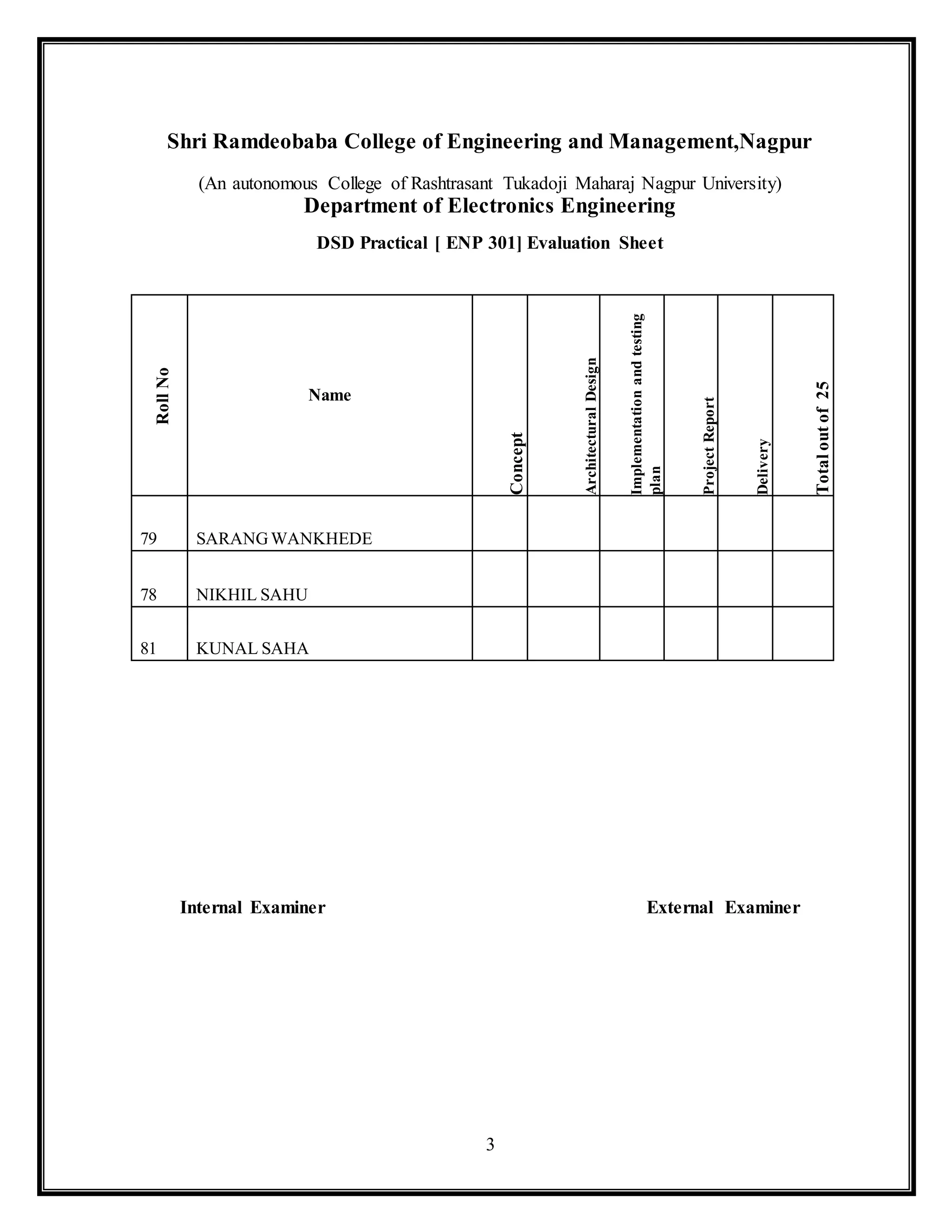

3. 3
Shri Ramdeobaba College of Engineering and Management,Nagpur
(An autonomous College of Rashtrasant Tukadoji Maharaj Nagpur University)
Department of Electronics Engineering
DSD Practical [ ENP 301] Evaluation Sheet
Internal Examiner External Examiner
RollNo
Name
Concept
ArchitecturalDesign
Implementationandtesting
plan
ProjectReport
Delivery
Totaloutof25
79 SARANGWANKHEDE
78 NIKHIL SAHU
81 KUNAL SAHA

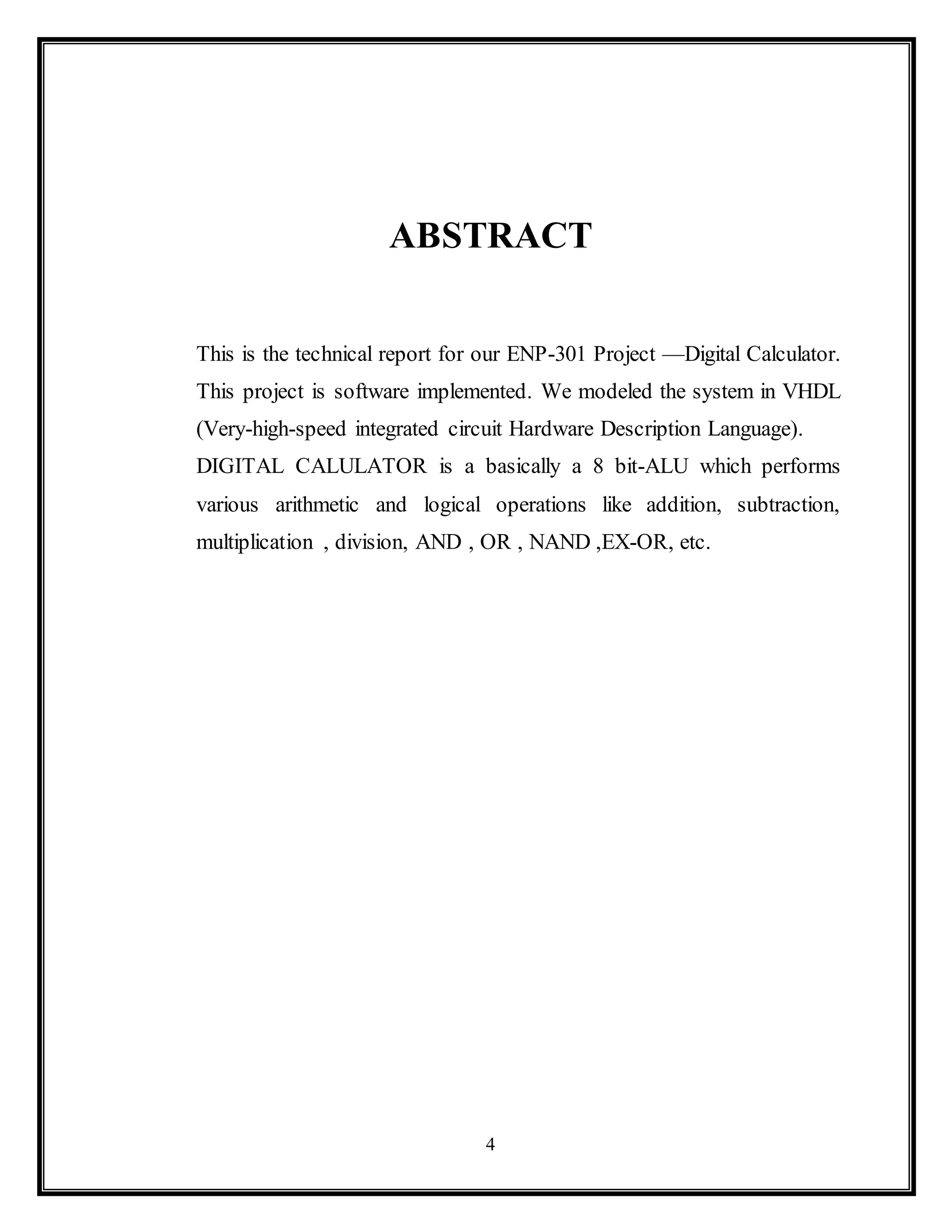

4. 4
ABSTRACT
This is the technical report for our ENP-301 Project —Digital Calculator.
This project is software implemented. We modeled the system in VHDL
(Very-high-speed integrated circuit Hardware Description Language).
DIGITAL CALULATOR is a basically a 8 bit-ALU which performs
various arithmetic and logical operations like addition, subtraction,
multiplication , division, AND , OR , NAND ,EX-OR, etc.
5. 5

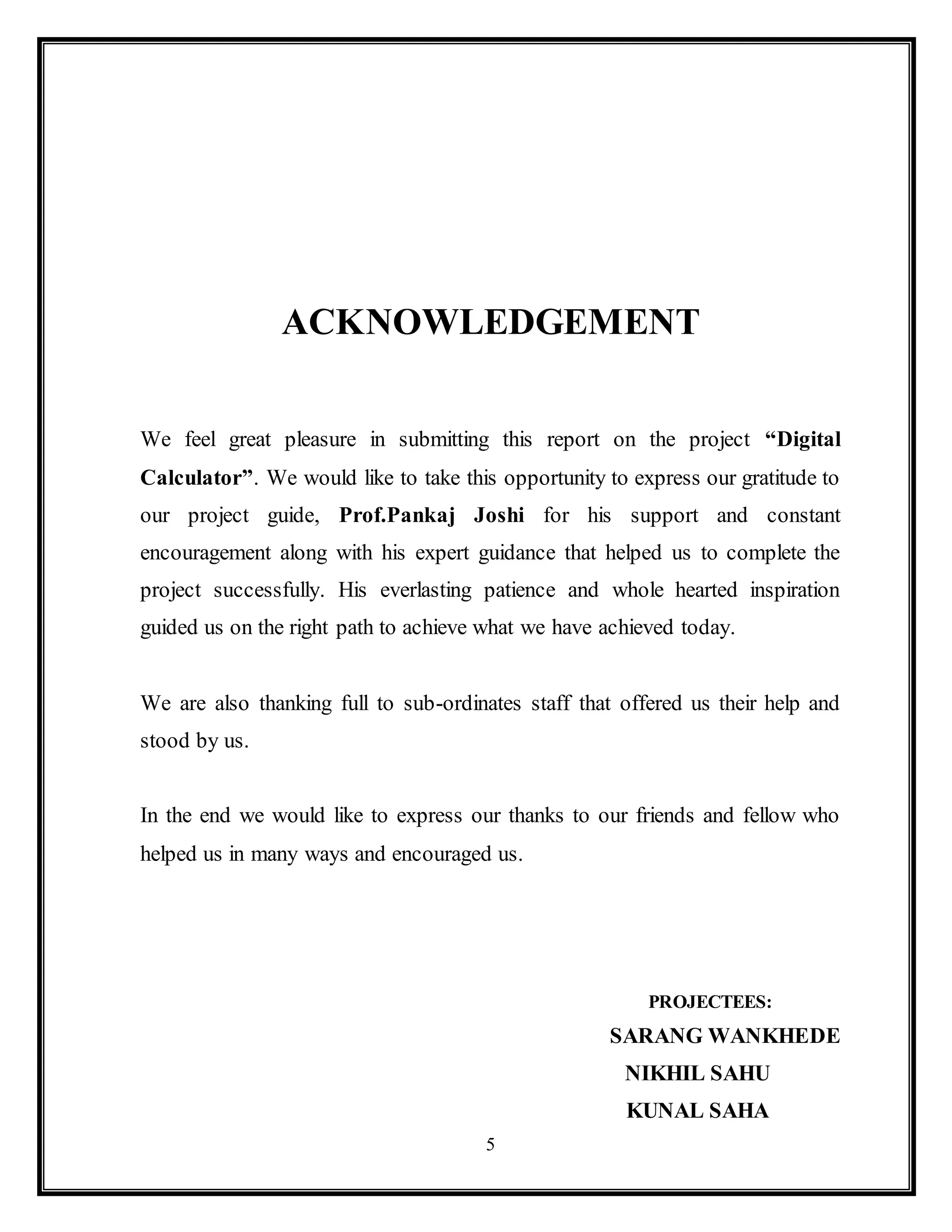

ACKNOWLEDGEMENT
We feel great pleasure in submitting this report on the project “Digital
Calculator”. We would like to take this opportunity to express our gratitude to
our project guide, Prof.Pankaj Joshi for his support and constant
encouragement along with his expert guidance that helped us to complete the
project successfully. His everlasting patience and whole hearted inspiration
guided us on the right path to achieve what we have achieved today.
We are also thanking full to sub-ordinates staff that offered us their help and
stood by us.
In the end we would like to express our thanks to our friends and fellow who
helped us in many ways and encouraged us.
PROJECTEES:
SARANG WANKHEDE
NIKHIL SAHU
KUNAL SAHA

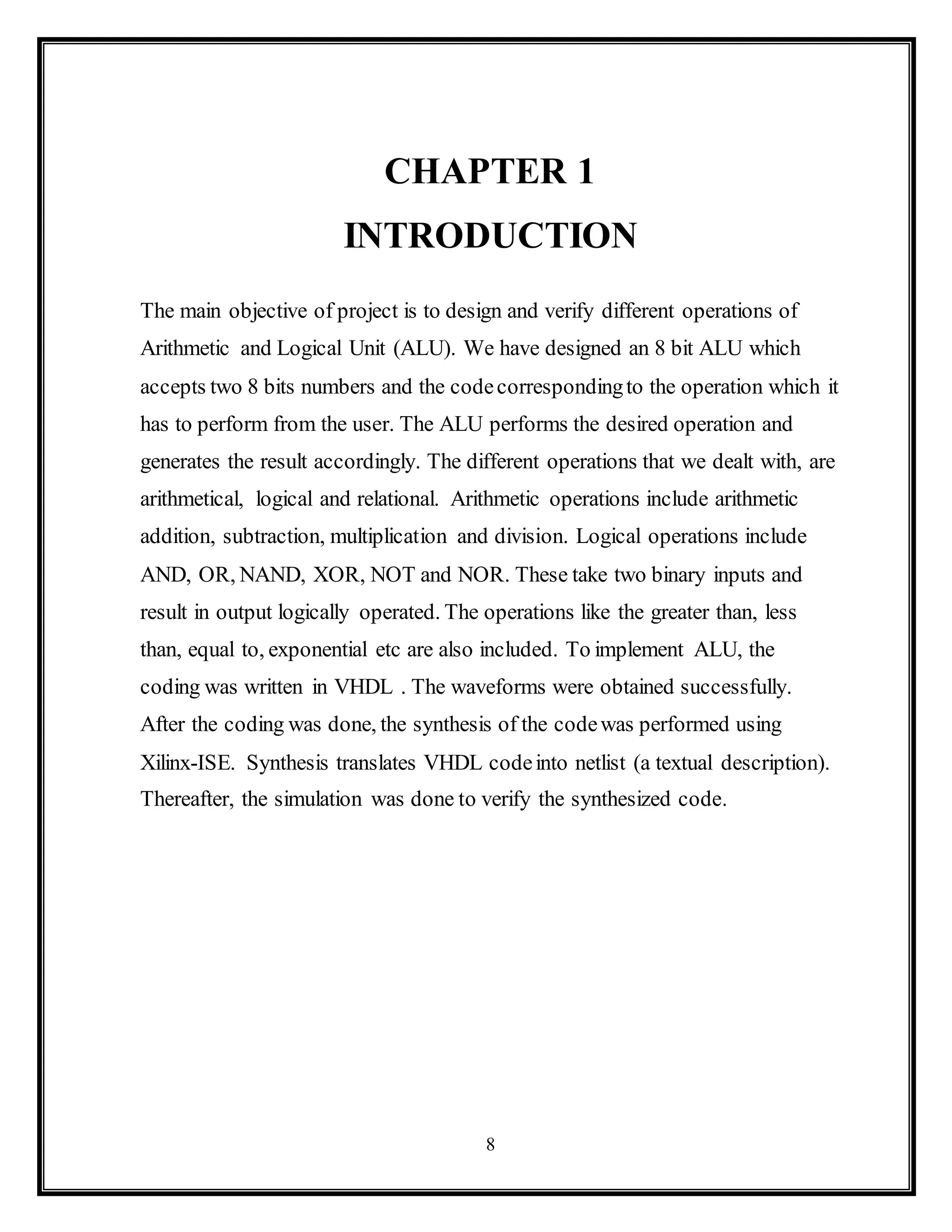

8. 8

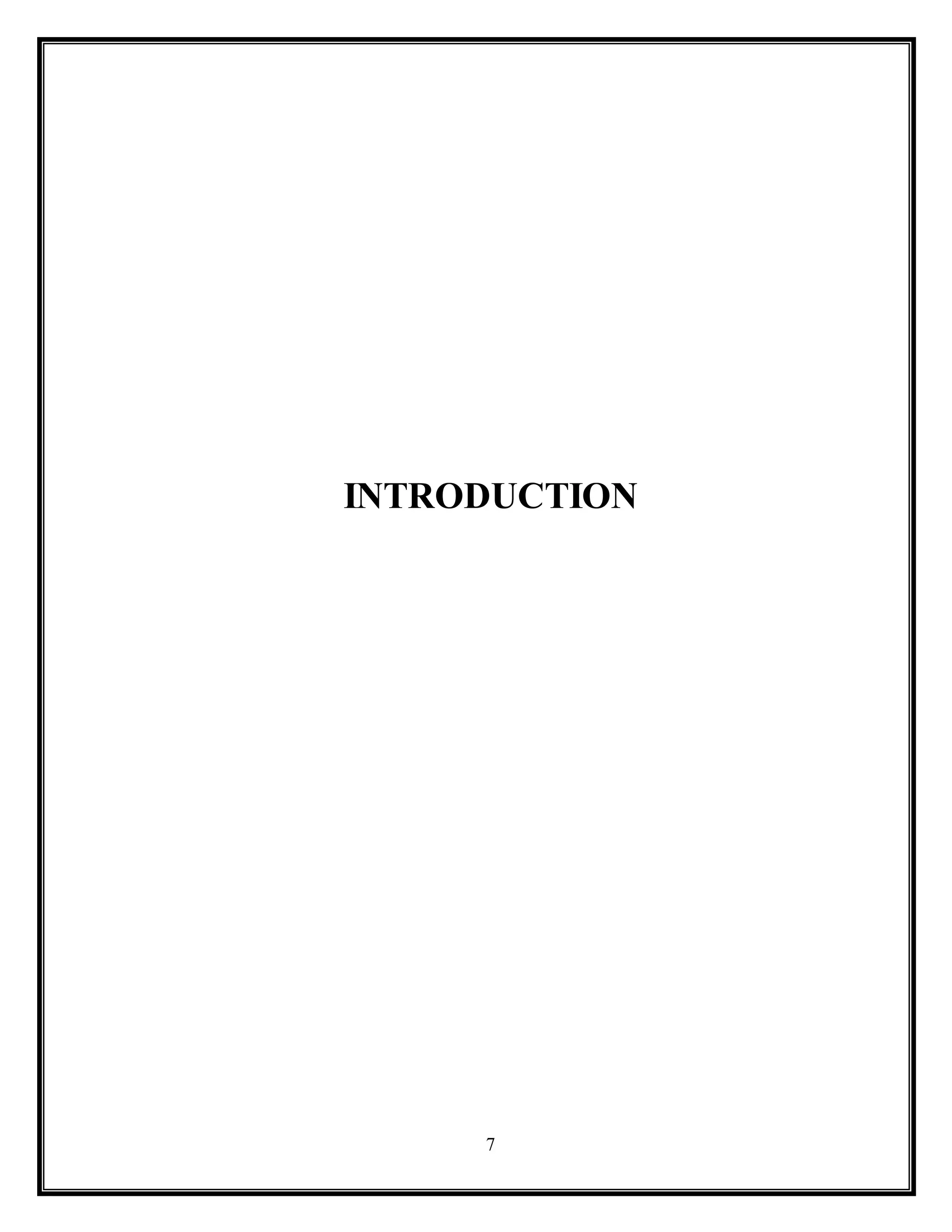

CHAPTER 1
INTRODUCTION
The main objective of project is to design and verify different operations of
Arithmetic and Logical Unit (ALU). We have designed an 8 bit ALU which
accepts two 8 bits numbers and the codecorrespondingto the operation which it
has to perform from the user. The ALU performs the desired operation and
generates the result accordingly. The different operations that we dealt with, are
arithmetical, logical and relational. Arithmetic operations include arithmetic
addition, subtraction, multiplication and division. Logical operations include
AND, OR, NAND, XOR, NOT and NOR. These take two binary inputs and
result in output logically operated. The operations like the greater than, less
than, equal to, exponential etc are also included. To implement ALU, the
coding was written in VHDL . The waveforms were obtained successfully.

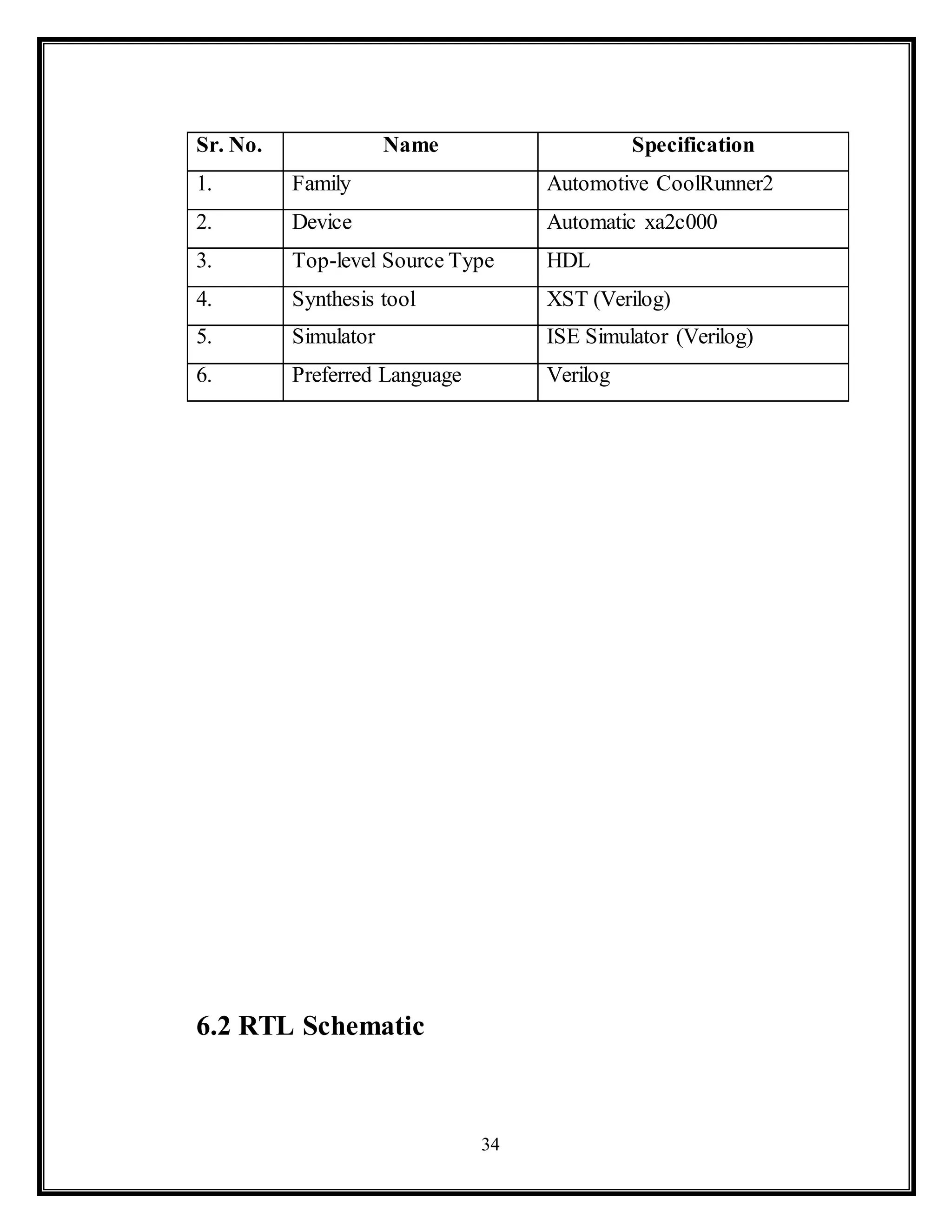

After the coding was done, the synthesis of the codewas performed using
Xilinx-ISE. Synthesis translates VHDL codeinto netlist (a textual description).
Thereafter, the simulation was done to verify the synthesized code.
10. 10

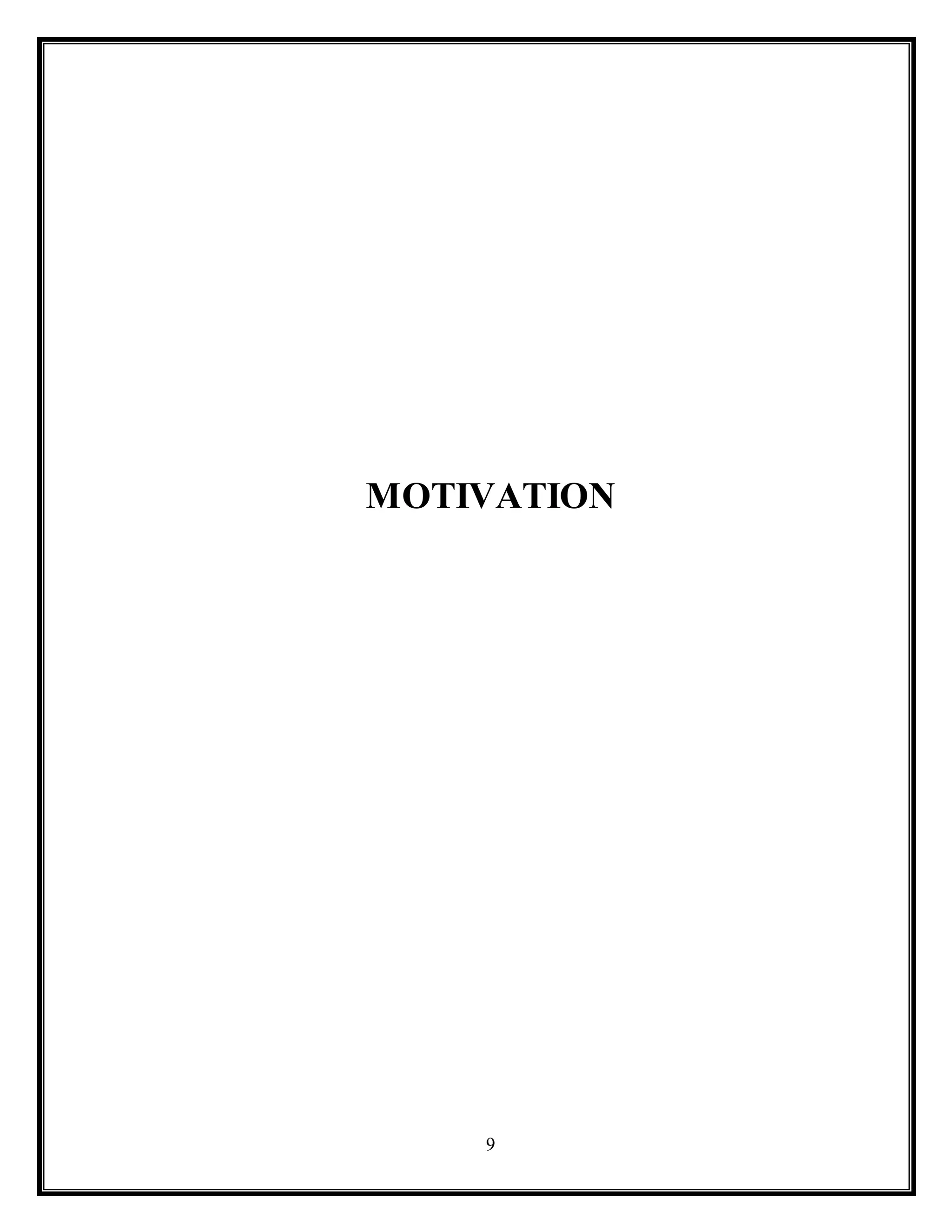

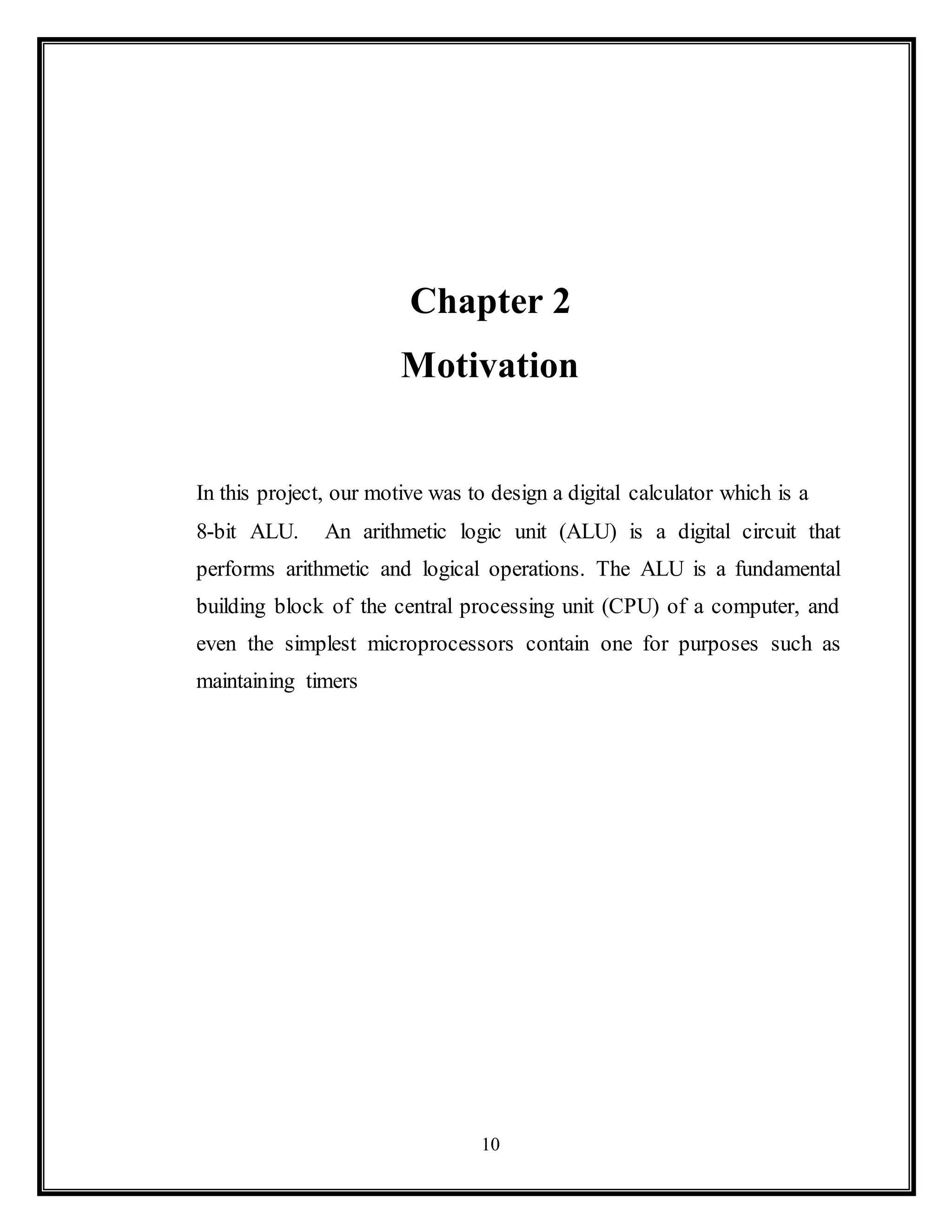

Chapter 2
Motivation
In this project, our motive was to design a digital calculator which is a
8-bit ALU. An arithmetic logic unit (ALU) is a digital circuit that
performs arithmetic and logical operations. The ALU is a fundamental
building block of the central processing unit (CPU) of a computer, and
even the simplest microprocessors contain one for purposes such as
maintaining timers

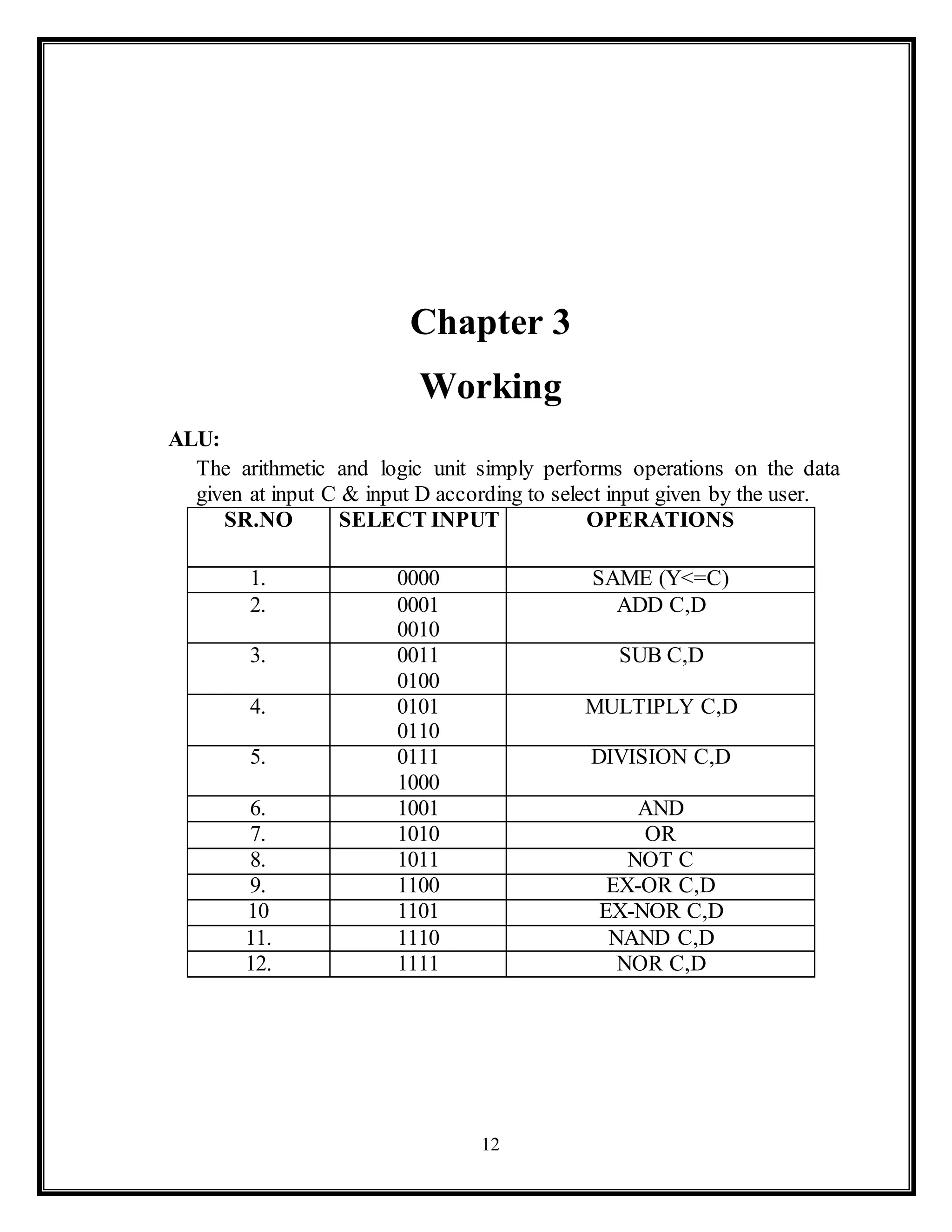

12. 12
Chapter 3
Working

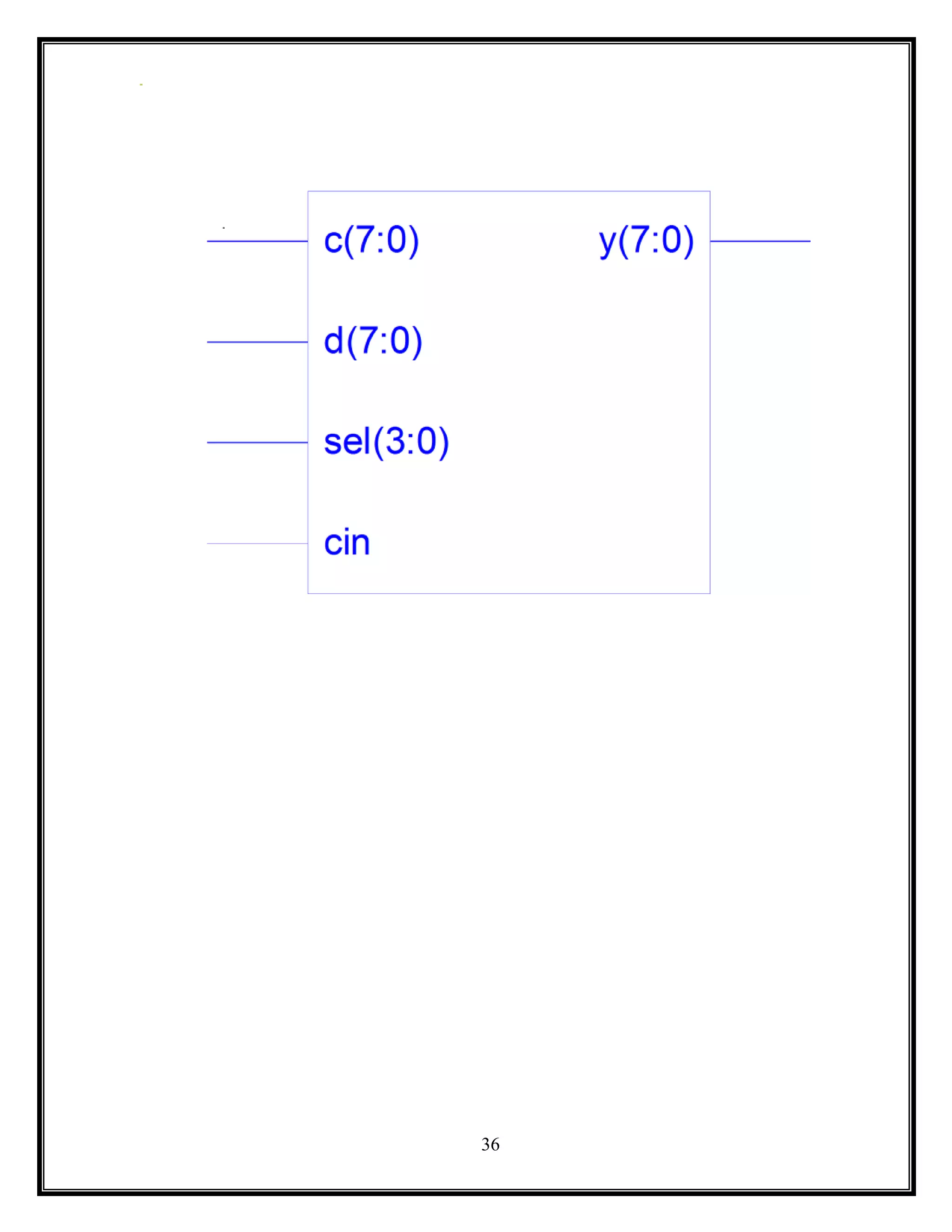

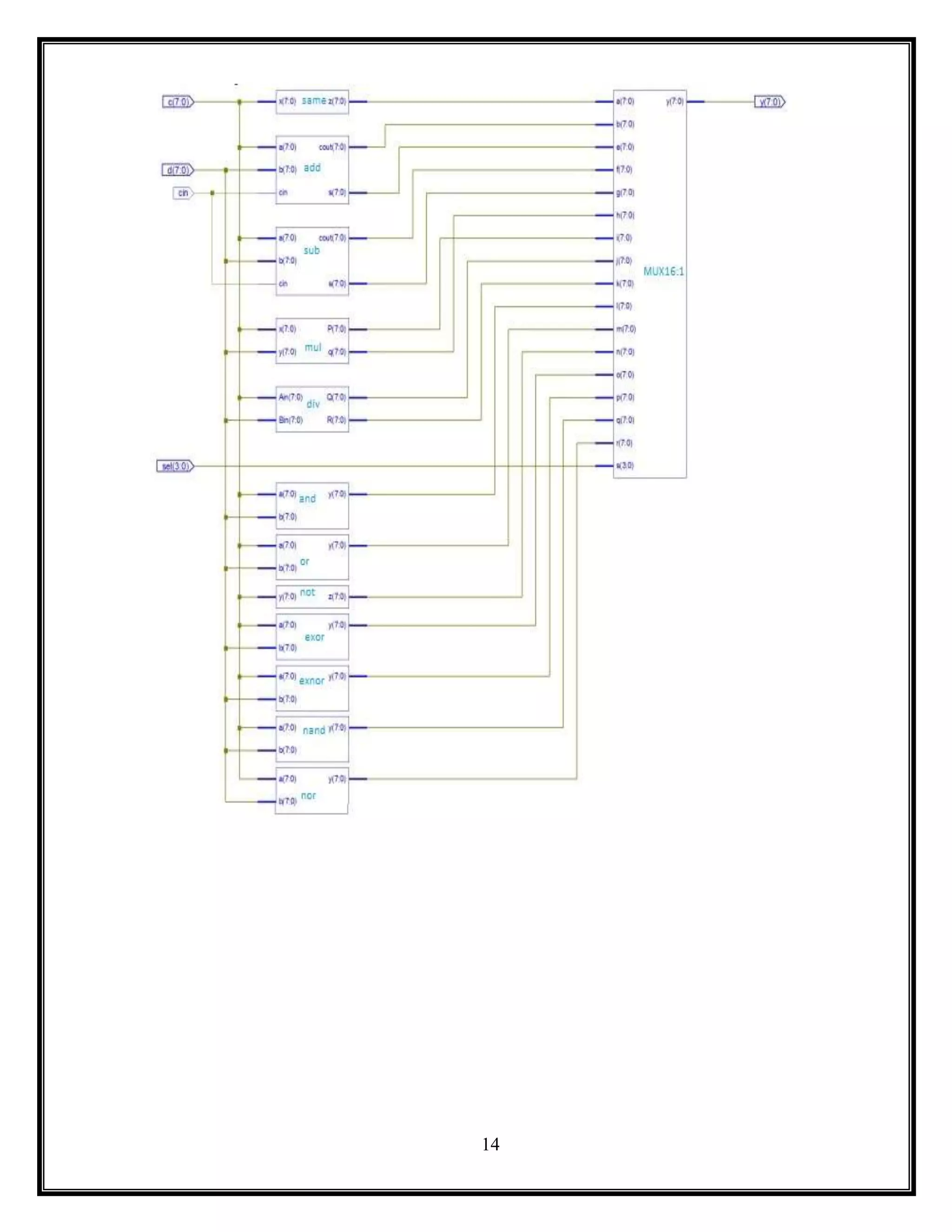

ALU:
The arithmetic and logic unit simply performs operations on the data
given at input C & input D according to select input given by the user.
SR.NO SELECT INPUT OPERATIONS
1. 0000 SAME (Y<=C)
2. 0001
0010
ADD C,D
3. 0011
0100
SUB C,D
4. 0101
0110
MULTIPLY C,D
5. 0111
1000
DIVISION C,D
6. 1001 AND
7. 1010 OR
8. 1011 NOT C
9. 1100 EX-OR C,D
10 1101 EX-NOR C,D
11. 1110 NAND C,D
12. 1111 NOR C,D
15. 15

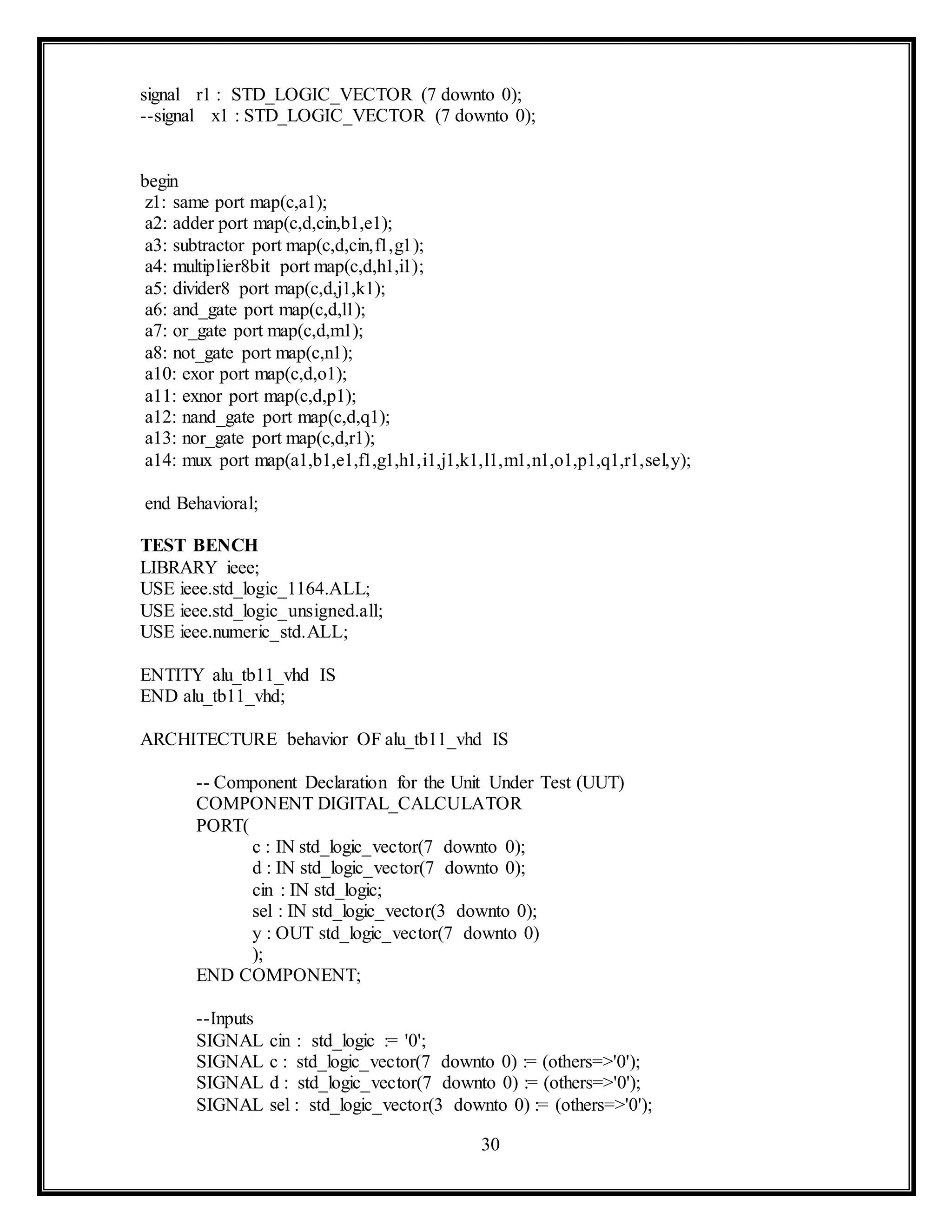

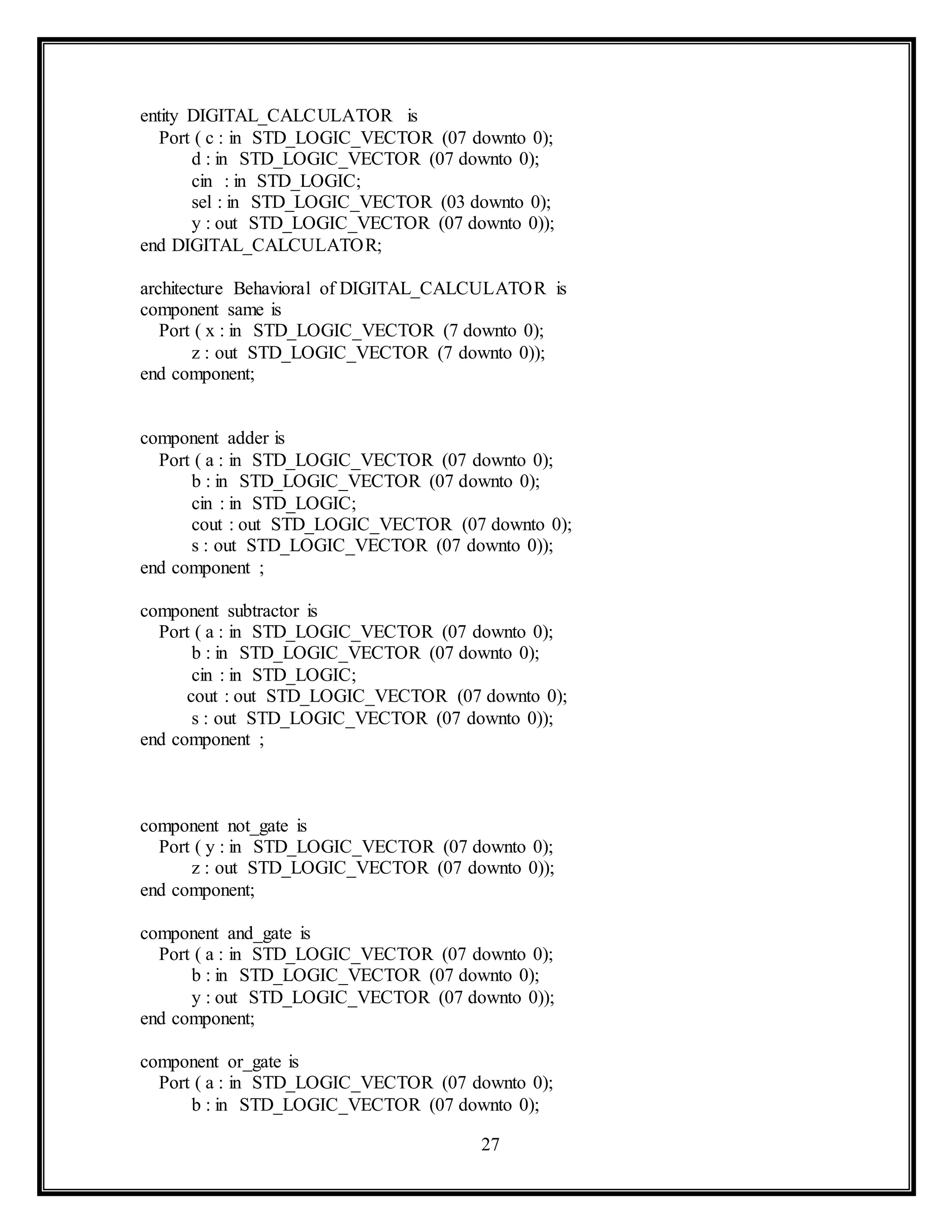

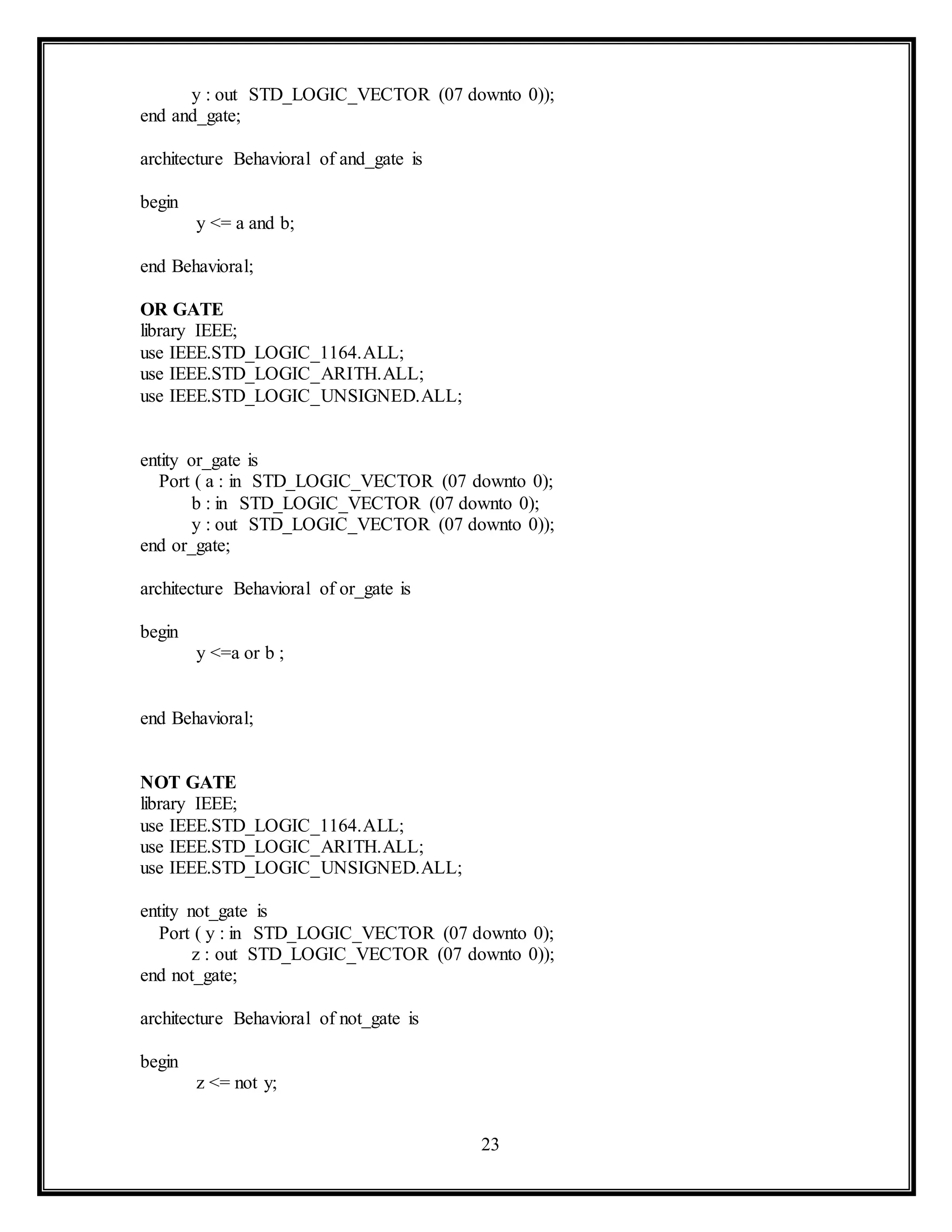

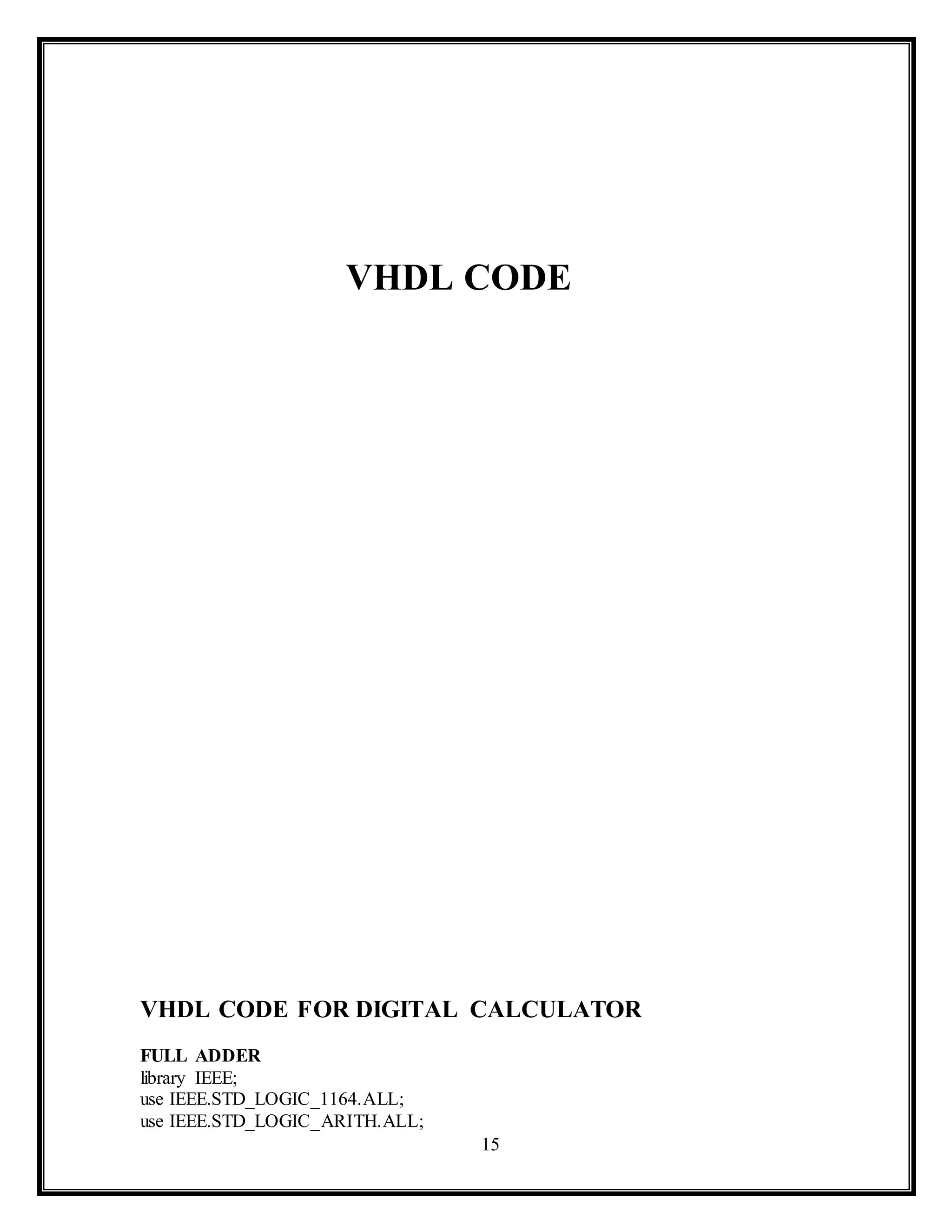

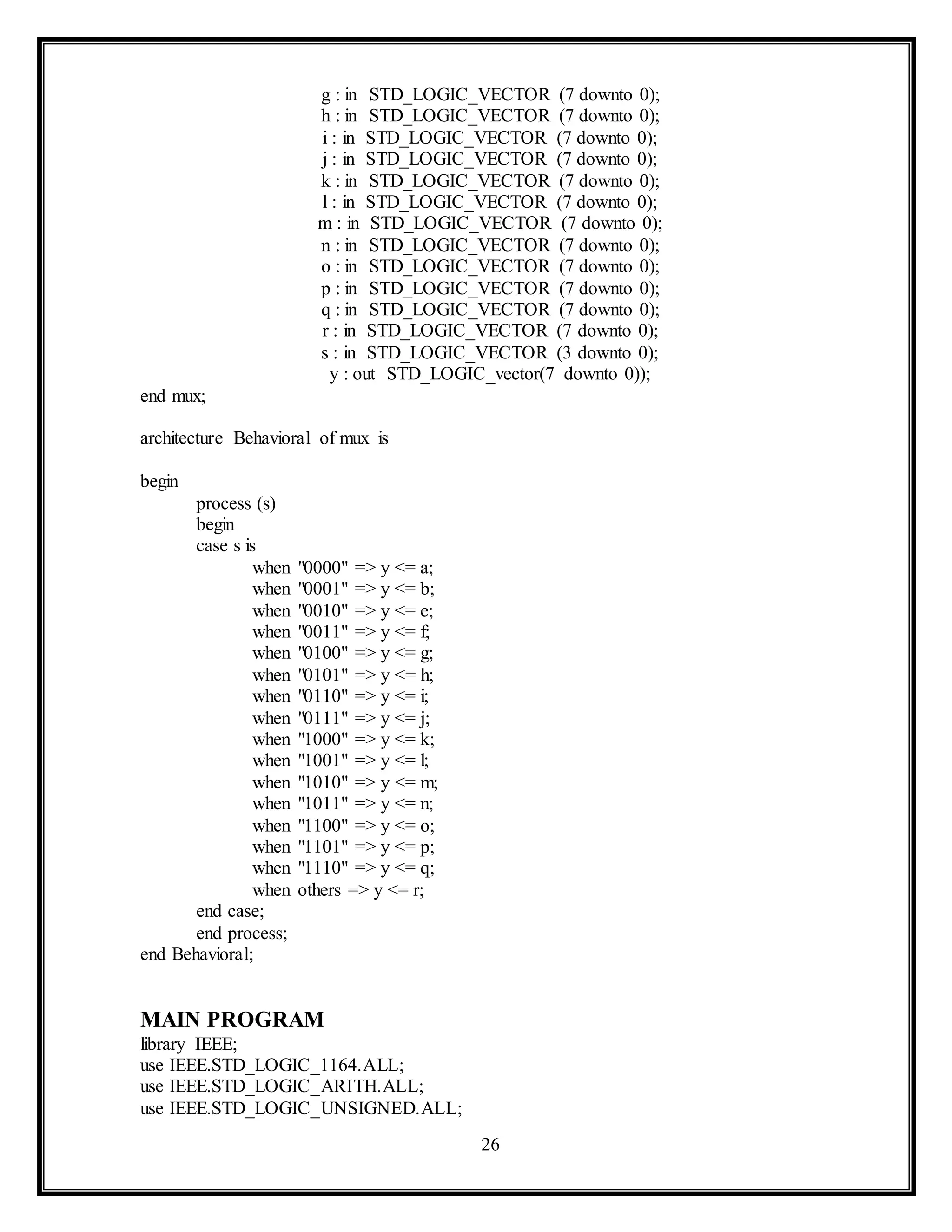

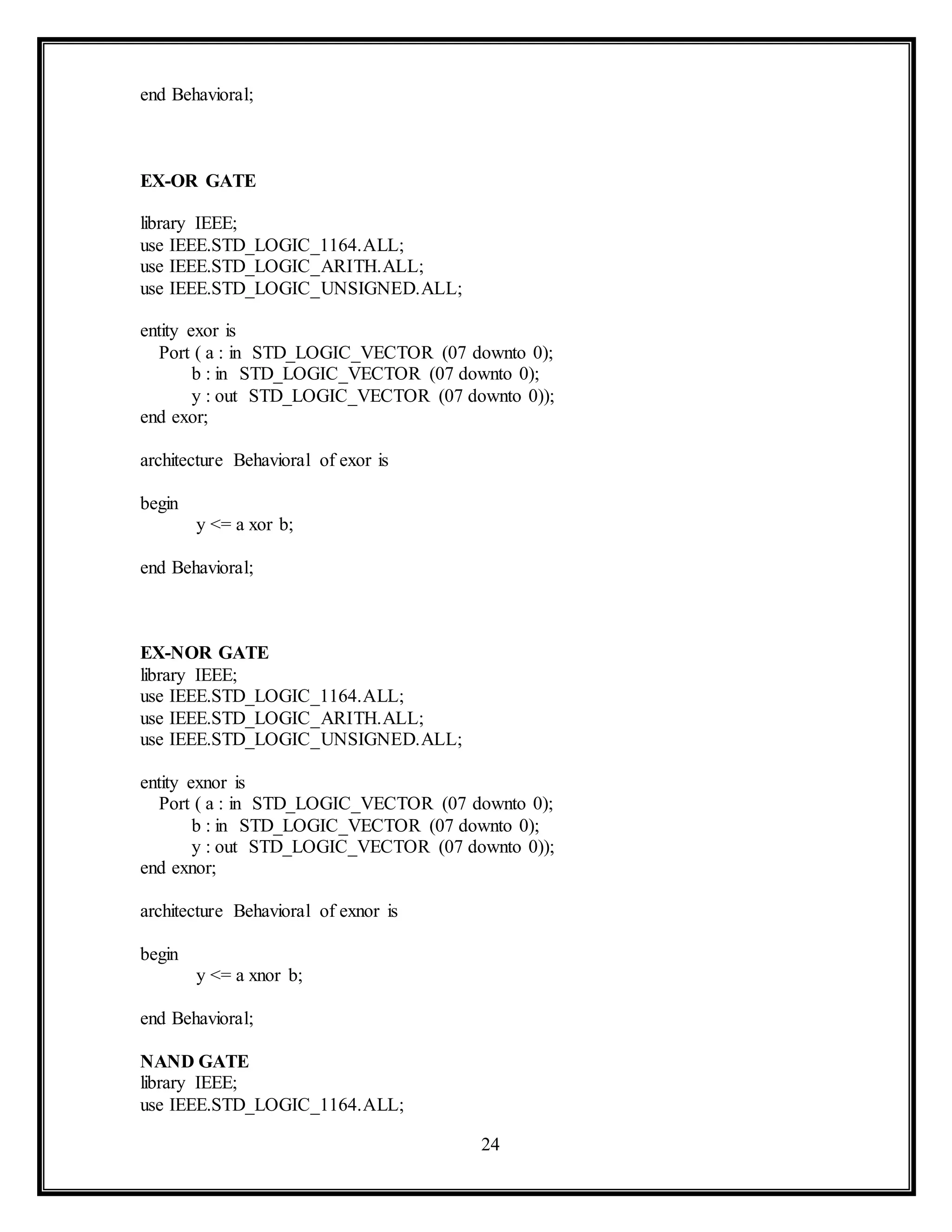

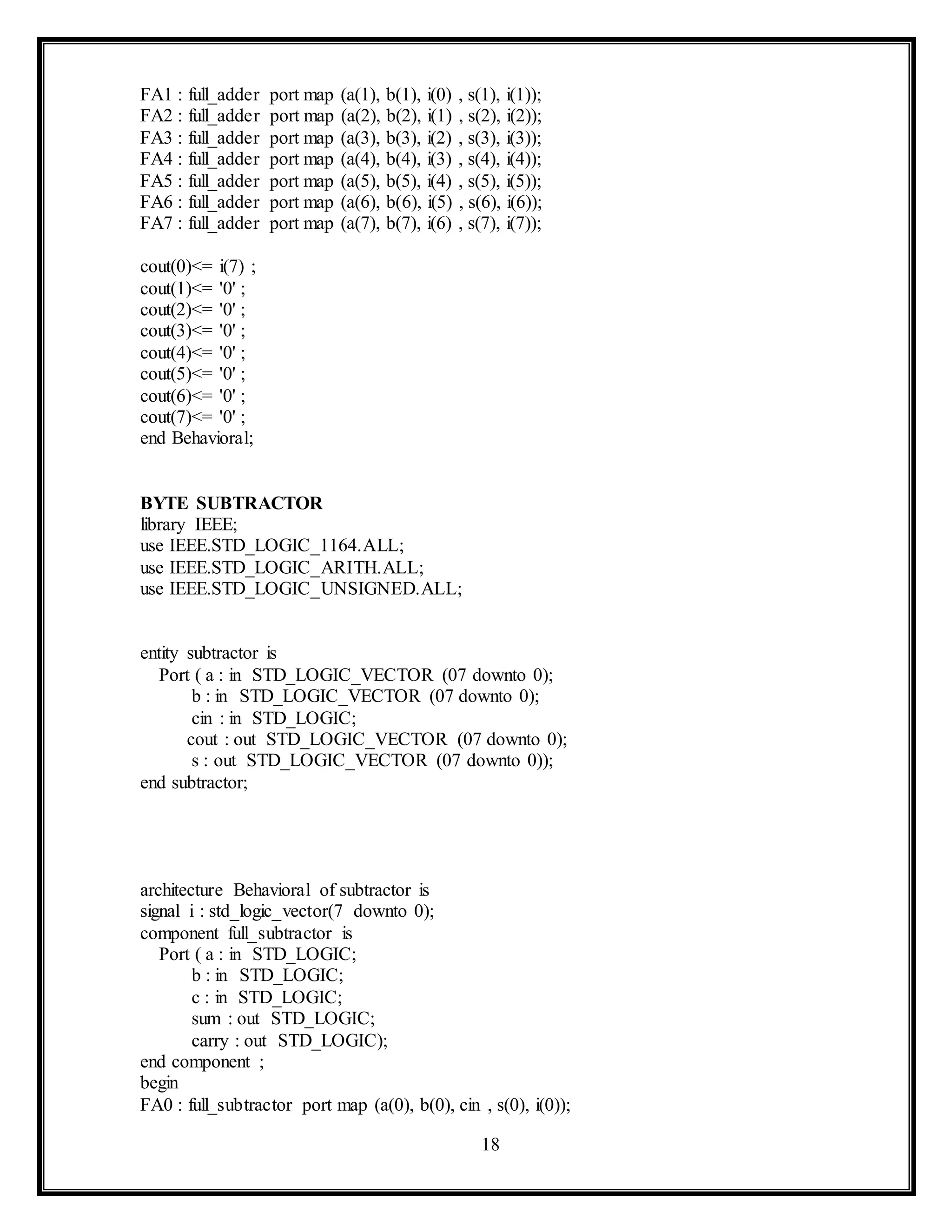

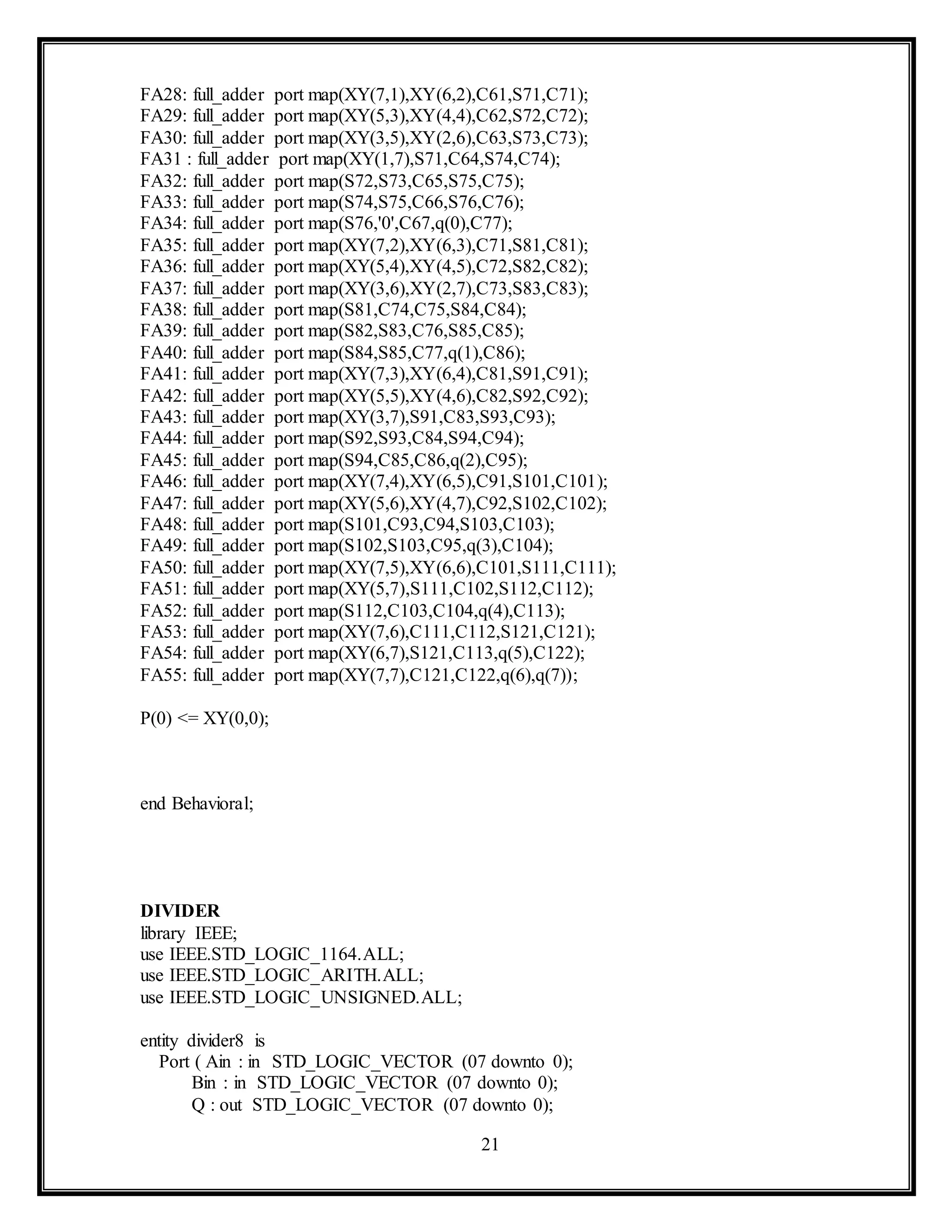

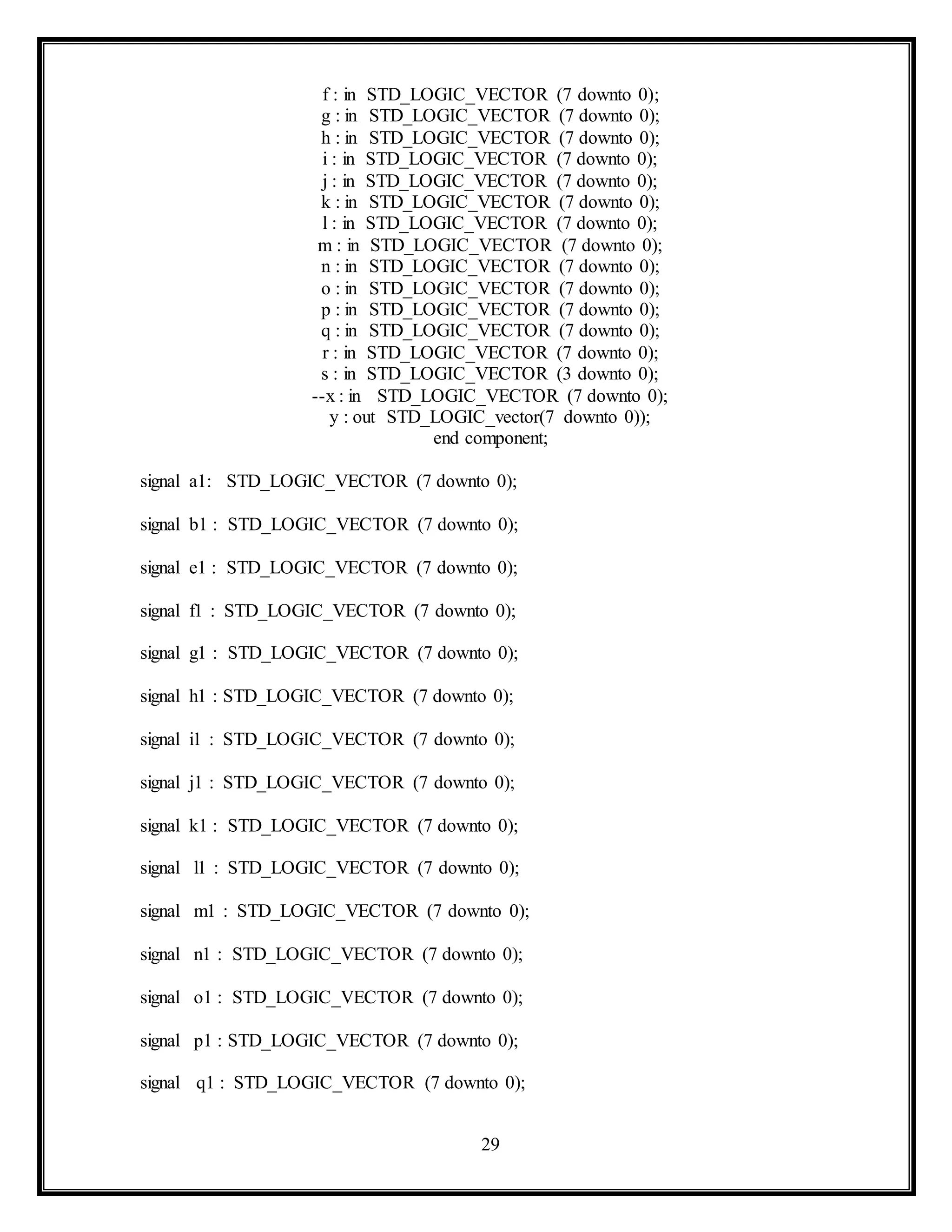

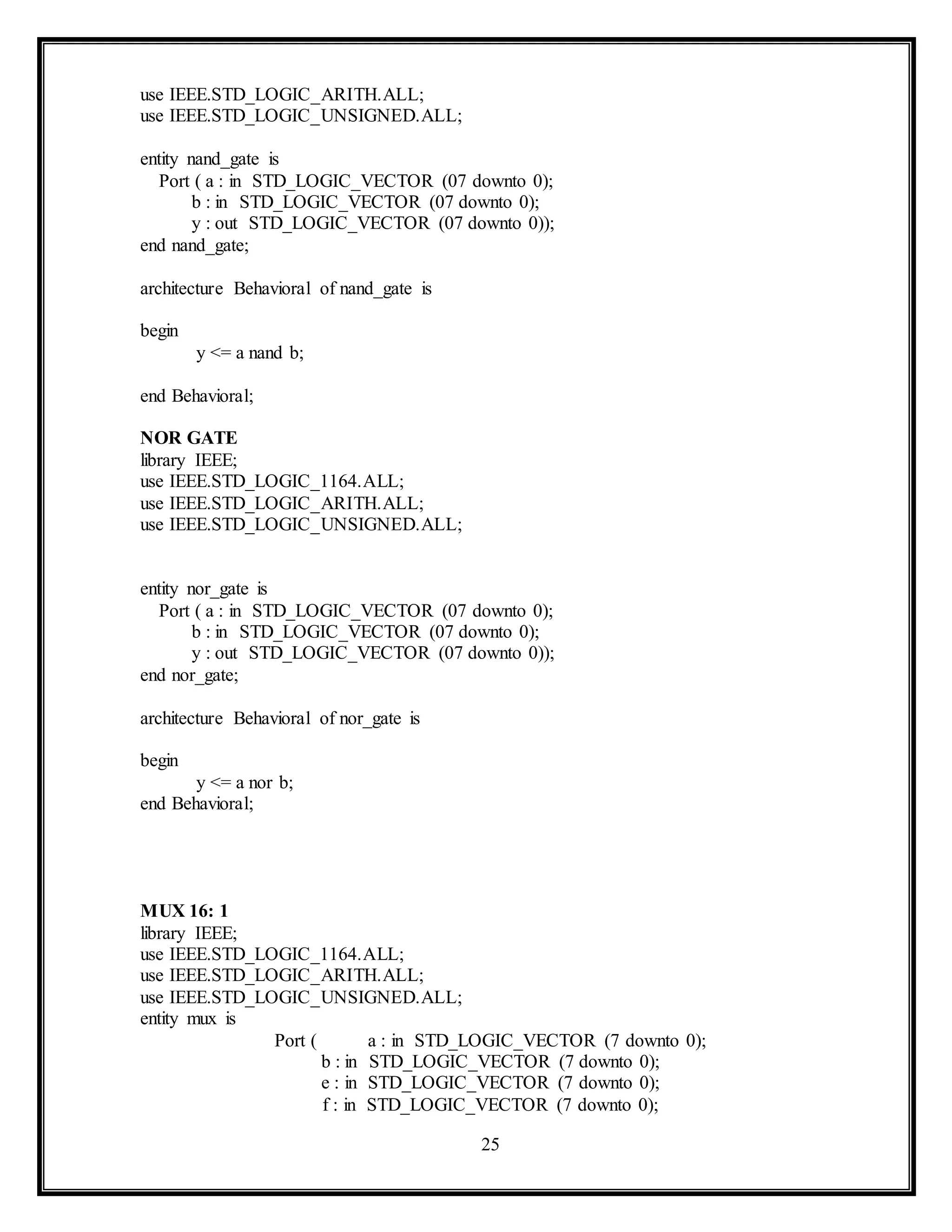

VHDL CODE
VHDL CODE FOR DIGITAL CALCULATOR

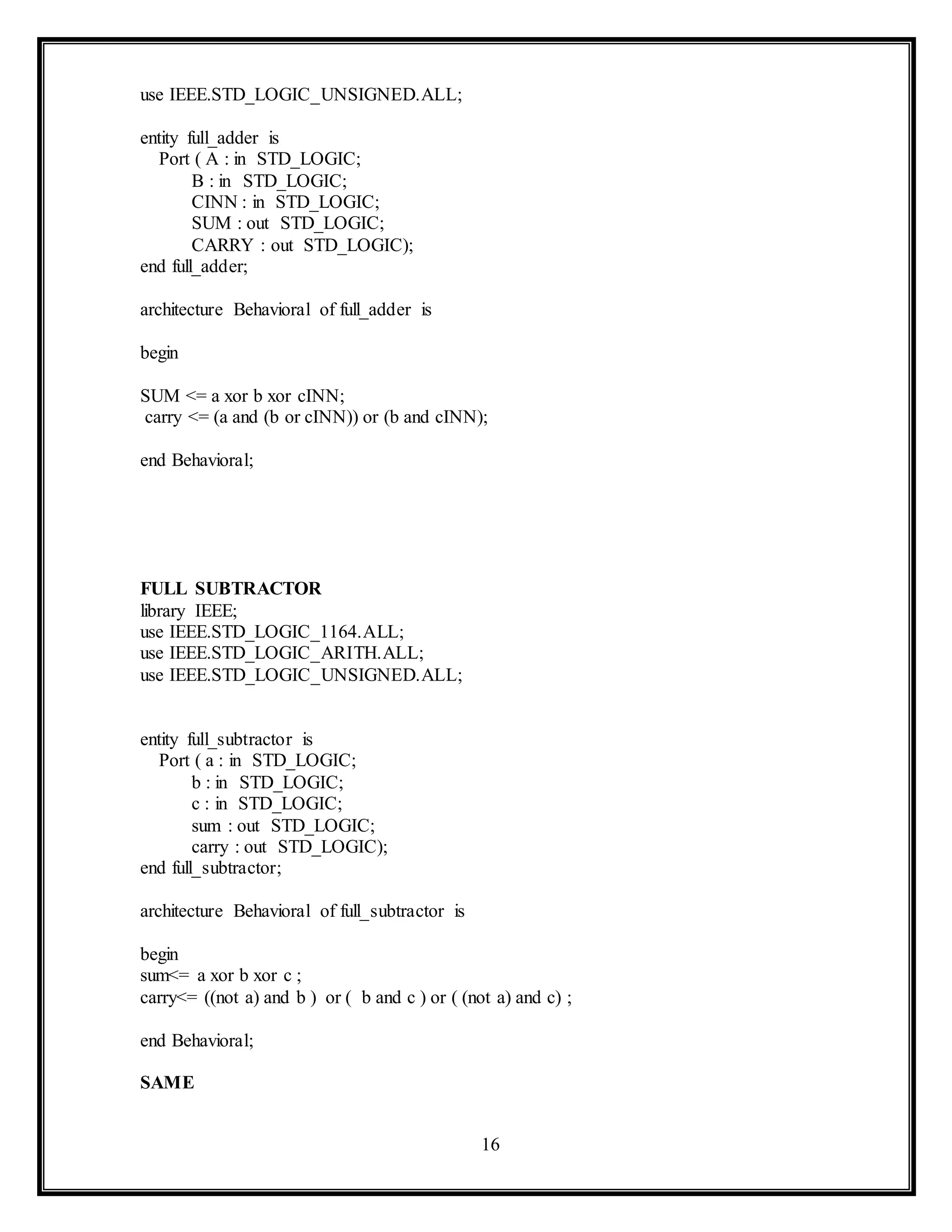

FULL ADDER
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
16. 16
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entity full_adder is
Port ( A : in STD_LOGIC;
B : in STD_LOGIC;
CINN : in STD_LOGIC;
SUM : out STD_LOGIC;
CARRY : out STD_LOGIC);
end full_adder;
architecture Behavioral of full_adder is
begin
SUM <= a xor b xor cINN;
carry <= (a and (b or cINN)) or (b and cINN);
end Behavioral;
FULL SUBTRACTOR
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entity full_subtractor is
Port ( a : in STD_LOGIC;
b : in STD_LOGIC;
c : in STD_LOGIC;
sum : out STD_LOGIC;
carry : out STD_LOGIC);
end full_subtractor;
architecture Behavioral of full_subtractor is
begin
sum<= a xor b xor c ;
carry<= ((not a) and b ) or ( b and c ) or ( (not a) and c) ;
end Behavioral;
SAME
17. 17

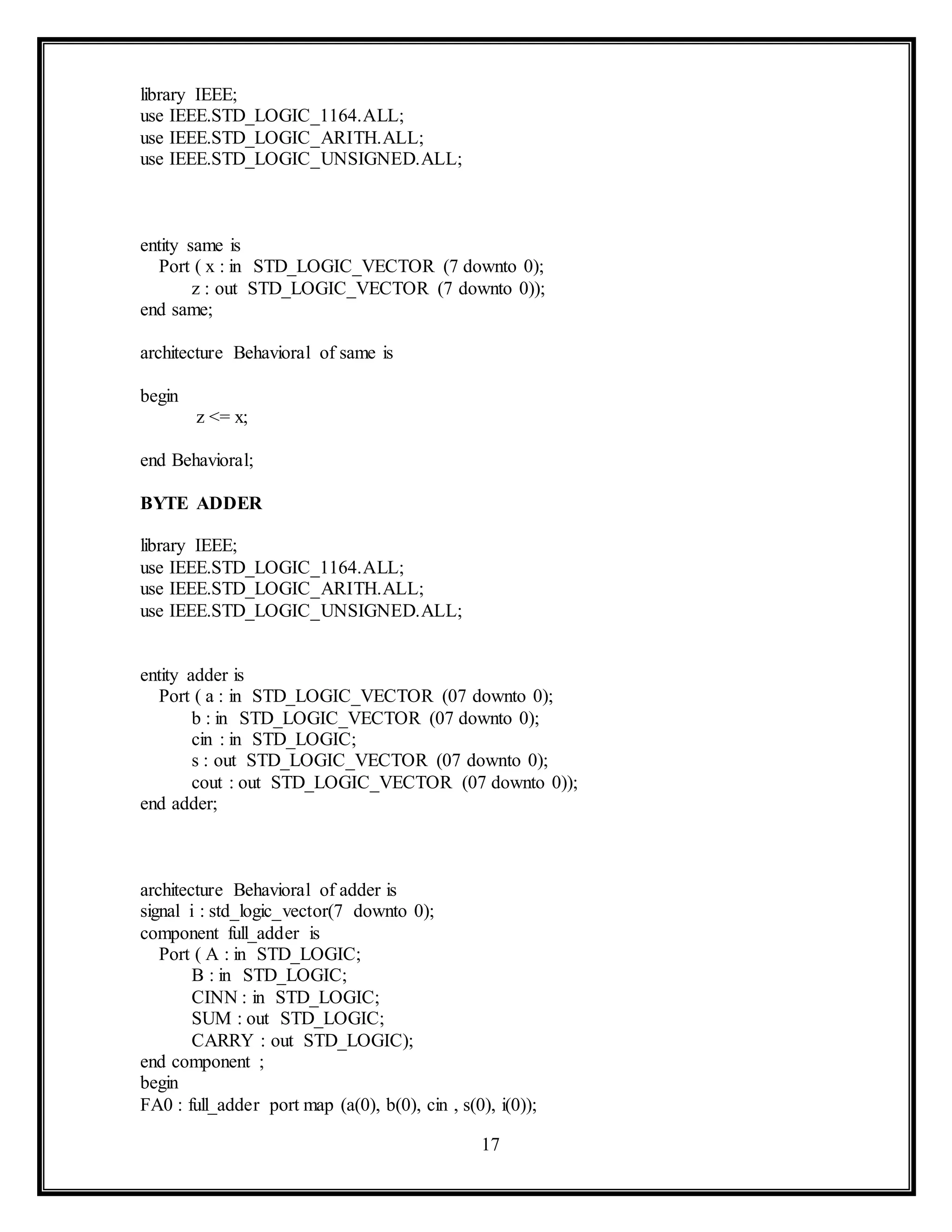

library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entity same is
Port ( x : in STD_LOGIC_VECTOR (7 downto 0);
z : out STD_LOGIC_VECTOR (7 downto 0));
end same;
architecture Behavioral of same is
begin
z <= x;
end Behavioral;
BYTE ADDER
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entity adder is
Port ( a : in STD_LOGIC_VECTOR (07 downto 0);
b : in STD_LOGIC_VECTOR (07 downto 0);
cin : in STD_LOGIC;
s : out STD_LOGIC_VECTOR (07 downto 0);
cout : out STD_LOGIC_VECTOR (07 downto 0));
end adder;
architecture Behavioral of adder is
signal i : std_logic_vector(7 downto 0);
component full_adder is
Port ( A : in STD_LOGIC;
B : in STD_LOGIC;
CINN : in STD_LOGIC;
SUM : out STD_LOGIC;
CARRY : out STD_LOGIC);
end component ;
begin
FA0 : full_adder port map (a(0), b(0), cin , s(0), i(0));
18. 18
FA1 : full_adder port map (a(1), b(1), i(0) , s(1), i(1));
FA2 : full_adder port map (a(2), b(2), i(1) , s(2), i(2));
FA3 : full_adder port map (a(3), b(3), i(2) , s(3), i(3));
FA4 : full_adder port map (a(4), b(4), i(3) , s(4), i(4));
FA5 : full_adder port map (a(5), b(5), i(4) , s(5), i(5));
FA6 : full_adder port map (a(6), b(6), i(5) , s(6), i(6));
FA7 : full_adder port map (a(7), b(7), i(6) , s(7), i(7));
cout(0)<= i(7) ;
cout(1)<= '0' ;
cout(2)<= '0' ;
cout(3)<= '0' ;
cout(4)<= '0' ;
cout(5)<= '0' ;
cout(6)<= '0' ;
cout(7)<= '0' ;
end Behavioral;
BYTE SUBTRACTOR
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entity subtractor is
Port ( a : in STD_LOGIC_VECTOR (07 downto 0);
b : in STD_LOGIC_VECTOR (07 downto 0);
cin : in STD_LOGIC;
cout : out STD_LOGIC_VECTOR (07 downto 0);
s : out STD_LOGIC_VECTOR (07 downto 0));
end subtractor;
architecture Behavioral of subtractor is
signal i : std_logic_vector(7 downto 0);
component full_subtractor is
Port ( a : in STD_LOGIC;
b : in STD_LOGIC;
c : in STD_LOGIC;
sum : out STD_LOGIC;
carry : out STD_LOGIC);
end component ;
begin
FA0 : full_subtractor port map (a(0), b(0), cin , s(0), i(0));

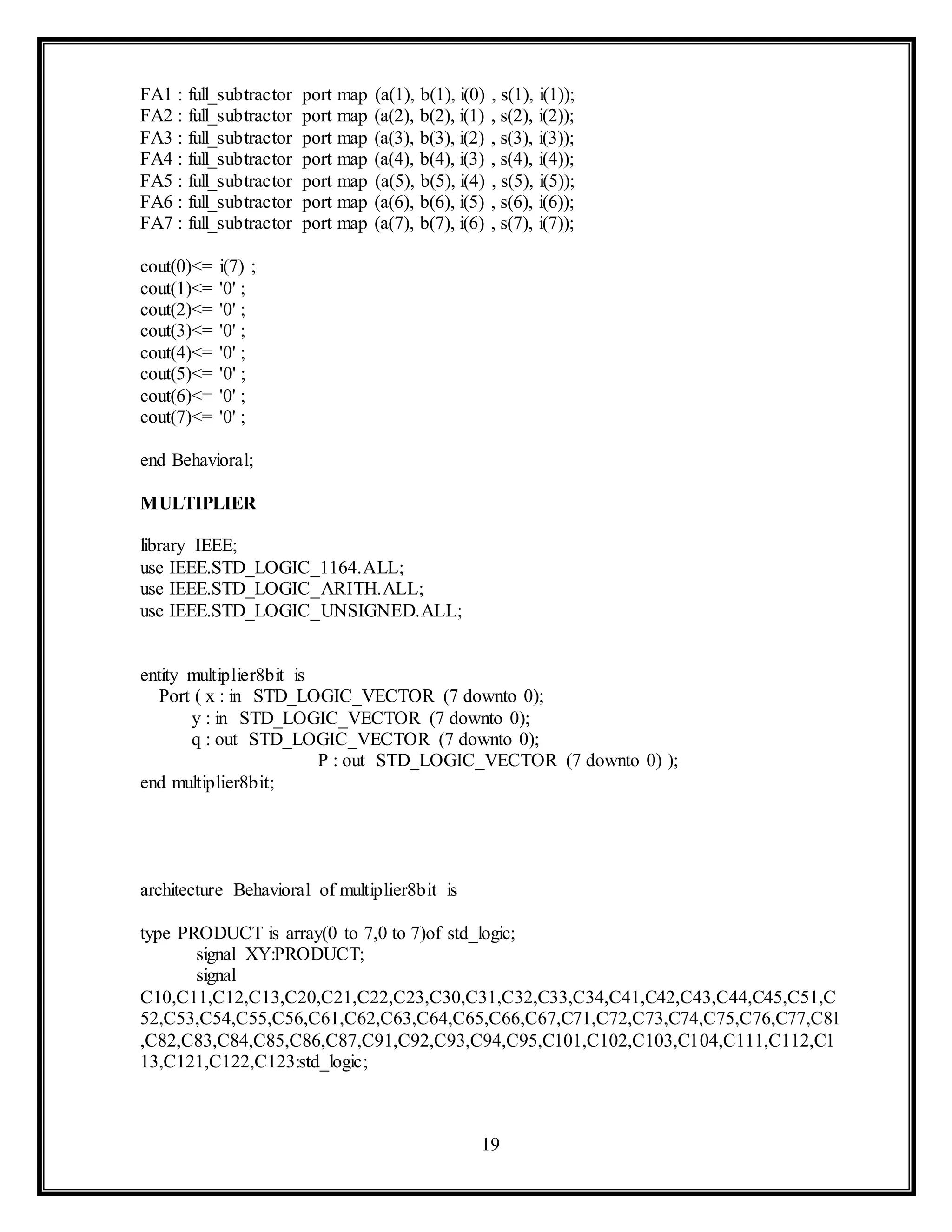

19. 19
FA1 : full_subtractor port map (a(1), b(1), i(0) , s(1), i(1));
FA2 : full_subtractor port map (a(2), b(2), i(1) , s(2), i(2));
FA3 : full_subtractor port map (a(3), b(3), i(2) , s(3), i(3));
FA4 : full_subtractor port map (a(4), b(4), i(3) , s(4), i(4));
FA5 : full_subtractor port map (a(5), b(5), i(4) , s(5), i(5));
FA6 : full_subtractor port map (a(6), b(6), i(5) , s(6), i(6));
FA7 : full_subtractor port map (a(7), b(7), i(6) , s(7), i(7));
cout(0)<= i(7) ;
cout(1)<= '0' ;
cout(2)<= '0' ;
cout(3)<= '0' ;
cout(4)<= '0' ;
cout(5)<= '0' ;
cout(6)<= '0' ;
cout(7)<= '0' ;
end Behavioral;
MULTIPLIER
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entity multiplier8bit is
Port ( x : in STD_LOGIC_VECTOR (7 downto 0);
y : in STD_LOGIC_VECTOR (7 downto 0);
q : out STD_LOGIC_VECTOR (7 downto 0);
P : out STD_LOGIC_VECTOR (7 downto 0) );
end multiplier8bit;
architecture Behavioral of multiplier8bit is
type PRODUCT is array(0 to 7,0 to 7)of std_logic;
signal XY:PRODUCT;
signal
C10,C11,C12,C13,C20,C21,C22,C23,C30,C31,C32,C33,C34,C41,C42,C43,C44,C45,C51,C
52,C53,C54,C55,C56,C61,C62,C63,C64,C65,C66,C67,C71,C72,C73,C74,C75,C76,C77,C81
,C82,C83,C84,C85,C86,C87,C91,C92,C93,C94,C95,C101,C102,C103,C104,C111,C112,C1
13,C121,C122,C123:std_logic;
20. 20

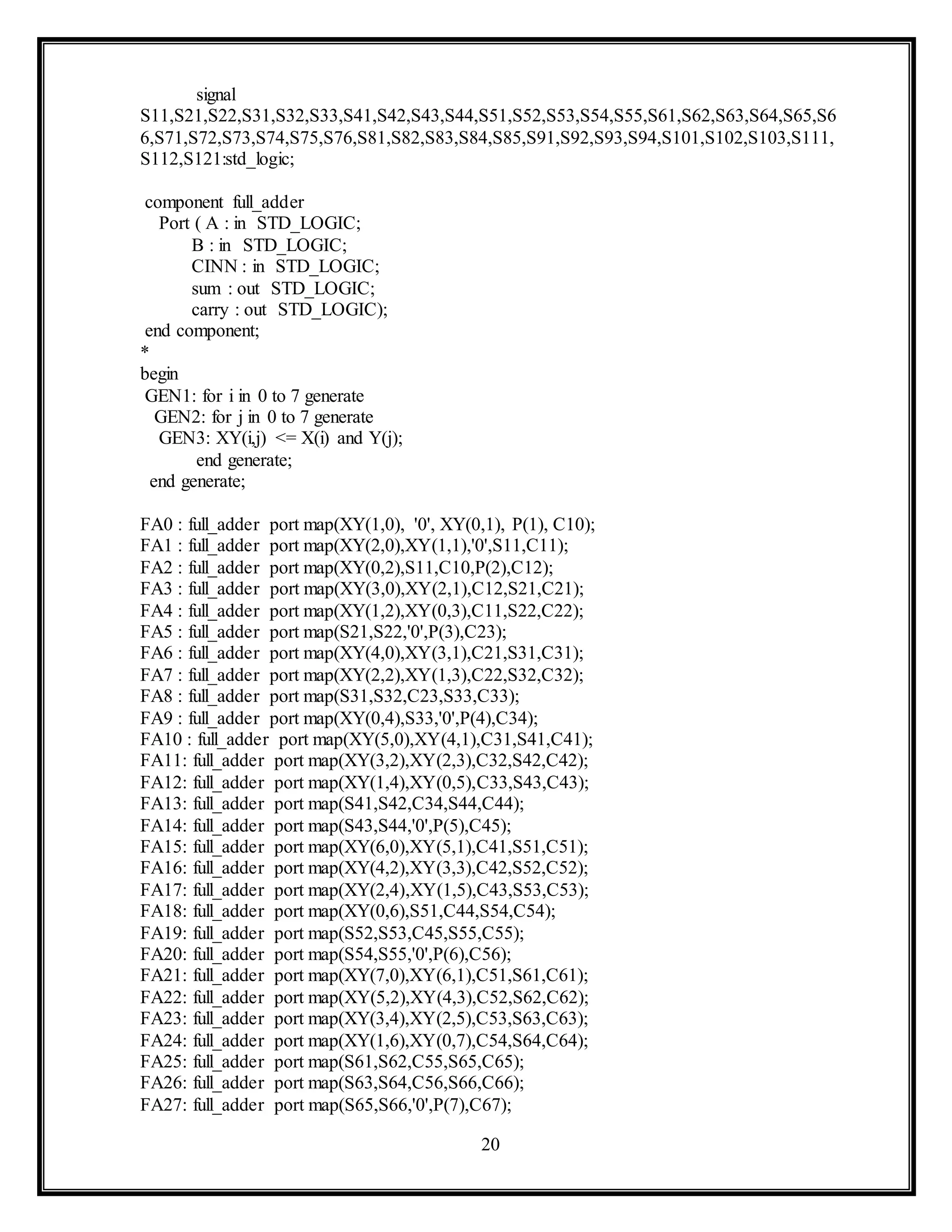

signal
S11,S21,S22,S31,S32,S33,S41,S42,S43,S44,S51,S52,S53,S54,S55,S61,S62,S63,S64,S65,S6
6,S71,S72,S73,S74,S75,S76,S81,S82,S83,S84,S85,S91,S92,S93,S94,S101,S102,S103,S111,
S112,S121:std_logic;
component full_adder
Port ( A : in STD_LOGIC;
B : in STD_LOGIC;
CINN : in STD_LOGIC;
sum : out STD_LOGIC;
carry : out STD_LOGIC);
end component;
*
begin
GEN1: for i in 0 to 7 generate
GEN2: for j in 0 to 7 generate
GEN3: XY(i,j) <= X(i) and Y(j);
end generate;
end generate;
FA0 : full_adder port map(XY(1,0), '0', XY(0,1), P(1), C10);
FA1 : full_adder port map(XY(2,0),XY(1,1),'0',S11,C11);
FA2 : full_adder port map(XY(0,2),S11,C10,P(2),C12);
FA3 : full_adder port map(XY(3,0),XY(2,1),C12,S21,C21);
FA4 : full_adder port map(XY(1,2),XY(0,3),C11,S22,C22);
FA5 : full_adder port map(S21,S22,'0',P(3),C23);
FA6 : full_adder port map(XY(4,0),XY(3,1),C21,S31,C31);
FA7 : full_adder port map(XY(2,2),XY(1,3),C22,S32,C32);
FA8 : full_adder port map(S31,S32,C23,S33,C33);
FA9 : full_adder port map(XY(0,4),S33,'0',P(4),C34);
FA10 : full_adder port map(XY(5,0),XY(4,1),C31,S41,C41);
FA11: full_adder port map(XY(3,2),XY(2,3),C32,S42,C42);
FA12: full_adder port map(XY(1,4),XY(0,5),C33,S43,C43);
FA13: full_adder port map(S41,S42,C34,S44,C44);
FA14: full_adder port map(S43,S44,'0',P(5),C45);
FA15: full_adder port map(XY(6,0),XY(5,1),C41,S51,C51);
FA16: full_adder port map(XY(4,2),XY(3,3),C42,S52,C52);
FA17: full_adder port map(XY(2,4),XY(1,5),C43,S53,C53);
FA18: full_adder port map(XY(0,6),S51,C44,S54,C54);
FA19: full_adder port map(S52,S53,C45,S55,C55);
FA20: full_adder port map(S54,S55,'0',P(6),C56);
FA21: full_adder port map(XY(7,0),XY(6,1),C51,S61,C61);
FA22: full_adder port map(XY(5,2),XY(4,3),C52,S62,C62);
FA23: full_adder port map(XY(3,4),XY(2,5),C53,S63,C63);
FA24: full_adder port map(XY(1,6),XY(0,7),C54,S64,C64);
FA25: full_adder port map(S61,S62,C55,S65,C65);
FA26: full_adder port map(S63,S64,C56,S66,C66);
FA27: full_adder port map(S65,S66,'0',P(7),C67);
21. 21
FA28: full_adder port map(XY(7,1),XY(6,2),C61,S71,C71);
FA29: full_adder port map(XY(5,3),XY(4,4),C62,S72,C72);
FA30: full_adder port map(XY(3,5),XY(2,6),C63,S73,C73);
FA31 : full_adder port map(XY(1,7),S71,C64,S74,C74);
FA32: full_adder port map(S72,S73,C65,S75,C75);
FA33: full_adder port map(S74,S75,C66,S76,C76);
FA34: full_adder port map(S76,'0',C67,q(0),C77);
FA35: full_adder port map(XY(7,2),XY(6,3),C71,S81,C81);
FA36: full_adder port map(XY(5,4),XY(4,5),C72,S82,C82);
FA37: full_adder port map(XY(3,6),XY(2,7),C73,S83,C83);
FA38: full_adder port map(S81,C74,C75,S84,C84);
FA39: full_adder port map(S82,S83,C76,S85,C85);
FA40: full_adder port map(S84,S85,C77,q(1),C86);
FA41: full_adder port map(XY(7,3),XY(6,4),C81,S91,C91);
FA42: full_adder port map(XY(5,5),XY(4,6),C82,S92,C92);
FA43: full_adder port map(XY(3,7),S91,C83,S93,C93);
FA44: full_adder port map(S92,S93,C84,S94,C94);
FA45: full_adder port map(S94,C85,C86,q(2),C95);
FA46: full_adder port map(XY(7,4),XY(6,5),C91,S101,C101);
FA47: full_adder port map(XY(5,6),XY(4,7),C92,S102,C102);
FA48: full_adder port map(S101,C93,C94,S103,C103);
FA49: full_adder port map(S102,S103,C95,q(3),C104);
FA50: full_adder port map(XY(7,5),XY(6,6),C101,S111,C111);
FA51: full_adder port map(XY(5,7),S111,C102,S112,C112);
FA52: full_adder port map(S112,C103,C104,q(4),C113);
FA53: full_adder port map(XY(7,6),C111,C112,S121,C121);
FA54: full_adder port map(XY(6,7),S121,C113,q(5),C122);
FA55: full_adder port map(XY(7,7),C121,C122,q(6),q(7));
P(0) <= XY(0,0);
end Behavioral;
DIVIDER
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entity divider8 is
Port ( Ain : in STD_LOGIC_VECTOR (07 downto 0);
Bin : in STD_LOGIC_VECTOR (07 downto 0);
Q : out STD_LOGIC_VECTOR (07 downto 0);

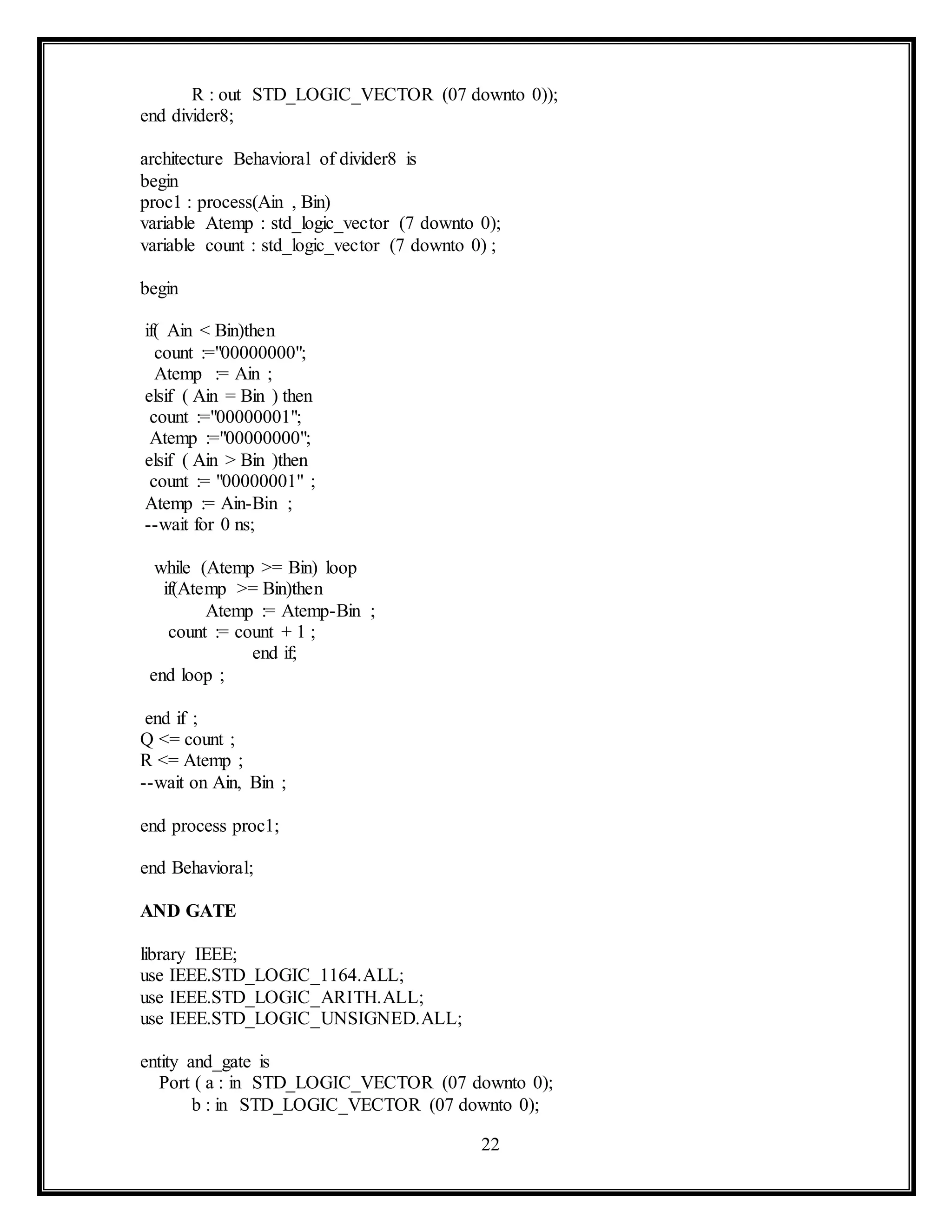

22. 22
R : out STD_LOGIC_VECTOR (07 downto 0));
end divider8;
architecture Behavioral of divider8 is
begin
proc1 : process(Ain , Bin)
variable Atemp : std_logic_vector (7 downto 0);
variable count : std_logic_vector (7 downto 0) ;
begin
if( Ain < Bin)then
count :="00000000";
Atemp := Ain ;
elsif ( Ain = Bin ) then
count :="00000001";
Atemp :="00000000";
elsif ( Ain > Bin )then
count := "00000001" ;
Atemp := Ain-Bin ;
--wait for 0 ns;
while (Atemp >= Bin) loop
if(Atemp >= Bin)then
Atemp := Atemp-Bin ;
count := count + 1 ;
end if;
end loop ;
end if ;
Q <= count ;
R <= Atemp ;
--wait on Ain, Bin ;
end process proc1;
end Behavioral;
AND GATE
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entity and_gate is
Port ( a : in STD_LOGIC_VECTOR (07 downto 0);
b : in STD_LOGIC_VECTOR (07 downto 0);
23. 23
y : out STD_LOGIC_VECTOR (07 downto 0));
end and_gate;
architecture Behavioral of and_gate is
begin
y <= a and b;
end Behavioral;
OR GATE
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entity or_gate is
Port ( a : in STD_LOGIC_VECTOR (07 downto 0);
b : in STD_LOGIC_VECTOR (07 downto 0);
y : out STD_LOGIC_VECTOR (07 downto 0));
end or_gate;
architecture Behavioral of or_gate is
begin
y <=a or b ;
end Behavioral;
NOT GATE
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entity not_gate is
Port ( y : in STD_LOGIC_VECTOR (07 downto 0);
z : out STD_LOGIC_VECTOR (07 downto 0));
end not_gate;
architecture Behavioral of not_gate is
begin
z <= not y;
24. 24
end Behavioral;
EX-OR GATE
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entity exor is
Port ( a : in STD_LOGIC_VECTOR (07 downto 0);
b : in STD_LOGIC_VECTOR (07 downto 0);
y : out STD_LOGIC_VECTOR (07 downto 0));
end exor;
architecture Behavioral of exor is
begin
y <= a xor b;
end Behavioral;
EX-NOR GATE
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entity exnor is
Port ( a : in STD_LOGIC_VECTOR (07 downto 0);
b : in STD_LOGIC_VECTOR (07 downto 0);
y : out STD_LOGIC_VECTOR (07 downto 0));
end exnor;
architecture Behavioral of exnor is
begin
y <= a xnor b;
end Behavioral;
NAND GATE
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
25. 25
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entity nand_gate is
Port ( a : in STD_LOGIC_VECTOR (07 downto 0);
b : in STD_LOGIC_VECTOR (07 downto 0);
y : out STD_LOGIC_VECTOR (07 downto 0));
end nand_gate;
architecture Behavioral of nand_gate is
begin
y <= a nand b;
end Behavioral;
NOR GATE
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entity nor_gate is
Port ( a : in STD_LOGIC_VECTOR (07 downto 0);
b : in STD_LOGIC_VECTOR (07 downto 0);
y : out STD_LOGIC_VECTOR (07 downto 0));
end nor_gate;
architecture Behavioral of nor_gate is
begin
y <= a nor b;
end Behavioral;
MUX 16: 1
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
entity mux is
Port ( a : in STD_LOGIC_VECTOR (7 downto 0);
b : in STD_LOGIC_VECTOR (7 downto 0);
e : in STD_LOGIC_VECTOR (7 downto 0);
f : in STD_LOGIC_VECTOR (7 downto 0);
26. 26
g : in STD_LOGIC_VECTOR (7 downto 0);
h : in STD_LOGIC_VECTOR (7 downto 0);
i : in STD_LOGIC_VECTOR (7 downto 0);
j : in STD_LOGIC_VECTOR (7 downto 0);
k : in STD_LOGIC_VECTOR (7 downto 0);
l : in STD_LOGIC_VECTOR (7 downto 0);
m : in STD_LOGIC_VECTOR (7 downto 0);
n : in STD_LOGIC_VECTOR (7 downto 0);
o : in STD_LOGIC_VECTOR (7 downto 0);
p : in STD_LOGIC_VECTOR (7 downto 0);
q : in STD_LOGIC_VECTOR (7 downto 0);
r : in STD_LOGIC_VECTOR (7 downto 0);
s : in STD_LOGIC_VECTOR (3 downto 0);
y : out STD_LOGIC_vector(7 downto 0));
end mux;
architecture Behavioral of mux is
begin
process (s)
begin
case s is
when "0000" => y <= a;
when "0001" => y <= b;
when "0010" => y <= e;
when "0011" => y <= f;
when "0100" => y <= g;
when "0101" => y <= h;
when "0110" => y <= i;
when "0111" => y <= j;
when "1000" => y <= k;
when "1001" => y <= l;
when "1010" => y <= m;
when "1011" => y <= n;
when "1100" => y <= o;
when "1101" => y <= p;
when "1110" => y <= q;
when others => y <= r;
end case;
end process;
end Behavioral;

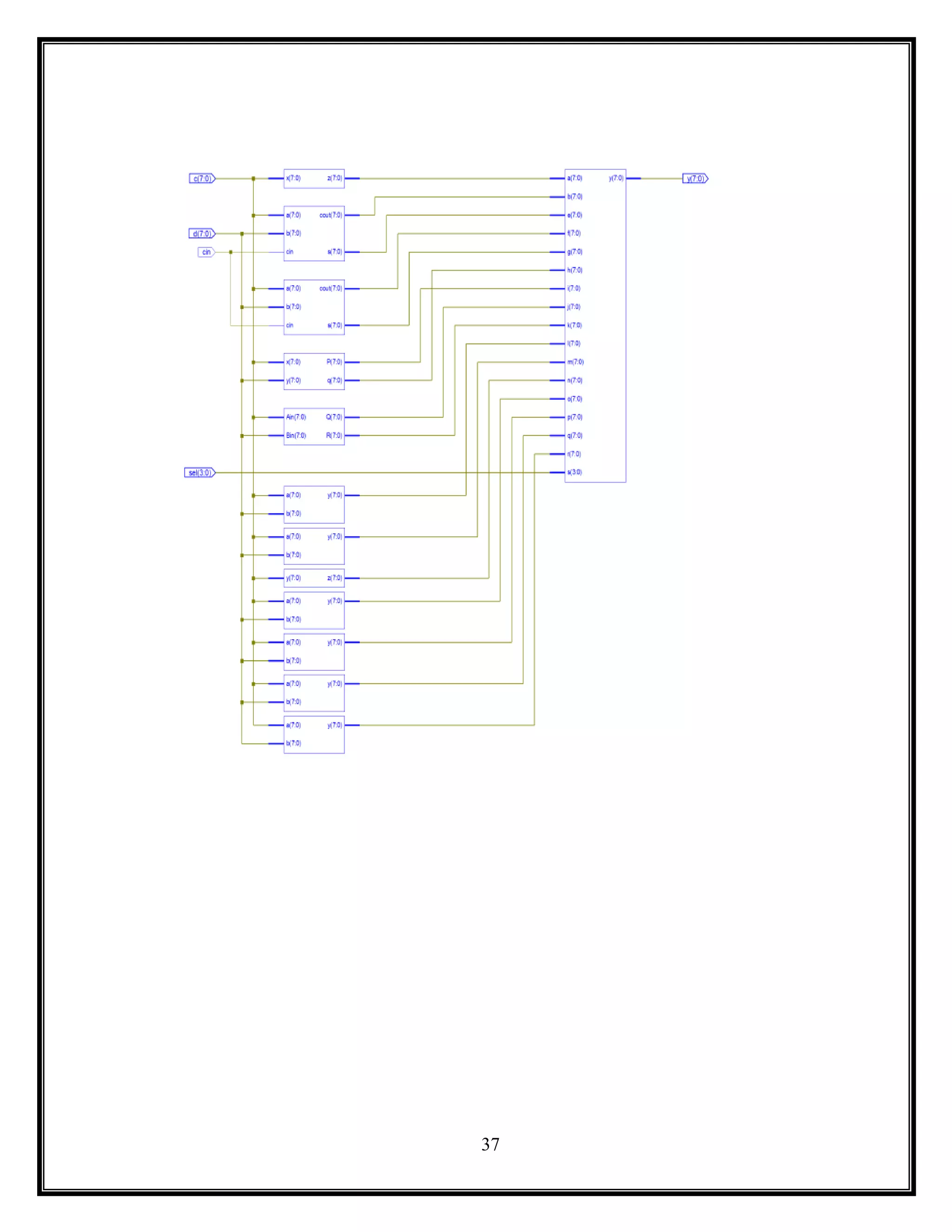

MAIN PROGRAM
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
27. 27
entity DIGITAL_CALCULATOR is
Port ( c : in STD_LOGIC_VECTOR (07 downto 0);
d : in STD_LOGIC_VECTOR (07 downto 0);
cin : in STD_LOGIC;
sel : in STD_LOGIC_VECTOR (03 downto 0);
y : out STD_LOGIC_VECTOR (07 downto 0));
end DIGITAL_CALCULATOR;
architecture Behavioral of DIGITAL_CALCULATOR is
component same is
Port ( x : in STD_LOGIC_VECTOR (7 downto 0);
z : out STD_LOGIC_VECTOR (7 downto 0));
end component;
component adder is
Port ( a : in STD_LOGIC_VECTOR (07 downto 0);
b : in STD_LOGIC_VECTOR (07 downto 0);
cin : in STD_LOGIC;
cout : out STD_LOGIC_VECTOR (07 downto 0);
s : out STD_LOGIC_VECTOR (07 downto 0));
end component ;
component subtractor is
Port ( a : in STD_LOGIC_VECTOR (07 downto 0);
b : in STD_LOGIC_VECTOR (07 downto 0);
cin : in STD_LOGIC;
cout : out STD_LOGIC_VECTOR (07 downto 0);
s : out STD_LOGIC_VECTOR (07 downto 0));
end component ;
component not_gate is
Port ( y : in STD_LOGIC_VECTOR (07 downto 0);
z : out STD_LOGIC_VECTOR (07 downto 0));
end component;
component and_gate is
Port ( a : in STD_LOGIC_VECTOR (07 downto 0);
b : in STD_LOGIC_VECTOR (07 downto 0);
y : out STD_LOGIC_VECTOR (07 downto 0));
end component;
component or_gate is
Port ( a : in STD_LOGIC_VECTOR (07 downto 0);
b : in STD_LOGIC_VECTOR (07 downto 0);

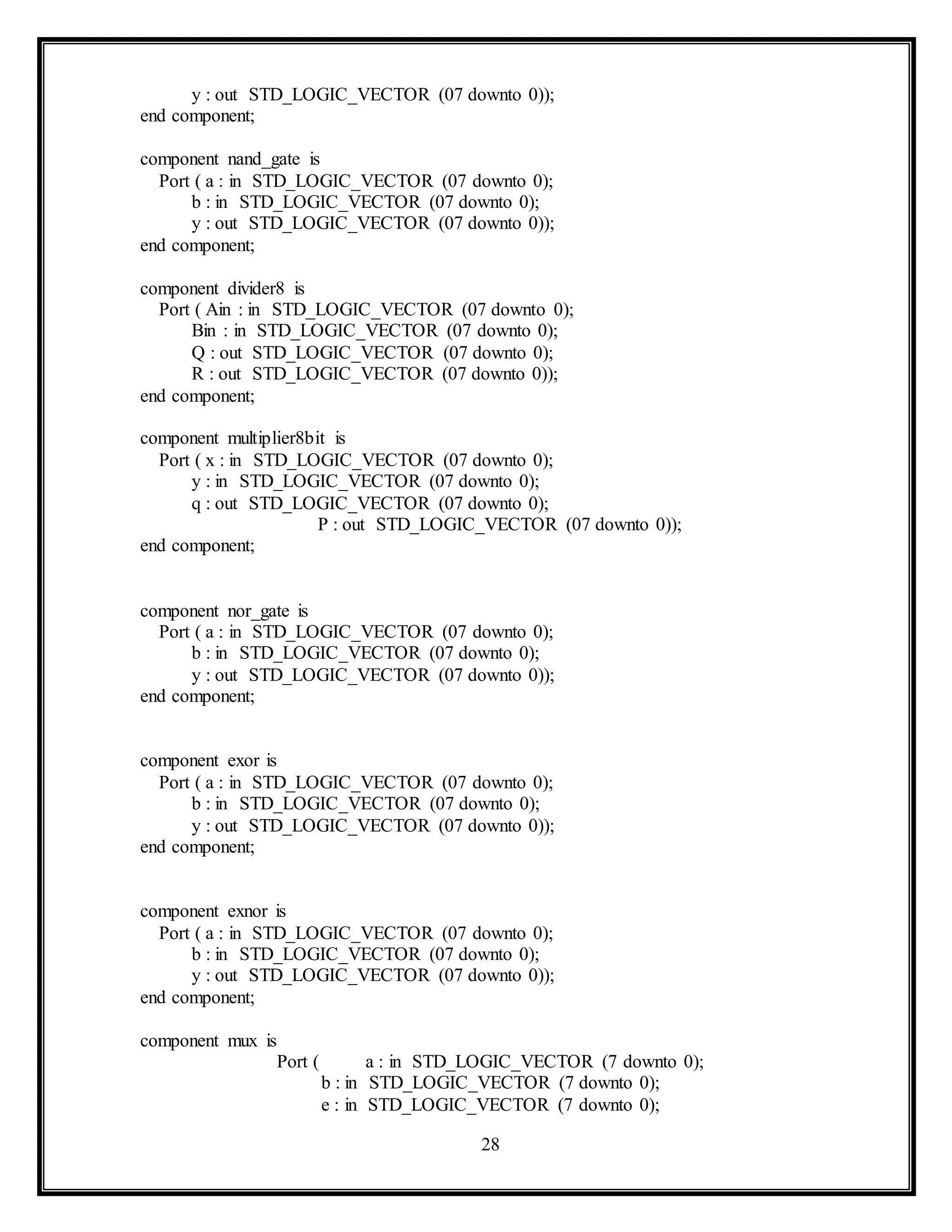

28. 28
y : out STD_LOGIC_VECTOR (07 downto 0));
end component;
component nand_gate is
Port ( a : in STD_LOGIC_VECTOR (07 downto 0);
b : in STD_LOGIC_VECTOR (07 downto 0);
y : out STD_LOGIC_VECTOR (07 downto 0));
end component;
component divider8 is
Port ( Ain : in STD_LOGIC_VECTOR (07 downto 0);
Bin : in STD_LOGIC_VECTOR (07 downto 0);
Q : out STD_LOGIC_VECTOR (07 downto 0);
R : out STD_LOGIC_VECTOR (07 downto 0));
end component;
component multiplier8bit is
Port ( x : in STD_LOGIC_VECTOR (07 downto 0);
y : in STD_LOGIC_VECTOR (07 downto 0);
q : out STD_LOGIC_VECTOR (07 downto 0);
P : out STD_LOGIC_VECTOR (07 downto 0));
end component;
component nor_gate is
Port ( a : in STD_LOGIC_VECTOR (07 downto 0);
b : in STD_LOGIC_VECTOR (07 downto 0);
y : out STD_LOGIC_VECTOR (07 downto 0));
end component;
component exor is
Port ( a : in STD_LOGIC_VECTOR (07 downto 0);
b : in STD_LOGIC_VECTOR (07 downto 0);
y : out STD_LOGIC_VECTOR (07 downto 0));
end component;
component exnor is
Port ( a : in STD_LOGIC_VECTOR (07 downto 0);
b : in STD_LOGIC_VECTOR (07 downto 0);
y : out STD_LOGIC_VECTOR (07 downto 0));
end component;
component mux is
Port ( a : in STD_LOGIC_VECTOR (7 downto 0);
b : in STD_LOGIC_VECTOR (7 downto 0);
e : in STD_LOGIC_VECTOR (7 downto 0);
29. 29
f : in STD_LOGIC_VECTOR (7 downto 0);
g : in STD_LOGIC_VECTOR (7 downto 0);
h : in STD_LOGIC_VECTOR (7 downto 0);
i : in STD_LOGIC_VECTOR (7 downto 0);
j : in STD_LOGIC_VECTOR (7 downto 0);
k : in STD_LOGIC_VECTOR (7 downto 0);
l : in STD_LOGIC_VECTOR (7 downto 0);
m : in STD_LOGIC_VECTOR (7 downto 0);
n : in STD_LOGIC_VECTOR (7 downto 0);
o : in STD_LOGIC_VECTOR (7 downto 0);
p : in STD_LOGIC_VECTOR (7 downto 0);
q : in STD_LOGIC_VECTOR (7 downto 0);
r : in STD_LOGIC_VECTOR (7 downto 0);
s : in STD_LOGIC_VECTOR (3 downto 0);
--x : in STD_LOGIC_VECTOR (7 downto 0);
y : out STD_LOGIC_vector(7 downto 0));
end component;
signal a1: STD_LOGIC_VECTOR (7 downto 0);
signal b1 : STD_LOGIC_VECTOR (7 downto 0);
signal e1 : STD_LOGIC_VECTOR (7 downto 0);
signal f1 : STD_LOGIC_VECTOR (7 downto 0);
signal g1 : STD_LOGIC_VECTOR (7 downto 0);
signal h1 : STD_LOGIC_VECTOR (7 downto 0);
signal i1 : STD_LOGIC_VECTOR (7 downto 0);
signal j1 : STD_LOGIC_VECTOR (7 downto 0);
signal k1 : STD_LOGIC_VECTOR (7 downto 0);
signal l1 : STD_LOGIC_VECTOR (7 downto 0);
signal m1 : STD_LOGIC_VECTOR (7 downto 0);
signal n1 : STD_LOGIC_VECTOR (7 downto 0);
signal o1 : STD_LOGIC_VECTOR (7 downto 0);
signal p1 : STD_LOGIC_VECTOR (7 downto 0);
signal q1 : STD_LOGIC_VECTOR (7 downto 0);
30. 30
signal r1 : STD_LOGIC_VECTOR (7 downto 0);
--signal x1 : STD_LOGIC_VECTOR (7 downto 0);
begin
z1: same port map(c,a1);
a2: adder port map(c,d,cin,b1,e1);
a3: subtractor port map(c,d,cin,f1,g1);
a4: multiplier8bit port map(c,d,h1,i1);
a5: divider8 port map(c,d,j1,k1);
a6: and_gate port map(c,d,l1);
a7: or_gate port map(c,d,m1);
a8: not_gate port map(c,n1);
a10: exor port map(c,d,o1);
a11: exnor port map(c,d,p1);
a12: nand_gate port map(c,d,q1);
a13: nor_gate port map(c,d,r1);
a14: mux port map(a1,b1,e1,f1,g1,h1,i1,j1,k1,l1,m1,n1,o1,p1,q1,r1,sel,y);
end Behavioral;
TEST BENCH
LIBRARY ieee;
USE ieee.std_logic_1164.ALL;
USE ieee.std_logic_unsigned.all;
USE ieee.numeric_std.ALL;
ENTITY alu_tb11_vhd IS
END alu_tb11_vhd;
ARCHITECTURE behavior OF alu_tb11_vhd IS
-- Component Declaration for the Unit Under Test (UUT)
COMPONENT DIGITAL_CALCULATOR
PORT(
c : IN std_logic_vector(7 downto 0);
d : IN std_logic_vector(7 downto 0);
cin : IN std_logic;
sel : IN std_logic_vector(3 downto 0);
y : OUT std_logic_vector(7 downto 0)
);
END COMPONENT;
--Inputs
SIGNAL cin : std_logic := '0';
SIGNAL c : std_logic_vector(7 downto 0) := (others=>'0');
SIGNAL d : std_logic_vector(7 downto 0) := (others=>'0');
SIGNAL sel : std_logic_vector(3 downto 0) := (others=>'0');
31. 31

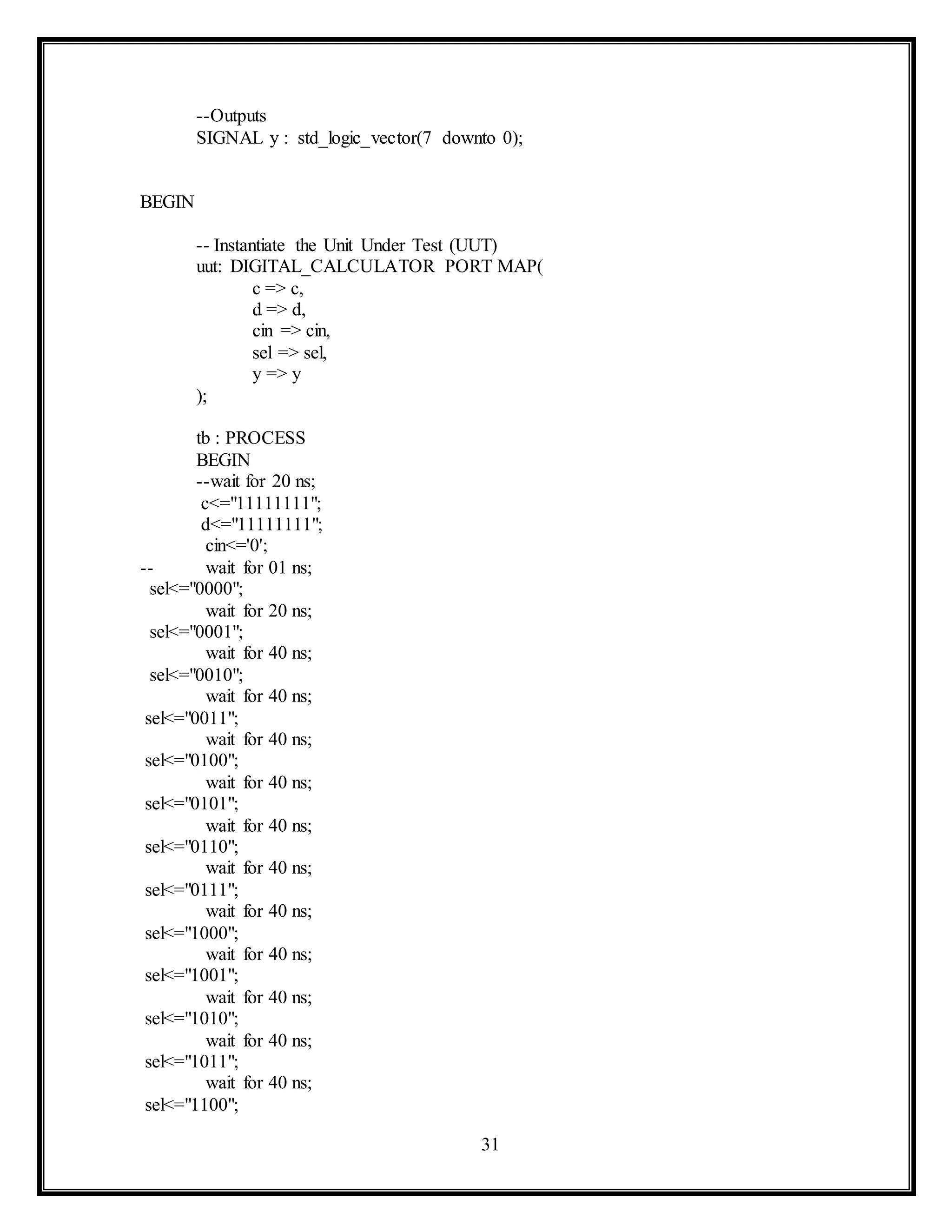

--Outputs
SIGNAL y : std_logic_vector(7 downto 0);
BEGIN
-- Instantiate the Unit Under Test (UUT)
uut: DIGITAL_CALCULATOR PORT MAP(
c => c,
d => d,
cin => cin,
sel => sel,
y => y
);
tb : PROCESS
BEGIN
--wait for 20 ns;
c<="11111111";
d<="11111111";
cin<='0';
-- wait for 01 ns;
sel<="0000";
wait for 20 ns;
sel<="0001";
wait for 40 ns;
sel<="0010";
wait for 40 ns;
sel<="0011";
wait for 40 ns;
sel<="0100";
wait for 40 ns;
sel<="0101";
wait for 40 ns;
sel<="0110";
wait for 40 ns;
sel<="0111";
wait for 40 ns;
sel<="1000";
wait for 40 ns;
sel<="1001";
wait for 40 ns;
sel<="1010";
wait for 40 ns;
sel<="1011";
wait for 40 ns;
sel<="1100";
32. 32

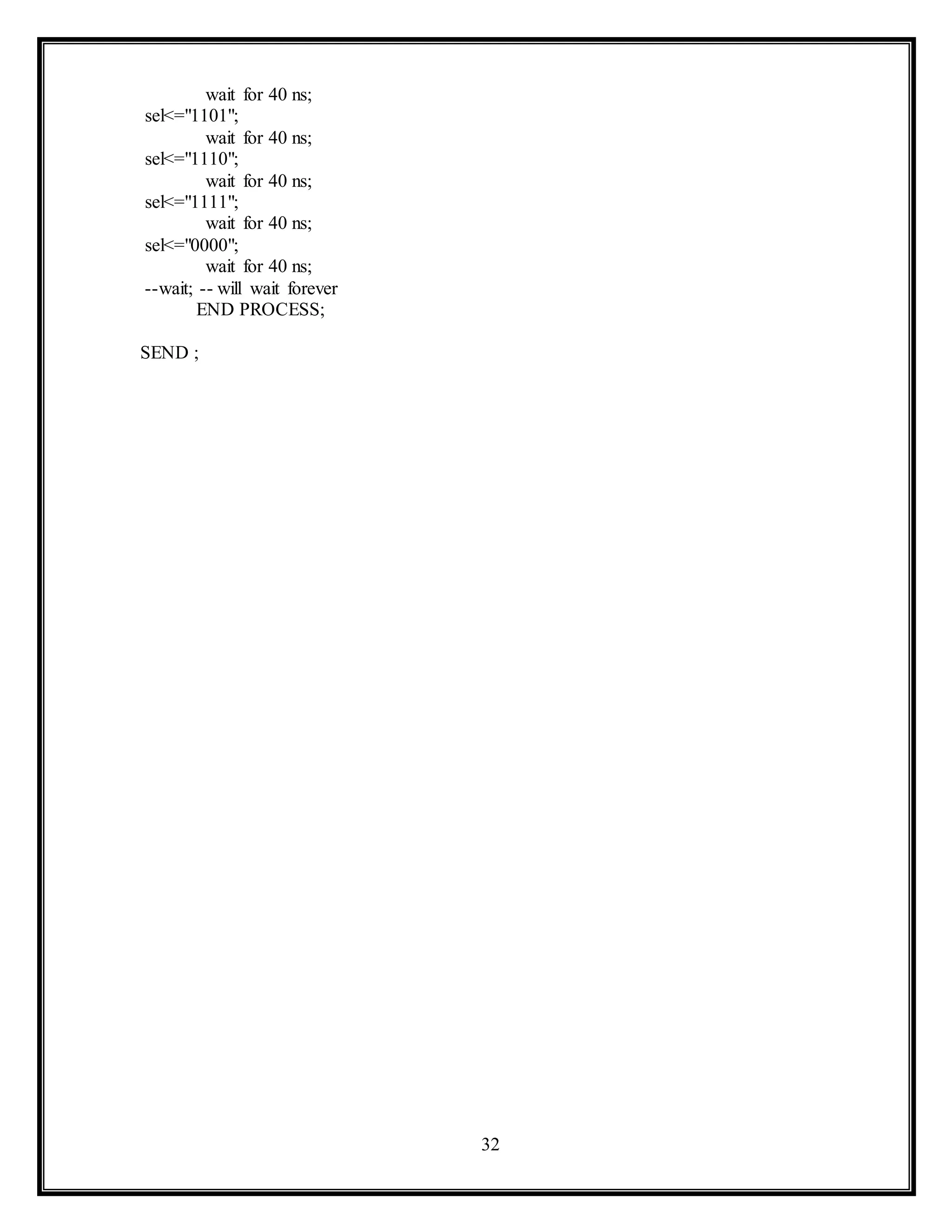

wait for 40 ns;
sel<="1101";
wait for 40 ns;
sel<="1110";
wait for 40 ns;
sel<="1111";
wait for 40 ns;
sel<="0000";
wait for 40 ns;
--wait; -- will wait forever
END PROCESS;
SEND ;

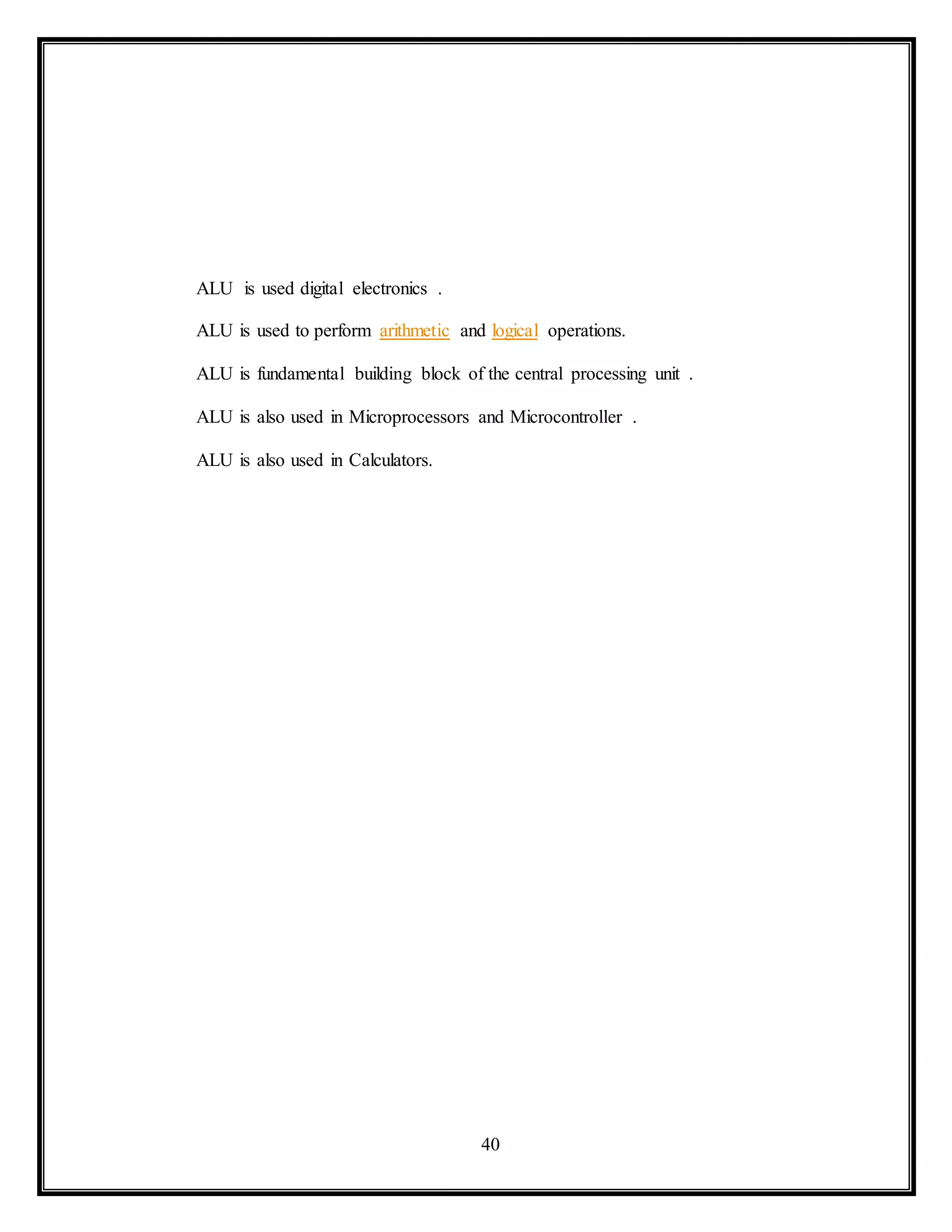

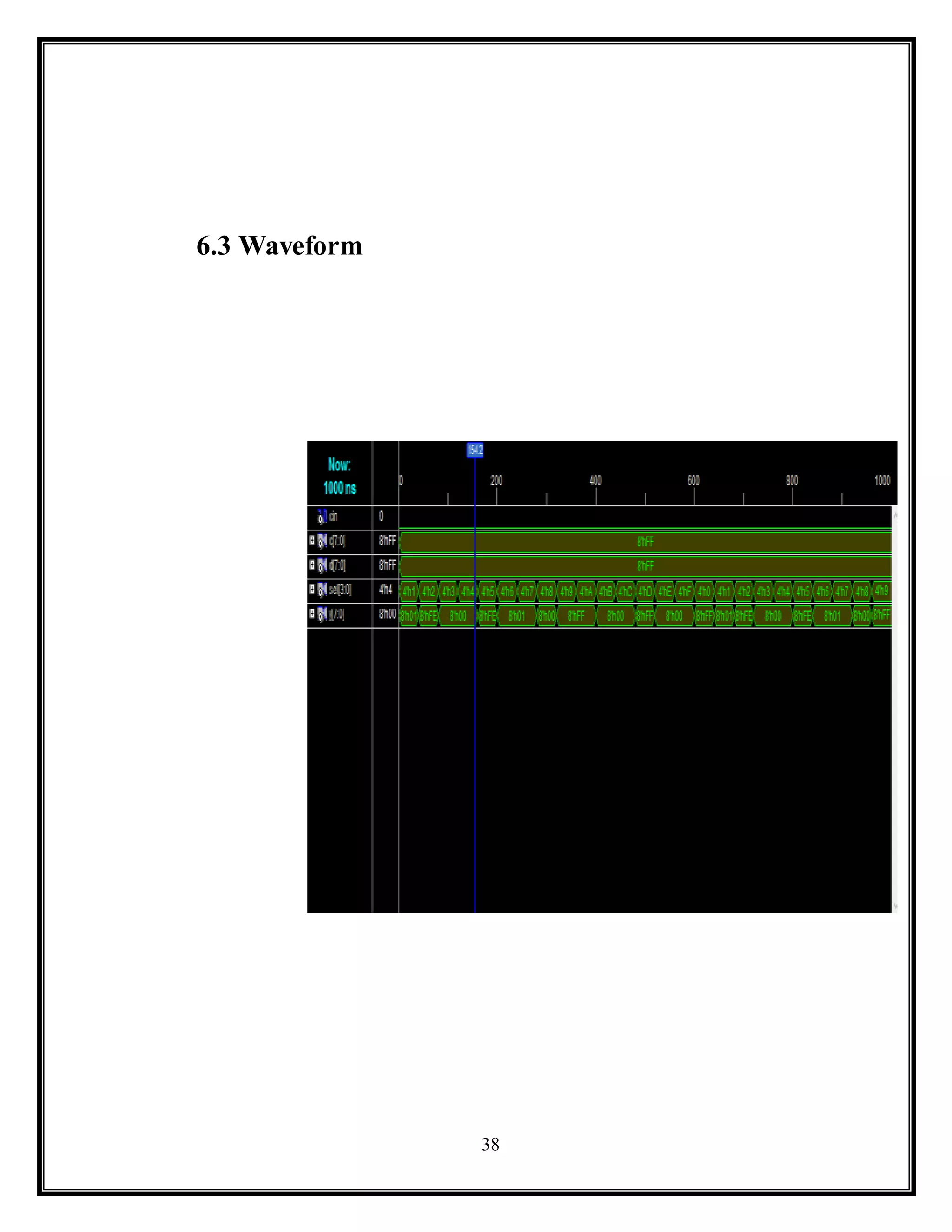

40. 40
ALU is used digital electronics .
ALU is used to perform arithmetic and logical operations.
ALU is fundamental building block of the central processing unit .
ALU is also used in Microprocessors and Microcontroller .
ALU is also used in Calculators.

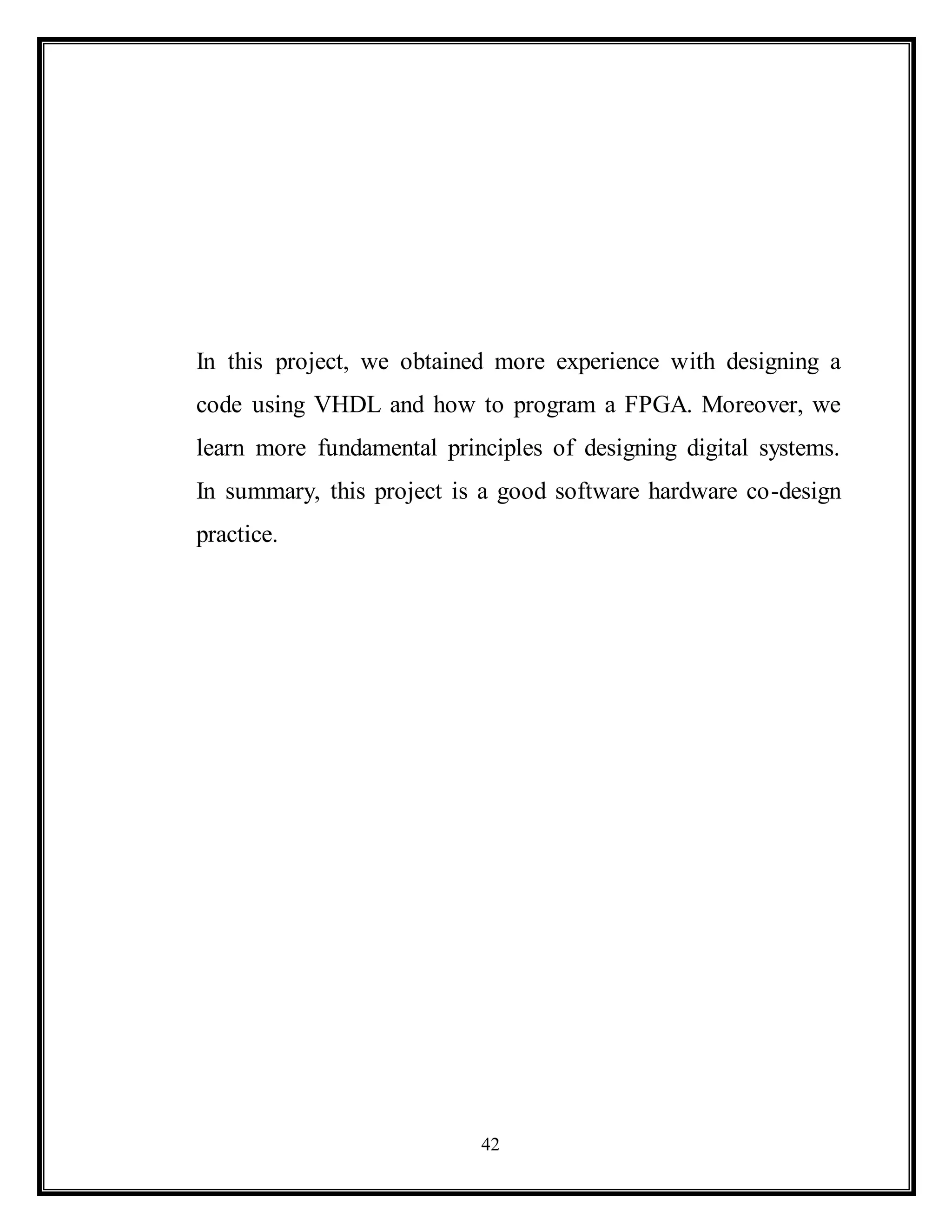

42. 42
In this project, we obtained more experience with designing a
code using VHDL and how to program a FPGA. Moreover, we
learn more fundamental principles of designing digital systems.
In summary, this project is a good software hardware co-design
practice.
44. 44

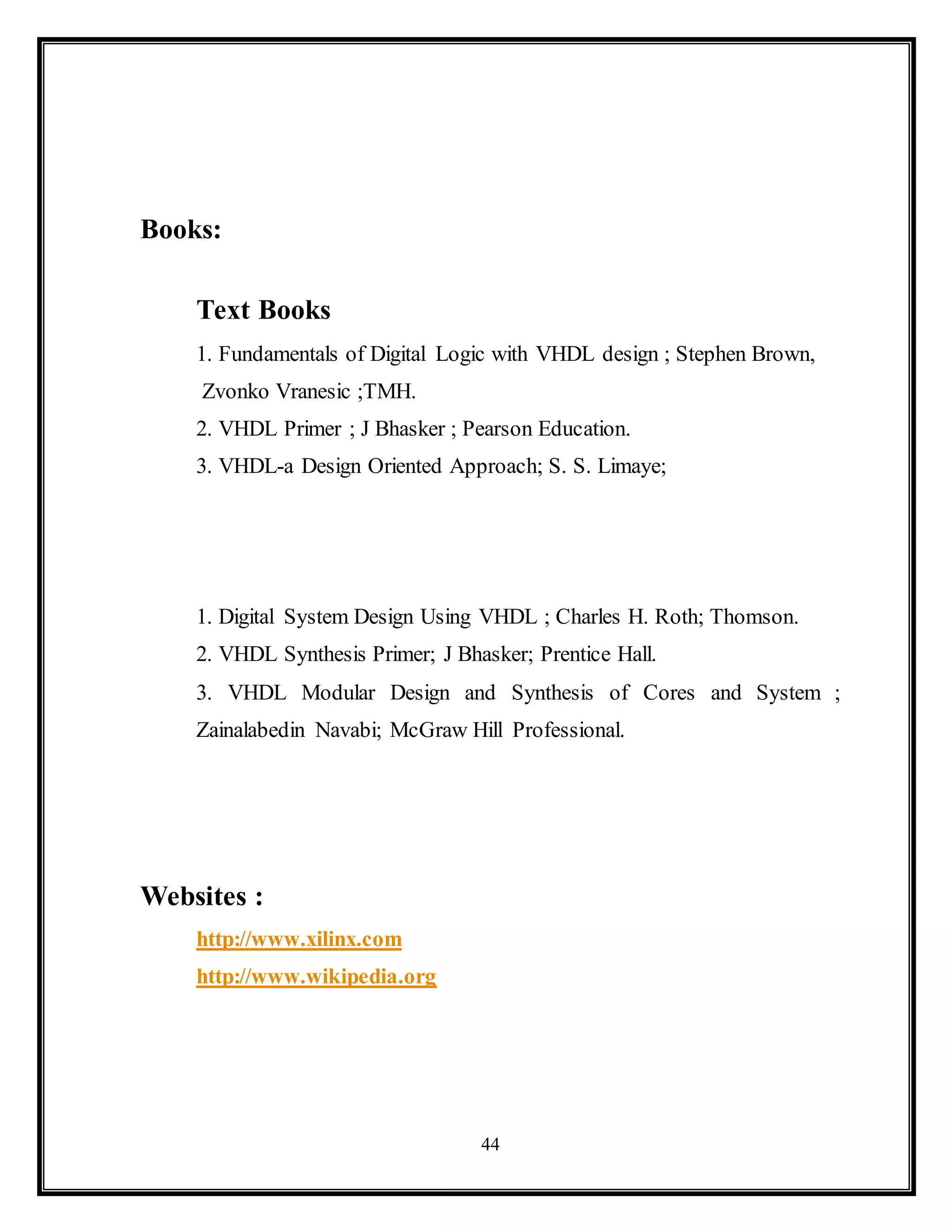

Books:
Text Books
1. Fundamentals of Digital Logic with VHDL design ; Stephen Brown,
Zvonko Vranesic ;TMH.
2. VHDL Primer ; J Bhasker ; Pearson Education.
3. VHDL-a Design Oriented Approach; S. S. Limaye;
1. Digital System Design Using VHDL ; Charles H. Roth; Thomson.
2. VHDL Synthesis Primer; J Bhasker; Prentice Hall.
3. VHDL Modular Design and Synthesis of Cores and System ;
Zainalabedin Navabi; McGraw Hill Professional.
Websites :
http://www.xilinx.com
http://www.wikipedia.org
