1. The 16550 UART
• Universal Asynchronous Receiver
Transmitter
• Baud rates up to 1.5 M bauds
(signal elements/s)
• = Data rate (bps) for binary data
• Compatible with Intel and other
Processors
• Includes:
- A programmable baud rate
generator
- 16-byte FIFO buffers at input and
output to help processor deal with
data bursts
2. Asynchronous Serial Data Communication
• Data sent asynchronously using the format
illustrated below
• We often use one start bit and one stop bit
to frame the data, which is usually 8-data
bits with or without parity
Usually a byte of data
3. The 16550 UART: Functional Description
• Totally independent Transmitter
(TX) and Receiver (RX) Sections
• This allows communication in the
following modes:
- Simplex: Only TX or RX is used 40 pin DIP
(one direction all the time)
- Half Duplex: TX then RX
(two directions at different times)
- Full Duplex: TX and RX
simultaneously
(two directions at the same time)
• Can control a modem using six
signals, e.g. #DSR (Data Set
Ready) input, #DTR (Data Terminal
Ready) output….
Here the UART is the data terminal
and modem is the dataset.
4. The 16550 UART: Typical Configuration
Serial to Parallel
Or Parallel to Serial
Converters
Control
µP 16-byte FIFO Input Buffer PS
SIN
Receiver
UART
Serial
16-byte FIFO Output Buffer PS Transmitter Comm.
SOUT
Link
Data
DMA Data Transfers:
Memory UART Directly
Without going through the µP
Memory
5. The 16550 UART: Pin Assignments
3 I/O Address bits
from Processor
(Table 11-5)
Chip Select Inputs Data bus to Processor
(Multiple I/Ps)
Master Reset (tie to µP Reset I/P)
40 pin DIP
Read & Write Control inputs Serial data INput from RX
from µP Serial data OUTput to TX
(with complements for versatility
Baud rate Clock output
Address Strobe (not needed with
Intels) Receiver Clock input
Crystal or
External Clock Input
Modem Interface:
TX ready for data. Put data into Inputs & Outputs
UART by DMA
Interrupt Processor
User defined outputs
RX ready with data. Take data from
UART by DMA
6. UARTs in the PC
• Used to control the COM ports of the PC
- UART at I/O address 3F8-3FF: COM Port 0
- UART at I/O address 2F8-2FF: COM Port 2
7. Programming the UART
Two Stages:
a. Initialization Dialog: (Setup)
- Follows RESET
- Has two steps:
1. Program the line control register
(Set asynchronous transmission parameters:
# of stop, data, and parity bits, etc.)
2. Program the baud rate generator for the required
baud rate
b. Operation Dialog: (Actual Communication)
8. The 8 I/O Byte Locations on the UART
A2 A1 A0 Function
0 0 0 Receiver buffer (read data from RX) and transmitter holding (write
data to TX). Also write LS byte of baud rate divisor
0 0 1 Interrupt enable. Also write MS byte of baud rate divisor
0 1 0 Interrupt identification (read) and FIFO control Register (write)
- Used for operation dialog programming
0 1 1 Line control Register (Write into the line control register to
program asynchronous communication at initialization)
1 0 0 Modem control
1 0 1 Line status LSTAT (Read the line status register to see if TX or
RX are ready and to check for errors )
1 1 0 Modem status
1 1 1 Scratch
9. 1. Programming the Line Control Register
a. Initialization I/O Address: A2 A1 A0 = 011
Dialog
Programming
Parity Control
DL bit must be set See next slide Data Length = 5 bits
before you can
load the divisor Data Length > 5 bits
for the baud
generator
See Table
on next slide
A break is a minimum
of 2 frames of 0’s
To allow programming
The baud rate generator

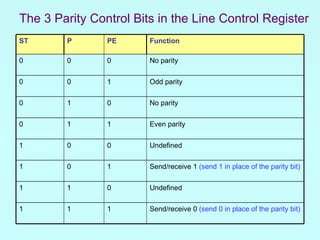

10. The 3 Parity Control Bits in the Line Control Register
ST P PE Function
0 0 0 No parity
0 0 1 Odd parity
0 1 0 No parity
0 1 1 Even parity
1 0 0 Undefined
1 0 1 Send/receive 1 (send 1 in place of the parity bit)
1 1 0 Undefined
1 1 1 Send/receive 0 (send 0 in place of the parity bit)
11. 2. Programming the Baud rate Generator
• Baud rate is programmed by loading a 16-bit Baud Rate Divisor Value
divisor for the crystal oscillator (or external input)
110 10,473
frequency into the I/O port addresses:
300 3840
{A2 A1 A0} = 000: LS Byte of divisor 1200 920
{A2 A1 A0} = 001: MS Byte of divisor 2400 480
4800 240
• Divisor value is determined by the Oscillator
frequency and the baud rate required: 9600 120
19,200 60
Divisor = Oscillator frequency / (16 * Baud rate) 38,400 30
57,600 20
Table shows divisor values required for various
115,200 10
baud rates for osc frequency = 18.432 MHz
13. ;Initialization dialog for Figure 11-45
;Baud rate 9600, 7 bit data, odd parity, 1 stop bit
LINE EQU 0F3H ; A2 A1 A0 = 011 for the Line Control Register
LSB EQU 0F0H ; A2 A1 A0 = 000 for LSB of divisor
MSB EQU 0F1H ; A2 A1 A0 = 001 for MSB of divisor
FIFO EQU 0F2H ; A2 A1 A0 = 010 for the FIFO Control Register
INIT PROC NEAR
MOV AL,10001010B
OUT LINE,AL ; Enable Baud rate programming See slide 108
; program Baud 9600
; Divisor = 120d (see Table on slide 110)
MOV AL,120 ; LSB of divisor
OUT LSB,AL
MOV AL,0 ; MS Byte of divisor
OUT MSB,AL
MOV AL,00001010B ;program 7 bit data, odd
Must write this OUT LINE,AL ;parity, 1 stop bit
into FIFO Register ;(& disable baud rate programming?)
to enable communication
and operation dialog MOV AL,00000111B ;enable transmitter and receiver
programming OUT FIFO,AL ;by writing into the FIFO control Reg.
RET
INIT ENDP

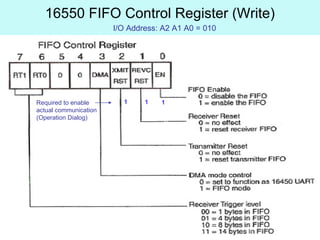

14. 16550 FIFO Control Register (Write)
I/O Address: A2 A1 A0 = 010
Required to enable 1 1 1
actual communication
(Operation Dialog)
15. b. Operation
Dialog 16550 Line Status Register (LSTAT)
Programming I/O Address: A2 A1 A0 = 101
Before reading data
from receiver, ensure
RX has data
[DR (bit 1) = 1]
Error status bits
Any being 1 indicates
An error
Before writing data
for transmission,
Ensure TX is ready
to take it
[TH (bit 5) = 1]
16. ;A procedure that transmits the byte in AH serially
;via the 16650 UART
LSTAT EQU 0F5H ; The Line status register (LSTAT) (A2 A1 A0 = 101)
DATA EQU 0F0H ; TX/RX Data Register at (A2 A1 A0 = 000)
SEND PROC NEAR USES AX
.REPEAT ;test the TH bit (bit 5) in to see if TX is available
IN AL,LSTAT
TEST AL,20H ;20H is the mask for the TH bit
.UNTIL !ZERO?
MOV AL,AH
OUT DATA,AL ;send data to TX
(LSTAT)
RET
SEND ENDP
17. ; Procedure receives byte from UART into AL if no comm. error
; If error detected, it load Al with ‘?’ as an alert
LSTAT EQU 0F5H ; The Line status register (LSTAT) (A2 A1 A0 = 101)
DATA EQU 0F0H ; TX/RX Data Register at (A2 A1 A0 = 000)
REVC PROC NEAR
.REPEAT
IN AL,LSTAT ;test DR bit
TEST AL,1
.UNTIL !ZERO?
TEST AL,0EH ;test for any error
.IF ZERO? ;no error
IN AL,DATA ;Read RX Data Register into AL
.ELSE ;any error
MOV AL,’?’ ;Put “?” in AL to indicate error
.ENDIF
RET
RECV ENDP
