Southern, Northern and Western blotting

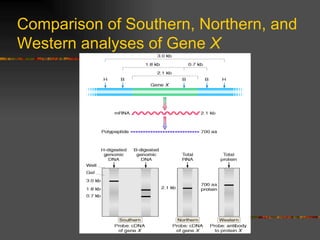

Comparison of Southern, Northern, and Western analyses of Gene X
Southern hybridization First described by E. M. Southern in 1975. Applications of Southern hybridization RFLP ’ s, VNTR ’ s and DNA fingerprinting Checking of the gene knockout mice The flow chart of Southern hybridization

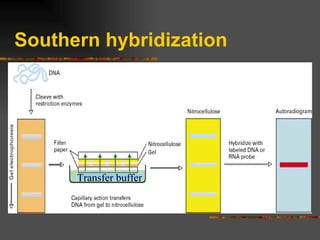

Southern hybridization Transfer buffer

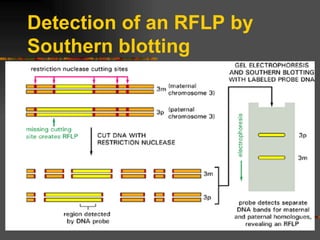

Detection of an RFLP by Southern blotting

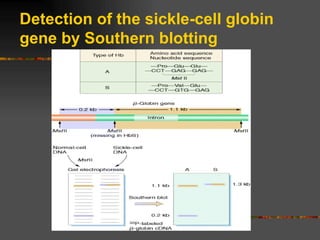

Detection of the sickle-cell globin gene by Southern blotting

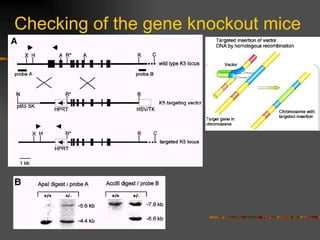

Checking of the gene knockout mice

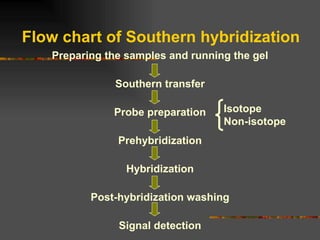

Flow chart of Southern hybridization Preparing the samples and running the gel Southern transfer Probe preparation Prehybridization Hybridization Post-hybridization washing Signal detection Isotope Non-isotope

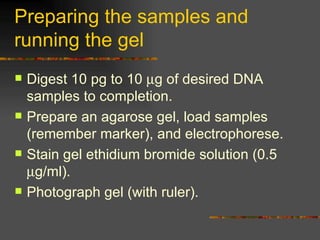

Preparing the samples and running the gel Digest 10 pg to 10  g of desired DNA samples to completion. Prepare an agarose gel, load samples (remember marker), and electrophorese. Stain gel ethidium bromide solution (0.5  g/ml). Photograph gel (with ruler).

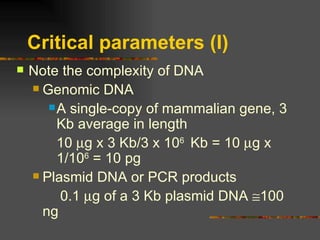

Critical parameters (I) Note the complexity of DNA Genomic DNA A single-copy of mammalian gene, 3 Kb average in length 10  g x 3 Kb/3 x 10 6 Kb = 10  g x 1/10 6 = 10 pg Plasmid DNA or PCR products 0.1  g of a 3 Kb plasmid DNA  100 ng

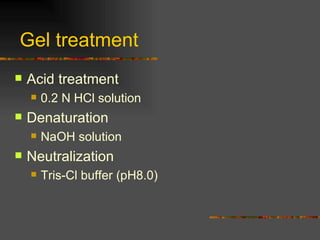

Gel treatment Acid treatment 0.2 N HCl solution Denaturation NaOH solution Neutralization Tris-Cl buffer (pH8.0)

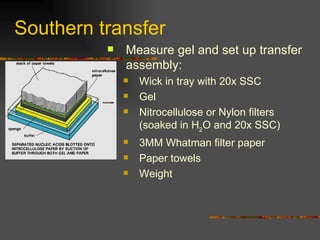

Southern transfer Measure gel and set up transfer assembly: Wick in tray with 20x SSC Gel Nitrocellulose or Nylon filters (soaked in H 2 O and 20x SSC) 3MM Whatman filter paper Paper towels Weight

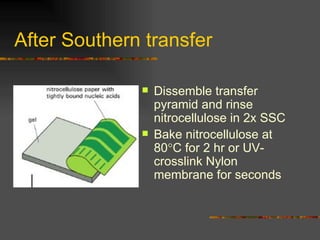

After Southern transfer Dissemble transfer pyramid and rinse nitrocellulose in 2x SSC Bake nitrocellulose at 80  C for 2 hr or UV-crosslink Nylon membrane for seconds

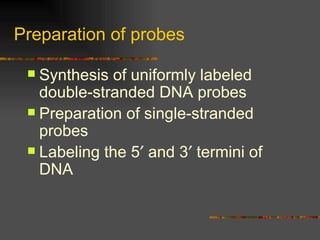

Preparation of probes Synthesis of uniformly labeled double-stranded DNA probes Preparation of single-stranded probes Labeling the 5  and 3  termini of DNA

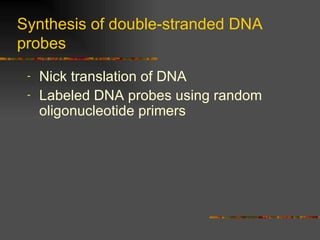

Synthesis of double-stranded DNA probes Nick translation of DNA Labeled DNA probes using random oligonucleotide primers

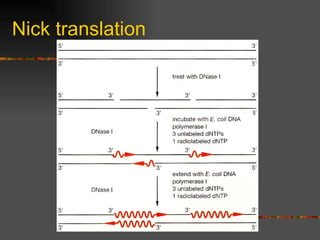

Nick translation

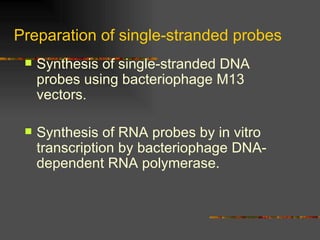

Preparation of single-stranded probes Synthesis of single-stranded DNA probes using bacteriophage M13 vectors. Synthesis of RNA probes by in vitro transcription by bacteriophage DNA-dependent RNA polymerase.

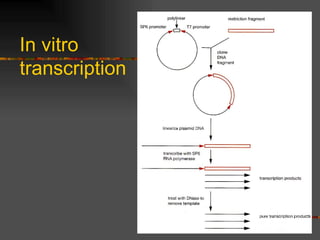

In vitro transcription

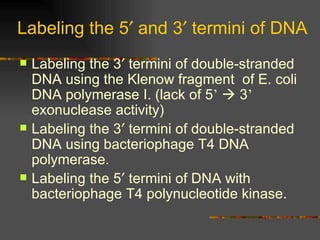

Labeling the 3  termini of double-stranded DNA using the Klenow fragment of E. coli DNA polymerase I. (lack of 5 ’  3 ’ exonuclease activity) Labeling the 3  termini of double-stranded DNA using bacteriophage T4 DNA polymerase. Labeling the 5  termini of DNA with bacteriophage T4 polynucleotide kinase. Labeling the 5  and 3  termini of DNA

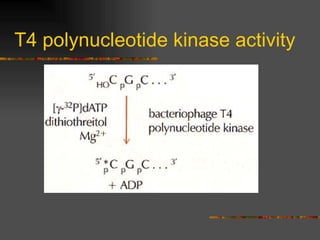

T4 polynucleotide kinase activity

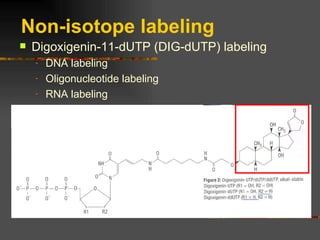

Non-isotope labeling Digoxigenin-11-dUTP (DIG-dUTP) labeling DNA labeling Oligonucleotide labeling RNA labeling

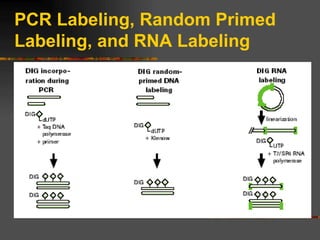

PCR Labeling, Random Primed Labeling, and RNA Labeling

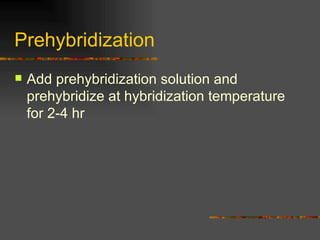

Prehybridization Add prehybridization solution and prehybridize at hybridization temperature for 2-4 hr
Hybridization Remove prehybridization solution and add hybridization solution Add 500,000 cpm of the probe/ml hybridization solution. Hybridize overnight at appropriate temperature.

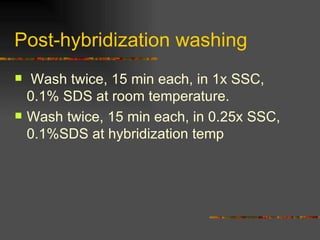

Post-hybridization washing Wash twice, 15 min each, in 1x SSC, 0.1% SDS at room temperature. Wash twice, 15 min each, in 0.25x SSC, 0.1%SDS at hybridization temp

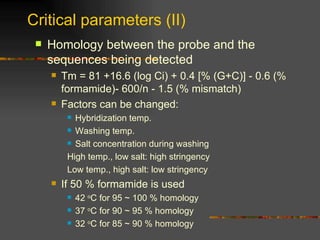

Critical parameters (II) Homology between the probe and the sequences being detected Tm = 81 +16.6 (log Ci) + 0.4 [% (G+C)] - 0.6 (% formamide)- 600/n - 1.5 (% mismatch) Factors can be changed: Hybridization temp. Washing temp. Salt concentration during washing High temp., low salt: high stringency Low temp., high salt: low stringency If 50 % formamide is used 42 o C for 95 ~ 100 % homology 37 o C for 90 ~ 95 % homology 32 o C for 85 ~ 90 % homology

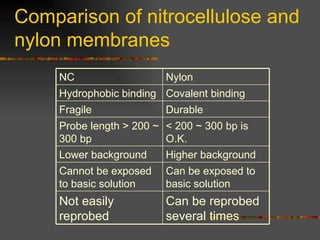

Comparison of nitrocellulose and nylon membranes NC Nylon Hydrophobic binding Covalent binding Fragile Durable Probe length > 200 ~ 300 bp < 200 ~ 300 bp is O.K. Lower background Higher background Cannot be exposed to basic solution Can be exposed to basic solution Not easily reprobed Can be reprobed several times

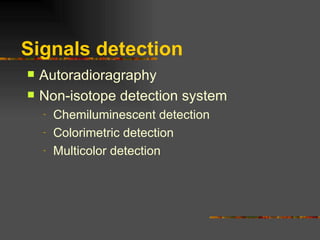

Signals detection Autoradioragraphy Non-isotope detection system Chemiluminescent detection Colorimetric detection Multicolor detection

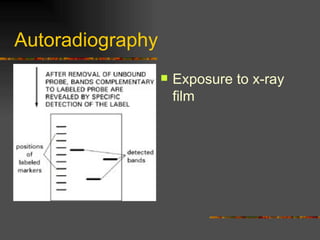

Autoradiography Exposure to x-ray film

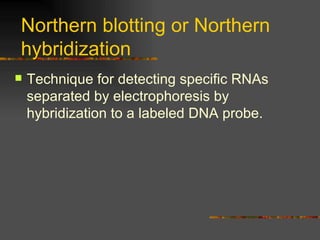

Northern blotting or Northern hybridization Technique for detecting specific RNAs separated by electrophoresis by hybridization to a labeled DNA probe.

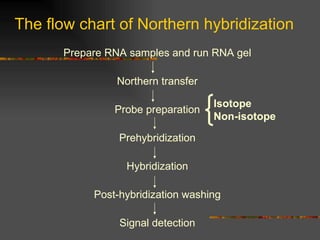

The flow chart of Northern hybridization Prepare RNA samples and run RNA gel Northern transfer Probe preparation Prehybridization Hybridization Post-hybridization washing Signal detection Isotope Non-isotope

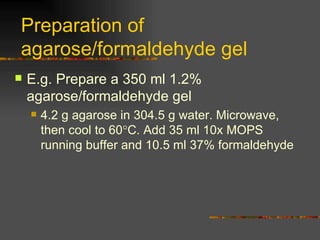

Preparation of agarose/formaldehyde gel E.g. Prepare a 350 ml 1.2% agarose/formaldehyde gel 4.2 g agarose in 304.5 g water. Microwave, then cool to 60  C. Add 35 ml 10x MOPS running buffer and 10.5 ml 37% formaldehyde

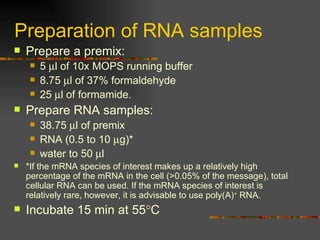

Preparation of RNA samples Prepare a premix: 5  l of 10x MOPS running buffer 8.75  l of 37% formaldehyde 25  l of formamide. Prepare RNA samples: 38.75  l of premix RNA (0.5 to 10  g)* water to 50  l *If the mRNA species of interest makes up a relatively high percentage of the mRNA in the cell (>0.05% of the message), total cellular RNA can be used. If the mRNA species of interest is relatively rare, however, it is advisable to use poly(A) + RNA. Incubate 15 min at 55  C

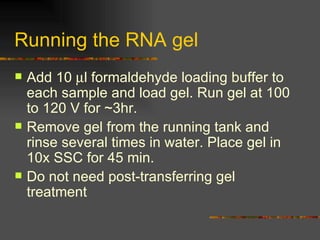

Running the RNA gel Add 10  l formaldehyde loading buffer to each sample and load gel. Run gel at 100 to 120 V for ~3hr. Remove gel from the running tank and rinse several times in water. Place gel in 10x SSC for 45 min. Do not need post-transferring gel treatment

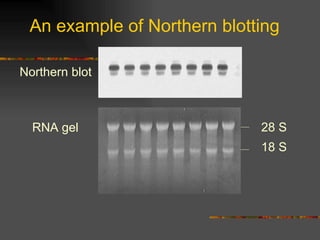

An example of Northern blotting Northern blot RNA gel 28 S 18 S

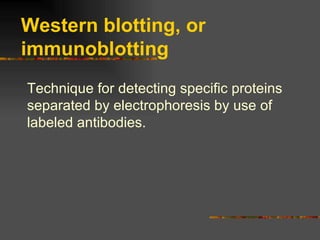

Western blotting, or immunoblotting Technique for detecting specific proteins separated by electrophoresis by use of labeled antibodies.

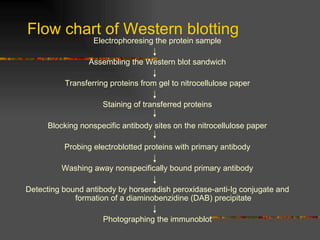

Flow chart of Western blotting Electrophoresing the protein sample Assembling the Western blot sandwich Transferring proteins from gel to nitrocellulose paper Staining of transferred proteins Blocking nonspecific antibody sites on the nitrocellulose paper Probing electroblotted proteins with primary antibody Washing away nonspecifically bound primary antibody Detecting bound antibody by horseradish peroxidase-anti-Ig conjugate and formation of a diaminobenzidine (DAB) precipitate Photographing the immunoblot

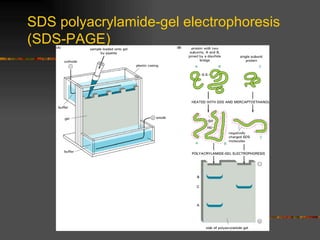

SDS polyacrylamide-gel electrophoresis (SDS-PAGE)

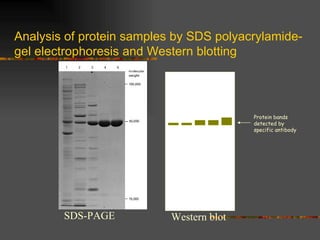

Analysis of protein samples by SDS polyacrylamide-gel electrophoresis and Western blotting Protein bands detected by specific antibody SDS-PAGE Western blot

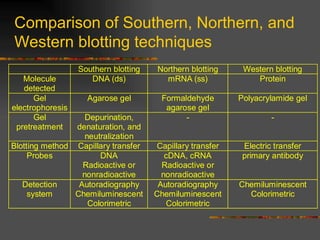

Comparison of Southern, Northern, and Western blotting techniques
