Slideshow: Hip Bone
The hip bone (os coxae) is made up of three components: the pubis, ischium, and ilium, which converge at the acetabulum. Various features and muscles attached to the hip bone are discussed, including muscle origins, insertions, and actions, emphasizing their anatomical significance and role in hip movement. This document serves as an anatomical guide to the hip bone, detailing the structure and associated musculature essential for understanding movement and support.
More Related Content
![2. shoulder joint & its applied anatomy 07[1]](https://cdn.slidesharecdn.com/ss_thumbnails/2-shoulderjointitsappliedanatomy-071-100602035807-phpapp01-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Slideshow: Hip Bone
More from The Funky Professor
Slideshow: Hip Bone
- 1. The Hip Bone (OsCoxae)

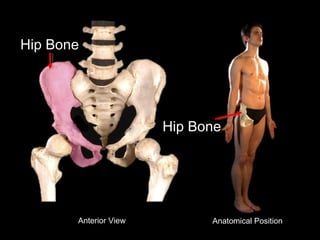

- 2. Hip Bone Anterior ViewAnatomical Position Hip Bone

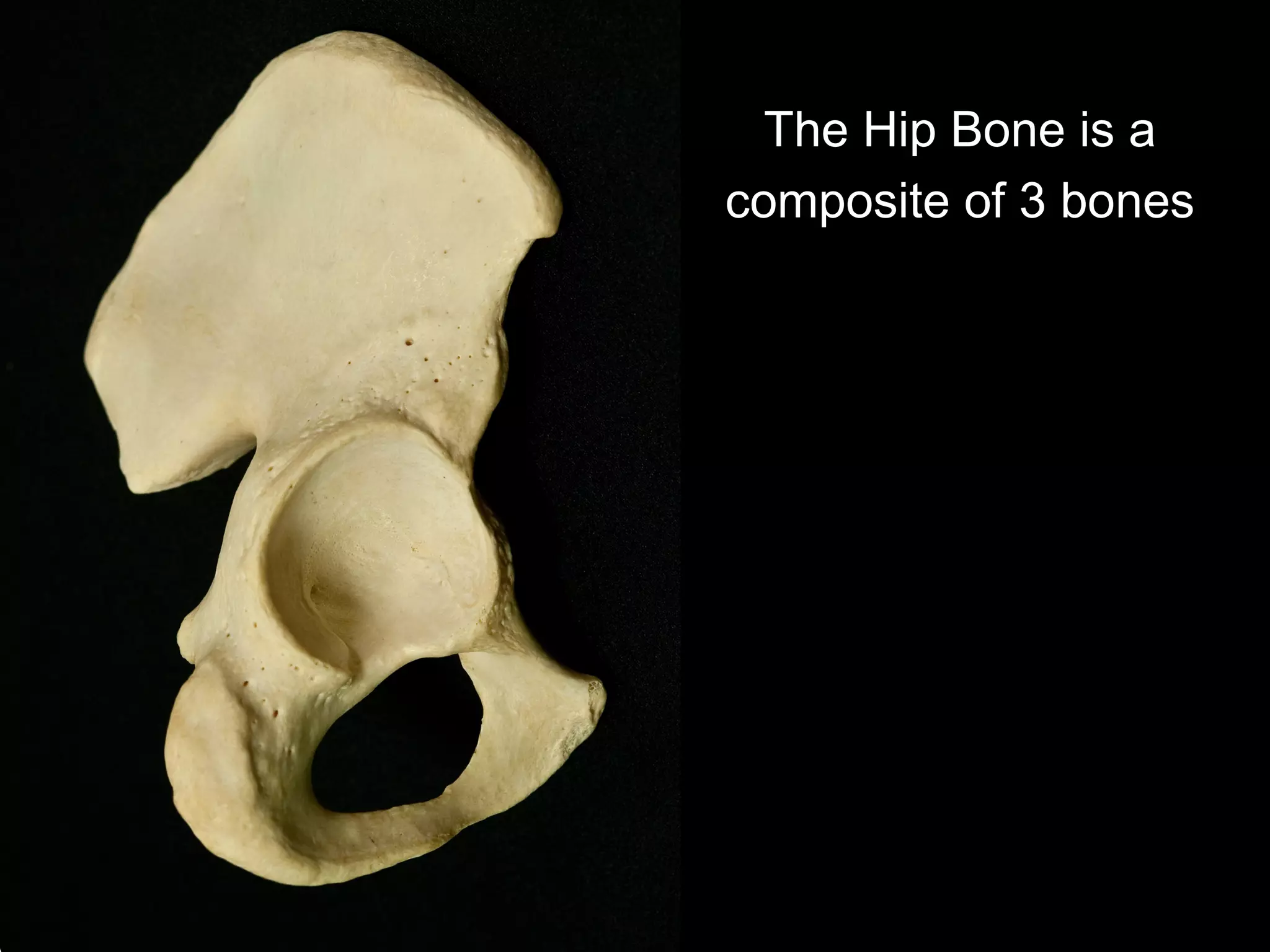

- 3. The Hip Boneis a composite of 3 bones
- 4. Pubis The Hip Boneis a composite of 3 bones Pubis
- 5. Pubis Ischium The Hip Boneis a composite of 3 bones Pubis Ischium

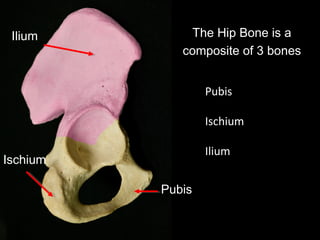

- 6. Pubis Ischium Ilium The HipBone is a composite of 3 bones Pubis Ischium Ilium

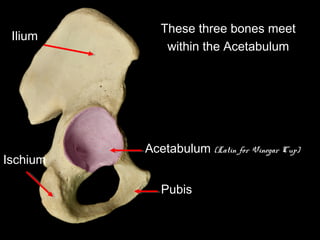

- 7. These three bonesmeet within the Acetabulum Acetabulum (Latin for Vinegar Cup) Pubis Ischium Ilium

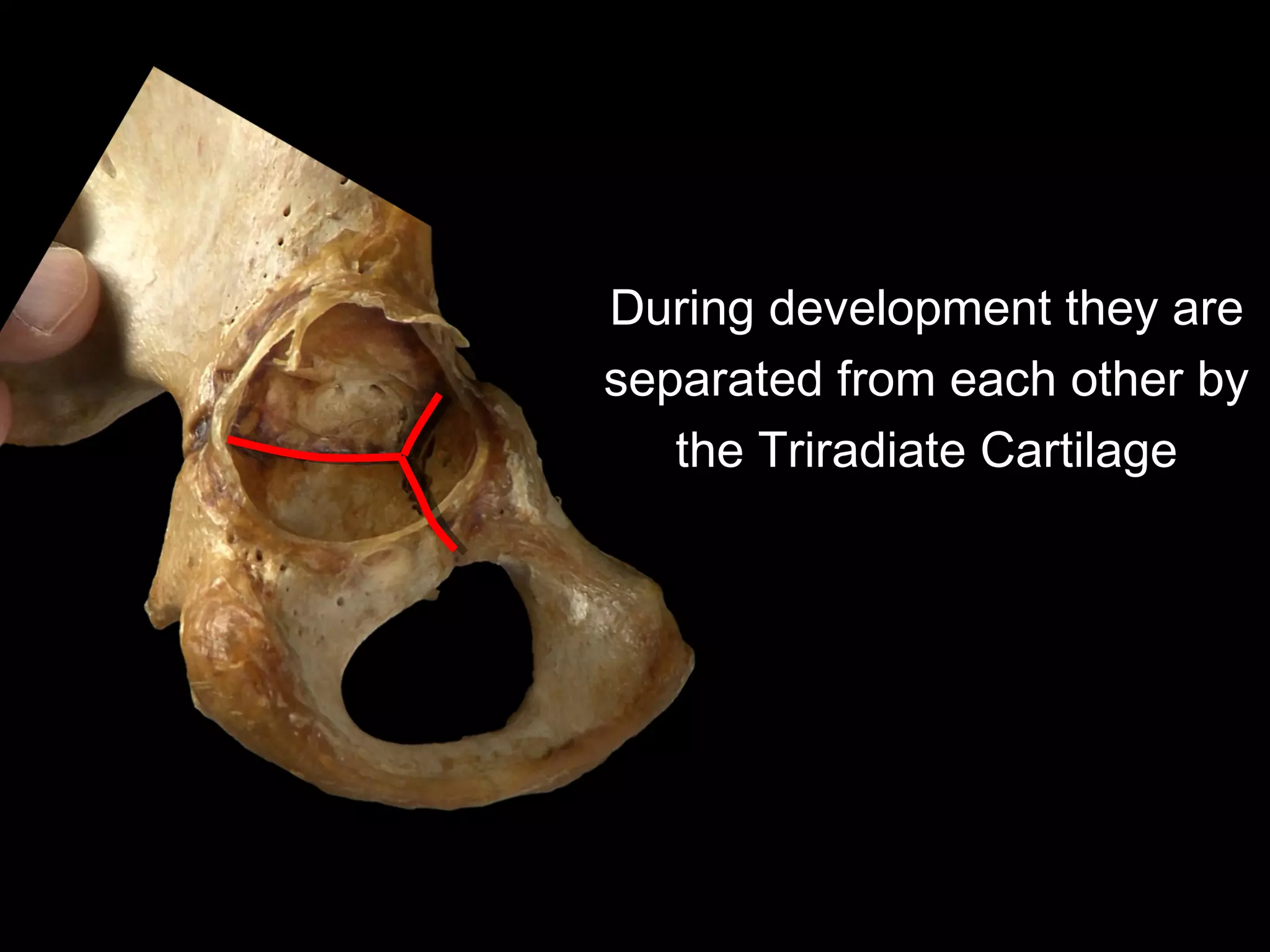

- 8. During development theyare separated from each other by the Triradiate Cartilage
- 9. During development theyare separated from each other by the Triradiate Cartilage

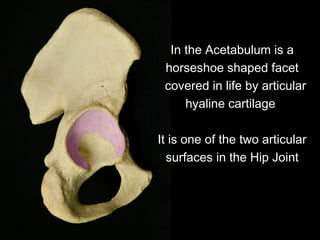

- 10. In the Acetabulumis a horseshoe shaped facet covered in life by articular hyaline cartilage It is one of the two articular surfaces in the Hip Joint

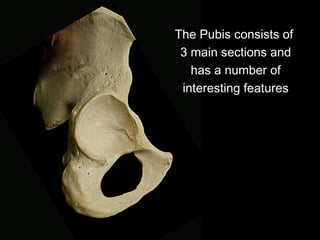

- 11. The Pubis consistsof 3 main sections and has a number of interesting features

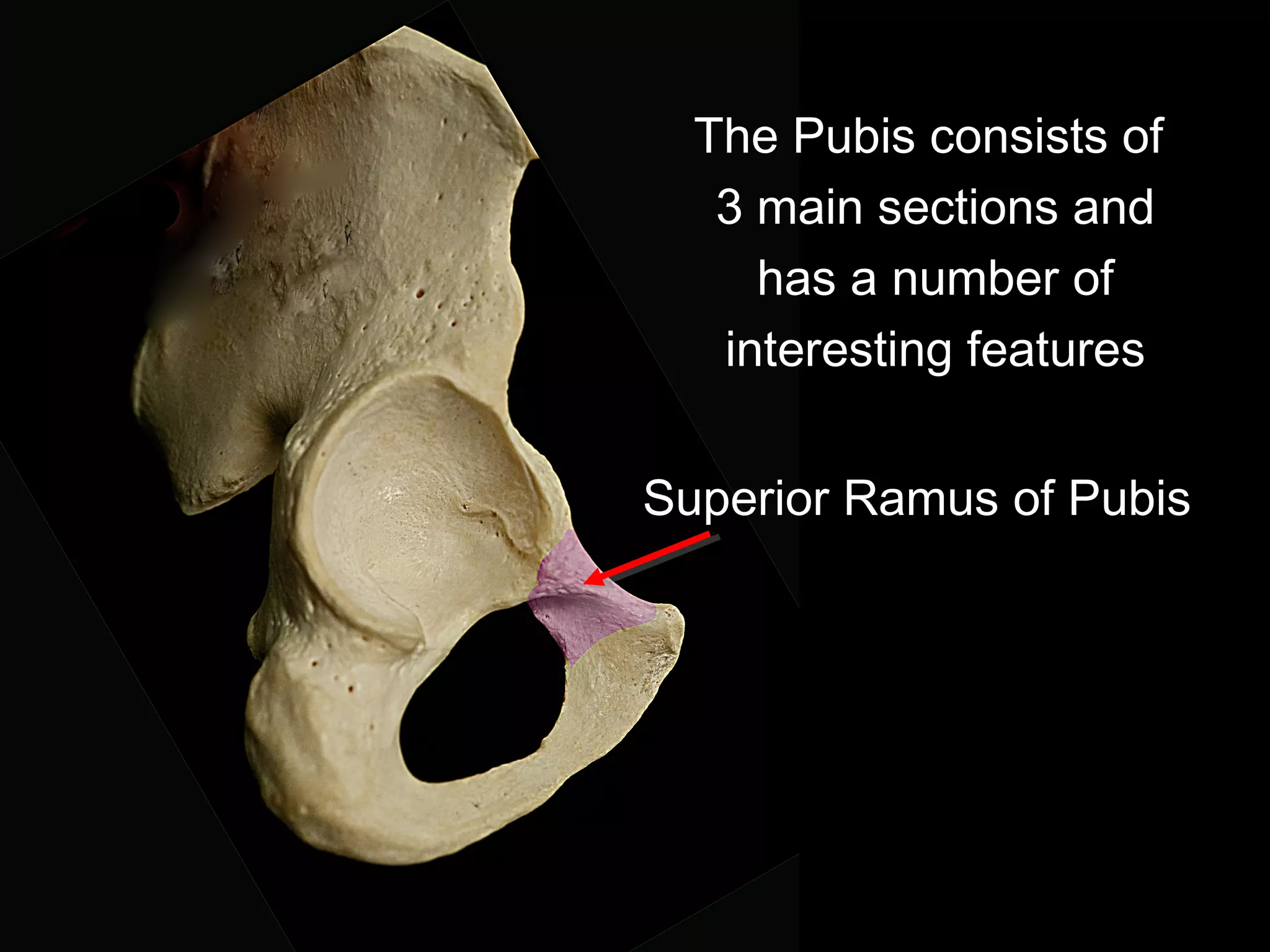

- 12. The Pubis consistsof 3 main sections and has a number of interesting features Superior Ramus of Pubis

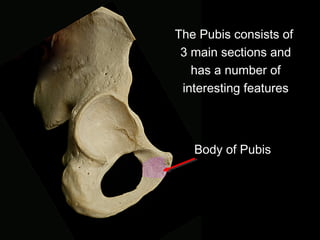

- 13. The Pubis consistsof 3 main sections and has a number of interesting features Body of Pubis

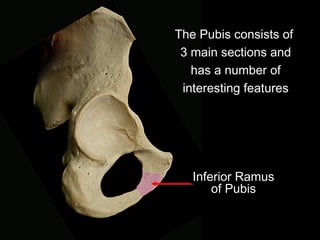

- 14. The Pubis consistsof 3 main sections and has a number of interesting features Inferior Ramus of Pubis

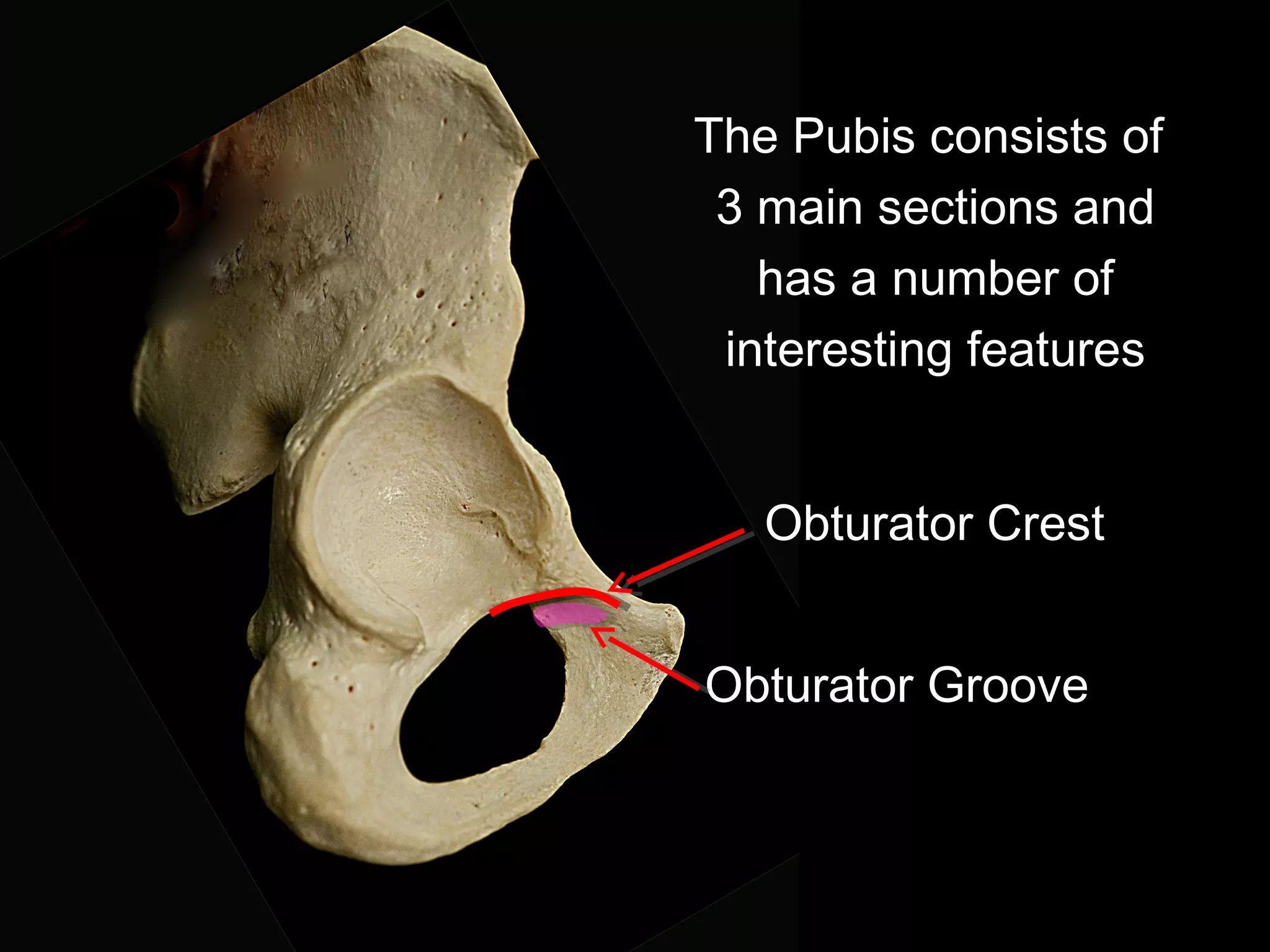

- 15. The Pubis consistsof 3 main sections and has a number of interesting features Obturator Crest Obturator Groove

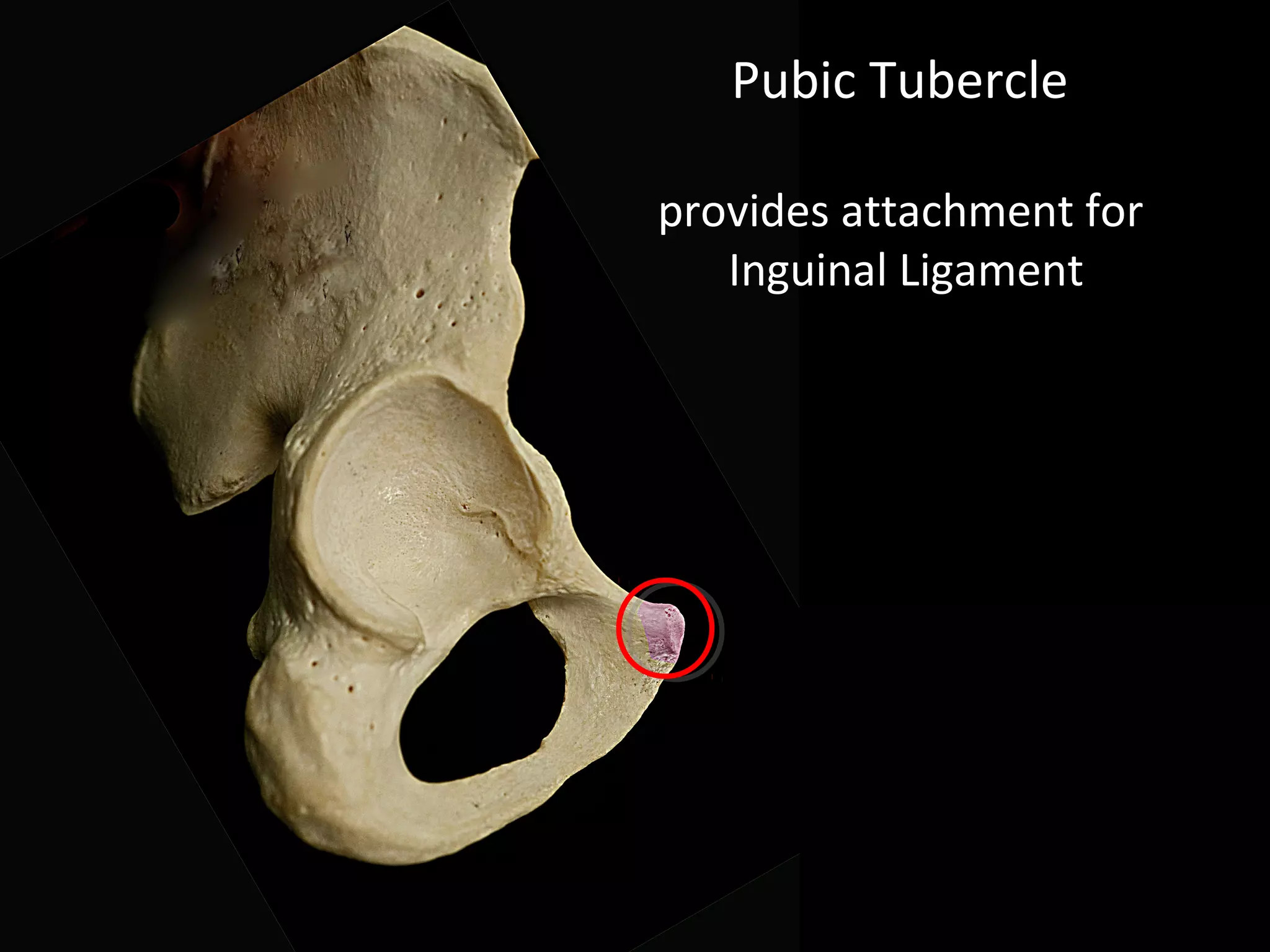

- 16. Pubic Tubercle provides attachmentfor Inguinal Ligament
- 17. Pubic Tubercle provides attachmentfor Adductor Longus
- 18. The Inferior PubicRamus joins with the Ramus of the Ischium Ischial Ramus Inferior Pubic Ramus
- 19. Body of Ischium Body ofIschium

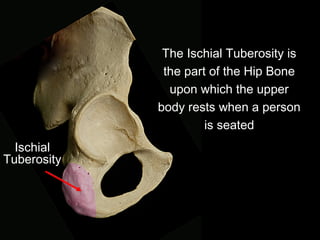

- 20. Ischial Tuberosity The Ischial Tuberosityis the part of the Hip Bone upon which the upper body rests when a person is seated
- 21. The Ischial Tuberosityis the part of the Hip Bone upon which the upper body rests when a person is seated Hip Bone has been tilted to demonstrate the ischial tuberosity

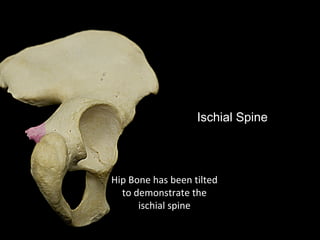

- 22. Ischial Spine Hip Bonehas been tilted to demonstrate the ischial spine
- 23. The ‘Hole’ inthe Hip Bone is the Obturator Foramen

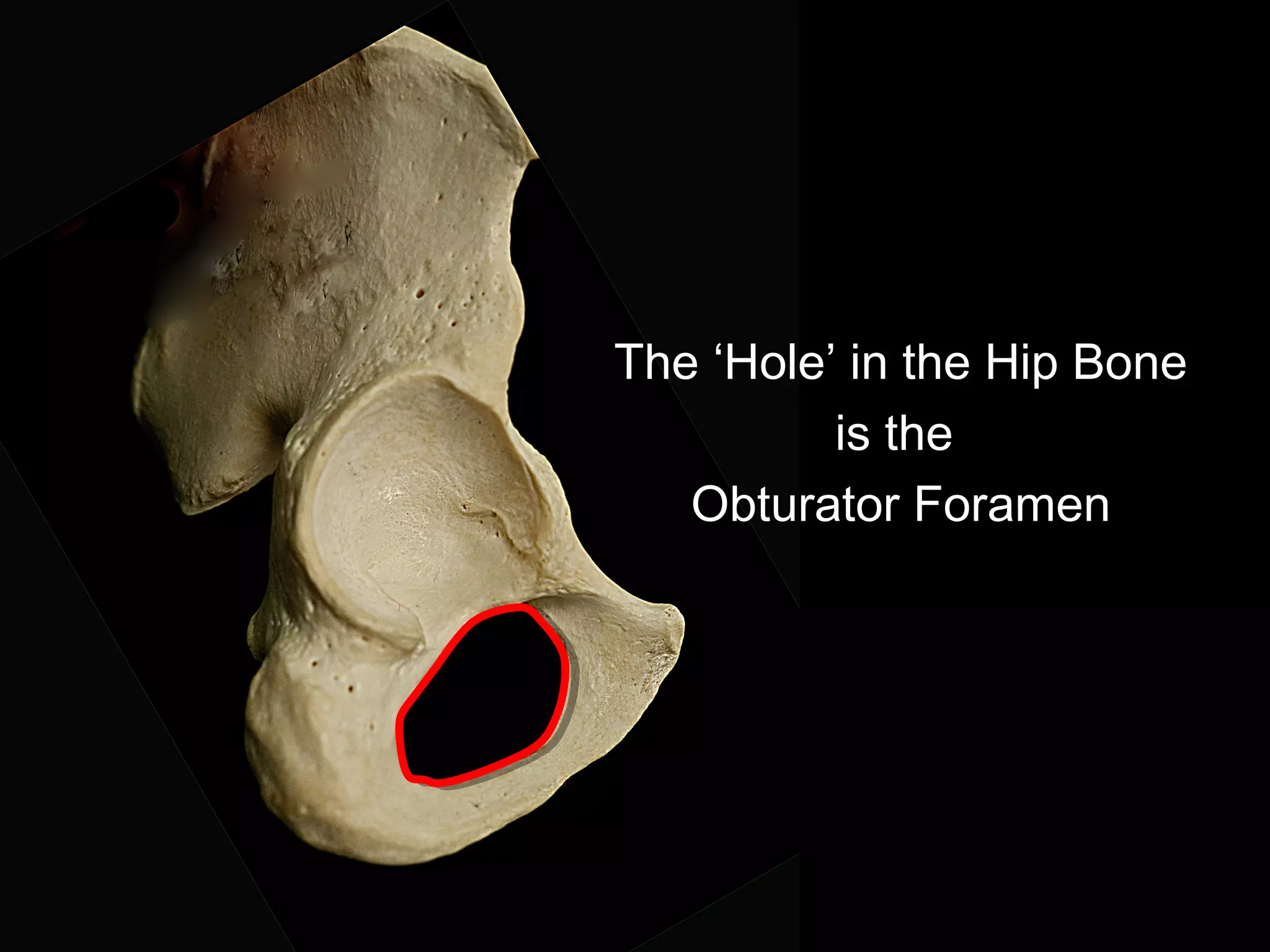

- 24. The ‘Hole’ inthe Hip Bone is the Obturator Foramen

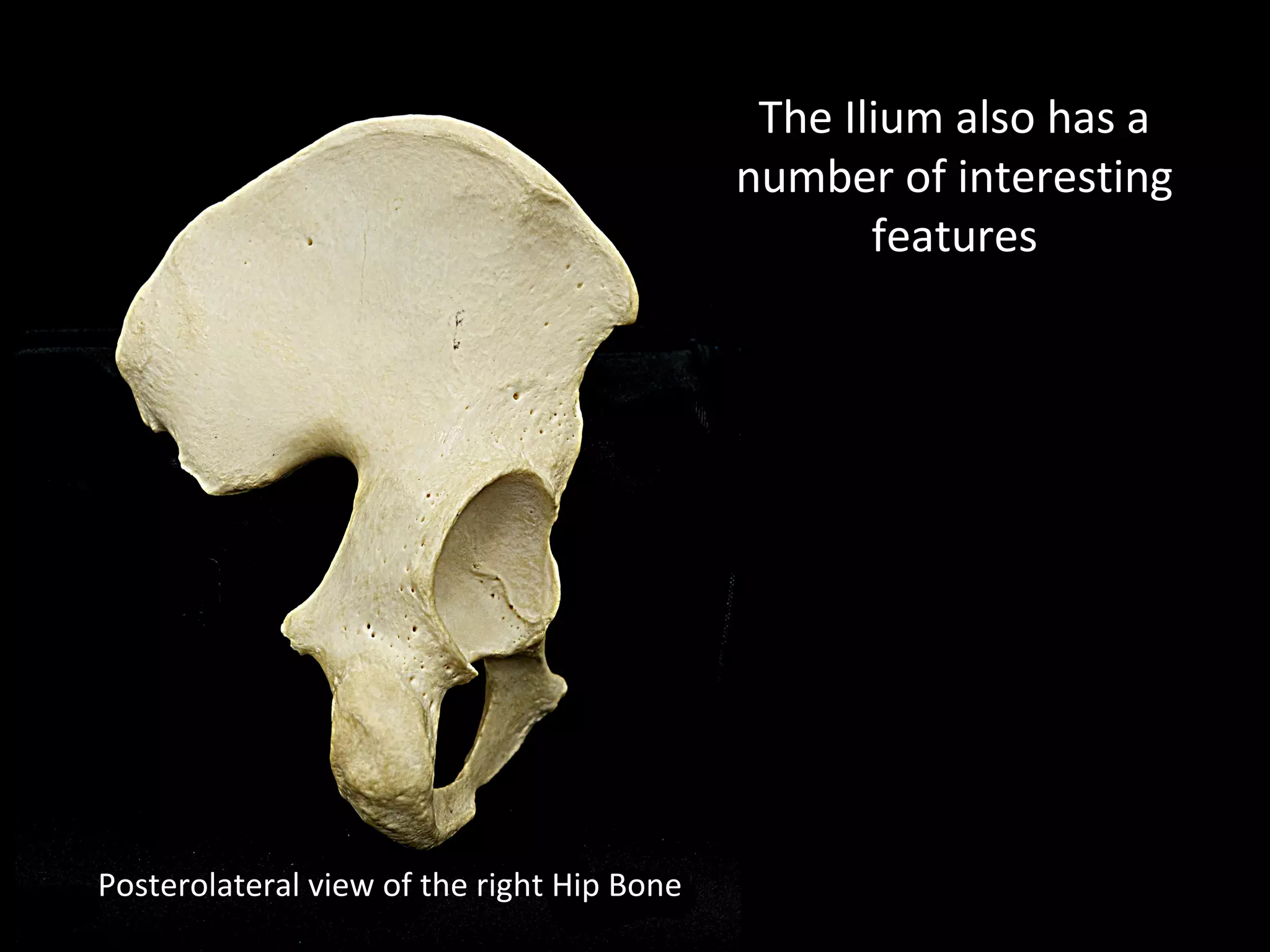

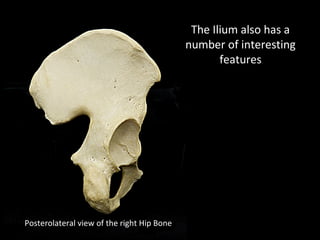

- 25. Posterolateral view ofthe right Hip Bone The Ilium also has a number of interesting features

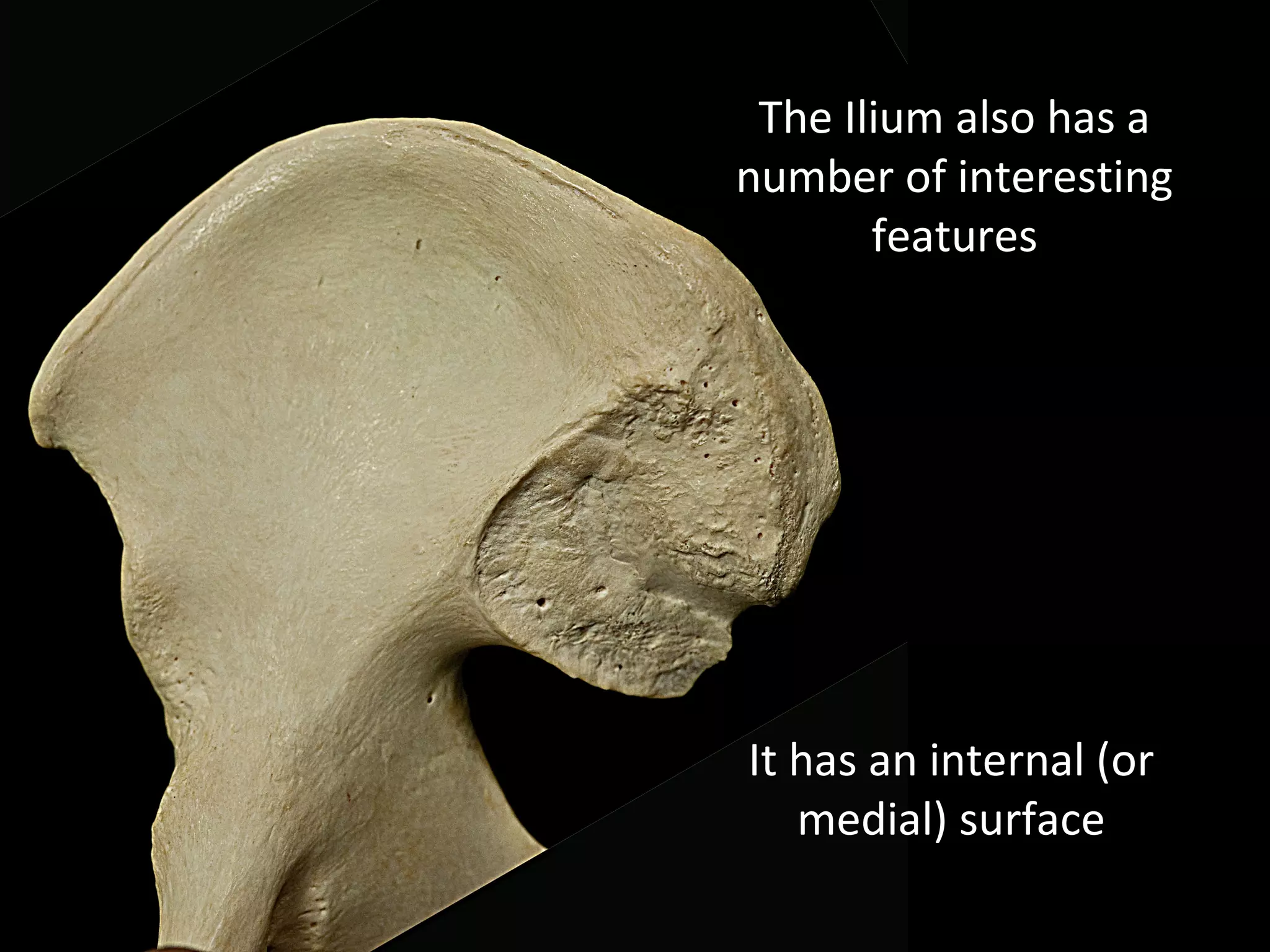

- 26. It has aninternal (or medial) surface The Ilium also has a number of interesting features

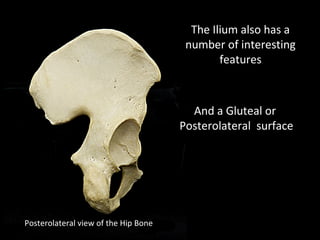

- 27. Posterolateral view ofthe Hip Bone And a Gluteal or Posterolateral surface The Ilium also has a number of interesting features
- 28. Ilium Body of theIlium
- 29.
- 30.

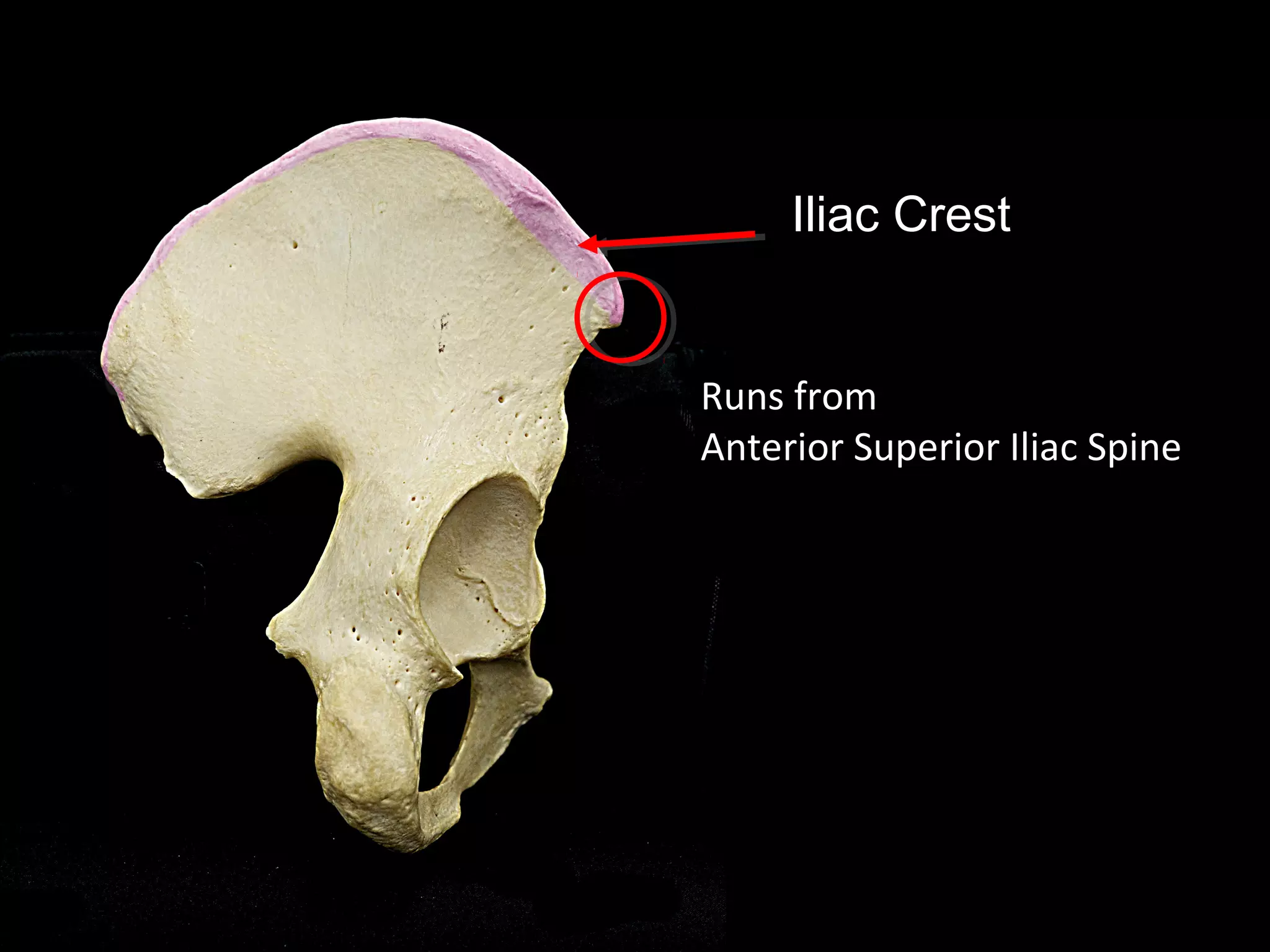

- 31. Iliac Crest Runs from AnteriorSuperior Iliac Spine
- 32. Iliac Crest Runs from AnteriorSuperior Iliac Spine to the Posterior Superior Iliac Spine
- 33. Iliac Crest Below the PosteriorSuperior Iliac Spine is the Posterior Inferior Iliac Spine
- 34. Iliac Crest The AnteriorInferior Iliac Spine is below the Anterior Superior Iliac Spine
- 35. Posterolateral view ofthe Hip Bone The Gluteal Surface of the Ilium provides attachment for the Gluteal Muscles

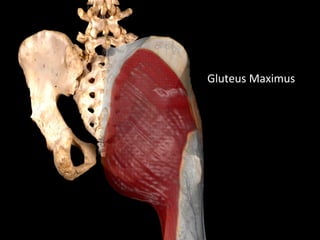

- 36.

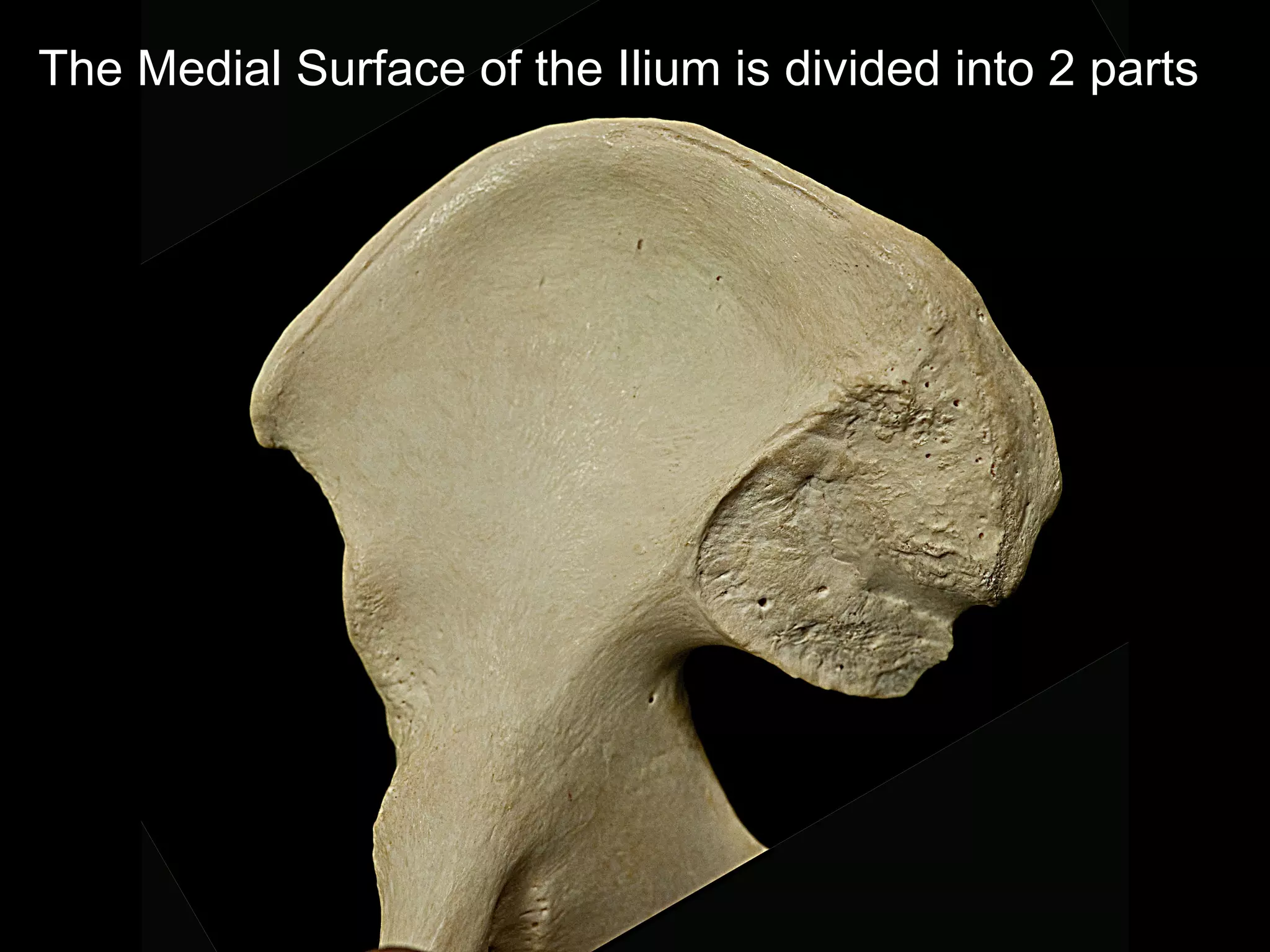

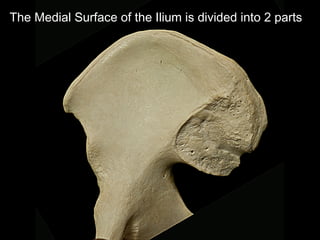

- 37. The Medial Surfaceof the Ilium is divided into 2 parts

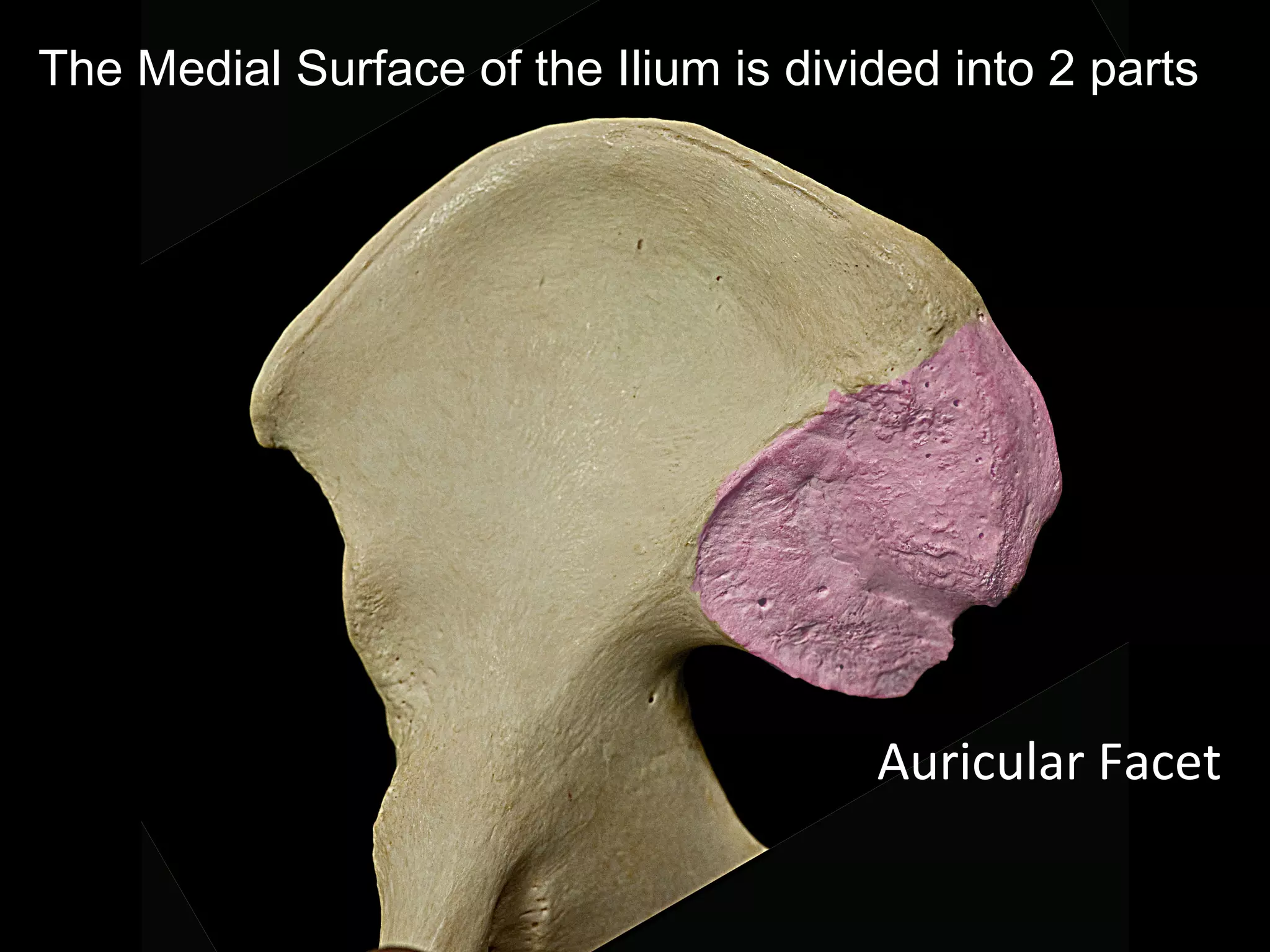

- 38. The Medial Surfaceof the Ilium is divided into 2 parts Auricular Facet
- 39. The Medial Surfaceof the Ilium is divided into 2 parts Auricular Facet
- 40. The Auricular Facet Articulateswith the Sacrum at the Sacroiliac Joint
- 41. The Auricular Facet Articulateswith the Sacrum at the Sacroiliac Joint
- 42.

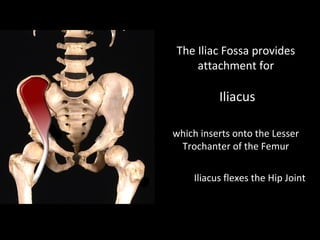

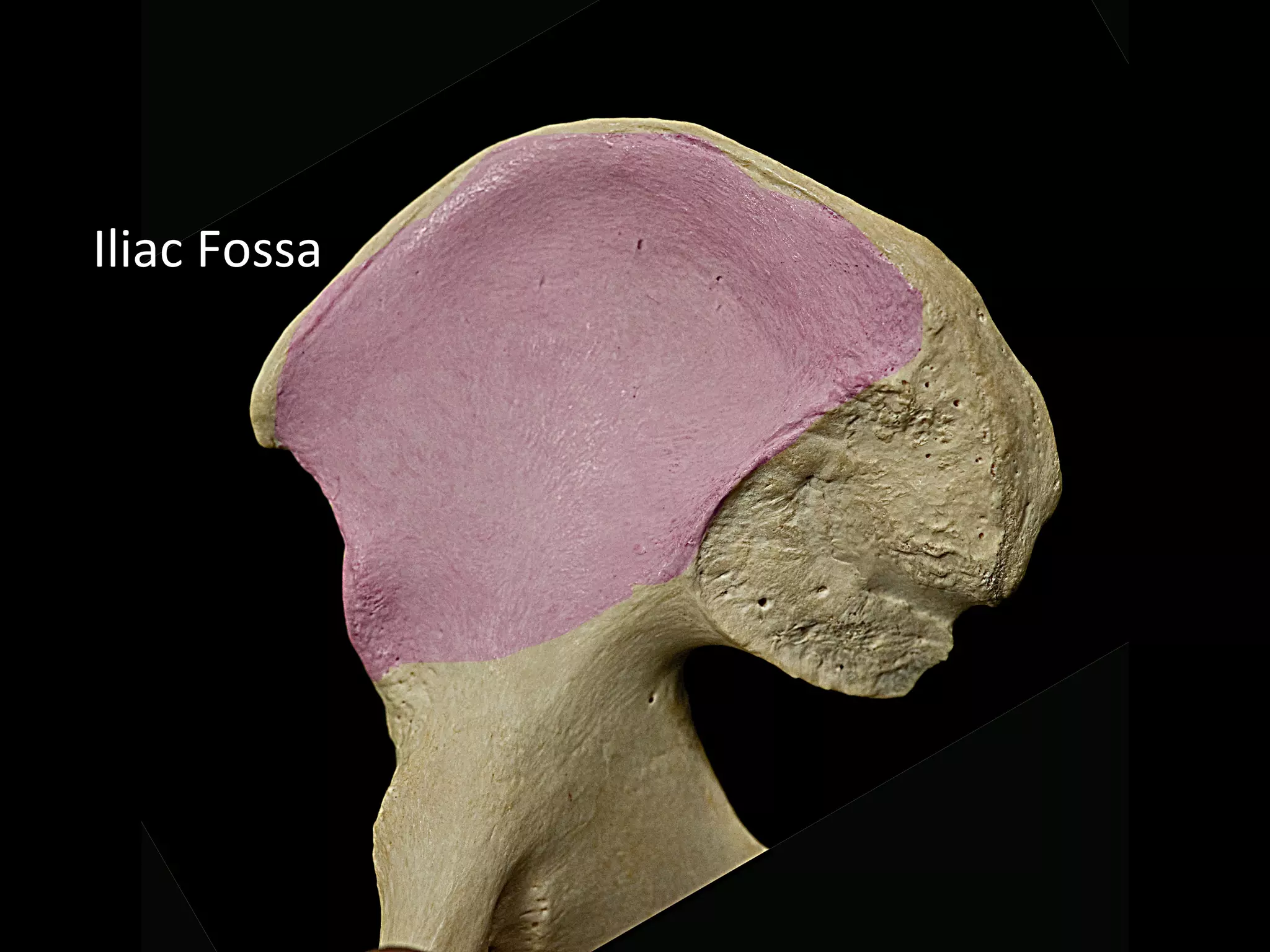

- 43. The Iliac Fossaprovides attachment for Iliacus which inserts onto the Lesser Trochanter of the Femur Iliacus flexes the Hip Joint
- 44.

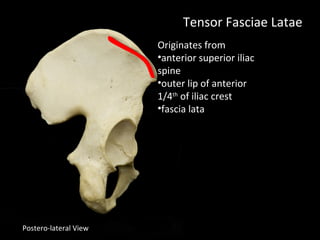

- 45. Postero-lateral View Tensor FasciaeLatae Originates from •anterior superior iliac spine •outer lip of anterior 1/4th of iliac crest •fascia lata

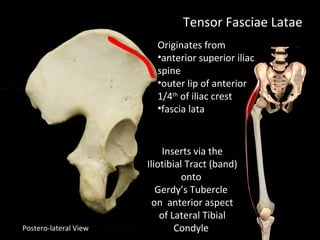

- 46. Postero-lateral View Tensor FasciaeLatae Inserts via the Iliotibial Tract (band) onto Gerdy’s Tubercle on anterior aspect of Lateral Tibial Condyle Originates from •anterior superior iliac spine •outer lip of anterior 1/4th of iliac crest •fascia lata
- 47. Postero-lateral View Sartorius Originates fromthe Anterior Superior Iliac Spine

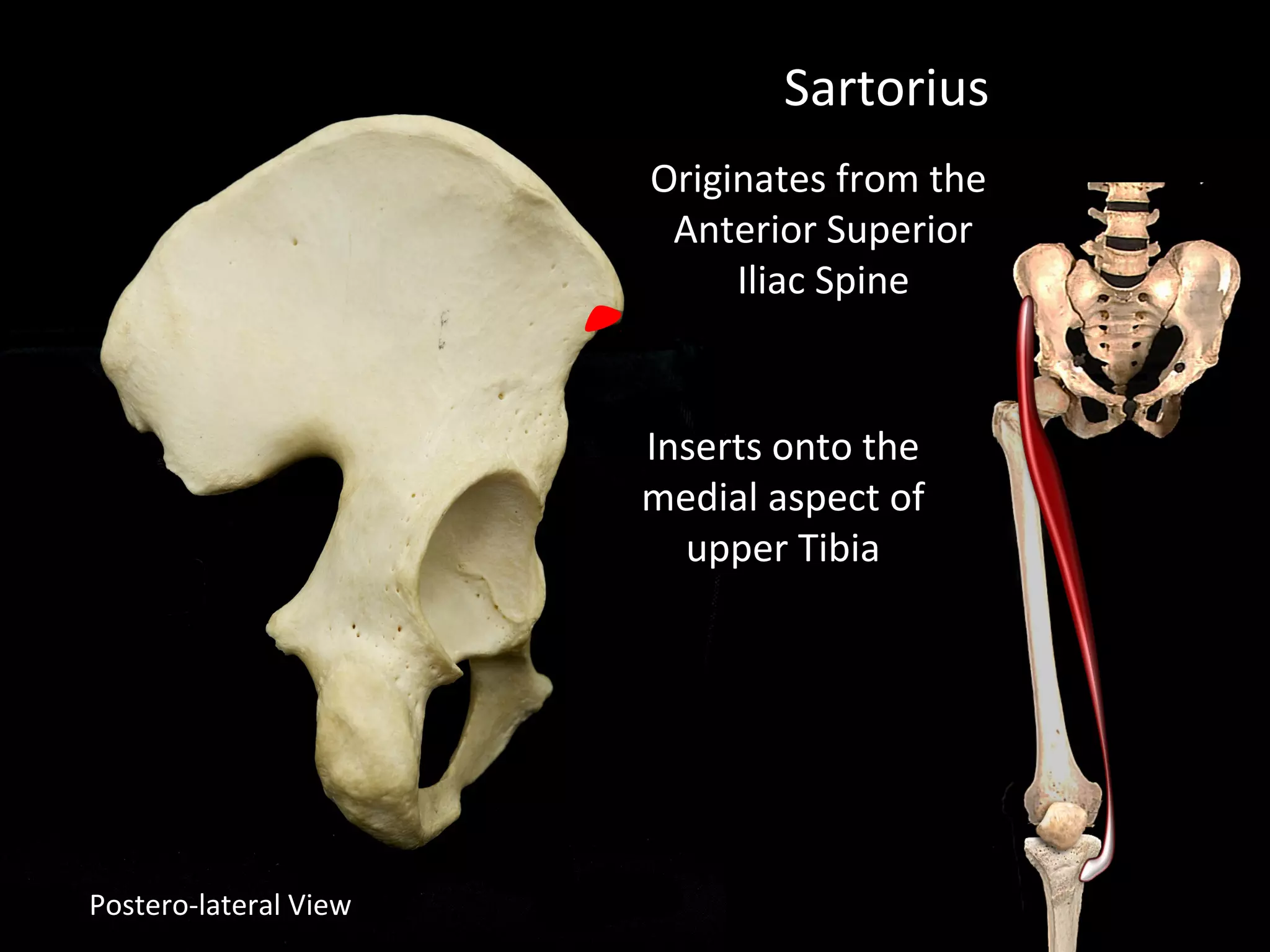

- 48. Postero-lateral View Sartorius Originates fromthe Anterior Superior Iliac Spine Inserts onto the medial aspect of upper Tibia
- 49. Postero-lateral View Sartorius Originates fromthe Anterior Superior Iliac Spine Inserts onto the medial aspect of upper Tibia • Flexes, adducts and laterally rotates the hip • Flexes the knee
- 50. Postero-lateral View Gluteus Medius Originatesfrom outer surface of Ilium between Posterior and Anterior (middle) Gluteal Lines

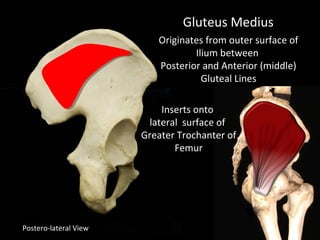

- 51. Postero-lateral View Gluteus Medius Insertsonto lateral surface of Greater Trochanter of Femur Originates from outer surface of Ilium between Posterior and Anterior (middle) Gluteal Lines
- 52. Postero-lateral View Gluteus Medius Originatesfrom outer surface of Ilium between Posterior and Anterior (middle) Gluteal Lines Inserts onto lateral surface of Greater Trochanter of Femur • Abducts thigh • Medially rotates hip
- 53. Postero-lateral View Gluteus Minimus Originatesfrom outer surface of Ilium between Inferior and Anterior (middle) Gluteal lines

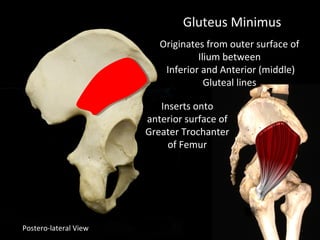

- 54. Postero-lateral View Gluteus Minimus Insertsonto anterior surface of Greater Trochanter of Femur Originates from outer surface of Ilium between Inferior and Anterior (middle) Gluteal lines
- 55. Postero-lateral View Gluteus Minimus Insertsonto anterior surface of Greater Trochanter of Femur Abducts and medially rotates the hip joint Originates from outer surface of Ilium between Inferior and Anterior (middle) Gluteal lines

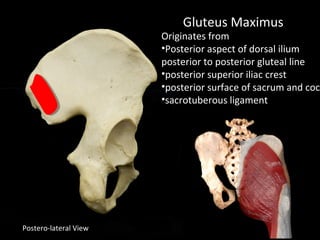

- 56. Postero-lateral View Gluteus Maximus Originatesfrom •Posterior aspect of dorsal ilium posterior to posterior gluteal line •posterior superior iliac crest •posterior surface of sacrum and cocc •sacrotuberous ligament
- 57. Postero-lateral View Gluteus Maximus Insertsonto •Iliotibial band •Gluteal Tuberosity posterior Femur

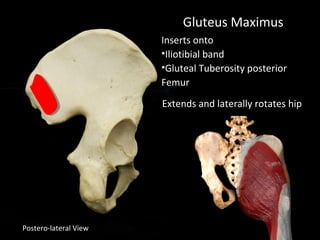

- 58. Postero-lateral View Gluteus Maximus Insertsonto •Iliotibial band •Gluteal Tuberosity posterior Femur Extends and laterally rotates hip

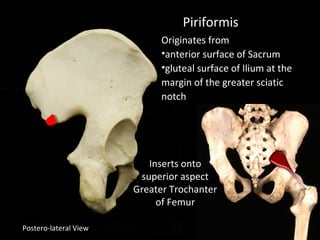

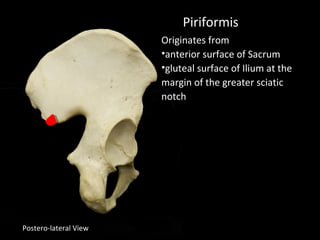

- 59. Postero-lateral View Piriformis Originates from •anteriorsurface of Sacrum •gluteal surface of Ilium at the margin of the greater sciatic notch
- 60. Postero-lateral View Piriformis Originates from •anteriorsurface of Sacrum •gluteal surface of Ilium at the margin of the greater sciatic notch Inserts onto superior aspect Greater Trochanter of Femur
- 61. Postero-lateral View Piriformis Originates from •anteriorsurface of Sacrum •gluteal surface of Ilium at the margin of the greater sciatic notch Inserts onto superior aspect Greater Trochanter of Femur Laterally rotates Hip Joint
- 62. Postero-lateral View Superior Gemellus Originatesfrom a small area on the outer surface of hip bone below Ischial Spine

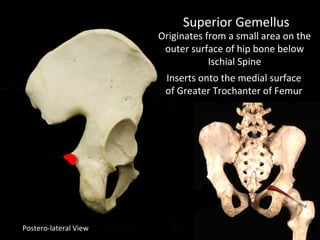

- 63. Postero-lateral View Superior Gemellus Originatesfrom a small area on the outer surface of hip bone below Ischial Spine Inserts onto the medial surface of Greater Trochanter of Femur
- 64. Postero-lateral View Superior Gemellus Insertsonto the medial surface of Greater Trochanter of Femur Laterally rotates the Hip Originates from a small area on the outer surface of hip bone below Ischial Spine

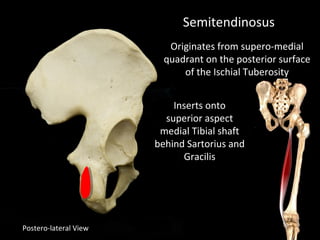

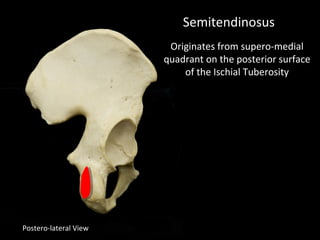

- 65. Postero-lateral View Semitendinosus Originates fromsupero-medial quadrant on the posterior surface of the Ischial Tuberosity
- 66. Postero-lateral View Semitendinosus Originates fromsupero-medial quadrant on the posterior surface of the Ischial Tuberosity Inserts onto superior aspect medial Tibial shaft behind Sartorius and Gracilis
- 67. Postero-lateral View Semitendinosus Originates fromsuperior medial quadrant on the posterior surface of the Ischial Tuberosity Inserts onto superior aspect medial Tibial shaft behind Sartorius and Gracilis • Extends Hip • Flexes and medially rotates the Knee
- 68. Postero-lateral View Originates fromsuperior medial quadrant on the posterior surface of the Ischial Tuberosity Biceps Femoris (long head)
- 69. Postero-lateral View Originates fromsuperior medial quadrant on the posterior surface of the Ischial Tuberosity Inserts in common with the short head onto •Fibular head •Lateral Collateral Ligament of Knee •Lateral Tibial Condyle Biceps Femoris (long head)

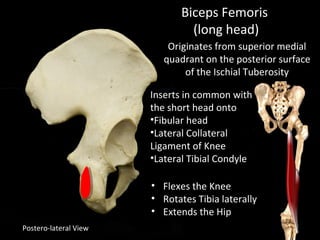

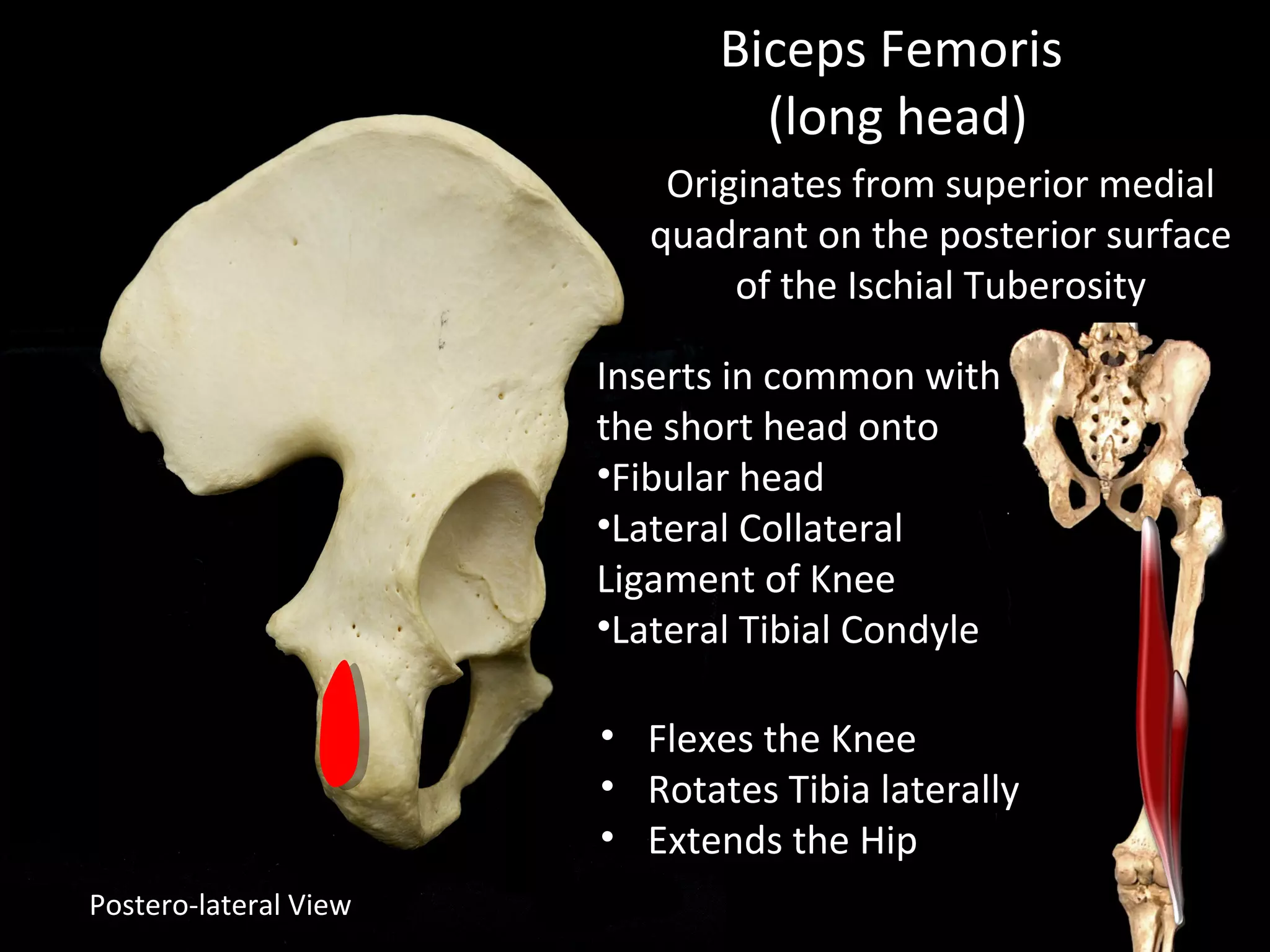

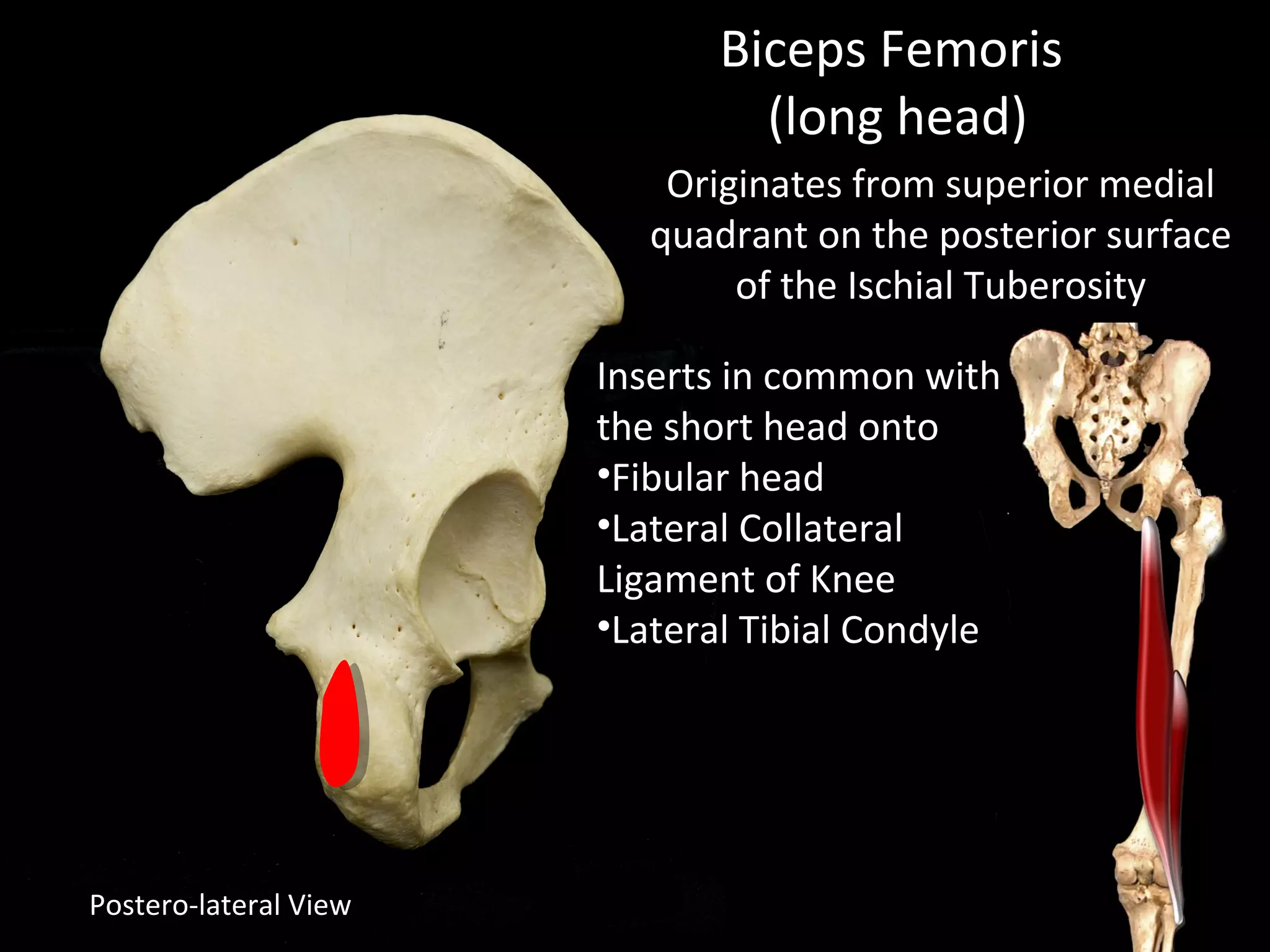

- 70. Postero-lateral View Biceps Femoris (longhead) Originates from superior medial quadrant on the posterior surface of the Ischial Tuberosity Inserts in common with the short head onto •Fibular head •Lateral Collateral Ligament of Knee •Lateral Tibial Condyle • Flexes the Knee • Rotates Tibia laterally • Extends the Hip
- 71. Postero-lateral View Semimembranosus Originates fromsuperior lateral quadrant on the posterior surface of the Ischial Tuberosity

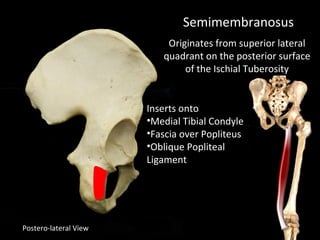

- 72. Postero-lateral View Semimembranosus Originates fromsuperior lateral quadrant on the posterior surface of the Ischial Tuberosity Inserts onto •Medial Tibial Condyle •Fascia over Popliteus •Oblique Popliteal Ligament

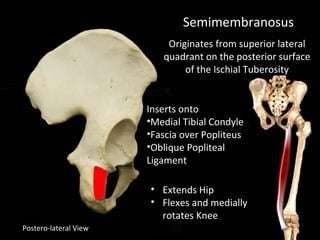

- 73. Postero-lateral View Semimembranosus Originates fromsuperior lateral quadrant on the posterior surface of the Ischial Tuberosity • Extends Hip • Flexes and medially rotates Knee Inserts onto •Medial Tibial Condyle •Fascia over Popliteus •Oblique Popliteal Ligament
- 74. Quadratus Femoris Originates fromlateral border of Ischial Tuberosity Inferior-lateral View

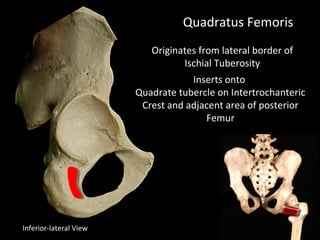

- 75. Quadratus Femoris Originates fromlateral border of Ischial Tuberosity Inferior-lateral View Inserts onto Quadrate tubercle on Intertrochanteric Crest and adjacent area of posterior Femur

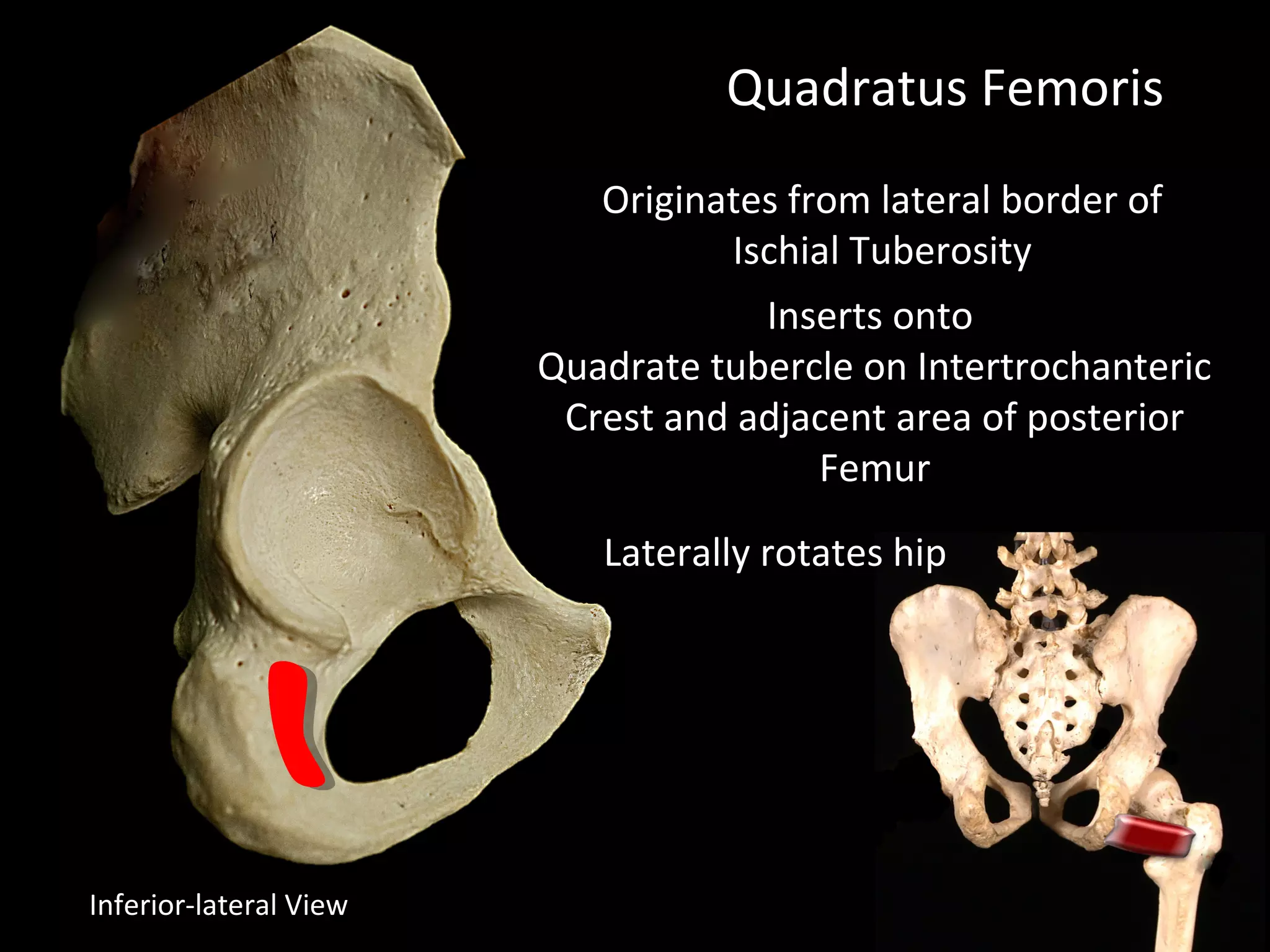

- 76. Quadratus Femoris Originates fromlateral border of Ischial Tuberosity Laterally rotates hip Inferior-lateral View Inserts onto Quadrate tubercle on Intertrochanteric Crest and adjacent area of posterior Femur

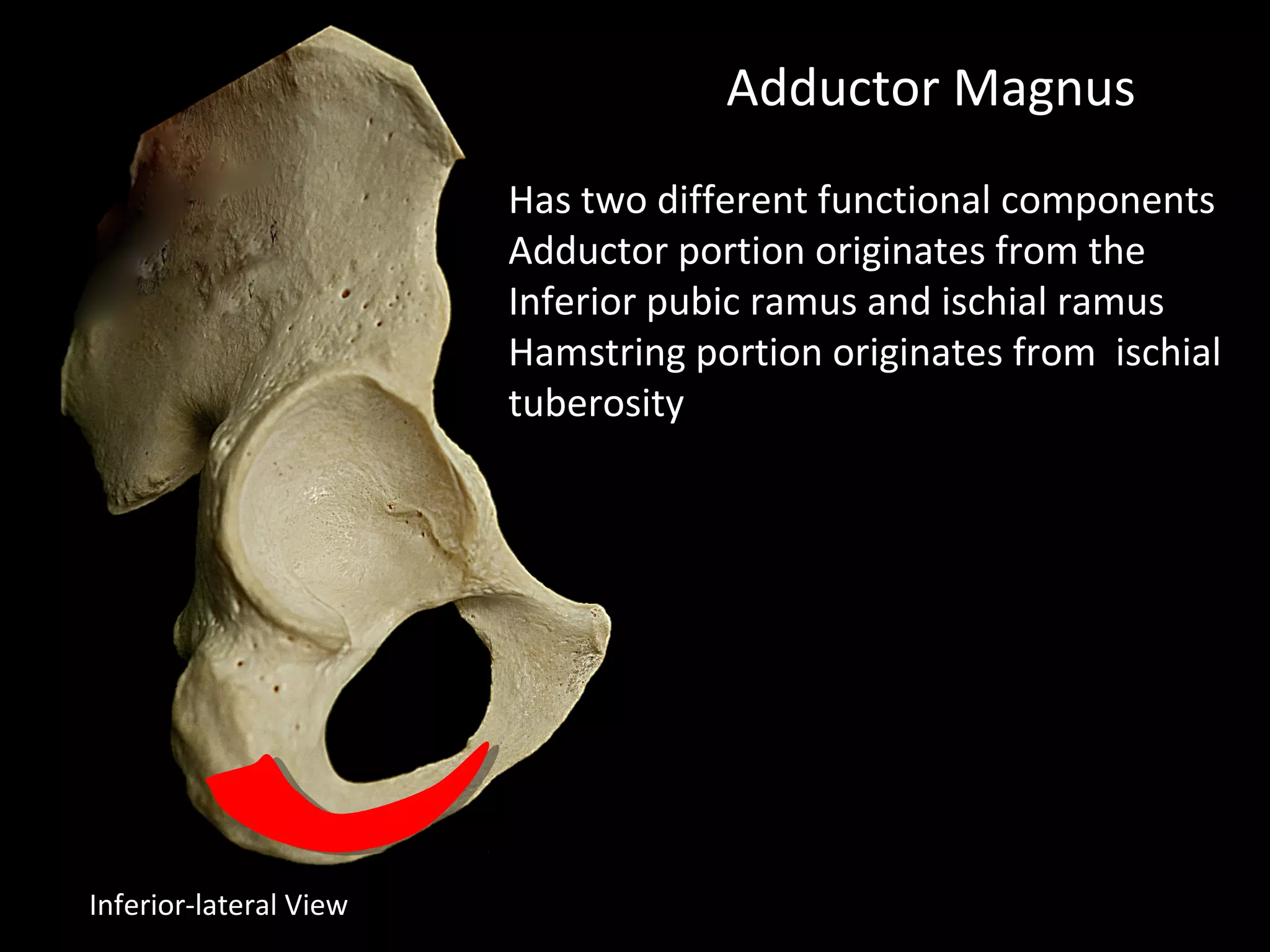

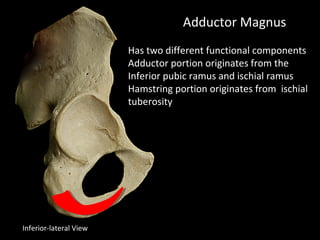

- 77. Adductor Magnus Has twodifferent functional components Adductor portion originates from the Inferior pubic ramus and ischial ramus Hamstring portion originates from ischial tuberosity Inferior-lateral View

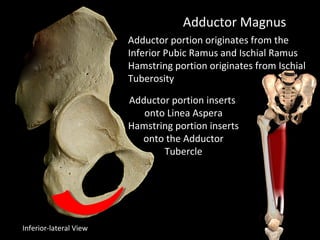

- 78. Adductor Magnus Adductor portionoriginates from the Inferior Pubic Ramus and Ischial Ramus Hamstring portion originates from Ischial Tuberosity Adductor portion inserts onto Linea Aspera Hamstring portion inserts onto the Adductor Tubercle Inferior-lateral View

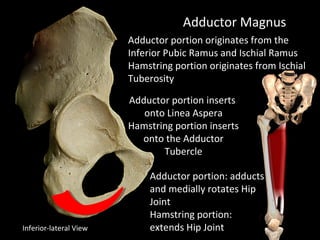

- 79. Adductor Magnus Adductor portionoriginates from the Inferior Pubic Ramus and Ischial Ramus Hamstring portion originates from Ischial Tuberosity Adductor portion inserts onto Linea Aspera Hamstring portion inserts onto the Adductor Tubercle Adductor portion: adducts and medially rotates Hip Joint Hamstring portion: extends Hip JointInferior-lateral View

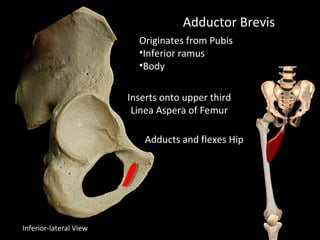

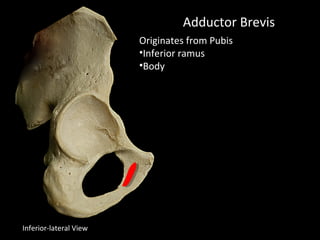

- 80. Adductor Brevis Originates fromPubis •Inferior ramus •Body Inferior-lateral View

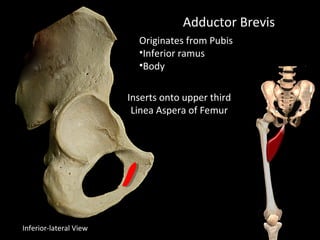

- 81. Adductor Brevis Originates fromPubis •Inferior ramus •Body Inserts onto upper third Linea Aspera of Femur Inferior-lateral View
- 82. Adductor Brevis Originates fromPubis •Inferior ramus •Body Inserts onto upper third Linea Aspera of Femur Adducts and flexes Hip Inferior-lateral View

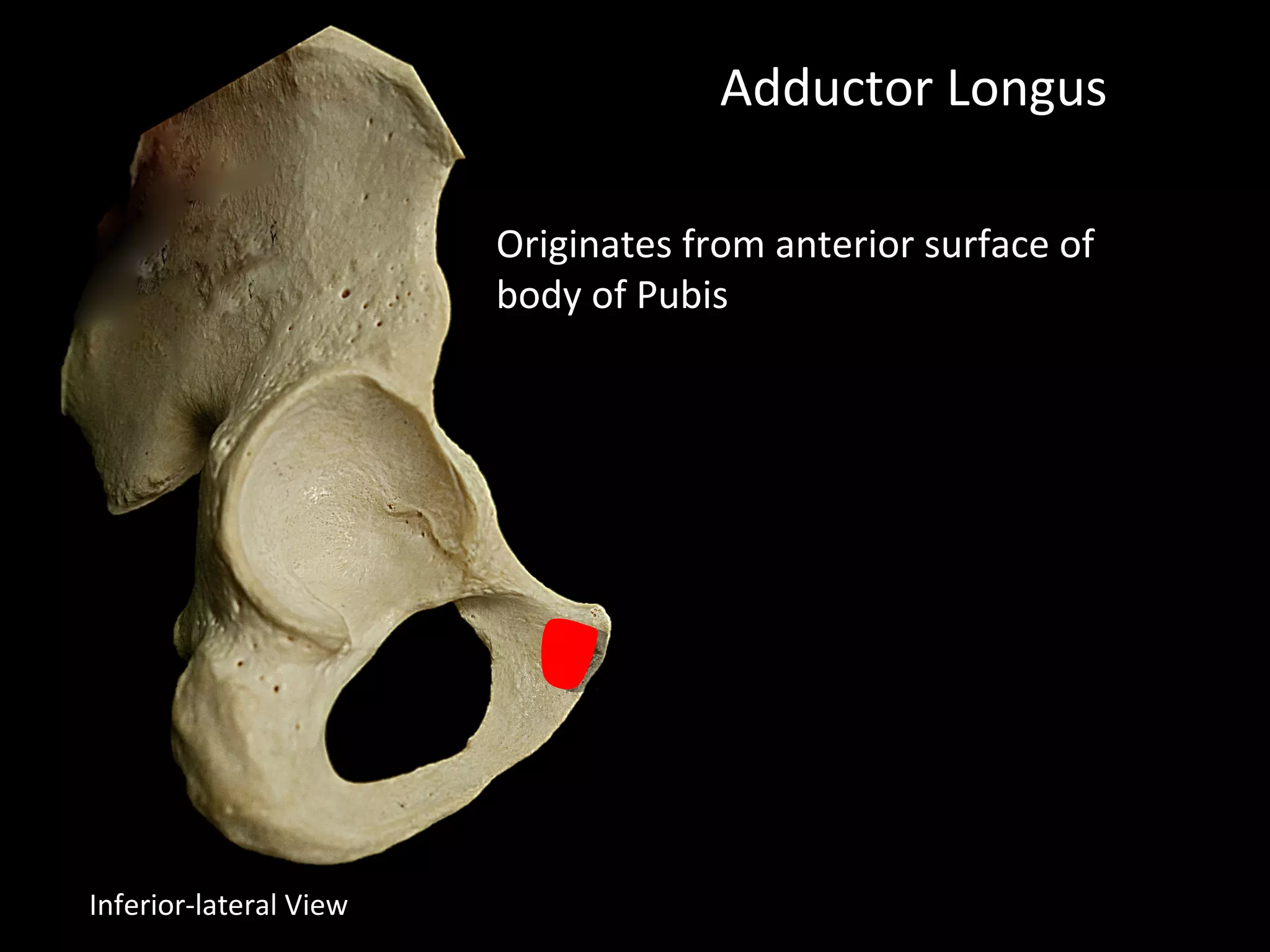

- 83. Adductor Longus Originates fromanterior surface of body of Pubis Inferior-lateral View

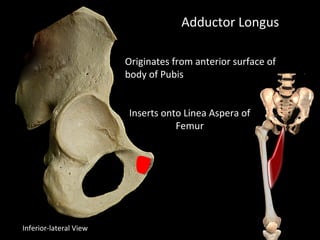

- 84. Adductor Longus Originates fromanterior surface of body of Pubis Inserts onto Linea Aspera of Femur Inferior-lateral View
- 85. Adductor Longus Originates fromanterior surface of body of Pubis Inserts onto Linea Aspera of Femur Adducts, flexes and medially rotates the Hip Joint Inferior-lateral View

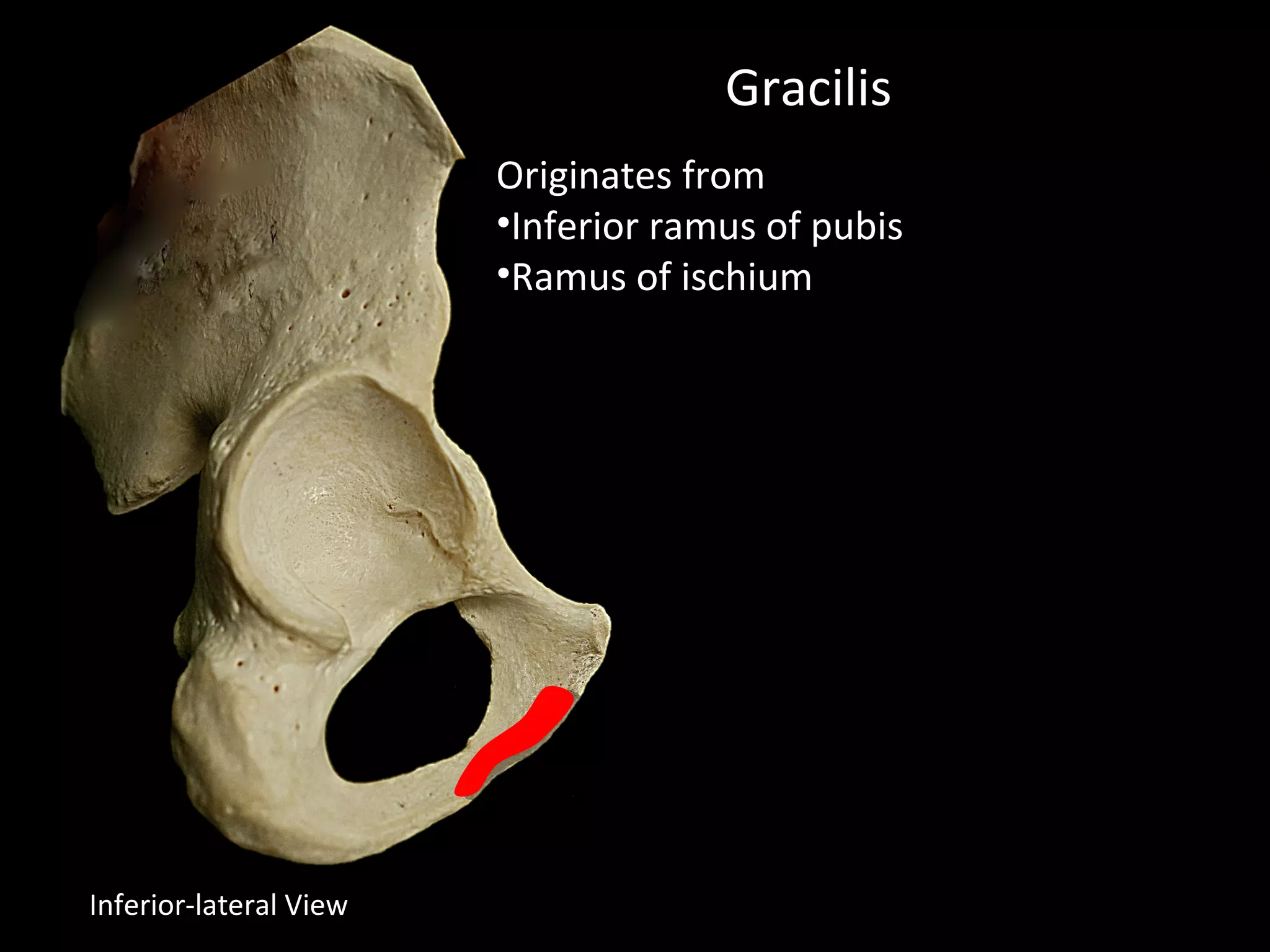

- 86. Gracilis Originates from •Inferior ramusof pubis •Ramus of ischium Inferior-lateral View

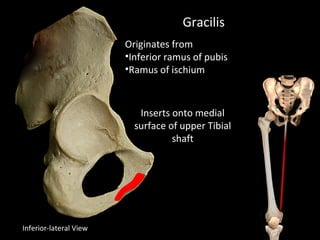

- 87. Gracilis Originates from •Inferior ramusof pubis •Ramus of ischium Inserts onto medial surface of upper Tibial shaft Inferior-lateral View
- 88. Gracilis • Adducts Hip •Flexes Knee Medially rotates Tibia on Femur Inferior-lateral View Originates from •Inferior ramus of pubis •Ramus of ischium Inserts onto medial surface of upper Tibial shaft

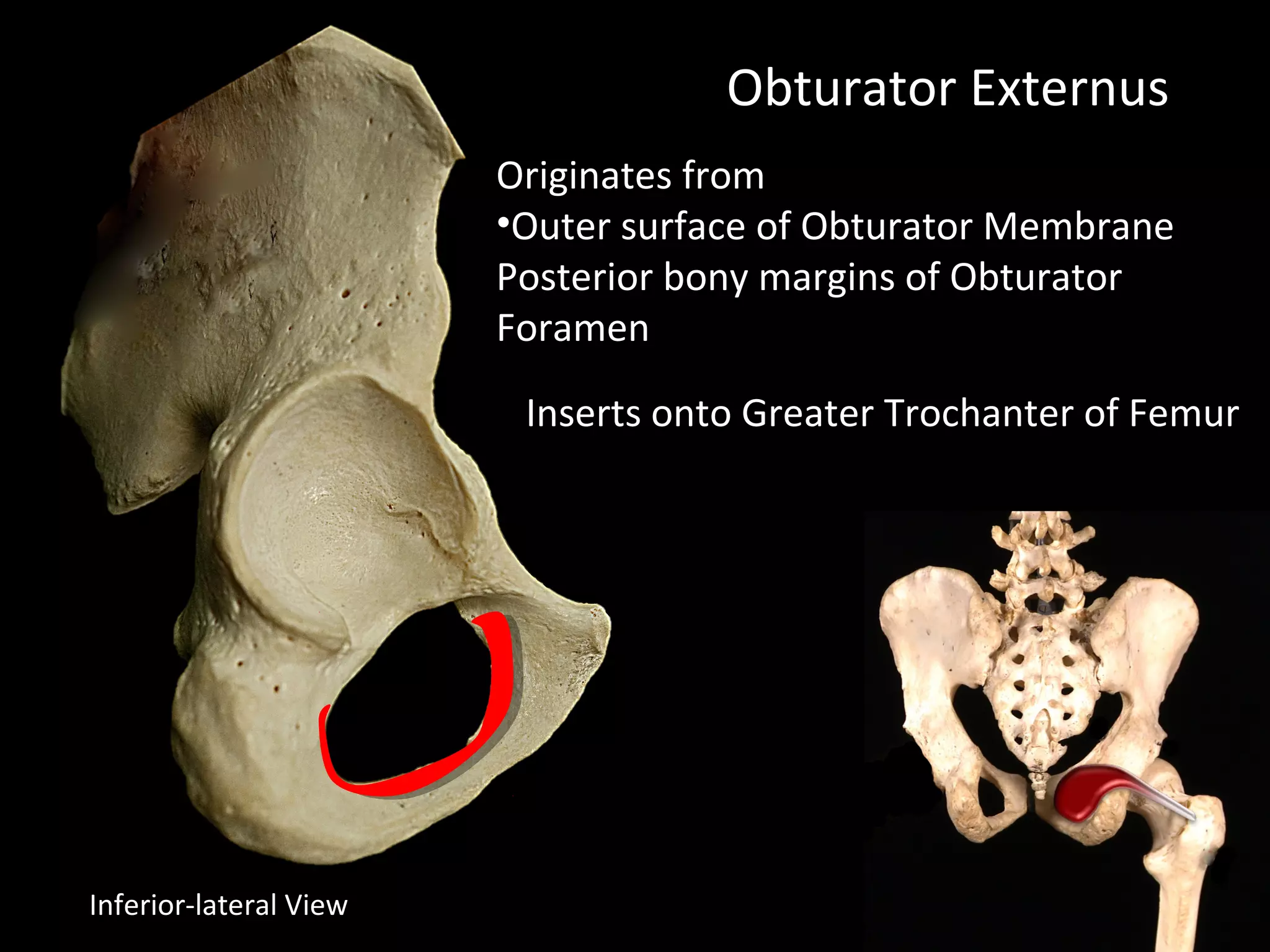

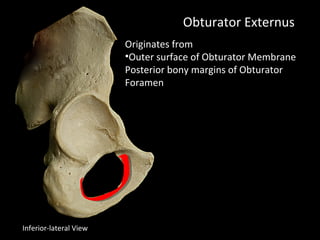

- 89. Obturator Externus Originates from •Outersurface of Obturator Membrane Posterior bony margins of Obturator Foramen Inferior-lateral View

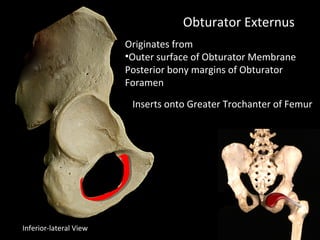

- 90. Obturator Externus Originates from •Outersurface of Obturator Membrane Posterior bony margins of Obturator Foramen Inserts onto Greater Trochanter of Femur Inferior-lateral View
- 91. Obturator Externus Originates from •Outersurface of Obturator Membrane Posterior bony margins of Obturator Foramen Inserts onto Greater Trochanter of Femur Laterally rotates hip Inferior-lateral View

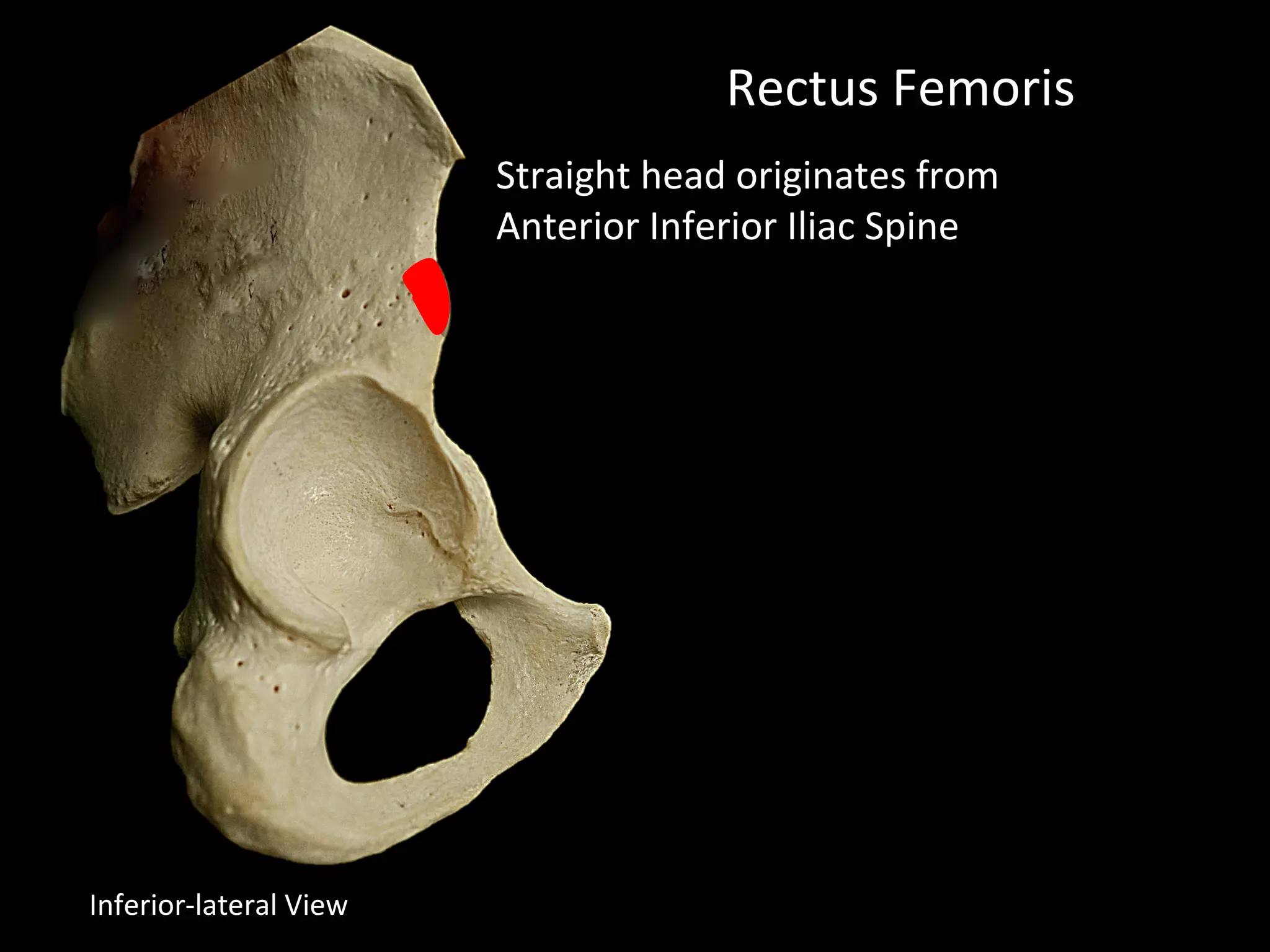

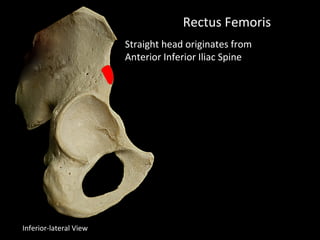

- 92. Rectus Femoris Straight headoriginates from Anterior Inferior Iliac Spine Inferior-lateral View

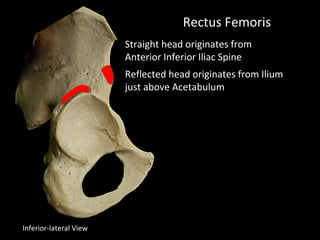

- 93. Rectus Femoris Straight headoriginates from Anterior Inferior Iliac Spine Reflected head originates from Ilium just above Acetabulum Inferior-lateral View

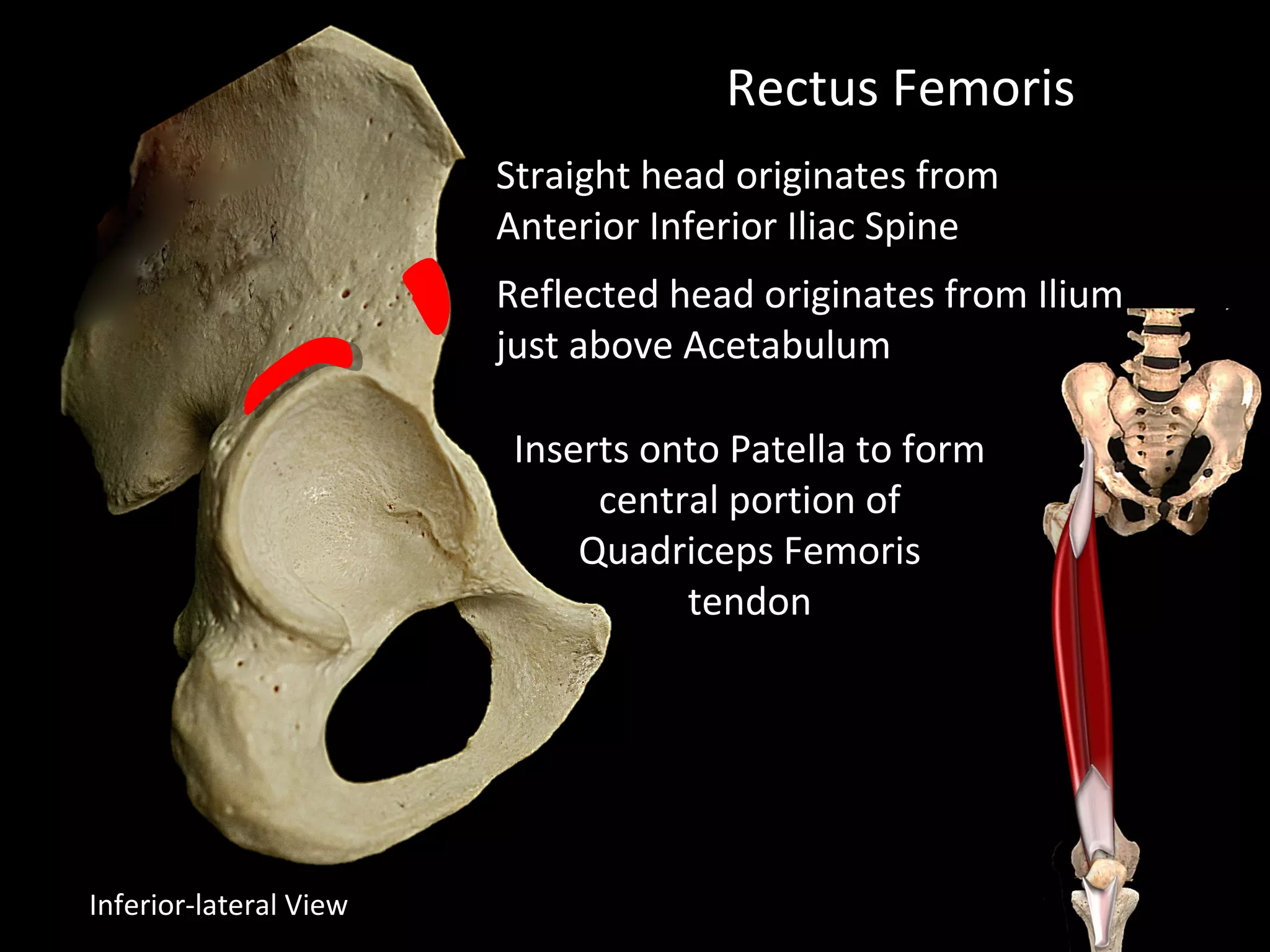

- 94. Inferior-lateral View Rectus Femoris Straighthead originates from Anterior Inferior Iliac Spine Reflected head originates from Ilium just above Acetabulum Inserts onto Patella to form central portion of Quadriceps Femoris tendon
- 95. Rectus Femoris Straight headoriginates from Anterior Inferior Iliac Spine Reflected head originates from Ilium just above Acetabulum Inserts onto Patella to form central portion of Quadriceps Femoris tendon Extends the knee Inferior-lateral View

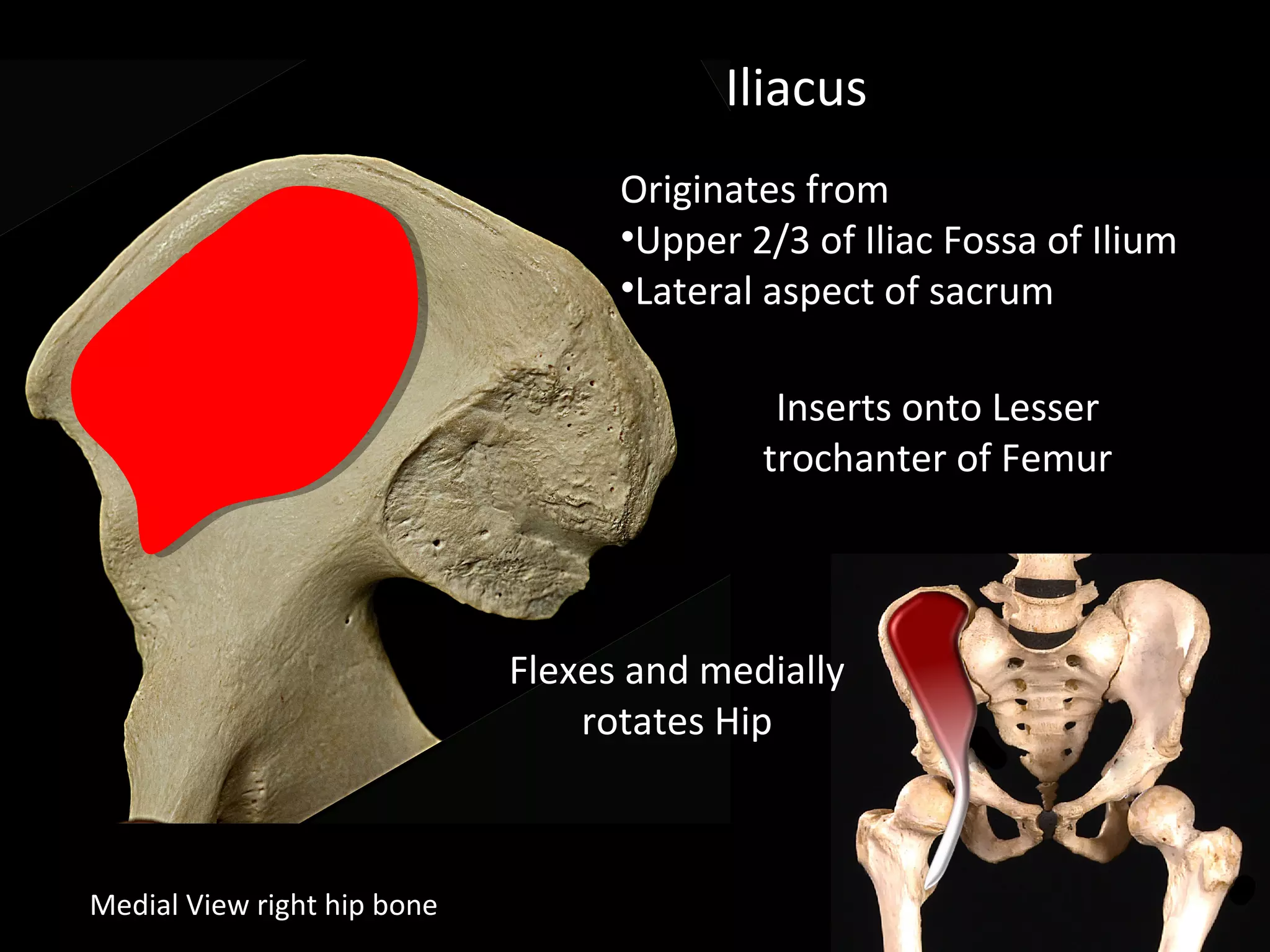

- 96. Iliacus Originates from •Upper 2/3of Iliac Fossa of Ilium •Lateral aspect of sacrum Medial View right hip bone Inserts onto Lesser trochanter of Femur Flexes and medially rotates Hip
- 97.

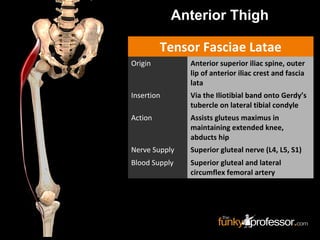

- 98. Tensor Fasciae Latae OriginAnterior superior iliac spine, outer lip of anterior iliac crest and fascia lata Insertion Via the Iliotibial band onto Gerdy’s tubercle on lateral tibial condyle Action Assists gluteus maximus in maintaining extended knee, abducts hip Nerve Supply Superior gluteal nerve (L4, L5, S1) Blood Supply Superior gluteal and lateral circumflex femoral artery Anterior Thigh

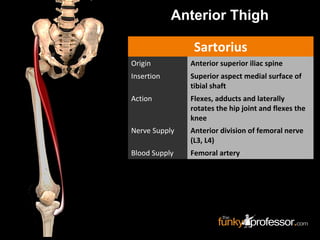

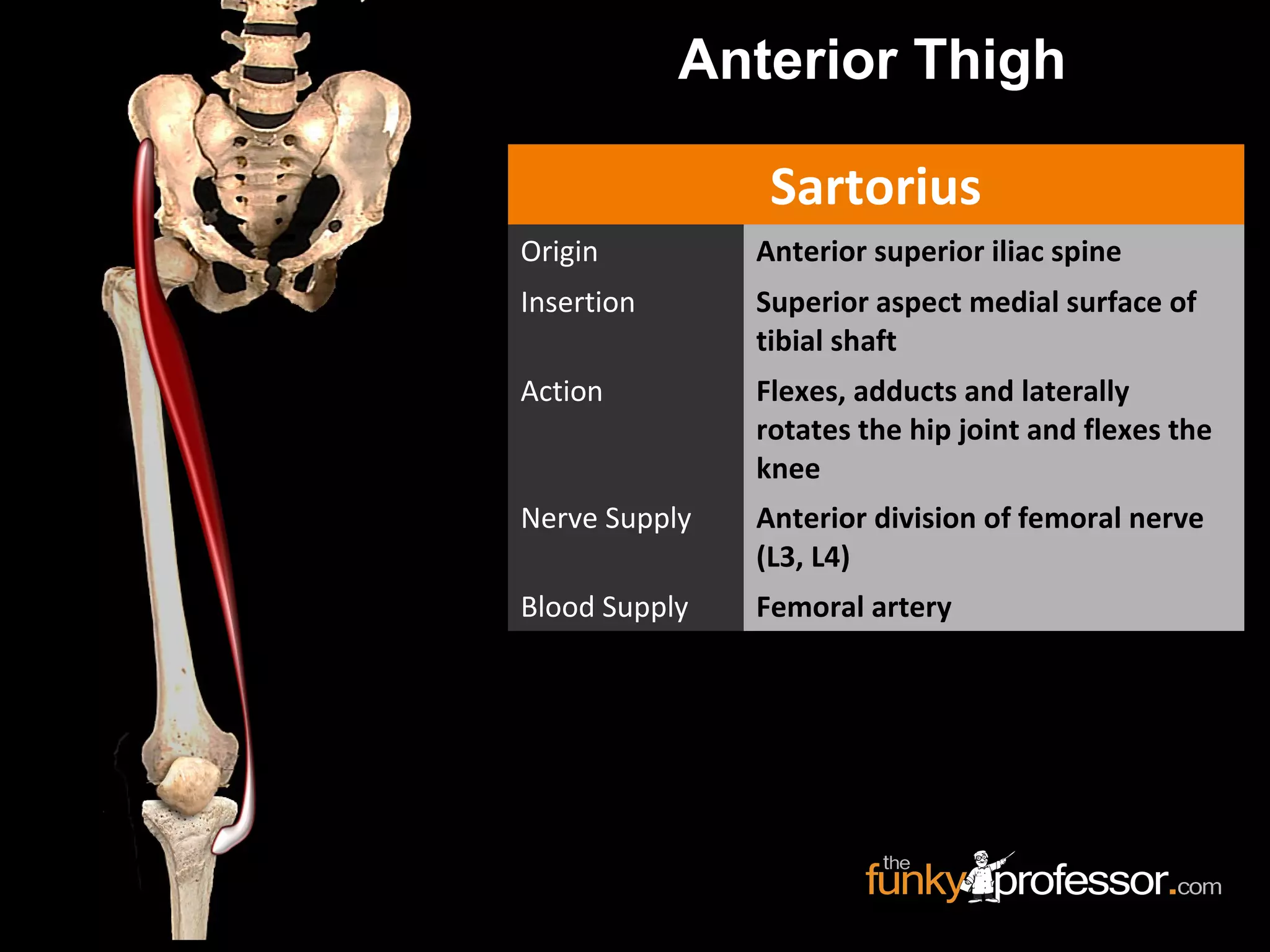

- 99. Sartorius Origin Anterior superioriliac spine Insertion Superior aspect medial surface of tibial shaft Action Flexes, adducts and laterally rotates the hip joint and flexes the knee Nerve Supply Anterior division of femoral nerve (L3, L4) Blood Supply Femoral artery Anterior Thigh

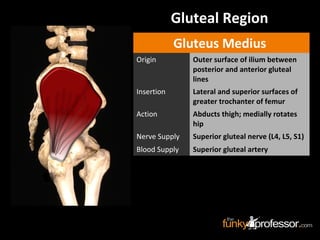

- 100. Gluteus Medius Origin Outersurface of ilium between posterior and anterior gluteal lines Insertion Lateral and superior surfaces of greater trochanter of femur Action Abducts thigh; medially rotates hip Nerve Supply Superior gluteal nerve (L4, L5, S1) Blood Supply Superior gluteal artery Gluteal Region
- 101. Gluteus Minimus Origin Outersurface of ilium between inferior and anterior gluteal lines Insertion Anterior surface of greater trochanter of femur Action Abducts and medially rotates the hip joint Nerve Supply Superior gluteal nerve (L4, L5, S1) Blood Supply Superior gluteal artery Gluteal Region

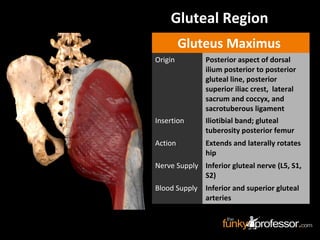

- 102. Gluteus Maximus Origin Posterioraspect of dorsal ilium posterior to posterior gluteal line, posterior superior iliac crest, lateral sacrum and coccyx, and sacrotuberous ligament Insertion Iliotibial band; gluteal tuberosity posterior femur Action Extends and laterally rotates hip Nerve Supply Inferior gluteal nerve (L5, S1, S2) Blood Supply Inferior and superior gluteal arteries Gluteal Region

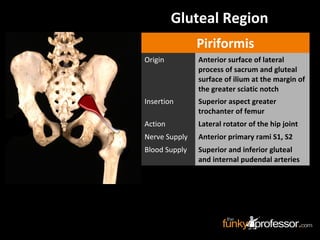

- 103. Piriformis Origin Anterior surfaceof lateral process of sacrum and gluteal surface of ilium at the margin of the greater sciatic notch Insertion Superior aspect greater trochanter of femur Action Lateral rotator of the hip joint Nerve Supply Anterior primary rami S1, S2 Blood Supply Superior and inferior gluteal and internal pudendal arteries Gluteal Region

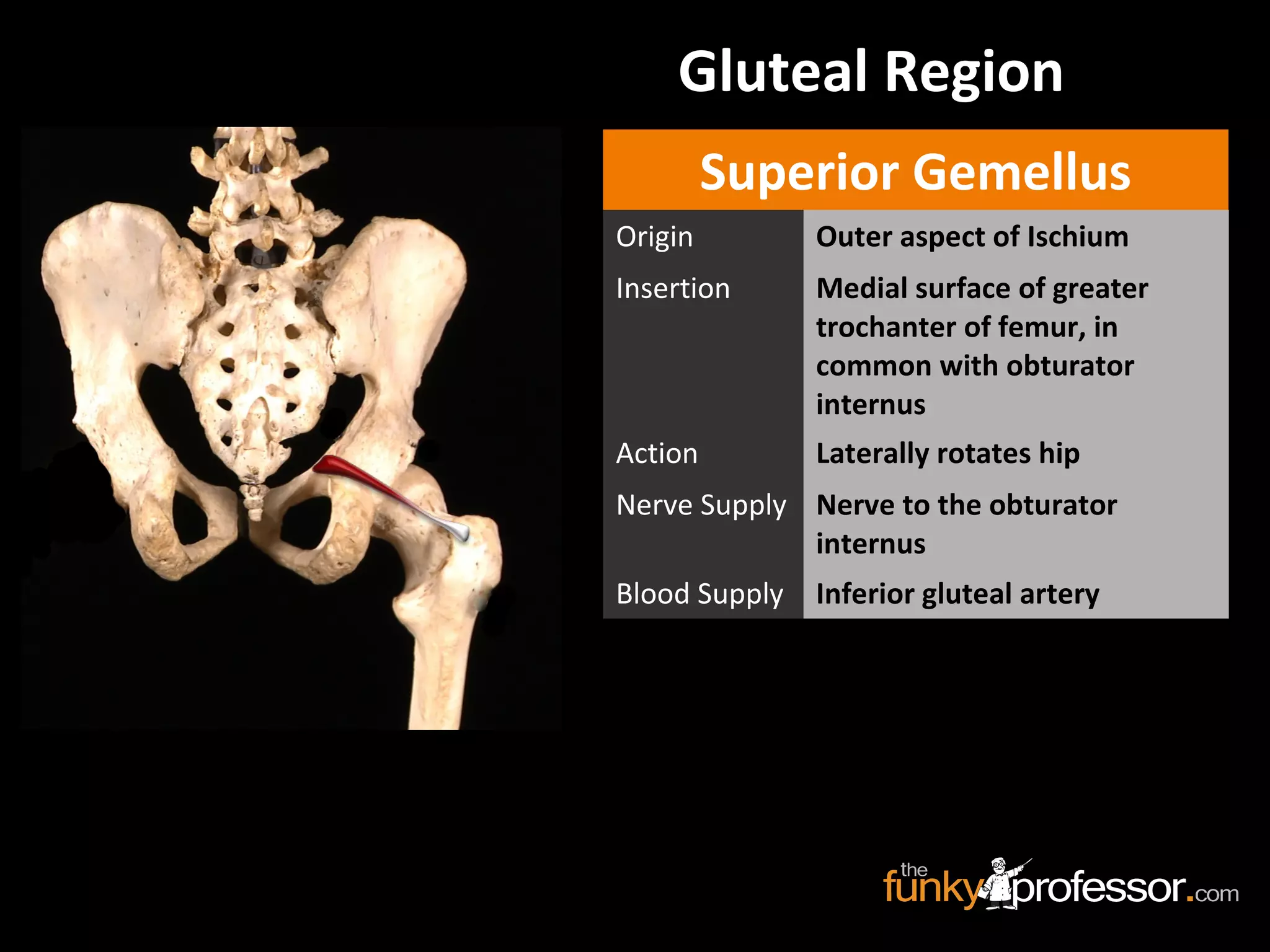

- 104. Gluteal Region Superior Gemellus OriginOuter aspect of Ischium Insertion Medial surface of greater trochanter of femur, in common with obturator internus Action Laterally rotates hip Nerve Supply Nerve to the obturator internus Blood Supply Inferior gluteal artery

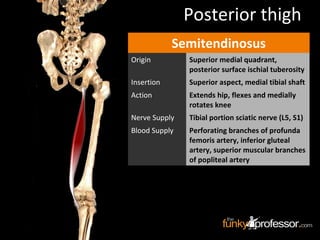

- 105. Semitendinosus Origin Superior medialquadrant, posterior surface ischial tuberosity Insertion Superior aspect, medial tibial shaft Action Extends hip, flexes and medially rotates knee Nerve Supply Tibial portion sciatic nerve (L5, S1) Blood Supply Perforating branches of profunda femoris artery, inferior gluteal artery, superior muscular branches of popliteal artery Posterior thigh
- 106. Posterior Thigh Biceps Femoris OriginLong Head: Superior medial quadrant of the posterior surface of the ischial tuberosity Short Head:Middle third linea aspera, lateral supracondylar ridge of femur Insertion Fibular head, lateral collateral ligament, lateral tibial condyle Action Flexes the knee, rotates tibia laterally, extends the hip joint Nerve Supply Long head: tibial portion of sciatic nerve, Short head: common peroneal portion of sciatic nerve (L5, S1) Blood Supply Perforating branches of profunda femoris artery, inferior gluteal artery, superior muscular branches of popliteal artery

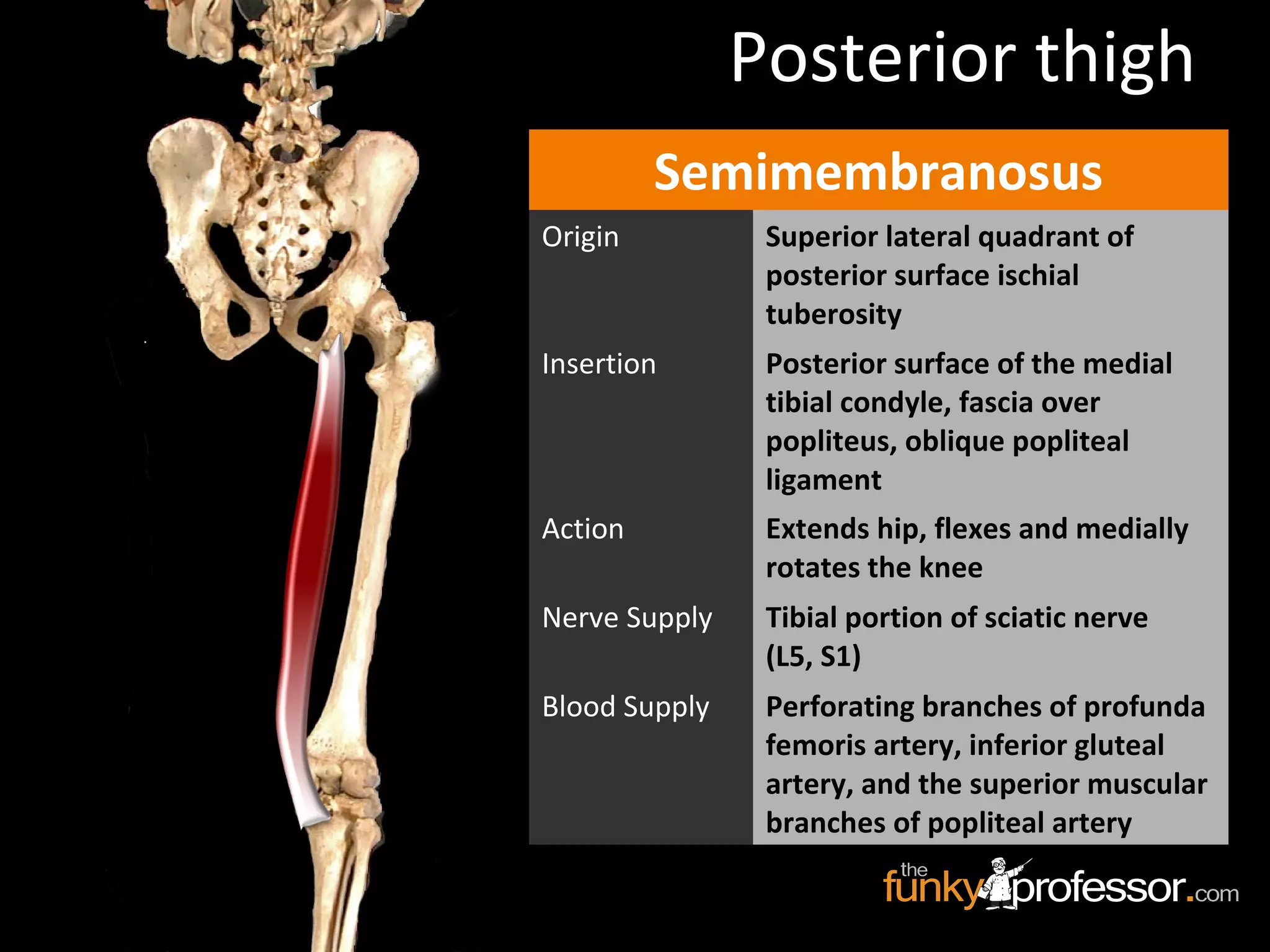

- 107. Semimembranosus Origin Superior lateralquadrant of posterior surface ischial tuberosity Insertion Posterior surface of the medial tibial condyle, fascia over popliteus, oblique popliteal ligament Action Extends hip, flexes and medially rotates the knee Nerve Supply Tibial portion of sciatic nerve (L5, S1) Blood Supply Perforating branches of profunda femoris artery, inferior gluteal artery, and the superior muscular branches of popliteal artery Posterior thigh
- 108. Gluteal Region Quadratus Femoris OriginLateral border ischial tuberosity Insertion Quadrate tubercle and adjacent bone of intertrochanteric crest of posterior aspect femur Action Laterally rotates hip Nerve Supply Nerve to the quadratus femoris Blood Supply Medial circumflex femoral artery, inferior gluteal artery, obturator artery,

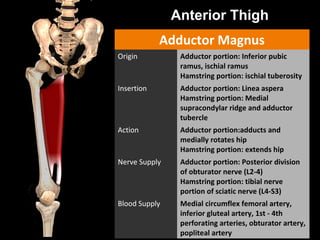

- 109. Anterior Thigh Adductor Magnus OriginAdductor portion: Inferior pubic ramus, ischial ramus Hamstring portion: ischial tuberosity Insertion Adductor portion: Linea aspera Hamstring portion: Medial supracondylar ridge and adductor tubercle Action Adductor portion:adducts and medially rotates hip Hamstring portion: extends hip Nerve Supply Adductor portion: Posterior division of obturator nerve (L2-4) Hamstring portion: tibial nerve portion of sciatic nerve (L4-S3) Blood Supply Medial circumflex femoral artery, inferior gluteal artery, 1st - 4th perforating arteries, obturator artery, popliteal artery
- 110. Adductor Brevis Origin Inferiorramus and body of pubis Insertion Upper third linea aspera of femur Action Adducts and flexes hip joint Nerve Supply Anterior division obturator nerve (L2, L3, L4) Blood Supply Medial circumflex femoral branch of femoral artery and obturator artery Anterior Thigh

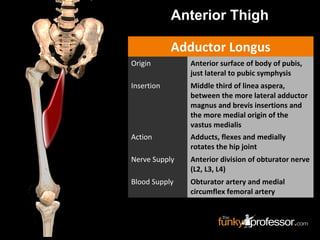

- 111. Adductor Longus Origin Anteriorsurface of body of pubis, just lateral to pubic symphysis Insertion Middle third of linea aspera, between the more lateral adductor magnus and brevis insertions and the more medial origin of the vastus medialis Action Adducts, flexes and medially rotates the hip joint Nerve Supply Anterior division of obturator nerve (L2, L3, L4) Blood Supply Obturator artery and medial circumflex femoral artery Anterior Thigh

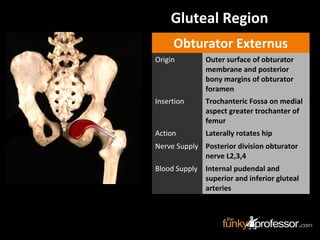

- 112. Gluteal Region Obturator Externus OriginOuter surface of obturator membrane and posterior bony margins of obturator foramen Insertion Trochanteric Fossa on medial aspect greater trochanter of femur Action Laterally rotates hip Nerve Supply Posterior division obturator nerve L2,3,4 Blood Supply Internal pudendal and superior and inferior gluteal arteries
- 113. Anterior Thigh Rectus Femoris OriginStraight head: anterior inferior iliac spine Reflected head: ilium just above acetabulum Insertion Base of patella to form the more central portion of the quadriceps femoris tendon Action Extends the knee Nerve Supply Posterior division of femoral nerve (L2, L3, L4) Blood Supply Lateral circumflex femoral artery

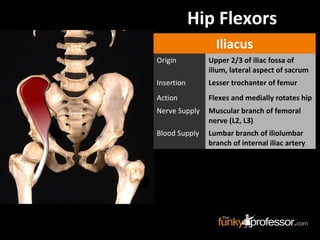

- 114. Hip Flexors Iliacus Origin Upper2/3 of iliac fossa of ilium, lateral aspect of sacrum Insertion Lesser trochanter of femur Action Flexes and medially rotates hip Nerve Supply Muscular branch of femoral nerve (L2, L3) Blood Supply Lumbar branch of iliolumbar branch of internal iliac artery
