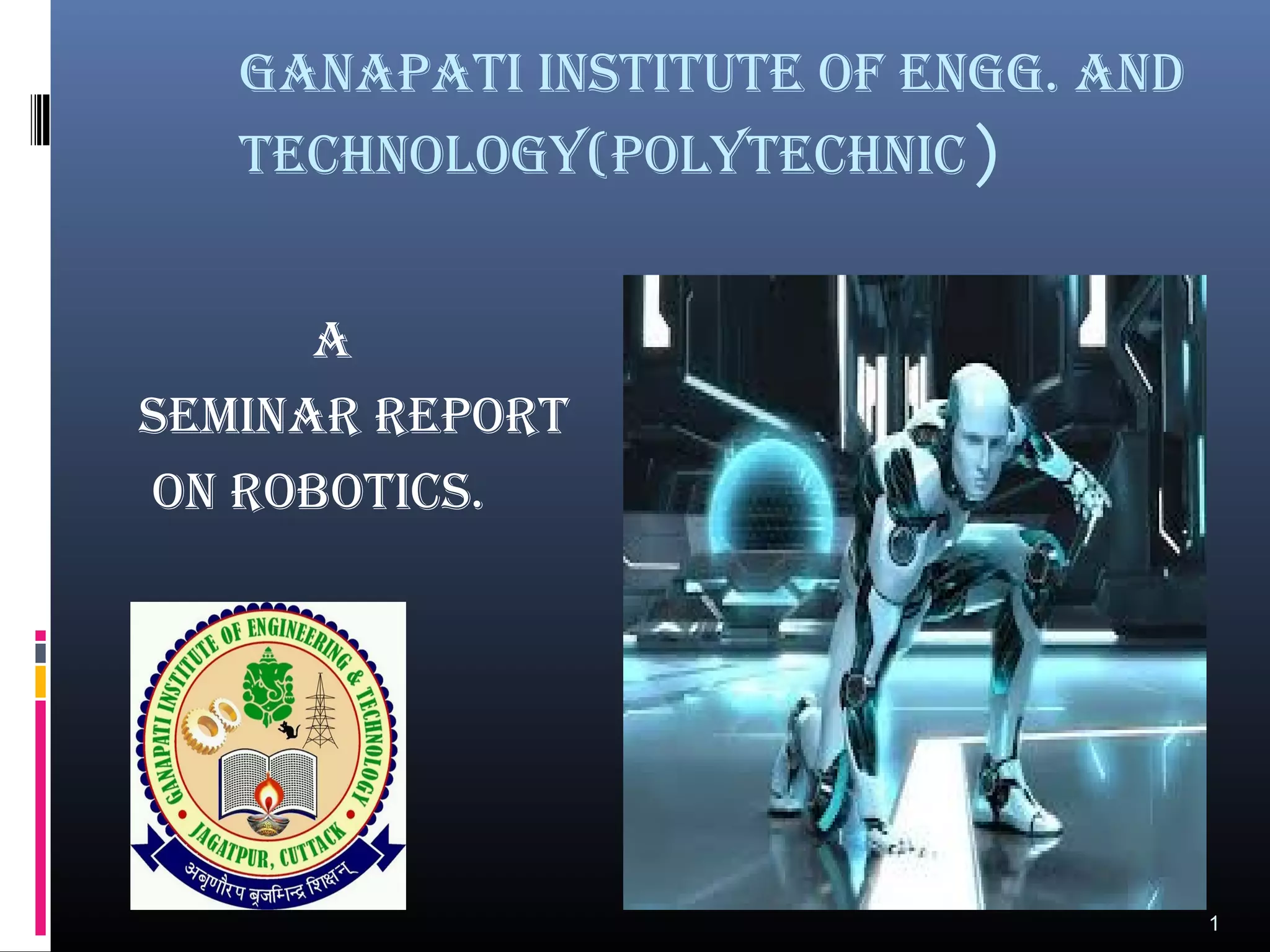

1. GANAPATI INSTITUTE OF ENGG. AND
TECHNOLOGY(POLYTECHNIC)
A
SEMINAR REPORT
ON ROBOTICS.
1

2. ROBOTICS INTRODUCTION
 What is a Robot ?
Deffination of Robot ?
Apllications of Robots ?
What do we need the Robot ?
Different parts of Robot ?
2

3. 3
 What is a Robot?
A robot is a device that is
built to independently
perform actions and
interact with its
surroundings.

4. DEFFINATION OF ROBOT
 The word Robot comes from the “Czech”
word “ROBOTA”. Which means “Forced
labour.”
 It is a Electromechanical device.
 It perform various task.
 It may be human controlled or automated.
 It finds its uses in all assepts of our life .
4

5. APPLICATIONS OF ROBOTS
Industry.
Medical.
Millitary.
Space Exploration.
Research & Development.
5

6. INDUSTRY
Robots are used in
assembling of Auto
vehicle.
Robots are used in
to feed the metal
pieces into the blast
furnance .
6

7. Medical
Robots are used in
operation work in
medical.
Robots are used in
lazer beam operation
with high accuracy.s
7

8. Millitary
Drone planes being
used in U.S army to
keep a watch on key
enemy installation
&enemy movement
using thermal image
processing.
8

9. SPace eXPlOratiON
Robots are mostly
used in space
research.
Its can easily
works in harmfull
space where human
being can’t perform.
9

10. reSearch &develOPMeNt
Robots are used in
research &
development for better
working in hazardous
condition .
To reduce human
effort & to increase
efficiency during
varying installation &
assemblies. 10

11. What dO We Need the rObOt ?
Sensing: The robot must be able to perceive its
environment through sensors locate obstacles to
avoid, and objects of interest that we want it to
interact with.
Plan/Act: The robot must be able to make
decisions using its processor based on it’s sensors
and feed them to it’s actuators to be able to move.
Moving: The robot must be able to control
some set of actuators to move how and when we
want it to. We must be able to reliably place the
robot anywhere we want.
11

12. 12
rObOt Part
1.Upper chassis
2. Main mother board
ARKDUINO:

13. 13
MOTOR DRIVE:
It can drive the motor there is one
input and four output pannel.

14. 14
What is a sensor?
 Takes readings from physical environment and turns it into an
electrical message/signal
Sensors we will work with:
Touch- hit something and it react
Light- can sort by color or detect light from dark
Sonar/ultrasonic- tells how far away things are
Sound- tells how loud something is

15. 15
SOUND SENSOR:

16. 16
LIGHT SENSOR:

17. 17
MOTOR:

18. microprocessor Microcontroller
 CPU is stand-alone, RAM ,ROM ,I/O,
Timer are external.
 Size of ROM ,RAM, & I/O ports can be optimized.
 For applications in which the accuracy and time are
critical.
 General purpose system.
 CPU, RAM ,ROM, I/O AND timer are all on a single
chip.
 Fixed size of on chip ROM ,RAM, I/O
Ports.
 For applications in which cost ,power , &space are
critical.
 Task specific system.
18

19. 19
Movement
 Define Types of movement:
Locomotion – The ability to move from
place to place (move from place to place)
Localization – To perform functions in a
specific area (turn head)
Manipulation – To touch or move by
mechanical means (move other things around)
Cooperation - To work together (two
motors working together for movement)

20. 20
What do we need the robot to do?
 Moving: The robot must be able to control
some set of actuators to move how and when
we want it to. We must be able to reliably
place the robot anywhere we want.
 Sensing: The robot must be able to perceive
its environment through sensors locate
obstacles to avoid, and objects of interest
that we want it to interact with.
 Plan/Act: The robot must be able to make
decisions using its processor based on it’s
sensors and feed them to it’s actuators to be
able to move.

21. 21
What is a processor?
A computer needs to be able to…:
Each of the previous three things is
programmed by the user using a
programming language.
Takes readings from physical environment
and turns it into an electrical
message/signal Touch- hit something and it
react

22. 22
What is an actuator?
Takes electrical message and turns it
into a physical action. For example:
Electric motors receive electricity which
makes their axles turn. These can be
connected to wheels, which can make the
robot move
Pumps receive electricity which makes
them compress liquid through tubes which
can make a robotic arm move around. This
arm can push, pull, and lift things in the
world.

23. THANK YOU.
23
