1. Dr Sabin Sahu
M.S. Ophthalmology
SCEH, Lahan

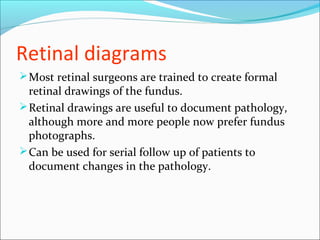

2. Retinal diagrams
Most retinal surgeons are trained to create formal
retinal drawings of the fundus.
Retinal drawings are useful to document pathology,
although more and more people now prefer fundus
photographs.
Can be used for serial follow up of patients to
document changes in the pathology.

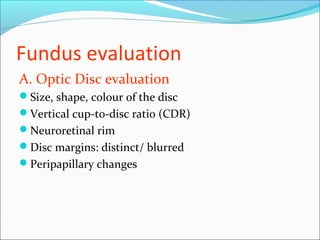

3. Fundus evaluation
A. Optic Disc evaluation
Size, shape, colour of the disc
Vertical cup-to-disc ratio (CDR)
Neuroretinal rim
Disc margins: distinct/ blurred
Peripapillary changes

4. B. Retinal vasculature
 Changes:
 attenuation
 tortuous
 dilated
 nicking
 A/V ratio: ratio of artery size compared to vein
size, should be checked after the 1st
bifurcation.
(normal 2/3)

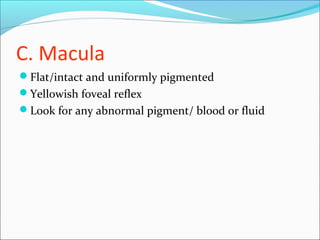

5. C. Macula
Flat/intact and uniformly pigmented
Yellowish foveal reflex
Look for any abnormal pigment/ blood or fluid

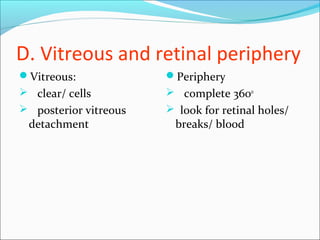

6. D. Vitreous and retinal periphery
Vitreous:
 clear/ cells
 posterior vitreous
detachment
Periphery
 complete 3600
 look for retinal holes/
breaks/ blood

7. Technique of retinal drawing
View in the condensing lens is real and in front of the
patient:
Image is inverted and reversed
You may invert the paper and draw anomaly as it
appears inside the condensing lens; in same location
as you are observing.

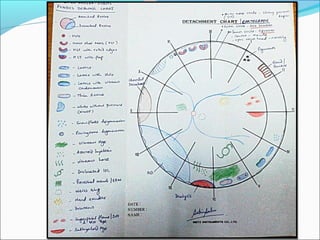

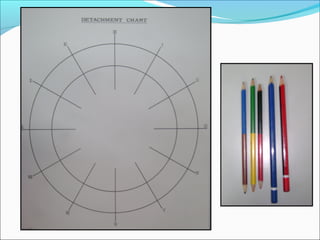

8. Retinal charts/ Cartographs
2 concentric circles:
Outer: ora serrata
Inner: equator
Macula is located centrally
Optic nerve head is located nasal to the macula

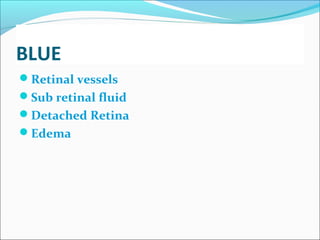

11. BLUE
Retinal vessels
Sub retinal fluid
Detached Retina
Edema

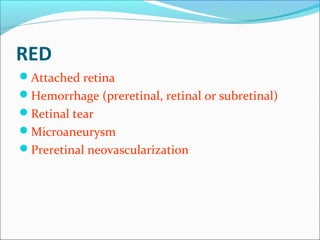

12. RED
Attached retina
Hemorrhage (preretinal, retinal or subretinal)
Retinal tear
Microaneurysm
Preretinal neovascularization

13. YELLOWYELLOW
Exudate
Inflammatiom (retinal)
Cotton wool spots
Drusen
Subretinal fibrosis
Atrophic areas (paving stone degen.)
White deposits (Stargardt’s Dis.)
Amelanotic mass lesions

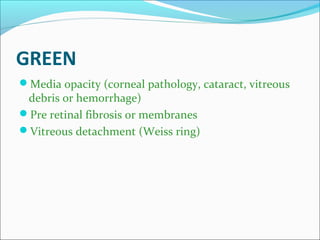

14. GREEN
Media opacity (corneal pathology, cataract, vitreous
debris or hemorrhage)
Pre retinal fibrosis or membranes
Vitreous detachment (Weiss ring)

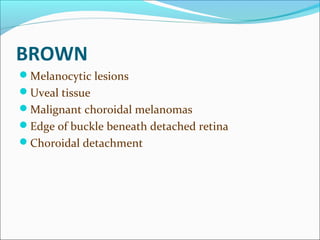

15. BROWN
Melanocytic lesions
Uveal tissue
Malignant choroidal melanomas
Edge of buckle beneath detached retina
Choroidal detachment

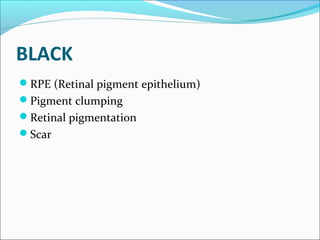

16. BLACK
RPE (Retinal pigment epithelium)
Pigment clumping
Retinal pigmentation
Scar

17. Steps of retinal drawing
Have available colored pensils and retinal chart
paper.
Mark fovea and the disc.
Draw boundaries of the RD by starting at the disc and
extending peripherally.
Draw detached and attached retina.
Indicate the course of retinal veins.
Examine the peripheral retina with scleral
indentation.

19. How big is the lesion?
Size in disc diameters (DD)
compare lesion to optic nerve head size.

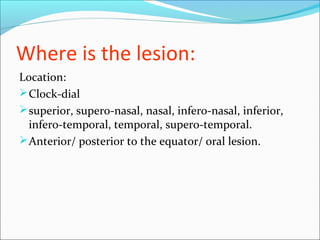

20. Where is the lesion:
Location:
Clock-dial
superior, supero-nasal, nasal, infero-nasal, inferior,
infero-temporal, temporal, supero-temporal.
Anterior/ posterior to the equator/ oral lesion.

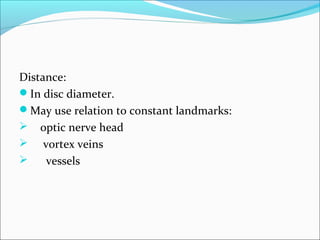

21. Distance:
In disc diameter.
May use relation to constant landmarks:
 optic nerve head
 vortex veins
 vessels
