1. By
Dr Riham Hazem Raafat, MD
Ainshams University

2. High levels of oxygen in the blood and tissue
can be helpful or damaging depending on
circumstances
KEEP IN MIND

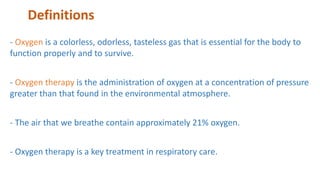

3. Definitions
- Oxygen is a colorless, odorless, tasteless gas that is essential for the body to
function properly and to survive.
- Oxygen therapy is the administration of oxygen at a concentration of pressure
greater than that found in the environmental atmosphere.
- The air that we breathe contain approximately 21% oxygen.
- Oxygen therapy is a key treatment in respiratory care.

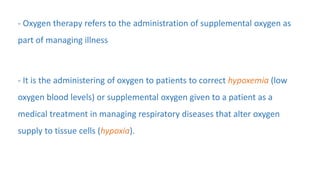

4. - Oxygen therapy refers to the administration of supplemental oxygen as
part of managing illness
- It is the administering of oxygen to patients to correct hypoxemia (low
oxygen blood levels) or supplemental oxygen given to a patient as a
medical treatment in managing respiratory diseases that alter oxygen
supply to tissue cells (hypoxia).

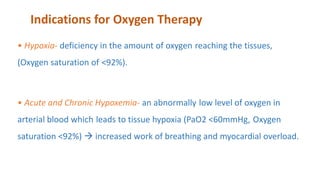

5. Indications for Oxygen Therapy
• Hypoxia- deficiency in the amount of oxygen reaching the tissues,
(Oxygen saturation of <92%).
• Acute and Chronic Hypoxemia- an abnormally low level of oxygen in
arterial blood which leads to tissue hypoxia (PaO2 <60mmHg, Oxygen
saturation <92%)  increased work of breathing and myocardial overload.

6. • Peri and post cardiac or respiratory arrest
• Post operatively (dependent on instructions from surgical team)
• Respiratory failure
• Low cardiac output and metabolic acidosis (HCO3 <18 mmol/L)
• Hypermetabolic States (Burns, Trauma, Sepsis)

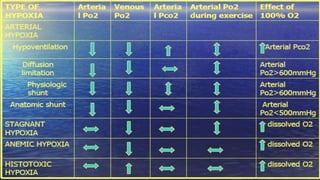

7. Causes of Hypoxia
Hypoxic (arterial) Hypoxia:
Results From: INADEQUATE OXYGENATION OF THE ARTERIAL BLOOD (Hypoxemia)
Caused By:
a) HYPOVENTILATION  not adequate alveolar ventilation
Dec in alveolar and arterial Po2 & increase in alveolar and arterial Pco2 (Hypercapnia)
b) DIFFUSION LIMITATION  diffusion capacity of lungs decreased by a pulmonary disease

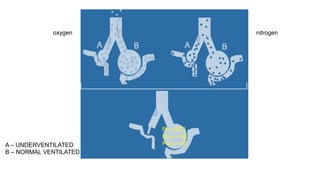

c) PHYSIOLOGIC SHUNTS [ VA/Q imbalance ] most common cause of hypoxia
d) ANATOMIC SHUNTS (mixing of venous and oxygenated (arterial) blood which decreases
the Po2)  normally shunt of about 3% of the COP caused by the mixing of the oxygenated blood coming
from the lungs with the venous blood of bronchial veins before entering the left atrium
e) PATHOLOGICAL SHUNTS  caused by congenital cardiac malformations
Decrease in arterial Po2  Decrease in venous Po2

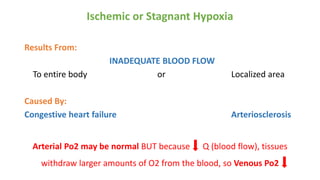

8. Ischemic or Stagnant Hypoxia
Results From:
INADEQUATE BLOOD FLOW
To entire body or Localized area
Caused By:
Congestive heart failure Arteriosclerosis
Arterial Po2 may be normal BUT because Q (blood flow), tissues
withdraw larger amounts of O2 from the blood, so Venous Po2

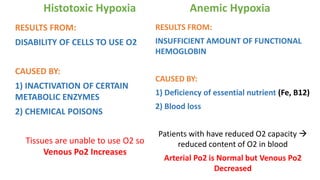

9. Histotoxic Hypoxia
RESULTS FROM:
DISABILITY OF CELLS TO USE O2
CAUSED BY:
1) INACTIVATION OF CERTAIN
METABOLIC ENZYMES
2) CHEMICAL POISONS
Tissues are unable to use O2 so
Venous Po2 Increases
Anemic Hypoxia
RESULTS FROM:
INSUFFICIENT AMOUNT OF FUNCTIONAL
HEMOGLOBIN
CAUSED BY:
1) Deficiency of essential nutrient (Fe, B12)
2) Blood loss
Patients with have reduced O2 capacity 
reduced content of O2 in blood
Arterial Po2 is Normal but Venous Po2
Decreased

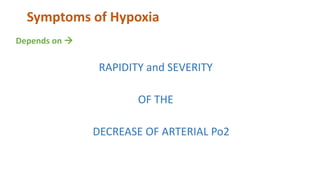

11. Symptoms of Hypoxia
Depends on 
RAPIDITY and SEVERITY
OF THE
DECREASE OF ARTERIAL Po2

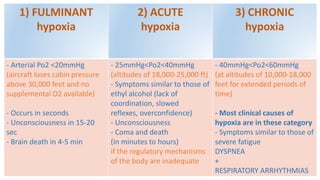

12. 1) FULMINANT
hypoxia
2) ACUTE
hypoxia
3) CHRONIC
hypoxia
- Arterial Po2 <20mmHg
(aircraft loses cabin pressure
above 30,000 feet and no
supplemental O2 available)
- Occurs in seconds
- Unconsciousness in 15-20
sec
- Brain death in 4-5 min
- 25mmHg<Po2<40mmHg
(altitudes of 18,000-25,000 ft)
- Symptoms similar to those of
ethyl alcohol (lack of
coordination, slowed
reflexes, overconfidence)
- Unconsciousness
- Coma and death
(in minutes to hours)
if the regulatory mechanisms
of the body are inadequate
- 40mmHg<Po2<60mmHg
(at altitudes of 10,000-18,000
feet for extended periods of
time)
- Most clinical causes of
hypoxia are in these category
- Symptoms similar to those of
severe fatigue
DYSPNEA
+
RESPIRATORY ARRHYTHMIAS

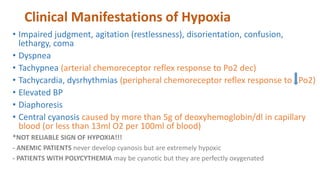

13. Clinical Manifestations of Hypoxia
• Impaired judgment, agitation (restlessness), disorientation, confusion,
lethargy, coma
• Dyspnea
• Tachypnea (arterial chemoreceptor reflex response to Po2 dec)
• Tachycardia, dysrhythmias (peripheral chemoreceptor reflex response to Po2)
• Elevated BP
• Diaphoresis
• Central cyanosis caused by more than 5g of deoxyhemoglobin/dl in capillary
blood (or less than 13ml O2 per 100ml of blood)
*NOT RELIABLE SIGN OF HYPOXIA!!!
- ANEMIC PATIENTS never develop cyanosis but are extremely hypoxic
- PATIENTS WITH POLYCYTHEMIA may be cyanotic but they are perfectly oxygenated

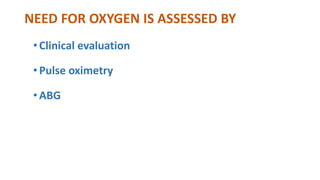

14. NEED FOR OXYGEN IS ASSESSED BY
• Clinical evaluation
• Pulse oximetry
• ABG

15. Goal of therapy
- SO2 of >90%
- For documented COPD patients (So2 88–92%)-(Pao2=55-60)
- As SO2 normalizes  vital signs should improve
• Heart rate should return to normal
• Respiratory rate should decrease to normal
• Blood pressure should normalize

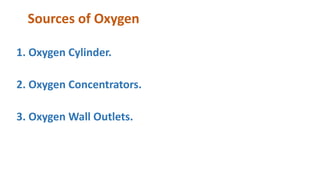

16. Sources of Oxygen
1. Oxygen Cylinder.
2. Oxygen Concentrators.
3. Oxygen Wall Outlets.

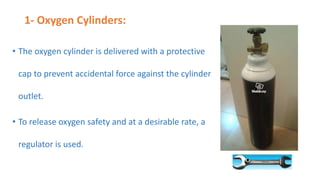

17. 1- Oxygen Cylinders:
• The oxygen cylinder is delivered with a protective
cap to prevent accidental force against the cylinder
outlet.
• To release oxygen safety and at a desirable rate, a
regulator is used.

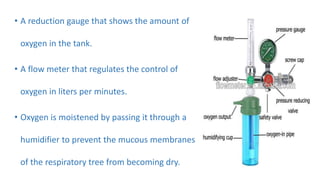

18. • A reduction gauge that shows the amount of
oxygen in the tank.
• A flow meter that regulates the control of
oxygen in liters per minutes.
• Oxygen is moistened by passing it through a
humidifier to prevent the mucous membranes
of the respiratory tree from becoming dry.

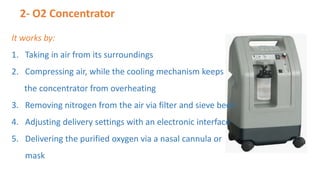

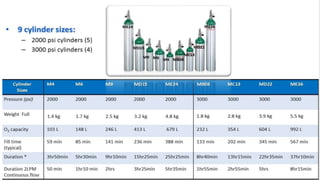

20. 2- O2 Concentrator
It works by:
1. Taking in air from its surroundings
2. Compressing air, while the cooling mechanism keeps
the concentrator from overheating
3. Removing nitrogen from the air via filter and sieve beds
4. Adjusting delivery settings with an electronic interface
5. Delivering the purified oxygen via a nasal cannula or
mask

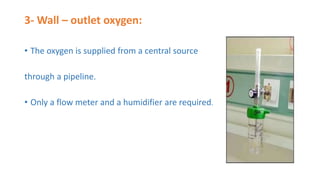

21. 3- Wall – outlet oxygen:
• The oxygen is supplied from a central source
through a pipeline.
• Only a flow meter and a humidifier are required.

22. Oxygen Delivery Systems
1. Nasal Cannula
2. Simple Mask
3. Partial Re-Breather Mask
4. Non-Re Breather Mask (NRBM)
5. Venturi Mask
6. Oxygen Hood
7. Oxygen Tent
8. AMBU Bag
9. Tracheostomy Collar,
10. T-piece

23. Oxygen delivery devices are used to deliver oxygen to patients at different
concentrations
• Low flow oxygen devices work by supplying oxygen at flow rates less than the
patient’s inspiratory flow, usually 1 to 10 liters per minute  The remaining
inspired flow comes from the atmospheric air, diluting the delivered O2.
• High flow oxygen devices supply flow rates high enough to accommodate two
to three (2-3) times the patient’s inspiratory volume at 1 to 40 liters per minute

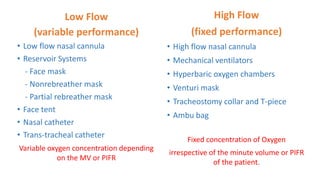

24. Low Flow
(variable performance)
• Low flow nasal cannula
• Reservoir Systems
- Face mask
- Nonrebreather mask
- Partial rebreather mask
• Face tent
• Nasal catheter
• Trans-tracheal catheter
Variable oxygen concentration depending
on the MV or PIFR
High Flow
(fixed performance)
• High flow nasal cannula
• Mechanical ventilators
• Hyperbaric oxygen chambers
• Venturi mask
• Tracheostomy collar and T-piece
• Ambu bag
Fixed concentration of Oxygen
irrespective of the minute volume or PIFR
of the patient.

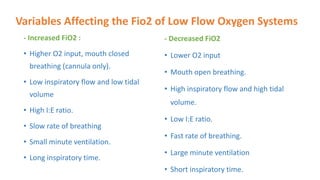

25. Variables Affecting the Fio2 of Low Flow Oxygen Systems
- Increased FiO2 :
• Higher O2 input, mouth closed
breathing (cannula only).
• Low inspiratory flow and low tidal
volume
• High I:E ratio.
• Slow rate of breathing
• Small minute ventilation.
• Long inspiratory time.
- Decreased FiO2
• Lower O2 input
• Mouth open breathing.
• High inspiratory flow and high tidal
volume.
• Low I:E ratio.
• Fast rate of breathing.
• Large minute ventilation
• Short inspiratory time.

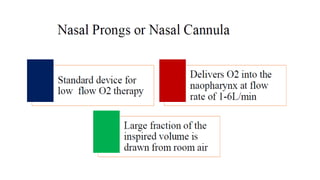

26. • Consists of a flexible tube that is placed inside the nares.
• It delivers a relatively low concentration of oxygen (21% to 44%) at flow
rate 1 to 6 L per minute
[1L- 24%, 2L- 28%, 3L- 32%, 4L- 36%, 5L- 40%, 6L- 44% oxygen]
• Rule of thumb- for patients with normal rate and depth of breathing, each
liter per min of nasal oxygen increases the Fio2 by 4%.
• Humidifier is used only if the input flow exceeds 4L/min.
• Flows greater than 6 to 8L/min can cause patient discomfort including
dryness and bleeding.
• In newborns and infants flows should be 2L/min or less.
Nasal cannula (prong)

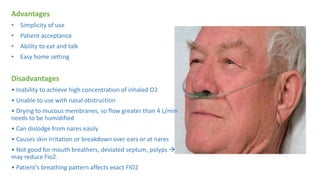

28. Advantages
• Simplicity of use
• Patient acceptance
• Ability to eat and talk
• Easy home setting
Disadvantages
• Inability to achieve high concentration of inhaled O2
• Unable to use with nasal obstruction
• Drying to mucous membranes, so flow greater than 4 L/min
needs to be humidified
• Can dislodge from nares easily
• Causes skin irritation or breakdown over ears or at nares
• Not good for mouth breathers, deviated septum, polyps 
may reduce Fio2.
• Patient’s breathing pattern affects exact FIO2

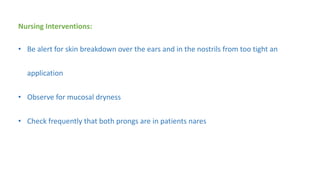

29. Nursing Interventions:
• Be alert for skin breakdown over the ears and in the nostrils from too tight an
application
• Observe for mucosal dryness
• Check frequently that both prongs are in patients nares

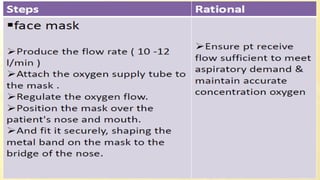

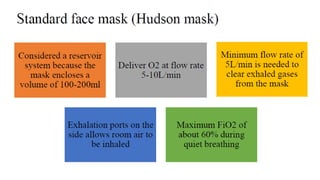

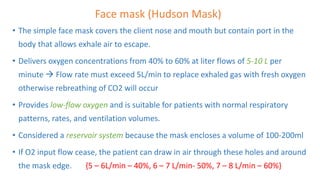

30. Face mask (Hudson Mask)
• The simple face mask covers the client nose and mouth but contain port in the
body that allows exhale air to escape.
• Delivers oxygen concentrations from 40% to 60% at liter flows of 5-10 L per
minute  Flow rate must exceed 5L/min to replace exhaled gas with fresh oxygen
otherwise rebreathing of CO2 will occur
• Provides low-flow oxygen and is suitable for patients with normal respiratory
patterns, rates, and ventilation volumes.
• Considered a reservoir system because the mask encloses a volume of 100-200ml
• If O2 input flow cease, the patient can draw in air through these holes and around
the mask edge. {5 – 6L/min – 40%, 6 – 7 L/min- 50%, 7 – 8 L/min – 60%}

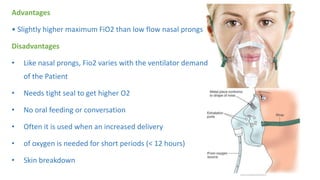

32. Advantages
• Slightly higher maximum FiO2 than low flow nasal prongs
Disadvantages
• Like nasal prongs, Fio2 varies with the ventilator demand
of the Patient
• Needs tight seal to get higher O2
• No oral feeding or conversation
• Often it is used when an increased delivery
• of oxygen is needed for short periods (< 12 hours)
• Skin breakdown

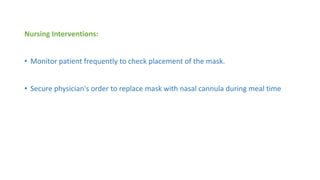

33. Nursing Interventions:
• Monitor patient frequently to check placement of the mask.
• Secure physician's order to replace mask with nasal cannula during meal time

34. Nasal Mask
• Hybrid of nasal cannula and face mask.
• Supplemental oxygen equivalent to nasal cannula
under low flow conditions for adult patients.
• Advantage – patient comfort, does not produce
sores around nares
• Dry oxygen is not jetted into nasal cavity.

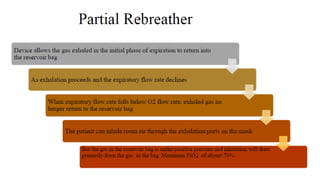

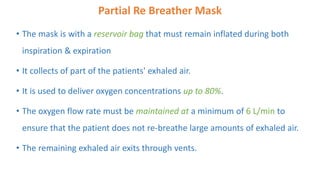

35. Partial Re Breather Mask
• The mask is with a reservoir bag that must remain inflated during both
inspiration & expiration
• It collects of part of the patients' exhaled air.
• It is used to deliver oxygen concentrations up to 80%.
• The oxygen flow rate must be maintained at a minimum of 6 L/min to
ensure that the patient does not re-breathe large amounts of exhaled air.
• The remaining exhaled air exits through vents.

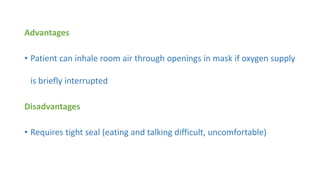

36. Advantages
• Patient can inhale room air through openings in mask if oxygen supply
is briefly interrupted
Disadvantages
• Requires tight seal (eating and talking difficult, uncomfortable)

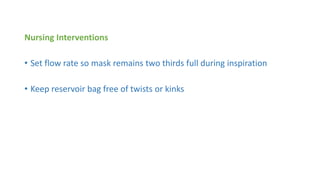

38. Nursing Interventions
• Set flow rate so mask remains two thirds full during inspiration
• Keep reservoir bag free of twists or kinks

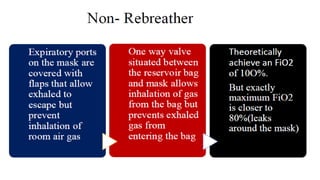

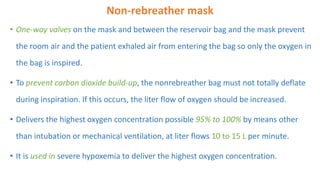

39. Non-rebreather mask
• One-way valves on the mask and between the reservoir bag and the mask prevent
the room air and the patient exhaled air from entering the bag so only the oxygen in
the bag is inspired.
• To prevent carbon dioxide build-up, the nonrebreather bag must not totally deflate
during inspiration. If this occurs, the liter flow of oxygen should be increased.
• Delivers the highest oxygen concentration possible 95% to 100% by means other
than intubation or mechanical ventilation, at liter flows 10 to 15 L per minute.
• It is used in severe hypoxemia to deliver the highest oxygen concentration.

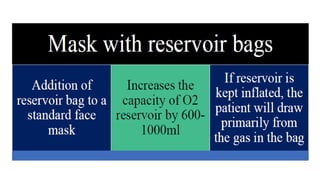

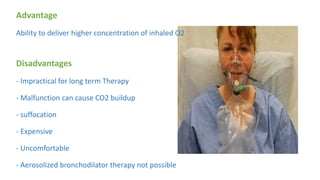

42. Advantage
Ability to deliver higher concentration of inhaled O2
Disadvantages
- Impractical for long term Therapy
- Malfunction can cause CO2 buildup
- suffocation
- Expensive
- Uncomfortable
- Aerosolized bronchodilator therapy not possible

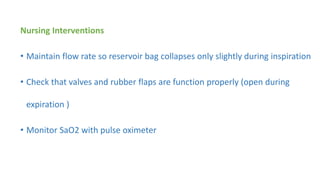

43. Nursing Interventions
• Maintain flow rate so reservoir bag collapses only slightly during inspiration
• Check that valves and rubber flaps are function properly (open during
expiration )
• Monitor SaO2 with pulse oximeter

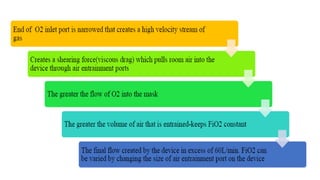

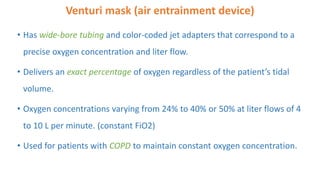

44. Venturi mask (air entrainment device)
• Has wide-bore tubing and color-coded jet adapters that correspond to a
precise oxygen concentration and liter flow.
• Delivers an exact percentage of oxygen regardless of the patient’s tidal
volume.

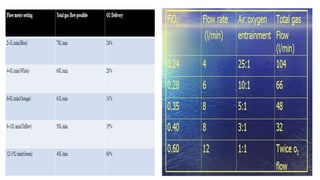

• Oxygen concentrations varying from 24% to 40% or 50% at liter flows of 4
to 10 L per minute. (constant FiO2)
• Used for patients with COPD to maintain constant oxygen concentration.

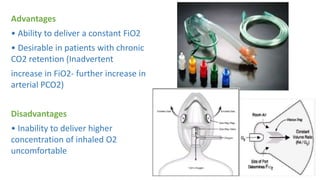

47. Advantages
• Ability to deliver a constant FiO2
• Desirable in patients with chronic
CO2 retention (Inadvertent
increase in FiO2- further increase in
arterial PCO2)
Disadvantages
• Inability to deliver higher
concentration of inhaled O2
uncomfortable

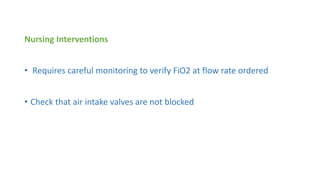

48. Nursing Interventions
• Requires careful monitoring to verify FiO2 at flow rate ordered
• Check that air intake valves are not blocked

49. Face Tent
• Replace oxygen masks when masks are poorly
tolerated by the patient.
• Oxygen delivery of 21% to 50% depends on
patient breathing (21% delivered with compressed air and up to 50%
delivered with 10 L/min oxygen flow attached).
• Often used for humidification as well as oxygen
delivery in patients who do not like the
claustrophobic feeling associated with more
traditional masks

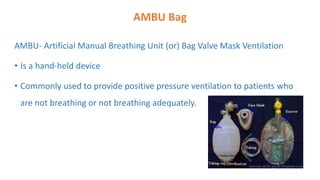

50. AMBU Bag
AMBU- Artificial Manual Breathing Unit (or) Bag Valve Mask Ventilation
• Is a hand-held device
• Commonly used to provide positive pressure ventilation to patients who
are not breathing or not breathing adequately.

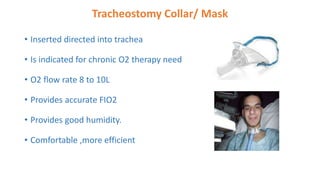

51. Tracheostomy Collar/ Mask
• Inserted directed into trachea
• Is indicated for chronic O2 therapy need
• O2 flow rate 8 to 10L
• Provides accurate FIO2
• Provides good humidity.
• Comfortable ,more efficient

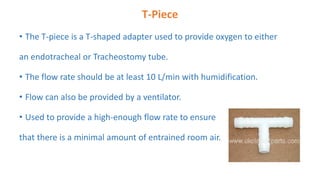

52. T-Piece
• The T-piece is a T-shaped adapter used to provide oxygen to either
an endotracheal or Tracheostomy tube.
• The flow rate should be at least 10 L/min with humidification.
• Flow can also be provided by a ventilator.
• Used to provide a high-enough flow rate to ensure
that there is a minimal amount of entrained room air.

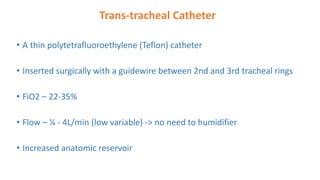

53. Trans-tracheal Catheter
• A thin polytetrafluoroethylene (Teflon) catheter
• Inserted surgically with a guidewire between 2nd and 3rd tracheal rings
• FiO2 – 22-35%
• Flow – ¼ - 4L/min (low variable) -> no need to humidifier
• Increased anatomic reservoir

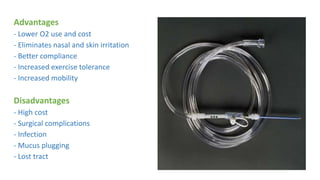

54. Advantages
- Lower O2 use and cost
- Eliminates nasal and skin irritation
- Better compliance
- Increased exercise tolerance
- Increased mobility
Disadvantages
- High cost
- Surgical complications
- Infection
- Mucus plugging
- Lost tract

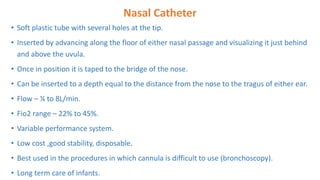

55. Nasal Catheter
• Soft plastic tube with several holes at the tip.
• Inserted by advancing along the floor of either nasal passage and visualizing it just behind
and above the uvula.
• Once in position it is taped to the bridge of the nose.
• Can be inserted to a depth equal to the distance from the nose to the tragus of either ear.
• Flow – ¼ to 8L/min.
• Fio2 range – 22% to 45%.
• Variable performance system.
• Low cost ,good stability, disposable.
• Best used in the procedures in which cannula is difficult to use (bronchoscopy).
• Long term care of infants.

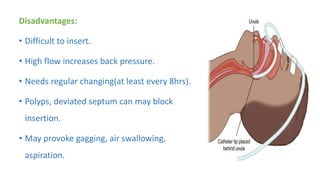

56. Disadvantages:
• Difficult to insert.
• High flow increases back pressure.
• Needs regular changing(at least every 8hrs).
• Polyps, deviated septum can may block
insertion.
• May provoke gagging, air swallowing,
aspiration.

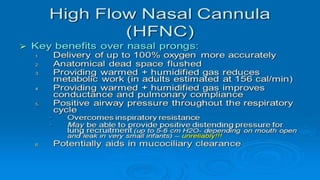

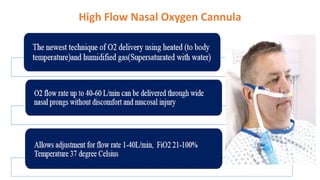

57. High Flow Nasal Oxygen Cannula

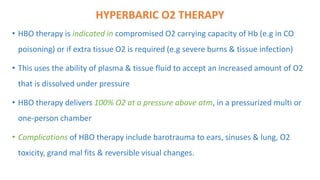

59. HYPERBARIC O2 THERAPY
• HBO therapy is indicated in compromised O2 carrying capacity of Hb (e.g in CO
poisoning) or if extra tissue O2 is required (e.g severe burns & tissue infection)
• This uses the ability of plasma & tissue fluid to accept an increased amount of O2
that is dissolved under pressure
• HBO therapy delivers 100% O2 at a pressure above atm, in a pressurized multi or
one-person chamber
• Complications of HBO therapy include barotrauma to ears, sinuses & lung, O2
toxicity, grand mal fits & reversible visual changes.

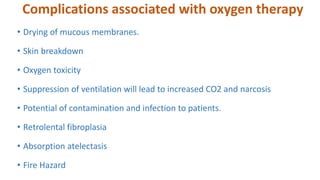

60. Complications associated with oxygen therapy
• Drying of mucous membranes.
• Skin breakdown
• Oxygen toxicity
• Suppression of ventilation will lead to increased CO2 and narcosis
• Potential of contamination and infection to patients.
• Retrolental fibroplasia
• Absorption atelectasis
• Fire Hazard

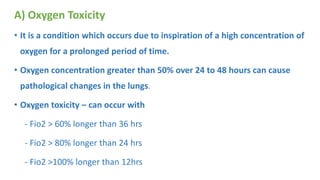

61. A) Oxygen Toxicity
• It is a condition which occurs due to inspiration of a high concentration of
oxygen for a prolonged period of time.
• Oxygen concentration greater than 50% over 24 to 48 hours can cause
pathological changes in the lungs.
• Oxygen toxicity – can occur with
- Fio2 > 60% longer than 36 hrs
- Fio2 > 80% longer than 24 hrs
- Fio2 >100% longer than 12hrs

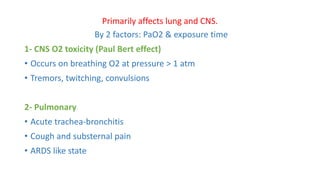

62. Primarily affects lung and CNS.
By 2 factors: PaO2 & exposure time
1- CNS O2 toxicity (Paul Bert effect)
• Occurs on breathing O2 at pressure > 1 atm
• Tremors, twitching, convulsions
2- Pulmonary
• Acute trachea-bronchitis
• Cough and substernal pain
• ARDS like state

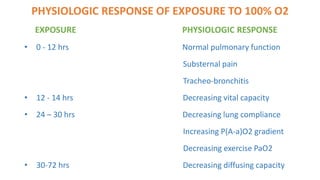

63. PHYSIOLOGIC RESPONSE OF EXPOSURE TO 100% O2
EXPOSURE PHYSIOLOGIC RESPONSE
• 0 - 12 hrs Normal pulmonary function
Substernal pain
Tracheo-bronchitis
• 12 - 14 hrs Decreasing vital capacity
• 24 – 30 hrs Decreasing lung compliance
Increasing P(A-a)O2 gradient
Decreasing exercise PaO2
• 30-72 hrs Decreasing diffusing capacity

64. PULMONARY O2 TOXICITY (LORRAIN-SMITH EFFECT)
Pathogenesis:
• High pO2 for a prolonged period of time
↓
• Intracellular generation of free radicals e.g.:
superoxide,H2O2 , singlet oxygen (anti-oxidants ineffective in high O2)
↓
• React with cellular DNA, sulph-hydryl proteins &lipids
↓
• Cytotoxicity & damages capillary endothelium
↓
• Interstitial edema
• Thickened alveolar capillary membrane.
• Low V/Q and Shunting then Hyaline membrane formation
↓
• Pulmonary fibrosis and hypertension

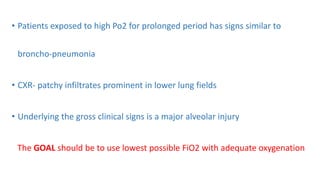

65. • Patients exposed to high Po2 for prolonged period has signs similar to
broncho-pneumonia
• CXR- patchy infiltrates prominent in lower lung fields
• Underlying the gross clinical signs is a major alveolar injury
The GOAL should be to use lowest possible FiO2 with adequate oxygenation

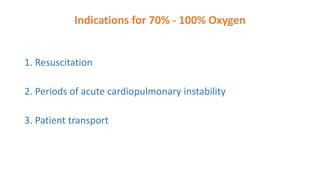

66. Indications for 70% - 100% Oxygen
1. Resuscitation
2. Periods of acute cardiopulmonary instability
3. Patient transport

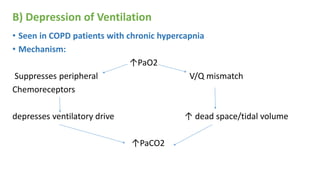

67. B) Depression of Ventilation
• Seen in COPD patients with chronic hypercapnia
• Mechanism:
↑PaO2
Suppresses peripheral V/Q mismatch
Chemoreceptors
depresses ventilatory drive ↑ dead space/tidal volume
↑PaCO2

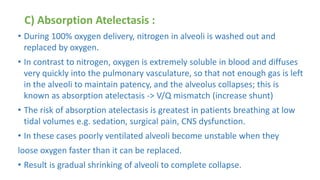

68. C) Absorption Atelectasis :
• During 100% oxygen delivery, nitrogen in alveoli is washed out and
replaced by oxygen.
• In contrast to nitrogen, oxygen is extremely soluble in blood and diffuses
very quickly into the pulmonary vasculature, so that not enough gas is left
in the alveoli to maintain patency, and the alveolus collapses; this is
known as absorption atelectasis -> V/Q mismatch (increase shunt)
• The risk of absorption atelectasis is greatest in patients breathing at low
tidal volumes e.g. sedation, surgical pain, CNS dysfunction.
• In these cases poorly ventilated alveoli become unstable when they
loose oxygen faster than it can be replaced.
• Result is gradual shrinking of alveoli to complete collapse.

69. oxygen nitrogen
PO2 =673
PCO2 = 40
PH2O = 47A – UNDERVENTILATED
B – NORMAL VENTILATED

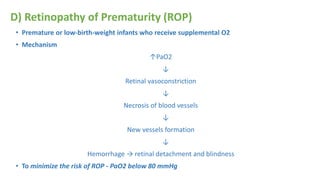

70. D) Retinopathy of Prematurity (ROP)
• Premature or low-birth-weight infants who receive supplemental O2
• Mechanism
↑PaO2
↓
Retinal vasoconstriction
↓
Necrosis of blood vessels
↓
New vessels formation
↓
Hemorrhage → retinal detachment and blindness
• To minimize the risk of ROP - PaO2 below 80 mmHg

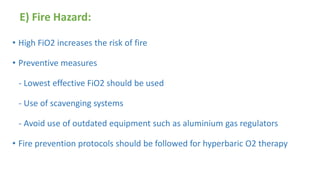

71. E) Fire Hazard:
• High FiO2 increases the risk of fire
• Preventive measures
- Lowest effective FiO2 should be used
- Use of scavenging systems
- Avoid use of outdated equipment such as aluminium gas regulators
• Fire prevention protocols should be followed for hyperbaric O2 therapy

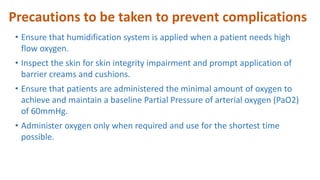

72. Precautions to be taken to prevent complications
• Ensure that humidification system is applied when a patient needs high
flow oxygen.
• Inspect the skin for skin integrity impairment and prompt application of
barrier creams and cushions.
• Ensure that patients are administered the minimal amount of oxygen to
achieve and maintain a baseline Partial Pressure of arterial oxygen (PaO2)
of 60mmHg.
• Administer oxygen only when required and use for the shortest time
possible.

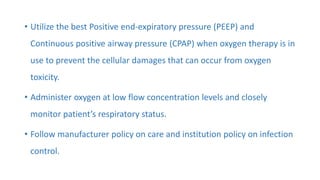

73. • Utilize the best Positive end-expiratory pressure (PEEP) and
Continuous positive airway pressure (CPAP) when oxygen therapy is in
use to prevent the cellular damages that can occur from oxygen
toxicity.
• Administer oxygen at low flow concentration levels and closely
monitor patient’s respiratory status.
• Follow manufacturer policy on care and institution policy on infection
control.

74. Safety Precautions
• Oxygen is a highly combustible gas.
• Although it does not burn spontaneously or cause an explosion, it
can easily cause a fire in a patient’s room if it contacts a spark from
an open flame or electrical equipment

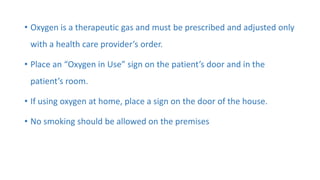

75. • Oxygen is a therapeutic gas and must be prescribed and adjusted only
with a health care provider’s order.
• Place an “Oxygen in Use” sign on the patient’s door and in the
patient’s room.
• If using oxygen at home, place a sign on the door of the house.
• No smoking should be allowed on the premises

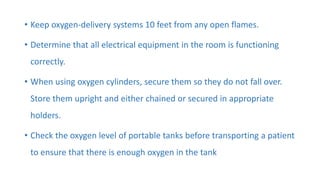

76. • Keep oxygen-delivery systems 10 feet from any open flames.
• Determine that all electrical equipment in the room is functioning
correctly.
• When using oxygen cylinders, secure them so they do not fall over.
Store them upright and either chained or secured in appropriate
holders.
• Check the oxygen level of portable tanks before transporting a patient
to ensure that there is enough oxygen in the tank

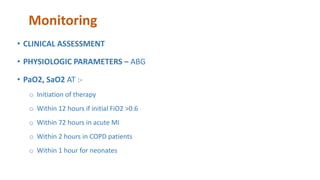

77. Monitoring
• CLINICAL ASSESSMENT
• PHYSIOLOGIC PARAMETERS – ABG
• PaO2, SaO2 AT :-
o Initiation of therapy
o Within 12 hours if initial FiO2 >0.6
o Within 72 hours in acute MI
o Within 2 hours in COPD patients
o Within 1 hour for neonates

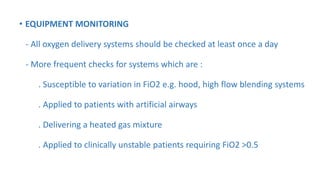

78. • EQUIPMENT MONITORING
- All oxygen delivery systems should be checked at least once a day
- More frequent checks for systems which are :
. Susceptible to variation in FiO2 e.g. hood, high flow blending systems
. Applied to patients with artificial airways
. Delivering a heated gas mixture
. Applied to clinically unstable patients requiring FiO2 >0.5

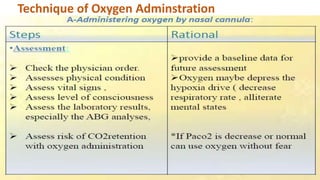

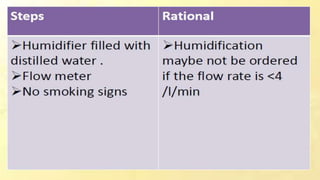

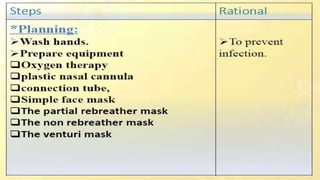

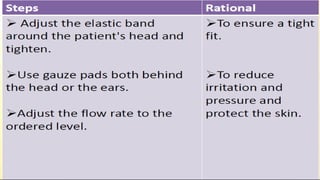

79. Technique of Oxygen Adminstration

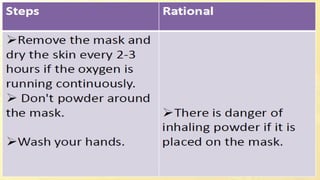

88. Evaluation
- Breathing pattern regular and at normal rate.
- Pink color in nail beds, lips, conjunctiva of eyes.
- No confusion, disorientation, difficulty with cognition.
- Arterial oxygen concentration or hemoglobin Oxygen saturation within
normal limits.

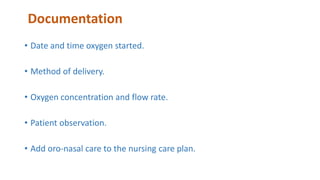

89. Documentation
• Date and time oxygen started.
• Method of delivery.
• Oxygen concentration and flow rate.
• Patient observation.
• Add oro-nasal care to the nursing care plan.
