Numerical structuralabnormalities csbrp
This document discusses genetic disorders caused by abnormalities in human chromosomes. It begins by describing karyotyping and the banding patterns used to identify chromosomes. It then describes several types of numerical chromosome abnormalities including aneuploidy, where there is an extra or missing chromosome, and polyploidy, where there are extra sets of chromosomes. Structural abnormalities are also outlined, such as deletions, duplications, inversions, translocations, and ring chromosomes. Specific genetic disorders are then examined in more detail, including Down syndrome caused by trisomy 21, Edward's syndrome from trisomy 18, and Patau's syndrome involving trisomy 13. Sex chromosome disorders like Klinefelter syndrome (XXY
More Related Content
Similar to Numerical structuralabnormalities csbrp
Numerical structuralabnormalities csbrp
- 1.
- 2. Karyotype Each armis divided into 2 or more regions Each region is divided into bands and sub bands They are numbered from centromere outwards ex. Xp 21.2
- 4.
- 5.
- 6. Numerical Abnormalities • Diploid(2n) • Polyploid (2n+….) • Euploid (exact multiples of n) • Autopolyploidy • Allopolyploidy • Aneuploid • Hyperaneuploidy • Hypoaneuploidy
- 7. Numerical Abnormalities • Diploid •Polyploid • Euploid (exact multiples of n) • Autopolyploidy • Allopolyploidy • Aneuploid • Hyperaneuploidy • Hypoaneuploidy
- 8. Numerical Abnormalities • Diploid •Polyploid • Euploid (exact multiples of n) • Autopolyploidy • Allopolyploidy • Aneuploid • Hyperaneuploidy • Hypoaneuploidy
- 9. Numerical Abnormalities • Diploid(2n) • Polyploid (2n+….) • Euploid (exact multiples of n) • Autopolyploidy • Allopolyploidy • Aneuploid (addition of 1 or 2 chr) • Hyperaneuploidy (2n+1, 2n+2) • Hypoaneuploidy (2n-1, 2n-2)
- 10. Mechanism of Aneuploidy Non disjunction – Failure of chromosome to separate normally during cell division result in monosomy or trisomy Anaphase lag - One chromosome fail to reach the pole of dividing cell at the same time and is left out of nucleus of daughter cell Mosaicism – Individual has 2 or more types of cell lines derived from same zygote ex. cancers
- 13.
- 14.
- 15. Structural abnormalities Translocation– Transfer of a segment of one chromosome to another non- homologous chromosome 1. Balanced translocation – When two fragments of chromosomes exchange materials without any loss of genetic materials. ex. Philadelphia chromosome – t(9:22) (q34:q11) 2. Robertsonian translocation
- 16. Structural abnormalities - Translocation Balancedtranslocation
- 17. Structural abnormalities 2. Robertsoniantranslocation – When two acrocentric chromosome lose their short arm and fuse at the centromere so that eventually the cell is left with 45 chromosomes.
- 18.
- 19. Structural abnormalities Translocation: Ex:Acute Myelogenous Leukemia Philadelphia chromosome t(9,22)
- 20. Structural abnormalities Deletion Loss of part of the DNA from a chromosome. Deletion may be from terminal portion/ Middle portion

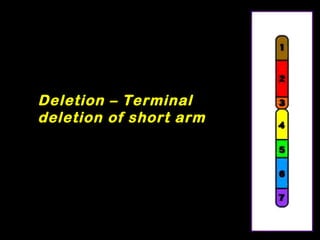

- 21. Deletion – Terminal deletionof short arm
- 22. Deletion – Terminal deletionof long arm
- 23.
- 24. Can you giveone best example for deletion resulting in disease? Alfa-Thalassemia
- 25. Structural abnormalities Ring chromosome:When both ends of a chromosomes are lost and the damaged ends join together, they form Ring chromosomes
- 26.
- 27. Diseases in whichring chromosomes are seen include: Some tumors of adipose tissue Fanconi’s anemia
- 28. Structural abnormalities Duplications: Ex:Fragile X syndrome The most common form of mental retardation The X chromosome have over 700 repeats due to duplications (Normal upto 29) Affects 1:1500 males, 1:2500 females
- 29. Structural abnormalities Duplications: Ex:Fragile X syndrome
- 30. Structural abnormalities Isochromosomeformation result when the centromere divides in a tranverse plane rather than in a normal long axis of the chromosome Ex. One with 2 short arms & one with 2 long arms
- 31.
- 32. Structural abnormalities Inversion:Rearrangement that involves two breaks within a single chromosome with reincorporation of inverted segment Paracentric Pericentric
- 33. Inversion – (long arm) ParacentricPericentric
- 34. Mutation Permanent changein the DNA Mutation in germ cell – Inherited diseases Mutation in somatic cells – Cancer, congenital malformation
- 35. Mutation Genomic Mutation– Monosomy/ trisomy Chromosomal Mutation – rearrangement of genetic material with visible structural changes in chr. Gene Mutation – Submicroscopic 1. Point mutation 2. Frame shift mutation
- 36. Mutation Point mutation– single nucleotide base is substituted by different base. e.g. sickle cell disease – glutamic acid replaced by valine at 6th position from the aminoterminal of beta globin chain of Hemoglobin
- 37. Mutation Frame shiftmutation One or two base pairs may be inserted/ deleted from the DNA, leading to alterations in the reading frame of the DNA strand
- 38. Frameshift Mutation (1-2 bp(s)deletion) (1-2 bp(s) insertion)
- 39.
- 40.
- 41.
- 42.
- 43. Down’s Syndrome Trisomy21, 47 XY + 21 Most common chromosomal disorder 1 in 700 live births Due to non disjunction Or Robertsonian translocation Parents – Normal karyotype Risk factor Mother over 35 years
- 44. The fertilization ofa genetically abnormal egg carrying an extra chromosome 21 (orange) by a normal sperm (green) produces an embryo with Down syndrome (purple).
- 45. Trisomy 21 --Down’s syndome
- 46. Click to seeanimation on Non-Disjun
- 47. Down’s Syndrome ClinicalFeatures Major cause of mental retardation IQ 25-50 Very gentle, shy & friendly Diagnosed at birth by “mongol” look – Flat facial profile, oblique palpebral fissure, epicanthic folds 40 % of patients – CHD ASD, Ostium primum, A-V valve malformation, VSD
- 49. Down’s syndromeDown’s syndrome NormalMongols Down’s baby With Mongoloid look
- 50.
- 51. Down’s syndromeDown’s syndrome Normalhand Simian crease
- 52. Down’s syndromeDown’s syndrome SimiancreaseSimian crease
- 53.
- 54.
- 55.
- 56.

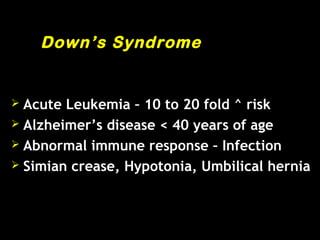

- 57. Down’s Syndrome AcuteLeukemia – 10 to 20 fold ^ risk Alzheimer’s disease < 40 years of age Abnormal immune response – Infection Simian crease, Hypotonia, Umbilical hernia
- 58. Down’s Syndrome AcuteLeukemia – 10 to 20 fold increased risk Transient MyeloproliferativeTransient Myeloproliferative SyndromeSyndrome
- 59. Other Trisomies Trisomy18 – Edward’s syndrome Trisomy 13 – PATAU syndrome High mortality
- 60.
- 61. Edward’s syndrome 1:10,000live births Almost every organ system is affected do not live more than a few months
- 62. Trisomy 18 ---Edward’s syndrome
- 63.
- 64. Trisomy 18 Edward’s syndrome Over lappingfingers & toes and rocker bottom feet
- 65. Trisomy 18 Edward’s syndrome 1.Over lappingfingers & toes 2.Rocker bottom feet 3.Syndactyly
- 66.
- 67.
- 68. Patau’s syndrome 1:5000live births Cleft palate Serious eye, brain, CVS defects Children rarely live more than a few months
- 69. Trisomy 13 ---Patau syndrome
- 71.
- 72.
- 73. Trisomy 13 -Patau syndrome
- 76. When to suspect Trisomy? • Congenital heart & renaldiseases • Mental retardation • Rocker bottom feet • Extra digits and cleft lip / palate
- 77. CYTOGENETIC DISORDERSCYTOGENETIC DISORDERS INVOLVINGINVOLVING SEXCHROMOSOMESSEX CHROMOSOMES
- 78.
- 79.
- 80. Klinefelter’sKlinefelter’s SyndromeSyndrome 47, XXY Male hypogonadism 1 in 850 live male births Rarely diagnosed before puberty Increased length between sole and pubic bone Small testis, small external genitalia Lack of secondary male features
- 81. Klinefelter’s Syndrome Gynaecomastia ↑ FSH , Testosterone↓ ↓ Spermatogenesis – Male Infertility Testis – Atrophic tubules, Prominent Leydig cells
- 82.
- 84.
- 85.
- 87.
- 88.
- 89.
- 91. KlinefelterKlinefelter ’s’s SyndromeSyndrome Chromosomes In sperms: X (green) Y(red) & 18 (orange) Human Reproduction Vol15. no2. pp 440-444, 2000
- 92.
- 93.
- 94. Turner’s Syndrome 45,X0 (57%) 45, X0 / 46, XX – Mosaic Type Most common sex chromosomal abnormality in female Female hypogonadism Infancy Edema of hand & foot Swelling of nape of neck CHD – Coarctation of aorta, bicuspid aortic valve
- 95. Turner’s Syndrome 1:5000live births The only viable monosomy in humans Genetically female They do not mature sexually during puberty and are sterile Short stature and normal intelligence 98% of these fetuses die before birth
- 97. Turner’s Syndrome Puberty Failure of secondary sexual character – Breast, external genitalia Short stature Amenorrhea – single most important cause Hypothyroidism, glucose intolerance, obesity, insulin resistance Atrophic ovaries
- 98.
- 99.
- 100.
- 101.
- 102.
- 104.
- 105. Sex chromosomal disorder Lyon hypothesis: Random inactivation of one of X ch. in females. Inactive X ch.- Barr body / Drumstick appendages Minimum of 30% cells should show sex chromatin
- 106.
- 107. Nucleus of afemale amniotic fluid cell Top: Both X- chromosome territories are detected by FISH. Bottom: Same nucleus stained with Dapi. The Barr body is indicated by the arrow, it identifies the inactive X (Xi).
- 108.
Editor's Notes
- #4 Figure 5-21 Details of banding pattern of the X chromosome (also called &quot;idiogram&quot;). Note the nomenclature of arms, regions, bands, and sub-bands. On the right side, the approximate locations of some genes that cause disease are indicated.
- #7 Autoploidy = have similar sets of chromosomes derived from the same species. Eg: Autotriploidy (3n) will have three sets of chromosomes (AAA) of same genome as in watermelon, banana. Autotetraploidy (4n) will have four sets of chromosome (AAAA) of same genome as in corn, rye plant, apple, marigold Allopolyploidy = These have multiples of haploid (n) sets of chromosomes derived from different related species Such plants are geenrally derived by hybridization. Eg: Allotetraploidy (4n) will have AABB (where A and B are haploid sets from two different species) as in new world cotton plant Allohexaploidy (6n) will have AA BB DD as in wheat. Here genomes of three species are involved.
- #8 Autoploidy = have similar sets of chromosomes derived from the same species. Eg: Autotriploidy (3n) will have three sets of chromosomes (AAA) of same genome as in watermelon, banana. Autotetraploidy (4n) will have four sets of chromosome (AAAA) of same genome as in corn, rye plant, apple, marigold Allopolyploidy = These have multiples of haploid (n) sets of chromosomes derived from different related species Such plants are geenrally derived by hybridization. Eg: Allotetraploidy (4n) will have AABB (where A and B are haploid sets from two different species) as in new world cotton plant Allohexaploidy (6n) will have AA BB DD as in wheat. Here genomes of three species are involved.
- #9 Autoploidy = have similar sets of chromosomes derived from the same species. Eg: Autotriploidy (3n) will have three sets of chromosomes (AAA) of same genome as in watermelon, banana. Autotetraploidy (4n) will have four sets of chromosome (AAAA) of same genome as in corn, rye plant, apple, marigold Allopolyploidy = These have multiples of haploid (n) sets of chromosomes derived from different related species Such plants are geenrally derived by hybridization. Eg: Allotetraploidy (4n) will have AABB (where A and B are haploid sets from two different species) as in new world cotton plant Allohexaploidy (6n) will have AA BB DD as in wheat. Here genomes of three species are involved.
- #10 Monosomies are not compatible with life. Only exception in the case of humans are Turner’s syndrome (45, X0)

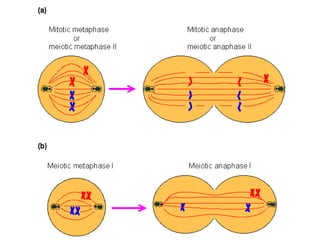

- #13 Origins of monosomy and trisomy. (a) During mitotic metaphase or meiotic metaphase II, one pair of sister chromatids does not align at the equatorial plane. Consequently, both sister chromatids move to the same cell. One daughter cell will show trisomy and another daughter cell will have monosomy. (b) During meiotic metaphase I, two homologous pairs of sister chromatids do not align at the equatorial plane and subsequently move to the same cell (a phenomenon called nondisjunction). The resulting daughter cells also have either monosomy or trisomy.
