Nuclear cardiology uses radiolabeled tracers and imaging techniques to provide functional data on cardiac physiology. Common studies include myocardial perfusion imaging using thallium-201 or technetium-99m to evaluate blood flow and ischemia. Gated blood pool imaging with technetium-99m allows assessment of ejection fraction and wall motion. Myocardial infarction can be identified using radiolabeled antibodies that localize to injured heart muscle. Positron emission tomography provides metabolic data to evaluate hibernating myocardium. Overall, nuclear cardiology noninvasively evaluates cardiac function and identifies ischemia, scar, and viability.

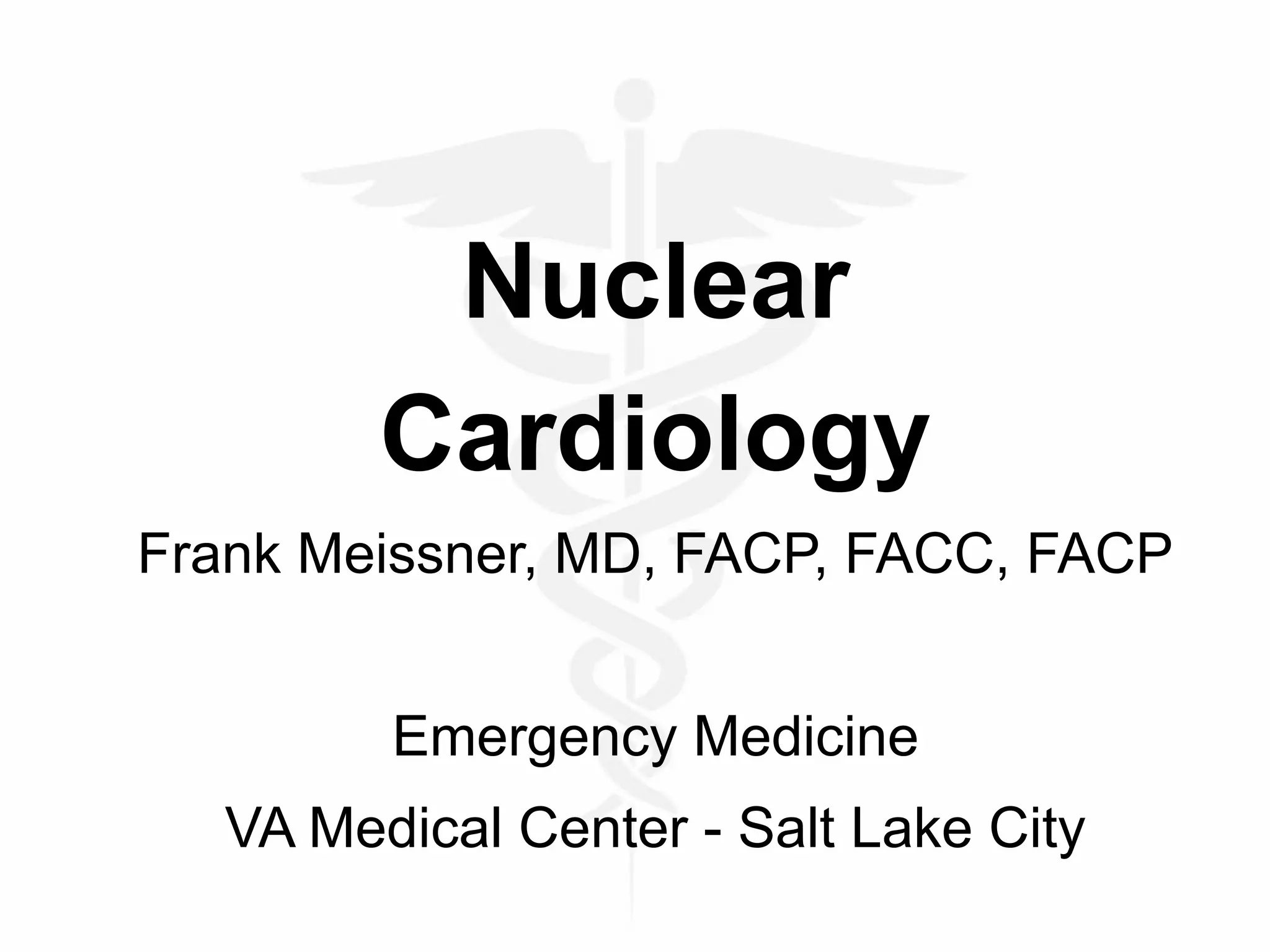

1. Nuclear
Cardiology
Frank Meissner, MD, FACP, FACC, FACP
Emergency Medicine
VA Medical Center - Salt Lake City

2. General Approach
●IV administration of radiolabeled agents
●Scintillation or positron camera
●Computer processing
●Physiologic/functional data, rather than
structural/anatomic
●e.g., Myocardial perfusion imaging is
prognostically more important than
classification by angiography

3. Types of Studies/Agents
●Myocardial Perfusion Thallium-201
(201Tl), technetium-99m sestamibi
●Blood Pool/First Pass Tc 99m
pertechnetate
●Myocardial Infarct
●PET

4. Myocardial Perfusion -Thallium 201 imaging
●Intracellular transport by passive and
active mechanisms
●Early myocardial uptake directly
proportional to regional myocardial
blood flow and myocardial extraction
fraction

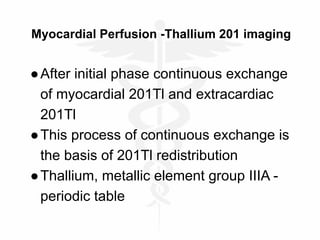

5. Myocardial Perfusion -Thallium 201 imaging
●After initial phase continuous exchange
of myocardial 201Tl and extracardiac
201Tl
●This process of continuous exchange is
the basis of 201Tl redistribution
●Thallium, metallic element group IIIA -
periodic table

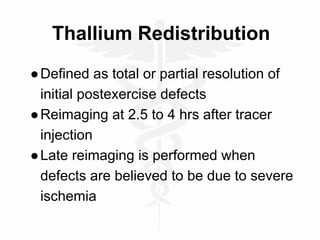

6. Thallium Redistribution
●Defined as total or partial resolution of
initial postexercise defects
●Reimaging at 2.5 to 4 hrs after tracer
injection
●Late reimaging is performed when
defects are believed to be due to severe
ischemia

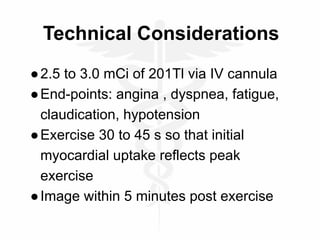

7. Technical Considerations
●2.5 to 3.0 mCi of 201Tl via IV cannula
●End-points: angina , dyspnea, fatigue,
claudication, hypotension
●Exercise 30 to 45 s so that initial
myocardial uptake reflects peak
exercise
●Image within 5 minutes post exercise

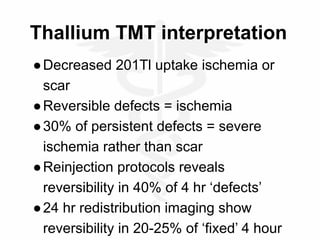

8. Thallium TMT interpretation
●Decreased 201Tl uptake ischemia or
scar
●Reversible defects = ischemia
●30% of persistent defects = severe
ischemia rather than scar
●Reinjection protocols reveals
reversibility in 40% of 4 hr ‘defects’
●24 hr redistribution imaging show
reversibility in 20-25% of ‘fixed’ 4 hour

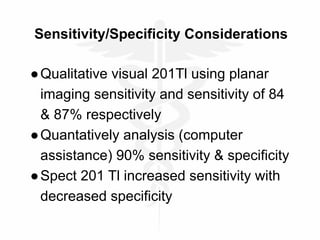

9. Sensitivity/Specificity Considerations
●Qualitative visual 201Tl using planar
imaging sensitivity and sensitivity of 84
& 87% respectively
●Quantatively analysis (computer
assistance) 90% sensitivity & specificity
●Spect 201 Tl increased sensitivity with
decreased specificity

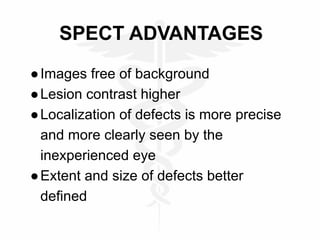

10. SPECT ADVANTAGES
●Images free of background
●Lesion contrast higher
●Localization of defects is more precise
and more clearly seen by the
inexperienced eye
●Extent and size of defects better
defined

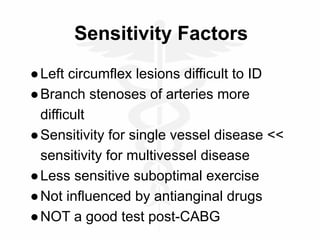

11. Sensitivity Factors
●Left circumflex lesions difficult to ID
●Branch stenoses of arteries more
difficult
●Sensitivity for single vessel disease <<
sensitivity for multivessel disease
●Less sensitive suboptimal exercise
●Not influenced by antianginal drugs
●NOT a good test post-CABG

12. HIGH RISK Characteristics
●Multiple 201 Tl defects in multiple
vascular regions
●Increased Lung uptake (defined by
lung/heart ratio > .5)
●Exercise induced transient LV dilatation

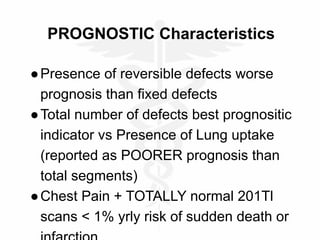

13. PROGNOSTIC Characteristics
●Presence of reversible defects worse
prognosis than fixed defects
●Total number of defects best prognositic
indicator vs Presence of Lung uptake
(reported as POORER prognosis than
total segments)
●Chest Pain + TOTALLY normal 201Tl
scans < 1% yrly risk of sudden death or

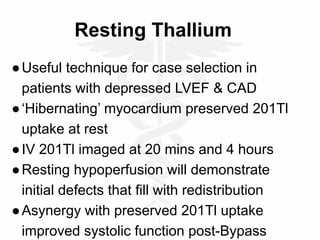

14. Resting Thallium
●Useful technique for case selection in
patients with depressed LVEF & CAD
●‘Hibernating’ myocardium preserved 201Tl
uptake at rest
●IV 201Tl imaged at 20 mins and 4 hours
●Resting hypoperfusion will demonstrate
initial defects that fill with redistribution
●Asynergy with preserved 201Tl uptake
improved systolic function post-Bypass

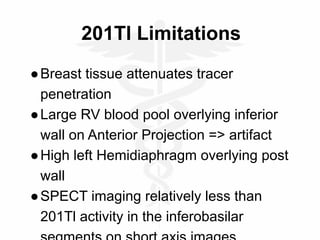

15. 201Tl Limitations
●Breast tissue attenuates tracer
penetration
●Large RV blood pool overlying inferior
wall on Anterior Projection => artifact
●High left Hemidiaphragm overlying post
wall
●SPECT imaging relatively less than
201Tl activity in the inferobasilar

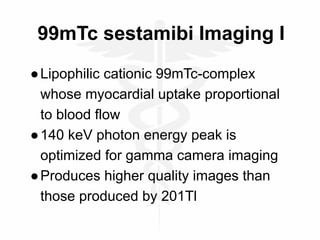

16. 99mTc sestamibi Imaging I
●Lipophilic cationic 99mTc-complex
whose myocardial uptake proportional
to blood flow
●140 keV photon energy peak is
optimized for gamma camera imaging
●Produces higher quality images than
those produced by 201Tl

17. 99mTc sestamibi Imaging II
●Shorter half life than 201Tl permits
administration of 10-15 X’s as high a
dose of tracer than 201Tl
●Gated acquisition of SPECT allows for
animation and rgn wall motion analysis
●First PASS acquisition can yield LVEF
at rest or exercise with animation for
MUGA like scans done prior to

18. 99mTc-sestamibi Technical
Characteristics
●Does NOT redistribute after injection
●Separate injections during stress and
resting states
●Ideal protocol is 24 hours between rest
and stress
●However, current practice is to inject
and image rest followed by Stress
images
●Increased photon energy defeats

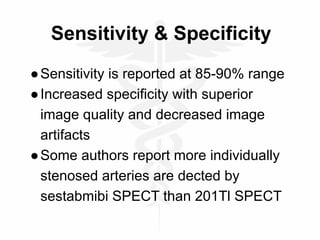

19. Sensitivity & Specificity
●Sensitivity is reported at 85-90% range
●Increased specificity with superior
image quality and decreased image
artifacts
●Some authors report more individually
stenosed arteries are dected by
sestabmibi SPECT than 201Tl SPECT

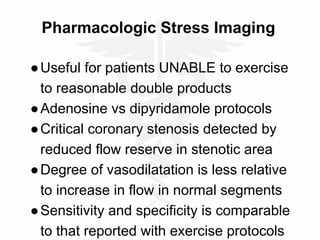

20. Pharmacologic Stress Imaging
●Useful for patients UNABLE to exercise
to reasonable double products
●Adenosine vs dipyridamole protocols
●Critical coronary stenosis detected by
reduced flow reserve in stenotic area
●Degree of vasodilatation is less relative
to increase in flow in normal segments
●Sensitivity and specificity is comparable
to that reported with exercise protocols

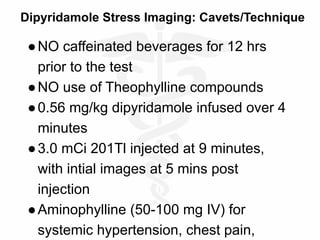

21. Dipyridamole Stress Imaging: Cavets/Technique
●NO caffeinated beverages for 12 hrs
prior to the test
●NO use of Theophylline compounds
●0.56 mg/kg dipyridamole infused over 4
minutes
●3.0 mCi 201Tl injected at 9 minutes,
with intial images at 5 mins post
injection
●Aminophylline (50-100 mg IV) for
systemic hypertension, chest pain,

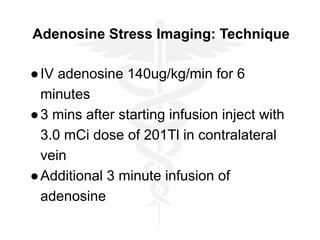

22. Adenosine Stress Imaging: Technique
●IV adenosine 140ug/kg/min for 6
minutes
●3 mins after starting infusion inject with
3.0 mCi dose of 201Tl in contralateral
vein
●Additional 3 minute infusion of
adenosine

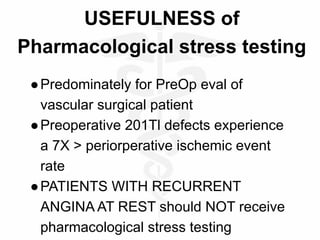

23. USEFULNESS of
Pharmacological stress testing
●Predominately for PreOp eval of
vascular surgical patient
●Preoperative 201Tl defects experience
a 7X > periorperative ischemic event
rate
●PATIENTS WITH RECURRENT
ANGINA AT REST should NOT receive
pharmacological stress testing

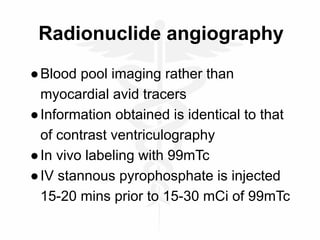

24. Radionuclide angiography
●Blood pool imaging rather than
myocardial avid tracers
●Information obtained is identical to that
of contrast ventriculography
●In vivo labeling with 99mTc
●IV stannous pyrophosphate is injected
15-20 mins prior to 15-30 mCi of 99mTc

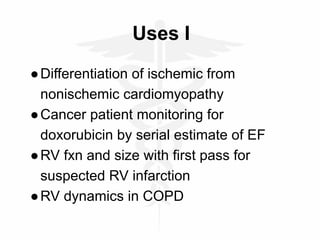

25. Uses I
●Differentiation of ischemic from
nonischemic cardiomyopathy
●Cancer patient monitoring for
doxorubicin by serial estimate of EF
●RV fxn and size with first pass for
suspected RV infarction
●RV dynamics in COPD

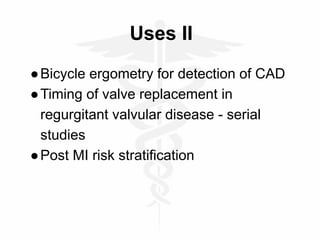

26. Uses II
●Bicycle ergometry for detection of CAD
●Timing of valve replacement in
regurgitant valvular disease - serial
studies
●Post MI risk stratification

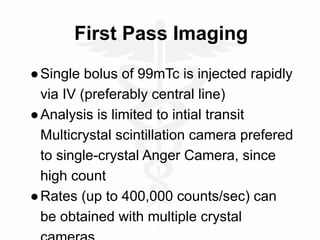

27. First Pass Imaging
●Single bolus of 99mTc is injected rapidly
via IV (preferably central line)
●Analysis is limited to intial transit
Multicrystal scintillation camera prefered
to single-crystal Anger Camera, since
high count
●Rates (up to 400,000 counts/sec) can
be obtained with multiple crystal

28. Equilibration Imaging I
●Multiple Gated Acquisition Scan
(MUGA)
●Equal subdivisions of the patients
cardiac cycle
●Generally 30-50ms framing interval at
rest or 20-30 ms for exercise study
●200 successive cardiac cycles, with
R-wave gating

29. Equilibration Imaging II
●Several algorithms and methods to deal
with R-R wave variability
●DO NOT SEND A Fib or
Bigemy/Trigemeny patient to MUGA
●Time Activity Curve - Relative volume
curve
●Displayed with activity in LV vs time
●Change in activity is proportional to
change in LV volume

30. Data Obtained
●LVEF
●RVEF
●Peak systolic ejection rate
●Regurgitant fraction
●Diastolic filling time
●Left to right intracardiac shunts
●Phase analysis

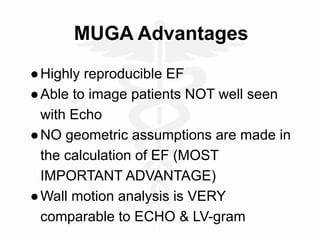

31. MUGA Advantages
●Highly reproducible EF
●Able to image patients NOT well seen
with Echo
●NO geometric assumptions are made in
the calculation of EF (MOST
IMPORTANT ADVANTAGE)
●Wall motion analysis is VERY
comparable to ECHO & LV-gram

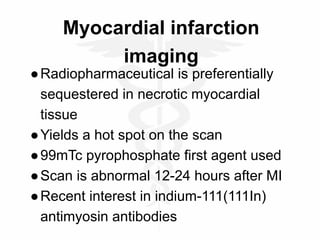

32. Myocardial infarction
imaging
●Radiopharmaceutical is preferentially
sequestered in necrotic myocardial
tissue
●Yields a hot spot on the scan
●99mTc pyrophosphate first agent used
●Scan is abnormal 12-24 hours after MI
●Recent interest in indium-111(111In)
antimyosin antibodies

33. Technique
●Fab fragments of antimyosin antibodies
labeled with 111In
●Images obtained one hour after
injection

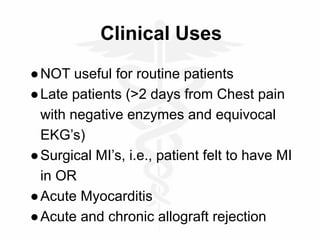

34. Clinical Uses
●NOT useful for routine patients
●Late patients (>2 days from Chest pain
with negative enzymes and equivocal
EKG’s)
●Surgical MI’s, i.e., patient felt to have MI
in OR
●Acute Myocarditis
●Acute and chronic allograft rejection

35. PET
●Positron emission tomography
●Imaged with short half life positron
emitors such as carbon-11 (11C),
nitrogen-13 (13N), oxygen-15 (15O),
fluorine-18 (18F), and rubidium-82
(82Rb)
●Generator produced half lifes of 75
seconds to 2 minutes

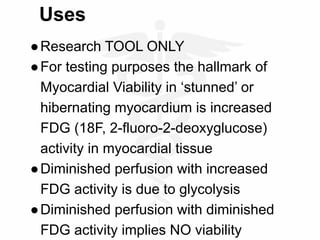

36. Uses
●Research TOOL ONLY
●For testing purposes the hallmark of
Myocardial Viability in ‘stunned’ or
hibernating myocardium is increased
FDG (18F, 2-fluoro-2-deoxyglucose)
activity in myocardial tissue
●Diminished perfusion with increased
FDG activity is due to glycolysis
●Diminished perfusion with diminished
FDG activity implies NO viability

37. THE
