MPI Myocardial Perfusion Imaging (1).pptx

1. ● Principles of Imaging - SPECT & PET
● Stress testing principles and stressor agents
● Radiotracers and Protocols
● Patient Centered Clinical Applications
○ IHD, HF and Cardiomyopathies, IE,
CadioOnco, Aortic Valve disease

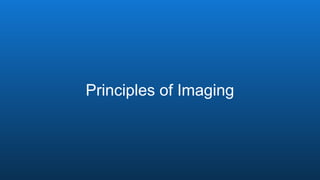

2. Principles of Imaging

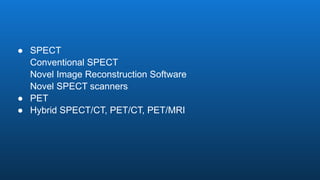

3. ● SPECT
Conventional SPECT
Novel Image Reconstruction Software
Novel SPECT scanners
● PET
● Hybrid SPECT/CT, PET/CT, PET/MRI

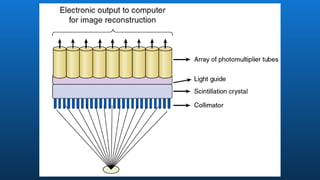

4. SPECT

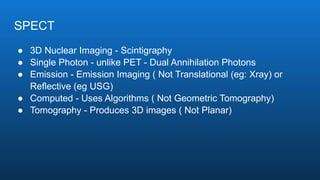

5. SPECT
● 3D Nuclear Imaging - Scintigraphy
● Single Photon - unlike PET - Dual Annihilation Photons
● Emission - Emission Imaging ( Not Translational (eg: Xray) or
Reflective (eg USG)
● Computed - Uses Algorithms ( Not Geometric Tomography)
● Tomography - Produces 3D images ( Not Planar)

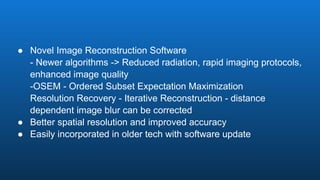

7. ● Novel Image Reconstruction Software
- Newer algorithms -> Reduced radiation, rapid imaging protocols,
enhanced image quality
-OSEM - Ordered Subset Expectation Maximization
Resolution Recovery - Iterative Reconstruction - distance
dependent image blur can be corrected
● Better spatial resolution and improved accuracy
● Easily incorporated in older tech with software update

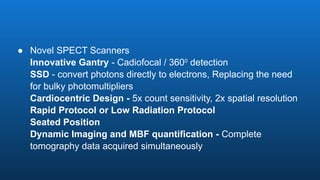

8. ● Novel SPECT Scanners
Innovative Gantry - Cadiofocal / 3600
detection
SSD - convert photons directly to electrons, Replacing the need
for bulky photomultipliers
Cardiocentric Design - 5x count sensitivity, 2x spatial resolution
Rapid Protocol or Low Radiation Protocol
Seated Position
Dynamic Imaging and MBF quantification - Complete
tomography data acquired simultaneously

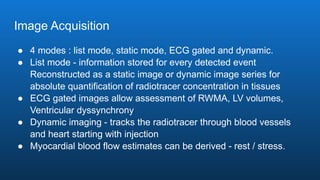

9. Image Acquisition
● 4 modes : list mode, static mode, ECG gated and dynamic.
● List mode - information stored for every detected event
Reconstructed as a static image or dynamic image series for
absolute quantification of radiotracer concentration in tissues
● ECG gated images allow assessment of RWMA, LV volumes,
Ventricular dyssynchrony
● Dynamic imaging - tracks the radiotracer through blood vessels
and heart starting with injection
● Myocardial blood flow estimates can be derived - rest / stress.

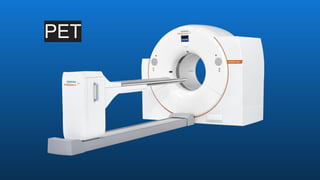

10. PET

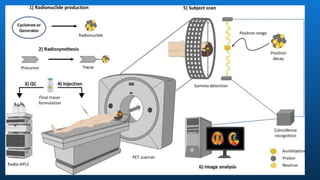

11. Working Principle
● Quantification of Radioactivity in vivo
● IV injection of a positron-emitting radiopharmaceutical
● Undergoes B+
-> Neutrino and Positron
● Positron collides( Annihilates) with an electron
● Producing 2 Photons
● Photons detected by Detectors

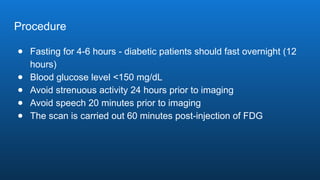

13. Procedure
● Fasting for 4-6 hours - diabetic patients should fast overnight (12
hours)
● Blood glucose level <150 mg/dL
● Avoid strenuous activity 24 hours prior to imaging
● Avoid speech 20 minutes prior to imaging
● The scan is carried out 60 minutes post-injection of FDG

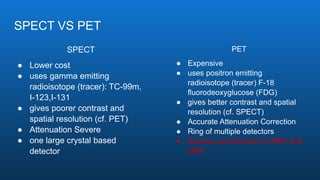

16. SPECT VS PET
SPECT
● Lower cost
● uses gamma emitting
radioisotope (tracer): TC-99m,
I-123,I-131
● gives poorer contrast and
spatial resolution (cf. PET)
● Attenuation Severe
● one large crystal based
detector
PET
● Expensive
● uses positron emitting
radioisotope (tracer) F-18
fluorodeoxyglucose (FDG)
● gives better contrast and spatial
resolution (cf. SPECT)
● Accurate Attenuation Correction
● Ring of multiple detectors
● Routine quantification of MBF and
MFR

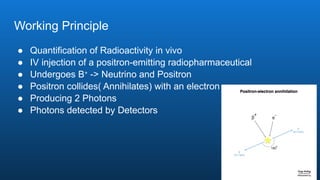

17. Working Principle
● Quantification of Radioactivity in vivo
● IV injection of a positron-emitting radiopharmaceutical
● Undergoes B+
-> Neutrino and Positron
● Positron collides( Annihilates) with an electron
● Producing 2 Photons
● Photons detected by Detectors

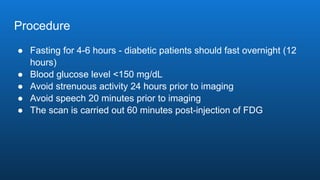

19. Procedure
● Fasting for 4-6 hours - diabetic patients should fast overnight (12
hours)
● Blood glucose level <150 mg/dL
● Avoid strenuous activity 24 hours prior to imaging
● Avoid speech 20 minutes prior to imaging
● The scan is carried out 60 minutes post-injection of FDG

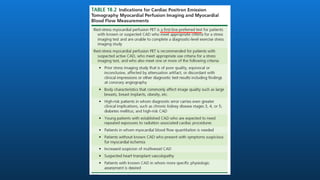

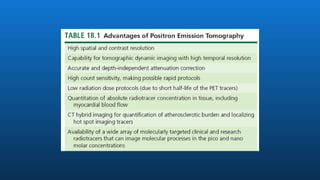

22. SPECT VS PET
SPECT
● Lower cost
● uses gamma emitting
radioisotope (tracer): TC-99m,
I-123,I-131
● gives poorer contrast and
spatial resolution (cf. PET)
● Attenuation Severe
● one large crystal based
detector
PET
● Expensive
● uses positron emitting
radioisotope (tracer) F-18
fluorodeoxyglucose (FDG)
● gives better contrast and spatial
resolution (cf. SPECT)
● Accurate Attenuation Correction
● Ring of multiple detectors
● Routine quantification of MBF and
MFR

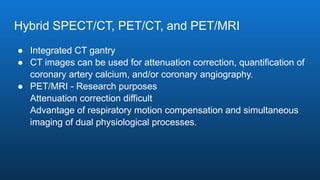

23. Hybrid SPECT/CT, PET/CT, and PET/MRI
● Integrated CT gantry
● CT images can be used for attenuation correction, quantification of
coronary artery calcium, and/or coronary angiography.
● PET/MRI - Research purposes
Attenuation correction difficult
Advantage of respiratory motion compensation and simultaneous
imaging of dual physiological processes.

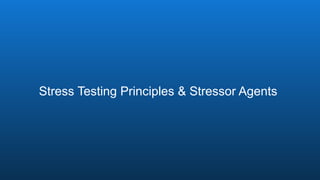

24. Stress Testing Principles & Stressor Agents

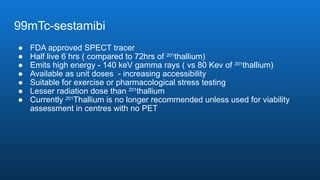

27. 99mTc-sestamibi
● FDA approved SPECT tracer
● Half live 6 hrs ( compared to 72hrs of 201
thallium)
● Emits high energy - 140 keV gamma rays ( vs 80 Kev of 201
thallium)
● Available as unit doses - increasing accessibility
● Suitable for exercise or pharmacological stress testing
● Lesser radiation dose than 201
thallium
● Currently 201
Thallium is no longer recommended unless used for viability
assessment in centres with no PET

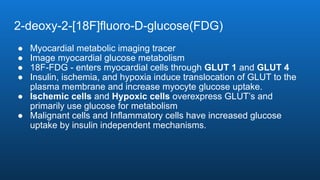

28. 2-deoxy-2-[18F]fluoro-D-glucose(FDG)
● Myocardial metabolic imaging tracer
● Image myocardial glucose metabolism
● 18F-FDG - enters myocardial cells through GLUT 1 and GLUT 4
● Insulin, ischemia, and hypoxia induce translocation of GLUT to the
plasma membrane and increase myocyte glucose uptake.
● Ischemic cells and Hypoxic cells overexpress GLUT’s and
primarily use glucose for metabolism
● Malignant cells and Inflammatory cells have increased glucose
uptake by insulin independent mechanisms.

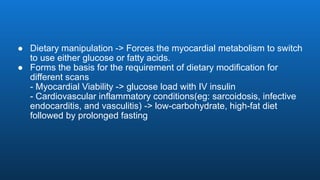

29. ● Dietary manipulation -> Forces the myocardial metabolism to switch
to use either glucose or fatty acids.
● Forms the basis for the requirement of dietary modification for
different scans
- Myocardial Viability -> glucose load with IV insulin
- Cardiovascular inflammatory conditions(eg: sarcoidosis, infective
endocarditis, and vasculitis) -> low-carbohydrate, high-fat diet
followed by prolonged fasting

30. Patient Preparation before MPI
● Stress Testing
- 6 hrs fasting
- No smoking for prior 6 hrs
- Caffeine withheld for 12 hrs
- Theophylline containing medications w/h for 48 hrs
- K/C/O CAD - on antianginal medications
- Not a K/C/O CAD - withhold antianginals and BB for 12 hrs
- HD patients - Test one day after HD

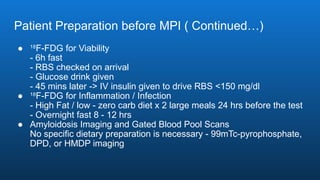

31. Patient Preparation before MPI ( Continued…)
● 18
F-FDG for Viability
- 6h fast
- RBS checked on arrival
- Glucose drink given
- 45 mins later -> IV insulin given to drive RBS <150 mg/dl
● 18
F-FDG for Inflammation / Infection
- High Fat / low - zero carb diet x 2 large meals 24 hrs before the test
- Overnight fast 8 - 12 hrs
● Amyloidosis Imaging and Gated Blood Pool Scans
No specific dietary preparation is necessary - 99mTc-pyrophosphate,
DPD, or HMDP imaging

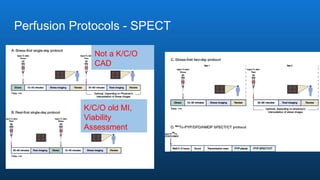

32. Perfusion Protocols - SPECT
Not a K/C/O
CAD
K/C/O old MI,
Viability
Assessment

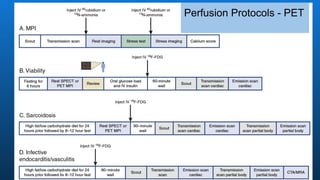

33. Perfusion Protocols - PET
Perfusion Protocols - PET

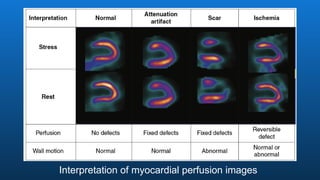

34. Interpretation of myocardial perfusion images

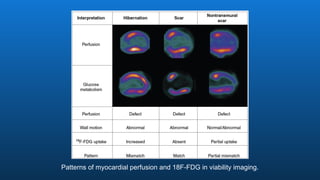

35. Patterns of myocardial perfusion and 18F-FDG in viability imaging.

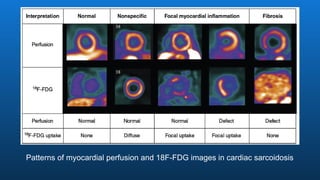

36. Patterns of myocardial perfusion and 18F-FDG images in cardiac sarcoidosis

37. Patient Centered Clinical Applications

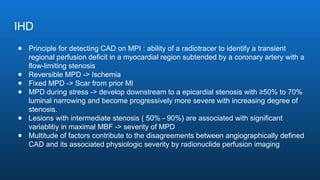

38. IHD
● Principle for detecting CAD on MPI : ability of a radiotracer to identify a transient
regional perfusion deficit in a myocardial region subtended by a coronary artery with a
flow-limiting stenosis
● Reversible MPD -> Ischemia
● Fixed MPD -> Scar from prior MI
● MPD during stress -> develop downstream to a epicardial stenosis with ≥50% to 70%
luminal narrowing and become progressively more severe with increasing degree of
stenosis.

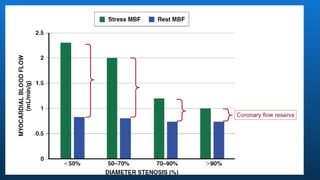

● Lesions with intermediate stenosis ( 50% - 90%) are associated with significant
variablitiy in maximal MBF -> severity of MPD
● Multitude of factors contribute to the disagreements between angiographically defined
CAD and its associated physiologic severity by radionuclide perfusion imaging

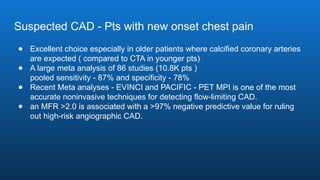

39. Suspected CAD - Pts with new onset chest pain
● Excellent choice especially in older patients where calcified coronary arteries
are expected ( compared to CTA in younger pts)
● A large meta analysis of 86 studies (10.8K pts )
pooled sensitivity - 87% and specificity - 78%
● Recent Meta analyses - EVINCI and PACIFIC - PET MPI is one of the most
accurate noninvasive techniques for detecting flow-limiting CAD.
● an MFR >2.0 is associated with a >97% negative predictive value for ruling
out high-risk angiographic CAD.

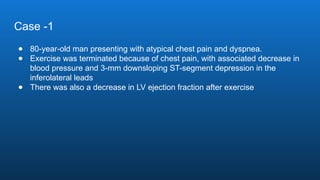

40. Case -1
● 80-year-old man presenting with atypical chest pain and dyspnea.
● Exercise was terminated because of chest pain, with associated decrease in
blood pressure and 3-mm downsloping ST-segment depression in the
inferolateral leads
● There was also a decrease in LV ejection fraction after exercise

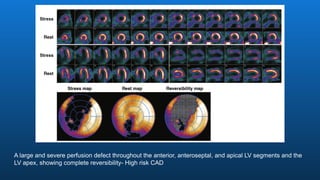

41. A large and severe perfusion defect throughout the anterior, anteroseptal, and apical LV segments and the
LV apex, showing complete reversibility- High risk CAD

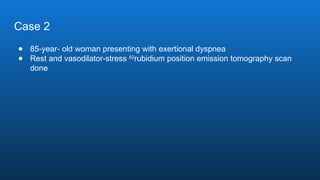

42. Case 2
● 85-year- old woman presenting with exertional dyspnea
● Rest and vasodilator-stress 82
rubidium position emission tomography scan
done

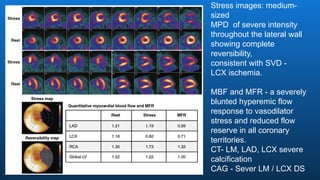

43. Stress images: medium-
sized
MPD of severe intensity
throughout the lateral wall
showing complete
reversibility,
consistent with SVD -
LCX ischemia.
MBF and MFR - a severely
blunted hyperemic flow
response to vasodilator
stress and reduced flow
reserve in all coronary
territories.
CT- LM, LAD, LCX severe
calcification
CAG - Sever LM / LCX DS

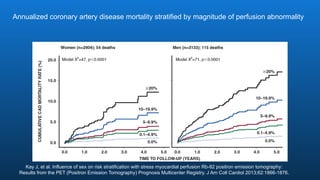

45. Kay J, et al. Influence of sex on risk stratification with stress myocardial perfusion Rb-82 positron emission tomography:
Results from the PET (Positron Emission Tomography) Prognosis Multicenter Registry. J Am Coll Cardiol 2013;62:1866-1876.
Annualized coronary artery disease mortality stratified by magnitude of perfusion abnormality

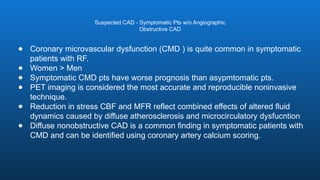

46. ● Coronary microvascular dysfunction (CMD ) is quite common in symptomatic
patients with RF.
● Women > Men
● Symptomatic CMD pts have worse prognosis than asypmtomatic pts.
● PET imaging is considered the most accurate and reproducible noninvasive
technique.
● Reduction in stress CBF and MFR reflect combined effects of altered fluid
dynamics caused by diffuse atherosclerosis and microcirculatory dysfucntion
● Diffuse nonobstructive CAD is a common finding in symptomatic patients with
CMD and can be identified using coronary artery calcium scoring.
Suspected CAD - Symptomatic Pts w/o Angiographic
Obstructive CAD

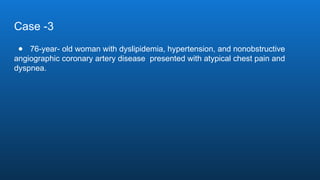

47. Case -3
● 76-year- old woman with dyslipidemia, hypertension, and nonobstructive
angiographic coronary artery disease presented with atypical chest pain and
dyspnea.

48. The abnormal quantitative findings are consistent with myocardial ischemia from nonobstructive atherosclerosis and coronary
microvascular dysfunction.

49. Evaluation Before Organ Transplantation
● CKD for Kidney Transplant
● Younger patients CTA is a reasonable test
● Pts > 55 ys with CKD - non invasive stress testing reasonable
● Number of studies showed that abnormal MPI is associated with both short-
and long-term adverse cardiac events in CKD pts including renal transplant
patients, and that a normal MPI study has a high negative predictive value.

50. Suspected ACS - Nondiagnostic ECG and Hs Trop +
● In intermediate-high risk patients with low-level elevation of cardiac troponin,
quantitative stress PET perfusion imaging may offer an advantage compared
with SPECT and may be preferable if available.
● In one study - Impaired global MFR in the absence of obstructive CAD as
measured by PET was independently associated with troponin elevation,
● ? association between chronic microvascular ischemia and myocardial injury,
especially among patients with diffuse atherosclerosis

51. Patient with prior PCI and Recurrent Symptoms
● Radionuclide MPI is appropriate for diagnosis of ischemia and risk
stratification among patients with prior revascularization presenting
with new-onset or worsening symptoms of angina or anginal equivalents.
● Pts with prior PCI / CABG - MPI provides localization and quantification of
myocardial ischemia that helps with risk prediction and management
decisions regarding the potential need for targeted revascularization
● Exercise test ideal
● PET > specificity SPECT, & higher diagnostic accuracy.

52. ● Extensive scar / unrevascularised obstructive CAD -> high risk for ventricular
arrhythmias
● Revascularization in addition to arrhythmia management affords improved
survival compared with arrhythmia management alone
Patients with Prior Myocardial Infarction and Ventricular
Arrhythmias

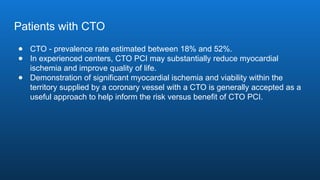

53. Patients with CTO
● CTO - prevalence rate estimated between 18% and 52%.
● In experienced centers, CTO PCI may substantially reduce myocardial
ischemia and improve quality of life.
● Demonstration of significant myocardial ischemia and viability within the
territory supplied by a coronary vessel with a CTO is generally accepted as a
useful approach to help inform the risk versus benefit of CTO PCI.

55. Patients with Cardiac Allograft Vasculopathy
● S/P Transplant 3 years
ago
● Presented with syncope
● MPI - Dilated LV
● Med. Mod. stress induced
ischemia
● LVEF - 44%
● Severe Coronary allograft
vasculopathy
● Confirmed on autopsy

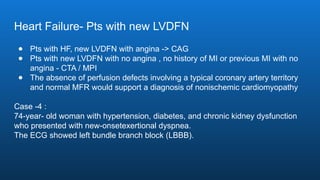

56. Heart Failure- Pts with new LVDFN
● Pts with HF, new LVDFN with angina -> CAG
● Pts with new LVDFN with no angina , no history of MI or previous MI with no
angina - CTA / MPI
● The absence of perfusion defects involving a typical coronary artery territory
and normal MFR would support a diagnosis of nonischemic cardiomyopathy

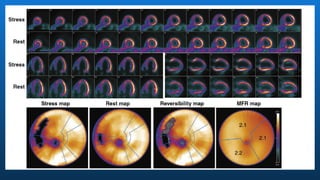

Case -4 :
74-year- old woman with hypertension, diabetes, and chronic kidney dysfunction
who presented with new-onsetexertional dyspnea.
The ECG showed left bundle branch block (LBBB).

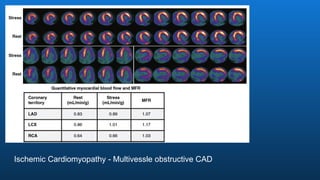

58. Ischemic Cardiomyopathy - Multivessle obstructive CAD

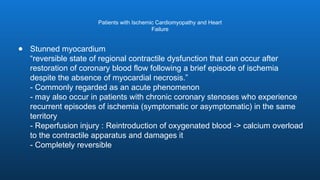

59. Patients with Ischemic Cardiomyopathy and Heart
Failure
● Stunned myocardium
“reversible state of regional contractile dysfunction that can occur after
restoration of coronary blood flow following a brief episode of ischemia
despite the absence of myocardial necrosis.”
- Commonly regarded as an acute phenomenon
- may also occur in patients with chronic coronary stenoses who experience
recurrent episodes of ischemia (symptomatic or asymptomatic) in the same
territory
- Reperfusion injury : Reintroduction of oxygenated blood -> calcium overload
to the contractile apparatus and damages it
- Completely reversible

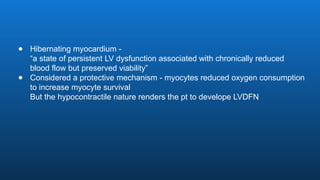

60. ● Hibernating myocardium -
“a state of persistent LV dysfunction associated with chronically reduced
blood flow but preserved viability”
● Considered a protective mechanism - myocytes reduced oxygen consumption
to increase myocyte survival
But the hypocontractile nature renders the pt to develope LVDFN

61. Case -5
● 70-year-old man with progressive dyspnea, hypotension, and new severe
biventricular systolic dysfunction with elevated natriuretic peptides
● CAG - multivessel CAD - LCX CTO (filled by left-to-left collaterals), serial
severe right coronary artery (RCA) lesions (80% to 90%), and moderate left
anterior descending (LAD) stenosis (40% to 50%) in the proximal mid
segments

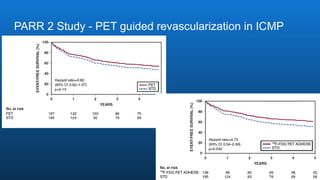

63. PARR 2 Study - PET guided revascularization in ICMP

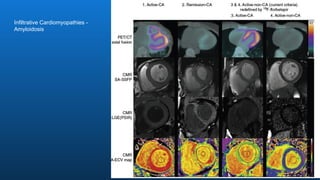

64. Infiltrative Cardiomyopathies -
Amyloidosis

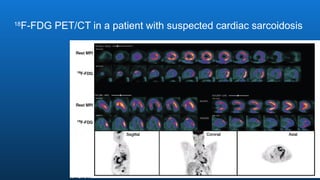

65. 18
F-FDG PET/CT in a patient with suspected cardiac sarcoidosis

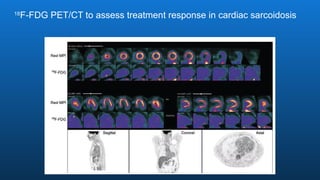

66. 18
F-FDG PET/CT to assess treatment response in cardiac sarcoidosis

67. Role of 18
F-FDG PET/CT in sarcoidosis

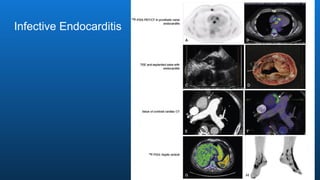

68. Infective Endocarditis

69. Thank you
