The MIPI I3C standardized sensor interface provides a number of significant advantages over existing digital sensor interfaces. One of the most advanced features is the ability to operate in I3C high data rate modes, HDR-DDR, HDR-TSP and HDR-TSL, which provides the best performance in both speed and power. Alex Passi of Cadence Design Systems presents I3C interface basics and focuses on various verification aspects of I3C HDR modes through an advanced verification methodology based on coverage driven verification and real-life scenarios.

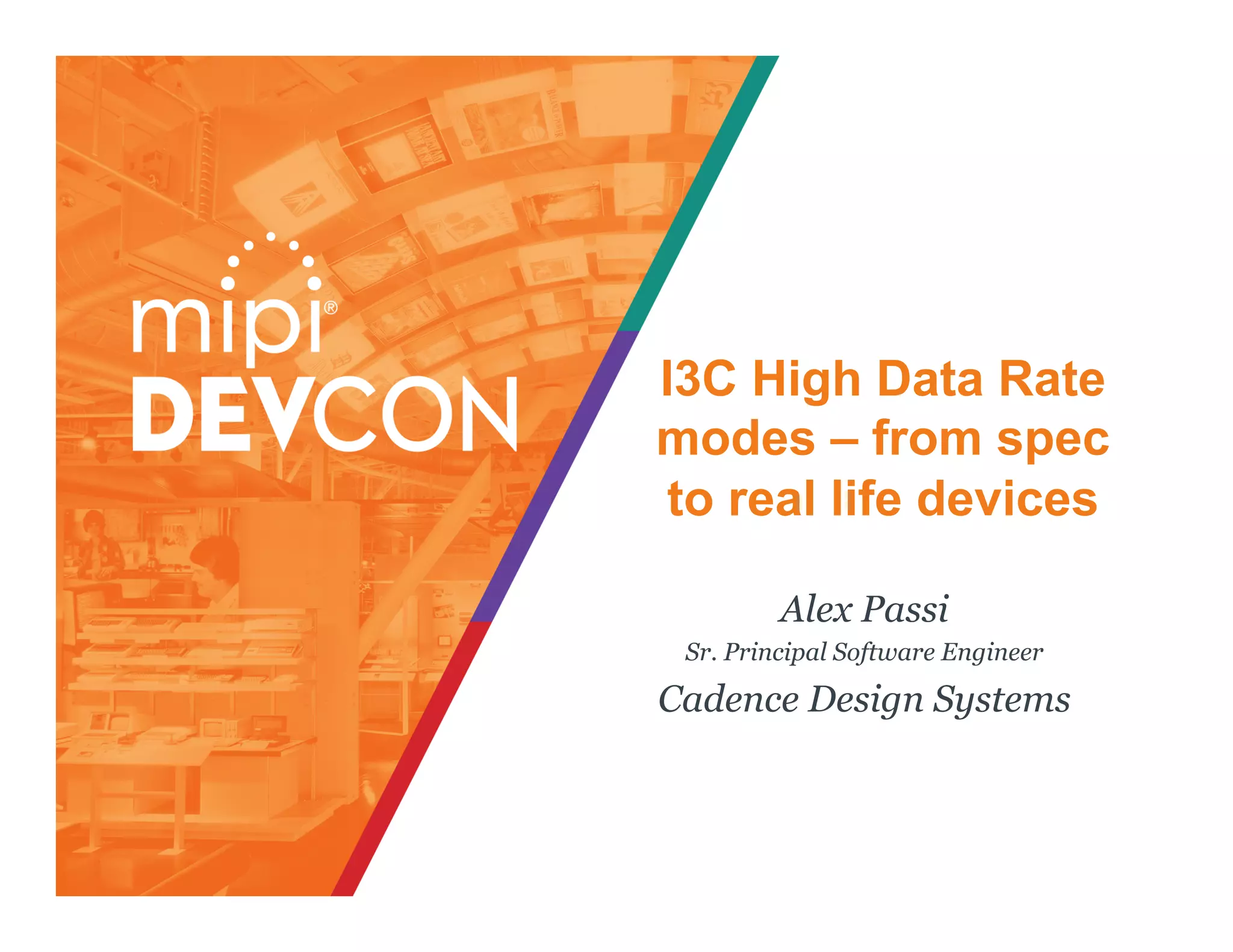

1. I3C High Data Rate
modes – from spec
to real life devices
Alex Passi
Sr. Principal Software Engineer
Cadence Design Systems

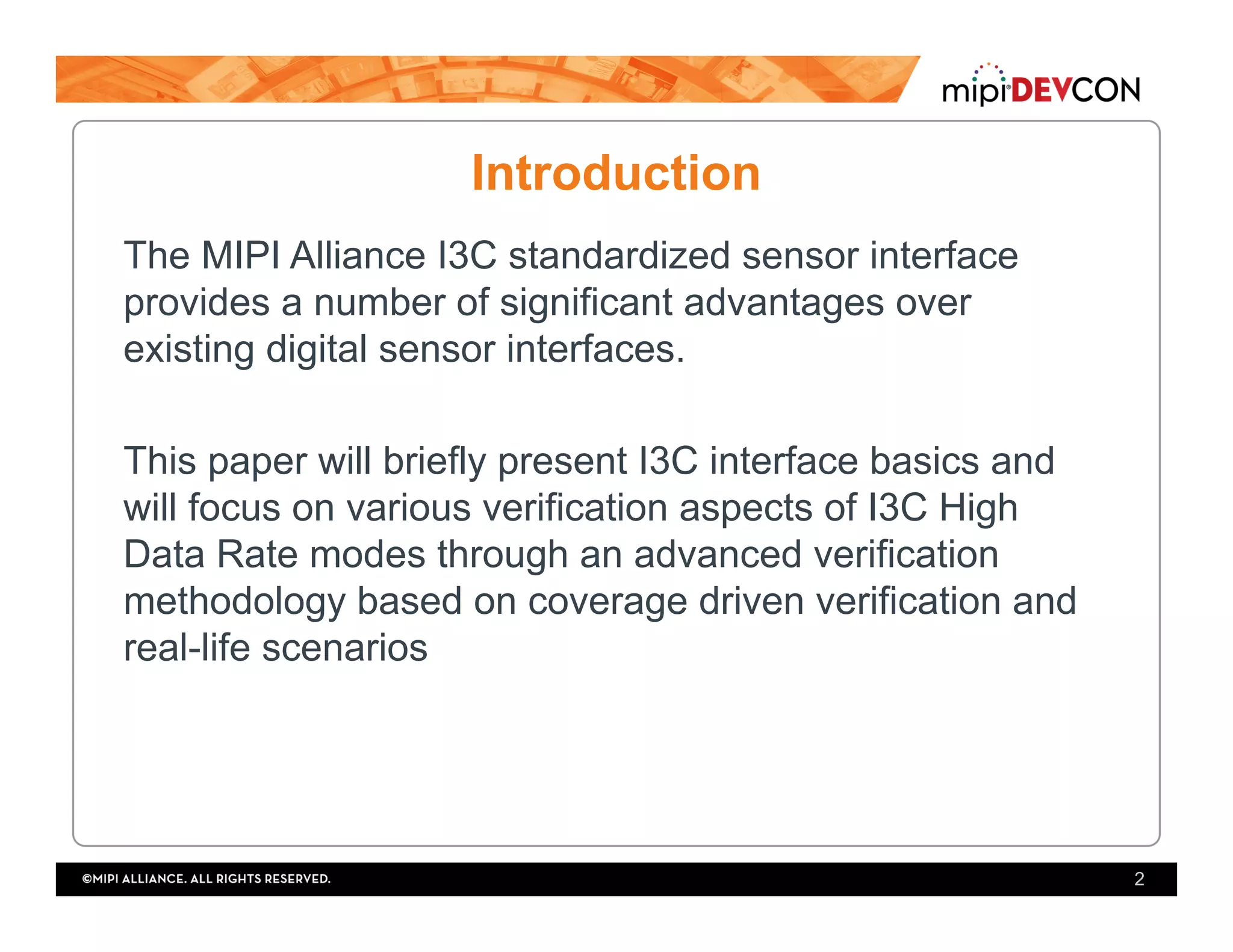

2. Introduction
The MIPI Alliance I3C standardized sensor interface
provides a number of significant advantages over
existing digital sensor interfaces.
This paper will briefly present I3C interface basics and
will focus on various verification aspects of I3C High
Data Rate modes through an advanced verification
methodology based on coverage driven verification and
real-life scenarios
2

3. Single Data Rate Mode
• Single Data Rate (SDR) Mode is the default mode used
by I3C
• I3C Bus always initializes in SDR Mode
• Maximum data rate – 12.5 Mbps
• SDR is almost similar to I2C, but introduces many new
features not present in I2C
• SCL wire operates as a clock signal, while the data is
transferred using SDA wire
3

4. SDR Basics
4
• START Condition: SCL = High, SDA = High Low
• STOP Condition: SCL = High, SDA = Low High
• Transmitter writes data bit to SDA on falling edge of SCL
• Receiver(s) read data bit on rising edge of SCL

5. High Data Rate Modes
• I3C High Data Rate modes allow to transfer more data
while preserving SDR Frequency
• There are three I3C HDR modes:
• HDR-DDR – Double Data Rate mode
• HDR-TSP – Ternary Symbol Pure-bus mode
• HDR-TSL – Ternary Symbol Legacy-inclusive-bus mode
• I3C HDR modes can be used only on:
• Pure I3C bus – no I2C devices present on the bus
• Mixed Fast Bus – I2C devices equipped with 50ns Spike Filter
• I3C Bus cannot be initialized in any of HDR modes
• While in HDR mode, Repeated START and STOP are
“replaced” with HDR Restart and HDR Exit patterns
5

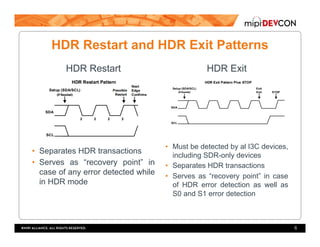

6. HDR Restart and HDR Exit Patterns
HDR Restart
• Separates HDR transactions
• Serves as “recovery point” in
case of any error detected while
in HDR mode
HDR Exit
• Must be detected by al I3C devices,
including SDR-only devices
• Separates HDR transactions
• Serves as “recovery point” in case
of HDR error detection as well as
S0 and S1 error detection
6

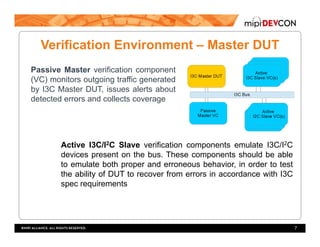

7. Verification Environment – Master DUT
Passive Master verification component
(VC) monitors outgoing traffic generated
by I3C Master DUT, issues alerts about
detected errors and collects coverage
7
Active I3C/I2C Slave verification components emulate I3C/I2C
devices present on the bus. These components should be able
to emulate both proper and erroneous behavior, in order to test
the ability of DUT to recover from errors in accordance with I3C
spec requirements

8. Verification Environment – Slave DUT
Active I3C Master verification
component emulates I3C Master
device. This component should
be able to manage I3C bus. In
addition it should be able to
emulate erroneous behavior, in
order to test the DUT’s error
recovery ability
8
Passive Slave verification
component monitors outgoing
traffic generated by DUT, issues
alerts about detected errors and
collects coverage
Active I3C Slave verification
components emulate additional
slave devices present on the bus,
mostly for testing of arbitration-
related aspects

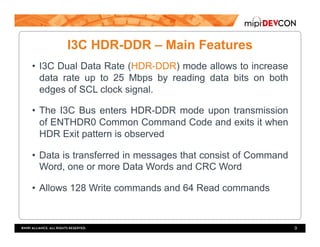

9. I3C HDR-DDR – Main Features
• I3C Dual Data Rate (HDR-DDR) mode allows to increase
data rate up to 25 Mbps by reading data bits on both
edges of SCL clock signal.
• The I3C Bus enters HDR-DDR mode upon transmission
of ENTHDR0 Common Command Code and exits it when
HDR Exit pattern is observed
• Data is transferred in messages that consist of Command
Word, one or more Data Words and CRC Word
• Allows 128 Write commands and 64 Read commands
9

10. I3C HDR-DDR Transmission
10

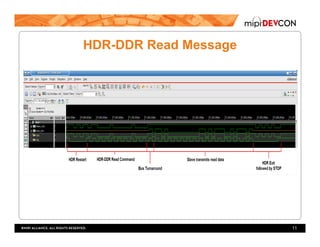

11. HDR-DDR Read Message
11

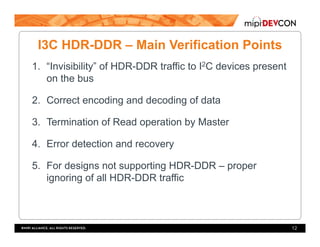

12. I3C HDR-DDR – Main Verification Points
1. “Invisibility” of HDR-DDR traffic to I2C devices present
on the bus
2. Correct encoding and decoding of data
3. Termination of Read operation by Master
4. Error detection and recovery
5. For designs not supporting HDR-DDR – proper
ignoring of all HDR-DDR traffic
12

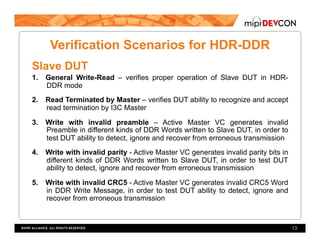

13. Verification Scenarios for HDR-DDR
Slave DUT
1. General Write-Read – verifies proper operation of Slave DUT in HDR-
DDR mode
2. Read Terminated by Master – verifies DUT ability to recognize and accept
read termination by I3C Master
3. Write with invalid preamble – Active Master VC generates invalid
Preamble in different kinds of DDR Words written to Slave DUT, in order to
test DUT ability to detect, ignore and recover from erroneous transmission
4. Write with invalid parity - Active Master VC generates invalid parity bits in
different kinds of DDR Words written to Slave DUT, in order to test DUT
ability to detect, ignore and recover from erroneous transmission
5. Write with invalid CRC5 - Active Master VC generates invalid CRC5 Word
in DDR Write Message, in order to test DUT ability to detect, ignore and
recover from erroneous transmission
13

14. Verification Scenarios for HDR-DDR
Master DUT
1. General Write-Read – verifies proper operation of Master DUT in HDR-
DDR mode
2. Read Terminated by Master – verifies DUT ability to terminate read
transaction
3. Read with invalid preamble – Active Slave VC generates invalid DDR
Word Preamble in order to test DUT ability to detect and recover from
preamble error. Invalid preamble should be generated in all types of DDR
Words, e.g. Data Word and CRC Word
4. Read with invalid parity - Active Slave VC generates invalid parity bits in
Data Word in order to test DUT ability to detect and recover from parity
error. Invalid parity should be injected at both parity bit positions
5. Read with invalid CRC5 - Active Slave VC generates invalid CRC5 Word
in order to test DUT ability to detect and recover from CRC5 error
14

15. I3C HDR-TSP – Main Features
• I3C Ternary Symbol for Pure Bus (HDR-TSP) mode allows to
increase significantly data rate by using both SDA and SCL wires for
data transfer
• HDR-TSP is not allowed on mixed I3C-I2C bus
• The I3C Bus enters HDR-DDR mode upon transmission of
ENTHDR1 Common Command Code and exits it when HDR Exit
pattern is observed
• Data is transferred in messages that consist of Command Word and
one or more Data Words
• Allows 128 Write commands and 64 Read commands
15

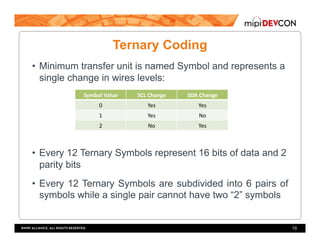

16. Ternary Coding
• Minimum transfer unit is named Symbol and represents a
single change in wires levels:
• Every 12 Ternary Symbols represent 16 bits of data and 2
parity bits
• Every 12 Ternary Symbols are subdivided into 6 pairs of
symbols while a single pair cannot have two “2” symbols
16
Symbol Value SCL Change SDA Change
0 Yes Yes
1 Yes No
2 No Yes

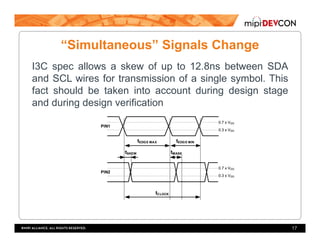

17. “Simultaneous” Signals Change
I3C spec allows a skew of up to 12.8ns between SDA
and SCL wires for transmission of a single symbol. This
fact should be taken into account during design stage
and during design verification
17

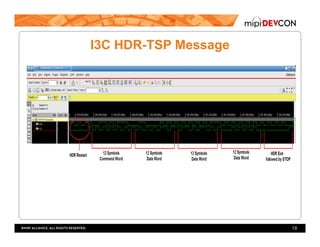

18. I3C HDR-TSP Message
18

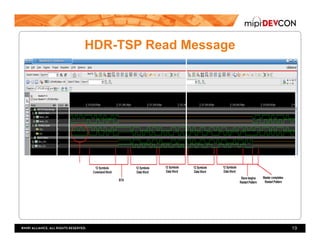

19. HDR-TSP Read Message
19

20. I3C HDR-TSP – Main Verification Points
1. Correct encoding and decoding of data
2. Proper handling of Master-to-Slave and Slave-to-
Master Bus Turnaround
3. Error detection and recovery
4. For designs not supporting HDR-TSP – proper
ignoring of all HDR-TSP traffic
20

21. Verification Scenarios for HDR-DDR
Slave DUT
1. General Write-Read – verifies proper operation of Slave DUT in HDR-TSP
mode
2. Invalid pair of symbols – Active Master VC generates illegally two
consecutive “2” symbols, in order to test DUT ability to detect, ignore and
recover from erroneous transmission
3. Write with invalid parity - Active Master VC generates invalid parity bits in
different kinds of Ternary Words written to Slave DUT, in order to test DUT
ability to detect, ignore and recover from erroneous transmission
4. Slave-to-Master Bus Turnaround tests
21

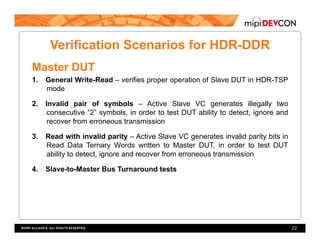

22. Verification Scenarios for HDR-DDR
Master DUT
1. General Write-Read – verifies proper operation of Slave DUT in HDR-TSP
mode
2. Invalid pair of symbols – Active Slave VC generates illegally two
consecutive “2” symbols, in order to test DUT ability to detect, ignore and
recover from erroneous transmission
3. Read with invalid parity – Active Slave VC generates invalid parity bits in
Read Data Ternary Words written to Master DUT, in order to test DUT
ability to detect, ignore and recover from erroneous transmission
4. Slave-to-Master Bus Turnaround tests
22

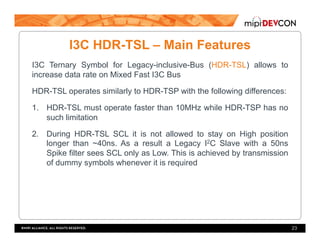

23. I3C HDR-TSL – Main Features
I3C Ternary Symbol for Legacy-inclusive-Bus (HDR-TSL) allows to
increase data rate on Mixed Fast I3C Bus
HDR-TSL operates similarly to HDR-TSP with the following differences:
1. HDR-TSL must operate faster than 10MHz while HDR-TSP has no
such limitation
2. During HDR-TSL SCL it is not allowed to stay on High position
longer than ~40ns. As a result a Legacy I2C Slave with a 50ns
Spike filter sees SCL only as Low. This is achieved by transmission
of dummy symbols whenever it is required
23

24. I3C HDR-TSL – Main Verification Points
In addition to HDR-TSP verification points, the following
should be verified for HDR-TSL mode:
1. SCL staying in High position not longer than ~40ns
2. Proper insertion of dummy symbols
3. Proper encoding/decoding of data with dummy
symbols
24
