A Review- FPGA based Architectures for Image Capturing Consequently
Processing and Display using VGA Monitor
Rohit Raj1, Navneet Singh2
1,2Assistant Professor, Gurdasidevi Institute of Management & Technology, Budhlada- India
---------------------------------------------------------------------***----------------------------------------------------------------------
Abstract - This paper present the accomplishment with
present of image processing submission on field
programmable gatearray(FPGA).Todeveloptheperformance
time, Xilinx AccelDSP, software for generate hardware
description language (HDL) from a high-level MATLAB
description has been used. The designs were implemented on
Spartan 3E Starter Board device. Before inscription a
processing parts of Image implementation all information
regarding data inclusive digital format has been applied.Since
we use FPGA as a central part and more give emphasis to on
the FPGA, so all the data used inDigitalarrangement.Anormal
nearby boundary, VGA has been broadly old. This controller is
industrial using VHDL based in the IEEE standards, to make
sure the portability with any user. The structure preserve
present whichever illustration. The results illustrate that this
anticipated algorithm gives superior performance with
diminutiveprocessingtime,diminutivepowerconsumptionand
remembrance usage.
Key Words: VGA Controller, VHDL, Image Processing,
Xilinx AccelDSP, MATLAB, FPGA, Sparten 3E Starter
Board.
1. INTRODUCTION
The purpose of FPGAs to image processing is a quickly
growing research area given recent increase in the power
and size of FPGAs. The potential velocity gains make it a
smart topic, even though there are many challenges to
implement working algorithms on FPGAs. Most new comers
consider simply porting an obtainable softwarealgorithmto
an FPGA implementation. This project aims to help those
wishing to use FPGAs to accelerate image processing
algorithms during several of the pitfall, and present a
collection of performance to cause in a well-ordered
realization, both computationally and in terms of source
necessities. Reconfigurable hardware in the figure of Field
Programmable GateArrays (FPGAs)offersmanyroutineand
recital benefits for executing video processing applications.
FPGAs normally consistofcoherentblocksandsomeamount
of Random Access Memory (RAM/SRAM), all of which are
energetic by a huge array of interconnects. All logic in FPGA
can be rewired, or reconfigured with different purpose as
many times as expensive likes. The advantage of FPGA is its
capability to perform operation in corresponding, resulting
in remarkable improvement in effectiveness. The foremost
gain of FPGA-based proposes be the litheness to acquire
improvementoftheinherentlyparallelnatureofmanyimage
processing problems.
The intricacy of generate a aim beginning a set ofrationsand
form increase as the systembecomescomplex.Thisdifficulty
guide to the improvement of electronic system level (ESL)
intend and corroboration. The ES design and verification
enable embedded system design, authentication, and debug
for designing hardware and software implementation of
custom system-on-FPGA.TheXilinxAccelDSPinstrumentisa
highly developed ESL drawing tool which transforms a
MATLAB floating-point design keen on a hardware module
that can be implementing in a Xilinx FPGA. The AccelDSP
Synthesis Tool skin tone an easy to use Graphical User
Interface (GUI) that wheel an integrated environment with
other design tools such as MATLAB, Xilinx ISE tools, and
other industry customary HDL simulators and logic
synthesizers. This term paper present the devise and
execution of FPGA- base structural design for image giving
out by employ Xilinx AccelDSP tool. As the Image or any
physical data/information always have a flavour of analog,
As we are more emphasize on the FPGA as a central part, so
all the information/data should beinDigitalformat. Sothere
we need to convert these information/image/data to digital
format.
Fig. I: General block diagram on which our effort go.
2. NEED OF FPGA FOR COMPLETION
FPGA stands for Field- Programmable Gate Array and an
IC that can be programmed following it is manufactured,
hence it’s called Field Programmable. Even although the
general purpose processors are in receipt of faster every
day, image processing applications call for more
computational processors,suchsystemcanbeimplement
on digital signal processors, it has very expensive
Application Specific Integrated Circuits or on FPGA. The
plus of FPGA verify by way of the propose of the FPGA
conclusion be improved alternative than DSP and ASIC
stand on completion. FPGAs are generally programmed

using HDL which uses a low level hardware oriented
programming model to fully utilize their potential
performance. Although program FPGAs with HDL is
moment intense method also additional thorny for great
system propose. This circumstance has been changing
over with high level programmingtoolssuchasHandel-C,
AccelDSP and finally Xilinx System Generator for DSP etc.
while representationdispensationhaveforalltimebeena
tough stand toward work scheduled by using FPGA,
making this more complicated and interested.
The FPGA incorporated giving out structural design
exposed in Fig. (II) Consists of four units, initialization
unit (INU),anddatatransferunit(DTU),imageprocessing
unit- IPU and memory management unit- MMU. It
manages the entity image to be stored in external
memory while the interconnected settings information
related to sensor exposure time, frame size, filter
selection etc. be store within the domestic remembrance.
Initialization part-INUaccessthebasicsettingstoreinthe
MMU designed forstructureinitialization whensystemis
ongoing. Image processing unit- IPU does the pipelined
operation of the image take into custody, obstacle and
understanding.

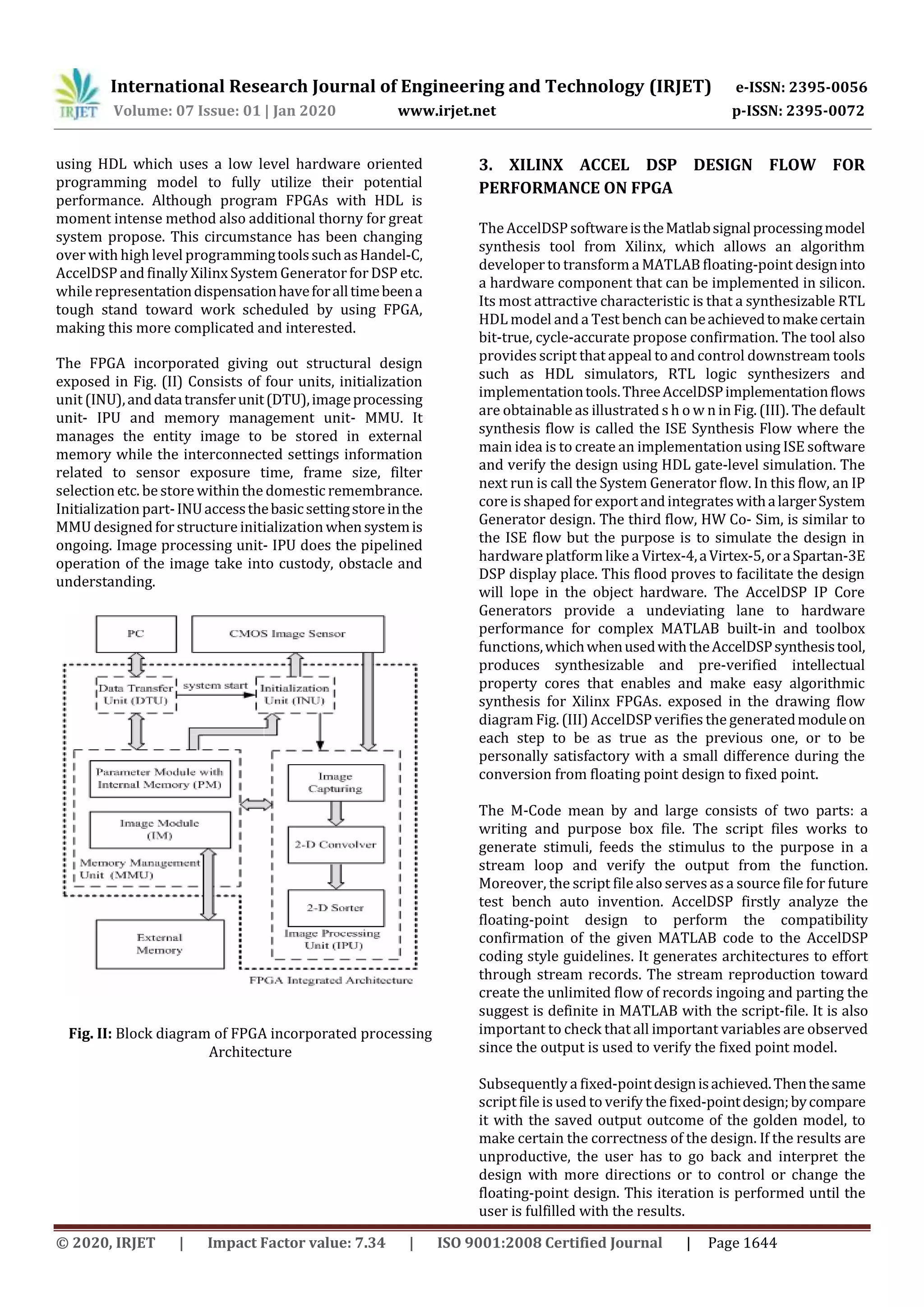

Fig. II: Block diagram of FPGA incorporated processing
Architecture
3. XILINX ACCEL DSP DESIGN FLOW FOR
PERFORMANCE ON FPGA
The AccelDSP softwareistheMatlabsignalprocessingmodel
synthesis tool from Xilinx, which allows an algorithm
developer to transform a MATLAB floating-point designinto
a hardware component that can be implemented in silicon.
Its most attractive characteristic is that a synthesizable RTL
HDL model and a Test bench can beachievedtomakecertain
bit-true, cycle-accurate propose confirmation. The tool also
provides script that appeal to and control downstream tools
such as HDL simulators, RTL logic synthesizers and
implementationtools.ThreeAccelDSPimplementationflows
are obtainable as illustrated s h o w n in Fig. (III). The default
synthesis flow is called the ISE Synthesis Flow where the
main idea is to create an implementation using ISE software
and verify the design using HDL gate-level simulation. The
next run is call the System Generator flow. In this flow, an IP
core is shaped forexport andintegrates withalargerSystem
Generator design. The third flow, HW Co- Sim, is similar to
the ISE flow but the purpose is to simulate the design in
hardware platformlike a Virtex-4,aVirtex-5,oraSpartan-3E
DSP display place. This flood proves to facilitate the design
will lope in the object hardware. The AccelDSP IP Core
Generators provide a undeviating lane to hardware
performance for complex MATLAB built-in and toolbox
functions,whichwhenusedwiththeAccelDSPsynthesistool,
produces synthesizable and pre-verified intellectual
property cores that enables and make easy algorithmic
synthesis for Xilinx FPGAs. exposed in the drawing flow
diagram Fig. (III) AccelDSP verifies the generatedmoduleon
each step to be as true as the previous one, or to be
personally satisfactory with a small difference during the
conversion from floating point design to fixed point.
The M-Code mean by and large consists of two parts: a
writing and purpose box file. The script files works to
generate stimuli, feeds the stimulus to the purpose in a
stream loop and verify the output from the function.
Moreover, the script file also serves as a source file for future
test bench auto invention. AccelDSP firstly analyze the
floating-point design to perform the compatibility
confirmation of the given MATLAB code to the AccelDSP
coding style guidelines. It generates architectures to effort
through stream records. The stream reproduction toward
create the unlimited flow of records ingoing and parting the
suggest is definite in MATLAB with the script-file. It is also
important to check that all important variables are observed
since the output is used to verify the fixed point model.
Subsequently a fixed-pointdesignisachieved.Thenthesame
script file is used to verify the fixed-pointdesign;bycompare
it with the saved output outcome of the golden model, to
make certain the correctness of the design. If the results are
unproductive, the user has to go back and interpret the
design with more directions or to control or change the
floating-point design. This iteration is performed until the
user is fulfilled with the results.

The after that step is to generate an RTL design and a test
bench at the same time. Model Sim or other simulation tools
are used to simulate the generated RTL design, which
compares the test bench output with the saved fixed-point
simulation output. The verificationpassesifallvaluesarethe
same. This design flow genuinely speeds up the conversion
process from a MATLAB model to a RTL hardware version.

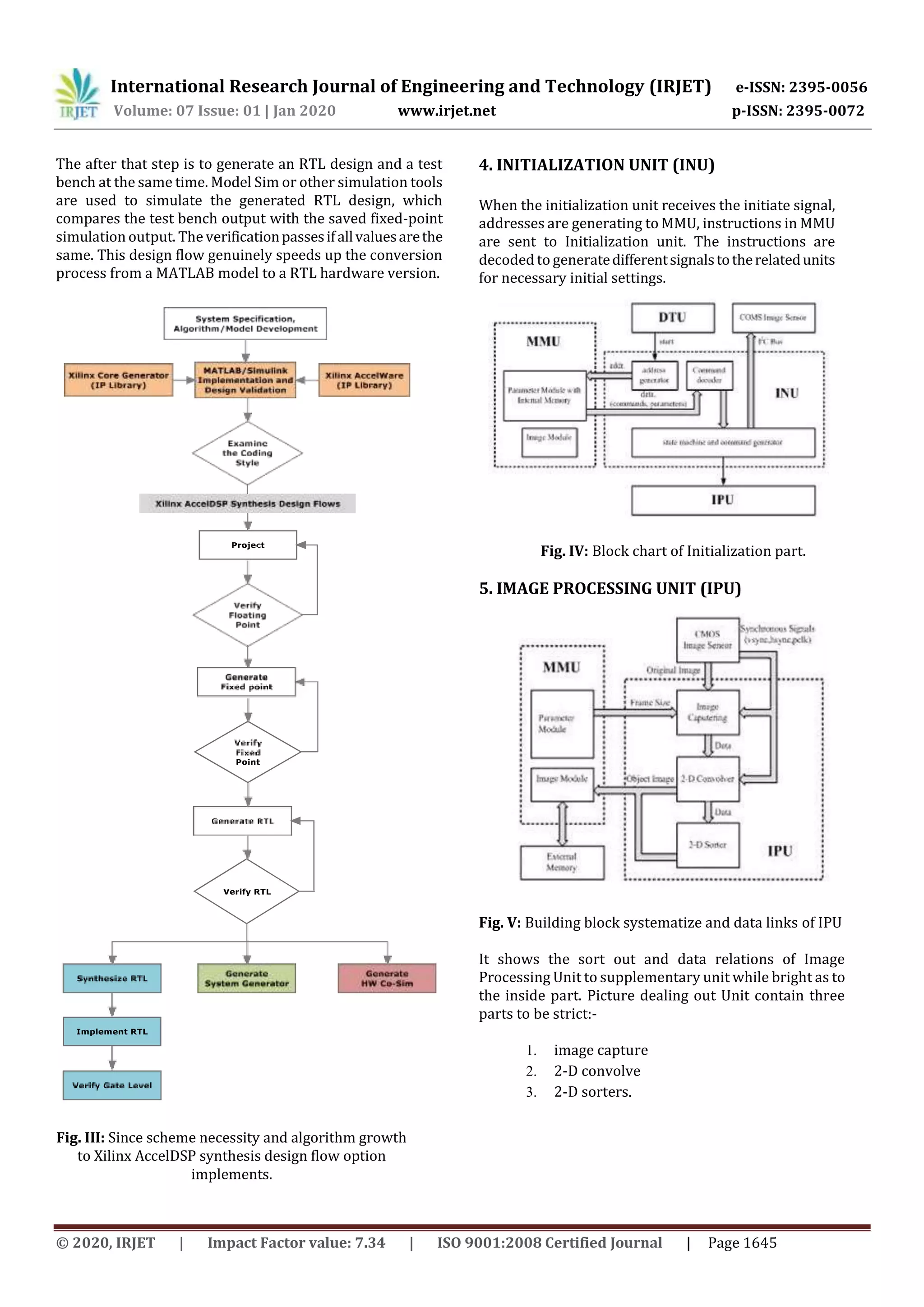

Fig. III: Since scheme necessity and algorithm growth
to Xilinx AccelDSP synthesis design flow option
implements.
4. INITIALIZATION UNIT (INU)
When the initialization unit receives the initiate signal,
addresses are generating to MMU, instructions in MMU
are sent to Initialization unit. The instructions are
decoded to generatedifferentsignalstotherelatedunits
for necessary initial settings.
Fig. IV: Block chart of Initialization part.
5. IMAGE PROCESSING UNIT (IPU)
Fig. V: Building block systematize and data links of IPU
It shows the sort out and data relations of Image
Processing Unit to supplementary unit while bright as to
the inside part. Picture dealing out Unit contain three
parts to be strict:-
1. image capture
2. 2-D convolve
3. 2-D sorters.

6. Memory administration Unit and Data transmit
Unit
The remaining two units, MemoryManagementUnit (MMU)
and Data transfer Unit (DTU) are describing at this end.
MMU consists of two module, restriction module and image
module. Parameter component include an internal memory
for storing the parameter initialization settings. Image
module takes care of the entity image storing from IPU or
the state formally form external memorytoPCthroughData
Transfer Unit (DTU). The associates stuck between MMU,
DTU, PC, INU, IPU and external memory shown in Fig.(VI).

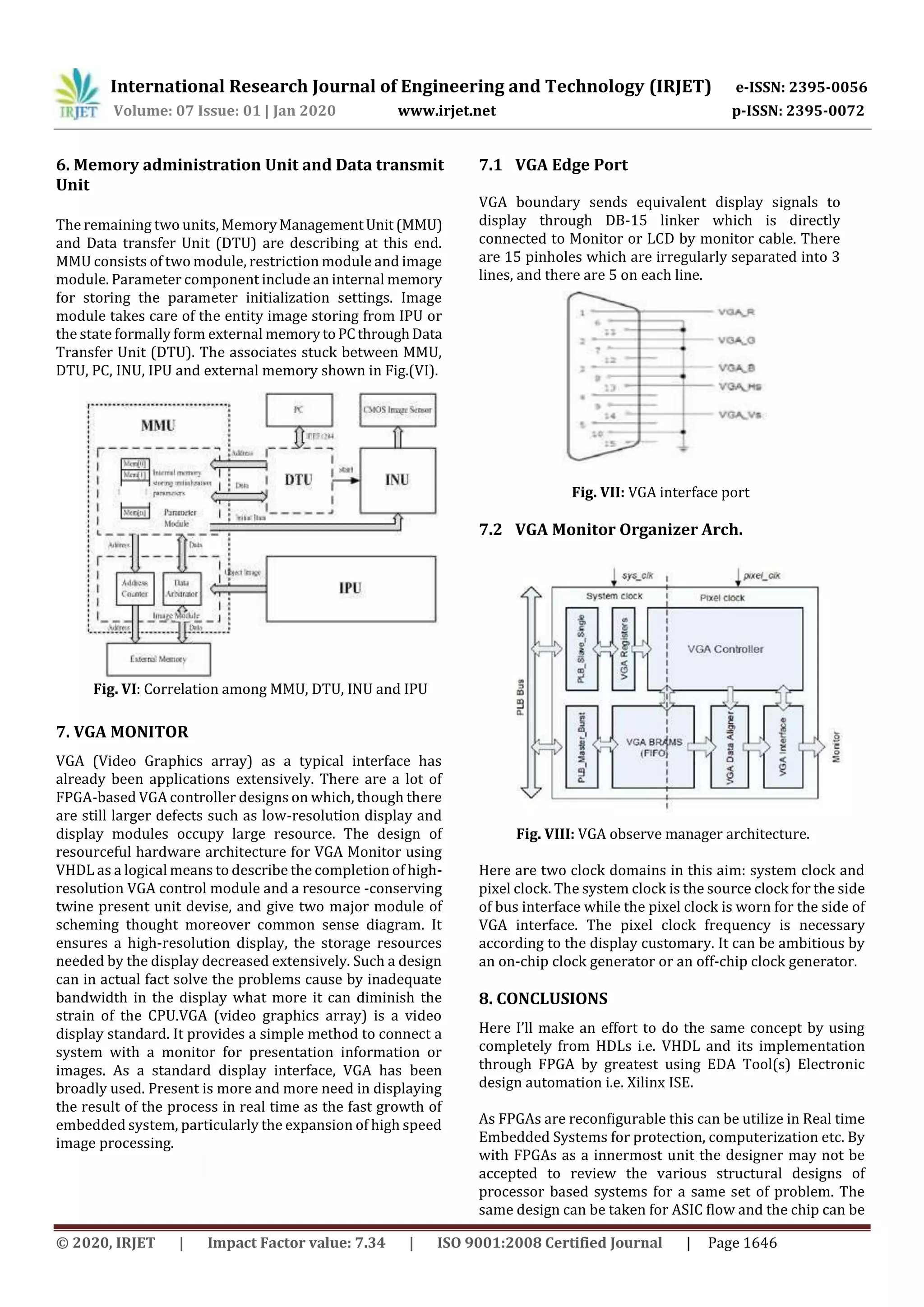

Fig. VI: Correlation among MMU, DTU, INU and IPU
7. VGA MONITOR
VGA (Video Graphics array) as a typical interface has
already been applications extensively. There are a lot of
FPGA-based VGA controller designs on which, though there
are still larger defects such as low-resolution display and
display modules occupy large resource. The design of
resourceful hardware architecture for VGA Monitor using
VHDL as a logical means to describe the completion of high-
resolution VGA control module and a resource -conserving
twine present unit devise, and give two major module of
scheming thought moreover common sense diagram. It
ensures a high-resolution display, the storage resources
needed by the display decreased extensively. Such a design
can in actual fact solve the problems cause by inadequate
bandwidth in the display what more it can diminish the
strain of the CPU.VGA (video graphics array) is a video
display standard. It provides a simple method to connect a
system with a monitor for presentation information or
images. As a standard display interface, VGA has been
broadly used. Present is more and more need in displaying
the result of the process in real time as the fast growth of
embedded system, particularly the expansion of high speed
image processing.
7.1 VGA Edge Port
VGA boundary sends equivalent display signals to
display through DB-15 linker which is directly
connected to Monitor or LCD by monitor cable. There
are 15 pinholes which are irregularly separated into 3
lines, and there are 5 on each line.
Fig. VII: VGA interface port
7.2 VGA Monitor Organizer Arch.
Fig. VIII: VGA observe manager architecture.
Here are two clock domains in this aim: system clock and
pixel clock. The system clock is the source clock for the side
of bus interface while the pixel clock is worn for the side of
VGA interface. The pixel clock frequency is necessary
according to the display customary. It can be ambitious by
an on-chip clock generator or an off-chip clock generator.
8. CONCLUSIONS
Here I’ll make an effort to do the same concept by using
completely from HDLs i.e. VHDL and its implementation
through FPGA by greatest using EDA Tool(s) Electronic
design automation i.e. Xilinx ISE.
As FPGAs are reconfigurable this can be utilize in Real time
Embedded Systems for protection, computerization etc. By
with FPGAs as a innermost unit the designer may not be
accepted to review the various structural designs of
processor based systems for a same set of problem. The
same design can be taken for ASIC flow and the chip can be

Mass- Manufactured to construct the chip to the market at
lower cost and higher profit. In this we have existing well-
organized hardwarearchitectureforVGAmonitorcontroller
which has a high potential to be used. The adorned
characteristic, make the design suitableandcapabletomeet
different necessities of besieged application. At the
equivalent time together image and text personalitydisplay
at the same time. Special of use at all resulting RAM
memory. Simply by means of On Chip embedded array
memory it displays the facial outer shell of communally
image and character display in the screen.

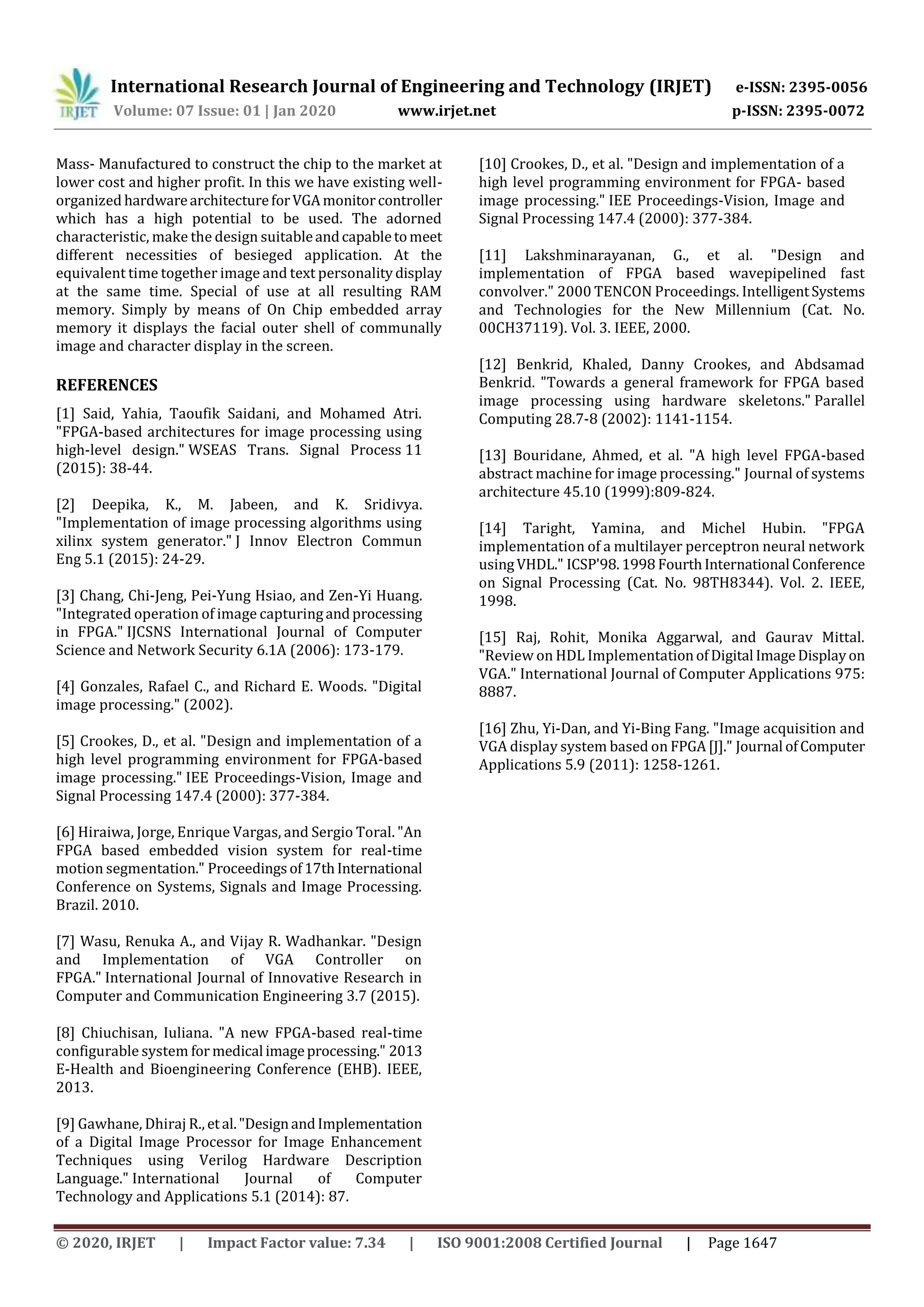

REFERENCES
[1] Said, Yahia, Taoufik Saidani, and Mohamed Atri.
"FPGA-based architectures for image processing using
high-level design." WSEAS Trans. Signal Process 11
(2015): 38-44.
[2] Deepika, K., M. Jabeen, and K. Sridivya.
"Implementation of image processing algorithms using
xilinx system generator." J Innov Electron Commun
Eng 5.1 (2015): 24-29.
[3] Chang, Chi-Jeng, Pei-Yung Hsiao, and Zen-Yi Huang.
"Integrated operation of image capturingandprocessing
in FPGA." IJCSNS International Journal of Computer
Science and Network Security 6.1A (2006): 173-179.
[4] Gonzales, Rafael C., and Richard E. Woods. "Digital
image processing." (2002).
[5] Crookes, D., et al. "Design and implementation of a
high level programming environment for FPGA-based
image processing." IEE Proceedings-Vision, Image and
Signal Processing 147.4 (2000): 377-384.
[6] Hiraiwa, Jorge, Enrique Vargas, and Sergio Toral. "An
FPGA based embedded vision system for real-time
motion segmentation." Proceedingsof17thInternational
Conference on Systems, Signals and Image Processing.
Brazil. 2010.
[7] Wasu, Renuka A., and Vijay R. Wadhankar. "Design
and Implementation of VGA Controller on
FPGA." International Journal of Innovative Research in
Computer and Communication Engineering 3.7 (2015).
[8] Chiuchisan, Iuliana. "A new FPGA-based real-time
configurable system for medical imageprocessing." 2013
E-Health and Bioengineering Conference (EHB). IEEE,
2013.
[9] Gawhane, Dhiraj R., etal."DesignandImplementation
of a Digital Image Processor for Image Enhancement
Techniques using Verilog Hardware Description
Language." International Journal of Computer
Technology and Applications 5.1 (2014): 87.
[10] Crookes, D., et al. "Design and implementation of a
high level programming environment for FPGA- based
image processing." IEE Proceedings-Vision, Image and
Signal Processing 147.4 (2000): 377-384.
[11] Lakshminarayanan, G., et al. "Design and
implementation of FPGA based wavepipelined fast
convolver." 2000 TENCON Proceedings. IntelligentSystems
and Technologies for the New Millennium (Cat. No.
00CH37119). Vol. 3. IEEE, 2000.
[12] Benkrid, Khaled, Danny Crookes, and Abdsamad
Benkrid. "Towards a general framework for FPGA based
image processing using hardware skeletons." Parallel
Computing 28.7-8 (2002): 1141-1154.
[13] Bouridane, Ahmed, et al. "A high level FPGA-based
abstract machine for image processing." Journal of systems
architecture 45.10 (1999):809-824.
[14] Taright, Yamina, and Michel Hubin. "FPGA
implementation of a multilayer perceptron neural network
usingVHDL." ICSP'98.1998 FourthInternational Conference
on Signal Processing (Cat. No. 98TH8344). Vol. 2. IEEE,
1998.
[15] Raj, Rohit, Monika Aggarwal, and Gaurav Mittal.
"Review on HDL ImplementationofDigital ImageDisplayon
VGA." International Journal of Computer Applications 975:
8887.
[16] Zhu, Yi-Dan, and Yi-Bing Fang. "Image acquisition and
VGA display system based on FPGA[J]." Journal ofComputer
Applications 5.9 (2011): 1258-1261.

IRJET- A Review- FPGA based Architectures for Image Capturing Consequently Processing and Display using VGA Monitor

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to IRJET- A Review- FPGA based Architectures for Image Capturing Consequently Processing and Display using VGA Monitor

Similar to IRJET- A Review- FPGA based Architectures for Image Capturing Consequently Processing and Display using VGA Monitor (20)

More from IRJET Journal

More from IRJET Journal (20)

Recently uploaded

Recently uploaded (20)

IRJET- A Review- FPGA based Architectures for Image Capturing Consequently Processing and Display using VGA Monitor
