Design and Simulation of Mathematical Models- An DSP and
Digital Communication Based Approach
Miss. Shruti R. Tambakhe*, Prof. Ajay P. Thakare**
*(PG Student (EXTC), Dept. Of EXTC, Sipna College of Engineering, Amravati, Maharashtra, India)
** (HOD, Dept. Of EXTC Sipna College of Engineering, Amravati, Maharashtra, India)
ABSTRACT
A methodology for implementing DSP based or communication applications on a field programmable gate
arrays (FPGA) using Xilinx System Generator (XSG) for Matlab. The DPSK system and FFT are simulated
using Matlab/ Simulink environment and System Generator, a tool from Xilinx used for FPGA design as well as
implemented on Spartan 3E Starter Kit boards. We proposed the concept of simulation of mathematical model
on mixed HDL-Simulink using Xilinx system generator. Many applications that are DSP based or certain
communication application require mathematical modelling for their easy understanding and analysis. Due to its
complexity Pure HDL is unable to simulate. Also it terms to be costly and time consuming process.
The implementation of FFT algorithms that can compute fourier transform of varied signals in real time for
frequency analysis of signals on FPGAs (Spartan3E). With large demand for high dynamic range for
applications, floating point implementation is used as fixed point implementation becomes increasingly
expensive. The DPSK model are first board behaves as a modulator and the second as a demodulator. The
modulator and demodulator algorithms have been implemented on FPGA using the VHDL language on Xilinx
ISE.
Keywords- FFT, DPSK, FPGA(Field Programmable Gate Arrays), Hardware-Software Co-simulation,
MATLAB, XSG(Xilinx System Generator).
I. INTRODUCTION
This paper provides a new approach towards
the design and modeling of based complex
mathematical model using mixed HDL platform of
simulink and Xilinx form of the design architecture.
The Hardware Description Languages [1], [3]
(HDLs) have been developed for several years in this
field. The HDLs and automated tools based on them
have given new abilities to designers, however now
they seem to be not sufficient. Now we are looking
for tools that deal with models and descriptions on
higher levels of abstraction and we would like to
describe the entire system as a one piece i.e. without
its initial, manual decomposition into the hardware
and software. The terms of system level design, co-
design and co-simulation have been well known for
several years. The complexity of the systems has a
strong impact on the models that are expected to
reflect the functionality and timings of the real
devices.
The programming of the FPGA is done
using a logic circuit diagram or a source code using a
Hardware Description Language (HDL) to specify
how the chip should work. FPGA or Field
Programmable Gate Arrays can be programmed or
configured by the user or designer after
manufacturing and during implementation. Hence
they are otherwise known as On-Site programmable.
Unlike a Programmable Array Logic (PAL) or other
programmable device, their structure is similar to that
of a gate-array or an ASIC. The programmable logic
blocks are called configurable logic blocks and
reconfigurable interconnects are called switch boxes.
Matlab is a high-level technical computing language
and interactive environment for algorithm
development, data visualization, data analysis, and
numeric computation. In addition to the intellectual
property functions provided in Matlab, the software
packet is uniquely adept with vector and array based
waveform data at the core of algorithms, which is
suitable for applications such as image and video
processing. Matlab-Simulink is an environment for
multidomain simulation and Model-Based Design for
dynamic and embedded systems. Matlab-Simulink is
used in this application as the high level development
tool in the design process. Xilinx System Generator,
is a system-level modeling tool from Xilinx that
facilitates FPGA hardware design. System Generator
the use of simulates automatically launching an HDL
simulator, generating additional HDL as needed
(analogous to an HDL testbench), compiling HDL,
scheduling simulation events, and handling the
exchange of data between the Simulink and the HDL
simulator. This is called HDL co-simulation. System
Generator provides a generic interface that uses
JTAG and a Xilinx programming cable (e.g., Parallel
RESEARCH ARTICLE OPEN ACCESS

Cable IV or Platform Cable USB) to communicate
with FPGA hardware. The model with the JTAG-
based hardware co-simulation block implemented on
Spartan 3E platform.
In this paper two application are used one is
FFT and another is DPSK system. In FFT is
increased demand and advancements in product
design in the field of communication, multimedia,
security and safety equipment and other industrial
and scientific products have created the need for high
volume, low cost, multifunction, DSP based
frequency analyzers that can use Fast Fourier
Transform ( FFTs )for their signal processing or data
manipulation. The paper deals with implementation
of FFT algorithms that can compute fourier transform
of varied signals in real time for frequency analysis
of signals on FPGAs (Spartan3E). With large demand
for high dynamic range for applications, floating
point implementation is used as fixed point
implementation becomes increasingly expensive. The
inherent massive parallelism of FPGAs allows these
solutions to be competitive to software equivalent. In
communication another is DPSK system, the DPSK
modulation and demodulation represents an
important modulation technique in terms of signal
power. Both, the modulator and demodulator, have
been designed and simulated have been implemented
on FPGA using the VHDL language on Xilinx ISE.
II. SYSTEM ARCHITECTURE
Matlab-Simulink is an environment for
multidomain simulation and Model-Based Design for
dynamic and embedded systems. Matlab-Simulink is
used in this application as the high level development
tool in the design process. Xilinx System Generator,
is a system-level modeling tool from Xilinx that
facilitates FPGA hardware design. It extends
Simulink in many ways to provide a modelling
environment well suited for hardware design. The
software automatically converts the high level system
DSP block diagram to RTL. The result can be
synthesized to Xilinx FPGA technology using ISE
tools. All of the downstream FPGA implementation
steps including synthesis and place and route are
automatically performed to generate an FPGA
programming file. It also provides a system
integration platform for the design of DSP FPGAs
that allows the RTL, Simulink, MATLAB and C/C++
components of a DSP system to come together in a
single simulation and implementation environment.
System Generator supports a box block that allows
RTL to be imported into Simulink and cosimulated
with either ModelSim or Xilinx ISE Simulator.
Fig 1: Block Diagram of System Architecture
System Generator the use of simulates
automatically launching an HDL simulator,
generating additional HDL as needed (analogous to
an HDL testbench), compiling HDL, scheduling
simulation events, and handling the exchange of data
between the Simulink and the HDL simulator. This is
called HDL co-simulation. System Generator
provides hardware co-simulation, making it possible
to incorporate a design running in an FPGA directly
into a Simulink simulation. "Hardware Co-
Simulation" compilation targets automatically create
a bit-stream. When the system design is simulated in
Simulink, results for the compiled portion are
calculated in actual FPGA hardware, often resulting
in significantly faster simulation times while
verifying the functional correctness of the hardware.
System Generator for DSP supports Ethernet as well
as JTAG communication between a hardware
platform and Simulink.
Fig 2: FPGA based Hardware-Software (HW-SW)
co- simulation Environment
System Generator provides a generic
interface that uses JTAG and a Xilinx programming
cable (e.g., Parallel Cable IV or Platform Cable USB)
to communicate with FPGA hardware. The model

with the JTAG-based hardware co-simulation block
implemented on Spartan 3E platform. Point-to-point
Ethernet co-simulation provides a straightforward
high-performance co-simulation environment using a
direct, point-to-point Ethernet connection between a
PC and FPGA platform. The target FPGA chip is
Xilinx Spartan 3E DSP platform. The optimization
setting is for maximum clock speed. Xilinx system
generator has a unique hardware in the loop co-
simulation feature that allows designers to greatly
accelerate simulation while simultaneously verifying
the design in hardware.
Sometimes it is important to add one or
more existing HDL modules to a System Generator
design. The System Generator allows VHDL,
Verilog, to be brought into a design. When System
Generator compiles, it automatically wires the
imported module and associated files into the
surrounding netlist. Xilinx system generator is a very
useful tool for developing computer vision
algorithms. It could be described as a timely,
advantageous option for developing in a much more
comfortable way than that permitted by VHDL or
Verilog hardware description languages (HDLs).
III. PROPOSED IMPLEMENTATION
This paper two applications that are DSP
based and communication application require
mathematical modelling for their easy understanding
and analysis namely as
1) FFT (Fast Fourier Transform)
2) DPSK (Differential Phase Shift Keying)
1) FFT
FFT (Fast Fourier Transform). The FFT is a
faster version of the Discrete Fourier Transform
(DFT). The FFT utilizes some clever algorithms to do
the same thing as the DTF, but in much less time.
The DFT is extremely important in the area of
frequency (spectrum) analysis because it takes a
discrete signal in the time domain and transforms that
signal into its discrete frequency domain
representation. Without a discrete-time to discrete-
frequency transform we would not be able to
compute the Fourier transform with a microprocessor
or DSP based system.
It is the speed and discrete nature of the FFT
that allows us to analyze a signal's spectrum with
Matlab or in real-time on the SR770.

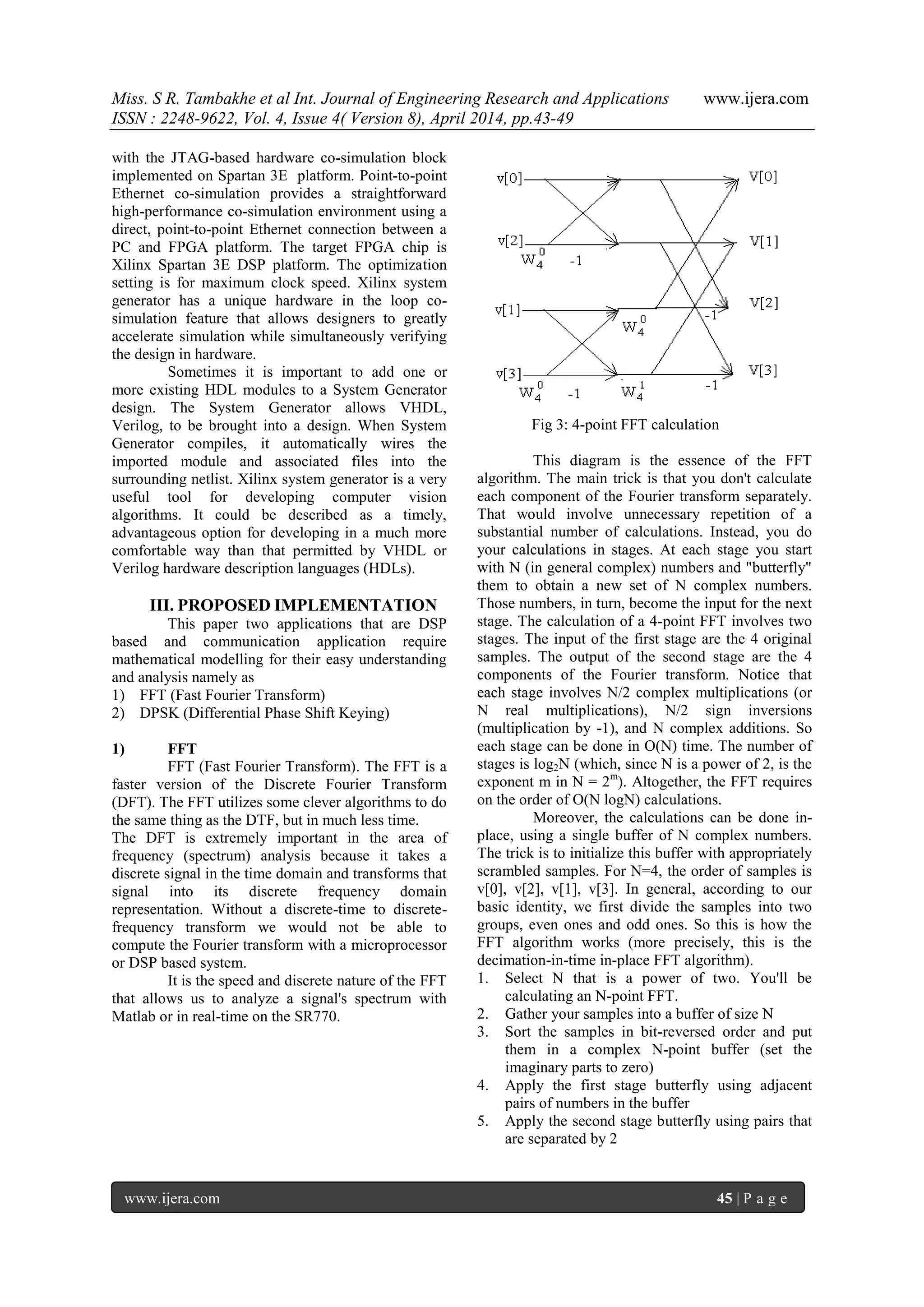

Fig 3: 4-point FFT calculation
This diagram is the essence of the FFT
algorithm. The main trick is that you don't calculate
each component of the Fourier transform separately.
That would involve unnecessary repetition of a
substantial number of calculations. Instead, you do
your calculations in stages. At each stage you start
with N (in general complex) numbers and "butterfly"
them to obtain a new set of N complex numbers.
Those numbers, in turn, become the input for the next
stage. The calculation of a 4-point FFT involves two
stages. The input of the first stage are the 4 original
samples. The output of the second stage are the 4
components of the Fourier transform. Notice that
each stage involves N/2 complex multiplications (or
N real multiplications), N/2 sign inversions
(multiplication by -1), and N complex additions. So
each stage can be done in O(N) time. The number of
stages is log2N (which, since N is a power of 2, is the
exponent m in N = 2m
). Altogether, the FFT requires
on the order of O(N logN) calculations.
Moreover, the calculations can be done in-
place, using a single buffer of N complex numbers.
The trick is to initialize this buffer with appropriately
scrambled samples. For N=4, the order of samples is
v[0], v[2], v[1], v[3]. In general, according to our
basic identity, we first divide the samples into two
groups, even ones and odd ones. So this is how the
FFT algorithm works (more precisely, this is the
decimation-in-time in-place FFT algorithm).
1. Select N that is a power of two. You'll be
calculating an N-point FFT.
2. Gather your samples into a buffer of size N
3. Sort the samples in bit-reversed order and put
them in a complex N-point buffer (set the
imaginary parts to zero)
4. Apply the first stage butterfly using adjacent
pairs of numbers in the buffer
5. Apply the second stage butterfly using pairs that
are separated by 2

6. Apply the third stage butterfly using pairs that
are separated by 4
7. Continue butterflying the numbers in your buffer
until you get to separation of N/2
8. The buffer will contain the Fourier transform.
2) DPSK
Differential phase shift keying (DPSK), a
common form of phase modulation conveys data by
changing the phase of carrier wave. In Phase shift
keying, High state contains only one cycle but DPSK
contains one and half cycle.
 The differential phase shift keying can be treated
as the non-coherent version of PSK.
 It combines two basic operations, namely
1) The differential encoding and
2) Phase Shift Keying
 Hence the name differential phase shift keying
(DPSK).

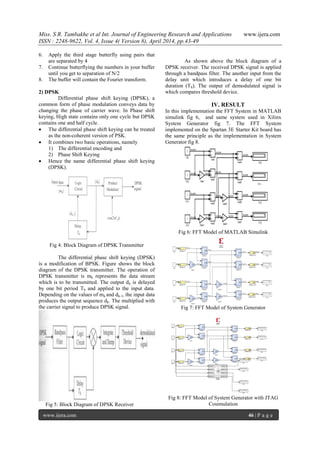

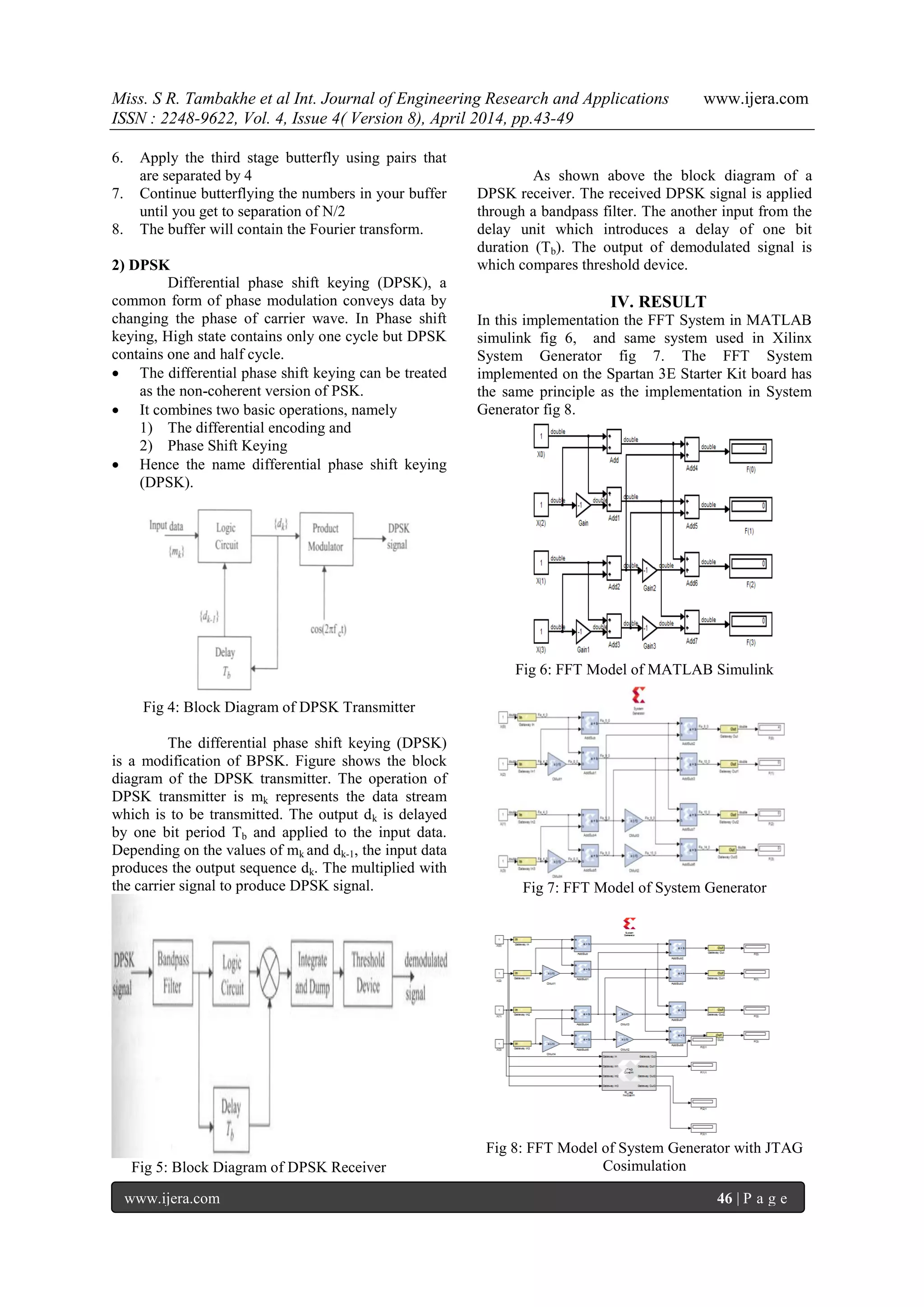

Fig 4: Block Diagram of DPSK Transmitter
The differential phase shift keying (DPSK)
is a modification of BPSK. Figure shows the block
diagram of the DPSK transmitter. The operation of
DPSK transmitter is mk represents the data stream
which is to be transmitted. The output dk is delayed
by one bit period Tb and applied to the input data.
Depending on the values of mk and dk-1, the input data
produces the output sequence dk. The multiplied with
the carrier signal to produce DPSK signal.
Fig 5: Block Diagram of DPSK Receiver
As shown above the block diagram of a
DPSK receiver. The received DPSK signal is applied
through a bandpass filter. The another input from the
delay unit which introduces a delay of one bit
duration (Tb). The output of demodulated signal is
which compares threshold device.
IV. RESULT
In this implementation the FFT System in MATLAB
simulink fig 6, and same system used in Xilinx
System Generator fig 7. The FFT System
implemented on the Spartan 3E Starter Kit board has
the same principle as the implementation in System
Generator fig 8.
Fig 6: FFT Model of MATLAB Simulink
Fig 7: FFT Model of System Generator
Fig 8: FFT Model of System Generator with JTAG
Cosimulation

After implementing the DPSK System made
of a Modulator and demodulator on the two Spartan
3E Starter Kit boards,a high performance.
Fig 11 illustrates the signal in the modulator.
The first one represents the modulating signal
generated by the LFSR, the second one, the carrier
and the third, the modulated signal.
In fig.14, the modulated, the modulating and
the demodulated signals are shown.

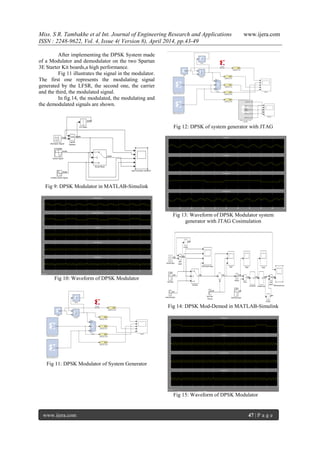

Fig 9: DPSK Modulator in MATLAB-Simulink
Fig 10: Waveform of DPSK Modulator
Fig 11: DPSK Modulator of System Generator
Fig 12: DPSK of system generator with JTAG
Fig 13: Waveform of DPSK Modulator system
generator with JTAG Cosimulation
Fig 14: DPSK Mod-Demod in MATLAB-Simulink
Fig 15: Waveform of DPSK Modulator

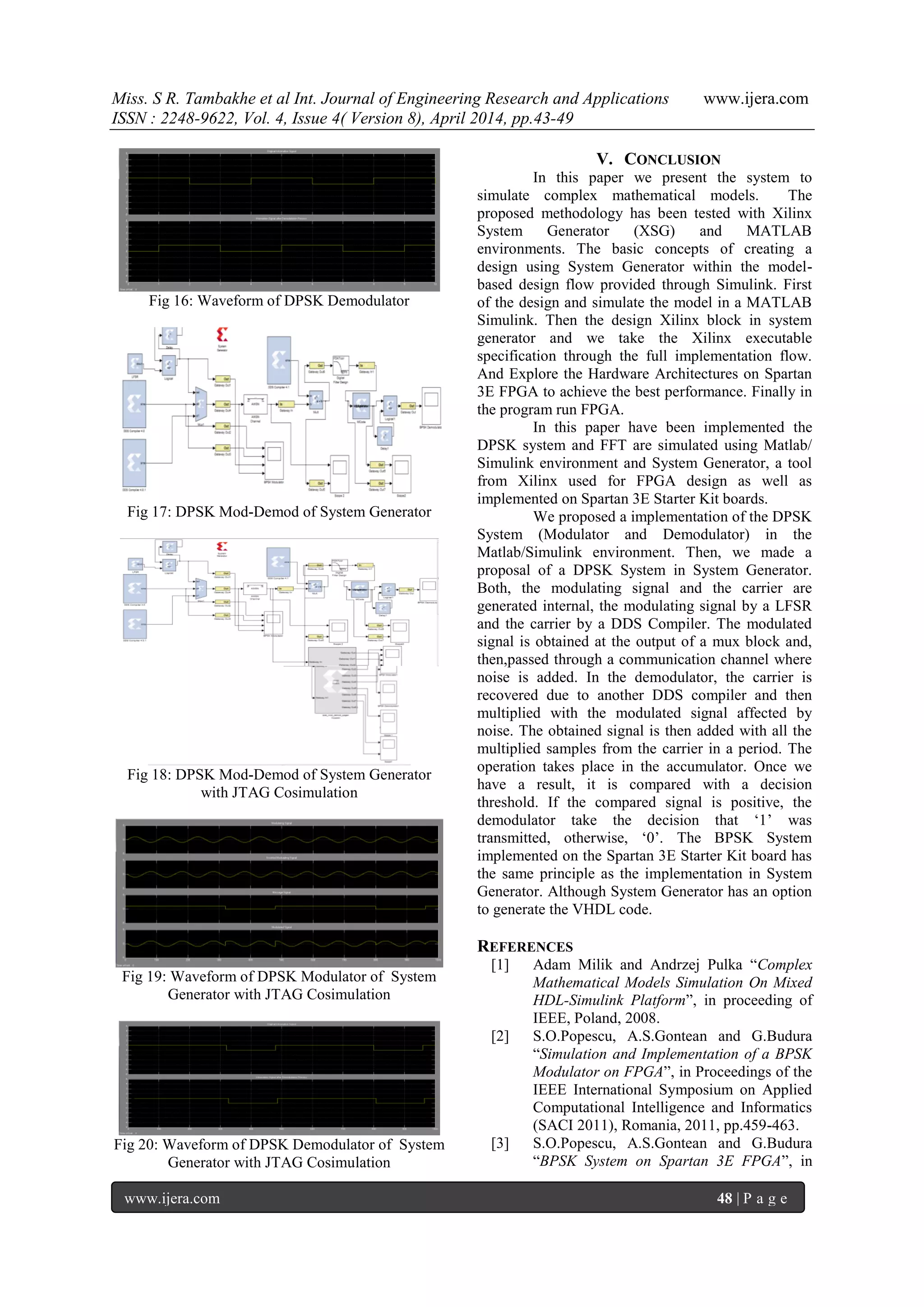

Fig 16: Waveform of DPSK Demodulator
Fig 17: DPSK Mod-Demod of System Generator
Fig 18: DPSK Mod-Demod of System Generator
with JTAG Cosimulation
Fig 19: Waveform of DPSK Modulator of System
Generator with JTAG Cosimulation
Fig 20: Waveform of DPSK Demodulator of System
Generator with JTAG Cosimulation
V. CONCLUSION
In this paper we present the system to
simulate complex mathematical models. The
proposed methodology has been tested with Xilinx
System Generator (XSG) and MATLAB
environments. The basic concepts of creating a
design using System Generator within the model-
based design flow provided through Simulink. First
of the design and simulate the model in a MATLAB
Simulink. Then the design Xilinx block in system
generator and we take the Xilinx executable
specification through the full implementation flow.
And Explore the Hardware Architectures on Spartan
3E FPGA to achieve the best performance. Finally in
the program run FPGA.
In this paper have been implemented the
DPSK system and FFT are simulated using Matlab/
Simulink environment and System Generator, a tool
from Xilinx used for FPGA design as well as
implemented on Spartan 3E Starter Kit boards.
We proposed a implementation of the DPSK
System (Modulator and Demodulator) in the
Matlab/Simulink environment. Then, we made a
proposal of a DPSK System in System Generator.
Both, the modulating signal and the carrier are
generated internal, the modulating signal by a LFSR
and the carrier by a DDS Compiler. The modulated
signal is obtained at the output of a mux block and,
then,passed through a communication channel where
noise is added. In the demodulator, the carrier is
recovered due to another DDS compiler and then
multiplied with the modulated signal affected by
noise. The obtained signal is then added with all the
multiplied samples from the carrier in a period. The
operation takes place in the accumulator. Once we
have a result, it is compared with a decision
threshold. If the compared signal is positive, the
demodulator take the decision that „1‟ was
transmitted, otherwise, „0‟. The BPSK System
implemented on the Spartan 3E Starter Kit board has
the same principle as the implementation in System
Generator. Although System Generator has an option
to generate the VHDL code.
REFERENCES
[1] Adam Milik and Andrzej Pulka “Complex
Mathematical Models Simulation On Mixed
HDL-Simulink Platform”, in proceeding of
IEEE, Poland, 2008.
[2] S.O.Popescu, A.S.Gontean and G.Budura
“Simulation and Implementation of a BPSK
Modulator on FPGA”, in Proceedings of the
IEEE International Symposium on Applied
Computational Intelligence and Informatics
(SACI 2011), Romania, 2011, pp.459-463.
[3] S.O.Popescu, A.S.Gontean and G.Budura
“BPSK System on Spartan 3E FPGA”, in

proceedings of the IEEE International
symposium on Applied Computational
Intelligence and Informatics (SACI),
Romania,2012.
[4] System Generator for DSP. Getting Started
Guide. Xilinx, 2008.
[5] Spartan 3E FPGA Starter Kit Board. User
Guide. Xilinx, 2011.
[6] Simulink:
http://www.mathworks.com/products/simuli
nk/
[7] Xilinx System Generator User‟s Guide,
www.xilinx.com
[8] ISim Hardware Co-Simulation Tutorial:
Accelerating Floating Point FFT
[9] Simulation by xilinx cooperation UG817
(v14.1) April 24, 2012.
[10] Wold, E. and Despain, A. 1984. Pipeline
and parallel-pipeline fft processors for vlsi
implementations. Computers, IEEE
Transactions on C-33, 5 (may), 414 -426
[11] http://en.wikipedia.org/wiki/Fast_Fourier_tr
ansform.
[12] Winthrop W. Smith, Joanne M. Smith,
“Handbook of Real Time FFT”, IEEE Press,
1995.
[13] System Generator manuals “System
Generator for DSP: Performing Hardware-
in-the- Loop with the Spartan-3E
Starter Kit”.
[14] IEEE paper “Fpga Implementation Of FFT
Algorithms Using FloatingPoint Numbers”
by Hilal Kaptan, Ali Tangel, Suhap Sahin.
[15] H. J. Nussbaumer, “Fast Fourier
Transforms and Convolution Algorithms”,
Springer: Berlin 1981
[16] Ramrez R. W., “FFT fundamentals and
Concepts”, Prentice Hall

J044084349

More Related Content

What's hot

Viewers also liked

Similar to J044084349

Recently uploaded

J044084349
