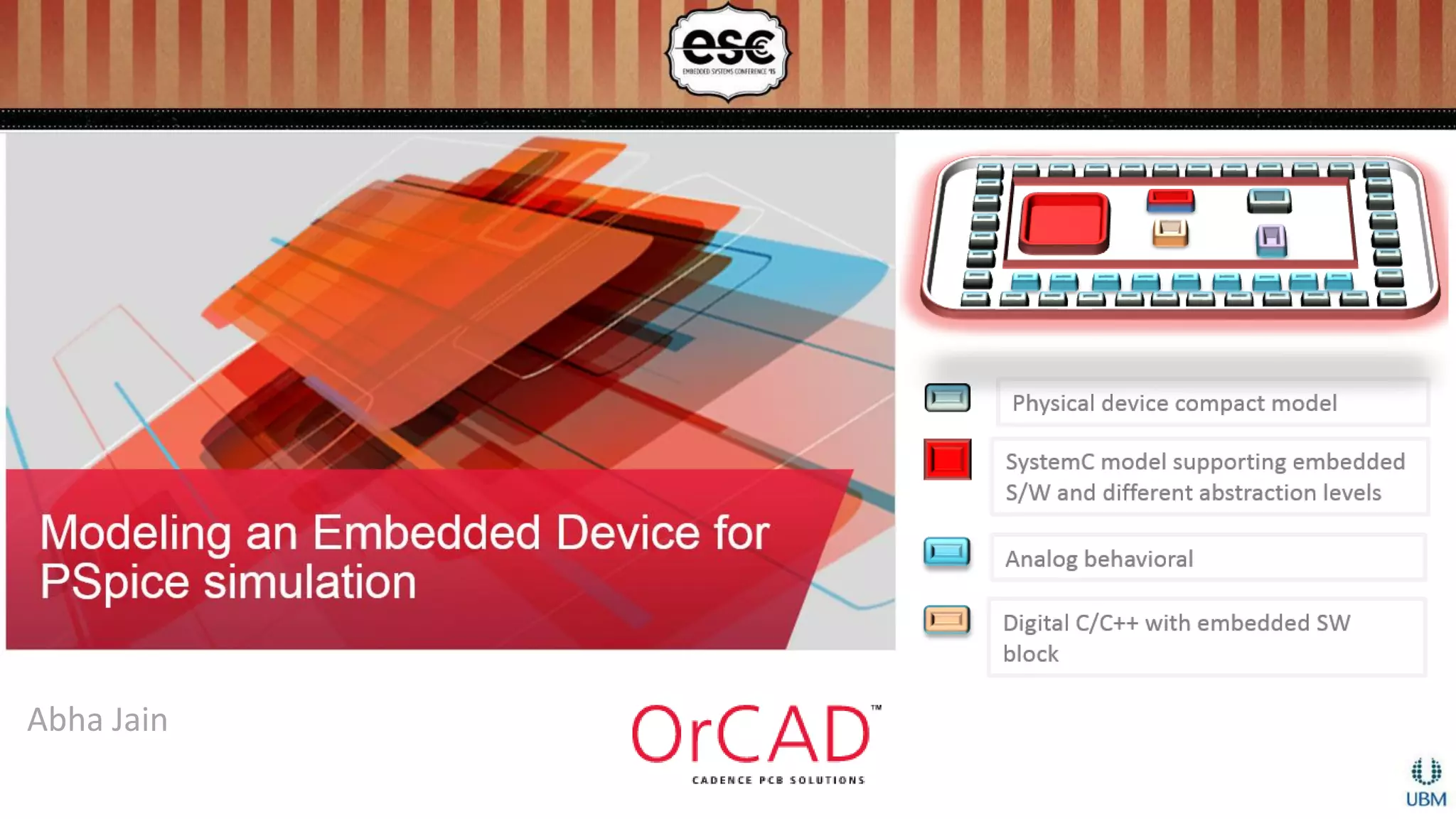

Modeling an Embedded Device for PSpice Simulation

Agenda
• Mixed-level System Design using PSpice
• Modeling of different types of devices using PSpice
– C/C++ Digital Models
– MATLAB Algorithmic Models
– SystemC Models
– Compact Device Models using VerilogA-ADMS
Cadence, the Cadence logo, and PSpice are registered trademarks of Cadence Design Systems, Inc. All
other trademarks are the property of their respective owners.

PSpice
accelerated
mixed-signal
system model
for large IC on
PCB with
mixed-signal
accuracy at
interface
Physical device compact model
SystemC model supporting embedded
S/W and different abstraction levels
Analog behavioral
Digital C/C++ with embedded SW
block
Temporal Data Accuracy
Functionality Structural
Simulation Acceleration with
System-Level Abstractions

Digital controllers enabled Power
Supplies
Advanced control algorithm (non-
linear control, improved transient)
Enable easy management of
multiple control loops
Better precision tolerance to
aging, temperature effects, etc.
Example – S/w algorithm Controlled Power Supply
PWM
Microcontroller with
algorithm control
Power Stage Filter Stage
IN
A/D
OUT

Top-level schematic

1. C/C++ Digital Model in PSpice
• Specification of logic using
C/C++
• Timing model, I/O and
constraints specification may
be coded as part of the C-
model or applied on the
block level from datasheet
• Interfaces are accurate for
mixed-signal implementation
• Evaluation is accelerated with
C/C++/SystemC model for large
digital blocks
• Device Logic is independent of
PSpice syntax
• Model is debuggable in Visual
IDE’s

1. C/C++ Digital Model in PSpice…
• Next: Implementing PWM Block as a Digital behavioral block

Install Model
void __cdecl installpspPWMControl(void* pRef)
{
fp_descSetVersion(pRef, "1.2");
fp_descSetName(pRef, "PSPPWMCONTROL");
fp_descSetCreateDevice(
pRef,&pspPWMControl_CreateDevice);
fp_descSetDeleteDevice(
pRef,&pspPWMControl_DeleteDevice);
fp_descSetEvaluateDevice(
pRef,&pspPWMControl_EvaluateDevice); }
• Links functions between
device and simulator
– Sets function pointers from
model dll to PSpice
• Sets version and Model Name
• Allows multiple devices to be
installed from the same dll

Create Instance
pspPWMControl::pspPWMControl
(const char* pInstName,
void*pRef) {
mRef = pRef;
mInstName = pInstName;
mPortCount = 18;
mInputPortCount = 17; }
• Creates a new device
instance
• Instance Name and
Reference set by PSpice
• Port counts set by Device
Model

Set Parameter Values
mDigSimFreq =
fp_GetParamValueDbl("DIGFREQ");
mDigSimTimeStep = 1.0 / mDigSimFreq;
//Device Specific Initialization
mPER = (int)fp_GetParamValueDbl("PER");
mDutyCycle = fp_GetParamValueDbl("D");
• Get Parameter values from
PSpice by name
o Simulator options
o Global parameters set up in
design

Evaluate
bool pspPWMControl::evaluate
(double pTicks, PSpiceState* pVectorStates, int pSize) {
double lCurrentTime = mDigSimTimeStep*pTicks;
double lDelta = pTicks - mPrevTicks;
//Get input Signal Levels
CLK = pVectorStates[0].getLevel();
//if CLK changed from LO to another value
if ((int)prevCLK == pspBit::LO && (int)CLK != pspBit::LO)
{
lCLKRisingEdge = true; }}
• Evaluate device at any
change in inputs
o Get Current time
o Get input signal levels
o Detect clock edge

Evaluate…
for (int i = 0; i < 8; i++) {
FB[i] = pVectorStates[8 - i].getLevel(); }
pspBits2Int(FB, FBInt, 8);
//evaluate logic
for (int i = 0; i < 8; i++) {
PW[i] = FB[i] & REF[i]; }
if (mPWStatus==true && (int)PW != 1){
PW = pspBit::HI; }
//update output State
for (int i = 0; i < 8; i++) {
if (oldPW[i] == PW[i]) continue;
lState = PW[i];
fp_SetState(mRef, 7-i, &lState, NULL); }
• Read levels (LO|HI) for input
signal bits
• Convert Signal Bits to C++
integer levels
• Execute Algorithm
• Convert C++ data back to
signal bits
• Update output states

Set Delays
PSpiceState lState = (pVectorStates)[0];
PSpiceDelay lDelay;
lDelay.mMaxDelay = 1e-6;
lDelay.mMinDelay = 1e-6;
lDelay.mTypDelay = 1e-6;
lState = PW;
fp_SetState(mRef, 0, &lState, &lDelay);
• Set Timing Delays
• Min/Typ/Max Delays
• Simulator can be setup to run
with any 1 value
• Worst-case analysis can be
run with min and max delays
• Alternate way is to setup
using PSpice Timing Model

Set Constraints
PSpiceConstraint lConstraint;
PSpiceSetupHoldConstraint& lSH =lConstraint.mSetupHold;
lSH.setuptime_hi = 3e-6;
lSH.holdtime_hi = 3e-6;
strcpy(lSH.mClockName, "CLK");
strcpy(lSH.mNetsList->mNetName, "FB1");
PSpiceWidthConstraint& lWidth = lConstraint.mWidth;
strcpy(lWidth.mInputNode, "FB1");
lWidth.min_low = 30e-6;
lWidth.min_high = 50e-6;
fp_setConstraint(mRef, &lConstraint);
• Set Digital constraints
• Setup-Hold
• Pulse Width
• Frequency
• Alternate way is to use
Digital CONSTRAINT device in
PSpice

C/C++ Digital Model – from C++ to PSpice
• Code is built into a dll
• PSpice lib and Capture
symbol created for the model
• LOGICEXP device with
keyword C_MODEL used for
specifying C-models
• Model loaded from dll by
PSpice at run-time
U1 LOGICEXP( 17, 1 ) DPWR DGND
+ CLK
+ FB7 FB6 FB5 FB4 FB3 FB2 FB1 FB0
+ REF7 REF6 REF5 REF4 REF3 REF2
REF1 REF0
+ PW
+ PWMCONTROL_TIMING IO_STD
+ C_MODEL: PSPPWMCONTROL.dll
PSPPWMCONTROL

2. MATLAB Algorithmic Model in PSpice
• Implementing Averaging Filter Block as a MATLAB Algorithmic
Model

Algorithmic Block
Simulation in
Matlab-Simulink
MATLAB Model Block
Implementation &
Simulation in
PSpice
Mixed-level Co-
simulation in Matlab-
Simulink & PSpice
Mixed-level
Simulation in PSpice
Using Device modeling API with
MathWorks Algorithms
Algorithmic Abstraction Implementation

MATLAB
Algorithmic module
Use MATLAB Coder Generate C Code
Use Microsoft
Visual Studio
Add PSpice Adapter
and embed code
inside PSpice
behavioral block
Compile code to
generate PSpice-
DMI compatible dll
Use OrCAD Capture
Instantiate device
as a macro-model
Run PSpice
simulation and
verify results
High-level Flow for
using MATLAB blocks
using PSpice Device
Modeling API

MATLAB Filter algorithm and generated C code using MATLAB Coder
• Example of Averaging Filter
– http://www.mathworks.com/help/coder
/examples/averaging-
filter.html#zmw57dd0e162
• Generated C Code from
MATLAB Coder

Embed MATLAB C Code in PSpice
Behavioral Device
• VCVS (Voltage Controlled
Voltage Source)
• Independent Voltage Source
• More suitable for discontinuous
derivatives
y=f(x)
Matlab
Function
N1
N2
N3
N4
f(x)*V(N3-N4)
Nodes and Branches
•Node N1
•Node N2
•Node N3
•Node N4
•Branch B1
N1 N2 N3 N4 B1 RHS
N1 1
N2 -1
B1 1 -1 -f’(x) f’(x)Cadence, the Cadence logo, and PSpice are registered trademarks of Cadence Design Systems, Inc. All

MATLAB Model State Variables
static double buffer[16];
double averaging_filter(const double x,
double* buffer) {
double y;
double dv0[15];
/* Scroll the buffer */
memcpy(&dv0[0], &buffer[0], 15U *
sizeof(double));
memcpy(&buffer[1], &dv0[0], 15U *
sizeof(double));
• Persistent Matlab Variable
(State variables) moved to
PSpice Model State

PSpice Model State Management
•Inner Iteration on current State
Incr0
•Increment to next state as the
previous time point has converged
Incr1
•Decrement to previous State as last
time point convergence failed
decr1
•Decrement to 2nd previous State as
last time point convergence failed
Decr2

Setup for PSpice Evaluation States
case ININIT:
averaging_filter_init(sv.x);
nonConv = true;
break;
case INPRDCT: {
double xDiff = sv.x[0] - sv.x[1];
double yDiff = sv.y[0] - sv.y[1];
if (abs(xDiff) > 0.0) {
mGain = yDiff / xDiff;
yValue = mGain * (xValue - sv.x[0]); }
break; }
case INNORM: {
sv.y[0] = yValue = averaging_filter(xValue, sv.x);
mGain = yValue / xValue;
break; }
• Initialization of device
structures
• Predictor
• Normal Evaluation

Time Step Control
double pspAveragingFilterDevice::Trunc() {
double freq = fp_getParameterValue(“FREQ”);
double delta = fp_getDelta();
if (delta > 1.0/freq) {
double lValDelta = fabs((sv.x[0] - sv.x[1])) /
(fabs(sv.x[0]));
if (lValDelta > 0.1){
lReturnValue = delta / (1+lValDelta);
} }
return lReturnValue; }
• Device-Level
– Adaptive
– Fixed
• Global

MATLAB Algorithmic Model – from C++ to PSpice
• Code is built into a dll
• PSpice lib and Capture
symbol created for the model
• Y device with keyword CMI
used for specifying C-models
• Model loaded from dll by
PSpice at run-time
Y_AVGFILTER OUTPUT 0
NOISY_INPUT 0 CMI
pspMatlabDemoModels.dll
AvgFilter
.model AvgFilter CMI
PSPAVERAGINGFILTER
+ pw=.5

MATLAB PSpice
Algorithm Transfer
to PSpice Circuit
Model

Complete System Simulation

Time
0s 0.2ms 0.4ms 0.6ms 0.8ms 1.0ms 1.2ms 1.4ms 1.6ms 1.8ms 2.0ms 2.2ms 2.4ms 2.6ms 2.8ms 3.0ms 3.2ms 3.4ms
V(VOUT)
0V
5V
10V
0s 0.2ms 0.4ms 0.6ms 0.8ms 1.0ms 1.2ms 1.4ms 1.6ms 1.8ms 2.0ms 2.2ms 2.4ms 2.6ms 2.8ms 3.0ms 3.2ms 3.4ms
CLK
.REF2
Simulation Results – output voltage
(variation with duty cycle)

3. SystemC Behavioral Model in PSpice
• Implementing PWM Block as a SystemC block

Design Flow
Digital Logic implemented
only as a C++ functional
block – no timing
information
Timing information added
as PSpice/C++ delays
Digital Logic implemented
as a SystemC functional
block, with built-in timing
SystemC logic replaced
with CPU having
embedded software

SystemC Flow – How it works?
Communicating with
PSpice
Running on SystemC
Simulator
Digital-C++
wrapper
Module
Analog
Behavioral
Devices
LOGICEXP
Device
Physical
Devices
SystemC
Block
PSpice Simulator

SystemC Module Definition
#include <systemc.h>
SC_MODULE(pspSysCFIR) {
sc_in<bool> clk;
sc_in<sc_logic> reset;
sc_in<sc_int<16>> input;
sc_out<sc_int<16>> output;
SC_CTOR(pspSysCFIR) {
SC_CTHREAD(entry, clk.pos());
void entry(); };
• Define Module name
• Define Interface Signals
• Define constructor and
entry method

Reading inputs from PSpice
reset = pVectorStates[1].getLevel();
for (int i = 0; i < 16; i++) {
inputBits[i] =
pVectorStates[i+2].getLevel(); }
sc_int<16> lValue;
pspBits2Array(inputBits, lValue,
16);
siginput.write(lValue);
• Read input signals
• Create SystemC variables
for input signals
• Write to SystemC Block

Evaluate SystemC Block
if (sc_pending_activity()) {
if (pTicks > mPrevTicks) {
sc_start(pTicks - mPrevTicks,
SC_PS); }
else {
sc_start(0, SC_PS); }
• sc_start to execute the
module till specified time
• pTicks is received from
PSpice Simulator

Send output to PSpice
lValue = m_pspSysCFIR-
>output.read();
Int2pspBits(lValue, outputBits,
16);
lState = outputBits[i];
fp_SetState(mRef, i, &lState,
&lDelay);
• Read values from SystemC
block output
• Write to output Signal bits
• Send updated State to
PSpice Simulator

System Models Timing
• System Models may be at
any level of abstraction
• Accuracy is maintained by
PSpice at the interface

4. VerilogA-ADMS Compact Device Model in
PSpice
• Implementing a VerilogA-ADMS VBIC Model as a PSpice
Compact Device

Verilog-A definition for VBIC Model
module vbic(c,b,e,s)
inout c,b; // external nodes
inout e,s; // external nodes
branch (b ,e ) b_be; // base-emit
branch (b ,c ) b_bc; // base-coll
parameter real tnom = 27.0 `P(info="nominal parameter
measurement temperature " unit="C");
parameter real rcx = 0.0 from[0.0:inf]
`P(info="extrinsic collector resistance " unit="Ohm");
analog begin
Tini = `TABS+tnom;
` Vrth = V(b_rth);
Tdev = $temperature+dtemp+Vrth;
Tdev = Tdev-`TABS;
if (Tdev<tmin)
Tdev = tmin;
• Module name and external
node names
• Node definitions
• Branch definitions
• Parameter definitions
• Device Behavior

VerilogA-ADMS translation to PSpice
• admsXml used to translate Verilog-A
files to PSpice CMI models
• Script for automatic translation and
build of CMI dll
– <SPB
hierarchy>toolspspiceapibinbuildAD
MSProject.bat <path to Verilog-A file>
– Runs admsXml, using PSpice xml filters,
and generates the code files
– Also generates a Makefile to build a
PSpice-CMI compatible dll
– Runs nmake to build the code into a dll
• VBICSELFT.va translated to:
– vbicload.cpp
– vbicdefs.h
– vbicsetup.cpp
– vbictemp.cpp
– PSpiceAdapter.cpp
…

VerilogA-ADMS Simulation in PSpice

Summary
• PSpice® system model extensions enable modeling of large
mixed-signal ICs in PCB simulation enabling simulation of
entire PCB
• PSpice analog C/C++ extensions with VerilogA-ADMS
configurations enable modeling of new technology device
compact models into PSpice simulator

Modeling an Embedded Device for PSpice Simulation

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Modeling an Embedded Device for PSpice Simulation

Similar to Modeling an Embedded Device for PSpice Simulation (20)

More from EMA Design Automation

More from EMA Design Automation (20)

Recently uploaded

Recently uploaded (20)

Modeling an Embedded Device for PSpice Simulation
