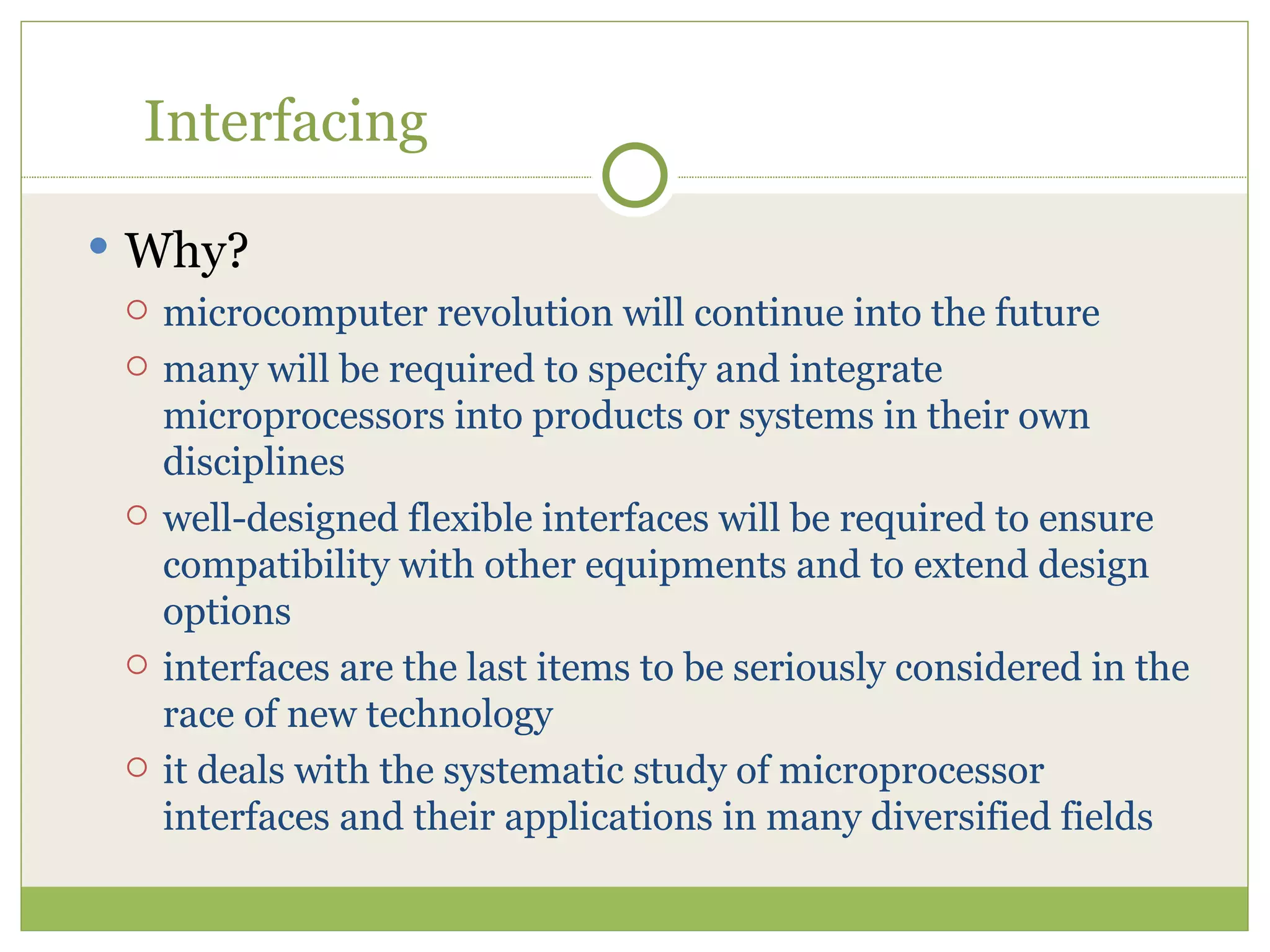

INTRODUCTION
We know that a microprocessor is the CPU of a computer. A microprocessor can perform some operation on a data and give the output. But to perform the operation we need an input to enter the data and an output to display the results of the operation. So we are using a keyboard and monitor as Input and output along with the processor. Microprocessors engineering involves a lot of other concepts and we also interface memory elements like ROM, EPROM to access the memory.
Types of Interfacing
There are two types of interfacing in context of the 8085 processor.
Memory Interfacing.
I/O Interfacing.
Memory Interfacing:
While executing an instruction, there is a necessity for the microprocessor to access memory frequently for reading various instruction codes and data stored in the memory. The interfacing circuit aids in accessing the memory.
Memory requires some signals to read from and write to registers. Similarly the microprocessor transmits some signals for reading or writing a data.
But what is the purpose of interfacing circuit here?
The interfacing process involves matching the memory requirements with the microprocessor signals. The interfacing circuit therefore should be designed in such a way that it matches the memory signal requirements with the signals of the microprocessor. For example for carrying out a READ process, the microprocessor should initiate a read signal which the memory requires to read a data. In simple words, the primary function of a memory interfacing circuit is to aid the microprocessor in reading and writing a data to the given register of a memory chip.
The interfacing process involves matching the memory requirements with the microprocessor signals. The interfacing circuit therefore should be designed in such a way that it matches the memory signal requirements with the signals of the microprocessor. For example for carrying out a READ process, the microprocessor should initiate a read signal which the memory requires to read a data. In simple words, the primary function of a memory interfacing circuit is to aid the microprocessor in reading and writing a data to the given register of a memory chip.
I/O Interfacing:
We know that keyboard and Displays are used as communication channel with outside world. So it is necessary that we interface keyboard and displays with the microprocessor. This is called I/O interfacing. In this type of interfacing we use latches and buffers for interfacing the keyboards and displays with the microprocessor.
But the main disadvantage with this interfacing is that the microprocessor can perform only one function. It functions as an input device if it is connected to buffer and as an output device if it is connected to latch. Thus the capability is very limited in this type of interfacing.
INTRODUCTION
We know that a microprocessor is the CPU of a computer. A microprocessor can perform some operation on a data and give the output. But to perform the operation we need an input to enter the data and an output to display the results of the operation. So we are using a keyboard and monitor as Input and output along with the processor. Microprocessors engineering involves a lot of other concepts and we also interface memory elements like ROM, EPROM to access the memory.
Types of Interfacing
There are two types of interfacing in context of the 8085 processor.
Memory Interfacing.
I/O Interfacing.
Memory Interfacing:
While executing an instruction, there is a necessity for the microprocessor to access memory frequently for reading various instruction codes and data stored in the memory. The interfacing circuit aids in accessing the memory.
Memory requires some signals to read from and write to registers. Similarly the microprocessor transmits some signals for reading or writing a data.
But what is the purpose of interfacing circuit here?
The interfacing process involves matching the memory requirements with the microprocessor signals. The interfacing circuit therefore should be designed in such a way that it matches the memory signal requirements with the signals of the microprocessor. For example for carrying out a READ process, the microprocessor should initiate a read signal which the memory requires to read a data. In simple words, the primary function of a memory interfacing circuit is to aid the microprocessor in reading and writing a data to the given register of a memory chip.
The interfacing process involves matching the memory requirements with the microprocessor signals. The interfacing circuit therefore should be designed in such a way that it matches the memory signal requirements with the signals of the microprocessor. For example for carrying out a READ process, the microprocessor should initiate a read signal which the memory requires to read a data. In simple words, the primary function of a memory interfacing circuit is to aid the microprocessor in reading and writing a data to the given register of a memory chip.
I/O Interfacing:
We know that keyboard and Displays are used as communication channel with outside world. So it is necessary that we interface keyboard and displays with the microprocessor. This is called I/O interfacing. In this type of interfacing we use latches and buffers for interfacing the keyboards and displays with the microprocessor.
But the main disadvantage with this interfacing is that the microprocessor can perform only one function. It functions as an input device if it is connected to buffer and as an output device if it is connected to latch. Thus the capability is very limited in this type of interfacing.
Origin of Microprocessor and Classification of Microprocessor Vijay Kumar
This Presentation have information about the topics are
Microprocessors evolution,
Introduction to 8085,
Basic terms,
Types of Processors,
Microprocessor Based System,
Origin of Microprocessor,
Classification of Microprocessor,
Memory,
Input and Output Devices and
Technological Improvements on Microprocessor.
Introduction to Analog and Digital Systems - Basic definition, Representation, Examples and applications of Analog and Digital Systems - Advantages of Digital system over Analog system - Process of conversion from Analog to Digital and Digital to Analog signal - Digitization Examples - Signal representation of voltage and current in terms of Binary values - Representations of Binary quantities using different terminologies - IC Complexity classification - IC Layout - Development of ICs in terms of size
This is mainly intended for young faculty who are involved in ARM processor architecture teaching. This may also be useful to those who are keen in understanding the secrets of ARM architecture.Very good luck
The content is related to Analog electronics. The prEsentation contains ADC process, Sampling and holding, Quantizing and encoding, Flash ADC, Pipeline ADC etc.
Communication protocols in Embedded Systems. This presentation focused mainly on lower level protocols. Ideal for the beginner to build understanding on these protocols like I2C, USB, SPI etc.
In this ppt you will learn about the various memory and its types inside the computer. The ppt also describes an analogy for your better understanding. Hope it will be fun learning.
It is a digital representation of an analog signal that takes samples of the amplitude of the analog signal at regular intervals. The sampled analog data is changed to, and then represented by, binary data.
Origin of Microprocessor and Classification of Microprocessor Vijay Kumar
This Presentation have information about the topics are
Microprocessors evolution,
Introduction to 8085,
Basic terms,
Types of Processors,
Microprocessor Based System,
Origin of Microprocessor,
Classification of Microprocessor,
Memory,
Input and Output Devices and
Technological Improvements on Microprocessor.
Introduction to Analog and Digital Systems - Basic definition, Representation, Examples and applications of Analog and Digital Systems - Advantages of Digital system over Analog system - Process of conversion from Analog to Digital and Digital to Analog signal - Digitization Examples - Signal representation of voltage and current in terms of Binary values - Representations of Binary quantities using different terminologies - IC Complexity classification - IC Layout - Development of ICs in terms of size
This is mainly intended for young faculty who are involved in ARM processor architecture teaching. This may also be useful to those who are keen in understanding the secrets of ARM architecture.Very good luck
The content is related to Analog electronics. The prEsentation contains ADC process, Sampling and holding, Quantizing and encoding, Flash ADC, Pipeline ADC etc.
Communication protocols in Embedded Systems. This presentation focused mainly on lower level protocols. Ideal for the beginner to build understanding on these protocols like I2C, USB, SPI etc.
In this ppt you will learn about the various memory and its types inside the computer. The ppt also describes an analogy for your better understanding. Hope it will be fun learning.
It is a digital representation of an analog signal that takes samples of the amplitude of the analog signal at regular intervals. The sampled analog data is changed to, and then represented by, binary data.
This presentation is about the following points -
GPIO Driver development,
LED Interfacing (blinking pattern),
LCD Interfacing (8 bit mode,4 bit mode),
Seven Segment Interfacing(single and multiple seven segment),
Keypad Interfacing (Integration with LCD),
Timer Driver Development,
Timer (all functionality with polling and Interrupt),
Counter (all functionality with polling and Interrupt),
UART Serial communication(polling and interrupt),
Watch dog Timer programming,
External interrupt,
Motor/Relay Interfacing,
ADC Interfacing(8 bit resolution),
I2C communication protocol(Bit bang Implementation),
(EEPROM/RTC Interfacing ),
Congratulations! #You have earned 30 reward points for the first Fonepay transaction. Your balance is 30. Redeem points######################################################### have earned 30 reward points for the first Fonepay transaction. Your balance is 30. Redeem points using Fonepay app onelink.to/tn3ze7Congratulations! You have earned 30 reward points for the first Fonepay transaction. Your balance is 30. Redeem points using Fonepay app onelink.to/tn3ze7Congratulations! You have earned 30 reward points for the first Fonepay transaction. Your balance is 30. Redeem points using Fonepay app onelink.to/tn3ze7Congratulations! You have earned 30 reward points for the first Fonepay transaction. Your balance is 30. Redeem points using Fonepay app onelink.to/tn3ze7Congratulations! You have earned 30 reward points for the first Fonepay transaction. Your balance is 30. Redeem points using Fonepay app onelink.to/tn3ze7Congratulations! You have earned 30 reward points for the first Fonepay transaction. Your balance is 30. Redeem points using Fonepay app onelink.to/tn3ze7Congratulations! You have earned 30 reward points for the first Fonepay transaction. Your balance is 30. Redeem points using Fonepay app onelink.to/tn3ze7Congratulations! You have earned 30 reward points for the first Fonepay transaction. Your balance is 30. Redeem points using Fonepay app onelink.to/tn3ze7Congratulations! You have earned 30 reward points for the first Fonepay transaction. Your balance is 30. Redeem points using Fonepay app onelink.to/tn3ze7Congratulations! You have earned 30 reward points for the first Fonepay transaction. Your balance is 30. Redeem points using Fonepay app onelink.to/tn3ze7Congratulations! You have earned 30 reward points for the first Fonepay transaction. Your balance is 30. Redeem points using Fonepay app onelink.to/tn3ze7Congratulations! You have earned 30 reward points for the first Fonepay transaction. Your balance is 30. Redeem points using Fonepay app onelink.to/tn3ze7Congratulations! You have earned 30 reward points for the first Fonepay transaction. Your balance is 30. Redeem points using Fonepay app onelink.to/tn3ze7Congratulations! You have earned 30 reward points for the first Fonepay transaction. Your balance is 30. Redeem points using Fonepay app №########################################################################################################################################################################################################################№##################################№#################################################################################onelink.to/tn3ze7Congratulations! You have earned 30 reward points for the first Fonepay transaction. Your balance is 30. Redeem points using Fonepay app ######onelink.to/tn3z#####################№№#########################e7Congratulations! You have earned 30 reward points for the first Fonepay transaction. Your balance is 30. Redeem p#################################
Modes of transfer refer to the various modes by which the data residing in the memory is transferred to CPU or back to memory. Let us first discuss the need to transfer data. The data originates from the input units. Copy the link given below and paste it in new browser window to get more information on Transfer Modes:- http://www.transtutors.com/homework-help/computer-science/transfer-modes.aspx
Similar to Introduction to Interfacing Technique (20)
Model Attribute Check Company Auto PropertyCeline George
In Odoo, the multi-company feature allows you to manage multiple companies within a single Odoo database instance. Each company can have its own configurations while still sharing common resources such as products, customers, and suppliers.
How to Create Map Views in the Odoo 17 ERPCeline George
The map views are useful for providing a geographical representation of data. They allow users to visualize and analyze the data in a more intuitive manner.
Welcome to TechSoup New Member Orientation and Q&A (May 2024).pdfTechSoup
In this webinar you will learn how your organization can access TechSoup's wide variety of product discount and donation programs. From hardware to software, we'll give you a tour of the tools available to help your nonprofit with productivity, collaboration, financial management, donor tracking, security, and more.
Instructions for Submissions thorugh G- Classroom.pptxJheel Barad
This presentation provides a briefing on how to upload submissions and documents in Google Classroom. It was prepared as part of an orientation for new Sainik School in-service teacher trainees. As a training officer, my goal is to ensure that you are comfortable and proficient with this essential tool for managing assignments and fostering student engagement.
Palestine last event orientationfvgnh .pptxRaedMohamed3
An EFL lesson about the current events in Palestine. It is intended to be for intermediate students who wish to increase their listening skills through a short lesson in power point.
Ethnobotany and Ethnopharmacology:
Ethnobotany in herbal drug evaluation,
Impact of Ethnobotany in traditional medicine,
New development in herbals,
Bio-prospecting tools for drug discovery,
Role of Ethnopharmacology in drug evaluation,
Reverse Pharmacology.
The French Revolution, which began in 1789, was a period of radical social and political upheaval in France. It marked the decline of absolute monarchies, the rise of secular and democratic republics, and the eventual rise of Napoleon Bonaparte. This revolutionary period is crucial in understanding the transition from feudalism to modernity in Europe.
For more information, visit-www.vavaclasses.com
The Roman Empire A Historical Colossus.pdfkaushalkr1407
The Roman Empire, a vast and enduring power, stands as one of history's most remarkable civilizations, leaving an indelible imprint on the world. It emerged from the Roman Republic, transitioning into an imperial powerhouse under the leadership of Augustus Caesar in 27 BCE. This transformation marked the beginning of an era defined by unprecedented territorial expansion, architectural marvels, and profound cultural influence.
The empire's roots lie in the city of Rome, founded, according to legend, by Romulus in 753 BCE. Over centuries, Rome evolved from a small settlement to a formidable republic, characterized by a complex political system with elected officials and checks on power. However, internal strife, class conflicts, and military ambitions paved the way for the end of the Republic. Julius Caesar’s dictatorship and subsequent assassination in 44 BCE created a power vacuum, leading to a civil war. Octavian, later Augustus, emerged victorious, heralding the Roman Empire’s birth.
Under Augustus, the empire experienced the Pax Romana, a 200-year period of relative peace and stability. Augustus reformed the military, established efficient administrative systems, and initiated grand construction projects. The empire's borders expanded, encompassing territories from Britain to Egypt and from Spain to the Euphrates. Roman legions, renowned for their discipline and engineering prowess, secured and maintained these vast territories, building roads, fortifications, and cities that facilitated control and integration.
The Roman Empire’s society was hierarchical, with a rigid class system. At the top were the patricians, wealthy elites who held significant political power. Below them were the plebeians, free citizens with limited political influence, and the vast numbers of slaves who formed the backbone of the economy. The family unit was central, governed by the paterfamilias, the male head who held absolute authority.
Culturally, the Romans were eclectic, absorbing and adapting elements from the civilizations they encountered, particularly the Greeks. Roman art, literature, and philosophy reflected this synthesis, creating a rich cultural tapestry. Latin, the Roman language, became the lingua franca of the Western world, influencing numerous modern languages.
Roman architecture and engineering achievements were monumental. They perfected the arch, vault, and dome, constructing enduring structures like the Colosseum, Pantheon, and aqueducts. These engineering marvels not only showcased Roman ingenuity but also served practical purposes, from public entertainment to water supply.
How to Make a Field invisible in Odoo 17Celine George
It is possible to hide or invisible some fields in odoo. Commonly using “invisible” attribute in the field definition to invisible the fields. This slide will show how to make a field invisible in odoo 17.
Unit 8 - Information and Communication Technology (Paper I).pdfThiyagu K
This slides describes the basic concepts of ICT, basics of Email, Emerging Technology and Digital Initiatives in Education. This presentations aligns with the UGC Paper I syllabus.
This is a presentation by Dada Robert in a Your Skill Boost masterclass organised by the Excellence Foundation for South Sudan (EFSS) on Saturday, the 25th and Sunday, the 26th of May 2024.
He discussed the concept of quality improvement, emphasizing its applicability to various aspects of life, including personal, project, and program improvements. He defined quality as doing the right thing at the right time in the right way to achieve the best possible results and discussed the concept of the "gap" between what we know and what we do, and how this gap represents the areas we need to improve. He explained the scientific approach to quality improvement, which involves systematic performance analysis, testing and learning, and implementing change ideas. He also highlighted the importance of client focus and a team approach to quality improvement.

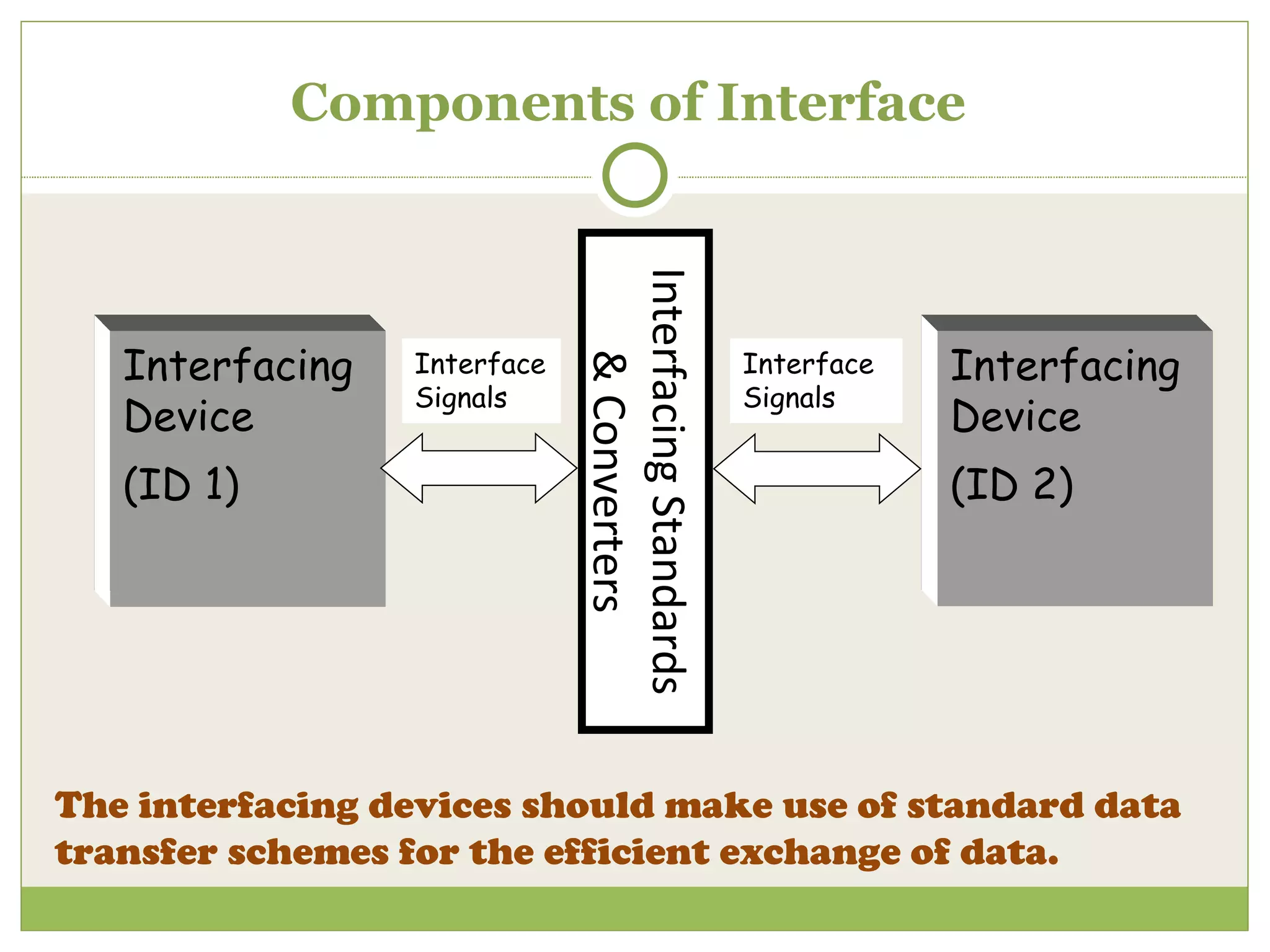

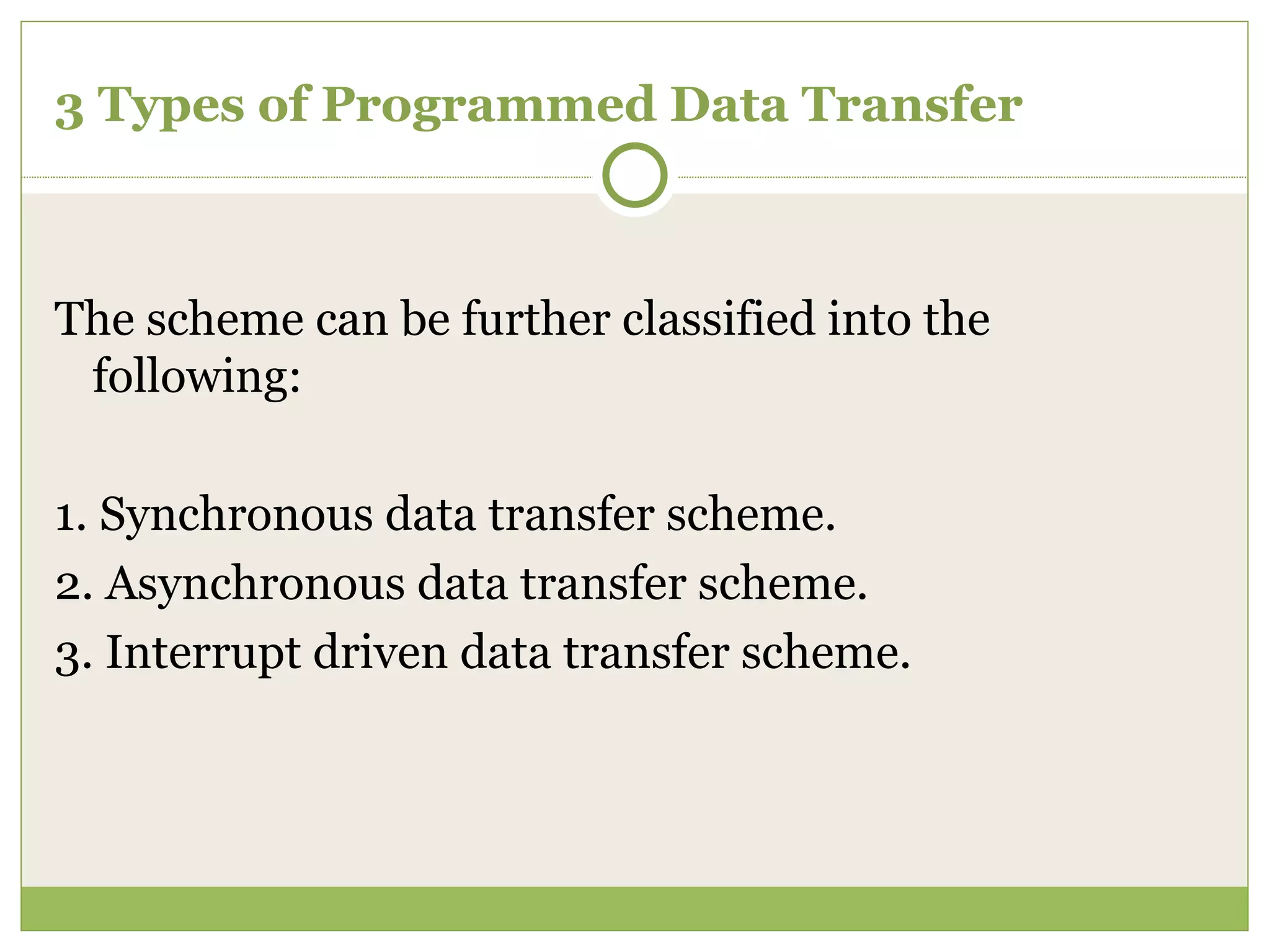

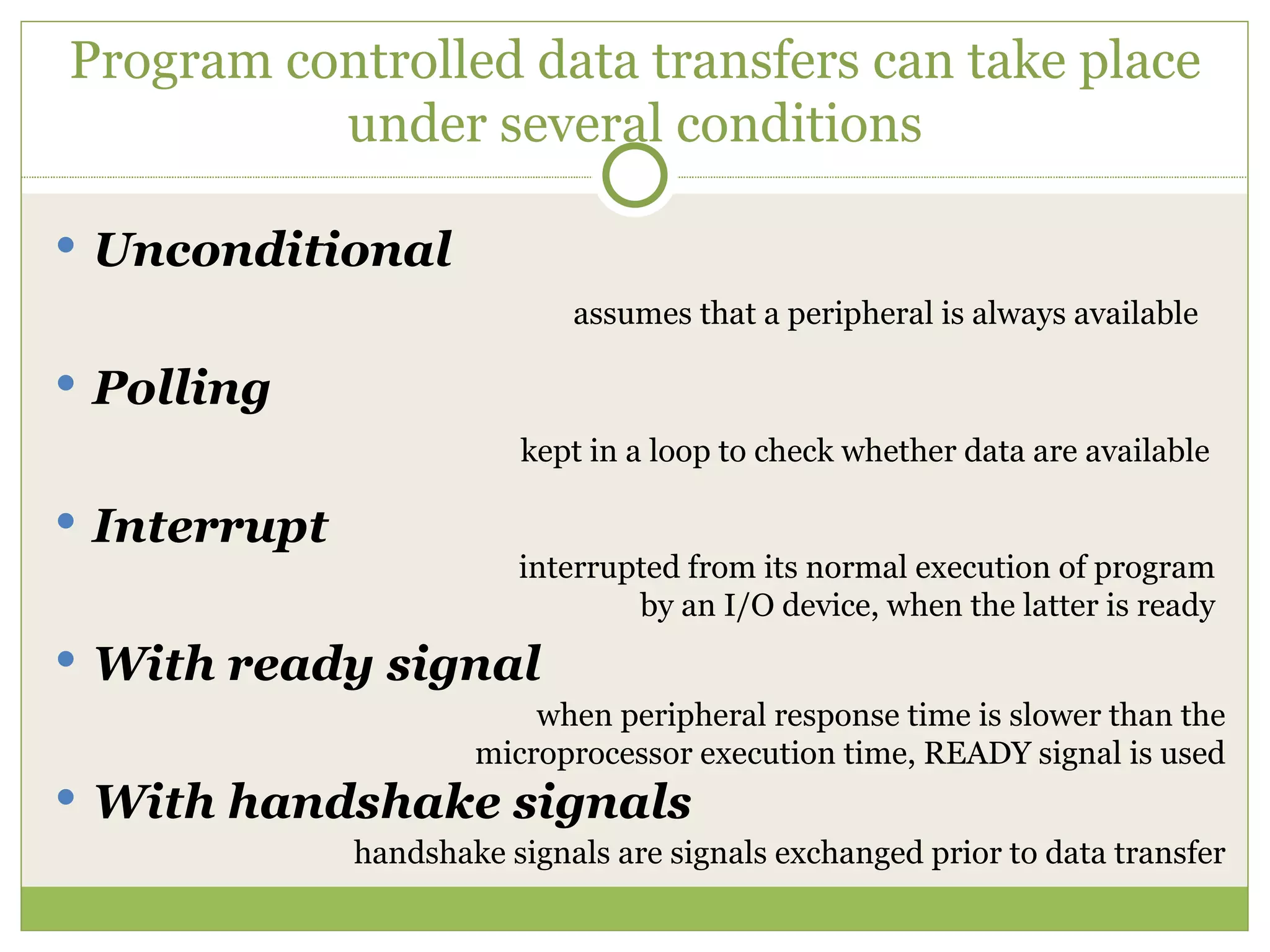

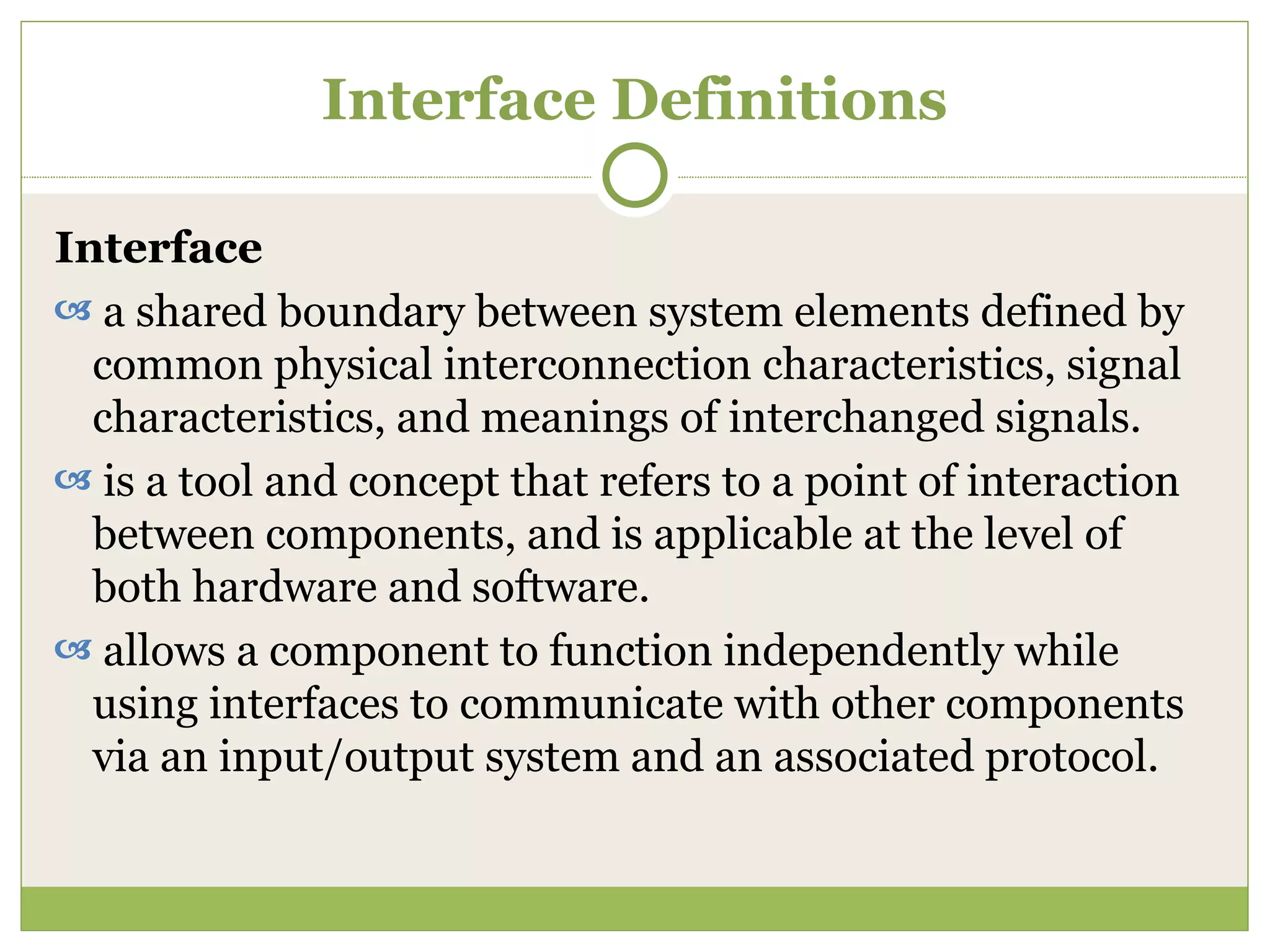

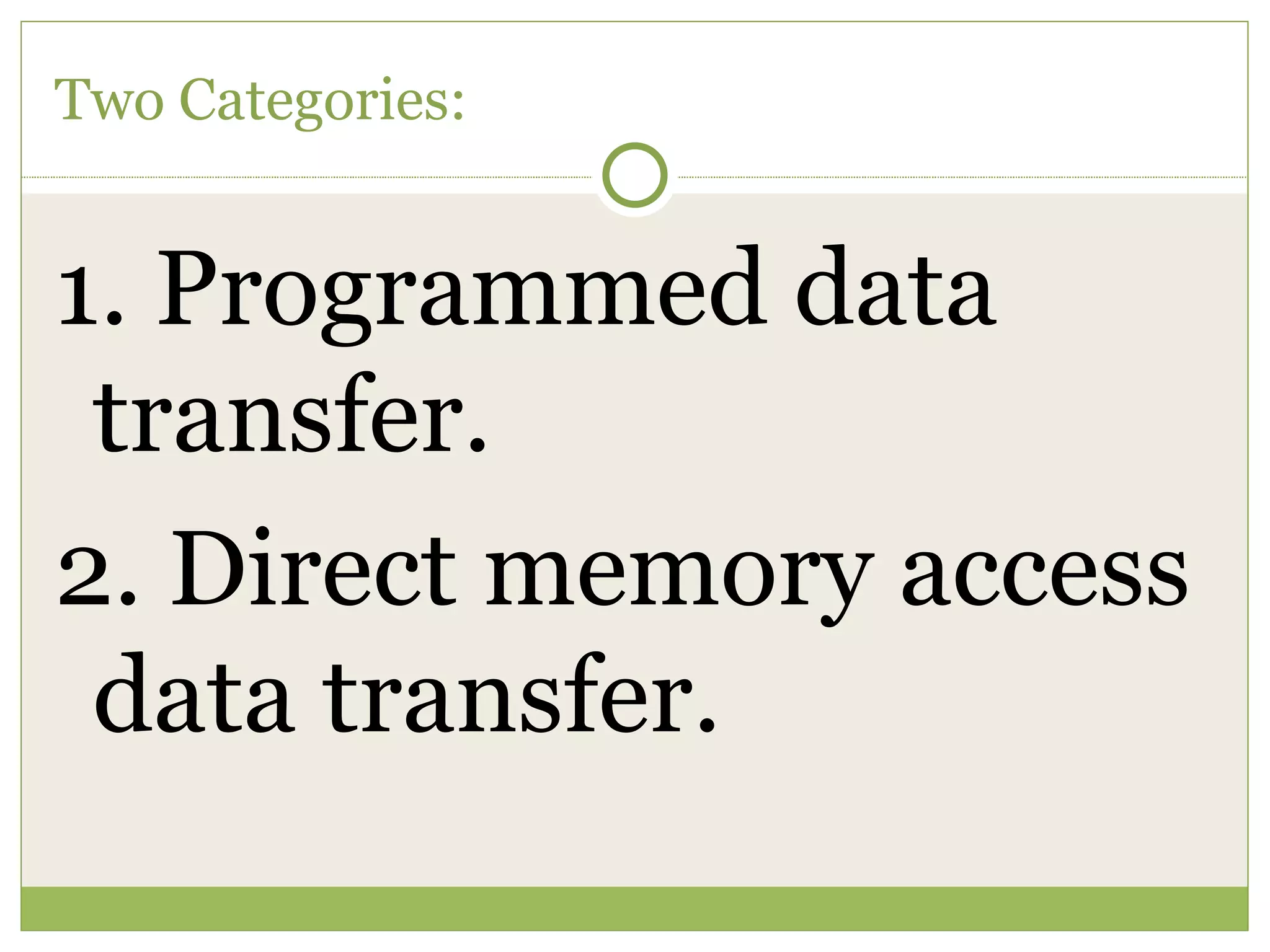

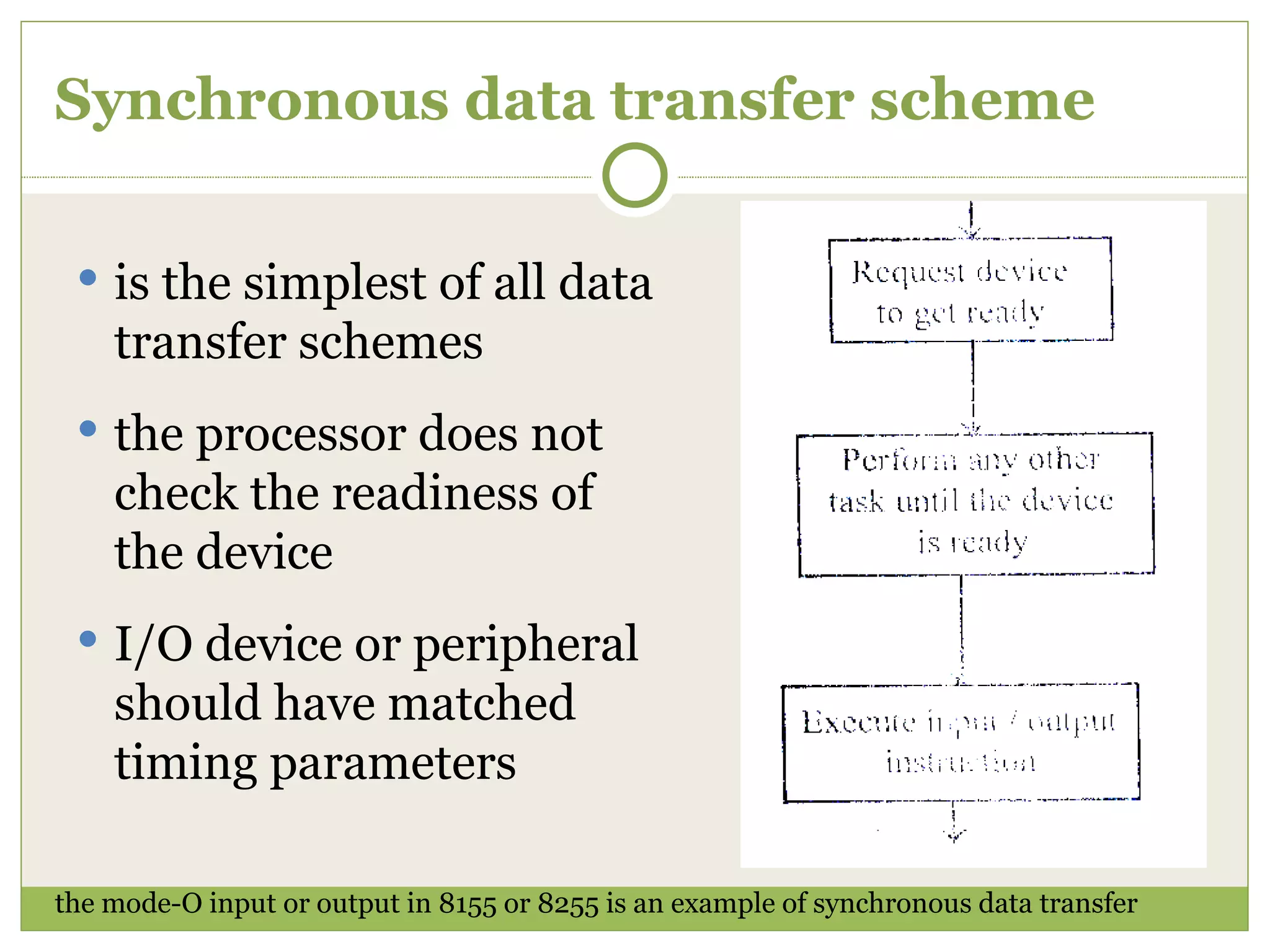

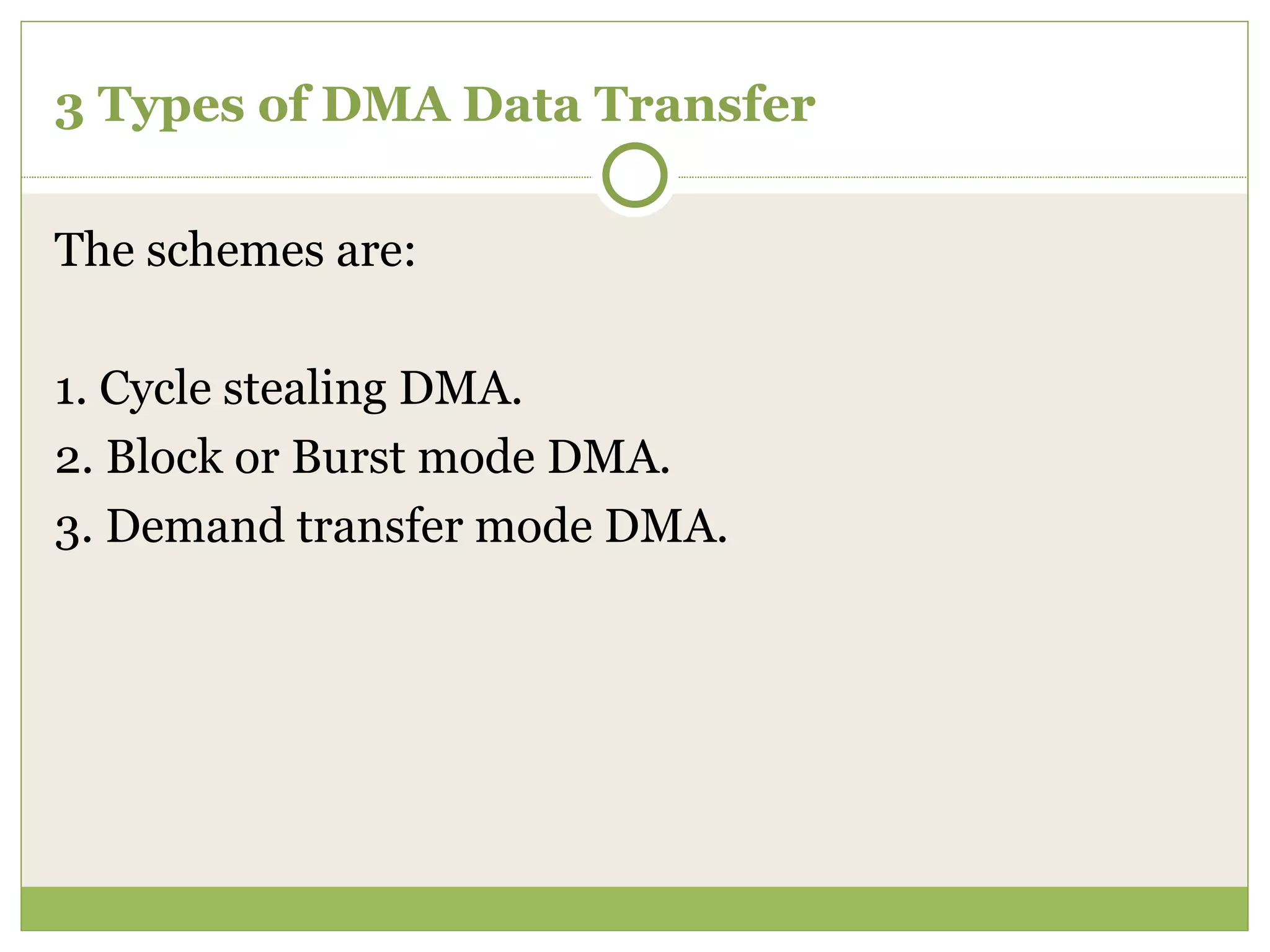

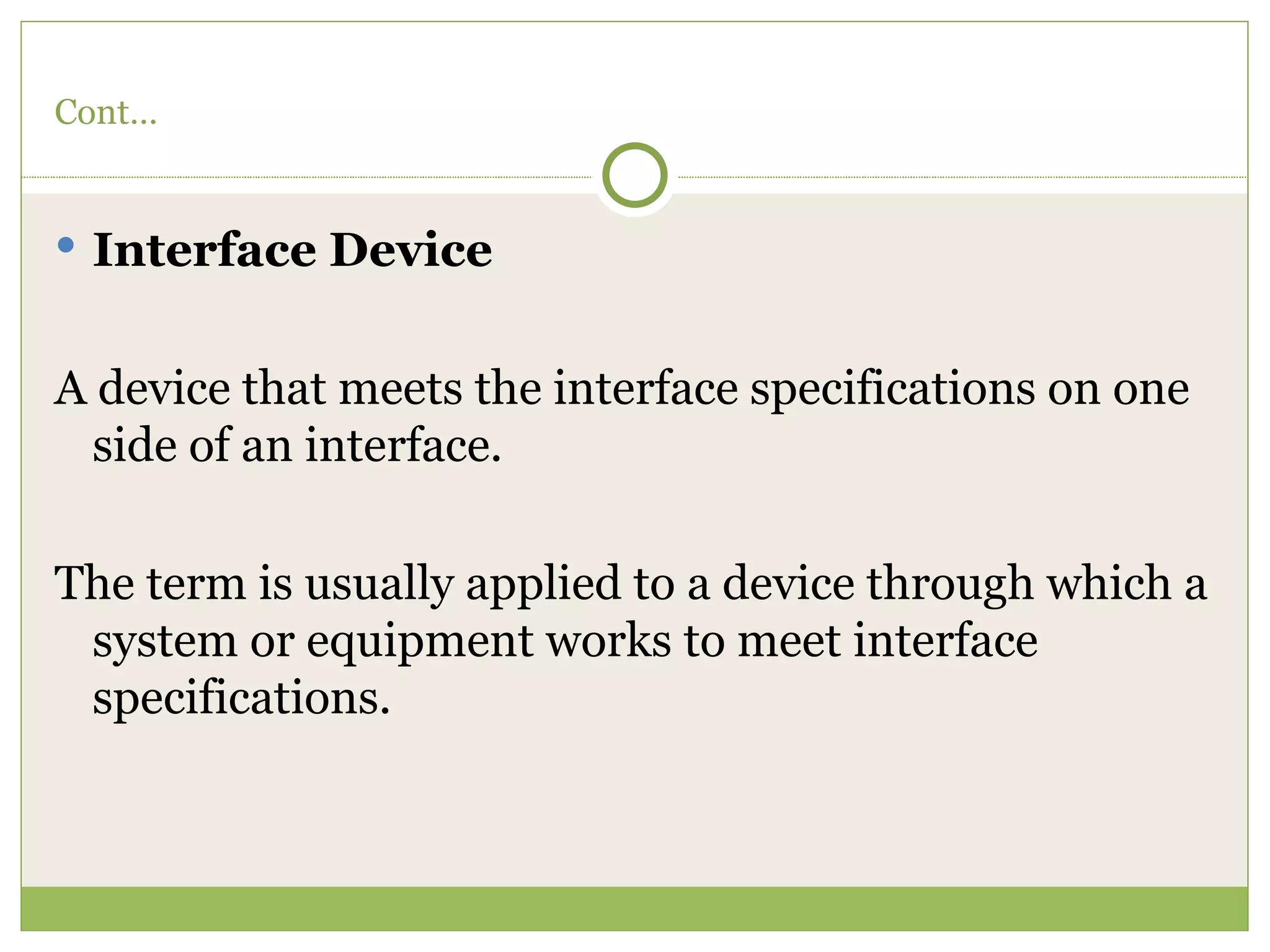

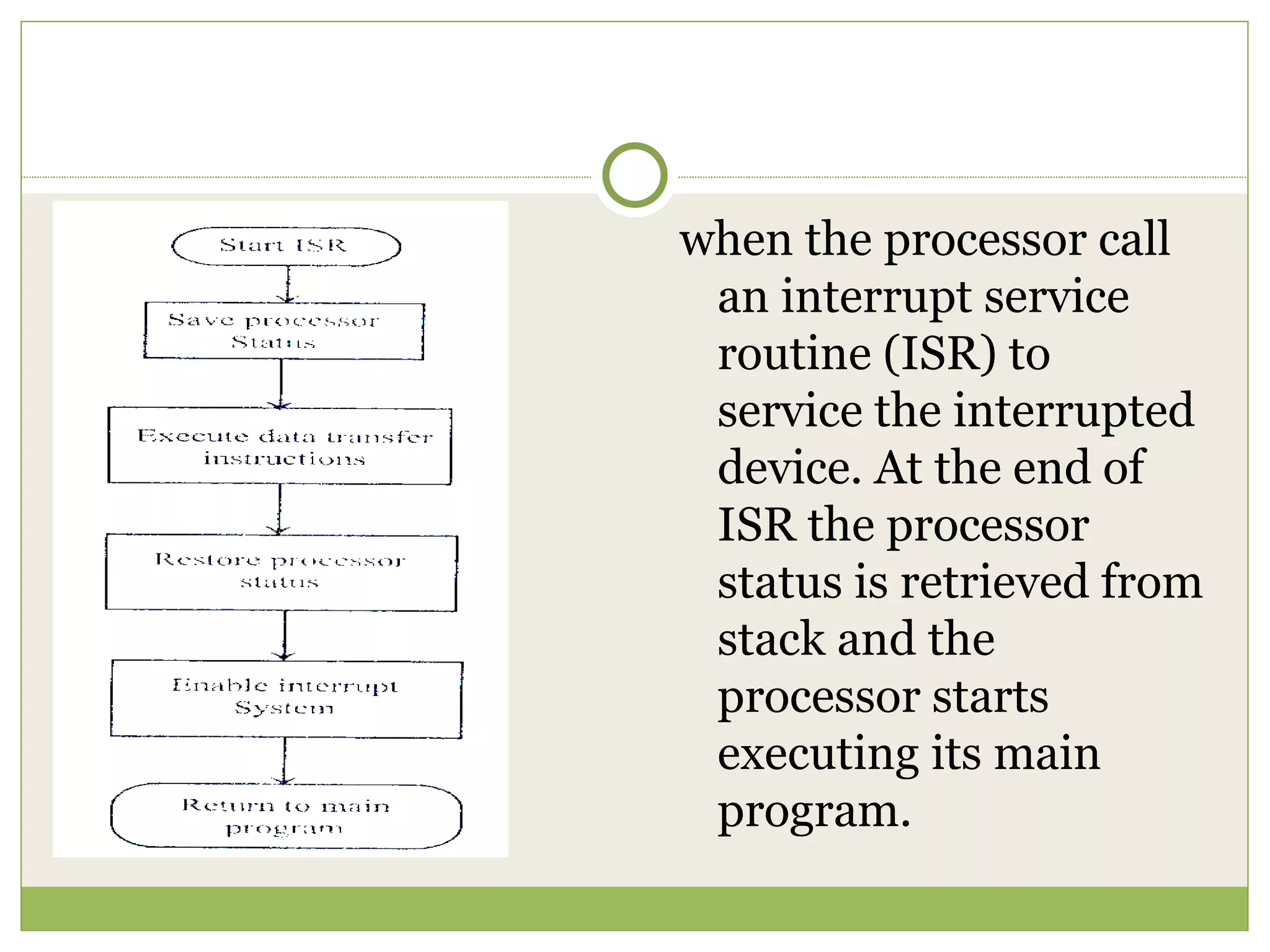

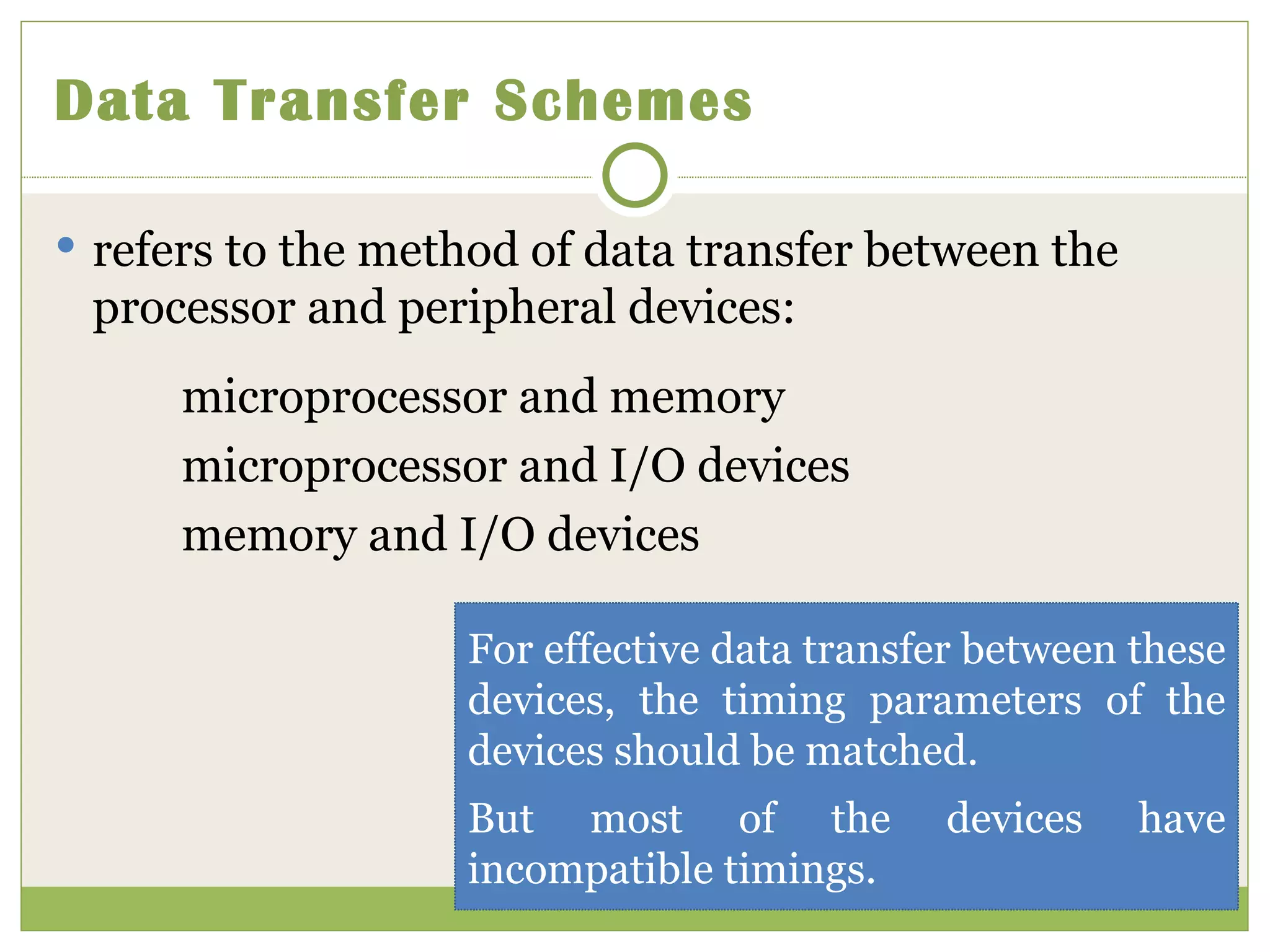

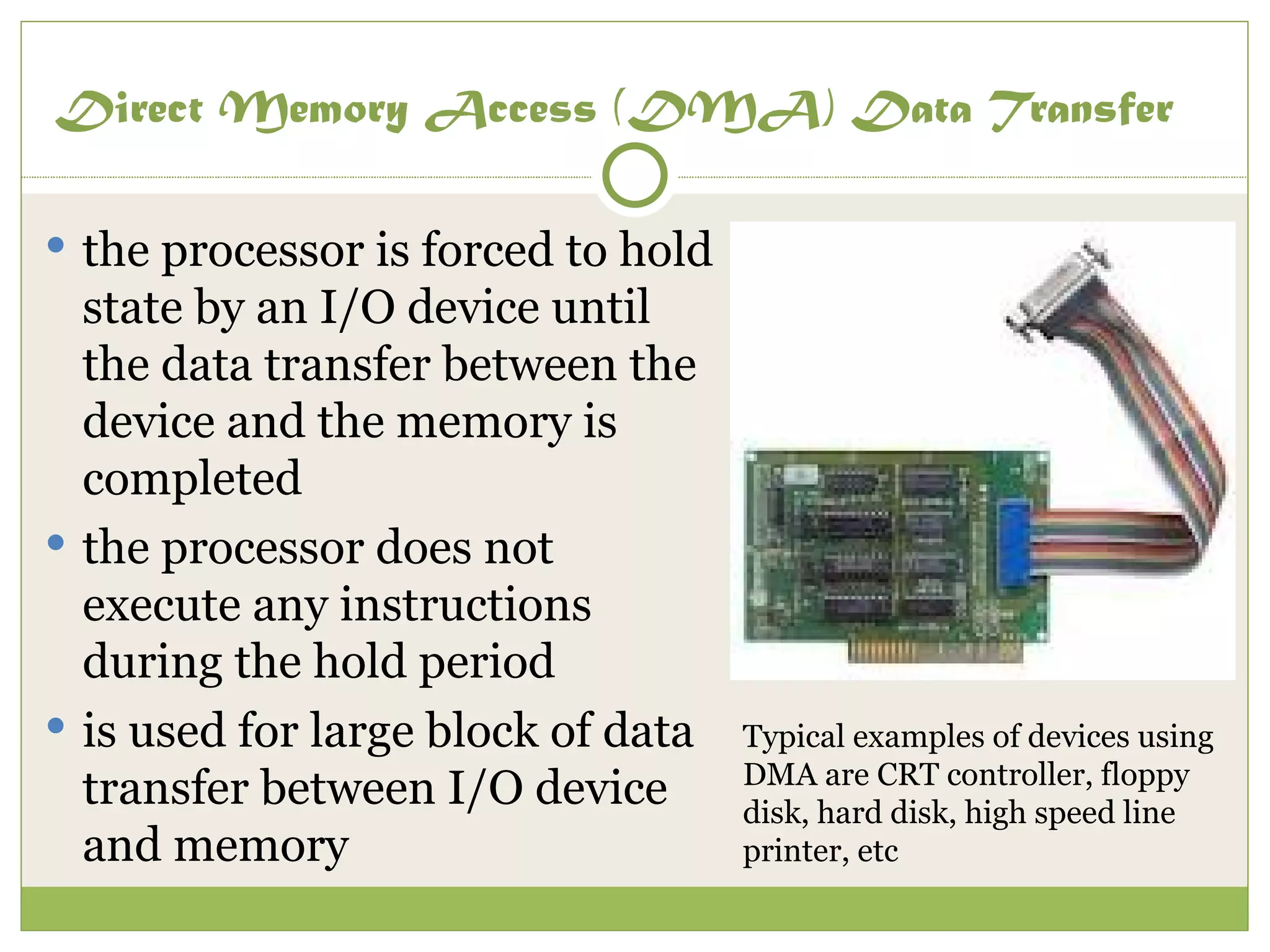

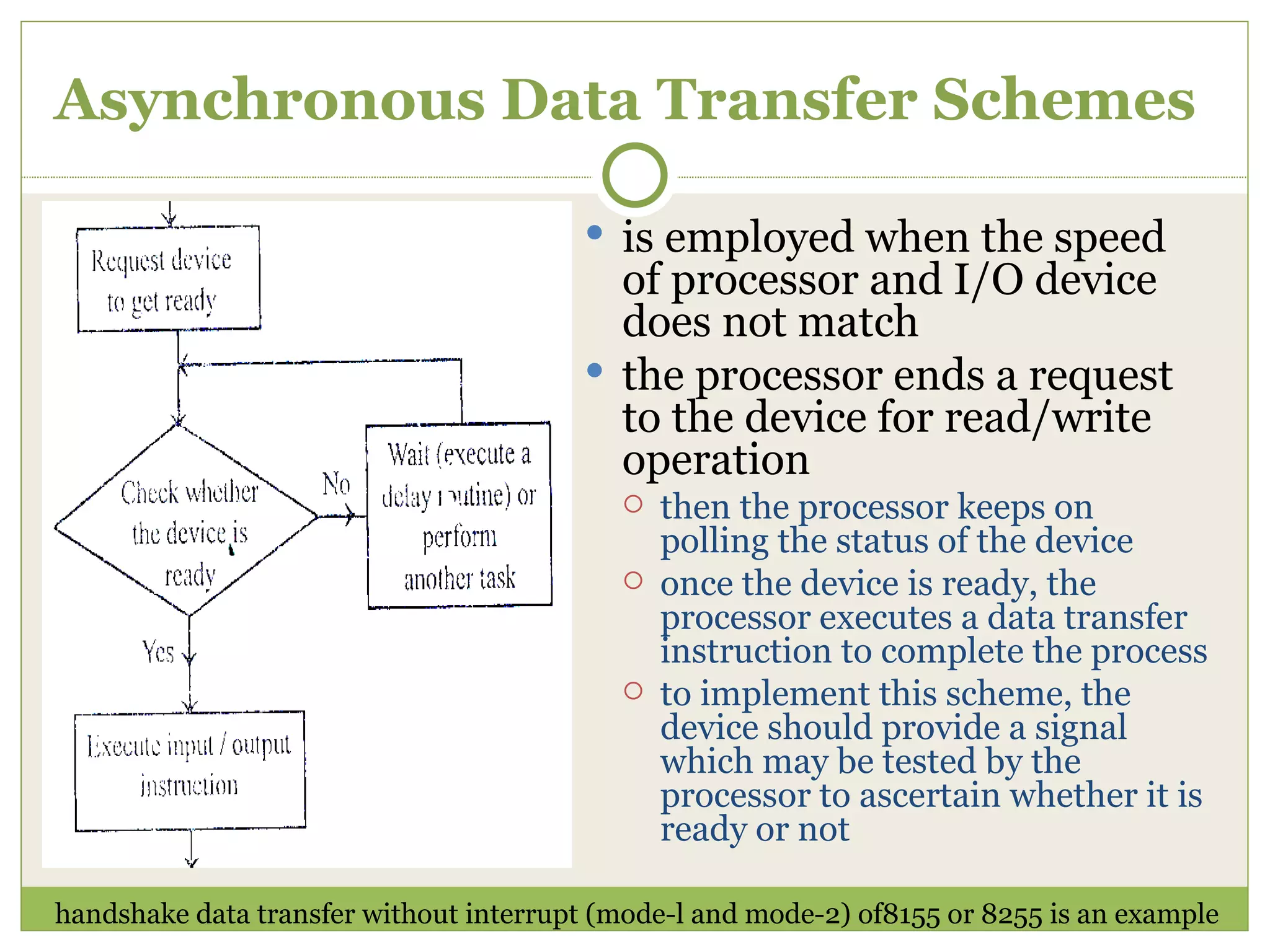

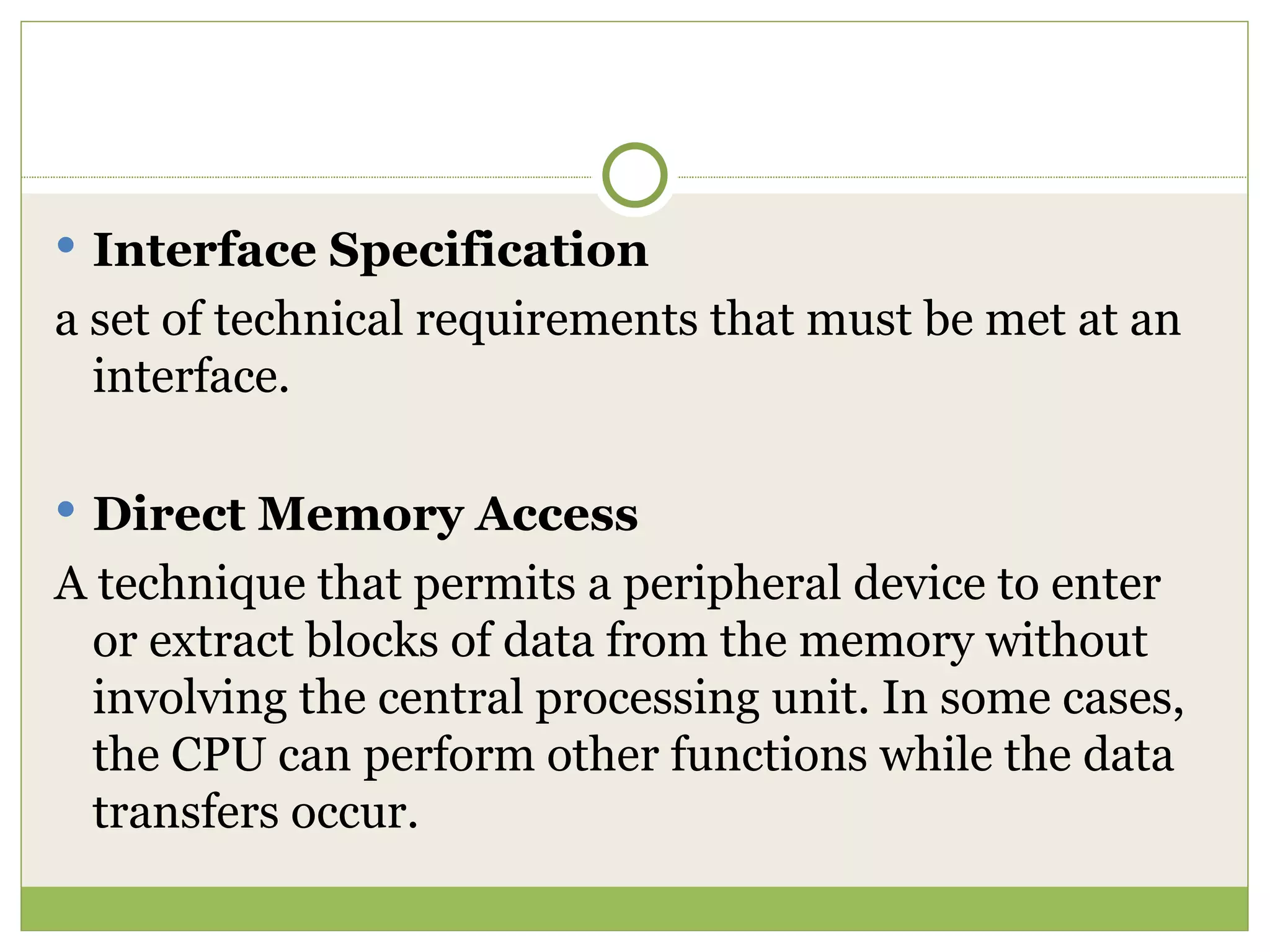

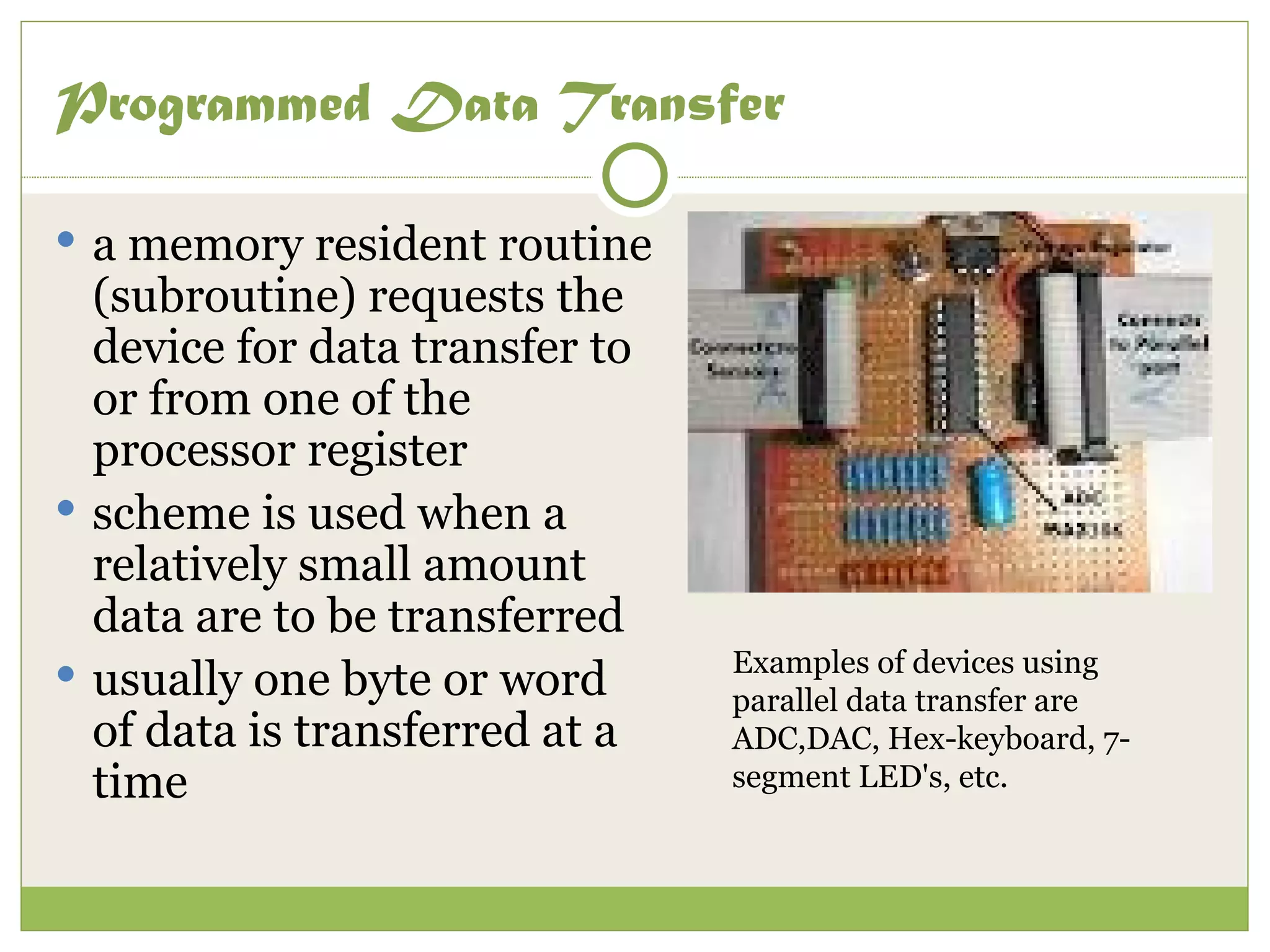

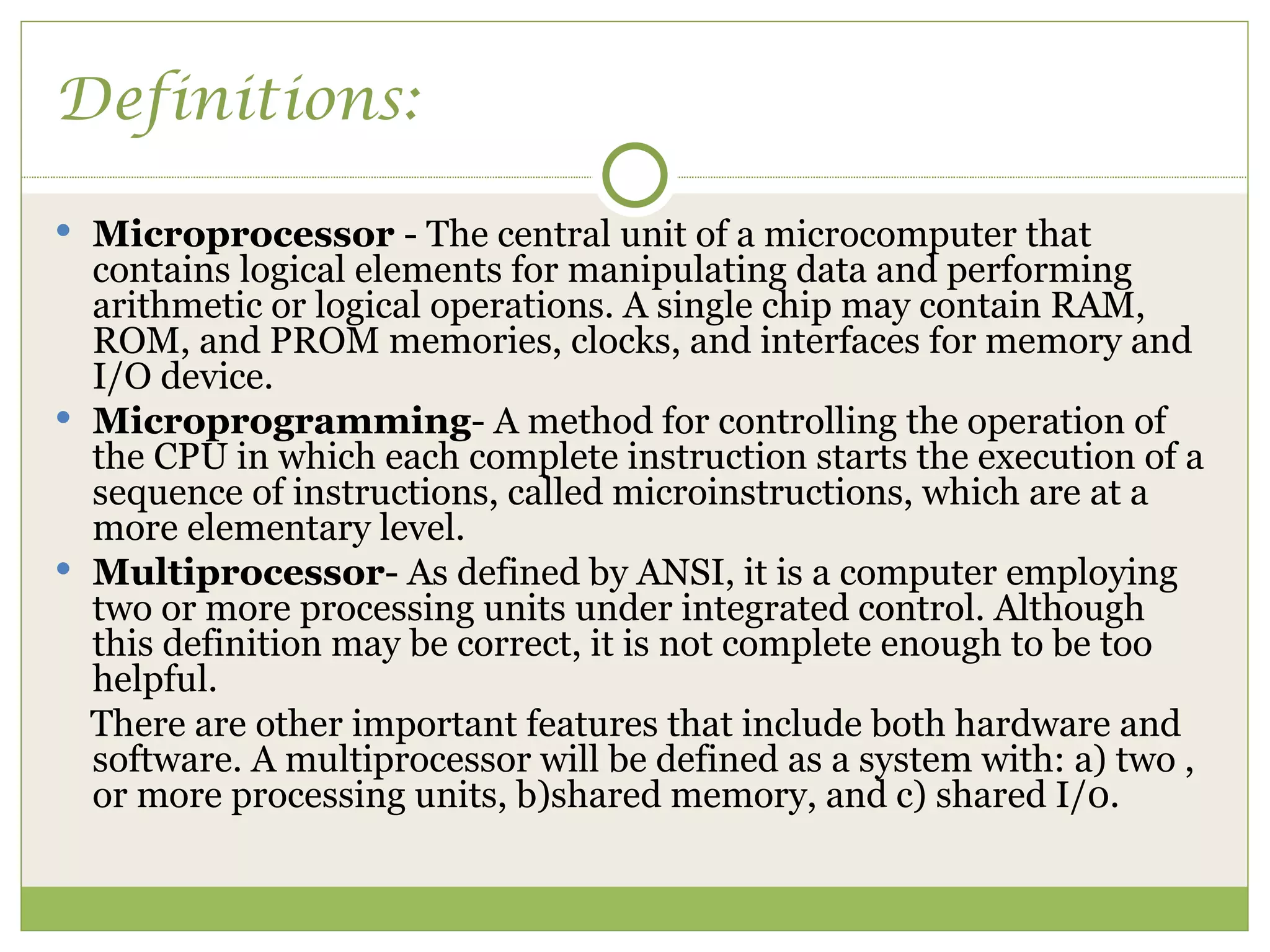

11. Components of Interface The interfacing devices should make use of standard data transfer schemes for the efficient exchange of data. Interface Signals Interface Signals Interfacing Device (ID 1) Interfacing Device (ID 2) Interfacing Standards & Converters
