Introduction to
Advanced Trauma Life Support
            ATLS

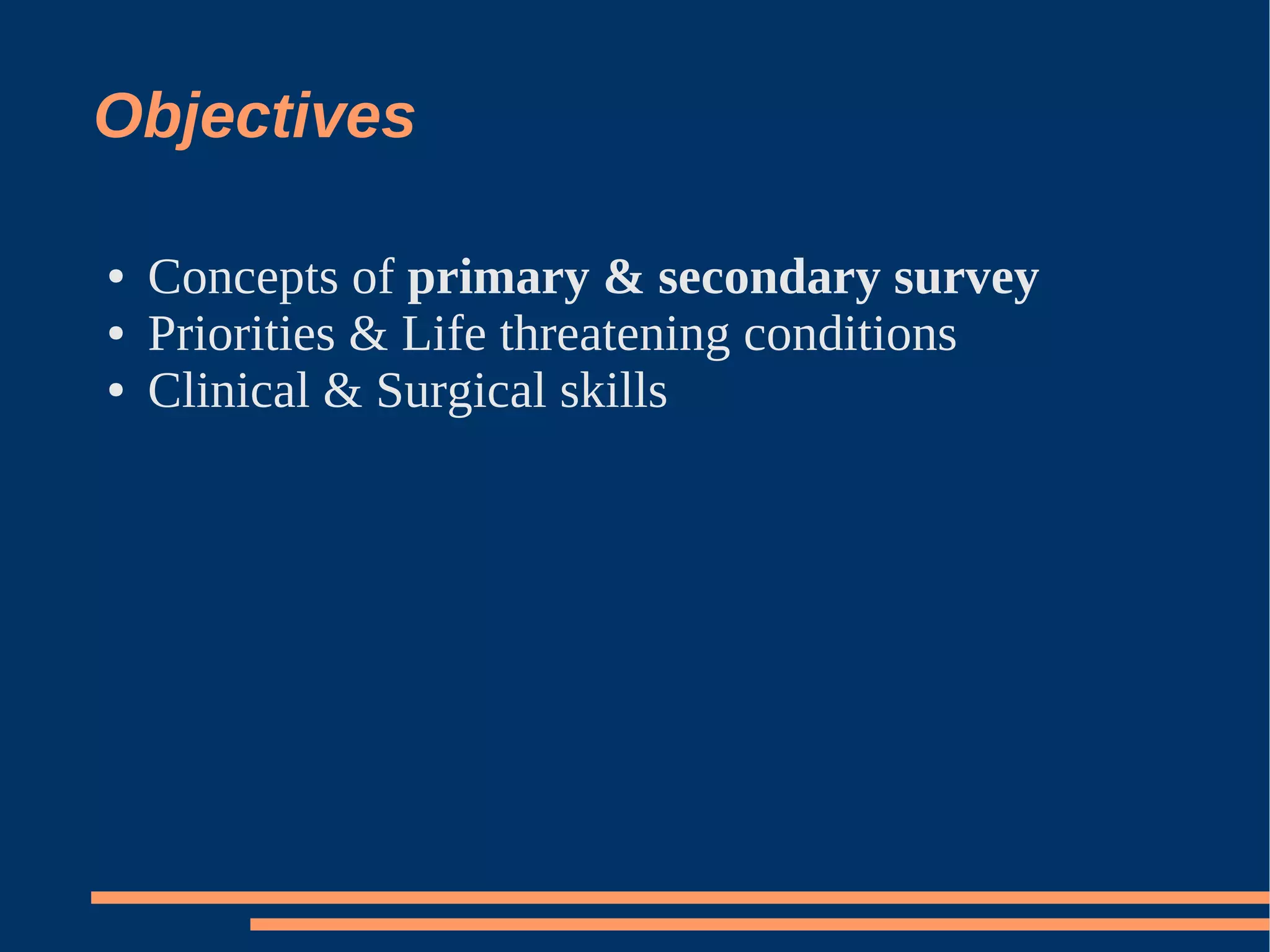

Objectives

●   Concepts of primary & secondary survey
●   Priorities & Life threatening conditions
●   Clinical & Surgical skills
Basic knowledge

●   Rapid assessment
●   Resuscitate & Stabilize (Prioritize)
●   Patient's needs & facility's capabilities
●   Appropriate transfer
●   Optimum care
Initial Assessment & Management

●   Preparation (Prehospital - Hospital)
●   Triage
●   Primary survey (ABCDE)
●   Resuscitation
●   Adjuncts to primary survey & resuscitation
●   ->
Initial Assessment & Management

●   Secondary survey
●   Adjuncts to the secondary survey
●   Postresuscitation monitoring
●   Definitive care

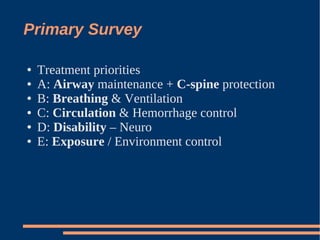

Primary Survey

●   Treatment priorities
●   A: Airway maintenance + C-spine protection
●   B: Breathing & Ventilation
●   C: Circulation & Hemorrhage control
●   D: Disability – Neuro
●   E: Exposure / Environment control
A

●   Airway
    –   Patency / Obstruction
    –   Severe head injury -> Definitive airway

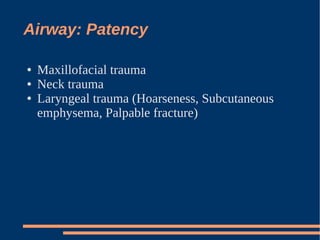

Airway: Patency

●   Maxillofacial trauma
●   Neck trauma
●   Laryngeal trauma (Hoarseness, Subcutaneous
    emphysema, Palpable fracture)
A

●   C-spine protection
    –   Multiple system trauma
    –   Altered level of consciousness
    –   Blunt injury above clavicle
    –   Manual in-line stabilization
A: Nexus

●   Midline cervical tenderness
●   Altered level of consciousness
●   Evidence of intoxication
●   Neurologic abnormality
●   Presence of painful distracting injury
A

●   Trauma patient is dynamic
●   Repeated assessment
A: Resuscitation

●   Jaw thust / Chin lift / Head tilt
●   Naso / Oropharyngeal airway
●   Combitube, LMA
●   Definitive airway (Cuff in trachea)
    –   Oro / Naso tracheal intubation
    –   Surgical cricothyroidotomy

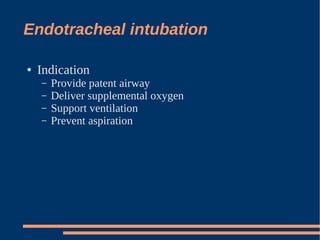

Endotracheal intubation

●   Indication
    –   Provide patent airway
    –   Deliver supplemental oxygen
    –   Support ventilation
    –   Prevent aspiration
Endotracheal intubation

●   Decision
    –   Apnea (orotracheal)
    –   Cannot maintain patent airway
    –   Protect aspiration / vomitus
    –   Impending compromise airway
    –   Closed head injury required assisted ventilation
    –   Inadequate oxygenation

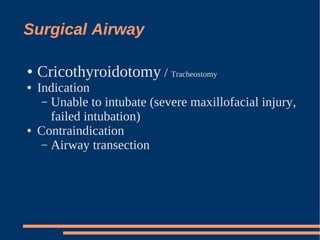

Surgical Airway

●   Cricothyroidotomy / Tracheostomy
●   Indication
     – Unable to intubate (severe maxillofacial injury,
       failed intubation)
●   Contraindication
     – Airway transection

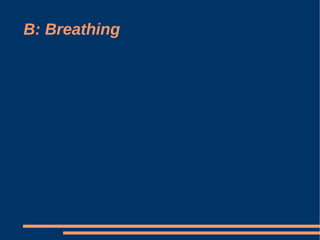

B: Breathing
B: Life Threatening Conditions

●   Tension pneumothorax
●   Flail chest with pulmonary contusion
●   Massive Hemothorax
●   Open pneumothorax
●   Cardiac tamponade

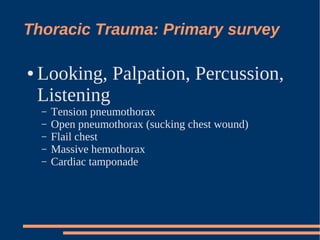

Thoracic Trauma: Primary survey

●   Looking, Palpation, Percussion,
    Listening
    –   Tension pneumothorax
    –   Open pneumothorax (sucking chest wound)
    –   Flail chest
    –   Massive hemothorax
    –   Cardiac tamponade

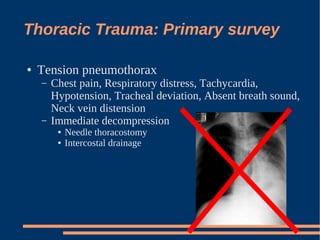

Thoracic Trauma: Primary survey

●   Tension pneumothorax
    –   Chest pain, Respiratory distress, Tachycardia,
        Hypotension, Tracheal deviation, Absent breath sound,
        Neck vein distension
    –   Immediate decompression
         ●   Needle thoracostomy
         ●   Intercostal drainage

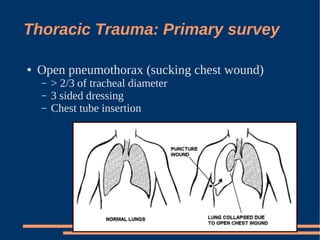

Thoracic Trauma: Primary survey

●   Open pneumothorax (sucking chest wound)
    –   > 2/3 of tracheal diameter
    –   3 sided dressing
    –   Chest tube insertion
Open Chest Wound: 3-Sided
Dressing
Thoracic Trauma: Primary survey

●   Flail chest
    –   >2 ribs fractures in 2 or more places
    –   Paradoxical chest wall movement
    –   Adequate ventilation
    –   Reexpand lungs: Intubation

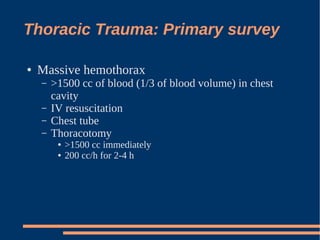

Thoracic Trauma: Primary survey

●   Massive hemothorax
    –   >1500 cc of blood (1/3 of blood volume) in chest
        cavity
    –   IV resuscitation
    –   Chest tube
    –   Thoracotomy
         ●   >1500 cc immediately
         ●   200 cc/h for 2-4 h

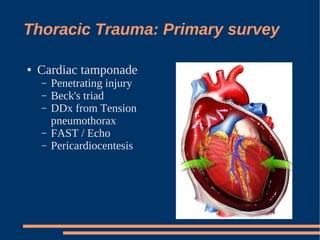

Thoracic Trauma: Primary survey

●   Cardiac tamponade
    –   Penetrating injury
    –   Beck's triad
    –   DDx from Tension
        pneumothorax
    –   FAST / Echo
    –   Pericardiocentesis

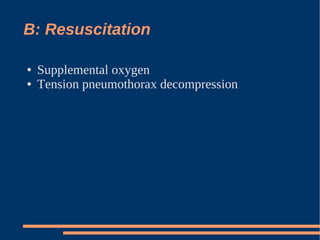

B: Resuscitation

●   Supplemental oxygen
●   Tension pneumothorax decompression
C: Circulation & Hemorrhage
control
●   Circulation – Blood volume & Cardiac output
●   Level of consciousness
●   Skin color
●   Pulse

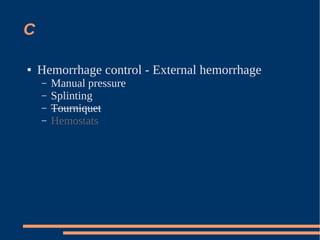

C

●   Hemorrhage control - External hemorrhage
    –   Manual pressure
    –   Splinting
    –   Tourniquet
    –   Hemostats
C: Resuscitation

●   2 large-caliber IV catheter
●   “warm” NSS, RLS
●   Blood
●   Control bleeding
    –   Direct pressure
    –   Operative control
●   Vasopressors

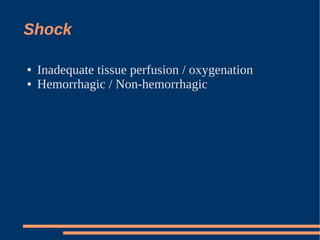

Shock

●   Inadequate tissue perfusion / oxygenation
●   Hemorrhagic / Non-hemorrhagic

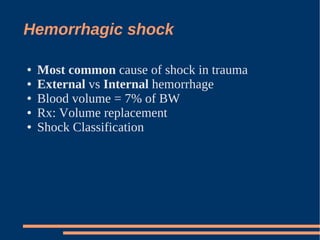

Hemorrhagic shock

●   Most common cause of shock in trauma
●   External vs Internal hemorrhage
●   Blood volume = 7% of BW
●   Rx: Volume replacement
●   Shock Classification
Hemorrhagic shock classification

●   Class I
    –   15% blood loss
    –   P < 100
    –   BP normal
    –   PP normal
    –   RR 14-20
    –   Urine output >30 cc/h
    –   Mental status: Slightly anxious

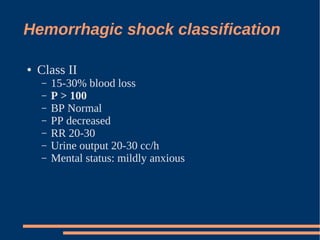

Hemorrhagic shock classification

●   Class II
    –   15-30% blood loss
    –   P > 100
    –   BP Normal
    –   PP decreased
    –   RR 20-30
    –   Urine output 20-30 cc/h
    –   Mental status: mildly anxious

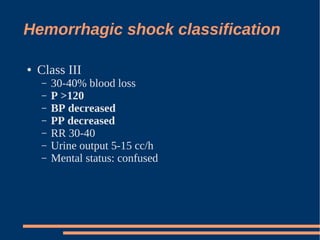

Hemorrhagic shock classification

●   Class III
    –   30-40% blood loss
    –   P >120
    –   BP decreased
    –   PP decreased
    –   RR 30-40
    –   Urine output 5-15 cc/h
    –   Mental status: confused

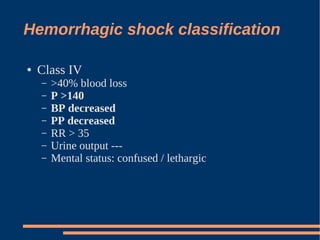

Hemorrhagic shock classification

●   Class IV
    –   >40% blood loss
    –   P >140
    –   BP decreased
    –   PP decreased
    –   RR > 35
    –   Urine output ---
    –   Mental status: confused / lethargic

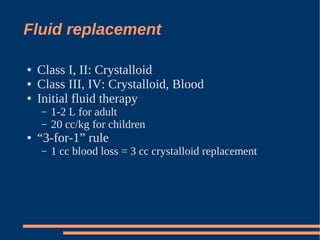

Fluid replacement

●   Class I, II: Crystalloid
●   Class III, IV: Crystalloid, Blood
●   Initial fluid therapy
    –   1-2 L for adult
    –   20 cc/kg for children
●   “3-for-1” rule
    –   1 cc blood loss = 3 cc crystalloid replacement

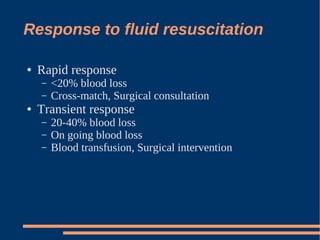

Response to fluid resuscitation

●   Rapid response
    –   <20% blood loss
    –   Cross-match, Surgical consultation
●   Transient response
    –   20-40% blood loss
    –   On going blood loss
    –   Blood transfusion, Surgical intervention
Response to fluid resuscitation

●   No response
    –   Immediate operative intervention

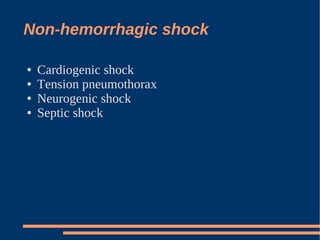

Non-hemorrhagic shock

●   Cardiogenic shock
●   Tension pneumothorax
●   Neurogenic shock
●   Septic shock

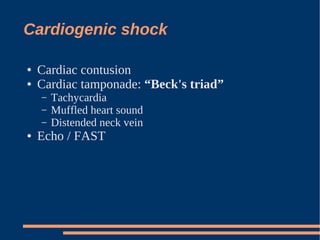

Cardiogenic shock

●   Cardiac contusion
●   Cardiac tamponade: “Beck's triad”
    –   Tachycardia
    –   Muffled heart sound
    –   Distended neck vein
●   Echo / FAST

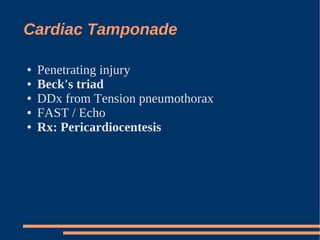

Cardiac Tamponade

●   Penetrating injury
●   Beck's triad
●   DDx from Tension pneumothorax
●   FAST / Echo
●   Rx: Pericardiocentesis
Tension pneumothorax

●   One-way valve
●   Respiratory distress
●   Subcutaneous emphysema
●   Absent breath sound
●   Hyperresonance on percussion
●   Tracheal shift
●   Distended neck vein
●   Rx: Needle / Tube thoracostomy

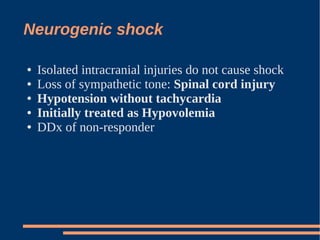

Neurogenic shock

●   Isolated intracranial injuries do not cause shock
●   Loss of sympathetic tone: Spinal cord injury
●   Hypotension without tachycardia
●   Initially treated as Hypovolemia
●   DDx of non-responder

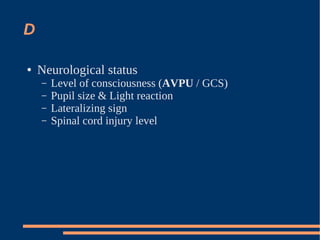

D

●   Neurological status
    –   Level of consciousness (AVPU / GCS)
    –   Pupil size & Light reaction
    –   Lateralizing sign
    –   Spinal cord injury level

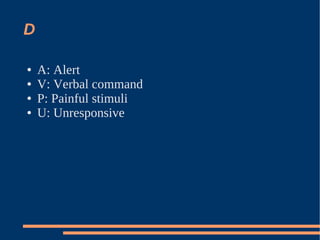

D

●   A: Alert
●   V: Verbal command
●   P: Painful stimuli
●   U: Unresponsive
D

●   Factors affect level of consciousness
    –   Oxygenation ( ABC )
    –   Ventilation ( ABC )
    –   Perfusion ( ABC )
    –   Hypoglycemia
    –   Drugs / Alcohol

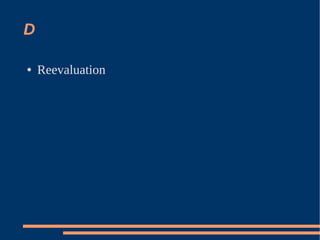

D

●   Reevaluation

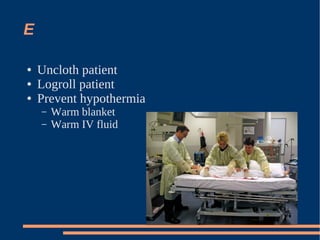

E

●   Uncloth patient
●   Logroll patient
●   Prevent hypothermia
    –   Warm blanket
    –   Warm IV fluid

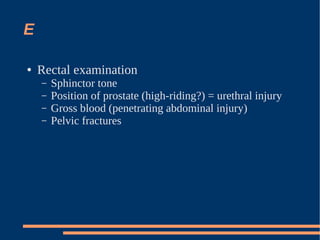

E

●   Rectal examination
    –   Sphinctor tone
    –   Position of prostate (high-riding?) = urethral injury
    –   Gross blood (penetrating abdominal injury)
    –   Pelvic fractures

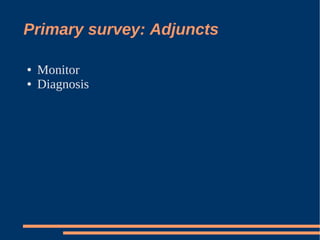

Primary survey: Adjuncts

●   Monitor
●   Diagnosis

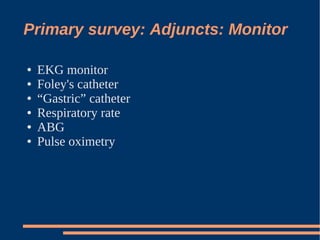

Primary survey: Adjuncts: Monitor

●   EKG monitor
●   Foley's catheter
●   “Gastric” catheter
●   Respiratory rate
●   ABG
●   Pulse oximetry

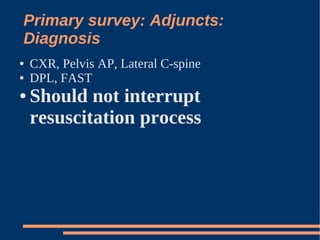

Primary survey: Adjuncts:
Diagnosis
●   CXR, Pelvis AP, Lateral C-spine
●   DPL, FAST
●   Should not interrupt
    resuscitation process
Foley's catheter

●   Contraindicated in Urethral injury
●   Suspected urethral injury
    –   Inability to void
    –   Unstable pelvic fracture
    –   Blood at meatus
    –   Scrotal hematoma
    –   Perineal ecchymoses
    –   High-riding prostate

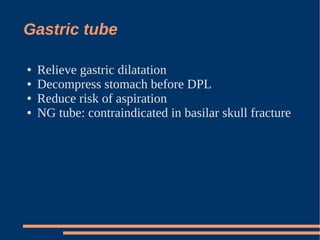

Gastric tube

●   Relieve gastric dilatation
●   Decompress stomach before DPL
●   Reduce risk of aspiration
●   NG tube: contraindicated in basilar skull fracture
Secondary Survey

●   Not begin until primary survey is completed
●   History (AMPLE)
●   Head-to-toe evaluation
●   GCS
●   X-rays

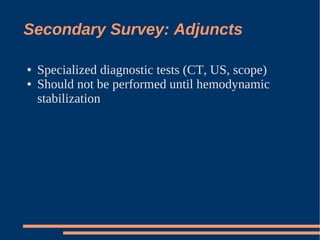

Secondary Survey: Adjuncts

●   Specialized diagnostic tests (CT, US, scope)
●   Should not be performed until hemodynamic
    stabilization

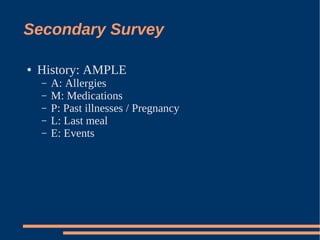

Secondary Survey

●   History: AMPLE
    –   A: Allergies
    –   M: Medications
    –   P: Past illnesses / Pregnancy
    –   L: Last meal
    –   E: Events
Secondary Survey

●   Physical examination
●   Head-to-toe examination

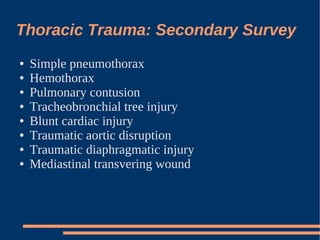

Thoracic Trauma: Secondary Survey
●   Simple pneumothorax
●   Hemothorax
●   Pulmonary contusion
●   Tracheobronchial tree injury
●   Blunt cardiac injury
●   Traumatic aortic disruption
●   Traumatic diaphragmatic injury
●   Mediastinal transvering wound

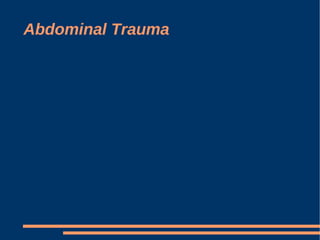

Abdominal Trauma

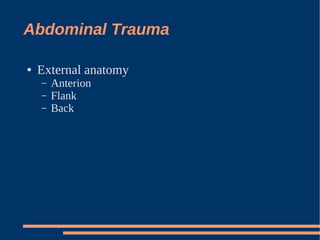

Abdominal Trauma

●   External anatomy
    –   Anterion
    –   Flank
    –   Back
Abdominal Trauma

●   Internal anatomy
    –   Peritoneal cavity
    –   Pelvic cavity
    –   Retroperitoneal space
Abdominal Trauma

●   Mechanism of injury
    –   Blunt
    –   Penetrating

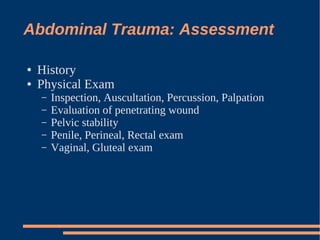

Abdominal Trauma: Assessment

●   History
●   Physical Exam
    –   Inspection, Auscultation, Percussion, Palpation
    –   Evaluation of penetrating wound
    –   Pelvic stability
    –   Penile, Perineal, Rectal exam
    –   Vaginal, Gluteal exam

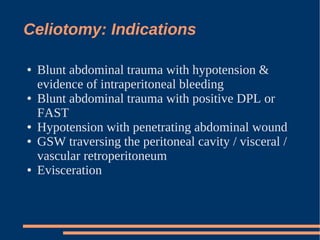

Celiotomy: Indications

●   Blunt abdominal trauma with hypotension &
    evidence of intraperitoneal bleeding
●   Blunt abdominal trauma with positive DPL or
    FAST
●   Hypotension with penetrating abdominal wound
●   GSW traversing the peritoneal cavity / visceral /
    vascular retroperitoneum
●   Evisceration

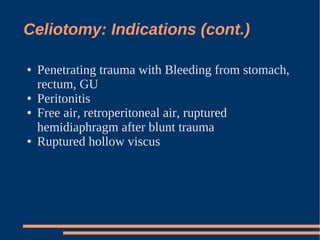

Celiotomy: Indications (cont.)

●   Penetrating trauma with Bleeding from stomach,
    rectum, GU
●   Peritonitis
●   Free air, retroperitoneal air, ruptured
    hemidiaphragm after blunt trauma
●   Ruptured hollow viscus

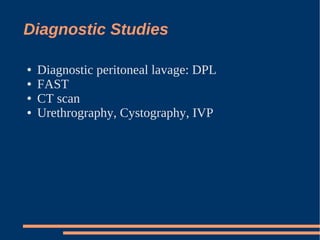

Diagnostic Studies

●   Diagnostic peritoneal lavage: DPL
●   FAST
●   CT scan
●   Urethrography, Cystography, IVP

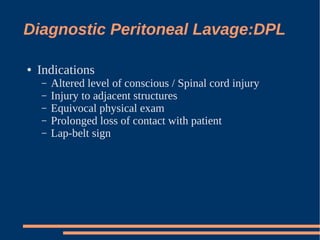

Diagnostic Peritoneal Lavage:DPL

●   Indications
    –   Altered level of conscious / Spinal cord injury
    –   Injury to adjacent structures
    –   Equivocal physical exam
    –   Prolonged loss of contact with patient
    –   Lap-belt sign

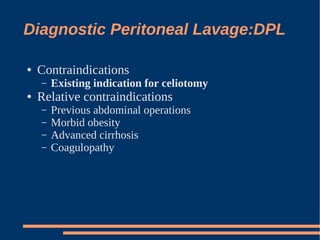

Diagnostic Peritoneal Lavage:DPL

●   Contraindications
    –   Existing indication for celiotomy
●   Relative contraindications
    –   Previous abdominal operations
    –   Morbid obesity
    –   Advanced cirrhosis
    –   Coagulopathy

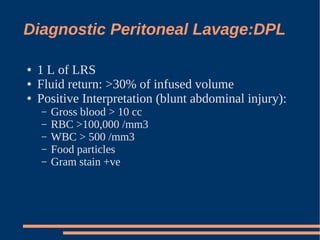

Diagnostic Peritoneal Lavage:DPL

●   1 L of LRS
●   Fluid return: >30% of infused volume
●   Positive Interpretation (blunt abdominal injury):
    –   Gross blood > 10 cc
    –   RBC >100,000 /mm3
    –   WBC > 500 /mm3
    –   Food particles
    –   Gram stain +ve

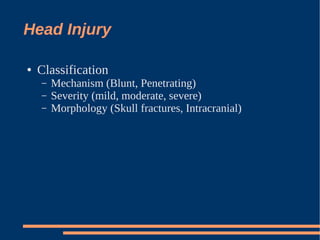

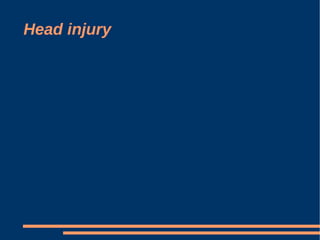

Head injury
Head Injury

●   Classification
    –   Mechanism (Blunt, Penetrating)
    –   Severity (mild, moderate, severe)
    –   Morphology (Skull fractures, Intracranial)
Head Injury: Severity

●   Mild: GCS 13-15
●   Moderate: GCS 9-12
●   Severe: GCS 3-8
Head Injury: Morphology

●   Skull fractures
●   Intracranial
    –   Epiduralhematoma
    –   Subdural hematoma
    –   Intracerebral hematoma
    –   Diffuse brain injury

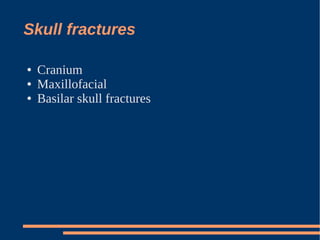

Skull fractures

●   Cranium
●   Maxillofacial
●   Basilar skull fractures
Basilar skull fracture

●   Raccoon's eyes
●   Battle's sign
●   CSF rhinorrhea / otorrhea
Epidural Hematoma

●   Arterial origin (middle
    meningeal a.)
●   CT: lenticular shape

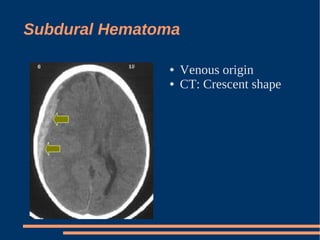

Subdural Hematoma

               ●   Venous origin
               ●   CT: Crescent shape
Intracerebral Hematoma

                 ●   Brain laceration

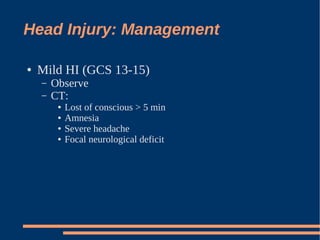

Head Injury: Management

●   Mild HI (GCS 13-15)
    –   Observe
    –   CT:
         ●   Lost of conscious > 5 min
         ●   Amnesia
         ●   Severe headache
         ●   Focal neurological deficit
Head Injury: Management

●   Moderate HI (GCS 9-12)
    –   CT brain
    –   Admit observe neurosigns
    –   F/U CT brain 12-24 h

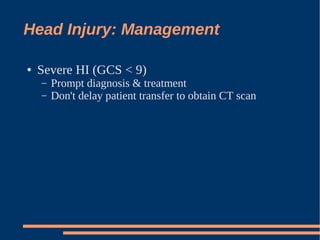

Head Injury: Management

●   Severe HI (GCS < 9)
    –   Prompt diagnosis & treatment
    –   Don't delay patient transfer to obtain CT scan

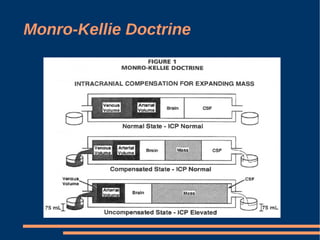

Monro-Kellie Doctrine

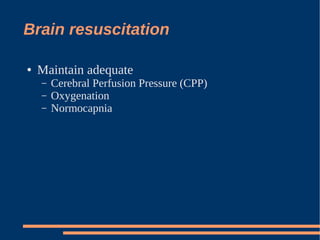

Brain resuscitation

●   Maintain adequate
    –   Cerebral Perfusion Pressure (CPP)
    –   Oxygenation
    –   Normocapnia

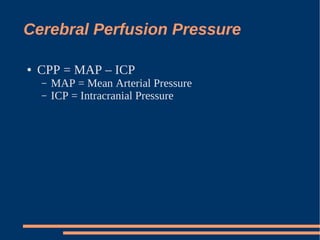

Cerebral Perfusion Pressure

●   CPP = MAP – ICP
    –   MAP = Mean Arterial Pressure
    –   ICP = Intracranial Pressure
Cerebral Perfusion Pressure

●   CPP = MAP – ICP
    –   MAP = Mean Arterial Pressure
         ●   Stabilize Vital signs
         ●   IV fluids
    –   ICP = Intracranial Pressure
         ●   Hyperventilation (limited usage)
         ●   Mannitol (1g/kg)
         ●   Furosemide

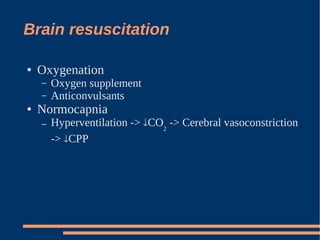

Brain resuscitation

●   Oxygenation
    –   Oxygen supplement
    –   Anticonvulsants
●   Normocapnia
    –   Hyperventilation -> CO2 -> Cerebral vasoconstriction
        -> CPP

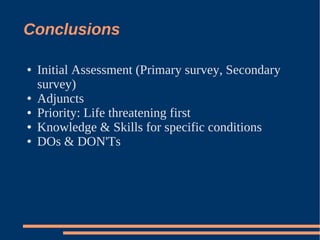

Conclusions

●   Initial Assessment (Primary survey, Secondary
    survey)
●   Adjuncts
●   Priority: Life threatening first
●   Knowledge & Skills for specific conditions
●   DOs & DON'Ts
Q?
http://www.slideshare.net/narenthorn/introduction-to-atls-presentation/

More Related Content

What's hot

INITIAL ASSESSMENT OF TRAUMA PATIENTS....(INSPIRED FROM CTLS AND ATLS GUIDELI...
INITIAL ASSESSMENT OF TRAUMA PATIENTS....(INSPIRED FROM CTLS AND ATLS GUIDELI...INITIAL ASSESSMENT OF TRAUMA PATIENTS....(INSPIRED FROM CTLS AND ATLS GUIDELI...
INITIAL ASSESSMENT OF TRAUMA PATIENTS....(INSPIRED FROM CTLS AND ATLS GUIDELI...
Prerna Biswal

Initial Assessment and Management for Trauma
Initial Assessment and Management for TraumaInitial Assessment and Management for Trauma
Initial Assessment and Management for Trauma
Paleenui Jariyakanjana

Advanced trauma life support (atls)
Advanced trauma life support (atls)Advanced trauma life support (atls)
Advanced trauma life support (atls)
Saleh Bakry

Advanced trauma and life support (atls)
Advanced trauma and life support (atls)Advanced trauma and life support (atls)
Advanced trauma and life support (atls)
anu_sandhya

Advanced trauma life support
Advanced trauma life supportAdvanced trauma life support
Advanced trauma life support
yakubuahmed1

ATLS (Advance Trauma Life Support)
ATLS (Advance Trauma Life Support)ATLS (Advance Trauma Life Support)
ATLS (Advance Trauma Life Support)
Aamirr Xeb

Polytrauma part 7 (Management)
Polytrauma part 7 (Management)Polytrauma part 7 (Management)
Polytrauma part 7 (Management)
fathi neana

MANAGEMENT OF TRAUMA
MANAGEMENT OF TRAUMAMANAGEMENT OF TRAUMA
MANAGEMENT OF TRAUMA
annaselvabai

ATLS 10th Edition Compendium of Change
ATLS 10th Edition Compendium of ChangeATLS 10th Edition Compendium of Change
ATLS 10th Edition Compendium of Change
Sun Yai-Cheng

Approach to trauma- ATLS update by Dr.Damodhar.M.V
Approach to trauma- ATLS update by Dr.Damodhar.M.VApproach to trauma- ATLS update by Dr.Damodhar.M.V
Approach to trauma- ATLS update by Dr.Damodhar.M.V
Dr.Damodhar.M.V MBBS,CSSGB,MBA,CPHQ

Fast Scan
Fast ScanFast Scan
Initial assessment and management of trauma
Initial assessment and management of traumaInitial assessment and management of trauma
Initial assessment and management of trauma
VASS Yukon

POLYTRAUMA
POLYTRAUMAPOLYTRAUMA
Prinary survey ATLS
Prinary survey ATLSPrinary survey ATLS
Prinary survey ATLS
Dr Abd Elaal Elbahnasy

Atls (advance trauma life support) PRIMARY SURVEY
Atls (advance trauma life support) PRIMARY SURVEYAtls (advance trauma life support) PRIMARY SURVEY
Atls (advance trauma life support) PRIMARY SURVEY
SALAH HAMADA

Introduction to pre hospital care and in
Introduction to pre hospital care and inIntroduction to pre hospital care and in
Introduction to pre hospital care and in
Ismail Mohd Saiboon

Poly trauma module
Poly trauma modulePoly trauma module
Poly trauma module
Junaid Sofi

Management of Trauma
Management of TraumaManagement of Trauma
Management of Trauma
Muhammad Eimaduddin

Trauma survey
Trauma surveyTrauma survey
Trauma survey
krishna kiran

Principles of Management of the multiply injured patient
Principles of Management of the multiply injured patientPrinciples of Management of the multiply injured patient
Principles of Management of the multiply injured patient
CHRIS ALUMONA


What's hot (20)

INITIAL ASSESSMENT OF TRAUMA PATIENTS....(INSPIRED FROM CTLS AND ATLS GUIDELI...
INITIAL ASSESSMENT OF TRAUMA PATIENTS....(INSPIRED FROM CTLS AND ATLS GUIDELI...INITIAL ASSESSMENT OF TRAUMA PATIENTS....(INSPIRED FROM CTLS AND ATLS GUIDELI...
INITIAL ASSESSMENT OF TRAUMA PATIENTS....(INSPIRED FROM CTLS AND ATLS GUIDELI...

Initial Assessment and Management for Trauma
Initial Assessment and Management for TraumaInitial Assessment and Management for Trauma
Initial Assessment and Management for Trauma

Advanced trauma life support (atls)
Advanced trauma life support (atls)Advanced trauma life support (atls)
Advanced trauma life support (atls)

Advanced trauma and life support (atls)
Advanced trauma and life support (atls)Advanced trauma and life support (atls)
Advanced trauma and life support (atls)

Advanced trauma life support
Advanced trauma life supportAdvanced trauma life support
Advanced trauma life support

ATLS (Advance Trauma Life Support)
ATLS (Advance Trauma Life Support)ATLS (Advance Trauma Life Support)
ATLS (Advance Trauma Life Support)

Polytrauma part 7 (Management)
Polytrauma part 7 (Management)Polytrauma part 7 (Management)
Polytrauma part 7 (Management)

MANAGEMENT OF TRAUMA
MANAGEMENT OF TRAUMAMANAGEMENT OF TRAUMA
MANAGEMENT OF TRAUMA

ATLS 10th Edition Compendium of Change
ATLS 10th Edition Compendium of ChangeATLS 10th Edition Compendium of Change
ATLS 10th Edition Compendium of Change

Approach to trauma- ATLS update by Dr.Damodhar.M.V
Approach to trauma- ATLS update by Dr.Damodhar.M.VApproach to trauma- ATLS update by Dr.Damodhar.M.V
Approach to trauma- ATLS update by Dr.Damodhar.M.V

Fast Scan
Fast ScanFast Scan
Fast Scan

Initial assessment and management of trauma
Initial assessment and management of traumaInitial assessment and management of trauma
Initial assessment and management of trauma

POLYTRAUMA
POLYTRAUMAPOLYTRAUMA
POLYTRAUMA

Prinary survey ATLS
Prinary survey ATLSPrinary survey ATLS
Prinary survey ATLS

Atls (advance trauma life support) PRIMARY SURVEY
Atls (advance trauma life support) PRIMARY SURVEYAtls (advance trauma life support) PRIMARY SURVEY
Atls (advance trauma life support) PRIMARY SURVEY

Introduction to pre hospital care and in
Introduction to pre hospital care and inIntroduction to pre hospital care and in
Introduction to pre hospital care and in

Poly trauma module
Poly trauma modulePoly trauma module
Poly trauma module

Management of Trauma
Management of TraumaManagement of Trauma
Management of Trauma

Trauma survey
Trauma surveyTrauma survey
Trauma survey

Principles of Management of the multiply injured patient
Principles of Management of the multiply injured patientPrinciples of Management of the multiply injured patient
Principles of Management of the multiply injured patient


Viewers also liked

Osteotomies around hip by dr rohit kumar
Osteotomies around hip by dr rohit kumarOsteotomies around hip by dr rohit kumar
Osteotomies around hip by dr rohit kumar
Dr Rohit Kumar

Bone grafting
Bone graftingBone grafting
Femoroacetabular Impingment: Evidence Based Tratment
Femoroacetabular Impingment: Evidence Based TratmentFemoroacetabular Impingment: Evidence Based Tratment
Femoroacetabular Impingment: Evidence Based Tratment
Physical Therapy Central

Surgical site infection
Surgical site infectionSurgical site infection
Surgical site infection
orthoprince

Adolescent hip
Adolescent hipAdolescent hip
Adolescent hip
orthoprince

Surgical site infection (2)
Surgical site infection (2)Surgical site infection (2)
Surgical site infection (2)
orthoprince

Gait analysis
Gait analysisGait analysis
Gait analysis
orthoprince

Tests for shoulder joint
Tests for shoulder jointTests for shoulder joint
Tests for shoulder joint
Aarti Sareen

Meniscus Transplant
Meniscus TransplantMeniscus Transplant
Meniscus Transplant
sfkneerobot

Dorsal Anatomic Plantar Plate Repair
Dorsal Anatomic Plantar Plate RepairDorsal Anatomic Plantar Plate Repair
Dorsal Anatomic Plantar Plate Repair
Wenjay Sung

Approach To Overuse Related Shoulder Injuries
Approach To Overuse Related Shoulder InjuriesApproach To Overuse Related Shoulder Injuries
Approach To Overuse Related Shoulder Injuries
MedicineAndHealthUSA

Clinical examination of elbow joint
Clinical examination of elbow jointClinical examination of elbow joint
Clinical examination of elbow joint
varuntandra

Rcd osteo
Rcd osteoRcd osteo
Rickets
RicketsRickets
Rickets
orthoprince

Evaluating medical evidence for journalists
Evaluating medical evidence for journalistsEvaluating medical evidence for journalists
Evaluating medical evidence for journalists
Ivan Oransky

Orthopedics 5th year, 4th lecture (Dr. Hamid)
Orthopedics 5th year, 4th lecture (Dr. Hamid)Orthopedics 5th year, 4th lecture (Dr. Hamid)
Orthopedics 5th year, 4th lecture (Dr. Hamid)
College of Medicine, Sulaymaniyah

Mangled extremity
Mangled extremityMangled extremity
Mangled extremity
Rohit Vikas

Ewings sarcoma - Dr. Vandana
Ewings sarcoma - Dr. VandanaEwings sarcoma - Dr. Vandana
Ewings sarcoma - Dr. Vandana
Dr Vandana Singh Kushwaha

Management of Hip Dislocations
Management of Hip DislocationsManagement of Hip Dislocations
Management of Hip Dislocations
ahmedashourful

Spina bifida
Spina bifida  Spina bifida
Spina bifida
orthoprince


Viewers also liked (20)

Osteotomies around hip by dr rohit kumar
Osteotomies around hip by dr rohit kumarOsteotomies around hip by dr rohit kumar
Osteotomies around hip by dr rohit kumar

Bone grafting
Bone graftingBone grafting
Bone grafting

Femoroacetabular Impingment: Evidence Based Tratment
Femoroacetabular Impingment: Evidence Based TratmentFemoroacetabular Impingment: Evidence Based Tratment
Femoroacetabular Impingment: Evidence Based Tratment

Surgical site infection
Surgical site infectionSurgical site infection
Surgical site infection

Adolescent hip
Adolescent hipAdolescent hip
Adolescent hip

Surgical site infection (2)
Surgical site infection (2)Surgical site infection (2)
Surgical site infection (2)

Gait analysis
Gait analysisGait analysis
Gait analysis

Tests for shoulder joint
Tests for shoulder jointTests for shoulder joint
Tests for shoulder joint

Meniscus Transplant
Meniscus TransplantMeniscus Transplant
Meniscus Transplant

Dorsal Anatomic Plantar Plate Repair
Dorsal Anatomic Plantar Plate RepairDorsal Anatomic Plantar Plate Repair
Dorsal Anatomic Plantar Plate Repair

Approach To Overuse Related Shoulder Injuries
Approach To Overuse Related Shoulder InjuriesApproach To Overuse Related Shoulder Injuries
Approach To Overuse Related Shoulder Injuries

Clinical examination of elbow joint
Clinical examination of elbow jointClinical examination of elbow joint
Clinical examination of elbow joint

Rcd osteo
Rcd osteoRcd osteo
Rcd osteo

Rickets
RicketsRickets
Rickets

Evaluating medical evidence for journalists
Evaluating medical evidence for journalistsEvaluating medical evidence for journalists
Evaluating medical evidence for journalists

Orthopedics 5th year, 4th lecture (Dr. Hamid)
Orthopedics 5th year, 4th lecture (Dr. Hamid)Orthopedics 5th year, 4th lecture (Dr. Hamid)
Orthopedics 5th year, 4th lecture (Dr. Hamid)

Mangled extremity
Mangled extremityMangled extremity
Mangled extremity

Ewings sarcoma - Dr. Vandana
Ewings sarcoma - Dr. VandanaEwings sarcoma - Dr. Vandana
Ewings sarcoma - Dr. Vandana

Management of Hip Dislocations
Management of Hip DislocationsManagement of Hip Dislocations
Management of Hip Dislocations

Spina bifida
Spina bifida  Spina bifida
Spina bifida


Similar to Introduction To ATLS

Cardiology and Hematology Ppt
Cardiology and Hematology PptCardiology and Hematology Ppt
Cardiology and Hematology Ppt
precyrose

Cardio2
Cardio2Cardio2
Cardio2
xtrm nurse

Initial assessment in trauma
Initial assessment in traumaInitial assessment in trauma
Initial assessment in trauma
HappyFridayKnight

Chest trauma pg
Chest trauma pgChest trauma pg
Chest trauma pg
Dr Rajinder Dhaliwal

Shock
ShockShock
Shock
Sam George

Archer Critical care for USMLE Step 3
Archer Critical care for USMLE Step 3Archer Critical care for USMLE Step 3
Archer Critical care for USMLE Step 3
Archer Review USMLE and NCLEX

Pulmonary arterial hypertension
Pulmonary arterial hypertensionPulmonary arterial hypertension
Pulmonary arterial hypertension
Anusha Rameshwaram

S
SS
Microsoft Power Point Cardiovascular Disorders Ebi
Microsoft Power Point   Cardiovascular Disorders EbiMicrosoft Power Point   Cardiovascular Disorders Ebi
Microsoft Power Point Cardiovascular Disorders Ebi
Nio Noveno

Trauma Lecture
Trauma LectureTrauma Lecture
Trauma Lecture
shabeel pn

Clinical features & Diagnosis of Pulmonary Vascular Diseases
Clinical features & Diagnosis of Pulmonary Vascular DiseasesClinical features & Diagnosis of Pulmonary Vascular Diseases
Clinical features & Diagnosis of Pulmonary Vascular Diseases
Bala Murugan

Examination of Cardiovascular system.pptx
Examination of Cardiovascular system.pptxExamination of Cardiovascular system.pptx
Examination of Cardiovascular system.pptx
Nahom Kifle

Cardiovascular disease, interventions and care
Cardiovascular disease, interventions and careCardiovascular disease, interventions and care
Cardiovascular disease, interventions and care
ckiskadden

shock
shock shock
shock
Dr Kumar

Cardiovascular system
Cardiovascular systemCardiovascular system
Cardiovascular system
Sparsh Srivastava

Hemodynamics Basic Concepts
Hemodynamics Basic ConceptsHemodynamics Basic Concepts
Hemodynamics Basic Concepts
vclavir

The Hemodynamic
The HemodynamicThe Hemodynamic
The Hemodynamic
Surgery

cprpptakki-140325124335-phpapp01.pdf
cprpptakki-140325124335-phpapp01.pdfcprpptakki-140325124335-phpapp01.pdf
cprpptakki-140325124335-phpapp01.pdf
Madhuri521470

Cpr ppt
Cpr ppt Cpr ppt
Shock
ShockShock

Similar to Introduction To ATLS (20)

Cardiology and Hematology Ppt
Cardiology and Hematology PptCardiology and Hematology Ppt
Cardiology and Hematology Ppt

Cardio2
Cardio2Cardio2
Cardio2

Initial assessment in trauma
Initial assessment in traumaInitial assessment in trauma
Initial assessment in trauma

Chest trauma pg
Chest trauma pgChest trauma pg
Chest trauma pg

Shock
ShockShock
Shock

Archer Critical care for USMLE Step 3
Archer Critical care for USMLE Step 3Archer Critical care for USMLE Step 3
Archer Critical care for USMLE Step 3

Pulmonary arterial hypertension
Pulmonary arterial hypertensionPulmonary arterial hypertension
Pulmonary arterial hypertension

S
SS
S

Microsoft Power Point Cardiovascular Disorders Ebi
Microsoft Power Point   Cardiovascular Disorders EbiMicrosoft Power Point   Cardiovascular Disorders Ebi
Microsoft Power Point Cardiovascular Disorders Ebi

Trauma Lecture
Trauma LectureTrauma Lecture
Trauma Lecture

Clinical features & Diagnosis of Pulmonary Vascular Diseases
Clinical features & Diagnosis of Pulmonary Vascular DiseasesClinical features & Diagnosis of Pulmonary Vascular Diseases
Clinical features & Diagnosis of Pulmonary Vascular Diseases

Examination of Cardiovascular system.pptx
Examination of Cardiovascular system.pptxExamination of Cardiovascular system.pptx
Examination of Cardiovascular system.pptx

Cardiovascular disease, interventions and care
Cardiovascular disease, interventions and careCardiovascular disease, interventions and care
Cardiovascular disease, interventions and care

shock
shock shock
shock

Cardiovascular system
Cardiovascular systemCardiovascular system
Cardiovascular system

Hemodynamics Basic Concepts
Hemodynamics Basic ConceptsHemodynamics Basic Concepts
Hemodynamics Basic Concepts

The Hemodynamic
The HemodynamicThe Hemodynamic
The Hemodynamic

cprpptakki-140325124335-phpapp01.pdf
cprpptakki-140325124335-phpapp01.pdfcprpptakki-140325124335-phpapp01.pdf
cprpptakki-140325124335-phpapp01.pdf

Cpr ppt
Cpr ppt Cpr ppt
Cpr ppt

Shock
ShockShock
Shock


More from Narenthorn EMS Center

First aid by Narenthorn 2016
First aid by Narenthorn 2016First aid by Narenthorn 2016
First aid by Narenthorn 2016
Narenthorn EMS Center

CPR2015 update: ACS and Special circumstances
CPR2015 update: ACS and Special circumstancesCPR2015 update: ACS and Special circumstances
CPR2015 update: ACS and Special circumstances
Narenthorn EMS Center

CPR2015 update: PBLS
CPR2015 update: PBLSCPR2015 update: PBLS
CPR2015 update: PBLS
Narenthorn EMS Center

CPR2015 update: Adult ACLS
CPR2015 update: Adult ACLSCPR2015 update: Adult ACLS
CPR2015 update: Adult ACLS
Narenthorn EMS Center

CPR2015 update: PALS
CPR2015 update: PALSCPR2015 update: PALS
CPR2015 update: PALS
Narenthorn EMS Center

Neonatal resuscitation 2015
Neonatal resuscitation 2015Neonatal resuscitation 2015
Neonatal resuscitation 2015
Narenthorn EMS Center

CPR2015 update: BLS, CPR Quality and First aid
CPR2015 update: BLS, CPR Quality and First aidCPR2015 update: BLS, CPR Quality and First aid
CPR2015 update: BLS, CPR Quality and First aid
Narenthorn EMS Center

CPR2015 update: Ethical issues
CPR2015 update: Ethical issuesCPR2015 update: Ethical issues
CPR2015 update: Ethical issues
Narenthorn EMS Center

การอำนวยความสะดวกการจราจรระหว่างการซ้อมแผน
การอำนวยความสะดวกการจราจรระหว่างการซ้อมแผนการอำนวยความสะดวกการจราจรระหว่างการซ้อมแผน
การอำนวยความสะดวกการจราจรระหว่างการซ้อมแผนNarenthorn EMS Center

Team dynamic for Advanced life support checklist
Team dynamic for Advanced life support checklistTeam dynamic for Advanced life support checklist
Team dynamic for Advanced life support checklistNarenthorn EMS Center

Trauma Initial assessment and Resuscitation
Trauma Initial assessment and ResuscitationTrauma Initial assessment and Resuscitation
Trauma Initial assessment and Resuscitation
Narenthorn EMS Center

PALS 2010
PALS 2010PALS 2010
EKG in ACLS
EKG in ACLSEKG in ACLS
การยกและการเคลื่อนย้ายผู้ป่วย
การยกและการเคลื่อนย้ายผู้ป่วยการยกและการเคลื่อนย้ายผู้ป่วย
การยกและการเคลื่อนย้ายผู้ป่วย
Narenthorn EMS Center

Neonatal resuscitation การช่วยฟื้นชีวิตทารกและทารกแรกเกิด
Neonatal resuscitation การช่วยฟื้นชีวิตทารกและทารกแรกเกิดNeonatal resuscitation การช่วยฟื้นชีวิตทารกและทารกแรกเกิด
Neonatal resuscitation การช่วยฟื้นชีวิตทารกและทารกแรกเกิดNarenthorn EMS Center

Airway workshop Reading material
Airway workshop Reading materialAirway workshop Reading material
Airway workshop Reading material
Narenthorn EMS Center

APHLS & EMS director 2011 Exam
APHLS & EMS director 2011 ExamAPHLS & EMS director 2011 Exam
APHLS & EMS director 2011 Exam
Narenthorn EMS Center


More from Narenthorn EMS Center (20)

First aid by Narenthorn 2016
First aid by Narenthorn 2016First aid by Narenthorn 2016
First aid by Narenthorn 2016

CPR2015 update: ACS and Special circumstances
CPR2015 update: ACS and Special circumstancesCPR2015 update: ACS and Special circumstances
CPR2015 update: ACS and Special circumstances

CPR2015 update: PBLS
CPR2015 update: PBLSCPR2015 update: PBLS
CPR2015 update: PBLS

CPR2015 update: Adult ACLS
CPR2015 update: Adult ACLSCPR2015 update: Adult ACLS
CPR2015 update: Adult ACLS

CPR2015 update: PALS
CPR2015 update: PALSCPR2015 update: PALS
CPR2015 update: PALS

Neonatal resuscitation 2015
Neonatal resuscitation 2015Neonatal resuscitation 2015
Neonatal resuscitation 2015

CPR2015 update: BLS, CPR Quality and First aid
CPR2015 update: BLS, CPR Quality and First aidCPR2015 update: BLS, CPR Quality and First aid
CPR2015 update: BLS, CPR Quality and First aid

CPR2015 update: Ethical issues
CPR2015 update: Ethical issuesCPR2015 update: Ethical issues
CPR2015 update: Ethical issues

การอำนวยความสะดวกการจราจรระหว่างการซ้อมแผน
การอำนวยความสะดวกการจราจรระหว่างการซ้อมแผนการอำนวยความสะดวกการจราจรระหว่างการซ้อมแผน
การอำนวยความสะดวกการจราจรระหว่างการซ้อมแผน

Acute coronary syndrome 2010
Acute coronary syndrome 2010Acute coronary syndrome 2010
Acute coronary syndrome 2010

Team dynamic for Advanced life support checklist
Team dynamic for Advanced life support checklistTeam dynamic for Advanced life support checklist
Team dynamic for Advanced life support checklist

Acute Stroke 2010
Acute Stroke 2010Acute Stroke 2010
Acute Stroke 2010

ACLS 2010
ACLS 2010ACLS 2010
ACLS 2010

Trauma Initial assessment and Resuscitation
Trauma Initial assessment and ResuscitationTrauma Initial assessment and Resuscitation
Trauma Initial assessment and Resuscitation

PALS 2010
PALS 2010PALS 2010
PALS 2010

EKG in ACLS
EKG in ACLSEKG in ACLS
EKG in ACLS

การยกและการเคลื่อนย้ายผู้ป่วย
การยกและการเคลื่อนย้ายผู้ป่วยการยกและการเคลื่อนย้ายผู้ป่วย
การยกและการเคลื่อนย้ายผู้ป่วย

Neonatal resuscitation การช่วยฟื้นชีวิตทารกและทารกแรกเกิด
Neonatal resuscitation การช่วยฟื้นชีวิตทารกและทารกแรกเกิดNeonatal resuscitation การช่วยฟื้นชีวิตทารกและทารกแรกเกิด
Neonatal resuscitation การช่วยฟื้นชีวิตทารกและทารกแรกเกิด

Airway workshop Reading material
Airway workshop Reading materialAirway workshop Reading material
Airway workshop Reading material

APHLS & EMS director 2011 Exam
APHLS & EMS director 2011 ExamAPHLS & EMS director 2011 Exam
APHLS & EMS director 2011 Exam


Recently uploaded

Muscles of Mastication by Dr. Rabia Inam Gandapore.pptx
Muscles of Mastication by Dr. Rabia Inam Gandapore.pptxMuscles of Mastication by Dr. Rabia Inam Gandapore.pptx
Muscles of Mastication by Dr. Rabia Inam Gandapore.pptx
Dr. Rabia Inam Gandapore

TEST BANK For An Introduction to Brain and Behavior, 7th Edition by Bryan Kol...
TEST BANK For An Introduction to Brain and Behavior, 7th Edition by Bryan Kol...TEST BANK For An Introduction to Brain and Behavior, 7th Edition by Bryan Kol...
TEST BANK For An Introduction to Brain and Behavior, 7th Edition by Bryan Kol...
rightmanforbloodline

Ketone bodies and metabolism-biochemistry
Ketone bodies and metabolism-biochemistryKetone bodies and metabolism-biochemistry
Ketone bodies and metabolism-biochemistry
Dhayanithi C

Osteoporosis - Definition , Evaluation and Management .pdf
Osteoporosis - Definition , Evaluation and Management .pdfOsteoporosis - Definition , Evaluation and Management .pdf
Osteoporosis - Definition , Evaluation and Management .pdf
Jim Jacob Roy

Post-Menstrual Smell- When to Suspect Vaginitis.pptx
Post-Menstrual Smell- When to Suspect Vaginitis.pptxPost-Menstrual Smell- When to Suspect Vaginitis.pptx
Post-Menstrual Smell- When to Suspect Vaginitis.pptx
FFragrant

Cardiac Assessment for B.sc Nursing Student.pdf
Cardiac Assessment for B.sc Nursing Student.pdfCardiac Assessment for B.sc Nursing Student.pdf
Cardiac Assessment for B.sc Nursing Student.pdf
shivalingatalekar1

Top 10 Best Ayurvedic Kidney Stone Syrups in India
Top 10 Best Ayurvedic Kidney Stone Syrups in IndiaTop 10 Best Ayurvedic Kidney Stone Syrups in India
Top 10 Best Ayurvedic Kidney Stone Syrups in India
Swastik Ayurveda

The Best Ayurvedic Antacid Tablets in India
The Best Ayurvedic Antacid Tablets in IndiaThe Best Ayurvedic Antacid Tablets in India
The Best Ayurvedic Antacid Tablets in India
Swastik Ayurveda

Promoting Wellbeing - Applied Social Psychology - Psychology SuperNotes
Promoting Wellbeing - Applied Social Psychology - Psychology SuperNotesPromoting Wellbeing - Applied Social Psychology - Psychology SuperNotes
Promoting Wellbeing - Applied Social Psychology - Psychology SuperNotes
PsychoTech Services

TEST BANK For Basic and Clinical Pharmacology, 14th Edition by Bertram G. Kat...
TEST BANK For Basic and Clinical Pharmacology, 14th Edition by Bertram G. Kat...TEST BANK For Basic and Clinical Pharmacology, 14th Edition by Bertram G. Kat...
TEST BANK For Basic and Clinical Pharmacology, 14th Edition by Bertram G. Kat...
rightmanforbloodline

Diabetic nephropathy diagnosis treatment
Diabetic nephropathy diagnosis treatmentDiabetic nephropathy diagnosis treatment
Diabetic nephropathy diagnosis treatment
arahmanzai5

Aortic Association CBL Pilot April 19 – 20 Bern
Aortic Association CBL Pilot April 19 – 20 BernAortic Association CBL Pilot April 19 – 20 Bern
Aortic Association CBL Pilot April 19 – 20 Bern
suvadeepdas911

Journal Article Review on Rasamanikya
Journal Article Review on RasamanikyaJournal Article Review on Rasamanikya
Journal Article Review on Rasamanikya
Dr. Jyothirmai Paindla

Complementary feeding in infant IAP PROTOCOLS
Complementary feeding in infant IAP PROTOCOLSComplementary feeding in infant IAP PROTOCOLS
Complementary feeding in infant IAP PROTOCOLS
chiranthgowda16

Cell Therapy Expansion and Challenges in Autoimmune Disease
Cell Therapy Expansion and Challenges in Autoimmune DiseaseCell Therapy Expansion and Challenges in Autoimmune Disease
Cell Therapy Expansion and Challenges in Autoimmune Disease
Health Advances

Chapter 11 Nutrition and Chronic Diseases.pptx
Chapter 11 Nutrition and Chronic Diseases.pptxChapter 11 Nutrition and Chronic Diseases.pptx
Chapter 11 Nutrition and Chronic Diseases.pptx
Earlene McNair

Local Advanced Lung Cancer: Artificial Intelligence, Synergetics, Complex Sys...
Local Advanced Lung Cancer: Artificial Intelligence, Synergetics, Complex Sys...Local Advanced Lung Cancer: Artificial Intelligence, Synergetics, Complex Sys...
Local Advanced Lung Cancer: Artificial Intelligence, Synergetics, Complex Sys...
Oleg Kshivets

CBL Seminar 2024_Preliminary Program.pdf
CBL Seminar 2024_Preliminary Program.pdfCBL Seminar 2024_Preliminary Program.pdf
CBL Seminar 2024_Preliminary Program.pdf
suvadeepdas911

A Classical Text Review on Basavarajeeyam
A Classical Text Review on BasavarajeeyamA Classical Text Review on Basavarajeeyam
A Classical Text Review on Basavarajeeyam
Dr. Jyothirmai Paindla

REGULATION FOR COMBINATION PRODUCTS AND MEDICAL DEVICES.pptx
REGULATION FOR COMBINATION PRODUCTS AND MEDICAL DEVICES.pptxREGULATION FOR COMBINATION PRODUCTS AND MEDICAL DEVICES.pptx
REGULATION FOR COMBINATION PRODUCTS AND MEDICAL DEVICES.pptx
LaniyaNasrink


Recently uploaded (20)

Muscles of Mastication by Dr. Rabia Inam Gandapore.pptx
Muscles of Mastication by Dr. Rabia Inam Gandapore.pptxMuscles of Mastication by Dr. Rabia Inam Gandapore.pptx
Muscles of Mastication by Dr. Rabia Inam Gandapore.pptx

TEST BANK For An Introduction to Brain and Behavior, 7th Edition by Bryan Kol...
TEST BANK For An Introduction to Brain and Behavior, 7th Edition by Bryan Kol...TEST BANK For An Introduction to Brain and Behavior, 7th Edition by Bryan Kol...
TEST BANK For An Introduction to Brain and Behavior, 7th Edition by Bryan Kol...

Ketone bodies and metabolism-biochemistry
Ketone bodies and metabolism-biochemistryKetone bodies and metabolism-biochemistry
Ketone bodies and metabolism-biochemistry

Osteoporosis - Definition , Evaluation and Management .pdf
Osteoporosis - Definition , Evaluation and Management .pdfOsteoporosis - Definition , Evaluation and Management .pdf
Osteoporosis - Definition , Evaluation and Management .pdf

Post-Menstrual Smell- When to Suspect Vaginitis.pptx
Post-Menstrual Smell- When to Suspect Vaginitis.pptxPost-Menstrual Smell- When to Suspect Vaginitis.pptx
Post-Menstrual Smell- When to Suspect Vaginitis.pptx

Cardiac Assessment for B.sc Nursing Student.pdf
Cardiac Assessment for B.sc Nursing Student.pdfCardiac Assessment for B.sc Nursing Student.pdf
Cardiac Assessment for B.sc Nursing Student.pdf

Top 10 Best Ayurvedic Kidney Stone Syrups in India
Top 10 Best Ayurvedic Kidney Stone Syrups in IndiaTop 10 Best Ayurvedic Kidney Stone Syrups in India
Top 10 Best Ayurvedic Kidney Stone Syrups in India

The Best Ayurvedic Antacid Tablets in India
The Best Ayurvedic Antacid Tablets in IndiaThe Best Ayurvedic Antacid Tablets in India
The Best Ayurvedic Antacid Tablets in India

Promoting Wellbeing - Applied Social Psychology - Psychology SuperNotes
Promoting Wellbeing - Applied Social Psychology - Psychology SuperNotesPromoting Wellbeing - Applied Social Psychology - Psychology SuperNotes
Promoting Wellbeing - Applied Social Psychology - Psychology SuperNotes

TEST BANK For Basic and Clinical Pharmacology, 14th Edition by Bertram G. Kat...
TEST BANK For Basic and Clinical Pharmacology, 14th Edition by Bertram G. Kat...TEST BANK For Basic and Clinical Pharmacology, 14th Edition by Bertram G. Kat...
TEST BANK For Basic and Clinical Pharmacology, 14th Edition by Bertram G. Kat...

Diabetic nephropathy diagnosis treatment
Diabetic nephropathy diagnosis treatmentDiabetic nephropathy diagnosis treatment
Diabetic nephropathy diagnosis treatment

Aortic Association CBL Pilot April 19 – 20 Bern
Aortic Association CBL Pilot April 19 – 20 BernAortic Association CBL Pilot April 19 – 20 Bern
Aortic Association CBL Pilot April 19 – 20 Bern

Journal Article Review on Rasamanikya
Journal Article Review on RasamanikyaJournal Article Review on Rasamanikya
Journal Article Review on Rasamanikya

Complementary feeding in infant IAP PROTOCOLS
Complementary feeding in infant IAP PROTOCOLSComplementary feeding in infant IAP PROTOCOLS
Complementary feeding in infant IAP PROTOCOLS

Cell Therapy Expansion and Challenges in Autoimmune Disease
Cell Therapy Expansion and Challenges in Autoimmune DiseaseCell Therapy Expansion and Challenges in Autoimmune Disease
Cell Therapy Expansion and Challenges in Autoimmune Disease

Chapter 11 Nutrition and Chronic Diseases.pptx
Chapter 11 Nutrition and Chronic Diseases.pptxChapter 11 Nutrition and Chronic Diseases.pptx
Chapter 11 Nutrition and Chronic Diseases.pptx

Local Advanced Lung Cancer: Artificial Intelligence, Synergetics, Complex Sys...
Local Advanced Lung Cancer: Artificial Intelligence, Synergetics, Complex Sys...Local Advanced Lung Cancer: Artificial Intelligence, Synergetics, Complex Sys...
Local Advanced Lung Cancer: Artificial Intelligence, Synergetics, Complex Sys...

CBL Seminar 2024_Preliminary Program.pdf
CBL Seminar 2024_Preliminary Program.pdfCBL Seminar 2024_Preliminary Program.pdf
CBL Seminar 2024_Preliminary Program.pdf

A Classical Text Review on Basavarajeeyam
A Classical Text Review on BasavarajeeyamA Classical Text Review on Basavarajeeyam
A Classical Text Review on Basavarajeeyam

REGULATION FOR COMBINATION PRODUCTS AND MEDICAL DEVICES.pptx
REGULATION FOR COMBINATION PRODUCTS AND MEDICAL DEVICES.pptxREGULATION FOR COMBINATION PRODUCTS AND MEDICAL DEVICES.pptx
REGULATION FOR COMBINATION PRODUCTS AND MEDICAL DEVICES.pptx


Introduction To ATLS

  • 2. Objectives ● Concepts of primary & secondary survey ● Priorities & Life threatening conditions ● Clinical & Surgical skills
  • 3. Basic knowledge ● Rapid assessment ● Resuscitate & Stabilize (Prioritize) ● Patient's needs & facility's capabilities ● Appropriate transfer ● Optimum care
  • 4. Initial Assessment & Management ● Preparation (Prehospital - Hospital) ● Triage ● Primary survey (ABCDE) ● Resuscitation ● Adjuncts to primary survey & resuscitation ● ->
  • 5. Initial Assessment & Management ● Secondary survey ● Adjuncts to the secondary survey ● Postresuscitation monitoring ● Definitive care
  • 6. Primary Survey ● Treatment priorities ● A: Airway maintenance + C-spine protection ● B: Breathing & Ventilation ● C: Circulation & Hemorrhage control ● D: Disability – Neuro ● E: Exposure / Environment control
  • 7. A ● Airway – Patency / Obstruction – Severe head injury -> Definitive airway
  • 8. Airway: Patency ● Maxillofacial trauma ● Neck trauma ● Laryngeal trauma (Hoarseness, Subcutaneous emphysema, Palpable fracture)
  • 9. A ● C-spine protection – Multiple system trauma – Altered level of consciousness – Blunt injury above clavicle – Manual in-line stabilization
  • 10. A: Nexus ● Midline cervical tenderness ● Altered level of consciousness ● Evidence of intoxication ● Neurologic abnormality ● Presence of painful distracting injury
  • 11. A ● Trauma patient is dynamic ● Repeated assessment
  • 12. A: Resuscitation ● Jaw thust / Chin lift / Head tilt ● Naso / Oropharyngeal airway ● Combitube, LMA ● Definitive airway (Cuff in trachea) – Oro / Naso tracheal intubation – Surgical cricothyroidotomy
  • 13. Endotracheal intubation ● Indication – Provide patent airway – Deliver supplemental oxygen – Support ventilation – Prevent aspiration
  • 14. Endotracheal intubation ● Decision – Apnea (orotracheal) – Cannot maintain patent airway – Protect aspiration / vomitus – Impending compromise airway – Closed head injury required assisted ventilation – Inadequate oxygenation
  • 15. Surgical Airway ● Cricothyroidotomy / Tracheostomy ● Indication – Unable to intubate (severe maxillofacial injury, failed intubation) ● Contraindication – Airway transection
  • 17. B: Life Threatening Conditions ● Tension pneumothorax ● Flail chest with pulmonary contusion ● Massive Hemothorax ● Open pneumothorax ● Cardiac tamponade
  • 18. Thoracic Trauma: Primary survey ● Looking, Palpation, Percussion, Listening – Tension pneumothorax – Open pneumothorax (sucking chest wound) – Flail chest – Massive hemothorax – Cardiac tamponade
  • 19. Thoracic Trauma: Primary survey ● Tension pneumothorax – Chest pain, Respiratory distress, Tachycardia, Hypotension, Tracheal deviation, Absent breath sound, Neck vein distension – Immediate decompression ● Needle thoracostomy ● Intercostal drainage
  • 20. Thoracic Trauma: Primary survey ● Open pneumothorax (sucking chest wound) – > 2/3 of tracheal diameter – 3 sided dressing – Chest tube insertion
  • 21. Open Chest Wound: 3-Sided Dressing
  • 22. Thoracic Trauma: Primary survey ● Flail chest – >2 ribs fractures in 2 or more places – Paradoxical chest wall movement – Adequate ventilation – Reexpand lungs: Intubation
  • 23. Thoracic Trauma: Primary survey ● Massive hemothorax – >1500 cc of blood (1/3 of blood volume) in chest cavity – IV resuscitation – Chest tube – Thoracotomy ● >1500 cc immediately ● 200 cc/h for 2-4 h
  • 24. Thoracic Trauma: Primary survey ● Cardiac tamponade – Penetrating injury – Beck's triad – DDx from Tension pneumothorax – FAST / Echo – Pericardiocentesis
  • 25. B: Resuscitation ● Supplemental oxygen ● Tension pneumothorax decompression
  • 26. C: Circulation & Hemorrhage control ● Circulation – Blood volume & Cardiac output ● Level of consciousness ● Skin color ● Pulse
  • 27. C ● Hemorrhage control - External hemorrhage – Manual pressure – Splinting – Tourniquet – Hemostats
  • 28. C: Resuscitation ● 2 large-caliber IV catheter ● “warm” NSS, RLS ● Blood ● Control bleeding – Direct pressure – Operative control ● Vasopressors
  • 29. Shock ● Inadequate tissue perfusion / oxygenation ● Hemorrhagic / Non-hemorrhagic
  • 30. Hemorrhagic shock ● Most common cause of shock in trauma ● External vs Internal hemorrhage ● Blood volume = 7% of BW ● Rx: Volume replacement ● Shock Classification
  • 31. Hemorrhagic shock classification ● Class I – 15% blood loss – P < 100 – BP normal – PP normal – RR 14-20 – Urine output >30 cc/h – Mental status: Slightly anxious
  • 32. Hemorrhagic shock classification ● Class II – 15-30% blood loss – P > 100 – BP Normal – PP decreased – RR 20-30 – Urine output 20-30 cc/h – Mental status: mildly anxious
  • 33. Hemorrhagic shock classification ● Class III – 30-40% blood loss – P >120 – BP decreased – PP decreased – RR 30-40 – Urine output 5-15 cc/h – Mental status: confused
  • 34. Hemorrhagic shock classification ● Class IV – >40% blood loss – P >140 – BP decreased – PP decreased – RR > 35 – Urine output --- – Mental status: confused / lethargic
  • 35. Fluid replacement ● Class I, II: Crystalloid ● Class III, IV: Crystalloid, Blood ● Initial fluid therapy – 1-2 L for adult – 20 cc/kg for children ● “3-for-1” rule – 1 cc blood loss = 3 cc crystalloid replacement
  • 36. Response to fluid resuscitation ● Rapid response – <20% blood loss – Cross-match, Surgical consultation ● Transient response – 20-40% blood loss – On going blood loss – Blood transfusion, Surgical intervention
  • 37. Response to fluid resuscitation ● No response – Immediate operative intervention
  • 38. Non-hemorrhagic shock ● Cardiogenic shock ● Tension pneumothorax ● Neurogenic shock ● Septic shock
  • 39. Cardiogenic shock ● Cardiac contusion ● Cardiac tamponade: “Beck's triad” – Tachycardia – Muffled heart sound – Distended neck vein ● Echo / FAST
  • 40. Cardiac Tamponade ● Penetrating injury ● Beck's triad ● DDx from Tension pneumothorax ● FAST / Echo ● Rx: Pericardiocentesis
  • 41. Tension pneumothorax ● One-way valve ● Respiratory distress ● Subcutaneous emphysema ● Absent breath sound ● Hyperresonance on percussion ● Tracheal shift ● Distended neck vein ● Rx: Needle / Tube thoracostomy
  • 42. Neurogenic shock ● Isolated intracranial injuries do not cause shock ● Loss of sympathetic tone: Spinal cord injury ● Hypotension without tachycardia ● Initially treated as Hypovolemia ● DDx of non-responder
  • 43. D ● Neurological status – Level of consciousness (AVPU / GCS) – Pupil size & Light reaction – Lateralizing sign – Spinal cord injury level
  • 44. D ● A: Alert ● V: Verbal command ● P: Painful stimuli ● U: Unresponsive
  • 45. D ● Factors affect level of consciousness – Oxygenation ( ABC ) – Ventilation ( ABC ) – Perfusion ( ABC ) – Hypoglycemia – Drugs / Alcohol
  • 46. D ● Reevaluation
  • 47. E ● Uncloth patient ● Logroll patient ● Prevent hypothermia – Warm blanket – Warm IV fluid
  • 48. E ● Rectal examination – Sphinctor tone – Position of prostate (high-riding?) = urethral injury – Gross blood (penetrating abdominal injury) – Pelvic fractures
  • 49. Primary survey: Adjuncts ● Monitor ● Diagnosis
  • 50. Primary survey: Adjuncts: Monitor ● EKG monitor ● Foley's catheter ● “Gastric” catheter ● Respiratory rate ● ABG ● Pulse oximetry
  • 51. Primary survey: Adjuncts: Diagnosis ● CXR, Pelvis AP, Lateral C-spine ● DPL, FAST ● Should not interrupt resuscitation process
  • 52. Foley's catheter ● Contraindicated in Urethral injury ● Suspected urethral injury – Inability to void – Unstable pelvic fracture – Blood at meatus – Scrotal hematoma – Perineal ecchymoses – High-riding prostate
  • 53. Gastric tube ● Relieve gastric dilatation ● Decompress stomach before DPL ● Reduce risk of aspiration ● NG tube: contraindicated in basilar skull fracture
  • 54. Secondary Survey ● Not begin until primary survey is completed ● History (AMPLE) ● Head-to-toe evaluation ● GCS ● X-rays
  • 55. Secondary Survey: Adjuncts ● Specialized diagnostic tests (CT, US, scope) ● Should not be performed until hemodynamic stabilization
  • 56. Secondary Survey ● History: AMPLE – A: Allergies – M: Medications – P: Past illnesses / Pregnancy – L: Last meal – E: Events
  • 57. Secondary Survey ● Physical examination ● Head-to-toe examination
  • 58. Thoracic Trauma: Secondary Survey ● Simple pneumothorax ● Hemothorax ● Pulmonary contusion ● Tracheobronchial tree injury ● Blunt cardiac injury ● Traumatic aortic disruption ● Traumatic diaphragmatic injury ● Mediastinal transvering wound
  • 60. Abdominal Trauma ● External anatomy – Anterion – Flank – Back
  • 61. Abdominal Trauma ● Internal anatomy – Peritoneal cavity – Pelvic cavity – Retroperitoneal space
  • 62. Abdominal Trauma ● Mechanism of injury – Blunt – Penetrating
  • 63. Abdominal Trauma: Assessment ● History ● Physical Exam – Inspection, Auscultation, Percussion, Palpation – Evaluation of penetrating wound – Pelvic stability – Penile, Perineal, Rectal exam – Vaginal, Gluteal exam
  • 64. Celiotomy: Indications ● Blunt abdominal trauma with hypotension & evidence of intraperitoneal bleeding ● Blunt abdominal trauma with positive DPL or FAST ● Hypotension with penetrating abdominal wound ● GSW traversing the peritoneal cavity / visceral / vascular retroperitoneum ● Evisceration
  • 65. Celiotomy: Indications (cont.) ● Penetrating trauma with Bleeding from stomach, rectum, GU ● Peritonitis ● Free air, retroperitoneal air, ruptured hemidiaphragm after blunt trauma ● Ruptured hollow viscus
  • 66. Diagnostic Studies ● Diagnostic peritoneal lavage: DPL ● FAST ● CT scan ● Urethrography, Cystography, IVP
  • 67. Diagnostic Peritoneal Lavage:DPL ● Indications – Altered level of conscious / Spinal cord injury – Injury to adjacent structures – Equivocal physical exam – Prolonged loss of contact with patient – Lap-belt sign
  • 68. Diagnostic Peritoneal Lavage:DPL ● Contraindications – Existing indication for celiotomy ● Relative contraindications – Previous abdominal operations – Morbid obesity – Advanced cirrhosis – Coagulopathy
  • 69. Diagnostic Peritoneal Lavage:DPL ● 1 L of LRS ● Fluid return: >30% of infused volume ● Positive Interpretation (blunt abdominal injury): – Gross blood > 10 cc – RBC >100,000 /mm3 – WBC > 500 /mm3 – Food particles – Gram stain +ve
  • 71. Head Injury ● Classification – Mechanism (Blunt, Penetrating) – Severity (mild, moderate, severe) – Morphology (Skull fractures, Intracranial)
  • 72. Head Injury: Severity ● Mild: GCS 13-15 ● Moderate: GCS 9-12 ● Severe: GCS 3-8
  • 73. Head Injury: Morphology ● Skull fractures ● Intracranial – Epiduralhematoma – Subdural hematoma – Intracerebral hematoma – Diffuse brain injury
  • 74. Skull fractures ● Cranium ● Maxillofacial ● Basilar skull fractures
  • 75. Basilar skull fracture ● Raccoon's eyes ● Battle's sign ● CSF rhinorrhea / otorrhea
  • 76. Epidural Hematoma ● Arterial origin (middle meningeal a.) ● CT: lenticular shape
  • 77. Subdural Hematoma ● Venous origin ● CT: Crescent shape
  • 78. Intracerebral Hematoma ● Brain laceration
  • 79. Head Injury: Management ● Mild HI (GCS 13-15) – Observe – CT: ● Lost of conscious > 5 min ● Amnesia ● Severe headache ● Focal neurological deficit
  • 80. Head Injury: Management ● Moderate HI (GCS 9-12) – CT brain – Admit observe neurosigns – F/U CT brain 12-24 h
  • 81. Head Injury: Management ● Severe HI (GCS < 9) – Prompt diagnosis & treatment – Don't delay patient transfer to obtain CT scan
  • 83. Brain resuscitation ● Maintain adequate – Cerebral Perfusion Pressure (CPP) – Oxygenation – Normocapnia
  • 84. Cerebral Perfusion Pressure ● CPP = MAP – ICP – MAP = Mean Arterial Pressure – ICP = Intracranial Pressure
  • 85. Cerebral Perfusion Pressure ● CPP = MAP – ICP – MAP = Mean Arterial Pressure ● Stabilize Vital signs ● IV fluids – ICP = Intracranial Pressure ● Hyperventilation (limited usage) ● Mannitol (1g/kg) ● Furosemide
  • 86. Brain resuscitation ● Oxygenation – Oxygen supplement – Anticonvulsants ● Normocapnia – Hyperventilation -> CO2 -> Cerebral vasoconstriction -> CPP
  • 87. Conclusions ● Initial Assessment (Primary survey, Secondary survey) ● Adjuncts ● Priority: Life threatening first ● Knowledge & Skills for specific conditions ● DOs & DON'Ts
  • 88. Q?
