2. CONTENTS
• Introduction
• History of mobile generation
• Evolution of 4G

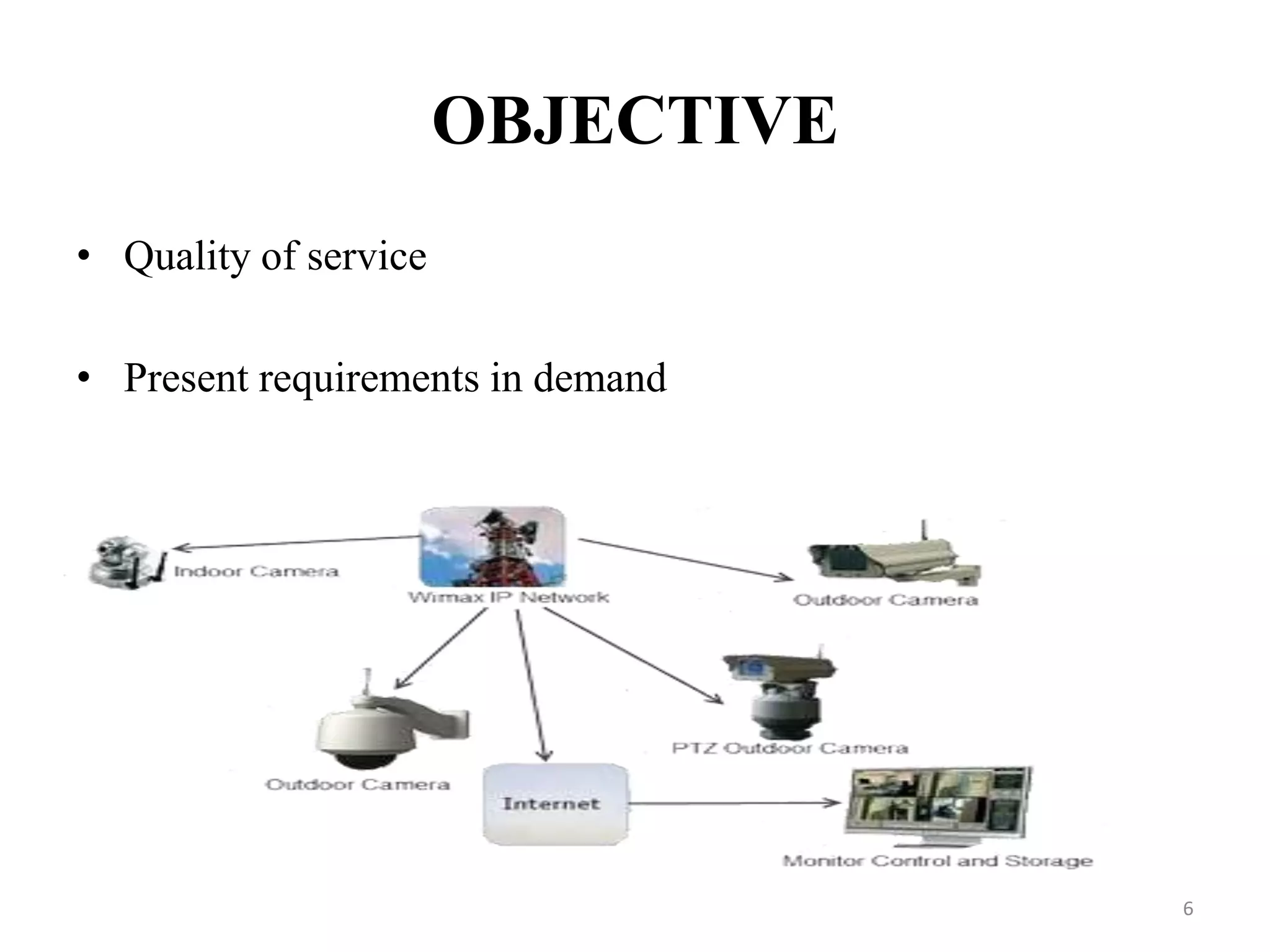

• Objectives
• Features

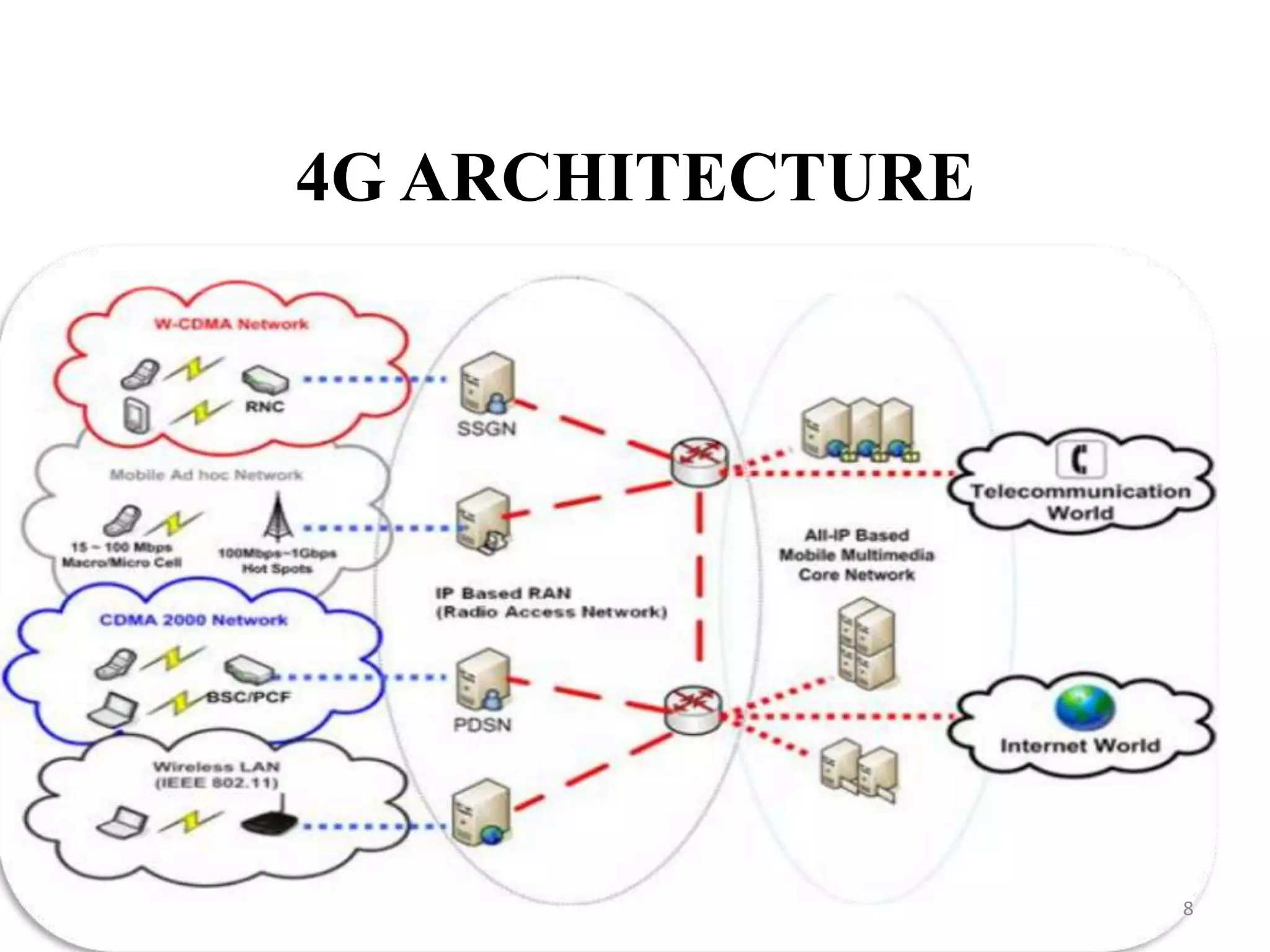

• 4G architecture
• 4G network in India
• 3G vs 4G

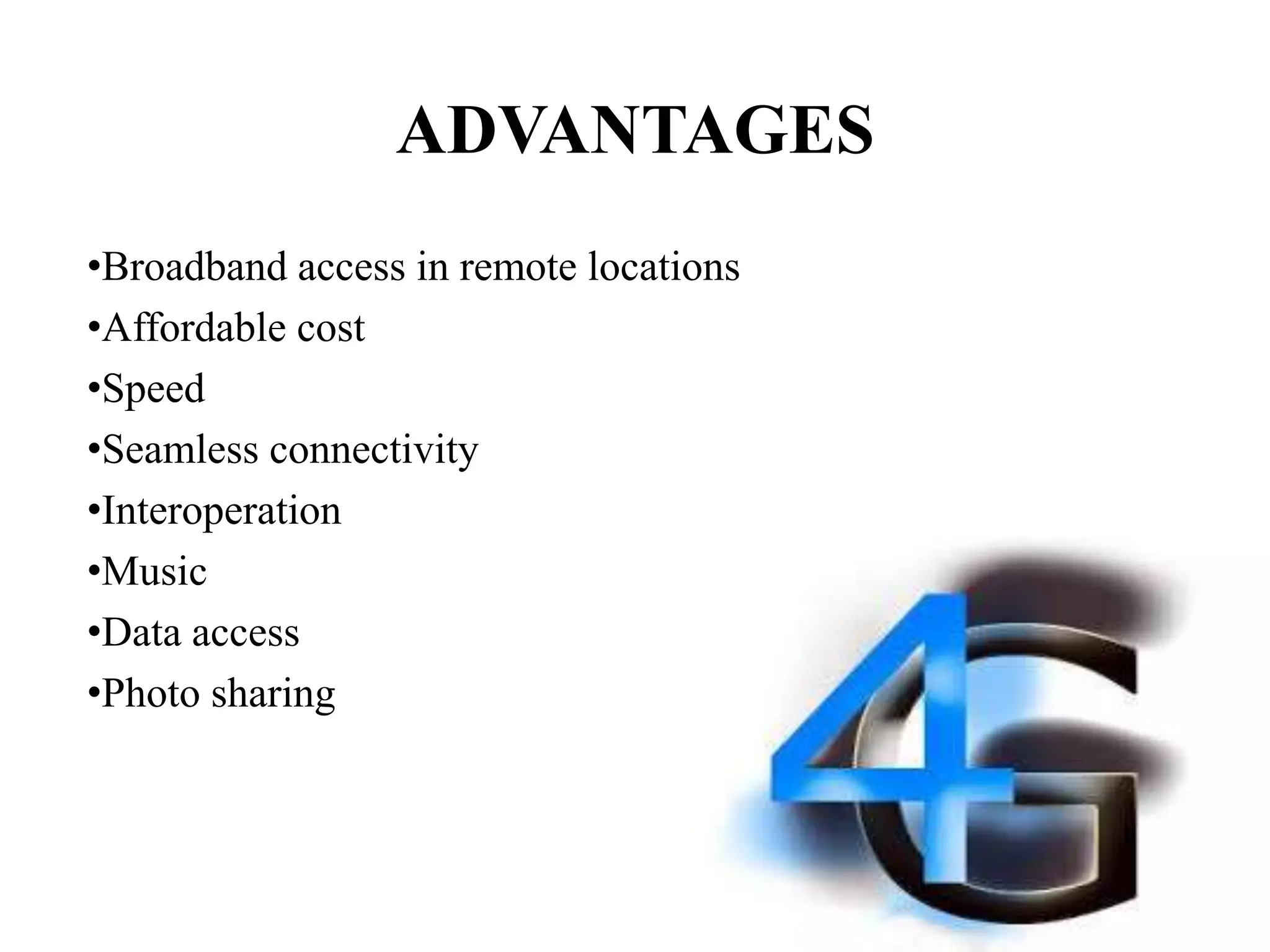

• Advantages

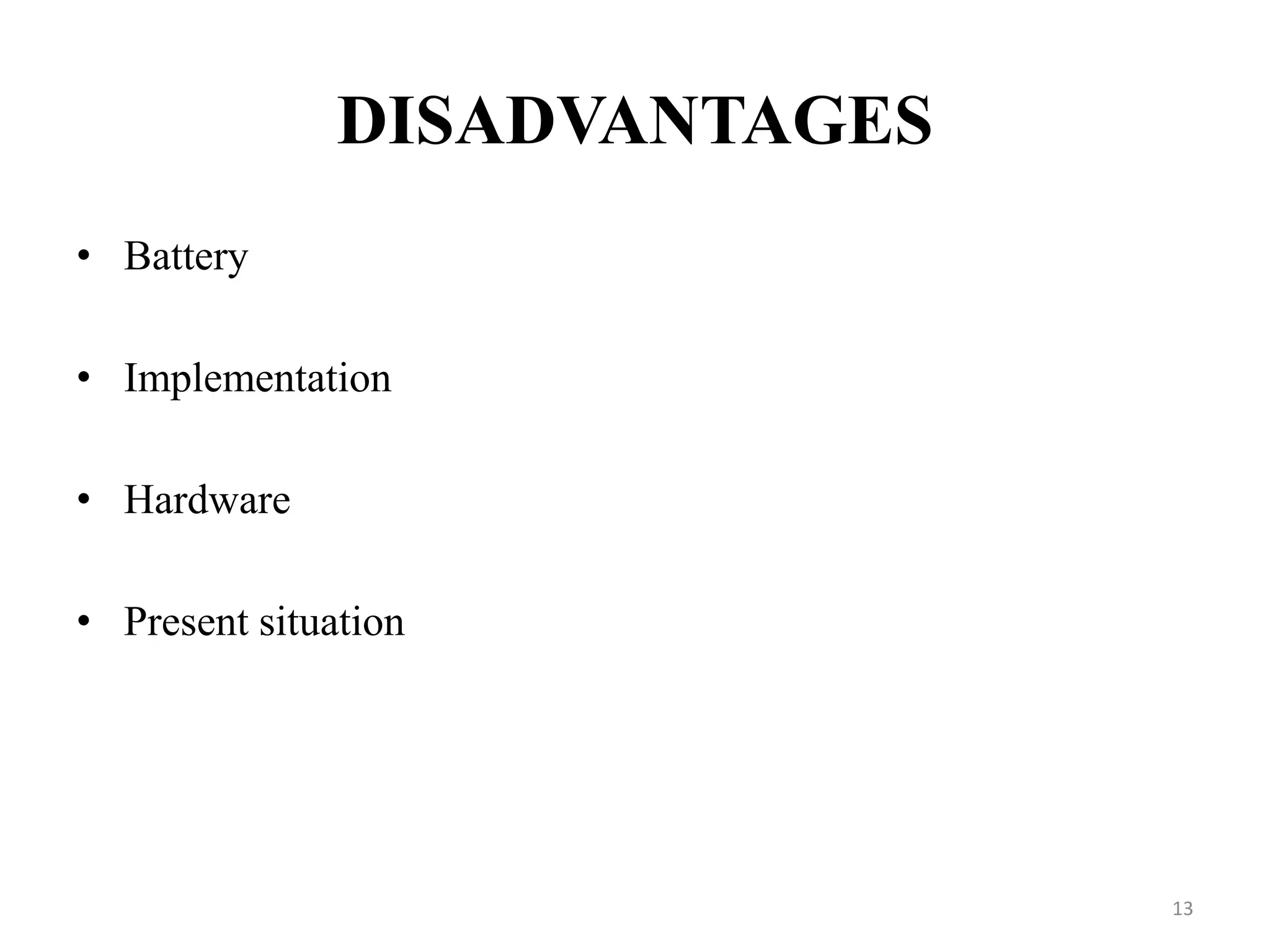

• Disadvantages
• Applications
2

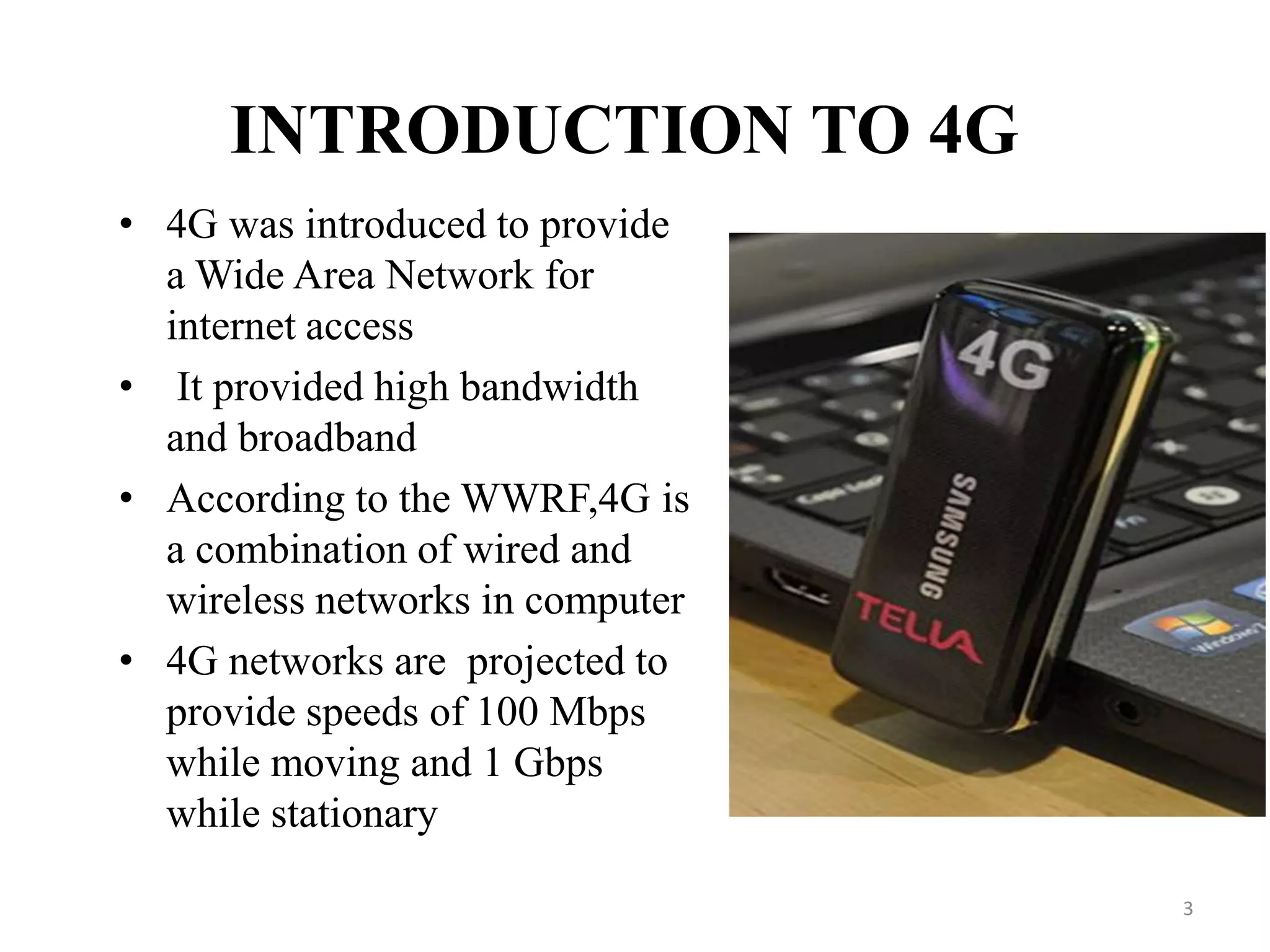

3. INTRODUCTION TO 4G
• 4G was introduced to provide
a Wide Area Network for
internet access
• It provided high bandwidth
and broadband
• According to the WWRF,4G is
a combination of wired and
wireless networks in computer
• 4G networks are projected to
provide speeds of 100 Mbps
while moving and 1 Gbps
while stationary
3

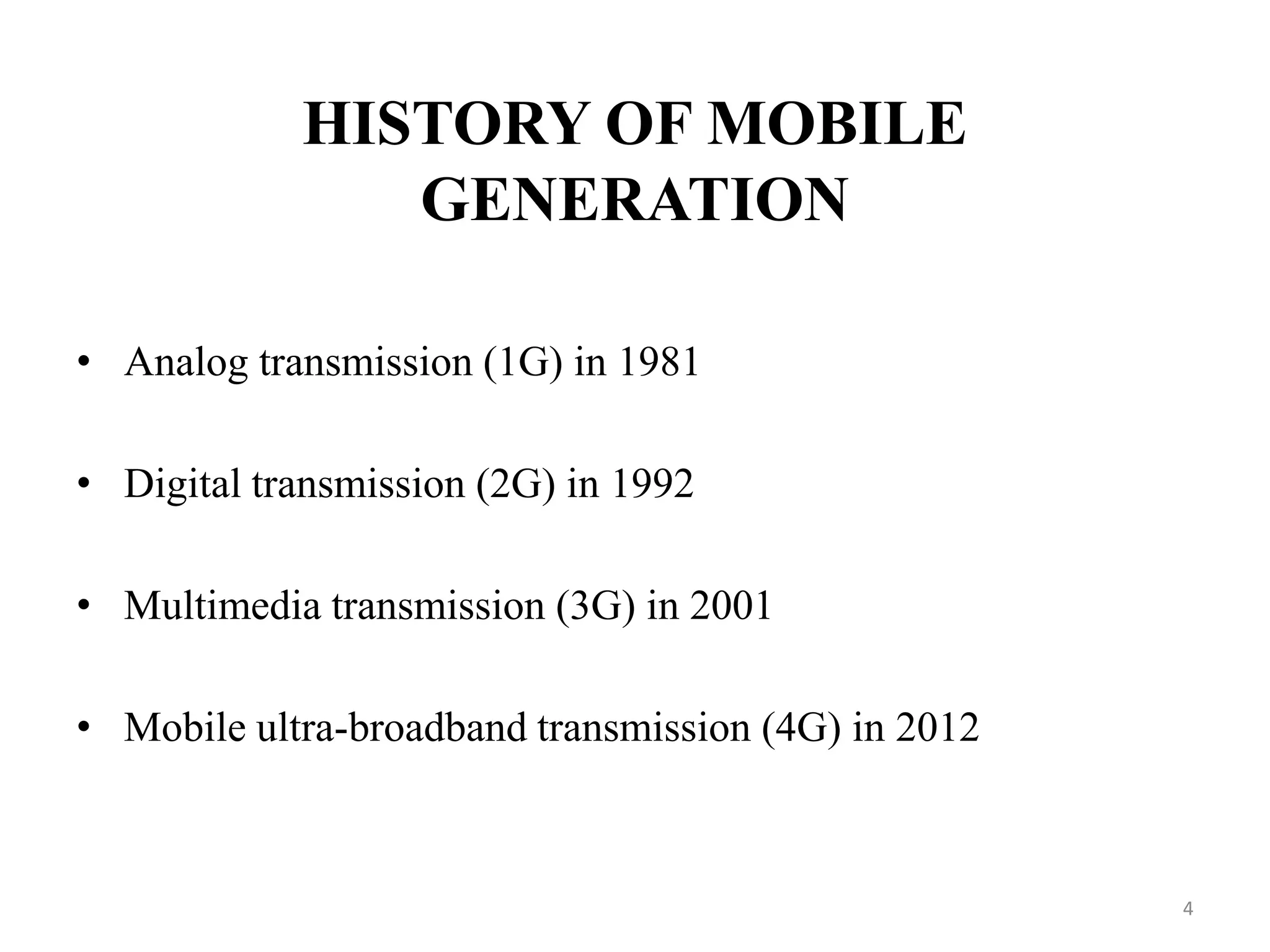

4. HISTORY OF MOBILE
GENERATION
• Analog transmission (1G) in 1981
• Digital transmission (2G) in 1992
• Multimedia transmission (3G) in 2001
• Mobile ultra-broadband transmission (4G) in 2012
4

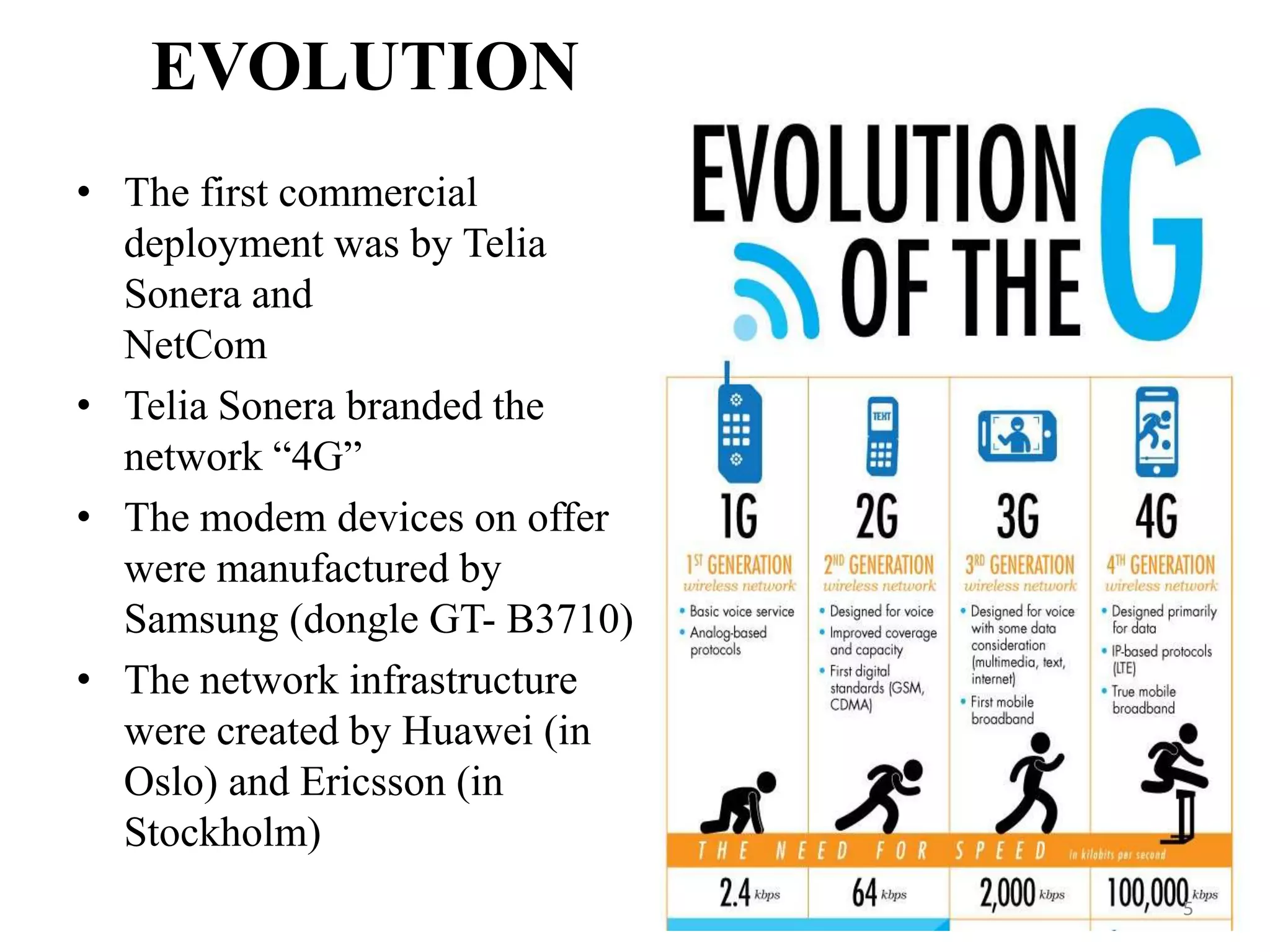

5. EVOLUTION
• The first commercial
deployment was by Telia
Sonera and
NetCom
• Telia Sonera branded the
network “4G”
• The modem devices on offer
were manufactured by
Samsung (dongle GT- B3710)
• The network infrastructure
were created by Huawei (in
Oslo) and Ericsson (in
Stockholm)
5

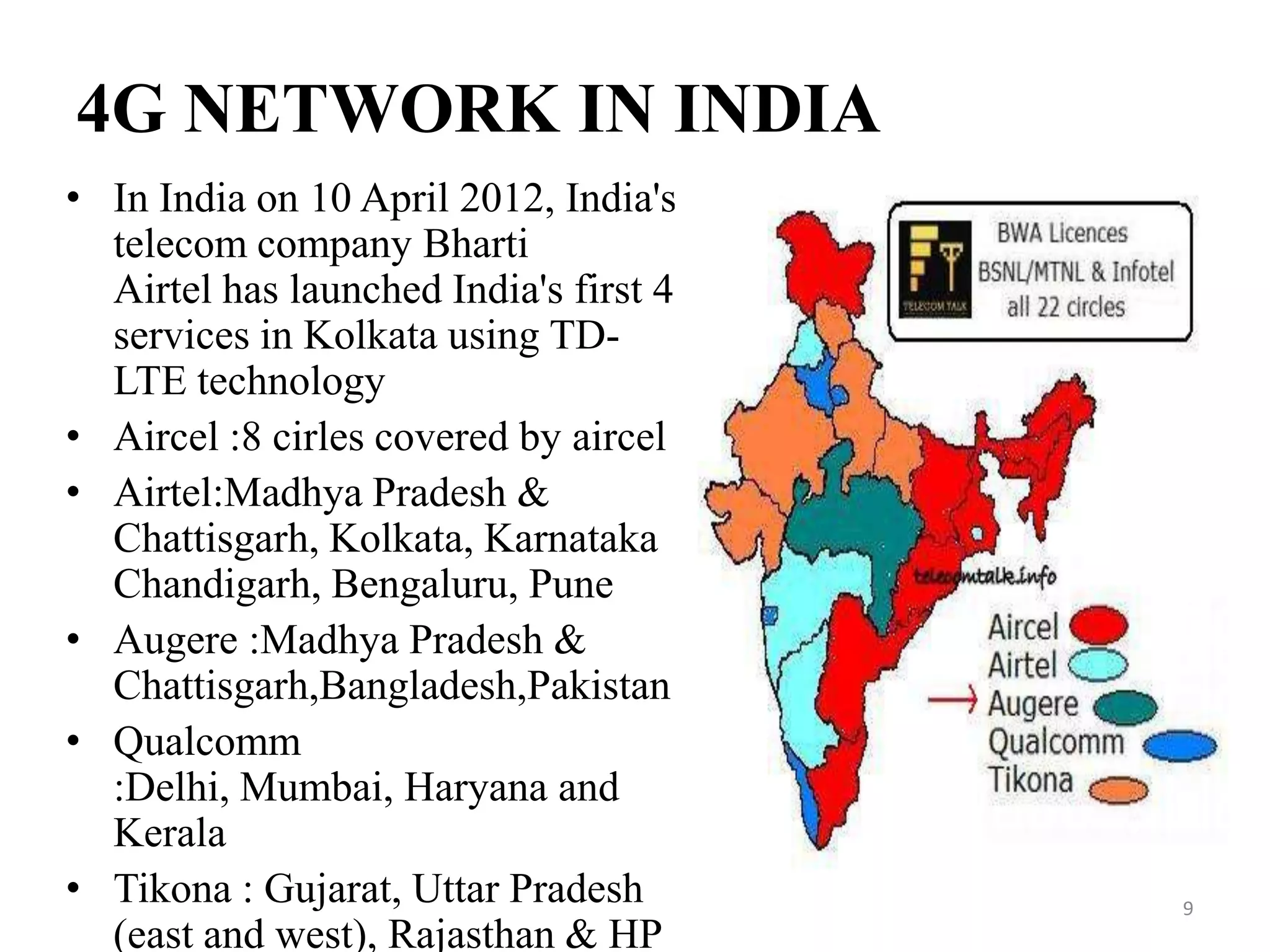

9. 4G NETWORK IN INDIA
• In India on 10 April 2012, India's
telecom company Bharti
Airtel has launched India's first 4g
services in Kolkata using TD-
LTE technology
• Aircel :8 cirles covered by aircel
• Airtel:Madhya Pradesh &
Chattisgarh, Kolkata, Karnataka
Chandigarh, Bengaluru, Pune
• Augere :Madhya Pradesh &
Chattisgarh,Bangladesh,Pakistan
• Qualcomm
:Delhi, Mumbai, Haryana and
Kerala
• Tikona : Gujarat, Uttar Pradesh
(east and west), Rajasthan & HP
9

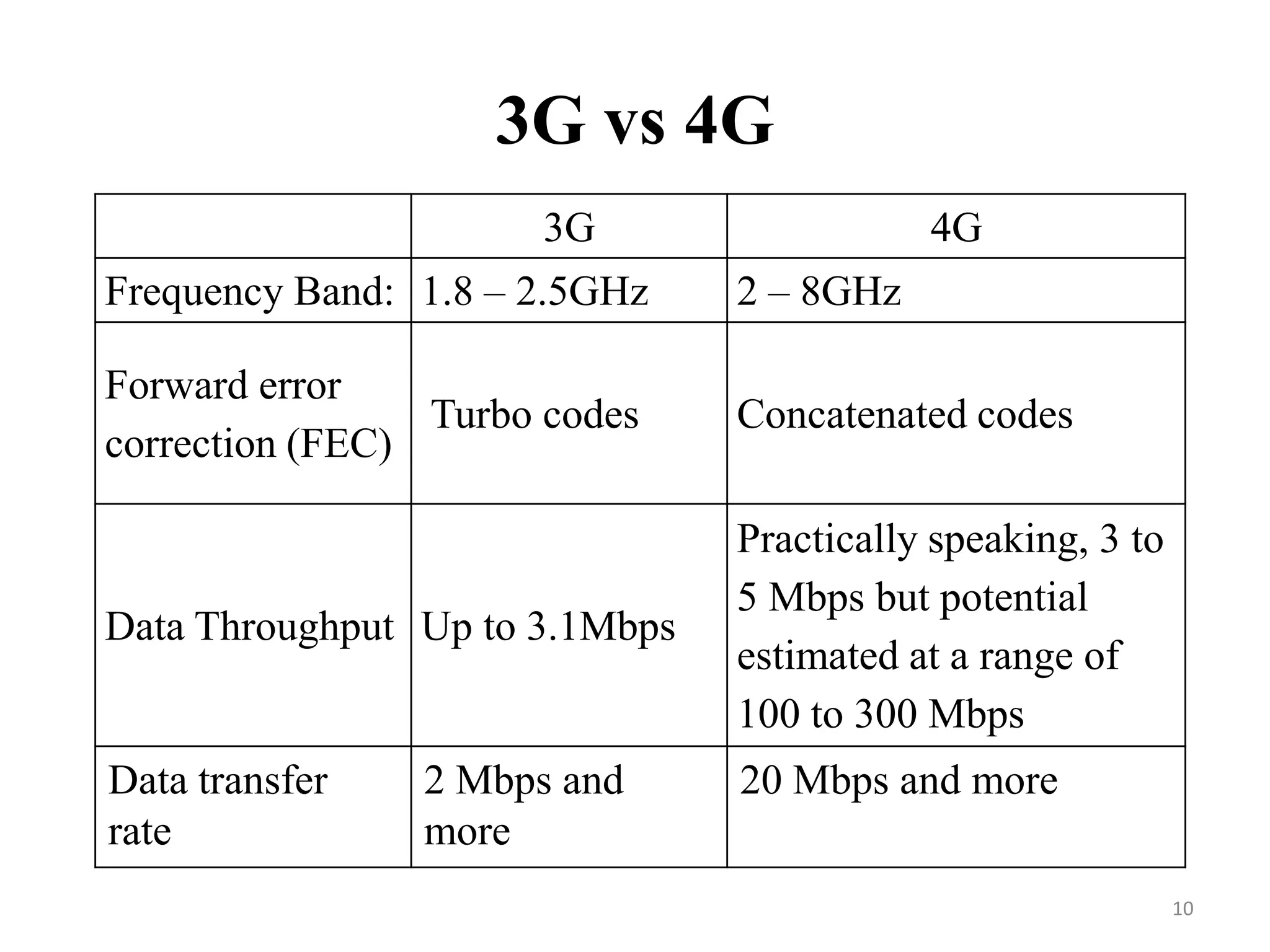

10. 3G vs 4G
3G 4G
Frequency Band: 1.8 – 2.5GHz 2 – 8GHz
Forward error
correction (FEC)
Turbo codes Concatenated codes
Data Throughput Up to 3.1Mbps
Practically speaking, 3 to
5 Mbps but potential
estimated at a range of
100 to 300 Mbps
Data transfer
rate
2 Mbps and
more
20 Mbps and more
10
11. 3G vs 4G
3G 4G
Peak download rate 1Gbps 100Gbps
Peak upload rate 50Mbps 500Mbps
Switching Circuit/Packet Packet
Access WCDMA/CDMA
2000
MC-CDMA or
OFDM
Component Design Optimized antenna,
Multi- band
adapters
Smart antennas,
Wideband radios
Services And
Applications
CDMA 2000,
UMTS etc
Wimax, LTE and
Wi-Fi
11

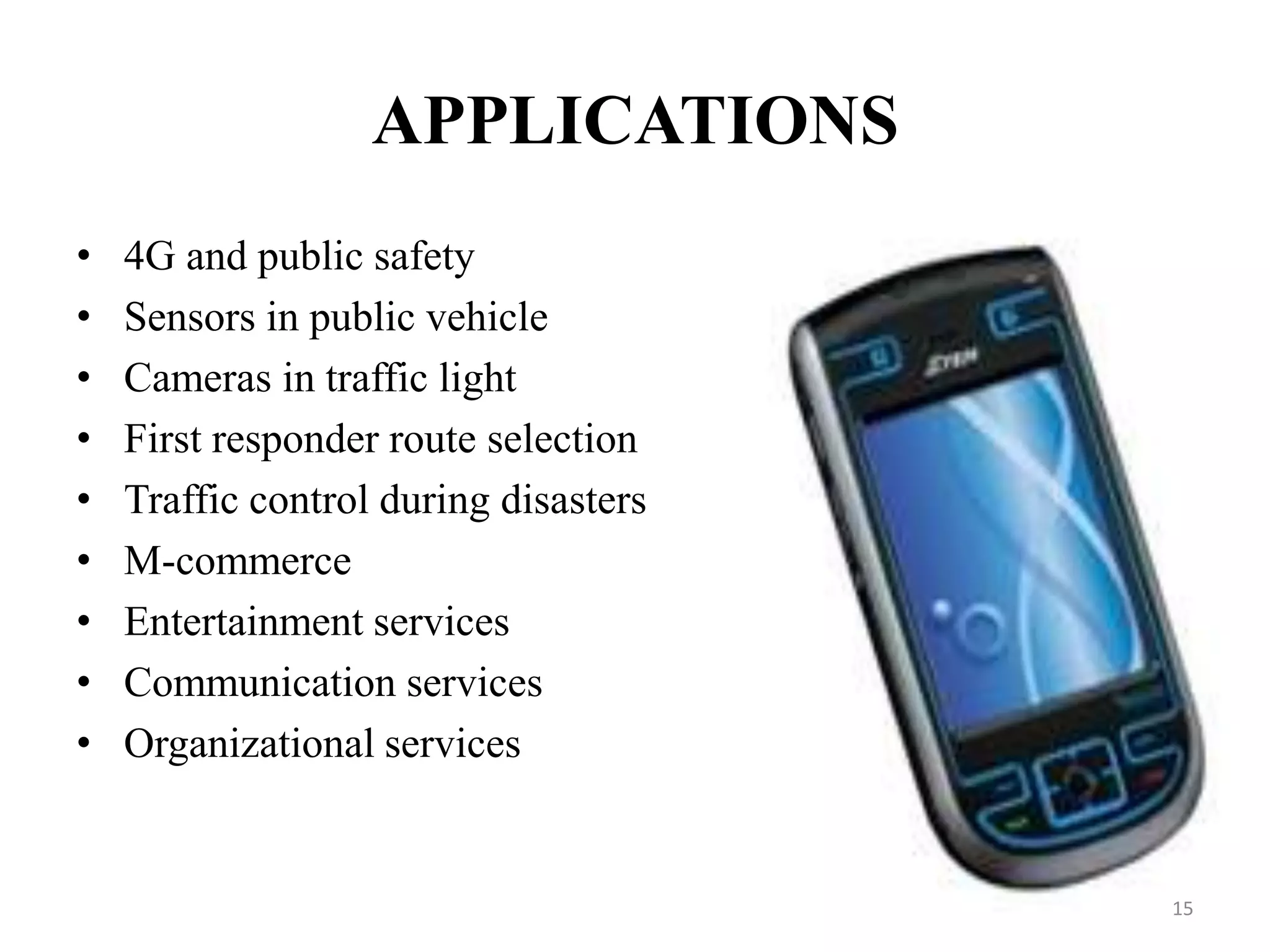

15. APPLICATIONS
• 4G and public safety
• Sensors in public vehicle
• Cameras in traffic light
• First responder route selection
• Traffic control during disasters
• M-commerce
• Entertainment services
• Communication services
• Organizational services
15
