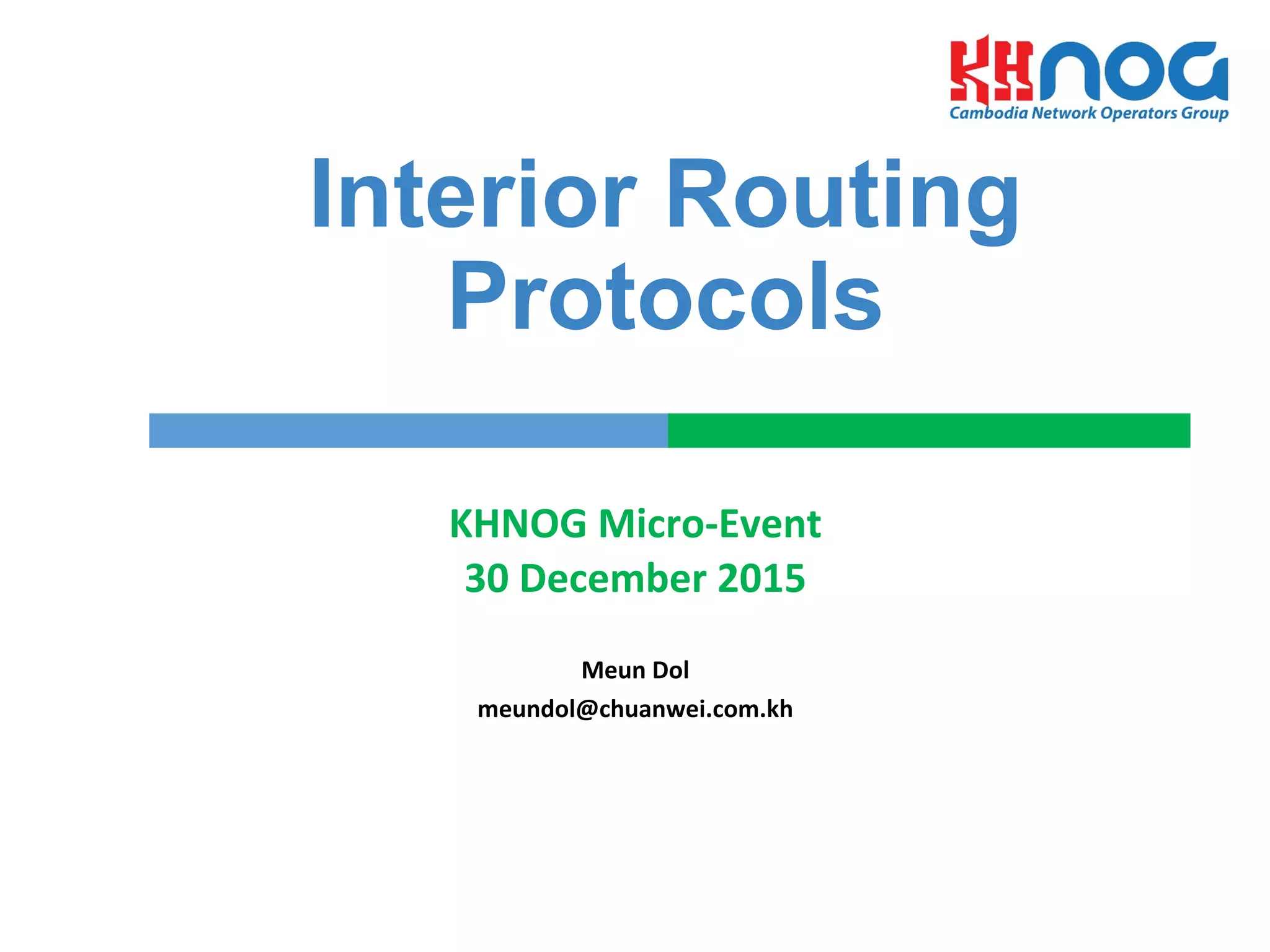

- 1. Interior Routing Protocols KHNOG Micro-‐Event 30 December 2015 Meun Dol meundol@chuanwei.com.kh

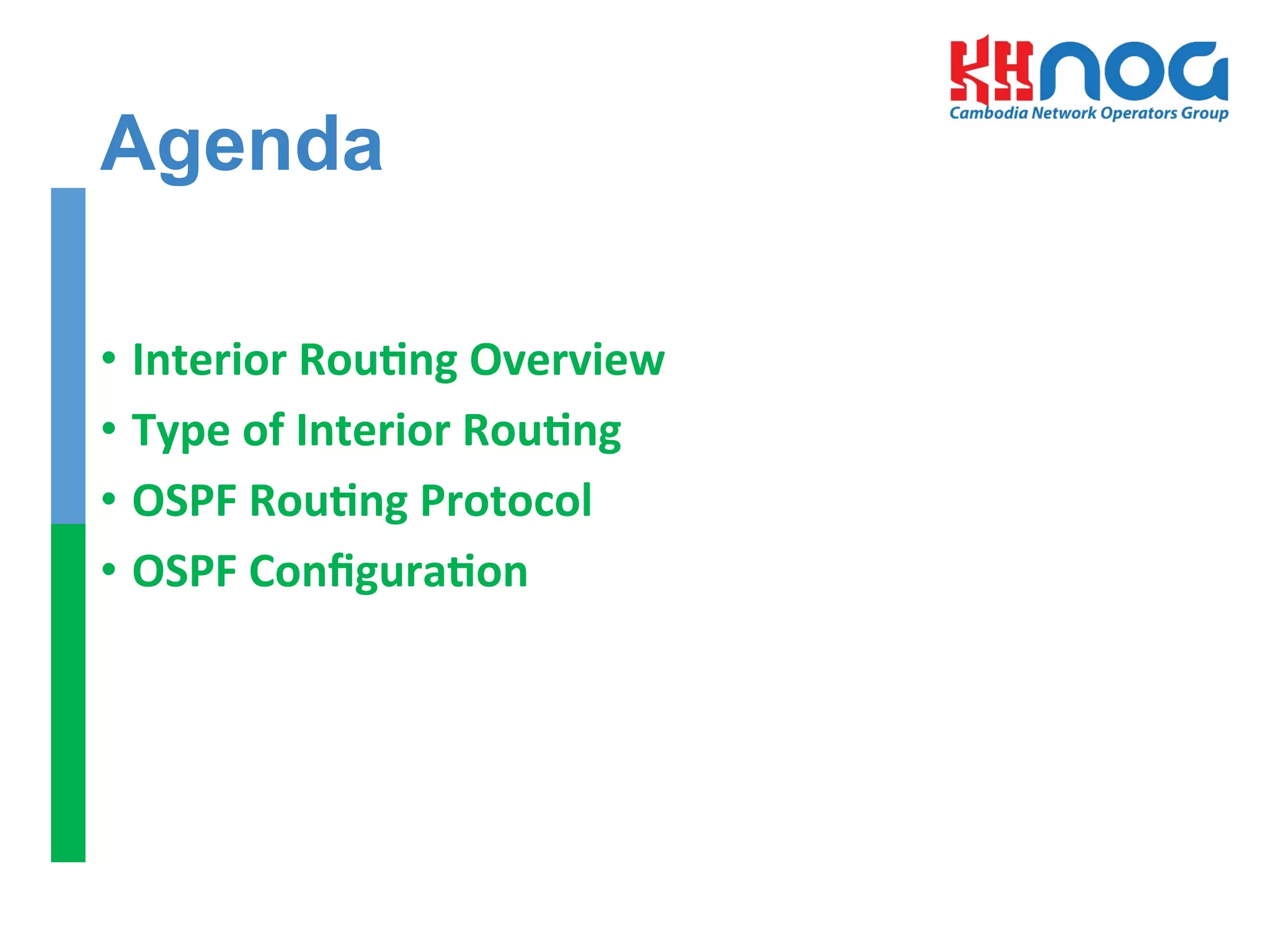

- 2. Agenda • Interior RouEng Overview • Type of Interior RouEng • OSPF RouEng Protocol • OSPF ConfiguraEon

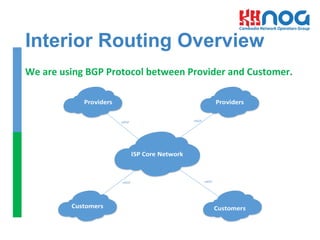

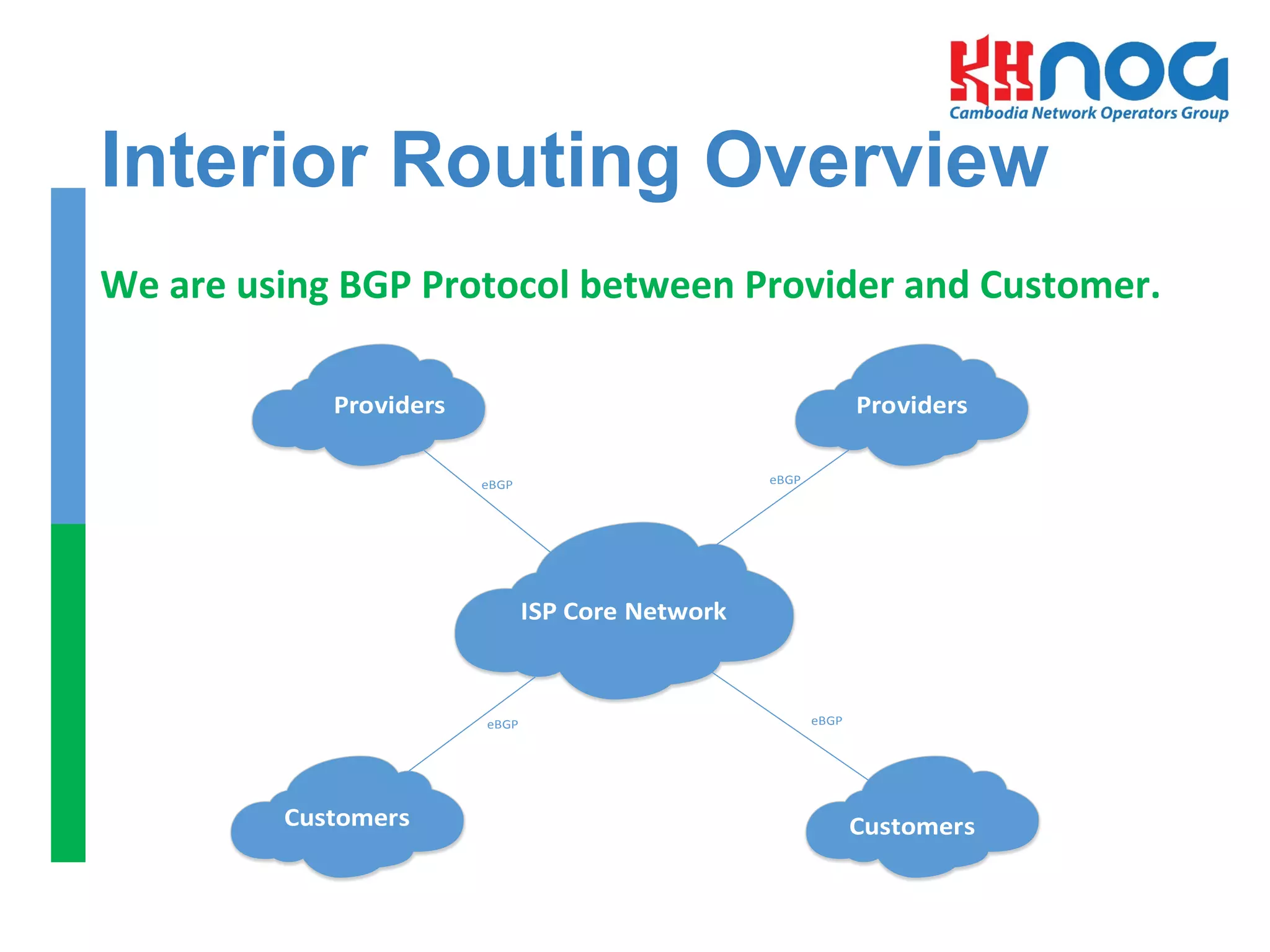

- 3. Interior Routing Overview We are using BGP Protocol between Provider and Customer. ISP Core Network Providers Providers Customers Customers eBGPeBGP eBGP eBGP

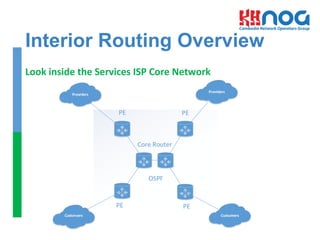

- 4. Interior Routing Overview Look inside the Services ISP Core Network Customers Customers Providers Providers Core Router PE PEPE PE OSPF

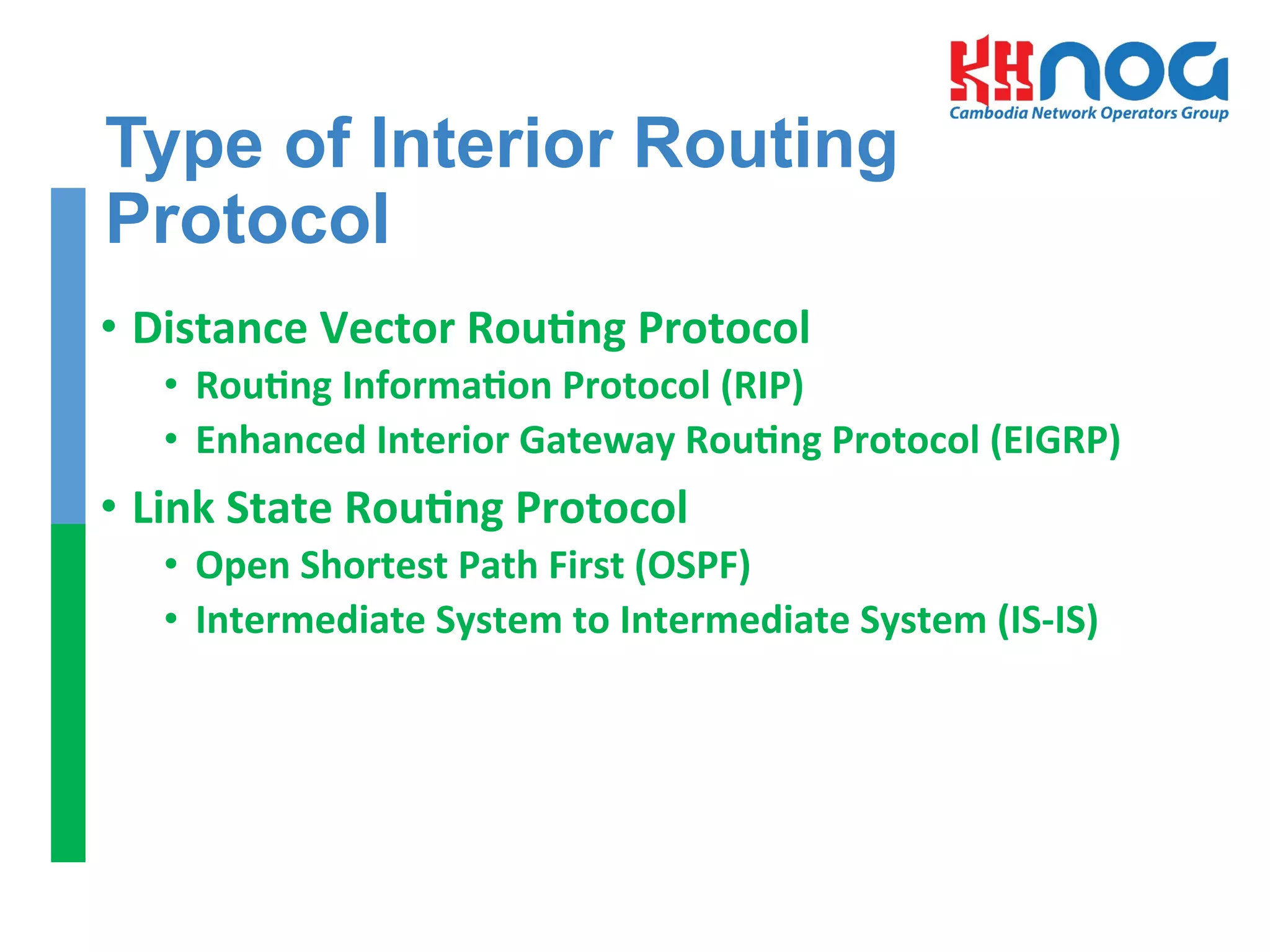

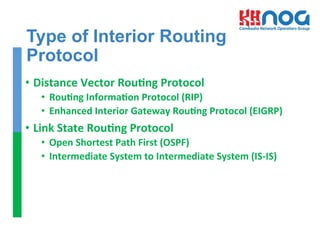

- 5. Type of InteriorRouting Protocol • Distance Vector RouEng Protocol • RouEng InformaEon Protocol (RIP) • Enhanced Interior Gateway RouEng Protocol (EIGRP) • Link State RouEng Protocol • Open Shortest Path First (OSPF) • Intermediate System to Intermediate System (IS-‐IS)

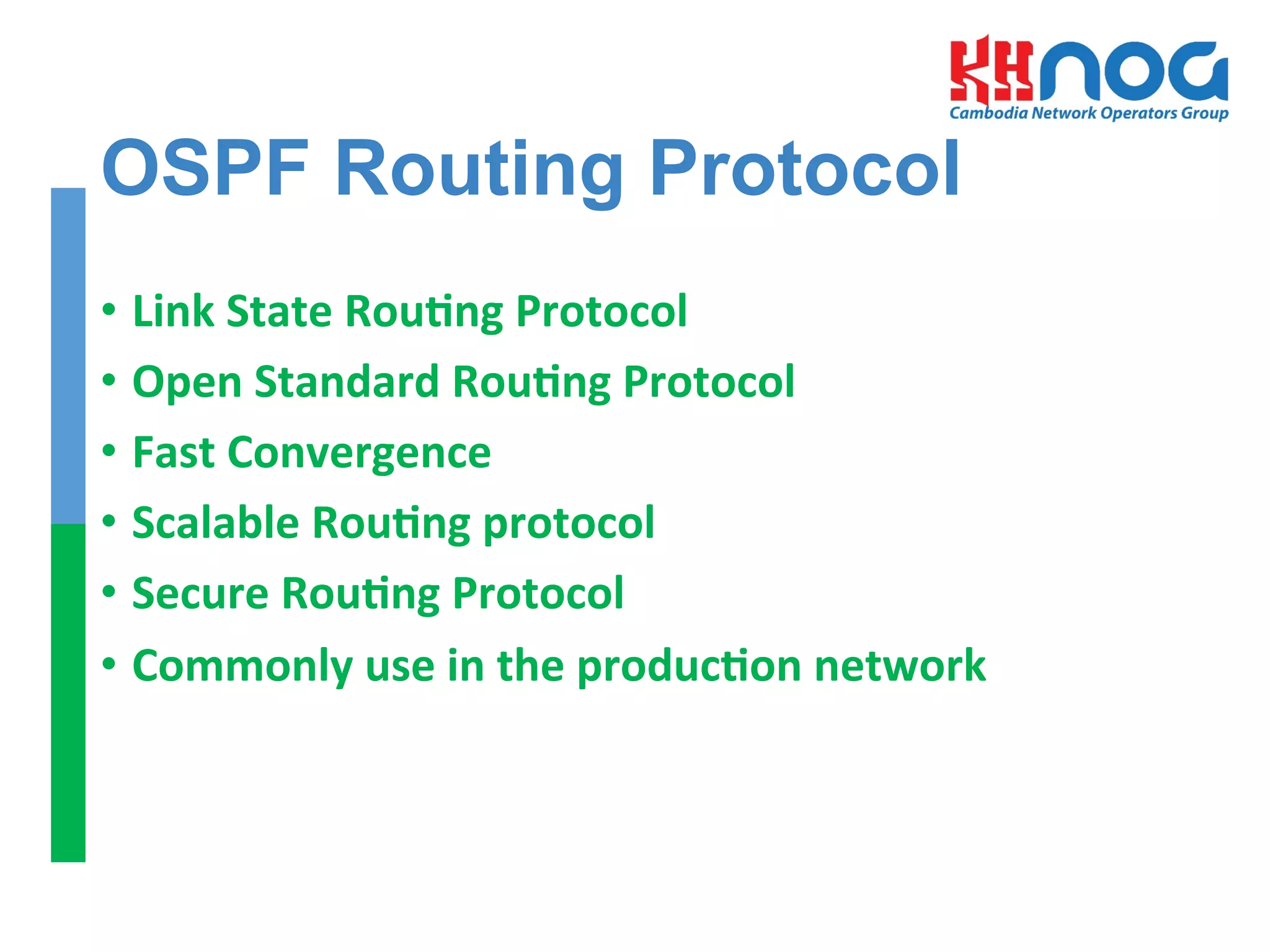

- 6. OSPF Routing Protocol • Link State RouEng Protocol • Open Standard RouEng Protocol • Fast Convergence • Scalable RouEng protocol • Secure RouEng Protocol • Commonly use in the producEon network

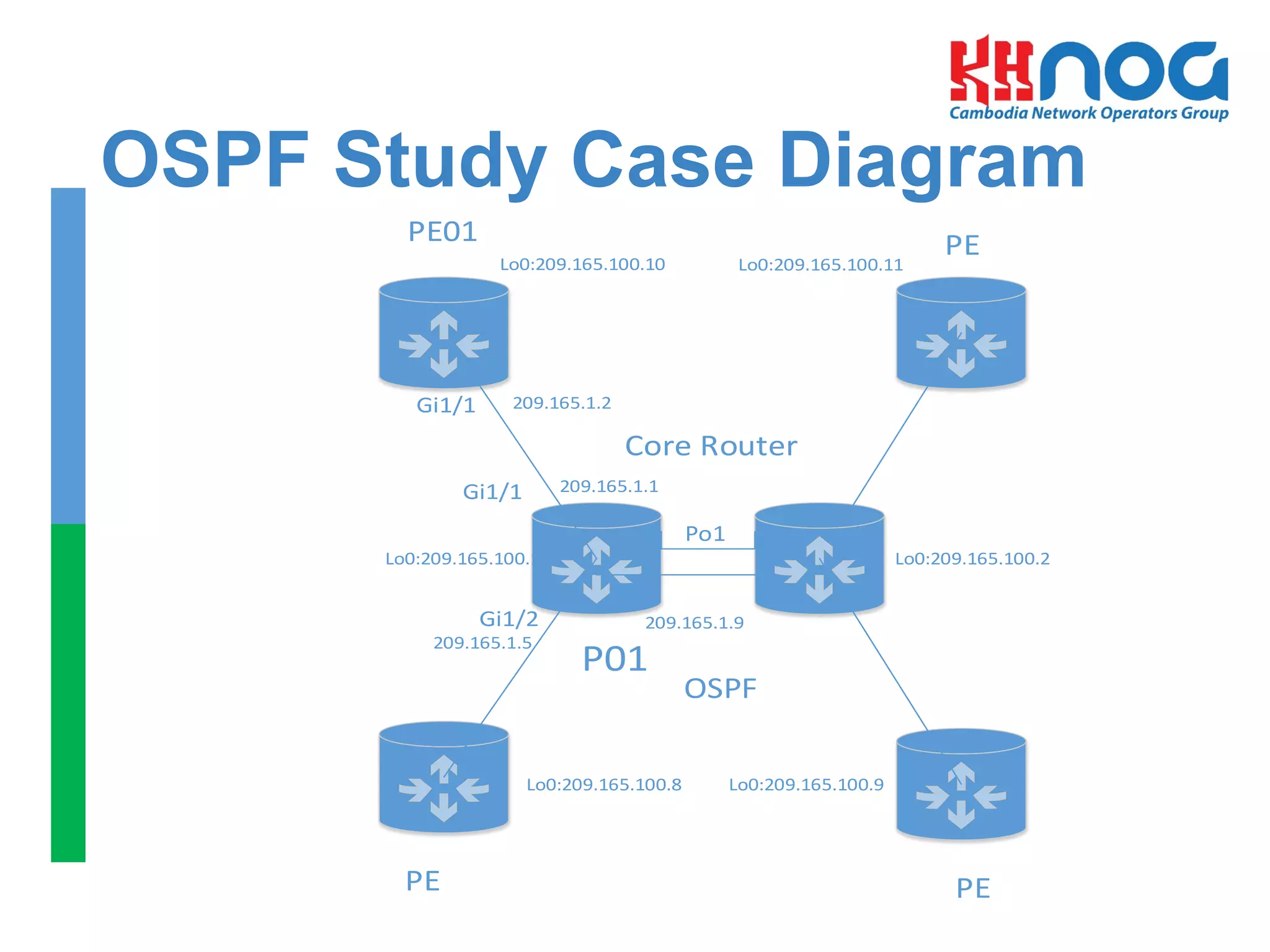

- 7. OSPF Study CaseDiagram Providers Core Router PE01 PEPE PE OSPF Gi1/1 Gi1/1 Gi1/2 Po1 P01 Lo0:209.165.100.10 Lo0:209.165.100.11 Lo0:209.165.100.1 Lo0:209.165.100.2 Lo0:209.165.100.8 Lo0:209.165.100.9 209.165.1.2 209.165.1.1 209.165.1.5 209.165.1.9

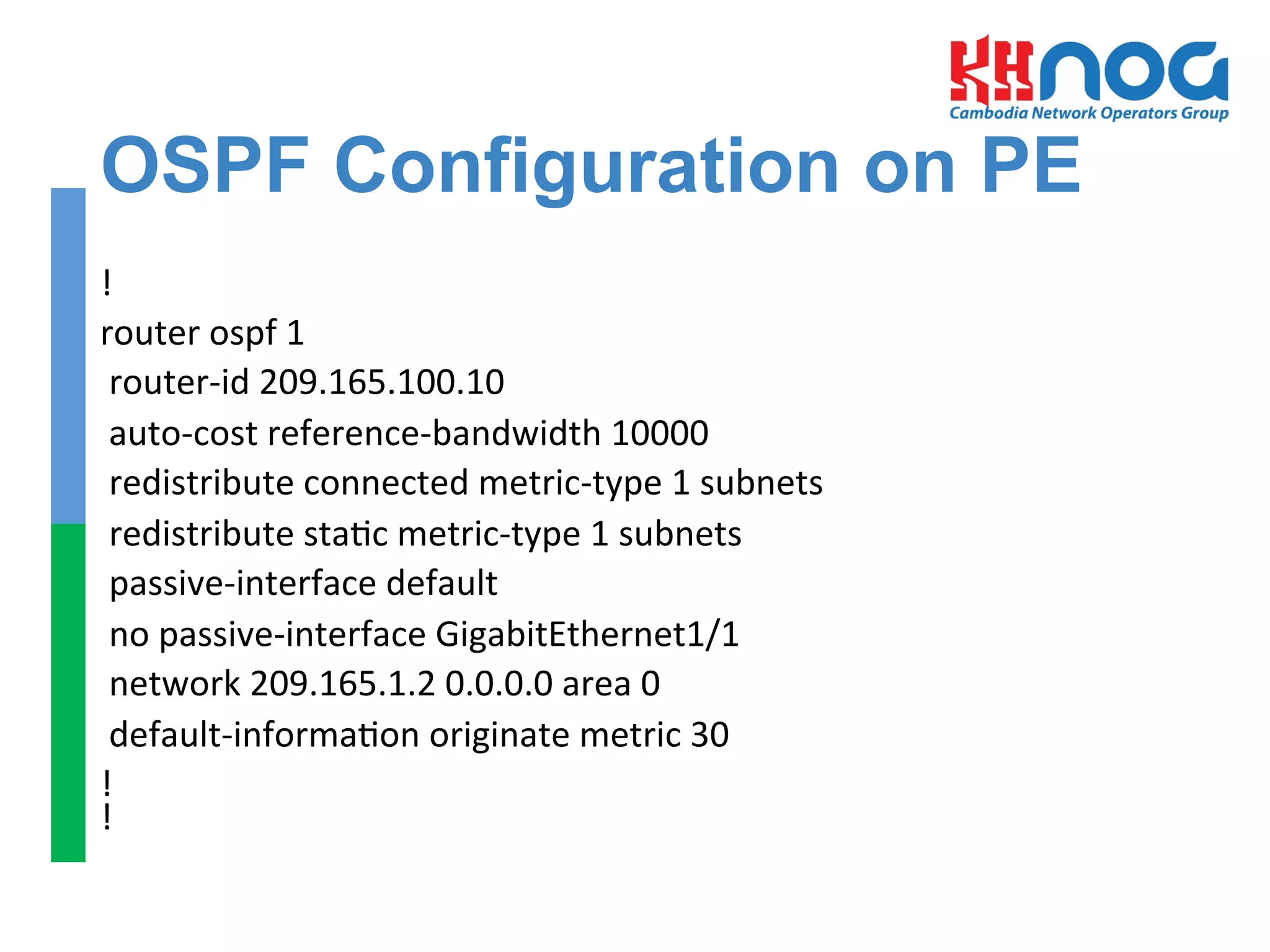

- 8. OSPF Configuration onPE ! router ospf 1 router-‐id 209.165.100.10 auto-‐cost reference-‐bandwidth 10000 redistribute connected metric-‐type 1 subnets redistribute sta=c metric-‐type 1 subnets passive-‐interface default no passive-‐interface GigabitEthernet1/1 network 209.165.1.2 0.0.0.0 area 0 default-‐informa=on originate metric 30 ! !

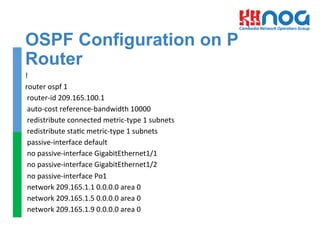

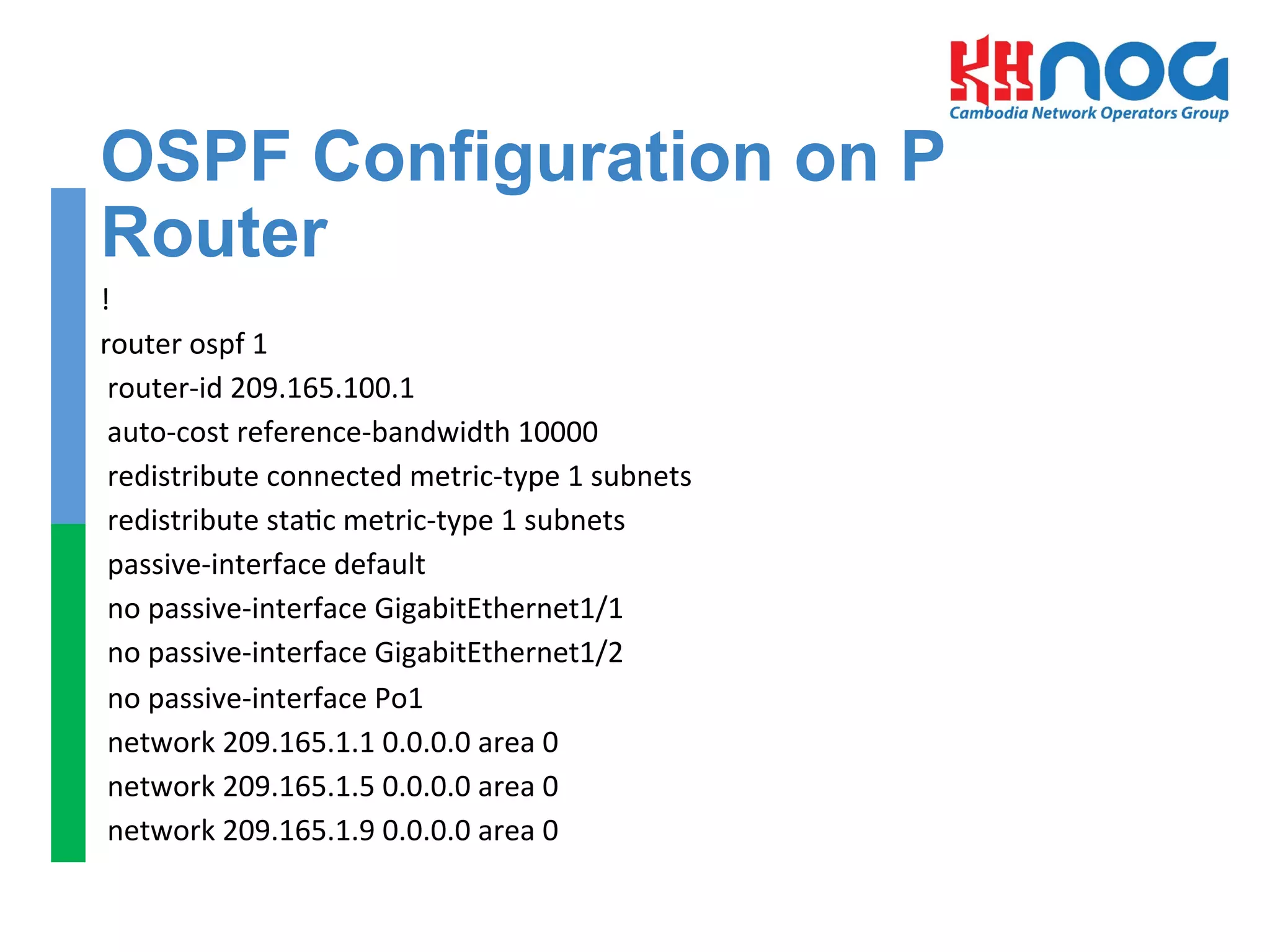

- 9. OSPF Configuration onP Router ! router ospf 1 router-‐id 209.165.100.1 auto-‐cost reference-‐bandwidth 10000 redistribute connected metric-‐type 1 subnets redistribute sta=c metric-‐type 1 subnets passive-‐interface default no passive-‐interface GigabitEthernet1/1 no passive-‐interface GigabitEthernet1/2 no passive-‐interface Po1 network 209.165.1.1 0.0.0.0 area 0 network 209.165.1.5 0.0.0.0 area 0 network 209.165.1.9 0.0.0.0 area 0
