1. SIP (Session initiation protocol)
RFC 3261 https://www.ietf.org/rfc/rfc3261.txt
Alexey KOVRIZHNYKH

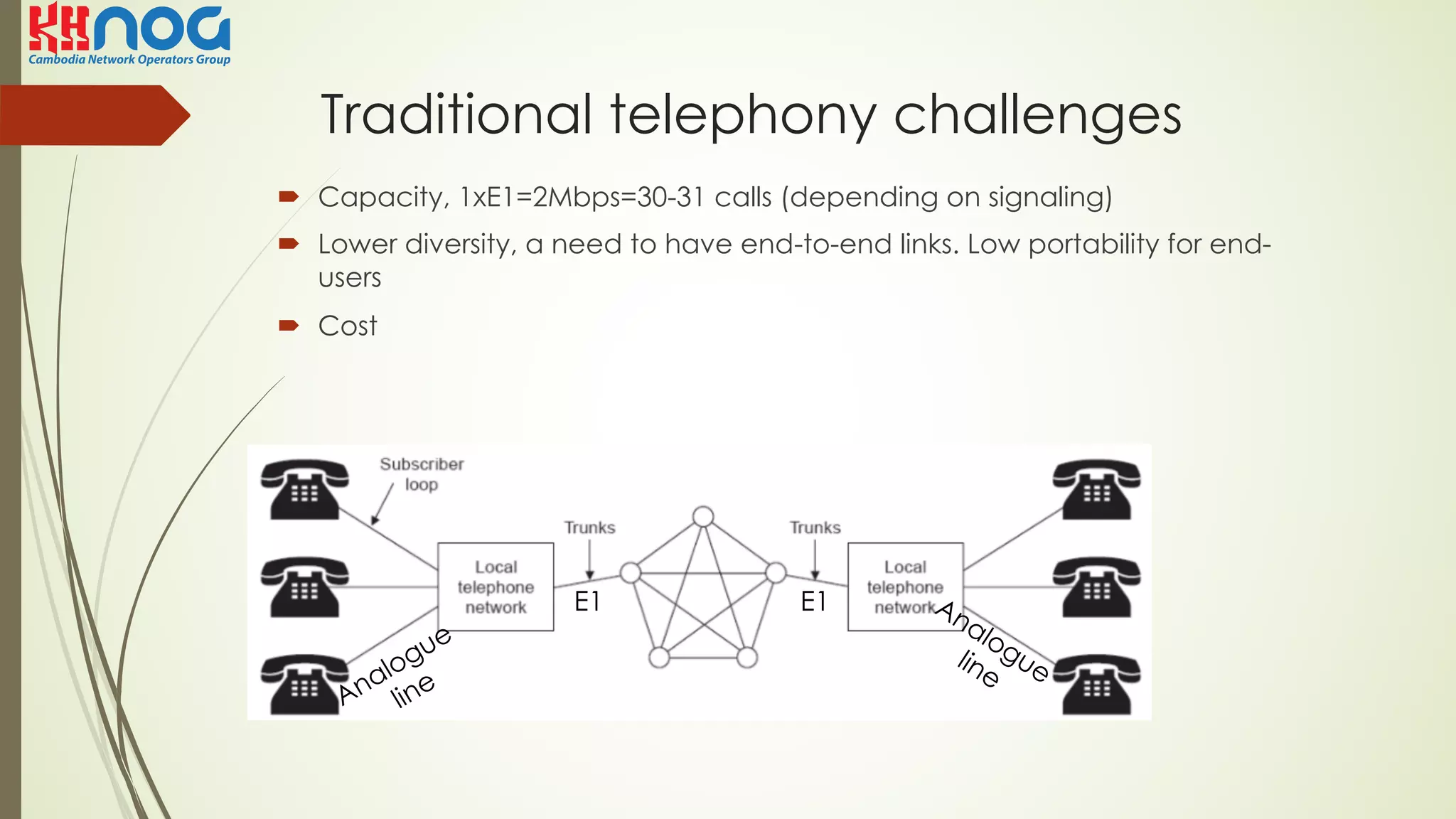

2. Traditional telephony challenges
´ Capacity, 1xE1=2Mbps=30-31 calls (depending on signaling)
´ Lower diversity, a need to have end-to-end links. Low portability for end-
users
´ Cost
E1 E1

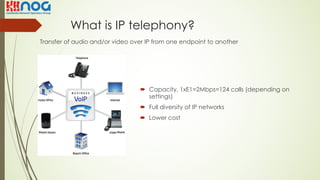

3. What is IP telephony?
Transfer of audio and/or video over IP from one endpoint to another
´ Capacity, 1xE1=2Mbps=124 calls (depending on
settings)
´ Full diversity of IP networks
´ Lower cost

4. SIP architecture
´ SIP signaling
´ RTP (real-time transport protocol) – transports the voice and video over IP
networks.
´ RTCP (real-time control protocol) – monitors transmission statistics and
quality of service (QoS). Uses ~5% of RTP
´ SDP (session description protocol) – negotiates technical data for RTP

5. SIP (session initiation protocol)
´ By default uses UDP port 5060
´ Carries signaling messages
´ Register
´ Invite
´ Trying (100)
´ Ok (200)
´ Ack
´ Ringing (180)
´ Session progress (183)
´ Bye
´ Etc

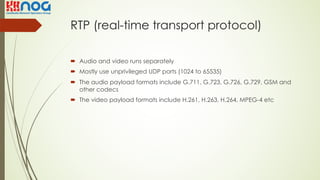

6. RTP (real-time transport protocol)
´ Audio and video runs separately
´ Mostly use unprivileged UDP ports (1024 to 65535)
´ The audio payload formats include G.711, G.723, G.726, G.729, GSM and
other codecs
´ The video payload formats include H.261, H.263, H.264, MPEG-4 etc

7. SDP (session description protocol)
It’s a protocol that describes the media of a session.
Session description
v= (protocol version number, currently only 0)
o= (originator and session identifier : username, id, version number, network address)
s= (session name : mandatory with at least one UTF-8-encoded character)
c=* (connection information—not required if included in all media)
b=* (zero or more bandwidth information lines)
Media description (if present)
m= (media name and transport address, and set of codecs)
i=* (media title or information field)
c=* (connection information — optional if included at session level)
b=* (zero or more bandwidth information lines)
k=* (encryption key)
a=* (zero or more media attribute lines — overriding the Session attribute lines, with codec and sampling rate)
[Request]
v=0
o=Makara 2890844526 2890844526 IN IP4 10.120.42.3
s= KHNOG
c=IN IP4 10.120.42.3
m=audio 49170 RTP/AVP 0 8 97 (Real-time protocol, Audio-video profile)
a=rtpmap:0 PCMU/8000
a=rtpmap:8 PCMA/8000
a=rtpmap:97 iLBC/8000
m=video 51372 RTP/AVP 31 32
a=rtpmap:31 H261/90000
a=rtpmap:32 MPV/90000
[Answer]
v=0
o=Vibol 2808844564 2808844564 IN IP4 10.120.32.12
s=KHNOG
c=IN IP4 10.120.32.12
m=audio 49174 RTP/AVP 0
a=rtpmap:0 PCMU/8000
m=video 49170 RTP/AVP 32
a=rtpmap:32 MPV/90000

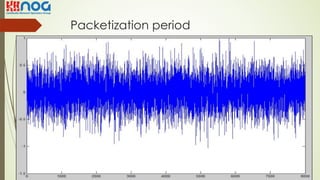

8. Packetization period

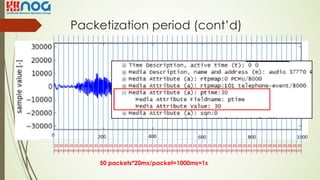

9. Packetization period (cont’d)
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
20
ms
50 packets*20ms/packet=1000ms=1s

10. Voice codecs
IP overhead=Eth(14)+IP(20)+UDP(8)+RTP(12) = 54 bytes
ETH=src_mac(6)+dst_mac(6)+ether_type(2)=14 bytes
Codec G.711(PCM) G.711(PCM) G.729r8 G.729r8 G.711(PCM) G.729r8
Codec bw, Kbit/s 64 64 8 8 64 8
Codec bw, bit/s 64000 64000 8000 8000 64000 8000
Codec bw, bytes/s 8000 8000 1000 1000 8000 1000
Packetization, ms 20 30 20 40 20 500
PPS (packet per second) 50 33 50 25 2 2
Packet size, bytes 160 240 20 40 4000 500
IP overhead, bytes 54 54 54 54 54 54
Total IP packet size, bytes 214 294 74 94 4054 554
Bandwith on the line, Kbps 85.6 78.4 29.6 18.8 64.864 8.864
Calls fitting into 1xE1 (2048Kbps) 24 26 69 109 32 231
PCM=Pulse code modulation,
coming from traditional phone
system

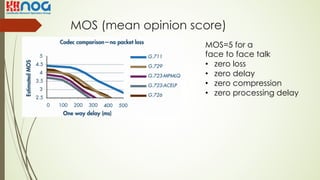

11. MOS (mean opinion score)
MOS=5 for a
face to face talk
• zero loss
• zero delay
• zero compression
• zero processing delay

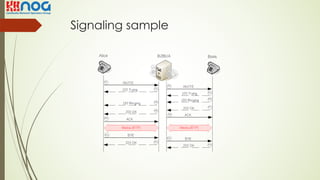

12. Signaling sample

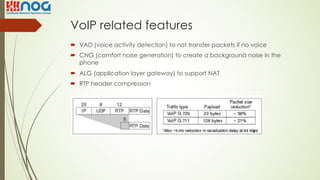

13. VoIP related features
´ VAD (voice activity detection) to not transfer packets if no voice
´ CNG (comfort noise generation) to create a background noise in the
phone
´ ALG (application layer gateway) to support NAT
´ RTP header compression

14. Sample call

15. Sample call
#111
10.0.111.2/30
#222
10.0.222.2/30
Wireshark sniffer
SPAN
port
Console
10.0.111.1/30 10.0.222.1/30
Signaling, SIP+SDP,
UDP 5060
Voice, RTP
UDP random port
